Towards High Performance Big Data Processing

by Making Use of Non-volatile Memory

Shuichi Oikawa

University of Tsukuba, 1-1-1 Tennodai, Tsukuba, Ibaraki, Japan

Keywords:

Non-volatile Memory, Operating Systems, Storage, Big Data Processing.

Abstract:

Cloud computing environments for big data processing require high performance storage. There are emerg-

ing high performance memory storage technologies, such as next generation non-volatile (NV) memory and

battery backed NV-DIMM. While their performance is much higher than the current block storage devices,

such as SSDs and HDDs, they provides only limited capacity. Such limited capacity makes it difﬁcult for

memory storage to be adapted as mass storage, and their uses in cloud computing environments have been

severely limited. This paper proposes a method that combines memory storage with block storage. It makes

use of memory storage as cache of block storage in order to remove the capacity limitation of memory storage.

The proposed method inherits the high performance of memory storage and also the large capacity of block

storage. Therefore, memory storage can be transparently used as a part of mass storage while its low over-

head access can accelerate storage performance. The proposed method was implemented as a device driver of

the Linux kernel. Its performance evaluation shows that it outperforms a bare SSD drive and achieves better

performance on the Hadoop and database environments.

1 INTRODUCTION

The importance of big data processing increases more

than ever before, and it is convincing that its impor-

tance will continue increasing in the future as well.

Cloud computing environments are currently the only

solution that can provide the scalability required by

big data processing since they can scale out their

storage capacity along with necessary computing re-

sources. There is no doubt that cloud computing en-

vironments for big data processing require high per-

formance storage; thus, SSDs were quickly adapted in

such environments, and they are sometimes combined

with HDDs to transparently enhance the performance

and capacity of storage.

Now, high performance memory storage technolo-

gies, such as next generation non-volatile (NV) mem-

ory and battery backed NV-DIMM, are emerging.

These new kinds of storage provide both high per-

formance and persistency, and they are byte address-

able. Since their byte addressability enables them to

be accessed as memory, we call them memory stor-

age. While they provide much higher performance

than the current block storage devices, such as SSDs

and HDDs, their capacities are limited. Such capac-

ity limitation makes it difﬁcult for memory storage to

be adapted as mass storage, and their uses in cloud

computing environments have been severely limited.

This paper proposes a method that combines

memory storage with block storage. It makes use of

memory storage as cache of block storage in order

to remove the capacity limitation of memory storage.

Combining block storage with another faster block

storage, which is typically an SSD, for higher ac-

cess performance is a well known technique (Kgil and

Mudge, 2006; Koller et al., 2013; Saxena et al., 2012).

The technique utilizes faster block storage as cache

and stores frequently accessed data in it in order to im-

prove the average time to access data. Its open source

implementation is widely available (Facebook, 2014).

The existing technique employs a software layer that

combines two block storage devices. Since it is possi-

ble for memory storage to emulate block storage and

to use the software layer for combining block storage

devices, the emulation sacriﬁces its performance ad-

vantage for the compatibility with the block storage

interface.

The proposed method directly manages memory

storage in order to make use of its high performance

and byte addressability. The byte addressability of

memory storage enables its direct management with-

out a device driver; thus, the memory storage man-

529

Oikawa S..

Towards High Performance Big Data Processing by Making Use of Non-volatile Memory.

DOI: 10.5220/0005463605290534

In Proceedings of the 5th International Conference on Cloud Computing and Services Science (CLOSER-2015), pages 529-534

ISBN: 978-989-758-104-5

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

agement can be integrated in a device driver that com-

bines memory storage with block storage without an

additional software layer as required by the existing

method. It can effectively utilize the high perfor-

mance of memory storage and also provides the large

capacity of block storage. Therefore, memory storage

can be transparently used as a part of mass storage

while its low overhead access can accelerate storage

performance.

The proposed method was implemented as a de-

vice driver of the Linux kernel, and its performance

evaluation was performed by measuring the ﬁle ac-

cess performance on the Hadoop distributed process-

ing environment and also a typical benchmark perfor-

mance on the MySQL database environment. Hadoop

and MySQL were employed for the measurements in

order to evaluate the effectiveness of the proposed

method in realistic environments. The measurements

were performed on a virtualized environment. The

evaluation results show that the proposed method con-

siderably outperforms a bare SSD drive and achieves

better performance on the Hadoop and database envi-

ronments.

The rest of this paper is organized as follows. Sec-

tion 2 describes the background of the work. Section

3 describes the detailed design and implementation of

the proposed method. Section 4 shows the result of

the experiments. Section 5 describes the related work.

Section 6 summarizes the paper.

2 BACKGROUND

This section describes the background of this work,

which includes the overview of the block device

driver layer of the operating system (OS) kernel and

the existing method to combine block storage devices.

2.1 Block Device Driver Layer

The current storage devices, such as SSDs and HDDs,

are block devices, and they are not byte addressable;

thus, CPUs cannot directly access the data on these

devices. A certain size of data, which is typically mul-

tiples of 512 byte, needs to be transferred between

memory and a block device for CPUs to access the

data on the device. Such a unit to transfer data is

called a block.

The OS kernel employs a ﬁle system to store data

in a block device. A ﬁle system is constructed on a

block device, and ﬁles are stored in it. In order to read

the data in a ﬁle, the data ﬁrst needs to be read from

a block device to memory. If the data on memory

was modiﬁed, it is written back to a block device. A

processing*syscall

switching*

process

interrupt*handling*

&*switching*process

CPU

Block*Device

Issuing*

Command

No>fying*command*

comple>on*by*interrupt*

Proc*1

Proc*2

Proc*1

command*processing

Tproc2



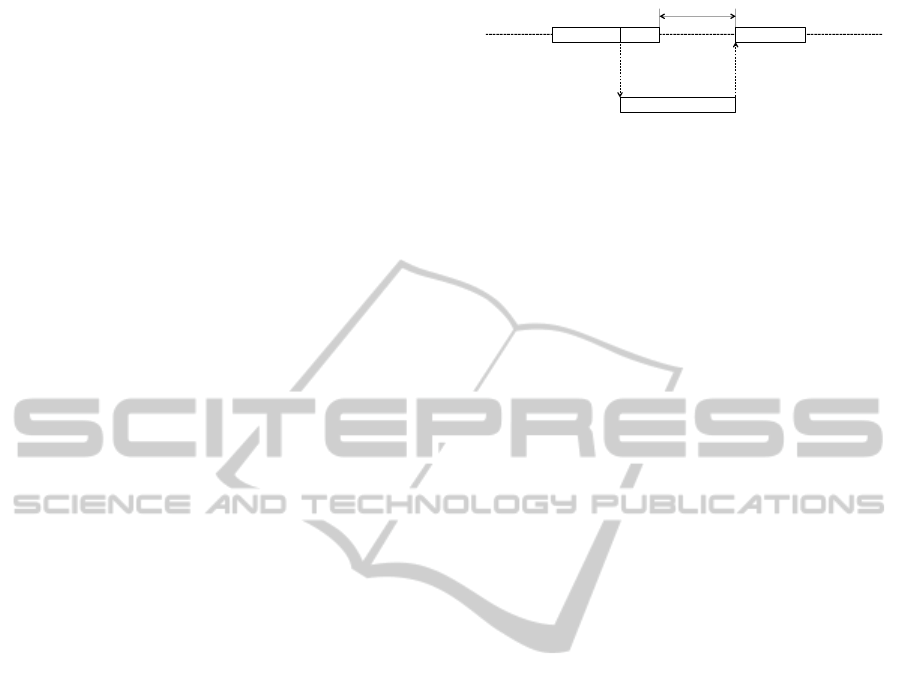

Figure 1: The asynchronous access command processing

and process context switches.

memory region used to store the data of a block device

is called a page cache. Therefore, CPUs access a page

cache on behalf of a block device.

Since HDDs are orders of magnitude slower than

memory to access data on them, various techniques

were devised to amortize the slow access time. The

asynchronous access command processing is one of

commonly used techniques. Its basic idea is that a

CPU executes another process while a device pro-

cesses a command. Figure 1 depicts how it works.

Process 1 issues a system call to access data on a

block device. The kernel processes the system call

and issues an access command to the corresponding

device. The kernel then looks for the next process to

execute and perform context switching to Process 2.

Meanwhile, the device processes the command, and

sends an interrupt to notify its completion. The ker-

nel handles the interrupt, processes command com-

pletion, and performs context switching back to Pro-

cess 1. T

proc2

is a time left for Process 2 to run. Be-

cause HDDs are slow and thus their command pro-

cessing time is long, T

proc2

is long enough for Process

2 to proceed its execution.

The I/O request queueing mechanism that imple-

ments the asynchronous access command processing

has been a right choice for the block devices. It poses

high processing cost, but the cost pays off by cre-

ating additional processing times made available for

other processes. Such justiﬁcation for the I/O re-

quest queueing mechanism and he asynchronous ac-

cess command processing is, however, no longer true

when storage becomes much faster.

2.2 Problems to Combine Memory

Storage with Block Storage

The existing method combines block storage with an-

other faster block storage, which is typically an SSD,

for higher access performance (Kgil and Mudge,

2006; Koller et al., 2013; Saxena et al., 2012). It

utilizes faster block storage as cache and stores fre-

quently accessed data in it in order to improve the

average time to access data. Its open source imple-

mentation is widely available (Facebook, 2014), and

the current Linux kernel includes several implemen-

tations, such as dm-cache and bcache.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

530

The implementations of the existing method in

the Linux kernel employ the device mapper mecha-

nism to constitutes a single storage device. The de-

vice mapper is implemented as a software layer in the

kernel, and provides the mechanism to transfer ac-

cess requests for the constituted device to appropri-

ate underlying devices. The policy part deﬁnes how

it transfers requests. There can be multiple policy

implementations, and some of them combines block

storage with faster storage as cache. When an SSD is

used as cache storage by combining it with a HDD,

it is straightforward that the combined storage pro-

vides the block storage interface and is accessed asyn-

chronously since both of them are block storage. As

its extension, it is possible for memory storage to em-

ulate block storage and to have the device mapper to

combine block storage with memory storage.

The use of the device mapper requires memory

storage to emulate block storage interface since the

device mapper expects it as an interface. While such

emulation enables the use of the device mapper, it

causes signiﬁcant software overhead. The device

mapper is basically a block device driver; thus, it re-

ceives access requests from the upper generic block

device driver framework. It then transfers the received

requests to another block storage device. The trans-

ferred requests are processed again by the generic

block device driver framework, and ﬁnally the tar-

get block storage device receives them (Ueda et al.,

2007). Therefore, processing in the generic block

device driver framework occurs multiple times, and

such processing causes a software overhead that can

be hidden in the long access latency of block storage

devices but becomes apparent for memory storage.

3 DESIGN AND

IMPLEMENTATION OF THE

PROPOSED METHOD

This section ﬁrst describes the design of the proposed

method. It next describes the implementation in the

Linux kernel.

3.1 Design Overview

The most considerable advantage of memory storage

is its performance. In order to make use of it as much

as possible and not to sacriﬁce it, the software over-

head to access it must be minimum. The existing

method to combine block storage devices is, however,

inappropriate in this sense because of its inefﬁciency

that is inherent in its use of the block storage interface

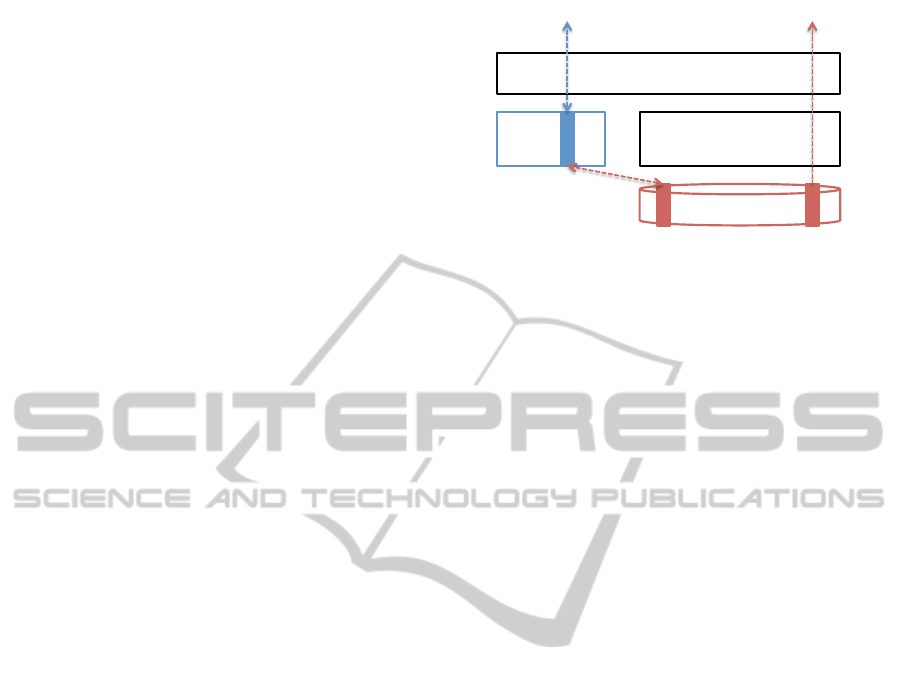

Device&Driver&for&the&Proposed&Method

Block&Storage

Block&Storage&

Device&Driver

Memory&

Storage

(a)

(b)

(c)

Figure 2: The design overview of the proposed architecture.

and its asynchronous access. As described in Section

2.1, the overhead of the block storage interface and

its asynchronous access is signiﬁcant, and it must be

avoided.

The proposed method keeps its access overhead to

memory storage minimum by making use of the direct

and synchronous access to memory storage. Memory

storage provides the memory interface, which means

that there is no need to use a device driver to ac-

cess it; thus, the device driver of the proposed method

can directly access memory storage. Such direct ac-

cess allows the least access overhead to memory stor-

age. Moreover, because memory storage allows syn-

chronous access, of which software overhead is much

less than asynchronous access, the proposed method

aggressively makes use of synchronous access.

Figure 2 depicts the design overview of the archi-

tecture of the proposed method. First, we consider

reading data. There are three access paths, which are

shown as (a), (b), and (c) in the ﬁgure. When data is

available on memory storage, which is shown as (a),

the device driver of the proposed method provides di-

rect and synchronous access to memory storage. Such

access enables the least overhead; thus it should be

utilized as much as possible. In order to make it possi-

ble, data needs to be read ahead from block storage to

memory storage, which is shown as (b). When read-

ing ahead is successful, data can be continuously read

from memory storage.

When data is not available on memory storage, a

straightforward way is to read in the requested data

from block storage to memory storage. This way,

however, unnecessarily pollutes memory storage be-

cause the data that was read in to memory storage be-

comes useless. Therefore, the proposed method reads

the data from block storage bypassing memory stor-

age, which is shown as (c).

Second, we consider writing data. There are also

three data paths, (a), (b), and (c), which are shown

in the ﬁgure. Unlike reading, there is no need to

read ahead into memory storage for writing since

TowardsHighPerformanceBigDataProcessingbyMakingUseofNon-volatileMemory

531

valid data is written onto memory storage. Therefore,

data can be written onto memory storage whenever

free spaces are available on memory storage, which

is shown as (a). The free spaces can contain valid

data for reading. Unavailable spaces of memory stor-

age are those where dirty data resides. The unavail-

able spaces that contain dirty data become free spaces

when the dirty data is written back to block storage,

which is shown as (b). When there is no free space

available, data can be written to block storage, which

is shown as (c). The path (c) is, however, considered

to be rarely used since writing to memory storage and

writing back to block storage can be processed in par-

allel.

The device driver of the proposed method man-

ages memory storage and also interacts with a block

storage device driver. A block storage device driver is

not a part of the driver of the proposed method. By

separating the management of memory storage and

block storage, there is no restriction of a choice of

block storage, and arbitrary block storage can be com-

bined with memory storage.

3.2 Implementation in the Linux Kernel

The Linux kernel provides the device mapper mech-

anism, which can be used to combine multiple block

storage devices. The existing method uses this mech-

anism as described in Section 2.2. The proposed

method, however, does not use the device mapper

mechanism in order to avoid the overhead of itself and

also the overhead incurred by having memory storage

emulate block storage.

The proposed method implements its own func-

tion that can provide the synchronous access interface

depending upon the location of requested data.

void memory_make_request(

struct request_queue *q,

struct bio *bio)

This interface is typically used by the device driver

of ramdisk, which provides synchronous access. The

proposed method makes use of this interface and pro-

vides synchronous access when data is available on

memory storage for reading or when a free space is

available on memory storage for writing. In this case,

memory storage is considered to be working just as

ramdisk. When data is unavailable on memory stor-

age for reading or when no free space is available

on memory storage for writing, however, the access

request is transferred to the device driver of block

storage. Then, the block storage device driver asyn-

chronously processes the request.

The device driver of the proposed method also im-

plements the functions for reading ahead and writing

back data between memory storage and block stor-

age. Because they need to be invoked in parallel with

reading and writing data from/to memory storage, the

dedicated kernel threads process them. They are in-

voked at appropriate timings in order to improve the

efﬁciency of the proposed method.

4 EXPERIMENT RESULTS

First, ﬁle I/O throughput was measured by using the

Hadoop TestDFSIO benchmark program to see per-

formance impact on big data processing. The mea-

sured costs are compared with a sole SSD drive. Sec-

ond, the performance of the database processing was

measured by the TPCC-MySQL benchmark program

to see performance impact on database processing.

4.1 Experiment Environment

Since there is no publicly available system that equips

memory storage, we used DRAM to emulate it. Since

MRAM, which is considered to be the best match

for the proposed method, performs comparably to

DRAM, the differences of results must be negligible.

All measurements described below were performed

on the Linux kernel 3.14.12 that includes the imple-

mentation of the proposed method. Execution times

were measured using the TSC (Time Stamp Counter)

The system used for this experiment is a PC sys-

tem equipped with the Intel Core i7-4930K 3.4GHz

and 64GB of DRAM. The KVM virtualization soft-

ware of Linux is employed to construct experiment

environments that consist of virtual machines. Each

virtual machine is conﬁgured with two CPUs, the

main memory, and a dedicated block storage device.

The sizes of the main memory differ to match their

functionality, they are described below. The CFD

S6TNHG6Q 128GB SATA SSD is used for a dedi-

cated block storage device, and a whole SSD is as-

signed to a single virtual machine. When the pro-

posed method is used for an experiment, memory

storage consists of 1GB of memory.

4.2 Results of Hadoop TestDFSIO

This section shows the measurement results of the

Hadoop TestDFSIO benchmark program. For this ex-

periment, four virtual machines were conﬁgured to be

a Hadoop cluster. One virtual machine becomes the

master node, and the others are slave nodes. The main

memory size of the master node is 8GB, and that of

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

532

0""

50""

100""

150""

200""

250""

300""

350""

400""

450""

500""

100"" 200"" 300"" 400"" 500"" 600"" 700"" 800"" 900"" 1000""

Throughput"[MB/sec]!

Data"size"[MB]

Proposed"

Method"

SATA"SSD"

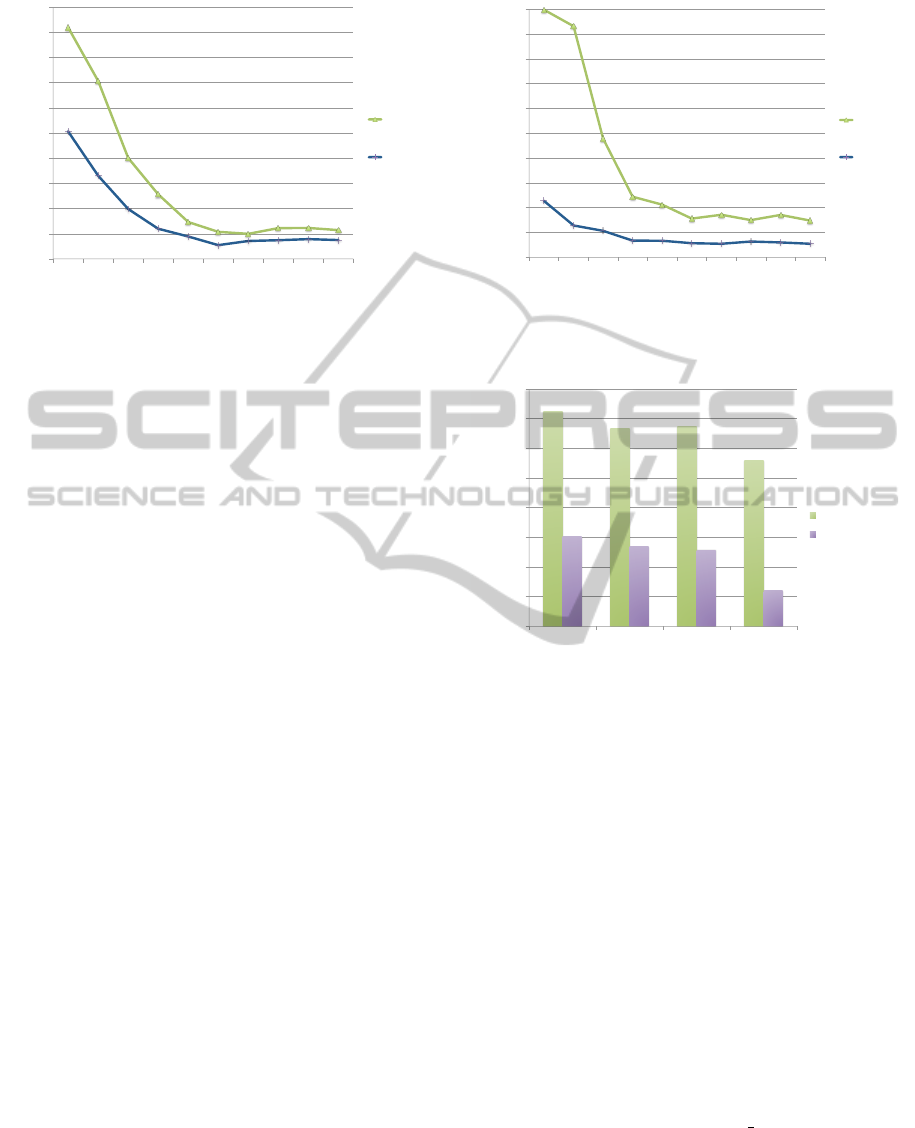

Figure 3: Comparison of read performance by Hadoop

TestDFSIO.

slave nodes is 1GB. Hadoop employs Hadoop Dis-

tributed File System (HDFS) for the ﬁle service of

its applications (Shvachko et al., 2010). The HDFS

servers consist of the name node and data nodes,

which are executed as user processes. The master

node runs the name node, which locates on which data

node requested data ﬁles reside upon access requests

from clients. The data nodes of slave nodes manage

data ﬁles.

We measured the ﬁle I/O throughput of read-

ing ﬁles of various data sizes by using the Hadoop

TestDFSIO benchmark program. Larger numbers are

better as I/O throughput. The size of each ﬁle created

for measurements was ﬁxed to 100MB, and the num-

ber of ﬁles was changed from one to ten in order to

change the total data sizes from 100MB to 1GB. We

ﬁrst executed the writing program of TestDFSIO to

create ﬁles for reading. After ﬂushing the page cache

of the data nodes, we executed the reading program of

TestDFSIO, and measured the costs. HDFS provides

two methods for reading. One receives data from a

data node through remote procedure calls (RPCs), and

the other directly interacts with a local ﬁle system.

The latter one is called short circuit read (SCR). Both

methods were used for measurements. Figure 3 and

4 show the results without and with SCR enabled, re-

spectively.

The measurement results show a signiﬁcant per-

formance advantage of the proposed method for the

Hadoop TestDFSIO. For reading from 100MB to 1GB

data sizes without SCR, it performs approximately

39.21% to 114.36% better than SSD. For reading with

SCR enabled, it performs approximately 135.32% to

624.10% better than SSD. On average, the proposed

method performs 78.45% better without SCR and

266.08% better with SCR than SSD.

A realistic evaluation with Hadoop shows that the

proposed method provides a signiﬁcant boost with the

0""

100""

200""

300""

400""

500""

600""

700""

800""

900""

1,000""

100"" 200"" 300"" 400"" 500"" 600"" 700"" 800"" 900"" 1000""

Throughput"[MB/sec]!

Data"size"[MB]

Proposed"

Method"

SATA"SSD"

Figure 4: Comparison of read performance by Hadoop

TestDFSIO with SCR enabled.

0""

2,000""

4,000""

6,000""

8,000""

10,000""

12,000""

14,000""

16,000""

none" directsync" none" directsync"

TpmC"

fsync"ﬂush"method""""""""""""""""O_DRECT"ﬂush"method

Proposed"Method"

SATA"SSD"

Figure 5: Comparison of TPCC-MySQL performance.

ﬁle access throughput of Hadoop. Therefore, it is cer-

tain that a wide range of applications, which involves

a large amount of ﬁle access, can beneﬁt from it.

4.3 Results of TPCC-MySQL

This section shows the measurement results of the

TPCC-MySQL benchmark program. For this experi-

ment, a single virtual machines with 8GB main mem-

ory was conﬁgured. The number of warehouses is 40,

which constitute approximately 4GB of a database.

The buffer pool size of the InnoDB storage engine

is 4GB. The measurements were performed with the

two ﬂush methods of InnoDB and the two storage

cache modes of KVM; thus, there are the four combi-

nations of them. The Innodb ﬂush methods used for

the measurement are fsync and O DIRECT, and the

KVM storage cache modes are none and directsync.

The none cache mode provides the write buffer while

the directsync cache mode does not. Figure 5 shows

the results.

The performance improvement enabled by the

TowardsHighPerformanceBigDataProcessingbyMakingUseofNon-volatileMemory

533

proposed method is signiﬁcant. The proposed method

executes the benchmark from 2.39x to 4.60x faster

than SSD. The difference between the proposed

method and SSD is the largest when the combination

of the O DIRECT Innodb ﬂush method and the KVM

directsync cache mode is used. Since this combina-

tion provides no buffering of data transfer in the OS

kernel and the KVM virtualization software, the cost

to write data in storage becomes the maximum among

the combinations used for the experiments. The other

combinations provide buffering somewhere in the OS

kernel and the KVM virtualization software; thus, the

differences are closer but still large, which are from

2.39x to 2.62x.

5 RELATED WORK

A technique to combine block storage with another

block storage for higher access performance existed

before SSDs become widely available and popular.

DCD (Hu and Yang, 1996) ﬁrst stores data in cache

storage, so that it can make use of sequential access,

of which performance is typically much better than

random access, so that the write performance can be

improved. The emergence of SSDs stimulated the

research and development of various caching tech-

niques (Kgil and Mudge, 2006; Koller et al., 2013;

Saxena et al., 2012; Facebook, 2014) in order to

make use of their high performance. Because SSDs

are block storage, all of them combine block stor-

age with another block storage, and provide the block

storage interface. The proposed method is different

from them since it combines memory storage with

block storage. Because memory storage allows syn-

chronous access, the proposed method aggressively

makes use of it in order to reduce the access cost in

total.

The Linux kernel provides the device mapper as

the software layer to combine multiple storage de-

vices and to constitutes a single storage device. When

the device mapper is used to combine memory stor-

age with block storage, it requires memory storage

to emulate block storage since the device mapper can

interact only with the block storage interface. It also

causes signiﬁcant software overhead since the access

requests can be processed by the generic block device

driver framework multiple times(Ueda et al., 2007).

The proposed method does not use the device mapper

mechanism in order to avoid such overheads, and im-

plements its own function that can provide the direct

and synchronous access interface to memory storage.

6 SUMMARY

Memory storage technologies are emerging, and they

should be effectively utilized in cloud computing en-

vironments in order accelerate storage performance

for big data processing. This paper proposed a

method that combines block storage with memory

storage and makes use of memory storage as cache of

block storage in order to remove such limitation. The

proposed method effectively utilizes the high perfor-

mance of memory storage and also provides the large

capacity of block storage. Therefore, memory storage

can be transparently used as a part of mass storage

while its low overhead access can accelerate storage

performance. The proposed method was implemented

as a device driver of the Linux kernel. Its performance

evaluation shows that it outperforms a bare SSD drive

and provides better performance on the Hadoop and

database environments.

REFERENCES

Facebook (2014). Flashcache. https://github.com/facebook/

ﬂashcache.

Hu, Y. and Yang, Q. (1996). Dcd – disk caching disk: A

new approach for boosting i/o performance. In Pro-

ceedings of the 23rd Annual International Symposium

on Computer Architecture, pages 169–178.

Kgil, T. and Mudge, T. (2006). Flashcache: A nand ﬂash

memory ﬁle cache for low power web servers. In

Proceedings of the 2006 International Conference on

Compilers, Architecture and Synthesis for Embedded

Systems, CASES ’06, pages 103–112, New York, NY,

USA. ACM.

Koller, R., Marmol, L., Rangaswami, R., Sundararaman,

S., Talagala, N., and Zhao, M. (2013). Write poli-

cies for host-side ﬂash caches. In Proceedings of the

11th USENIX Conference on File and Storage Tech-

nologies, FAST’13, pages 45–58, Berkeley, CA, USA.

USENIX Association.

Saxena, M., Swift, M. M., and Zhang, Y. (2012). Flashtier:

A lightweight, consistent and durable storage cache.

In Proceedings of the 7th ACM European Conference

on Computer Systems, EuroSys ’12, pages 267–280,

New York, NY, USA. ACM.

Shvachko, K., Kuang, H., Radia, S., and Chansler, R.

(2010). The hadoop distributed ﬁle system. In Pro-

ceedings of the 2010 IEEE 26th Symposium on Mass

Storage Systems and Technologies (MSST), MSST

’10, pages 1–10, Washington, DC, USA. IEEE Com-

puter Society.

Ueda, K., Nomura, J., and Christie, M. (2007). Request-

based device-mapper multipath and dynamic load bal-

ancing. In Proceedings of the Linux Symposium, vol-

ume 2, pages 235–243.

CLOSER2015-5thInternationalConferenceonCloudComputingandServicesScience

534
