User Perceptions of Communicative and Task-competent Agents in a

Virtual Basketball Game

Divesh Lala, Christian Nitschke and Toyoaki Nishida

Graduate School of Informatics, Kyoto University, Kyoto, Japan

Keywords:

Joint Activity Theory, Embodied Agents, Body Movement.

Abstract:

In this paper, we describe a virtual basketball game where a human and an embodied agent can play together

as a team. Our goal is to investigate whether the human prefers an agent who is highly competent at basketball

or one which is not as competent but tries to actively communicate through body movements. The virtual

basketball game was implemented using a Kinect to sense body movements and a pressure sensor for hands-

free navigation. In order to create an agent who could react to a user’s body movements, we designed an

agent model based on joint activity theory. We performed an experiment where participants would play virtual

basketball with each agent and evaluated them through questionnaires. It was found that participants preferred

the agent which tried to communicate more with the user, even though they could distinguish that the other

agent was better at playing basketball. We propose that communication capability for these types of agents is

crucial, even at the expense of some task ability.

1 INTRODUCTION

The ﬁeld of embodied conversational agents (ECAs)

contains sophisticated agents which are designed to

have a face-to-face conversation with real people,

driving forward the concept of computers as social

actors (Nass et al., 1994). ECAs such as Greta (Be-

vacqua et al., 2010) use multiple modalities such as

speech, facial expression and gesture to smoothly

communicate in this manner. On the other hand there

are situations in the real world which are not speciﬁ-

cally conversational in nature. For example, commu-

nication in sports often requires physical co-operation

to achieve a common goal. This type of situated com-

munication (Rickheit and Wachsmuth, 2006) has been

somewhat addressed by robotsand ECAs such as Max

(Kopp et al., 2003; Kruijff et al., 2012), but generally

the face-to-face paradigm appears to be more domi-

nant in ECA research. Furthermore, even the environ-

ment in which Max is situated does not require exten-

sive navigation, which is an activity commonly exe-

cuted in sports. If the aim of researchers is to create

an ideal virtual human, it is necessary for these agents

to have this capability so they can interact within a

wider variety of virtual environments.

One domain where agents can navigate freely with

humans is in the context of video games. Thousands

of scenarios exist where agents and humans interact

with the environment itself such as picking up and

using virtual objects or traveling to complex loca-

tions. Furthermore, activities in these scenarios are

often done in order to achieve a common goal such as

defeating an enemy. The limitation of such environ-

ments is their interactivity with the user, which is gen-

erally only done through peripherals such as a key-

board or mouse. Our proposal is that agents should

exist between the face-to-face agent and video game

agent paradigms by taking crucial elements of both.

From ECAs we take the ability to interact using hu-

man modalities. From video games we take the abil-

ity to navigate in the world to achieve a common goal.

These agents also require different methods of inter-

action. Figure 1 clariﬁes this concept.

The properties of the situated environment which

such an agent inhabits are that navigation is necessary

to achieve a common task and that the task should

be completed using human modalities. A human in a

virtualization of this environment should navigate in

the world with the agent without needing a keyboard

or mouse so they can effectively use body movement

for communication. The agent must be physically dy-

namic and able to react to human input. We can as-

sume that an ideal ECA will have the ability to hold

a conversation with the user so that the experience is

similar to talking with a real human. But what deﬁnes

a “good” agent in the situated environmental context?

Lala D., Nitschke C. and Nishida T..

User Perceptions of Communicative and Task-competent Agents in a Virtual Basketball Game.

DOI: 10.5220/0005201200320043

In Proceedings of the International Conference on Agents and Artiﬁcial Intelligence (ICAART-2015), pages 32-43

ISBN: 978-989-758-073-4

 2015 SCITEPRESS (Science and Technology Publications, Lda.)

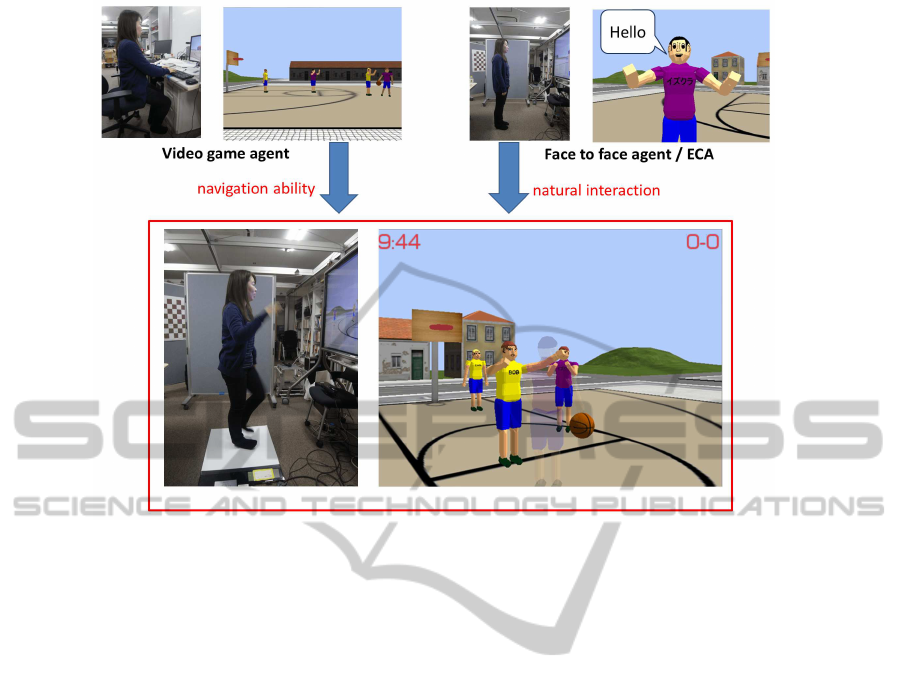

Figure 1: Navigation ability of video game agents and the human modality interface of ECAs are combined to produce an

agent which travels around with an environment with the user to execute shared tasks.

We propose that agents can have the properties of be-

ing good at a task and good at communication.

Creating an agent which is “good” at a task can

simply be a matter of adjusting its parameters or opti-

mizing its decision making. Consider an extreme case

of a virtual football game, where a virtual athlete is 10

times faster and more skilful than any other character.

We can say this agent is good at football, but we can-

not say it is realistic or sociable. It is more like a ma-

chine or tool designed to get a task done efﬁciently.

The opposite can also be imagined. For example a

guidance agent may be extremely sociable and recog-

nize many modalities but can’t provide the requested

information to the user. In this case a simple paper

map might be more useful. Our long-term goal is cre-

ating an agent with both task abilities and realistic so-

cial behavior which may or may not be task-related.

Current embodied agents do require both task and

communicative abilities, but these may be weighted

in terms of importance. For example, in crowd simu-

lations (Guy et al., 2010) or exploration agents (Little

and Sommer, 2011), task ability is the highest priority.

On the other hand in domains such as virtual guides

(Bickmore et al., 2013) and teachers (Bergmann and

Macedonia, 2013), the focus is improving communi-

cation because this is largely embedded in the task

(providing information to the user in a pleasant man-

ner). Greta and ECAs from the SEMAINE project

(Schroder et al., 2012) are not even designed towards

a particular task, their only function is to have a nat-

ural conversation with the user. Recently there has

been a shift towards using agents for more serious ap-

plications. ECAs have been proposed to provide bet-

ter information to hospital patients (Bickmore et al.,

2009), taking the role of a patient to train doctors

(Kenny et al., 2008) and assisting people with job in-

terviews (Baur et al., 2013). These are arguably situa-

tions where both abilities are the most intertwined and

balanced because conversationis necessary to achieve

the given task. However even in these tasks the do-

main still remains face-to-face.

Playing basketball is a domain which is separate

from these environments. The agent must be able to

both execute actions and communicate with the hu-

man player to achieve the goal. We aim to discover

the relative importance of both task and communica-

tion abilities. Although agents are often analyzed in

respect to these abilities (Kim and Baylor, 2006; Ed-

wards et al., 2014) we do not know of prior research

on their appropriate balance. Collaborative task en-

vironments such as basketball require us to consider

both task and communication contributions.

This motivates our work in which we aim to assess

which properties human value in a virtual agent for a

physically collaborative task, in this case basketball.

For virtual agents, we deﬁne physical collaboration

as a shared cooperative activity requiring both navi-

gation and usage of virtual objects. Given the choice

UserPerceptionsofCommunicativeandTask-competentAgentsinaVirtualBasketballGame

between an agent who is clearly proﬁcient at basket-

ball and one which is not so proﬁcient but can express

and understand communication signals from humans,

which would a human prefer? We term the former

agent task-competent and the latter communication-

competent. Note that these terms are relative to each

other and not absolute indicators. Our research ques-

tion is “How do people perceive embodied agents with

differing proﬁciencies and capacities of communica-

tion in a physically collaborative task?”

We propose that within the setting of basket-

ball, users prefer communication-competentagents to

task-competent agents. The question then turns to

how to design these types of agents to help test this

conjecture, in particular the communication model

which is used. ECAs require modalities which are

different from basketball. While ECAs make use of

information on speech and facial expression, basket-

ball agents tend to use the whole body as a communi-

cation mechanism. We cannot be certain that face-to-

face communication models can account for this type

of agent, so we make use of a more general frame-

work. The theory we use to guide their design is

Herbert Clark’s joint activity theory, or JAT (Clark,

1996). From this theory, we use two concepts - signal

identiﬁcation and evidence. Signals in this context are

any body movements executed in order to send a mes-

sage to another party. Evidence is required to prove

that a body signal is actually a signal and not a move-

ment carrying no meaning. In Section 2.2 we describe

agent communication based on an evidence model.

JAT is useful because it simpliﬁes communication

as being about signals, rather than attempting to sim-

ulate an abstract internal model. In the context of

basketball, signaling is offered a greater importance,

because we can already reliably assume the internal

goals of the human, which is to win the game. An-

other advantage is that JAT can model dynamic atten-

tion because it requires the agent to perceive (i.e. see)

and focus on a signal. Dynamic attention is the prop-

erty of an agent which switches focus between indi-

vidual and collaborative tasks during an interaction.

In JAT a speciﬁc interaction is commonly termed a

joint project. In sports, these joint projects can be

identiﬁed when players can focus on individual tasks

such as running, kicking or throwing, or collaborative

tasks such as passing a ball or celebrating with their

team mates. JAT has been applied to artiﬁcial agents

in other research, but this focused on robots (Brad-

shaw et al., 2009). We use JAT as a basis for virtual

agents in this paper and aim to test whether this the-

ory is suitable for agent design, particularly the design

of agents in basketball and other sports-like environ-

ments.

The basketball game uses body interaction as a

means of communication. Literature on the use of

the body as a modality can be roughly categorized

into gesture and full body movement. Gesture is im-

portant for face-to-face agents with many embodied

agents such as Greta being used to study gesture mod-

ulation and multimodal integration with facial expres-

sions (Pelachaud, 2009; Martin et al., 2006). On the

other hand, we focus on full body movement as a

driver for interaction. This has been seen as an impor-

tant function for communication in agents and robots

(de Gelder, 2009; Sanghvi et al., 2011; Damian et al.,

2013; Kistler et al., 2013). Extensive research on

body movement and engagement has also been un-

dertaken, particularly with regards to body movement

as an engaging and affective mechanism (Bianchi-

Berthouze, 2013; Kleinsmith and Bianchi-Berthouze,

2013).

In the type of environment we are creating body

movement is not only the primary modality, but is

used to execute tasks and to navigate. Humans will

use their bodies to send communication signals to the

agents, who then react to it. Furthermore, these sig-

nals may be explicit or implicit. We make a distinc-

tion between explicit and implicit signals by stating

that explicit signals are those which are identiﬁable

as being a communicative signal even without extra

context. For example, if we see somebody waving

their arm above their head with no other context avail-

able, we can still reasonably assume that it represents

a signal intended for someone or something. We don’t

know who the signal is intended for, nor do we have

any idea about its meaning, but we still identify it as a

signal. On the other hand, implicit signals, such as the

rotation of the body, cannot be identiﬁed as such with-

out context. A person who rotates their body could

simply be turning to walk to another place with no

communicative intent involved. These concepts are

important because they are related to the JAT concept

of identiﬁcation. In order for any signal to be acted

upon, it must be identiﬁed by the receiver as actually

being a signal. Human players should be able to use

their bodies much as they would in a real basketball

game so agents must be able to identify both explicit

and implicit signals from the human player.

Two main questions will be addressed in this

work:

Q1 Can JAT be used as a theory for creating agents

which communicate through body modality?

Q2 Are there task-based situations where agents com-

petent at communication are preferred to agents

competent at the task itself?

To answer the above research questions, we create

a basketball game where a human plays with an agent

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

team mate against two other agents. The participant

plays two games, each differing only by the type of

agent team mate (task-competent or communication-

competent). We ask participants to play a game with

each agent, evaluate them, and then determine if dif-

ferences exist in regards to user perception.

This paper contains two contributions. The ﬁrst

is a validation of the need for communicative agents

over those that are simply good at a task. The sec-

ond is an agent model based on JAT which can be

extended for multimodal interaction. Section 2 dis-

cusses the virtual basketball game and the design of

each type of agent. Section 3 outlines our methodol-

ogy for the experiment, while Section 4 presents our

results and analysis. Section 5 discusses the results of

the experiment before the conclusion of the paper.

2 VIRTUAL BASKETBALL

In this section, we describe the virtual basketball

game to be used in the experiment. We ﬁrst discuss

the environment itself and then the design of the two

agent types. We emphasize that the goal of this re-

search is not to create a perfect basketball simulation

or virtual basketball player. The basketball game ex-

ists only as a means to analyze communicative behav-

ior. In this sense, the lessons from this work should

be generalizable to environments other than basket-

ball. Basketball is also used as a testbed because it is

a co-operative game in which players must commu-

nicate to achieve a common goal. The rules are well

known and do not need to be taught. We propose that

basketball is viewed as a communication game, where

the team with the best understanding of each other’s

intentions and behavior will be victorious. Another

viewpoint is that playing basketball is similar to hav-

ing a conversation, only with most signals being non-

verbal in nature.

2.1 Environment

There are three main components of our virtual bas-

ketball environment,which is based on the VISIE sys-

tem by Lala (2012). The ﬁrst is the Kinect sensor

placed in front of the user, for allowing body move-

ment of the player’s character and to recognize inter-

actions. It also allows us to recognize passing, shoot-

ing and dribbling gestures to manipulate the ball dur-

ing the game. We use algorithms based on Gaussian-

mixture regression described by Calinon et al. (2007)

and applied to basketball gestures in previouswork by

Lala et al. (2013). Although there are many ways to

pass a ball, we limit this to a simple extension of both

arms towards the target of the pass. One limitation

of Kinect is that body recognition is unreliable if the

user rotates their body away from the sensor.

The second main component is the pressure pad

which the participants walk on in order to navigate

their character around the court. We use a variant of

an algorithm described in previous research by Lala

(2012). This algorithm discriminates between a user’s

walking and non-walking states. Although the algo-

rithm can also calculate the walking direction of the

user, it was not required in this experiment because

it is necessary for the user to face the Kinect sen-

sor. Therefore any walking must be done in a for-

ward direction and it must be possible to rotate the

viewpoint of the user. This is achieved by the user

stepping on the extreme left and right edges of the

pressure pad. Additionally, the user can walk back-

wards during the game by stepping on the back edge

of the pad. Through this method, the user can walk

around the entire court by only using natural walking

movements and steps for rotation purposes.

Finally, we describe the immersive display hard-

ware component. Eight displays surround the user

and project the virtual environment around them, al-

lowing them to quickly visually perceive the whole

of the court. In a dynamic game such as basketball,

this is critical. With a ﬂat screen display, the users

would have to constantly rotate to check the position

of other players and the court. This is undesirable in a

dynamic movement game such as basketball. Images

of the system in use are shown in Figure 2.

Gameplay in virtual basketball operates similarly

to real basketball. The players dribble the ball around

the court, can pass the ball to each other and can score

by shooting the ball in the hoop. Players may steal

the ball from their opponent by touching it with their

hand while in the opponentis in possession. However,

there are no fouls. One major difference is the use of

a restart location. When possession swaps (such as

the ball being out, stolen, or a goal scored), the other

team takes the ball to the restart location to begin play

again. The game operates much like street basketball,

where both teams take turns to score in one hoop. An-

other difference is that players cannot jump during the

game. The reason for this is to prevent physical dam-

age to the pressure pad.

2.2 Basketball Agent Design

In our experiment we design two types of agent

- one which is task-competent and one which is

communication-competent. We make use of an exist-

ing basic agent and then modify it to producediffering

behaviors. The basic agent has several capabilities. It

UserPerceptionsofCommunicativeandTask-competentAgentsinaVirtualBasketballGame

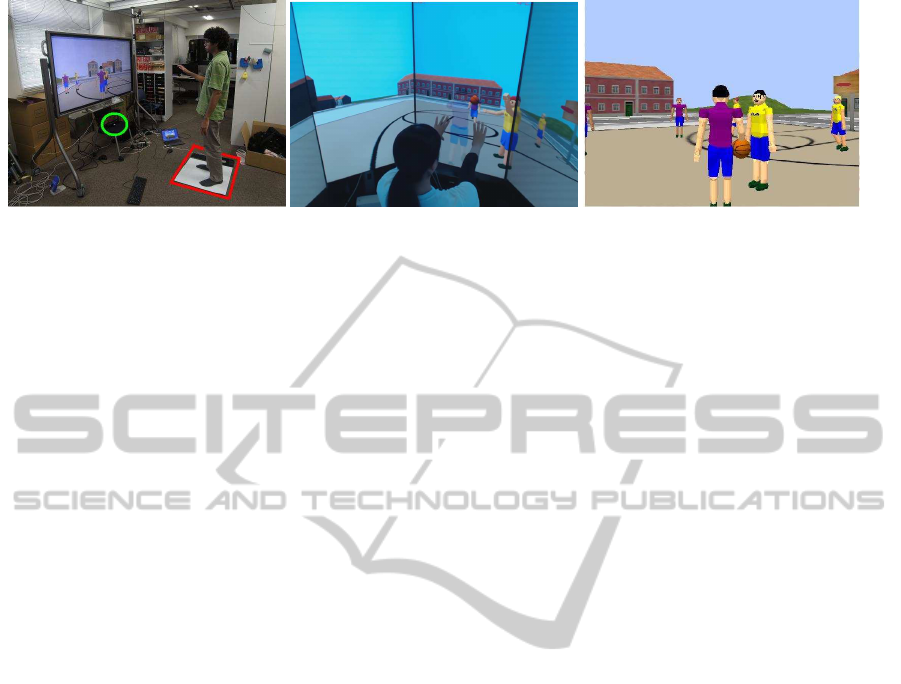

Figure 2: Virtual basketball (left) being played through the use of a Kinect sensor and a foot pressure pad. These sensors are

combined and used in the immersive display setup (center). The right image shows a screenshot of the game.

can move around the court to a free position and avoid

collisions, and make decisions on when to shoot. On

defense, the agent can block opposing players. These

decisions are made entirely without any direct input

from the participant except for their relative position

on the court. The opposing team in the experiment

consists of two of these basic agents.

The agents themselves are fairly low resolution

avatars and textures with simple animations. In fact

they are well below the standards of visual realism

in commercial games and other research applications.

There are a couple of reasons for this design decision.

Firstly, a user may expect a highly realistic agent to

behave to a more human-like standard than a non-

realistic one, in line with the work by Garau et al.

(2003). Unlike video game agents, this agent has to

react to human modality input and abnormal behav-

ior would greatly affect user perception if the avatar

was highly realistic. Furthermore, the focus in this

work is on full body modalities. In order to reduce

the extent of facial expressions as an inﬂuencing vari-

able the faces, while containing some expression, are

obviously static and not an indicator of any emotional

state.

2.2.1 Task-competent Agent

To create the task-competent agent (T-C agent), we

improve the physical characteristics of the basic agent

by simply parameterizing certain features. In our ex-

periment, this agent is 50% faster at walking, running,

sidestepping and turning, while 75% faster at drib-

bling. Additionally, the T-C agent is 75% better at

shooting and is more likely to successfully steal the

ball from an opposing player. The reasons for the val-

ues of these parameters are fairly arbitrary. They are

simply values which allow the T-C agent to be suc-

cessful at basketball without the need for communi-

cation. The design of the T-C agent is done to provide

a contrast to the other players of being more compe-

tent at basketball.

The behavior of the T-C agent also differs. Its

preference is to attempt to shoot a goal. Rather than

attempting to collaborate with its team mate, it will

dribble towards an empty space near the goal. When

this agent’s team mate has the ball, it will simply ﬁnd

a free space, rotate towards the goal and wait. While

defending, the T-C agent always approaches the op-

posing player with the ball. If the ball is free, it will

always attempt to capture it regardless of where its

team mate is located. The T-C agent is good enough

to win basketball by itself. We consider this agent as

being similar to a tool because the strategy to win is

to simply give it the ball and let it do the work.

2.2.2 Communication-competent Agent

The communication-competentagent (C-C agent) has

the same physical characteristics as a basic agent, but

is 25% worse at shooting. In contrast to the T-C agent,

it will react to body movement signals given from the

human player and attempt to pass the ball to them if

possible. It will signal for the ball if it is in a free

space and can be seen by the human. Unlike the

T-C agent, it displays its focus of attention through

the rotation of its body. When defending, it will ap-

proach the nearest opponent in a man-to-man basket-

ball marking strategy. If the ball becomes free, it will

only attempt to capture it if it is closer than its team

mate, or if its team mate is not moving towards the

ball.

We implemented an evidence-based model for this

agent inspired by JAT. The concept of this model is

that each signal must be perceived (observed by the

agent in the virtual world), identiﬁed (discriminated

as a signal as opposed to ordinary movement behav-

ior), recognized (the meaning understood) and ac-

cepted. To facilitate this process, the agent makes use

of common ground, which is the knowledge shared

between agent and human. This must be programmed

into the agent beforehand. In this case, common

ground knowledge is limited to the following:

• Rotation of the body indicates the focus of atten-

tion of a player.

• Wide spatial movementof the arms when the team

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

mate has the ball indicates a call for a pass.

• Wide spatial movement of the arms after a goal is

scored indicates celebration.

We generated this knowledge of common ground

from analyzing interactions between human team

mates in the same environment (Lala and Nishida,

2014). In the previous experiment it was found that

human team mates reacted to both implicit and ex-

plicit signaling. This justiﬁes the discrimination of

these signal types. For example, a turn towards a team

mate possessor in open space was an implicit signal of

a request to pass. An explicit waving of the arms sig-

nal after a goal was scored indicated celebration. The

aboveactions were used in almost all games evenwith

no previous interactions between team mates and little

experience in basketball, which shows some general-

izable behavior that can be implemented into agents.

The agent infers the meaning of these signals

through the context of the game. For explicit signals,

a speciﬁc gesture model is not used because there are

a variety of user signals that would need to be recog-

nized. From previous observations, we found that a

wide spatial arm movement is common among these

gestures, and so include it as common knowledge for

the agent. Additionally, it also expresses its own in-

tentions by calling for a pass in a similar manner (rais-

ing its hand). If it identiﬁes a signal that a human

player is looking to pass, it will hold up its arms,

readying itself to catch the ball. The C-C agent also

expresses a celebration action when their team scores

a goal, an apology action when it makes a mistake

such as throwing the ball out, and an encouragement

action for when the human player makes an error.

Another feature which differentiates face-to-face

and basketball agents is dynamic attention. For de-

signing these agents according to JAT, there must be

some method with which agents can engage and dis-

engage from a collaborative act. As stated previously,

in JAT terminology this is a joint project. The agent

should have the ability to recognize joint projects and

participate in them. To do this quantitatively, a simple

evidence model was constructed for the C-C agent.

It continuously looks for evidence that their partner

wishes to engage in communication with them. To do

this, it sums n number of f variables weighted by w

over a certain period of time t, to produce evidence,

∗

. It then checks this evidence against a threshold

value, thr. If this threshold is exceeded, it identiﬁes a

signal, σ:

ε =

∑

i=1

∗

∑

j= 1

∗

> thr → σ (1)

The C-C agent uses two variables (f

and f

) to

recognize if the user is waiting or ready to throw a

pass. f

is the relative rotation of the body of the user

towards the player. f

is the relative movement of

the user (towards the agent, away from the agent, or

stationary). f

is used as a third binary variable to

identify explicit signals, by identifying the raising of

the arms higher than the shoulders.

3 METHODOLOGY

We used the virtual basketball environment to com-

pare the two agent types. The only difference between

the two games was the type of team mate agent used.

One limitation of this work which we acknowledge

is that there is no control agent (i.e. an agent with

poor communication and task ability). The major rea-

son for this is that after preliminary testing we found

such an agent to be extremely useless. We make the

assumption that this agent would generally be rated

very low. Furthermore, having each user play three

basketball games would likely increase fatigue, both

physical and mental. Ideally a control agent would

have been used but for these reasons we deemed this

experimental design to be suitable.

Questionnaires were used to evaluate and compare

the agents and consisted of three types of items. The

ﬁrst was a semantic differential scale, much of which

is based on the Godspeed questionnaire described by

Bartneck et al. (2009). Originally designed for robot

interaction, we use this measurement to test the la-

tent variables of perceived intelligence, animacy, and

likeability. To tune the questionnaire more towards

virtual characters, we decided to only use three items

to measure the animacy construct: stagnant-lively,

mechanical-human and artiﬁcial-lifelike. In addition,

we also included our own semantic differential scales

to measure task ability. These items asked the partic-

ipants for the subjective interpretation of the agent’s

running speed (slow-fast), dribble speed (slow-fast)

and defensive ability (not good at-good at).

The second type of questions were 5-point Likert

scales (strongly disagree-strongly agree) which mea-

sured various aspects of the agents and the game it-

self. These were used to compare the agents with re-

spect to collaboration, showing of intent and general

likeability:

2A I was good at playing the basketball game.

2B When I tried to show my intention toward my

team mate, it understood me.

2C When my team mate tried to show its intention

toward me, I understood it.

UserPerceptionsofCommunicativeandTask-competentAgentsinaVirtualBasketballGame

Table 1: Analysis of semantic differential scale items.

T-C Agent median JAT Agent median Wilcoxon S-R p-value

Perceived Intelligence

Competent 4 4 0.176

Knowledgeable 3 3 0.911

Responsible 4 3 0.392

Intelligent 3 3 0.988

Sensible 3 3 0.815

Animacy

Lively 4 4 0.372

Human-like 3 3 0.384

Life-like 2.5 3 0.374

Likeability

Like 3 4 0.011

Friendly 2 4 0.001

Kind 3 3 0.029

Pleasant 3 4 0.005

Nice 3 4 0.014

Task ability

Run 4.5 3 <0.001

Shoot 5 3 <0.001

Defend 4 3 <0.001

MyGoal 5 1.5 <0.001

OppGoal 0 2 <0.001

2D It was fun playing basketball with this team mate.

2E I want to play basketball with this team mate

again.

2F I collaborated effectively with my team mate.

2G The other team collaborated effectively.

Semantic differential scales and Likert scale ques-

tions were answered after the end of each game. The

ﬁnal set of questions were a direct comparison of the

two agents. These were answered at the end of both

games. In these questions, participants were asked to

directly compare the agents in terms of intelligence,

likeability, showing of intention, basketball ability

and future interaction:

3A Which character was more intelligent?

3B Which character did you like the best?

3C Which character actively tried to show its inten-

tion?

3D Which character was better at playing basketball?

3E If you had to play the game again, which character

would you select?

A total of 32 participants were recruited for the

experiment, comprised of 8 female and 24 male

Japanese university students. None of the partici-

pants had previously used a Kinect before but all

of them had played basketball in some capacity, al-

though none were playing at a competitive level. Par-

ticipants were given a free training session before the

experiment in order to familiarize themselves with

the environment, navigation, and interaction system.

These training sessions took around 5-10 minutes un-

til the participant was satisﬁed with using the system.

Each participant played with both types of agents for

10 minutes. The order of the games was randomized

to negate an ordering effect.

4 RESULTS

4.1 Semantic Differential Scale Items

To compare speciﬁc items, we use Wilcoxon signed-

rank to compare differences in medians of T-C and C-

C agents for each participant. These results are shown

in Table 1. There was no signiﬁcant difference be-

tween the two agents in any of the items related to

intelligence or animacy. There was a signiﬁcant dif-

ference between the two in terms of the items related

to likeability. The C-C agent was shown to be rated

higher in all these items. On the other hand, the T-C

agent was rated as a faster runner, and a better shooter

and defender. In terms of task output, the T-C agent

scored more and conceded less goals.

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

Table 2: Analysis of summated scale items.

T-C Agent summed mean C-C Agent summed mean Paired t-test p-value

Perceived intelligence 16.91 16.31 0.600

Animacy 9.09 9.31 0.769

Likeability 14.38 18.00 0.002*

Table 3: Analysis of Likert scale items.

Item T-C Agent median C-C Agent median Wilcoxon S-R p-value

2A: Self-competence 2 2 0.309

2B: My intention recognized 2 3 0.017*

2C: Team mate intention recognized 2 4 <0.001*

2D: Fun 3 4 0.036*

2E: Would play again 3 4 0.080

2F: Collaboration own team 2 3 0.171

2G: Collaboration other team 3 4 0.1110

We then constructed summated scales to measure

differences in means of the perceived intelligence, an-

imacy, and likeability. To ensure reliability, Cron-

bach’s alpha was calculated for the set of items com-

prising these constructs. It was found to meet in-

ternal consistency requirements for the construct of

perceived intelligence (α = 0.8909), animacy (α =

0.8066) and likeability (α = 0.9360). Items mea-

suring task ability were found not to meet this re-

quirement (α = 0.6333) and so were not summated.

Through these summated scales, we use a paired sam-

ple t-test to check for differences in mean. These re-

sults are provided in Table 2.

The summated scales veriﬁed our earlier individ-

ual item tests. There was no signiﬁcant difference in

the two agents in the perceived intelligence and ani-

macy constructs. The C-C agent was ranked signiﬁ-

cantly higher than the T-C agent in the likeability con-

struct.

4.2 Likert Scale Items

The Likert scale items were also individually tested

using both Wilcoxon signed rank and Mann-Whitney

U. Items were scored from 1 (strongly disagree) to 5

(strongly agree). These results are shown in Table 3.

The items with signiﬁcant differences between the

agents were items measuring the recognition of inten-

tion, the expression of intention, and fun. In all these

items, the C-C agent was rated higher. Interestingly,

there was no signiﬁcant difference between the agents

in terms of how participants rated their collaboration.

4.3 Direct Comparisons

Finally, we use simple frequency analysis to show di-

rect comparisons of the agents. This is presented in

Figure 3. Like our previous analyses, there was no

signiﬁcant difference in the two agents in terms of

intelligence. The C-C agent was liked by more par-

ticipants, more likely to actively show its intention,

and was preferred for future interaction. More partic-

ipants rated the T-C agent as being good at basketball.

The frequency graph is shown in Figure 3.

We wished to investigate if there were any under-

lying differences in participants who chose different

agents as being more intelligent. To investigatethis is-

sue further, we performeda crude analysis by dividing

the participants into two groups according to their an-

swer. We then ran statistical tests on each item within

these two groups. Table 4 shows these results. As ex-

pected, there was a signiﬁcant difference in perceived

intelligence items according to each group’s choice

of agent. For participants who chose the T-C agent as

being more intelligent, there was no signiﬁcant differ-

ence in likeability items. These participants also did

not ﬁnd any differences in regard to the recognition of

intention, the expression of intention, or fun. On the

other hand, participants who thought the C-C agent

was the most intelligent thought this agent was more

life-like and that it collaborated better with them than

the T-C agent.

5 ANALYSIS AND DISCUSSION

We now present several ﬁndings from the experi-

ments:

• The agent designed using JAT theory is distin-

guishable from the task-competent agent.

• There is a signiﬁcant difference in the likeability

of the two agents.

• The task-competent agent is recognized by the

UserPerceptionsofCommunicativeandTask-competentAgentsinaVirtualBasketballGame

Table 4: Sub-group analysis of participants according to agent chosen as most intelligent

Agent chosen as most intelligent T-C Agent (n = 15) C-C Agent (n = 17)

Best agent p-value Best agent p-value

Perceived Intelligence T-C <0.001 C-C <0.001

Likeability - 0.831 C-C <0.001

Lifelike - 0.246 C-C 0.037

My intent recognized - 0.501 C-C <0.001

Team mate intent recognized - 0.349 C-C <0.001

Collaboration own team - 0.186 C-C 0.0040

participants at being more competent at basket-

ball.

• The communication-competent agent is recog-

nized as being more able to recognize and express

user intention.

• The communication-competent agent is preferred

by the majority of participants.

Firstly, it is clear that the two agents are distin-

guishable. We found a number of statistically signif-

icant differences between the two. It can be said that

at the very least participants could recognize that they

were interacting with different agents so could evalu-

ate them separately. This ﬁnding is important because

it means that the preferences of the users were more

likely to be based on differences rather than guess-

work.

In terms of likeability, there was a statistically

signiﬁcant difference between the two, supported by

the individual items tests, summated scale and direct

comparison. The C-C agent was found to be much

more likeable. Additionally, it was found to be much

more fun than the T-C agent, which could also be re-

lated to the likeability aspect.

The T-C agent was objectively better at the task, in

both scoring and preventing goals. Through the item

tests the T-C agent was found to be rated a faster run-

ner,better at shooting the ball, and better at defending.

Additionally, the direct comparison test showed the

T-C agent to be better at basketball in general. This

conﬁrmed the expectations of the experiment.

Our Likert scale and direct comparison test pro-

vided support to show that the C-C agent had better

communication capabilities in terms of body move-

ment recognition and expression. Along with the pre-

vious ﬁnding it showedthat users perceivedthe agents

as being different based on the design. The C-C agent

was more communicative but worse at basketball.

If we assume that preference can be measured

through future interaction intention, then the C-C

agent was much more preferred than the T-C agent,

supported by the direct comparison test.

Figure 3: Direct comparison of T-C and C-C agents.

5.1 Agent Differences

Overall, we can conclude that for our basketball

game, an agent which attempts to communicate with

the user is much more preferred over an agent who

merely does the task well, which goes some way to

answering our research question Q2. In the virtual

basketball scenario task ability is important to achiev-

ing the goal. However participants still preferred the

C-C agent even if it was poorer at the task. We have

also shown that the differences between the agents

can be identiﬁed by participants while playing the

game.

There is no obvious answer to exactly why the C-

C agent was preferred, but there can be several expla-

nations. The most obvious one is simply that people

like to interact. In a real life basketball game, this

phenomenon would likely occur. We can imagine that

a real game would be incredibly boring if only one

player did everything. It would seem that this is the

same for agents. Our experiment provides evidence

that participants transferred human properties to the

agents, such as kindness and friendliness. They did

not just consider the agent as a tool, but as a social

actor. If participants were only interested in the out-

come of the game, the T-C agent would be highly val-

ued, but we have shown that even with a task with a

clearly measurable outcome, social properties of an

agent have a more positive effect.

Another reason for the preferenceof the C-C agent

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

could be related to the difﬁculty of the game. An ideal

game must be challenging enough so the user does

not get bored, but not so difﬁcult that they become

frustrated. In our experiment, this balance may have

been addressed more by the C-C agent. The T-C agent

may have been too good at basketball - the participant

found no challenge in the game. However, we do not

know how “bad” the C-C agent has to become before

the user perceives it negatively. The parameterized

physical abilities and communicative capabilities of

the agents would need to be adjusted to assess the op-

timal balance of the game in terms of agent task and

communication.

We also believe that the task domain is important

inﬂuencing this balance. Basketball, while presented

here as a communication analysis tool, is perceivedby

the participants as a game for entertainment. For this

reason we cannot claim that the same results would

be seen in other co-operative tasks. For example, a

search-and-rescue agent requires both task and com-

munication capabilities but because the task is more

serious in nature users may be willing to trade smooth

communication for the agent being able to ﬁnd people

more efﬁciently.

Designers should maximize both task and commu-

nication abilities because in many cases they do not

overlap, but it would be useful to know what features

of agents deserve the most effort. In this case it would

appear to be the latter. We can say that being compe-

tent at playing basketball (which is an important goal

for AI in video games) is not as useful as ensuring

good communication skill.

5.2 Perceived intelligence

Perceivedintelligence did not appear to be effected by

the ability to communicate, nor did it effect the pref-

erence of the participants. We initially thought that

the agent with the ability to read and express body

language would be seen as more intelligent. This is

not borne out in the results. It would also appear that

more complex behaviors would need to be displayed

in order for the users to believe the C-C agent was

truly intelligent. This increased complexity includes

both intelligent communicative behavior (e.g. recog-

nition of more complex signals) and task-based be-

havior (e.g. developing an better game strategy).

One other explanation could be that humans con-

sider both task ability and communication ability as

forms of intelligence. Therefore, each agent can be

seen as intelligent, but exhibit different types of in-

telligence. A similar argument can be made for hu-

mans in the real world, for example Gardner’s the-

ory of multiple intelligence (Gardner, 1983). The de-

tailed analysis could be indicative of this. The par-

ticipants who chose the C-C agent as being more in-

telligent also rated it as being more likeable and able

to show intention. However there was no similar pat-

tern for participants who chose the T-C agent. This

could indicate that task and communication ability are

metrics for different intelligences and that individuals

perceive intelligence according to one of these cat-

egories. A future research avenue then becomes how

we can more accurately implement and measure these

different intelligence types.

5.3 The JAT Model Agent

One outcome of this research is the implementation

our evidence-based JAT agent model, designed to ad-

dress Q1. The C-C agent was found to be able to

express and recognize body movements indicating in-

tention signals from participants. This result shows

that our model is at least better than having no com-

munication functionality. We cannot deﬁnitively con-

clude that JAT is the best model for our purpose as

many confounding factors exist. However JAT con-

cepts, particularly identiﬁcation through implicit sig-

nals, provide a perspective on human-agent collabo-

ration which differs from simply recognizing explicit

gestures. One way to improve the agent would be to

learn signals and strategies from the human during the

game through common ground inferences.

How would JAT fare against other agent designs?

It is difﬁcult to compare across domains but we pro-

pose that as a conceptual framework, JAT is satis-

factory for agent implementation. In this work the

concepts were signals, joint projects and an evidence

model. We justiﬁed the use of JAT because it could

accommodate a dynamic navigable environment and

the implementation of the JAT agent appeared satis-

factory. Users of the JAT agent acknowledged that in-

tentions could be known (through the use of signals)

and intentions could be recognized (through the evi-

dence model). Identiﬁcation of implicit and explicit

signals is also crucial and the JAT framework’s abil-

ity to explicitly model this process make it a useful

consideration for designers.

The next step is to compare the JAT model with

others and expand it to more modalities. A useful

property of our model is that it can be used for multi-

ple modalities by increasing the number of variables

to include anydesirable features. For example, speech

pitch and skin temperature can be included in the

same model. We are currently considering how to im-

plement sound in our basketball system to further test

different modalities and users’ reactions to them.

UserPerceptionsofCommunicativeandTask-competentAgentsinaVirtualBasketballGame

5.4 Limitations

There are a few limitations that we should consider.

First, there was no reward for winning the game. If a

motivation were involved, participants may have been

more inclined to play with the T-C agent. The fact that

the perception of the experiment was close to a video

game inﬂuenced the participant’s assessments of the

agents. It is likely they were looking to be entertained

rather than trying to win, which meant the C-C agent

was more likely to be preferred.

Secondly, we do not know the effects of these dif-

ferences over a longer time period. As a participant

becomes more familiar with the environment, they

may prefer to play the game individually and have no

need for either agent. Alternatively, they could be-

come used to the agent and be able to predict their

actions. In this case, more co-operative behavior may

arise which changes their perceptions, particularly in

regards to intelligence. The games used in the exper-

iment were only 10 minutes long so there was proba-

bly not enough time for the participants to get familiar

with the agent, especially given that they had to also

familiarize themselves with the interface.

Finally, the environment itself has a limited com-

munication channel, that of body movement. This

experiment deliberately left out these modalities to

focus on the body but in order for basketball to be

useful, multimodal interaction must be implemented.

It is impossible to claim that this agent is close to a

virtual human. However there are many potential re-

search directions associated with speech and gesture

combination in this environment because they require

different interaction protocols than ECAs.

6 CONCLUSION

In this paper we designed a virtual basketball game

in which the users could control an avatar, perform

basketball gestures and navigate the court without the

need for hand-held peripherals. Our goal was to as-

sess people’s perceptions of an agent team mate with

higher basketball ability against one with higher com-

munication ability. We also evaluated our joint activ-

ity theory-based agent model for the communication-

competent agent. We found that people were able to

distinguish between the two agents, and preferred the

one with higher communication ability but there ex-

isted no difference in the perceived intelligence of the

agents. This would suggest that users prefer commu-

nication ability to task ability in this environment al-

though this could largely be due to the nature of the

game itself.

Another important outcome is the use of joint ac-

tivity theory as a basis for agent design. The use of an

evidence model to both recognize and express inten-

tion through body movements was acknowledged by

the participants through questionnaires. We proposes

that joint activity theory can serve as a basis for agent

design in this type of environment. Our future plan

is to improve the model of the so it can be used with

different modalities in agents which are not ECAs.

ACKNOWLEDGEMENTS

This research is supported by the Center of Inno-

vation Program from Japan Science and Technology

Agency, JST, AFOSR/AOARD Grant No. FA2386-

14-1-0005, JSPS Grant-in-Aid for Scientiﬁc Research

(A) Number 24240023, and Kyoto University Design

School.

REFERENCES

Bartneck, C., Kulic, D., Croft, E., and Zoghbi, S. (2009).

Measurement instruments for the anthropomorphism,

animacy, likeability, perceived intelligence, and per-

ceived safety of robots. International Journal of So-

cial Robotics, 1(1):71–81.

Baur, T., Damian, I., Gebhard, P., Porayska-Pomsta, K., and

Andr´e, E. (2013). A job interview simulation: So-

cial cue-based interaction with a virtual character. In

2013 International Conference on Social Computing

(SocialCom), pages 220–227. IEEE.

Bergmann, K. and Macedonia, M. (2013). A virtual agent

as vocabulary trainer: Iconic gestures help to improve

learner’s memory performance. In Aylett, R., Krenn,

B., Pelachaud, C., and Shimodaira, H., editors, Intelli-

gent Virtual Agents, volume 8108 of Lecture Notes in

Computer Science. Springer Berlin Heidelberg.

Bevacqua, E., Prepin, K., Niewiadomski, R., de Sevin, E.,

and Pelachaud, C. (2010). Greta: Towards an interac-

tive conversational virtual companion. Artiﬁcial Com-

panions in Society: perspectives on the Present and

Future, pages 1–17.

Bianchi-Berthouze, N. (2013). Understanding the role

of body movement in player engagement. Human-

Computer Interaction, 28(1):40–75.

Bickmore, T. W., Pfeifer, L. M., and Jack, B. W. (2009).

Taking the time to care: Empowering low health lit-

eracy hospital patients with virtual nurse agents. In

Proceedings of the SIGCHI Conference on Human

Factors in Computing Systems, CHI ’09, pages 1265–

1274. ACM.

Bickmore, T. W., Vardoulakis, L. M. P., and Schulman, D.

(2013). Tinker: a relational agent museum guide. Au-

tonomous Agents and Multi-Agent Systems, 27(2).

ICAART2015-InternationalConferenceonAgentsandArtificialIntelligence

Bradshaw, J. M., Feltovich, P. J., Johnson, M., Breedy,

M. R., Bunch, L., Eskridge, T. C., Jung, H., Lott,

J., Uszok, A., and van Diggelen, J. (2009). From

tools to teammates: Joint activity in human-agent-

robot teams. In Kurosu, M., editor, HCI (’10), volume

5619 of Lecture Notes in Computer Science, pages

935–944.

Calinon, S., Guenter, F., and Billard, A. (2007). On Learn-

ing, Representing, and Generalizing a Task in a Hu-

manoid Robot. Systems, Man and Cybernetics, Part

B, IEEE Transactions on, 37(2):286–298.

Clark, H. H. (1996). Using Language. Cambridge Univer-

sity Press.

Damian, I., Buhling, R., Kistler, F., Billinghurst, M., Obaid,

M., and Andre, E. (2013). Motion capturing empow-

ered interaction with a virtual agent in an augmented

reality environment. In 2013 IEEE International Sym-

posium on Mixed and Augmented Reality, pages 1–6.

de Gelder, B. (2009). Why bodies? Twelve reasons for in-

cluding bodily expressions in affective neuroscience.

Philosophical Transactions of the Royal Society B: Bi-

ological Sciences, 364:3475–3484.

Edwards, C., Edwards, A., Spence, P. R., and Shelton, A. K.

(2014). Is that a bot running the social media feed?

testing the differences in perceptions of communica-

tion quality for a human agent and a bot agent on twit-

ter. Computers in Human Behavior, 33:372–376.

Garau, M., Slater, M., Vinayagamoorthy, V., Brogni, A.,

Steed, A., and Sasse, M. A. (2003). The impact of

avatar realism and eye gaze control on perceived qual-

ity of communication in a shared immersive virtual

environment. In Proceedings of the SIGCHI Confer-

ence on Human Factors in Computing Systems, CHI

’03, pages 529–536. ACM.

Gardner, H. (1983). Frames of mind: The theory of multiple

intelligences. Basic Books, New York.

Guy, S. J., Chhugani, J., Curtis, S., Dubey, P., Lin, M., and

Manocha, D. (2010). PLEdestrians: A least-effort ap-

proach to crowd simulation. In Proceedings of the

2010 ACM SIGGRAPH/Eurographics Symposium on

Computer Animation, SCA ’10, pages 119–128.

Kenny, P., Parsons, T. D., Gratch, J., and Rizzo, A. A.

(2008). Evaluation of justina: a virtual patient with

ptsd. In Intelligent virtual agents, pages 394–408.

Springer.

Kim, Y. and Baylor, A. L. (2006). Pedagogical agents as

learning companions: The role of agent competency

and type of interaction. Educational Technology Re-

search and Development, 54(3):223–243.

Kistler, F., Andr´e, E., Mascarenhas, S., Silva, A., Paiva, A.,

Degens, N., Hofstede, G. J., Krumhuber, E., Kappas,

A., and Aylett, R. (2013). Traveller: An interactive

cultural training system controlled by user-deﬁned

body gestures. In Human-Computer Interaction–

INTERACT 2013, pages 697–704. Springer.

Kleinsmith, A. and Bianchi-Berthouze, N. (2013). Affec-

tive body expression perception and recognition: A

survey. IEEE Transactions on Affective Computing,

pages 1–20.

Kopp, S., Jung, B., Leßmann, N., and Wachsmuth, I.

(2003). Max - a multimodal assistant in virtual reality

construction. KI - K¨unstliche Intelligenz, 4(03):11–17.

Kruijff, G.-J. M., Jan´ıcˇek, M., and Zender, H. (2012). Situ-

ated communication for joint activity in human-robot

teams. IEEE Intelligent Systems, 27(2):27–35.

Lala, D. (2012). VISIE: A spatially immersive environment

for capturing and analyzing body expression in virtual

worlds. Masters thesis, Kyoto University.

Lala, D., Mohammad, Y., and Nishida, T. (2013). Unsuper-

vised gesture recognition system for learning manip-

ulative actions in virtual basketball. In Proceedings

of the 1st International Conference on Human-Agent

Interaction.

Lala, D. and Nishida, T. (2014). A joint activity theory anal-

ysis of body interactions in multiplayer virtual basket-

ball. In Proceedings of the 28th British HCI Confer-

ence.

Little, D. Y. and Sommer, F. T. (2011). Learning in em-

bodied action-perception loops through exploration.

CoRR.

Martin, J.-C., Niewiadomski, R., Devillers, L., Buisine, S.,

and Pelachaud, C. (2006). Multimodal complex emo-

tions: Gesture expressivity and blended facial expres-

sions. International Journal of Humanoid Robotics,

3(3):269–291.

Nass, C., Steuer, J., and Tauber, E. R. (1994). Comput-

ers are social actors. In Proceedings of the SIGCHI

conference on Human factors in computing systems,

pages 72–78. ACM.

Pelachaud, C. (2009). Studies on gesture expressivity for

a virtual agent. Speech Communication, 51(7):630–

639.

Rickheit, G. and Wachsmuth, I. (2006). Situated Communi-

cation, volume 166. Walter de Gruyter.

Sanghvi, J., Castellano, G., Leite, I., Pereira, A., McOwan,

P. W., and Paiva, A. (2011). Automatic analysis of

affective postures and body motion to detect engage-

ment with a game companion. In 6th Intlernational

Conference on Human-Robot Interaction, pages 305–

311.

Schroder, M., Bevacqua, E., Cowie, R., Eyben, F., Gunes,

H., Heylen, D., Ter Maat, M., McKeown, G., Pammi,

S., Pantic, M., et al. (2012). Building autonomous sen-

sitive artiﬁcial listeners. Affective Computing, IEEE

Transactions on, 3(2):165–183.

UserPerceptionsofCommunicativeandTask-competentAgentsinaVirtualBasketballGame
