Automatic Removal of Buffer Overflow Vulnerabilities in C/C++

Programs

Sun Ding

, Hee Beng Kuan Tan

and Hongyu Zhang

School of Electrical and Electronic Engineering, Nanyang Technological University, Singapore, Singapore

School of Software, Tsinghua University, Beijing, China

Keywords: Buffer Overflow, Static Analysis, Automatic Bug Fixing, Security Vulnerability.

Abstract: Buffer overflow vulnerability is one of the commonly found significant security vulnerabilities. This

vulnerability may occur if a program does not sufficiently prevent input from exceeding intended size or

accessing unintended memory locations. Researchers have put effort in different directions to address this

vulnerability, including creating a run-time defence mechanism, proposing effective detection methods or

automatically modifying the original program to remove the vulnerabilities. These techniques share many

commonalities and also have differences. In this paper, we characterize buffer overflow vulnerability in the

form of four patterns and propose ABOR--a framework that integrates, extends and generalizes existing

techniques to remove buffer overflow vulnerability more effectively and accurately. ABOR only patches

identified code segments; thus it is an optimized solution that can eliminate buffer overflows while keeping

a minimum runtime overhead. We have implemented the proposed approach and evaluated it through

experiments on a set of benchmarks and three industrial C/C++ applications. The experiment result proves

ABOR’s effectiveness in practice.

1 INTRODUCTION

Buffer overflow in C/C++ is still ranked as one of

the major security vulnerabilities (Abstract syntax

tree, 2014), though it has been 20 years since this

vulnerability was first exploited. This problem has

never been fully resolved and has caused enormous

losses due to information leakage or customer

dissatisfaction (US-CERT, 2014).

A number of approaches have been proposed to

mitigate the threats of buffer overflow attacks.

Existing approaches and tools focus mainly on three

directions (Younan et al., 2012):

1) Prevent buffer overflow attacks by creating a

run-time environment, like a sandbox, so that

taint input could not directly affect certain key

memory locations;

2) Detect buffer overflows in programs by applying

program analysis techniques to analyze source

code;

3) Transform the original program by adding

additional verification code or external

annotations.

For approaches in the first direction, as modern

programs are becoming more complex, it is difficult

to develop a universal run-time defense (Younan et

al., 2012). For approaches in the second direction,

even if buffer overflow vulnerabilities are detected,

the vulnerable programs are still being used until

new patches are released. For the third direction,

though it is well-motivated to add extra validation to

guard critical variables and operations, the existing

approaches will add considerable runtime overhead.

For example, a recent novel approach that adds extra

bounds checking for every pointer may increase the

runtime overhead by 67% on average (Nagarakatte

et al., 2009).

We noticed that though none of the existing

methods can resolve the problem fully, they

many commonalities and also have differences. In

this paper, we first integrate existing methods and

characterize buffer overflow vulnerability in the

form of four patterns. We then propose a

framework—ABOR that combines detection and

removal techniques together to improve the state-of-

the-art. ABOR iteratively detects and removes buffer

overflows in a path-sensitive manner, until all the

detected vulnerabilities are eliminated. Unlike the

related methods (Nagarakatte et al., 2009, Criswell

et al., 2007, Dhurjati and Adve, 2006, Hafiz and

Ding S., Tan H. and Zhang H..

Automatic Removal of Buffer Overﬂow Vulnerabilities in C/C++ Programs.

DOI: 10.5220/0004888000490059

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 49-59

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Johnson, 2009), ABOR only patches identified code

segments in a path-sensitive way; thus it can

eliminate buffer overflows while keeping a

minimum runtime overhead.

We have evaluated the proposed approach on a

set of benchmarks and three industrial C/C++

applications. The results show that the proposed

approach is effective. First it can remove all the

detected buffer overflow vulnerabilities in the

studied subjects. Second we also compare ABOR

with methods that focus on buffer overflow removal.

On average, it removes 58.28% more vulnerabilities

than methods that apply a straight-forward “search

& replace” strategy; it inserted 72.06% fewer

predicates than a customized bounds checker.

The contribution of the paper is as following:

1) The proposed approach integrates and extends

existing techniques to remove buffer overflows

automatically in a path-sensitive manner.

2) The proposed approach guarantees a high

removal accuracy while could keep a low

runtime overhead.

3) The proposed approach contains an exhaustive

lookup table that covers most of the common

buffer overflow vulnerabilities.

The paper is organized as follows. Section 2

provides background on buffer overflows

vulnerability. Section 3 covers the proposed

approach that detects buffer overflows and removes

detected vulnerability automatically. Section 4

evaluates the proposed approach and section 5

reviews the related techniques that mitigate buffer

overflow attacks. Section 6 concludes the paper.

2 BACKGROUND

Buffer overflow based attacks usually share a lot in

common: they occur anytime when a program fails

to prevent input from exceeding intended buffer

size(s) and accessing critical memory locations. The

attacker usually starts with the following attempts

(US-CERT, 2014; Vallentin, 2007): they first exploit

a memory location in the code segment that stores

operations accessing memory without proper

boundary protection. For example, a piece of code

allows writing arbitrary length of user input to

memory. Then they locate a desired memory

location in data segment that stores (a) an important

local variable or (b) an address that is about to be

loaded into the CPU’s Extended instruction Counter

(EIP register).

Attackers attempt to calculate the distance

between the above two memory locations. Once

such locations and distance are discovered, attackers

construct a piece of data of length (x1+x2). The first

x1 bytes of data can be any characters and is used to

fill in the gap between the exploited location and the

desired location. The second x2 bytes of data is the

attacking code which could be (a) an operation

overwriting a local variable, (b) a piece of shell

script hijacking the system or (c) a handle

redirecting to a malicious procedure.

Therefore, to prevent buffer overflow attack, it is

necessary to ensure buffer writing operations are

accessible only after proper validations.

3 THE PROPOSED APPROACH

In this paper, we propose Automatic Buffer

Overflow Repairing (ABOR), a framework which

integrates and extends existing techniques to resolve

the buffer overflow vulnerabilities in a given

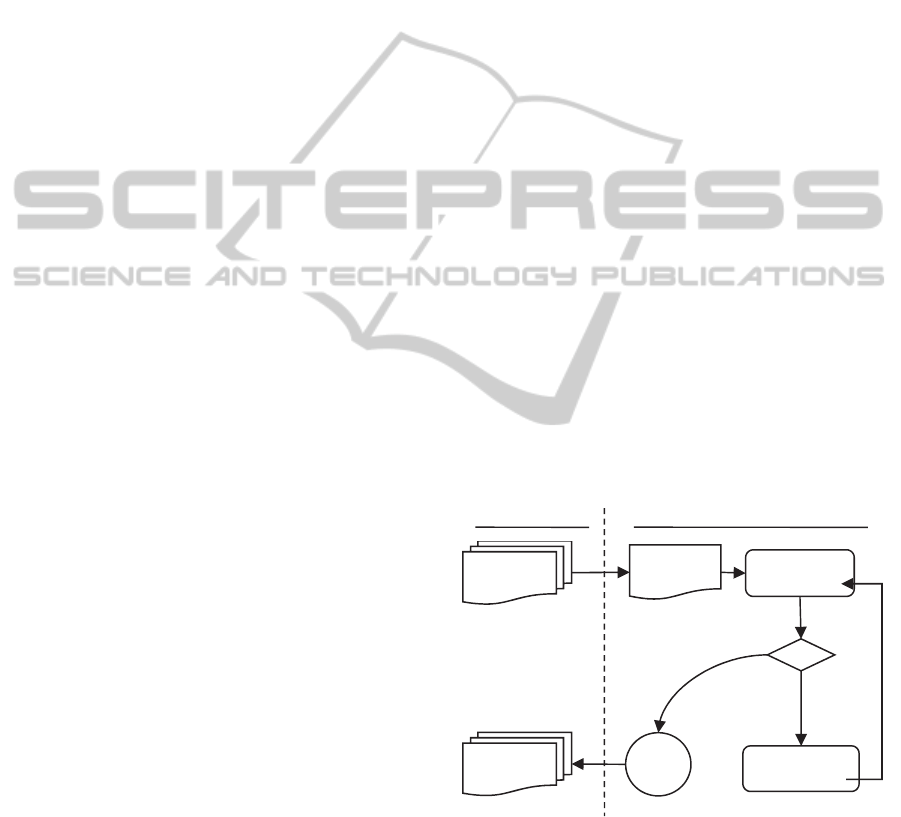

program automatically. Figure 1 demonstrates the

overall structure of the framework. ABOR consists

of two modules: vulnerability detection and

vulnerability removal. ABOR works in an iterative

way: once the vulnerability detection module

captures a vulnerable code segment, the segment is

fed to the removal module; the fixed segment will be

patched back to the original program. ABOR repeats

the above procedure until the program is buffer-

overflow-free. In this section, we introduce the two

modules of ABOR in detail.

Figure 1: Overview of ABOR.

3.1 Buffer Overflow Patterns

We first review some basic definitions of static

analysis (Sinha et al., 2001, Abstract syntax tree,

2014). A control flow graph (CFG) for a procedure

is a graph that visually presents the control flow

Areallthesinkschecked?

Vulnerabl

eProgram

CFG

Vulnerability

Detection

Vulnerability

Removal

Safe

Program

Sourcecode ABOR

Yes

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

among program statements. A path is one single

trace of executing a sequential of program

statements. A variable in a program is called an

input variable if it is not defined in the program

solely from constants and variables. An abstract

syntax tree (AST) is a tree structure that represents

the abstract syntax of source code written in a

particular programming language. We call a program

operation that may cause potential buffer overflows

as a buffer overflow sensitive sink (bo-sensitive

sink). In this paper, we shorten the name “bo-

sensitive sink” to sink. The node that contains a sink

is called a sink node.

There are many methods to protect sinks from

being exploited (Lei et al., 2008, Lin et al., 2007,

Lhee and Chapin, 2003, Necula et al., 2005, Kundu

and Bertino, 2011). One general way is to add extra

protection constraints to protect sinks (Younan et al.,

2012). After a careful review, we collect a list of

common sinks and their corresponding protection

constraints. We characterize them in a form of four

patterns:

Pattern#1: A statement is a bo-sensitive sink when it

defines or updates a destination buffer with an input

from either (1) a C stream input function which is

declared in <stdio.h>, or (2) a C++ input function

inherited from the base class istream. The protection

constraint shall ensure the length of the destination

buffer is not smaller than the input data.

Pattern#2: A statement that copies/moves the

content of a block of memory to another block of

memory is a bo-sensitive sink. The protection

constraint shall ensure that the copied/moved data is

not larger than the length of the destination memory

block.

Pattern#3: A statement is a bo-sensitive sink when it

calls a C stream output function when (1) this

function is declared in <stdio.h>; or (2) this

function contains a format string that mismatches its

corresponding output data; or (3) the function’s

output is data dependent on its parameters (Lhee and

Chapin, 2003). The protection constraint shall ensure

that:

 the output data should not contain any string

derived from the prototype (C++Reference,

2014):

%[flags][width][.precision][length]specifier;

 or all the character “%” in the output data has

been encoded in a backslash escape style, such

as “\%”.

Pattern#4: A statement other than the above cases

but referencing a pointer or array is a bo-sensitive

sink. Before accessing this statement, there should

be a protection constraint to do boundary checking

for this pointer or array.

We use the above four patterns as a guideline to

construct the buffer overflow detection and removal

modules of ABOR. In order to specify these cases

clearly, we use metadata to describe them

exhaustively at the AST level. The metadata is

maintained in Table 1 (Space lacks for a full table

here, so we only show a fraction of Table 1. The full

table is presented on our website (Ding, 2014)).

Each row in Table 1 stands for a concrete buffer

overflow case. The column Sink lists the AST

structure of sinks. The column Protection Constraint

specifies the AST structure of the constraint which

could prevent the sinks being exploited.

Additionally, in order to concrete the protection

constraints ABOR needs to substitute in constants,

local variables, expressions, and also two more

critical data structures: the length of a buffer and the

index of a buffer.

In C/C++, there is no universal way to retrieve a

buffer’s length and index easily. To solve this,

ABOR creates intermediate variables to represent

them. In Table 1, the last column Required

Intermediate Variable

records the required

intermediate variables for each constraint.

Table 1: ABOR pattern lookup table.

Patter

n

Sink

Protection

Constraint

Required

Intermediate

Variable

1

gets(dst)

dst_length≥

SIZE_MAX



dst_length

/*Thedestination

bufferdst’slength

(bytes).*/



2

memcpy(d

st,src,t)

dst_length≥t;

src_length≥t;

dst_length,

//Thedestination

bufferdst’slength,in

termsofbytes.

src_length

//Thesourcebuffer

src’slength,interms

ofbytes.

……

4

array[i]

sizeof(array)/si

zeof(array[0])

≥i

N.A.

……



SIZE_MAX stands for the max value of unsigned long

AutomaticRemovalofBufferOverflowVulnerabilitiesinC/C++Programs

3.2 Buffer Overflow Detection

Among the existing detection methods, approaches

working in a path sensitive manner offer higher

accuracy because they target at modeling the

runtime behavior for each execution path:

1) For each path, path sensitive approaches

eventually generate a path constraint to reflect

the relationship between the external input and

target buffer.

2) The path’s vulnerability is verified through

validating the generated path constraint.

In the current implementation of ABOR, we

modified a recent buffer overflow detection method

called Marple (Le and Soffa, 2008) and integrated it

into ABOR. We chose Marple mainly because it

detects buffer overflows in a path sensitive manner,

which offers high precision.

Marple maintained a lookup table to store the

common bo-sensitive sinks’ syntax structure. For

each recognized bo-sensitive sink node and the path

passing through the sink node, Marple generates an

initial constraint, called query and backward

propagates the query along the path. The constraint

will be updated through symbolic execution when

encountering nodes that could affect the data flow

information related to the constraint. Once the

constraint is updated, Marple tries to validate it by

invoking its theorem prover. If it is proved the

constraint is unsatisfiable, Marple concludes this

path buffer-overflow-vulnerable. Figure 2

demonstrates how ABOR integrates and extends

Marple:

1) ABOR replaces Marple’s lookup table with Table

1. We enforce Marple to search for the syntax

structures listed in the column Sink of Table 1.

Additionally, Marple will raise a query based on

the column Protection Constraint.

2) ABOR uses a depth-first search to traverse a

given procedure’s control flow graph: each

branch will be traversed once. If a bo-sensitive

sink is found, the segment starting from the sink

back to the procedure entry will be constructed to

be a set of paths and each path will be fed to

Marple for processing.

3) ABOR replaces Marple’s constraint solver with

Z3 (Z3, 2014), a latest SMT solver from

Microsoft with strong solvability.

4) If one path is identified vulnerable, ABOR

records the sub-path that causes the vulnerability

or infeasibility (Le and Soffa, 2008). Later, paths

containing any of such sub-paths will not be

examined.

5) We follow the way Marple handles loop

structures: we treat a loop structure as a unit and

try to compute each loop’s impact on the

propagating constraint, if and only if such impact

is linear.

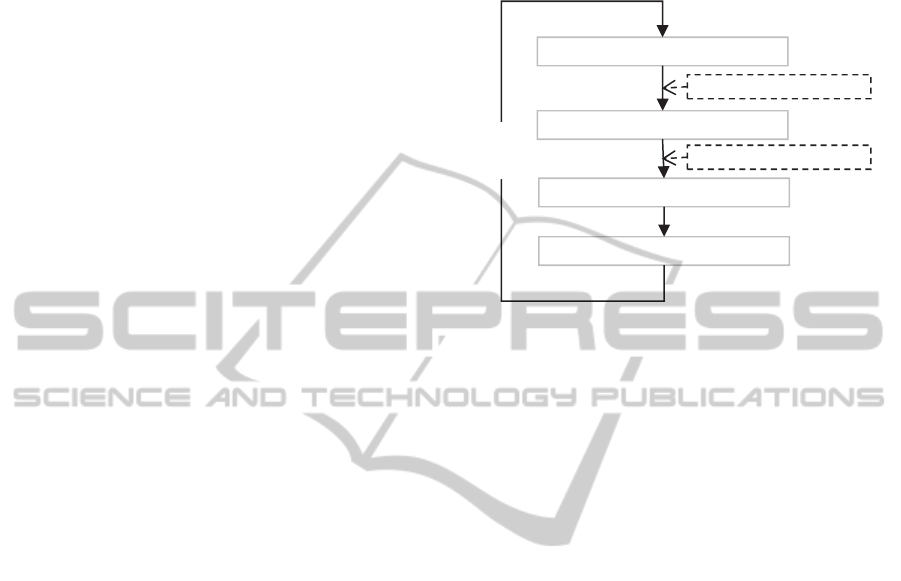

Figure 2: Vulnerability detection in ABOR.

We illustrate the above procedure with an

example. In Table 4, s1 is a sink node. Therefore,

Marple raises a constraint as pvpbuf_length ≥

req_bytes_length. It propagates backward along the

paths that pass through s1 and tries to evaluate the

constraint.

For example, along the path (n1, n2, n3, n4, n5,

n6, n7, n9, n10, n11, n12, n9, n13, n14, n15, n16,

s1), the constraint is updated at node n13 and

becomes c2 ≥ 1024. The variable c2 is affected by

the loop [n9, n10, n11, n12, n9]. The variable c2 is

used in the loop, and it is data dependent on the

input--ADDRSIZE. There exists a counterexample to

violate the constraint c2 ≥ 1024. So this path is

identified as being vulnerable. The method

introduced in section 3.3 will be used to remove this

vulnerability.

3.3 Buffer Overflow Removal

The removal module takes an identified vulnerable

path, analyzes the sink’s AST and picks the

corresponding constraint to protect the sink. The

main challenge is to concrete the selected protection

constraint into valid C++ code.

3.3.1 Intermediate Variable

It is important to trace the semantics of certain key

operations along a path, including: buffer definition,

buffer referencing, array indexing, pointer arithmetic

and freeing memory. ABOR propagates backward

along the given path to enable the intermediate

variables simulating these semantics. Table 2 is used

A path with sink

Constraint propagation

Constraint solving

Vulnerability Confirmation

Symbolic Execution

Constraint Solving: Z3

path

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

to assist this propagation. In Table 2, the column

Syntax Structure stands for the AST structure ABOR

searches for during the propagation. The column

Update Operation stands for how ABOR updates the

corresponding intermediate variables. (Space lacks

for a full table here, so we only show a fraction of

Table 2. The full table is presented on our website

(Ding, 2014)).

3.3.2 Program Transformation for

Vulnerability Removal

Table 3 shows the algorithm removeVul that

describes ABOR’s removal module. This algorithm

takes an identified vulnerable path pth and a control

flow graph G as parameters. It outputs a repaired

control flow graph G’ that is no longer vulnerable.

Table 2: Update intermediate variable during propagation.

Syntax Structure Update Operation

Buffer definition

 buffer = new wildcard T [n];

 T buffer[n];

buffer_length = n * sizeof(T);

Buffer referencing

 T * p=buffer;

_length=buffer_length;

_index=buffer_index;

Array index subscription

 buffer[i] = wildcard buffer_index=i;

Pointer arithmetic

 p++; p--;

_index ++; p_index--;

 p=p+n;

_index = p_index +n;

Free memory

 free (p);

 delete [] p;

_length=0;

_index=NULL;

The algorithm removeVul first identifies the sink

along pth and then concretes the corresponding

protection constraint by substituting required local

variables, expressions, constants and intermediate

variables. The concrete protection constraint is used

to wrap the sink node to provide protections and,

therefore, remove the vulnerability caused by the

sink.

A full example of using ABOR is presented in

Table 4. The vulnerable program is in the left side

column, and the repaired program is in the right side

column.

ABOR’s buffer overflow detection module finds

that the path (n1, n2, n3, n4, n5, n6, n7, n8, n14,

n15, n16, s1) is vulnerable. The path will be passed

to removeVul.

removeVul traverses the sink node s1’s AST and

determines that the first pattern shall be applied. The

constraint is to validate that the length of pvpbuf is

larger than or equal to the length of req_bytes.

ABOR inserts one node p1 into the CFG and

creates two intermediate variables with an initial

value of 0: pvpbuf_temp0_size for the length of

pvpbuf and req_bytes_temp0_size for the length of

req_bytes. ABOR inserts another three nodes p2, p3,

and p4 into CFG, to manipulate the two intermediate

variables to track the lengths of pvpbuf and

req_bytes.

Table 3: Vulnerability removal in ABOR.

Input:



Global

Variables:

Output:

G:theCFGofaprocedure;

pth:theidentifiedvulnerablepath

δ:theprotectionconstraintforthesink

{v}:thesetofrequiredintermediatevariables



G’:theCFGwiththeinserteddefensivecode

AlgorithmremoveVu

(G ,pth, s)

begin

1. δ=NULL;{v}=;G’=G;

2. CFGNodecur_node=NULL;//thecurrentnode

traversed

3. <δ,{v}>=LookupT1(sink);/*thissub‐procedure

lookupsinTable1andgetsthemetadata*/

4. for(cur_node:=FromsinkTopth’s

entrynode)do

//updateintermediatevariables

5. foreachvin{v}do

6. Insert a CFGNode into G’ as the its Entry

Node’simmediate post‐dominator, to

declarevandinitializev=0;

7. if(LookupT2(cur_node,v)==TRUE)then

8. /*this sub‐procedure

 lookups in Table

2tocheckwhether the current CFG Node

contains AST matching the Syntax

StructuresinTable2*/

9. Insert a CFGNode into G’ as

cur_node’simmediatepost‐dominator,to

perform the corresponding update

operationinTable2;

10. endIf

11. endFor

12. endFor

13. Concreteδwith

 required local variables, expressions,

constantsandintermediatevariablesin{v};

14. Useδasconditiontoconstructapredicateandinsert

this predicate node into G’ as sink’s immediate

dominator’simmediatepost‐dominator;

15. Place sink and the rest part of G’ on the predicate’s

TRUEbranch;

16. Add an exception

‐handling node on the predicate’s

FALSE branch and link this FALSE branch to G’s exit

node.

17. G’SrcFile’//convertG’backtosourcecode

End

ABOR constructs the protection constraint as

pvpbuf_temp0_size ≥ req_bytes_temp0_size and

transforms the original program by wrapping

statement s1 with statements p5, and p6.

At last, ABOR converts the modified CFG back

to source code, which is listed in the right side

column of Table 4. Therefore, the vulnerability has

been removed. (Interested readers could refer to our

website (Ding, 2014) for more examples of the

AutomaticRemovalofBufferOverflowVulnerabilitiesinC/C++Programs

Table 4: An example of applying ABOR.

Vulnerable path Sink Pattern Protection Constraint

(n1,n2,n3,n4,n5,n6,n7,n8,n14,n15, n16,s1)

/*s1*/

strcpy(pvpbuf, req_bytes)

Pattern 1 length(pvpbuf)≥length(req_bytes)

Vulnerable Program Repaired Program

#define min_size 10;

#define max_size 1024;

/*addr is an existing array with the size of

ADDRSIZE,

n2 and n16 are two basic blocks that are not related to

pvpbuf and req_bytes*/

int _encode (bool bslashmode, char *addr, int

ADDRSIZE){

/*n1*/ do{

/*n2*/ BLOCK1;

/*n3*/ }while(…);

/*n4*/ int c1=0; int c2=0;

/*n5*/ int PSBUFSIZE= max_size;

/*n6*/ int *pvpbuf;

/*n7*/ if (bslashmode == TRUE){

/*n8*/ pvpbuf = new int [PSBUFSIZE];

}else{

/*n9*/ while(c1<ADDRSIZE){

/*n10*/ if(addr[c1]!='#')

/*n11*/ c2++;

/*n12*/ c1++;

}

/*n13*/ pvpbuf = new int [c2];

}

/*n14*/ char req_bytes[1024];

/*n15*/ scanf("%1024s", req_bytes);

/*n16*/ BLOCK2;

/*s1*/ strcpy(pvpbuf,req_bytes);

}//END _encode

#define min_size 10;

#define max_size 1024;

/*addr is an existing array with the size of ADDRSIZE,

n2 and n16 are two basic blocks that are not related to pvpbuf and

req_bytes*/

int _encode (bool bslashmode, char *addr, int ADDRSIZE){

/*p1*/ int pvpbuf_temp0_size=0;

int req_bytes0_size=0;

/*n1*/ do{

/*n2*/ BLOCK1;

/*n3*/ }while(…);

/*n4*/ int c1=0; int c2=0;

/*n5*/ int PSBUFSIZE= max_size;

/*n6*/ int *pvpbuf;

/*n7*/ if (bslashmode == TRUE){

/*n8*/ pvpbuf = new int [PSBUFSIZE];

/*p2*/ pvpbuf_temp0_size=PSBUFSIZE;

}else{

/*n9*/ while(c1<ADDRSIZE){

/*n10*/ if(addr[c1]!='#')

/*n11*/ c2++;

/*n12*/ c1++;

}

/*n13*/ pvpbuf = new int [c2];

/*p3*/ pvpbuf_temp0_size=c2;

}

/*n14*/ char req_bytes[1024];

/*p4*/ req_bytes_temp0_size=1024;

/*n15*/ scanf("%1024s", req_bytes);

/*n16*/ BLOCK2;

/*p5* if(pvpbuf_temp0_size >= req_bytes_temp0_size)

/*s1*/ strcpy(pvpbuf,req_bytes);

else

/*p6*/ cerr<<“Attempt to cause buffer overflow reject”;

}//END _encode

program transformation).

4 EVALUATION

4.1 Experiment Design

We implemented the proposed approach as a

prototype system. The prototype has two parts:

Program Analyzer and ABOR. The Program

Analyzer receives C/C++ programs as input and

utilizes CodeSurfer (CodeSurfer, 2012) to build an

inline inter-procedural CFG. This CFG is then sent

to the ABOR for the vulnerability detection and

removal.

Nine systems are selected to evaluate ABOR’s

performance. Six of them are benchmark programs

from Buffer Overflow Benchmark (Zitser et al.,

2004) and BugBench (Lu et al., 2005), namely

Polymorph, Ncompress, Gzip, Bc, Wu-ftdp and

Sendmail. The rest three are industrial C/C++

applications, namely RouterCore, PathFinder, and

RFIDScan (Celestvision, 2014).

For each system, we first run ABOR and then

manually validate the results. The experiments are

carried out on a desktop computer with Intel Duo

E6750 2-core processor, 2.66 GHz, 4 GB memory

and Windows XP system.

4.2 Experimental Results

4.2.1 System Performance

We evaluate ABOR’s performance in terms of

removal accuracy and time cost.

Removal Accuracy: For benchmark systems, the

experimental results are shown in Table 5(a). A false

negative case occurs if we manually find that the

proposed method failed to remove one buffer

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

overflow vulnerability. A false positive case occurs

if we manually find the proposed method patched a

piece of code that is actually buffer overflow free.

We calculate the error rate of the proposed method

by dividing the total number of vulnerabilities by the

sum of the number of false positives and false

negatives. The column KLOC stands for thousands

of lines of code. The column #Reported records the

real reported number of vulnerabilities while column

#Repaired records the number of vulnerabilities

removed by ABOR. The columns #FP and #FN

stand for the numbers of false positives and false

negatives respectively. For all the systems, the total

number of reported buffer overflow vulnerabilities is

370. Therefore, ABOR can correctly remove all the

vulnerabilities reported in previous work (Zitser et

al., 2004, Lu et al., 2005).

For industrial programs, the results are shown in

Table 5(b). The columns KLOC, #Repaired, #FN

and #FP have the same meaning with Table 5(a).

Additionally, the column #Detected stands for the

number of detected vulnerabilities; and the column

#Manual stands for the number of vulnerabilities

discovered from manual investigations. The manual

investigation double checked the detection result and

analyzed the reason behind the cases that ABOR

failed to proceed. As shown in Table 5(b), our

approach detects 608 buffer overflow vulnerabilities

and can successfully remove all of them. The results

confirm the effectiveness of the proposed approach

in removing buffer overflow vulnerabilities.

However, due to implementation limitations,

ABOR’s detection modules didn’t capture all the

buffer overflow vulnerabilities in the industrial

programs. On average, the error rate of our proposed

method is 20.53%, which consists of 19.80% false

negative cases and 0.73% false positive cases. The

details of the error cases are discussed in section

4.2.3.

Table 5 (a): Vulnerabilities removed in benchmarks.

System

LOC #Reporte

Repaired #FP #FN

Polymorph-0.4.0 1.7 15 15 0 0

Ncompress-4.2.4 2.0 38 38 0 0

Gzip-1.2.4 8.2 38 38 0 0

Bc-1.06 17.7 245 245 0 0

Wu- ftdp-2.6.2 0.4 13 13 0 0

Sendmail-8.7.5 0.7 21 21 0 0

Total 30.7 370 370 0 0

Time Cost: We measured the time performance of

the proposed approach on both benchmarks and

industrial programs. Table 6 records the time spent

on processing each program individually. ABOR is

scalable to process large programs. The time cost

over the entire nine systems is 4480 second, which is

nearly 75 minutes. It is also discovered that a large

amount of time is spent on vulnerability detection,

which is 77.77% of the total time. The vulnerability

removal process is relatively lightweight, which

costs only 22.23% of the total time.

Table 5 (b): Vulnerabilities removed in industry programs.

System KLOC #Detected #Repaired #Manual #FP #FN ErrorRate(%)

RouterC~ 137.15 217 217 309 3 41 14.23

PathFinder 104.23 79 79 103 1 25 25.24

RFIDScan 219.36 312 312 406 2 96 24.13

Total 460.74 608 608 818 6 162 20.53

Table 6: The time performance of ABOR.

System

Total Time

(ms)

Detection Time Removal Time

Time (ms) %

Time

(ms)

olymorph 95.25 81.91 85.99 13.34 14.01

compress 214.32 160.81 75.03 53.51 24.98

zip 3698.16 2388.71 64.59 1309.45 35.41

c 149469.60 132026.90 88.33 17442.66 11.67

u- ftdp 221.13 185.33 83.81 35.80 16.19

Sendmail 134.82 103.76 76.96 31.06 23.04

outerCore 2446656.17 1781649.13 72.82 665007.07 27.18

athFinde

654987.43 564359.17 86.16 90628.22 13.84

FIDScan 1224366.67 1003880.72 81.99 220485.98 18.01

otal 4479843.55 3484836.44 77.77 995007.09 22.23

4.2.2 Comparison

There are another two types of commonly used

removal methods (Younan et al., 2012), which are

“search & replace” and “bounds checker”.

Search & Replace: The first category of methods

replaces those common vulnerable C string

functions with safe versions. If a program contains a

large number of C string functions, this category of

methods can achieve a good effect. Additionally,

they are straight-forward for implementation (Miller

and Raadt, 1999). But as the fast development of

attacking techniques based on buffer overflows

(Younan et al., 2012), the "search & replace",

methods will miss many buffer overflows in real

code.

Bounds Checker: The second category of methods

chases high precision by inserting effective

validation before every memory access. In practice,

they are usually used by mission-critical systems

(Younan et al., 2012) (Nagarakatte et al., 2009).

However, they normally bring in high runtime

overhead as a number of inserted validations are

redundant.

ABOR is the method that only patches identified

detected vulnerable code segment in a path-sensitive

way. So it guarantees the removal precision while it

AutomaticRemovalofBufferOverflowVulnerabilitiesinC/C++Programs

can keep a low runtime overhead. Using the same

benchmarks and industrial programs, we compare

ABOR with the other two main categories of

removal methods.

First, we compare ABOR with the “search &

replace” category. In Figure 4, we compare ABOR

with a recent “search & replace” method from Hafiz

and Johnson (2009). It maintains a static database

that stores common C/C++ vulnerable functions

with their safe versions.

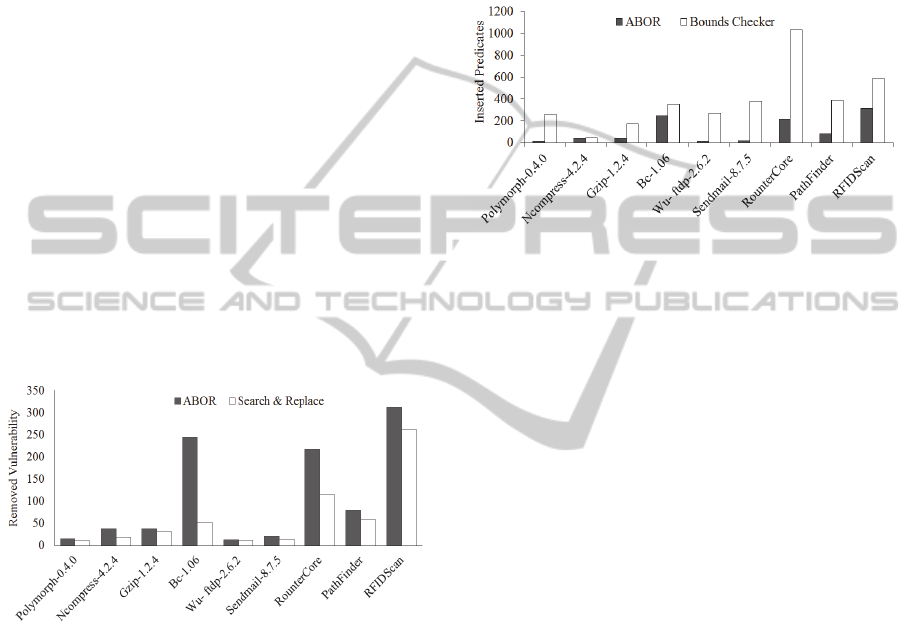

Figure 4 represents the histograms on the number

of removed buffer overflows. It contains a pair of

bars for each test case. The shadowed ones are for

ABOR while the while bars are for the applied

“search & replace” method. The Longer bars are

better as they represent the higher removal precision.

For the entire nine systems, in total, the “search &

replace” method removes 570 vulnerabilities while

ABOR removes 978 vulnerabilities (41.72% more).

This is mainly because (1) many vulnerable codes

are not covered by the static database of the “search

& replace” method; (2) even after using a safe

version of certain C/C++ functions, the

vulnerabilities are not removed due to improper

function parameters.

Figure 4: Comparison with a “Search & Replace” method.

Second, we compare ABOR with the bounds

checker” category. At the current stage, we

implemented a customized bounds checker

following a novel approach from Nagarakatte et al.,

(2009). It will insert predicates to protect every

suspicious sink.

Figure 5 represents the histograms on the number

of inserted predicates. As with more inserted

predicates, runtime overhead will increase. Figure 5

contains a pair of bars for each test case. The

shadowed ones are for ABOR while the white ones

are for the applied bounds checker. Shorter bars are

better as they represent the fewer number of inserted

predicates. For the entire nine systems, in total, the

applied bounds checker inserts 3500 predicates.

ABOR only patches confirmed sinks, so it only

inserts 978 predicates, which are 72.05% less than

the applied bounds checker.

Last but not least, though detection of buffer

overflow is not a new research, till now, no

approaches can detect buffer overflow with full

coverage and precision. As the proposed approach

uses these approaches, it is also limited by the

accuracy of these approaches.

Figure 5: Comparison with a “Bounds Checker” method.

4.2.3 Discussion

It is also found that ABOR caused some false

positive and false negative cases when processing

the industrial programs. We further investigate these

error cases and found the errors are mainly caused

by implementation limitations. We categorize them

into three types:

Error 1 - inaccuracy from alias analysis: it is

difficult to implement a comprehensive alias

analysis (CodeSurfer, (2012a)). Table 7(a) shows a

false-negative example from RouterCore that is

caused by inaccurate pointer analysis. In the loop,

pointer ptr is incremented by one in each iteration

until it equals to the address of pointer slt. So after

the loop, ptr and slt are actually aliased. However,

currently we cannot detect such alias relationship.

The node n2 could overwrite the value of *ptr.

Though node n1 does the boundary checking, it no

longer protects node n3.

Error 2- inaccuracy from loop structure. So far only

variables that are linearly updated within an iteration

are handled by ABOR. Table 7(b) shows an example

found in RouterCore. The variable x is non-linearly

updated by using a bitwise operation. Therefore the

corresponding constraint, which compares the size

between buff and input, is beyond the solvability of

our current implementation.

Error 3- platform-based data types: the industrial

programs PathFinder and RFIDScan both involve

external data types of Microsoft Windows SDK

(e.g., WORD, DWORD, DWORD_PTR, etc.). This

requires extra implementations to interpret them.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

Additionally the value ranges of these data types

specify implicit constraints. Table 7(c) shows a

false-positive case from PathFinder. In this example,

although accessing the buffer element via index at

node n2 has no protection, there will be no buffer

overflow vulnerability because index ranges only

from 0 to 65535.

We summarize the error analysis in Table 8. In

the future, further engineering effort is required to

address these implementation difficulties.

Table 7: Examples of errors from processing the industrial

programs.

(a) false-negative due to aliased

pointer

(b) false-negative due

to loop

void send(char mode){

// ptr and slt are two pointers

while(ptr < slt){

ptr++;

}

/*n1*/ if(*ptr<sizeof(worduser)){

/*n2*/ cin.get(slt,80) ;

/*n3*/ worduser[*ptr] =mode; }

}

……

for(……){

……

x= x & y;

}

……

char * buff = new

char[x];

……

strcpy( buff, input);

/*n1*/ WORD index=0;

……

char buff[65536];

while(……){

……

/*n2*/ buff[index] = cin.get();

index++;}

Table 8: Accuracy and error analysis.

System

Total

rro

E1 E2 E3

# % # % # %

RouterCore 44 23 52.27 10

2.73 11 25.00

PathFinder 26 16 61.54 0 0 10 38.47

RFIDScan 98 31 31.63 22

2.45 45 45.92

Total 168 70 41.67 32 19.05 66 39.29

5 RELATED WORK

We reviewed the recent techniques in addressing the

buffer overflow vulnerability. We categorize them

into three types: buffer overflow detection, runtime

defense and vulnerability removal.

5.1 Buffer Overflow Detection

Buffer overflow vulnerability could be effectively

detected by well-organized program analysis. The

analysis could be performed either on source code or

binary code. The current detection methods can be

classified into path-sensitive approaches and non-

path-sensitive approaches.

Path-sensitive approaches analyze given paths

and generate path constraints according to the

properties that ensure the paths are not exploitable

for any buffer overflow attack. The path constraints

are extracted using symbolic evaluation through

either forward or backward propagation. A theorem

prover or customized constraint solver is

instrumented to evaluate the constraints. If a

constraint is determined as unsolvable, the path is

concluded as vulnerable. These methods pursue

soundness and precision but usually include heavy

overhead due to the use of symbolic evaluation.

Typical examples include ARCHER (Xie et al.,

2003), Marple (Le and Soffa, 2008), etc.

Non-path-sensitive approaches try to avoid

complex analysis. They usually rely on general data

flow analysis. These methods compute the

environment, which is a mapping of program

variables to values at those suspected locations. The

environment captures all the possible values at a

location L. Therefore, if any values are found to

violate the buffer boundary at L; a buffer overflow

vulnerability is detected. Choosing proper locations

and making safe approximation requires heuristics

and sacrifices precision. However, such a design

gains more scalable performance, which is highly

essential when dealing with large-scale applications.

Typical examples include the work from Larochelle

and Evans (2001) and CSSV (Dor et al., 2003).

5.2 Run-time Defence

This type of approaches adopt run-time defense to

prevent exploiting potential vulnerabilities of any

installed programs. These approaches aim to provide

extra protection regardless of what the source

program is. Normally such protections are

implemented using three different kinds of

techniques: code instrumentation, infrastructure

modification, and network assistance.

The first aspect is to simulate a run-time

environment partially, execute the suspicious

program in a virtual environment and check whether

malicious actions have taken place. Examples

include StakeGuard and RAD (Wilander and

Kamkar, 2003), which are tools that create virtual

variables to simulate function’s return address.

Suspicious code will be redirected to act over the

virtual variables first.

The second aspect is to modify the underlying

mechanism to eliminate the root of attacks: Xu et al.

(2002) proposed a method to split stack and store

AutomaticRemovalofBufferOverflowVulnerabilitiesinC/C++Programs

data and control information separately;

Ozdoganoglu et al., (2006) proposed to implement a

non-executable stack. More details and

corresponding tools of run-time defense could be

found in recent surveys (Younan et al., 2012,

Padmanabhuni and Tan, 2011).

The third aspect is to do a taint analysis for the

input data from any the untrusted network source.

This analysis compares network data with

vulnerability signatures of the recorded attacks, or

inspects payload for shell code for detecting and

preventing exploitation. TaintCheck (Newsome and

Song, 2005), proposed by Newsome and Song,

tracks the propagation of tainted data that comes

from un-trusted network sources. If a vulnerability

signature is found, the attack is detected.

5.3 Attack Prevention through Auto

Patching

The last category aims to removal the vulnerability

from the source code. The objective is to add

defensive code to wrap sink nodes so that no taint

data could access the sinks directly. There are three

strategies to design defensive code and insert them:

search & replace, bounds checker, and detect &

transform (Younan et al., 2012).

The first strategy is to search common vulnerable

C string functions and I/O operations and replaces

the found operations with a safe version. For

example, vulnerable functions strcpy and strcat

could be replaced as strncpy and strncat or strlcpy

and strlcat (Miller and Raadt, 1999), or even with a

customized version. Munawar and Ralph (Hafiz and

Johnson, 2009) proposed a reliable approach to

replace strcpy and strcat with a customized version

based on heuristics. This strategy is straight-forward

and easy to implement. However, it misses many

complex situations.

The second strategy is aiming to insert effective

validation before each memory access to perform an

extra bounds checking. A typical design is to add

validation before each pointer operation, named

“pointer-based approach”. These approaches track

the base and bound information for every pointer

and validate each pointer manipulation operation

against the tracked information. Examples include

CCured, MSCC, SafeC, and Softbound (Nagarakatte

et al., 2009). These approaches are designed to

provide high precision. However, as nearly every

pointer operation will be wrapped with additional

checking, the code may grow largely and the

runtime performance could be downgraded.

The third strategy is to locate the vulnerability

first and then transform the vulnerable code segment

into a safe version. Comparing with the second

strategy, this helps reduce the size of added code

without compromising the removal precision.

Relatively few efforts have been put in this

direction. For example, Wang et al. (Lei et al., 2008)

proposed a method to add extra protection

constraints to protect sink nodes. The method called

model checker to verify the satisfiability of the

inserted protection constraints. If the constraint fails

to hold, that sink node will be recorded vulnerable,

and the corresponding constraints will be left to

protect the sink node. A similar example is from Lin

et al., (2007) However, these methods are path-

insensitive.

ABOR follows the third strategy and pushes the

state-of-the-art one step ahead. It first detects the

buffer overflows based on path sensitive information

and then only add defensive code to repair the

vulnerable code segment. Therefore, it adds limited

code and has a low runtime overhead.

6 CONCLUSIONS

In this paper, we have presented an approach to

remove buffer overflow vulnerabilities in C/C++

programs automatically. We first characterize buffer

overflow vulnerability in the form of four patterns.

We then integrate and extend existing techniques to

propose a framework—ABOR that removes buffer

overflow vulnerability automatically: ABOR

iteratively detects and removes buffer overflows in a

path-sensitive manner, until all the detected

vulnerabilities are eliminated. Additionally, ABOR

only patches vulnerable code segment. Therefore, it

keeps a lightweight runtime overhead. Using a set of

benchmark programs and three industrial programs

written in C/C++, we experimentally show that the

proposed approach is effective and scalable for

removing all the detected buffer overflow

vulnerabilities.

In the future, we will improve our approach and

tool to minimize the number of wrongly detected

cases. We will also integrate ABOR into existing

testing frameworks, such as CUnit, GoogleTest, to

further demonstrate its practicality.

ACKNOWLEDGEMENTS

The authors thank the JiangSu Celestvision from

China for assisting this study and providing their

internal programs for our experiment.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

REFERENCES

Abstract syntax tree en.wikipedia.org/wiki/Abstract_

syntax_tree, 2014.

CodeSurfer, http://www.grammatech.com/, 2012.

C++Reference, http://www.cplusplus.com/reference/, 2014.

Celestvision, http://www.celestvision.com, 2014.

DingS-Buffer overflow detection. http://sunshine-nanyang.

com/index.html, 2014.

US-CERT, http://www.us-cert.gov/, 2014.

Z3: SMT solver, http://z3.codeplex.com/, 2014.

Criswell, J., Lenharth, A., Dhurjati, D. and Adve, V. 2007.

Secure virtual architecture: a safe execution

environment for commodity operating systems.

SIGOPS Oper. Syst. Rev., 41, 351-366.

Dhurjati, D. and Aave, V. 2006. Backwards-compatible

array bounds checking for C with very low overhead.

Proceedings of the 28th international conference on

Software engineering. Shanghai, China: ACM.

Dor, N., Rodeh, M. and Sagiv, M. CSSV: towards a

realistic tool for statically detecting all buffer

overflows in C. PLDI '03: Proceedings of the ACM

SIGPLAN 2003 conference on Programming language

design and implementation, 2003 San Diego,

California, USA. ACM, 155-167.

Hafiz, M. and Johnson, R. E. 2009. Security-oriented

program transformations. Proceedings of the 5th

Annual Workshop on Cyber Security and Information

Intelligence Research: Cyber Security and Information

Intelligence Challenges and Strategies. Oak Ridge,

Tennessee: ACM.

Kundu, A. and Bertino, E. 2011. A New Class of Buffer

Overflow Attacks. Proceedings of the 2011 31st

International Conference on Distributed Computing

Systems. IEEE Computer Society.

Larochelle, D. and Evans, D. 2001. Statically detecting

likely buffer overflow vulnerabilities. Proceedings of

the 10th conference on USENIX Security Symposium -

Volume 10. Washington, D.C.: USENIX Association.

Le, W. and Soffa, M. L. 2008. Marple: a demand-driven

path-sensitive buffer overflow detector. Proceedings

of the 16th ACM SIGSOFT International Symposium

on Foundations of software engineering. Atlanta,

Georgia: ACM.

Lei, W., Qiang, Z. and Pengchao, Z. Automated Detection

of Code Vulnerabilities Based on Program Analysis

and Model Checking. Source Code Analysis and

Manipulation, 2008 Eighth IEEE International

Working Conference on, 28-29 Sept. 2008. 165-173.

Lhee, K.-S. and Chapin, S. J. 2003. Buffer overflow and

format string overflow vulnerabilities. Softw. Pract.

Exper., 33, 423-460.

Lin, Z., Jiang, X., Xu, D., Mao, B. & Xie, L. 2007.

AutoPaG: towards automated software patch

generation with source code root cause identification

and repair. Proceedings of the 2nd ACM symposium

on Information, computer and communications

security. Singapore: ACM.

Lu, S., Li, Z., Qin, F., Tan, L., Zhou, P. and Zhou, Y.

Bugbench: Benchmarks for evaluating bug detection

tools. In Workshop on the Evaluation of Software

Defect Detection Tools, 2005.

Miller, T. C. and Raadt, T. D. 1999. strlcpy and strlcat:

consistent, safe, string copy and concatenation.

Proceedings of the annual conference on USENIX

Annual Technical Conference. Monterey, California:

USENIX Association.

Nagarakatte, S., Zhao, J., Martin, M. M. K. and

Zdancewic, S. 2009. SoftBound: highly compatible

and complete spatial memory safety for c. Proceedings

of the 2009 ACM SIGPLAN conference on

Programming language design and implementation.

Dublin, Ireland: ACM.

Necula, G. C., Condit, J., Harren, M., Mcpeak, S. and

Weimer, W. 2005. CCured: type-safe retrofitting of

legacy software. ACM Trans. Program. Lang. Syst.,

27, 477-526.

Newsome, J. and Song, D. Dynamic Taint Analysis for

Automatic Detection, Analysis, and Signature

Generation of Exploits on Commodity Software.

Proceedings of the Network and Distributed System

Security Symposium (NDSS), 2005.

Ozdoganoglu, H., Vijaykumar, T. N., Brodley, C. E.,

Kuperman, B. A. and Jalote, A. 2006. SmashGuard: A

Hardware Solution to Prevent Security Attacks on the

Function Return Address. Computers, IEEE

Transactions on, 55, 1271-1285.

Padmanabhuni, B. and Tan, H. 2011. Techniques for

Defending from Buffer Overflow Vulnerability

Security Exploits. Internet Computing, IEEE, PP, 1-1.

Sinha, S., Harrold, M. J. and Rothermel, G. 2001.

Interprocedural control dependence. ACM Trans.

Softw. Eng. Methodol., 10, 209-254.

Vallentin, M. On the Evolution of Buffer Overflows.

http://matthias.vallentin.net/course-work/buffer_

overflows .pdf, 2007.

Wilander, J. and Kamkar, M. A Comparison of Publicly

Available Tools for Dynamic Buffer Overflow

Prevention. Network and Distributed System Security

Symposium(NDSS), 2003. 149-162.

Xie, Y., Chou, A. and Engler, D. ARCHER: using

symbolic, path-sensitive analysis to detect memory

access errors. ESEC/FSE-11: Proceedings of the 9th

European software engineering conference held

jointly with 11th ACM SIGSOFT international

symposium on Foundations of software engineering,

2003 Helsinki, Finland. ACM, 327-336.

Xu, J., Kalbarczyk, Z., Patel, S. and Ravishankar, I.

Architecture Support for Defending Against Buffer

Overflow Attacks. Second Workshop on Evaluating

and Architecting System dependabilitY, 2002. 55-62.

Younan, Y., Joosen, W. and Piessens, F. 2012. Runtime

countermeasures for code injection attacks against C

and C++ programs. ACM Comput. Surv., 44, 1-28.

Zitser, M., Lippmann, R. and Leek, T. 2004. Testing static

analysis tools using exploitable buffer overflows from

open source code. SIGSOFT Softw. Eng. Notes, 29,

97-106.

AutomaticRemovalofBufferOverflowVulnerabilitiesinC/C++Programs
