Practical Risk Assessment Using a Cumulative Smart Grid Model

Markus Kammerstetter

, Lucie Langer

, Florian Skopik

, Friederich Kupzog

and Wolfgang Kastner

Institute of Computer Aided Automation, Automation Systems Group, International Secure Systems Lab,

Vienna University of Technology, Vienna, Austria

Safety and Security Department, Austrian Institute of Technology, Vienna, Austria

Energy Department, Austrian Institute of Technology, Vienna, Austria

Institute of Computer Aided Automation, Automation Systems Group, Vienna University of Technology, Vienna, Austria

Keywords:

Smart Grid, Risks, Risk Assessment, Critical Infrastructures.

Abstract:

Due to the massive increase of green energy, today’s power grids are in an ongoing transformation to smart

grids. While traditionally ICT technologies were utilized to control and monitor only a limited amount of grid

systems down to the station level, they will reach billions of customers in near future. One of the downsides

of this development is the exposure of previously locked down communication networks to a wide range of

potential attackers. To mitigate the risks involved, proper risk management needs to be in place. Together

with leading manufacturers and utilities, we focused on European smart grids and analyzed existing security

standards in the Smart Grid Security Guidance (SG)

project. As our study showed that these standards

are of limited practical use to utilities, we developed a cumulative smart grid architecture model in a joint

approach with manufacturers and utilities to represent both current and future European smart grids. Based

on that model, we developed a practical, light-weight risk assessment methodology covering a wide range of

potential threats that have been evaluated and reﬁned in course of expert interviews with utility providers and

manufacturers.

1 INTRODUCTION

Over the last years, the electrical power grid has un-

dergone a tremendous change. The traditional power

grid could be described as a producer-consumer

model. The producers generate electricity and the

electricity is transferred by utilities to the consumers.

As a result, the amount of employed ICT technolo-

gies was limited. Today, there is a strong trend in

the direction of sustainable green energy, energy sav-

ing and higher efﬁciency. Energy is no longer only

produced at the top and delivered to the bottom; in-

stead, everyone can become an energy producer. Con-

sumers change to “prosumers” by running their own

solar or wind power stations. Businesses and com-

munities specializing on independent energy produc-

tion through wind turbines, heating, or biogas plants

emerge and grow. The boundaries in the traditional

power grid model start to fade. On the other hand,

large-scale energy producers and utilities can save en-

ergy and achieve higher energy efﬁciency by hav-

ing the ability to inﬂuence or control devices in the

user domain. To make this possible, energy grids are

heavily expanded with ICT technologies – the tradi-

tional power grid is being transformed into the smart

grid. On the downside, these technologies bear un-

foreseen risks for critical infrastructures. Smart grid

ICT technology providers and utilities have limited

experience with these new technologies and market

pressure may force them to throw new products on the

market before they have undergone quality assurance

processes suitable for critical infrastructures. While

traditionally access to smart grid ICT networks was

limited to energy producers and utilities, new smart

grid ICT technologies allow the massive amount of

consumers to participate in these networks. Com-

munication infrastructures in energy grids and espe-

cially in power grids are thus also exposed to a wide

range of potential adversaries. To mitigate the secu-

rity risks involved, there have been signiﬁcant inter-

national efforts in terms of smart grid cyber security

standards, risk assessment and security mechanisms

(see Section 2). However, focusing on smart grids

in the European Union and especially in Austria, it

quickly turned out that many architectural or techno-

logical assumptions do not hold for the smart grid sys-

tems currently being rolled out in large quantities. For

instance, within the European Union, the Smart Me-

Kammerstetter M., Langer L., Skopik F., Kupzog F. and Kastner W..

Practical Risk Assessment Using a Cumulative Smart Grid Model.

DOI: 10.5220/0004860900310042

In Proceedings of the 3rd International Conference on Smart Grids and Green IT Systems (SMARTGREENS-2014), pages 31-42

ISBN: 978-989-758-025-3

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

tering Protection Proﬁles (BSI, 2013b; BSI, 2013c)

are widely known for their security requirements and

deﬁnitions. Yet, smart metering is only one of many

areas within the smart grid, and today’s advanced me-

tering infrastructure (AMI) typically does not corre-

spond to the gateway and security module design con-

cept suggested in those Protection Proﬁles. As a re-

sult, in the Smart Grid Security Guidance (SG)

joint

project (AIT, 2013) with leading smart grid compo-

nent manufacturers and utilities, we set out to cre-

ate a cumulative smart grid landscape model repre-

senting both current and future European smart grids.

Based on established industry security standards and

in close cooperation with manufacturers and utilities,

we identiﬁed a comprehensive set of threats that are

applicable within our cumulative smart grid model.

To foster practical usability, we clustered both iden-

tiﬁed threats and smart grid systems to form the two

dimensions of a threat matrix. This threat matrix al-

lows practical threat assessment for both current and

future European smart grids, and forms the basis for

an according risk assessment determined by probabil-

ity and impact. In summary, the main contributions of

our work are:

• A cumulative smart grid model representing both

current and near-future European smart grids as a

basis for sound risk assessment

• A thoroughly designed threat catalog for modern

smart grid architectures

• An accompanying practical risk assessment ap-

proach evaluated and reﬁned in course of expert

interviews with utility providers and manufactur-

ers

The remainder of this paper is organized as fol-

lows. Section 2 provides an overview of related work.

In Section 3 we explain how we developed the cumu-

lative smart grid model. In Section 4 we describe our

risk assessment approach, while Section 5 covers the

evaluation and our results. The conclusions and sug-

gestions on further work can be found in Section 6.

2 RELATED WORK

Mainly focusing on U.S. smart grids and technol-

ogy, NIST has developed Guidelines for Smart Grid

Cybersecurity (NIST, 2013b). In Europe, the Ger-

man Federal Ofﬁce for Information Security (BSI)

has come up with a Common Criteria Protection Pro-

ﬁle for the Gateway of a Smart Metering System and

its Security Module (BSI, 2013b; BSI, 2013c). In

contrast to our approach, the NIST guidelines do not

allow an integrated approach. They are based on

technologies employed in U.S. smart grids and give

high-level recommendations only. Similarly, the BSI

protection proﬁles do not provide a holistic approach

either. Instead, they focus on smart metering only

(which is only one building block of a smart grid), and

their Target of Evaluation is a very speciﬁc smart me-

tering implementation that does not reﬂect deployed

smart metering systems.

Regarding risk assessment, Lu et al. outline secu-

rity threats in the smart grid (Lu et al., 2010). In com-

parison, our approach is targeted on the broad range

of system components in European smart grids. Ray

et al. provide a more formal approach to smart grid

risk management (Ray et al., 2010) while one of our

goals was to develop a practical risk assessment ap-

proach usable for utilities. Varaiya et al. show vari-

ous ways to manage security critical energy systems

(Varaiya et al., 2011). However, they rather focus on

formal methods, and their smart grid model does not

reﬂect current European smart grids. Finally, Hou et

al. outline the differences in risk modeling between

traditional grids and smart grids (Hou et al., 2011),

while we focus on the smart grid landscape that is cur-

rently deployed or will be deployed in the near future.

In addition, existing risk assessment approaches are

covered in more detail in Section 4.1.

Regarding smart grid security mechanisms, Yan et

al., Mohan et al. and Vigo et al. provide an overview

of security mechanisms for smart grids and smart me-

ters (Yan et al., 2012; Mohan and Khurana, 2012;

Vigo et al., 2012). While their work provides an

overview of how security mechanisms should be real-

ized, in our approach, we focus on the security mech-

anisms that are either implemented in current imple-

mentations or will be part of near-future implementa-

tions. Finally, Wang et al. (Yufei et al., 2011) present

smart grid standards covering security, but rather tar-

get U.S. standards like those published by NIST.

3 CUMULATIVE SMART GRID

MODELING USING SGAM

In our joint approach to identify technological risks in

current and future European smart grids, it turned out

that leading experts, utilities and even manufacturers

have a very different view and deﬁnition of what the

smart grid is. Focusing on European smart grids and

the Austrian power grid in particular, on a high-level

view, the smart grid domains and actors within those

domains are comparable to existing standards such

as the NIST Smart Grid Framework (NIST, 2013a)

or the European Smart Grid Reference Architecture

(Smart Grid Coordination Group, CEN-CENELEC-

SMARTGREENS2014-3rdInternationalConferenceonSmartGridsandGreenITSystems

ETSI, 2012b). In a ﬁrst task, we asked utilities to

compare their deployed smart grid systems, model re-

gions, pilot projects and concepts with existing refer-

ence models. Since, unlike the NIST framework, the

European smart grid reference architecture focuses on

European smart grid technologies, it was chosen as a

basis for the comparison. Speciﬁcally, we used the

Smart Grid Architecture Model (SGAM) (Smart Grid

Coordination Group, CEN-CENELEC-ETSI, 2012b)

to allow for a well-structured comparison. Overall, 45

different projects could be identiﬁed and prioritized

according to project size, project relevance, and both

amount and quality of available information. The

study showed that, in general, the SGAM model is

usable with some limitations, but the reference model

is only applicable on a high level. While it sketches

the general structure of European smart grids, it does

not contain detailed information on the technologies

implementing smart grid components in this struc-

ture. For that matter, it is not adequate for qualiﬁed

risk modeling suitable for utilities. To close this gap,

we combined seven national and four international

projects within the SGAM model to form a cumula-

tive architecture model allowing us to deduce threats

and risks for both current and future smart grid instal-

lations in Europe. The following sections describe our

approach in more detail.

3.1 The Smart Grid Architecture Model

(SGAM) Framework

The SGAM model had its original motivation in iden-

tifying gaps in standardization and locating these gaps

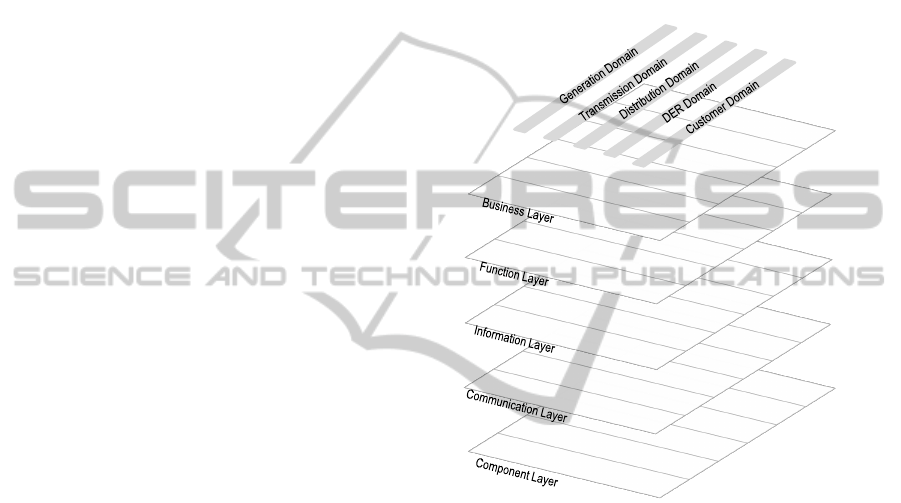

in the SGAM model space. The model is structured

in zones and domains (see Fig. 1). While the zones

are derived from the typical layers of a hierarchi-

cal automation system (from ﬁeld via process, sta-

tion towards operation and enterprise level (Sauter

et al., 2011)), the domains reﬂect power-system spe-

ciﬁc ﬁelds of different actors such as transmission

system operators, distribution system operators, and

customers. In contrast to the NIST model, the Euro-

pean approach has a dedicated DER (Distributed En-

ergy Resources) domain, which captures small dis-

tributed generators with their special infrastructure.

Finally, in the third dimension, SGAM features in-

teroperability layers. With these layers, the different

aspects of networked smart grid systems are aligned.

The base layer is the component layer, where phys-

ical and software components are situated. On top

of that, communication links and protocols between

these components can be placed. The information

layer holds the data models of the information ex-

changed. On top of that, the function layer holds

the actual functionalities, and the uppermost layer de-

scribes the business goals of the system.

Today, SGAM serves three major purposes: ﬁrst

of all, it is a means to visualize and compare different

smart grid automation architectures. This also allows

the identiﬁcation of gaps in all layers. Finally, SGAM

can serve as a useful model to support model-driven

architecture development. In this work, SGAM was

applied for the ﬁrst two purposes: comparison and

identiﬁcation of gaps.

Process

Field

Station

Operation

Enterprise

Market

Figure 1: Smart Grid Architecture Model (SGAM) Frame-

work.

3.2 Current and Future Smart Grid

Technologies within SGAM

Within the project, a holistic architecture was derived,

which reﬂects the short- to mid-term extension of to-

day’s power grid IT technology towards future smart

grid functionalities. The methodology used to achieve

this architecture is based on individual SGAM mod-

eling of national and international smart grid projects

that signiﬁcantly build on the use of ICT systems.

From 45 project candidates, seven signiﬁcant national

smart grid research projects were selected for model-

ing:

• IEM: Intelligent Energy Management

• Smart Web Grids (Smart Grid Modellregion

Salzburg, 2011)

• DG DemoNetz Smart LV Grids (Klimafonds,

2012)

PracticalRiskAssessmentUsingaCumulativeSmartGridModel

• ZUQDE: Zentrale Spannungs- und Blindleis-

tungsregelung mit dezentralen Einspeisungen in

der Demoregion Salzburg (Smart Grid Modellre-

gion Salzburg, 2010)

• EMPORA: E-Mobile Power Austria (E-Mobile

Power Austria, 2010)

• AMIS Smart Metering Rollout

A similar approach was applied to international

projects. The selected signiﬁcant projects were:

• The European FP7 Project OpenNode (OpenN-

ode, 2012)

• The European FP7 Project EcoGrid EU (EcoGrid,

2012)

• The US Demand Response Automation Server

(DRAS) (DRAS, 2008)

• The German ICT Gateway Approach OGEMA

(OGEMA, 2012)

For SGAM modeling, detailed information about the

technical implementations had to be requested from

the projects under analysis. The availability of infor-

mation (or contacts to the projects) was an additional

selection criterion for the international projects.

3.3 European Smart Grid View

according to the Cumulative SG

Model

The derived architecture (Fig. 2) includes a harmo-

nized cumulative view of the components found in all

analyzed projects. The SGAM domains transmission

and bulk generation were not covered by the selected

projects since in the Austrian or, respectively, Euro-

pean view, the smart grid is primarily related to dis-

tribution systems. The architecture shows the compo-

nent and communication layer of the SGAM model.

On the bottom, the ﬁeld devices can be found (such

as smart meters or dedicated sensors and actuators).

On the station level, both primary and secondary sub-

station are situated with their current and prospec-

tive automation components. On the customer side,

mainly residential customers, commercial buildings,

and electric mobility can be found. On the top of the

architecture, the enterprise level and market compo-

nents are located.

However, one of the main differences to exist-

ing models is the addition of detailed communica-

tion technology descriptions allowing a more in-depth

risk assessment approach. The communication pro-

tocols and technologies underlined are the ones that

are predominantly used in the projects we analyzed.

For instance, in future smart grids the broad use of

Web Services is anticipated for communicating with

the energy market. Nevertheless, as depicted in our

architecture, the predominant way to achieve this in

current smart grids is to use personal communication

via email or phone calls. From a risk assessment per-

spective, this results in a signiﬁcant difference as Web

Services can potentially be more easily compromised

than a phone call made between a group of persons

who probably know each other well from their daily

work routine.

3.4 Evaluation of the Model

After a ﬁrst draft of the architecture model had been

developed, it was subject to a number of feedback

rounds with members of the consortium (utilities and

manufacturers). Improvements and additional infor-

mation were integrated into the architecture. The

(SG)

architecture model serves as an anchor point

for further analysis and as a common document of en-

ergy, IT and security experts. The main beneﬁt of the

model is that questions between the different expert

domains can clearly be formulated and therefore eas-

ily be answered by referring to individual elements of

the architecture.

4 SMART GRID RISK

ASSESSMENT

4.1 Existing Approaches

Smart grid cyber security and risk assessment in par-

ticular has been addressed in several standards, guide-

lines and recommendations. The U.S. National Insti-

tute of Standards and Technology (NIST) has devel-

oped a three-volume report on “Guidelines for Smart

Grid Cyber Security (NIST-IR 7628)” (NIST, 2013b):

Volume two focuses on risks related to customer pri-

vacy in the smart grid, and gives high-level recom-

mendations on how to mitigate these risks. However,

no general approach for assessing security risks in the

smart grid is provided. The European Network and

Information Security Agency (ENISA) has issued a

report on smart grid security. It builds on existing

work like NIST-IR 7628 or ISO 27002 and provides

a set of speciﬁc security measures for smart grid ser-

vice providers, aimed at establishing a minimum level

of cyber security (ENISA, 2012). Each security mea-

sure can be implemented at three different “sophisti-

cation levels”, ranging from early-stage to advanced.

SMARTGREENS2014-3rdInternationalConferenceonSmartGridsandGreenITSystems

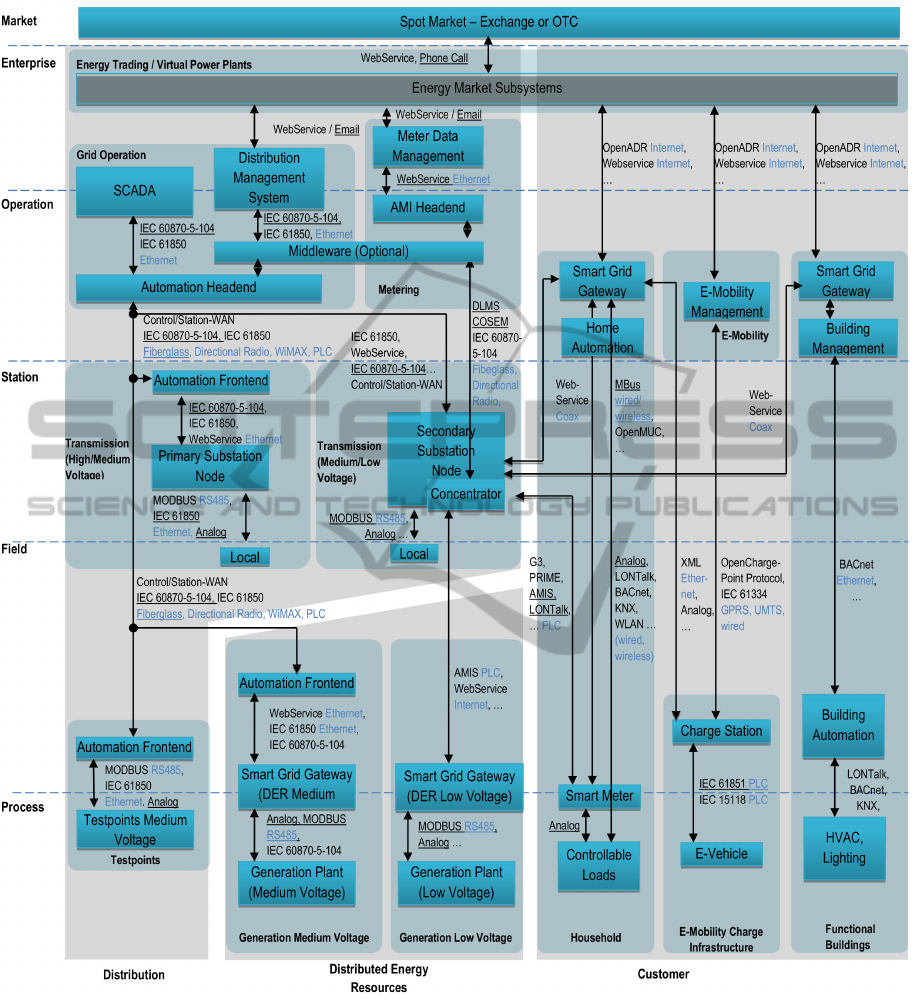

Figure 2: Cumulative Smart Grid Model.

The importance of a risk assessment to be performed

before deciding the required sophistication levels is

pointed out, but no speciﬁc risk assessment method-

ology is identiﬁed within the report.

The German Federal Ofﬁce for Information Se-

curity has come up with a Common Criteria Pro-

tection Proﬁle for the Gateway of a Smart Metering

System and its Security Module (BSI, 2013b; BSI,

2013c). Both deﬁne minimum security requirements

for the corresponding smart grid components based

on a threat analysis. However, the Common Criteria

approach, which focuses on a speciﬁc, well-deﬁned

Target of Evaluation, cannot provide a holistic view

on cyber security threats in future smart grids. An-

other drawback is that the implementation of many

smart metering systems currently being rolled out

does not correspond to the deﬁned gateway and se-

curity module design concept.

PracticalRiskAssessmentUsingaCumulativeSmartGridModel

The CEN-CENELEC-ETSI Smart Grid Coordina-

tion Group has provided a comprehensive framework

on smart grids in response to the EU Smart Grid Man-

date M/490 (Smart Grid Coordination Group, CEN-

CENELEC-ETSI, 2012a). As part of that framework,

the “Smart Grid Information Security (SGIS)” report

deﬁnes ﬁve SGIS Security Levels to assess the criti-

cality of smart grid components by focusing on power

loss caused by ICT systems failures. Moreover, ﬁve

SGIS Risk Impact Levels are deﬁned that can be used

to classify inherent risks in order to assess the impor-

tance of every asset of the smart grid provider. This

means that the assessment is carried out under the as-

sumption that no security controls whatsoever are in

place. While this is a valuable approach, it is not suit-

able for a more practical scenario that focuses on ac-

tual, currently deployed or foreseeable implementa-

tions.

Risk assessment methodologies have also been

addressed by the FP7 project EURACOM, which con-

sidered protection and resilience of energy supply in

Europe and aimed at identifying a common and holis-

tic approach for risk assessment in the energy sector.

As part of a project deliverable

, existing risk assess-

ment methodologies and good practices have been an-

alyzed in order to identify a generic risk assessment

method which could be customized to suit the speciﬁc

needs of the energy sector.

While most of the existing risk assessment meth-

ods are asset-driven, the (SG)

project required an

architecture-driven approach for developing a risk

catalog. This approach is described more closely in

the following.

4.2 Our Approach: Threat Matrix and

Risk Catalog

The risk assessment approach taken in (SG)

focused

on the ICT architecture model initially developed

within the project (see Section 3). The goal was to

come up with a comprehensive catalog of ICT-related

risks for smart grids in Europe from a Distribution

System Operator’s perspective. The following steps

were taken to achieve that goal:

1. Compile a threat catalog for smart grids focusing

on ICT-related threats and vulnerabilities

2. Develop a threat matrix by applying the threat cat-

alog to the ICT architecture model, i.e., identify

which threats apply to which components of the

model

The EURACOM project deliverables can be down-

loaded at http://www.eos-eu.com/?Page=euracom.

3. Assess the potential risk for each element within

the threat matrix by estimating the probability and

the impact of an according attack, thus eventually

producing a risk catalog

These steps are explained in more detail in the follow-

ing paragraphs.

4.2.1 Compiling the Threat Catalog

The (SG)

threat catalog was not to be developed

from scratch, but should build upon a well-established

source of ICT-related security threats. To that end,

the IT Baseline Protection Catalogs developed by the

Federal Ofﬁce for Information Security (BSI, 2013a)

were chosen to form the main source of input as

they provide a comprehensive list of security threats

that could possibly apply to an ICT-supported system.

Additionally, the threats speciﬁed in the smart-grid-

speciﬁc Protection Proﬁles (BSI, 2013b; BSI, 2013c)

were taken into account. Non-technical threats, i.e.,

threats related to organizational issues or force ma-

jeure, were not considered due to the scope and focus

of the (SG)

project. Thus, out of a list of initially 500

threats accumulated from the identiﬁed sources, the

ones without any relevance to smart grids or without

any relation to ICT were eliminated at ﬁrst, yielding

roughly half of the initial threats for further consider-

ation. While certain threats listed in the BSI Catalogs

are very generic, others apply to very speciﬁc settings

only; therefore, it was necessary to merge some of the

threats that remained in our list after the “weeding”

step. This resulted in a list of 31 threats, which were

grouped into the following clusters:

• Authentiﬁcation / Authorization

• Cryptography / Conﬁdentiality

• Integrity / Availability

• Missing / Inadequate Security Controls

• Internal / External Interfaces

• Maintenance / System Status

Since the BSI Baseline Protection Catalogs are not

tailored for any speciﬁc use case, the relevant threats

had to be adapted to the smart grid scenario, i.e., they

were interpreted in the smart grid context.

4.2.2 Developing the Threat Matrix

The next step on the path to the (SG)

risk catalog

was to apply the threats identiﬁed in the ﬁrst step to

the components of the (SG)

architecture model (see

Section 3), i.e., to state which threats are relevant for

which of the components and why. To answer that

question, the functionality and the characteristics of

SMARTGREENS2014-3rdInternationalConferenceonSmartGridsandGreenITSystems

the individual architecture components had to be as-

sessed ﬁrst. For feasibility reasons, the granularity of

the components to be considered was set to the level

of the boxes depicted in dark grey in Fig. 2:

• Functional Buildings

• E-Mobility & Charge Infrastructure

• Household

• Generation Low Voltage

• Generation Medium Voltage

• Testpoints

• Transmission (High/Medium Voltage)

• Transmission (Medium/Low Voltage)

• Grid Operation

• Metering

The Energy Markets domain was not considered due

to lack of current ICT utilization and lack of informa-

tion on future functionalities.

For each element of the threat matrix, it was ﬁrst

decided whether the threat could be relevant to that

particular component or not. If potential relevance

was assessed, the reason for that decision was noted,

and possible attack scenarios were developed. Since

the architecture model considered also smart grid de-

velopments for the near future, reasonable assump-

tions regarding the implementation had to be made in

certain cases. These assumptions were discussed and

veriﬁed by the involved manufacturers and utilities.

4.2.3 Assessing the Risk Potential

The ﬁnal step of the (SG)

risk assessment involved

estimating the risk potential for each element of the

threat matrix, thus providing a comprehensive risk

catalog. To that end, the probability and the impact

of each of the threats occuring was rated for each of

the components of the architecture model. A semi-

quantitative approach was chosen for the risk assess-

ment, which had previously been applied and prac-

tically assessed by one of the member organizations

of the project consortium: both probability and im-

pact were measured on a ﬁve-level scale ranging from

very low (level 1) to very high (level 5). The probabil-

ity level was determined by the number of successful

attacks per year, ranging from less than 0.1 incidents

(level 1) to multiple incidents (level 5) per year. The

impact of a successful attack was determined by mon-

etary loss, customer impact, and geographic range of

the effects (e.g., local, regional, global). The outcome

of this step is a comprehensive catalog of cyber secu-

rity risks on smart grids in Europe. The steps taken to

evaluate the catalog as well as the main ﬁndings are

described in the following section.

5 EVALUATION AND RESULTS

A good threat and risk assessment model delivers use-

ful results, i.e., captures speciﬁc threats appropriately,

is easy to use, and well applicable in reality. With

these targets in mind, we evaluated and revised the

model in a series of workshops, where domain ex-

perts from both areas of information technology and

energy rated the proposed risk assessment approach.

5.1 Evaluation Methodology

The evaluation, partly integrated in the overall cre-

ation of our cumulative smart grid model for risk as-

sessment, included in the following three steps:

• Step 1: Evaluation of Threat Catalog. In order

to evaluate our threat catalog, we set up end user

workshops with experts from utility providers, de-

vice manufacturers, and academic institutions to

evaluate both the relevance and completeness of

the identiﬁed threats. During that evaluation, ad-

ditional threats were added that are unique to the

smart grid domain.

• Step 2: Threat Relevance. Experts surveyed the

applicability of identiﬁed threats to the various

domains in the SGAM model. This step enabled

the identiﬁcation of the most important threats per

domain as well as their interdependencies, and

further allowed to focus on most relevant threats.

The result was again discussed and reﬁned with

major utility providers in Austria in end user cen-

tric workshops.

• Step 3: Probability and Impact Assessment. In a

last step, we had experts independently rate the

probability of occurrence of identiﬁed threats and

the impact from their point of view. These ex-

perts represent the opinions of different utility

providers, ranging from small and locally operat-

ing organizations, to larger ones. In a joint work-

shop, the individual results were again discussed

and consolidated to ensure the broad use of the

resulting threat and risk catalog.

5.2 Main Findings

Dealing with proper risk assessment in the smart grid

domain is indeed challenging, mainly because of the

novelty, complexity, and multidisciplinarity of this

topic. Here, we present some of the main ﬁndings,

derived from the application of our approach in a real

user context. We foresee these qualitative statements

as a major contribution for future improvements of

our smart grid risk assessment approach.

PracticalRiskAssessmentUsingaCumulativeSmartGridModel

5.2.1 Unbalanced Risk Distribution

Essentially, the probability of a security breach is

comparatively low on the upper levels of the cumula-

tive smart grid model, because components are small

in numbers and easy to protect. An attacker typi-

cally has no physical access to components, and well-

trained experts acting under rigid policies maintain

the grid’s backend. Furthermore, protection mech-

anisms on the upper levels do not suffer from cost

pressure on this level; for instance, redundant sys-

tems and hot stand-by sites are state-of-the-art here.

However, once an attacker manages to get access to

critical systems, the negative impact will eventually

be high; for instance, shutting down a primary sub-

station node could affect whole city districts. This

makes the security of higher level smart grid com-

ponents a ﬁrst priority for utility providers. On the

other hand, the probability of a security incident on

the bottom level of the cumulative smart grid model

is much higher. The reason is that attackers can eas-

ily get hold of components (e.g., a concentrator or a

secondary substation node) or have them installed on

their own premises (e.g., a smart meter). The impact

of an attack towards these components is expected to

be (geographically) limited at a ﬁrst glance. The situ-

ation may however change tremendously if someone

publishes a successful smart meter mass attack on the

Internet. This could lead to unanticipated cascading

effects in the power grid. Hence, smart grid security

on the lower levels of the smart grid is of major im-

portance for utility providers as well.

5.2.2 Evolution of the Grid

Security challenges arise from the fact that the current

power grid architecture is just step-wise transformed

to a smart grid. While neither a pure legacy system

nor a completely new system designed from scratch

is too hard to be properly secured, while a mixture of

both is. We identiﬁed that during the transmission of

the current power grid into a smart grid, we are facing

many security challenges: (i) the mix of legacy pro-

tocols and new protocols; (ii) the usage of wrappers,

data converters, and gateways to make devices inter-

operable; (iii) short innovation cycles and rapid pace

with which technologies advance clash with the tradi-

tional views of grid investments, where components

have been designed to last for decades.

5.2.3 Technological Diversity

Not only the transformation phase, but also the ﬁ-

nal smart grid architecture foresees the application

of a wide variety of different technologies (Skopik

and Langer, 2013). Many security specialists ar-

gue that this diversity leads to a large attack sur-

face, meaning that in hundreds of different protocols

and implementations, a security relevant ﬂaw is much

more likely compared to only a small set of well-

tested standardized technologies. This technological

diversity and the need for seamless interoperability

mostly avoids rigid designs and the setup of a uni-

form and secure architecture. On the other side, sys-

tems may be designed with different goals in mind

so that the intermediary interfaces between them may

lead to security vulnerabilities. Although standardiza-

tion bodies, such as the NIST and BSI, have published

(vendor-independent) viable technology recommen-

dations and guidelines, there are no obligations for

device vendors and utility providers to stick to them.

However, we must not negate the positive aspects

of technological diversity. Combining different tech-

nologies and products can help to prevent cascading

effects caused by a speciﬁc vulnerability prevalent in

a single technology or series of devices. As a conse-

quence, an attack that has been successful at one util-

ity provider is not necessarily successful at another

one, if different technologies are deployed.

5.2.4 Risk Assessment Complexity

The complexity of risk assessment in the energy do-

main increases rapidly with the introduction of ICT

components. This situation will become even worse,

once smart grid technology is rolled out on a large

scale, because systems become more and more cou-

pled, even across geographical borders, resulting in

strong interdependencies among components. The

utility providers’ concerns are therefore mainly cen-

tered around the understanding, detection, and miti-

gation of complex attack scenarios, where similarly

to highly distributed computer systems, a multitude

of vulnerabilities may be exploited in course of a

complex attack. Estimating risks for such cases is

extremely difﬁcult, since numerous mostly unknown

variables need to be considered. An example for such

a complex attack case is the potential intrusion of ma-

licious users into the metering backend through an ex-

ploitation of the smart meter communication network.

Here, we argue that our architecture model, which

clearly documents existing communication links as

well as utilized protocols, is of signiﬁcant help.

SMARTGREENS2014-3rdInternationalConferenceonSmartGridsandGreenITSystems

6 CONCLUSION AND FUTURE

WORK

In this work we analyzed existing smart grid standards

with respect to smart grid security and risk assess-

ment together with leading manufacturers and utili-

ties. Our study indicated that standards like NIST-IR

7628 (NIST, 2013b) or the Protection Proﬁles pub-

lished by the The German Federal Ofﬁce for Infor-

mation Security (BSI, 2013b; BSI, 2013c) are only of

limited practical use to utilities. As a consequence, in

a joint approach with leading manufacturers and utili-

ties, we analyzed seven national and four international

smart grid projects to form a cumulative smart grid

model representing both current and future European

smart grids. In comparison to existing models like

the U.S. NIST Smart Grid Framework (NIST, 2013a)

or the European Smart Grid Reference Architecture

(Smart Grid Coordination Group, CEN-CENELEC-

ETSI, 2012b), our model is technically more detailed

and includes a description of predominant communi-

cation technologies. In the second part of our work,

we developed an extensive methodology to assess

the risks involved within our cumulative smart grid

model. While our threat catalog initially comprised a

list of more than 500 threats, we were able to create a

clustered catalog of no more than 31 threats that can

be practically handled on top of the smart grid areas in

our model. Due to the close cooperation with leading

manufacturers and utilities, we believe that our work

has a high practical impact on European utilities, as

it can support them to conduct a risk analysis of their

speciﬁc infrastructure.

In near future, we also plan to extend our risk cat-

alog with respect to risk mitigation approaches and

security controls, so that utilities can effectively miti-

gate identiﬁed risks with the help of our framework.

ACKNOWLEDGEMENTS

This work has been made possible through the joint

KIRAS project under national FFG grant number

836276.

REFERENCES

AIT (2013). SmartGrid Security Guidance.

http://www.ait.ac.at/research-services/research-

services-safety-security/ict-security/reference-

projects/sg2-smart-grid-security-guidance/. [Online;

accessed 14-October-2013].

BSI (2013a). IT Baseline Protection Catalogs.

http://www.bsi.bund.de/gshb.

BSI (2013b). Protection Proﬁle for the Gateway of a Smart

Metering System. BSI-CC-PP-0073.

BSI (2013c). Protection Proﬁle for the Security Module of

a Smart Metering System (Security Module PP). BSI-

CC-PP-0077.

DRAS (2008). The US Demand Response Automation

Server. http://drrc.lbl.gov/projects/draserver. [Online;

accessed 16-October-2013].

E-Mobile Power Austria (2010). Empora.

http://www.empora.eu/. [Online; accessed 16-

October-2013].

EcoGrid (2012). European FP7 Project.

http://www.opennode.eu. [Online; accessed 16-

October-2013].

ENISA (2012). Appropriate secu-

rity measures for smart grids.

http://www.enisa.europa.eu/activities/Resilience-

and-CIIP/critical-infrastructure-and-services/smart-

grids-and-smart-metering/appropriate-security-

measures-for-smart-grids.

Hou, H., Zhou, J., Zhang, Y., and He, X. (2011). A brief

analysis on differences of risk assessment between

smart grid and traditional power grid. In Knowledge

Acquisition and Modeling (KAM), 2011 Fourth Inter-

national Symposium on, pages 188–191.

Klimafonds (2012). DG DemoNet - Smart LV Grid.

http://www.ait.ac.at/departments/energy/research-

areas/electric-energy-infrastructure/smart-grids/dg-

demonet-smart-lv-grid/. [Online; accessed 16-

October-2013].

Lu, Z., Lu, X., Wang, W., and Wang, C. (2010). Review and

evaluation of security threats on the communication

networks in the smart grid. In MILITARY COMMU-

NICATIONS CONFERENCE, 2010 - MILCOM 2010,

pages 1830–1835.

Mohan, A. and Khurana, H. (2012). Towards addressing

common security issues in smart grid speciﬁcations.

In Resilient Control Systems (ISRCS), 2012 5th Inter-

national Symposium on, pages 174–180.

NIST (2013a). NIST Special Publication 1108R2 - NIST

Framework and Roadmap for Smart Grid Interoper-

ability Standards, Release 2.0.

NIST (2013b). NISTIR 7628 - Guidelines for Smart Grid

Cybersecurity.

OGEMA (2012). The German ICT Gateway Ap-

proach. http://www.ogema.org. [Online; accessed 16-

October-2013].

OpenNode (2012). European FP7 Project.

http://www.opennode.eu. [Online; accessed 16-

October-2013].

Ray, P., Harnoor, R., and Hentea, M. (2010). Smart power

grid security: A uniﬁed risk management approach.

In Security Technology (ICCST), 2010 IEEE Interna-

tional Carnahan Conference on, pages 276–285.

Sauter, T., Soucek, S., Kastner, W., and Dietrich, D. (2011).

The evolution of factory and building automation. In

IEEE Magazine on Industrial Electronics, pages 35–

48.

PracticalRiskAssessmentUsingaCumulativeSmartGridModel

Skopik, F. and Langer, L. (2013). Cyber security chal-

lenges in heterogeneous ict infrastructures of smart

grids. Journal of Communications, 8(8):463–472.

Smart Grid Coordination Group, CEN-CENELEC-

ETSI (2012a). Reports in response to smart

grid mandate m/490. http://www. cencen-

elec.eu/standards/sectors/SmartGrids/Pages/ de-

fault.aspx. [Online; accessed 16-October-2013].

Smart Grid Coordination Group, CEN-CENELEC-

ETSI (2012b). Smart grid reference architecture.

http://ec.europa.eu/energy/gas electricity/smartgrids

/doc/xpert group1 reference architecture.pdf. [On-

line; accessed 15-October-2013].

Smart Grid Modellregion Salzburg (2010). ZUQDE.

http://www.smartgridssalzburg.at/forschungsfelder

/stromnetze/zuqde/. [Online; accessed 16-October-

2013].

Smart Grid Modellregion Salzburg (2011).

Smart Web Grid. http://www.smart

gridssalzburg.at/forschungsfelder /ikt/smart-web-

grid/. [Online; accessed 16-October-2013].

Varaiya, P., Wu, F., and Bialek, J. (2011). Smart operation

of smart grid: Risk-limiting dispatch. Proceedings of

the IEEE, 99(1):40–57.

Vigo, R., Yuksel, E., and Ramli, C. (2012). Smart grid secu-

rity a smart meter-centric perspective. In Telecommu-

nications Forum (TELFOR), 2012 20th, pages 127–

130.

Yan, Y., Qian, Y., Sharif, H., and Tipper, D. (2012). A sur-

vey on cyber security for smart grid communications.

Communications Surveys Tutorials, IEEE, 14(4):998–

1010.

Yufei, W., Bo, Z., WeiMin, L., and Tao, Z. (2011). Smart

grid information security - a research on standards. In

Advanced Power System Automation and Protection

(APAP), 2011 International Conference on, volume 2,

pages 1188–1194.

SMARTGREENS2014-3rdInternationalConferenceonSmartGridsandGreenITSystems

APPENDIX

Table 1: Threat Assessment (Part 1). Notice, the threat category and an exemplary threat are given in the ﬁrst two columns.

Subsequent columns contain the quantitative and qualitative assessments results for (P)robability and (I)mpact on a scale from

1 to 5 for each threat and per domain.

Threat Category Threat Functional Buildings E-Mobility incl. Infrastruct. Household Generation (Low Volt.) Generation (High Volt.)

Authentication / Au-

thorisation

Defective or miss-

ing authentication

or inappropri-

ate handling of

authentication data

Relevant for all interfaces

to the Smart Grid Gateway

(Building Automation, Mar-

ket/Internet und Secondary

Substation) (P: 2; I: 2)

An attacker could imperson-

ate the EMS and take control

over all charge stations in an

affected area (e.g., a street),

which could lead to instabili-

ties in the grid (P: 2; I: 3)

Relevant for Smart Grid Gate-

way and Smart Meter and all

interfaces (conﬁguration inter-

face, Market, PLC to data con-

centrator and Secondary Sub-

station) (P: 2; I: 2)

Exact scope and functional-

ity of Smart Grid Gateway is

not clear to date - how will

the authentication towards the

Automation Front-end and the

Smart Grid Gateway be han-

dled? (P: 1-3; I: 2-3)

Exact scope and functional-

ity of Smart Grid Gateway is

not clear to date - how will

the authentication towards the

Automation Front-end and the

Smart Grid Gateway be han-

dled? (P: 1-3; I: 3-4)

Cryptography /

Conﬁdentiality

Disclosure of sensi-

tive data

Building automation data are

sensitive since they may give

away information about pro-

ductivity or working hours (P:

2; I: 2)

Conﬁdential load data could

be eavesdropped on through

the connection to the E-

Mobility Management System

or Smart Grid Gateway (P:

2-3; I: 2)

Metering data is conﬁdential

since it affects privacy and

habits of the customers; im-

pact of accidental disclosure

depends on the scope of data

and the number of households

affected (P: 2; I: 3)

Output data of small produc-

ers is conﬁdential since they

may allow conclusions to be

drawn on consumer behavior;

high probability since no pro-

tection measures currently in

place (P: 4; I: 3)

Hardly relevant since outout

data are not conﬁdential; low

motivation (P: 1; I: 1)

Integrity / Availabil-

ity

Tampering with de-

vices

Hardly relevant due to physi-

cal access control; Smart Grid

Gateway could be physically

part of the Building Automa-

tion system; building opera-

tor has no motivation to com-

promise his own load manage-

ment (P: 1; I: 1)

Tampering with EV, charge

station or E-Mobility Man-

agement System; a malicious

user can easily access relevant

components; impact depends

on whether private or public

charge station is targeted (P: 3;

I: 2-3)

Customers have direct access

to the components; main mo-

tivation is fraud, but more se-

vere attacks might as well be

possible (e.g. issuing control

commands) (P: 4; I: 3)

Relatively exposed (in a

household); the amount of

energy supplied may be a

subject to fraud; depends on

the use of anomaly detection

techniques and plausibility

checks (P: 4; I: 2)

Basic level of physical protec-

tion; low probability due to

professional operator (P: 1; I:

Missing / Inad-

equate Security

Controls

Defective or missing

security controls in

networks

Communication via the net-

work in the building; Smart

Grid Gateway communicates

via insecure networks (Inter-

net), which opens up the possi-

bility of distributed attacks on

the Smart Grid Gateway (P: 1;

I: 4)

Use of protocols that lack

security features (e.g. IEC

61334 via PLC)could lead to

eavesdropping on conﬁdential

load data; negative conse-

quences for manufacturer / op-

erator of the charge station, al-

though the utility may also be

affected (P: 2; I: 2)

Communication over insecure

networks (Internet, PLC) (P:

3; I: 3)

Especially relevant for Internet

connection to Secondary Sub-

station Node (P: 2; I: 2)

Especially relevant for

communication over the

telecontrol WAN, currently

IEC 60870-5-104 without

encryption (P: 2; I: 3)

Internal / External

Interfaces

Illegal logical inter-

faces

Illegal communication chan-

nels between the Gateway and

interfaces (Market/Internet,

Secondary Substation, Build-

ing Automation) could be

established and exploited in

an attack (P: 2; I: 3)

Illegal communicating with

EV, charge station or E-

Mobility Management System

could lead to disclosure of

conﬁdential load data (P: 2; I:

Illegal communication chan-

nels between the Smart Grid

Gateway and ist interfaces

(Market/Internet, Secondary

Substation, Smart Meter)

could be establish and ex-

ploited in an attack (P: 2; I:

Due to physical exponation an

attacker could interact with the

system directly, thus revealing

new interfaces that could be

exploited (P: 3; I: 2)

Basic level of physical pro-

tection; access to telecontrol

WAN may be feasible through

faulty operation or targeted at-

tacks (P: 2; I: 3)

Maintenance / Sys-

tem Status

Operation of unreg-

istered or insecure

components or com-

ponents with overly

broad range of func-

tions

The Gateway could have a

wide range of capabilities

and functions, thus increas-

ing the attack surface via the

interfaces (Building Automa-

tion, Market/Internet, Sec-

ondary Substation) (P: 2; I: 2)

Possible disruption of the E-

Mobility Management System

or Smart Grid Gateway if con-

nected to a non-standard or

manipulated charge station ;

local impact only (P: 1; I: 1)

Smart Grid Gateway or Smart

Meter could have a too wide

range of capabilities and func-

tions, thus increasing the at-

tack surface via the interfaces

(Smart Metering, Market, Sec-

ondary Substation) (P: 2; I: 2)

Rather low probability since

the components are dedicated

to a very speciﬁc use; how-

ever, backdoors constitute a

realistic threat scenario espe-

cially in replicated devices (P:

3; I: 2)

Rather low probability since

the components are dedicated

to a very speciﬁc use; how-

ever, backdoors constitute a

realistic threat scenario (P: 2;

I: 3)

PracticalRiskAssessmentUsingaCumulativeSmartGridModel

Table 2: Threat Assessment (Part 2). Notice, the threat category and an exemplary threat are given in the ﬁrst two columns.

Subsequent columns contain the quantitative and qualitative assessments results for (P)robability and (I)mpact on a scale from

1 to 5 for each threat and per domain.

Threat Category Threat Testpoints Transmission (High/Med.

Voltage)

Transmission (Med./Low

Voltage)

Grid Operation Metering

Authentication / au-

thorisation

Defective or miss-

ing authentication

or inappropri-

ate handling of

authentication data

No authentication between

Automation Front-end and

Testpoint, although the Front-

end authenticates towards the

Primary Subst. Node (PSN);

a spooﬁng attack could lead

to false data being sent to the

PSN; low impact (suboptimal

supply) (P: 2-3, I: 1)

Due to the relatively low

number of Primary Substation

Nodes accounts or parameters

can be conﬁgured and tested

manually, therefore the prob-

ability is lower than in lower

parts of the architecture model

(P: 1-2, I: 4)

Especially relevant for remote

maintenance access points;

Secondary Substation Node

and Concentrator can be easily

accessed mostly, which gives

a high probability; possibly

regional impacts in case of

unauthorized access (P: 4; I:

Access rights management on

SCADA systems implemented

on an individual basis at util-

ities, standard IT technologies

are employed; ”identity spoof-

ing” of calls to EMS; main

threat is exploitation of inse-

cure remote access solutions

(P: 2, I: 4)

The connection between AMI

headend and Smart Meters is

encrypted by utilizing strong

cryptographic primitives

(ECDSA, AES); authenti-

cation and authorization is

realized through certiﬁcates;

thus, a high security standard

is expected (P: 1, I: 2)

Cryptography /

Conﬁdentiality

Disclosure of sensi-

tive data

Does not apply since test data

(voltage, frequency) is not

conﬁdential

Current supply data and con-

trol commands are probably

not conﬁdential; consumption

data are aggregated, therefore

low impact (P: 2, I: 1)

Processing of conﬁdential sup-

ply/consumpt. data in Con-

centrator and Secondary Sub-

station Node; medium prob-

ability due to little (physical)

protection (P: 3, I: 3)

For load estimation, consump-

tion and energy production

data is anonymized; power

grid plans and control data is

required to be protected ac-

cordingly (P: 1-2, I: 4)

Relevant since conﬁdential

power consumption data is

processed and stored (P: 1, I:

Integrity / Availabil-

ity

Tampering with de-

vices

Hardly relevant due to physi-

cal access control mechanisms

in place; manipulation via

the communication interface

could be feasible (e.g. chang-

ing the conﬁguration on SD

card); low impact (P: 2, I: 1)

Tampering hardly relevant due

to high voltage, but this may

not hold for malicious insid-

ers; currently strong impact

(outage), but timely mitigation

can be expected (P: 2, I:3)

Tampering possible especially

with Concentrator; rather high

probability due to little (phys-

ical) protection measures; re-

gional impact (P: 3-4, I: 3)

Relevant if direct manipu-

lation by insiders; remote

manipulation over telecontrol

WAN possible; forged process

data may cause malfunction of

DMS and subsequently lead to

grid instability (P: 2, I: 4)

Low relevance due to physical

protection measures (P: 1, I: 3)

Missing / Inad-

equate Security

Controls

Defective or missing

security controls in

networks

Connected to Primary Sub-

station Node via telecontrol

WAN with IEC 60870-5-104

(unencrypted); low impact

(suboptimal supply) (P: 2-3, I:

Especially relevant for the

communication via the tele-

control WAN; probability is

low since security controls in

place are more efﬁcient than

for the components in the

lower parts of the architecture

model (P: 1, I: 1-2)

Especially relevant for Inter-

net/PLC connection to Mid-

dleware and Smart Grid Gate-

way (P: 2-3, I: 3)

Relevant for some interfaces

(telecontrol WAN, EMS link);

link to PSN secured with

IPSec; telecontrol WAN link

to Secondary Subst. Node

could include forged data

causing grid instability; (P: 2,

I: 4)

Especially relevant for the in-

terfaces to the outside world

(i.e. connection to concentra-

tors) (P: 1, I: 2)

Internal / External

Interfaces

Illegal logical inter-

faces

Relevant for unauthorized ac-

cess via telecontrol WAN; a

DoS-attack on the Primary

Substation Node could lead

to generation plants going

ofﬂine, resulting in voltage

drops (P: 2, I: 2-3)

Relevant for access via tele-

control WAN (P: 2, I: 4)

Relevant for access via tele-

control WAN (P: 2, I: 4)

Relevant due to unauthorized

access over external inter-

faces: telecontrol-WAN (Au-

tomation Headend), Webser-

vice (EMS), Remote Access

(SCADA) depending on de-

ployed technologies (P: 2, I: 4)

Due to illicit logical interface

(e.g. due to a successful at-

tack) a connection from the

metering system over the mid-

dleware to the grid operation

system is feasible (P: 1, I: 3)

Maintenance / Sys-

tem Status

Operation of unreg-

istered or insecure

components or com-

ponents with overly

broad range of func-

tions

Unregistered components

hardly relevant (physical ac-

cess control); an overly broad

range of functions possible

despite on-site maintenance

(mostly no remote mainte-

nance); low impact (P: 1-2, I:

Unregistered components

hardly relevant due to physical

access control; an overly

broad range of functions

possible; low probability due

to highly specialized com-

ponents (compared to home

area) (P: 1, I: 2-3)

Due to easy accessibility of the

substations unregistered com-

ponents could be installed; re-

gional impacts (P: 3-4, I: 3-4)

Unregistered components are

of low relevance due to phys-

ical access protection; unused

but active system functional-

ities are relevant, especially

considering remote access or

support interfaces for manu-

facturers (P: 2-3, I: 4)

Unused but active system

functionalities in the AMI

headend lead to an increased

attack surface (P: 2, I: 2)

SMARTGREENS2014-3rdInternationalConferenceonSmartGridsandGreenITSystems
