Using Healthcare Planning Features to Drive Scientiﬁc Workﬂows

on the Web

Bruno S. C. M. Vilar, Andr

e Santanch

e and Claudia Bauzer Medeiros

IC - UNICAMP, 13083-852, Campinas, SP, Brazil

Keywords:

Scientiﬁc Workﬂows, Context-Adaptation, Task-Network Model, Healthcare.

Abstract:

Automated healthcare planning (care-ﬂow) systems are usually designed to afford the dynamicity of health

environments, in which changes occur constantly as a patient’s treatment progresses. This dynamic adaptation

mechanism is based on blocks of activities, triggered and combined according to contextual data, producing a

plan, which emerges from the interaction between these blocks and the context. However, tools that implement

care-ﬂow systems are still incipient, missing support for features like extensibility, collaboration and traceabil-

ity of procedures. On the other hand, these features can be found in workﬂow systems that are widely used in

a variety of environments (in business and scientiﬁc domains), with consolidated standards and technologies.

However, workﬂow systems are not well suited to address the dynamicity of healthcare environments. In this

paper we argue that care-ﬂow and workﬂow systems have complementary characteristics and we present a

software architecture that incorporates the emergent and context-driven approach of care-ﬂow systems into

workﬂow systems. We present a prototypical implementation validating the key concepts of our proposal,

which uses an ontology representation of workﬂows combined with an ontology and SWRL rules.

1 INTRODUCTION

The growth in the number of patients of a hospital

brings the challenge of managing appointments, ad-

missions and surgical interventions. There is the need

to increase the efﬁciency and ﬂexibility to manage as-

sociated data. The use of computational resources to

address this challenge implies on more technical re-

quirements. The possibility of using data available on

the Web has added a new dimension to this problem,

with additional heterogeneity factors.

Some researchers (Unertl et al., 2009), in the con-

text of chronic disease care, identiﬁed requirements

that should be fulﬁlled by systems to be applied to the

health domain, among which we single out: (i) Sup-

port for the shared needs and behaviors in care; (ii)

Allow customization for disease-speciﬁc needs and to

support the needs of different types of users; (iii) Ex-

plore new approaches for information input into the

EHR (Electronic Health Record) as well as transfer,

efﬁciently, data from medical devices into them.

Care-ﬂow is at the core of healthcare manage-

ment, involving directly or indirectly the requirements

presented by (Unertl et al., 2009). As a consequence,

one natural approach to start to deal with the prob-

lem has been to use Computer-Interpretable Guide-

lines (CIGs). Informally, a CIG is a speciﬁcation in

some kind of computer interpretable language that de-

ﬁnes the ﬂow of steps to be taken in each situation

met by a health professional. Those guidelines man-

age the care-ﬂow, customize needs and details for pa-

tient treatment and deal with data gathered, clinical

guidelines, while preserves the rationale of healthcare

professionals. Though CIGs are suitable for guiding

the care-ﬂow, from the perspective of the planning of

the paths chosen, the tools that implement a CIG ap-

proach are still incipient, missing support to extensi-

bility, reuse and share of content, collaboration among

professionals and traceability.

Even though it is possible to deﬁne guidelines for

“blocks of actions”, the whole process involved in the

healthcare of a given patient is driven by the context,

which is captured during the process itself. In a typ-

ical scenario, data from given care-ﬂow step will de-

ﬁne the next steps to be followed. The ﬂow of ac-

tions emerge from the interaction between available

blocks and the context. Therefore, one of the most

successful approaches for CIG is the Task-Network

Model (TNM) (Peleg et al., 2003), which mimics this

context-driven evolution. The process starts by a seed

block of actions, which is unfolded according to con-

text data collected during its execution.

Vilar B., Santanchè A. and Medeiros C..

Using Healthcare Planning Features to Drive Scientiﬁc Workﬂows on the Web.

DOI: 10.5220/0004844500490056

In Proceedings of the 10th International Conference on Web Information Systems and Technologies (WEBIST-2014), pages 49-56

ISBN: 978-989-758-024-6

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Scientiﬁc workﬂows, on the other hand, are con-

cerned with the planning and ﬂow of tasks, but associ-

ated to scientiﬁc experiments and general tasks. They

have been developed for years and tested on areas

such as Astronomy, Biology, Gravitational Physics

and Earthquake Science (Bharathi et al., 2008). As

a result, those tools have consolidated mechanisms to

deal with large amounts of data, collaboration, exten-

sibility of their resources, and association with exter-

nal sources of data, tools and algorithms. In general,

Scientiﬁc Workﬂow Management Systems (SWfMS)

manage experiments’ provenance, keeping detailed

and meaningful records of data involved on experi-

ments and processes that affect the data. Provenance

is fundamental for scientiﬁc processes because it pro-

vides important documentation that is key to preserve

the data, to determine data quality and authorship, and

to reproduce as well as validate the results of such

processes (Davidson and Freire, 2008).

Workﬂow execution has been adopted where re-

sources are distributed on the Web, helping the coor-

dination and monitoring of processes. They are being

increasingly used to create complex Web applications

by Web service composition or by providing a thin

client, accessible through a browser, to conduct large

scale processes and experiments (Wei Tan, 2013). In

order to enhance their applicability, research efforts

are concerned with providing workﬂow mechanisms

with more ﬂexibility, including in the healthcare sce-

nario such as (Dang et al., 2008), or (Schick et al.,

2012). Even though there are mechanisms that can

be used to pre-deﬁne exceptions and alternative paths

along workﬂows, they were not designed to dynami-

cally evolve the workﬂow speciﬁcation driven by the

context, e.g., unfolding blocks of actions according to

contextual data collected during a process execution.

Compared to CIG systems, workﬂow systems

have been widely adopted and have consolidated stan-

dards and tools. In order to exploit the advantages of

workﬂow systems in the health context, this work pro-

poses to incorporate into workﬂows the dynamic and

context-driven approach followed by care-ﬂow sys-

tems. This is based on our experience (Vilar et al.,

2013) that shows that the effort to do this is less com-

plex than the process to adapt CIG systems so that

they can acquire the features that are causing scien-

tiﬁc workﬂows to become widely adopted. This pa-

per analyses the features that confer high ﬂexibility

to CIGs – mainly those based on the TNM due to its

emergent behavior – and presents our initial approach

to bring them to a SWfMS.

2 CLINICAL PRACTICE

GUIDELINES AND

TASK-NETWORK MODELS

Clinical Practical Guidelines (CPGs) are written

guidelines that describe the evidence-based proce-

dures to be followed during diagnosis, treatment, and

clinical decision making for a speciﬁc disease. Their

textual format can be easily diffused, but not easily

used in daily work (Panzarasa and Stefanelli, 2006),

because of a multitude of forms and specialized vo-

cabulary. Moreover, they depend heavily on the ex-

pertise of health professionals.

An approach to solve these problems is the

dissemination of guidelines’ content in machine-

interpretable representations, which are more suit-

able for use in individual clinical decision support

(Panzarasa and Stefanelli, 2006). This approach has

led to the creation of Computer-Interpretable Guide-

lines (CIGs), which implement guidelines in ac-

tive computer-based decision support systems. CIGs

adopt models to represent the content to support de-

cisions. Some examples of such models are Task-

Network Models (TNMs), Medical Logic Modules

(MLMs) and Augmented Decision Tables (ADTs).

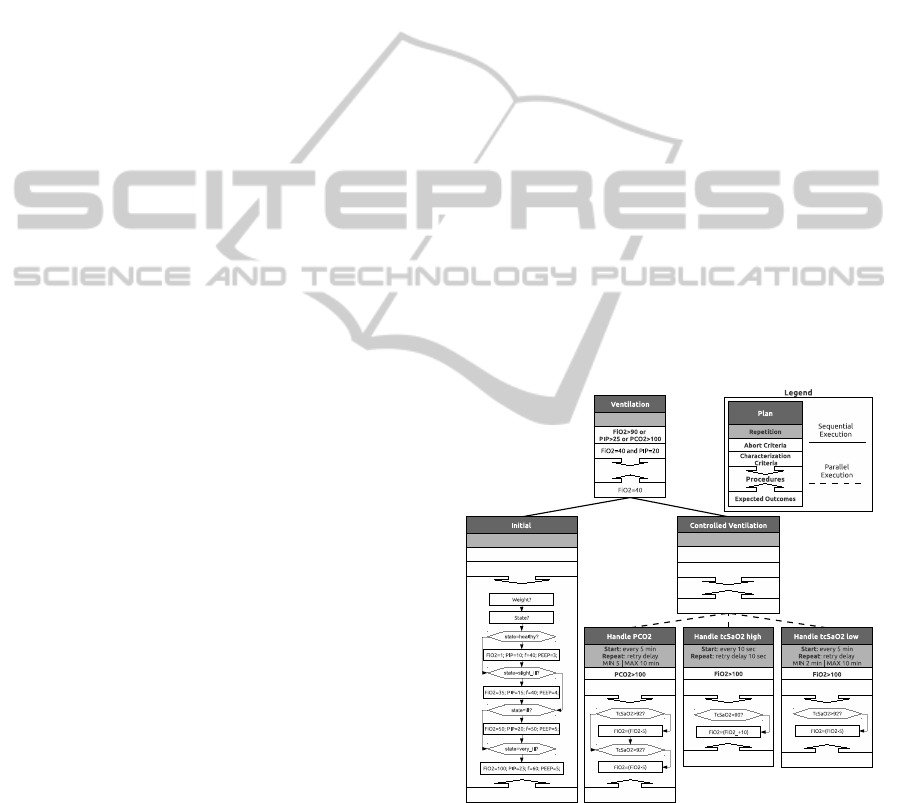

Figure 1: Example of CIG structure for a Controlled Venti-

lation plan.

(Gooch and Roudsari, 2011) identiﬁed 8 knowl-

edge models implemented, related to clinical deci-

sions, concluding that TNM was the most commonly

adopted. The authors characterize TNM in two ways:

general and formal. General TNMs are “ﬂowcharts

or process maps without formal semantics”. For-

mal TNMs are “guideline-based clinical tasks – ac-

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

tions, decisions, queries – that unfold over time, with

a formal syntax and semantics”. According to (Pe-

leg et al., 2003), TNMs succeed over alternative ap-

proaches, such as MLMs and ADTs, because they do

not provide full support for conceptualizing a multi-

step guideline that unfolds over time. Considering

those aspects, in this work we focus on TNMs.

Figure 1 shows a usual structure of a TNM. As

the ‘Legend’ (top right) shows, the basic component

is a plan and it represents a procedure to be applied

to some case. In each box, a rectangle with a label is

the name of the plan. The top plan – labeled Ventila-

tion– is the starting (seed) plan. The following plans

(below) are sub-plans that can be triggered by the up-

per plan according to rules. To decide whether a plan

should be applied or not, there are Characterization

Criteria that deﬁne conditions to be analyzed in order

to match the patient case to the diagnosis. Another

aspect that can be used to determine if the plan is suit-

able to the case is the Expected Outcomes. The ﬂow

of actions and conditions appear whithin the Proce-

dures box. Whenever a plan is recognized as a way

to achieve the same result desired by the healthcare

professional, the plan will be triggered.

A triggered plan will follow the Procedures that

are recommended to be applied to the patient. The

repetition of those internal procedures is guided ac-

cording to the Repetition speciﬁcation associated to

the plan. Also, it is possible to associate Abort Cri-

teria to interrupt the plan when a speciﬁc situation

is achieved. A plan can trigger potential sub-plans,

allowing to modularize and reuse plans that already

encapsulate needed practices. The fact that the re-

sults can be unexpected, and consequently the sub-

plans will be selected during the execution, produces

an emergent behavior in the ﬂow of activities. Sev-

eral potential ﬂows, constrained by rules, will dynam-

ically shape one ﬂow on-the-ﬂy during the execution,

interacting with contextual values. This work cap-

tures this rule-based and context-driven emergent be-

havior and adapts it to workﬂows.

To explain the characteristics of TNMs we use the

same scenario that Aigner and Miksch (Aigner and

Miksch, 2006) adopt to validate the CareVis platform:

Infants Respiratory Distress Syndrome (I-RDS). As

Miksch (Miksch et al., 1998) explains, “after I-RDS

is diagnosed, a plan dealing with limited monitoring

possibilities is activated, called initial-phase. Then

follows, depending on the severity of the disease,

three different kinds of plans, controlled-ventilation,

permissive-hypercapnia, or crisis-management. Only

one plan at a time can be activated, however the or-

der of execution and the activation frequency of the

three different plans are depending on the severity of

the disease”.

The scenario is shown on Figure 1. The plan exe-

cution order is read as top-down, left to right. Dashed

lines from a plan represent alternative sub-plans that

are used according to the conditions. To represent

the internal

Procedures

, we use the same represen-

tation as CareVis: ﬂow-charts. An internal procedure

is described as a ﬂow of CareVis ‘single-steps’. Each

single-step is either a variable assignment, a if-then-

else construct (hexagon), an ask element (rectangle).

The Ventilation plan is activated when the charac-

terization criteria FiO2>40 and PIP=20 is satisﬁed.

The plan and all sub-plans are aborted if the condition

FiO2>90 or PIP>25 or PCO2>100 is achieved. As

Ventilation plan does not have internal procedures, the

Initial plan is executed, following the sequential or-

der speciﬁed. The Initial plan just has a set of internal

procedures, such as ask weight and state of the patient

and deﬁne variable values according to the state value

(healthy, slightly ill, ill and very ill).

3 WORKFLOWS

A workﬂow is deﬁned as the movement of tasks

through a work process describing how tasks are

structured, who performs them, the resources needed

and their relative order (Dallien et al., 2008). On a

computational context, a workﬂow speciﬁcation can

be seen as an abstraction that allows the structured

composition of programs as a sequence of activities

aiming a desired result (Ogasawara et al., 2009).

Business and science are the two main driving

forces behind the development of Workﬂow Manage-

ment Systems (WfMSs). According to Sonntag et

al. (Sonntag et al., 2010), business workﬂows are

focused on the control of the ﬂow, adopt agreed-

upon communication standards, in order to facili-

tate interoperation between different software sys-

tems and companies, and commonly are concerned

about fault handling, transactions, or quality of ser-

vice features. Scientiﬁc workﬂows, on the other hand,

are focused on data transformation, commonly may

involve computation-intensive tasks, and are con-

cerned with the speciﬁcation of explicit data ﬂow, the

exact reproducibility of workﬂows, or processing of

data streams.

The Workﬂow Management Coalition (WfMC)

is one important participant of those driving forces

behind WfMSs development. Because of its in-

volvement on the earlier stage of the creation of

workﬂows, it deﬁnes the workﬂow components

under the business perspective. In this work we use

the WfMC deﬁnitions, relaxing them to a broader

UsingHealthcarePlanningFeaturestoDriveScientificWorkflowsontheWeb

perspective that also covers scientiﬁc workﬂows

(WfMC, 1999). Here we differentiate between a

workﬂow speciﬁcation and its instantiation (an actual

execution). Moreover, we use the term ‘task’ as

a synonym for ‘activity’ (where an activity is “a

description of a piece of work that forms one logical

step of a process” (WfMC, 1999). We likewise

distinguish Process deﬁnition from Process/Activity

Instance.

In order to help compare workﬂow and TNM ap-

proaches, we re-engineered the Controlled Ventilation

plan of Section 2 using part of the graphical notation

of ﬂow-charts used on TNMs, but following a repre-

sentation similar to that adopted by the Taverna (Hull

et al., 2006) workﬂow system – see Figure 2.

The ‘legend’ (top right) shows the basic notion of

structure of a process. The top rectangle with a text is

the name of the process. The second one is the repe-

tition criteria, which allows to deﬁne criteria to repeat

the process and an interval for each repetition. Like

TNMs, workﬂows may contain internal procedures,

speciﬁed program code or instructions, that allows to

perform activities. For instance, processes ‘Handle

PCO2’ contains repetition criteria and embeds code

that is repeated according to the criteria.

An important distinction between TNMs and

workﬂows is the access to the variable values. While

on TNM each value may act as a global variable,

which can be accessed from anywhere in a plan, on

workﬂows the values should be explicitly passed for

each process through a port. Input ports receive the

values of a process, while outport ports contains the

result of a process. Of course, processes can read and

write from a common storage, but this approach re-

duces the generality of processes.

To exemplify the use of a workﬂow, consider

again the Controlled Ventilation plan, now executed

as a workﬂow depicted in Figure 2. To determine

whether the Ventilation process should be executed,

the Ventilation Activation Condition process is intro-

duced. If the condition FiO2=40 and PIP=20 is sat-

isﬁed, the result is passed to the Pass Output port,

which indicates that the Ventilation process should be

performed. If the condition is not satisﬁed, the result

is passed to Fail Output port, ﬁnishing the execution

of the workﬂow. Ports thus enable conditioning the

path according to the obtained result.

Considering that the Ventilation Activation Condi-

tion process generated a Pass Output value, the Venti-

lation process receives an input value and passes it to

its internal processes. As well as on Figure 1, Initial

and Controlled Ventilation are sequentially executed.

This execution is explicitly deﬁned by the fact that the

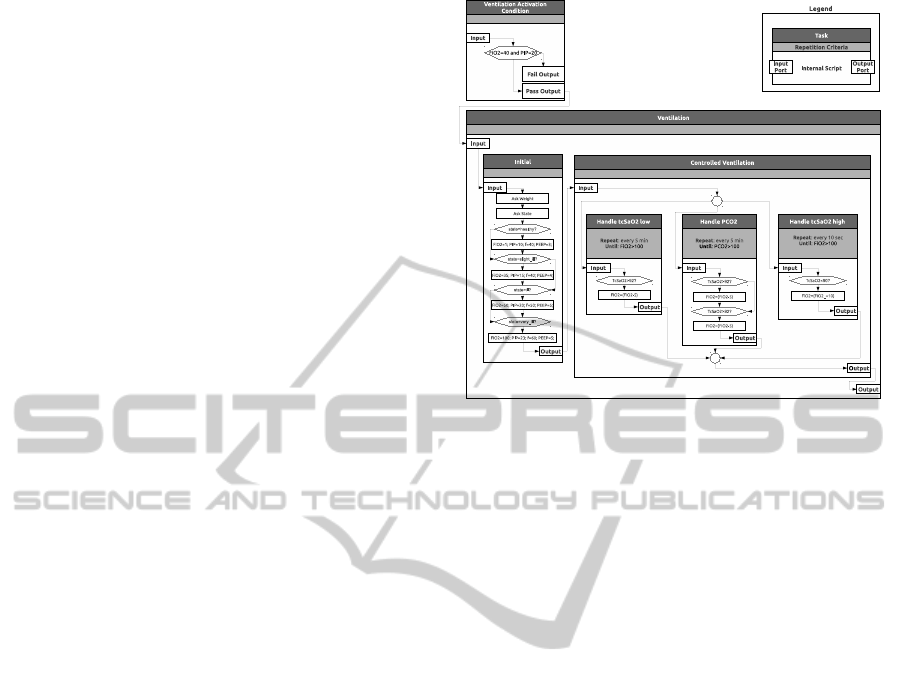

Figure 2: Controlled Ventilation plan re-engineered by us

as a workﬂow structure.

Initial Output port is connected to the Controlled Ven-

tilation Input port. While the Initial process uses its

internal script to obtain the values of weight and state,

Controlled Ventilation has sub-processes that are per-

formed on any order. In fact, differently from TNMs,

those sub-processes can be executed at the same time.

The split-join, represented by a circle before and after

the processes, indicates that any process (among Han-

dle tcSaO2 low, Handle PCO2 and Handle tcSaO2

high) can be executed. The split-join allows to exe-

cute different processes and then combines the results

so that can be passed to another process or port.

If we proceed mapping a TNM speciﬁcation to a

workﬂow, the alternatives in each stage will grow ex-

ponentially. This effect shows the limits of trying to

directly map a TNM speciﬁcation in a classic work-

ﬂow speciﬁcation. Our proposal addresses this prob-

lem. It blends the TNM rule-based context-driven

mechanism in a workﬂow system, providing an equiv-

alent TNM ability of adapting itself according to the

context.

4 DATA-DRIVEN VS

PROCESS-DRIVEN

APPROACHES

In order to summarize some of the main distinctions

between the Workﬂow and TNM approaches is: sci-

entiﬁc workﬂows are process driven and TNMs are

data driven. Thus, bringing TNM characteristics into

scientiﬁc workﬂows will make the latter both data and

process driven.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

TNMs are built to reduce the complexity to deal

with large amounts of content that must be interpreted

and to guide the use of procedures that are recom-

mended to achieve some state. Because a patient may

change his/her condition unexpectedly, TNMs allow

to activate or deactivate content (guides and proce-

dures) to treat the current state of the patient. All

guides and procedures are pre-speciﬁed according to

the recommendations of medical councils and well es-

tablished procedures.

Scientiﬁc workﬂows are focused on processing

high amounts of data. Usually there are two com-

mon situations: (i) a scientist wants to represent and

automate a well known/consolidated experiment and

execute it with different data (parameters) with none

or few changes during the execution; (ii) the scientist

wants to create an experiment to test a new hypothe-

sis, so (s)he starts to build a workﬂow including and

changing processes and parameters after different ex-

ecutions to analyze the results.

The difference between both approaches can be

observable on the basic component of each one.

TNMs have plans that associate content, procedures

and other plans. Also, there are criteria that must be

satisﬁed to activate the plan; such criteria allow se-

lecting a plan over all other possible situations that

may occur. Scientiﬁc workﬂows have processes that

can be associated to others to create the ﬂow of data

and transform/process it. The data that is passed from

one process to another can lead to different paths, but

commonly the possible number of paths and changes

are not as high as on TNMs. When a new situation oc-

curs and there is a need to incorporate a new process,

the scientist changes the workﬂow – e.g., choosing

from a repository of processes, including an external

tool or creating a new process.

Another factor is that, to deal with all resources

involved, it is necessary to provide tools to visualize

and ﬁlter information, as well as be aware of the ori-

gin and the involvement of resource with respect to

the data. A key issue is to maintain provenance in-

formation on data and procedures – e.g., what kind of

data was used where, how and by whom. Here, work-

ﬂow systems already provide some sort of traceability

mechanism.

In this paper we focus on the main features re-

quired to achieve a data-driven workﬂow: changing

workﬂow tasks to adapt them to a situation. Our ap-

proach is presented next.

5 TOWARDS MAKING

SCIENTIFIC WORKFLOWS

DATA-DRIVEN

As presented in previous sections, a key factor to

produce workﬂows able to adapt to the high dy-

namic health environments is the rule-based TNM

approach, which triggers modules according to con-

text values, producing an emergent behavior. Differ-

ent from TNM speciﬁcations, which start from a seed

and expands the ﬂow, a workﬂow has a predeﬁned

starting ﬂow. Therefore, we translated the mechanism

of unfolding new activities on-the-ﬂy according rules

(TNM) to a mechanism of adapting the existing work-

ﬂow on-the-ﬂy according to rules (our approach).

In order to fully support dynamic workﬂow

changes according to context, and give more ﬂexibil-

ity to workﬂow execution, we decided to adopt rea-

soning capabilities and combine them with domain

semantics. The solution found was to (a) use on-

tologies as the basis for workﬂow and concept rep-

resentation, and (b) create adaptation rules to repre-

sent experts’ knowlege. An adaptation rule character-

izes a situation (cause) and deﬁnes the change (conse-

quence) that should be performed to workﬂow so that

it can be adapted to the context.

Given that there exist distinct workﬂow represen-

tations and formats (according to the WfMS adopted),

the overall dynamic adaptation cycle can be described

as follows. The workﬂow execution on the Web is

monitored at each activity.Every new workﬂow state

is mapped to an ontology instance, to which reason-

ing is applied, resulting in a new ontology instance

(containing recommended modiﬁcations to that state).

This new instance is transformed back to the work-

ﬂow representation of the WfMS adopted, which is

shown back to the user on the Web interface, to be

validated or modiﬁed.

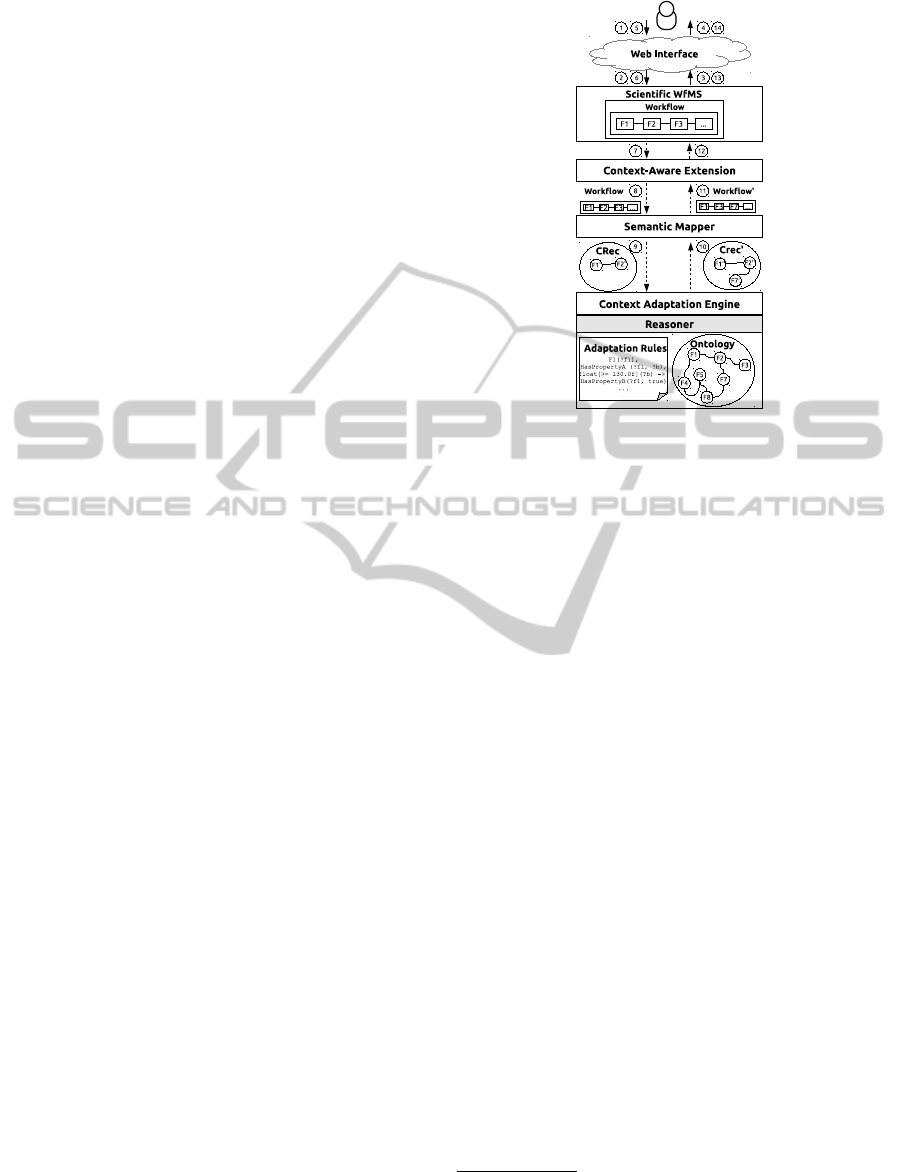

The architecture of our work is presented in Figure

3, where CRec (Context Record) is the linearized rep-

resentation of an ontology, representing a workﬂow

state. The main components are the following. A Sci-

entiﬁc Workﬂow Management System (SWfMS)

used to create and execute workﬂows, through a

Web Interface, extended to incorporate the adaptation

mechanism. A Context-Aware Extension, respon-

sible for monitoring workﬂow execution and identi-

fying the events that occur during that execution. A

Semantic Mapper that is responsible for translating

a workﬂow to a CRec and vice-versa, allowing the

Context-Aware Extension to update the original work-

ﬂow on SWfMS. An Ontology that speciﬁes the main

classes used to represent workﬂow activities and their

parameters. Also, there are additional classes used to

UsingHealthcarePlanningFeaturestoDriveScientificWorkflowsontheWeb

complement activity information (such as activation

status) and associated content (for instance, patient

data). A CRec (resp. CRec’) is a Context Record

that is an ontology instance that represents the current

state of a workﬂow and all information regarding the

patient under care. A set of Adaptation Rules (AR),

written in SWRL, that will be used with an Ontology

and a CRec to identify the changes recommended to

the current situation. A Context Adaptation Engine

(CAEng) that uses an Ontology Reasoner to process

the AR combined to an Ontology and a CRec. The

reasoning updates CRec to guide the adaptations that

should be made on workﬂow.

The architecture enables dynamic adaptation of

workﬂows to a context as follows. A SWfMS is ac-

cessed through a Web Interface (Figure 3, interaction

1). A workﬂow is assigned to be executed on the

SWfMS (on interaction 2) and the SWfMS loads it

(interaction 3) and updates the Web Interface (inter-

action 4). A user requests the SWfMS to start the

executing workﬂow (interactions 5 and 6). When an

activity is performed, the Context-Aware Extension

captures the workﬂow state (interaction 7) and passes

it to the Semantic Mapper (interaction 8). Next, the

Semantic Mapper uses the workﬂow state to create

an ontology instance that represents it (interaction 9)

– CRec. The CAEng combines AR, Ontology, and

CRec to identify the adaptations recommended to the

workﬂow and apply them to CRec, creating a new

version of it (CRec’. The Semantic Mapper receives

CRec’(interaction 10) and maps its data to the work-

ﬂow representation, passing it back to the Context-

Aware Extension (interaction 11). The workﬂow on

the SWfMS is updated by the Context-Aware Exten-

sion according to the new workﬂow (interaction 12).

The SWfMS updates the Web Interface (interaction

13). Finally, the user sees the adapted version of the

workﬂow (interaction 14).

Our architecture may be used on different sce-

narios and on different SWfMS, but its components

created must be changed according to the scenario

(e.g., rules and ontology customization) and platform

adopted (e.g., Semantic Mapper).

6 INSTANTIATION ON THE WEB

We applied the principles behind our architecture to

the context of nursing care to attest the ﬂexibility of

execution of the workﬂows. The tasks used to con-

struct the ontology and the rules were based on the

PROCEnf system (Peres et al., 2009), developed and

adopted by the hospital of the University S

ao Paulo.

PROCEnf is also in process of adoption at the our

Figure 3: Architecture for context-based workﬂow adapta-

tion.

University Hospital

. Like most such systems, PRO-

CEnf is heavily centered on offering health profes-

sionals sets of forms to ﬁll.

We chose PROCEnf among other reasons, be-

cause we can reuse its components. Moreover, given

our need to validate our implementation with actual

users, this choice offers to the nursing staff of our Uni-

versity Hospital a set of forms and vocabulary they are

familiar with.

Based on PROCEnf and on the work described in

(Doenges and Moorhouse, 2008), we described the

ﬂow of a patient’s admission and monitoring process

in a hospital. In a general way, the process includes

an iterative step which is started by an anamnesis in-

terrogation, which is an assessment phase to evaluate

the patients’ conditions. Next, there is the analysis

of recorded data to diagnose the problem and to iden-

tify expected outcomes (prognosis). Based on those

expected outcomes, health interventions are planned

and applied. To identify whether the outcomes were

achieved or not, the intervention results are analyzed

and the amamnsesis records are updated. If the treat-

ment achieves the expected outcomes, the patient can

be released. Otherwise, a new iteration occurs.

To model PROCEnf forms as workﬂow activities,

we created an ontology. In our current stage of re-

search, we have about 30 activity classes involved

with the diagnosis phase. Those classes are directly

related to the PROCEnf system. As can be seen on

The hospital complex of the University of Camp-

inas alone receives about 500,000 appointments, with over

43,000 admissions and 34,000 surgical interventions per

year.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

classes ‘CardiacFunction’ and ‘VitalSigns’, there are

different attributes that can be ﬁlled to draw a diagno-

sis. Depending on how an attribute is ﬁlled, distinct

decisions have to be taken – i.e., the workﬂow has to

be changed dynamically.

Another issue we faced was the integration of

workﬂow structures, rules, and reasoning capabilities.

As explained before, this was solved by treating all

information within a single ontology-based reason-

ing framework. The Semantic Mapper transforms the

workﬂow structures (together with a current work-

ﬂow state) into an ontology instance, that is enhanced

with the current patient state. This is then treated

by the reasoner as any other ontology, using adapta-

tion rules that encode domain and user knowledge.

Such adaptations are performed based on the adapta-

tion rules we created in SWRL. Those rules can be

classiﬁed into four types: I) Propagate ﬁeld (param-

eter) value: repeat the value of a ﬁeld to related ﬁelds,

avoiding the need to ﬁll the value in other forms. II)

Infer ﬁeld (parameter) value: the value of a ﬁeld

according to the value of other ﬁelds. III) Change

form (activity) position: the order in forms which are

ﬁlled can be changed, increasing or decreasing ﬁlling

priority, making related forms closer and unrelated or

unlikely forms more distant in the ﬁlling order. IV)

Include/Remove form (activity): a form can be re-

moved when a ﬁeld makes it incompatible with the

purpose of the form (e.g., pregnancy issues related to

men). Inclusion occurs whenever a situation makes a

previoulsy removed form viable.

Table 1 presents a subset of the rules, highlight-

ing the types and some of their potential. The

rules are speciﬁed in SWRL and are speciﬁed in

cause/consequence form. The cause (antecedent) can

be deﬁned according to the value of ﬁelds and forms,

by the composition of different predicates. A conse-

quence (consequent) is the result of checking the an-

tecedent, e.g., changing of a property value, including

or removing values. For instance, rule R2 says that

when the Systolic Blood Pressure value of Vital Signs

is large than 130, then the ﬁeld Has Systolic Blood

Pressure Out of Expected Range should be true.

Let us exemplify how adaptation rules are used in

the reasoning process. Consider the following sce-

nario: a nurse should ﬁll a set of forms about dif-

ferent patient conditions, including vital signs, self-

care, and comfort. At the beginning of the process,

the professional ﬁlls a form about Vital Signs. If the

value of systolic blood pressure is ﬁlled with value

large than 130, rule R2 (Table 1) has its antecedent

condition satisﬁed, so the inference engine applies the

consequent which characterizes the patient as having

a systolic pressure out of expected range. As a re-

sult, two other rules are to be executed, leading to the

new adaptations: R1, to propagate the value of sys-

tolic blood pressure to the Cardiac Function task and

R4 to increase the priority of the Cardiac Function

task, which will put this form closer to the Vital Signs

form. This order change highlights the need to pro-

vide additional information about Cardiac Function

details and to avoid the loss of focus and information

regarding this problem.

7 CONCLUSIONS

In this paper, we presented a proposal to adapt scien-

tiﬁc workﬂows to the context of healthcare manage-

ment, and its Web implementation. Our modiﬁcations

to an SWfMS place such systems closer to the domain

of healthcare, thanks to the inspiration from CIGs and

to the fact that such systems, thanks to the data-driven

ﬂow, are suitable to dynamic scenarios.

We designed the model in which an SWfMS is ex-

tended by a layer which uses ontologies combined to

rules as a means to make scientiﬁc worﬂows more

data-driven than just process-driven. This in turn,

brings more ﬂexibility to the execution of the tasks

as well as allows to choose whether a task should be

executed according to more sophisticated conditions.

Future steps of this research will cope with TNM

features, presented in Section 4, working on the bet-

ter graphical integration and adaptation of the work

with the SWfMS, allowing to: (i) Integrate the on-

tology content to the workﬂow tasks, allowing users

to navigate through the concepts of ontologies and

use those concepts also as a way to ﬁlter tasks and

conveniently ﬁnd resources on SWfMS; (ii) Provide

support to the hierarchical organization of workﬂow

tasks, giving more dynamic ﬂow to task execution as

well as making it more similar to the TNM approach.

ACKNOWLEDGMENTS

Work partially ﬁnanced by FAPESP (grant

2011/17196-0), FAPESP/Cepid in Computa-

tional Engineering and Sciences (2013/08293-7),

the Microsoft Research FAPESP Virtual Institute

(NavScales project), CNPq (MuZOO Project),

FAPESP-PRONEX(eScience project), INCT in Web

Science, and individual grants from CNPq. We

also thank healthcare providers from University of

Campinas and University of S

ao Paulo, who provided

us support in this research.

UsingHealthcarePlanningFeaturestoDriveScientificWorkflowsontheWeb

Table 1: Adaptation Rules.

Rule Antecedent Consequent Type

R1 CardiacFunction(?cf), VitalSigns(?vs), systolicBloodPressure(?vs, ?x) systolicBloodPressure(?cf, ?x) Propagate Value

R2 VitalSigns(?vs), systolicBloodPressure(?vs, ?x), ﬂoat[>= 130.0f](?x) hasSystolicPressureOut-

OfExpectedRange(?vs, true)

Infer Value

R3 VitalSigns(?vs), isActive(?vs, true), hasSystolicPressureOutOfExpectedRange(?vs, false), CardiacFunc-

tion(?cf)

position(?cf, 99) Decrease Priority

R4 VitalSigns(?vs), hasSystolicPressureOutOfExpectedRange(?vs, true), isActive(?vs, true), CardiacFunc-

tion(?cf), position(?vs, ?po)

position(?cf, ?po) Increase Priority

R5 ValuesAndBeliefs(?va), Evaluation(?e), hasPatient(?e, ?p), isActive(?e, true), hasAge(?p, ?age), inte-

ger[<= 12](?age)

isRemoved(?va, true) Remove

R6 ValuesAndBeliefs(?va), Evaluation(?e), hasPatient(?e, ?p), isActive(?e, true), hasAge(?p, ?age), inte-

ger[>12](?age), isRemoved(?va, true)

isRemoved(?va, false) Include

REFERENCES

Aigner, W. and Miksch, S. (2006). Carevis: Integrated

visualization of computerized protocols and tempo-

ral patient data. Artiﬁcial Intelligence in Medicine,

37(3):203–218.

Bharathi, S., Chervenak, A., Deelman, E., Mehta, G., Su,

M.-H., and Vahi, K. (2008). Characterization of sci-

entiﬁc workﬂows. 2008 Third Workshop on Workﬂows

in Support of Large-Scale Science, pages 1–10.

Dallien, J., MacCaull, W., and Tien, A. (2008). Initial work

in the design and development of veriﬁable workﬂow

management systems and some applications to health

care. In Proceedings of the 2008 5th International

Workshop on Model-based Methodologies for Perva-

sive and Embedded Software, MOMPES ’08, pages

78–91, Washington, DC, USA. IEEE Computer Soci-

ety.

Dang, J., Hedayati, A., Hampel, K., and Toklu, C. (2008).

An ontological knowledge framework for adaptive

medical workﬂow. Journal of biomedical informatics,

41(5):829–36.

Davidson, S. and Freire, J. (2008). Provenance and sci-

entiﬁc workﬂows: challenges and opportunities. In

SIGMOD Conf., pages 1345–1350. Citeseer.

Doenges, M. and Moorhouse, M. (2008). Application of

nursing process and nursing diagnosis: an interactive

text for diagnostic reasoning. G - Reference, Informa-

tion and Interdisciplinary Subjects Series. F.A. Davis.

Gooch, P. and Roudsari, A. (2011). Computerization of

workﬂows, guidelines, and care pathways: a review of

implementation challenges for process-oriented health

information systems. Journal of the American Medi-

cal Informatics Association : JAMIA, 18(6):738–48.

Hull, D., Wolstencroft, K., Stevens, R., Goble, C., Pocock,

M. R., Li, P., and Oinn, T. (2006). Taverna: a tool for

building and running workﬂows of services. Nucleic

acids research, 34(-):W729–32.

Miksch, S., Kosara, R., Shahar, Y., and Johnson, P. D.

(1998). AsbruView: Visualization of Time-Oriented,

Skeletal Plans. pages 11–18.

Ogasawara, E., Paulino, C., Murta, L., Werner, C., and Mat-

toso, M. (2009). Experiment line: Software reuse in

scientiﬁc workﬂows. In Winslett, M., editor, Scientiﬁc

and Statistical Database Management, volume 5566

of Lecture Notes in Computer Science, pages 264–

272. Springer Berlin Heidelberg.

Panzarasa, S. and Stefanelli, M. (2006). Workﬂow manage-

ment systems for guideline implementation. Neuro-

logical sciences : ofﬁcial journal of the Italian Neu-

rological Society and of the Italian Society of Clinical

Neurophysiology, 27 Suppl 3:S245–9.

Peleg, M., Tu, S., Bury, J., Ciccarese, P., Fox, J., Greenes,

R. A., Miksch, S., Quaglini, S., Seyfang, A., Short-

liffe, E. H., Stefanelli, M., and et al. (2003). Compar-

ing computer-interpretable guideline models: A case-

study approach. JAMIA, 10:2003.

Peres, H. H. C., Cruz, D. D. A. L. M. D., Lima, A. F. C.,

Gaidzinski, R. R., Ortiz, D. C. F., Trindade, M. M. E.,

Tsukamoto, R., and Conceic¸

ao, N. B. (2009). Desen-

volvimento de Sistema Eletr

onico de Documentac¸

ınica de Enfermagem estruturado em diagn

osticos,

resultados e intervenc¸

oes. Revista da Escola de En-

fermagem da USP, 43(spe2):1149–1155.

Schick, S., Meyer, H., Bandt, M., and Heuer, A. (2012). En-

abling yawl to handle dynamic operating room man-

agement. In Daniel, F., Barkaoui, K., and Dustdar,

S., editors, Business Process Management Workshops

(2), volume 100 of Lecture Notes in Business Infor-

mation Processing, pages 249–260. Springer.

Sonntag, M., Karastoyanova, D., and Deelman, E. (2010).

Bridging the gap between business and scientiﬁc

workﬂows: Humans in the loop of scientiﬁc work-

ﬂows. In e-Science (e-Science), 2010 IEEE Sixth In-

ternational Conference on, pages 206–213.

Unertl, K. M., Weinger, M. B., Johnson, K. B., and Lorenzi,

N. M. (2009). Describing and modeling workﬂow

and information ﬂow in chronic disease care. Jour-

nal of the American Medical Informatics Association

: JAMIA, 16(6):826–36.

Vilar, B. S. C. M., Medeiros, C. B., and Santanch

e, A.

(2013). Towards adapting scientiﬁc workﬂow systems

to healthcare planning. In HEALTHINF - Interna-

tional Conference on Health Informatics.

Wei Tan, M. Z. (2013). Business and Scientiﬁc Workﬂows:

A Web Service-Oriented Approach. Wiley.

WfMC (1999). Terminology and Glossary Document Num-

ber WFMC-TC-1011 - Issue 3.0. Technical report,

Workﬂow Management Coalition.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies
