Secure Alert Tracking in Supply Chain

Mehdi Khalfaoui

, Reﬁk Molva

and Laurent Gomez

SAP Labs France, Mougins 06254, France

Eurecom , Biot 06410, France

Keywords:

Supply Chain, Wireless Sensor Networks, Privacy Preserving, Homomorphic Encryption, Alerts Detection.

Abstract:

Risk management practices, techniques and tools with respect to companies’ supply chains have begun to

receive more attention recently, as the need to improve supply chain performances has increased in order to

keep the balance between ﬁnancial considerations and those of the customer interests. With the multiplication

of intermediate actors, a single threat at one point might compromise the safety of the all actors involved in

the supply chain process. Therefore, there is a clear need for product tracking in order to trace anomalies

for mitigation of potential threats in the future. Traditional approaches rely on operator-assisted veriﬁcation

procedures that mainly suffer from the lack of global coverage. In this paper, we propose an automated process

to securely trace the supply chain actors that interact with the product, as well as the operations that were

performed, and the alerts that got raised. The core component of this process is wireless sensor nodes attached

to the product. Empowered with sensing capabilities, wireless sensor nodes are meant to raise alert in case of

detection of an anomaly. Our solution allows for tracing the path taken by a product and the recording of the

alerts that got raised, while preserving the actors’ privacy. The solution combines a polynomial path encoding

technique, together with additive homomorphic encryption to ensure the correctness of the path taken by a

product, and to preserve the privacy of the actors, respectively.

1 INTRODUCTION

Supply chain management (SCM) involves multiple

actors and processes. Those supply chain actors, of-

ten, have different roles and responsibilities. Identiﬁ-

cation of each actor’s role and responsibility at supply

chain setup is mandatory requirement for making the

different actors fully accountable about their actions.

Accountability is deﬁned as the requirement or duty

to provide an account or justiﬁcation for one’s actions

to whomever is answerable (Swift, 2001). In other

words, each one of the actors involved in the activ-

ity is accountable, explains or justiﬁes actions to the

authorities, whenever they demand.

Accountability calls for tracing the different

anomalies and accidents in the supply chain, and to

link them to the actors who is interacting with the

product at the moment when the anomaly occurs. An

anomaly tracking mechanism can help enhancing ac-

countability in supply chains. However, supply chain

is multi-actors environment, which raises security and

privacy challenges. Actors aim at tracking the anoma-

lies in the supply chain, which implies the tracking of

the involved actors, and the operations performed on

the product, yet they are reluctant to leak information

about their internal processes. Hence, preserving the

privacy of supply chain actors in this multi-partner en-

vironment has to be taken into account.

In that context, product safety and supply chain

actors are a mandatory requirement in today’s supply

chains. However, managing all the supply chain pro-

cesses, to have a trace of all the anomalies all along

the supply chain, can be difﬁcult task thanks to the

complexity of the actors’ networks.

The purpose of this paper is to introduce an

anomaly tracking solution using wireless sensor net-

works. This mechanism allows the traceability of the

operations performed on the product, the actors that

interact with the latter, and the anomalies that were

detected by sensors. At each anomaly detection, sen-

sor raises an alert. Moreover, the mechanism pre-

serves the privacy of the involved actors, by allowing

to only authorized entities the ability of tracing. To

this effect, sensors are used as secure storage device

to store a mark that represents the product path. More

precisely, each product type will be attached to a spe-

ciﬁc sensor. At each new interaction with an actor,

the sensor’s memory is updated to add the current ac-

tivity identity. The set of identities collected by the

sensor identiﬁes the path trace that the product went

219

Khalfaoui M., Molva R. and Gomez L..

Secure Alert Tracking in Supply Chain.

DOI: 10.5220/0004532102190229

In Proceedings of the 10th International Conference on Security and Cryptography (SECRYPT-2013), pages 219-229

ISBN: 978-989-8565-73-0

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

through. Moreover, if the sensor detects an anomaly

such as raising temperature, it will add it directly to

the path. At the end of the supply chain, a veriﬁer ex-

tracts the trace and veriﬁes its validity, and what the

exact alerts that got generated. The veriﬁer is often

a supply chain manager that wants to have a global

overview of its supply chain in order to mitigate any

potential threats.

In order to preserve actors’ privacy, actors’ identi-

ties have to be kept secret. Encryption is a straightfor-

ward solution preventing eavesdroppers from steal-

ing identities and impersonatingany legitimate supply

chain actor. However, any technical solution that ad-

dresses secure and privacy preserving product track-

ing should take into account the limitations of sen-

sor nodes. These are constrained devices in terms

of computation power, memory, and energy. Due to

the limited memory featured by sensors, straightfor-

ward storage of the collected encrypted steps’ identi-

ties cannot be afforded. Thus, a compression mecha-

nism to reduce the size of the path traces is a manda-

tory requirement in order to overcome the memory

limitation of sensors. Also, the scarce energy re-

sources of sensor nodes, make the implementation of

complex functions such as public key encryption al-

gorithms difﬁcult (Gennaro et al., 1997). Therefore,

our solution places all the complex computations on

the supply chain actor’s system in order to suit the

scarcity of the computational resources.

The main features of the suggested tracking

scheme are as follows:

• It allows the supply chain manager to verify the

legitimacy of the path taken by a product. More

precisely, it allows the supply chain manager to

verify which set of actors, a product has visited.

• It tracks all the anomalies that got raised by the

sensor nodes along the supply chain. For each

anomaly, our solution links it to the correspond-

ing supply chain actor.

• It guarantees the privacy of products and there-

with actors in the supply chain. Only the supply

chain manager is able to verify the path taken by

a product.

Moreover the scheme is suitable for low capacity

sensors. It only requires a few Kbytes storage. The

protocol execution for each supply chain step requires

only two modular multiplication.

1.1 Scenario: Importation of Chemicals

from China to Europe

Figure 1 illustrates typical supply chain example from

RESCUEIT project (Gomez et al., 2011). Aerosols

are imported from a Chinese harbour toward the har-

bour of Le Havre, in France. Shipped goods are

household and gardening chemicals: Garlon brush

cluttering 350 ml, DECAP four express 500 ml

and Ronstar 2kg. These products are meant to be

shipped by boat from a Chinese harbour. When re-

ceived at the Le Havre harbour, the merchandise is

checked by customs against REACH (Williams et al.,

2009)regulations. REACH is the European Commu-

nity Regulation on chemicals and their safe use (EC

1907/2006) (Williams et al., 2009). It deals with the

registration, evaluation, authorization and restriction

of chemical substances. The aim of REACH is to

provide an additional layer of protection for humans

and the environment through the better and earlier

identiﬁcation of the intrinsic properties of chemical

substances. To that extend, REACH introduces spe-

ciﬁc constraints on chemicals along the supply chain.

They include the ﬂash point, incompatibilities be-

tween products, and humidity conditions for chemi-

cals. At the Le Havre harbour, french customs with

the support of a Approved Economic Operator pro-

ceed to a merchandise integrity check. After a check

of administrative document describing the content of

the cargo, customs verify the quantity and quality of

the goods received. Once quality checks have been

performed at Le Havre harbour, and customs have

veriﬁed that the merchandise is compliant with safety

regulations, products are shipped by pickup trucks to-

ward the warehouse located close to Savigny le Tem-

ple. This warehouse belonging to K+N (Khune and

Nagel, 2013) is classiﬁed SEVESO II. This classiﬁ-

cation deﬁnes a set of safety management systems,

emergency and land-use planning. In addition, it re-

inforces provisions on inspections to be carried out

by classiﬁed sites. In this case speciﬁc safety mea-

sures are implemented on site, such as storage rules

(e.g. limited quantity of chemical stored at the same

place). Finally, household and gardening products are

distributed by retailers (e.g. supermarket) such as the

Casino group (Casino, 2013).

In case of anomalies along the supply chain such

as temperature raising, the impact on population

safety, and on the environment can be disastrous. For

instance, an explosion might take place at the ship-

ment process, which depending on its intensity, ﬁre

can have more or less serious impact on individual

health (e.g., slightly burning to death). Therefore,

anomalies detection mechanism should be in place to

mitigate potential accidents.

SECRYPT2013-InternationalConferenceonSecurityandCryptography

220

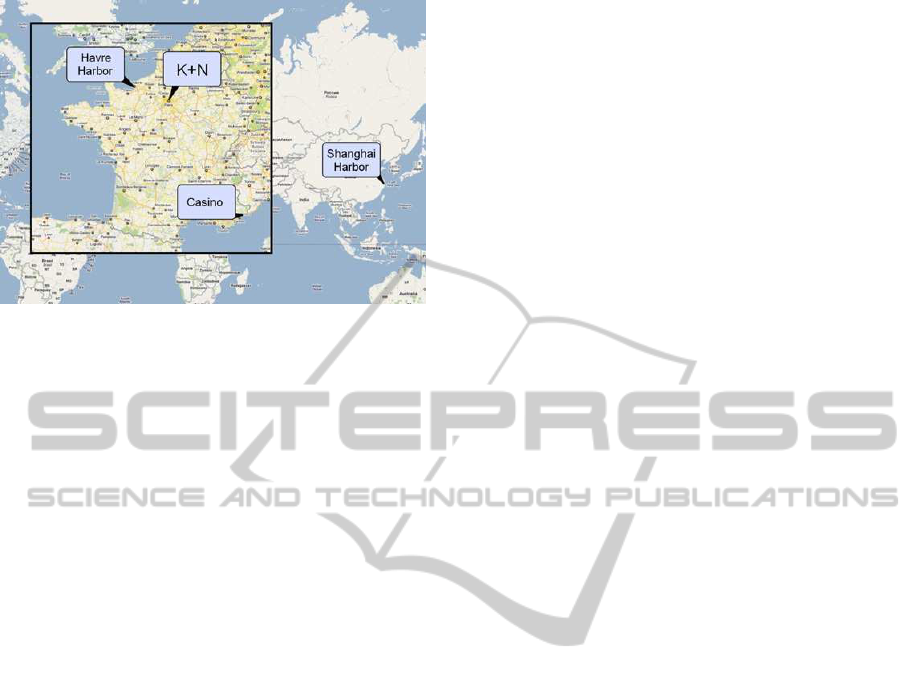

Figure 1: Import of Chemical Substance from outside of

EU.

2 RELATED WORK

Anomalies detection in supply chains has been around

as an active topic in research for many years. How-

ever, managing those anomalies and transiting it to

the right people has not been so deeply investigated

by research institutions. Often, supply chain actors

don’t disclose the detection of an anomaly, or they

simply ignore it for economical reasons (Trejo-Pech

et al., 2009). Therefore, any mitigation plan by the

supply chain manager is not complete since no com-

munication about potential threats was made. Wire-

less sensor networks with their sensing capabilities al-

low the detection of anomalies related to the physical

environment in real time. Accordingly, they are good

candidate to raise alerts if an anomaly occurs.

The usage of wireless sensor networks in supply

chains started with the need of real time product mon-

itoring. Many projects (Szewczyk et al., 2004; Bia-

gioni and Bridges, 2002; Werner-Allen et al., 2005;

Burrell et al., 2004; Gibbons et al., 2003) use wireless

sensor networks capabilities of sensing the physical

parameters of the environment and detecting at early

stage any potential threat. Nevertheless, those project

often neglect the multi-actors aspect of today’s supply

chains, and the need of supply chain actors to protect

their sensitive data, such as storage time, cost, their

clients, or even their suppliers. For instance Gomez

et al. (Gomez et al., 2012) suggested a mechanism

to delegate anomalies detection to sensor nodes. The

mechanisms is based on bytecode representation of

alerts to deal with the limited memory issues. How-

ever, the solution doesn’t take into account the privacy

of the involved supply chain, neither the threat of fake

alerts injection.

Cryptographic mechanisms preserving privacy of

supply chain actors are suggested by many re-

searchers. Khalfaoui et al. (Khalfaoui et al., 2012)

proposed a mechanism based on AND-ACC colli-

sion and paillier cryptosystem in order to trace the

steps and the activities that a product went through,

while preserving the privacy of the actors that inter-

acted with the product. Only the supply chain man-

ager, which is the veriﬁer can trace the product path.

Elkhiyaouiet al. (Blass et al., 2011) proposed an cryp-

tographic mechanism on RFIDs to deal with simi-

lar tracing problem. Nevertheless, there is no ap-

proach that comprehensively addresses the problem

of anomaly detection in supply chains using sensors

and in a privacy-preserving manner.

3 BACKGROUND

A supply chain in this paper simply denotes a set of

sites that a product goes through. These sites perform

a speciﬁc activity involving the product such as pack-

aging, shipment, or storage. The main concern taken

into account by our solution is the privacy of the part-

ners in the supply chain against the other business

partners. Only, an authorized actor is able to recog-

nize the sites that a product visited, and the activity

that were performed. Formally, a supply chain is rep-

resented by a digraph G = (V,E) whereby each vertex

v represents one step in the supply chain. A step v in

the supply chain is uniquely associated with an entity.

Each directed edge e, which links vertex v

to ver-

tex v

, express that v

is a possible next step to step

in the supply chain. This simply means that ac-

cording to the organization of the supply chain, a

product might proceed to step v

after the comple-

tion of step v

. Whenever a product in the supply

chain proceeds to step v

, the entity interacts ﬁrst with

the sensor. This latter may detect a potential threat.

Whenever the case, S added an alert alert

the path

trace. A path P is deﬁned as ﬁnite sequence of steps

P = (v

,alert

),...,(v

,alert

), where l is the length

of the path P. A Path P is deemed valid if it is part

of a legitimate supply chain networks. The proposed

solution involves the following entities:

• Sensors S

: Each sensor is attached to a prod-

uct in the supply chain. A sensor S

features a

re-writeable memory that stores the trace T

, j)

represents the trace of the path that the sen-

sor took in the supply chain until site j. Sensors

can also compute a cryptographic function f to

authenticate the partners’ systems in the supply

chain.

• Issuer I : the issuer I attaches S

to a product and

writes into S

an initial trace T

,0)

SecureAlertTrackinginSupplyChain

221

• Manager M: M wants to identify the sequence

of steps that S went through and the sequence of

alerts that S raised it all along the product path. M

therefore, reads the current trace T

(S,M)

of S, and

decides whether S visited legitimate sequence of

steps or not. Then, M extracts the different alerts.

We assume that M knows which paths in the sup-

ply chain are valid or not. In other words, M has

a database DB

valid

of valid path traces.

• Actors Ac

: supply chain actor is partner that be-

long to the supply chain, and may or may not

interact with the product. Each actor is allowed

to perform a set of supply chain activities on the

product. Without loss of generality, we assume

that each supply chain actor’s system Ac

. Ac

uses

some function f

to generate T

(S,step

j+1

)

from

(S,step

)

, i.e., f

, j)

) = T

(S, j+1)

• Alert alert

: an alert

is raised when an anomaly

is detected by S, such as increasing in temperature

or pressure above a deﬁned threshold.

• Step step

: supply chain step step

step is an ac-

tivity that has been performed by a supply chain

actor. step

represents the i

activity performed

on the product.

Thus, an AlertSec system is:

• a Supply Chain G = (V,A)

• a Sensor S

• a set of possible traces T

• a set of different steps Steps

• a set of different alerts Alerts

• a supply chain manager M

• a set of valid paths P

4 PROTOCOL DESCRIPTION

4.1 Approach

In our scheme, the path trace combines the sequence

of the supply chain steps visited by S, and the alerts

that are generated during the product transition. The

main concept is to represent different paths in the

supply chain using different polynomials. More pre-

cisely, at the end of a supply chain’s valid path P

valid

a path’s trace is the evaluation of speciﬁc polynomial

at a ﬁxed value x

. Therefore, a path in the supply

chain is represented by polynomial P(x

) that consists

of digest of the path.

However, the polynomial based path representa-

tion is vulnerable to prevent path cloning, i.e., copy-

ing the path of a valid sensor into a fake one to be

injected into the supply chain. To tackle this prob-

lem, sensors will store P(x

) multiplied by a keyed-

HMAC of their unique IDs. Keyed-HMAC serves the

following purpose: It proves that sensors are issued

by a legitimate authority and prevents an adversary

from injecting its own sensors. A path’s trace, there-

fore, consists of three elements that are: a unique ID,

HMAC

(ID) and HMAC

(ID)*P(x

). Our scheme

can be structured into four parts:

• Issuer I writes an initial trace into a sensor S.

• Supply chain actors successively compute the

evaluation of a polynomial to achieve the evalu-

ation of the ﬁnal polynomial P(x

) at the end of

a valid path. Each actor visited by sensor updates

a new trace by applying speciﬁc arithmetic opera-

tions.

• sensor S raises alert and add it to the path trace.

• M extracts the trace from S, and checks if it is

valid one or not.

4.2 Preliminaries

4.2.1 Path Encoding Technique

The polynomial path encoding is used in (Blass et al.,

2011). It is based on techniques for software fault de-

tection. Noubir et al. (Noubir et al., 1998) propose to

encode a software’s state machine using polynomials

such that the exact sequence of states visited during

run-time generates a unique ”mark”. Therewith, run-

time faults can be detected. By considering the step

instead of state machine, the path encoding used by

Noubir et al. (Noubir et al., 1998) can be applied in

our case.

For each step step

in the supply chain, step

associated with a unique random identiﬁer step

∈ F

, where q is a large prime.

As mentioned above, a path in the sup-

ply chain is represented as a polynomial ∈ F

The polynomial corresponding to a path P =

−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−→

(step

,alert

)(step

,alert

).. . (step

,alert

) is de-

ﬁned in Equation (1). All operations are in F

(x) =

∑

i=0

∗ x

l−i

(1)

where c

corresponds to the identity of either a step

or alert

To have a more compact representation of

paths, a path P is represented as the evaluation

SECRYPT2013-InternationalConferenceonSecurityandCryptography

222

of Q

at x

, where x

is a generator of F

∗

. We

denote φ(P ) = Q

). The desired property of

anti-collision, .i.e ∀P 6= P ′,Pr(φ(P ) = φ(P ′)) =

(Noubir et al., 1998), ensures the uniqueness of the

path mark with high probability.

4.3 Paillier Cryptosystem

The following is description to the Paillier cryptosys-

tem (Paillier, 1999) that we use in order to achieve

both privacy and security of our mechanism:

Key Generation. Let k be the security parameter.

Choose uniformly and at random two k-bit primes p

and q, set N = pq, and set λ(N) = lcm(p − 1,q − 1).

Choose a random base g ∈ Z

∗

Encryption. To encrypt message m ∈ Z

, one

chooses a random value r ∈ Z

∗

and computes the ci-

phertext as

c = E (m,r) = g

modN

(2)

Decryption. When receiving a ciphertext c, check

that c < N

. If yes, retrieve the message m as

m = D(c) =

L(c

λ(N)

modN

)

L(g

λ(N)

modN

)

modN (3)

Where ∀u ∈ {u < N

/u ≡ 1modN}L(u) =

u−1

Additive Homomorphic Property. Paillier cryp-

tosystem has the property to be additively homomor-

phic:

E (m

) ∗ E (m

) = E(m

+ m

) (4)

This property allows the execution of arithmetic op-

erations on encrypted data. Therefore, it supports the

evaluation of the polynomial mark at each step of the

supply chain without decryption.

Self Blinding. Paillier cryptosystem has the prop-

erty to be Self-Blinding, i.e the property by which

any ciphertext can randomly be changed into an-

other without affecting the plaintext. This property

is achieved as follows:

∀r ∈ Z

D(E(m,r)) = m (5)

Therefore, the decryption of any message m is in-

dependent of the value of r.

4.4 Detailed Protocol Description

Our protocol consists of several phases, which we de-

scribes as follows:

• Initialization. This phase is responsible for ini-

tializing the supply chain actors and the wireless

sensor nodes.

• Authentication. This phase is responsible for veri-

fying the legitimacy of the actors that interact with

sensors.

• Collection. This phase is responsible for col-

lecting the actors’ identities, and alerts to have a

unique path trace.

• Veriﬁcation. This phase is responsible for verify-

ing the correctness of the path trace and the ex-

traction of the different alerts.

4.4.1 Initialization

In this phase, we assume that every actor in the sup-

ply chain has the required resources to perform the

following actions:

• I generates randomly a list of steps identiﬁers for

each actor. I distributes each step’s identity to the

corresponding actor.

• I generates a Paillier public key pk

and private

key sk

. Then I sends E

(step

) to its actor in

secure way.

• M shares with the supply chain actors a Rabin’s

private key (p

). Rabin cryptosystem (Ra-

bin, 1979) is used to achieve authentication of the

supply chain actors. Rabin encryption is single

square modular encryption, which makes it feasi-

ble for low capacity devices such as sensor nodes.

Rabin’s public key N

= p

is stored in the sen-

sor to perform the authentication process.

• M generates the identiﬁers list S

list

of sensors. For

the sake of simplicity, we assimilate a sensor S

and its identiﬁer ID

. I stores in each sensor S

the Paillier encryption of its ID

, the Paillier en-

cryption of HMAC

), where HMAC

is keyed

hash function (Bellare et al., 1996), and k is its

secret key.

• M generates the identiﬁers list alert

list

of alerts.

M stores in each sensor S

, the Paillier encryption

of the all alerts needed, and the Paillier encryp-

tion of HMAC

), where HMAC

is keyed hash

function (Bellare et al., 1996), and k is its secret

key.

At the completion of this phase, each sensor is ini-

tialized with the value of the initial trace, that is,

E(HMAC

)).

SecureAlertTrackinginSupplyChain

223

4.4.2 Trace Update

In this phase, the sensor S and the actor’s system in-

teract in the supply chain by executing the follow-

ing actions: We assume that the sensor S has visited

the steps step

, ..., step

. When, S visits the actor’s

system step

l+1

, it is already stored the trace P

−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−−→

(step

,alert

)(step

,alert

)...(step

,alert

) that en-

codes the path from the sites that belong to the

steps step

,step

,.. . ,step

, and raised the alerts

alert

,alert

,.. . ,alert

. Therefore, the current state

of the sensor is E(P

), which corresponds to the path

trace after interacting with the l steps.

4.4.3 Authentication

S chooses a random value r ∈ F

and sends

Rabin(r) = r

modN

to A, while storing the hash(r)

and hash(N

− r). A decrypts Rabin(r) using its pub-

lic key. The decryption gives exactly four solutions,

r, N

− r, t, N

−t. As the actor does not know which

is the real solution, he chooses to send back to S two

hash values. The values are chosen in such a way that

their sum is not null modN

. For example A chooses

to send hash(r), and hash(N

− t). Therefore, S con-

siders the authentication as successful, if one of the

received value matched one of the stored value. Then,

S can start trace collection procedure.

4.4.4 Collection

After the authentication phase, S starts the collection

phase. S sends its current state s(S, l) to the actor’s

system A

l+1

. For the sake of simplicity, we assume

there is no alert has been raised at this point of time.

Therefore, actor

l+1

updates the sensor’s state as fol-

lows:

s(S,l + 1) = s(S, l)

∗ E

l+1

) (6)

= s(S,l)

∗ g

l+1

modN

(7)

Assuming that our products has to interact with n sup-

ply chain partner, the ﬁnal sensor’s state is:

T(S,n) = T(S,n− 1)

∗ g

step

modN

= T(S,0) ∗ g

∑

i=1

step

n−i

modN

= g

HMAC

(S)x

∑

i=1

step

n−i

modN

= E

(HMAC

(S)x

∑

i=1

step

n−i

)

(8)

where r

, andr

are in F

. (9)

4.4.5 Alert Injection

Now Let’s assume that an alert step

is raised just

after the step

. S updates its internal trace to take into

account the current alert. As the last step is step

, the

current state of S is s(S,k). S adds the alert to the trace

as follows:

T(S,k, alert

) = T(S, k)

∗ g

alert

∗x

modN

,where r

∈ F

= E

(HMAC

(S)x

∑

j=1

step

∗ x

n− j

+ alert

∗ x

)

(10)

(11)

(12)

4.4.6 Path Veriﬁcation

In this phase, the supply chain manager M checks if

the path recorded in the sensor is a valid one. M ex-

tracts the ﬁnal trace from the sensor T(S,n), and de-

crypts it, so he can extract the path trace φ(P ).

φ(P ) = D

TTP

(T(S, n)) =

∑

i=1

= HMAC(S)x

∑

i=1

step

m−i

+ (13)

∑

i=d+p

alert

i−d

d+p−i

(14)

Using successive division operations, M extracts

the coefﬁcients a

,... ,a

of the polynomial φ(P ).

Then, M computes HMAC

(S) and compare it with

. If a

= HMAC

(S), M accepts the sensor. Other-

wise, M rejects S.

4.4.7 Alert Detection

Finally, M checks if the step identiﬁers step

, step

..., step

belongs to the list of valid steps’ identi-

ﬁers, and the path trace φ(P )modx

proofs that the

sequence of the steps is valid. if one of the identiﬁers,

or the sequence is not valid, M rejects the sensor, and

declares the product as not compliant. M retrieves the

alerts alert

, alert

, ..., alert

as follows:

alert

= a

d+p−i

(15)

alert

is detected at step (m + d) − (d + p − i)

which is step

m−p+i

5 SECURITY ANALYSIS

In this section we prove the security of AlertSec sys-

tem. The proof was inspired from (Ouaﬁ and Vaude-

nay, 2009). Let’s A an adversary that has the purpose

of forging a valid path.

SECRYPT2013-InternationalConferenceonSecurityandCryptography

224

5.1 A is not a Legitimate Actor

if A authenticates successfully itself to S, she breaks

the Rabin scheme security by deﬁnition. Therefore,

only the legitimate supply actors can try to update the

path trace maliciously.

if A took a blank sensor and try to inject a valid

trace on it (from scratch), we use the security of

keyed-HMAC to proof the infeasibility of this case.

Security of keyed-HMAC. For our proof sketch,

we are using the property indistinguishability of

keyed hash function.

Indistinguishability Property Let O

distinguish

be an

oracle that when A provides it with a message m,

distinguish

returns with the same probability a ran-

dom number, or HMAC

(m). A cannot guess with

no-negligibleprobability if the returned value is a ran-

dom number, or HMAC

(m).

Lemma. Producing a new valid trace contradicts

the indistinguishiability property of HMAC

Proof (Sketch). From A , we can build an adversary A

′

that uses A to break the indistinguishability property

of keyed-HMAC. we provide A , with a sensor S and

its s

. A produces a new valid trace E (T

) that corre-

sponds to the sensor s

. A provides s

to O

distinguish

returns value H to be tested. A decrypts

E (T

). She gets T

, and computes T

mod H. If

mod H = 0, H is the HMAC

d), otherwise H is

a random number.

5.2 A is a Legitimate Actor

If A is legitimate actor, the authentication process will

succeed, and S accepts the received value from A .

In this case, the decisional composite residuosity as-

sumption to prove the security of our protocol against

forgery by a legitimate actor.

The Decisional Composite Residuosity Assump-

tion (DCRA). The DCRA states that given a com-

posite n and an integer z, it is hard to decide whether z

is a n-residue mod n

or not. In other words, whether

there exists y such that z = y

mod n

. This assump-

tion is mainly used to proof the semantic security of

Paillier cryptosystem (Paillier, 1999).

Cryptographic protocol is semantically secure if its

indistinguishability against chosen plaintext attacks

(IND-CPA) holds.

SPT is Semantically Secure if and only if DCRA

and the Indistinguishibilty of keyed-HMAC Hold.

Proof. The main idea of this proof is to build an at-

tacker A ′ from A whose advantage ε to forge a valid

path, that is able to break DCRA. As shown in the

previous Lemma, A cannot provide a new valid path

trace from scratch. Now, Let’s assume that A can up-

date a valid path trace that she got from the learning

phase to a new valid path trace. For the sake of sim-

plicity, we consider that the AlertSec system has only

one valid path.

Let O

DCRA

be an oracle that, when it is queried

with a parameter n, it ﬂips a coin b ∈ 0, 1. If b =

1 it takes a y ∈ Z and returns y

mod n

otherwise, it

returns a random number C.

A ′ creates AlertSec system with a valid path,

(step

, ..., step

). Then, she generates the AND-

ACC identiﬁer corresponds to each step.

Let E (T

m−1

) be the encrypted path trace until the

step

m−1

. First, A

′

sends a query to O

DCRA

with N

(Paillier modular) as parameter, and gets a challenge

C. A

′

computes E (T

m−1

)*C mod N

, and writes the

result in a sensor S.

If in the challenge phase, A is able to update the trace

to a valid path trace E(T

), then E (T

m−1

). C mod

is a valid ciphertext of T

m−1

(i.e E (T

m−1

). C mod

is re-encryption to E (T

m−1

) ). Therefore, C is N-

residue mod N

, and A

′

breaks the DCRA assump-

tion, with advantage of 1/2*ε, since she is wrong half

of the time because of oracle’s coin ﬂip.

Table 1 illustrates the messages exchanged between

the involved entities during the challenge game.

6 PRIVACY ANALYSIS

In this section we prove the privacy requirement of

step unlinkability of AlertSec system. Step unlinka-

bility is deﬁned as preventing an adversary A from

telling that two different sensors interacted with a

common step.

Theorem. AlertSec provides step unlinkability un-

der DCRA.

Proof. Assume there is an adversary A whose advan-

tage ε to break the step unlinkability experiment is

non-negligible. We now construct a new adversary

′

that executes A and breaks the semantic security

of Paillier.

Let O

DCRA

be an oracle that, when it is queried

with a parameter n, it ﬂips a coin b ∈ 0, 1. If b =

SecureAlertTrackinginSupplyChain

225

Table 1: Forgery challenge game.

DCRA

′

receive N ←− send N

pick C −→ receive C

compute E (T

m−1

).Cmod N

−→ receive E(T

m−1

).Cmod N

receive E (T

) ←− update trace E (T

)

receive 1 or 0 ←− if E (T

) is valid, send 1 else send 0

1 it takes a y ∈ Z and returns y

mod n

otherwise, it

returns a random number C.

A ′ creates AlertSec system with multiple valid

paths. Then, She generates the AND-ACC identiﬁers

correspond to each step. First, A

′

sends a query to

DCRA

with N (Paillier modular) as parameter, and

gets a challengeC. Then, A

′

builds two traces for two

different path, with one step in common. Let E (T

)

the path trace for the path (step

, . .., step

), and

E (T

′

) the path trace for the path (step

′

, ..., step

′

)

with step

and step

′

are the common step. However,

the identiﬁer is E (v

) for step

and E (v

)*C mod N

for step

′

. A

′

provides the two traces to A

′

in the

challenge phase.

If in the challenge phase, A is able to decide if

both traces has a common step with an advantage

ε, then E (v

). C mod N

is a valid ciphertext of v

). Therefore, C is N-residue mod N

, and A

′

breaks

DCRA, with advantage of 1/2*ε, since She is wrong

the half of the time because of oracle’s coin ﬂip.

Table 2 illustrates the messages exchanged during the

challenge game.

7 PERFORMANCE ANALYSIS

This section is allotted to present the analytical perfor-

mance evaluation of the proposed scheme. We only

evaluate the performances related to the sensor itself.

The performance evaluation criteria of the sensor, are

the storage cost, the computation cost and the com-

munication cost.

7.1 Storage Cost

The storage cost is computed as the number of bytes

that the sensor node has to store. Generally, this stor-

age cost is introduced by the storage of different pa-

rameters and keys necessary to the function of the

our scheme. The proposed privacy preserving prod-

uct tracking scheme does not require much memory

overhead.

• Initialization phase: in this phase, the sensor has

to store Rabin’s public key of size sizeof(N

the path trace initialization sizeof(E (T)), a sen-

sor ID of size sizeo f(S

), and k4 encrypted

alerts of sizeo f(E(T)) each. Therefore, the to-

tal storage needed by S at this phase is (k + 1) ∗

sizeof (E (T)), + sizeof(S

) + sizeof(N

• Collection phase: In this phase, S has to gener-

ate random number to start the authentication with

the actor’s system. The generated nonce has a

size of sizeof(N

). Hash value of the generated

nonce of size sizeof(hash) has to be stored as

well. Therefore, the the total storage needed by

S at this phase is sizeof(N

) + sizeof(hash). The

update path process does not increase the size of

the path trace, thus, no more memory capacity is

required.

• Veriﬁcation phase: In this phase, no storage by the

sensor is required.

The total storage cost needed by S in our scheme is

(k+1)∗sizeof(E(T)), + sizeof(S

) + 2∗sizeof(N

)

+ sizeof(hash).

7.2 Energy Cost

7.2.1 Computation Cost

The computation cost can be measured in terms of

time, use of CPU or energy dissipation. In fact, these

parameters are related and each one can be deduced

from the other. For instance, the energy dissipa-

tion can be deduced from the time as follows: En-

ergy=Power*Time, where Power represents the CPU

power when it is in its active state and Time represents

the computing time. In the present analysis, the term

SECRYPT2013-InternationalConferenceonSecurityandCryptography

226

Table 2: Step unlinkability challenge game.

DCRA

′

receive N ←− send N

pick C −→ receive C

compute E(T

) and E (T

′

) −→ receive E (T

) and E (T

′

)

receive 1 or 0 ←− check if E (T

) and E (T

′

) have a common step

receive 1 or 0 ←− if 1 is received, send 1 otherwise send 0

cost is used in its general form without specifying the

unit. The computation cost of our scheme during each

phase can be computed as the sum of the computa-

tion cost of the main operations executed during this

phase.

• Initialization phase: in this phase, the main opera-

tions are performed by the supply chain manager

M himself. Therefore, No computation required

by the sensor S in this phase.

• Collection phase: in this phase, S generates a ran-

dom number, then S has to encrypt it using rabin

scheme (i.e. single modular square). S computes

a hash in order to check the validity of the actor’s

response. Then, S updates its trace by adding alert

to it, which has a cost of single modular multipli-

cation. In total, S consumes c(rabin) + c(rand) +

c(hash) +c(modularmultiplication) for each in-

teraction with a single (step,alert) at maximum.

Indeed, if there is no alert detected, no modular

multiplication is required.

• Veriﬁcation phase: In this phase, S has to authen-

ticate the supply chain manager M, which is simi-

lar to authenticate a supply chain actor. therefore,

S consumes in this phase, c(rabin) + c(rand) +

c(hash).

The total computation cost needed by S in our

scheme is (c(rabin) + crand + c

hash

)*(l + 1) +

+c(modularmultiplication)*m, where m is the num-

ber of steps in the supply chain.

7.2.2 Communication Cost

The main factor of the communication cost is the en-

ergy dissipation. The communication cost is com-

puted using the same approach as TKH (Son et al.,

2010). Actually, the communication cost in terms

of energy dissipation is computed as the size of

sent/received messages multiplied by the energy dis-

sipated for the sent/receive of one bit. We denote e

the energy consumed by S, when it receives one bit,

and e

when S sends one bit.

• Initialization phase: In this phase, S does not

send any messages, however, it receives the ini-

tialization parameters. therefore, S consumes

(sizeof(N

)+ sizeof(S

)+sizeof(E (T)))*e

• Collection phase: In this phase, S sends encrypted

rabin value, which has the same size as the rabin’s

public key, then S receivesa hashed value. Then, S

receives the encrypted step’s identity from the ac-

tor’s site. Therefore, S consumes (sizeof(N

))*e

(sizeof(hash) +sizeof(E (T)))* e

for each interac-

tion with a single step.

• Veriﬁcation phase: In this phase, S exchanged the

same messages with the supply chain manager as

it performs with a supply chain actor’s site, ex-

cept of the received updated path trace. There-

fore, S consumes (sizeof(N

)+ sizeof(E (T)))*e

(sizeof(hash))* e

The total communication cost needed by

S in our scheme is (sizeof(N

)+ sizeof(hash)*

(l + 1) + sizeof(S

)+sizeof(E (T))*l + 1)*e

+(sizeof(N

)*(l + 1)+ sizeof(E (T)))*e

where l is

the number of the supply chain actors that interact

with the product.

It is worth to mention that the storage cost, com-

putation cost, and the communication cost can have a

different result depending on the size of the security

keys, and the algorithms that the supply chain man-

ager may choose.

In this paper, a Rabin’s public key has a size

of 1024 bits. The hash function used is SHA1,

which has an output size of 160 bits. Paillier en-

cryption has an output’s size of 2048 bits. For

sensor identity, a size of 160 bits is chosen. Ra-

bin’s encryption is a single modular square which

requires roughly 100µJ using ATmel128 micropro-

cessor (http://www.atmel.com/Images/doc2467.pdf, )

based on the result of Gaubatz et al. (Gaubatz et al.,

2005). In our scheme, we use the TinyRNG (Francil-

lon and Castelluccia, 2007) to generate random num-

bers. TiyRNG consumes around 58µJ at each ran-

SecureAlertTrackinginSupplyChain

227

Table 3: Performance analysis of AlertSec.

Parameter value

sizeof(S

) 160 bits

sizeof(N

) 1024 bits

sizeof(hash) 160 bits

sizeof(E (T)) 2048 bits

c(rabin) 100µJ

c(modularmultiplication) 100µJ

c(rand) 58µJ

c(hash) 1µJ

0,209µJ

0.226µJ

The storage cost 20714 bits for 8 alerts

the computation cost 161, 59mJ for 100 steps and 10 detected alerts

the communication cost 12,34mJ for supply chain with 100 steps

dom number generation. Hash function consumes

roughly 1µJ (Hempstead et al., 2008). The commu-

nication cost are set to e

=0.209µJ and e

=0.226µJ

from the characteristics of the CC2420 transceiver

used in the Xbows MICA-Z and Telos B sensor

nodes (http://www.xbow.com/, ).

Table 3 shows that our protocol is imple-

mentable using today’s sensors such as Cross-

bow motes (http://www.xbow.com/, ) and phidgets

(http://www.phidgets.com/, ). It only requires sen-

sors to store mainly the Rabin public key, which is

1024 bits, and the encrypted state, which is 2048 bits.

Through the different steps of the supply chain, the

amount of memory needed does not increase.

8 CONCLUSIONS

In this paper, we presented a protocol to secure the

tracking of products and alerts in supply chain. Our

main idea is to encode the path of the products us-

ing polynomial path encoding. Partners in the supply

chain update the path trace successively, such that the

path has unique identiﬁer. Whenever a sensor detect a

potential threat, it updates its internal trace by adding

the speciﬁc alert. Our protocol’s security and privacy

proprieties relies on the semantic security of Paillier

and the security of keyed-HMAC. It requires only one

modular multiplication in each step, and only 3Kb of

storage, which ensures its feasibility in available sen-

sors in the market.

In our supply chain scenario, we assume that we have

a global supply chain manager. There is no notion

of multiple managers. However in real world, that is

might not be true. Supply chain can have a quality,

security, and recall manger. Delivering the right in-

formation to the right manager is an issue, especially

in big scale supply chains. However, this is left to

future work

REFERENCES

Bellare, M., Canetti, R., and Krawczyk, H. (1996).

Keying hash functions for message authentication.

In Advances in CryptologyCRYPTO96, pages 1–15.

Springer.

Biagioni, E. and Bridges, K. (2002). The application

of remote sensor technology to assist the recovery

of rare and endangered species. International Jour-

nal of High Performance Computing Applications,

16(3):315–324.

Blass, E., Elkhiyaoui, K., and Molva, R. (2011). Tracker

: security and privacy for rﬁd-based supply chains.

In NDSS’11, 18th Annual Network and Distributed

System Security Symposium, 6-9 February 2011, San

Diego, California, USA, ISBN 1-891562-32-0.

Burrell, J., Brooke, T., and Beckwith, R. (2004). Vineyard

computing: Sensor networks in agricultural produc-

tion. Pervasive Computing, IEEE, 3(1):38–45.

Casino (2013). Casino group.

Francillon, A. and Castelluccia, C. (2007). Tinyrng: A cryp-

tographic random number generator for wireless sen-

sors network nodes. In Modeling and Optimization

in Mobile, Ad Hoc and Wireless Networks and Work-

shops, 2007. WiOpt 2007. 5th International Sympo-

sium on, pages 1–7. IEEE.

Gaubatz, G., Kaps, J., and Sunar, B. (2005). Public key

cryptography in sensor networksrevisited. Security in

Ad-hoc and Sensor Networks, pages 2–18.

Gennaro, R., Krawczyk, H., and Rabin, T. (1997). RSA-

based undeniable signatures. Advances in Cryptolo-

gyCRYPTO’97, pages 132–149.

Gibbons, P., Karp, B., Ke, Y., Nath, S., and Seshan, S.

(2003). Irisnet: An architecture for a worldwide sen-

sor web. Pervasive Computing, IEEE, 2(4):22–33.

Gomez, L., Gaci, O., Deutsch, J., and El-Khoury, E. (2012).

Sensor based risk assessment for the supply of dan-

gerous products. In SENSORCOMM 2012, The Sixth

SECRYPT2013-InternationalConferenceonSecurityandCryptography

228

International Conference on Sensor Technologies and

Applications, pages 342–348.

Gomez, L., Khalfaoui, M., El-Khoury, E., Ulmer, C.,

Deutsch, J., Chettouh, O., Gaci, O., Mathieu, H., El-

Moustaine, E., Laurent, M., et al. (2011). Rescueit:

securisation de la chaine logistique orientee service

depuis le monde des objets jusqua lunivers informa-

tique. In Workshop Interdisciplinaire sur la Securite

Globale.

Hempstead, M., Lyons, M., Brooks, D., and Wei, G. (2008).

Survey of hardware systems for wireless sensor net-

works. Journal of Low Power Electronics, pages 11–

20.

http://www.atmel.com/Images/doc2467.pdf. Last access:

01/06/2012.

http://www.phidgets.com/. Last access: 12/06/2011.

http://www.xbow.com/. Last access: 01/06/2012.

Khalfaoui, M., Molva, R., and Gomez, L. (2012). Secure

product tracking in supply chain. In INSCRYPT 2012,

8th International Conference on Information Security

and Cryptology, 28-30 November 2012, Pekin, China,

Pekin, CHINA.

Khune and Nagel (2013). Khune and nagel group.

Noubir, G., Vijayananda, K., and Nussbaumer, H. (1998).

Signature-based method for run-time fault detection

in communication protocols . Computer Communica-

tions, pages 405–421.

Ouaﬁ, K. and Vaudenay, S. (2009). Pathchecker: An RFID

Application for Tracing Products in Supply-Chains. In

International Conference on RFID Security. Citeseer.

Paillier, P. (1999). Public-key cryptosystems based

on composite degree residuosity classes. In Ad-

vances in Cryptology, EUROCRYPT99, pages 223–

238. Springer.

Rabin, M. (1979). Digitalized signatures and public-key

functions as intractable as factorization.

Son, J.-H., Lee, J.-S., and Seo, S.-W. (2010). Topological

key hierarchy for energy-efﬁcient group key manage-

ment in wireless sensor networks. Wirel. Pers. Com-

mun., 52(2):359–382.

Swift, T. (2001). Trust, reputation and corporate account-

ability to stakeholders. Business Ethics: A European

Review, 10(1):16–26.

Szewczyk, R., Osterweil, E., Polastre, J., Hamilton, M.,

Mainwaring, A., and Estrin, D. (2004). Habitat mon-

itoring with sensor networks. Communications of the

ACM, 47(6):34–40.

Trejo-Pech, C. J., Weldon, R. N., House, L. A., and Gun-

derson, M. A. (2009). The accrual anomaly ﬁnan-

cial problem in the food supply chain. Agribusiness,

25(4):520–533.

Werner-Allen, G., Johnson, J., Ruiz, M., Lees, J., and

Welsh, M. (2005). Monitoring volcanic eruptions with

a wireless sensor network. In Wireless Sensor Net-

works, 2005. Proceeedings of the Second European

Workshop on, pages 108–120. IEEE.

Williams, E. S., Panko, J., and Paustenbach, D. J. (2009).

The european union’s reach regulation: a review of its

history and requirements. Critical reviews in toxicol-

ogy, 39(7):553–575.

SecureAlertTrackinginSupplyChain

229
