Using Meta-code Generation to Realize Higher-order Model

Transformations

Thomas Buchmann and Felix Schw

agerl

Chair of Applied Computer Science I, University of Bayreuth, Universitaetsstrasse 30, 95440 Bayreuth, Bayreuth, Germany

Keywords:

Model-driven Development, M2M Transformations, Model Transformations, Higher-order Transformations,

Software Product Lines.

Abstract:

Model-driven engineering is a wide-spread paradigm in modern software engineering. During the last couple

of years, many tools and languages have been developed, which are especially designed for model transfor-

mations — a discipline which is needed in many model-driven engineering approaches. While most of the

existing model-to-model tools and languages are tailored towards batch transformations for speciﬁc model in-

stances, they lack support for generic transformation problems, where the metamodel is unknown beforehand.

In this paper we present a two-step meta-code generation approach that derives a metamodel-speciﬁc model-

to-model transformation from a model-to-text transformation. The approach has been successfully applied to

the problem of product derivation in model-driven software product lines.

1 INTRODUCTION

Model-driven engineering (MDE) is a wide-spread

paradigm in modern software engineering. It puts

strong emphasis on the development of higher-level

models rather than on source code. Many MDE dis-

ciplines are supported by model transformations. A

wide range of languages and tools have been devel-

oped (Czarnecki and Helsen, 2006), including e.g.

QVT (OMG, 2011) and ATL (Jouault et al., 2008) for

model-to-model transformations (M2M) or the MOF

model-to-text standard (OMG, 2008) for model-to-

text transformations (M2T). At present, the technol-

ogy for deﬁning and executing unidirectional batch

transformations seems to be well-developed.

Usually the metamodels for which a model trans-

formation is written are known beforehand. As classi-

ﬁed in (Mens and van Gorp, 2006), model transforma-

tions can be exogenous, i.e. source and target models

are instances of different metamodels, or endogenous,

i.e. both models conform to the same metamodel. The

terms in-place and out-place refer to transformations

which do or do not modify the source model.

While common approaches work fairly well for

ﬁxed metamodels, they lack support for mechanisms

such as reﬂection, which could be used in cases where

only the meta-metamodel is known during develop-

ment time. Only recently, the concept of higher-order

transformations (HOT) has been introduced as a pos-

sible compensation for that lack: A HOT is a transfor-

mation that produces or modiﬁes another executable

transformation. Unfortunately, there is no mature tool

support for higher-order transformations yet.

In this paper, we present a two-step meta-code

generation approach to compensate that lack. We use

an Acceleo

model-to-text transformation to generate

ATL

code for an endogenous out-place model trans-

formation at runtime. We apply our approach to a spe-

ciﬁc problem scenario — the derivation of products

in model-driven software product lines. Nevertheless,

the approach can be transferred to many other com-

mon MDE problems.

2 PROBLEM DESCRIPTION

One area of our research is dedicated to model-

driven software product line engineering (SPLE).

SPLE (Clements and Northrop, 2001) addresses the

organized reuse of software artifacts. Feature models

(Kang et al., 1990) are used to capture the common-

alities and differences of members of a product line,

while feature conﬁgurations describe the characteris-

http://www.eclipse.org/acceleo; An implemen-

tation of the OMG standard model to text; (OMG, 2008)

http://www.eclipse.org/atl; A model-to-model

transformation language for EMF (Jouault et al., 2008)

536

Buchmann T. and Schwägerl F..

Using Meta-code Generation to Realize Higher-order Model Transformations.

DOI: 10.5220/0004522305360541

In Proceedings of the 8th International Joint Conference on Software Technologies (ICSOFT-PT-2013), pages 536-541

ISBN: 978-989-8565-68-6

 2013 SCITEPRESS (Science and Technology Publications, Lda.)

Feature Model

Multi-variant

Domain Model

Feature

Configuration

Configured Domain

Model

refers to

assigns

F2DMM

Mapping

Model

Mapping

conforms to

Selection

State

Object

Feature

refers to

derive

feature

expression

subset of

Domain Metamodel

0..*

instance of

Ecore

instance of

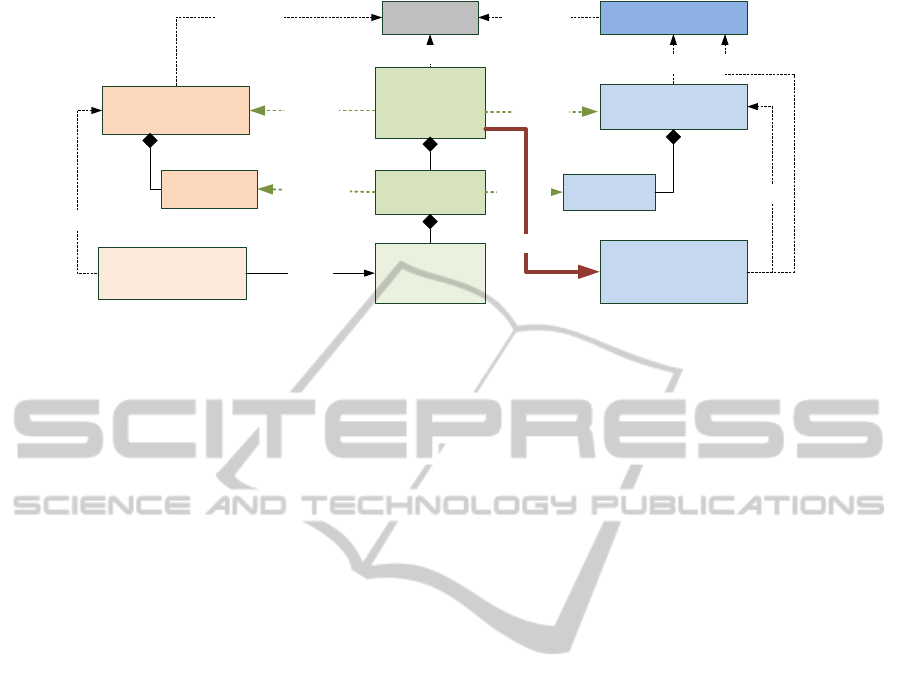

Figure 1: Conceptual overview on the FAMILE toolchain.

tics of a speciﬁc member thereof. Software product

line engineering is divided into two levels. (1) Do-

main engineering is used to analyze the domain and

capture the commonalities and variabilities in a fea-

ture model. Furthermore, the features are realized in a

corresponding implementation. In model-driven soft-

ware product lines, models represent the implementa-

tion at a higher level of abstraction. (2) Application

engineering deals with binding the variability deﬁned

in the feature model and deriving concrete products.

In SPLE, basically two different approaches ex-

ist to realize variability in the corresponding feature

implementation: (1) In approaches based on positive

variability, product-speciﬁc artifacts are built around

a common core. During application engineering,

composition techniques are used to assemble the ﬁnal

product using these artifacts. (2) In approaches based

on negative variability, a superimposition of all vari-

ants is created. The derivation of products is achieved

by removing all fragments of artifacts implementing

features which are not contained in the speciﬁc fea-

ture conﬁguration for the desired product.

Several approaches exist to associate elements

of the feature model with artifacts part of the do-

main model; in previous publications (Buchmann and

Schw

agerl, 2012) we presented FAMILE, an EMF-

based toolchain for model-driven software product

line development using negative variability. Figure 1

depicts the different models involved in FAMILE.

The left part shows the feature model and correspond-

ing conﬁgurations. The right part of the ﬁgure de-

picts the multi-variant domain model – the superim-

position – which contains the implementation of all

features described in the feature model. As stated

above, FAMILE uses negative variability, i.e. the do-

main model is the superimposition of all variants. The

central part of Figure 1 depicts the feature-to-domain

mapping model (F2DMM). It is used to map features

declared in the feature model to the corresponding im-

plementation fragments in the domain model. Fea-

ture expressions, which can be arbitrary logical com-

binations of features, are used for that purpose. For a

selected feature conﬁguration, all feature expressions

assigned in the mapping model are evaluated to de-

termine the selection states of mappings. Selection

states are used to include or exclude corresponding

domain model elements in/from a conﬁgured domain

model.

Product derivation comprises the creation of a

conﬁgured domain model by ﬁltering all domain

model elements which refer to feature expressions

evaluating to false w.r.t a given feature conﬁguration.

It can be regarded as an endogenous out-place (Mens

and van Gorp, 2006) model-to-model transformation:

Source and target model are both instances of the

same meta-model, but the respective instances differ.

In our particular case, the target model is a subset of

the source model, which means that the problem can

be solved by a conditional copying transformation:

only elements mapped to positive selection states (i.e.

active, enforced or surrogated) are copied from the

source to the target model; details see (Buchmann and

Schw

agerl, 2012).

The initial implementation of this transforma-

tion was realized by a hand-written model-to-

model transformation speciﬁed in Java. The

transformation redeﬁned the EMF copy operation

(EcoreUtil.copy(EObject)) which uses the reﬂec-

tive EMF layer to instantiate the copied object from

the respective EClass of its original. Using this

mechanism, the concrete EFactory is called at run-

time to produce an instance of the desired class. Fur-

thermore, its structural features are traversed and also

copied if implied by their respective selection states.

As we encourage the use of model-driven tech-

niques in our research, we strived for a more declara-

UsingMeta-codeGenerationtoRealizeHigher-orderModelTransformations

537

Multi-variant

Domain Model

Configured

Domain Model

F2DMM

Domain Metamodel

instance of

M2T (Acceleo)

instance of

M2M

(ATL)

Feature

Configuration

conforms to

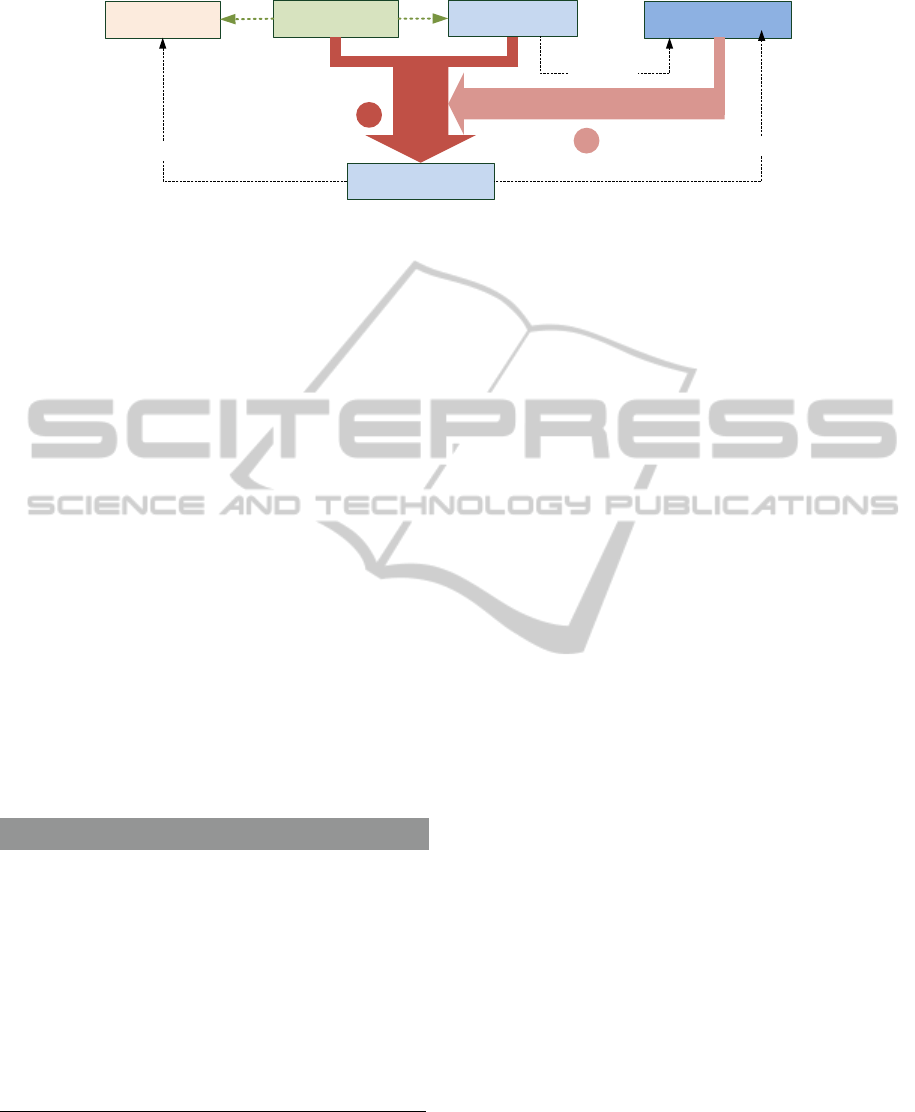

Figure 2: Transformation steps included in our product derivation process.

tive solution to solve this task. Using a M2M transfor-

mation language like ATL, copying an object of a spe-

ciﬁc class could be implemented by a simple transfor-

mation rule including a guard which ensures that the

rule is applied only if the associated mapping has a

positive selection state. The rule itself copies the val-

ues of all structural features. FAMILE and F2DMM

in particular allow the use of any Ecore-based domain

model, but ATL and other model-to-model transfor-

mation languages require the speciﬁcation of concrete

metamodels. Consequently, this problem can only be

solved by means of a generic M2M transformation.

3 META-CODE GENERATION

If ATL provided native support for generic transfor-

mations, we could write down a single transforma-

tion rule to match all classes C from the domain meta-

model (cf. Listing 1). As stated in Section 2, deriv-

ing concrete products from the multi-variant domain

model can be regarded as a model transformation re-

alizing a conditional copy operation.

Listing 1: Fictional ATL rule augmented with generics and reﬂection.

1 rule <C ex t e n ds EO bject > Ob je c t 2O b j e ct {

2 fr o m

3 source : C ( so u r c e . i sI n c l ud e d () and

4 source . e C lass = C )

5 to

6 target : C (

7 fo r ( E St r uc t u ra l Fe a t ur e f e atur e :

8 C. e A l l S t r uc t ur a l F e a t u r e s ) {

9 feat u r e <- s o u rce . f e atur e

10 }

11 )

12 }

For our generic transformation rule above, we

augmented the ATL syntax with ﬁctional constructs

based on Java generics and OCL queries for ac-

cessing the metamodel reﬂectively. The type pa-

rameter C attached to the Object2Object rule

is lower-bounded by the basic EMF Object type

EObject. The guard consists of a conjunction of

two queries: source.eClass = C ensures that no in-

stances of sub-classes of C are matched to the rule

and source.isIncluded() requires that an object’s

associated feature expression evaluates to a positive

selection state. Inside the rule body, the for loop

accesses the reﬂective EMF layer to iterate over the

structural features of the class bound to the type pa-

rameter at runtime. Please note that in general pur-

pose programming languages like Java or Ada, a

generic type is statically instantiated during compile

time. In our case, the type parameter has to be bound

dynamically depending on the type of the source ob-

ject. Unfortunately such mechanisms do neither exist

in ATL nor in other common M2M languages. In the

following we describe how we applied our two-step

meta-code generation approach (cf. Figure 2) to sim-

ulate such a generic behavior.

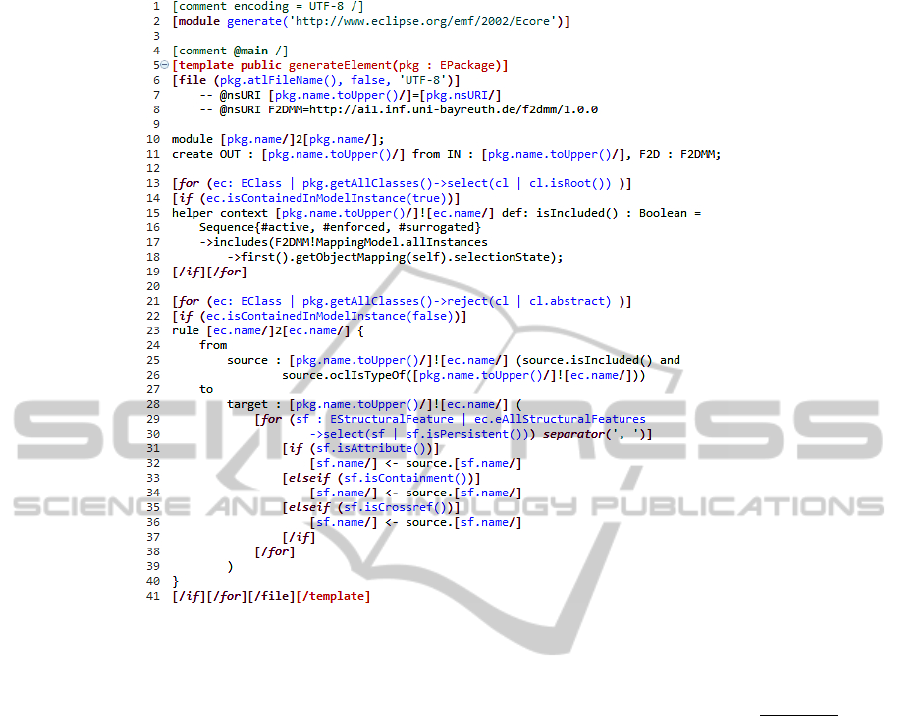

In the ﬁrst step we execute an Acceleo model-to-

text transformation that takes as input the metamodel

of the multi-variant domain model. At runtime, it can

be retrieved from the current F2DMM instance, as

the mapping model stores a reference to the domain

model (cf. Figure 1). Using EMF’s reﬂective layer,

the meta-class for each EObject and thus the contain-

ing EPackage can be retrieved. Afterwards, the M2T

transformation is run on that EPackage. The template

shown in Figure 3 produces four kinds of ATL code

fragments:

• The header (lines 7 to 11): The metamodel iden-

tiﬁer and the namespace URI of the domain meta-

model as well as the module name are produced

by the transformation at runtime, while the cor-

responding information related to the F2DMM

metamodel is ﬁxed.

• OCL-helpers (lines 13 to 19). They are pro-

duced for every class contained in the respective

EPackage of the domain metamodel which repre-

sent a root in the inheritance hierarchy. The gener-

ated code is a number of isIncluded()-queries

containing OCL expressions that ﬁnd the mapping

for an instance of the given class and check if its

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

538

Figure 3: Cut-out of our M2T transformation which produces a metamodel-speciﬁc ATL ﬁle.

associated selection state implies its inclusion (ac-

tive, enforced or surrogated) in the conﬁgured do-

main model.

• Conditional copy rules (lines 21 to 41): For each

concrete class from the input domain metamodel,

a copy transformation rule is produced which uses

the appropriate isIncluded()-query as a guard

and copies instances of that class. Similar to List-

ing 1, the produced rule body will copy the at-

tributes and references of the given object.

In order to avoid the creation of unnecessary

ATL code, we additionally perform a check if at

least one concrete instance of a meta-class is ac-

tually contained in the multi-variant domain model

(isContainedInModelInstance()). Only if this

query evaluates to true, a corresponding transforma-

tion rule is generated. This results in a more compact

and faster ATL transformation.

The output of the ﬁrst (higher-order) transforma-

tion step is an ATL ﬁle that describes a (ﬁrst-order)

transformation which has both the multi-variant do-

main model and the F2DMM mapping model as in-

put. This transformation produces the conﬁgured do-

main model, i.e. the subset of the multi-variant do-

main model which conforms to the selected feature

conﬁguration.

As an example, a cut-out of the generated ATL

module ﬁle for the Eclipse UML2 metamodel is

shown in Listing 2. The ATL transformation uses in-

stances of the UML2 as well as the F2DMM meta-

model as input to create a ﬁltered UML model as

output. The conditional copy behavior is realized

as follows: The rule Class2Class is used to create

new Classes in the conﬁgured domain model. The

guard source.isIncluded() next to the source pat-

tern makes use of the helper function deﬁned above.

It is only produced for the UML!Element which is the

base class of all metaclasses in the UML package.

Please note that the derivation process is fully au-

tomated and both transformations described in this

section are performed “under the hood”: The user can

invoke the complete meta-code generation with a sin-

gle click. The framework then performs both trans-

formations in order to produce the conﬁgured domain

model. Optionally, the user can choose to serialize the

derived ATL transformation which can be reused for

different feature conﬁgurations.

UsingMeta-codeGenerationtoRealizeHigher-orderModelTransformations

539

Listing 2: Cut-out of the generated ATL ﬁle for the Eclipse UML2

metamodel.

1 m o dule uml2 u m l ;

2 c r eate OUT : UML fr om IN : UML , F2D : F2DMM ;

4 h e lper cont e x t UML ! E l e m e n t

5 def : is I nc l u d ed () : Bo o l e a n =

6 Se q u e n ce {# acti ve , # e n forced , # s urr o g a te d }

7 -> in c l u des ( F2DMM ! Ma p pi n g Mo d e l . al l I ns t a nce s

8 -> f i r s t () . g et O b je c t Ma p p i n g ( s e l f )

9 . s e le c t io n S ta t e );

11 r u l e C l a ss2 C l as s {

12 fr o m

13 source : UML ! C l a s s ( so u r c e . is In c l u ded ()

14 an d sour c e . oc lI s T y pe O f ( UML ! Clas s ) )

15 to

16 target : UML ! C l a s s (

17 e A n no t a ti o n s < - so u r c e . e An n o ta t i o ns

18 , ow n e d Co m m en t <- s o u rce . o wn e d Co m m e nt

19 , na m e <- so u r ce . name

20 // ...

21 )

22 }

4 RELATED WORK

As stated in Section 1, common model transformation

approaches lack support for higher-order tranforma-

tions. However, there are some experimental exten-

sions available for some of those tools. In this section

we brieﬂy compare them to our approach.

EMF Henshin (Arendt et al., 2010) is a model

transformation tool which allows to specify both en-

dogenous or exogenous model transformations using

a graphical syntax. The tool is based upon the concept

of graph transformations. In (Biermann et al., 2010),

the authors present a solution for an Ecore2GenModel

transformation which also makes use of higher-order

transformations. However, there are signiﬁcant differ-

ences to our approach. For example, both metamodels

(the Ecore metamodel and the Ecore generator meta-

model) are known when the higher-order transforma-

tion is speciﬁed. Furthermore, the higher-order trans-

formation speciﬁed in the approach of Biermann et al.

requires the modeler to precisely be familiar with the

abstract syntax of Henshin transformation rules be-

cause the abstract syntax is used to create new trans-

formation rules on the ﬂy. Contrasingly, our approach

makes use of the concrete syntax of ATL.

The authors of (Tisi et al., 2010) present several

proposals to facilitate the deﬁnition of HOTs in ATL.

In a survey (Tisi et al., 2009) the authors detected

four usage classes of HOTs in real-world model trans-

formation scenarios. Like in the EMF Henshin ap-

proach, the authors use ATL to dynamically create

new ATL transformation rules which implement the

higher-order behavior. In contrast to our approach,

the abstract syntax of ATL has to be known by the

developer of the HOTs. Furthermore, the metamodel

has to be ﬁxed at the time when the HOT is written.

In (Oldevik and Haugen, 2007) an approach is

presented that also uses HOTs in the ﬁeld of soft-

ware product lines. It differs from our work pre-

sented in this paper in several ways: First of all, Olde-

vik and Haugen extend MOFScript, a M2T language,

with aspects tailored towards the generation of prod-

uct speciﬁc application code from a product line UML

model. We use model-to-text transformations to gen-

erate code for a speciﬁc model-to-model transforma-

tion. The variability that Oldevik and Haugen address

in their paper is restricted to variability in the imple-

mentation technique. E.g. they use different mecha-

nisms to implement UML associations in the result-

ing source code. Our approach provides much more

ﬂexibility since we can deal with variability in the do-

main model. In our approach, the variability is bound

when meta-code generation is used to derive a con-

ﬁgured domain model (which is then used as a basis

for generating the application source code). Further-

more, our approach can handle any Ecore-based do-

main model and is not limited to UML only.

In (Botterweck et al., 2009), the authors describe

their approach on using HOTs as a variability mecha-

nism for embedded systems. Botterweck et al. also

use HOTs to derive products in a software prod-

uct line. In their approach, they used it on Mat-

lab/Simulink models. The main differences to our ap-

proach are the fact that they (ab)use the M2M trans-

formation tool in order to perform a M2T transfor-

mation. Their higher-order ATL transformation only

consists of queries, which produces one large output

string: the ﬁnal ATL transformation. Furthermore,

they need a second ATL transformation for which the

helpers generated by the ﬁrst one are manually over-

loaded. Contrastingly, our approach has a clear sepa-

ration of concerns, as we use a dedicated model-to-

text transformation tool, to generate our ATL rules

corresponding to the respective domain metamodels.

Our approach does not either require any manual

overloading of the generated rules or helpers. Further-

more, the approach of Botterweck et al. needs a post-

processing step after the transformation has been per-

formed, to remove dangling edges. This is not necces-

sary in our approach, since the validity of the conﬁg-

ured domain model is ensured by sophisticated mech-

anisms incorporated in our toolchain (Buchmann and

Schw

agerl, 2012).

ICSOFT2013-8thInternationalJointConferenceonSoftwareTechnologies

540

5 CONCLUSION AND FUTURE

WORK

Higher-order transformations have just recently been

addressed in model-driven software development

(Tisi et al., 2010). As a consequence, there is no

sufﬁcient tool support available at the moment. In

our paper, we presented a novel approach to bridge

this gap by a two-step meta-code generation approach

which enables the speciﬁcation of a higher-order en-

dogenous model transformation that is independent

from the concrete metamodel. Only at runtime, ATL

code is generated for the speciﬁc metamodel using an

Acceleo template, and the resulting ﬁrst-order ATL

transformation is then performed on corresponding

model instances.

We applied our approach to the problem of prod-

uct derivation in model-driven software product lines,

where we could successfully test its correctness by

comparing results to the existing, Java-based solution.

The meta-transformation code we had to write is sig-

niﬁcantly more declarative. Furthermore, the Acceleo

template comprises 124 lines of code, which is about

a third of the original Java source code (370 lines).

For future work, we plan to transfer our approach

to another research project which is dedicated to

three-way merging of models (Westfechtel, 2012) and

has a problem deﬁnition similar to the one described

in this paper. The algorithm allows merging of arbi-

trary Ecore model instances. The main differences

are that ﬁrst, the result is not only obtained by a

conditional copy of one, but three input models, and

second, ﬁltering of artifacts is replaced by dedicated

merge rules.

ACKNOWLEDGEMENTS

The authors want to thank Bernhard Westfechtel for

his valuable comments on the draft of this paper.

REFERENCES

Arendt, T., Biermann, E., Jurack, S., Krause, C., and

Taentzer, G. (2010). Henshin: Advanced concepts

and tools for in-place emf model transformations. In

Proceedings of the 13th International Conference on

Model Driven Engineering Languages and Systems

(MoDELS 2010), LNCS 6394, pages 121–135, Oslo,

Norway.

Biermann, E., Ermel, C., and Jurack, S. (2010). Modeling

the ”Ecore to GenModel” transformation with EMF

Henshin. In Mazanek, S., Rensink, A., and Gorp,

P. V., editors, Proc. Transformation Tool Contest 2010

(TTC’10).

Botterweck, G., Polzer, A., and Kowalewski, S. (2009).

Using higher-order transformations to derive variabil-

ity mechanism for embedded systems. In Ghosh, S.,

editor, MoDELS Workshops, volume 6002 of Lecture

Notes in Computer Science, pages 68–82. Springer.

Buchmann, T. and Schw

agerl, F. (2012). Ensuring well-

formedness of conﬁgured domain models in model-

driven product lines based on negative variability. In

Proceedings of the 4th International Workshop on

Feature-Oriented Software Development, FOSD ’12,

pages 37–44, New York, NY, USA. ACM.

Buchmann, T. and Schw

agerl, F. (2012). FAMILE: tool

support for evolving model-driven product lines. In

orrle, H., Botterweck, G., Bourdells, M., Kolovos,

D., Paige, R., Roubtsova, E., Rubin, J., and Tolvanen,

J.-P., editors, Joint Proceedings of co-located Events

at the 8th European Conference on Modelling Foun-

dations and Applications, CEUR WS, pages 59–62,

Building 321, DK-2800 Kongens Lyngby. Technical

University of Denmark (DTU).

Clements, P. and Northrop, L. (2001). Software Product

Lines: Practices and Patterns. Boston, MA.

Czarnecki, K. and Helsen, S. (2006). Feature-based sur-

vey of model transformation approaches. IBM Sys-

tems Journal, 45(3):621–645.

Jouault, F., Allilaire, F., B

ezivin, J., and Kurtev, I. (2008).

ATL: A model transformation tool. Science of Com-

puter Programming, 72:31–39. Special Issue on Ex-

perimental Software and Toolkits (EST).

Kang, K. C., Cohen, S. G., Hess, J. A., Novak, W. E.,

and Peterson, A. S. (1990). Feature-oriented do-

main analysis (FODA) feasibility study. Technical Re-

port CMU/SEI-90-TR-21, Carnegie-Mellon Univer-

sity, Software Engineering Institute.

Mens, T. and van Gorp, P. (2006). A taxonomy of model

transformation. Electr. Notes Theor. Comput. Sci.,

152:125–142.

Oldevik, J. and Haugen, Ø. (2007). Higher-order transfor-

mations for product lines. In SPLC, pages 243–254.

IEEE Computer Society.

OMG (2008). MOF Model to Text Transformation

Language, Version 1.0. OMG, Needham, MA,

formal/2008-01 edition.

OMG (2011). Meta Object Facility (MOF) 2.0

Query/View/Transformation, v1.1. Object Manage-

ment Group, Needham, MA, formal/2011-01-01 edi-

tion.

Tisi, M., Cabot, J., and Jouault, F. (2010). Improving

higher-order transformations support in ATL. In Tratt,

L. and Gogolla, M., editors, ICMT, volume 6142 of

Lecture Notes in Computer Science, pages 215–229.

Springer.

Tisi, M., Jouault, F., Fraternali, P., Ceri, S., and B

ezivin, J.

(2009). On the use of higher-order model transforma-

tions. In Paige, R. F., Hartman, A., and Rensink, A.,

editors, ECMDA-FA, volume 5562 of Lecture Notes in

Computer Science, pages 18–33. Springer.

Westfechtel, B. (2012). Merging of EMF models - formal

foundations. Software and Systems Modeling. Online

First.

UsingMeta-codeGenerationtoRealizeHigher-orderModelTransformations

541
