A Modified Inter-view Prediction Scheme for Multiview Video Coding
to Improve View’s Interactivity
Ayman M. Hamadan, Hussein A. Aly and Mohamed M. Fouad
Department of Computer Engineering, Military Technical College, Cairo, Egypt
Keywords:
Multiview Video Coding, Video Compression, Interactivity.
Abstract:
In this paper, we present a modified inter-view prediction multiview video coding (MVC) scheme form the
perspective of viewer interactivity. This latter requires a high transmission bite-rate, when a viewer requests
some view(s). Conventional solutions to such a problem assume that the requested views are already encoded
by a MVC scheme. In this paper, we modify the MVC-HBP standard scheme yielding reducing the average
transmission bite-rate required to retrieve the requested views (i.e., interactivity). With real data sequences,
clear improvements are shown using the proposed MVC scheme compared to competing MVC schemes in
terms of rate-distortion (RD) and average transmission bite-rate.
1 INTRODUCTION
Multiview video (MV) refers to the simultaneous cap-
turing of multiple videos of the same scene by a large
array of closely spaced cameras from different view-
points(Kubota et al., 2007). The MV has wide appli-
cations in education, entertainment, surveillance, and
health care. MVC has encoded the MV signals us-
ing various proposed schemes including both tempo-
ral and inter-view predicted frames (i.e., frames are
predicted not only from the temporally neighboring
frames, but also from the corresponding frames in ad-
jacent views)(Vetro et al., 2008). Both analysis of
MVC schemes and real-time human-computer inter-
action are essential steps prior to developing any fu-
ture IMVS system(Kalva et al., 2006). In an interac-
tive multiview video streaming (IMVS) system(Vetro
et al., 2011), the user only needs to retrieve the re-
quested views (i.e., not the whole set of frames) to
play back the captured MV content. Thus, users
may exploit cognitive views to generate additionally
virtual views that are created at the decoder to in-
crease the navigation capacities and the look-around
effect(M`uandller et al., 2011).
MVC typically focuses on the RD performance
of compressing all frames of all views, as presented
in(Merkle et al., 2007; Kurutepe et al., 2007; Che-
ung et al., 2009; Yang et al., 2010; Lee et al.,
2010; Cheung et al., 2011; Maugey et al., 2012).
In (Merkle et al., 2007), an experimental analysis of
MVC for various temporal and inter-view prediction
structures is presented. The compression method used
is based on a multiple-reference picture technique
in the H.264/AVC video coding standard. In (Ku-
rutepe et al., 2007), authors introduce a view-selective
streaming strategy for streaming MV for single-user
interactive 3DTV applications. In (Cheung et al.,
2009), authors address the problem of designing a
pre-encoded frame structure for a streaming server
to enable a new interactive multiview switching. A
streaming client can, then, send requests periodically
to a server to switch to different views, while continu-
ing uninterrupted temporal playback of the streaming
video. In (Yang et al., 2010), authors modify the joint
multiview video model (JMVM) with a proposed in-
teractivity factor to evaluate the performance of dif-
ferent MVC schemes in corporation with RD perfor-
mance. In (Lee et al., 2010), authors describe geomet-
ric prediction structure for multi-view video coding.
By exploiting the geometric relations between each
camera pose, to make prediction pair which maxi-
mizes the spatial correlation of each view. In (Che-
ung et al., 2011), authors propose a redundant repre-
sentation of I-, P-, and merged frames, where each
original picture can be encoded into multiple ver-
sions to facilitate view switching. In (Maugey et al.,
2012), a new multiview representation is proposed to
complete the classical color and depth information
streams. An auxiliary information, related to those
streams, roughly describes the occlusion region(s) in
order to help the synthesis algorithm at the receiver.
Although the inter-view predictions of the afore-
35
Hamdan A., A. Aly H. and M. Fouad M..
A Modified Inter-view Prediction Scheme for Multiview Video Coding to Improve View’s Interactivity.
DOI: 10.5220/0004198600350040
In Proceedings of the International Conference on Computer Vision Theory and Applications (VISAPP-2013), pages 35-40
ISBN: 978-989-8565-47-1
Copyright
c
2013 SCITEPRESS (Science and Technology Publications, Lda.)
mentioned MVC schemes improve the RD perfor-
mance, the corresponding bit-rate is increased when
individuallysending views. In this paper,we present a
modified inter-view prediction MVC scheme form the
perspective of viewer’s interactivity. The proposed
MVC scheme reduces the bite-rate required to retrieve
the requested views (i.e., interactivity) with compara-
ble RD performance.
This paper is structured as follows. Section 2
presents the proposed MVC scheme showing its re-
lation to the views’interactivity. Data sets descrip-
tion, implementation setup, experiments and results
are presented in Section 3. Finally, conclusions are
given in Section 4.
2 THE PROPOSED MVC
SCHEME
In this section, we first give a brief background on the
standard inter-view prediction MVC scheme (Vetro
et al., 2008). Then, we extend the mathematical re-
lationship between the standard MVC scheme and
views’interactivity in the IMVS system to finally
present the proposed MVC scheme.
The MVC-HBP standard scheme has coding
efficiency advantages compared to other schemes
(Merkle et al., 2007) in terms of RD performance.

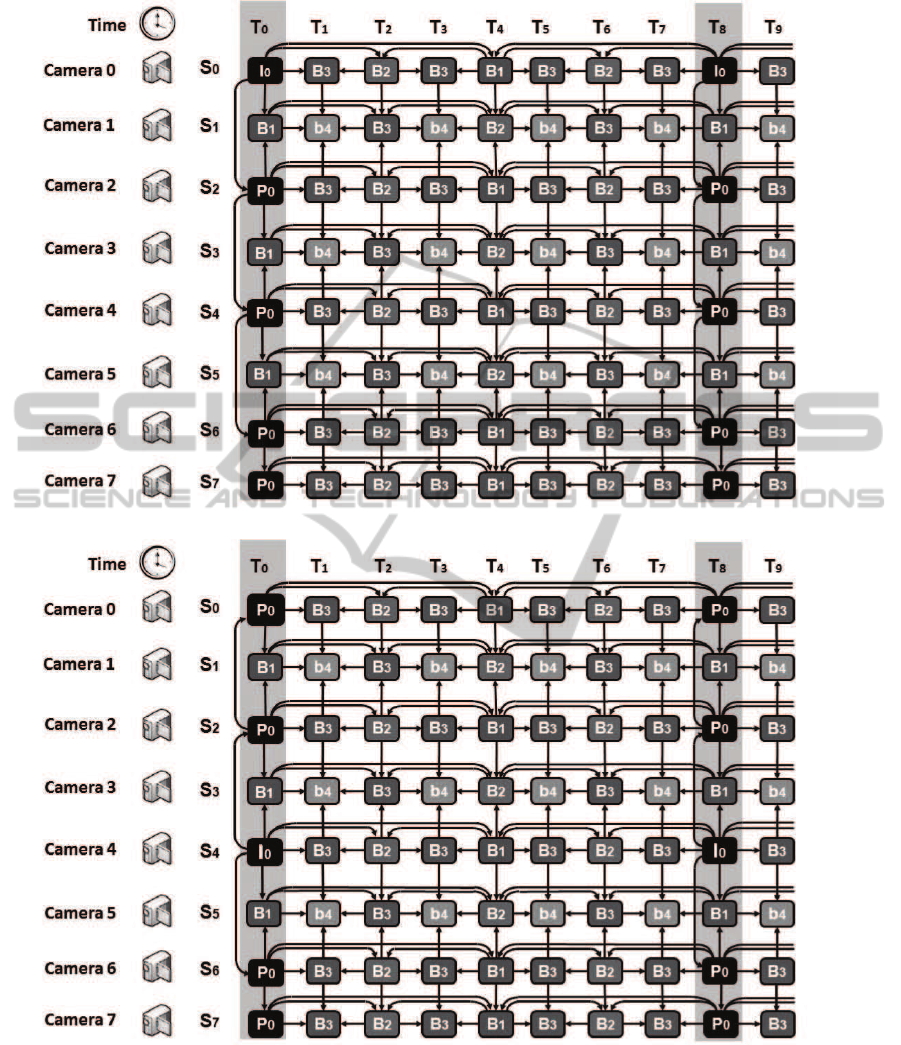

An example, with eight linearly arranged cameras and
a group of pictures (GOP) length of 8 (for simplic-
ity), is shown in Fig. 1(a). This scheme first uses
inter-view prediction to provide P pictures for even
camera views (S
2
, S
4
and S
6
) at T
0
and T
8
of each
GOP from the base view S
0
. Rest of the pictures in
the even camera views are predicted with hierarchical
B pictures in the temporal direction (Schwarz et al.,
2006). Whereas, odd camera views (S
1
, S
3
and S
5
) are
obtained by combining an inter-view prediction from
two adjacent even views and an hierarchical B coding
structure in the temporal direction. For an even num-
ber of views, the last view represents a specific case
for prediction. S
7
is coded as shown in Fig. 1(a), start-
ing with an inter-view predicted P frame, followed by
hierarchical B-frames, which are also inter-views pre-
dicted from the previous view. This coding scheme
can be applied to any multiview with more than two
views.
In IMVS systems, an user only needs to receive
the requested views. The IMVS server, then, extracts
the requested views from the whole set of frames with
reference frames from other views. In turn, the IMVS
server sends those frames as a subset in one bit-stream
to the user via the network. To retrieve an i
th
view,
V
i
,the required extracted frames (EF) for one GOP can
be generally formulated as,
EF = I + n× P+ m× B, (1)
where I, P, and B are frames related to that specific
view, n and m denote the number of the P-frames and
B-frames, respectively, depending on the view’s loca-
tion at the whole set. To determine n and m for ex-
tracting the V
i
in the MVC-HBP scheme for one GOP,
given base view as S
0
as shown in Fig. 1(a), (1) can
be rewritten as,
EF
i
= I + α
i
P+ [(2k + 1)β
i
− (k + 1)δ
i
+ k]B, (2)
where i ∈ {0, 1,2,...,N − 1} denotes the view num-
ber, N denotes the number of the views, [·] denotes
the number of B-frames. α
i
that denotes the number
of the P-frames, β
i
that determines whether V
s
is an
odd or even, and δ
i
that determines whether V
s
is an
edge view or not, can be obtained as,
α
i
= ⌈ i/2 ⌉, ∀ i ∈ {0,1, 2, ...,N − 1}, (3)
β
i
= i mod 2, ∀ i ∈ {0, 1,2,...,N − 1}, (4)
δ
i
= i mod 2, ∀ i ∈ {0, N − 1}. (5)
The base view isn’t necessary to be set to S
0
as
presented in the standard MVC-HBP scheme (Merkle
et al., 2007). So, the symbol i in (3), (4) and (5) can be
replaced with | B
v
− i |, where B
v
∈ {0,1,2,... , N −
1} denotes the number of the base view. Thus, (3), (4)
and (5) can be rewritten as,
α
x
= ⌈ (|x|)/2 ⌉, ∀ i ∈ {0,1,2, . ..,N −1}, (6)
β
x
= (|x|) mod 2, ∀ B
v
,i ∈ {0,1,2,. ..,N −1}, (7)
δ
x
= (|x|) mod 2, ∀ B
v
,i ∈ {0,N − 1}, (8)
where, x = B
v
− i. Accordingly, (2) can be rewritten
as,
EF
(B
v
−i)
= I + α
(B
v
−i)
P+ [(2k+ 1)β
(B
v
−i)
− (k + 1)δ
(B
v
−i)
+ k]B. (9)
In (9), you can notice that only decreasing the
value of α
(B
v
−i)
minimizes the number of required
extracted P-frames as β
(B
v
−i)
and δ
(B
v
−i)
are bi-
nary. Thus, the bit-rate to retrieve a specific view
V
i
is reduced. To decrease the value of α
(B
v
−i)
,
we propose that the value of B
v
should be set to
⌈ median {0, 1,2,...,N − 1} ⌉, as shown in Fig. 1(b),
yielding improving the view’s interactivity. Table 2
shows the number of extracted frames to retrieve a
specific view of one GOP using different base views
using (9). Setting B
v
to 3 or 4 yields to a minimum
number of extracted frames. Therefore, in the rest of
this paper, the number of views, N is set to 8, and B
v
is set to 4 (i.e., the base view is set to S
4
).
The proposed scheme, shown in Fig. 1(b), first
uses the inter-view prediction to provide P-frames for
VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications
36
even camera views (S
2
, S
0
and S
6
) at T
0
and T
8
of
each GOP from the base view S
4
. In the even camera
views, the rest of the frames are predicted with hier-
archical B-frames in the temporal direction. Whereas,
odd camera views (S
1
, S
3
and S
5
) are obtained by
combining the inter-view prediction from two adja-
cent even views and the hierarchical B-frames in the
temporal direction. For an even number of views, the
last view is to be predicted in a specific manner. In
our case, the last view, S
7
, is predicted, as shown in
Fig. 1(b), in two steps. First, an inter-view P-frame is
predicted. Then, hierarchical B-frames are predicted,
where the latter are also inter-views predicted from
the previous view. This coding scheme can be applied
to any multiview with more than two views.
For example, to extract necessary frames from
MVC bit-stream for a specific view at one GOP, the
following frames are required to be extracted in an
hierarchical order:
• I-frame: S
0
/(T
0
, T
8
).
• P-frame: S
2
/(T
0
, T
8
), S
4
/(T
0
, /T
8
), S
6
/(T
0
, T
8
).
• B1-frame: S
4
/T
4
, S
5
/T
0
, S
5
/T
8
, S
6
/T
4
.
• B2-frame: S
5
/T
4
, S
4
/T
6
, S
6
/T
6
.
• B3-frame: S
4
/T
7
, S
5
/T
6
, S
6
/T
7
.
3 EXPERIMENTS & RESULTS
In this section, data sequences used are described in
Section 3.1, the implementation setup of experiments
is given in Section 3.2, and finally results are dis-
cussed in Section 3.3.
3.1 Data Sets Description
The data set used in the experiments includes two cat-
egories: MERL
1
and KDDI
2
. Their characteristics are
provided in Table 1. MERL includes three sequences.
The first sequence, Ballroom, shows a dynamic scene
containing fast motion of the dancers and many over-
lapping objects. The second sequence, Exit, repre-
sents a static scene with few persons slowly moving
from right to the middle of the scene. The third se-
quence, Vassar, has been captured in an ambient day
light and contains no discernable motion blur on the
boundaries of the moving objects. KDDI includes the
Race1 sequence that represents a scene captured by
a cameras moving from left to right, then returning
back from right stop at the middle of the scene. The
1
ftp://ftp.merl.com/pub/avetro/mvc-testseq
2
ftp://ftp.ne.jp/KDDI/multiview
latter sequence contains small moving cars on the race
track in sunny day.
3.2 Implementation Setup
Our implementation runs on a 2.4 GHz Core i3, with
2GB of RAM. The proposed MVC scheme (i.e., re-
ferred to as proposed, B
V
=4) is compared to i) the
MVC standard scheme (Vetro et al., 2008) (i.e., re-
ferred to as MVC-HBP, B
V
=0), ii) that of (Yang
et al., 2010) (i.e., referred to as YANG, B
V
=4), and
iii) simulcast scheme (Merkle et al., 2007) (i.e., cod-
ing each view independently with no inter-view pre-
diction, referred to as simulcast). We use the joint
multiview video coding (JMVC) software (v.8.5)
3
for
encoding/decoding the data sets. In this paper, the
performance of competing approaches is evaluated
by rate-distortion (in dB/Kbps) of MVC and average
transmission bit-rate (in KBps) of interactive views.
The quantization parameter (QP) is set to 24, 28, 32
and 36.
3.3 Results & Discussion
Fig. 2(a-d) show the RD performance using compet-
ing approaches with the data sequences in Section 3.1
at different QPs (24, 28, 32, 36). It can be shown
that the proposed MVC scheme gives comparable RD
performance as compared to the MVC-HBP scheme.
Whereas, the proposed MVC scheme outperforms the
YANG and simulcast schemes by 10% and 37%, re-
spectively, in terms of RD performance. This im-
provement is accomplished as the YANG scheme uses
less inter-view predictions and the simulcast scheme
has no inter-view predictions.
Fig. 2(e-h) show the average transmission bit-rate
with competing approaches with the data sequences
in Section 3.1 at different QPs (24, 28, 32, 36). It
can be shown that the proposed MVC scheme outper-
forms the MVC-HBP scheme by 15%. Whereas, the
YANG and simulcast schemes outperform the MVC-
HBP scheme by 27% and 53%, respectively, in terms
of average transmission bit-rate. This improvement
of the YANG and simulcast schemes is achieved at the
cost of their RD performance shown above. Recall
that the RD performance and the average transmis-
sion bit-rate are trade-offs.
4 CONCLUSIONS
In this paper, we modify the inter-view prediction
structure of the MVC standard scheme. This modi-
3
http://mpeg.chiariglione.org/standards.php
AModifiedInter-viewPredictionSchemeforMultiviewVideoCodingtoImproveView'sInteractivity
37
(a) The MVC-HBP standard scheme(Merkle et al., 2007)
(b) The proposed MVC scheme
Figure 1: Competing MVC schemes use 8 cameras with 8 frames in a GOP.
fication is based on setting the base view of the pro-
posed MVC scheme to a medianview. Clear improve-
ment is shown using the proposed scheme in term
of RD performance by an average improvement of
10% and 37% compared to the YANG and simulcast
schemes, respectively. Whereas, the proposed MVC
scheme provides a comparable RD performance com-
pared to the MVC standard scheme. Unlike the YANG
and simulcast schemes, the proposed MVC scheme
decreases the average transmission bit-rate for view’s
VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications
38

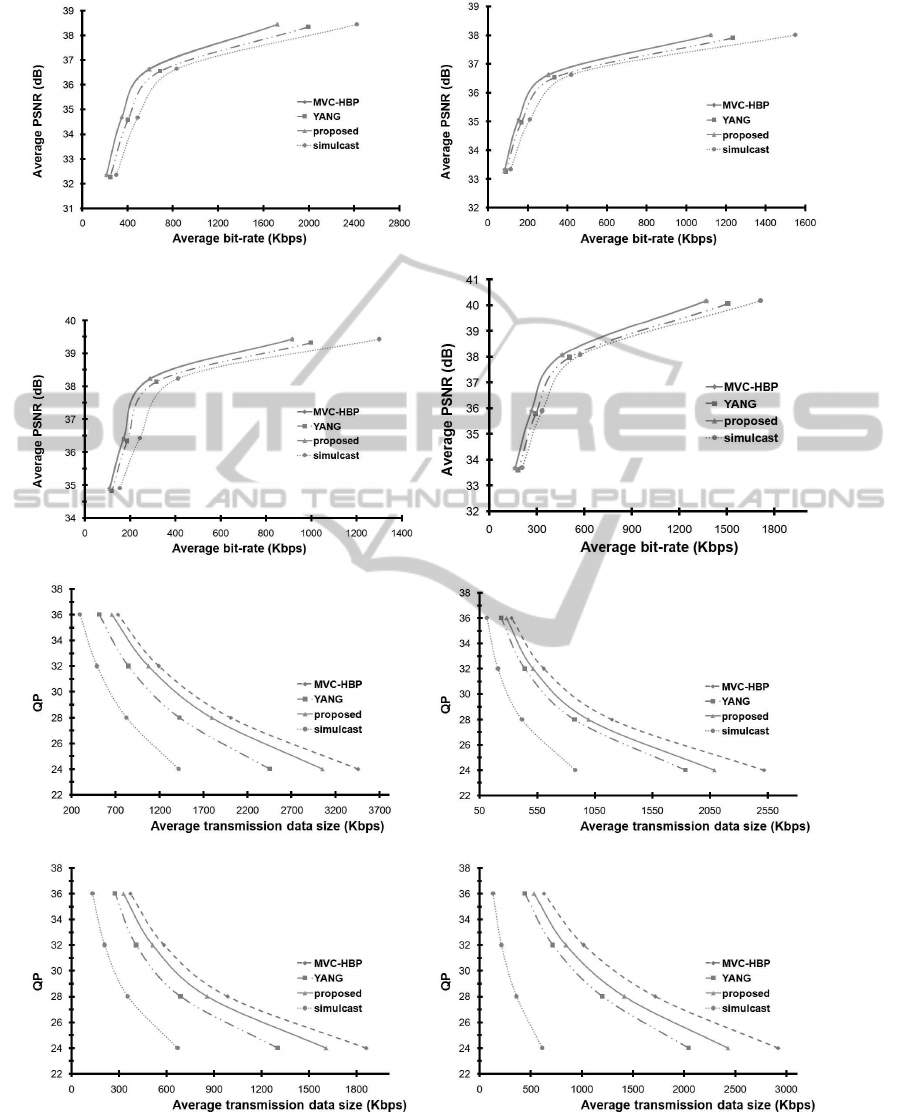

(a) Ballroom (b) Vassar
(c) Exit (d) Race1
(e) Ballroom (f) Vassar
(g) Exit (h) Race1
Figure 2: (a-d)RD performance, (e-h) The average transmission bit-rate, with competing approaches at different QPs (24, 28,
32, 36).
AModifiedInter-viewPredictionSchemeforMultiviewVideoCodingtoImproveView'sInteractivity
39
Table 1: Data sets description.
Data set Sequences Object Resolution Format Camera Total file size Bit-rate
Motion Arrangement of 8 views for 10 sec. (Mbps)
Ballroom Medium 640x480 8 cameras,
MERL
1
Vassar Low (rectified) 4:2:0 20cm inter-spacing, 878(MB) 702.4
Exit High 25fps 1D/parallel
640x480 8 cameras,
KDDI
2
Race1 High (non-rectified) 4:2:0 20cm inter-spacing, 1.02 (GB) 835.6
30fps 1D/parallel
Table 2: Number of extracted frames at different base views to retrieve a specific view of one GOP. The less the number, the
well choice the base view, the better the scheme performance.
View Base view 0,7 Base view 1,6 Base view 2,5 Base view 3,4
S
0
I+7B I+P+14B I+P+7B I+2P+7B
S
1
I+P+22B I+7B I+P+22B I+2P+22B
S
2
I+P+7B I+P+22B I+7B I+P+7B
S
3
I+2P+22B I+P+7B I+P+22B I+P+22B
S
4
I+2P+7B I+2P+22B I+P+7B I+7B
S
5
I+3P+22B I+2P+7B I+2P+22B I+P+22B
S
6
I+3P+7B I+3P+22B I+2P+7B I+P+7B
S
7
I+4P+14B I+3P+7B I+3P+14B I+2P+14B
Total 8I+16P+108B 8I+13P+108B 8I+11P+108B 8I+10P+108B
interactivity by 15%, as opposed to the MVC standard
scheme, which is a reasonable gain and not at the cost
of the RD performance.
REFERENCES
Cheung, G., Cheung, N., and Ortega, A. (2009). Optimized
frame structure using distributed source coding for in-
teractive multiview video streaming. In IEEE Intern.
Conf. on Image Proc., pages 1389–1392.
Cheung, G., Ortega, A., and Cheung, N. (2011). Interac-
tive streaming of stored multiview video using redun-
dant frame structures. IEEE Trans. on Image Proc.,
20(3):744–761.
Kalva, H., Christodoulou, L., Mayron, L., Marques, O.,
and Furht, B. (2006). Challenges and opportunities
in video coding for 3D TV. In Proc. IEEE Inter. Conf.
Multimedia & Expo, pages 1689–1692.
Kubota, A., Smolic, A., Magnor, M., Tanimoto, M., Chen,
T., and Zhang, C. (2007). Multiview imaging and
3DTV. IEEESignal Processing Magazine, 24(6):10–
21.
Kurutepe, E., Civanlar, M., and Tekalp, A. (2007). Client-
driven selective streaming of multiview video for in-
teractive 3DTV. IEEE Trans. Cir. and Sys. for Video
Tech., 17(11):1558–1565.
Lee, S., Wey, H., Park, D., and Kim, D. (2010). Multi-view
prediction structure for free viewpoint video. In IEEE
Intern. Conf. on Image Proc., pages 3409–3412.
Maugey, T., Frossard, P., and Cheung, G.(2012). Consistent
view synthesis in interactive multiview imaging. In
IEEE Intern. Conf. on Image Proc., pages 2717–2720.
Merkle, P., Smolic, A., Muller, K., and Wiegand, T. (2007).
Efficient prediction structures for multiview video
coding. IEEE Trans. on Cir. and Sys. for Video Tech.,
17(11):1461–1473.
M`uandller, K., Merkle, P., and Wiegand, T. (2011). 3D
video representation using depth maps. Proceedings
of the IEEE, 99(4):643–656.
Schwarz, H., Marpe, D., and Wiegand, T. (2006). Analysis
of hierarchical B pictures and MCTF. In Proc. IEEE
Inter. Conf. Multimedia & Expo, volume 6, pages
1929–1932.
Vetro, A., Pandit, P., Kimata, H., Smolic, A., and Wang,
Y. K. (2008). Joint draft 9.0 multi-iview video cod-
ing. Technical report, JVT Doc. JVT-AB204, Han-
nover, Germany.
Vetro, A., Wiegand, T., and Sullivan, G. (2011). Overview
of the stereo and multiview video coding extensions
of the H.264/MPEG-4 AVC standard. Proceedings of
the IEEE, 99(4):626–642.
Yang, Y., Dai, Q., Jiang, G., and Ho, Y. (2010). Compar-
ative interactivity analysis in multiview video coding
schemes. ETRI Journal, 32(4):566–576.
VISAPP2013-InternationalConferenceonComputerVisionTheoryandApplications
40
