Bringing Order to Legal Documents

An Issue-based Recommendation System Via Cluster Association

Qiang Lu

1∗

and Jack G. Conrad

2∗

Kore Federal, 7600A Leesburg Pike, Falls Church, VA 22043, U.S.A.

Thomson Reuters Global Resources, Catalyst Lab, Neuhofstrasse 1, Baar, ZG 6340, Switzerland

Keywords:

Unsupervised Learning, Recommendation, Clustering, Labeling, Document-cluster Associations.

Abstract:

The task of recommending content to professionals (such as attorneys or brokers) differs greatly from the task

of recommending news to casual readers. A casual reader may be satisﬁed with a couple of good recommen-

dations, whereas an attorney will demand precise and comprehensive recommendations from various content

sources when conducting legal research. Legal documents are intrinsically complex and multi-topical, contain

carefully crafted, professional, domain speciﬁc language, and possess a broad and unevenly distributed cov-

erage of issues. Consequently, a high quality content recommendation system for legal documents requires

the ability to detect signiﬁcant topics from a document and recommend high quality content accordingly.

Moreover, a litigation attorney preparing for a case needs to be thoroughly familiar the principal arguments

associated with various supporting opinions, but also with the secondary and tertiary arguments as well. This

paper introduces an issue-based content recommendation system with a built-in topic detection/segmentation

algorithm for the legal domain. The system leverages existing legal document metadata such as topical clas-

siﬁcations, document citations, and click stream data from user behavior databases, to produce an accurate

topic detection algorithm. It then links each individual topic to a comprehensive pre-deﬁned topic (cluster)

repository via an association process. A cluster labeling algorithm is designed and applied to provide a precise,

meaningful label for each of the clusters in the repository, where each cluster is also populated with member

documents from across different content types. This system has been applied successfully to very large col-

lections of legal documents, O(100M), which include judicial opinions, statutes, regulations, court briefs, and

analytical documents. Extensive evaluations were conducted to determine the efﬁciency and effectiveness of

the algorithms in topic detection, cluster association, and cluster labeling. Subsequent evaluations conducted

by legal domain experts have demonstrated that the quality of the resulting recommendations across different

content types is close to those created by human experts.

1 INTRODUCTION

The goal of a recommendation system is to suggest

items of interest to a user based on the user’s own

historical behavior or behaviors of a community of

other users. Practical applications have been widely

adopted in different areas, such as recommending

books, music, and other products from online shop-

ping sites (Linden et al., 2003), movies at Netﬂix

(Bennett and Lanning, 2007), and news from Google

and Yahoo! (Liu et al., 2010; Li et al., 2010).

Depending on the targeted user, however, the rec-

ommendation task may differ greatly. A casual news

reader or an online shopper may be satisﬁed with a

∗

Both authors worked for Thomson Reuters Corporate

Research & Development when this work was conducted.

few good recommendations, regardless of other poor

suggestions. Professionals such as attorneys or bro-

kers, by contrast, may demand more precise and com-

prehensive recommendations. For example, when an

attorney is performing legal research, she has to comb

through a huge amount of material to identify the

most authoritative documents across different sources

of the law, such as judicial opinions, statutes, and

court briefs, to name just a few. In the ﬁeld of law,

it is well known how important high recall is for at-

torneys who may be preparing for a trial or related

litigation proceeding. They cannot afford to miss a

key case that may have signiﬁcant bearing on their

current legal and logical strategy. Furthermore, be-

ing presented relevant documents may not be enough;

that is, they may not be sufﬁciently granular since it is

the speciﬁc sub-document-level topics or arguments

Lu Q. and Conrad J..

Bringing Order to Legal Documents - An Issue-based Recommendation System Via Cluster Association.

DOI: 10.5220/0004136600760088

In Proceedings of the International Conference on Knowledge Engineering and Ontology Development (KEOD-2012), pages 76-88

ISBN: 978-989-8565-30-3

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

that are critical. Legal practitioners must familiarize

themselves not only with the primary arguments that

may be marshaled against them; they must also an-

ticipate secondary or alternative arguments associated

with the legal issue as well. While ineffective legal

research wastes time and money, inaccurate and in-

complete research can lead to claims of malpractice

(Cohen and Olsen, 2007).

In this paper, we present a robust and compre-

hensive legal recommendation system; it delivers to

its users the top-level legal issues underlying a case

along with secondary and supplemental issues as

well. So for a given a document, e.g., in a search

result, a user is presented with additional documents

that are closely related, and these recommended doc-

uments are grouped together based on issues that

are discussed in the original document. This issue-

based recommendation approach, relative to those ar-

guments in the original document, is essential to the

effectiveness of a legal research system due to the

complete coverage provided. Legal documents are

complex and multi-topical in nature. For example,

a judicial opinion may deal with a customer suing

a hotel for its negligence due to an injury-causing

slip and fall in the shower, who later is awarded an

amount of compensation by summary judgment in the

court. At least three legal issues are presented in this

case, namely negligence, summary judgment proce-

dures and appropriateness of compensation, and each

could lead to a collection of other important docu-

ments speciﬁcally addressing such a topic. By pro-

viding such an issue-oriented recommendation tool,

users are able to explore legal topics within any doc-

ument at much greater depth rather than simply sur-

veying them.

Furthermore, this examination is en-

abled without explicitly summarizing the issues and

constructing different search queries.

One additional means of ensuring an understand-

ing of the scope of a particular issue in a cluster of

documents is to provide a meaningful label. A simple

phrase may be sufﬁcient for many traditional docu-

ments, such as those in a news collection. By con-

trast, an hierarchically structured labeling approach

may be more suitable for complex legal documents.

Such an approach can provide a more precise and de-

tailed description of many complicated legal issues at

a ﬁne-grained level yet still maintain a coherent and

broad topical overview at the root level. Legal infor-

mation providers often deploy editorial resources to

organize and index content to support speciﬁc infor-

mation needs, and topical taxonomies and encyclope-

In the interest of simpliﬁcation, the expressions legal

issues and legal topics will generally be used interchange-

ably.

dias are two examples of such editorial tools for con-

tent navigation purposes. Nodes in taxonomies can

offer well-crafted descriptions to form a solid founda-

tion for a labeling algorithm. It is up to the research

scientist to devise the algorithmic means of generat-

ing such informative, multi-tiered labeling captions.

Although the labeling component of the system rep-

resents a post-cluster generation process involving the

characterization rather than the generation of the clus-

ters, it is arguably as essential as any of the other

components of the recommendation system. Stated

simply, if users cannot effectively understand and in-

terpret the meaning of the labels, the quality of the

system’s clusters and document-cluster associations

may not matter; the system may still fail to meet its

intended performance objectives.

In the interest of clarity, it is also instructive to em-

phasize the fundamental underlying use case that mo-

tivates this work. It is to provide a robust and effective

complement to search. Along with search, navigation

and personalization, the recommendation approach

we implement can greatly improve the efﬁciency and

effectiveness of an otherwise comprehensive informa-

tion retrieval system for legal research. Given a non-

trivial legal domain-speciﬁc query, when a user per-

forms a professional search, in addition to receiving

ranked lists of search results delivered across mul-

tiple content types, the recommendation component

of the system presents a supplemental list of ranked

clusters, one for each of the key issues present in the

selected document from the search results. In short,

this cluster recommendation system is enabled by the

document-to-cluster association process described in

Section 4. The process by which the clusters have

been topically deﬁned and populated is described in

an earlier work (Lu et al., 2011).

The recommendation system presented in the pa-

per can thus be described as follows:

1. It identiﬁes major issues discussed in individual

documents from different content types;

2. It links each issue to the back-end repository of

important legal issues via an association process;

3. For every legal issue, it identiﬁes, populates, and

updates a set of the most important documents for

that issue;

4. It provides a meaningful and sufﬁciently encom-

passing label for every issue in the universe.

By deﬁning such a collective framework, we pro-

vide a powerful, coherent, and comprehensive ap-

proach to supplementing legal research results with

additional relevant yet important documents in our

issue-based recommendation system. Just as impor-

This back-end repository is sometimes referred to as

the “universe” of legal issues.

BringingOrdertoLegalDocuments-AnIssue-basedRecommendationSystemViaClusterAssociation

Document-Topic

Association

Document

Topic

Segmentation

Topic

Clustering

Topic

Population

(Cluster Population)

Document-

Topic

Segmentation

(Topic Universe Generation)

(Document Recomendation)

Metadata

Repository

(HNs, KNs, NPs, Citations)

Topic Label

Repository

Label

Generation

Figure 1: Workﬂow of document recommendation system.

tantly, the system will produce a more comprehensive

coverage of the essential arguments associated with

these legal issues.

Figure 1 illustrates the overall workﬂow of this

recommendation system. At the highest level, the pri-

mary activities are represented by the two key com-

ponents of the system: (1) deﬁne and generate the le-

gal topic universe, and (2) perform document recom-

mendations via associations (shown in the two light

blue boxes delineated by dotted lines). As the sub-

components indicate, both the generation of the uni-

verse and the association processes rely on the docu-

ment topic segmentation results that precede them.

Other signiﬁcant components of the workﬂow in-

clude: (a) populating the clusters with the most im-

portant documents, depending on the topics they con-

tain, and (b) labeling the clusters, which is an impor-

tant piece of any outward rendering of the clusters.

Each of these components will be discussed in the re-

mainder of the paper in order to clarify their roles.

The paper is organized as follows. Section 2

brieﬂy surveys related work. Section 3 gives a short

description of the metadata available across the dif-

ferent content types in the legal domain. Section 4

presents the overall issue-based recommendation sys-

tem, which includes a document topic detection algo-

rithm and a document association algorithm. The la-

beling algorithm is covered in Section 5, followed by

a description of the evaluation results and system per-

formance in Section 6. Finally, Section 7 concludes

the work while Section 8 discusses future research di-

rections.

The two “Document Topic Segmentation” boxes in

Figure 1 are functionally the same.

2 RELATED WORK

Topic detection in documents can be applied at two

different levels: at the individual document level, and

at the document collection level. At the individual

level, topic detection is often referred to as topic seg-

mentation, which is to identify and partition a doc-

ument into topically coherent segments. Algorithms

in this category often exploit lexical cohesion infor-

mation based on the fact that related or similar words

and phrases tend to be repeated in coherent segments

and segment boundaries often correspond to a change

in vocabulary (Choi, 2000; Hearst, 1997; Utiyama

and Isahara, 2001). Complementary semantic knowl-

edge extracted from dictionaries and thesauruses, or

additional domain knowledge such as the use of hy-

ponyms or synonyms can been incorporated to im-

prove the segmentation (Choi et al., 2001; Beeferman

et al., 1997). Topic detection at the document collec-

tion level, on the other hand, is to identify underlying

common topics among different documents. Many

studies derive topics by document clustering, either

using entire documents (Aggarwal and Yu, 2006)

or sentences (Bun and Ishizuka, 2002; Chen et al.,

2007). Topic modeling approaches, such as Proba-

bilistic Latent Semantic Analysis (PLSA) (Hofmann,

1999), Latent Dirichlet Allocation (LDA) (Blei et al.,

2003), and Non-negative Matrix Factorization (NMF)

(Lee and Seung, 1999), take a more intuitive notion

of topics in a collection by characterizing a topic as a

cluster of words rather than documents. For example,

Prasad, et al. (Prasad et al., 2011) applied a technol-

ogy in dictionary learning known as NMF to decom-

pose a document collection matrix represented by the

vector space model into two non-negative matrixes,

one of which was a term-topic matrix with each entry

being the “conﬁdence” of a term in a particular topic.

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

Due to the non-negative nature of the topical matrix,

an original document can be reconstructed approxi-

mately by the combination of topics using only the

allowed additive operation.

Labeling topics is another signiﬁcant yet often

somewhat neglected issue in topic detection research.

Topics have traditionally been interpreted via top

ranked terms based on either marginal probability

in LDA or some statistical measurements such as

tf.idf or tf.pdf (Bun and Ishizuka, 2002). A good

overview of cluster labeling topics can be found in

Jain (Jain et al., 1999). Historically less work has fo-

cused on clustering labeling than cluster generation

itself. Popescul and Ungar obtained impressive re-

sults by combining X

and the collection frequency

of a term (Popescul and Ungar, 2000). Glover, et al.

labeled clusters of Web pages by relying on the in-

formation gain associated with those pages (Glover

et al., 2002a). Whereas Stein and zu Eissen use an

ontology-based approach (Stein and zu Eissen, 2004),

the more challenging problem of labeling nodes in a

hierarchy (and the related general vs. speciﬁc prob-

lem) is addressed by Glover, et al. (Glover et al.,

2002b) and Treeratpitu and Callan (Treeratpituk and

Callan, 2006). More recently Fukumoto and Suzuki

performed cluster labeling by relying on concepts in a

machine readable dictionary (Fukumoto and Suzuki,

2011) with positive results. In another distinct recent

work, Malik, et al., focused on ﬁnding patterns (i.e.,

labels) and clusters simultaneously as an alternative to

explicitly identifying labels for existing clusters (Ma-

lik et al., 2010).

A comprehensive review of document recommen-

dation systems, as part of broad-based recommen-

dation systems, can be found in (Adomavicius and

Tuzhilin, 2005). Such systems are usually classiﬁed

into three categories, based on how recommendations

are made: content-based recommendations, collabo-

rative ﬁltering recommendations, and hybrid meth-

ods. Content-based recommendations suggest simi-

lar documents based on the preferred ones by users

in the past, and this type of approach has its roots

in information retrieval and information ﬁltering re-

search. Often, both users and documents are repre-

sented by sets of features. Documents that best match

the user proﬁle and the proﬁle of previously viewed

documents get recommended. A news recommenda-

tion system recently described in (Li et al., 2010) is an

example of such system. In addition, the authors also

introduced an exploitation factor into the algorithm

to bring new content to users’ attention. The basic

concept behind collaborative ﬁltering is to utilize the

preferences and evaluations of a peer group to pre-

dict the interests of other users. It has been success-

fully applied to suggest products in shopping sites,

such as the one used in Amazon (Linden et al., 2003),

but it was rarely used independently among document

recommendation systems. Instead, collaborative ﬁl-

tering approaches often combined with content-based

approaches into hybrid systems. Google news (Liu

et al., 2010) adopted this hybrid approach, with heavy

emphasis on the click log analysis on its rich history

of usage data, to recommend personalized news to

different users. Document recommendation technol-

ogy has been successfully adapted to legal documents

in recently years. Al-Kofahi et al. (Al-Kofahi and

et al., 2007) described a legal document recommen-

dation system blending retrieval and categorization

technologies together. They designed a two-step pro-

cess. In the ﬁrst step a ranked list of suggestions was

generated based on content-based similarity using a

CaRE indexing system [4], a meta-classiﬁer consist-

ing of Vector Space, Bayesian, and KNN modules.

In the second step, recommendations were re-ranked

based on user behavior and document usage data. The

recommendation system described in this paper dif-

fers from theirs in several respects: (1) it recommends

documents based on important topics discussed in the

original document and groups them as such, (2) it

links the topics in the document to topics in a uni-

verse instead of each individual document, and (3)

each topic in the document is presented with a pre-

cise and hierarchically structured label.

3 LEGAL DOMAIN

CHARACTERISTICS

Documents in the legal domain possess some note-

worthy characteristics. These characteristics include

being intrinsically multi-topical, relying on well-

crafted, domain-speciﬁc language, and possessing a

broad and unevenly distributed coverage of legal is-

sues.

3.1 Data and Metadata Resources

Legal documents in the U.S. tend to be complex in

nature because they are the product of a highly ana-

lytical and often adversarial process that involves de-

termining relevant law, interpreting such law and ap-

plying it to the dispute to which it pertains. Legal pub-

lishers not only collect and publish the judicial opin-

ions from the courts, but also summarize and clas-

sify them into topical taxonomies such as the Key

Number System (described in 3.1.3). We mention

some features of Thomson Reuters’ products below

BringingOrdertoLegalDocuments-AnIssue-basedRecommendationSystemViaClusterAssociation

to illustrate a point about the kinds of resources le-

gal publishers harness in order to offer researchers

multiple entry points and search indexes into the con-

tent. Other legal publishers have their own analogous

means of accessing their content.

3.1.1 Judicial Opinions making Case Law

Corpus

A judicial opinion (or a case law document) con-

tains a court’s analysis of the issues relevant to a le-

gal dispute, citations to relevant law and historical

cases to support such analysis and the court’s deci-

sion. Thomson Reuters’ Westlaw System adds sev-

eral annotations to these documents to summarize the

points of law within and make them more accurate

using a consistent language for the purposes of legal

research. These include a synopsis of the case, a se-

ries of summaries of the points of law addressed in

the case (3.1.2), classiﬁcation of these points to a le-

gal taxonomy (3.1.3), and an historical analysis of the

case to determine whether its holdings and mandate

remain intact or whether they have been overruled in

part or in whole (3.1.4).

3.1.2 Case Law Annotated Points of Law

Thomson Reuters’ Westlaw System creates “head-

notes” for case law documents, which are short sum-

maries of the points of law made in the cases. A

typical case law document produces approximately 7

headnotes, but cases with over one hundred headnotes

are not rare.

3.1.3 Headnote Classiﬁcation, Key Number

System

Headnotes are further classiﬁed to a legal taxonomy

known as the West Key Number System,

a hier-

archical classiﬁcation of the headnotes across more

than 100,000 distinct legal categories. Each category

is given a unique alpha-numeric code, known as a

Key Number, as its identiﬁer along with a descrip-

tive name, together with a hierarchically structured

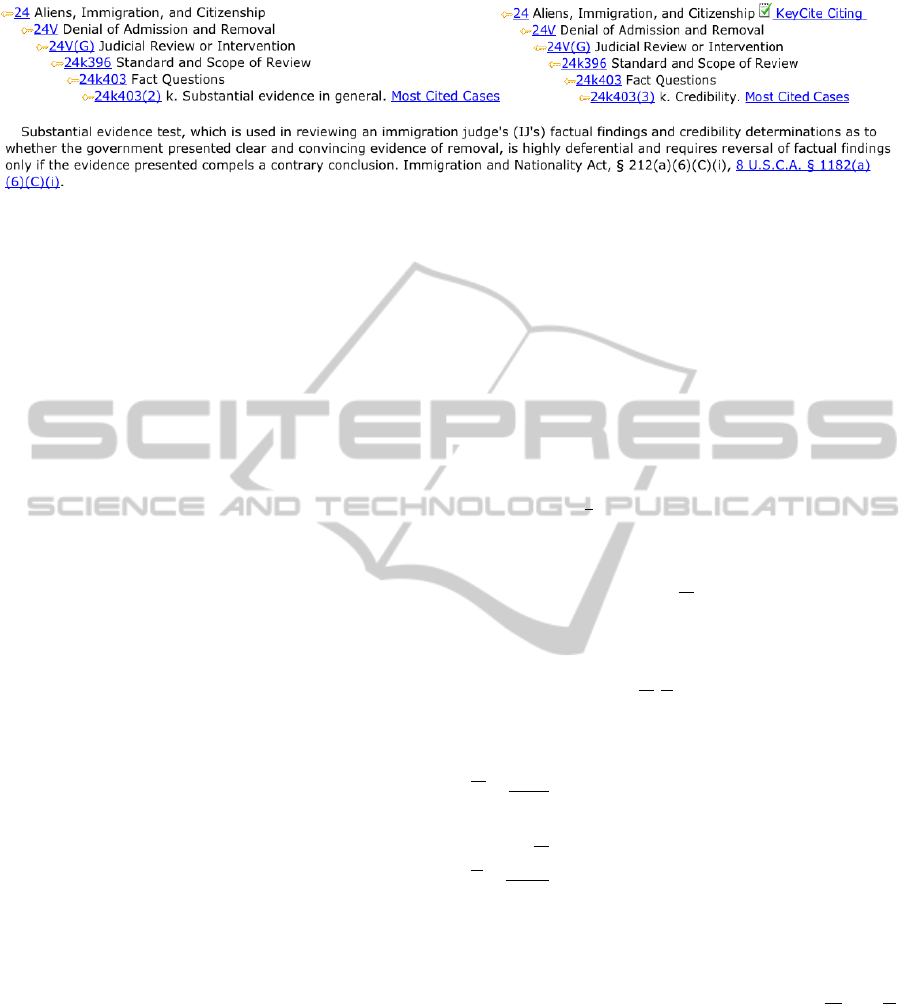

descriptor, known as a catchline. An example of a

headnote and its key numbers (including catchlines)

is shown in Figure 2.

3.1.4 Citation System

Legal documents contain rich citation information

just as documents from other domains do, such as

http://store.westlaw.com/westlaw/advantage/keynumbers/

scientiﬁc publications and patents. These are the le-

gal domain’s equivalent to URLs. A case law docu-

ment tends to cite previous related cases to argue for

or against its legal claims; therefore, it is not unusual

to have landmark cases decided by the U.S. Supreme

Court with hundreds of thousands of cites to them.

3.1.5 Statutes’ Notes of Decisions

Another primary law source is statutes, which are

laws enacted by a state legislature or Congress. For

some statutes, both in federal and state levels, Notes

of Decisions (NODs) are created for them. NODs

are the editorially chosen case law documents that

construe or apply the statute. In particular, NODs

are tied to speciﬁc headnotes in the applying cases.

An example of NODs is shown in Figure 2, with the

blue hyperlink at the end of the headnote text (i.e., 8

U.S.C.A....).

4 RECOMMENDATION VIA

CLUSTER ASSOCIATION

Given the complexity and multi-topical nature of so

many legal documents, recommendation algorithms

that treat documents as single atomic units tend to

produce results that are topically unbalanced in the

sense that recommended documents with different

topical focuses are blended together in a single list,

and it is left up to users to decipher which section of

the original document is the target of the recommen-

dation. To tackle this deﬁciency, the recommendation

approach we have developed has a built-in topic de-

tection algorithm that explicitly segments each doc-

ument into coherent legal topics. Recommendations

are thus tailored toward each individual topic. The al-

gorithm consists of two steps: (1) segment documents

into topics, and (2) associate topics with clusters of

documents containing the most relevant like topics.

The document segmentation algorithm is designed to

accommodate various content types, and the associa-

tion step is based on the similarity between topics and

clusters.

As alluded to in the aforementioned second step,

prior to the association process, a universe of topic

clusters (i.e. topics) that has a comprehensive topi-

cal coverage in the legal domain needs to be deﬁned

such that topics detected in each individual document

can be linked to this universe. Without this universal

coverage, one could not envision issue-based recom-

mendations, similar to “more like this” for the Open

Web, where legal researchers could discover topics

related to a document they are examining or probe

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

Figure 2: A example of a headnote with its assigned key number.

deeper into a topic of interest. It is also critical that

most if not all legal documents (regardless of their

type) be linked to these clusters. The clusters, de-

scribed in prior work (Lu et al., 2011), are meant to

contain the most important case law documents on a

legal topic. Yet they are also populated with other

types of legal documents such as statutes, regulations,

and court briefs, to ensure comprehensive coverage.

In short, the utility of the clusters as a means to orga-

nize legal content around issues or topics is as much

a function of the quality of the clusters themselves

as it is a function of coverage. As such, the cluster

universe generation process is not part of the recom-

mendation algorithm, but we mention it here because

it is the foundation upon which our recommendation

algorithm is built.

4.1 Topic Segmentation

The topic segmentation algorithm leverages available

metadata from different document types. We found

this approach to provide better quality results over tra-

ditional topic segmentation algorithms that rely upon

lexical cohesion and utilize document text alone.

The segmentation algorithm differs depending on

the availability of metadata in different document

types. For the purposes of illustrating variations of the

segmentation algorithm, we will subsequently have a

brief discussion of case law documents (possessing

headnotes), statutes, and court briefs.

4.1.1 Case Law Topic Segmentation

As stated before, headnotes are short summaries of

points of law in case law documents. Collectively,

they provide near-complete coverage of the main legal

issues within a case. By grouping headnotes within

a case law document based on their “similarities,” it

is possible to identify the main legal topics within a

document. We use the vector-space model to repre-

sent headnotes in a case. A headnote is depicted in

terms of four types of features: text, key numbers,

KeyCite citations, and noun phrases. The similarity

between a pair of headnotes, sim(h

, h

), is deﬁned

as the weighted sum of the similarities between the

corresponding component vectors. The weights are

determined using heuristics.

The similarity functions for the component vec-

tors are deﬁned using cosine similarity or one of its

variations, and an agglomerative clustering algorithm

grouping similar headnotes to generate the topics for a

case law document. The algorithm merges two head-

notes together while maximizing the following equa-

tions,

F = maximize

(4.1)

where,

τ = maximize

∑

r=1

∑

∈T

sim(h

, T

) (4.2)

and

ε = minimize

∑

r=1

sim(T

, T ) (4.3)

∑

hinT

(4.4)

T =

∑

rinT

(4.5)

where τ is the intra-cluster similarity and ε is the

inter-cluster similarity, k denotes the total number of

topics in a document, T denotes the topics for a doc-

ument, T

denotes an individual topic, and n

is the

number of headnotes in the topic T

. Also, T

and T

represents the center of a single topic and all topics,

respectively.

Notice that the algorithm does not require the

number of topics as an input parameter; rather, it de-

pends on an intra-topic similarity threshold to con-

trol the granularity of the topics in a document. The

threshold is determined empirically by analyzing the

histogram of intra-cluster similarities. We use a set of

documents with known topic segmentations to guide

our threshold selection process.

BringingOrdertoLegalDocuments-AnIssue-basedRecommendationSystemViaClusterAssociation

4.1.2 Statutes Topic Segmentation

Unlike case law, federal or state statutes do not have

headnotes; however, some of them contain NODs

as stated in 3.1.5, and these NODs are tied to spe-

ciﬁc headnotes that construe or apply the statute.

By grouping these headnotes in the same manner as

stated in 4.1.1, legal topics inside the statutes can be

identiﬁed.

4.1.3 Court Briefs Topic Segmentation

A majority of the court briefs do not contain head-

notes, however they have rich citation links, both in-

links (other documents citing this brief) and out-links

(this brief cites other documents, mostly case law).

Utilizing the headnotes available from these directly

cited documents and grouping them in the same man-

ner as stated in 4.1.1 can help identify main legal top-

ics within a brief.

One distinction between the court briefs and case

law documents, however, makes further topic seg-

mentation reﬁnement for briefs necessary. Case law

opinions in general contain complete legal facts re-

garding a law suit, while court briefs have a much

narrower focus. Most often they only deal with cer-

tain aspects of the complete set of facts. To help iden-

tify these speciﬁc aspects, a generic document sum-

marization algorithm (Schilder and Kondadadi, 2008)

is ﬁrst applied to the brief text to extract the most im-

portant sentences. Then these sentences are sent to

a key number classiﬁcation system built with CaRE

(Al-Kofahi et al., 2001) to retrieve major key num-

bers from it. By analyzing the commonalities among

topics from the retrieved key numbers and the afore-

mentioned grouped topics (that have associated key

numbers as well) from cited case law documents, ir-

relevant legal topics can be ﬁltered in a straightfor-

ward manner and the remaining ones will form the

legal topics thereafter.

4.2 Recommendation Via Topic

Association

The above topic segmentation algorithm produces le-

gal topics for each document regardless its content

type, and each topic serves as an anchor point (i.e.,

a source topic) for the recommendation algorithm to

retrieve the most similar clusters in the universe. As

stated earlier, each cluster has been pre-populated

with the most important documents from different

content types, namely, case law, briefs, statutes, reg-

ulations, and administrative decisions, jury verdicts,

trial court orders, expert witness reports, pleadings,

motions & memoranda and analytical documents. By

assembling and organizing these documents for each

individual segmented topic, issue-based recommen-

dations can then be generated for that document.

We treat the retrieval of the most similar cluster of

an anchor topic as a ranking problem such that can-

didates are ﬁrst generated and sorted; then the top

ranked cluster is picked at the completion of the pro-

cess.

To generate candidate clusters, a document classi-

ﬁcation engine, CaRE, is used, although other index-

ing engines (e.g., Lucene) could be used. For each

cluster, three classiﬁers are trained one per feature

type headnote text, key numbers, and citation pat-

terns.

Given an anchor topic, we use CaRE to retrieve a

pool of candidate clusters. We then use a ranker SVM

to determine which cluster in the candidate pool is

most similar to the anchor topic. To do this, we repre-

sent each anchor-candidate pair in terms of a feature

vector. The features include CaRE scores, and vari-

ations of the noun phrases and key number features

described in 4.1.1. These similarity features are then

used to train a ranker SVM to rank clusters in the can-

didate pool, and the top ranked cluster is selected as

the recommendation for the anchor topic in the doc-

ument. The same process is performed for each seg-

mented topic in the document. A series of evaluations

of this process is presented in Section 6.

5 CLUSTER LABELING

Considerable research and development effort was

dedicated to the labeling algorithm for these clusters.

The breadth and depth of this research – generating

distinct labels for approximately 360K clusters – is

beyond the scope of this paper and merits its own

research report. Nonetheless, some of the key fea-

tures explored for the labels in question are brieﬂy

discussed here. We harness a portion of a heading

from an existing taxonomy [Key Number System (See

Section 3)], express a bias towards shorter over longer

labels, and strive to avoid any redundancy. These last

two features were the direct result of early evaluation

rounds which employed attorney domain experts and

the feedback we received from the business unit sup-

porting this research.

Our current labels generally consist of three seg-

ments. These segments range from general headings

to more speciﬁc ones. The most effective number of

segments was determined empirically. The current

algorithm evolved from our experiments and repre-

sents a hybrid of two earlier versions. The ﬁrst stage

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

consists of identifying the ﬁrst two more general seg-

ments of the label. As stated, it leverages an existing

taxonomy of case law topical classiﬁcations (multi-

level classiﬁcations coming from the Key Number

System). The second stage relies on a ranking process

that orders noun phrases that were identiﬁed in the

headnotes in the cases in the given cluster. The result-

ing algorithm uses both information from a seed case

for a cluster and the case law documents with which

the cluster itself has been populated. The basic idea is

to pick the most representative noun phrases from the

headnotes in the top N cases in the given cluster for

which its key number(s) are the same as the clustered

headnotes in the seed case. These are appended to the

ﬁrst two segments from the ﬁrst stage (the ones con-

sisting of the topic titles from the most popular key

numbers in the top N cases). Earlier experiments re-

vealed that noun phrases from headnotes classiﬁed to

speciﬁc key numbers were more accurate than those

from more generally assembled headnotes. Further-

more, the optimum number of top key numbers to use

was determined empirically (i.e., more than 5).

The process can be summarized as follows:

• [Segments 1 and 2] Select the top two headings

from the most popular key numbers;

• Get the headnote text from the top N cases with

the same key number(s) as in the clustered head-

notes in the seed case;

• Add back the clustered headnotes from the seed

case;

• Use a noun phrase chunker on these text strings

to identify optimal noun phrases (NPs); then rank

the extracted NPs based on several simple fea-

tures, such as the length of the NP (how many

words), the combined within headnote term fre-

quency (TF) for each of the word in the NP, the

TF of the NP itself, the cross-collection document

frequency (DF) of the NP, its inverse (IDF), etc.;

• [Segment 3] Pick the top NP after ranking, and

append it to the top two headings from the key

numbers above.

Based on an iterative manual assessment and er-

ror analysis process, we identiﬁed a set of potential

enhancements that were worth investigating. These

include:

1. suppressing redundancies across label segments

to foster clarity and the absence of duplication

within a label;

2. enforcing normalization across all term and doc

statistics used (tf, idf, tf.idf, ...) to ensure consis-

tency across the universe of clusters;

3. promoting label segments that contain more fre-

quently occurring n-grams (frequently occurring

substantive noun phrases);

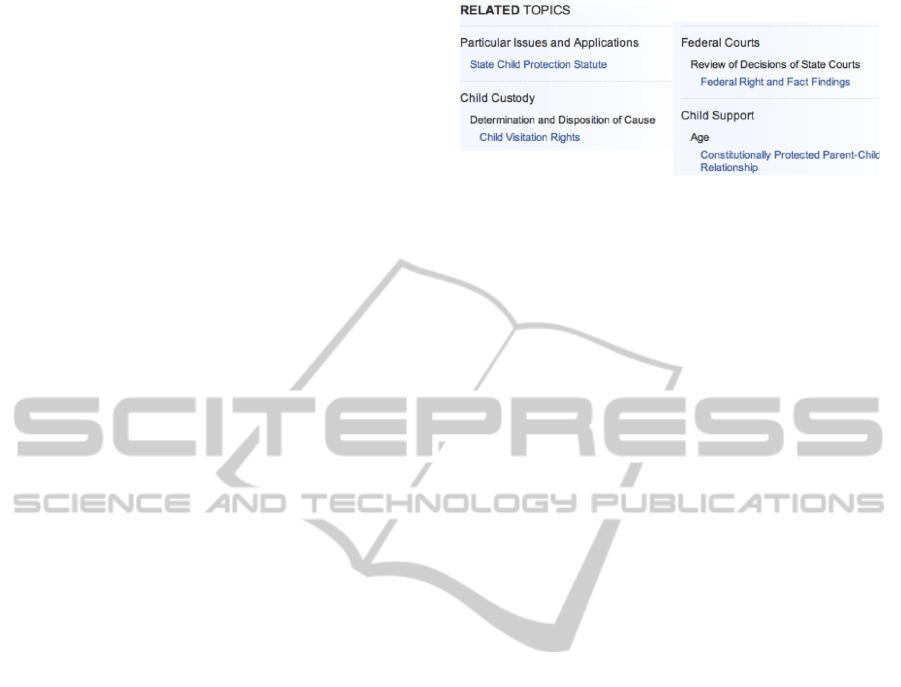

Figure 3: A example of a set of clusters associated with a

case on adoption. (Note the 2-3 tier layout).

4. creating a bias towards shorter vs. substantially

longer labels to encourage clearer, more readable

labels;

5. adding a labeling duplication detection step, and

a priority-based process by which duplicate labels

are methodically avoided.

The baselines used in our experiments include: (1)

the titles from the most popular key numbers in the

top N cases (termed ‘original baseline’), and (2) the

most popular (frequent) NPs in the top N cases. See

Figure 3 for an example of a set of four cluster labels

for a legal case on “adoption” where religion plays a

pivotal role. Also see Table 3 for a comparative set of

these results. Evaluations performed on the labeling

process, which examines the potential contribution of

several feature enhancements, is presented in the next

section.

6 PERFORMANCE AND

EVALUATION

To access the performance of our recommendation

algorithm, we generated over 360,000 clusters from

about 7 million U.S. case law documents, which col-

lectively contain more than 22 million headnotes clas-

siﬁed to approximately 100,000 key numbers. Each

cluster is populated with the most important case law

documents, as well as statutes, regulations, admin-

istrative decisions, and 6 other additional previously

mentioned content types as its members. Over 100

million different documents have gone through the as-

sociation process to generate recommendations. Over

one thousand documents of different document types

have been manually reviewed by legal experts in or-

der to determine the quality of the recommendation,

along with the labels for the associated clusters. The

following results are based on these reviewed sam-

ples.

6.1 Evaluation Design

We report three different evaluations as follows:

BringingOrdertoLegalDocuments-AnIssue-basedRecommendationSystemViaClusterAssociation

6.1.1 Evaluation I: Association and

Recommendation Quality

In Evaluation I, the quality of the clusters associ-

ated with input documents for different content types

was graded by legal experts using a ﬁve-point Lik-

ert scale from A (high quality associated cluster) to F

(low quality associated cluster). In addition, the top

ranked recommended documents of different content

types within those clusters have been scored using a

coherence measurement, which is deﬁned as the ex-

tent to which the documents in a given cluster address

the same speciﬁc legal issue with respect to the an-

chor topic extracted via segmentation from the origi-

nal source document. Furthermore, the recommended

case law documents have been given a utility score,

which is deﬁned as the usefulness of the documents

in the given cluster to a legal researcher. The ratio-

nale for assessing utility in addition to coherence is

because it would be possible to have a cluster with a

high coherence score which is not very useful to a le-

gal researcher. For both metrics, the reviewers used a

ﬁve-point scale ranging from 5 (high coherence with

the current cluster’s central topic or high utility to a

legal researcher) to 1 (low coherence with the cur-

rent cluster’s central topic or low utility to a legal re-

searcher).

6.1.2 Evaluation II: Label Quality

For the label evaluations performed, human domain

experts (attorneys) with many months of clustering

assessment experience provided the judgments. A

ﬁve-point Likert scale was again used from A (high-

est quality) to F (lowest quality) based on accuracy

and clarity. Speciﬁcally

A = on point, completely captures the topic .... (5)

B = captures the main topic in a general sense (4)

C = captures some of the main topical focus ... (3)

D = captures secondary or minor topical focus (2)

F = misses the topical focus of the cluster ...... (1)

6.1.3 Evaluation III: Composite Legal Report

and Issue Quality

In Evaluation III, a group of legal professionals were

involved in creating 10 research reports from a cross-

section of U.S. jurisdictions and covering different

topical areas. Each of the reports included 7 or fewer

of the most authoritative documents, including both

primary sources, such as case law and statutes, and

secondary sources such as analytical materials. Legal

topics were identiﬁed manually for each of the doc-

uments by domain experts. Further, they found that

each of the 10 reports in this study had a common

‘thread’ (i.e., a common legal issue) running through

it. However, the common thread did not always ap-

pear in each document in each of the reports.

The algorithm was applied to the same set of re-

ports to detect clusters associated with these docu-

ments. The objective of this assessment was to eval-

uate two things: (1) is the recommendation algorithm

able to discover all the legal topics in these documents

and (2) is the recommendation algorithm able to ﬁnd

the common legal issue in each of the reports.

We used precision and recall to measure the per-

formance for the ﬁrst objective, in which:

• Precision, P, is deﬁned as the number of cor-

rectly identiﬁed topics of a document (compared

to number of manually identiﬁed topics) divided

by the total number of topics, and

• Recall, R, is deﬁned as the number of correctly

identiﬁed topics of a document divided by the to-

tal number of manually identiﬁed topics of a doc-

ument (the ground truth).

For the second objective, we used true positive

rate, TPR, for evaluation, which is deﬁned by the

number of common legal issues identiﬁed among doc-

uments in all reports divided by the number of com-

mon legal issues manually identiﬁed among docu-

ment in all reports by experts.

6.2 Performance

6.2.1 Evaluation I

In Evaluation 1, legal experts were asked to grade the

quality of 105 clusters associated with the topics iden-

tiﬁed in 25 source documents. During this exercise,

they reached a consensus on the clusters with grade

A being “excellent”, B being “good”, C being “ac-

ceptable”, D being “marginal”, and F being “poor”.

In addition, the experts deﬁned the “precision rate” as

the ratio of clusters receiving an A or B grade, and the

“success rate” as the ratio of clusters receiving an A,

B or C grade, to the total associated clusters, respec-

tively.

Table 1 shows the association quality for case law

documents, federal statues, and court briefs in ranked

order. The precision and recall rate decline based on

rank which is not unexpected. This behavior justiﬁes

our decision of picking the top ranked cluster as the

output of the association process. In the court briefs

category, we also show the quality difference between

using and not using the summarization tool (which

picked the ﬁrst N-ranked sentences (e.g. N=10) from

the document). As demonstrated by these results,

summarization noticeably improved the quality of the

top-ranked clusters. Table 1 also illustrates that in or-

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

Table 1: Association Quality on Rank.

Expert Assessment

Case Law Federal Statutes Court Briefs Court Briefs

w/ Summarization w/o Summarization

Rank Precision Recall Precision Recall Precision Recall Precision Recall

1 60% 93% 51% 86% 74% 95% 61% 87%

2 55% 91% 45% 86% 69% 95% 63% 88%

3 51% 91% 48% 85% 68% 94% 59% 87%

4 50% 90% 42% 85% 66% 90% 56% 88%

5 48% 89% 41% 84% 66% 90% 56% 88%

Table 2: Recommendation Quality Assessment.

Grade Expert Assessment

Case Case Analytical Court Brief Overall Overall

Utility Coherence Coherence Coherence Recommendation Recommendation

per Topic per Document

5 49 41 39 47 67 17

4 39 23 37 29 1 0

3 12 29 23 17 30 8

2 5 7 3 8 2 0

1 0 5 3 4 5 0

Average 4.2 3.8 4.0 4.0 4.2 4.4

der to achieve high recall, i.e., in the upper 80% range

and above, it is a challenge to obtain comparable pre-

cision rates. These percentages are noticeably lower,

with summary-aided briefs highest, followed by case

law documents, and ﬁnally statutes.

Table 2 shows the quality assessment of 105 rec-

ommended topics from 25 documents represented

by case law opinions, U.S. secondary law materials

(a.k.a. analytical materials), and court briefs, in terms

of coherence and utility, and the overall recommen-

dation quality per topic level and per document level

(additional scores to assess the overall recommenda-

tion quality across all document types). As one can

observe from Table 2, the recommendation quality at

the topic-level across document types remains high,

in the 4.0 range. For case law documents, this is true

both in terms of utility as well as coherence. Further,

the overall recommendation quality at the topic-level

and the document-level similarly remains high, above

4.0, in both instances.

6.2.2 Evaluation II

The following cluster labeling results were based on

100 ﬁnal clusters which included 60 from an initial set

of clusters associated with case law documents and

another set of 40 from clusters associated with anno-

tated statutes. They were produced while run in our

newly developed operational environment. The label

sets assessed included our original taxonomy-based

baseline label set, our NP-based baseline label set,

a set where redundancies across the label segments

were eliminated, a set where features such as df were

comprehensively normalized, a set where labels with

more frequently occurring n-grams were promoted,

and lastly, a set where a bias towards shorter labels

was used.

As is evident from Table 3, performance of the

original baseline label set was solid and in fact dif-

ﬁcult to outperform. Although the initial baseline

received some of the highest scores from the asses-

sors, for being understandable and closer to human-

like quality, it is also worth noting that these labels did

not harness the computational effort that subsequent

versions did in attempting to produce a readable and

precise (i.e., more granular) three-segment label, and

thus even though of high quality readability, they ar-

guably do not contain the same degree of information

as their more mature and labored counterparts in sub-

sequent versions. That said, given other presentation-

related factors such as a bias towards shorter labels,

other results such as those produced for version 5 may

be preferable. The other features tested in the label

experiments proved not to be as consistently effective

as anticipated.

6.2.3 Evaluation III

Regarding the ﬁrst objective the algorithm’s ability to

discover legal topics within a document set the pre-

cision and recall of the system on 10 reports across

different document types in shown in the Figure 4.

Overall, the algorithm achieves reasonably high pre-

cision, but the recall in this instance was quite low,

especially for case law documents. The main reason

for this performance is the aggressive ﬁltering, i.e., by

BringingOrdertoLegalDocuments-AnIssue-basedRecommendationSystemViaClusterAssociation

Table 3: Quality Assessment of Baseline and Hybrid Labels.

Grade Original Version 1 Version 2 Version 3 Version 4 Version 5

Baseline Baseline Redundundancy Normalized N-Gram Short

1 2 Suppression Features Promotion. Lgth Bias

Average 3.68 3.65 3.65 3.08 3.52 3.66

A 18 16 16 18 19 19

B 47 46 45 20 38 41

C 23 27 29 55 26 29

D 9 9 8 18 14 9

F 3 2 2 2 4 2

Total 100 100 100 100 100 100

adopting much higher thresholds, in the post process-

ing of the system in order to achieve high

For the second objective the algorithm’s ability

to identify a common legal issue within the document

set Table 4 shows the performance of the system in

each individual report, as well as overall.

Figure 4: Precision and Recall of Evaluation III.

Table 4: Precision of common legal issues of Evaluation III.

Rpt Total Docs w/ Same Docs w/ Same

IDs No. Theme Theme

Docs Ed. Gen. Assns Alg. Gen. Assns

AE 2 6 6 6

AE 20 6 6 6

AE 22 4 4 4

AE 24 5 3 3

AE 31 6 6 6

AE 32 7 5 5

AE 35 6 6 5

AE 36 6 6 6

AE 37 5 3 3

AE 39 7 7 7

Total 58 52 51

Precision 89.7% 87.9%

In this analysis, each of the 10 reports has a com-

mon legal issue running through it. However, this

common ‘thread’ did not appear in each document in

each of the reports. In summary, the experts manu-

ally created clusters by identifying a common thread

through all documents in 7 of the 10 reports (un-

shaded rows); our system identiﬁed a common thread

through all documents in 6 of these 7 reports. In one

of the reports, our system missed a common thread

in one of the documents in that report, and is thus

considered as a failure. Across the entire set, experts

manually created topics and identiﬁed the common

thread in 52 of the 58 documents (89.7%). Our sys-

tem created clusters and identiﬁed the common thread

in 51 of 58 documents (87.9%), representing a small

but still appreciable 2% drop in TPR.

As demonstrated in the different evaluations re-

ported above, overall, the assessment of our proposed

recommendation system for legal documents consis-

tently achieved signiﬁcantly reliable results.

7 CONCLUSIONS

Document recommendation remains an active area

of research containing a spectrum of challenging re-

search problems as different applications have differ-

ent needs. It is particularly challenging in the legal

domain where documents are intrinsically complex,

multi-topical, and contain carefully crafted, profes-

sional, domain speciﬁc language. Recommendations

made in the legal domain require not only high preci-

sion but also high recall, since legal researchers can-

not afford to miss important documents when prepar-

ing for a trial or related litigation proceedings. In ad-

dition, legal practitioners must familiarize themselves

not only with primary arguments but with secondary

or tertiary arguments associated with the legal issue

as well. To this end, we describe in this paper an ef-

fective legal document recommendation system that

relies on a built-in topic segmentation algorithm. The

system is capable of high quality recommendations

of important documents among different document

types, recommendations that are speciﬁcally tailored

to each of the individual legal issues discussed in the

source document. The performance of the system is

encouraging, especially given its validation by human

legal experts through a series of different test assess-

ments. Given these results, this paper makes three

contributions to the ﬁeld. First, it demonstrates how

one can expand the set of original relevant legal doc-

uments using “more like this” functionality, one that

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment

does not require explicitly deﬁning legal issues and

constructing queries. Second, by providing meaning-

ful, hierarchically structured labels by way of our la-

beling algorithm for legal issues, we show that users

can effectively identify interesting and useful topics.

And third, the system is highly scalable and ﬂexible,

as it has been applied to on the order of 100 million

associations across different document types.

Based on our studies, users, especially legal re-

searchers, often prefer to have the ability to drill down

and focus on key issues common within a document

set, as opposed to getting a high-level overview of

a document collection. Attention to ﬁne-grained le-

gal issues, robustness and resulting topically homo-

geneous but content-type heterogeneous, high quality

document clusters, not to mention scalability are the

chief characteristics of this issue-based recommenda-

tion system. It represents a powerful research tool for

the legal community.

8 FUTURE WORK

Our future work will focus on improvements in the

existing topic segmentation algorithm for documents

which contain little metadata information. We have

been experimenting with topic modeling algorithms,

such as Latent Dirichlet Allocation (LDA) (Blei et al.,

2003) and Non-negative Matrix Factorization (NMF)

(Lee and Seung, 1999), in other related projects, and

have witnessed very promising outcomes. Human

quality labels remain a challenge since up until now,

substantial manual reviews by human experts have

been required to ensure quality. We are pursuing this

subject as another future research direction.

ACKNOWLEDGEMENTS

We thank John Duprey, Helen Hsu, Debanjan Ghosh

and Dave Seaman for their help in developing soft-

ware for this work, and we are also grateful for the as-

sistance of Julie Gleason and her team of legal experts

for their detailed quality assessments and invaluable

feedback. We thank Khalid Al-Kofahi, Bill Keenan

and Peter Jackson as well for their on-going feedback

and support.

REFERENCES

Adomavicius, G. and Tuzhilin, A. (2005). Toward the

next generation of recommender systems: A survey

of the state-of-the-art and possible extensions. IEEE

Transactions on Knowledge and Data Engineering,

17(6):734–749.

Aggarwal, C. C. and Yu, P. S. (2006). A framework for

clustering massive text and categorical data streams.

In Proceedings of the Sixth SIAM International Con-

ference on Data Mining (SDM 2006).

Al-Kofahi, K. and et al. (2007). A document recommenda-

tion system blending retrieval and categorization tech-

nologies. In Proceedings of AAAI Workshop on Rec-

ommender Systems in e-Commerce, pages 9–16.

Al-Kofahi, K., Tyrrell, A., Vachher, A., Travers, T., and

Jackson, P. (2001). Combining multiple classiﬁers for

text categorization. In Proceedings of the 10th Inter-

national Conference on Information and Knowledge

Management (CIKM01), pages 97–104. ACM Press.

Beeferman, D., Berger, A. L., and Lafferty, J. D. (1997). A

model of lexical attraction and repulsion. In Proceed-

ings of the 35th Annual Meeting of the Association of

Computational Linguistics (ACL97), pages 373–380.

Bennett, J. and Lanning, S. (2007). The netﬂix prize. In

Proceedings of KDD Cup and Workshop.

Blei, D. M., Ng, J. A., and Jordan, M. I. (2003). Latent

dirichlet allocation. Journal of Machine Learning Re-

search, 3:993–1022.

Bun, K. K. and Ishizuka, M. (2002). Topic extraction from

news archive using tf*pdf algorithm. In Proceedings

of the Third International Conference on Web Infor-

mation Systems Engineering (WISE02), pages 73–82.

Chen, K.-Y., Luesukprasert, L., and cho Timothy Chou, S.

(2007). Hot topic extraction based on timeline analy-

sis and multidimensional sentence modeling. IEEE

Transactions on Knowledge and Data Engineering,

19(8):1016–1025.

Choi, F. Y. (2000). Advances in domain independent lin-

ear text segmentation. In Proceedings of the Applied

Natural Language Processing Conference (ANLP00),

pages 26–33.

Choi, F. Y., Wiemer-Hastings, P. M., and Moore, J.

(2001). Latent semantic analysis for text segmen-

tation. In Proceedings of the 2001 Conference on

Empirical Methods in Natural Language Processing

(EMNLP01), pages 109–117.

Cohen, M. L. and Olsen, K. C. (2007). Legal Research in a

Nutshell. Thomson West, Saint Paul, MN, 9th edition.

Fukumoto, F. and Suzuki, Y. (2011). Cluster labeling based

on concepts in a machine-readable dictionary. In Pro-

ceedings of the 5th International Joint Conference

on Natural Language Processing, pages 1371–1375.

AFNLP.

Glover, E. J., Kostas, T., Lawrence, S., Pennock, D. M.,

and Flake, G. W. (2002a). Using web structure for

classifying and describing web pages. In Proc. of the

World Wide Web, pages 562–569. ACM Press.

Glover, E. J., Pennock, D. M., Lawrence, S., and Krovetz,

R. (2002b). Inferring hierarchical descriptions. In

Proceedings of the 11th International Conference on

Information and Knowledge Management (CIKM02),

pages 507–514. ACM Press.

Hearst, M. (1997). Texttiling: Segmenting text into multi-

paragraph subtopic passages. Computational Linguis-

tics, 23:33–64.

BringingOrdertoLegalDocuments-AnIssue-basedRecommendationSystemViaClusterAssociation

Hofmann, T. (1999). Probabilistic latent semantic indexing.

In Proc. of 22nd Annual International SIGIR Confer-

ence, pages 50–57. ACM Press.

Jain, A., Narasimha, M., and Flynn, P. (1999). Data cluster-

ing: A review. ACM Computing Surveys, 31(3):264–

332.

Lee, D. D. and Seung, H. S. (1999). Learning the parts of

objects by non-negative matrix factorization. Nature,

401:788–791.

Li, L., Chu, W., Langford, J., and Schapire, R. E. (2010). A

contextual-bandit approach to personalized news ar-

ticle recommendation. In Proceeding of World Wide

Web Conference (WWW10), pages 661–671.

Linden, G., Smith, B., and York, J. (2003). Amazon.com

recommendations: Item-to-item collaborative ﬁlter-

ing. IEEE Internet Computing, 7(1):76–80.

Liu, J., Dolan, P., and Pedersen, E. R. (2010). Personal-

ized news recommendation based on click behavior.

In Proceedings of the 15th International Conference

on Intelligent User Interfaces (IUI10), pages 31–40.

Lu, Q., Conrad, J. G., Al-Kofahi, K., and Keenan, W.

(2011). Legal document clustering with built-in topic

segmentation. In Proceedings of the 20th Inter-

national Conference on Information and Knowledge

Management (CIKM11), pages 383–392. ACM Press.

Malik, H. H., Kender, J. R., Fradkin, D., and Mrchen, F.

(2010). Hierarchical document clustering using local

patterns. Journal of Data Mining Knowledge Discov-

ery, 21(1):53–185.

Popescul, A. and Ungar, L. H. (2000). Automatic labeling

of document clusters. Unpublished MS Thesis.

Prasad, S., Melville, P., Banerjee, A., and Sindhwani, V.

(2011). Emerging topic detection using dictionary

learning. In Proceedings of the 20th International

Conference on Information and Knowledge Manage-

ment (CIKM11), pages 745–754. ACM Press.

Schilder, F. and Kondadadi, R. (2008). Fastsum: Fast and

accurate query-based multi-document summarization.

In Proceedings of the 46th Association for Computa-

tional Linguistics (ACL08), pages 205–208.

Stein, B. and zu Eissen, S. M. (2004). Topic identiﬁcation:

Framework and application. In Proceedings of the 4th

International Conference on Knowledge Management

(KNOW04), pages 353–360.

Treeratpituk, P. and Callan, J. (2006). Automatically label-

ing hierarchical clusters. In Proceedings of the 2006

International Conference on Digital Government Re-

search (DG.O 06), pages 167–176.

Utiyama, M. and Isahara, H. (2001). A statistical model for

domain-independent text segmentation. In Proceed-

ings of the 39th Annual Meeting of the Association for

Computational Linguistics (ACL01), pages 499–506.

KEOD2012-InternationalConferenceonKnowledgeEngineeringandOntologyDevelopment
