REAL-TIME AMBIENT OCCLUSION ON THE PLAYSTATION3

Dominic Goulding

, Richard Smith

, Lee Clark

, Gary Ushaw

and Graham Morgan

CCP Games, Gateshead, U.K.

School of Computing Science, Newcastle University, Newcastle, U.K.

Keywords:

Ambient Occlusion, Playstation3, Graphics.

Abstract:

This paper describes how to implement ambient occlusion effects on the Playstation3 (PS3) while alleviating

processing demands on the GPU. The solutions proposed here are implementations that utilize the parallel

processing available on the PS3’s synergistic processing units (SPUs). Two well-known ambient occlusion

techniques are evaluated as candidate solutions for PS3 SPU implementations.

1 INTRODUCTION

Ambient occlusion (AO) is a technique for enhanc-

ing the perception of three-dimensional space in com-

puter graphics. The technique enhances an image via

the shadowing of ambient light. The accentuating of

small surface details and the provision of spatial clues

via contact shadows provide an increased degree of

realism (Hoberock and Jia, 2008) (McGuire et al.,

2011). This makes ambient occlusion a popular tech-

nique in the context of ﬁlm and video games (Loos

and Sloan, 2010).

To achieve ambient occlusion in real-time an ap-

proach based on approximation is required. Such

techniques are convincing on the latest graphics cards

and allow the modern PC gamer to enjoy the height-

ened realism afforded by ambient occlusion. How-

ever, as current console graphic card technology is

dated the ability to achieve convincing ambient oc-

clusion in console games is difﬁcult.

The Playstation3 (PS3) does provide an opportu-

nity to move some graphics calculations away from

the graphics card and onto its Cell Architecture

(which consists of 8 processing units). However, the

Cell Architecture affords quite a different processing

style than a GPU. This requires a different approach to

implementation and re-integration to a graphics scene

(generated by the GPU).

In this paper we describe an engineering approach

to achieving ambient occlusion on the PS3. As such,

we are not proposing a new technique in ambient oc-

clusion but are proposing an implementation suitable

for deployment on the Cell Architecture.

2 BACKGROUND

2.1 Playstation3 Architecture

The Playstation3’s CPU architecture is cell-based,

consisting of six Synergistic Processing Units (SPUs)

around the central processor (plus a further two which

are not accessible to the developer). These cells have

a limited amount of memory (256k) for combined

program and data, and the DMA access to this mem-

ory is comparatively slow. Efﬁcient programming of

SPUs is therefore reliant on identifying jobs which

can run independently within that memory, with in-

frequent calls on main memory. The SPU processors

are single instruction multiple data (SIMD) devices.

2.2 Ambient Occlusion

Ambient occlusion is deﬁned as the amount of am-

bient light that is able to reach a point, which is not

occluded by other points (i.e. it simulates the shad-

owing caused by nearby objects from indirect light).

This can be achieved by casting ‘rays’ from the point,

and determining if these rays are obstructed. AO is

then calculated as the integral of a visibility function

over a unit hemisphere (Loos and Sloan, 2010).

Screen Space Ambient Occlusion (SSAO), is a

technique used to approximate the obscurance inte-

gral (Shanmugam and Arikan, 2007). Implementa-

tions of SSAO in games use a point sampling tech-

nique to approximate the occlusion integral. This in-

volves computing the obscurance for each pixel on

screen by taking samples around the pixel. The cor-

responding depth information from the depth buffer

295

Goulding D., Smith R., Clark L., Ushaw G. and Morgan G..

REAL-TIME AMBIENT OCCLUSION ON THE PLAYSTATION3.

DOI: 10.5220/0003820202950298

In Proceedings of the International Conference on Computer Graphics Theory and Applications (GRAPP-2012), pages 295-298

ISBN: 978-989-8565-02-0

 2012 SCITEPRESS (Science and Technology Publications, Lda.)

is then used to compute how much of a surrounding

neighbourhood of the point in the scene is obscured

by objects.

Whilst making the assumption that the falloff

function is constant allows for efﬁcient calculations

of the obscurance integral, it is also possible to select

a speciﬁc falloff function for an efﬁcient implemen-

tation that maintains the complexity of the full radio-

metric model (McGuire et al., 2011).

2.3 Contribution of Paper

This paper shows that it is possible to move ambi-

ent occlusion calculations to the Playstation3’s SPUs,

freeing up processing time on the GPU, without a no-

ticeable reduction in quality. The paper introduces

a method for distributing full-screen ambient occlu-

sion into ”SPU-sized” chunks of calculation. Two

techniques for achieving ambient occlusion are im-

plemented and compared - line-sampling, and taking

a speciﬁc fall-off function - both shown to be viable

approaches on the Sony hardware. A number of opti-

misations, taking advantage of the Playstation3 archi-

tecture, are also presented.

3 IMPLEMENTATION

Both the line-sampling technique (Loos and Sloan,

2010) and (Ownby, 2010), and the technique of tak-

ing the speciﬁc falloff function (McGuire et al., 2011)

were implemented. The line sampling algorithm

(which only requires the depth buffer values), is ad-

vantageous due to the limited local memory of each

SPU. Whilst this technique boasts reduced sample

counts in comparison to point sampling, further re-

ductions in the sample count can be made by using

the fall-off function.

3.1 Performing Calculations on the

SPUs

A GPU based implementation uses a fullscreen 32bit

depth buffer for SSAO calculations; at 1280 × 720

screen resolution, this requires approximately 3.5MB.

However, each SPU on the Playstation3 has 256kB

of local memory and can only access external mem-

ory through direct memory access (DMA), which can

have a signiﬁcant delay between requests and com-

pletion (Engstad, 2010).

Splitting the screen into sections and performing

SSAO calculations on a block at a time is not a vi-

able solution, as pixels at the edge of a block will

not have access to the required depth buffer sam-

ples. This issue also occurs at the edge of the screen

in a fullscreen implementation, however this can ei-

ther be solved by rendering to a slightly larger im-

age and cropping (McGuire et al., 2011), or ensuring

that samples outside of the screen return a very large

depth value, meaning they never contribute to occlu-

sion (Filion and McNaughton, 2008). Storing the full

screen depth buffer in main memory and then using

DMA calls for each sample when it is needed is also

inefﬁcient due to the large number of DMA transfers.

3.1.1 Arranging the Input

Whilst the Playstation3 allows access to the depth

buffer, the data are stored in a speciﬁc tiled format

that is not suitable for our SSAO calculations. Before

reading the information for the SPU tasks this tiled

depth buffer must be reordered into a linear buffer.

This was performed in a pre-pass rendering stage,

storing the detiled depth buffer in main memory.

The next step is to arrange the data for con-

currently running SPUs. The screen was split into

64 × 64 pixel tiles, with each SPU calculating occlu-

sion values on a single tile at a time. A 128 × 128 tile

of depth information was read from the pixels sur-

rounding and including the inner 64 × 64 tile. We

therefore restricted samples to a maximum of 32 pix-

els away from the target pixel. While this does cause

a slight loss of accuracy for occlusion values, partic-

ularly with objects very near to the camera, for the

majority of cases this restriction was not noticeable

(indeed, this problem was further reduced by using

downsampled buffers, described below). Depth val-

ues overlapping the screen edges were set to very

large depths, as in many full-screen implementations.

This approach means that there is an overlap of reads

from the depth buffer, but no overlap when writing to

the buffer that stores the occlusion values.

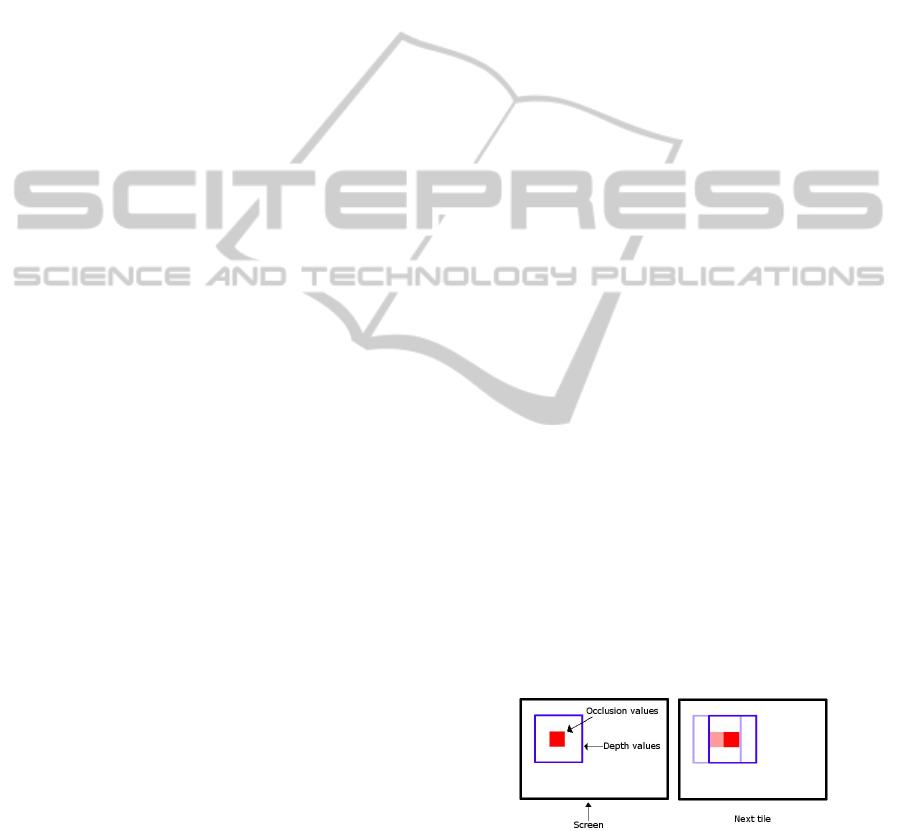

Figure 1: Arranging the depth information for input.

Using this conﬁguration each SPU was required to

store a 128 × 128 buffer of 4 byte depth values, and a

64 × 64 buffer of single byte occlusion values. Both

of these were ‘double buffered’ (see below), mean-

ing that approximately 140kB of local memory was

needed. This is comfortably within the 256kB local

GRAPP 2012 - International Conference on Computer Graphics Theory and Applications

296

memory available to a SPU. For any DMA transfer

of more than 16 bytes the size of the transfer must

be a multiple of 16 bytes, and must be aligned on a

16 byte boundary (Augonnet, 2007). The size of tiles

used ensures safe DMA transfer requests for each tile.

3.1.2 Combining with Lighting

The occlusion values must now be combined with the

current scene lighting. The occlusion values from

each of the SPUs’ local memory is written to a sin-

gle external buffer in the RSX graphics memory. This

is a little slower than writing to main memory, but

only the GPU requires access to these occlusion val-

ues, so storing the values in RSX memory reduces

main memory usage whiles providing fast access to

the occlusion values during the lighting stage.

The occlusion values are stored as a single byte

for each pixel. They are read as values from zero to

one and combined with the scene lighting in a pixel

shader by multiplying each pixel’s colour value by the

corresponding occlusion value. This has the effect of

dimming the lighting where AO occurs.

3.2 Optimizations

3.2.1 Downsampling

The ﬁrst optimization was to perform calculations on

sized buffer. The depth buffer was downsampled

while it was detiled, so the reduced buffer was stored

in main memory. SSAO calculations were then per-

formed at this reduced resolution and output to a tex-

ture of the same resolution. This reduced the memory

used, and also signiﬁcantly reduced calculation times.

Downsampling also had the advantage of increas-

ing our sampling range in screen space. Each SPU

still performs calculations on the same number of pix-

els, but with a downsampled buffer these pixels cor-

respond to a larger amount of screen space. Taking

samples from a maximum of 32 pixels away is equiv-

alent to taking samples up to 64 pixels away in a full

resolution buffer, allowing for a wider ambient effect

and improving the accuracy of occlusion results for

nearby objects in the scene.

Using a reduced resolution buffer is a common

way to increase the performance of SSAO algorithms,

providing a signiﬁcant performance increase with

only minimal loss of detail. The decision whether to

use a fullscreen or downsampled buffer is a compro-

mise between performance, memory and visual qual-

ity, and will be application speciﬁc.

3.2.2 Double Buffering

A further performance increase came from double

buffering, allowing each SPU to perform occlusion

calculations on its current tile at the same time as

sending its previous tile’s occlusion results and re-

trieving the next tile’s depth information.

A pair of input buffers (for the depth values) and a

pair of output buffers (for the occlusion values) were

created, which were then alternated so that at any spe-

ciﬁc time, one of each is being used for memory trans-

fer while the other is being accessed by the AO cal-

culations. Each SPU requests a DMA transfer of the

previous tile’s occlusion values to main memory, and

a further DMA transfer to ﬁll the free input buffer

with the next tile’s depth information. While these

transfers are occurring, the SPU uses the current depth

information to calculate the occlusion values. In this

way a SPU task does not have to wait for DMA re-

quests to complete before being able to perform cal-

culations on the current tile, improving performance.

3.2.3 Single Instruction, Multiple Data

The SPUs are capable of single instruction multi-

ple data (SIMD) operations (Gschwind, 2006). As

the SSAO algorithms perform the same operations

on each pixel in turn, the code was adapted to per-

form SSAO calculations on four pixels at a time using

SIMD. Downsampling the depth and normal buffers,

and blurring results were also performed using SIMD

instructions. As SIMD instructions were included

throughout the SPU code there was an improvement

in the calculation time by approximately four times.

3.3 Bilateral Filter

To smooth the results a 2D Gaussian blur was applied

which split the buffer into horizontal strips, followed

by vertical strips, allowing a single SPU to perform

the blur calculations one strip at a time.

While a Gaussian blur successfully smooths the

results, it causes artifacts (known as ‘halos’) in the

image. This effect occurs due to occlusion values

bleeding across the edges of objects (Filion and Mc-

Naughton, 2008). This lightens areas that should be

dark due to occlusion and darkens edges that should

not be occluded. To reduce the halo effect we used

a bilateral ﬁlter, where every sample is replaced by

a weighted average of its neighbours’ depth values

(Elad, 2002).

REAL-TIME AMBIENT OCCLUSION ON THE PLAYSTATION3

297

4 RESULTS AND EVALUATION

The two SSAO techniques were implemented using

the Playstation 3’s SPU architecture.We also imple-

mented fullscreen and downsampled versions for both

approaches. We found that using 12 samples for the

volumetric obscurance method and 6 samples for the

falloff function method provided similar performance

and both produced a good quality image.

4.1 Visual Quality

Visually comparing the two implementations at both

fullscreen and downsampled resolution shows that all

versions are of a high quality. In the game Uncharted

2 (Hable, 2010), where SSAO was also implemented

on the SPUs, the two visual downfalls were a visible

cross pattern of occlusion, and halos around objects.

Neither of our implementations suffer from a cross

pattern, whilst halos have been signiﬁcantly reduced.

The volumetric obscurance method gives deﬁned

occlusion values with little noise, and appears to be

of a similar quality to that seen in Toy Story 3: The

Game (Ownby, 2010). However this method suf-

fers from creating occlusion values that are focused

around the edges of objects, not providing wide area

results as seen in the falloff function method.

The falloff function method provides the best re-

sults for wide area ambience, capturing a greater

sense of the overall geometry of the scene. As this

method uses the surface normals, it is also able to

highlight details from the normal maps of the objects’

surfaces. The falloff function method can however

suffer from objects causing self-occlusion (this is con-

sistent with the ﬁndings of (McGuire et al., 2011)),

and the image as a whole is more noisy than that seen

in the volumetric occlusion method.

4.2 Performance

In our implementation, both SSAO techniques can run

on as many SPUs as desired. Whilst performance ob-

viously improves with more SPUs, it is unlikely to be

possible to allocate all 6 SPUs to perform SSAO cal-

culations. Table 1 shows performance results, mea-

sured in total SPU time. In our fastest implementa-

tion (using the falloff function at a downsampled res-

olution), occlusion results were calculated in 46.8ms,

if all six SPUs are assigned to this task therefore, the

time it takes for this task to complete is 7.8ms.

Table 1: Performance ﬁgures showing total SPU time.

Volumetric Obsc. Falloff Fn.

Downsampled 55.2ms 46.8ms

Fullscreen 209ms 166ms

We also created a version using only the PPU, no

tiling was required (much like a GPU implementa-

tion) and we tested on a fullscreen resolution buffer.

This was signiﬁcantly slower, increasing frame render

times by over 1500ms.

Whilst all four of the SPU implementation re-

sults allow for fully interactive frame rates in test lev-

els, the large increase in speed seen in the downsam-

pled methods make them much more desirable than

the fullscreen equivalent. Our fastest result remains

slower than GPU implementations however. Despite

this,our implementation has the advantage of not im-

pacting GPU performance, giving a trade-off between

2.3ms of GPU time and 7.8ms of CPU time.

5 CONCLUSIONS

We have successfully achieved high quality SSAO ef-

fects using the Playstation3’s SPUs, conﬁrming that

this technique can be used as an alternative to GPU-

based implementations. Our techniques are currently

viable in an application that is hindered by GPU per-

formance, but not with CPU performance.

REFERENCES

Augonnet, C. (2006-2007). An introduction to IBM cell

processor.

Elad, M. (2002). Algorithms for noise removal and the bi-

lateral ﬁlter.

Engstad, P.-K. (2010). Introduction to SPU optimizations.

Naughty Dog.

Filion, D. and McNaughton, R. (2008). Starcraft 2 effects

and techniques. In Advances in Real-Time Rendering

in 3D Graphics and Games Course, SIGGRAPH.

Gschwind, M. (2006). The cell broadband engine: Exploit-

ing multiple levels of parallelism in a chip multipro-

cessor. Technical report, IBM Research Division.

Hable, J. (2010). Uncharted 2: HDR lighting. Game Devel-

opers Conference.

Hoberock, J. and Jia, Y. (2008). High-quality ambient oc-

clusion. In GPU Gems 3. Addison-Wesley.

Loos, B. J. and Sloan, P.-P. (2010). Volumetric obscurance.

McGuire, M., Osman, B., Bukowski, M., and Hennessy,

P. (2011). The alchemy screen-space ambient ob-

scurance algorithm. In High-Performance Graphics

2011.

Ownby, J.-P. (2010). Toy Story 3: The video game render-

ing techniques. In Advances in Real-Time Rendering

Course, SIGGRAPH.

Shanmugam, P. and Arikan, O. (2007). Hardware acceler-

ated ambient occlusion techniques on GPUs. In Pro-

ceedings of the 2007 Symposium on Interactive 3D

Graphics and Games, I3D ’07, pages 73–80. ACM.

GRAPP 2012 - International Conference on Computer Graphics Theory and Applications

298
