CASE STUDY: A SEMIOTIC APPROACH

TO META-PROGRAMMING IN OPERATIONAL RESEARCH

Martin Wheatman and Kecheng Liu

Informatics Research Centre, University of Reading, Whiteknights, Reading, RG6 6WB, U.K.

Keywords: Semiotics, Meta-Programming, Operational Research, Discrete Simulation.

Abstract: This paper is a case study of how semiotics is applied to the meta-programming of application provision in a

Operational Research setting. As a text representing instructions, software source code is a syntactic layer of

an organisational sign system. In that meta-programming generates source code, it is sign system which acts

at a pragmatic level generating other sign systems, and has its own norm-base. The case study illustrates

how a meta-programming norm-base can be directed towards the provision of specific application

components, but that direction itself can be programmable.

1 INTRODUCTION

Meta-programming is a sign-system for creating

other sign-systems. This case study highlights meta-

programming as a translational process – the

automatic production of software from a set of

intentional parameters. It shows how simple meta-

programming techniques can be relatively

straightforward, but their norm-base is highly static

and directed towards the production of application

specific components. These techniques have also

been adapted in this case study to generate other

intentionally dependent components: composing in

an inductive manner, along with other ancillary

functionality, a norm-base directed towards a

specific outcome.

This paper starts with a description of the

context of this case study: why meta-programming is

used an Operational Research (OR) environment

(Kelton and Law, 2000). It then contains a brief

introduction to the Semiotics and reasoning of C. S.

Peirce, and its application to IS. It continues with the

rational for the use of semiotic approach in OR in

general and in particular its associated IS; a

description of the web based solution; and, finally

the shortcomings of such a solution, again from a

semiotic perspective.

2 META-PROGRAMMING IN

OPERATIONAL RESEARCH

This is a case study of a program created to

support the discrete simulation modelling of the

nuclear decommissioning processes involved at

Sellafield Sites Ltd., though it could be applied to

modelling any manufacturing process, or indeed any

discrete state simulation. As a large, multi-billion

pound organisation with a strong ethical policy and a

potentially large environmental impact, decisions

have to be supported by evidence. While OR cannot

predict the future, it can allow analysts to illustrate

particular scenarios.

The Sellafield OR Group (SORG) supports the

decision-making process by modelling operational

activity, using discrete modelling tools such as

(Witness) and (FlexSim). This paper concentrates on

the use of the latter, which is based on two forms of

datafile: a model file and one or more model data

files, or scenarios.

A model is constructed in FlexSim by an analyst

as a .fsm file which provides a three-dimensional

view of a factory. The analyst can add processes,

modelled by conveyor-belted machines, and items

being processed, modelled as either as one of many

predefined 3D items or customised items which can

be specified by the analyst. To this basic model,

other predefined or custom processes can be added,

such as cranes, conveyors, forklifts or storage

Liu K. and Wheatman M.

CASE STUDY: A SEMIOTIC APPROACH TO META-PROGRAMMING IN OPERATIONAL RESEARCH.

DOI: 10.5220/0003254400470051

In Proceedings of the Twelfth International Conference on Informatics and Semiotics in Organisations (ICISO 2010), page

ISBN: 978-989-8425-26-3

systems, to effectively represent that being

modelled.

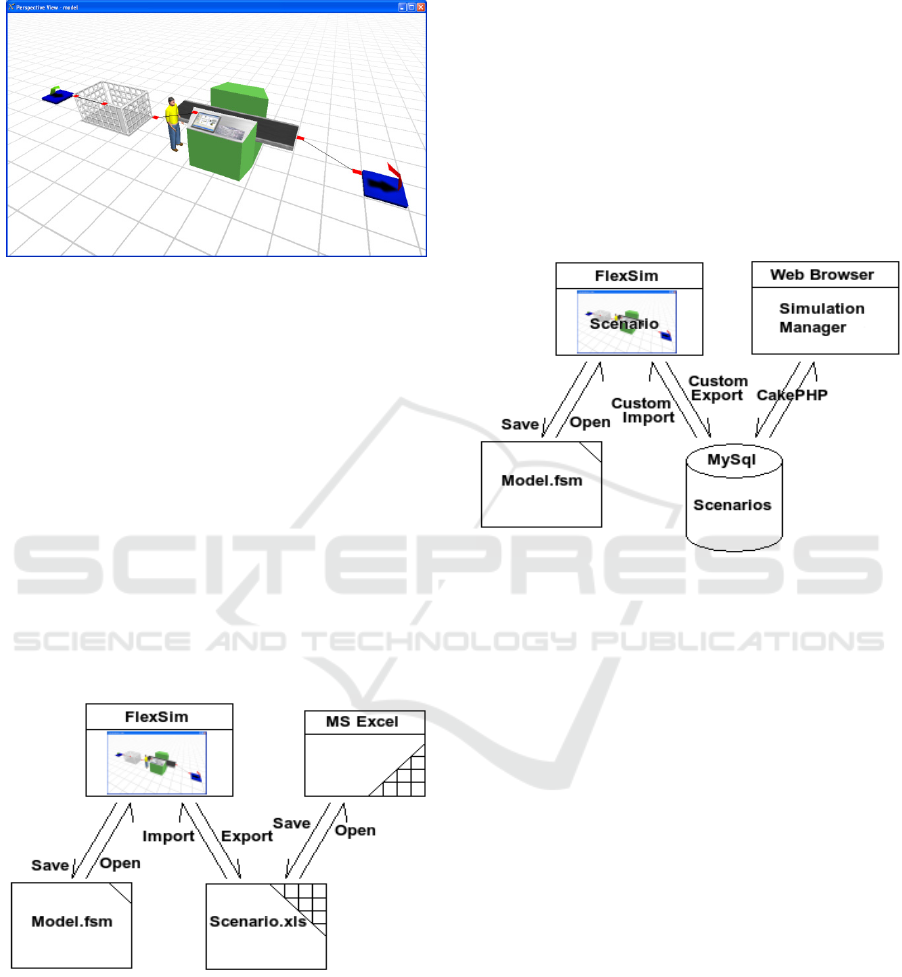

Figure 1: A FlexSim model showing (l to r) a source, a

queue, an operator at a processor and a sink.

Models also have the ability to be programmed

in a C++-like script language called FlexScript. This

can, amongst other things, be used to load scenario

data.

A scenario, along with its results once it has

been run, is typically stored as a spreadsheet, which

can be directly written by (or “exported to”), or read

by (or “imported from”), FlexSim. Scenarios

comprise all the parameters which are attributed to

the items within the model, such as arrival times of

item to be processed, time to process items, etc.

Each scenario is run to ascertain the best model to be

implemented, and hence affect decision making. The

current use relationship between FlexSim .fsm files

and .xls files is illustrated below.

Figure 2: The existing relationship between FlexSim and

Excel.

Practical problems have emerged with such use

of spreadsheets: the file can easily be several

hundred megabytes in size, which is neither easy to

load nor easy to compare. Further, with the fact that

analysts may have several models, even of each

factory, and several hundred scenarios of each

model; each of which might differ by only a few

bytes. Moreover, with the need to archive data for

several decades, it is not seen as being an efficient

use of disk space. Plus there is the inability to

efficiently compare results in separate files.

The solution has been to move to a database

system which stores all scenarios as the differences

from some baseline scenario. Working prototypes

have being developed, using a WAMP Stack

(Apache, CakePHP, MySQL). The solution is

illustrated below: it is effectively the same

information system but with a different

implementation.

Figure 3: The proposed solution of using a database and

web-browser architecture.

For this solution to be practical, though, existing

scenario spreadsheets have to be converted into

databases. This involves several processes which can

be combined into one, largely dependent on the

database schema and analyst intentions. To describe

the semiotic perspective of this case study, some

introduction to semiotics is needed.

3 SEMIOTICS

Charles Sanders Peirce developed the notion of a

triadic sign model (Peirce, 1935-58), where a sign

and the object to which it refers are connected only

through an interpretant: a tangible reaction to the

sign by an interpreter. It is therefore a model of

subjective signs. He defined as “semiosis”: the use

and evolution of signs, how they lead to the creation

of further signs, potentially endlessly. He also

presented a triadic model of reasoning based on his

sign model: hypothesis, guessing of the initial sign

configuration given objects and interpretants or

norms; deduction, determining the correct object

ICISO 2010 - International Conference on Informatics and Semiotics in Organisations

from signs; and, induction, the creation of norms

from signs and objects.

Charles Morris organised the basic Peircean sign

model into three layers of Syntax, Semantics and

Pragmatics (Morris, 1938). His Pragmatic layer is

concerned with the sign's life cycle: the creation,

use, repeated use and destruction of signs, and their

intentions. Stamper extended this model for IS,

initially to a four layer model (Stamper, 1973) with

and Empirical layer to cover the mechanisms

involved in IS; then to a six layer model of signs

(Stamper, 1991) with the addition of the Social and

Physical layers.

Signs are the essential components of

information systems (Stamper, 1985). Further, signs

are modelled as being composite - macro-signs

being composed of micro-signs (Gomez et al.,

2002), and the resolution of their transformations

into translations is the concept behind developing

software (Wheatman, 2009). An overview of

semiotics in information systems can be found in

(Liu, 2000).

Semiotics, however, is not a method of

producing software, but affords a framework for

conceptualisation. If a formal description of

functionality in software were required, techniques

from UML toolbox could quite easily be employed

to illustrate the design. This has an understanding of

its own, through its own semiotic. So some rational

for the use of the term “semiotic approach” in OR is

required.

4 A SEMIOTIC APPROACH

The relationship between Semiotics and OR exists at

several levels. It can be found in the comparison of

modelling to semiotics in (Minsky, 1968): “To an

observer B, an object A* is a model of an object A,

to the extent that B can use A* to answer questions

that interest him about A.” Further, (Egesoy and

Topaloğlu, 2009) notes that the terms object, model

and observer are interchangeable with object, sign

and interpretant, where interpretant/observer (what

termed as a ‘filter’ (Minsky, 1968)). This approach

is not pursued further in this paper.

Further, and from a wider perspective of an OR

group within a larger department, the organisation of

SORG falls into the organisational model, defined in

(Stamper, 1991). This approach is also not pursued

further in this paper.

The main application of semiotics is applied to

the production of software source code. The concept

of a model being composed of a model file and

many scenarios composed of many tables is a

Pattern which it is assumed can be applied to many

OR applications. A Design Pattern is a

representation of signs (Noble and Biddle, 2002),

which implies that this should have its own life cycle

– creation, (repeated) use, and destruction of

(models and) scenarios.

However, the difficulty in producing the solution

in this case study has been the lack of account taken

of the pragmatics of meta-programming – that the

meta-programming software chosen in this project is

not flexible enough to support all required code

generation. The contention here is that the

configuration of a meta-programming solution

amounts to an interpretant.

5 NORM-BASE INDUCTION

Prior to the work in this case study, creating scenario

databases and all ancillary coding had been

performed manually in a systems administrator role,

as a transformation of the spreadsheet. Without deep

analysis to the level of the computability of this

process, it is possible to envisage automation of

individual components. This automation is a

semiotic transformation of a manual translation into

an automated translation, parametrised by a few

intentional details dependent on schema.

There is insufficient room in this paper to

provide a complete breakdown of the design options

open to scenario conversion. In practice, the working

prototypes show that the chosen solution is valid –

based on outcomes, rather than process. Expressing

this as a formal sign system, in source code,

provides an organisational norm-base which can be

appended.

The fundamental process of transferring scenario

data from spreadsheet to database, by reading named

tables using an ODBC link and using the MySQL

ODBC driver to write to database, is fairly

straightforward and had already formed part of the

manual process. There are many off-the-shelf

components which will do such conversions;

however, there is some extra information stored per

row concerned with the versioning of the scenario.

This is intentional, and details need to be supplied

by the operator converting the scenario. To this

norm-base, other processes can be added.

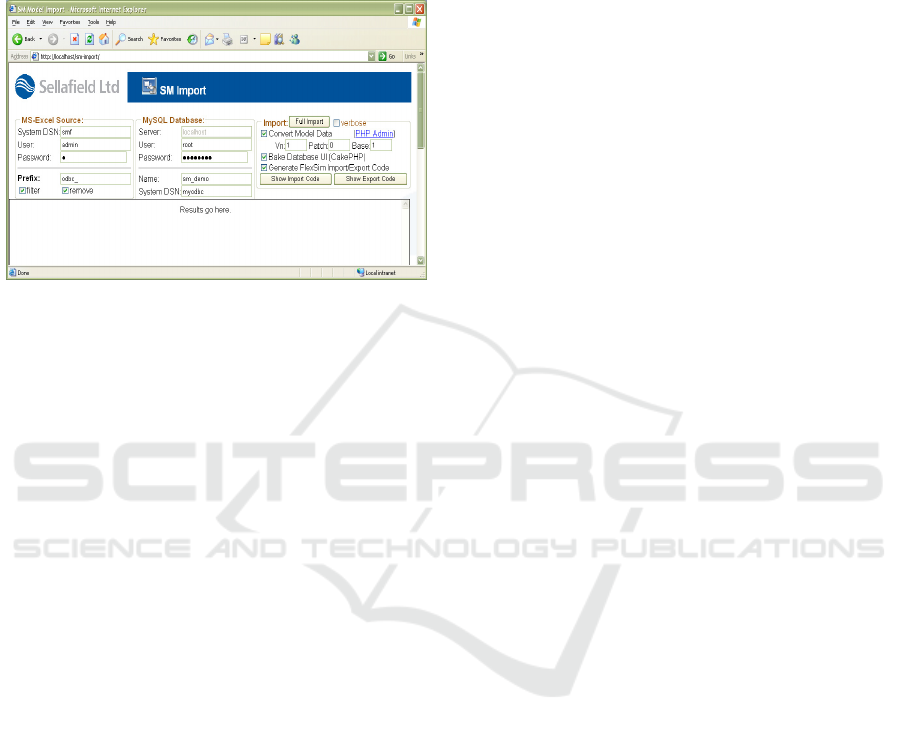

Further, the translation of a scenario also

includes: creating the FlexScript to Import and

Export to the database; driving CakePHP to generate

the database application to support the model data in

the database. Further processes may be included in

CASE STUDY: A SEMIOTIC APPROACH TO META-PROGRAMMING IN OPERATIONAL RESEARCH

future. Scenario conversion means much more than

data conversion, but its meaning in terms of action a

singular meaning into which many ancillary

processes may be subsumed.

The resultant tool, SM Import, sits behind a web

front-end, and is illustrated below.

Figure 4: The SM-Import tool interface.

6 META-PROGRAMMING OF A

DATABASE USER INTERFACE

CakePHP was selected early on for the generation of

the database front-end, and has been used in creating

all prototypes since, as a Model View Controller

pattern. Its Bake process has been used manually to

create interfaces for all tables in the database. This is

a script based process which elicits intentions, e.g.

database parameters, from the user from the

command line. However, it generates code for an

existing database – this is not necessarily the case

for the SM-Import tool: the open source nature of

CakePHP allowed it to be developed further in-

house for the SM-Import process.

In creating the SM-Import tool, it was decided

that the CakePHP code could be integrated into the

SM-Import web application. Because the coding of

the Bake class is relatively straightforward, this task

mainly involved removing the prompting/script

based methods from the class, and keeping the code

generation methods. These methods can use the

schema which is read during the conversion of the

named tables to database data. The code generation

methods mostly contain code which appends code to

a string which is eventually written to a file, such as:

$add_file.="<div class=\"submit\">\n";

$add_file.="<?php echo \$html->”.

“submit( 'Add' );?>\n";

$add_file .= "</div>\n";

Therefore, they are directed towards generating

code for specific tasks. This code is easy to modify,

especially in that the resultant database does not

need to record relationships between tables been

generated.

6.1 Meta-programming of a FlexScript

Database Interface

The other main function of SM-Import is the

generation of the Custom Import and Export

FlexScript code, which is similarly dependent on the

schema; however, this has had to be written from

scratch. This again was a relatively simple process

of writing specific code portions for each table

found in the spreadsheet, in statements such as:

fwrite($fh, "//clean up\n" );

fwrite($fh, "dbclose();\n" );

fwrite($fh, "pt(\"End Import\");

fwrite($fh, "pr();\n" );

From a syntactic point, the two code examples

above are dissimilar, but their intention – the

creation of source code – is the same technique. The

reason for this syntactic dissimilarity is historic: the

Import/Export code was written before it was

decided to include the CakePHP code portions

within SM Import.

Note that the code in the string constants, in both

examples, needs special characters to be escaped by

a ‘\’ character. This is interference between the

generating and generated syntaxes. Further, the

escaping of the escape character can be alleviated by

either the nesting of single and double quotes in

languages such as PHP, or by the use of a meta-

syntax, such as is used in HTML.

7 CONCLUSIONS

OR and Semiotics are both concerned with a defined

representation of things and particularly with the

action resulting from these representations. The

repeated use of such concepts defines patterns.

Meta-programming is a key technique to producing

patterned solutions such as in this case study. The

open availability of the CakePHP source code is

vital to the implementation of an automated solution,

as this allows its norm-base to be enhanced as

necessary. The shortcoming is that CakePHP is

geared towards producing web front ends: the norm-

base is stored as hard-coded strings. Other code

translational parts, while employing similar

techniques, are less well supported.

ICISO 2010 - International Conference on Informatics and Semiotics in Organisations

This paper has outlined the author's work in

designing and implementing an OR based web

application, as a semiotic transformation of a manual

sign translation process into an automated one. This

transformation is constrained by the organisational

norms determining SM-Import as a sign system in

itself. One advantage of such automation is enabling

the dissemination organisational norms, both

throughout the organisation and to third party

suppliers. Such descriptions necessitate at least the

implicit use of the notions of semiosis: signs and

their creation. Indeed, meta-programming is

implicitly a sign translation process instigated at a

pragmatic level.

A generic source code generator should therefore

be useful in such applications. A Model Driven

Architecture (MDA) approach could have been a

starting point; however, since the prototypes already

work this approach may require remodelling to fit it

to an MDA framework. The solution as described

has taken a lightweight approach as it requires a very

straightforward code generation. A templated

generator, such as the Java Emitting Template

(Steinberg et al., 2008), might prove fruitful – as the

template can be created from the prototype;

however, this appears to output Java which outputs

the template, rather than it outputting the raw text.

ACKNOWLEDGEMENTS

The authors would like to thank Sellafield Sites Ltd,

and the staff of the Sellafield OR Group for the

opportunities expressed in this paper. Particular

thanks go to Simon Hughes and Daniel Braund, and

Janet Davison for supplying the example model.

REFERENCES

Apache, see http://www.apache.org/

CakePHP, see http://cakephp.org/

Egesoy, A., Topaloğlu, Y. (2009) A Bottom-up Model of

Computational Semiotics, Information Systems in the

Changing Era: Theory and Practice, Proceedings of

the 11

International Conference on Informatics and

Semiotics in Organisations, 11-12 April, 2009, pp26-

32.

Flexsim, see http://www.flexsim.com/

Gomez, A., Gudwin, R., Queiroz, J., Towards Meaning

Processes in Computers from Peircean Semiotics,

SEED Journal (Semiotics, Evolution, Energy and

Development) 2002, pp69-79

Kelton, W. D., Law, A.M. (2000) Simulation Modelling

and Analysis 3

Ed., McGraw-Hill

Liu, K., Semiotics in Information Systems, Cambridge

University Press, 2000

Minsky, M.L., Matter, Mind and Models: Semantic

Information Processing, ed. Marvin Minsky, MIT

Press, 1968

Morris, C. W., Foundations of the Theory of Signs,

Encyclopaedia of Unified Science, 1(2), University of

Chicago, Chicago, 1938

MySQL, see http://www.mysql.com/

Noble, J., Biddle, R., Patterns as Signs, ECOOP

Proceedings, 2002

Peirce, C.S., Collected Papers of Charles Sanders Peirce,

Eds., Hartshorne, C. and Weiss, P., 1935-58

Stamper, R. K., Information in Business and

Administrative Systems, BT Batsford, London, 1973

Stamper, R. K., Towards a Theory of Information:

Information: Mystical Fluid or a Subject for Scientific

Discourse?, The Computer Journal, British Computer

Society, 28(3), pp195-199, 1985

Stamper, R.K., The Semiotic Framework for Information

Systems Research, Information Systems Research:

Contemporary Approaches and Emergent Traditions,

Eds: Nissen, H.E., Klein, H.K., and Hirschheim, R.,

1991, pp515-527

Steinberg, D., Budinsky, F., Paternostro, M., Merks, E.

EMF: Eclipse Modeling Framework - 2

Ed.,

Addison-Wesley, 2008.

Wheatman, M.J., Semiotic Translation and

Transformation in Source Code Development,

Information Systems in the Changing Era: Theory and

Practice, Proceedings of the 11

International

Conference on Informatics and Semiotics in

Organisations, 11-12 April, 2009, pp 56-62

Witness, see http://www.lanner.com/

CASE STUDY: A SEMIOTIC APPROACH TO META-PROGRAMMING IN OPERATIONAL RESEARCH
