TEXTUAL SYNTAX MAPPING CAN ENABLE SYNTACTIC

MERGING

László Angyal, László Lengyel, Tamás Mészáros and Hassan Charaf

Department of Automation and Applied Informatics, Budapest University of Technology and Economics

Goldmann György tér 3, H-1111 Budapest, Hungary

Keywords: DSL, Round-trip Engineering, Textual Syntax Mapping, Incremental Synchronization.

Abstract: As the support is increasing for textual domain-specific languages (DSL), the reconstruction of visual

models from the generated textual artifacts has also come into focus. The state-of-the-art bidirectional

approaches support reversible text generation from models using single syntax mapping. However, even

these tools have not gone such far to facilitate the synchronization between models and generated artifacts.

This paper presents the importance of synchronization and how these mappings can enable syntactic

reconciliation for custom DSLs. Our approach provides algorithms for supporting incremental DSL-driven

software development, which enables the freedom of choosing between the textual or visual editing of

artifacts. It depends on the developer which representation is more effective for her/him at a specific

moment.

1 INTRODUCTION

In the practice of model-based software

development, the software models are usually

represented as labeled (attributed), typed graphs.

The modeling elements as nodes are connected to

each other via edges. In modern modeling

frameworks (Angyal et al, 2009) (Eclipse, 2010)

(Xtext, 2010) visual and/or textual notations can be

mapped to the nodes and edges of a metamodel to

determine how its instance models should be drawn

or written. These are referred to as the concrete

syntax, which is required to define instance models.

The most prevalent techniques for textual syntax

definition of modeling elements are originated in the

theory of parser generators. The textual model can

be parsed into an Abstract Syntax Tree (AST),

which can be considered as an abstract model

conforming to the AST metamodel. Every node in

the metamodel have an AST class representation.

The philosophy behind reversible text generation

approaches is that parsing the textual artifact into an

intermediate AST can be the input to recreate the

model. However, this is inadequate to support the

concurrent evolution of the visual and the textual

representations of the same model. These

approaches consist of two unidirectional

synchronizations, often referred to as destructive,

which means that the target model is not modified

incrementally and thus, the update rebuilds the new

content, instead of modifying the existing one.

Accordingly, the layout of the models that is

previously defined by human effort disappears. The

layout in both visual and textual representations

contains valuable extra information, which is

developed into the model. Only an incremental

approach can preserve the layout, because the

affected parts are updated only, while other parts

remain unchanged.

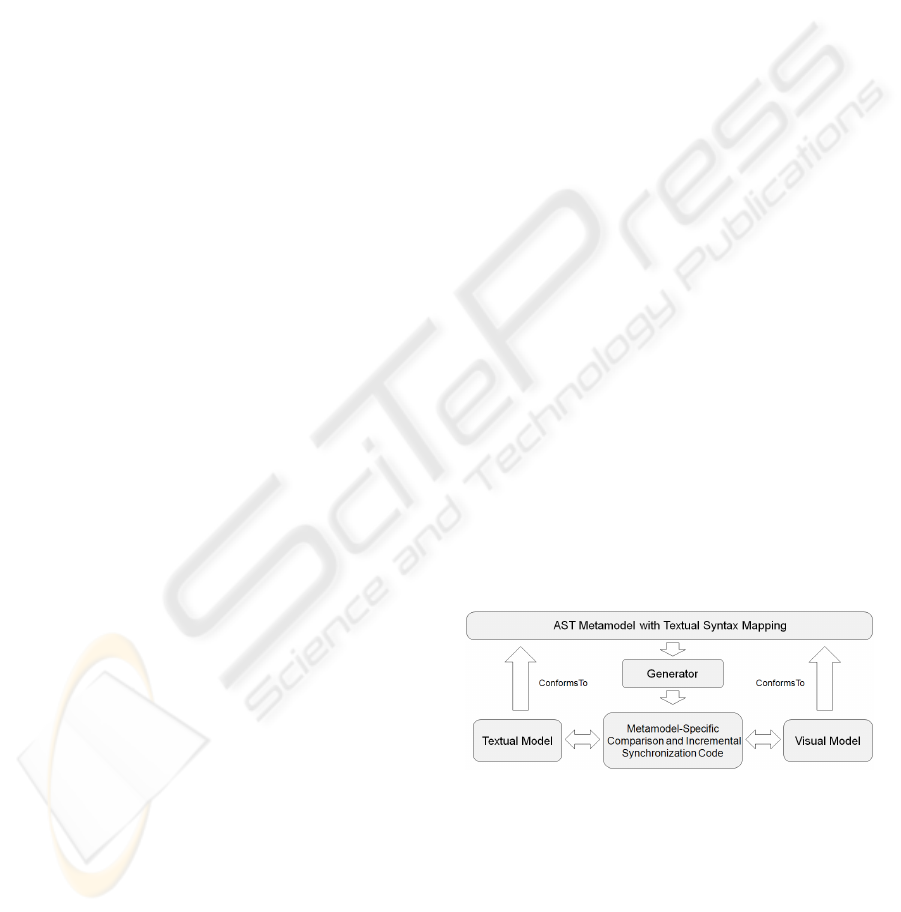

Figure 1: Outline of our approach.

We introduced a technique (Angyal et al, 2008)

that performs a three-way AST comparison and

incremental change propagation in order to reconcile

the differences between a source code file and a

visual model. Based on the syntax mapping, that

synchronization approach can be extended to

support arbitrary DSLs. In this paper, we

demonstrate how the single syntax specification can

308

Angyal L., Lengyel L., Mészáros T. and Charaf H. (2010).

TEXTUAL SYNTAX MAPPING CAN ENABLE SYNTACTIC MERGING.

In Proceedings of the 5th International Conference on Software and Data Technologies, pages 308-311

DOI: 10.5220/0003011403080311

 SciTePress

be applied to implement a metamodel-specific

incremental merge approach. (Figure 1).

The remainder of the paper is organized as

follows. The next section introduces the

backgrounds. Section 3 contains an overview about

our proposal for applying textual syntax mappings in

an incremental synchronization approach of DSLs.

Finally, conclusions are elaborated.

2 BACKGROUNDS

The initial and fundamental step in textual DSL

development is the construction of the AST

metamodel (the vocabulary) and the definition of the

textual syntax for the elements. To exclude possible

but illegal model states, constraints can be defined

on the structure.

Processing textual models e.g. to generate other

artifacts, requires them to be parsed and converted

into a format, which is supported by a model

processor or a generator. Formerly, for textual

languages, a grammar file defined by developers

was used, from which a parser generator (e.g.

ANTLR, 2010) created a parser that could be

integrated into a custom tool.

As the AST metamodel-based approaches have

come into consideration in the language engineering

researches, more and more tools and approaches are

being developed to facilitate the definition of custom

textual languages.

TCS (Jounault et al, 2006) is a textual DSL

intended to bridge the modeling and the syntax

worlds. From a TCS model, the grammar file for

text-to-model transformation and text generator for

model-to-text transformation can be produced.

Xtext (Xtext, 2010) and MontiCore (Krahn et al,

2007) are frameworks for development of textual

DSLs. In order to reduce the redundancy of the

metamodel and the concrete syntax, the definitions

of the abstract and the concrete syntaxes for the

languages are integrated into a single grammar file.

Their generators produce a parser, an AST-

metamodel as well as a full-featured text editor.

Although synchronization is a well-known

problem in the practice of software development, the

recent researches in the context of DSL engineering

are still not focusing on it.

Coarse-grained file comparison approaches like

the diff tool considers the lines as atomic building

blocks. However, to compare two pieces of textual

model correctly, the algorithm must take the

grammar of the language into consideration. The

fine-grained algorithms operate on the ASTs of the

source code files. Hierarchical structures such as

models should also be treated as source code.

3 THE MERGE APPROACH

3.1 Bidirectional Textual Syntax

Mapping

The metamodel itself does not determinate how its

instance models should be drawn or written. For a

complete language, the concrete syntax with the

assignments to the metamodel is inevitable. Figure 2

depicts our meta-metamodel, where the Template

attribute holds the textual concrete syntax mapping

belonging to that node.

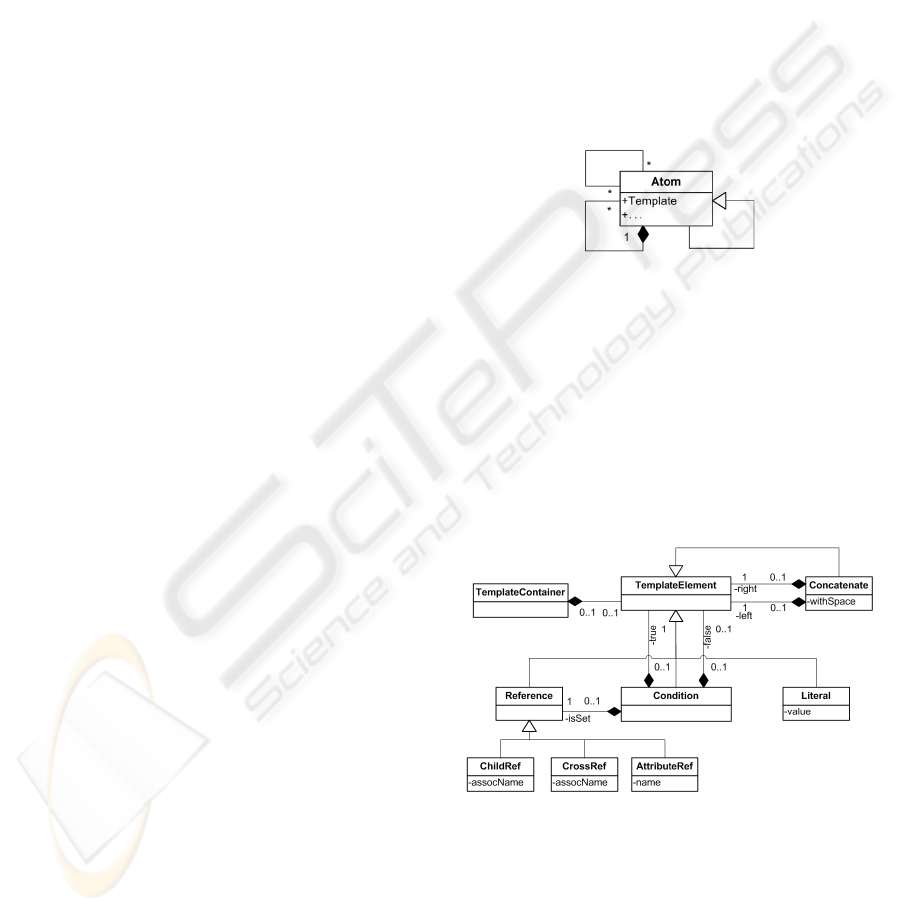

Figure 2: The meta-metamodel.

The Atom node represents the self-describing

metatype for all elements in the models. An element

can (i) define own, (ii) inherit attributes and

relationships from its ancestor (inheritance), (iii)

structures can also be defined: an element can

contain other elements (containment), and (iv) other

existing elements can be referenced (cross-

reference), as well. Furthermore, the edges have

multiplicity properties, which are taken into account

in the parser and the text generator.

Figure 3: The metamodel of the template language.

We designed a simple template language (Figure

3) that expresses the textual appearance of abstract

elements. These templates are considered as input

artifacts for the template compiler, which produces

the text generator and rules for the text parser.

The abstract TemplateElement is a word in that

textual template, which can be a reference, a string

literal or a condition. The words are concatenated

TEXTUAL SYNTAX MAPPING CAN ENABLE SYNTACTIC MERGING

309

into a template with the Concatenate operator.

Additionally, each attribute has a data type with

predefined regular expression (a primitive template),

which can be overridden to determine the values

allowed in that attribute. This regular expression is

used by the parser to recognize the attributes.

3.2 Realizing the Incremental Update

3.2.1 Edit Scripts

A merge approach can be operation-based or state-

based (Mens, 2002). The operation-based one

requires recording the committed edit operations,

while the state-based one derives the changes after

they occur by a comparison. The sequence of these

operations is referred to as an edit script. Our change

propagation approach executes the edit scripts on

other artifacts to obtain the same state.

3.2.2 Update Visual Model

The structure of our proposed incremental update

component for the visual model is depicted in Figure

4. Since the underlying data types and classes are

metamodel-specific, all of these components are

generated and operate only on a specific model.

Furthermore, these classes are grouped into larger

logical units.

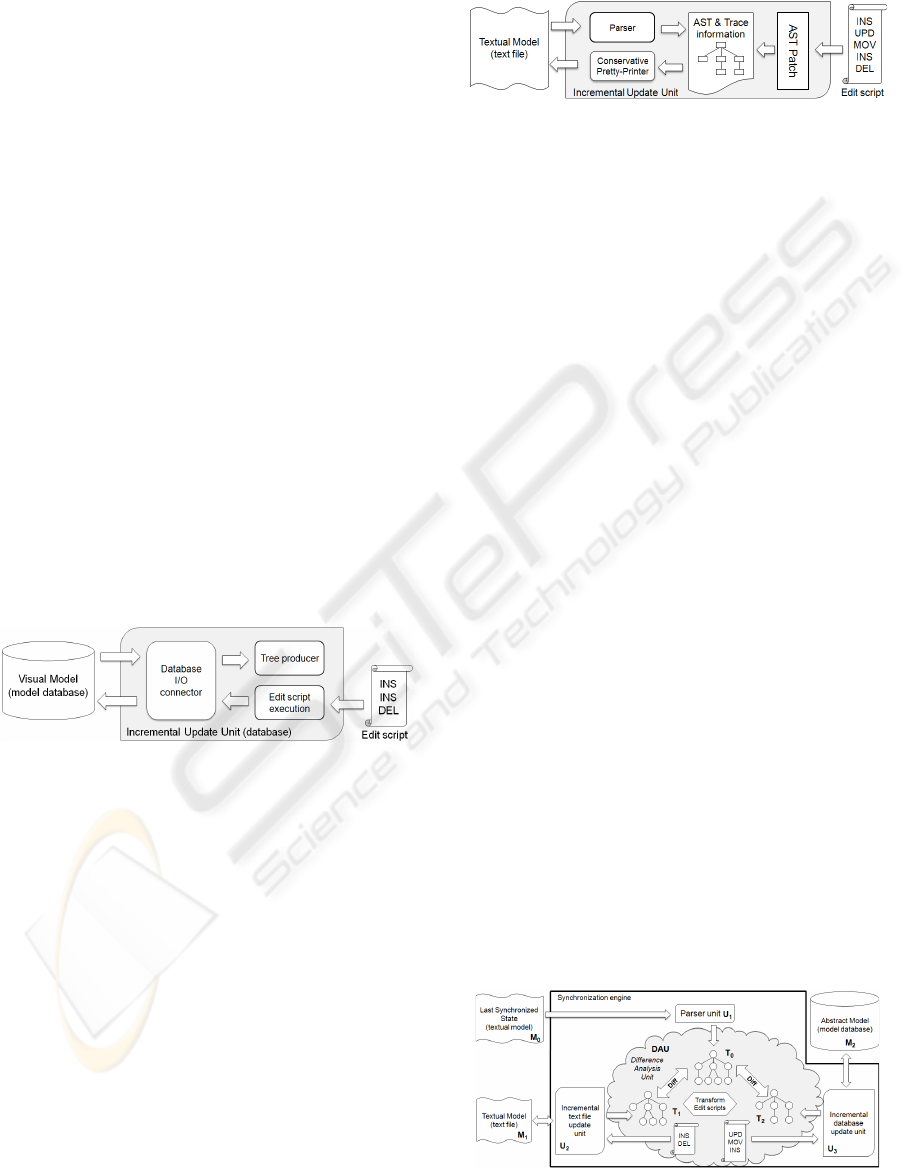

Figure 4: The incremental model update unit.

The Database I/O connector provides access to

the model elements stored either in a database or in a

file. The Tree producer reads the model from the

database and produces the AST in a form required

for the difference analysis. The Edit script execution

submodule performs the incremental database

update controlled by an edit script.

3.2.3 Update Textual Model

The component for the incremental textual update

(Figure 5) includes the layout preserving logic. It

contains a tree producer (denoted by Parser), which

stores trace information linked to the AST nodes to

facilitate the restoration of the original layout and

comments. The AST patch module executes the edit

script obtained from outside. After the incremental

update, the reworked AST is pretty-printed

considering the trace information and the original

textual content.

Figure 5: The incremental textual update unit.

3.2.4 Retaining the Textual Layout

The layout preservation is a crucial requirement to

artifact regeneration: overwriting a customized

layout with a generated one could be unacceptable

for the developers.

The edit operations manipulate directly the AST,

but while the reworked AST nodes or subtrees are

printed, the trace links are taken into account to

restore the original layout with comments in their

original positions. Following the approach of

(Fritzson et al, 2008), every operation in the edit

script is converted into an equivalent text

manipulation operation, which is applied on the

original text file:

• Insertion: the new node is pretty-printed and its

text is inserted into the text stream.

• Deletion: characters belonging to that node are

removed.

• Update: a substring is replaced.

• Move: remove a substring and insert into an

other position.

3.3 Composing the Techniques

Together into a Sync Engine

Figure 6 illustrates our proposed synchronization

engine (SE) with the three input models: M

, M

, and

. SE realizes an incremental three-way

differencing-based merge, where the two modified

artifacts (M

, M

) are compared to the last

synchronized state (M

) in order to unambiguously

detect and propagate the committed refinements.

The synchronization is performed with the help of

intermediate artifacts, the ASTs.

Figure 6: The synchronization engine (SE).

ICSOFT 2010 - 5th International Conference on Software and Data Technologies

310

SE can be separated into four independent parts:

(i) the difference analysis unit (DAU), which can be

considered the heart of the SE, (ii) a simple parser

unit (U

), (iii) the complex incremental textual

update unit (U

), and (iv) the visual model

manipulation unit (U

). The last mentioned three

units (U

, U

, and U

) serve as language-specific

glue units for the metamodel independent DAU.

Figure 7: The synchronization approach in the details.

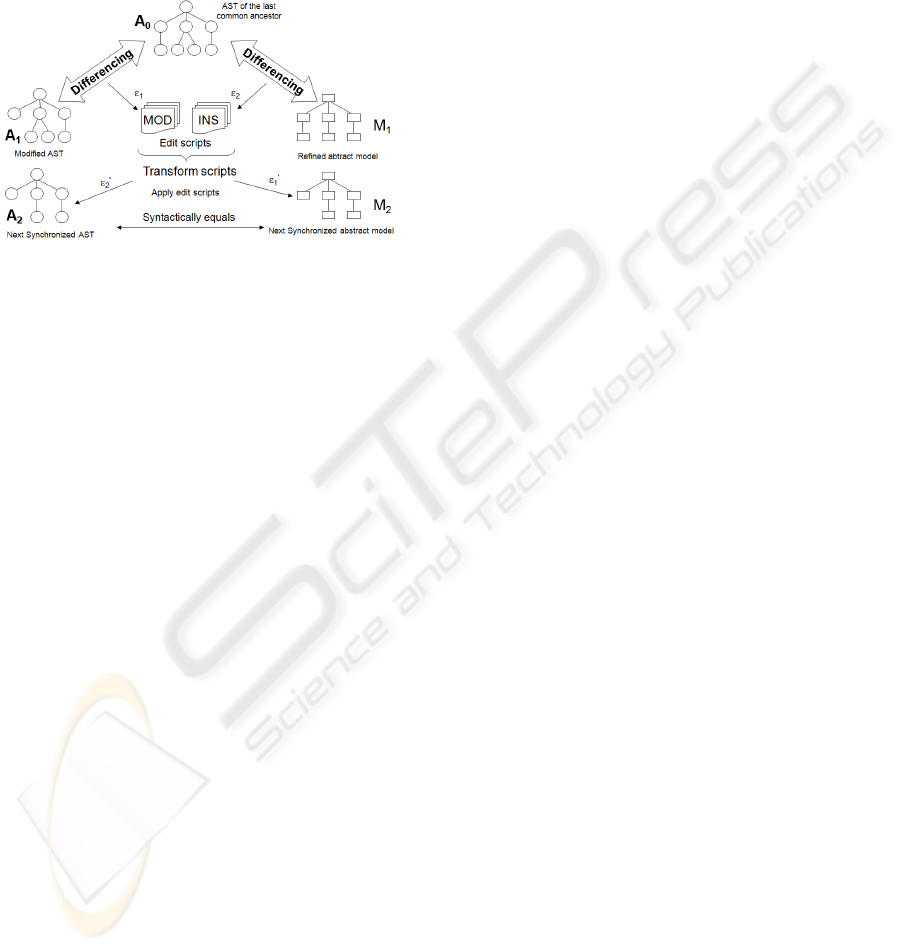

The algorithms in the DAU (Figure 7) operate on

the ASTs. The procedures denoted by Diff based on

the algorithms elaborated in (Chawathe et al, 1996)

and have been customized for source code (AST)

difference analysis. A general tree matching

algorithm tries to find the correspondence between

the two trees; the nodes that remained unmatched

compose the differences. The edit scripts can

reconcile the differences between the trees.

The modifications in the two artifacts can affect

each other, since the nodes are identified by their

path. An inserted node can shift the indices and may

cause that an edit operation from the opposite edit

script can address a different node. To avoid this, we

transform (by incrementing or decrementing the

indices) the paths in the operations if they affect

each other. Finally, to propagate the changes, the

transformed edit scripts are executed on the other

side by the generated glue units (U

, and U

). At the

end of the synchronization we obtain two

syntactically equivalent artifacts.

4 CONCLUSIONS

The accelerated spread of the DSLs requires the

development of tools to support the evolution of

both the visual and textual languages. This means

just the beginning towards the round-trip

engineering and incremental synchronization

between independently, and concurrently evolved

DSL models.

The presented synchronization technique

involves structural syntactic model-text differencing

and three-way AST merging. The main advantage is

that in contrast to typical text generation approaches,

it permits modifying the generated textual artifacts

and instead of losing the changes, they will be

synchronized back to the models. The modular

design allows the model-model and in addition the

text-text synchronization. On models where

semantic conflicts never occur, this approach can be

used efficiently.

ACKNOWLEDGEMENTS

This paper was supported by the János Bolyai

Research Scholarship of the Hungarian Academy of

Sciences.

REFERENCES

Angyal, L., Lengyel L., Charaf, H. 2008. Novel

Techniques for Model-Code Synchronization. In

Proceedings of The 3rd International ERCIM

Workshop on Software Evolution. Electronic

Communication of the EASST, 8.

Angyal, L., Asztalos, M., Lengyel, L., Levendovszky, T.,

Madari, I., Mezei, G., Mészáros, T., Siroki, L., Vajk,

T., 2009. Towards a Fast, Efficient and Customizable

Domain-Specific Modeling Framework. In

Proceedings of the IASTED International Conference.

Innsbruck, Austria.

ANTLR, 2010. ANTLR Parser Generator, http://

www.antlr.org

Chawathe, S. S., Rajaraman, A., Garcia-Molina, H.,

Widom, J., 1996. Change detection in hierarchically

structured information. In: Proceedings of

International Conference on Management of Data,

Montreal, Canada, pp. 493-504.

Eclipse EMF, 2010. http://www.eclipse.org/emf

Fritzson, P., Pop, A., Norling, K., Blom, M., 2008.

Comment- and Indentation Preserving Refactoring and

Unparsing for Modelica. In: Proceedings of 6th

International Modelica Conference, Bielefeld,

Germany, pp. 657-666.

Jouault, F., Bezivin, J., Kurtev, I., 2006. TCS: a DSL for

the specification of textual concrete syntaxes in model

engineering. In: Proceedings of Generative

programming and component engineering. Portland,

USA, pp. 249-254.

Krahn, H., Rumpe, B., Völkel, S., 2007. Integrated

Definition of Abstract and Concrete Syntax for

Textual Languages. In: Model Driven Engineering

Languages and Systems (4735), pp. 286-300.

Mens, T., 2002. A State-of-the-Art Survey on Software

Merging, In: IEEE Transactions on Software

Engineering. 28(5), pp. 449-462.

Xtext, 2010. http://www.eclipse.org/Xtext

TEXTUAL SYNTAX MAPPING CAN ENABLE SYNTACTIC MERGING

311
