FORMAL VERIFICATION OF G-PAKE USING CASPER/FDR2

Securing a Group PAKE Protocol Using Casper/FDR2

Mihai-Lica Pura, Victor-Valeriu Patriciu and Ion Bica

Military Informatics and Mathematics Department, Military Technical Academy

81-83 George Cosbuc Boulevard, Bucharest, Romania

Keywords: Formal Verification, Group Password-based Authenticated Key Exchange, Casper, FDR2.

Abstract: Research in security of ad hoc networks consists mainly of classifications and new protocol propositions.

But formal verification should also be used in order to be able to prove the properties intended for the

protocols. In this paper we present our work in formally verifying the group password-based authenticated

key exchange protocol proposed in 2000 by Asokan and Ginzboorg. The proposition is rather old, but in the

last years the research community focused only on two-party PAKE protocols, giving very little attention to

group PAKE protocols. With the help of Casper and FDR2 we prove that G-PAKE does not accomplish the

specifications given by the authors. Based on our results we proposed an improved version that we validated

through model checking.

1 INTRODUCTION

Over the last ten years research has generated a large

number of password authenticated key exchange

(PAKE) protocols. The original protocol in this

category dates back from 1992 and was proposed by

Bellovin and Merrit with the name of encrypted key

exchange (EKE). In few words, the scenario that this

protocol addresses is: “two entities who only share a

password, and who are communicating over an

insecure network, want to authenticate each other

and agree on a large session key to be used for

protecting their subsequent communications”

(Boyko, MacKenzie, Patel, 2001). But the situations

in which only two parties need to communicate are

unrealistic. In fact, the previous described scenario

represent a particular case of the more general one in

which several entities communicate over an insecure

network and want to create a common secret to be

used in exchanging information correctly

(Hietalahti, 2001). The protocols that address this

last problem and are based on EKE are called group

password-based authenticated key agreement

protocols.

A lately common application of these protocols

is ad hoc networks. Ad hoc networks are

infrastructure-less networks that are constructed on

the spot in order to respond to a communication

need. They are temporary and mobile and so the

connections between the nods are usually unreliable.

The devices that participate in such networks are

often small and portable, which means that their

resources (memory, computational power, energy)

are constrained. All these characteristics highlight

the fact that when developing a protocol targeted on

ad hoc network is better not to assume anything

about their topology or to assume as little as

possible.

Having all these limitation in mind, Asokan and

Ginzboorg proposed in 2000 a generic protocol for

group password-based authenticated key exchange

(G-PAKE) especially for ad hoc networks. In the

years that have passed since then, researchers have

given very little attention to group PAKE protocols,

being more interested in the two-party version. Still

a couple of other group PAKE protocols were

proposed, but without the special needs of ad hoc

networks in mind. For example Yao, Wang, Feng,

2009 proposition that is based on the presence of a

central trusted server. These are the reasons for

which we consider that this G-PAKE protocol is still

important.

G-PAKE’s authors analyze their proposition with

regard to the security specifications and targets and

conclude that the protocol is safe and it

accomplishes the proposed objectives. But, as stated

in the paper, this is done without any proof. Arun

Kumar Bayya et al. revise this protocol and agree

299

Pura M., Valeriu Patriciu V. and Bica I. (2010).

FORMAL VERIFICATION OF G-PAKE USING CASPER/FDR2 - Securing a Group PAKE Protocol Using Casper/FDR2.

In Proceedings of the International Conference on Security and Cryptography, pages 299-303

DOI: 10.5220/0002980702990303

 SciTePress

with the security analysis of Asokan and Ginzboorg.

Again, they do not present any proof. Although

other password based key agreement protocols have

been already formally verified (Tabet, Shin, Kobara,

Imai, 2005 and Ota, Kiyomoto, Tanaka, 2009), we

did not find such an attempt for this protocol. Our

paper presents the formal verification of G-PAKE

conducted with Casper and FRD2 tools. Using

FDR2 model checker and Casper CSP compiler we

found an attack against G-PAKE that prohibits the

protocol in assuring its specifications. Based on

these results we make a proposition to modify the

protocol in order to secure it. By formally verifying

our new version we prove that it assures its goals.

The rest of the paper is organized as follows. In

section 2 we present G-PAKE protocol as was

proposed by the authors. Its intended security

properties are described in section 3. Section 4

contains the presentation of the formal verification

of G-PAKE and of our version of the protocol.

Section 5 contains some conclusions.

2 PROTOCOL PRESENTATION

G-PAKE is based on the basic form of EKE. So we

will start by presenting EKE and then we will show

how it was extended to multiple parties. In a typical

EKE scenario, there are two nodes, i.e. A and B,

which share a common weak secret (for example a

password). The goals of the protocol are the mutual

authentication of A and B based on P, and the

agreement on a strong session key K, in such a way

that an attacker watching the network traffic will not

be able to learn K or to mount an attack on P. Node

A owns a key pair formed by an encryption key E

and a decryption key D

. During the protocol, node

A generates the challenge challenge

and S

, node B

generates the random number R, the challenge

challenge

and S

. Considering h is a one-way

function and K(msg) is a notation for the result of

encrypting the value msg with the key K, the EKE

protocol can be summarized as shown below.

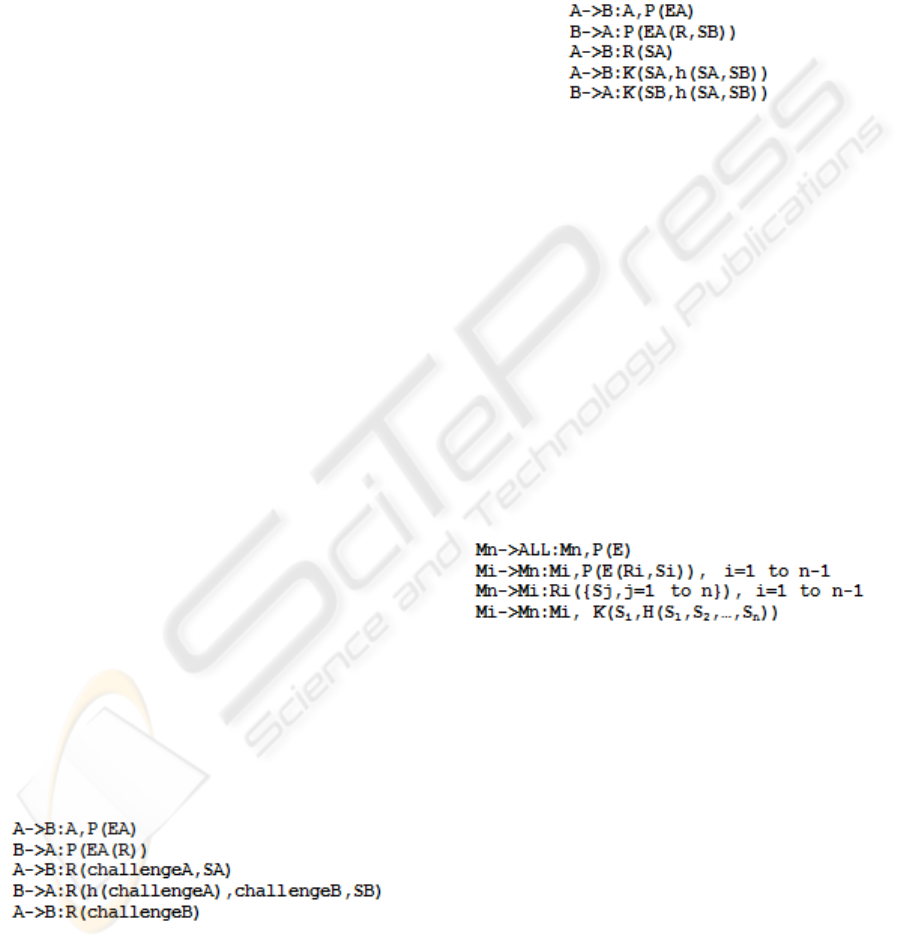

Figure 1: EKE protocol message exchange.

One can observe that each party generates two

nonces: challenge

/challenge

used by A and B

respectively to prove to each other that they know in

fact the shared secret P, and S

which represent

the contribution to the final session key. In order to

be easily converted to a contributory multi-party

protocol, Asokan and Ginzboorg proposed a

modification: the elimination of the challenges and

the use of S

and S

for both purposes. This leads to

a modified version of the protocol that will be used

for developing G-PAKE (Figure 2).

Figure 2: Asokan and Ginzboorg’s EKE protocol version

message exchange.

In order to extend this modified version of the

protocol to the multi-party case, one of the nodes in

the group is elected leader. The leader will initiate

the protocol by broadcasting the message in the first

step. The rest of the messages will be exchanged in

point-to-point communications between the leader

and each of the other nodes. Also, the messages

from the third and the forth step are sent together.

Considering that the group contains n member

nodes, with M

the elected leader and M

, with i

from 1 to n-1, the rest of the nodes, E and D the

encryption/decryption key pair of the leader, P the

shared secret and S

the random share contributed by

, the message exchange in G-PAKE is presented

in Figure 3.

Figure 3: G-PAKE protocol message exchange.

The authors state that the last step is used for key

confirmation. After the third step is completed, each

of the nodes, including the leader, can compute the

final session key as a function of S

, S

, …,S

3 INTENDED SECURITY

PROPERTIES

The security properties that the protocol must have

derive from its goals: the contributively

establishment of a session key K common to all the

nodes in the group, based on the password P. In

order to achieved these goals, the shared secret P

must remain known only to the members of the

SECRYPT 2010 - International Conference on Security and Cryptography

300

group (a), the protocol must be secure against

guessing attacks on P (b), leader’s encryption key

must remain known only by the group members (c),

the nonces S

, S

, …,S

must remain secret (d)

because they are used to compute the final session

key, the leader must authenticate itself to the

members in the group (e) and also each member of

the group must authenticate to the leader, because

only legitimate nodes must be included in a protocol

run (f). We give below the formal expression of

these properties, using a Casper like syntax. The

secrecy properties are expressed through a Secret(A,

v,[B]) specification which states that A thinks that v

is a secret that can be known to only himself and B.

(a) Secret(Mn,P,[M1,...,Mn-1])

(d) Secret(Mn,E,[M1,...,Mn-1])

The agreement properties are formalized through

Agreement(A,B,[v]) authentication specifications: if

responder B completes a protocol run apparently

with A, using the data value v, then the same agent

A has previously been running the protocol

apparently with B, using the same value. And

further, each such run of B corresponds to a unique

run of A.

(e) Agreement(Mn,Mi,[S1,...,Sn])

(f) Agreement(Mi,Mn,[S1,...,Sn])

If the guessing attack needs to be verified, it is

formally specified by using the reserved word

“Guessable”.

(b) Guessable = P

4 FORMAL VERIFICATION

We started the formal verification of G-PAKE with

the formal verification of EKE protocol and of the

modified version of EKE that the authors proposed

in order to be easily transformed into a contributory

multi-party protocol. We will not present here the

details of these two verifications (the Casper model

of these two protocols), because EKE protocol was

already verified and proved safe by Lowe. Based on

the Casper model provided by Lowe (Lowe, 2001),

the modeling of the modified version of EKE is

straightforward.

G-PAKE is a multi-party protocol. Casper/FDR2

cannot be used to model and to verify a protocol

with an unspecified number of participants. That is

why we reduced the protocol to exactly three

entities: a leader and other two members. The

message exchange between the leader and each of

the members is formally the same. If the number of

members is higher than two, the only difference will

be the corresponding growth of the number of

nonces transmitted in steps 3 and 4. There is no

reason for which the number of elements in a

message will influence its security properties. In

conclusion, if the security properties of the protocol

will be proved valid on this reduced system, it

means that they are valid for a system with any

number of members. If the properties will be

invalidated by the verification, they wouldn’t be

valid neither for the general protocol. We conclude

by saying that this reduction does not affect the

generality of the results.

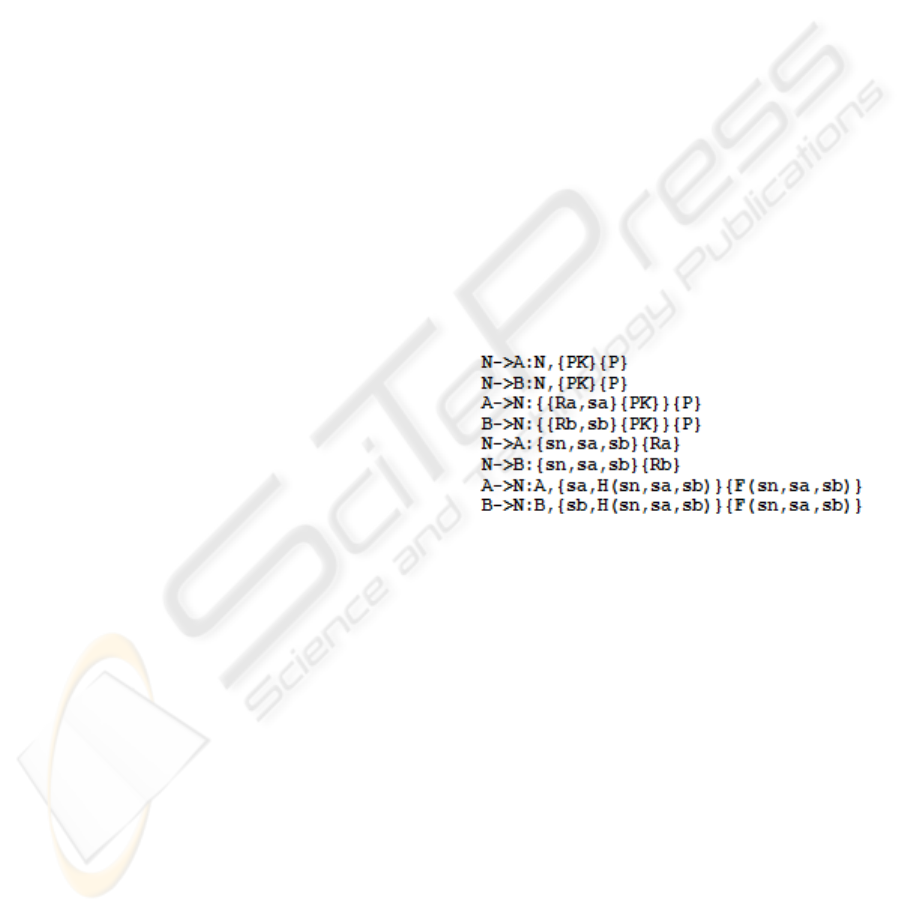

In Figure 4 the Casper formal specification of

original G-PAKE protocol is given. The free

variables represent: N – the leader of the group, A

and B – the other two members, P – the shared

secret, Ra and Rb – the secret keys of the member

nodes, sa, sb, sn – the generated nonces, H – a hash

function and F – a one-way function for computing

the final session key. The F function is defined as

“symbolic”, which means that the output is not

important; the important thing is the fact that its

input is the three values generated by the three

nodes. For more details about modeling a protocol

with Casper, see Lowe, 2001.

Figure 4: Casper model of original G-PAKE.

After analyzing the above model, FDR2 concluded

that the secrecy specifications (the particularization

for this case of the properties presented in section 3)

are all valid: P, sa, sb, sn and PK cannot be found by

a potential intruder. Also P cannot be guessed. These

results confirm the observations given without proof

by Asokan and Ginzboorg: the intruder, not knowing

and being unable to guess P cannot be part of the

protocol, and not knowing sn, sa, sb it cannot

generate the final session key.

But the agreement specifications failed. By

analyzing the output provided by FDR2 (messages

and counterexamples) after they were translated by

Casper, we concluded that besides authentication,

the contributively nature of the final key is also not

achieved. From FDR2 counterexample we saw that

the intruder can act like a sort of “man-in-the-

middle” between the leader N and the members.

Even if the intruder cannot decrypt the messages (we

FORMAL VERIFICATION OF G-PAKE USING CASPER/FDR2 - Securing a Group PAKE Protocol Using Casper/FDR2

301

previously showed that secrecy specifications were

verified and that P cannot be guessed) it is capable

to eliminate the contribution of a member to the final

key. For example, the contribution of member B (sb)

to the final key is eliminated, and the contribution of

A (sa) to the final key is duplicated. So we

concluded that the protocol does not satisfy one of

its major purposes: the final key must be created

with the contributions of all the members of the

group. Also the use of the new key for verification

purposes in the final step of the protocol it is not

sufficient, as stated by the authors.

We give in Figure 5 the model of our modified

version of P-BAKE that successfully accomplishes

all the specified security properties:

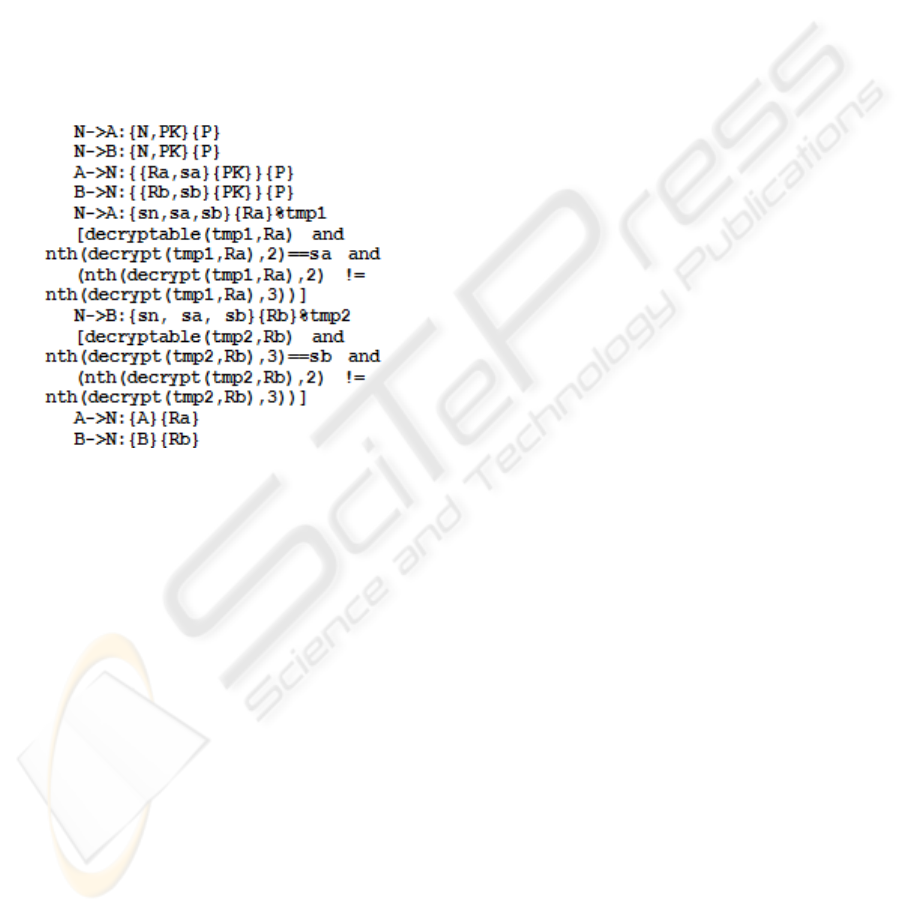

Figure 5: Casper model of the modified G-PAKE version.

Our modifications targeted three aspects of the

protocol: the transmission of the identities, the

verification of the generated values, and the

verification of the final session key. In the original

version, the leader sends its identity to the members

in clear. The members also respond with their

identity in clear. We propose to encrypt the identities

like all the other elements of the corresponding

messages (see messages 1, 2, 7 and 8). Regarding

the second aspect, we propose that the member

nodes to accept the messages in steps 5 and

respectively 6 only if they found their own

contribution in the decrypted values and only if their

contribution is different from the contribution of the

other members (see acceptance condition of the

message by the receiver for messages 5 and 6). If the

values sn, sa and sb remain secret and if the

verifications in step 5 and 6 succeed, we consider

that the verification of the computed final key is not

necessary; so we proposed a simplified version of

the confirmation messages 7 and 8. This represents

the third aspect.

By analyzing our model with FDR2 it resulted that

all the specified properties are now verified.

5 CONCLUSIONS

In this paper we presented the way we used Casper

and FDR2 to check the security properties of G-

PAKE protocol. Our verification proved that the

secrecy properties are valid, but also revealed that

the mutual authentication of the members fails and

also that an intruder can perturb the protocol by

eliminating the contribution of one or more members

to the final key. The elimination of contributions is

only possible because the mutual authentication

fails. We consider this a very important result,

because members’ contribution was the main

purpose of Asokan and Ginzboorg’s proposition.

Using this attack on a protocol run for a group with

n members, an intruder can eliminate the

contributions of maximum n-2 members (except for

the leader and for one other member, the

contribution of which it will multiply). For that, it

will act like a man-in-the-middle between the leader

and n-2 members: it will present itself as the leader

to n-2 members (by intercepting and resending in its

own name the message that the leader board casts in

the first step and to the other one member) and as a

member to the actual leader (by intercepting and

resending in its name the messages of the other one

member). This results in a weaker final key, because

it will be computed using fewer distinct values (in

the worst case only two). So the final key will be

much easier to break.

Based on these results and on the original

observations of Asokan and Ginzboorg we have

proposed a new version of the protocol which

achieves mutual authentication of the members and

in consequence also resolves the problem with the

contributions. We proved both by formal

verification. Our version is lighter, because the last

message contains fewer elements. We also improved

the protocol by moving the verification of the final

key (in fact the verification of the values that are

used to generate the final key) from the last step to

the previous one. This way, in case of an attack, it is

not necessary for the nodes to run all the protocol:

they will spot the attack and abort without sending

the last message.

Because the values used as member’s

contribution are randomly generated, the acceptance

conditions in messages 5 and 6 can be false even in

absence of an attack: sa and sb can have the same

values because they were generated equal. This is a

SECRYPT 2010 - International Conference on Security and Cryptography

302

drawback of our version of the protocol. Still,

because the generation of the s values is random and

the generation events for each of the members are

independent, the probability that these values are

equal is almost zero. In the least favorable case in

which the values are equal, the member nodes will

abort the corresponding run of the protocol, and the

leader will have to start all over again.

Ad hoc networks are, in this moment, a rather

theoretical research field. Very few actual

implementations exist and even fewer that take into

consideration security aspects. So we believe that

formal verification of the proposed but not yet used

security protocols (as our own) is a very important

step towards implementation and standards

establishment. Especially because, as we showed in

the introduction, this G-PAKE is the only

authenticated group key agreement protocol

proposition designed especially for ad hoc networks.

REFERENCES

Steven M. Bellovin, Michael Merrit, “Encrypted key

exchange: Password-based protocols secure against

dictionary attacks”, in Proceedings of the IEEE

Symposium on Research in Security and Privacy, May

1992.

Victor Boyko, Philip MacKenzie, Sarvar Patel, “Provably

Secure Password-Authenticated Key exchange Using

Diffie-Hellman”, in Proceedings of EUROCRYPT’01,

LNCS 1807, Springer-Verlag, 2001.

Maarit Hietalahti, “Key establishment in Ad-hoc

Networks”, 2001.

N. Asokan, Philip Ginzboorg, “Key Agreement in Ad-hoc

Networks”, Elsevier Preprint, February 2000.

Arun Kumar Bayya, Siddhartha Gupte, Yogesh Kumar

Shukla, Anil Garikapati, “Security in Ad-hoc

Networks”, Computer Science Department, University

of Kentucky.

AbdelilahTabet, Seonghan Shin, Kazukuni Kobara, Hideki

Imai, “On Formal Verification Methods for Password-

based Protocols: CSP/FDR and AVISPA”, in

Proceedings of the 4th WSEAS International

Conference on Information Security, Communications

and Computers, December 2005.

Haruki Ota, Shinsaku Kiyomoto, Toshiaki Tanaka,

“Security Verification for Authentication and Key

Exchange Protocols”, International Journal of

Computer Science and Network Security, VOL. 9 No.

3, March 2009.

Gavin Lowe, Philippa Broadfoot, Mei Lin Hui, “Casper A

Compiler for the Analysis of Security Protocols User

Manual and Tutorial”, version 1.5, December 2001

“Failures-Divergence Refinements – FDR2 User Manual”,

http://www.fsel.com/, June 2005.

Gang Yao, Hongji Wang, Dengguo Feng, “A Group

PAKE Protocol Using Different Passwords”, in

Proceedings of the International Conference on

Networks Security, Wireless Communications and

Trusted Computing, 2009.

FORMAL VERIFICATION OF G-PAKE USING CASPER/FDR2 - Securing a Group PAKE Protocol Using Casper/FDR2

303
