Towards combining Model Matchers for

Transformation Development

Konrad Voigt

SAP Research CEC Dresden, Chemnitzer Str. 48, 01187 Dresden, Germany

Abstract. The theory of model transformation has been studied extensively dur-

ing the last decade and is now well understood. Several transformation languages

have been developed and implemented. Recently, model matching has been pro-

posed to offer support for transformation development. The task of model match-

ing aims at ﬁnding semantic correspondences between model elements, thus fa-

cilitating semi-automatic mapping generation.

However, current model matching approaches mostly concentrate on label-based

model similarity and are isolated. Further, they show deﬁcits with respect to qual-

ity, performance and language independence.

We tackle these issues by proposing a novel approach using a combination of

matchers in a common framework. Thereby, schema matching techniques are

adapted and extended to suit our needs. Complementing our approach, we pro-

pose model speciﬁc matchers addressing new aspects of similarity. Our conﬁg-

urable framework allows an interpretation of combined matching results, thus

increasing the number and quality of mappings found.

1 Introduction

Model transformation in the context of Model Driven Development (MDD) has been

widely studied in the past. During the last years several transformation languages have

been proposed resulting in different engines. According to [1], a model transformation

in context ofMDD is ”the process of convertingone model to another model of the same

system”. This process is performed according to a transformation deﬁnition, which we

also refer to as mapping. A mapping describes the way a source model is transformed

to a target model. Transformation languages are supported by tools like smart editors

and debuggers. However, the languages face the problem of their complexity. They are

powerful in expressiveness but lack simplicity.

Considering a set of models which have to be transformed, the following steps are

part of developing a transformation. First, a mapping has to be identiﬁed, then it has

to be speciﬁed in a transformation language, which is ﬁnally executed. Mappings con-

sist mostly of one-to-one relations and common patterns, such as nesting or concate-

nation of elements. Applying proposal generation for mappings accelerates the task of

transformation development and reduces errors and effort in implementing transforma-

tions [2]. In the last two years model matching (also named metamodel alignment) has

been proposed as an approach for supporting mapping speciﬁcation. The term model

matching refers to an identiﬁcation of semantic correspondences between metamodel

Voigt K. (2009).

Towards combining Model Matchers for Transformation Development.

In Proceedings of the 1st International Workshop on Future Trends of Model-Driven Development, pages 3-12

DOI: 10.5220/0002175900030012

 SciTePress

elements and originates from the ﬁelds of database- and XML-schema matching [3–5].

Since schemas and metamodels share similarities, model matching levers the concepts

to metamodels. It can be applied by generating proposals for mappings based on match-

ing results [6,2,7].

Despite their feasibility today’s model matching approaches leave room for im-

provement in terms of quality and performance (execution time) of the matching pro-

cess. Furthermore, the proposed generation of transformations is speciﬁc to one lan-

guage, thus constituting no generic approach. The generated transformations also lack

an optimization in order to increase readability and usability for a transformation devel-

oper.

In this paper we demonstrate a novel approach on model matching-basedon a frame-

work combining different matching techniques, also called matchers. Additionally, we

propose combining several matchers for an improvedmatching result. These techniques

differ from existing ones in taking additional information into account, like instances,

existing mappings, graph structures etc., thus allowing for an increased match quality

for an automatic approach. Therefore, we position our work in the middle, shifting the

approach closer to an automatic model mapping than existing approaches as can be

seen in Figure 1. It depicts today’s approaches on mappings, which are manual. The

semi-automatic way is illustrated by the diamond in the middle, which we address to

shift more towards the automatic way.

ŵĂŶƵĂů

ĂƵƚŽŵĂƚŝĐ

ƐĞŵŝͲĂƵƚŽŵĂƚŝĐ

KƵƌ ǁŽƌŬdŽĚĂǇ

ƵƌƌĞŶƚ

DĂƚĐŚŝŶŐ

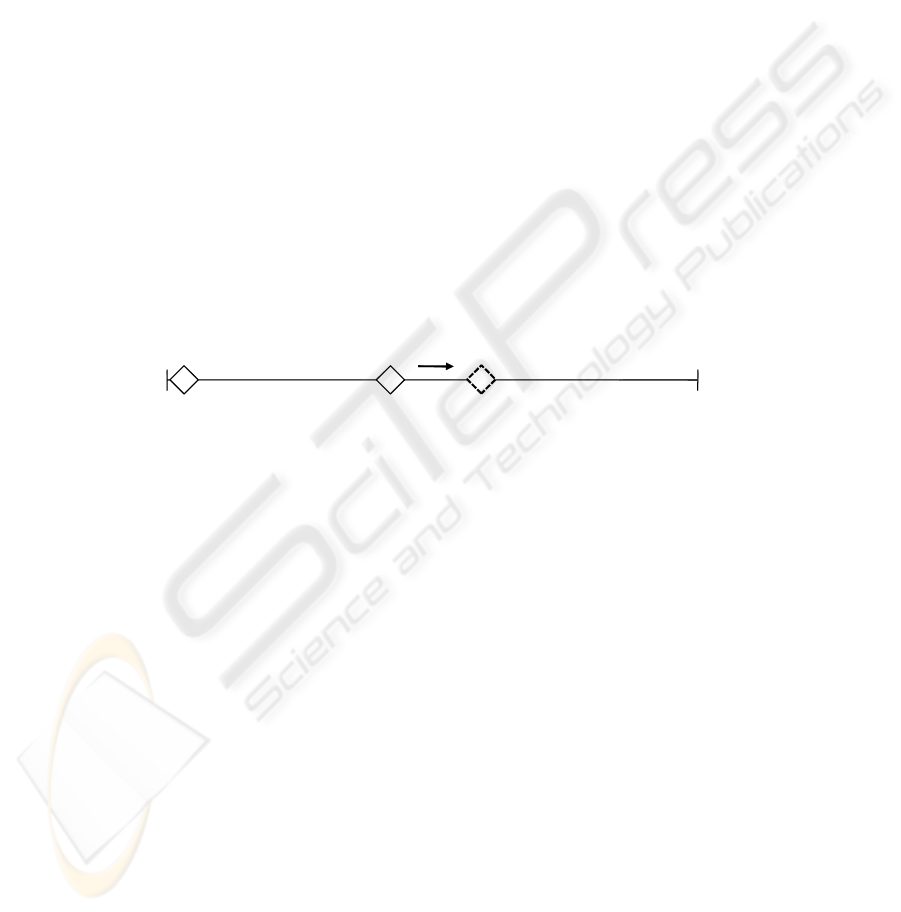

Fig.1. Degree of manual involvement in mapping speciﬁcation.

We structure our paper as follows; in section 2 we show two motivating examples

for model matching for model transformation. The subsequent section 3 deals with

the issues in current model matching addressing the related work; followed by a de-

scription of our approach proposing a matcher combination framework for matching

improvement (section 4). We ﬁnally summarize and conclude our paper in section 5.

2 Motivating Examples

In the following we will show two motivating examples for model transformation and

matching-based support in model transformation development.

2.1 Service Engineering

Our example is positioned in the area of model driven service engineering and service

marketplaces [8]. Consider two parties offering services to potential customers. For

example the company SAP

and IBM

. Both use a proprietary approach of describing

a service. Assuming each of these approaches is model based, hence the companies

use their own tools and metamodels for offering and describing services. This setting is

depicted in Figure 2, illustrating the two parties, a partial description of a service and

the services themselves (instances of the description).

^W /D

DŽĚĞůdƌĂŶƐĨŽƌŵĂƚŝŽŶ

^ĞƌǀŝĐĞ

ƵŶĚůĞ WƌŝĐŝŶŐ

^ĞƌǀŝĐĞ

WƌŝĐĞ ƵŶĚůĞdǇƉĞ

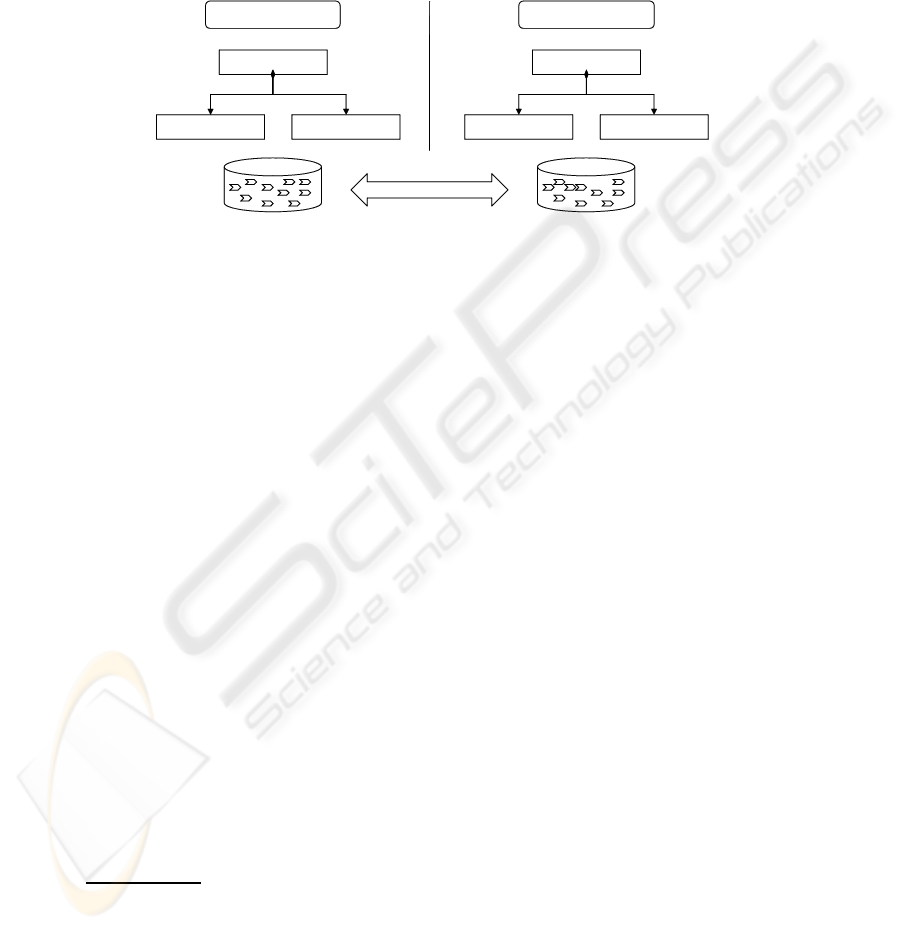

Fig.2. Example of model transformation as integration of different service descriptions.

Since both companies are part of a competitive market, they do not agree on a com-

mon description language nor adjust their tools to external descriptions. One can see,

that the same entity of information is described – a service. There are common attributes

of a service like bundling and pricing. However, the descriptions are slightly different

in name, structure, type etc. In order to enable SAP to offer a service in IBM’s market-

place, a service’s description needs to be transformed. This can be done using a model

transformation based on metamodels. Hereby model transformation development can

be supported by model matching, because the metamodels have similarities in name,

structure, type etc. While ﬁnding similarities between the metamodels, transformation

proposals can be generated and ease the development of the transformations. For each

new marketplace the recurring challenge of integrating service descriptions arises. To

summarize, the example is constituted of the following points:

1. Different metamodels of the same domain represent identical information (e.g. ser-

vice descriptions)

2. There is a need for synchronization of information

3. Models are isolated and not changeable, so there is no possibility for an integrated

model

4. Model transformation is used for synchronization

5. Models potentially include similar structures, similar names, similar concepts, thus

model matching can support the transformation development

http://www.sap.com.

http://www.ibm.com.

2.2 Metamodel Evolution

Another example for matching-based support of model transformation is the area of

metamodel evolution. Consider a metamodel with corresponding instances, which is

subject of change. This includes actions like removing elements, restructuring, renam-

ing, adding elements etc. For example removing a metamodel element could lead to in-

valid instances, since the corresponding metamodel element for old instances has been

removed. A model transformation can be used to transform the old instances into new

ones with respect to the new metamodel version. This setting is a perfect situation for

model matching, because two metamodel versions are very similar, since both are of

the same domain. Again model matching can be applied for generating transformation

proposals.

Both examples for model matching in model transformation development demon-

strate, that model matching supports the recurring task of mapping speciﬁcation. Sub-

sequently we will describe model matching approaches and reveal their issues.

3 Issues in Current Model Matching

Nowadays model matching approaches are in an early stage. There are several works

addressing support of model transformation development, which can be separated into

metamodel- and example (instance)-based approaches.

Metamodel-based Approaches. Model matching has been done ﬁrst by Lopes etal.

[6,9]. They apply a ﬁx-point computation based approach for determining similarity

between metamodels. Based on this information they propose to generate transforma-

tions. According to [6] their approach seems to be label-based. It uses information from

names, data types and enumerations, to propagate computed similarity through contain-

ment child elements. In addition they identify the problem of optimizing the generated

transformation code, because of its complexity.

Fabro and Valduriez [2] tackled the problem of model matching using a similarity

ﬂooding approach. Again they use label-based similarities which are propagated. Their

results lead to a verbose generation of concrete mappings. Their work shows a promis-

ing approach on proposal generation, which again raises the need for optimization.

According to the approach proposed by Falleri [7] metamodels to be matched are

converted into directed labelled graphs. These graphs are used to apply a similarity

ﬂooding algorithm, whereby the similarity computation is done via label-based similar-

ity. This similarity is propagated through the encoded graph until a ﬁx-point is reached.

This approach lacks an evaluation and is label-based.

Example-based Approaches. Wimmer et al. [10] follow an example-based approach

for transformationgeneration.They consider label-based similarity of instance values in

order to determine and generate a transformation between metamodels. They consider

only linguistic aspects and concentrate on instance values, which raises the need for

instances to cover all possible mappings. Finally they generate transformations.

Varro and Balogh [11] use a similar approach as Wimmer et. al. They apply induc-

tive logic in order to derive mappings based on instance data. They explicitly state their

assumptions including a complete coverage of mappings by the instance data.

All of the current model matching approaches rely on label-based similarity. Con-

sidering internationalized metamodels in different languages, like English and Chinese,

these approaches will fail. The published approaches lack an evaluation, but experi-

ments have shown that the number of found matches is below a half of all matches,

relative to a complete mapping speciﬁcation. Therefore, they seem to leave room for

improvement. Additionally, the approaches do not consider the performance (execution

time) of the matching algorithms implemented. This leads to execution times for match-

ing in ranges of minutes considering models with more than 100 elements. This is not

feasible for using matching techniques for an acceleration of model transformation de-

velopment. Today’s model matching approaches are based on one matching algorithm

that is performed sequentially without a reuse or combination of matching results. For

a generation of transformation proposals they consider only one speciﬁc transformation

language. Thus removing ﬂexibility and the choice for a language one is most familiar

with.

Furthermore, the code generated is not suitable for further processing by a developer,

since a lot of rules (more than 100 compared to 4 manually developed[2]) are generated.

Additionally, these rules lack of readability and usability. The subsequent section deals

with our approach to address the issues described.

To summarize, we have identiﬁed the following issues, investigating the state-of-

the-art:

1. Current model matching approaches make use of labels and are therefore restricted

to natural language (e.g. English or Chinese)

2. Current model matching approaches have to be increased in quality and perfor-

mance

3. Current code generation targets only model transformation and is limited to one

programming language

4. Generated transformation code is not developer-friendly

4 Improving Model Matching for Model Transformation

Development

We identiﬁed the issues and needs for improving model matching and transformation

generation. To address these issues we propose an approach independent from a speciﬁc

transformationlanguage, in order to provide a generic solution for model transformation

development. This section describes our approach; ﬁrst giving an overview followed by

detailed descriptions of our main ideas:

1. Improved model matching based on a matcher combination framework

2. Model matching by additional metamodel speciﬁc matchers

3. Model transformation generation and optimization

Model matching is used to create mapping proposals based on element similarity of

metamodels to be mapped. We propose to apply a matcher combination framework and

additional metamodel speciﬁc matchers. We represent the generated proposals in a pivot

model for model transformation, which serves as a base for a generation of executable

model transformations.

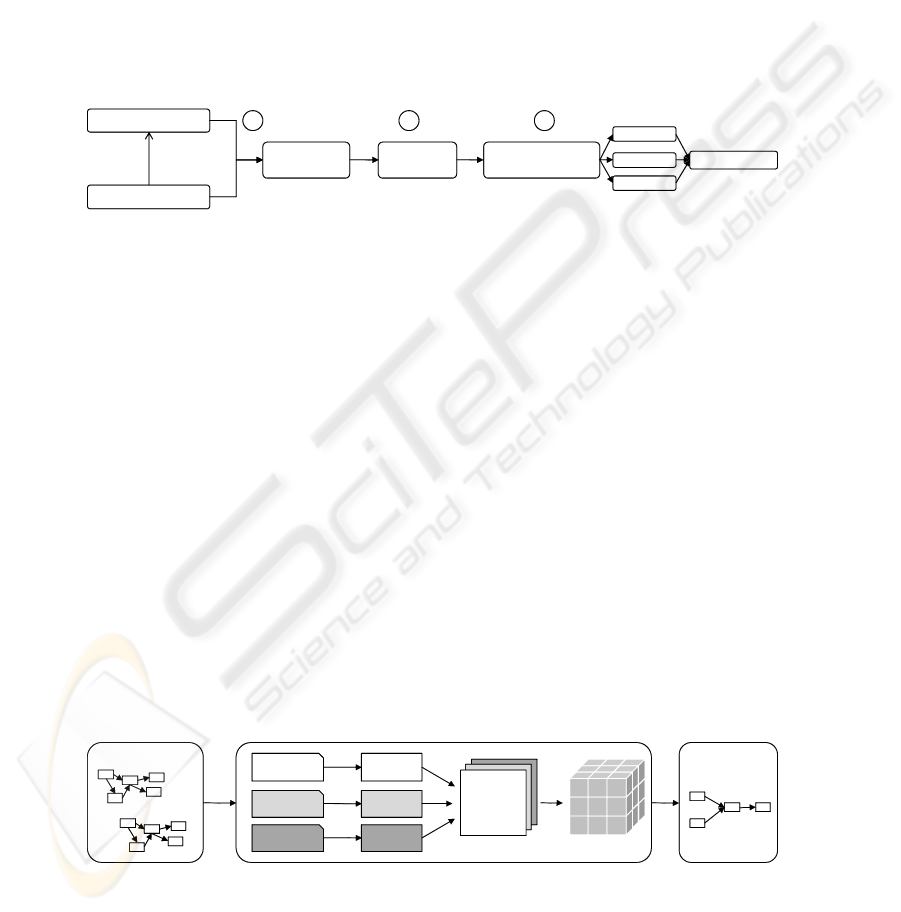

Figure 3 depicts an overview of our matching-based approach. The metamodels to

be mapped (and their instances) are passed onto the matching component (1). After

the matchers have been applied, generated proposals are presented to a model trans-

formation developer (2). This developer edits the proposals and afterwards executable

transformations are generated of them (3) and ﬁnally optimized.

Ysd

ŝŶƐƚĂŶĐĞKĨ

DŽĚĞůƐ

DĂƚĐŚŝŶŐ

ŽŵƉŽŶĞŶƚ

DĞƚĂŵŽĚĞůƐ

ϭ͘ Ϯ͘ ϯ͘

dƌĂŶƐĨŽƌŵĂƚŝŽŶ

'ĞŶĞƌĂƚŽƌ

DĂƉƉŝŶŐ

ĚŝƚŽƌ

KƉƚŝŵŝǌĞƌ

d>

Fig.3. Process of matching-based support for model transformation development.

4.1 Combining Matcher Framework and Metamodel Matchers

In order to increase the matching result quality we propose to use a matcher combination

framework. This framework provides a base for combining results of model matchers.

For this purpose, we adopted the COMA++ approach proposed by Do et. al. [4,5] as

outlined in [12]; thus taking advantage of their results. Figure 4 shows the concept of

this combining framework; it receives metamodels (with additional models) as an input

producing mapping proposals as an output. The processing of the given metamodels is

done by applying different matchers each leading to a speciﬁc matching result.

These results are placed in a matrix having the source and target elements on the

axis and the similarity values as content. Arranging the matrices along the elements

being matched leads to a similarity cube containing all similarity values. These values

are combined in the similarity cube using heuristics and different matching strategies.

Optionally matchers can be applied again and ﬁnally the resulting match is created. This

approach allows for a combination of matching results from different approaches and

even grants a possibility for importing matching results from other tools.

DĞƚĂŵŽĚĞůƐ

DĂƉƉŝŶŐƐ

DĂƚĐŚĞƌy

DĂƚĐŚĞƌz

DĂƚĐŚĞƌ

^ŝŵŝůĂƌŝƚǇƵďĞ

ZĞƐƵůƚy

ZĞƐƵůƚz

ZĞƐƵůƚ

ZĞƐƵůƚy

ŽŵďŝŶĂƚŝŽŶ

Fig.4. Overview of our model matcher combination framework.

Nowadays model matching approaches rely on the similarity ﬂooding algorithm,

which uses ﬁx-point calculation for similarity calculation. The result is computed by

only one matcher with a ﬁxed order of matching algorithms. Applying our approach al-

lows a combination of matchers and matching results while caching intermediate results.

Both results can be reused across different matchers and do not have to be computed

again. This is one argument for an increased performance. Furthermore, we propose to

design the matchers themselves with respect to performance.

ůĞŵĞŶƚ

DĞƚĂŵŽĚĞůͲďĂƐĞĚ /ŶƐƚĂŶĐĞͲďĂƐĞĚ ZĞƵƐĞͲŽƌŝĞŶƚĞĚ

^ƚƌƵĐƚƵƌĞ ůĞŵĞŶƚ ^ƚƌƵĐƚƵƌĞ DĞƚĂŵŽĚĞů DĂƉƉŝŶŐ

>ŝŶŐƵŝƐƚŝĐ

ŽŶƐƚƌĂŝŶƚͲ

ďĂƐĞĚ

>ŝŶŐƵŝƐƚŝĐ

ŽŶƐƚƌĂŝŶƚͲ

ďĂƐĞĚ

EĂŵĞ

EĂŵĞƉĂƚŚ

ĂƚĂƚǇƉĞ

WĂƌĞŶƚ

>ĞĂĨ

ŝĐƚŝŽŶĂƌǇ /ŶƐƚĂŶĐĞ

'ƌĂƉŚ

ŶŶŽƚĂƚŝŽŶ

&ƌĞƋƵĞŶĐǇ dƌĂŶƐĨŽƌŵĂƚŝŽŶ

ZĞƵƐĞ

WĂƚƚĞƌŶ

DŽĚĞůDĂƚĐŚŝŶŐ

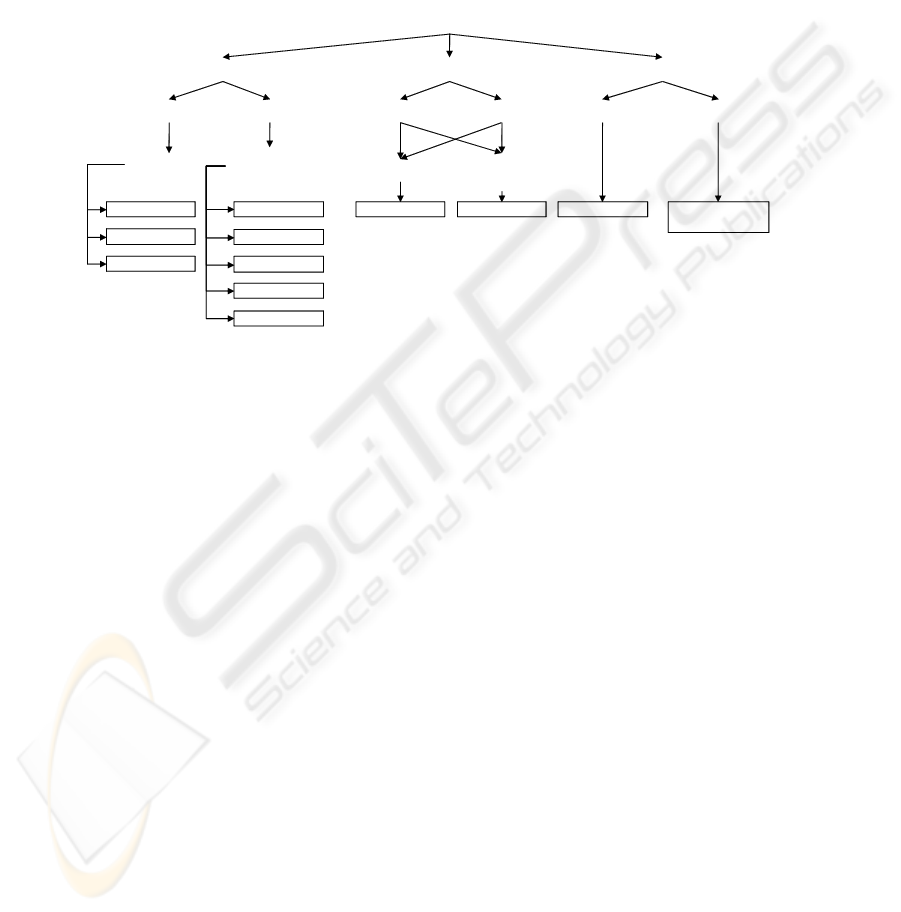

Fig.5. Classiﬁcation of model matching techniques.

Figure 5 depicts our classiﬁcation of matching approaches, which is based on the

schema matching classiﬁcation of Rahm and Bernstein [13]. We adapted and extended

it to suit model matching, ﬁnally we classiﬁed our matchers. The lowest level, high-

lighted by boxes, shows the proposed matching techniques, the other nodes (classes)

are described in the following. The top-level class metamodel-based describes match-

ers based on the information provided by metamodels. It is divided into element- and

structure- based matchers. The element-based matchers use linguistic similarity com-

puted from the names of elements, whereas the structure-based ones use constraint-

based information like types, cardinalities etc. The instance-based matchers rely on

information given by the metamodel instances (models), which is again structured like

the metamodel-based matchers. Finally the reuse-oriented matchers takes advantage of

available information from existing metamodels (e.g. shared elements) or former map-

pings, this knowledge is used for similarity computation.

Adopting the XML-schema based COMA++ we selected a set of matchers. The se-

lection is based on the classiﬁcation, and coverage of all classes and the schema match-

ing experiences, opting for matchers with best results. Furthermore, we propose addi-

tional matchers to take advantage of the greater expressiveness of metamodels (com-

pared to XML-schema). The matchers are as follows:

Dictionary Matcher. Using a dictionary allows for matching-based on synonyms or

translations. This matcher uses a given database of words to compute a linguistic simi-

larity.

Name Matcher. This matcher targets the linguistic similarity of metamodel elements.

It splits given labels into tokens following a camel case approach. Afterwards a token

similarity based on a string similarity is computed.

Name Path Matcher. This matcher performs a name matching on the containment path

of an element. This supports to distinguish sublevel-domains in a structured contain-

ment tree even if leaf nodes do have equal names.

Data Type Matcher. In contrast to the type system provided by XML, metamodels and

in particular EMF allows a broader range of types. For example EMF allows deﬁning

data types based on Java classes. An extended data type matcher uses these concepts

allowing an improved matching result.

Parent Matcher.Based on similar containment parents this matcher determines a simi-

larity between children. It follows the rational that having similar parents, indicates a

similarity of elements.

Leaf Matcher.Thismatcher computes a similarity based on similar containmentchildren.

If metamodel elements have similar children, then a similarity of these elements can be

derived.

Graph Matcher. This matcher applies graph similarity algorithms in order to derive a

similarity for elements being part of a matching graph structure. Hereby it takes ad-

vantage of typed relationships between elements like inheritance, aggregation, etc. It

follows the rational of computing the biggest common sub-graph of two given graphs.

Annotation Matcher. Annotation of metamodel elements can also be used for similarity

computation. In contrast to schema matching this does not only address documentation

but speciﬁc aspects, like mapping descriptions. For example EMF

makes use of an-

notations for describing customization of automatic schema mapping generation. This

speciﬁc information can be used for a better matching result.

Instance Matcher. This matcher uses instance data (models) for computing an element

similarity. The matcher examines a set of instances of the metamodels to be matched. If

instance values are similar, an element similarity can be concluded.

Frequency Matcher. This matcher examines the distribution of instantiated elements of

metamodels to be matched by using instance data. A similarity based on the frequency

of instances can be computed.

Pattern Matcher. To reduce metamodel heterogeneity and redundancy of metamodel

elements, patterns of these are reused across different metamodels. This includes ele-

ments like data types, constraints, etc. This matcher uses these common elements for

similarity computation.

Transformation Reuse Matcher. Based on a central mapping repository and associated

metamodelsthis matcher evaluates an existing knowledge base of mappings. The match-

ing is performed by looking up elements in the repository similar to elements being

matched. If there is an existing relation between them, a similarity is derived for the

matching elements.

First experiments with model matching have shown, that the matching quality de-

pends on the type of metamodels and the matcher conﬁguration. For example consider

two metamodels to be matched which are deﬁned on the same level of abstraction con-

taining different representation of the same information, so they are very similar in

Eclipe Modeling Framework – http://www.eclipse.org/emf/

their names. Here a name matcher has signiﬁcant weight, because the names for the

same concept are similar. In contrast consider two metamodels in different languages;

here a name-based matcher will fail. Classifying the type of model transformation in-

tended allows a derivation of a speciﬁc weighting and matcher conﬁguration for the

matching framework. This covers the conﬁguration and speciﬁc selection of matchers

to be applied.

4.2 Model Transformation Generation

Today’s approaches use simple mapping models which serve as a base for code gen-

eration. However, the mapping models capture only static information, because they

allow only links between model elements. We propose to investigate several transfor-

mation languages in order to deﬁne a non-executable pivot metamodel based on their

commonalities. This metamodel is the foundation for transformations being generated

and optimized with respect to a developer. For validation and acceptance purposes we

propose to start with QVT [14] for transformation generation.

5 Summary and Conclusions

We proposed an approach on improving model matching for model transformation de-

velopment. This is implemented by a matcher combination framework, metamodel spe-

ciﬁc matchers and model transformation generation. We presented a classiﬁcation and

concepts for metamodel speciﬁc matchers. Namely they are: an instance matcher, a

graph matcher, an annotation matcher, a data type matcher, a frequency matcher, a pat-

tern matcher, a transformation reuse matcher, and a matcher conﬁguration based on

model transformation type classiﬁcation. We proposed a matcher and framework de-

sign dedicated to improved performance and scalability of model matching.

The main goal of our idea is to lower the effortin model transformation development

and to reduce possible errors. Our proposal of using a combining matcher framework

with additional matchers leads to:

1. Metamodel language independent matching by applying additional matchers

2. Increased quality of matching results by applying a matcher combination frame-

work, additional matchers and a reuse of matching results

3. A combination of isolated matchers and even an import of matching results of ex-

ternal approaches (as a virtual matcher)

4. Increased matching performance by applying a matcher combination framework

and designing performant matchers

A ﬁrst prototypical implementation using an existing framework and combining

the instance matcher and data type matcher indicate the feasibility of our approach,

which has to be reﬁned and evaluated further. The proposed framework can also serve

as a basis for integrating existing matching approaches in order to improve matching

quality.

The evaluation and development of both will be based on practical use cases of

model transformation in the area of service engineering and model evolution. This will

allow for an evaluation of feasibility as well as quality of our proposals using common

measurements like precision, recall and F-measurement. Hereby it is worth to investi-

gate a benchmark for model matching consisting of a suite of sample data. A study of

criteria inﬂuencing the quality of matching results, which allows for reliable statements

regarding the matching quality, e.g. a complete automatic generation of transformations

is part of the future work as well. This also includes model transformation scenario clas-

siﬁcation for matcher conﬁguration. Furthermore, it is worth to explore model matching

in other areas like trace development, model search and modelling proposal generation

as promising future work.

Acknowledgements

The work was funded by means of the German Federal Ministry of Economy and Tech-

nology under the promotional reference ”01MQ07012”. The author takes the responsi-

bility for the contents.

References

1. Object Management Group (OMG): MDA Guide Version 1.0.1. (2003) OMG document

omg/2003-06-01.

2. Fabro, M.D.D., Valduriez, P.: Semi-automatic model integration using matching transforma-

tions and weaving models. Proceedings of SAC ’07 (2007) 963–970

3. Madhavan, J., Bernstein, P.A., Rahm, E.: Generic schema matching with cupid. In: The

VLDB Journal. (2001) 49–58

4. Do, H.H.: Schema Matching and Mapping-based Data Integration. VDM Verlag Dr. Mueller

e.K. (2006)

5. Aumueller, D., Do, H.H., Massmann, S., Rahm, E.: Schema and ontology matching with

COMA++. In: Proceedings of SIGMOD ’05. (2005) 906–908

6. Lopes, D., Hammoudi, S., Abdelouahab, Z.: Schema matching in the context of model driven

engineering: From theory to practice. In: Proceedings of SCSS05. (2006) 219–227

7. Falleri, J.R., Huchard, M., Lafourcade, M., Nebut, C.: Metamodel matching for automatic

model transformation generation. In: Proceedings of MoDELS ’08. (2008) 326–340

8. Cardoso, J., Voigt, K., Winkler, M.: Service engineering for the internet of services. In:

Enterprise Information Systems X, Springer (2008)

9. Lopes, D., Hammoudi, S., de Souza, J., Bontempo, A.: Metamodel Matching: Experiments

and Comparison. In: Proceedings of the International Conference on Software Engineering

Advances (ICSEA’06), Tahiti, French Polynesia, IEEE Press (2006)

10. Wimmer, M., Strommer, M., Kargl, H., Kramler, G.: Towards model transformation genera-

tion by-example. In: Proceedings of HICSS ’07. (2007) 285b

11. Varr´o, D., Balogh, Z.: Automating model transformation by example using inductive logic

programming. In: Proceedings of SAC ’07. (2007) 978–984

12. Voigt, K.: Generation of language-speciﬁc transformation rules based on metamodels. In:

Proceedings of the 1st IoS PhD Symposium 2008 at I-ESA’08. (2008)

13. Rahm, E., Bernstein, P.A.: A survey of approaches to automatic schema matching. The

VLDB Journal 10 (2001) 334–350

14. OMG: Meta Object Facility (MOF) 2.0 Query/View/Transformation Speciﬁcation. Object

Management Group (2007) ptc/07-07-07.
