STORING SEMISTRUCTURED DATA INTO RELATIONAL

DATABASE USING REFERENCE RELATIONSHIP SCHEME

B. M. Monjurul Alom, Frans Henskens and Michael Hannaford

School of Electrical Engineering & Computer Science, University of Newcastle, Callaghan, NSW 2308, Australia

Keywords: XML, Reference Relationship, RDBMS, FCL, PT, CRT.

Abstract: The most dominant data format for data processing on the Internet is the semistructured data form termed

XML. XML data has no fixed schema; it evolved, and is self describing which results in management

difficulties compared to, for example, relational data. This paper presents a reference relationship scheme

that encompasses parent and child reference relations to store XML data in a relational view, and that

provides improved of storage performance. We present an analytical analysis that compares the scheme

with other standard methods of conversion from XML to relational forms. A relational to XML data

conversion algorithm that translates the relational data into original XML data form is also presented.

1 INTRODUCTION

Semistructured data is becoming more and more

prevalent for use in performing simple integration of

data from multiple sources (Abiteboul, Quass et al.

1996). By semistructured, we mean that although

the data may have some structure, this structure is

not as rigid, regular, or complete as the structure

required by traditional database management

systems (Abiteboul 1997). The emergence of XML

(Harold 2004), which is a data format for semi-

structured data, has increased the use of

semistructured data, assisted by the fact that attribute

names are stored with the data itself, making it self-

describing (Deutsch, Fernandez et al. 1999).

XML is the dominant data exchange format for

Internet-based business applications. It is also used

as the data format for automated tasks such as

information extraction, natural language processing,

and data mining (Senellart and Abiteboul 2007).

When in XML form, data is neither table-oriented as

in a relational database, nor is it strictly typed as in

an object database (Abiteboul 1997). Rather, XML

data comprises hierarchies that have no fixed

schema. While XML form supports Internet

transport and certain data processing tasks, it causes

issues for other common activities such as querying

and updating. Techniques exist for querying XML

data (e.g. Lorel (Abiteboul, Quass et al. 1996),

UnQL(Buneman, Davidson et al. 1996), XQuery

(Pal, Cseri et al. 2005), XML-QL(Deutsch,

Fernandez et al.), XPath(Harding, Li et al. 2003) );

however these are more complicated to use and

often less efficient than queries on the equivalent

relational data using languages such as SQL. The

promising approach of building XML database

management systems above underlying Relational

Data Base Management Systems (RDBMS) is

described in (Florescu and Kossman, 1999;

Shanmugasadaram, Tufte et al., 1999;

Shanmugasadaram, Kiernan et al., 2001; Du, Amer

et al., 2004; Pal and Cseri, 2004; Balmin and

Papkonstatinou, 2005; Josifovskil, Fontoural et al.,

2005). These systems represent the data in relational

form for processing that works better in that form,

and similarly represents the same data in XML form

when that is more suitable. Techniques are required

to translate the data between forms when necessary,

alternately the data is stored in both forms

simultaneously. In the quest to achieve query

efficiency, three questions have arisen (Balmin and

Papakonstantinou 2005):

1. How can XML data be stored in an

equivalent RDBMS?

2. How is an XML query translated into an

equivalent SQL query?

3. How is the result of an SQL query

translated back into an XML result?

This paper addresses the issue of converting data

in XML form into an equivalent relational database

that preserves any parent/child or other relationships

118

M. Monjurul Alom B., Henskens F. and Hannaford M. (2008).

STORING SEMISTRUCTURED DATA INTO RELATIONAL DATABASE USING REFERENCE RELATIONSHIP SCHEME.

In Proceedings of the Third International Conference on Software and Data Technologies - ISDM/ABF, pages 118-126

DOI: 10.5220/0001875501180126

 SciTePress

implicit in the XML hierarchy. We present a

reference relationship scheme in which the XML

data (including all element paths and attributes) are

stored in a more space-efficient way than is provided

by other existing schemes.

The paper also addresses the issue of translation

of data from the RDBMS into equivalent XML

documents without loss of any information. In

particular, translations are achieved without loss of

attributes and element paths so that an XML

document can be translated into relational form, and

then back into XML form with the distinction

between element paths and attributes intact.

The remainder of this paper is organized as

follows: Related work is described in section 2. The

new parent child relationship structure is presented

in section 3. Analysis of storage requirements, the

translation algorithm for conversion from RDBMS

to XML form, and the estimated query time is

described in section 4. The paper concludes with a

discussion and final remarks in section 5.

2 RELATED WORK

The Object Exchange Model (OEM) defines a way

of representing XML data (Abiteboul 1997). An

instance of OEM can be thought of as a graph, with

objects as the vertices and element paths described

using labels on the edges. Each object has a unique

object identifier (oid). (Abiteboul 1997) also

addresses issues to do with querying and

reconstructing semistructured data. An RDBMS

may be used as a basis for storing and querying

XML data (Florescu and Kossman 1999). The XML

document is viewed as an ordered and labelled

directed graph. A node in the graph represents each

XML element; the node is labelled with the oid of

the XML element. Element-sub-element

relationships are represented by edges in the graph

and labelled by the name of the sub-element. The

order of sub-elements is defined by ordering

outgoing edges from nodes in the graph. Values

(e.g. Strings) in an XML document are represented

as leaves in the graph. All edges of the graph are

stored in a relational table called the edge table and

all the values (represented as leaves) are stored in

separate value tables. While the format assists in

performance of XML queries, this graphical form

does not differentiate between element paths and

attributes, or between element paths and references.

Therefore this form of representation is a

simplification, and some information may be lost.

As a consequence it may be impossible to exactly

reconstruct an original XML document from the

relational data form.

XQuery supports XML views of Relational Data

(Shanmugasadaram, Kiernan et al. 2001), providing

a general framework for processing arbitrarily

complex queries. The query language provides a

view composition mechanism that eliminates the

construction of all XML fragments, and an intensive

computation that reduces an XQuery query to SQL

for efficiency of RDBMS manipulation.

ShreX (Du, Amer et al. 2004) provides generic

(mapping-independent) functions for loading

shredded documents into relations and for

translating XML queries into SQL. In this approach,

the annotation processor parses an pre-annotated

XML schema, checks the validity of the mappings

and creates the corresponding relational schema.

Storing and querying XML data using de-

normalized relational databases is described in

(Balmin and Papakonstantinou 2005), which

elaborates a formal framework for XML schema-

driven decomposition that encompass de-normalized

tables and binary-coded XML fragments. The key

performance focus of this approach is the response

time for delivering the first results of a query. At

present this approach does not work on more

complex queries, because the schema model is based

on directed acyclic graphs (DAGs). It is expected

that the technique will be improved when it is

further developed to be based on arbitrary graphs.

XML data can be stably stored as a byte

sequence (BLOB) in columns of tables to support

the XML model (Pal, Cseri et al. 2004). This form

of storage introduces new challenges for query

processing. So-called ORDPATH is used to

preserve structural fidelity, and to allow insertion of

nodes anywhere in the XML tree without the need

for re-labelling existing nodes.

XISS/R is a system based on an extended pre-

order numbering scheme, which captures the nesting

structure of XML data and provides the opportunity

for storage and query processing that is independent

of the particular structure of the data (Harding, Li et

al. 2003). The system includes a web-based user

interface which enables stored documents to be

queried via a query language named Xpath. The

user interface utilizes the Xpath query engine, which

automatically translates Xpath queries into more

efficient SQL statements.

Document Type Descriptors (DTDs) may be

used as a tool in converting XML into Relational

database form (Shanmugasadaram, Krishnamurthy

et al. 2001). After the desired relational schema for

storing XML documents is defined, an XML

STORING SEMISTRUCTURED DATA INTO RELATIONAL DATABASE USING REFERENCE RELATIONSHIP

SCHEME

119

shredder object, that can accept an XML document

and shred it into rows, is used to populate the tables

of the generated relational schema. A reconstructed

XML view can be produced from the schema

(Shanmugasadaram, Krishnamurthy et al. 2001).

While this technique is less space efficient than

others, the reconstructed XML view is identical to

the original.

A mapping scheme between semistructured data

model and the relational data model, expressed in a

query language called STORED (Semistructured to

Relational Data) is described in (Deutsch, Fernandez

et al. 1999). When a semistructured data instance is

given, a STORED mapping can be generated

automatically using data-mining techniques. A

relational schema is chosen, then the STORED

mapping translates the semistructured data instance

into that schema. The mapping is always lossless:

parts of the semistructured data that do not fit the

schema are stored in an “overflow” graph. STORED

is more restrictive than other query languages for

semistructured data; it doesn’t have joins or regular

path expressions.

3 FRAMEWORK OF

REFERENCE RELATIONSHIP

SCHEME (XML TO RDBMS)

Well formed XML data (i.e. in which end tags match

start tags) may be used as source data for conversion

from XML into RDBMS form. In this new

reference relationship scheme, each distinct child

(sub element path) of the root path (from XML

Document) is represented by a separate relational

table called a parent table. Each XML document is

represented by a separate database. The root path

name used in the XML document becomes the name

of this database. The children (sub-element and

attributes) of the sub-element path (of the root

element) are assigned the name of the attributes (i.e.

the column name) in the parent table, and the content

of each distinct child (sub-element or attribute) is the

same as the content of each distinct tuple in the

parent table. If there is no sub-element Id in the

XML document, the presented method creates a

distinct Id for each tuple in the Relational Table. If

the distinct children (sub-element paths) of the root

path are represented by SE and the children (element

path and attributes) of SE are represented by C

SE,

the relational schema of the parent table is

PTSchema (Id, all C

SE ).

If any C

SE consists of sub-elements rather than

of direct values, the scheme creates a reference for

that particular attribute in the parent table, and a new

table (called the Child Reference table) using that

reference name is created for all types of (C

SE)

children. The children (attributes, sub-element paths

and the descendants of C

SE ) of C

SE form the

attributes in the Child Reference relation. In the

Child Reference relation there is a column named

‘Parent Id’ that is used to maintain the relationship

with the parent table (in which ‘Parent Id’ is the

primary key). An ancestor column (termed FCL) is

included in the child table to store information that

can later be used in reconstruction of the source

XML document. Hence the schema of the child

reference relation is CRTSchema(Parent Id, FCL

(Flag column), all children of C

SE). If it is found

that any attribute in the child table has no direct

value (i.e. it consists of nested element(s)), the

scheme creates a pnull for that particular attribute

rather than creating a new table.

During the reversion process from RDBMS

form to XML, this pnull attribute could become a

parent element of any attribute except parent Id.

Each parent relation can have at most one child

reference table or relation. To distinguish between

sub-element and attributes, the system creates an

attribute dictionary for all attributes in the XML

data. This dictionary records the name of the

attribute, its value, its parent Id and an parent/child

indicator. Thus the general schema for the attribute

dictionary is ADSchema( Parent Id, Name of

attribute, value of the attribute, Relation type). In

general, when XML data is converted to relational

data, there is no difference between attributes and

sub-elements because they are both stored as

attributes in the relational table. When it is necessary

to reconvert the relational data to XML, it is

necessary to distinguish between sub-elements and

attributes.

The attribute dictionary is important in

achieving this distinction. A null value for Parent Id

in the attribute dictionary indicates the existence of

the attribute in the parent table rather than in the

child table, since the parent table has primary keys

but no Parent Ids. Thus it is not always necessary to

check the table type in the dictionary. The algorithm

is given in Figure 1. To understand the algorithm

the following data structures are necessary:

• PT: Parent Table.

• CRT: Represents the child reference table

of the corresponding parent table.

ICSOFT 2008 - International Conference on Software and Data Technologies

120

• null: It is used in both PT and Child Table,

for those attributes that have no nested

element path and no value in XML.

• FCL: Flag Column used to store ancestor

information.

• Pnull: Is used for particular attributes in the

Child table which have nested sub elements

instead of direct values.

• SE: Sub element Path of root tag (from

XML document).

• C

SE: Child of SE.

• C

: Child.

• A

SE: Attribute of SE.

• A

: Attribute.

• NSE: Nested SE [If any C

SE has C

(element path) which has also C

(element

path) then C

of C

SE is called NSE ].

• C

NSE: Child of Nested SE.

• A

NSE: Attribute of Nested SE.

• RefA

Reference Attribute.

Algorithm XML_to_RDBMS()

Begin

Identify all the distinct SE from

original XML doc and create PT

according to each distinct SE;

Identify the distinct C

SE and

SE from XML doc and create

separate column for each A

SE and

SE in the PT;

If there is no Id in XML document

create a column in PT for id as a

primary key

Begin

Store all the contents of each A

and C

SE to each tuple of the

corresponding column in PT;

End;

If (any A

SE and C

SE) has no value

and no nested path

Begin

Put a null to the corresponding

tuple of A

SE and C

SE in PT;

End;

If (any C

SE ) has NSE then

Begin

Put a reference CRT according to

its PT name to the tuple of that

SE column and create a new table

according to that reference CRT

name;

Create distinct columns for all

the C

and A

of NSE in the CRT;

Create a FCL to keep information

of different C

SE for which the

CRT is created;

Create a column to store the

parent Id from PT;

Put a pnull to the corresponding

tuple of specific column of any

NSE and C

NSE (which has no direct

value);

End; // if any C

Create a dictionary for all

attributes from XML document (as

well as from PT and CRT), with

their names, values, Parent Id and

relation type;

End. //main

Figure 1: Algorithm XML to RDBMS.

3.1 Explanation of the Translation

Scheme

The relational database FamilyInfo (comprising

Tables 1, 2 and 3) has been created from the XML

document shown in Figure 2. Personal (Table 1),

CRTpersonal (Table 2) and Attribute Dictionary

(Table 3) are the relations of the FamilyInfo

database. In the child reference table (Table 2) the

Parent Id is the same as the primary key in the

parent table (Table 1). In Table 1, S_S_NO (social

security number) is the primary key; in the child

reference table (Table 2) it is represented as a

Parent Id which provides the ability to connect with

the parent table as well as to enable re-creation of

the exact relationship between child and parent or

ancestor.

Figure 2: Example of XML Document with nested

elements.

The XML document depicted in Figure 2 shows that

Son and Daughter are two C

SE that have no direct

values, rather they contain nested sub-elements of

type Personal (which does have children (address,

</FamilyInfo>

<Son>

<address> Union St </address>

<S_S_No> 3 </S_S_No>

<Job>Nurse </Job>

</Personal>

</Son>

<S_S_No>4</S_S_No>

<address> Nevil Av </address>

<Status> Disable <\Status>

</Personal>

</Daughter>

</Personal>

<Fname> Turner </Fname>

<Job> Teacher </Job>

<Sex>Female </Sex>

</Personal>

</FamilyInfo>

STORING SEMISTRUCTURED DATA INTO RELATIONAL DATABASE USING REFERENCE RELATIONSHIP

SCHEME

121

S_S_NO, Status, Job)). This structure is expressed

in relational form as shown in tables 1 to 3. Table 1

includes columns for Son and Daughter; the

reference identifier CRTPersonal is inserted as the

value in that column for the first tuple. This value

identifies the name of the child reference relation as

CRTPersonal; the relation itself is shown in Table 2.

Table 1: Personal.

S_S_

addres

Sex Son Daug

hter

Fna

Job age

1 Met st Mal

CRTPe

rsonal

CRTPe

rsonal

null null 33

2 Rax st Fem

ale

null

null Tur

ner

Tea

cher

Table 2: CRTPersonal (Child Reference Table for

Personal).

S_S_

Pare

nt_Id

Perso

nal

Statu

address Job Sex FCL

3 1 Pnull well Union

Nur

Male Son

4 1 Pnull Disa

ble

Nevil

null Fem

ale

Daug

hter

Table 3: Attribute Dictionary.

Attribute Name Value Parent_Id Relation

Type

S_S_NO 1 Null PT

age 33 Null PT

Sex Male 1 CRT

Sex Female 1 CRT

S_S_No 2 Null PT

age 21 Null PT

The FCL column in Table 2 shows, respectively,

the SE Son and Daughter relationships with the

parent. When the RDBMS is converted back to an

XML document, this flag column plays an important

role in allowing retrieval of ancestor information.

As shown in Figure 2, the person having S_S_NO

#1 has no Fname, so a null is inserted for that

attribute of the corresponding tuple in Table 1. Also

Figure 2 shows that NSE Personal has no direct

value but has nested elements (address, S_S_NO,

Status, Job). Thus pnull is inserted in the Personal

column of Table 2, rather than creating a new

reference table. When the RDBMS is converted

back to an XML document, this NSE value of pnull

acts as parent for all other attributes except Parent

Id. Six tuples are created in the Attribute Dictionary

corresponding to the six attributes in Figure 2. As

shown in Table 3, six tuples and four columns are

created as the attribute dictionary.

By way of comparison, consider Figure 3, an

XML document for which the single relational table

WorldPopulation Database is given in Table 4.

Since there are no attributes or nested element paths

in Figure 3, the WorldPopulation database is created

in a simple way without having any child relations

or attribute dictionary.

Figure 3: Example of XML Document.

Table 4: Info.

Zone S_S_N Name DOB Count State City

ASPC 1 David 5/11/69 AUS NSW Newc

AME 11 Raul 10/1/70 USA Dalas Dalas

EURO 21 Diana 7/2/74 UK Oxford Oxford

ASIA 17 Xu 1/1/60 China null null

3.2 Search Time Analysis of System

Let k be the total number of distinct parent tables, n

be the maximum number of tuples in a parent table,

p be the maximum number of tuples in a child table,

and m be the number of distinct child reference

tables. A binary search technique may be applied to

find a search key value in the parent and child

relations. The searching time to find the data in any

parent relation is

Ω (

log*

). When it is

<Info>

<Name> David </Name>

<S_S_No> 1<S_S_No>

<City> Newcastle </City>

</Info>

<S_S_No> 11<S_S_No>

<State>Dalas</State>

<City> Dalas </City>

</Info>

<Info> <Name> Diana </Name>

<S_S_No> 21<S_S_No>

<State> Oxford </State>

<City> Oxford </City>

</Info>

<S_S_No> 17<S_S_No>

<Country> China </Country>

</Info>

</World Population>

ICSOFT 2008 - International Conference on Software and Data Technologies

122

required to search both parent and child relations,

the required time is

Ο (

log*

Attribute search time is

Ο (

log

); where j is the

total number of attributes in the attribute dictionary.

It is required to sort data before attempting a binary

search, and the required sort time is

Ο (

log*

4 ANALYSIS OF STORAGE

SPACE, RECONSTRUCTION

OF XML AND QUERYING THE

DATABASE

Analysis of storage capacity for different methods,

the translation algorithm for conversion from

RDBMS to XML form, and the estimated query time

are presented in section 4.1, 4.2 and 4.3 respectively.

4.1 Analysis of Storage Capacity for

Different Methods

Let K be the total number of distinct parent tables, n

be the maximum number of tuples in a parent table,

X be the number of attributes, and Y be the average

required bytes for each attribute in the parent table.

Since each tuple requires

* bytes, for n tuples

and K distinct tables the memory requirement would

be =

YXnK *** bytes.

Let p be the maximum number of tuples in a child

table, M be the number of distinct child reference

tables, S be the number of attributes and T be the

average required bytes for attributes in the child

table. For child tables, then, the required memory

would be =

TSpM *** bytes. Similarly the

required memory for the Attribute dictionary is

VUr ** ; where r is the number of tuples, U is the

number of attributes, and V is the average number of

bytes required for each attribute. Hence the total

required memory of the scheme presented in this

paper is given by:

PCRR

= [

YXnK ***

TSpM ***

VUr **

] (1)

According to the mapping scheme in (Florescu

and Kossman 1999) the memory requirements are as

follows: Total number of tuples

NT =

∑

childofno

)__(

(2)

Where n=no_of_oid from graph; each tuple

requires (at least):

S =

[]

∑

tableedgeinattrno ____(

])___[ attributeeachrequiredbytes

(3)

The total required memory (using equations [2] &

[3]) is at least, but probably (it only includes the

edge table, and some memory is required for other

tables) greater than:

MAP

*NT

(4)

According to the OEM method (Abiteboul 1997),

if the graph is represented as a linked list where each

node consist of three fields (such as Object Id,

Contents of each Object, edge name), then the total

required memory is:

OEM

*)([

∑

)](

Enode

(5)

N is the total number of nodes or children in the

OEM graph, B

Enode

is the required bytes to represent

those nodes or children. According to the general

technique in (Shanmugasadaram, Krishnamurthy et

al. 2001) the required memory is

GEN

S , calculated

as the sum of the required memory for the DTD

graph and for corresponding Relational table.

Therefore:

GEN

*)([

∑

DTD

)](

Enode

*)(

Att

*)(

Att

)(

] (6)

Where N

DTD

is the total number of nodes in DTD

graph, B

Enode

is the required bytes to represent each

node, N

Att

is the number of attributes in the relational

table, B

Att

is the required bytes for each attribute,

is the total number of tuples in the relational

table.

According to the memory requirement analysis in

equations (1), (4), (5) & (6), the graphical

representation of different methods is presented in

Figure 4. The storage comparison is analysed by

considering millions of element paths and attributes.

We see from Figure 4 that the scheme presented in

this paper is more space efficient than the other

standard methods. A tabular form of the storage

analysis is presented in Table 5.

STORING SEMISTRUCTURED DATA INTO RELATIONAL DATABASE USING REFERENCE RELATIONSHIP

SCHEME

123

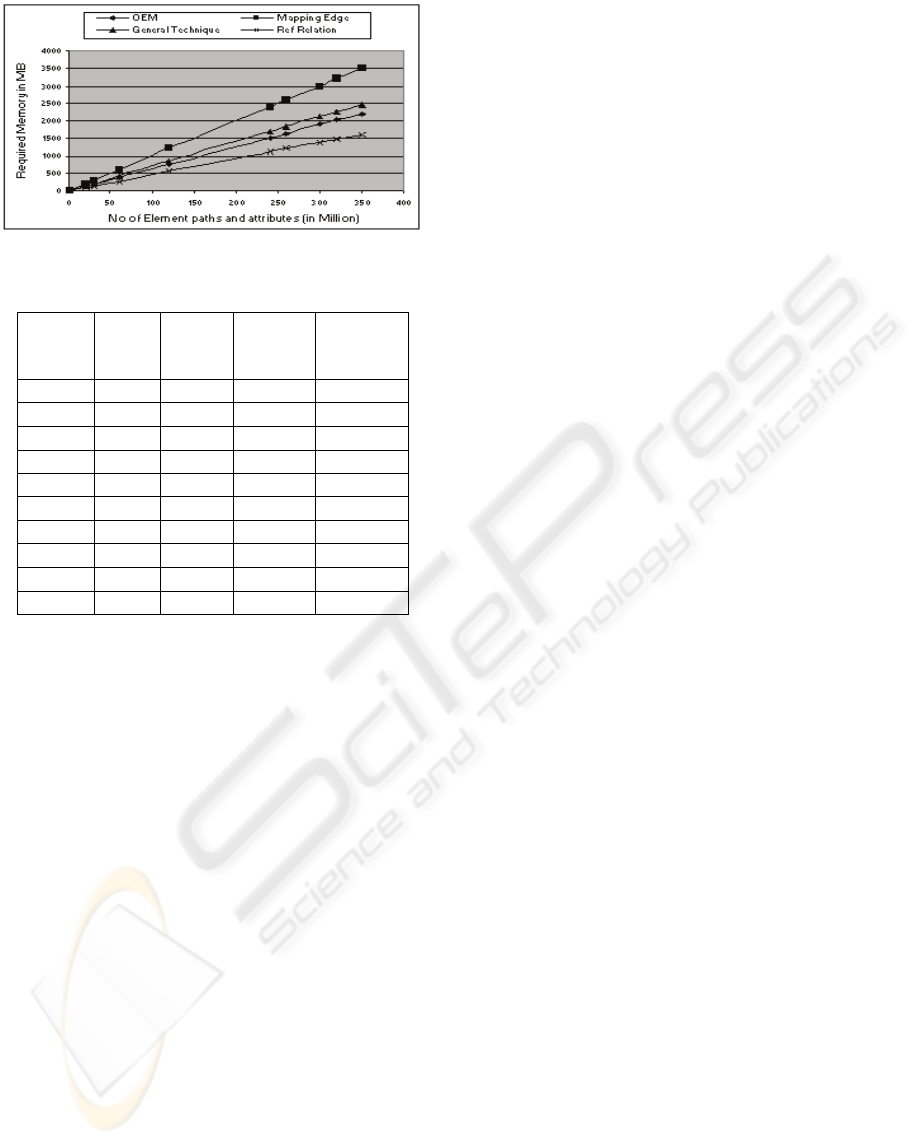

Figure 4: Storage Comparison analysis.

Table 5: Required Memory Using Different Methods.

Paths &

Attribute(

Million)

OEM

Method

(MB)

Mapping

Scheme

(MB)

General

Technique

(MB)

Our

Proposed

Scheme (MB)

1 6.31 10 7.05 4.63

20 126.2 200 141 92.6

30 189.3 300 211.5 138.9

60 378.6 600 423 277.8

120 757.2 1200 846 555.6

240 1514.4 2400 1692 1111.2

260 1640.6 2600 1833 1203.8

300 1893 3000 2115 1389

320 2019.2 3200 2256 1481.6

350 2208.5 3500 2467.5 1620.5

4.2 Reconstructing XML from RDBMS

To reconstruct an XML document from its RDBMS

representation, the following issues are considered:

¾ All attributes from the parent relational table are

sub-elements or attributes in the XML

document.

¾ The content of each tuple from the parent table

is enclosed within a sub-element bracketed by

start and end tags.

¾ The existence of an entry in the attribute

dictionary indicates that this an attribute rather

than an element path in the XML document.

¾ Any attribute with a null value in a tuple can be

excluded in a subelement for that tuple. For

example, in Table 1 the first tuple has null for

the Job attribute, indicating that there is no Job

element path specified for the corresponding

XML element.

¾ If more than one attribute has pnull in the

corresponding tuple of a child reference table,

the last attribute with value pnull (according to

left to right ordering) is the parent element for

all those attributes (except parent_Id) in the

XML document. The contents of the Flag

column from the child reference table indicates

the ancestor element for all attributes and sub-

elements of tuples. The corresponding

algorithm is given in Figure 5.

Algorithm RDBMS_to_XML ( )

Begin

Identify all distinct PT name as a

SE in XML document;

Store all the attributes (except

the attributes in Dictionary) of

the PT as the C

SE and store the

contents of tuple from PT to the

content of C

SE ;

For (each attribute name in Attribute

Dictionary as a PT type)

Begin

Set as a A

SE and store their

values, in XML document

according to Parent_Id;

End;

For (Any reference CRT existing) to the

value of any particular attribute of PT

Begin

Search the corresponding CRT

relation to collect all the

attributes from CRT (except the

attributes in Dictionary) and set

them as C

NSE

NSE;

Store the value of the attributes

of each tuple in CRT as the content

of C

NSE or NSE;

For (each attribute name in Attribute

Dictionary as a CT type)

Begin

Set as a A

NSE or A

ttchl

NSE and

store their values, in XML

document according to Parent_Id;

End;

For ((each pnull) value of the

attribute in CRT)

Begin

Store as a parent among all

NSE/attributes;

End;

For (each tuple of FCL)

Begin

Set as a grandparent among all

the NSE/attributes

End;

End; // For any Refer CRT

End. // For Main

Figure 5: Converting RDBMS to XML.

4.3 Querying the Database

In section 3.2, estimated times were calculated by

using search time analysis for millions of tuples in

the parent and (CRT) child relations.

ICSOFT 2008 - International Conference on Software and Data Technologies

124

In Figure 6 the estimated search time is shown for

examples where the search data is found in the PT.

Figure 7 shows the estimated searching time when it

is necessary to search both the PT and child relation

table. (Josifovskil, Fontoura et al. 2005) presents

results of querying an XML stream; the evaluation

time (XMark Query) is given in Figure 8 and

includes the parsing times for both XSQ (one of the

most complete XML stream processing systems,

written in C++) and TurboXPath (also a path

processor, written in Java). Although parsing in

Java is slower that parsing in C++, TurboXPath is

still much faster than XSQ.

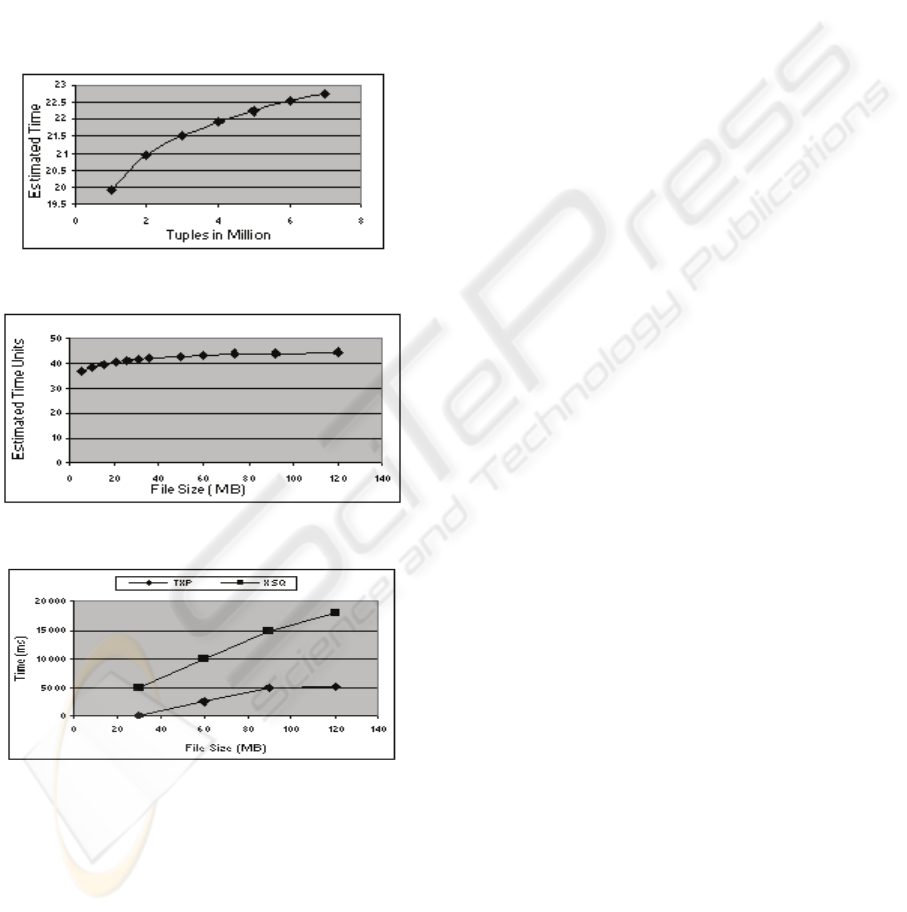

Figure 6: Estimated Searching time only in PT.

Figure 7: Estimated Querying time in PT & CRT.

Figure 8: Evaluation time (XMark Query).

The results shown in Figure 6 and Figure 7 make it

clear that the required time increases when the

number of tuples increases and/or the file size

increases. File size depends on both the number of

tuples in the relational database and the number of

paths in the source XML document. This is

consistent with the experimental results obtained by

(Josifovskil, Fontoura et al. 2005).

5 CONCLUSIONS

XML is a convenient, semistructured data format for

information exchange and some data processing

tasks. Other activities, particularly searching and

sorting of data, are better supported if the data is

represented in a more structured form, such as that

used by relational databases. This paper presents a

translation scheme that converts XML data into the

relational table form that supports efficient pursuit of

such other activities. The new technique is

significant because it provides more efficient use of

storage capacity than other similar schemes, while

also supporting highly accurate transition from

relational back to XML form when required.

Algorithms are presented for conversion from XML

to relational form, and for reconstruction of the

original XML form from its relational

representation. The latter conversion is significant

because it uses an attribute dictionary to support

accurate definition of element paths and attributes.

Analysis of query performance on the relational

form of the XML data suggests that the

representation scheme scales well, providing for

efficient data processing of both small and large

documents.

REFERENCES

Abiteboul, S., 1997. Querying Semistructured Data. ICDT,

The International Conference on Database Theory.

Delphi, Greece.

Abiteboul, S., I. Manolescu, et al., 2006. A Framework for

Distributed XML Data Management. EDBT, Springer-

Verlag Berlin Heidelberg.

Abiteboul, S., D. Quass, et al., 1996. The Lorel Query

Language for Semistructured Data.

ftp://db.stanford.edu//pub/papers/lorel96.ps.

Abiteboul, S. and P. Senellart., 2006. Querying and

Updating Probabilistic Information in XML. The

Conference on Extending Database Technology.

Munich, Germany.

Balmin, A. and Y. Papakonstantinou., 2005. A Storing and

Querying XML Data using Denormalized Relational

Databases. The journal on Very Large Databases

(VLDB) 14: 30-49.

Buneman, P., S. Davidson, et al., 1996. A query language

and optimization techniques for unstructured data.

Inernational Conference on Management of Data

(SIGMOD). San Diego, USA.

Chen, Y., S. Davidson, et al., 2003. RRXS: Redundancy

reducing XML storage in relations. The 29th

International Conference on Very Large Databases

(VLDB). Berlin, Germany.

STORING SEMISTRUCTURED DATA INTO RELATIONAL DATABASE USING REFERENCE RELATIONSHIP

SCHEME

125

Deutsch, A., M. Fernandez, et al. XML-QL: A Query

Language for XML. http://www.w3.org/TR/NOTE-

xml-ql.

Deutsch, A., M. Fernandez, et al., 1999. Storing

Semistructured Data with STORED. International

Conference on Management of Data (SIGMOD).

Pennsylvania, USA.

Du, F., S. Amer, et al., 2004. ShreX: Managing XML

Documents in Relational Databases The 30th

International Conference on Very Large Databases

(VLDB). Toronto, Canada,

Florescu, D. and D. Kossman., 1999. Storing and

Querying XML Data using an RDMBS. The IEEE

Data Engineering Bulletin 22(3)( ): 27-34.

Halverson, A., V. Josifovski, et al., 2004. ROX: Relational

Over XML. The 30th International Conference on

Very Large Databases. Toronto, Canada.

Harding, P. J., Q. Li, et al., 2003. XISS/R: XML Indexing

and Storage System Using RDBMS. The 29th

International Conference on Very Large Databases

(VLDB). Berlin, Germany.

Harold, E. R., 2004. The XML Bible, Hungry Minds.

Josifovskil, V., M. Fontoura, et al., 2005. Querying XML

Streams. The journal on Very Large Databases

(VLDB) 14: 197-210.

Pal, S., I. Cseri, et al., 2005. XQuery Implementation in

Relational Database System. The 31st International

Conference on Very Large Databases. Trondheim,

Norway.

Pal, S., I. Cseri, et al., 2004. Indexing XML data Stored in

a Relational Database. The 30th International

Conference on Very Large Databases. Toronto,

Canada.

Senellart, P. and S. Abiteboul., 2007. On the Complexity

of Managing Probabilistic XML Data. The 27th

Iinternational Conference on Principles of Database

Systems. Beijing, China.

Shanmugasadaram, J., J. Kiernan, et al., 2001. Querying

XML Views of Relational Data. The 27th

International Conference on Very Large Databases

(VLDB). Roma, Italy.

Shanmugasadaram, J., R. Krishnamurthy, et al., 2001. A

General Technique for Querying XML Documents

using a Relational Database System. The journal

(SIGMOD) 30(3): 20-26.

Shanmugasadaram, J., K. Tufte, et al., 1999. Relational

Databases for Querying XML Documents: Limitations

and Opportunities. The 25th International Conference

on Very Large Databases(VLDB). Edinburg, Scotland.

ICSOFT 2008 - International Conference on Software and Data Technologies

126
