A FRAMEWORK FOR MONITORING AND RUNTIME

RECOVERY OF WEB SERVICE-BASED APPLICATIONS

René Pegoraro

Computer Science Department, São Paulo State University at Bauru, UNESP, Brazil

Laboratoire d’Analyse et d’Architecture des Systèmes, LAAS-CNRS, Toulouse, France

Riadh Ben Halima, Khalil Drira, Karim Guennoun

LAAS-CNRS, University of Toulouse, 7 avenue de Colonel Roche, 31077 Toulouse, France

João Maurício Rosário

Mechanical Design Department, University of Campinas, UNICAMP, Brazil

Keywords: Web services, Self-healing, Service Oriented Architecture, Quality of Service.

Abstract: Service provisioning is a challenging research area for the design and implementation of autonomic service-

oriented software systems. It includes automated QoS management for such systems and their applications.

Monitoring, Diagnosis and Repair are three key features of QoS management. This work presents a self-

healing Web service-based framework that manages QoS degradation at runtime. Our approach is based on

proxies. Proxies act on meta-level communications and extend the HTTP envelope of the exchanged

messages with QoS-related parameter values. QoS Data are filtered over time and analysed using statistical

functions and the Hidden Markov Model. Detected QoS degradations are handled with proxies. We

experienced our framework using an orchestrated electronic shop application (FoodShop).

1 INTRODUCTION

Service-Oriented Architecture (SOA) is a collection

of services that communicate with each other to

execute business processes. A service in SOA

technology is a functional building block,

dynamically discovered and composed, loosely

coupled, and reusable. With this in mind, many

companies, like Sun (Mahmoud, 2005), IBM (New

to SOA, n.d.), Oracle (Oracle Application Server,

n.d.), focus efforts to Web service-based SOA.

W3C (Booth et al., 2004) defines a Web service

as a software system designed to support

interoperable machine-to-machine interaction over a

network. It has an interface described in a machine-

process format, specifically Web Services Definition

Language (WSDL). Other systems interact with the

Web service in a manner prescribed by its

description using Simple Object Access Protocol

(SOAP) messages, typically conveyed using HTTP

with an XML serialization in conjunction with other

Web-related standards.

We may implement a SOA by using

orchestration, choreography and other approaches,

including an invocation of Web services as service

component part of other Web service.

Web services are a well established technology.

We publish, discover, and use them in a standard

interface. But Web services may change their

functional and non-functional aspects during

runtime. These changes may engender the QoS

degradation that influences negatively the business

process.

There are many dimensions to measure QoS of

Web services, Maximilien and Singh (2004)

describe many class of them. Besides, many efforts

have been made to specify QoS for Web services

(Garcia, 2006, Ludwig, 2004, WSLA, n.d.), but

these are not yet accepted as standards.

Nevertheless, SOA style processes need to provide

levels of QoS and ways to become them more stable

201

Pegoraro R., Ben Halima R., Drira K., Guennoun K. and Maurício Rosário J. (2008).

A FRAMEWORK FOR MONITORING AND RUNTIME RECOVERY OF WEB SERVICE-BASED APPLICATIONS.

In Proceedings of the Tenth International Conference on Enterprise Information Systems - ISAS, pages 201-206

DOI: 10.5220/0001689302010206

 SciTePress

and reliable. As QoS parameter, we compute and

experiment our framework with the Round-Trip

Delay Time (RTT). It is the more representative QoS

value for Web services, since from client’s point of

view, the RTT is the total time used in a complete

Web service operation call, starting from sending the

request until receiving the response.

This paper describes how we use the proxy

mechanism to intercept messages. This mechanism

allows the measurement of QoS and the execution of

repair actions in Web services-based applications.

These mechanism, enable our Self-Healing

Architecture (SHA). It is inserted between Web

services that allows monitoring and carrying out

repair plans. The diagnosis is achieved using

statistical functions and the Hidden Markov Model

to predict system state under partial observation and

probabilistic hypotheses. When suspecting a

deficiency, HMM signals it to decide about the

appropriate reconfiguration actions.

As an illustration, we deploy our SHA

framework within the FoodShop application that is

developed using BPEL orchestrated Web services

(Web Services Business Process, 2007). The

FoodShop is implemented in the framework of the

European WS-Diamond Project.

The organization of this paper is as follows:

Section 2 gives an overview of SHA. Section 3

discusses the architecture modules. Section 4 shows

some experimental results. Section 5 concludes the

paper.

2 SELF HEALING

ARCHITECTURE FOR SOA

This architecture presented in figure 1, offers the

resources for the monitoring, diagnosis and recovery

for Web service-based applications. SHA monitors

the interactions among Web services, identifies QoS

degradation, plan for recovery actions and achieves

them.

Figure 1 shows the component interactions

within SHA. The Web service requester and

providers are connected to the architecture through

interfaces in Requester and Provider ports,

respectively. Five main modules compose the SHA

architecture:

1. Interceptor – it intercepts messages between

requester and providers to evaluate the QoS of

each Web service operation;

2. Measurement – it computes statistical values

from data generated by Interceptor for every

executed Web service;

3. Diagnosis – it evaluates the data generated by

Interceptor and Measurement modules to

estimate the current state of Web services. If a

state represents a misbehaviour QoS, Diagnosis

sends an alarm to Recovery Planner Module;

4. Recovery Planner – it creates and stores recovery

strategies, using the Diagnosis report;

5. Reconfiguration Manager receives requests and

invokes Web services in agreement with plans

created by Recovery Planner module.

To gather information from Web service

interactions and to act over them, the

communication links must be instrumented with

SHA. Ideally, instrumentation should be

SHA

Reconfiguration

Planner Diagnosis Measurement

Interceptor

<<database>>

Plans

<<database>>

States

<<database>>

Invocations

<<database>>

Services

HTTP

HTTP HTTP

Plan

HTTP

StateUDDI

Plan

Invocation

Plan

State State

State

Invocation

UDDI

Alarm Stat

HTTP

<<dele

ate>>

<<dele

ate>>

Measures

<<delegate>>

<<dele

ate>>

<<delegate>>

<<delegate>><<delegate>>

uester

Provider

[

1..*

]

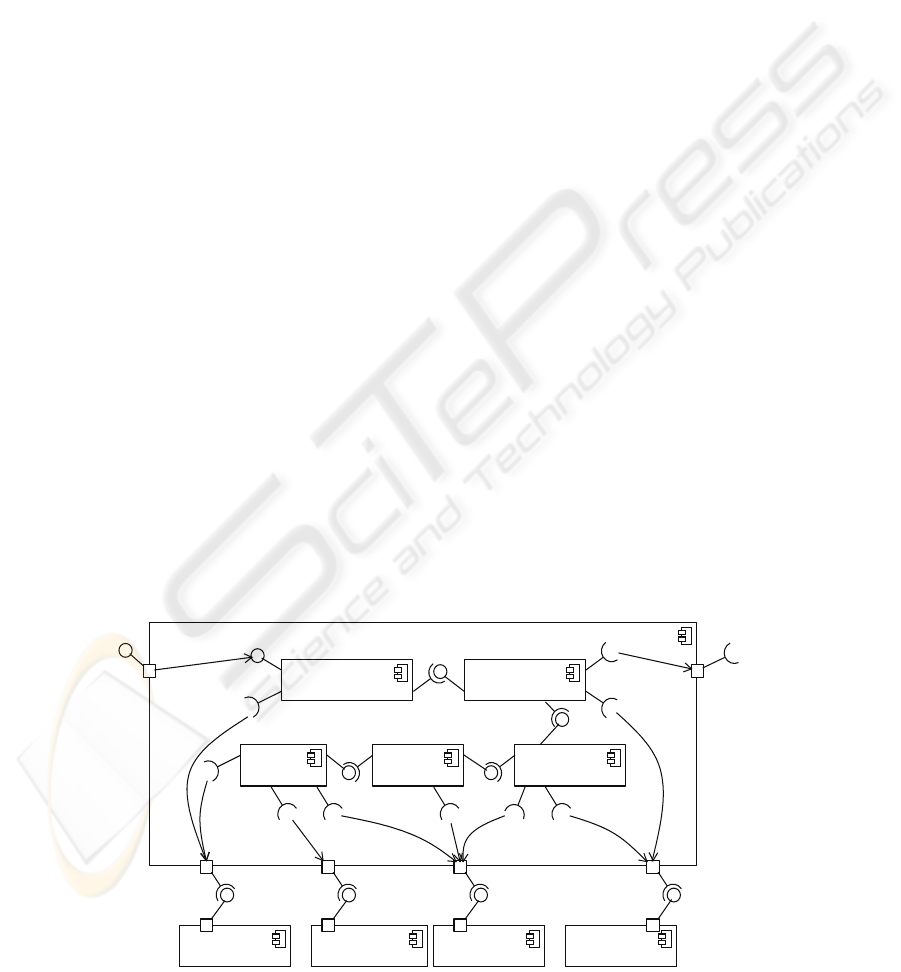

Figure 1: Web service Self-Healing Architecture.

ICEIS 2008 - International Conference on Enterprise Information Systems

202

opt

[QoS degradation]

Reconfiguration :Interceptor: Requester :Measurement :Diagnosis :Invocations :States :Provider

1: invoke

9: response

4: invoke

8: response

10: newData

23: return

13: update

22: return

7: update

11: select(WS operation)

:Plans

14: update(state)

12: result(statistics)

:Planner

2: select(WS operation)

:UDDI

5: invoke

6: response

3: result(plan)

15: alarm

17: result(state)

16: select(WS operation)

20: insert(plan)

21: return

18: select(WS operation)

19: result(compatible WS)

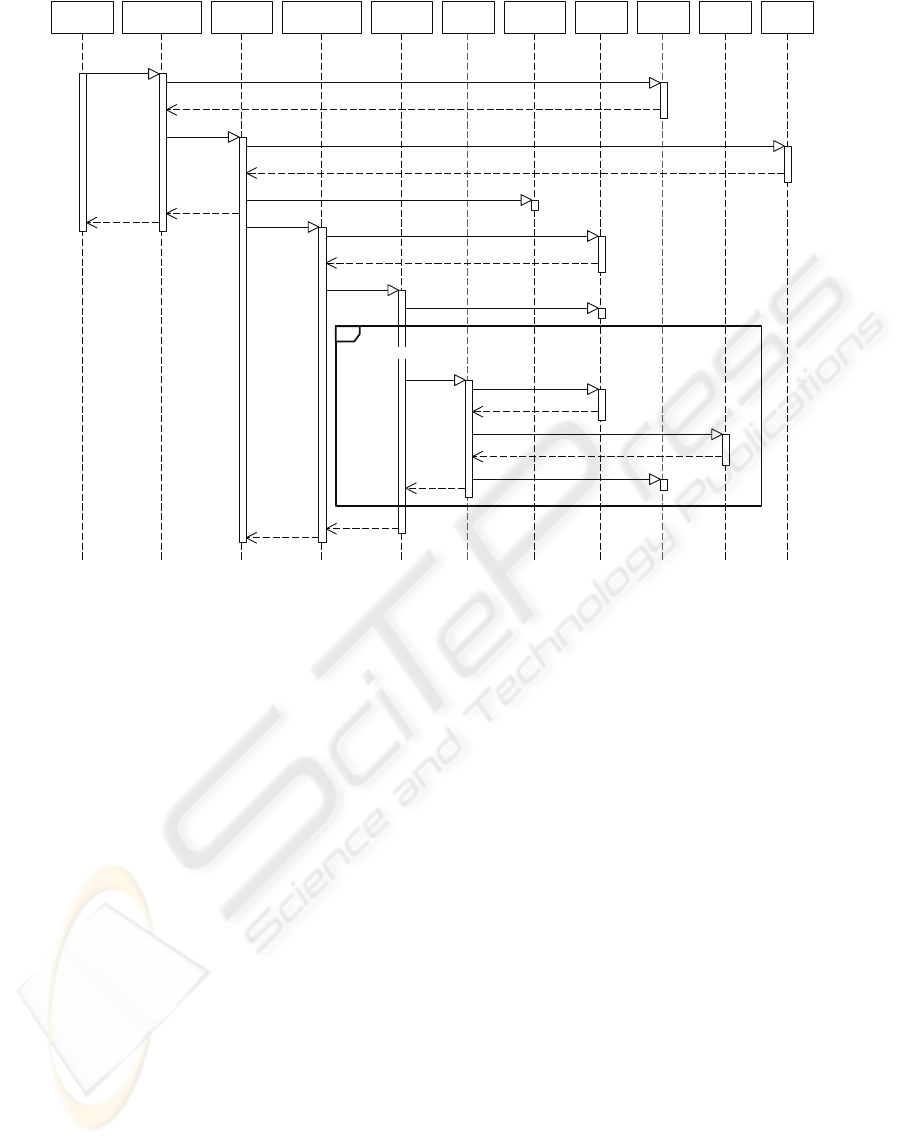

Figure 2: Invocation of a Web service operation. The option combination fragment shows the steps to perform the recovery

strategy.

multi-platforms, simple to insert at Web servers, and

with little side effects.

As enumerated in (Rud, 2006) many ways of

instrumentations may be used in Web service

environments. We choose HTTP proxy server

because it is a technology well established in

network, easy to implement, multi-platforms, and

possible to install in almost all Web application

servers. Another motivation to implement SHA as a

proxy server is that is also well situated to

accomplish reparations plans, since it is capable to

translate a request from a client in one or more

different requests to different providers.

3 MODULES AND OPERATIONS

When the Web service-related QoS are computed

and evaluated as acceptable values, the Repair

Planner module remains stopped. The others

modules work continuously to measure and verify

the QoS parameters; and transmit the Web service

messages. Figure 2 shows the communication inside

the architecture. In the other situations, when QoS

degradation is detected, all modules operate to

perform the recovery strategy.

In Figure 2, invoke and response messages

transport the packets HTTP with SOAP messages

between requester and provider. These messages

pass through Reconfiguration and Interceptor

modules to provide reparability and diagnosticability

to application.

3.1 SHA Modules

3.1.1 Interceptor Module

This module receives the request from a requester,

measures the monitored QoS and sends it to Web

service provider. When the Web service is finished,

it receives the response from the provider, sends it to

the requester, and finally updates Invocation Log

with last QoS measures.

3.1.2 Measurement Module

In this section, we consider the RTT QoS parameter.

We use the algorithms presented by Jacobson &

Karels (1988) and Karn & Partridge (1991) to TCP

messages. Our implementation computes

individually in each Web service the RTT average

using the “smoothed” round-trip time estimate

(SRTT). When a Web service operation is executed,

A FRAMEWORK FOR MONITORING AND RUNTIME RECOVERY OF WEB SERVICE-BASED APPLICATIONS

203

the Interceptor module measures how long it takes,

which represents the computed RTT values. With

each new operation invocation, the Monitoring

module computes the new SRTT

from equation (1).

iii

RTTSRTTSRTT .).1(

+−=

−

(1)

⎩

⎨

⎧

≤=

NiN

Nii

;/1

(2)

Where: RTT

denotes the last RTT measured, i

denotes the number of the last invocation of the Web

service; SRTT

denotes an average approximation of

RTTs; N denotes a constant that controls how

rapidly the SRTT adapts to change.

To help us to identify QoS degradation, we

consider two thresholds: Acceptable Round-Trip

Time (ARTT) and Retransmission Timeout (RTO).

RTO is the maximum time that SHA expect for a

response. To calculate the RTO we use the

expression (3).

iii

KSRTTRTO

+= (3)

).().1(

iiii

RTTSRTT −+−=

−

ασασ

(4)

Where: i denotes the number of the last

invocation; K denotes the constant that defines the

premature timeout proportion; σ

denote the

variance; and α as in equation 2.

The ARTT threshold, specified in equation (5),

defines if the Web service QoS values is in

concordance with its historic relevant values. Hence,

if the RTT is greater than the ARTT, the Web

service may be in trouble.

2/)(

iii

RTOSRTTARTT += (5)

3.1.3 Diagnosis Module

If this module diagnoses a state of QoS violation, it

sends an alarm signal to Recovery Planner in order

to prepare a plan to repair the process.

We consider three hypothetical states to model

QoS behaviour of Web services:

1. Working: the service is normally working

2. Partially Working: the service shows some

disagreements with the expected QoS. The

service is still being used. However, at random,

some requests will be duplicated to find other

candidates that may offer better QoS.

3. NOT Working, the service does not work or

frequently disagrees with expected QoS. This

service will be substituted as soon as possible.

Normally Web services do not provide direct

information about QoS states, but the variations

observed on QoS suggest their current states; hence,

we needed a model to estimate these states from

observed QoS. We choose Hidden Markov Model

(HMM) to model QoS behaviour of Web services. A

HMM is a discrete-time stochastic model in which

the system being modelled is assumed to be a

Markov process with non-observable states, but

variables influenced by the states are observable.

The HMM is defined as < S, A, V, B, π >, where:

S is the set of states; S = {Working, Partially

Working, NOT Working};

A is the transition probability distribution among

the states s

to s

= Pr[ s

at t+1 | s

at t ];

V is the set of observable variables; V = {v

, v

};

B is the probability distribution of observe v

being in s

(k) = Pr[observe v

| s

]; and

π is the initial state distribution π = {π

, ..., π

Where: the observable variables are: v

if time-

out is observed (RTO < RTT); v

if RTT is

acceptable, but is higher than expected (ARTT <

RTT ≤ RTO); and v

if the RTT has QoS expected

(RTT ≤ ARTT). We assigned estimated values for A

and B based in empirical observations and expected

state after specific behaviour of Web service

invocations. State diagnosed and statistics

information are updated in the State log in each Web

service invocation.

3.1.4 Recovery Planner Module

This module uses the data brought by alarm signal

and collected from Invocation and State logs.

Recovery Planner gathers information to try to

identify the better reparation strategy, and then, if

possible, it creates a recovery plan and inserts it in

the Plans database, as show in Figure 2. Each plan in

database relates a Web service with a plan to correct

it. After a plan is stored, every execution of the Web

service will use the specific plan.

In the Recovery Strategies section, we present

more details about recovery strategies plans.

3.1.5 Reconfiguration Manager Module

This module receives the requests and invokes

requested Web services through Interceptor module.

Reconfiguration Manager Module is in charge of

offering the healing capability allowing, when

necessary, carry out the reconfiguration actions

planned by Planner module. When a requester

invokes a Web service, this module is the first to

execute in SHA. Reconfiguration module receives

the request, and if there is a plan in database for this

service, executes it. More specifically,

ICEIS 2008 - International Conference on Enterprise Information Systems

204

Reconfiguration module receives the HTTP/SOAP

message; translate all reference from original

destination – server, service, and operation – to

destination specified in plan and send this message

to specified destination.

3.2 Recovery Strategies

In the context of this paper, recovery strategies are

plans to try to sustain QoS level of a SOA process,

using two types of recovery plans: substitute and

duplications.

3.2.1 Substitution

The substitution recovery approach is suitable for

recovery when exist a compatible Web service with

acceptable QoS to substitute a Web service that

presents QoS misbehaviours or QoS degradation that

may lead the service to misbehaviour.

3.2.2 Duplication

When a Web service has not been showing

acceptable values of QoS, but works even in a

precarious fashion, we can use duplication to

discover the QoS of others compatible Web services

Ludwig (2004). In this scenario, we could invoke the

current service and invoke in parallel a compatible

service with unknown QoS. The Web service

showing the best QoS after some invocations will be

chosen to substitute the original. SHA implements

duplication as double substitution, in fact,

Reconfiguration module creates two threads, one to

invoke the original service and another to invoke the

new candidate to substitution. This mechanism uses

the results of the fastest as response to requester; the

other results are used just to update the statistical

and probable states of each Web service.

4 EXPERIMENTAL RESULTS

To experiment SHA, we carry out two experiments,

one that concern to time consuming by SHA and

another in a Web service orchestration.

4.1 Time Consuming inside SHA

When we insert SHA into a Web service application,

the times consumed in message exchange between

Web services enlarges. To identify the impact of

SHA in an application, we made time measures in a

simple Web service environment. Three similar

computers in a local LAN composed the test: one

client, one with the Web service, and one to

accommodate SHA. The Client and SHA are

implemented in Java 5. The client Web service just

sums of two integers. It was deployed in Apache

Tomcat 5 with Axis 1.4. Table 1 shows the RTT

average of Web service invoked 5000 times in each

situation. In Table 1, execution time increases when

the SHA is hosted in the client computer and even

more when SHA is alone.

Table 1: Average of RTT measures and their relations.

The second line shows a deployment without SHA (base

for relations).

Comput. 1 Comput. 2 Comput. 3 Time

(ms)

Relation

Client Web

service

8.5 1.0

Client +

SHA

Web

service

15.6 1.8

Client SHA Web

service

19.6 2.3

4.2 FoodShop

The food shop prototype used has become the

standard test bed in the frame of Ws-Diamond

Project and it involves characteristics, as

asynchronous and synchronous invocations,

compositions using BPEL, and simple Web services.

The description following comes in Deliverable 1.1

from European WS-Diamond Project (IST-516933).

The food shop example is concerned with a

FoodShop Company that sells and delivers food.

The company has an online Shop and several

Warehouses located in different areas that are

responsible for stocking imperishable goods and

physically delivering items to customers.

Customers interact with the FoodShop Company

to place their orders. In case of perishable items, that

cannot be stocked, or in case of out-of-stock items,

the FoodShop Company must interact with several

Suppliers.

4.3 Execution Environment,

Deployment and Results

To illustrate and improve the developed framework,

we deploy SHA within the FoodShop application.

We deploy the FoodShop Web services in four

virtual machines: one for the Shop, one for the

Warehouse, and two for the Suppliers. The first

Supplier is the currently used by the application

process while the second is the substitute one. We

A FRAMEWORK FOR MONITORING AND RUNTIME RECOVERY OF WEB SERVICE-BASED APPLICATIONS

205

deploy the client in a fifth virtual machine, and the

SHA in a sixth one. For this case, we choose to

centralize the SHA, which centralizes the interaction

management.

In order to test our framework, we inject delays

in the execution time of a Supplier Web service. The

Measurement module computes the new QoS values,

and informs the Diagnosis module about the system

state. The HMM-based diagnosis detects the QoS

degradation and sends a report to the Planner

Module, which generates a recovery plan.

Reconfiguration module will use the plan and

reroute next requests to the new Supplier thanks to

the proxy.

In our experiments, we fix K = 2 for two raisons.

The first is the Chebyshev Inequality (equation 6).

1]Pr[

KSRTTRTO

−≥+<

(6)

With K=2, we conclude that more than 75% of

responses are valid responses (non-timeout). The

second is on the basis on an already large scale

monitoring experiment on the French Grid’5000

(www.grid5000.fr). The statistical study of the

logged QoS values, shows that 96% of responses are

valid with K=2.

5 CONCLUSIONS AND FURTHER

WORK

In this paper, we presented a self-healing

architecture that manages QoS in a Web service-

based application. The presented approach relays on

different modules for monitoring, diagnosis and

recovering QoS degradation. We illustrate our

approach with the FoodShop application. The first

experiment is achieved while using virtual machines

and we are working on a large-scale experiment

under the Grid5000. We will focus on the

distribution of the SHA while centralizing and

coordinating the diagnosis and the recovery actions,

based on the knowledge of the structural architecture

of the applications and the dependencies between

service invocations.

The recovery action requires a Web service

with offer the same functionalities as the deficient

one. Actually, we deal with a predefined list of

similar and equivalent services. We need to improve

this component while using ontology for specifying

and searching the substitute services.

ACKNOWLEDGEMENTS

This work was supported by CAPES – Brazilian

Council of Research and LAAS-CNRS, France,

through collaboration research project CAPES-

COFECUB.

REFERENCES

Booth, D., Haas , H., McCabe , F., Newcomer , E.,

Champion, M., Ferris , C., Orchard, D. (Eds.) (2004,

February 11). Web Services Architecture. W3C

Working Group Note. Retrieved March 22, 2007,

from http://www.w3.org/TR/2004

/NOTE-ws-arch-20040211/.

Garcia, D. Z. G., & Toledo, M. B. F., A (2006). Web

Service Architecture Providing QoS Management. In

Proceedings of the 12th Brazilian symposium on

Multimedia and the Web, Natal, Rio Grande do Norte,

Brazil, 35–44.

Jacobson, V., & Karels, M. (1988, August). Congestion

Avoidance and Control (revised). In Proc. ACM

SIGCOMM'88, 314-329.

Karn, P., Partridge, C. (1991). Improving Round-Trip

Time Estimates. In Reliable Transport Protocols.

ACM Trans. Comput. Syst. 9(4), 363-373.

Ludwig, H. (2004). Web services QoS: external SLAs and

internal policies or: how do we deliver what we

promise? In Proc. of the Fourth International

Conference on Web Information Systems Engineering

Workshops (WISEW'03), 115-120. Springer.

Mahmoud, Q. H. (2005, April). Service-Oriented

Architecture (SOA) and Web Services: The Road to

Enterprise Application Integration (EAI). Retrieved

November 21, 2007, from http://java.sun.com

/developer/technicalArticles/WebServices/soa/.

Maximilien, E. M., Singh, M.P. (2004, September-

October). A framework and ontology for dynamic

Web services selection, In Internet Computing, IEEE,

8(5), 84- 93.

New to SOA and Web services (n.d.). Retrieved

November 3, 2007, from http://www.ibm.com

/developerworks/webservices/newto/.

Oracle Application Server 10g (n.d.). Retrieved November

12, 2007, from http://www.oracle.com

/technology/products/ias/.

Rud, D., Schmietendorf, A., Dumke, R. (2006).

Performance Modeling of WS-BPEL-Based Web

Service Compositions. IEEE Services Computing

Workshops (SCW'06) 140-147.

Web Services Business Process Execution Language v2.0

(2007, April 11). Retrieved November 20, 2007,

from http://docs.oasis-open.org/wsbpel/2.0/OS

/wsbpel-v2.0-OS.html.

Web Service Level Agreements (WSLA) Project (n.d.).

Retrieved November 12, 2007, from

http://www.research.ibm.com/wsla/.

ICEIS 2008 - International Conference on Enterprise Information Systems

206
