A TRANSLITERATION ENGINE FOR ASIAN LANGUAGES

Sathiamoorthy Manoharan

Department of Computer Science, University of Auckland, Auckland, New Zealand

Keywords: Transliteration, e-Learning of ethnic languages, Internationalization, electronic document preparation.

Abstract: Transliteration maps the alphabets of one script using alphabets of another script. It is commonly used when

proper nouns of one language need to be written in the script of another language. This typically involves

constructing approximate phonetically equivalent words. For instance, the phonetic equivalent of New

Zealand in Japanese is “niyuu jiilando” which in Katakana is ニユージーランド. This paper illustrates the

design and development of a transliteration engine which suits syllabary and alphasyllabary scripts. A

syllabary is an alphabet set that represent syllables. The Japanese Katakana and Hiragana scripts fall under

this category. An alphasyllabary is an alphabet set that represent consonants, vowels, and syllables

composed of consonants and vowels. Scripts such as Thai, Sinhala, Burmese, and most of the Indian scripts

such as Devanagari, Tamil, and Malayalam come under this category. The engine is useful in teaching and

learning ethnic scripts. It is a useful tool for the internationalization and localization of computer programs,

publishing ethnic scripts over the Internet, and to compose electronic documents in ethnic scripts.

1 INTRODUCTION

Transliteration maps the alphabets of one script

using alphabets of another script. This maps the

alphabets or combination of alphabets from one

script to the alphabets of the other. This involves

constructing approximate phonetically equivalent

words. For example, the phonetic equivalent of New

Zealand in Japanese is “niyuu jiilando” which is

ニユージーランド in Katakana.

Typical use of transliteration includes the

following.

1. Teaching and learning of ethnic scripts. A

student learning Japanese in New Zealand cannot

easily access a Japanese keyboard to compose an

essay in Japanese. Soft keyboards and keyboard

mappings can be cumbersome to use.

Transliteration allows typing the letter using the

Roman alphabet and automatically mapping it to

Japanese alphabet.

2. Small-scale electronic publishing.

Language phrases can be easily composed using

Roman alphabets. For example, foreign language

phrases in this paper are composed using

transliteration.

3. Internationalizing and localizing software

products. For example, the caption for the home

button of a web browser in an English version

may read Home, but in a Japanese version of the

application this needs to read ホーム. This can

easily be generated by transliterating to “hoomu”

which is how home is pronounced in Japanese.

This paper illustrates the design and development of

a web-based transliteration engine that suits

syllabary and alphasyllabary scripts. A syllabary is

an alphabet set that represent syllables. The Japanese

Katakana and Hiragana scripts fall under this

category. An alphasyllabary is an alphabet set that

represent consonants, vowels, and syllables

composed of consonants and vowels. Scripts such as

Thai, Sinhala, Burmese, and most of the Indian

scripts such as Devanagari, Tamil, and Malayalam

come under this category. Refer to the Unicode

Standard (The Unicode Consortium, 2003) for a

description of these alphabets.

The rest of the paper is organized as follows. Section

2 reviews some related work. Section 3 presents the

design and development of the transliteration engine.

Section 4 evaluates the transliteration engine and

outlines its possible uses. The final section

concludes with a summary.

376

Manoharan S. (2008).

A TRANSLITERATION ENGINE FOR ASIAN LANGUAGES.

In Proceedings of the Fourth International Conference on Web Information Systems and Technologies, pages 376-379

DOI: 10.5220/0001519903760379

 SciTePress

2 RELATED WORK

Sakai, Kumano, and Manabe describe a

transliteration system for automatic information

retrieval (Sakai, Kumano, and Manabe, 2002). Their

system is designed to support both transliteration

and back-transliteration of Roman scripts to

Japanese Katakana. They show that the system

produces over 75% correct results when

transliterating, and over 55% correct results when

back-transliterating. One of the reasons why back-

transliteration does not work as well as

transliteration is the fact that certain sounds are not

possible to represent in Katakana (for example, there

is no distinction between “l” and “r”).

Kawtrakul et al propose a similar back-

transliteration system for information retrieval

(Kawtrakul et al, 1998). Their system transliterates

Roman scripts to the alphasyllabary Thai script. The

main use of their system is to be able to

automatically generate foreign words (such as

proper nouns and technical terms) in Thai scripts.

The back-transliteration system they use consists of

three steps: syllable formation, phonetic

transcription, and a fuzzy search for a matching

English word. Similar to the system of Sakai,

Kumano, and Manabe, there are issues with back-

transliteration, because some of the sounds in

English do not exist in Thai.

Kang and Kim propose an English-to-Korean

transliteration scheme (Kang and Kim, 2003). This

scheme operates in three steps: constructing

phonetic sequences that represent all possible

transliterations of a given phrase; checking the

validity of each of the transliterations; and choosing

the most probable transliteration.

Grefenstette, Yan, and Evans describe a

Katakana transliteration scheme based on finding

matches on the Web (Grefenstette, Yan, and Evans,

2004). This is somewhat similar to the scheme of

Kang and Kim in that both schemes look at a

number of possible outcomes, and choose one based

on a criterion. The criterion that Grefenstette, Yan,

and Evans use is the highest hit score for a phrase on

the Web.

Al-Onaizan and Knight propose a transliteration

scheme from Arabic to English based on

probabilistic finite state machines (Al-Onaizan and

Knight, 2002). Their evaluation indicates

transliteration accuracies from 15% to 55%,

depending on whether the phrase to be transliterated

is of Arabic, English, or other origin. The absence of

short vowels in Arabic and the existence of silent

letters in English (such as the P in Psychology)

cause major transliteration inaccuracies.

3 TRANSLITERATION ENGINE

The goals of the transliteration engine are threefold:

to be able to produce text phrases that can be pasted

onto electronic documents; to be able to produce

XHTML Unicode strings that can be used for

publishing on the Internet; and to be able to produce

C strings that can be used in C-like programming

languages.

The transliteration script mappings in the

transliteration engine use the Hepburn Romanization

system. This system was originally developed in

1867 by Reverend James Hepburn to transcribe

Japanese words into Roman alphabets. There are

some variants of the system. The system used in the

transliteration engine is called the modified Hepburn

system where long vowels are indicated by doubling

the vowel. Table 1 illustrates a partial script

mapping for Japanese Katakana using the modified

Hepburn system.

Table 1: A partial script mapping for Katakana.

Source

string

Target string Unicode

symbol

b \u30C4 ツ

ba \u30D0 バ

baa \u30D0\u30FC バー

be \u30D9 ベ

bee \u30D9\u30FC ベー

bi \u30D3 ビ

bii \u30D3\u30FC ビー

bo \u30DC ボ

boo \u30DC\u30FC ボー

bu \u30D6 ブ

buu \u30D6\u30FC ブー

bya \u30D3\u30E3 ビャ

byo \u30D3\u30E5 ビュ

byu \u30D3\u30E7 ビョ

The source for the script mapping is a set of words

in Roman alphabet and the target is a set of words in

Unicode. This makes it possible to configure the

transliteration engine for a variety of scripts. The

engine processes the input text by looking for the

longest match of source letter sequences within the

script mapping.

3.1 Script Mapping

There are challenging issues to consider in

formulating the script mapping.

A fundamental requirement for using

transliteration is familiarity with the target language.

It is important that the user knows how a given word

is pronounced in the target language, and use this

A TRANSLITERATION ENGINE FOR ASIAN LANGUAGES

377

knowledge to carefully construct the source

language word. For example, the Japanese word

“konichiwa” needs to be transliterated as ko-n-ni-

chi-ha (and not ko-ni-chi-wa) so that it will correctly

transliterate intoこんにちは.

It is preferred that the transliteration process is

lossless, so that one could re-construct the original

phrase from the transliterated one. However, this

may not be practical to achieve. This is because not

all sounds are available in all languages. For

example, in Japanese there is no distinction between

the sounds R and L. Both “road” and “load” will

transliterate into ロード. Japanese also has no

distinction between V and B. Similarly, in Tamil,

one of the South Indian languages, there is no

distinction between the sounds P and B. Both “pat”

and “bat” will transliterate into

ப. This results in

information loss and will lead to ambiguity if back-

transliteration is required.

There are also a number of syllables in Asian

languages that are alien to English. This too makes

back-transliteration difficult. For instance, Tamil and

Malayalam have a ழ syllable which is hard to

pronounce for non-native speakers. This syllable is

commonly transliterated in English as “zh”.

Given a transliterated phrase such as

“konnichiwa”, the transliteration engine produces

either the text こんにちは which allows pasting into

documents, or the Unicode HTML string

“こんにちは

” for direct use in HTML documents, or the Unicode

C string “\u3053\u3093\u306B\u3061\u306F” which

can be used in C-like languages for outputting

Unicode text.

The transliteration engine currently has script

mappings for Japanese Hiragana and Katakana,

Devanagari (used to write Hindi, Sanskrit, Marathi,

etc.), Tamil, and Telugu. These mappings are based

on the modified Hepburn system. Table 2 illustrates

a partial mapping for Tamil. Note that there is no

distinction in Tamil between B and P and thus both

map onto the same Unicode symbols. Table 2 shows

the B sounds.

The script mappings in the engine can be

extended to include other scripts (e.g. Thai,

Burmese, Sinhala). Providing mappings for

syllabary and alphasyllabary scripts is quite simple.

Using the modified Hepburn system for script

mapping makes it easy to understand and extend.

Table 2: A partial script mapping for Tamil.

Source

string

Target string Unicode

symbol

b \u0BAA\u0BCD 

ba \u0BAA ப

baa \u0BAA\u0BBE பா

bi \u0BAA\u0BBF பி

bii \u0BAA\u0BC0 பீ

bu \u0BAA\u0BC1 

buu \u0BAA\u0BC2 

be \u0BAA\u0BC6 ெப

bee \u0BAA\u0BC7 ேப

bai \u0BAA\u0BC8 ைப

bo \u0BAA\u0BCA ெபா

boo \u0BAA\u0BCB ேபா

bau \u0BAA\u0BCC ெபௗ

4 EVALUATION

The transliteration engine is a useful tool for

electronic composition and publishing of foreign

language phrases. This helps language teachers and

learners to compose ethnic scripts using a Standard

English keyboard.

The engine can also produce portable HTML

Unicode strings to enable direct embedding in

HTML documents.

Besides, the engine can produce C-style Unicode

strings that can be used in C-like programming

languages. This is useful when an application needs

to be localized for various cultures.

One of the drawbacks of the engine is that it does

not do back-transliteration. The reason for this is the

ambiguities involved in back-transliteration. When

more than one sound symbol of the source maps

onto a single sound symbol of the target, information

is lost, and thus back-transliteration becomes

ambiguous. One of the implications of not providing

back-transliteration is that a transliterated phrase

cannot be edited for corrections – it should rather be

replaced with a new (possibly correct) phrase.

A comparable transliteration engine is provided

with Microsoft Office®. This is part of the input

method editor (IME), and allows direct input for

some languages such as Japanese and Korean.

Office allows saving to HTML documents, but does

not have a mechanism to generate C-style Unicode

strings. Besides, support for Indian languages such

as Tamil is limited and is soft-keyboard-driven.

WEBIST 2008 - International Conference on Web Information Systems and Technologies

378

5 CONCLUSIONS

This paper discussed some aspects of transliteration

and presented the development of a transliteration

engine which suits syllabary and alphasyllabary

scripts. The engine is useful in teaching and learning

ethnic scripts. It is also a useful tool for the

internationalization and localization of computer

programs, publishing ethnic scripts over the Internet,

and to compose electronic documents in ethnic

scripts.

REFERENCES

Al-Onaizan, Y. and Knight, K., Machine transliteration of

names in Arabic text. In Proceedings of the ACL-02

workshop on Computational approaches to Semitic

languages. Philadelphia, Pennsylvania, (2002) 1-13.

Grefenstette, G., Yan, Q., and Evans, D. A., ,Mining the

Web to Create a Language Model for Mapping

between English Names and Phrases and Japanese, In

Proceedings of the IEEE/WIC/ACM International

Conference on Web Intelligence. (2004) 110-116

Kang, I-H. and Kim, G., English-to-Korean transliteration

using multiple unbounded over-lapping phoneme

chunks, In Proceedings of the 18th International

conference on Computational linguistics. Saarbrücken,

Germany, (2000) 418-424

Kawtrakul, A., et al. Backward transliteration for Thai

document retrieval. In Proceedings of the Asia-Pacific

conference on Circuits and Systems. Chiangmai,

Thailand, (1998) 563-566

Knight, K. and Grehl, J., Machine Transliteration. In

Computational Linguistics, Vol.24, No.4, (1998) 599-612

Sakai, T., Kumano, A., and Manabe, T., Generating

transliteration rules for cross-language information

retrieval from machine translation dictionaries, In

Proceedings of the IEEE International Conference on

Systems, Man, and Cybernetics, (2002) 6-12

The Unicode Consortium.The Unicode Standard, Version

4.0. Addison-Wesley, Boston, USA (2003)

APPENDIX

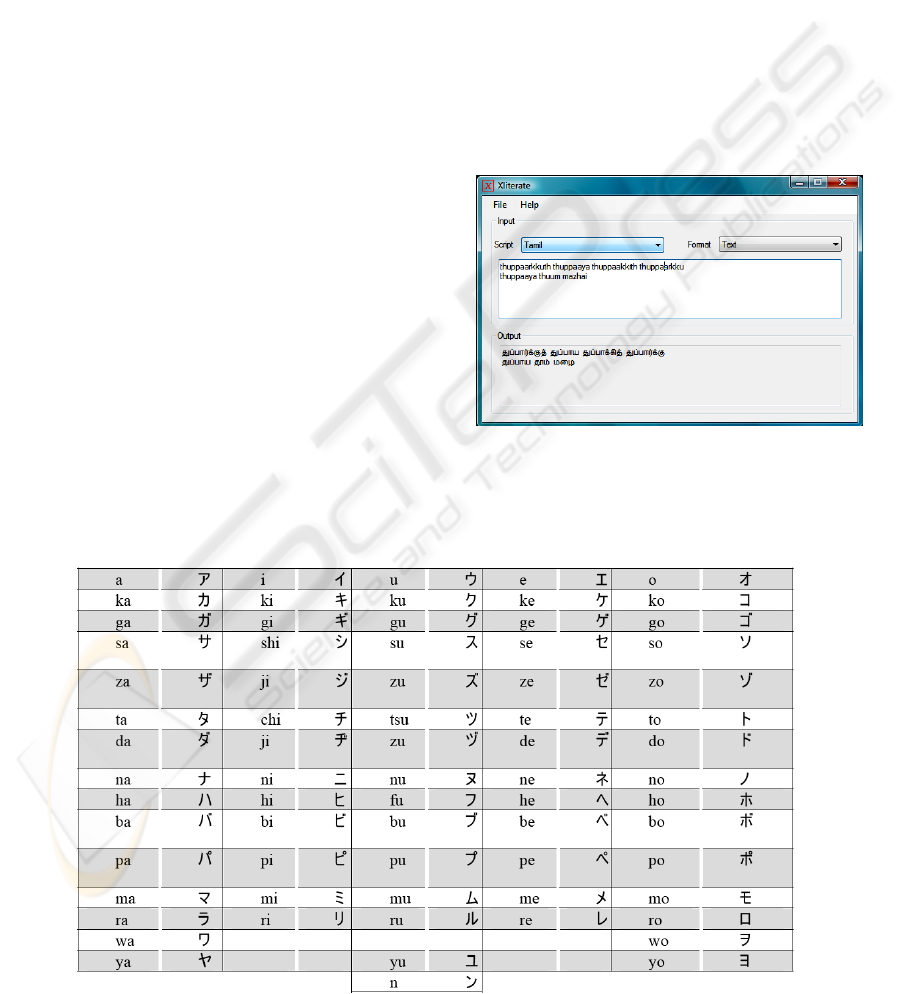

Figure 1 in this appendix shows a screenshot of the

transliteration engine’s desktop user-interface. The

engine also has a web-based interface (not shown

here).

Figure 2 illustrates the possible syllables in Japanese

and the corresponding Katakana symbols.

Figure 1: A screenshot of the transliteration engine’s user-

interface. The interface allows a choice of scripts (such as

Katakana and Tamil) and output formats (text, HTML, or

C string). The output can be pasted to a variety of

applications.

Figure 2: Japanese Katakana alphabet with their pronunciation.

A TRANSLITERATION ENGINE FOR ASIAN LANGUAGES

379
