IMPLEMENTATION AND EVALUATION OF NEW ILLEGAL

COPY PROTECTION

Protection Against Making a Illegal Copy of a Copy

Masaki Inamura and Toshiaki Tanaka

KDDI R&D Laboratories Inc., 2-1-15 Ohara, Fujimino-shi, Saitama, Japan

Keywords: Digital Rights Management, Private Copy, Illegal Copy Protection, Terminal ID, Group Key Agreement.

Abstract: We propose a new method of illegal copy protection, which is adapted to digital contents delivery service,

allows for legitimate users to make private copies on arbitrary terminals within the limited times, and

requires no secure hardware. Using the method, we can realize two types of services; one is a client-server

model over peer-to-peer network, and the other is a broadcast model over multicast network which is similar

to existing broadcast. In this paper, we implement the proposed method and evaluate whether our method is

feasible from the viewpoint of security and performance.

1 INTRODUCTION

Recently we can easily obtain broadband network

because of improvement on network infrastructure.

Thus delivery services of digital contents over the

Internet are penetrating. Furthermore various kinds

of technologies for communicating digital contents

within home network are standardized. For example,

Digital Living Network Alliance (DLNA) is

promising standard technologies for this purpose.

Using these technologies, a user can move the digital

contents to the other digital home appliance

everywhere in his home.

On the other hand copy operation should be

strictly restricted because digital data can be easily

duplicated with no loss of information. Accordingly

delivery of digital contents may cause copyrights

violation, making illegal copies or illegal

distribution. Digital Rights Management (DRM) is a

technical solution for copyrights protection and

secure contents distribution.

Currently many DRM systems have been

proposed. A major purpose in these systems is to

protect that users with no copyrights make a copy of

digital contents freely. Therefore, most copy control

methods such as Digital Video Disc Recordable

(DVD-R)/ReWritable (RW) media and Secure

Digital (SD) card, which are widely used in real-

world systems, prohibit copy operation. Namely

users cannot modify the contents even for his own

purpose or cannot copy valuable contents for back-

up. This means that digital contents are in danger of

lost if the system applying these methods fails to

move to other degital devices. Thus, strict copy

control is not suitable for user friendly DRM

systems.

A strong point of newly proposed DRM systems

is loosely control copy operation. FairPlay for iPod

and OpenMG are welknown examples. In these

systems, the user can copy contents for his player

while leaving the original contents in his computer.

Thus the user can easily make back-up contents in

his computer. As another methods, the copy

operation is controled by the license administrator.

For the purpose to control copy operation, two

methods are identified. One method is binding copy

operation to a designated terminal, e.g. the system

proposed Fujii et al. The other is usage control by

limited time, e.g. the system proposed Cheng et al.

However these systems have imperfect usability

because of the following:

1. it is difficult to use these systems into open

plathome,

2. these systems need to register user’s terminal

information,

3. user cannot use content in a long term by limited

time.

In this paper, we propose a DRM system with

new illegal copy protection. We pay attention that a

problem of making personal copies from an original

content (we call it “First Generation Copy”) is less

427

Inamura M. and Tanaka T. (2007).

IMPLEMENTATION AND EVALUATION OF NEW ILLEGAL COPY PROTECTION - Protection Against Making a Illegal Copy of a Copy.

In Proceedings of the Second International Conference on Security and Cryptography, pages 427-432

DOI: 10.5220/0002124204270432

 SciTePress

serious than that of making copies from other copies

without an original content (we call it “Second

Generation Copy”). We summaize main features of

our proposed DRM system as follows:

 Permission to make First Generation Copy

and prohibition to make Second Generation

Copy;

 Permission to copy on only Set-Top Box;

 No hardware equipment;

 Privacy protection that a user does not need to

communicate terminal ID;

 Enabling offline use of contents/copies;

Futhermore we made two types of software

based on proposed method; one is a client-server

model over peer-to-peer network, and another is a

broadcast model over multicast network which is

similar to existing broadcast. We also evaluated

perfomance of two systems and confiermed that we

could realize proposed method in real computers.

2 SERVICE MODEL

We show service model in Figure 1.

License Administration Server administers user

license and make content key for the purpose of

encrypting/decrypting contents. Content key is

generated from Set-Top Box (STB) ID.

Content Provider or Broadcasting Station

encrypts contents using content key and distributes

encrypted contents to users.

After receiving encrypted contents, users at home

record these contents into STB and decrypt them

using content key generating from STB. Decrypted

contents are able to use watching on memory and are

not recorded on recording media.

If users want to copy contents for their private

player, STB gets ID of this player and generates re-

encryption key from this ID. STB re-encrypts

contents using re-encryption key and this player

record them. Because re-encryption key is bound to

player’s ID, users can use re-encrypted contents on

only this player binding this key.

In this system, for the purpose of protecting

contents distributed in this model against illegal

use/copy, the following is required:

– Terminal Legitimacy: Users or third parties

cannot use/copy the contents on not-permitted

terminals.

– Wiretapping Impossibility: The contents,

which are obtained through wiretapping, cannot

be used on terminals without permitted terminal.

– Illegal Copy Process Impossibility: Even if

users or third parties copy content without

running legal process, they cannot use it.

– Replay Attack Impossibility: The contents

cannot be copied by using other license

information for other content.

– Privacy Protection: License administrator and

third parties cannot get IDs of terminal using

copied content.

Broadcast ing

Stat ion

Movie Provider

TV over the Internet

Video Provider

User’ s Home

STB

Cont ent s Provider

Broadcast/ Multicast

ISP/ Dat a Cent er

Project or

Mobile Contens Player

Privat e Cont ent s Player

Charge Server

License

Admin. Server

Town/ Dest inat ion

Viewing Cont ent s

under t he disconnect ion t o t he Int ernet

License/ Content Key

Pay

Wa t c h i n g

Copy

To other place

Cont ent Key

Copies

Cont ent s

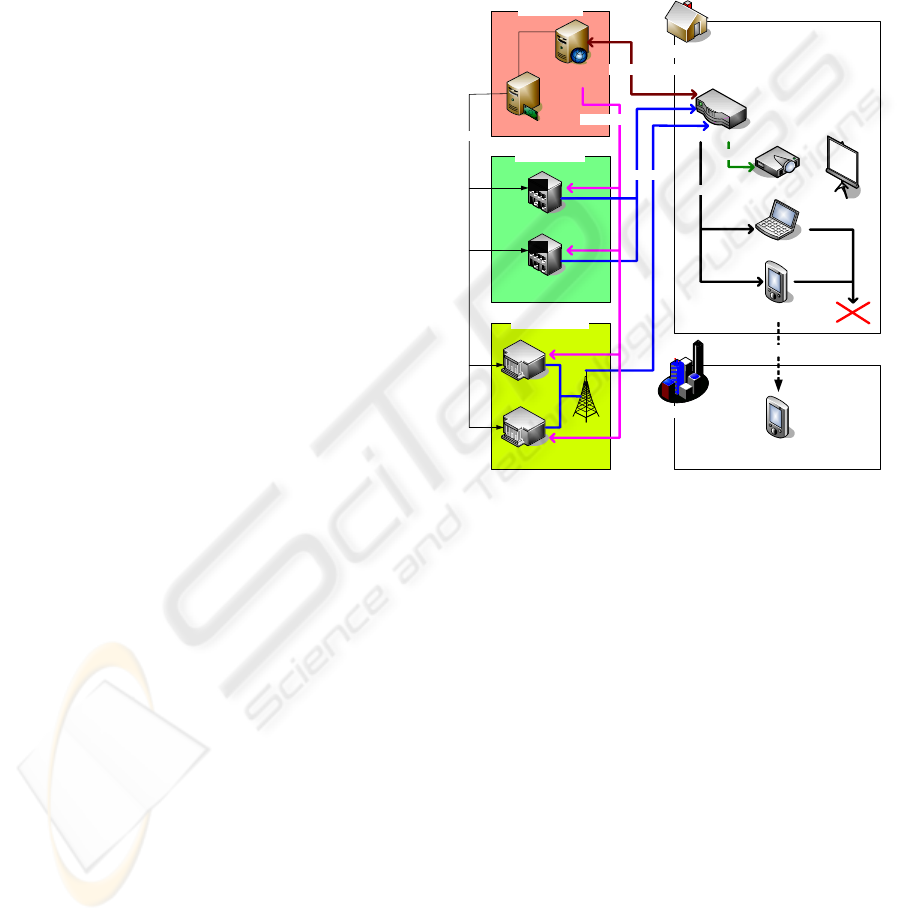

Figure 1: Service Model.

3 PROTOCOL

In this chapter, we propose a protocol which realizes

this model in secure. We establish four types of

entities; License Administration Server (LAS),

Contents Delivery Server (CDS), STB and Private

Player (PP). Proposed protocol is used to

communicate among these entities.

We define assumptions of this protocol as

follows:

Assumptions:

–

LAS and CDS are honest and trustful; however

STB and PP are not honest and trustful.

– Hardware improvements are not required, and

anyone cannot disassemble programs running on

these entities. For example, disassemble

programs are realized with software obfuscation.

– Existing hardware ID, e.g. hard-disc drive ID or

BIOS chip ID, is introduced as terminal ID.

SECRYPT 2007 - International Conference on Security and Cryptography

428

– Terminal ID is bound to one terminal, and

anyone cannot forge/modify it.

– Content key generated on STB, re-encryption

key generated on PP and Decrypted content run

on only memory and are not recorded in

recordable media, for example HDD or DVD-

R/RW.

– PKI has been prepared in advance, and

asymmetric encryption scheme and digital

signature scheme are used rightfully.

3.1 STB Registration

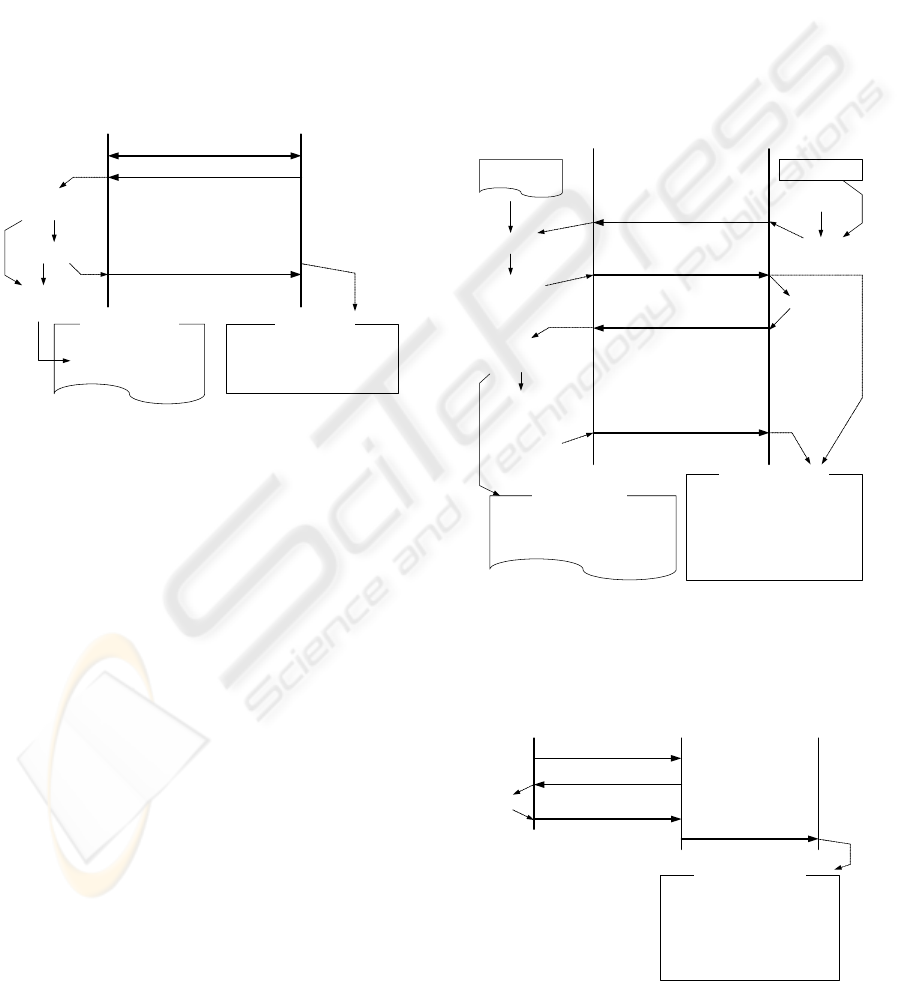

The following sequence describes STB registration

procedure as depicted in figure 2.

LAS STB

PE1a(Account-1||SIGs(Account-1))

Account Issue

Account

Registration

Account Info.

Account-1||SIGs(Account-1)

User Sertification

VER1a

Account-1||VER1a

…

……

…

Account Admin. Info.

Confirmation of

Ver1a

1. LAS certificates user communicating with STB.

2. STB sends verification key VER1a to LAS.

3. After confirmation of VER1a, LAS generates

account name of user 1 Account-1 and digital

signature SIGs(Account-1). Furthermore LAS

concatenates 2 messages, encrypts concatenated

data with STB’s public key and sends it to STB.

LAS records Account-1 bound to VER1a.

4. STB records Account-1||SIGs(Account-1) as

STB’s account information of user 1.

3.2 Reception of Content Distribution

We show reception of content distribution procedure

in figure 3.

1. STB obtains CID, generates Content Distribution

Request Data Account-1||SIGs(Account-1)||CID

||SIG1a(Account-1||CID) using Account info.

and STB sends this data to LAS.

2. After verification of Content Distribution Request

Data, LAS generates g, p and t using in DH and

sends g||p||g

mod p||SIGs(g||p||g

mod p) to STB.

3. STB generates public key for content key g

f(ID1a)

mod p and sends g

f(ID1a)

mod p ||SIG1a(g

f(ID1a)

mod p) to LAS.

4. After reception, LAS generates STB Certification

Code E(Account-1, Ks-1a) and sends it to STB. If

the line on which the content distributes is

multicast, LAS generates Content Key Seed

t{f(ID2a)+ ... + f(IDma)}

mod p using all reception

users’ ID and sends it concatenated STB

Certification Code to STB. Furthermore STB

records public key of user 1 bound to Account

Admin. Info. of user 1.

5. STB records g, p, g

f(ID1a)

mod p and E(Account-1,

Ks-1a) (in case of multicast, and g

t{f(ID2a)+ ... +

f(IDma)}

) as content using info..

Account-1||SIGs(Account-1)

||CID||SIG1a(Account-1||CID)

g||p||g

mod p

||SIGs(g||p||g

mod p)

STB

Generating

g, p, t

Generating content

key after reception

Verification

Account Info.

f(ID1a)

mod p

||SIG1a(g

f(ID1a)

mod p)

Account

Admin Info.

Content Key Seed

g, p, g

mod p

(In case of multicast)

t{f(ID2a)+...+f(IDma)}

mod p

STB Certification Code

SE(Account,Ksp-a)

Content Using Info.

Obtaining CID

t{f(ID2a)+ ... + f(IDma)}

mod p

||SE(Account-1,Ks-1a)

SE(Account-1, Ks-1a)

Generating STB

Certification Code

(In case of

multicast)

Content Key Seed

Signing

Generating

Public key

for DH

LAS

Account-1||VER1a||g

f(ID1a)

mod p

…

……

…

Account Admin. Info.

Figure 3: Reception of Content Distribution.

3.3 Content Distribution

We show content distribution procedure in figure 4.

CDS STB

SE(DC, Ks-1a)

||SIGs(H(DC))

Generating

Encrypted Content

H(DC)

LAS

Ks-1a

Encrypted Content

SE(DC,Ks-1a)

Issue Certification Code

SIGs(H(DC))

Content Key Seed

STB Certification Code

Content Using Info.

H(DC)

SIGs(H(DC))

Signing

Figure 4: Content Distribution.

Figure 2: Service Model.

IMPLEMENTATION AND EVALUATION OF NEW ILLEGAL COPY PROTECTION - Protection against Making a

Illegal Copy of a Copy

429

1. LAS sends content key Ks-1 generated in section

3.2 to CDS.

2. CDS encrypts content with Ks-1. Furthermore

CDS generates H(DC) and sends it to LAS.

3. LAS generates digital signature within H(DC)

H(DC) and sends SIGs(H(DC)) to CDS.

4. CDS sends encrypted content SE(DC, Ks-1) and

Issue Certification Code SIGs(H(DC)) to STB.

5. STB adds SE(DC, Ks-1) and SIGs(H(DC)) to

Content Using Info..

If the line on which the content distributes is

multicast, all Ks-x (0<x<m) are the same.

3.4 Content Viewing

At content viewing, legitimacy of content use is

checked by content viewing program. We show

procedure of this program as follows:

1. SE(DC, Ks-1a), SIGs(H(DC)), g, p and g

mod p

(in case of multicast, g

t{f(ID2a)+ ... + f(IDma)}

mod p

too) are inputted into client program. Furthermore

ID1a is automatically inputted into this program.

2. Client program generates f(ID1a) from ID1a

through transforming function. This program

generates Ks-1a = g

tf(ID1a)

mod p (in case of

multicast, g

t{f(ID1a)+f(ID2a)+ ... + f(IDma)}

mod p) from

f(ID1a) and Content Key Seed.

3. Client program decrypts SE(DC, Ks-1a) with Ks-

1a and obtain DC.

4. Client program verifies Issue Certification Code

SIGs(H(DC)) with DC and verifying key of LAS.

5. If verification of Issue Certification Code is

succeeded, STB can let user view content.

However DC without encryption does not

remained in recordable file.

When user views copied content on PP, viewing

program installed in PP runs with same procedure.

3.5 Content Viewing

We show copying content procedure in figure 5.

1. STB send g and p to PP.

2. PP generates public key for DH g

f(ID1b)

mod p

from g, p and automatic inputted ID1b. PP

encrypts public key with digital signature

PE1b(g

f(ID1b)

mod p|| SIG1b(g

f(ID1b)

mod p)) and

sends it to STB.

3. STB generates Copying Request for PP H(g

f(ID1b)

mod p ||SIG1a[SIGs(H(DC))||H(g

f(ID1b)

mod p)]

and sends it to LAS.

4. LAS checks Copying Request whether the

number of copies is less than limited number or

not. If Checking is succeeded, LAS generates

Copy Permission SIGs(H(g

f(ID1b)

mod p)) and

sends it to STB. Furthermore LAS records a part

of Copying Request

SIG1a[SIGs(H(DC))||H(g

f(ID1b)

mod p)] into Copy

Record and reduces the remained number of

copies.

5. STB generates Re-encryption Key K1a-1b, Re-

encryption Key Seed g

f(ID1a)

mod p and Re-

encrypted Content SE(DC, K1a-1b) using

Content Using Info., Account Info., ID1a and

PP’s public key. In this time, if STB does not

obtain Copy Permission, STB cannot generate

these data.

6. STB sends g

f(ID1a)

mod p, SE(DC, K1a-1b) and

Issue Certification Code SIGs(H(DC)) to PP.

7. PP can view content under the procedure which is

same as section 3.4.

Only STB can copy content for PP. For

verification of STB which can copy content, STB

Certification Code is used. Copying program verifies

STB with this code. We show procedure of this

program as follows:

1. Copying program generates Content Key Ks-1a

from ID1a and Content Key Seed.

2. Copying program verifies Account Info.

Account||SIGs(Account).

3. Copying program decrypts STB Certification

Code with Ks-1a. This program verifies STB

comparing decrypted data of STB Certification

Code with Account Info.

4. Copying program decrypts SE(DC, Ks-1a) with

Ks-1a and obtains DC.

5. Copying program verifies Issue Certification

Code SIGs(H(DC)) with decrypted DC.

6. Copying program generates Copy Request for PP

H(g

f(ID1b)

mod p) ||SIG1a[SIGs(H(DC))||H(g

f(ID1b)

mod p)] from public key of PP for DH and sends

it to LAS.

7. LAS checks Copying Request whether the

number of copies is less than limited number or

not. If Checking is succeeded, LAS generates

Copy Permission SIGs(H(g

f(ID1b)

mod p)) and

sends it to Copying Program in STB.

8. After verification of Copy Permission, copying

program generates Re-encryption Key K1a-1b

and Re-encryption Key Seed g

f(ID1a)

mod p.

9. Copy program re-encrypts DC with K1a-1b.

Furthermore copy program generates Re-

encrypted Content SE(DC, K1a-1b) and Re-

encryption Key Seed g

f(ID1a)

mod p and sends it to

PP with Issue Certification Code.

4 SIMULATION

In this chapter, we show the result of evaluation.

Environment of simulation is following:

SECRYPT 2007 - International Conference on Security and Cryptography

430

 LAS, CDS: Pentium4 2.8GHz, Memory 1GB,

Windows XP;

 STB: A) Pentium4 2.66GHz, Memory 1GB,

Windows 2000;

 PP (in case of multi-connection, other STB):

B) Pentium4 2.4GHz, Memory 1GB,

Windows 2000

C) Pentium4 2.2GHz, Memory 1GB,

Windows 2000;

 Network; 100BASE-TX;

 Security Algorithm:

Symmetric Encryption: AES-128

Asymmetric Encryption: RSA-1024

Digital Signature: RSA-1024

One-way Function: SHA-1;

We show result of throughput of downloading

and copying on Client-Server model in table 1.

Table 1: Throughput on Client-Server Model.

Download A B C

For 1 STB 32Mbps - -

For 2 STBs 16Mbps 16Mbps -

For 3 STBs 10Mbps 10Mbps 10Mbps

Copy

(AtoB)

- 41Mbps -

Next, we show result of throughput on multicast

model in table 2.

Table 2: Throughput on Multicast Model.

Download A B C

For 1 STB 21.7Mbps - -

For 2

STBs

21.8Mbps 21.8Mbps -

For 3

STBs

21.7Mbps 21.7Mbps 21.7Mbps

Incidentally in our simulation, throughput of

Client-Server model is not faster than that of

Multicast model when LAS sends content to only

one STB. Throughput of UDP is generally faster

than that of TCP. However UDP does not have

reliability about transmission of a message because

UDP does not have function of flow control. So in

our simulation, on the purpose of an increase in

reliability about content distribution over UDP, we

dared to reduce this throughput.

5 DISCUSSION

5.1 Security

We discuss security, defined in chapter 2, of the

proposed system in this section.

– Terminal Legitimacy: If user views content,

STB or PP needs to generate decryption key

(Content Key or Re-encryption Key) bound to

terminal ID, and thus even if malicious person

vies content on other terminal, Encrypted

Content is not able to run this terminal.

– Wiretapping Impossibility: Even if the

contents are obtained through wiretapping,

malicious person cannot generate decryption key,

so illegal use of content is protected.

– Illegal Copy Process Impossibility: If user

wants to use content, Issue Certification Code or

STB Certification Code must be verified in

section 3.4 and 3.5. Even though malicious

person/STB obtains Content Using Info. with

hardcopy, the malicious person/STB fails in both

verification of code because of necessity of

Content/Re-encryption Key.

– Replay Attack Impossibility: In case of

obtaining legal account and STB Certification

Code when STB received content, malicious

person/STB can pass verification of STB

Certification code. However this STB cannot

decrypt Encrypted Content with key using

verification of STB Certification Code, so

Verification of Issue Certification Code is failed.

Thus other terminal cannot copy content.

– Privacy Protection: PP’s ID is used on Re-

encryption Key, and LAS can know g

f(ID1b)

mod

p. However LAS cannot obtain original PP’s ID,

so user privacy about using terminal without

STB is protected against LAS.

5.2 Performance

In Client-Server model, if one STB downloads

content, downloading throughput is 32Mbps. And in

Multicast model, downloading throughput is over

21.7Mbps. In Japan, throughput on Digital High-

Vision is about 17Mbps (ground-wave) or 20Mbps

(satellite). Considering this result, we can adopt our

proposed system to any types of content file.

In case of copying, throughput is 41Mbps, so

user can copy content without long waiting time.

IMPLEMENTATION AND EVALUATION OF NEW ILLEGAL COPY PROTECTION - Protection against Making a

Illegal Copy of a Copy

431

6 CONCLUSIONS

We proposed new DRM system. In this system,

usability of content use about copying improves by

permission of First Generation Copy, and

distribution/viewing of illegal copy is denied by

prohibition of Second Generation Copy. Content is

verified in three times checks, Generating Content

key or Re-encryption Key bound to terminal ID,

Issue Certification Code and STB Certification Code,

so malicious person/STB cannot use/copy content

illegally. Furthermore we made simulation system

and evaluated performance. As a result, we could

confirm that this system was realistic about current

movie file.

In the future, we will apply this system to some

types of multicast systems or broadcasting and

confirm that the proposed system is of practical use.

And on the purpose of simple implementation, we

will revise our program module.

REFERENCES

The Association for Promotion of Satellite Broadcasting,

http://www.bpa.or.jp/index.html

The Association for Promotion of Digital Broadcasting,

http://www.d-pa.org/

Digital Living Network Alliance,

http://www.dlna.org/en/industry/home/

4C Entity CPRM, http://www.4centity.com/

iTunes Overview, http://www.apple.com/itunes/overview/

OpenMG, http://www.sony.net/Products/OpenMG/

Association of Radio Industries and Businesses, 2003.

Conditional Access System Specifications for Digital

Broadcasting, In ARIB STD-B25. ARIB.

Fujii, H., Takei, H., Nakasato, K., Ihori, S., Miyake, N.,

2001. A New Method of Copyright Protection

Enabling Less Restricted Personal Copy. In EIP2001.

IPSJ.

Spencer, C., Avni, R., 2003. DRM and Standardization –

Can DRM Be Standardized?, In Digital Rights

Management, Springer-Verlag.

Whitfield, D., Martin, E. H., 1976, New directions in

cryptography, In Trans. On Information Theory, IEEE.

Carlos, S., Miguel, D., Jaime, D., 2006, Digital Object

Rights Management –Interoperable Client-side DRM

Middleware, In SECRYPT2006, INSTICC.

SECRYPT 2007 - International Conference on Security and Cryptography

432
