HIERARCHICAL AND PSEUDO-RANDOM EIRA CODES BASED

ON BIBDS AND PRIMITIVE INTERLEAVERS

Jesús Miguel Pérez Llano, Víctor Fernández Solórzano

Microelectronics Engineering Group TEISA, ETSIIyT,Cantabria University, Av. Los Castros, Santander, Spain

Keywords: LDPC, eIRA, DVB-S2, BIBD, error floor.

Abstract: This paper describes a method based on hierarchical matrices and primitive generators that allows low cost

coder and decoder implementations. The hierarchical approach is well suited for decoder implementation

and, in addition, the method has been applied to eIRA structures which have demonstrated a reduced coder

implementation complexity. Despite the added structure to eIRA original codes, the architecture presented

shows similar BER performance. To achieve this, BIBDs have been used to avoid length-four cycles and

primimitive generators contribute to get a pseudo-random construction. Moreover, the reduction of low

weight codewords and near codewords are considered in order to reduce error-floors.

1 INTRODUCTION

Although LDPC codes (Gallager, 1962)(Mackay,

1999) have been well known in research for a long

time, they have reached the “standard world”

through standards such as IEEE 802, some NASA

standards and DVB in the recent DVB-S2 standard

(DVB-S2, 2004). LDPC capabilities led to them

being adopted for the previously mentioned

standards: on the one hand because they are easier to

decode than well known Turbo Code based systems

and with more flexible architectures, and on the

other hand because of their BER performance.

Moreover, their implementation throughput makes

them an efficient architecture-aware channel coding

scheme.

In spite of all these advantages, LDPCs have

some disadvantages from the point of view of

hardware design whose effects are worth mitigating

(if the BER performance is not greatly affected).

Randomly designed LDPCs (Mackay, 1997) have

been demonstrated to have superior BER

performance. However, their implementation cost

becomes unviable when the parity matrix size

increases. Moreover, the codification of this kind of

code generally becomes non sparse.

This work has been supported by the Spanish MEC through the

TEC2005-03301 project.

Some alternatives have been proposed to avoid

the aforementioned implementation difficulties.

Finite Geometry based LDPCs (Kou, 2001) have a

greatly simplified codification but in general their

matrices are regular and very dense, which makes

their implementation cost a relevant drawback.

In (Yang, 2004) a new class of LDPCs called

eIRAs was recently shown to have a simplified

codification scheme, with good BER performance.

Their biggest flaw is that a considerable part of its

structure remains random (with the problems

previously alluded to).

The implementation proposed in this paper is

based on hierarchical matrices, which have been

demonstrated, in (Mansour, 2003)(Mansour, 2004)

by Mansour and in (Liao, 2004) by Liao and Yeo, to

be suitable for decoder implementation. Mansour

suggests the use of well known architectures such as

Ramanujan (Rosenthal, 2000) or cyclotomic sets

(Mansour, 2002) which have good structural

properties but with some weaknesses, as the error

floor due to low weight codewords (Mackay, 2003)

and the lack of flexibility (Zhang, 2004). Liao and

Yeo propose a completely random top and bottom

architecture that do not ensure the absence of length-

four cycles which has been demonstrated to have an

important influence on BER. In contrast, the basis of

our design is a well defined architecture based on a

BIBD (Ammar, 2004)(Ammar, 2002) design at the

top level architecture -which avoids length-four

cycles- and pseudo random permutations with

151

Miguel P

erez Llano J. and Fern

andez Sol

orzano V. (2006).

HIERARCHICAL AND PSEUDO-RANDOM EIRA CODES BASED ON BIBDS AND PRIMITIVE INTERLEAVERS.

In Proceedings of the International Conference on Wireless Information Networks and Systems, pages 151-157

 SciTePress

optimal roots at the bottom level designed to avoid

low weight codewords and near codewords

following recommendations of (Yang, 2004)(Dinoi,

2005)(Tian, 2004). Moreover, our proposal not only

reduces the complexity of the decoder, as previously

mentioned works do, but it simplifies the coder

complexity.

The use of primitive generators (Morelos-

Zaragoza, 2002) for the bottom level matrices

enables the implementation presented to avoid

storing the pointers, necessary to locate the 1’s in the

parity check matrix (the only pointers to be stored

are those that define the BIBD structure which

require much less memory consumption) without

losing randomness.

The approach presented outperforms the

congruent sequences based LDPCs (Prabhakar,

2002), which avoid the memory for the pointers but

are more restrictive, being regular and only defining

a bit degree of 3 in contrast to the architecture

presented which is much more flexible.

The use of eIRA codes provides our design with

a high performance from the point of view of BER.

Moreover, the absence of cycles 4 combined with

the optimal distribution of the connections in the

parity matrix lead to minimize low weight

codewords and near codewords, thus lowering the

error floor. In Section II the architecture proposed

will be discussed. In section III the BER

performance of the scheme is presented. Finally, in

chapter IV, the conclusions of this paper are

presented.

2 ARCHITECTURE PROPOSED

LDPCs based on eIRAs (Yang, 2004) are

constructed dividing the parity check matrix into two

parts called H

and H

. H

is defined as a square

matrix of size m (where m is the number of parity

bits) composed of m-1 degree-2 columns and one

degree-1 column (see Figure 1). In contrast, H

does

not have a defined architecture, being designed at

random (avoiding length-four cycles by removing

appropriate bits) in (Yang, 2004).

In the architecture proposed H

is divided into

several smaller matrices which are permutations of

the identity matrix or square zero matrices (see

Figure 1).

The TOP level architecture of H

will be chosen

to avoid length-four cycles using the BIBD structure

as will be explained in II-A. The sub-matrices,

which are permutations of the identity matrix, are

called permutation matrices and their structure and

construction will be shown in II-B. The absence of

length-four cycles in TOP level architecture ensures

a length-four cycle free parity check matrix because

sub-matrices have no more than one ‘1’ per column.

The architecture proposed is independent of the

frame size and only depends on the bit degree and

rate. To obtain different sizes the only thing that

needs to be modified in the design is the size of

bottom matrices, keeping the top matrix unchanged.

Bearing in mind that positions to be stored are those

of the top matrix, as code size increases, the

architecture proposed needs relatively less memory

than classical approaches.

2.1 TOP Level Architecture

The importance of avoiding cycles of length 4, for

BER performance of LDPC based codes, has been

widely demonstrated (Tian, 2004)(Mao, 2001). With

this idea in mind, the design presented develops a

way to design parity check matrices distributing the

permutation matrices in such a way that they do not

form length-four cycles. Moreover, this method can

be used with various matrix sizes and rates.

The approach presented makes use of BIBDs

(Balanced Incomplete Block Designs) (Anderson,

1990) in order to achieve a length-four cycle free

matrix with minimum dimension for a given bit

degree. BIBDs combine a number of points to form

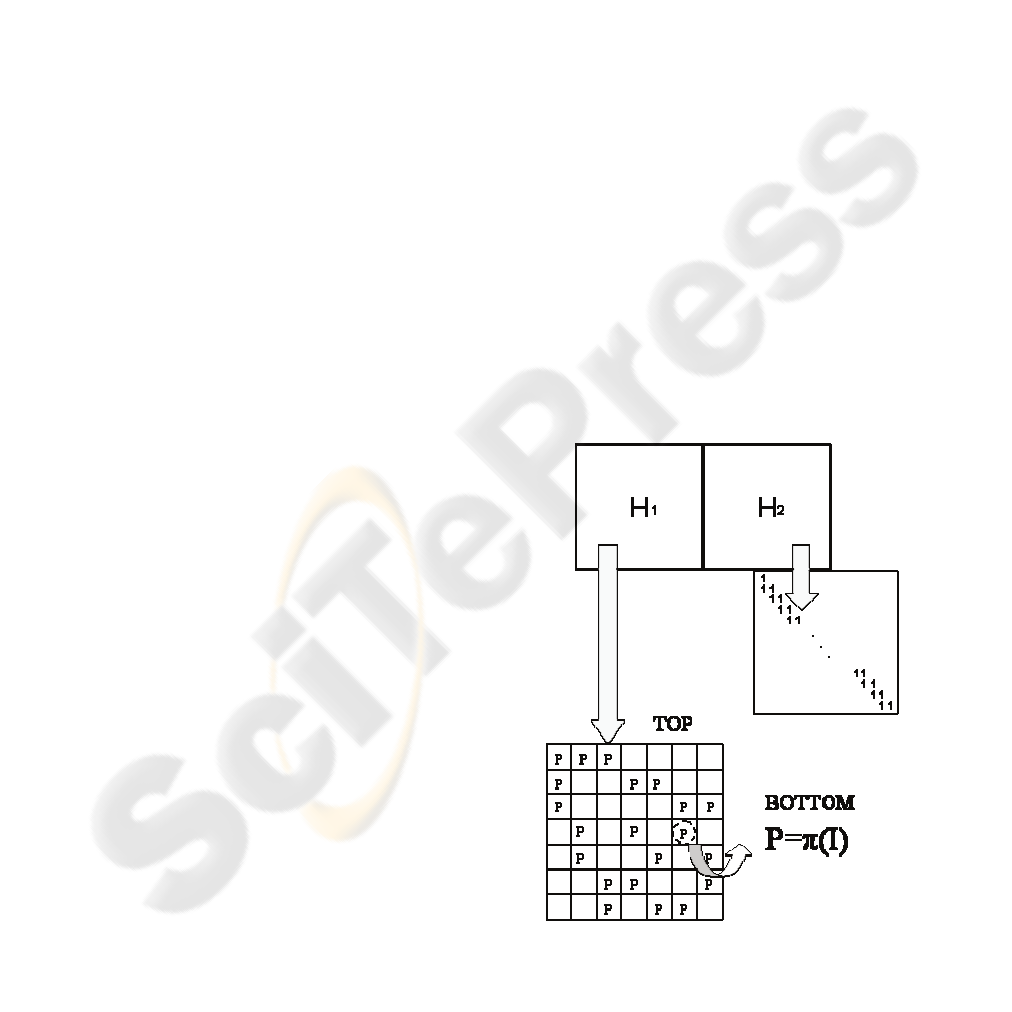

Figure 1: Proposed eIRA parity check matrix.

WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS

152

groups. They are defined by -at least- three

parameters called v, r, λ, where v is the total number

of points, r is the number of blocks which a point is

in (i.e. the bit degree in LDPC terms) and λ defines

the number of blocks in which each pair of points

are together. Translating these parameters to the

matrix field, v represents the number of columns, r is

the number of 1’s per column and λ=1 will

determine the absence of length-four cycles: a value

of 1 ensures that any pair of 1’s will be in only one

row.

The BIBD-based matrices chosen are rate 1/2

matrices, so, for rate 1/2 the construction is

immediate, turning the BIBD into a matrix. There

are several possibilities for BIBDs with λ=1. The

most well known are affine planes and projective

planes. The latter will be used in our designs

because their total number of points is less than that

needed in affine planes for a given maximum degree

of parity matrix. Using fewer points allows us to use

bigger permutation matrices, which leads to better

BER performance and which also needs fewer

memory elements in implementation.

The parameters that define projective planes are:

+n+1, n+1, 1). For example, Figure 1 shows a

BIBD(7,3,1). The way the matrix rows defined by

the BIBD are arranged should be noted.

In order to get rates lower than 1/2 the BIBD to

be used is the same as the one used for 1/2, chosen

to satisfy the optimal bit and check degree. The only

difference is that once the top matrix has been

defined, some columns are removed to adjust the

rate.

For rates higher than 1/2 the process proposed

consists in removing some rows of the original

matrix. An example can be seen in section II-C.

The number of memories used to store

information bits depends on the parallelism desired.

If a high parallelism is desired, the number required

to implement a BIBD with high rate (the highest

parallelism is obtained using a memory for any

column of the top matrix) can be a drawback for

designers. For example, for a bit degree of 13 the

system would require 157 memories.

In order to offer an alternative solution to this

problem, another option is proposed. Depending on

the bit degree desired a BIBD with a suitable

number of elements per column is chosen.

Moreover, depending on the rate to be reached,

either the whole BIBD or only a part of it (this last

option allows higher rates) is used. After that, the

resulting BIBD is cloned and put side by side with

itself. The only difference between both parts is the

way their pseudo-random primitive generators are

designed. The primitive generators of the BIBD on

the right are exactly the same as their equivalents on

the left, but the init_value (explained in the next

section) is changed depending on the row. This

ensures that the new structure is still length-four

cycle free with the bit degree desired and high rate.

In sub-section II-C an example of design is

explained.

Although all the proposed schemes define semi-

regular eIRAs (H

been regular), the method

proposed is flexible and irregular eIRAs can be

obtained by removing permutation matrices in top

level architecture in columns where degree should

be reduced.

2.2 BOTTOM Level Architecture

Once all the sub-matrices have been emplaced using

BIBDs, the way the permutation of the identity

matrix is defined will be explained. The objective of

primitive generators will be to produce the pointers

to the systematic bits needed to generate a given

parity bit.

Obviously, a completely random generator

cannot be implemented. The proposed method is

based on primitive interleavers (we will call them

primitive generators) (Morelos-Zaragoza, 2002).

These interleavers have the desirable property of

being very simple to design, fast and with low area

cost and, from the point of view of BER

performance, they perform only slightly worse than

a completely random one in this kind of systems.

The interleaved positions are calculated through the

following equation:

(

)

Nrootii

mod

(1)

There are three parameters that define the

pseudo-random sequence, N (the maximum value,

and the total number of values where the sequence is

complete), the init_value (the initial value i

) and the

root (the difference between one value and the next

or previous one). How these parameters will be

chosen is important in the BER performance of the

system.

The proposed design suggests an N which is

prime. This fact allows the use of as many different

roots as N-1 (a valid root is a root that forms

complete N sequences). Moreover, N is chosen to

satisfy:

numbercolumnNframesize _*≈

Fortunately, despite this restriction, there are enough

prime numbers and so widely distributed that any

frame size can be approximated.

HIERARCHICAL AND PSEUDO-RANDOM EIRA CODES BASED ON BIBDS AND PRIMITIVE INTERLEAVERS

153

The idea of having several roots increments the

randomness of the whole parity check matrix

because despite using the same generator the

sequences obtained are different. On the other hand,

following recommendations in (Yang, 2004)(Dinoi,

2005)(Tian, 2004), in order to reduce low-weight

codewords and near codewords, for lower degree

variables, which are mainly responsible of error

floors, roots are selected so that ones of columns and

pairs of columns are widely separated. This is done

by using an algorithm that performs two steps:

1.- For a given bit degree distribution, the initial

BIBD has a column degree which is equal to

maximum bit degree. Lower degrees are obtained by

removing column elements. This elimination is

performed in columns whose elements are less

distributed.

2.-Once the optimal degree is obtained, the

algorithm chooses the optimal roots for the lowest

weight columns. These optimal roots will be chosen

to maximize the average distance between elements

within any two columns as well as in any column

itself.

Moreover, the chosen root is also used as

init_value in order to begin at a different number for

any sub-matrix. Roots selected with the mentioned

methodology will be called distributed roots in the

next results section.

Using the above recommendations the BER

performance of the system is close to that obtained

using a completely random generator.

2.3 Example of Code Construction

To clarify the proposed method a simple example

will be discussed. We will describe the design

process for three different rates.

Rate 1/2: Suppose a rate 0.5 eIRA with column

degree 3. With only these requirements the design is

as easy as choosing a BIBD (7,3,1). Figure 2

displays the TOP matrix, which is clearly length-

four cycle free.

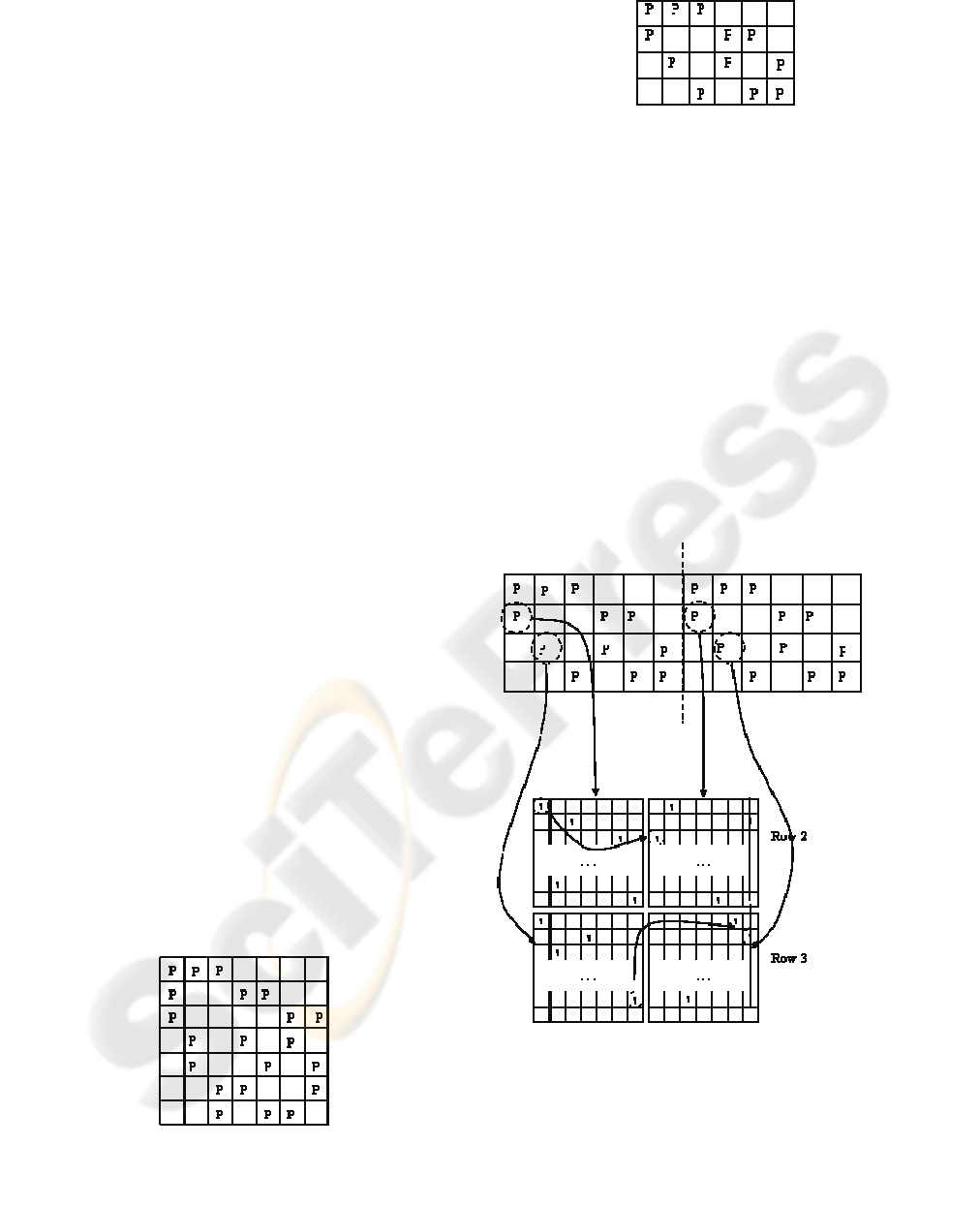

Figure 2: BIBD(7,3,1) for H

of rate 0.5 eIRA.

Figure 3: H

of rate 0.6 eIRA.

The next step would be to define the primitive

generator parameters for the required generators, in

the way that has been defined in II-B.

Rate 0.6: to obtain a slightly higher rate, the

same BIBD shown in Figure 2 can be used. This

time only four of its rows are to be used. If rows

1,2,4 and 7 are used and the last column is removed,

a 0.6 rate eIRA code is obtained (with a degree of 2

for any bit in H

). The matrix mentioned can be seen

in Figure 3. Of course, depending on the degree

needed the user can define which rows are used and

can even add or remove columns or P’s (while the

length-four cycle free structure is maintained). The

initial BIBD defines the maximum degree available,

so if a bigger degree is needed, another BIBD, with

bigger r, has to be chosen.

Figure 4: (a) H1 of rate 0.75 eIRA (b) Bottom level

architecture detail for 2P matrices on the left TOP level

matrix and their corresponding matrices on the right.

Rate 0.75: the last example will achieve a 0.75

rate eIRA maintaining the degree of 2 for any bit. At

(a)

(b)

WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS

154

this point there are two possibilities as was

explained previously: on the one hand, a suitable

BIBD can be used, removing rows till the rate

desired is obtained. On the other hand, the

architecture explained in II-A can be used, i.e.,

choosing a smaller BIBD and cloning it to form a

TOP architecture with higher rate.

For this example the second alternative is

applied, using the original BIBD(7,3,1) matrix. To

do so, the matrix in Figure 3 will be cloned. The

primitive generator used on the left is designed in

the same way as in the case of low rate. The

primitive generator used on the right of the dotted

line in Figure 4-a has as its init_value the row in

which that generator is placed. With this simple idea

a length-four cycle free parity check matrix is

obtained in spite of having length-four cycles in the

TOP architecture.

The top level architecture defined in this way is

displayed in Figure 4-a and a bottom level detail for

two generic square P matrices is shown in Figure 4-

3 BER PERFORMANCE

The results obtained in the original eIRA paper

(Yang, 2004) will be taken as the main point of

reference. The same two rates and frame sizes

reported in this paper have been tested with our

methodology. Moreover, the same bit and check

degrees will be used too, because they have been

demonstrated to be optimal using Gaussian

approximation (Richardson, 2001). The Mansour

(Mansour, 2003) results will also be compared but

not forgetting that it is not an eIRA approach.

3.1 Rate 0.5

For the rate 0.5 example in (Yang, 2004), the frame

size used (4018, 2009) is approximately the same as

the one reported there (4000, 2000). The reason for

the slight frame size difference is the use of a prime

N and a BIBD (49, 7, 1). In this particular case, N

was set to 41 as this is the prime value that provides

the frame length closest to the desired one: 41 x 49 =

2009.

We began using the same check and bit degrees

as the original eIRA because they have been

demonstrated to be optimal using differential

evolution. The proposed bit degree for H

matrix

was 58% of information bits with degree 3 and 42%

with degree 7. On the other hand roots of primitive

generators were randomly elected. Results can be

seen in Figure 5 labeled as eIRA BIBD (58%w3,

42%w7, rr) where rr means random roots.

Performance is clearly improved selecting roots

following the previously mentioned criteria, based

on separating widely the ones on columns and pair

of columns. The use of these distributed roots and its

BER performance is labeled as eIRA BIBD (58%w3,

0%w4, 42%w7, dr) , where dr means distributed

roots, in Figure 5.

The next step to improve the BER performance

in the error floor zone was to increase top level

columns to degree-4. A top level column is a column

of the top level matrix, which contains 41

information bits in this particular case. In order to

low the error floor a method based on increasing the

top level columns that are involved in most low

weight codewords and near codewords is proposed.

Basically the method consist in studying the quantity

of errors in which each top level column is involved

in and increase the degree of those with most errors

(Pérez, 2005).

Increasing 3 top level columns (3*41

information bits), which constitutes 6% of the total

number of columns, the BER performance in the

error floor zone (SNR=1.6dB) is improved from

2*10

-5

to 9*10

-6

. Finally, by increasing 6 top level

columns (12% of the weight 3 columns) the BER

performance goes below 3*10

-6

as can be seen in

Figure 5.

Final results are labeled as BIBD (46%w3,

12%w4, 42%w7, dr) in Figure 5, indicating the

percentage of columns increased to degree-4. This

final result can also be seen in Figure 6, compared to

the original eIRA results presented in (Yang, 2004).

As can be observed, the proposed method is really

close to the original eIRA in terms of BER

performance, but eliminating the random topology

of the parity check matrix with the implementation

benefits this feature implies.

1,00E- 06

1,00E- 05

1,00E- 04

1,00E- 03

1,00E- 02

1,00E- 01

0,8 0,9 1 1,1 1,2 1,3 1,4 1,5 1,6

Eb/ No

eIRA BIBD (58%w3, 0%w4, 42%w7, dr)

eIRA BIBD (52%w3, 6%w4, 42%w7, dr)

eIRA BIBD (46%w3, 12%w4, 42%w7, dr)

eIRA BIBD (58%w3, 42%w7, rr)

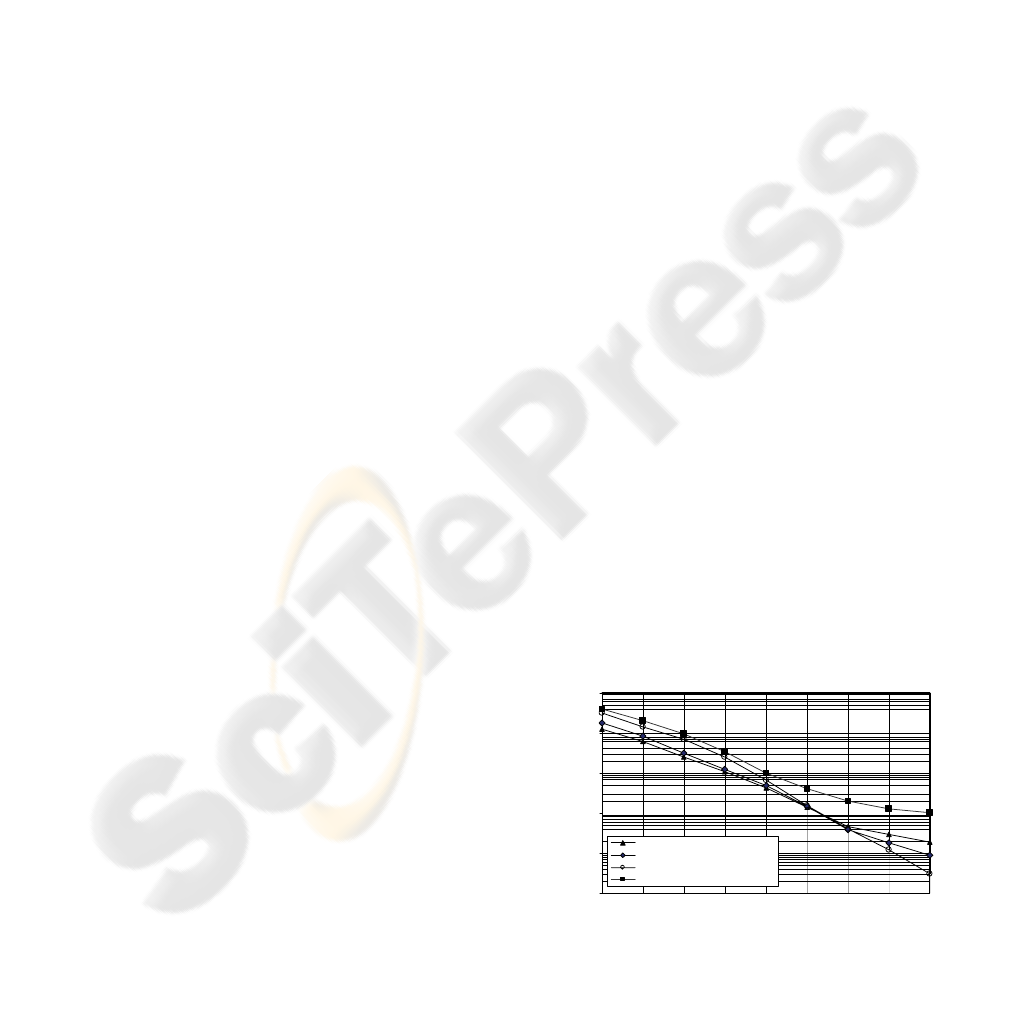

Figure 5: Influence of the percentage of weight 4 columns

in BER performance.

HIERARCHICAL AND PSEUDO-RANDOM EIRA CODES BASED ON BIBDS AND PRIMITIVE INTERLEAVERS

155

3.2 Rate 0.8

For this scheme, the frame size was a little bigger

(4495, 3534) than the one used in (Yang, 2004)

(4161, 3430). Moreover, the rate is a little smaller

(0.786 instead of 0.82). These two small differences

can explain the performance of our system being

almost 0.2dB better than the original one (using the

same check and node degrees) as can be seen in

Figure 7. Anyway, the difference is minimal and the

performance is as close to the (Yang, 2004) design

as expected.

Finally we present a comparison between Mansour

(Mansour, 2003) design, a random regular design

also reported in (Mansour, 2003) and our proposal

for rate 0.5 and frame size (1008). In (Mansour,

2003) the degree used by Mansour was not

specified.

1,00E-06

1,00E-05

1,00E-04

1,00E-03

1,00E-02

1,00E-01

1,00E+00

0,8 0,9 1 1,1 1,2 1,3 1,4 1,5 1,6

Eb/ No

eIRA original

eIRA BIBD(46% w3, 12% w4, 42% w7, distributed )

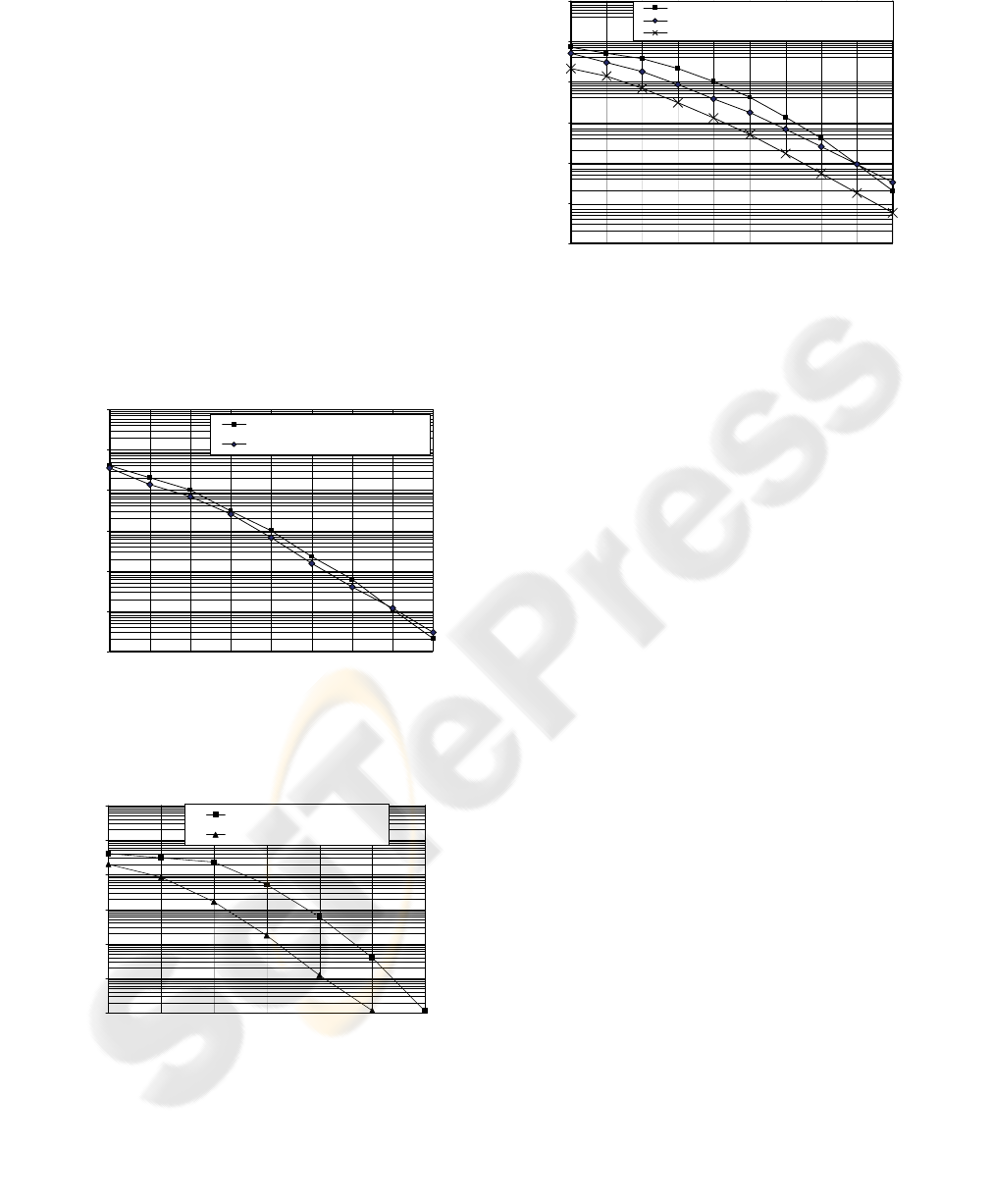

Figure 6: Performance comparison of original and

proposed n≈4000 rate-0.5 eIRAs.

1,00E-06

1,00E-05

1,00E-04

1,00E-03

1,00E-02

1,00E-01

1,00E+00

2,2 2,4 2,6 2,8 3 3,2 3,4

Eb/No

BER

eIRA original of length 4161 and rate 0.82

eIRA BIBD of length 4495 and rate 0.786

Figure 7: Performance comparison of original and

proposed n≈4000 rate-0.8 eIRAs.

1, 0 0 E - 0 6

1, 0 0 E - 0 5

1, 0 0 E - 0 4

1, 0 0 E - 0 3

1, 0 0 E - 0 2

1, 0 0 E - 0 1

1,00E+00

1 1,2 1,4 1,6 1,8 2 2,2 2,4 2,6 2,8

Eb/ No

Random c ode with no 4- cycles of length 1008, rate 0.5

Mansour LDPC code with AA-structure of length 1008, rate 0.5

eIRA BIBD distributed roots of length 1008, rate 0.5

Figure 8: Performance comparison of various n≈1000

rate-0.5 regular LDPC codes.

In this paper the optimal degree calculated via the

density function for this rate and size has been used.

Comparison can be seen in Figure 8. Our design

outperforms both the Mansour and random designs

by approximately 0.2 dB.

4 CONCLUSIONS

In this paper a new architecture for designing eIRAs

is proposed. A design based on hierarchical matrices

is proposed, combining the deterministic structure of

BIBD (x, y, 1) designs, avoiding length-four cycles,

with the good BER properties of pseudo-random

constructions in order to create a hardware-aware

design which allows high parallelism with BER

performance close to the eIRAs theoretical

performance. Moreover, with the method defined in

this paper we are able to improve BER performance

and error floor by distributing the elements of H

matrix and by selectively increasing bit degrees.

REFERENCES

Gallager, R. G., 1962. Low-density parity-check codes. In

IRE Transactions in Information Theory, vol. IT-8,

pp.21-28.

MacKay, D. J. C., 1999. Good error-correcting codes

based on very sparse matrices. In IEEE Transactions

on Information Theory, vol. 45, pp. 339-431.

DVB-S2 Standard, 2004: EN 302 3027 v1.1.1.

MacKay, D. J. C. and Neal R. M., 1997. Near Shannon

limit performance of low density parity check codes.

In Electronic Letters, vol. 33, no. 6, pp.457-458.

Kou, Y., Lin, S. and Fossorier M. P. C., 2001. Low-

density parity-check codes based on finite geometries:

WINSYS 2006 - INTERNATIONAL CONFERENCE ON WIRELESS INFORMATION NETWORKS AND SYSTEMS

156

A rediscovery and new results. In IEEE Transactions

on Information Theory, vol. 47, pp. 2711-2736.

Yang, M., Ryan, W. E. and Li, Y., 2004. Design of

Efficiently-Encodable Moderate-Length High-Rate

Irregular LDPC Codes. In IEEE Transactions on

communications., vol. 52, pp.564-571.

Mansour, M. and Shanbhag, N., 2003. High-throughput

LDPC decoders. In IEEE Transactions on VLSI

Systems., pp.976-996.

Mansour, M., 2004. High-Performance Decoders for

Regular and Irregular Repeat-Accumulate Codes. In

Proceedings IEEE GlobeCOM, Dallas, USA.

Liao, E., Yeo, E. and Nikolic, B., 2004. Low-density

parity-check code constructions for hardware

implementation. In Proceedings IEEE ICC, Paris,

France.

Rosenthal J. and Vontobel P.O., 2000. Constructions of

LDPC Codes Using Ramanujan graphs and Ideas for

Margullis. In Proceedings of the 38-th Allerton

Conference on Communications, Control and

Computing, Illinois, USA.

Mansour, M. and Shanbhag, N., 2002. Low Power VLSI

Decoder Architectures for LDPC Codes. In

Proceedings ISLPED.

MacKay, D. J. C and Postol, M. S., 2003. Weaknesses of

Margulis and Ramanujan-Margulis low-density parity-

check codes. In Electronic Notes in Theoretical

Computer Science.

Zhang, T. and Parhi, K. K., 2004. Joint (3,k)-Regular

LDPC Code and Decoder/Encoder Design. In IEEE

Transactions on Signal Proccesing, vol. 52, no. 4, pp.

1065-1079.

Ammar, B., Honary, B., Kou, Y., Xu, J., and Lin, S., 2004.

Construction of Low Density Parity Check Codes

based on balance incomplete block designs. In IEEE

Transactions on Information Theory.

Ammar, B., Honary, B., Kou, Y., and Lin, S., 2002.

Construction of Low Density Parity Check Codes: A

Combinatoric Design Approach. In Proceedings IEEE

International Symposium on Information Theory,

Lausanne, Switzerland.

Dinoi, L., Sottile, F., Benedetto, S., 2005. Design of

Variable-rate Irregular LDPC Codes with Low Error

Floor. In Proceedings IEEE ICC, Seoul, South Korea.

Morelos-Zaragoza, R. 2002. The Art of Error Correcting

Coding. The John Wiley & Sons.

Prabhakar, A., Narayanan, K. 2002. Pseudorandom

construction of low-density parity-check codes using

linear congruential sequences. In IEEE Transactions

on Communications, vol. 50, no. 9, pp. 1389-1396.

Tian, T., Jones, C., Villasenor, J. D. and Wesel, R. D..

2004. Selective avoidance of cycles in irregular LDPC

code construction. In IEEE Transactions on

Communications., vol. 52, pp. 1242-1247.

Mao, Y. and Banihashemi, H. 2001. A heuristic search for

good low-density parity-check codes at short block

lengths. In Proceedings IEEE ICC, Helsinki, Finland.

Anderson, I. 1990. Combinatorial Designs: Construction

Methods. The Chischester, U.K.: Ellis Horwood.

Richardson, T. J., Shokrollahi, M. A. and Urbarke R. L.

2001. Design of capacity-approaching irregular low-

density parity check codes. In IEEE Transactions on

Information Theory, vol. 47, pp. 619-637.

Pérez, J.M. and Fernández, V. 2005. Hardware Aware

eIRA LDPC Code Generation. In Proceedings IEEE

ISWCS, Siena, Italy.

HIERARCHICAL AND PSEUDO-RANDOM EIRA CODES BASED ON BIBDS AND PRIMITIVE INTERLEAVERS

157
