Localization of Neuron Nucleuses in Microscopy Images with

Convolutional Neural Networks

Arkadiusz Tomczyk

, Bartłomiej Stasiak

, Paweł Tarasiuk

Anna Gorzkiewicz

, Anna Walczewska

and Piotr S. Szczepaniak

Institute of Information Technology, Lodz University of Technology,

Wolczanska 215, 90-924 Lodz, Poland

Department of Cell-to-Cell Communication, Medical University of Lodz,

Keywords:

Convolutional Neural Networks, Machine Learning, Fluorescent Microscope, Nucleus Localization.

Abstract:

In this paper, an automatic method of neuron nucleuses localization in the images, taken with the ﬂuorescent

microscope, is presented. The proposed approach has two phases. During the ﬁrst phase, a properly trained

convolutional neural network acts as a non-linear ﬁlter which indicates regions of interest. The network

architecture and speciﬁc method of its training are original concepts of the authors of this work. In the second

phase, analysis of these regions allows to identify points representing positions of the nucleuses. To illustrate

the method, images of neurons isolated from neonatal rat cerebral cortex were used. These images were

inspected by a domain expert and all the visible nucleuses were manually annotated. This allowed not only to

objectively assess the obtained detection results but it enabled the application of machine learning as well.

1 INTRODUCTION

Automatic analysis of images becomes a crucial task

in a world where there are more and more image

sources. To design proper algorithms, machine learn-

ing techniques can be used, where both models and

parameters of these models can be selected automat-

ically during the training phase. Application of ma-

chine learning requires, however, access to the do-

main knowledge, which usually is expressed in form

of a train set which contains inputs and correspond-

ing expected outputs. The gathering of this knowl-

edge constitutes a separate, difﬁcult task, which is

even harder in the case of specialized images where

the number of qualiﬁed domain experts is usually rel-

atively small.

In this paper, neuron images, acquired with ﬂuo-

rescent microscope, are analyzed to localize all neu-

ron nucleuses. For this purpose a two-stage approach

is proposed, which in its ﬁrst phase uses a convo-

lutional neural network (CNN) (LeCun and Bengio,

1995) to ﬁnd regions of interest. Since it is not a typ-

ical application of such networks, the proposed archi-

tecture can be considered as a main contribution of

this paper. It should be emphasized that the conducted

research was possible only thanks to the manually in-

dicated nucleuses provided by a domain expert.

The paper is organized as follows: section 2 de-

scribes the similar works brieﬂy, in section 3 the

used data are characterized, in sections 4 and 5 the

proposed approach and the obtained results are dis-

cussed, respectively and ﬁnally, the last section con-

tains a short summary of the conducted research.

2 RELATED WORK

Application of convolutional neural networks to ana-

lyze microscopy images is a relatively new idea. In

the literature some existing approaches can be found,

which differ in: analyzed image type, the goal of

image analysis, CNN application method, etc. All

of them have, however, one common problem which

needs to be overcome – availability of training data.

Localization and segmentation tasks are not areas

of typical CNN applications. CNN is usually used as

a part of a classiﬁer which may assign labels to the

whole image or to some of its regions when a mov-

ing window procedure is applied. For segmentation

and localization tasks, this classic architecture is usu-

188

Tomczyk, A., Stasiak, B., Tarasiuk, P., Gorzkiewicz, A., Walczewska, A. and Szczepaniak, P.

Localization of Neuron Nucleuses in Microscopy Images with Convolutional Neural Networks.

DOI: 10.5220/0006753601880196

In Proceedings of the 11th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2018) - Volume 2: BIOIMAGING, pages 188-196

ISBN: 978-989-758-278-3

ally modiﬁed, because at the output there should be

an image of the same size as at the input. To achieve

that goal, some up-scaling layers are added after some

number of classic convolutional and pooling layers.

Such approach was used in the works presented be-

low:

• In (Sadanandan et al., 2017) the problem of cul-

tured cell segmentation was considered. To over-

come a problem with limited number of training

samples, a method of automated train set gener-

ation was proposed. After normal image acqui-

sition, cells were stained with ﬂuorescent markers

allowing to identify nucleuses and cytoplasmic re-

gions. Then, images were used again, but this

time simple segmentation techniques allowed to

detect their positions and prepare the correspond-

ing expected output masks for CNN training.

• In (Ho et al., 2017) 3D ﬂuorescent microscopy

images of rat kidney cells were segmented and

the data was processed by a properly trained 3D

CNN. In the case of 3D images, however, the dif-

ﬁculty of manual image annotation is even big-

ger than in 2D case, so to obtain sufﬁciently nu-

merous train set, data augmentation procedures

were used. These included modiﬁcations of im-

age brightness and contrast as well as elastic de-

formations warping images locally.

• In (Quan et al., 2016), as a part of an approach

similar to works mentioned above, the training

data generation procedures were used (rotations,

reﬂections, random noise) to increase the size of

the train set. This time, however, 2D electron mi-

croscopy images were analyzed and the goal was

cell membrane segmentation.

• In (Xie et al., 2016), the problem of cell counting

was presented. In this work, CNN was trained to

regress a cell spatial density distribution. To avoid

problems with training data, both inputs and out-

puts were synthesized automatically. An interest-

ing element of the method presented there is that

two parallel regression networks were trained si-

multaneously and their results were combined to

get the ﬁnal response.

The solution presented in this work differs mainly in

the type of the analyzed images and in the speciﬁc

method of CNN application. Here, while the image

processing is performed, the image size is not re-

duced. Consequently, all the feature maps have the

same size and no up-scaling is required.

3 DATA

The images analyzed in this work contain neurons

that were isolated from neonatal rat cerebral cor-

tex. The cells were divided into four groups. The

ﬁrst is the control group where the cells were incu-

bated in standard neuronal medium for 3 days. In

three other groups, the standard neuronal medium was

changed for the third day: the second group was incu-

bated with medium collected from astrocytes culture,

whereas the groups three and four were incubated

with medium collected from the culture of astrocytes,

that were earlier modiﬁed with two different polyun-

saturated omega-3 fatty acids, DHA and EPA, respec-

tively. After the time of incubation, the neurons were

ﬁxed and immunostained with primary monoclonal

anti-β-Tubulin antibody and secondary antibody con-

jugated with ﬂuorescent molecules. The ﬁxed slides

were analyzed and the pictures were taken using a ﬂu-

orescent microscope.

The further aim of this research is to measure how

the factors released to medium by the modiﬁed as-

trocytes inﬂuence neuronal wiring. The formation of

neuronal projections and connections during develop-

ment is crucial for the proper functioning of the ner-

vous system. The recognition of neuronal nucleuses

will help to determine localizations of the cell bodies

on the picture, in order to further deﬁne the number,

lengths and widths of the neuronal projections in pro-

portion to the number of cells.

The set of available data contained 16 images

which size is 1024 × 1024 pixels. An example im-

age is shown in Fig. 1. In every image, the position of

every neuron nucleus was manually indicated by a do-

main expert (Fig. 2), constituting a set of expected

localization points O

= {o

: i = 1,..., N

} where

∈ {0,...,1023} × {0,. .. ,1023}. This set was fur-

ther split into train, validation and test set which con-

tained 8, 4 and 4 images, respectively. The initial

analysis of the reference points revealed that the min-

imum pixel distance d between these points is equal

to 8. This value will be used later in the presented

experiments.

4 METHOD

The method of neuron nucleuses localization is com-

posed of two, separately trained, phases. In the ﬁrst

phase, the specially designed fully convolutional neu-

ral network tries to approximately indicate image re-

gions that are similar to nucleuses. It is a kind of

a non-linear ﬁlter which should have a high response

in the potentially interesting regions and low response

Localization of Neuron Nucleuses in Microscopy Images with Convolutional Neural Networks

189

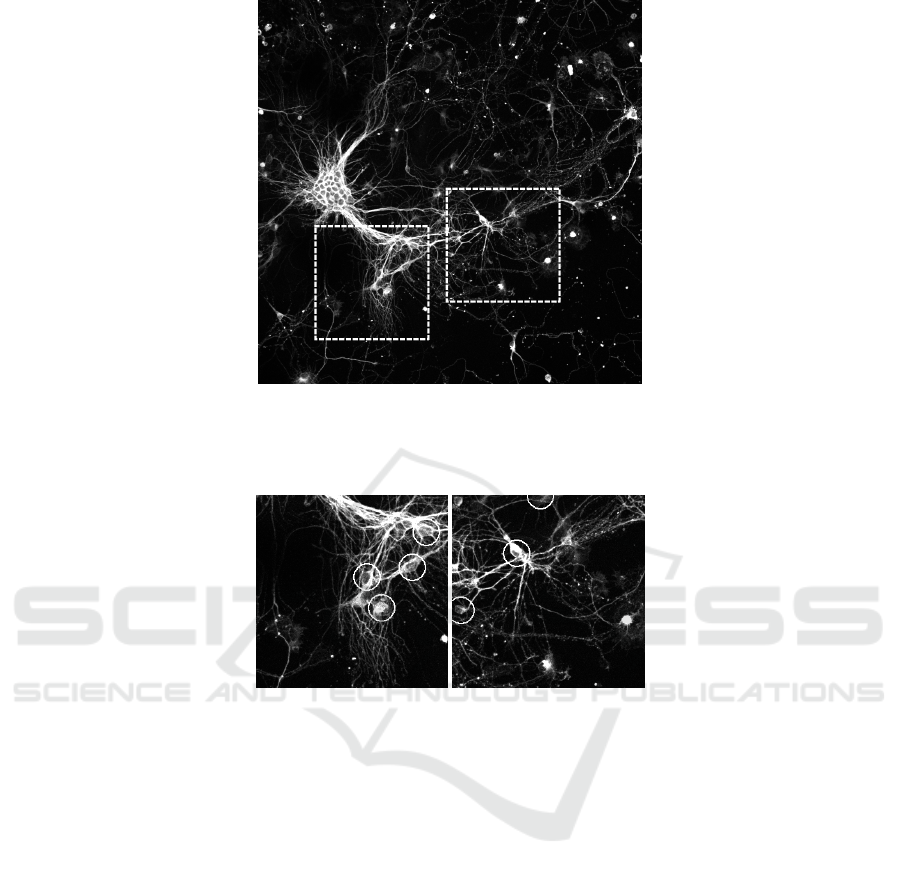

Figure 1: Representative ﬂuorescence image of neurons stained with antibodies against beta-tubulin, class III conjugated with

Alexa Fluor 488 acquired using a Zeiss microscope. The squares indicates the image regions, which, for better visibility, will

be used further to illustrate the presented concepts (the original image size – 1024 × 1024 pixels, the region size – 300 × 300

pixels).

(a) (b)

Figure 2: Sample regions with manually indicated nucleuses. For better visibility the points given by an expert are surrounded

with circles (circle radius – 20 pixels).

in the other places. In the second phase, the result of

the ﬁltration is analyzed to give a set of points that are

suspected to be located within neuron nucleus area

(one point per nucleus). Obviously, the found points

do not need to precisely correspond with the reference

points given by a domain expert. That is why a ded-

icated evaluation procedure is required to objectively

measure the quality of the results. It can be used both

to summarize the ﬁnal results and to ﬁnd the optimal

parameters while training. All those elements are de-

scribed in the further sections in details.

4.1 Convolutional Neural Network

Architecture and Training

Convolutional neural networks are biologically in-

spired neural networks that succeeded in many tasks

connected with image analysis (Cires¸an et al., 2011;

Krizhevsky et al., 2012). In typical applications,

where they are used as image classiﬁers, they have

a common general architecture in which after some

number of convolutional layers, the resulting feature

maps are processed by fully connected layers to give

a ﬁnal response (which is a form of predicted label en-

coding). The feature maps produced by the successive

layers usually have decreasing sizes, which is caused

both by the convolution itself (no additional padding

is used) and by the pooling (e.g. max-pooling) layers.

In this work, the approach described above is not

acceptable, since the CNN is supposed to work like

a non-linear ﬁlter which, given an image, is able to

produce the image of the same size after the ﬁltra-

tion. That is why the architecture, ﬁrstly proposed in

(Stasiak et al., 2017), will be used here instead. In

this architecture fully connected layers are removed,

in every convolutional layer the appropriate padding

is added and no pooling layers are involved at all. The

non-linearity of such a network is guaranteed by the

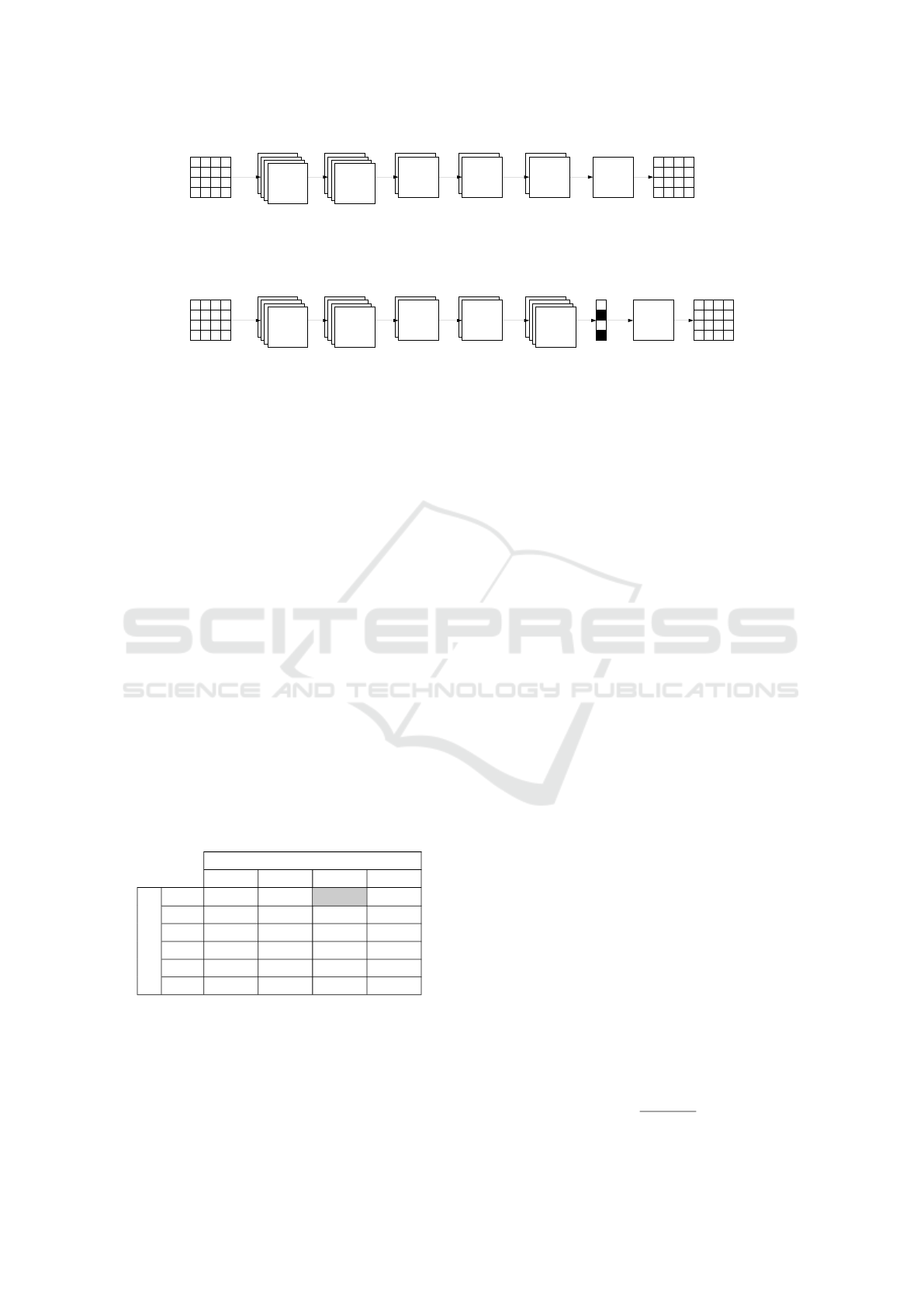

non-linear activation functions (Fig. 3).

To train such a network, the output should be

KALSIMIS 2018 - Special Session on Knowledge Acquisition and Learning in Semantic Interpretation of Medical Image Structures

190

given in a form of the expected, ﬁltered image. In

our case it must be prepared with usage of the refer-

ence points O

given by an expert. The simplest solu-

tion could be generation of the whole black outputs,

with only given points set to be white. After initial

experiments it appeared, however, that this approach

is not acceptable, as the network in the training pro-

cess favors those combinations of weights that lead to

the whole black output (the number of white pixels is

very small in comparison with the size of the image

and such a solution will constitute an attractive local

minimum of a training loss function). The other solu-

tion could be to draw ﬁlled, white circles around the

expected points with the radius big enough to avoid

the problem mentioned above. This would, however,

lead to another difﬁculty. Sufﬁciently big radius may

cause that after the ﬁltration, pairs of nucleuses that

are very close to each other will be indistinguishable.

That is why, further in this work, a different approach

was proposed. The Gaussian function was used to de-

scribe the expected response around reference points.

Such a response was generated in some area around

every reference point and if some points were close to

each other, the maximum response was selected (Fig.

4). The Gaussian function parameters were selected

according to the visual ﬁeld of the CNN (at the border

of that ﬁeld, Gaussian function value should decrease

to 0.5). Such an expected output allows to train CNN

using a classic Euclidean loss function L (regression

problem).

The interesting property of the used architecture

is the fact that it can be trained using smaller im-

ages (that refers to cutting, but not scaling) and after

training it can be applied for full-size inputs (Stasiak

et al., 2017). This property was also used in this work,

where training images had size of 51 × 51 pixels (Fig.

4). Of course, to train the network properly. the set

of these images had to be representative. That is why

two groups of such images were generated. In the

ﬁrst group, there were images taken from the neigh-

borhood of the reference points (positive samples). In

the second group, 200 randomly located images were

cut (negative samples) in such a way to not overlap

with positive samples. Since the number of nucle-

uses is smaller than 200, this procedure gave unbal-

anced positive and negative sets. To avoid problems

with training, the number of positive samples was in-

creased by taking into account all the rotations of the

positive images and by oversampling (the same im-

age was repeated multiple times in the generated set).

Positive and negative samples were generated from

every full-size image and the corresponding expected

output images in the train and validation sets were

used to produce train (2312 positive and 1600 neg-

ative) and validation (1140 positive and 800 negative)

sets of smaller images for network training.

In the further experiments, two architecture types

were considered as presented in Fig. 3. The second

model M

(K) differs from the ﬁrst one M

−

(K) only

with additional dropout layer (Srivastava et al., 2014)

which was added before the ﬁnal convolutional layer

(K deﬁnes the number of kernels). Since the dropout

probability is set to 50%, the number of ﬁlters in the

last but one layer was doubled in M

(K). The propor-

tion between the number of ﬁlters in successive layers

and the size of the ﬁlters were selected based on the

existing hints from the literature. In the initial layers

ﬁlters are smaller, but their number is bigger. Both ar-

chitectures have a visual ﬁeld of size 23 × 23 pixels,

which should be enough to cover single nucleus in the

analyzed images.

4.2 Neuron Nucleuses Localization

The positions of the nucleuses cannot be extracted di-

rectly from the network output since, which is a con-

sequence of the expected output type used for CNN

training, the pixel values in ﬁltered images change

smoothly in the areas were nucleuses can be ex-

pected. To ﬁnd them, a dedicated procedure was pro-

posed where connected regions of pixels with inten-

sity above the threshold t are searched for using re-

gion growing algorithm. The regions of area greater

than a are rejected as overly general. The centers of

gravity (expressed in image coordinates) of the re-

gions found in this way constitute a preliminary set of

the result points. The proper values of threshold t and

area a can be selected automatically using full-sized

training images.

To ﬁnd a ﬁnal set of points O

= {o

: j =

1,. .. ,N

} where o

∈ {0,.. ., 1023} × {0,. .. ,1023},

additional post-processing needs to be performed, as

the ﬁltration output is not perfect. First, all the du-

plicates are removed. Next, if the distance between

points is smaller than an expected minimum distance

between nucleuses d, those points are merged to-

gether (their coordinates are averaged). To avoid

a chain effect, this procedure is performed starting

from points with the biggest number of such overly

close neighbors. Merging is performed as long as

there are points that could be merged.

4.3 Result Evaluation Procedure

To evaluate the results of nucleuses localization, two

sets of points O

and O

must be compared. As

it was already mentioned, since the nucleuses have

some non-zero size, it cannot be expected that coor-

Localization of Neuron Nucleuses in Microscopy Images with Convolutional Neural Networks

191

Input

data

Conv1:

2K kernels,

3 3 filters,×

1 1 padding,×

PReLU

Conv2:

2K kernels,

5 5 filters,×

2 2 padding,×

PReLU

Conv3:

K kernels,

5 5 filters,×

2 2 padding,×

PReLU

Conv4:

K kernels,

5 5 filters,×

2 2 padding,×

PReLU

Conv5:

K kernels,

7 7 filters,×

3 3 padding,×

PReLU

Conv6:

1 kernel,

7 7 filters,×

3 3 padding,×

Sigmoid

Output

data

(a)

Input

data

Conv1:

2K kernels,

3 3 filters,×

1 1 padding,×

PReLU

Conv2:

2K kernels,

5 5 filters,×

2 2 padding,×

PReLU

Conv3:

K kernels,

5 5 filters,×

2 2 padding,×

PReLU

Conv4:

K kernels,

5 5 filters,×

2 2 padding,×

PReLU

Conv5:

2K kernels,

7 7 filters,×

3 3 padding,×

PReLU

Conv6:

1 kernel,

7 7 filters,×

3 3 padding,×

Sigmoid

Dropout

with

p=50%

Output

data

Input

data

(b)

Figure 3: Architecture of the considered convolutional networks (K is equal to either 10 or 20): (a) - network without droput

layer M

−

(K), (b) - network with dropout layer M

(K). All except the last convolutional layers use PReLU (parametrized

rectiﬁed linear unit) and in the last layer sigmoid function is used to obtain values from [0,1] interval. The last convolutional

layer has only one kernel to generate one output image.

dinates of the expected and the found points will be

the exactly the same. Consequently, some reasonable

distance tolerance D should be assumed. If the dis-

tance between the expected point and the found point

is smaller than this value, the corresponding nucleus

can be considered to be found. Further the following

notation will be used:

• S

= { j = 1,. .. ,N

: ρ(o

) < D} – a set of in-

dexes of those result points that lie closer than D

to the expected point o

• S

= {i = 1, .. ., N

: ρ(o

) < D} – a set of in-

dexes of those expected points that lie closer than

D to the result point o

where ρ denotes the Euclidean metric.

Table 1: Selection of the best combination of parameters

t and a for optimal network M

(20). Every cell contains

averaged F

value calculated for 8 images in a train set. The

highlighted cell indicates the optimal combination.

100 150 200 250

200 0.492 0.570 0.593 0.592

210 0.509 0.564 0.572 0.572

220 0.522 0.556 0.555 0.555

230 0.473 0.485 0.485 0.485

240 0.382 0.381 0.381 0.381

250 0.170 0.170 0.170 0.170

To compare the expected and the found points,

two error types need to be considered. The ﬁrst one

checks false positives, i.e. the number of found points

that do not correspond with any nucleus:

FP =

∑

j=1

I(S

0). (1)

The second one checks false negatives, i.e. the num-

ber of nucleuses that do not have corresponding de-

tected point:

FN =

∑

i=1

I(S

0). (2)

In the notation presented in this paper, I is an indicator

function which value is equal 1 if the given condition

is true and 0 otherwise.

The above measures do not allow to fully evaluate

the quality of the results, because those values need to

be compared with the number of correctly identiﬁed

nucleuses. Their number can be found, however, in

two different ways as:

• a number of nucleuses that have at least one cor-

responding result point

T P

∑

i=1

I(S

0), (3)

• a number of result points that have at least one

corresponding nucleus

T P

∑

j=1

I(S

0). (4)

Those numbers may differ if |S

| > 1 or |S

| > 1

(Fig. 5). Fortunately, this situation will not occur if

D = d/2. Then T P = T P

= T P

and the localization

results can be evaluated using typical measures such

as:

• precision – the percentage of correctly localized

points

P =

T P

T P + FP

, (5)

KALSIMIS 2018 - Special Session on Knowledge Acquisition and Learning in Semantic Interpretation of Medical Image Structures

192

(a) (b) (c) (d)

(e) (f)

(g) (h) (i) (j) (k) (l) (m) (n)

(o) (p) (q) (r) (s) (t) (u) (v)

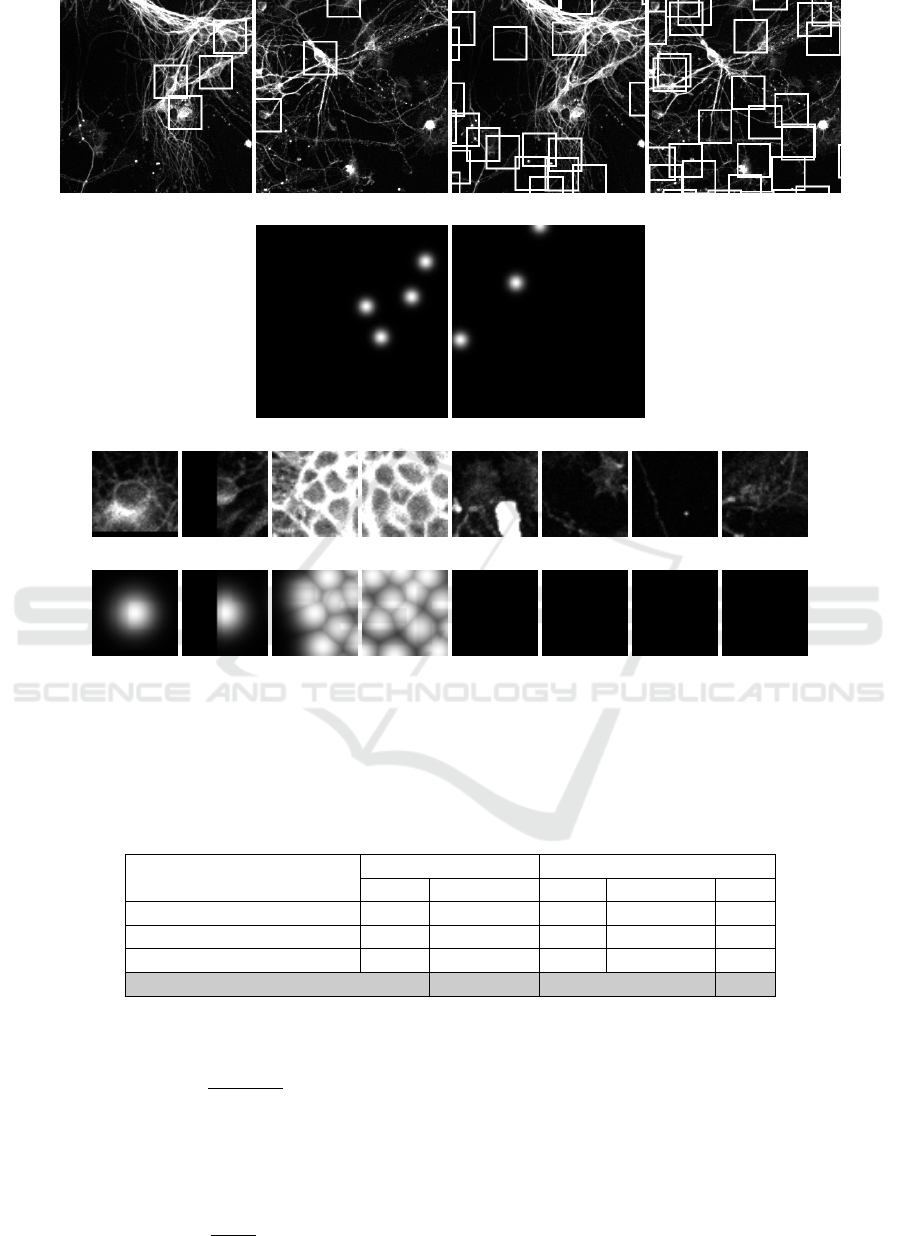

Figure 4: Convolutional training data (regions size – 51 ×51 pixels): (a), (b) - positions of positive samples generated around

the reference points, (c), (d) - positions of positive samples selected randomly – they do not overlap with positive samples,

(e), (f) - expected output with Gaussian functions generated around the reference points, (g) - (n) - examples of network inputs

(4 positive samples and 4 negative samples), (o) - (v) - examples of the corresponding expected network outputs (4 positive

samples and 4 negative samples).

Table 2: Comparison of the trained solutions. Average F

value on a validation set should allow to select solution with the

greatest chance for generalization abilities. The highlighted row indicates the optimal solution.

solution

ﬁnal L avarage F

train validation train validation test

−

(10), t = 220, a = 150 17.89 20.10 0.49 0.35 0.51

(10), t = 210, a = 200 18.75 20.02 0.51 0.39 0.51

−

(20), t = 220, a = 200 13.07 12.49 0.55 0.42 0.50

(20), t = 200, a = 200 12.91 12.79 0.59 0.44 0.45

• recall – the percentage of the correctly localized

nucleuses

R =

T P

T P + FN

. (6)

For a perfect solution, both these values should be

close to 1. To obtain a single value, they are usually

combined using harmonic mean:

2PR

P + R

. (7)

Such a single averaged value will be further used to

select a proper solution and to ﬁnd proper values of

the parameters t and a.

5 RESULTS

The results presented in this work required CNN

training and usage of the trained CNN. It would not be

Localization of Neuron Nucleuses in Microscopy Images with Convolutional Neural Networks

193

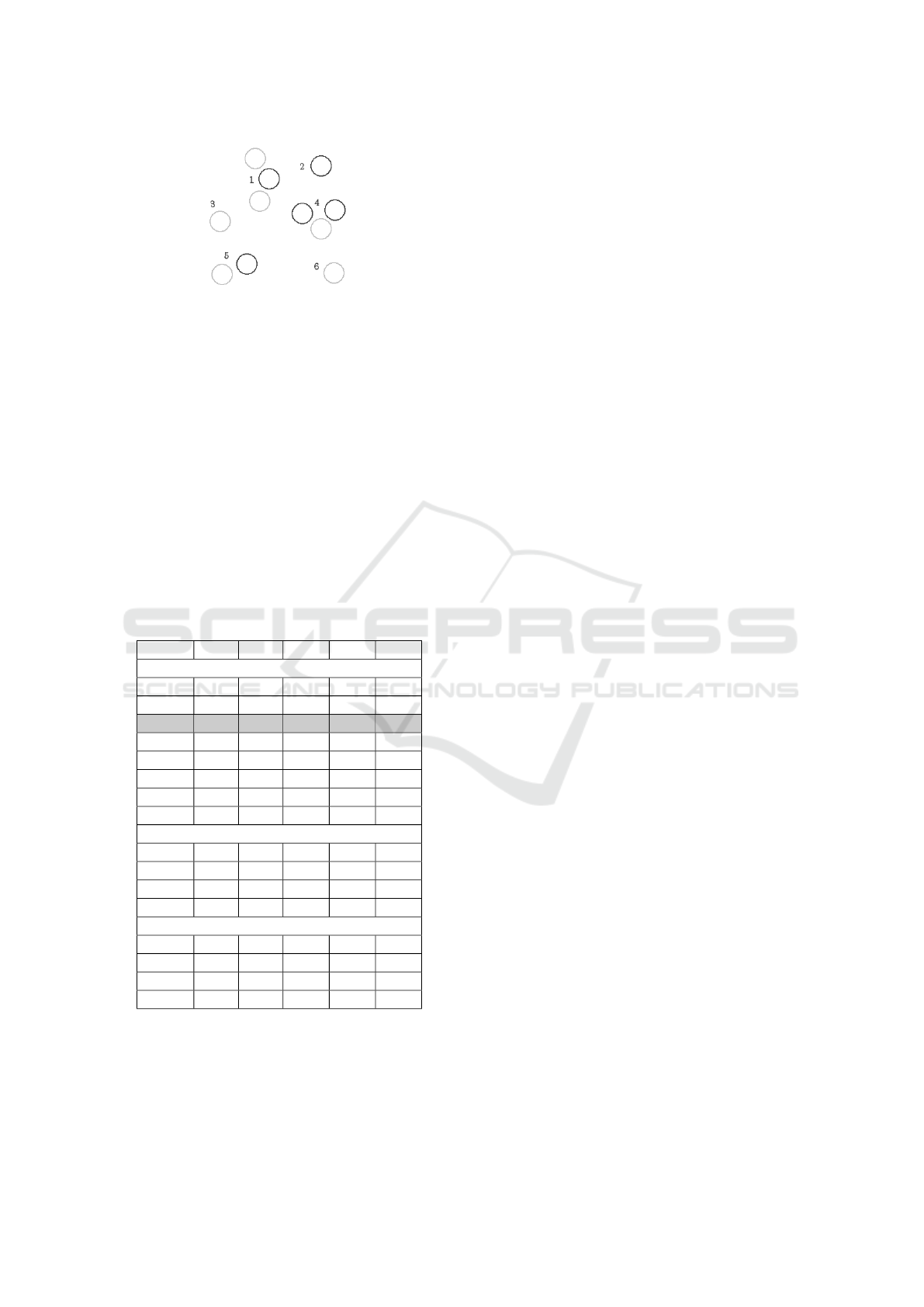

Figure 5: For evaluation purposes, the reference points

(dark gray) needed to be compared with the found points

(light gray) – the distances between points are bigger than in

real cases for better visibility. The following situations are

possible: 3, 6 – detections unrelated to the expected points,

2 – missing detection, 5 – good detection, 1 – one point de-

tected twice, 4 – merged points. Detections are considered

with some distance tolerance.

possible to perform with an acceptable performance if

a proper hardware with GPU units were not available.

For the experiments described further, NVIDIA Tesla

P100 card and Caffe faramework (Jia et al., 2014)

were used.

Table 3: Results of application of optimal network M

(20)

for all available images. In the second and third column the

numbers of the expected nucleuses and numbers of local-

ized nucleuses are presented, respectively. The highlighted

row indicates a case which was used in ﬁgures presented in

this work.

image |O

| |O

| P R F

train set

1 20 20 0.50 0.50 0.50

2 10 12 0.75 0.90 0.82

3 51 45 0.58 0.51 0.54

4 29 23 0.43 0.34 0.38

5 28 26 0.58 0.54 0.56

6 26 27 0.67 0.69 0.68

7 33 35 0.74 0.79 0.76

8 92 116 0.45 0.57 0.50

validation set

9 41 34 0.44 0.37 0.40

10 11 13 0.62 0.73 0.67

11 15 16 0.19 0.20 0.19

12 28 24 0.54 0.46 0.50

test set

13 33 33 0.61 0.61 0.61

15 37 34 0.29 0.27 0.28

16 43 47 0.47 0.51 0.49

17 33 29 0.45 0.39 0.42

5.1 Experiments

In the presented experiments, two variants (K = 10

and K = 20) of both convolutional neural network ar-

chitectures (without and with the dropout layer) were

considered. Consequently, 4 neural networks were

trained using 3912 images of size 51 × 51. In the

beginning, the learning rate was equal to 0.00001

and was decreased every 100 iterations with factor

0.995. The momentum was equal to 0.95 and max-

imum number of iterations was set to 100000. For

these parameters, the training process took from 2 to

5 hours depending on the network architecture. In

Fig. 6, an example of changes of Eculidean loss can

be observed both on the train set and on the validation

set (1940 images of size 51× 51). The similar charac-

teristic of the training process was observed for all 4

networks. Since the validation error did not increase,

no evident overﬁtting problem was noticed and the ﬁ-

nal network obtained from the training was used for

the further computations. In Fig. 8, sample ﬁltration

results of the trained network are presented.

The next step was selection of the parameters t

and a required in the second phase of the proposed

approach. For that purpose, selected combinations of

these parameters were tested for all 4 networks. Every

combination was evaluated using the train set with 8

images of size 1024 ×1024. To sum up the evaluation

procedure with a single numerical value, the average

value was calculated. Results are presented in Tab.

1. It allowed to select optimal parameter combination

for every network which can be found in Tab. 2.

When the network is trained and above parameters

are found, the solutions are ready for nucleus localiza-

tion. There are, however, 4 solutions, and one must

be selected as the ﬁnal one. In order to do that, solu-

tions were evaluated using average F

on the valida-

tion set with 4 images of size 1024 ×1024. Again, the

obtained values can be found in Tab. 2. This proce-

dure allowed to select as a ﬁnal solution – the network

(20). Sample results generated by this solution are

depicted in Fig. 7. The summary of the results for all

16 available images is presented in Tab. 3.

5.2 Analysis

Analyzing results presented in Tab. 2, the ﬁrst conclu-

sion is that networks with bigger number of kernels K

allowed to get a better averaged F

measure both for

the training and the validation set. This observation

is quite intuitive, since more complex network should

have bigger ﬂexibility, allowing it to learn to perform

more complex ﬁltering. There is no signiﬁcant differ-

ence of ﬁnal Euclidean loss L values between the ar-

chitectures with and without dropout. It could be ex-

pected, however, that for dropout-enabled networks,

the overﬁtting problem will not be observed too early

and, in consequence, for these architectures the dif-

KALSIMIS 2018 - Special Session on Knowledge Acquisition and Learning in Semantic Interpretation of Medical Image Structures

194

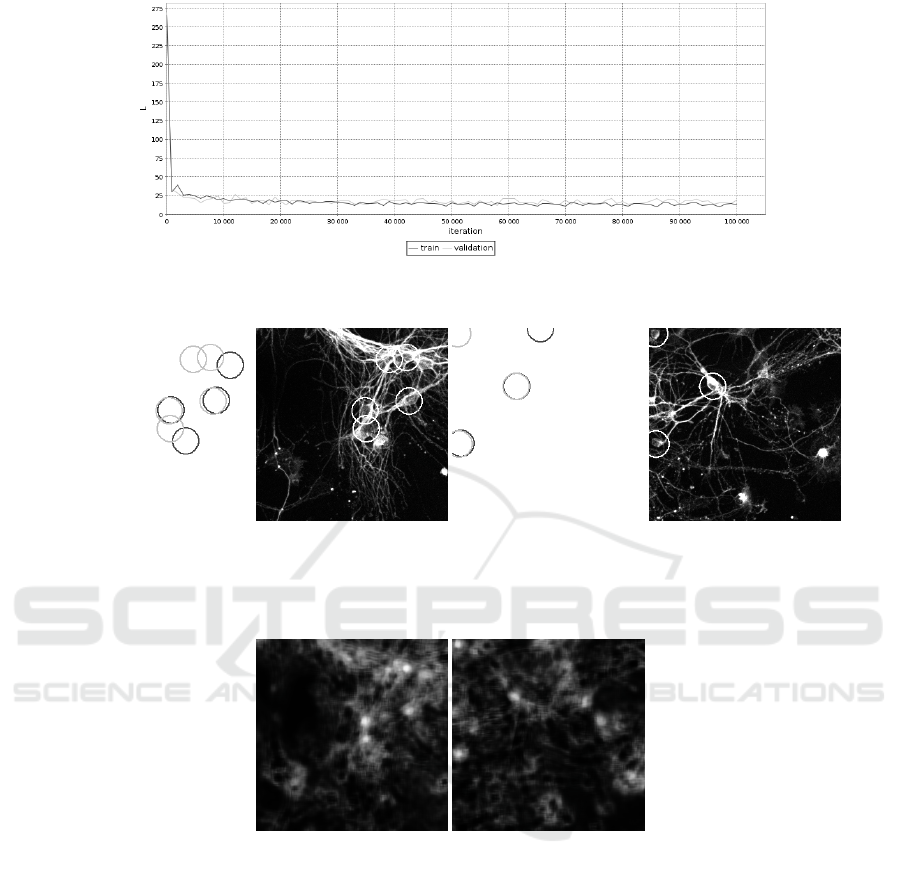

Figure 6: The value of loss function L during the training process of optimal network M

(20). This value is calculated both

on train set (dark gray) and validation set (light gray). No evident overﬁtting problem can be observed.

(a) (b) (c) (d)

Figure 7: Sample localization results for optimal network M

(20) after its training and selection of corresponding t and

a parameters: (a), (c) - comparison of expected points (dark gray) and detected points (light gray), (b), (d) - the predicted

localization of nucleuses within the original image.

(a) (b)

Figure 8: Sample outputs of the optimal neural network M

(20) after its training (result of ﬁltration). Higher response can

be observed in the regions where nucleuses are expected.

ference between train and validation errors should be

a smaller than int the case of architectures without

dropout. But since, as it was already mentioned, an

overﬁtting was not observed at all in Fig. 6, this ex-

pected trend is not visible in the presented results.

Interesting are, however, the averaged F

values

obtained for the test set (presented in Tab. 2), where

a tendency is quite opposite to the trend observed for

the train set and the validation set. The only explana-

tion of such an observation is a small number of the

available images. As it was decribed in Sec. 3, the im-

ages come from 4 different groups. In the presented

work, the possible differences between those groups

were not taken into account and, as it was checked

after the experiments, the pseudo-random assignment

of images to the train, validation and test sets caused

that one group was overrepresented in the test set.

Further analysis of the obtained results depicted in

Fig. 8 and Fig. 7 reveals what are the other problems

of the proposed solution:

• Nucleuses and their surrounding areas can have

a very different characteristics.

• There are structures in the images similar to the

nucleuses, that should not be detected (region on

the left of the top nucleus in Fig. 7b).

• There are very dark (almost invisible) nucleuses

(nucleus at the top of Fig. 7d).

Localization of Neuron Nucleuses in Microscopy Images with Convolutional Neural Networks

195

Most of these problems could be overcome, as it is of-

ten with machine learning based techniques, if more

samples of the training data were available. Addition-

ally, some image pre-processing could be helpful here

to increase local contrast in dark areas. Nevertheless,

the obtained preliminary results are undoubtedly en-

couraging.

6 SUMMARY

In this work, we present a method of automatic local-

ization of the neuron nucleuses in the images acquired

with ﬂuorescent microscope. This method is based on

the convolutional neural network which is trained to

act as a non-linear ﬁlter. These ﬁltration results are

analyzed further to indicate possible localizations of

nucleuses. An original element of the presented work

is the way a CNN concept was used for the ﬁltration

task. Also the result evaluation technique can be con-

sidered as an interesting idea for similar works. This

approach allowed not only to objectively measure the

quality of the proposed solution, but to ﬁnd the op-

timal parameters used in the second phase of the de-

scribed approach as well.

The obtained results leave a lot of space for fur-

ther improvement. Some of the possible ideas were

already mentioned in the previous section. To im-

prove the ﬁltration results, maybe the number of pos-

itive and negative samples could be increased. There

is no problem with the second group, but for obvi-

ous reasons the number of positive samples is lim-

ited. The main attempt to overcome this problem was

taking into account all 4 rotations of these samples.

This, however, may not cover the whole variety of

visible structures, since CNN is not invariant to input

rotation. To solve this problem, CNN modiﬁcation

described in (Tarasiuk and Pryczek, 2016) may be of

use. Data augmentation methods, such as brightness

and contrast modiﬁcations or local elastic deforma-

tions, can be of use here as well. Also a bigger visual

ﬁeld could allow the ﬁlter to take more information

about the pixel surrounding into account. All those

aspects are under further investigation.

ACKNOWLEDGEMENTS

This project has been partly funded with support from

National Science Centre, Republic of Poland, deci-

sion number DEC-2012/05/D/ST6/03091.

REFERENCES

Cires¸an, D. C., Meier, U., Masci, J., Gambardella, L. M.,

and Schmidhuber, J. (2011). Flexible, high perfor-

mance convolutional neural networks for image clas-

siﬁcation. In Proceedings of the Twenty-Second In-

ternational Joint Conference on Artiﬁcial Intelligence

- Volume Volume Two, IJCAI’11, pages 1237–1242.

AAAI Press.

Ho, D. J., Ch., F., Salama, P., Dunn, K. W., and Delp,

E. J. (2017). Nuclei Segmentation of Fluorescence

Microscopy Images Using Three Dimensional Con-

volutional Neural Networks. In IEEE Conference on

Computer Vision and Pattern Recognition Workshops

(CVPRW) 2017, pages 834–842.

Jia, Y., Shelhamer, E., Donahue, J., Karayev, S., Long, J.,

Girshick, R., Guadarrama, S., and Darrell, T. (2014).

Caffe: Convolutional Architecture for Fast Feature

Embedding. arXiv preprint arXiv:1408.5093.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2012).

Imagenet classiﬁcation with deep convolutional neu-

ral networks. In Pereira, F., Burges, C. J. C., Bottou,

L., and Weinberger, K. Q., editors, Advances in Neu-

ral Information Processing Systems 25, pages 1097–

1105. Curran Associates, Inc.

LeCun, Y. and Bengio, Y. (1995). Convolutional networks

for images, speech, and time-series. In Arbib, M. A.,

editor, The Handbook of Brain Theory and Neural

Networks. MIT Press.

Quan, T. M., Hildebrand, D. G. C., and Jeong, W. (2016).

FusionNet: A deep fully residual convolutional neu-

ral network for image segmentation in connectomics.

CoRR, abs/1612.05360.

Sadanandan, S. K., Ranefall, P., Le Guyader, S., and Whlby,

C. (2017). Automated Training of Deep Convolutional

Neural Networks for Cell Segmentation. Scientiﬁc Re-

ports, 7(1).

Srivastava, N., Hinton, G., Krizhevsky, A., Sutskever, I.,

and Salakhutdinov, R. (2014). Dropout: A Simple

Way to Prevent Neural Networks from Overﬁtting. J.

Mach. Learn. Res., 15(1):1929–1958.

Stasiak, B., Tarasiuk, P., Michalska, I., Tomczyk, A., and

Szczepaniak, P. (2017). Localization of Demyeli-

nating Plaques in MRI using Convolutional Neural

Networks. In Proceedings of the 10th International

Joint Conference on Biomedical Engineering Sys-

tems and Technologies (BIOSTEC 2017) - Volume 2:

BIOIMAGING, pages 55–64. SCITEPRESS.

Tarasiuk, P. and Pryczek, M. (2016). Geometric Trans-

formations Embedded into Convolutional Neural Net-

works. Journal of Applied Computer Science,

24(3):33–48.

Xie, W., Noble, J., and Zisserman, A. (2016). Microscopy

cell counting and detection with fully convolutional

regression networks. Computer Methods in Biome-

chanics and Biomedical Engineering: Imaging & Vi-

sualization, pages 1–10.

KALSIMIS 2018 - Special Session on Knowledge Acquisition and Learning in Semantic Interpretation of Medical Image Structures

196
