Segmentation of Cell Membrane and Nucleus using Branches

with Different Roles in Deep Neural Network

Tomokazu Murata

, Kazuhiro Hotta

, Ayako Imanishi

, Michiyuki Matsuda

and Kenta Terai

Meijo University, 468-8502, Nagoya, Aichi, Japan

Kyoto University, 606-8315, Kyoto, Japan

{ matsuda.michiyuki.2c, terai.kenta.5m} kyoto-u.ac.jp

Keywords: Segmentation, Cell Membrane, Cell Nucleus, Convolutional Neural Network, U-Net and Bioimage.

Abstract: We propose a segmentation method of cell membrane and nucleus by integrating branches with different roles

in a deep neural network. When we use the U-net for segmentation of cell membrane and nucleus, the accuracy

is not sufficient. It may be difficult to classify multi-classes by only one network. Thus, we designed a deep

network with multiple branches that have different roles. We give each branch a role which segments only

cell membrane or nucleus or background, and probability map is generated at each branch. Finally, the

generated probability maps by three branches are fed into the convolution layer to improve the accuracy. The

final convolutional layer calculates the posterior probability by integrating the probability maps of three

branches. Experimental results show that our method improved the segmentation accuracy in comparison with

the U-net.

1 INTRODUCTION

For the development of cell biology, it is important to

understand the state of cells accurately. Currently, the

most accurate way to check the state of cells is human

visual inspection. However, it requires much time and

effort. In addition, the results become subjective.

Therefore, the automation of the process is desired in

the field of cell biology. In this paper, we propose an

automatic segmentation method of cell membrane

and nucleus.

In recent years, deep learning gave high accuracy

in many computer vision tasks (Tang and Wu, 2016,

Tseng, Lin, Hsu, and Huang, 2017, Caesar, Uijlings

and Ferrari, 2016, Ghiasi and Fowlkes, 2016). In

particular, encoder-decorder CNN such as U-net

(Ronneberger, Fischer and Brox, 2015) and Segnet

(Badrinarayanan, Kendall and Cipolla, 2015) are

recent trend of semantic segmentation. The advantage

of U-net is to integrate the features at shallow layers

and at deep layers, and features which are lost by

convolution are used at deeper layers effectively.

When we apply the U-net to segment cell membrane

and nucleus, the accuracy is not sufficient for cell

biologists. Since it is important to know how cell

nucleus is covered by cell membranes, many

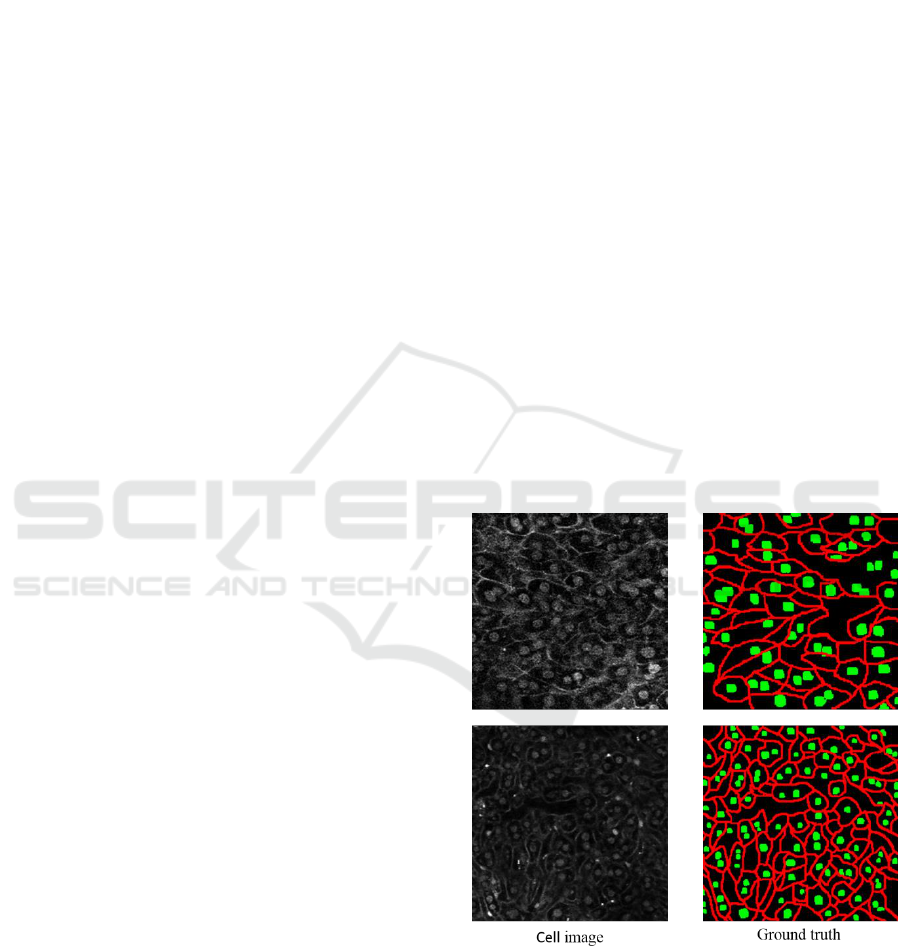

Figure 1: Example of cell images and ground truth labels.

Red shows the cell membrane and green shows cell nucleus.

discontinuities of cell membranes are not good for

biologists. It may be difficult to classify multi-classes

by the standard U-net. In order to address this issue,

we propose to give the U-net multiple branches for

solving different roles.

256

Murata, T., Hotta, K., Imanishi, A., Matsuda, M. and Terai, K.

Segmentation of Cell Membrane and Nucleus using Branches with Different Roles in Deep Neural Network.

DOI: 10.5220/0006717002560261

In Proceedings of the 11th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2018) - Volume 4: BIOSIGNALS, pages 256-261

ISBN: 978-989-758-279-0

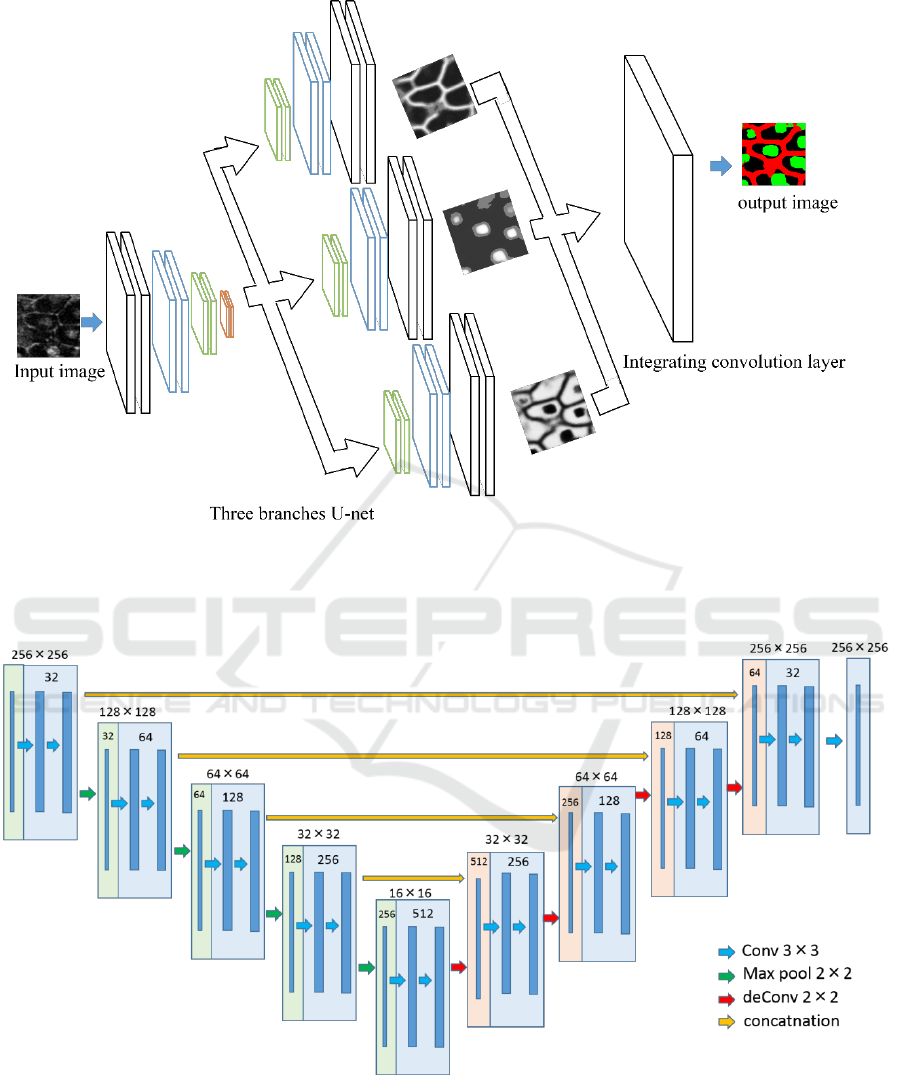

Figure 2: Overview of the proposed network. The decode part is divided into three parts, although all the branches are

connected with the encoder parts and concatenated. This model optimized the output obtained by each branch and the result

of integrating them with soft max cross entropy.

Figure 3: Structure of U-nets used in this paper. The number in the square shows the number of feature map.

In this paper, we use the network structure with

reference to the U-net. The encoded part is the same

structure as the original U-net, and we modified the

decoder part of U-net. The decoder part is divided

into three branches. Each branch has a unique role

that generates a probability map for cell nucleus or

cell membrane or background from the feature maps

obtained by encoder. Finally, single convolution layer

combines the three probability maps, and it gives final

segmentation result.

Segmentation of Cell Membrane and Nucleus using Branches with Different Roles in Deep Neural Network

257

In the experiments, we used 50 fluorescence

images of the liver of transgenic mice that expressed

fluorescent markers on the cell membrane and in the

nucleus. Figure 1 shows the examples of cell image

and ground truth label attached by human experts.

Input for the network is grayscale image and the

output is 3 probability maps that each probability map

is for cell membrane, nucleus and background. Red

shows the cell membrane and green shows cell

nucleus. We evaluated segmentation results by class-

average accuracy, and we confirmed that our

proposed method improved the accuracy of cell

membrane or nucleus in comparison with the U-net.

This paper is organized as follows. In section 2,

we explain the proposed method with different roles.

Dataset and experimental results are shown in section

3. Comparison with conventional U-net is also shown.

Section 4 is for conclusion and future works.

2 PROPOSED METHOD

Figure 2 and 3 show the overview of our proposed

network and the structure of the U-net used in this

paper. Input image is a grayscale image including cell

membrane and nucleus. As described previously, it is

difficult for simple U-net to segment cell membrane

and nucleus simultaneously. Thus, we add branches

to the decoder part of the U-net and assign each

branch to different task. The outputs of three branches

are integrated by a convolution layer to obtain the

final segmentation result. This may be a kind of

curriculum learning (Bengio, 2009). Three decoder

parts try to do only one task, and the final convolution

layer tries to integrate three branches.

At first, an input image is fed into encoder part of

the U-net. Features are extracted by multiple

convolutions and pooling. The encoded feature is fed

into the three decoders with different roles. Each

decoder learns to output the probability map for only

cell membrane or nucleus or background.

Each branching decoder part calculates the

probability of each pixel whether the certain class (e.g.

cell nucleus) in 3 classes or not. Thus, the input of

final convolutional layer is probability maps with 6

channels, and the output of it is the probability map

for 3 classes; cell nucleus, cell membrane and

background. We use softmax cross entropy as the

losses for three branches and final integration layer.

In this paper, we use the weighted sum of losses

of three decoders with different roles and integrated

layer. The whole networks are trained simultaneously.

The weighed loss is defined as

Loss =











+ 







(1)

where c is the class that is one of cell nucleus,

membrane and background. 



is the loss generated

by the c-th branch. 



is the loss for the

convolutional layer for final segmentation result. In

experiments, we set those parameters as 



 





  empirically.

Each loss is defined as





 























(2)





 



























(3)

where 



, 



are the output of three branches and

final convolutional layer respectively. “i” means the

i-th pixel in an input image, and 







are the

ground truth. 



is class-balancing weight

(Badrinarayanan, Kendall and Cipolla, 2015). Class-

balancing is a method for weighting the loss of each

class according to the number of pixels in each class.

In this paper, background pixels are overwhelmingly

larger than the number of cell nucleus and membranes.

Thus, the network tends to learn to background

dominantly. By applying the weights according to

occurrence of each class, all classes are trained

equally. In this paper, the class weights of cell

membrane, cell nucleus and background are 1, 2.72

and 0.42, respectively.

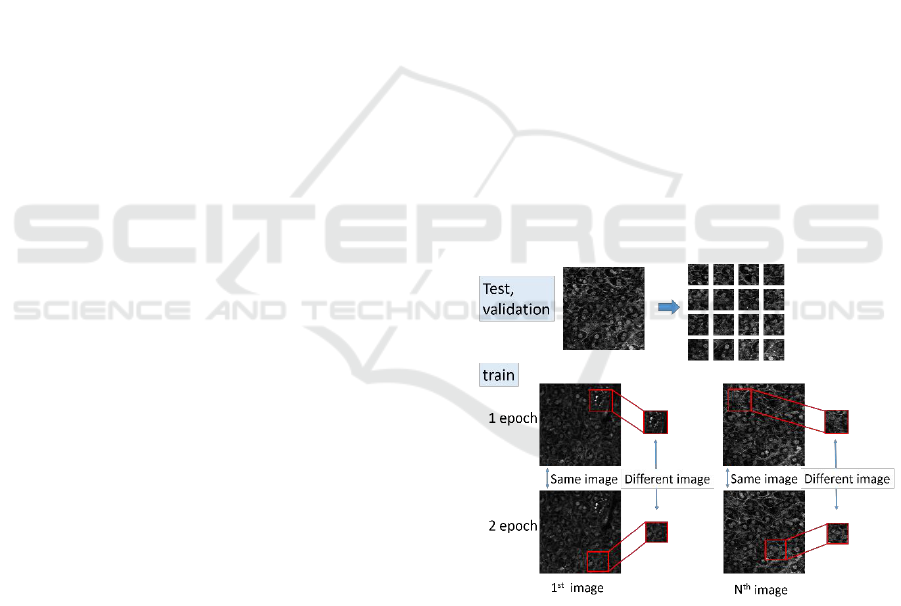

Figure 4: Cropping local region. At every epoch, different

images are cropped from training images. This prevents

overfitting.

3 EXPERIMENTS

This section explains the dataset, evaluation measure

and results. In section 3.1, we describe the dataset

used in this paper. Evaluation measure is also

BIOSIGNALS 2018 - 11th International Conference on Bio-inspired Systems and Signal Processing

258

explained in section 3.1. Experimental results are

shown in section 3.2. Comparison result with the U-

net is also shown.

3.1 Dataset and Evaluation Measure

We use original dataset which includes fluorescence

images of the liver of transgenic mice that expressed

fluorescent markers on the cell membrane and in the

nucleus. To train the segmentation network, we

require fluorescence images with ground truth.

However, creating ground truth labels for cell images

is a labor job for cell biologists. Therefore, the

number of images with ground truth is limited. In this

paper, we have only 50 images. The size of those

images is 256 x 256 pixels. Examples of cell images

and ground truth labels are shown in Figure 1. Red

and green show the cell membrane and nucleus. In the

following experiments, 50 images are divided into

three sets; 35 training images, 5 validation images and

10 test images.

To solve the problem on a small number of images,

data augmentation of training images is used.

Concretely, left-right mirroring and rotations with 90

degrees are combined, and the number of training

images is 8 times larger. In addition, we crop local

regions with 64 x 64 pixels from the augmented

images randomly. Since the size of input images for

the U-net is 256 x 256 pixels, the cropped images are

resized to 256 x 256 pixels and used for training.

To prevent the overfiting, we crop local regions

randomly at each epoch when we train the network.

Figure 4 shows the overview of this process. Since

different local regions with ground truth are cropped

randomly at each epoch from training images, the

network can avoid the overfit.

When we evaluate test images, a test image with

256 x 256 pixels is divided into 4 x 4 without overlap.

The cropped 64 x 64 images are resized to 256 x 256

pixels and fed into the proposed method. By this

processing, the number of images used for the final

test is 160 and the number of validation is 80.

In experiments, we use class average accuracy as

the evaluation measure because the main purpose of

this research is to segment cell membrane and nucleus.

Since the area of background is the largest, pixel-wise

accuracy heavy depends on the accuracy of

background. On the other hand, since class average

accuracy is the average of accuracy of each class, the

accuracy of small area is influenced to the class

average accuracy.

Since the accuracy of deep learning depends on

the random number, we trained the networks three

times and evaluate the average accuracy.

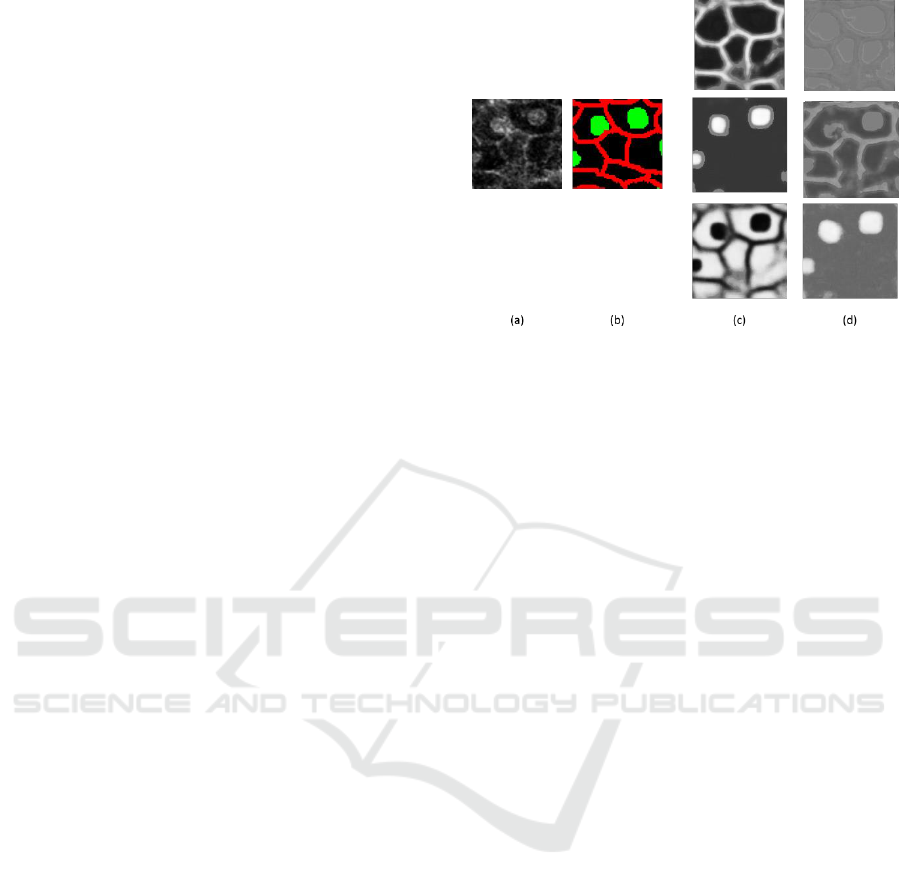

Figure 5: Comparison of output of no weight branches U-

nets. (a) shows a test local region. (b) shows ground truth.

net in the proposed method. (d) is the output of the network

with the same structure as the proposed method when we

do not give a role branched decoder parts of U-net.

3.2 Evaluation Results

To show the effectiveness of the proposed method

integrating three branches with different roles, we

also evaluate the network with the same structure as

the proposed method as shown in Figure 2. But we

evaluated the proposed method while changing the

value of . One of them is 



  



 . Namely,

this optimizes only the cross entropy loss at the final

output. By the comparison with this network, we

understand the effectiveness of training of three

branches with different roles. Of course, the accuracy

of the U-net as shown in Figure 3 is also evaluated.

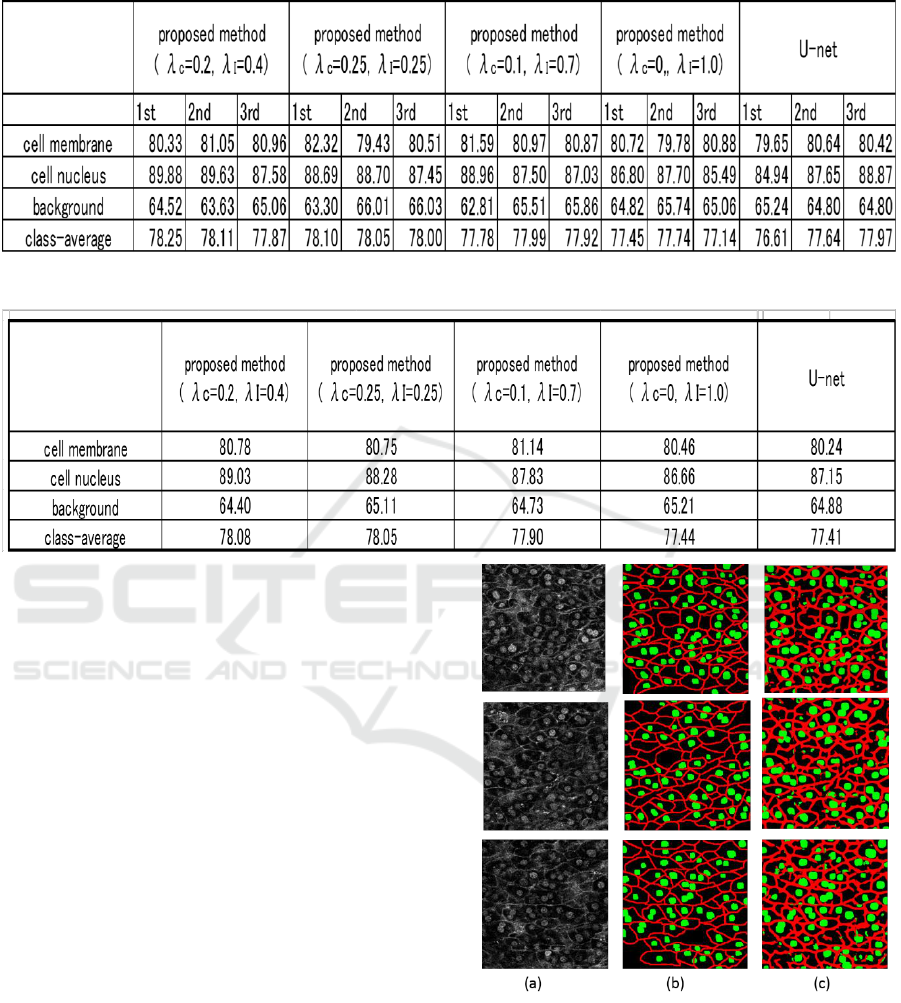

Table 1 shows the accuracy of each method. As

described previously, we trained each method three

times and average accuracy is evaluated because the

accuracy of networks depends on random number. In

this paper, each pixel in an input image is classified

into three classes; cell membrane, cell nucleus and

background. Table 1 shows that the accuracy changes

slightly depending on the random number.

The mean accuracy of three time evaluation is

shown in Table 2. We see that the accuracy of the

proposed method outperformed with the U-net.

We also evaluate the network with the same

structure as the proposed method and without giving

a role to the branches. We see that the accuracy is

worse than our proposed method.

Figure 5 shows the outputs of three branches in

the proposed method and those in the network

without specific roles. (a) and (b) show a test local

region and its ground truth label. (c) and (d) show the

outputs of the branched decoder part in both methods.

Segmentation of Cell Membrane and Nucleus using Branches with Different Roles in Deep Neural Network

259

Table 1: Accuracy at three times evaluation.

Table 2: Average accuracy of three times evaluation.

The proposed method gave obviously better maps

than the network without a specific role. This result

demonstrated that the integration of networks with

specific role is effective to improve the accuracy.

(d) is the result that we trained the network without

calculating the losses at the three branches. We

conducted experiments three times under the same

conditions, but similar results are obtained that one of

the three branches had the function of focusing on the

segment of the cell nucleus. In this paper, we give

each clear role to three branches, but we found that

this network has a little ability to share the roles

automatically.

Finally, we show the segmentation results by the

proposed method in Figure 6. Figure 6 (a) and (b)

show the test images and their ground truth labels. (c)

shows the results by the proposed method. We see

that overall segmentation is good though the cell

membrane is conspicuous. Figure 7 shows the

segmentation results of local regions by the proposed

method (



= 0.2, 



= 0.4) and the U-net.

Figure (a) and (b) are the test local regions and

their ground truth labels. (c) is the results by the

proposed method. (d) is the results by the U-net. We

see that the segmentation accuracy of cell membrane

and nucleus is improved in comparison with the U-

net.

Figure 6: (a) shows test images. (b) shows ground truth. (c)

shows the results by the proposed method.

In the results shown in the first and second row,

there is a case that cell membranes disconnected by

U-net are connected by the proposed method. The

effectiveness of branches with different roles is

demonstrated by experiments.

BIOSIGNALS 2018 - 11th International Conference on Bio-inspired Systems and Signal Processing

260

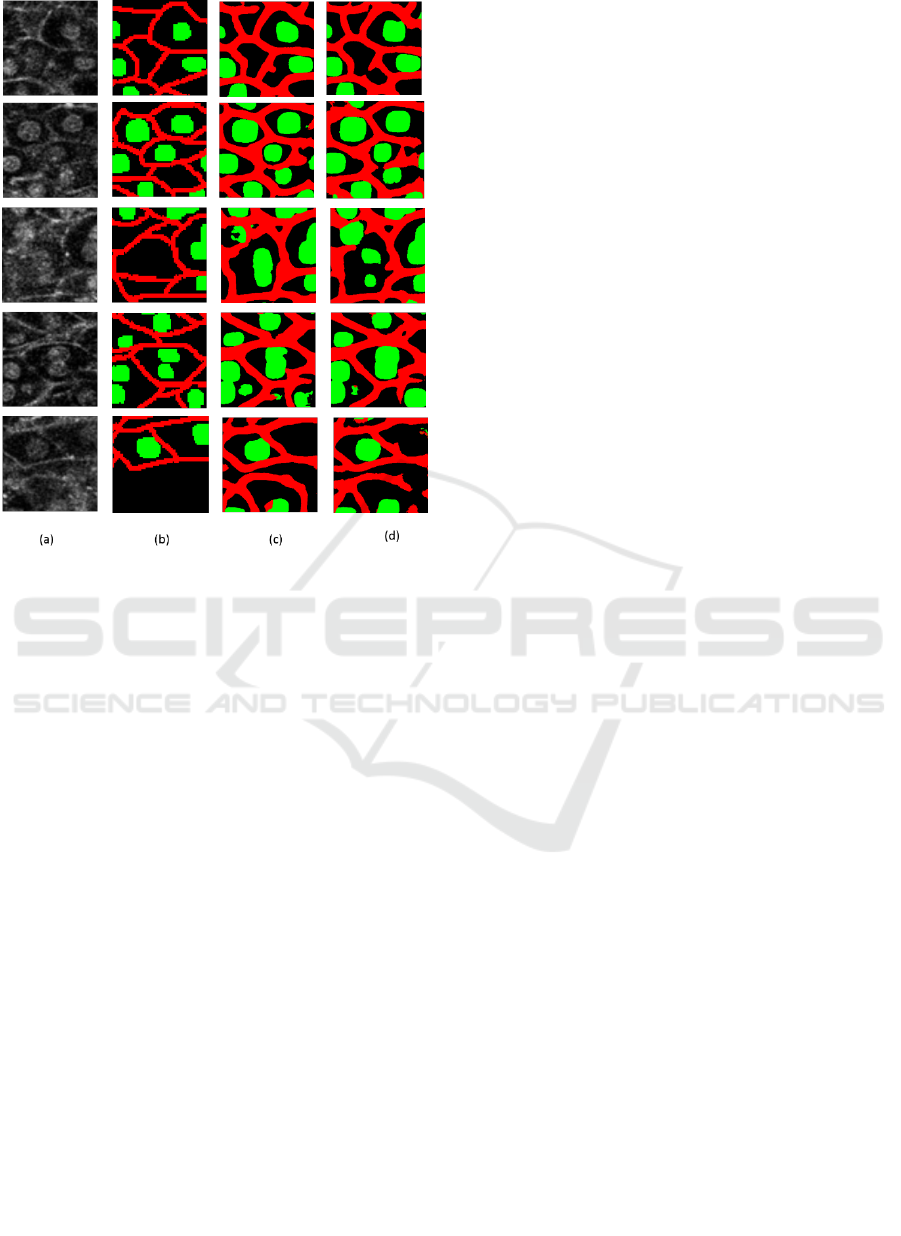

Figure 7: comparison results of local regions. (a) shows test

regions. (b) shows ground truth. (c) shows the results by the

proposed method using three branches. (d) shows the

results by the U-net.

4 CONCLUSIONS

We improved the segmentation accuracy by using

branches with different roles and final convolution

layer. Three branches segment only cell membrane or

nucleus or background, and the final convolution

layer for integrating the outputs of three branches

estimate the posterior probability of each pixel. By

assigning each branched decoder to a different role,

the accuracy was improved.

We crop a local region with 64 x 64 pixels from a

test image without overlap, and the output of the local

region is put to final segmentation result. If we apply

the proposed method to local regions with

overlapping manner, some segmentation results are

obtained at the same pixel. The integration of those

results will improve the accuracy further. It is a

subject for future works.

ACKNOWLEDGEMENTS

This work is partially supported by MEXT/JSPS

KAKENHI Grant Number 16H01435”Resonace Bio”.

REFERENCES

Ronneberger, O., Fischer, P., and Brox, T., 2015. U-net:

Convolutional networks for biomedical image

segmentation. In International Conference on Medical

Image Computing and Computer-Assisted

Intervention (pp. 234-241). Springer, Cham.

Tang, Y., and Wu, X., 2016. Saliency detection via

combining region-level and pixel-level predictions with

cnns. In European Conference on Computer Vision (pp.

809-825). Springer International Publishing.

Tseng, K. L., Lin, Y. L., Hsu, W., and Huang, C. Y., 2017.

Joint Sequence Learning and Cross-Modality

Convolution for 3D Biomedical Segmentation. arXiv

preprint arXiv:1704.07754.

Caesar, H., Uijlings, J., and Ferrari, V., 2016. Region-based

semantic segmentation with end-to-end training.

In European Conference on Computer Vision (pp. 381-

397). Springer International Publishing.

Ghiasi, G., and Fowlkes, C. C., 2016. Laplacian pyramid

reconstruction and refinement for semantic

segmentation. In European Conference on Computer

Vision (pp. 519-534). Springer International

Publishing.

Badrinarayanan, V., Kendall, A., and Cipolla, R., 2015.

Segnet: A deep convolutional encoder-decoder

architecture for image segmentation. arXiv preprint

arXiv:1511.00561.

Bengio, Y., 2009. Learning deep architectures for

AI. Foundations and trends in Machine Learning, 2(1),

1-127.

Segmentation of Cell Membrane and Nucleus using Branches with Different Roles in Deep Neural Network

261
