A Constraint Solving Web Service

for Recognizing Historical Japanese KANA Texts

Kazuki Sando, Tetsuya Suzuki and Akira Aiba

Graduate School of Engineering and Science, Shibaura Institute of Technology, 307 Fukasaku,

Minuma-ku, 337-8570, Saitama-shi, Saitama, Japan

Keywords:

Natural Language Processing, Morphological Analysis, Constraint Solving, Web Service, Reprint.

Abstract:

One of the ﬁrst steps for researching Japanese classical literature is reading Japanese historical manuscripts.

However the reading process is not easy, and time-consuming since a set of characters used in those

manuscripts contain different characters from those currently used. There have been several attempts to read

Japanese historical manuscripts. We proposed a framework to assist the human process for reading Japanese

historical manuscript. It formulates the process as a constraint satisfaction problem, and a constraint solver

in the whole system, was experimentally implemented as a UNIX command. In this paper, we added a Web

service layer to the solver to realize loose coupling between the solver and the other subsystems. Thanks to

the loose coupling, any programming language can be used for implementation of other parts of the whole

system. In addition, the constraint solving Web service can be public through the Internet. We experimentally

conﬁrmed the solver as a Web service is faster than the that as a UNIX command if both the solver and a client

are connected to a same local area network.

1 INTRODUCTION

Before printing technologies became popular, all texts

were hand-written in Japan, and copied by hand.

Through a series of the copying processes, texts were

often modiﬁed accidentally or intentionally. As a re-

sult, there were several versions of the same text. For

example, Kokin waka shu which was the ﬁrst anthol-

ogy edited by an imperial order in 905 AD has more

than 10 variants.

One of the ﬁrst steps of researching Japanese clas-

sical literature is comparing those variants to deter-

mine the standard text. To do this, one has to read

these manuscripts, but this is time-consuming and re-

quires training since they are hand-written, and may

contain characters different from those currently used.

That is why we can not use an automatic character

recognition system for current texts.

We proposed a framework for assisting the human

process for reading Japanese historical manuscripts

by employing constraint solving (Arai et al., 2013).

A sequence of characters is constrained to form a

valid word in a dictionary for historical Japanese.

We experimentally implemented a backtrack-based

constraint solver for reading Japanese historical

manuscripts using one kind of Japanese characters

called hiragana. The solver is a part of the whole sys-

tem based on the framework. Because of the insuf-

ﬁcient pruning, the backtrack-based constraint solver

can not suppress combinatorial explosion.

We then proposed a minimum-cost-method-based

constraint solver as a successor of the backtrack-

based solver (Watanabe et al., 2015). To suppress

combinatorial explosion, the solver uses the A

∗

algo-

rithm.

In this paper, we propose a constraint solving

Web service. We added a Web service layer to the

minimum-cost-method-based constraint solver to re-

alize loose coupling between the constraint solver and

the other subsystems. Thanks to the loose coupling,

suitable programming languages can be used to im-

plement other parts of the whole system. In addition,

the constraint solving Web service can be available

to other researchers concerning reprinting of Japanese

historical text through the Internet.

In this paper, we use the word “kana” as well as

“hiragana” for the sake of convenience though hira-

gana is a part of kana in general.

In section 2, we introduce hiragana, and we sum-

marize existing research in section 3. We redeﬁne

the constraint satisfaction problem (CSP) for reading

Japanese historical manuscripts in section 4, and ex-

Sando, K., Suzuki, T. and Aiba, A.

A Constraint Solving Web Service for Recognizing Historical Japanese KANA Texts.

DOI: 10.5220/0006709702570265

In Proceedings of the 10th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2018) - Volume 2, pages 257-265

ISBN: 978-989-758-275-2

257

plain the constraint solving process of the minimum-

cost-method-based constraint solver brieﬂy in section

5. In section 6, we describe a constraint solving Web

service. Experimental results are summarized in sec-

tion 7. Section 8 states concluding remarks.

2 READING HISTORICAL

JAPANESE CHARACTERS

2.1 Japanese Classical Manuscripts and

Hiragana

After introducing Chinese characters to Japan in the

4th, or 5th century, a method to represent Japanese

sentences using kanji was invented by the 8th cen-

tury. This is called Man’yo-gana. They were un-

modiﬁed Chinese characters and used to represent

Japanese syllables according to their pronunciation.

In the 8th century, it is said that there were 88 syl-

lables in Japanese language different from about 50

syllables at present, and over 900 Chinese characters

were used to represent them. During the 8th and 9th

century, a new kind of character called hiragana was

invented based on a cursive form of hand-written Chi-

nese characters. Hiragana was gradually accepted by

the end of the 9th century (Frellesvig, 2010).

2.2 Reading Hiragana in Japanese

Historical Texts

Hiragana used in historical texts, which we will call

historical hiraganas hereafter, is quite different from

that currently used:

1. A set of historical hiragana contains different

characters from those currently used. There are

several characters to represent one syllable.

2. A special symbol called odori-ji is used to repre-

sent a repetition of an immediately previous char-

acter.

3. Especially in hand-written texts, each occurrence

of the identical hiragana may have a different

shape, according to each author or text.

Because of such characteristics, reading Japanese

historical text is difﬁcult even for Japanese. The Fig.1

shows a fragment of historical Japanese text written in

hiragana taken from Tale of Ise, originally written in

1234 AD, and copied in 1547 AD (Reizei, 1994). In

this fragment, the 1st, 3rd, 5th and 6th characters are

easy to recognize for us since they are quite similar to

that hiragana currently used.

Figure 1: A fragment of historical Japanese text which reads

(mu)-(ka)-(si)-(o)-(to)-(ko).

Actually, they are (mu), (si), (to), and (ko), respec-

tively. However, the 2nd, and 4th hiraganas are difﬁ-

cult to read since they are not currently used.

In the following, we will brieﬂy explain how a hu-

man tries to read them. When we focused on the 2nd

character, we may suspect that this would be (tu), or

(ka) by its shape. We can determine that the 2nd char-

acter is (ka) since (mu-ka-si) is a valid Japanese word

meaning ’the past’. By applying the similar inference,

we can determine that the 4th hiragana is (o) since (o-

to-ko) is a valid word meaning ’a male’. By observ-

ing this small example, it is clear that the knowledge

on shapes of historical hiragana is insufﬁcient, but the

knowledge on historical Japanese words is necessary

for recognizing Japanese historical manuscripts.

3 EXISTING RESEARCH

Yamamoto and Osawa proposed an optical character

recognition (OCR) method for kana and kanji char-

acters in cursive style (Yamamoto and Osawa, 2016).

It is based on elastic pattern matching for character

recognition (Terasawa and Kawashima, 2011). Ac-

cording to the paper, the accuracy of pattern recogni-

tion is more than 80%.

Hayasaka et al. proposed a recognition method

based on a convolutional neural network (Hayasaka

et al., 2017b). Their method is demonstrated on a

website (Hayasaka et al., 2017a).

Yamada et al. proposed a system for reprint-

ing characters in historical manuscripts by a combi-

nation of OCR and character n-gram (Yamada and

Shibayama, 2003). Given unreadable characters,

OCR outputs the results. These results are associ-

ated with prepared n-gram information to output can-

didates of recognition. Even though n-gram is used, n

is 2 or 3.

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

258

We proposed a framework for assisting the human

process for reading Japanese historical manuscripts

by employing constraint solving (Arai et al., 2013). A

sequence of characters is constrained to form a valid

word in a dictionary for historical Japanese. The over-

all structure of the framework is shown in Fig.2. It

consists of two major subsystems: a character recog-

nizer and a constraint solver. The character recognizer

segments an input image into characters, determines

hiragana candidates for the segmented characters, and

constructs a CSP based on the determined candidates.

Then the constraint solver solves the CSP by assign-

ing possible reading using a word dictionary. Then

the result of the constraint solving is returned to the

character recognizer to revise recognition. This feed-

back is repeated if necessary. The system ﬁnally out-

puts the assigned reading.

Technical issues of the proposal are divided into

two categories: one is image recognition, and the

other is constraint solving. In the former issues, we

have to think of extracting an image containing just

one historical Hiragana from the original image of,

for example, a page, and using the effective method

to recognize an extracted historical Hiragana. In the

latter issues, we have to think of the method of model-

ing of reprinting as a CSP, and the method of efﬁcient

constraint solving.

We focused on the constraint solving issue and

experimentally implemented a backtrack-based con-

straint solver for Reprint-CSPs. The solver is for

reading Japanese historical manuscripts using hira-

gana, and ﬁnds maximally better solutions accord-

ing to a solution comparator called locally-predicate-

better (Borning et al., 1992). The solving process is a

kind of morphological analysis. Because of an insuf-

ﬁcient branch-and-bound pruning, it can not suppress

combinatorial explosion.

We then implemented a minimum-cost-method-

based solver as a successor of the backtrack-based

solver (Watanabe et al., 2015). Given a CSP, a dic-

tionary and an positive integer n, it extracts better ad-

missible solutions according to the locally-predicate-

better comparator from n-best admissible solutions

according to solution cost. The solver employs the

∗

algorithm to avoid combinatorial explosion.

Both the backtrack-based solver and the

minimum-cost-method-based solver are imple-

mented in Ruby and are invoked as commands from

character user interface.

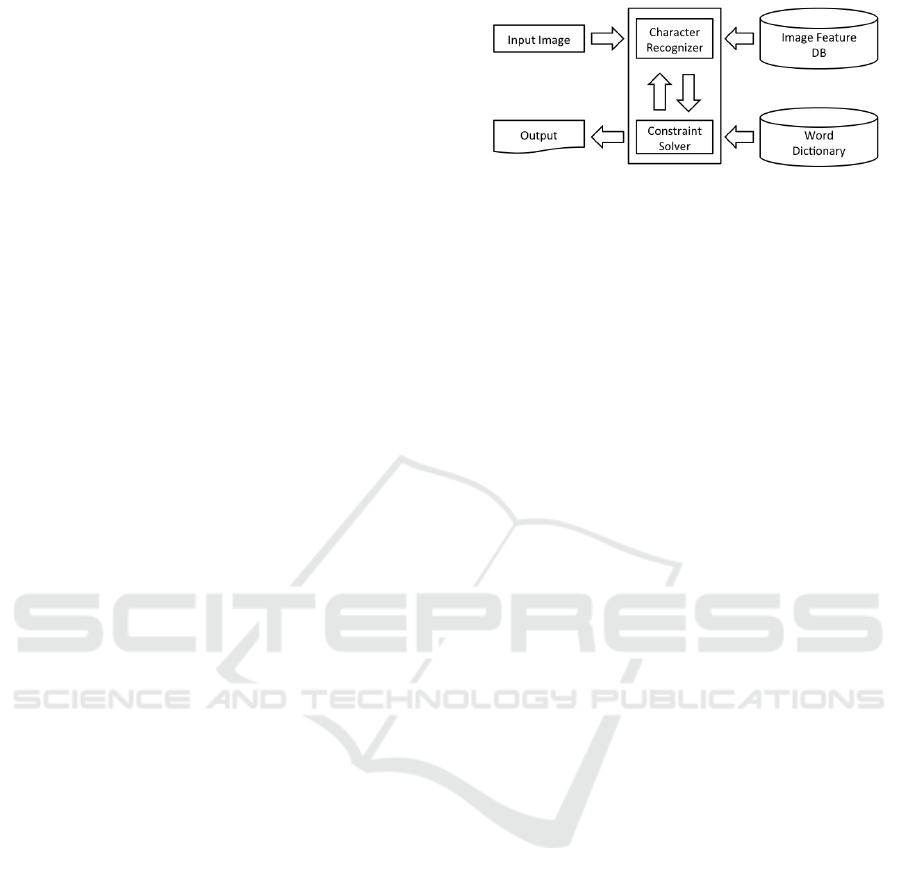

Figure 2: System Conﬁguration.

4 REPRINT CONSTRAINT

SATISFACTION PROBLEM

We redeﬁne the CSP for reading historical kana text,

which we call the Reprint-CSP, because the deﬁnition

in (Watanabe et al., 2015) does not ﬁt the CSP which

the minimum-cost-method-based solver deals with.

A Reprint-CSP consists of the following seven

components.

• a ﬁnite number of variables

• variables’ domains

• a directed acyclic graph (DAG) over the variables

• a word dictionary

• explicitly-given constraints

• a word occurrence cost function

• a connectivity cost function

Each variable corresponds to a segmented char-

acter on a historical text image which contains one

character. Because of complex shapes of historical

kana characters, the character recognizer may not be

able to determine if a segmented image corresponds to

one or more characters. In such a case, the character

recognizer enumerates possible cases. As a result, a

segmented character corresponding to a variable may

overlap segmented characters corresponding to differ-

ent variables.

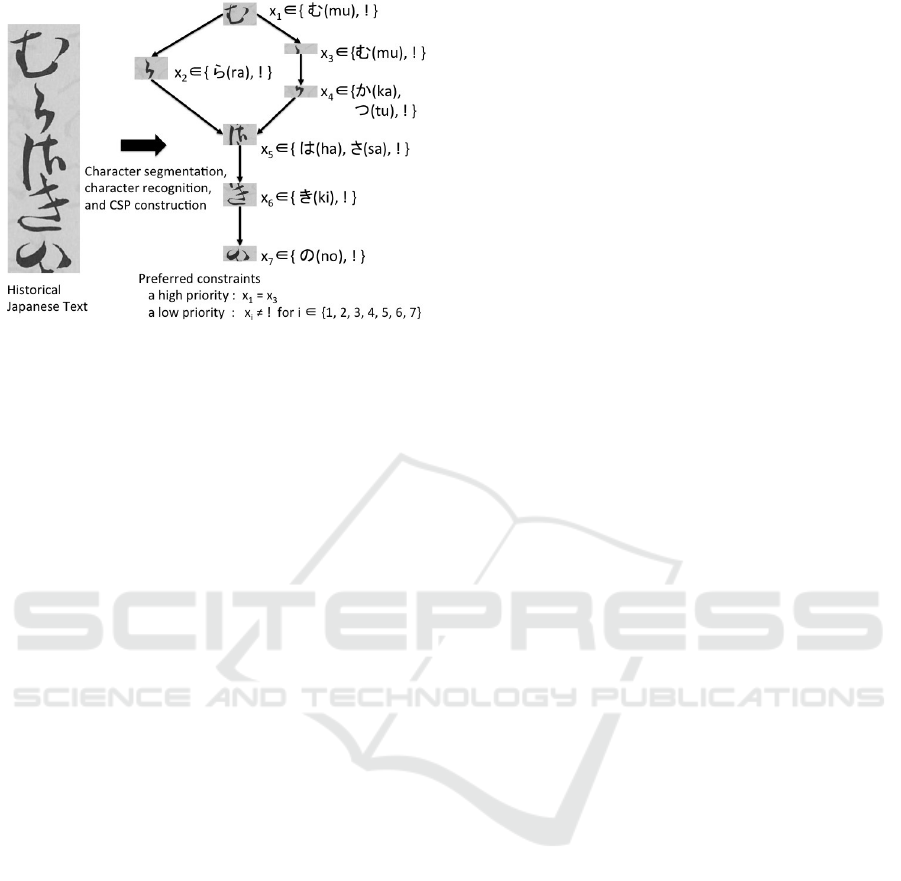

Fig.3 shows an image of a Japanese historical text

consisting of ﬁve characters taken from Tale of Ise

(Reizei, 1994), and a Reprint-CSP constructed from

the text. The DAG of Fig.3 represents reading or-

der among segmented characters. A variable x

is as-

signed to the ﬁrst character. Similarly, variables x

, x

and x

are assigned to the 2nd, the 3rd, the 4th,

and the 5th character respectively. However, the sec-

ond character can be recognized as a combination of

two characters. For this reason, two variables x

and

are assigned to the two characters.

The domain of each variable is a ﬁnite set of pos-

sible kana for the segmented character because it is

difﬁcult to determine a unique kana for a segmented

character.

A Constraint Solving Web Service for Recognizing Historical Japanese KANA Texts

259

Figure 3: A constraint satisfaction problem.

For example, the domain of the variable x

in-

cludes two elements (ka) and (tu) in Fig.3 because the

segmented character corresponding to x

can be read

as (ka) or (tu). All variables’ domains in Fig.3 include

an element “!”. We use the symbol as a special char-

acter meaning an unreadable character. Because the

segmented character corresponding to x

can be read

as an odori-ji, the domain of x

, which is immediately

prior to x

in the reading order, is added to the domain

of x

so that the value of x

can be equal to that of x

A constraint is a relation over the variables’ do-

mains. Constraints are labeled with priority levels for

overconstrained situations. Constraints with the high-

est priority level are constraints which must be satis-

ﬁed. They are called required constraints. Constraints

with other priority levels are constraints which may

not be satisﬁed. They are called preferred constraints.

In Fig.3, constraints x

6= “!” for i ∈

{1, 2, 3, 4, 5, 6, 7} are imposed not to assign the un-

readable character to the variables. A constraint x

is a constraint for the odori-ji.

In a Reprint-CSP, some constraints are implicitly

given by a pair of the dictionary and the DAG over

variables, and other constraints are explicitly given.

Each maximal path over the DAG represents read-

ing order of variables. The dictionary constrains lo-

cal character sequences so that each of them forms

a word in the dictionary. In addition, the DAG con-

strains combinations of the locally constrained char-

acter sequences so that each of maximal character se-

quences forms a sequence of words in the dictionary.

These implicit constraints are required constraints.

Explicitly-given constraints are required or preferred

constraints. They are, for example, used to declare

constraints of the odori-ji.

A solution for a Reprint-CSP is a partial function

from variables to their values. An admissible solution

for a Reprint-CSP is a function from variables on a

maximal path of the DAG to their values where a se-

quence of variables’ values according to the maximal

path must be a sequence of words in the dictionary

due to the implicit required constraints.

For example, in Fig.3, there are two maximal

paths p

and p

as follows.

≡ (x

, x

)

≡ (x

, x

)

The following function θ is an admissible solution on

the maximal path p

θ ≡ {x

→ (mu), x

→ (ra), x

→ (sa),

→ (ki), x

→ (no)}

It is because the solution θ can be obtained by word

sequences ( a noun (mu-ra-sa-ki), a particle (no) ), ( a

noun (mu-ra), a noun (sa-ki), a particle (no) ) and so

on.

If a solution of a Reprint-CSP does not give any

value to a variable, constraints relevant to the variable

are regarded as constraints satisﬁed by the solution.

For example, because the solution θ does not give any

value to x

, the constraint x

= x

is satisﬁed by θ.

Better admissible solutions can be selected from

two different viewpoints: 1) solution cost and 2) pri-

ority levels of constraints.

1. An admissible solution θ is better than an admis-

sible solution ρ from a viewpoint of cost if the

cost of θ is smaller than that of ρ. The cost of an

admissible solution is the minimum cost of word

sequences which give the solution. The cost of a

word sequence is a cumulative cost of word oc-

currence costs and connectivity costs in the word

sequence. A word occurrence cost and a connec-

tivity cost between two words are given by two

cost functions of the Reprint-CSP.

2. Better admissible solutions, which satisfy pre-

ferred constraints as well as possible, can be se-

lected using solution comparators which deter-

mine partial orders over admissible solutions. For

example, locally-predicate-better is one of such

comparators (Borning et al., 1992).

5 A MINIMUM-COST-METHOD-

BASED SOLVER

We explain the constraint solving process of the

minimum-cost-method-based solver mentioned in the

section 3 brieﬂy. It works as follows.

1. The solver constructs a reading assignment graph

with costs from a given Reprint-CSP. It is a di-

rected acyclic graph with a most upstream node

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

260

Figure 4: A fragment of historical Japanese text which reads

(si)-(no)-(hu)-(su)-(ri)-(no)-(ka)-(ri)-(ki)-(nu)-(wo).

and a most downstream node. Each node is la-

beled with a sequence of variables, an assigned

reading (a word in a dictionary of the Reprint-

CSP), a part of speech, and two costs. The two

costs are a occurrence cost of the word and the

minimum cost from the most upstream node to

the node. Each directed edge represents a read-

ing order between two nodes, and is labeled with

a connectivity cost.

2. The solver enumerates n-best solutions over the

reading assignment graph with costs from a view

point of costs, and extracts locally-predicate-

better solutions from the n-best solutions.

In the following, an example of constraint solving

process is shown using Fig.4, Fig.5, Fig.6, and Fig.7.

Fig.4 shows a fragment of historical Japanese text

(Reizei, 1994) which reads (si)-(no)-(hu)-(su)-(ri)-

(no)-(ka)-(ri)-(ki)-(nu)-(wo).

Fig.5 shows a directed acyclic graph over vari-

ables of a Reprint-CSP for the text of Fig.4. Each

node is labeled with a variable in the upper part and

its domain in the lower part. Each directed edge be-

tween two nodes represents a reading order between

the two variables.

Fig.6 shows a complete reading assignment graph

with costs constructed from the Reprint-CSP. The

most upstream node and the most downstream node

represents the beginning and the end of a fragment

of text respectively. The graph was constructed with

Figure 5: A directed acyclic graph over variables of a

Reprint-CSP for the text in Fig.4.

A Constraint Solving Web Service for Recognizing Historical Japanese KANA Texts

261

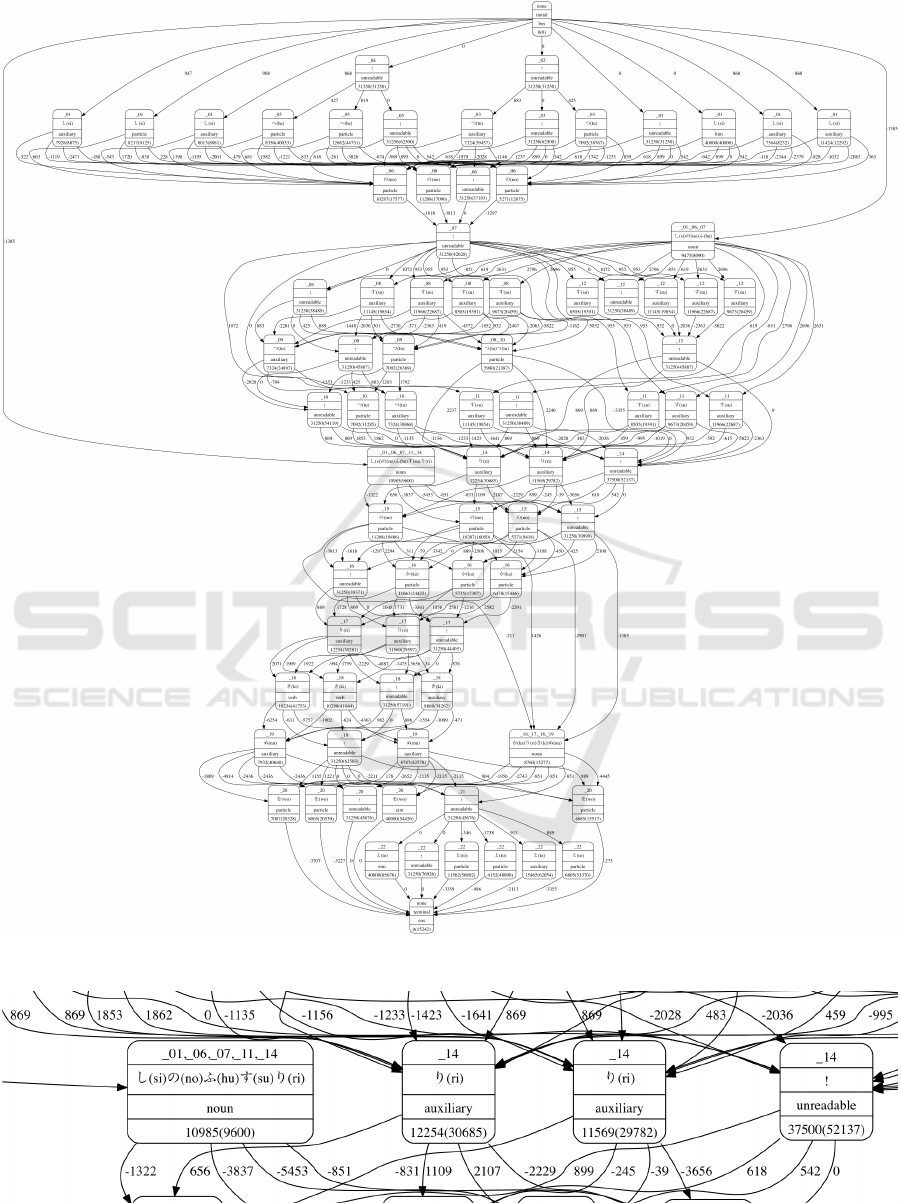

Figure 6: A complete reading assignment graph with costs.

Figure 7: A part of a reading assignment graph with costs.

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

262

reference to a dictionary with 363 words, and has 81

nodes. If a dictionary with 421,896 words is used as

in our experiments in section 7, the resulting graph

has 558 nodes.

Fig.7 shows a part of the complete reading assign-

ment graph. In Fig.7, a noun which reads (si)-(no)-

(hu)-(su)-(ri) is assigned to a sequence of variables

( 01, 06, 07, 11, 14). The occurrence cost of the

node is 10,985, and the minimum cost from the most

upstream node to the node is 9,600. The minimum

cost to a node can be less than the occurrence cost of

the node because connectivity costs on directed edges

can be negative as shown in Fig.7.

6 A CONSTRAINT SOLVING

WEB SERVICE

We added a Web service layer to the minimum-cost-

method-based solver using a Web application frame-

work Ruby on Rails. Thanks to the HTTP-based pro-

tocol, it realizes loose couplings between the con-

straint solver and parts of the whole system. As a

result, any programming languages can be used to

implement other subsystems in the whole system. In

addition, the constraint solving service can be public

through the Internet.

We designed an asynchronous Web API be-

cause constraint solving process is time-consuming

as shown in experimental results in section 7. For

example, it takes a few seconds for the minimum-

cost-method-based solver to solve a Reprint-CSP with

about 200 variables. If a Reprint-CSP and its so-

lutions are exchanged between a server and a client

in one round trip over HTTP, it causes blocking. It

means the client has to wait for the solution in a few

seconds.

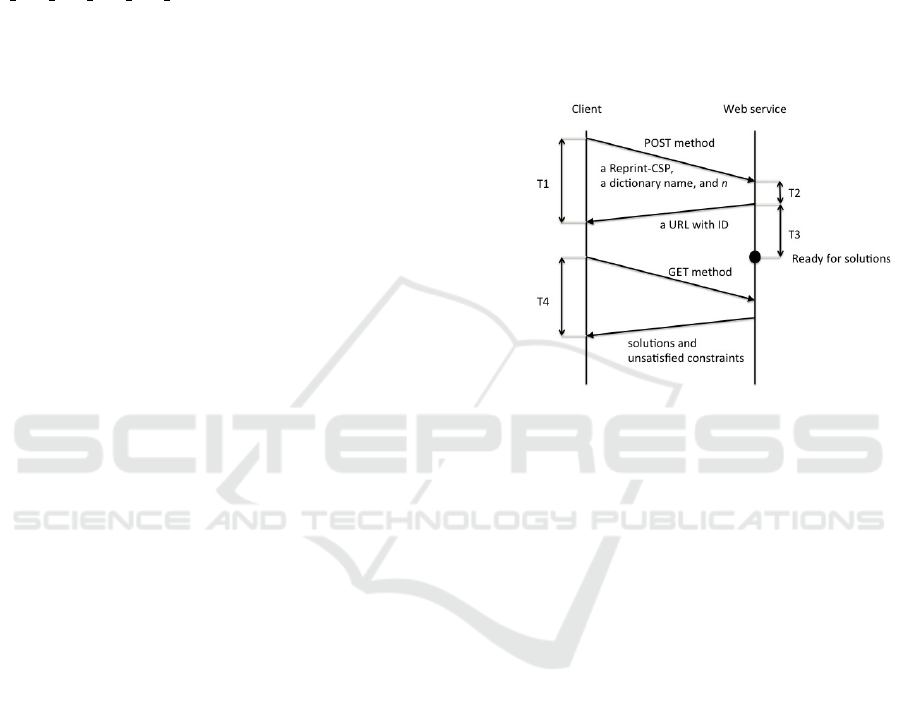

Fig.8 shows a protocol sequence diagram of the

Web API. To avoid blocking, the Web API protocol

involves two round trips between a client and a server.

The following is a brief explanation of the protocol.

1. A client sends a Reprint-CSP, a dictionary name,

and a positive integer n in a JSON format (T. Bray,

2014) using the POST method of HTTP to a Web

server as follows.

POST /solver/csps

2. The server returns a URL with a randomly gener-

ated ID to the client, and starts constraint solving.

3. The client requests solutions for the Reprint-CSP

to the Web service using the GET method of

HTTP with the returned URL as follows.

GET /solver/solutions/ID

Because the ID in the URL is randomly generated,

it is difﬁcult for a client to steal a look at solutions

for other users.

4. If solutions for the URL are available at that time,

the Web service provides a set of pairs of a so-

lution and unsatisﬁed constraints in the solution

in a JSON format. If they are not available, the

Web service provides an error message in a JSON

format. Unsatisﬁed constraints sent from the Web

service will be hints to revise the original Reprint-

CSP.

Figure 8: A protocol sequence diagram of the Web service.

7 EXPERIMENTAL RESULTS

In this section, we experimentally compare the

minimum-cost-method-based solver implemented as

a UNIX command and the solver implemented as a

Web service. In addition, we evaluates the design of

Web API based on the experimental results.

We built a Linux environment on a virtual ma-

chine on Mac OS X, and run our Web service on the

environment on a Mac mini with 2.3GHz Intel Core

i7 CPU and 16GB memory. We used a Mac mini with

same speciﬁcation in a same local area network for a

Web client (a UNIX command curl) and the solver

implemented as a UNIX command.

The two solvers use a same dictionary called Uni-

Dic for Early Middle Japanese (Ogiso et al., 2012),

which includes 421,896 words. Every time we invoke

the solver as a UNIX command, the command reads

the dictionary, stores it as a trie tree and use the trie

tree for a constraint solving. After ﬁnishing the con-

straint solving, the trie tree is lost. On the other hand,

when we start the solver as a Web service, the Web

service reads the dictionary, stores it as a trie tree, and

keep the trie tree for constraint solvings as long as the

Web service is running.

A Constraint Solving Web Service for Recognizing Historical Japanese KANA Texts

263

Table 1: Reprint-CSPs for experiments.

# of variables Average size of variables’ domains # of constraints

Reprint-CSP 1 211 1.22 220

Reprint-CSP 2 214 2.00 215

Reprint-CSP 3 303 1.23 318

Table 2: Average execution time.

UNIX command Web service

(sec) T1 (sec) T2 (sec) T3 (sec) T4 (sec) T1+T3+T4 (sec)

Reprint-CSP 1 5.538 1.258 0.044 2.576 0.002 3.836

Reprint-CSP 2 12.358 1.286 0.041 8.961 0.002 10.249

Reprint-CSP 3 7.146 1.260 0.047 3.913 0.002 5.176

We used three Reprint-CSPs shown in Table.1.

Reprint-CSP 1 and Reprint-CSP 2 are CSPs for a page

in Tale of Ise, and Reprint-CSP 3 is a CSP for two

pages in Tale of Ise.

We gave each of the three Reprint-CPSs to both

the solver as a UNIX command and the solver as a

Web service ﬁve times, and measured their average

execution time. For the solver as a Web service, we

measured four durations T1, T2, T3, and T4 in Fig.8.

• T1 is a waiting time of a client between sending a

Reprint-CSP and receiving a URL.

• T2 is an execution time in a Web service between

receiving a Reprint-CSP and sending a URL.

• T3 is an execution time for constraint solving in a

Web service.

• T4 is a waiting time of a client between requesting

solutions and receiving the solutions.

Because T1 and T3 may overlap, a waiting time of a

client between sending a Reprint-CSP and receiving

solutions is at most T1+T3+T4.

Table.2 shows the results. In the three cases, the

solver as a Web service is faster than the solver as a

UNIX command by about 2 seconds. The execution

time of a Web service (T1+T3+T4) ranges between

69% and 84% of that of a UNIX command. The rea-

son is that the solver as a Web service is ready to solve

when it receives a Reprint-CSP while the solver as

a UNIX command has to read the dictionary before

solving when it receives a Reprint-CSP.

8 CONCLUSION

We added a Web service layer to an existing constraint

solver for reprinting Japanese historical text. Thanks

to the Web service layer, we can use suitable pro-

gramming languages to implement other parts of the

whole reprint support system and will be able to pub-

lish our constraint solver on a Web site as a Web ser-

vice so that other researchers concerning reprinting of

Japanese historical text can use it. We conducted ex-

periments and conﬁrmed the solver as a Web service

is faster than the original solver as a UNIX command

by about two seconds if we use both a client and the

Web server in a same local area network. It is because

the solver as a Web service can reuse a setup done at

startup of the Web service while the solver as a UNIX

command has to do setup every time it is invoked.

One of our future works is to publish our Web ser-

vice on a Web site. In addition, implementing other

subsystems in the whole reprint support system and

combining them into one system are also our future

works.

ACKNOWLEDGEMENTS

This work was supported by JSPS KAKENHI Grant

Number JP16K00463.

REFERENCES

Arai, Y., Suzuki, T., and Aiba, A. (2013). Recognizing

Historical KANA Texts Using Constraints, pages 151–

164. Springer Japan, Tokyo.

Borning, A., Feldman-Benson, B., and Wilson, M. (1992).

Constraint hierarchies. In Lisp and Symbolic Compu-

tation, pages 48–60.

Frellesvig, B. (2010). A History of the Japanese Language.

Cambridge University Press.

Hayasaka, T., Ohno, W., Kato, Y., and Yamamoto, K.

(2017a). Recognition of kuzushiji (hentaigana and

cursive script) by deep learning (ver.0.4.1).

Hayasaka, T., Ohno, W., Kato, Y., and Yamamoto, K.

(2017b). Trial production of application software for

machine transcription of hentaigana by deep learning.

In Proceedings of the 31st Annual Conference of the

Japanese Society for Artiﬁcial Intelligence.

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

264

Ogiso, T., Komachi, M., Den, Y., and Matsumoto, Y.

(2012). Unidic for early middle japanese: a dictio-

nary for morphological analysis of classical japanese.

In Chair), N. C. C., Choukri, K., Declerck, T., Doan,

M. U., Maegaard, B., Mariani, J., Moreno, A., Odijk,

J., and Piperidis, S., editors, Proceedings of the Eight

International Conference on Language Resources and

Evaluation (LREC’12), Istanbul, Turkey. European

Language Resources Association (ELRA).

Reizei, T. (1994). Tales of Ise (photocopy). Kasama Shoin.

T. Bray, E. (2014). The javascript object notation (JSON)

data interchange format. RFC 7159.

Terasawa, K. and Kawashima, T. (2011). Word spotting

online. In Proceedings of the Computers and the Hu-

manities Symposium, volume 2011, pages 329–334.

Watanabe, S., Suzuki, T., and Aiba, A. (2015). Reducing

of the number of solutions using adjacency relation

of words in recognizing historical kana texts. IPSJ

Journal, 56(3):951–959.

Yamada, S. and Shibayama, M. (2003). An estima-

tion method of unreadable historical character for

manuscripts in ﬁxed forms using n - gram and ocr.

IPSJ SIG Notes, 2003(59):17–24.

Yamamoto, S. and Osawa, T. (2016). Labor saving for

reprinting japanese rare classical books. Journal of In-

formation Processing and Management, 58(11):819–

827.

A Constraint Solving Web Service for Recognizing Historical Japanese KANA Texts

265
