Towards Better Document to Model Synchronisation: Experimentations

with a Proposed Architecture

Arnaud Michot, Christophe Ponsard and Quentin Boucher

CETIC Research Centre, Charleroi, Belgium

Keywords:

Model-based Engineering, Model-Driven Development, Traceability, Usability, Requirements Engineering,

Eclipse Modelling Framework.

Abstract:

The Model Based Engineering approach is centred around the use of a model repository and a modelling tool.

A drawback of the approach is that the evolution of derived documents or other artefacts requires to go back to

the model. This process involves tracing the source element back in the model editor before triggering updates.

This can reveal quite inefﬁcient and even cause user rejection. This paper presents a reusable architecture

including a back channel from a document to the related model. It efﬁciently supports the locate operation

of model elements from the document, model updates from the document (including in-place text editing,

e.g. to ﬁx typos inside a description), and even concept creation from a text document. We also report on our

experience in implementing this architecture in two modelling tools: the Objectiver goal-oriented requirements

engineering tool and the Eclipse Modelling Framework, both with mainstream commercial and Open Source

text processors.

1 INTRODUCTION

Modelling is heavily used across many engineering

disciplines like the building of bridges, electronic

systems and, more recently, software-based systems.

Nowadays, Model-Based Engineering (MBE), and

more speciﬁcally Model-Driven Engineering (MDE)

have become mainstream paradigms for software and

systems development (Schmidt, 2006). Such ap-

proaches can rely on standardised and well adopted

modelling languages like UML (OMG, 1997) or

SysML (OMG, 2005). Those languages provide a vi-

sual syntax enabling the design and communication

activities of the engineers but also have precise se-

mantics to enable automation of parts of the System

Development Life Cycle (SDLC).

Efﬁcient modelling is achieved through computer

tools typically composed of a modelling environment,

a model repository and a model transformation tool

chain for synchronising modelling artefacts at differ-

ent steps of the SDLC. Model-to-model and model-

to-text transformations are used to generate detailed

models from abstract ones and code/documentation

from models, respectively. Unfortunately, in prac-

tice, only part of such artefacts can actually be gen-

erated from source models as target models and texts

require to be manually reﬁned and completed. Hence,

the MDE approach also has to coexist with the tradi-

tional ﬂow of documents produced along the SDLC,

like requirements documents, detailed speciﬁcations,

design documents, test plans, etc. Such documents

are also key project milestones required for inter-

nal workﬂows and/or external certiﬁcation processes.

They usually mix text, tables and pictures under either

a text processing, or spreadsheet format.

Consequently, the synchronised management of

documents and models is a complex task. A key prob-

lem is to manage traceability, i.e. how to relate tex-

tual and modelling elements. For poorly structured

documents, this needs to be achieved manually and

is very costly. For documents with a better structure,

some form of automated extraction can be considered

to initiate a model, or conversely, a structured docu-

ment can be automatically generated from a model.

In both cases, the traceability can be established efﬁ-

ciently and used to maintain a synchronisation. De-

pending on the context, the synchronisation may be

triggered from the model, the document or both (i.e.

round-trip mode).

Model to text transformations were deﬁned in

the general MOF2Text (OMG, 2008) speciﬁcation

with practical implementations based on XML, like

XSLT/FOP, or the Eclipse Modelling Framework

(EMF), like GenDoc or M2Doc both based on Ac-

Michot, A., Ponsard, C. and Boucher, Q.

Towards Better Document to Model Synchronisation: Experimentations with a Proposed Architecture.

DOI: 10.5220/0006687505670574

In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 567-574

ISBN: 978-989-758-283-7

567

celeo (Haugommard, 2011; Obeo, 2011). This cov-

ers both code and document generation. Unfortu-

nately, little has been done in the area of model to

text traceability: most solutions essentially focus on

code (Olsen and Oldevik, 2007). For documents, the

approach is rather unidirectional and requires to cor-

rect the model and regenerate the document. Direct

integration with text processors is also missing while

most users are far more familiar with such software

than with a modelling tool.

On the other hand, direct synchronisation between

a model and related documents can also be achieved

by using a Domain Speciﬁc Language (DSL) used

to capture the document structure. Popular DSL im-

plementations like XText (Efftinge., 2006) have their

own underlying model with a quite direct (i.e. bijec-

tive) mapping with the engineering model that makes

the model to model synchronisation easier (Hettel

et al., 2008). However, again such techniques cannot

be applied inside text processors.

As a result, most commonly reported practices are

either that people spend a lot of time to locate the

model elements they have to correct w.r.t. a problem

noticed in a document (e.g. a typo), or they just do

not update the model, meaning they manually correct

documents again and again, and probably lose some

changes. Our motivation to tackle this problem actu-

ally comes from requests of industrial users having to

face such costly overheads which strongly impact the

efﬁciency of a MDE approach in their domain.

This short paper reports on our work to address

the above limitations by proposing a practical archi-

tecture that can cope with modelling frameworks on

one side, and mainstream (Open Source or commer-

cial) ofﬁce suites on the other side. We describe a

global architecture covering both model to document

and document to model interactions. However, our

prototyping will focus on the later and less covered

topic. We consider the following three scenarios:

• Locate an element in a model from a text docu-

ment.

• Perform direct edition of a modelling element

from a text document.

• Create a new modelling element from a text doc-

ument.

In order to validate that our approach can be used

in practice, we demonstrate its use on two different

modelling environments: a requirements engineering

tool named Objectiver (Respect-IT, 2011), and the

Capella System Engineering platform (Polarsys/CIS,

2015). We also cover different targets: MS Word

documents, Open/Libre Ofﬁce text documents and

HTML documents.

This paper is structured as follows. First, Section

2 presents the proposed architecture. Then, Section 3

details our implementation on the mentioned targets.

Section 4 discusses it in the light of related works.

Finally, section 5 concludes with the current status of

our research and the next envisioned steps.

2 REFERENCE ARCHITECTURE

2.1 Overview

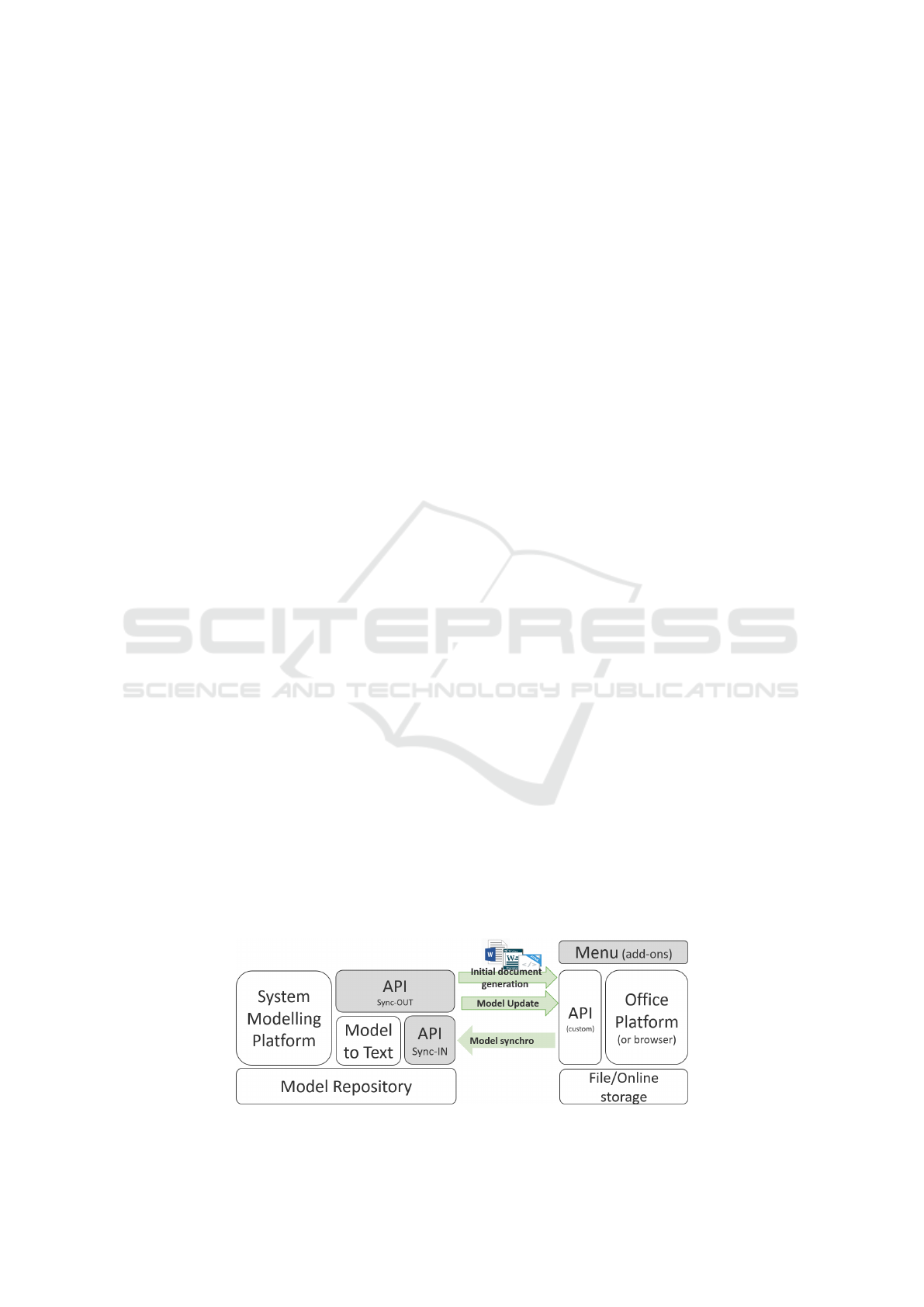

The proposed architecture is depicted on Figure 1.

The left part of the picture represents the (system)

modelling environment while the right part is the Of-

ﬁce environment. Although we will restrict to text

document for the rest of the paper, the architecture

is general and can also be applied to spreadsheets.

In the ﬁgure, white components are standard compo-

nents like the modelling environment (e.g. Capella),

the modelling repository (e.g. EMF), document gen-

eration libraries (GenDoc/M2DOC/FOP) and ofﬁce

suites (MS Word, Writer). The grey components

are additions that need to be implemented to ensure

the correct support for the envisioned synchronisation

scenarios. The rest of this section will describe them.

2.2 Initial Document Generation

This step is done using the model to text library.

Model elements that need to be kept synchronised are

tagged with a unique model identiﬁer so they can be

traced later. This information can be embedded using

a custom ﬁeld of the target format (docx/odt/html).

Once generated the document can be transferred

and opened automatically in the target ofﬁce platform

(or browser in case of HTML generation) using the

standard integration API of those components.

2.3 Model to Document Update

If the model is changed then the related documents

need to be updated. For this purpose, documents must

be kept in the model workspace. The update can be :

• an incremental update of traced elements: the ref-

erenced are updated through the server API of the

target ofﬁce platform (e.g. OLE for MS Ofﬁce,

UNO for Open/Libre Ofﬁce). If some model el-

ement are removed, their reference is marked as

deleted or,

• in case of full update, the whole document is re-

generated using the same process as the initial

document generation.

Three update scenarios are possible:

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

568

• for documents within the workspace and opened,

the update should be immediate and the docu-

ments should be refreshed.

• for closed documents within the workspace, the

update can be delayed until their next opening.

• for documents exported outside the workspace,

the update will be delayed until they are imported

back into it (assuming identiﬁers are preserved).

2.4 Document to Model Update

This part is supporting the proposed scenarios to lo-

cate, edit or create concepts from the text processor.

This is achieved through a channel from the ofﬁce

platform back to the modelling platform. This re-

quires the following extensions :

• the document editor must support those user inter-

face actions on text bound to a model element.

• once triggered the requested action must be com-

municated to the modelling platform.

• the modelling platform must act as a server and

listen to incoming synchronisation requests to per-

form the required update.

In order to achieve this communication channel,

we rely on a more general web service API developed

to expose any kind of model that can be modelled us-

ing EMF (Michot et al., 2016). The full API is not

required but is useful for other purposes. In case it is

not available, the minimal services required are :

• locate: GET <server_url>/api/concepts/id/locate

• edit: PUT <server_url>/api/concepts/id - the

JSON input should contain the attributes/values to

update.

• create: POST <server_url>/api/concepts - the

JSON input should contain the attributes to ini-

tialise and, upon success, the service will return

the identiﬁer of the created concept.

3 IMPLEMENTATION CASES

In this section, we describe two implementations that

cover two different system engineering tools and dif-

ferent target document formats. Each case will have

the same structure: ﬁrst a short description of the

tool, then some implementation details and, ﬁnally,

an overview of the prototyped integration.

3.1 Integration with Objectiver

3.1.1 Description

Objectiver is a goal-oriented requirements engineer-

ing tool (Respect-IT, 2011). It relies on a strong

modelling approach with a rich meta-model (includ-

ing goals, requirements, obstacles, reﬁnements, oper-

ations, entities, relationships, agents, etc.). It is fully

documented in (van Lamsweerde, 2009).

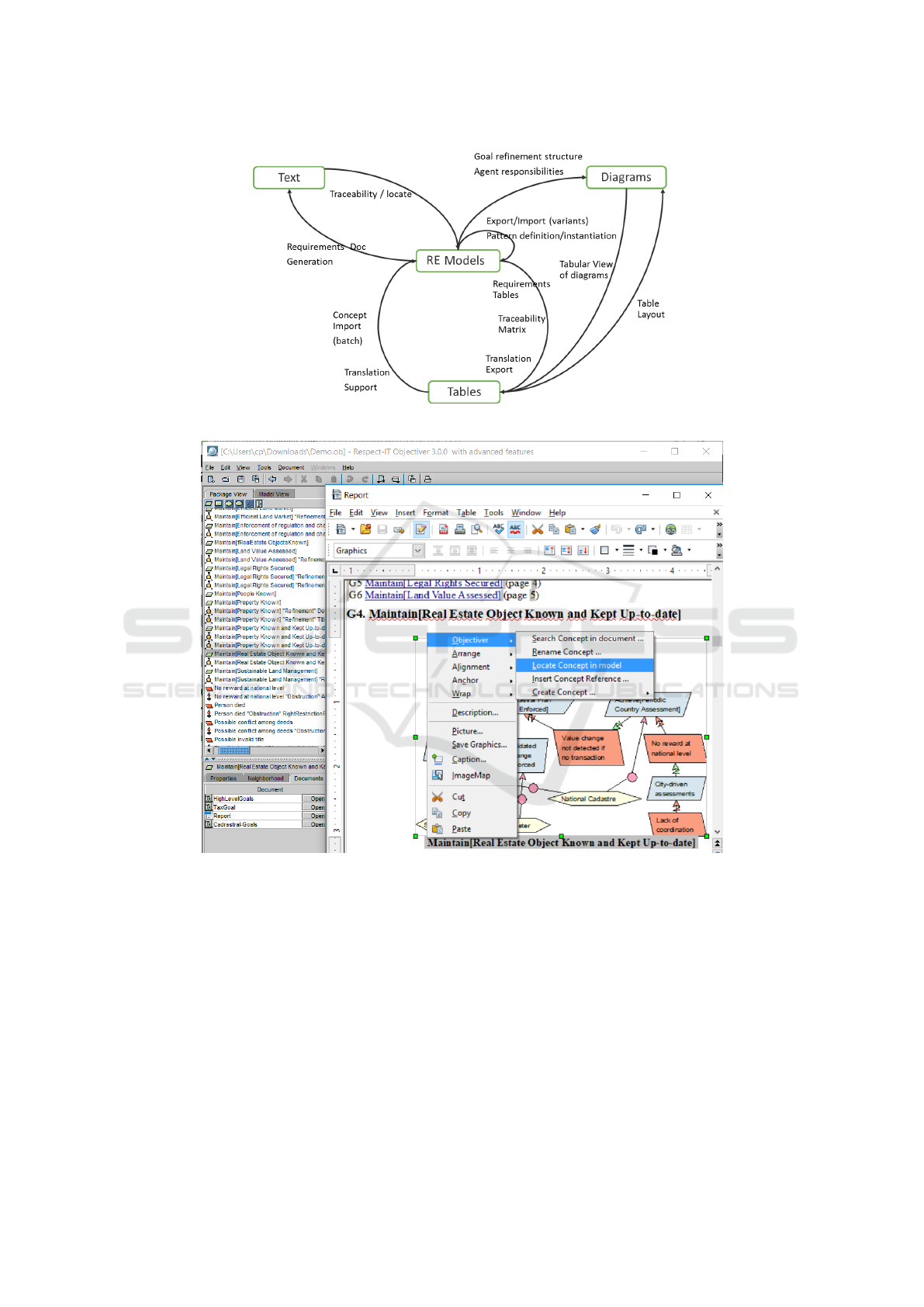

The tool is built around the requirements model

and supports a rich set of interplay scenarios involv-

ing text, diagrams and tables as depicted in Figure 2

and detailed in (Ponsard et al., 2015). For example a

diagram can be generated to describe the responsibil-

ities of an agent. This diagram can then be included

in a requirements document along with a list of all the

requirements under the agent’s responsibility.

3.1.2 Implementation

Both Open/Libre Ofﬁce and MS Word were inte-

grated with the desktop edition of Objectiver. The

noteworthy features and issues are :

• a REST API can be used for integrating with ex-

ternal tools and the web version of the product.

• Open/Libre Ofﬁce has a server mode based on

UNO. MS ofﬁce can be controlled through OLE.

• context menu extensions are available both for

Writer and MS Word. Special ﬁelds can be used

to embed model elements in text.

• MS Word provides a direct edition ﬁeld. For

Writer, a modal window is needed for editing.

• for uniquely referencing concepts, a speciﬁc

URI protocol is used: objectiver://project_id/

concept_id[/attribute-id]

Figure 1: Proposed round-trip architecture.

Towards Better Document to Model Synchronisation: Experimentations with a Proposed Architecture

569

Figure 2: Interactions between text and modelling artefacts.

Figure 3: Locate action invoked from Open Ofﬁce.

3.1.3 Resulting Open/Libre Ofﬁce Integration

Locate Scenario. The user just has to right click

on the concept and select "Locate Concept in Model"

from the additional Objectiver menu available at the

top of the concept menu. Figure 3 shows this ac-

tion being invoked on the Maintain[Real Estate Ob-

ject Known and Kept Up-to-date] goal fully described

through a diagram just above.

The result is that the concept is located in the main

Objectiver window shown in the background. In this

window one can see the concept is visible and high-

lighted in the model navigator area. Note also that

the OpenOfﬁce report is among the listed referencing

documents in the tab on the bottom right. Clicking

on the corresponding "Open" button will trigger the

reverse locate from the model to the document. The

document will be opened (if not yet) and positioned

on the ﬁrst reference of the concept.

Edit Scenario. The same menu is used. On the con-

cept reference the "Rename Concept" action can be

used. Edition is not in place but through a modal

box shown in Figure 4. The model and other doc-

ument references are of course updated accordingly.

Alternately, the user can also chose to use the "lo-

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

570

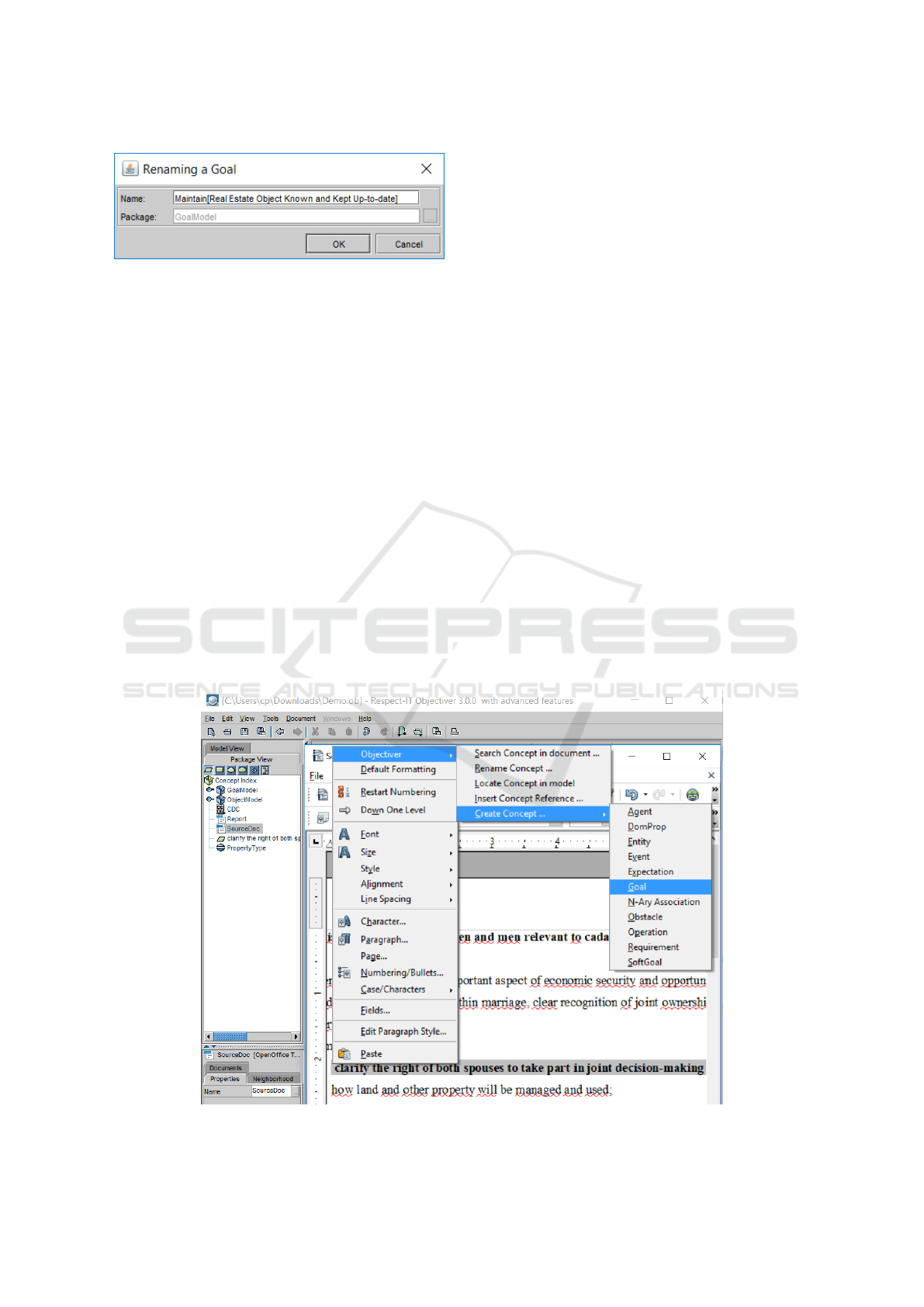

Figure 4: Rename concept action invoked from Open Of-

ﬁce.

cate" function and perform the update in the model

and it will see the opened document updated directly.

Create Scenario. The user can select some text and

decide to tag it as concept of the speciﬁed type. The

selected text will then be used as concept name. The

concept is inserted in the same package as the docu-

ment and the traceability link is inserted in the docu-

ment. Such a scenario is more likely from source doc-

ument than from a report. Figure 5 shows the menu

for a create action and also shows the result in the

modelling tool (concept listed in navigator and source

document referenced in model).

Concept Evolution from Model. Also impacts the

document. In addition to the rename operation al-

ready discussed, concept deletion is marked using a

speciﬁc reference as shown in Figure 6. An alterna-

tive could be to use the text processor change tracking

facilities.

3.2 Integration with EMF

3.2.1 Description

EMF is an Eclipse-based modeling framework and

code generation facility for building tools and other

applications based on a structured data model (Stein-

berg et al., 2009). This common standard for data

models is used by many technologies and frame-

works, e.g. server solutions, persistence frameworks

and support for transformations. The Capella system

engineering tool is based on it (Polarsys/CIS, 2015).

3.2.2 Implementation

We highlight here a generic implementation based on

the core EMF editor. This implementation is avail-

able as Open Source (Obeo, 2011) and relies on the

following principles. We focus here on the integra-

tion with HTML and Word.

• the RAWET REST API provides the required

services for interacting with the model from the

document (Michot et al., 2016). It was directly

plugged on the client tool (local use only) but it

can also be used on a EMF repository.

• HTML generation is provided by EGF and can

easily be tuned to inject references (e.g. as hyper-

links) in the same format as described previously.

Figure 5: Create action invoked from Open Ofﬁce.

Towards Better Document to Model Synchronisation: Experimentations with a Proposed Architecture

571

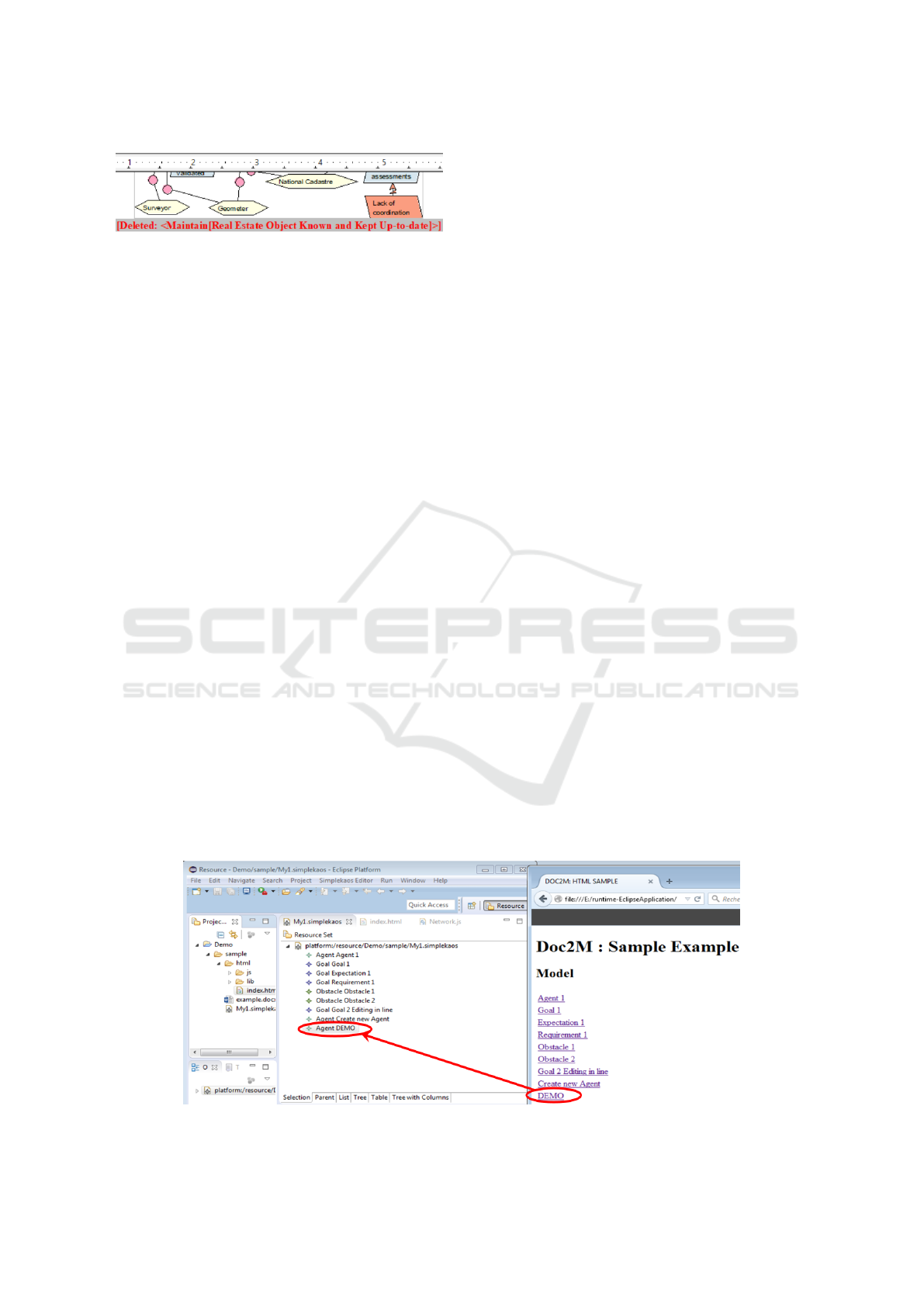

Figure 6: Result of a concept deletion inside a document.

• HTML integration is straightforward using stan-

dard JavaScript for event handling and REST

calls.

• Word generation was implemented using M2Doc

(Obeo, 2011), again with the embedding of refer-

ences in directly editable custom ﬁelds.

• Word menu additions and related commands (e.g.

REST calls) are both implemented using Visual

Basic. The code is bundled in a template and re-

quires the permission to execute macros.

3.2.3 Resulting HTML/Word Integration

Locate Scenario (HTML). As shown on Figure 7,

a click on the "DEMO" concept in the navigator (on

the right) triggers the highlighting of the concept in

the Eclipse EMF editor (on the left).

Locate Scenario (Word). The locate scenario in

Word is quite similar as in OpenOfﬁce. Figure 8

shows the "DOC2M" context menu (on the bottom

right) triggered on an mapped ﬁeld. The effect is sim-

ilar as for the HTML locate.

Edit Scenario. Edition mechanism is quite similar

as for the other tools. The main point is that there

is no menu entry as the custom (multi-line) ﬁeld is

directly editable. It can also display the concept type

and supports spell checking as shown in Figure 9.

Create Scenario. The create action is visible in

Figure 8. Its effect is similar as for the Objectiver

tool but within the EMF editor.

Note that edit and create scenarios are less mean-

ingful in HTML except for a web-based editor.

4 RELATED WORK

ModelWriter is an integrated authoring environment

providing support for understanding text, guiding the

creation of structured models (Erata et al., 2017a). It

provides a generic traceability analysis or text-model

synchronisation in order to ease documentation main-

tainability and reduces product defect costs caused by

inconsistent or obsolete knowledge. It can consider

fragments of text, architecture elements and parts of

source code. It also enables reasoning about relation

through a proper axiomatisation (Erata et al., 2017b).

In comparison, our work is focusing more on a consis-

tent and usable text to model link. Concept traceabil-

ity in our approach results from the document gener-

ator. It is not explicitly modelled as in ModelWriter

but could deﬁnitely beneﬁt from it.

Synchronisation of Textual Views in the scope

of multi-view models is analysed in (Goldschmidt,

2011), especially for partial textual views. There,

the author proposes to synchronise transformations

from and to the textual view model through an incre-

mental parsing approach. It also deﬁnes synchronisa-

tion transformations to handle modiﬁcations made by

editing the text model and update the underlying do-

main model incrementally. This work can also help in

proposing a standard way to deﬁne our initial trace-

ability mapping between the model and each docu-

ment type.

Deﬁning the traceability mapping between the

Figure 7: Locate action invoked from a browser.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

572

Figure 8: Locate action invoked from Word.

Figure 9: Direct edit of a concept description in Word.

model and the target document can require a lot of

tuning. A technique to support the development of

M2T transformations by providing automatic correc-

tions from minor changes introduced in the document

is proposed by (Guta, 2012). This could ease the evo-

lution of our initial transformation by a non-expert.

5 STATUS AND ROADMAP

This work is motivated by the industrial need for bet-

ter document to model mappings to complement the

existing model to document approaches. After deﬁn-

ing a generic architecture, our contribution focused

on the less commonly addressed document to model

synchronisation. We proposed an URI-based mecha-

nism and prototyped it in both a commercial tool and

in the Open Source Eclipse platform. Our work is

fully available in Open Source mode (EPL license)

on GitHub (Michot and Ponsard, 2017). Based on

the proposed architecture and the released code, pro-

totyping a synchronisation can be achieved within a

few days of work.

Our work is still partial as our synchronisation is

currently limited to concept references (locate, cre-

ate, rename) and does not yet fully cover the attribute

level. We are currently working on extending this

mapping and on providing a better integration with

widely used Sirius-based editors like Capella (Po-

larsys/CIS, 2015). Our work is already daily used in

the commercial tool implementation but not yet on the

Eclipse-based integration. The next step will be to ex-

tend our prototyping to support Capella speciﬁc views

and perform validation with industrial users, mainly

from the railway and logistics domains. Looking fur-

ther ahead, we are also considering the interfacing be-

tween SaaS-based modellers and editors (like Google

Docs or Open Source alternatives) based on the de-

veloped REST API.

ACKNOWLEDGEMENTS

This research was partly funded by the INOGRAMS

project of the Walloon Region (grant nr. 7171). We

thank Respect-IT for giving us access to their SDK

and Obéo for their support about Sirius and M2Doc.

REFERENCES

Efftinge., S. (2006). XText - Language Engineering for Ev-

eryone. https://www.eclipse.org/Xtext.

Erata, F. et al. (2017a). ModelWriter Project. https://

itea3.org/project/modelwriter.html.

Erata, F. et al. (2017b). ModelWriter: Text and Model-

Synchronized Document Engineering Platform. In

32nd IEEE/ACM Int. Conf. on Automated Software

Towards Better Document to Model Synchronisation: Experimentations with a Proposed Architecture

573

Engineering (ASE 2017), Urbana-Champaign, IL,

United States.

Goldschmidt, T. (2011). View-based Textual Modelling.

The Karlsruhe series on software design and quality.

KIT Scientiﬁc Publ.

Guta, G. (2012). Model-to-Text Transformation Modiﬁca-

tion by Examples. PhD Thesis, Johannes Kepler Uni-

versity, Linz.

Haugommard, A. (2011). GenDoc - From Models to Doc-

uments. https://www.eclipse.org/gendoc.

Hettel, T., Lawley, M., and Raymond, K. (2008). Model

synchronisation: Deﬁnitions for round-trip engineer-

ing. In Proc. of the 1st Int. Conf. on Theory and Prac-

tice of Model Transformations, ICMT ’08.

Michot, A. and Ponsard, C. (2017). Doc2M on GitHub.

https://github.com/cetic/Doc2M.

Michot, A., Ponsard, C., Zhao, W., and Darimont, R.

(2016). RAWET - A generic REST API on top of

Eclipse CDO for web-based modelling. EclipseCon

France 2016, Toulouse, June 7-9.

Obeo (2011). M2DOc - Generate Word Documents From

Your Models. https://www.eclipse.org/gendoc.

Olsen, G. K. and Oldevik, J. (2007). Scenarios of Traceabil-

ity in Model to Text Transformations. In Proc. of the

3rd European Conf. on Model Driven Architecture-

foundations and Applications, ECMDA-FA’07.

OMG (1997). Uniﬁed modeling language. http://www.

omg.org/spec/UML.

OMG (2005). System modeling language. http://www.omg.

org/spec/SysML.

OMG (2008). Mof model to text transformation language.

http://www.omg. org/spec/MOFM2T.

Polarsys/CIS (2015). Capella - open source so-

lution for model-based systems engineering.

https://www.polarsys.org/capella.

Ponsard, C., Darimont, R., and Michot, A. (2015). Combin-

ing models, diagrams and tables for efﬁcient require-

ments engineering : Lessons learned from the indus-

try. In Proc. INFORSID, Biarritz, France, May.

Respect-IT (2011). The objectiver tool - version 3.

http://www.objectiver.com.

Schmidt, D. C. (2006). Guest editor’s introduction: Model-

driven engineering. Computer, 39(2):25–31.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF: Eclipse Modeling Framework 2.0.

Addison-Wesley Professional, 2nd edition.

van Lamsweerde, A. (2009). Requirements Engineering -

From System Goals to UML Models to Software Spec-

iﬁcations. Wiley.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

574
