Image Segmentation of Multi-shaped Overlapping Objects

Kumar Abhinav

†

, Jaideep Singh Chauhan

†

and Debasis Sarkar

Department of Chemical Engineering, Indian Institute of Technology Kharagpur, Kharagpur, India

Keywords:

Image Segmentation, Overlapping Objects, Multiple Shaped Objects, Contour Grouping, Concave Points.

Abstract:

In this work, we propose a new segmentation algorithm for images containing convex objects present in

multiple shapes with a high degree of overlap. The proposed algorithm is carried out in two steps, ﬁrst we

identify the visible contours, segment them using concave points and ﬁnally group the segments belonging to

the same object. The next step is to assign a shape identity to these grouped contour segments. For images

containing objects in multiple shapes we begin ﬁrst by identifying shape classes of the contours followed by

assigning a shape entity to these classes. We provide a comprehensive experimentation of our algorithm on

two crystal image datasets. One dataset comprises of images containing objects in multiple shapes overlapping

each other and the other dataset contains standard images with objects present in a single shape. We test our

algorithm against two baselines, with our proposed algorithm outperforming both the baselines.

1 INTRODUCTION

A number of vision applications like Medical Imag-

ing, Recognition Tasks, Object Detection, etc. require

segmentation of objects in images. Overlapping ob-

jects in such images pose a major challenge in this

task. Identifying hidden boundaries, grouping con-

tours belonging to same objects and efﬁciently es-

timating the dimensions of partially visible objects

are some of the complexities that overlap introduces.

Further regions of high concentration of objects with

a high degree of overlap introduces computational

challenges for segmenting such images. In our work

we introduce a method for tackling these issues for

heterogeneous and homogeneous images. Heteroge-

neous images are deﬁned as images containing multi-

shaped overlapping objects, eg. a rod over a sphere.

Homogeneous images are deﬁned as images with sim-

ilarly shaped overlapping objects. Segmentation is

particularly challenging for a heterogeneous image

because assigning a single shape entity to all the ob-

jects is bound to create inaccuracies. We test our work

on two Datasets, Dataset-I (Fig.1.a) is a representa-

tive of the heterogeneous group of images, whereas

Dataset-II (Fig.1.b) is a standard dataset containing

homogeneous images.

To tackle the discussed challenges we break down

the problem statement into the following three

† denotes equal contribution

sub-problems: (1) Contour extraction, this corre-

sponds to identifying the visible and hidden contours

(2) Contour mapping, this is for grouping the iden-

tiﬁed contours which belong to the same object and

mapping them to it (3) Shape identiﬁcation for ﬁtting

a shape entity to the grouped contour segments, this

step implicitly estimates the hidden parts.

To address these issues we propose a two step al-

gorithm. First, we identify the contours and break

them into segments. This cleaving happens at all

points where contours of two different objects inter-

sect. These cleave points are identiﬁed using a pro-

cedure called concave point extraction described in

Sec.3.2. Next we stitch the broken segments together

which belong to the same objects. This is done by

ﬁtting an ellipse over all the broken segments, and

stitching them together depending on their proxim-

ity and orientation. This concludes the ﬁrst step and

solves the ﬁrst two sub-problems. The next step of the

algorithm is to assign a shape entity to the mapped

contours. This can be easily done for homogeneous

images, a single shape entity like an ellipse ﬁts all. It

becomes tricky for heterogeneous image. The intu-

ition of our work is that we need to treat each contour

based on its shape class. So, ﬁrst we deﬁne shape

classes for the dataset. Followed by deﬁning a spe-

ciﬁc shape entity for each class which can be applied

to a contour that falls in it. The images in Dataset-I

contains two kinds of objects, needle(or rod) shaped

and spherical shaped, overlapping each other. We use

410

Abhinav, K., Chauhan, J. and Sarkar, D.

Image Segmentation of Multi-shaped Overlapping Objects.

DOI: 10.5220/0006628404100418

In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 4: VISAPP, pages

410-418

ISBN: 978-989-758-290-5

these two shapes as the deﬁned classes for assigning

a shape entity. We ﬁt an ellipse over the mapped seg-

ments and use its aspect ratio to determine the class to

which the segment belongs to. Once classiﬁed each

segment is treated according to the deﬁned heuristic

for the class. This step solves the third sub-problem

and is followed by a post-processing step to reject the

wrongly segmented objects.

We summarize our major contributions as follows:

• We propose a new algorithm to segment heteroge-

neous images with regions of high object concen-

tration and a high degree of overlap.

• We test our work on both heterogeneous and

homogeneous datasets, beating the baselines for

both, demonstrating the general applicability of

our work.

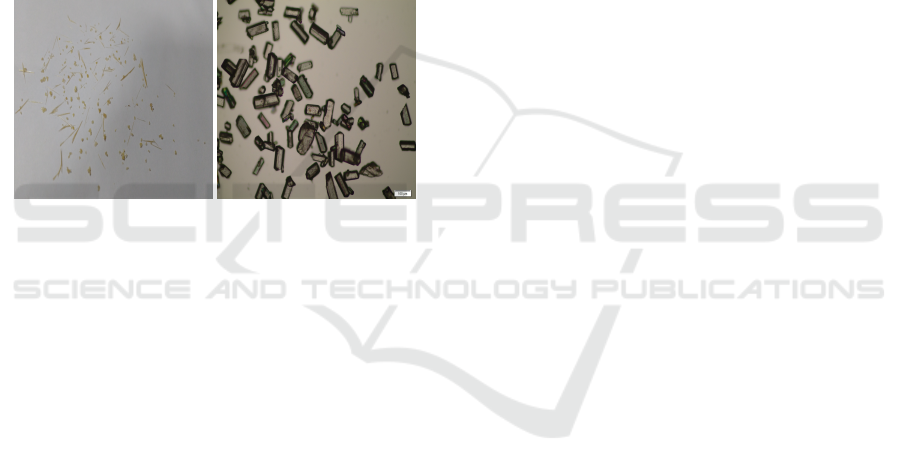

(a) Dataset-I Crystal. (b) Dataset-II Crystal.

Figure 1: Overlapping Crystals Image.

2 RELATED WORK

Image segmentation has been in the research domain

for a while, but the nature of problem is such that no

approach generalizes well for a wide range of image

datasets. Certain approaches extract edge informa-

tion using the sharp changes in the pixel intensities

in images (Pal and Pal, 1993; Rastgarpour and Shan-

behzadeh, 2011). Object boundaries tend to intro-

duce peaks in gradients of pixel intensity, thus these

methods are effective in identifying the edges. Multi-

scale analysis (Gudla et al., 2008) is one of the edge

based methods which is robust enough to handle weak

edges. Others use heuristic based grouping of pixels

for identifying regions with similar properties in im-

ages. Region Growing (Adams and Bischof, 1994)

and Region Splitting-Merging (Haralick and Shapiro,

1985) are two of the common approaches applied in

these set of methods. However, these approaches

don’t segment images with overlapping objects. Such

images lack crucial edge and pixel information for the

hidden parts which is required for the effectiveness of

these approaches.

Certain approaches use dynamic programming for

the task (Baggett et al., 2005), they determine the

most optimal boundaries for the hidden objects by

deﬁning a path of the highest average intensity along

boundaries. Graph-cut methods segment objects by

creating a graph out of pixels treated as nodes and

difference between their intensities as a weight for

edges, followed by ﬁnding the minimum cut for the

graph (Shi and Malik, 2000; Felzenszwalb and Hut-

tenlocher, 2004). Both of these approaches require

prominent gradients at boundaries to be effective in

segmenting objects.

One of the popular approaches for segmenta-

tion of overlapping objects is the watershed algo-

rithm (Vincent and Soille, 1991) which in its classi-

cal form often results in over-segmentation. A po-

tential solution to over-segmentation is region merg-

ing, which does solve the problem but the method ef-

ﬁciency varies depending upon the object size and ob-

ject distribution concentration in the image. Marker-

controlled watershed (Malpica et al., 1997; Yang

et al., 2006) is also used for the purpose but the efﬁ-

ciency of the method depends highly on the accurate

identiﬁcation of the markers.

(Zhang and Pless, 2006) formulates the problem

as a combination of level set functions and uses sim-

ilarity transforms to predict the hidden parts of par-

tially visible objects. The drawback of this method is

that its performance is dependent on initialization and

is computationally expensive. (

Alvarez et al., 2010)

proposes a morphological extension to the level based

methods, it introduces morphological operations in

traditional snake algorithms. This method outper-

forms earlier active contour methods as the curve

evolution is simpler and faster. It however fails to

converge when large number of closely spaced over-

lapped objects are present in the image. In (Zhang

et al., 2012), the problem of segmenting overlapping

elliptical bubbles is solved by segmenting the ex-

tracted contours into curves. These curves are further

segmented into groups belonging to the same bubble

followed by ellipse ﬁtting. This approach works well

for images having similar shaped objects, but fail for

images containing multi-shaped overlapping objects.

Our proposed segmentation algorithm is inspired

from concave point based overlapping object segmen-

tation method (Zafari et al., 2015b). In (Zafari et al.,

2015b), the idea of grouping the contours belonging

to the same object present in an overlap cluster is car-

ried out by ﬁtting ellipses over the segmented con-

tours. The grouped segments are further ﬁtted with el-

lipses to separate overlapping objects. The efﬁciency

of this approach declines when applied to images with

multi-shaped objects.

Image Segmentation of Multi-shaped Overlapping Objects

411

Our approach is built for images containing ob-

jects with high degree of overlap and we attempt to

solve the following issues present in earlier discussed

approaches: (1) We attempt to segment images with

regions of high object concentration, which becomes

a problem for approaches which are computationally

expensive, (2) Our approach does not rely on strong

gradients at boundaries to be effective and (3) Most

approaches don’t take into account images with over-

lapping multi-shaped objects, we use adaptive shape

ﬁtting to address this problem.

3 PROPOSED METHODOLOGY

We propose a segmentation algorithm consisting of

the following two steps: Contour Region Detection

(CRD) and Shape Fitting. Fig.2 describes the method-

ology.

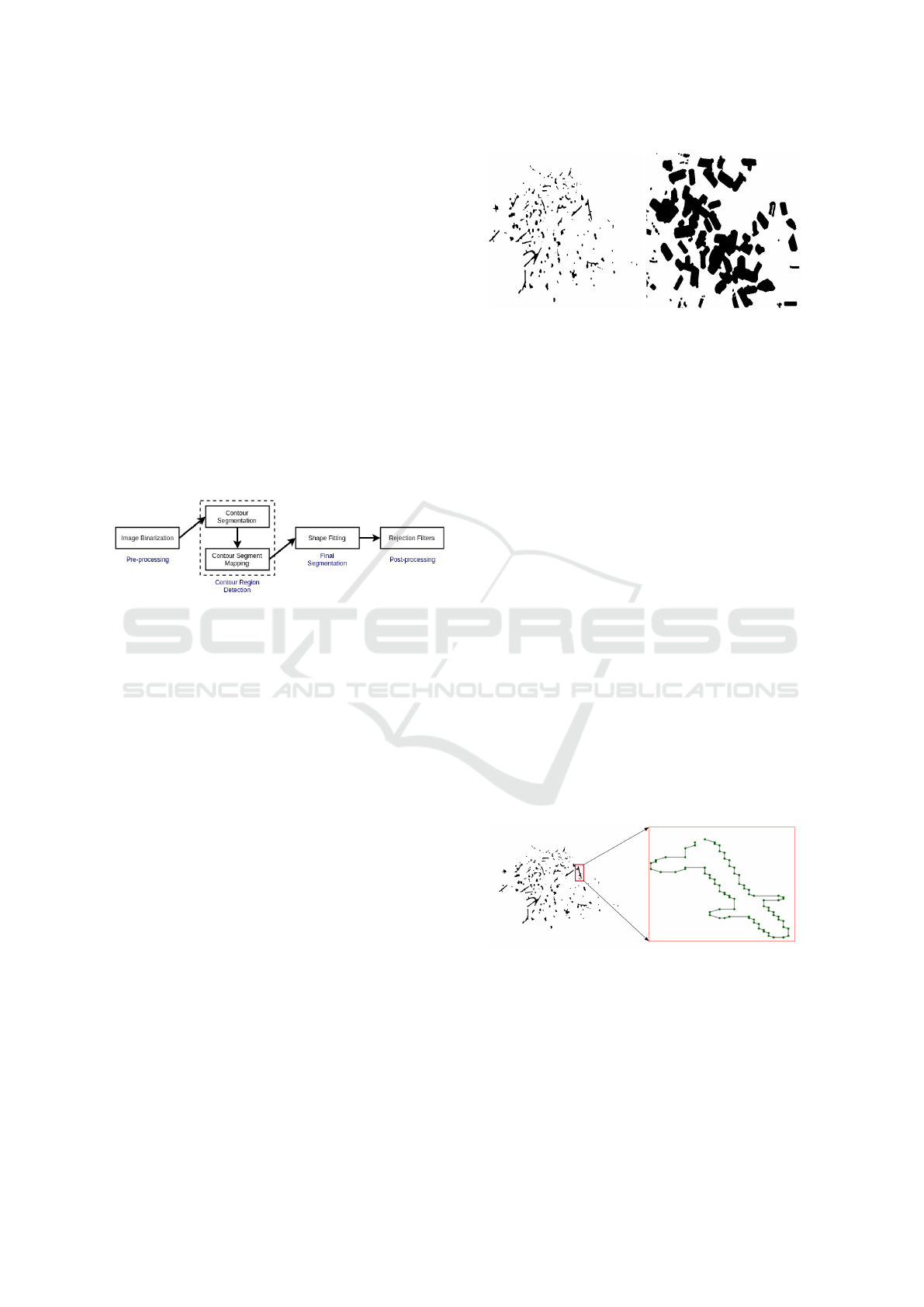

Figure 2: Overview of the proposed approach.

We take in RGB images as input and convert them

to grayscale before further processing. After conver-

sion, median blur is applied to remove noise from

the image, followed by Image binarization. This is

carried out using Otsu’s method (Otsu, 1979) from

which we get a binary image B

. Finally, morpho-

logical operations are used to ﬁlter noisy regions and

ﬁll any small holes in the binary cell regions of B

Fig.3.a and 3.b shows the binarized image of Fig.1.a

and Fig.1.b respectively.

CRD step is then carried out on the binary image,

to extract the contour information. It identiﬁes

the contours corresponding to both visible and hidden

boundaries and return contour segments grouped to-

gether on basis of them belonging to the same object.

Shape Fitting is the ﬁnal segmentation step where a

shape entity like an ellipse or a rod is assigned to the

grouped contour segments. Rejection Filters are ap-

plied in the post-processing step for identifying and

eliminating wrongly segmented objects.

3.1 Contour Region Detection

CRD is the ﬁrst step of our proposed methodology. In

this step, segmentation of overlapping objects is car-

ried out using the boundaries of the visible objects.

We begin ﬁrst by extracting the contour points corre-

sponding to each of the object’s contour present in the

(a) Dataset-I image. (b) Dataset-II image.

Figure 3: Binarized Image for both the Datasets.

image. For this we use the border following algorithm

described in (Suzuki et al., 1985). Next we describe

some notations that we’ll be using from hereon, let

the detected object’s contour C is described using a

set C

contour

with N contour points such that, C

contour

= {p

); i=1,2,...,N}, where N is the number of

contour points and p

is the i

contour point with co-

ordinates (x

, y

). p

i+1

and p

i−1

are the neighbouring

contour points of p

. The contour region detection

next involves two distinctive tasks: contour segmen-

tation and contour segment mapping.

3.1.1 Contour Segmentation

The contour points extracted previously represents the

contour of a single object or multiple overlapped ob-

jects being detected as a single entity. Fig.4 dis-

plays the detected contour points on a sample con-

tour of the binarized crystal image shown in Fig.3.a.

The overlapping of objects forms an irregular closed

shape. The intersections of the object boundaries in a

overlapped object contour are represented using break

points or concave points. Concave points are thus

used to segment the contour of overlapping objects

into separate contour segments.

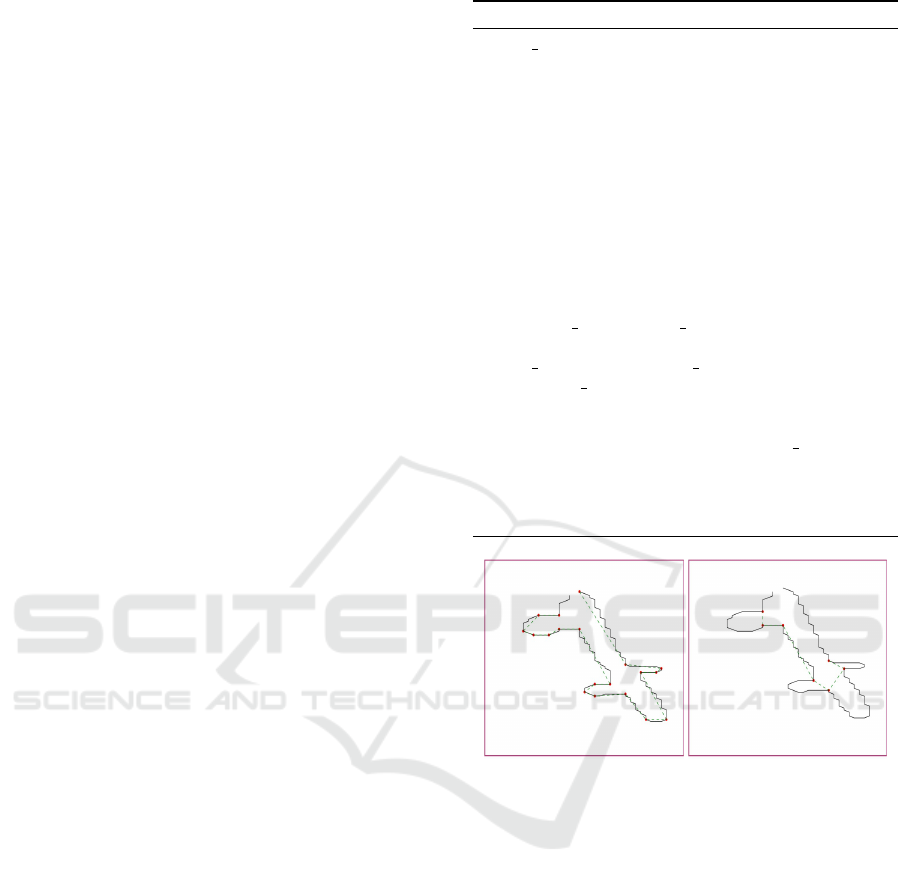

Figure 4: Plotting a contour from Dataset-I to show its Con-

tour points, which are represented using Green points.

The concave points are determined by a two step

procedure: (1) Determining the corner points using

RDP algorithm and (2) Identifying concave points

from corner points using convexity check.

The corner points are the points of local minima or

maxima of the curve drawn by plotting the predeter-

mined contour points. Thus, for each of the object’s

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

412

contour governed by its contour points, the corner

points are computed using Ramer-Douglas-Peucker

(RDP) algorithm (Douglas and Peucker, 1973). RDP

is a path simpliﬁcation algorithm which reduces the

number of contour tracing points. The RDP algorithm

takes in an ordered sequence of contour points rep-

resented using set C

contour

as input. The algorithm

returns a set of corner points extracted from the set

contour

. Let this set of corner points be represented

using a set C

corner

, C

corner

= {p

cor,i

) | p

cor,i

∈

contour

; i = 1,2,...,M}, where p

cor,i

is the i

corner

point and M be number of corner points extracted

such that M ≤ N. Fig.5.a shows a set of corner points

being extracted from contour points of a sample con-

tour as displayed in Fig.4.

Convexity check is then carried out on the set of

corner points contained in C

corner

to obtain a set of

concave points. The algorithm to compute concave

points is described in Algorithm 1.

In Algorithm 1, detected corner points from

corner

are the inputs. Initially vectors are created by

joining two adjacent corner points in clockwise di-

rection along direction of second corner point. Thus,

each corner point will be contained in two vectors,

one originating from the concerned point and the

other terminating at it. For every corner point, the sign

of the cross product of the two vectors it is a part of,

is computed and stored as the orientation of that cor-

ner point. Net orientation of the contour is then com-

puted by taking sign of sum of all the orientations,

which basically gives effective sign over all orienta-

tions. If the net orientation is positive it means that

the overall contour traversal along the corner points

is in anti-clockwise direction else in clockwise direc-

tion. Wherever the corner point’s orientation is dif-

ferent from the net orientation i.e. there is a break in

the traversal direction, that corner point is marked as

a concave point.

Let the set of concave points computed from Al-

gorithm 1 be represented using a set C

concave

, C

concave

= {p

concave,i

) | p

concave,i

∈ C

corner

; i = 1,2,...,P},

where p

concave,i

is the i

concave point and P be

number of concave points computed such that P <=

M <= N. Fig.5.b displays the concave points being

extracted from the corner points of a sample contour

displayed in Fig.5.a.

3.1.2 Contour Segment Mapping

The detected concave points in set C

concave

are used

to split the earlier detected object’s contour C into

contour segments L

’s. Let L

= {p

,...,p

} rep-

resent a contour segment of the contour C where s is

the number of contour points on L

. The set L

con-

Algorithm 1: Concave Point Extraction.

1: net orient = 0  Overall orientation of contour

2: orientation = []  Orientation at each corner point

3: FOR i = 1 to M :  M is # Corner Points

4: GET p

cor,i

, p

cor,i−1

, p

cor,i+1

∈ C

corner

5: IF i equals 1 :

6: p

cor,i−1

= p

cor,M

7: ENDIF

8: IF i equals M :

9: p

cor,i+1

= p

cor,1

10: ENDIF

11:  Vector initialization from given two points

12: V

= (p

cor,i−1

, p

cor,i

)

13: V

i+1

= (p

cor,i

, p

cor,i+1

)

14: orientation[i] ← SIGN(V

× V

i+1

)

15: net orient ← net orient + orientation[i]

16: ENDFOR

17: net orient ← SIGN(net orient)

18:  If net orient is ”+ve” means anti-clockwise if

”-ve” means clockwise

19: FOR i = 1 to M :

20: IF orientation[i] not equals net orient :

21:  Break in traversal direction

22: INSERT p

cor,i

in C

concave

23: ENDIF

24: ENDFOR

(a) Corner Points Detection

(Red points).

(b) Concave Points Detec-

tion (Red points).

Figure 5: Contour segmentation points of a sample contour

in Dataset-I.

tains the set of contour points from C

contour

present

between two concave points, p

and p

. The start and

end points of the corresponding segment, L

are rep-

resented by p

and p

, such that p

∈ C

concave

Since total number of concave points are P, we have

C = L

+ L

+ ... + L

(1)

From now on, the detected contours C are referred

to as contour clusters. A contour cluster is a general

term for detected contours which may contain mul-

tiple overlapped objects or just a single object. Our

proposed segmentation algorithm segments the over-

lapped objects present in a contour cluster, if overlap-

ping exists otherwise it just segments the single object

present. The sample contour present in Fig.4 can now

be referred as a contour cluster.

Overlapping of objects and their shape irregulari-

Image Segmentation of Multi-shaped Overlapping Objects

413

ties in a contour cluster lead to a presence of multiple

contour segment of a single object. Contour segment

mapping is thus needed to map together all the con-

tour segments belonging to a same object in a contour

cluster.

The segment mapping algorithm iterates over each

pair of the contour segment(L

’s), checking if they

could be mapped (grouped) together. The algorithm

follows orientation based mapping, where an ellipse

is ﬁrst ﬁtted on each of the contour segment using

classical least square ﬁtting. The ﬁtted ellipse on a

contour segment is then mapped with other ellipses

based on proximity and orientation. The algorithm

for segment mapping is discussed in Algorithm 2.

Algorithm 2: Contour Segment Mapping.

1:  L

: i

contour segment of contour cluster C

2: FOR i = 1 to P :  P is # Concave Points

3: ﬁt ellipse E

to segment L

4: ma jor axis

,minor axis

,orient angle

← E

5: aspect ratio

←

ma jor axis

minor axis

6: IF aspect ratio

< 2 :

7:  Fitted ellipse close to a circle

8:  Mark as unique segment, isn’t mapped

9: MAP L

alone to Set G

10: CONTINUE

11: ENDIF

12: FOR j = i + 1 to P :

13: ﬁt ellipse E

to segment L

14: ma jor axis

, minor axis

← E

15: orient angle

← E

16: aspect ratio

←

ma jor axis

minor axis

17: IF | orient angle

- orient angle

| < ε:

18: MAP together L

and L

to Set G

19: ENDIF

20: ENDFOR

21: ENDFOR

In Algorithm 2, the contour segment with ﬁtted el-

lipse close to a circle (aspect ratio ≤ 2) isn’t mapped

with any other contour segment. It’s assumed that

only elongated ellipses, with larger aspect ratio (> 2)

have more than one contour segment present in the

contour cluster C.

For the contour cluster C containing P contour

segments, let these segments are mapped to form

K groups. This new unique contour set containing

groups of mapped together contour segments is rep-

resented using a set G with K elements such that :

G = {G

, G

, ..., G

} (2)

[

i=1

= {L

, L

, ..., L

} (3)

i=1

= Φ (4)

An element in this unique set of grouped contour seg-

ments G, represents the entire visible contour of an

unique object present in the overlapping object con-

tour cluster.

Fig.6 displays the result of the Contour Segment

Mapping using color visualization. The sample con-

tour cluster is the one shown in Fig.4. Fig.6.a shows

the result before segment mapping, where each col-

ored segment represents a contour segment L

of the

above mentioned sample contour cluster, C. These

segments are split using concave points as displayed

in Fig.5.b. Fig.6.b shows the result after segment

mapping. It can be seen that earlier present contour

segments denoted by yellow, green and pink colors

respectively now gets mapped together and is repre-

sented using pink color. Each of the unique colored

segments in Fig.6.b represents an element of the set

(a) Before Contour Seg-

ment Mapping.

(b) After Contour Segment

Mapping.

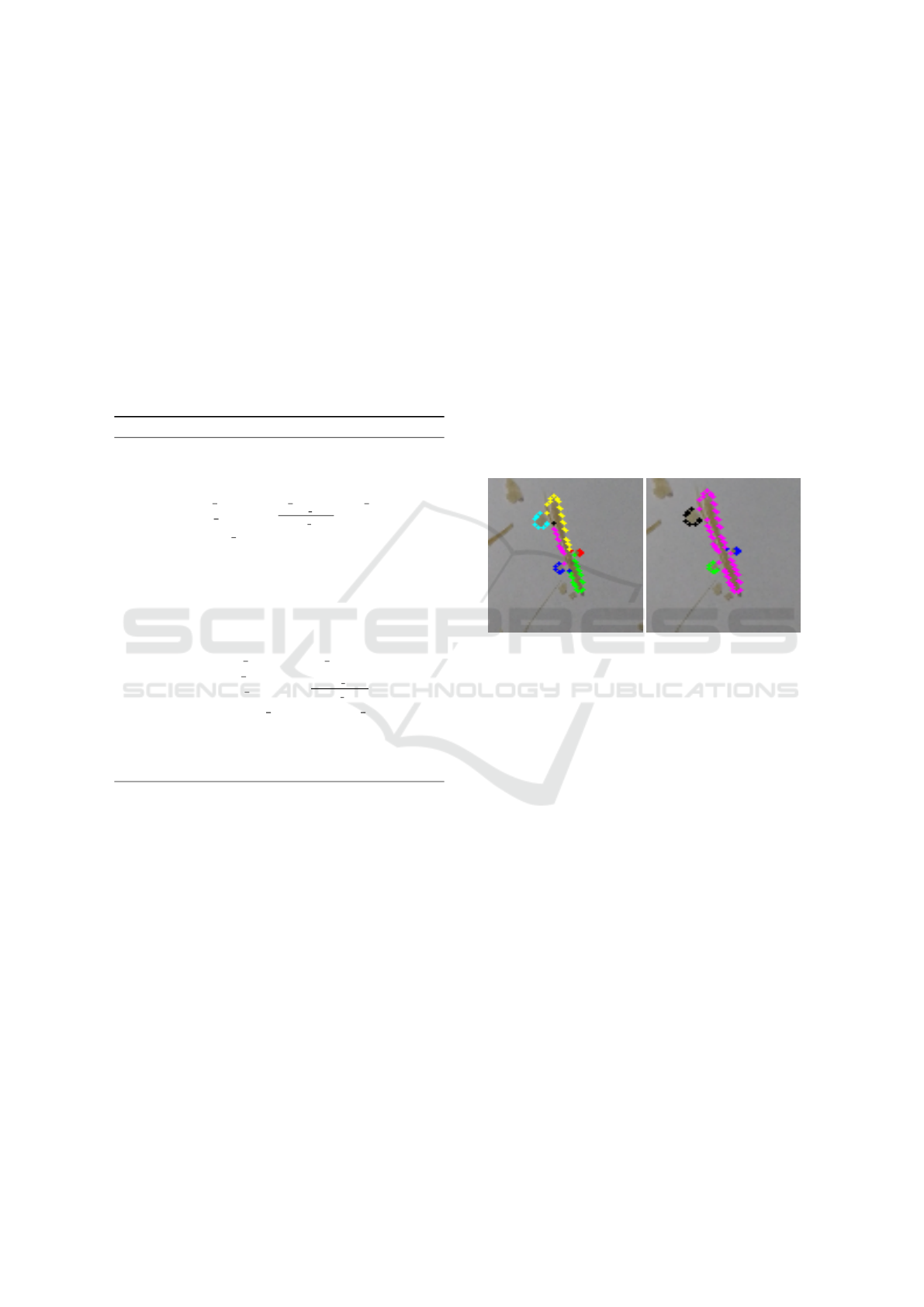

Figure 6: Contour Segment Mapping result on a sample

contour cluster from Dataset-I(colors are used for illustra-

tion to visualize contour segment mapping, images are mag-

niﬁed thus continuous color segments looks broken).

3.2 Shape Fitting

The ﬁnal step of the algorithm is to assign a shape en-

tity to the object contours present in a contour cluster.

Here we present a heuristic based approach for as-

signing this entity. We begin with modeling the con-

tours with ellipse ﬁtting. The classic least square ﬁt-

ting algorithm is used for assigning the ellipses. An

ellipse is ﬁtted on each element of the set G governed

by Eq.2-4(representative of all the contours belonging

to the same object). Fig.7 displays result of the seg-

mentation on some detected contour clusters of the

binarized crystal image(Fig.3.a).

For Dataset-II, ellipse ﬁtting sufﬁces the segmen-

tation process, as it contains rectangular shaped ob-

jects whose dimensions are well represented by the

major and minor axes of the ﬁtted ellipse. However,

the heuristics are required for Dataset-I, where the

contours are needed to be classiﬁed according to their

shape representation. The aspect ratio of the ﬁtted el-

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

414

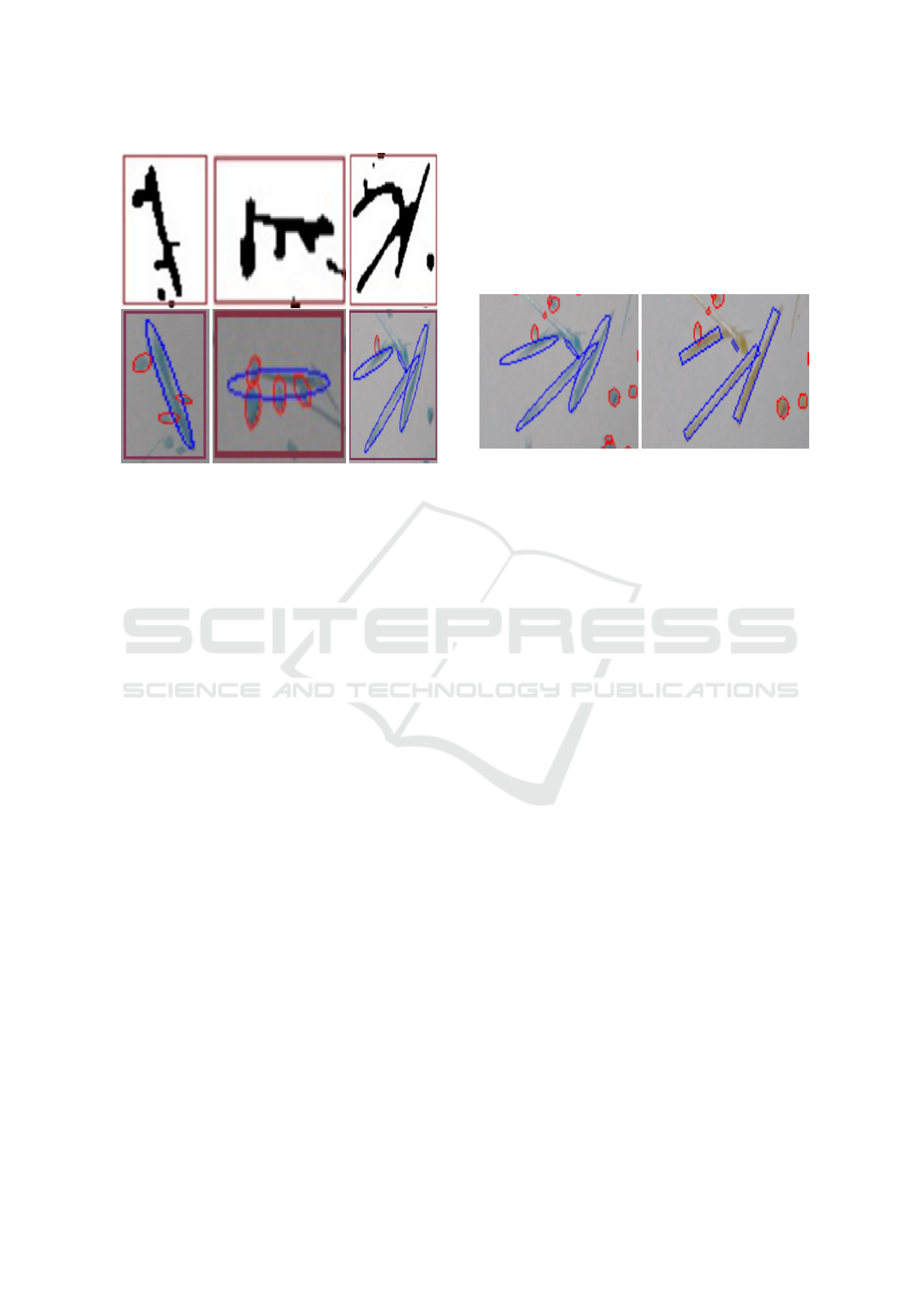

Figure 7: Overlapped object segmentation in Dataset-I.

First row contains three different detected contour clusters,

second row shows segmentation of corresponding clusters.

lipse determines its closeness to a circle (aspect ratio

< 2) or a rod. The threshold value for the aspect ratio

is set to be 2 by analyzing the data manually. We can-

not represent the rod shaped crystals with ellipse due

to a problem of overestimation of length. This is due

to the fact that the rod shaped crystals have very small

width and the ﬁtted ellipse couldn’t take account of

this. As a solution to this, we propose a new bound-

ing box algorithm as a shape estimator for rod shaped

crystals. It takes into account the small width of the

crystal. The results after applying this algorithm are

shown in Fig.8. The procedure for the bounding box

algorithm is discussed below:

1. The orientation angle, center coordinates and the

major and minor axis of the ﬁtted ellipse on the

rod shaped crystal’s contour are computed.

2. A pair of parallel line is used with their slope

equal to the ellipse’s orientation angle and their

initial position coinciding with the major axis.

3. The parallel lines are separated equidistantly from

the major axis along the direction of minor axis in

opposite directions.

4. The separation distance is increased until a far end

of the crystal contour is achieved at the both side.

5. The distance between parallel lines gives the

width of the rod shaped crystal.

6. The same algorithm is extended to calculate rod’s

length using a new parallel line pair with initial

slope along normal to orientation angle and initial

position coinciding with minor axis.

7. The bounding box generated by the intersection

of these two pairs of parallel lines at their ﬁnal

positions gives the desired shape estimator for the

segmentation of rod shaped crystals.

The calculated dimensions are converted from

pixels to micrometres using scaling factor of the mi-

croscope and the camera.

(a) Normal ellipse ﬁtting. (b) Bounding box algorithm.

Figure 8: Rod shape crystal estimation using bounding box.

3.3 Rejection Filters

This is the post-processing step of our proposed

methodology. It reduces the false positive segmenta-

tion which may be introduced due to incorrect ellipse

ﬁtting in the shape ﬁtting step. The two ﬁlters being

used are discussed accordingly.

The ﬁrst ﬁlter is a masking rejection ﬁlter, which

checks whether the ﬁtted ellipse covers at least 75%

black pixels within its boundaries in the binary image.

It makes sure that the ﬁtted ellipse is not empty. Fi-

nally, an area overlap ﬁlter is used, which on encoun-

tering a high degree of overlap between neighbour-

ing ellipses rejects the neighbouring smaller ellipse.

A high degree of overlap is deﬁned by the larger el-

lipse encompassing more than 50% of the area of the

smaller ellipse. The output of applying different re-

jection ﬁlters is displayed in Fig.9.

4 EXPERIMENTS

4.1 Dataset

We choose two datasets to test our proposed algo-

rithm. The ﬁrst dataset (Dataset-I, Fig.1.a), com-

prise images taken from a hand-held camera of crys-

tals present in rod and circular shapes. It consists

of 2 subsets of 10 images, each image has an aver-

age of 200 crystals. Each of these two subsets con-

tains different percentages of rod and circular shaped

crystals. The second dataset (Dataset-II, Fig.1.b),

consists of microscopic images of similarly shaped

Image Segmentation of Multi-shaped Overlapping Objects

415

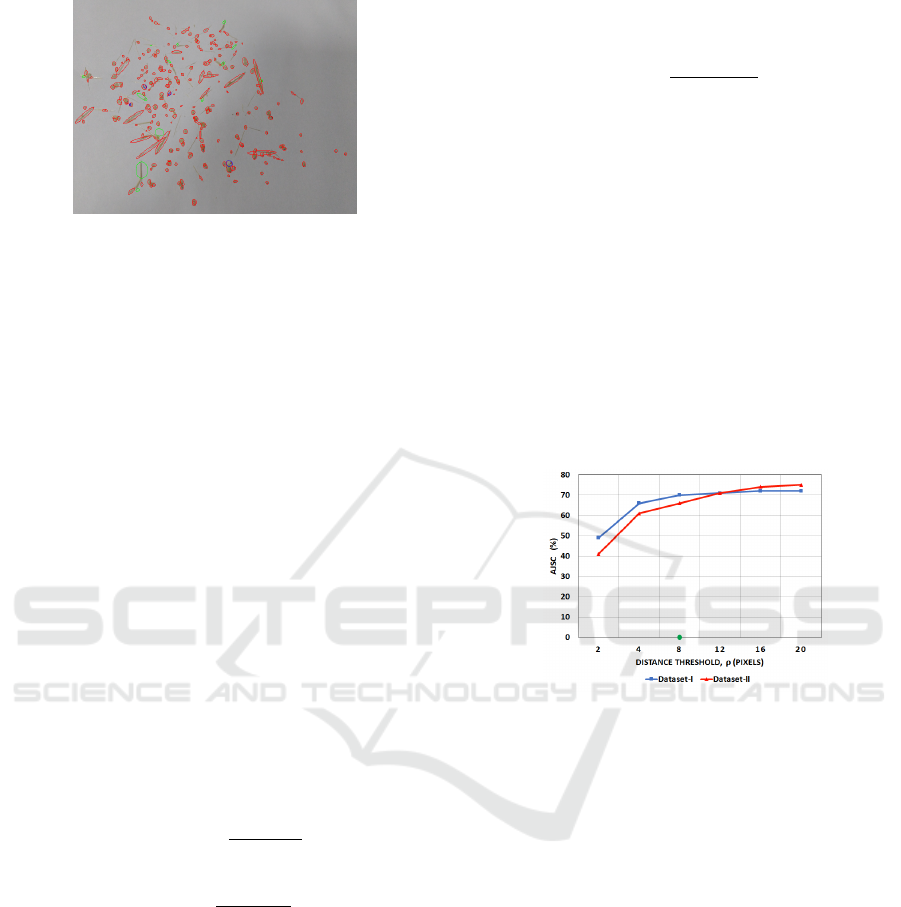

Figure 9: Effect of Rejection Filter on Dataset-I. Red el-

lipses are ﬁnal ﬁtted ellipse after rejection ﬁlters, Green el-

lipses are rejected due to masking rejection ﬁlter, Blue el-

lipses are rejected due to area overlap ﬁlter.

rectangular crystals. It consists of 15 images, each

image has an average of 100 crystals. The images

in both datasets are of dimension 640 x 480 pix-

els. The ground truth is generated by manually mark-

ing crystal’s center in all the images contained in

both datasets. Dataset-II represents a generic homo-

geneous dataset that most existing algorithms work

with, such datasets contain similarly shaped crystals

overlapping each other. On the other hand Dataset-

I is a heterogeneous dataset, containing multi-shaped

crystals overlapping each other. We demonstrate the

novelty of our proposed algorithm on this dataset.

4.2 Performance Measures

To evaluate our algorithm performance, ﬁrst we com-

pare our results with two baselines followed by veri-

ﬁcation of results with the experimental crystal mix-

ture data. For evaluation we use precision and recall

as follows:

Precision =

T P

T P + FP

(5)

Recall =

T P

T P + FN

(6)

where TP is True Positive and it is deﬁned the

number of correctly segmented crystals, False Neg-

ative (FN) is the number of unsegmented crystals and

False Positive (FP) is the number of incorrectly seg-

mented crystals. The values of TP, FN and FP are

calculated manually and are taken average over each

of the datasets.

As a sanity check we use Jaccard Similarity Co-

efﬁcient (JSC) to check the accuracy of our segmen-

tation (Choi et al., 2010). A binary map of the seg-

mented object O

and the ground truth particle O

created. Distance between the ground truth particle’s

center and the ﬁtted ellipse’s (or rod’s) center for a

segmented particle is used as the parameter for binary

map generation. The JSC is computed as follows:

JSC =

n(O

∩ O

)

n(O

∪ O

)

(7)

The distance threshold value (JSC threshold, ρ)

for the binary map is set to 8 pixels. It means that if

the distance between the ground truth crystal’s cen-

ter and ﬁtted ellipse’s center on segmented crystal is

less than 8 pixels then they are mapped together in the

binary map i.e. added to the O

∩ O

set.

The average JSC (AJSC) value over each dataset

is thus used as a third measure to evaluate the seg-

mentation performance. Fig.10 presents the variation

of AJSC value of our proposed algorithm with differ-

ent values of threshold ρ for both the datasets. Note,

here a higher value of ρ represents a higher leniency

in measuring the accuracy for segmentation. Our al-

gorithm achieves very similar AJSC values for both

the datasets for low ρ values.

Figure 10: AJSC performance of the proposed segmenta-

tion method with different values of distance threshold, ρ.

4.3 Results

Fig.11.a and Fig.11.b show results of our proposed

segmentation algorithm implemented on the two dif-

ferent set of crystal image samples, Fig.1.a and

Fig.3.b respectively.

The performance of the proposed segmentation

method is compared with two existing segmentation

algorithms, Segmentation of Partially Overlapping

Nanoparticles (SPON) (Zafari et al., 2015b) and Seg-

mentation of Overlapping Elliptical Objects (SOEO)

(Zafari et al., 2015a). The SPON and SOEO meth-

ods are particularly chosen as it is previously applied

for segmentation of overlapping convex objects being

represented by an elliptical shape. The implementa-

tion made by the corresponding authors is used for

SPON (Zafari et al., 2015b) and SOEO (Zafari et al.,

2015a).

Examples of visual comparison of the segmenta-

tion results for both the datasets are presented in the

Fig.12 and 13. Distinctive segmentation efﬁciency of

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

416

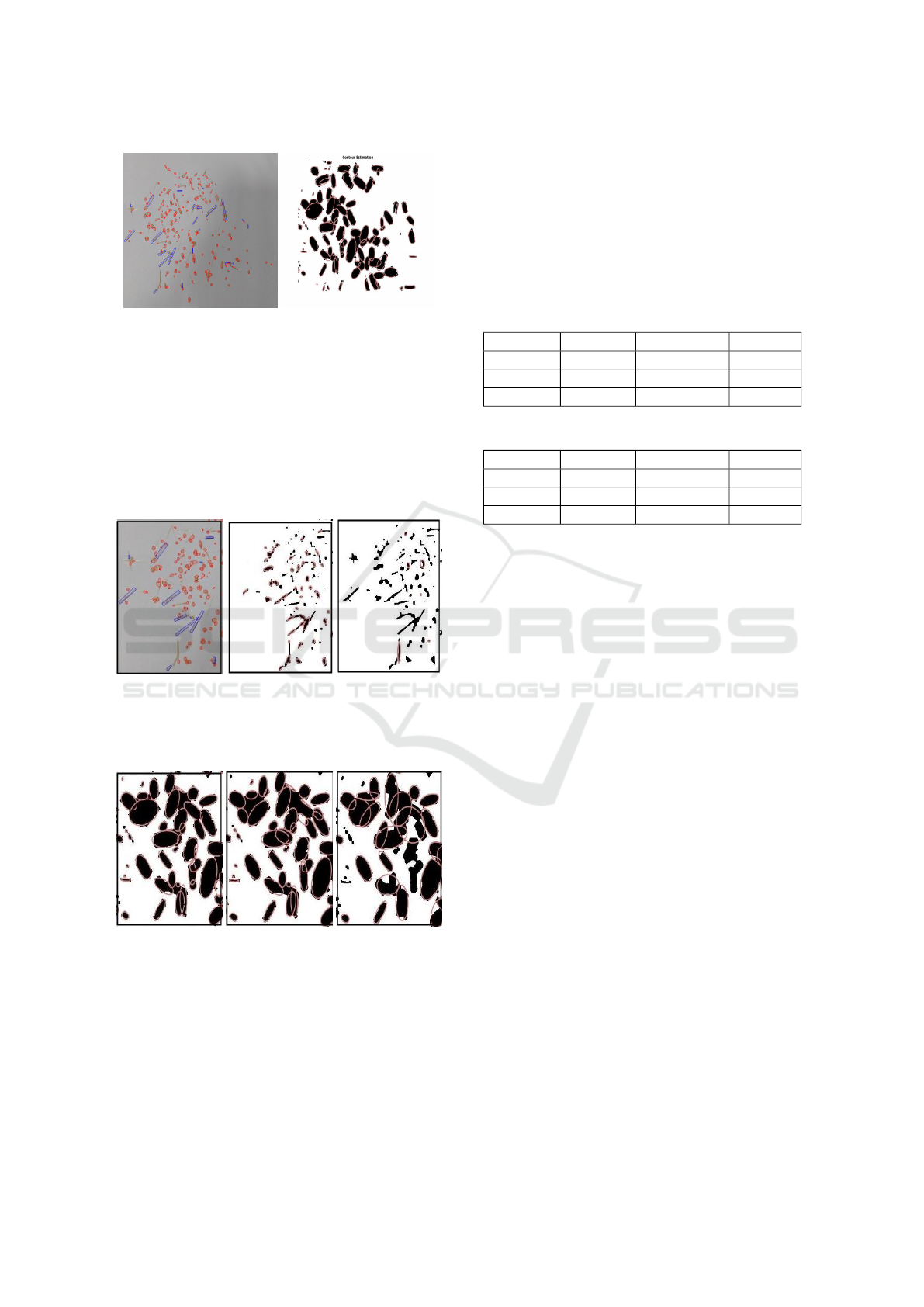

(a) Blue boxes represent

rod crystals, Red ellipses

represent circular crystals.

(b) Red ellipses represent

similarly shaped crystals.

Figure 11: Final segmentation result of our proposed algo-

rithm on sample image from Dataset-I(a) and Dataset-II(b).

our proposed algorithm could be observed as com-

pared to SPON and SOEO. Binarized image after pre-

processing is used as an input to the SPON and SOEO

algorithm since the pre-processing step is dependent

on the experimental setup.

(a) Proposed (b) SPON (c) SOEO

Figure 12: Dataset-I segmentation comparison. Results of

proposed algorithm is displayed on original crystal image

whereas SPON and SOEO on binarized crystal image.

(a) Proposed (b) SPON (c) SOEO

Figure 13: Dataset-II segmentation comparison. All the re-

sults are displayed on the binarised crystal image.

The corresponding performance statistics of the

competing methods applied to the two datasets are

presented in Table1 and Table2. Our algorithm out-

performs both SPON and SOEO in terms of Recall

and AJSC criterias for both the datasets whereas com-

parable results are obtained for Precision criteria. For

Dataset-I the gain is substantial with our algorithm

outperforming SPON by 36% on Recall. SOEO gives

a very poor score for Dataset-I (2% Recall) reafﬁrm-

ing the challenges of segmenting images with multi-

shaped objects. We also achieve substantially higher

AJSC values for both the datasets indicating improved

accuracy of placing segments in the image for our al-

gorithm. ρ is taken to be 8 pixels for computing the

AJSC value.

Table 1: Dataset-I performance comparison.

Methods Recall % Precision % AJSC %

Proposed 87 85 70

SPON 51 89 28

SOEO 02 75 04

Table 2: Dataset-II performance comparison.

Methods Recall % Precision % AJSC %

Proposed 82 87 66

SPON 81 82 31

SOEO 39 76 23

We provide a veriﬁcation of our segmentation al-

gorithm using composition analysis. Dataset-I con-

tains images of the crystal p-Amino benzoic acid

which is present in two shapes namely circular

(prism) and the rod (needle). The circular shaped

crystal is called the β-polymorph whereas the rod

shaped crystal is called the α-polymorph. Using

known dimensions of the two shapes from Section

3.2, the volumes are computed by estimating rods as

cylinders and circular crystals as spheres. Weight per-

centage of each of these polymorphs are then com-

puted using known density, 1.369 g/ml and 1.379 g/ml

for α-polymorph and β-polymorph respectively.

Two sets of crystal samples are prepared by mix-

ing different known weight percentage of each of the

polymorph. Using our algorithm, for each of the set,

average weight percentage of each shape is computed

and checked against known weight percentage of the

two samples. The corresponding performance statis-

tics for the veriﬁcation step is shown in Table 3. The

algorithm has an average error of 1.95% over the ac-

tual weight percentages.

Finally, we do a complexity analysis. For K de-

tected contour points, M corner points and P concave

points the algorithm has the following complexity :

O(K ∗ (M +P

)) (8)

The proposed method is implemented in Python,

using a PC with a 2.60 GHz CPU and 6GB of RAM.

The computational time of our proposed algorithm is

around 0.5s per input image of size 640 x 480 pixels.

Image Segmentation of Multi-shaped Overlapping Objects

417

Table 3: Veriﬁcation from weight analysis, Actual : known

sample percentage; Image: calculated weight percentage

from proposed algorithm.

Polymorphs Sample A Sample B

Actual Image Actual Image

α wt.(%) 0.0 3.5 20.0 19.6

β wt.(%) 100.0 96.5 80.0 80.4

5 CONCLUSIONS

A new method for segmenting convex objects with

high degree of overlap is developed in this paper. The

algorithm uses concave point for segmentation and

heuristic based approach for adaptive shape ﬁtting.

The key novelty of our work is to segment multi-

shaped convex objects with high degree of overlap

present in high density in an image. The proposed

algorithm is tested on two different datasets, the ﬁrst

dataset contains multi-shaped crystals and the other

contains similar shaped crystals. The algorithm per-

formance is compared against two competing algo-

rithms, SPON and SOEO, with our proposed algo-

rithm outperforming both.

REFERENCES

Adams, R. and Bischof, L. (1994). Seeded region growing.

IEEE Transactions on pattern analysis and machine

intelligence, 16(6):641–647.

Alvarez, L., Baumela, L., Henr

ıquez, P., and M

arquez-

Neila, P. (2010). Morphological snakes. In Computer

Vision and Pattern Recognition (CVPR), 2010 IEEE

Conference on, pages 2197–2202. IEEE.

Baggett, D., Nakaya, M.-a., McAuliffe, M., Yamaguchi,

T. P., and Lockett, S. (2005). Whole cell segmentation

in solid tissue sections. Cytometry Part A, 67(2):137–

143.

Choi, S.-S., Cha, S.-H., and Tappert, C. C. (2010). A survey

of binary similarity and distance measures. Journal of

Systemics, Cybernetics and Informatics, 8(1):43–48.

Douglas, D. H. and Peucker, T. K. (1973). Algorithms for

the reduction of the number of points required to rep-

resent a digitized line or its caricature. Cartograph-

ica: The International Journal for Geographic Infor-

mation and Geovisualization, 10(2):112–122.

Felzenszwalb, P. F. and Huttenlocher, D. P. (2004). Efﬁ-

cient graph-based image segmentation. International

journal of computer vision, 59(2):167–181.

Gudla, P. R., Nandy, K., Collins, J., Meaburn, K., Mis-

teli, T., and Lockett, S. (2008). A high-throughput

system for segmenting nuclei using multiscale tech-

niques. Cytometry Part A, 73(5):451–466.

Haralick, R. M. and Shapiro, L. G. (1985). Image segmen-

tation techniques. Computer vision, graphics, and im-

age processing, 29(1):100–132.

Malpica, N., Ortiz de Sol

orzano, C., Vaquero, J. J., San-

tos, A., Vallcorba, I., Garcia-Sagredo, J. M., and Pozo,

F. d. (1997). Applying watershed algorithms to the

segmentation of clustered nuclei.

Otsu, N. (1979). A threshold selection method from gray-

level histograms. IEEE transactions on systems, man,

and cybernetics, 9(1):62–66.

Pal, N. R. and Pal, S. K. (1993). A review on image segmen-

tation techniques. Pattern recognition, 26(9):1277–

1294.

Rastgarpour, M. and Shanbehzadeh, J. (2011). Applica-

tion of ai techniques in medical image segmentation

and novel categorization of available methods and. In

Tools, Proceedings of the International MultiConfer-

ence of Engineers and Computer Scientists 2011 Vol I,

IMECS 2011, March 16-18, 2011, Hong Kong. Cite-

seer.

Shi, J. and Malik, J. (2000). Normalized cuts and image

segmentation. IEEE Transactions on pattern analysis

and machine intelligence, 22(8):888–905.

Suzuki, S. et al. (1985). Topological structural analy-

sis of digitized binary images by border following.

Computer vision, graphics, and image processing,

30(1):32–46.

Vincent, L. and Soille, P. (1991). Watersheds in digital

spaces: an efﬁcient algorithm based on immersion

simulations. IEEE Transactions on Pattern Analysis

& Machine Intelligence, (6):583–598.

Yang, X., Li, H., and Zhou, X. (2006). Nuclei segmenta-

tion using marker-controlled watershed, tracking us-

ing mean-shift, and kalman ﬁlter in time-lapse mi-

croscopy. IEEE Transactions on Circuits and Systems

I: Regular Papers, 53(11):2405–2414.

Zafari, S., Eerola, T., Sampo, J., K

alvi

ainen, H., and Haario,

H. (2015a). Segmentation of overlapping elliptical ob-

jects in silhouette images. IEEE Transactions on Im-

age Processing, 24(12):5942–5952.

Zafari, S., Eerola, T., Sampo, J., K

alvi

ainen, H., and Haario,

H. (2015b). Segmentation of partially overlapping

nanoparticles using concave points. In International

Symposium on Visual Computing, pages 187–197.

Springer.

Zhang, Q. and Pless, R. (2006). Segmenting multiple famil-

iar objects under mutual occlusion. In Image Process-

ing, 2006 IEEE International Conference on, pages

197–200. IEEE.

Zhang, W.-H., Jiang, X., and Liu, Y.-M. (2012). A method

for recognizing overlapping elliptical bubbles in bub-

ble image. Pattern Recognition Letters, 33(12):1543–

1548.

VISAPP 2018 - International Conference on Computer Vision Theory and Applications

418
