A Multimodal Positive Computing System for Public Speaking

Evaluating User Responses to Avatar and Video Speaker Representations

Fiona Dermody and Alistair Sutherland

School of Computing, Dublin City University, Dublin, Ireland

Keywords:

Real-time Feedback, Multimodal Interfaces, Positive Computing, HCI, Public Speaking.

Abstract:

A multimodal Positive Computing system with real-time feedback for public speaking has been developed.

The system uses the Microsoft Kinect to detect voice, body pose, facial expressions and gestures. The system

is a real-time system, which gives users feedback on their performance while they are rehearsing a speech. We

wish to compare two versions of the system. One version displays a live video-stream of the user. The other

displays a computer-generated avatar, which represents the user’s body movements and facial expressions.

Visual feedback is displayed on both versions in proximity to the speaking modality it relates to. In all

other aspects, the two versions are identical. We found that users rated the video version of the system more

distracting as they focussed on their physical appearance rather than their speaking performance when using

it.

1 INTRODUCTION

The prevalent fear of public speaking can impact on

a person’s success in education or enterprise (Dwyer

and Davidson, 2012), (McCroskey et al., 1989), (Har-

ris et al., 2002). In the Positive Computing fra-

mework, self-awareness is described in the context

of reﬂection and getting to know oneself. In re-

gard to public speaking, this implies an awareness

of how a speaker appears to an audience while spea-

king. For instance, some speakers may not be aware

of the importance of using gestures when speaking

to engage an audience (Toastmasters International,

2011). With awareness comes self-knowledge, the

power to choose to develop yourself and realise your

full potential (Morgan, 2015).

We wish to compare two versions of a system for

increasing users’ awareness of their public speaking

performance. The system is a real-time system which

gives users feedback on their performance while they

are rehearsing a speech. One version of the system

displays a live video-stream of the user. The other dis-

plays a computer-generated avatar which represents

the user’s body movements and facial expressions. In

all other aspects, the two versions are identical. Feed-

back is displayed using visual icons in both versions

of the system in proximity to the speaking modality

it relates to as shown in Figures 2 and 4. The objective

of the study was to see which version of the system

made the users more aware of their performance.

2 RELATED WORK

There are other systems that have focused on awa-

reness in the context of public speaking and com-

munications skills development. AwareMe utilises a

wristband that provides speakers with haptic and vi-

sual feedback as they are speaking on speaking rate,

voice pitch and ﬁller words (Bubel et al., 2016). Ci-

cero:Virtual Audience Framework utilises a virtual

audience comprising avatars to convey non-verbal

feedback to speakers (Batrinca et al., 2013), (Chol-

let et al., 2015a), (Chollet et al., 2015b). In other sy-

stems, the user is represented using an avatar or vi-

deo stream. A Virtual Rehearsal educational appli-

cation gives feedback to users in real-time on open

and closed gestures using the Microsoft Kinect 2 ske-

letal view avatar (Barmaki and Hughes, 2015), (Bar-

maki, 2016). Presentation Trainer represents the user

using video and provides them with real-time feed-

back on one nonverbal speaking modality at a time

with a gap of at least six seconds between feedback

displays (Schneider et al., 2015). The feedback pro-

vided by these systems can make users aware of their

speaking behaviour and this awareness can aid in the

development of communication skills.

Dermody, F. and Sutherland, A.

A Multimodal Positive Computing System for Public Speaking - Evaluating User Responses to Avatar and Video Speaker Representations.

DOI: 10.5220/0006619600380043

In Proceedings of the 13th Inter national Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 2: HUCAPP, pages

38-43

ISBN: 978-989-758-288-2

3 POSITIVE COMPUTING

Positive Computing is a paradigm for human-

computer interaction, whose objective is to increase

the well-being of the user (Calvo and Peters, 2015),

(Calvo and Peters, 2014), (Calvo and Peters, 2016). It

has a number of themes including competence, self-

awareness, stress-reduction and autonomy. In this pa-

per we will concentrate mainly on self-awareness. We

will look at some of the other themes in Future Work.

If the user is to increase their competence in public

speaking, they must ﬁrst become aware of aspects

of their speaking performance. For example, body

posture, gestures and gaze direction are all important

aspects of public speaking (Toastmasters Internatio-

nal, 2011), (Toastmasters International, 2008). Hit-

herto, the only way to get this awareness was either

to practise in front of a human mentor or in front of a

mirror. Both of these can cause stress or anxiety for

the user. The objective of our system is to allow the

user to gain this awareness in private without being

exposed to stress or anxiety. The users will get this

awareness by looking at a representation of themsel-

ves as they speak. They can choose to view them-

selves as an avatar or a live video stream. Real-time

feedback is superimposed on their chosen represen-

tation. The research question posed in this paper is,

which of these two makes the user more aware of their

performance?

4 UTILISING VIDEO

It has been found beneﬁcial in social skills develop-

ment that individuals observe their own behaviour on

video. The video allows the user to see their own body

pose, facial expressions, gaze direction and gestures

in granular detail. However, not everyone reacts well

to seeing themselves on video. ‘The cognitive dis-

sonance that can be generated from the discrepancies

between the way persons think they come across and

the way they see themselves come across can be quite

emotionally arousing and, occasionally, quite aver-

sive’ (Dowrick and Biggs, 1983). Furthermore, Do-

wrick and Biggs also note that people may become

aware of their nonverbal communication when obser-

ving themselves on video and may not be happy with

what they observe (Dowrick and Biggs, 1983). Also

they become distracted by the physicality of their ap-

pearance, their perceived level of physical attractive-

ness or lack thereof may become their focus, as they

observe themselves on video, as opposed to their be-

haviour. If the person has a negative self-perception

of themselves on video, then their reaction to the vi-

deo will not be positive (Dowrick, 1999).

4.1 Video and Public Speaking

Live video stream has been utilised in innovative

multimodal systems for public speaking. For in-

stance, Presentation Trainer provides users with real-

time feedback using a live video representation of the

user(Schneider et al., 2015). The Presentation Trainer

uses the Microsoft Kinect 2 to track the users’ voice

and body. Feedback is presented on one nonverbal

speaking modality at a time with a gap of at least six

seconds between feedback displays. The feedback is

interruptive and directive because it directs the user

to stop and adjust their speaking behaviour if they are

deemed to have exhibited an undesirable speaking be-

haviour. The feedback is displayed as text eg. ’reset

posture’.

5 UTILISING AN AVATAR

An avatar presents an abstract representation of the

user and this form of abstract representation allows

the user to see their body pose, gestures and facial

expressions in 3D. Given the issues noted using video

in Section 4, this form of abstract representation could

be advantageous because the user is less likely to be

distracted by details of their physical appearance.

5.1 Avatars and Public Speaking

Studies of fear of public speaking have shown that

people do respond favourably to virtual agents ‘even

in the absence of two-way verbal interaction, and

despite knowing rationally that they are not real’ (Ga-

rau, 2006), (Pertaub et al., 2002). Virtual agents have

been used effectively in multimodal systems for pu-

blic speaking, most notably, (Chollet et al., 2015b). In

the aforementioned system, virtual agents were used

to represent an audience that responded to the user’s

speaking performance. In the system described in this

paper, the avatar represents the user themselves.

6 SYSTEM DESCRIPTION

In this paper we present a multimodal Positive Com-

puting system which gives feedback in real-time on

different speaking modalities simultaneously. The

term ‘multimodal’ refers to the fact that the system

detects multiple speaking modes in the speaker such

as their gestures, voice and eye contact. The user can

A Multimodal Positive Computing System for Public Speaking - Evaluating User Responses to Avatar and Video Speaker Representations

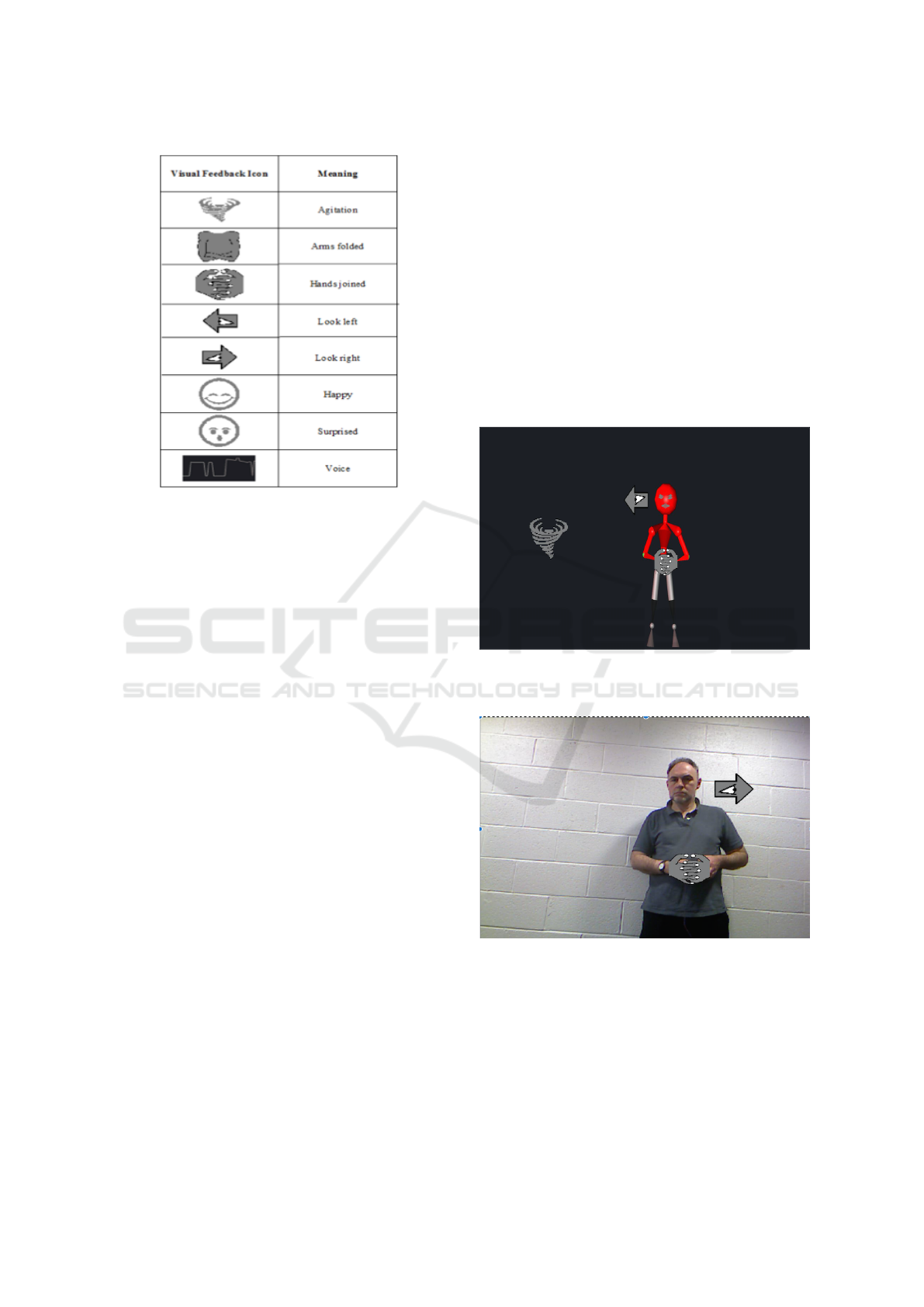

Figure 1: Visual feedback icons.

select if they want to receive feedback on all spea-

king modes or a subset of them. The objective of the

system is to enable the user to speak freely without

being interrupted, distracted or confused by the vi-

sual feedback on screen. A more detailed description

of the system can be found here (Dermody and Su-

therland, 2016). The system consists of a Microsoft

Kinect 1 connected to a laptop. The system uses the

Microsoft Kinect to sense the user’s body movements,

facial expressions and voice. The user stands in front

of the system and speaks. Feedback is given on a lap-

top screen in front of the user.

6.1 System Feedback

Real-time visual feedback is displayed as follows, see

Figure 1:

Arrows around the user’s or avatar’s head to

prompt the user to change their view direction. A rol-

ling graph is displayed above the user’s head which

displays the pitch of the user’s voice. The frequency

of the peaks in the graph indicate the speech rate.This

allows the user to see how fast they are talking. The

slope of the graph indicates rising and falling tones

which allows the user to gauge whether they are tal-

king in a monotone voice or using a lot of vocal vari-

ety. An icon is displayed to indicate when the user’s

hands are touching. The icon is located over the ava-

tar’s hands. An icon is displayed to indicate when the

user has crossed their arms. An icon is displayed to

indicate if the user is agitated or moving too quickly.

The icon is located next to the avatar’s body. An icon

is displayed to indicate whether the user is smiling or

surprised. The icon is located next to the avatar’s face.

These particular speaking behaviours were chosen

because they have been rated as important by experts

in public speaking (Toastmasters International, 2011),

(Toastmasters International, 2008).

6.2 Avatar and Video Stream

To provide users with more autonomy, a central tenet

of positive computing, the system can be conﬁgured

according to users’ preferences [6],(Calvo and Peters,

2012), (Calvo and Peters, 2014), (Calvo and Peters,

2016), (Calvo et al., 2014). A user can conﬁgure the

system to user an avatar, see Figure 2, or video stream,

see Figure 3.

Figure 2: System Avatar with indicative visual feedback on

gaze direction, agitation and hands touching.The avatar re-

presents the user.

Figure 3: System Video Stream with visual feedback on

gaze direction and hands-touching. The user is represented

in the video.

7 STUDY DESIGN

The study had 10 participants (4M, 6F). Participants

were drawn from the staff and student body at our uni-

versity. They came from a range of faculties across

HUCAPP 2018 - International Conference on Human Computer Interaction Theory and Applications

the Humanities, Science, Computing and Business.

The study was designed to be a one-time recruitment

with a duration of 25 minutes per participant. The

participants completed a preliminary questionnaire on

demographic information and a post-questionnaire.

Participants were all novice speakers who had done

some public speaking but wished to improve their

skills in this area. None of the participants had used

a multimodal system for public speaking previously.

The post-questionnaire consisted of eight items. It

was based on the ACM ICMI Multimodal Learning

Application Evaluation and Design Guide

. User ex-

perience was evaluated using three questions on na-

turalness, motivation to use the application again and

stress experienced using the application. Awareness

was evaluated using four questions on distraction,

body awareness, awareness of feedback and aware-

ness of speaking behaviour. An open question was

added for additional comments. Following a pretest,

it was decided to use a white background for the vi-

deo stream as the participants stated that they could

not discern their dark clothing against a black back-

ground.

7.1 Study Format

Each session opened with an introduction consisting

of an overview of the study format. Each partici-

pant was given a demonstration of both the video and

the avatar versions of the system. Participants were

asked to speak for one minute on a subject of their

choice using each version. Five of the participants

used the avatar version ﬁrst followed by the live video.

The other ﬁve participants used the video version ﬁrst

followed by the avatar version. Speakers completed

the post-questionnaire immediately after using each

version. The post-questionnaires contained the same

items each time. Afterwards, there was a brief closing

interview.

The questionnaire asked them to rate different as-

pects of the version, which they had just used, on a

scale of 1 to 10. Users could also add optional written

comments after each question.

8 RESULTS

For each question, we compared a boxplot of the re-

sponses for the avatar version with a boxplot of the re-

sponses for the video version. The most dramatic dif-

ference was for the question on distraction, see Figure

http://sigmla.org/mla2015/ApplicationGuidelines.pdf

accessed on January 2016

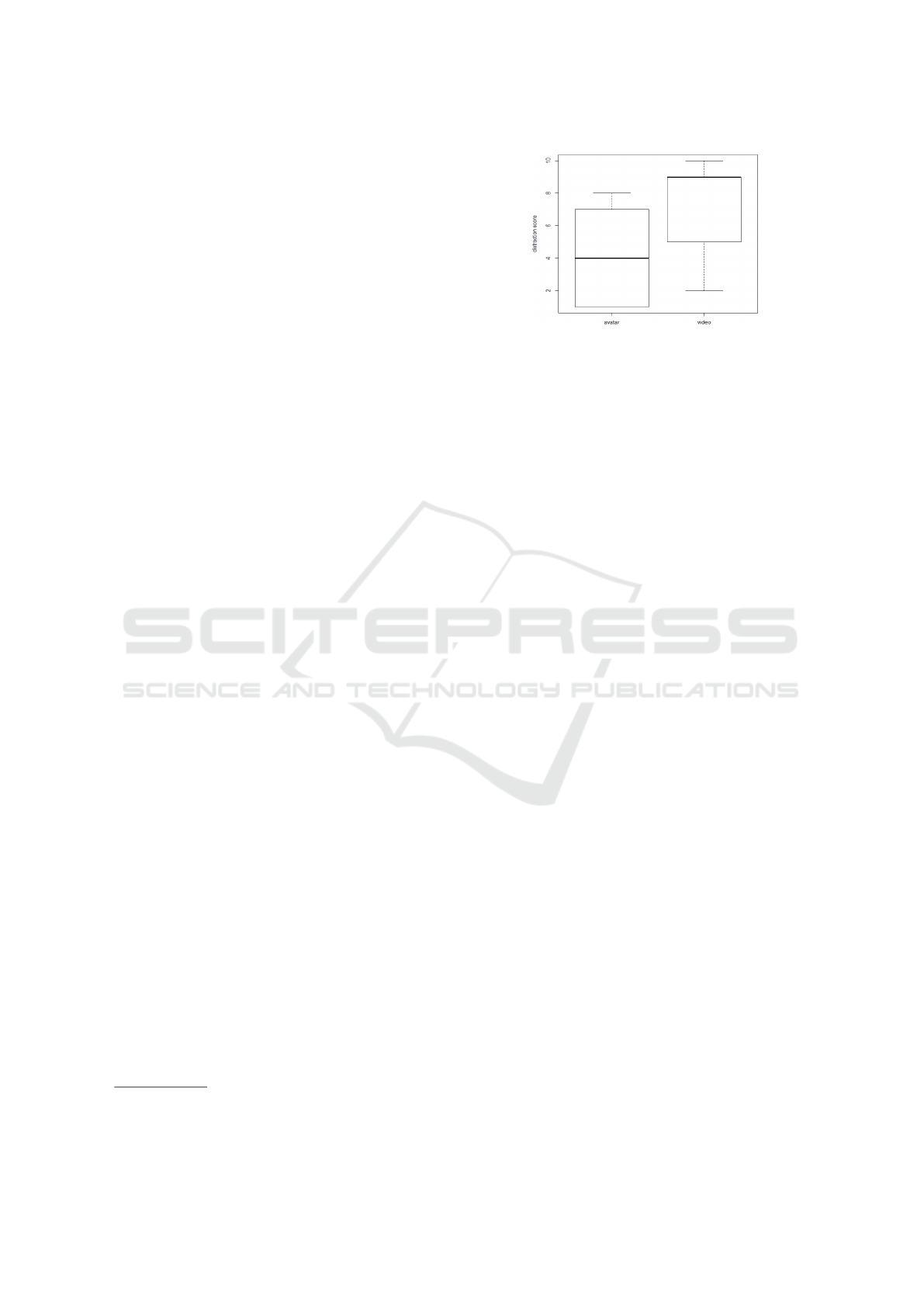

Figure 4: Boxplots of the responses for the avatar version

and the video version in answer to the question of dis-

traction. The higher the score, the more distracting was the

version. As can be seen, participants reported that the video

version was more distracting.

4. Users rated the video version as more distracting

than the avatar version. This is consistent with the

scores for awareness of speaking performance and for

awareness of feedback. Users tended to score the ava-

tar system higher for awareness of speaking perfor-

mance and awareness of feedback.

The experimental design was a standard hypothe-

sis test, in which the independent variable was the

version of system (avatar or live video) and the de-

pendent variable was the level of distraction. Scores

ranged from 0 for no distraction to 10 for very dis-

tracting.

The order in which the participants used the ver-

sions (avatar ﬁrst or video ﬁrst) could potentially be a

confounding variable. Therefore, the users were divi-

ded into two equal-sized groups (avatar ﬁrst and video

ﬁrst), in order to measure any effect that this variable

might have. An Analysis of Variance was carried out

and showed that there was no statistically signiﬁcant

difference between the groups.

The p-value for the difference between the levels

of distraction for the video version and the avatar ver-

sion was 0.04, which indicates that there was a sig-

niﬁcant difference between the responses to the two

versions.

We conclude that the live video image was dis-

tracting users from their performance and the system

feedback. This was conﬁrmed by the users’ remarks

in the closing interview. Nine of the ten users said that

the live video stream was very distracting. They said

that they were more aware of aspects of their personal

appearance than of their performance or the feedback.

All participants reported that they would be motivated

to use the system again, both avatar and video versi-

ons. Participants reported that they experienced more

stress while using the video version of the system.

A Multimodal Positive Computing System for Public Speaking - Evaluating User Responses to Avatar and Video Speaker Representations

9 DISCUSSION

The fact that all participants reported that they would

use the system again highlights the need for multimo-

dal systems for communication skills development.

Participants, on the whole did not like seeing them-

selves in video mode. They made comments such as

‘I did not like seeing myself in this situation’ and ‘I

felt awkward looking at myself’. However, three par-

ticipants did report that they could discern their fa-

cial expressions more clearly in video mode. Further-

more, one participant reported that using the system in

avatar mode ‘made the act of talking feel too disem-

bodied and therefore harder to relate to the informa-

tion/feedback provided by the system’. This partici-

pant also stated ‘that I was less focused on my speaker

behaviour and more inclined to feel distracted by the

avatar’. The fact that one user had such an adverse re-

action to the avatar illustrates the need for interactive

multimodal systems to provide users with the auto-

nomy to choose the appearance of the interface that

they are using. The participant who disliked the ava-

tar had a very different experience of using the system

in video mode reporting that ‘the systems seems easy

and fun to use, I would ﬁnd this very helpful for pre-

paring lectures and conference presentations’. Three

participants reported that they would like to be able

to change the height of the display screen and have

a bigger screen. The participants who were taller re-

quested the screen height adjustment.

10 CONCLUSION

The main conclusion from our study is that most users

prefer to see an avatar rather than a live video stream.

Most users ﬁnd it distracting or even unpleasant to

see themselves. The avatar is more abstract and the

user can concentrate on body movements and facial

expression rather than being distracted by details of

personal appearance. We can also conclude that all

the users in the study found both versions of the sy-

stem beneﬁcial and were motivated to use it again.

Some users found it difﬁcult to assimilate the feed-

back while they were giving the speech in real time.

They asked if it was possible to record the output from

the system (including the feedback) and review it af-

terwards off-line. This is actually possible with our

system and in future work we will be testing to see

how users evaluate watching an off-line recording.

11 FUTURE WORK

Work will focus on the following areas. Does the

colour of the feedback affect the users evaluation?

Would users prefer a more human-looking avatar?

Some research shows that users ﬁnd such avatars

more sympathetic especially if the avatar resembles

the user themselves (Baylor, 2009), (Suh et al., 2011).

We intend to conduct a longitudinal study to evaluate

how the users’ speaking performance changes if they

use the system over a period of time. We want to in-

vestigate how users evaluate a statistical analysis of

their performance e.g. recording how many times the

system identiﬁed particular events such as hands tou-

ching, arms crossed, changing view direction etc.

We will evaluate other aspects of Positive Compu-

ting with respect to our system: Do users have auto-

nomy i.e. can they select the feedback that they want

when they want it? With regard to stress, is the sy-

stem stressful to use? Does it become less stressful

with practice? Does it reduce the stress of live public

performance? Does the users’ competence in public

speaking increase with use of the system?

ACKNOWLEDGEMENTS

This material is based upon works supported by Du-

blin City University under the Daniel O’Hare Rese-

arch Scholarship scheme. System prototypes were de-

veloped in collaboration with interns from École Po-

lytechnique de l’Université Paris-Sud and l’École Su-

périeure d’Informatique, Électronique, Automatique

(ESIEA) France.

REFERENCES

Barmaki, R. (2016). Improving Social Communication

Skills Using Kinesics Feedback. In Proceedings of

the 2016 CHI Conference Extended Abstracts on Hu-

man Factors in Computing Systems, CHI EA ’16, pa-

ges 86–91, New York, NY, USA. ACM.

Barmaki, R. and Hughes, C. E. (2015). Providing real-time

feedback for student teachers in a virtual rehearsal en-

vironment. ICMI 2015 - Proceedings of the 2015 ACM

International Conference on Multimodal Interaction,

pages 531–537.

Batrinca, L., Stratou, G., and Shapiro, A. (2013). Cicero

- Towards a Multimodal Virtual Audience Platform

for Public Speaking Training. In Aylett, R., Krenn,

B., Pelachaud, C., and Shimodaira, H., editors, Intelli-

gent Virtual Agents, volume 8108 of Lecture Notes in

Computer Science, chapter Cicero - T, pages 116–128.

Springer Berlin Heidelberg, Berlin, Heidelberg.

HUCAPP 2018 - International Conference on Human Computer Interaction Theory and Applications

Baylor, A. L. (2009). Promoting motivation with vir-

tual agents and avatars: role of visual presence

and appearance. Philosophical Transactions of the

Royal Society of London B: Biological Sciences,

364(1535):3559–3565.

Bubel, M., Jiang, R., Lee, C. H., Shi, W., and Tse, A.

(2016). AwareMe: Addressing Fear of Public Speech

through Awareness. In Proceedings of the 2016 CHI

Conference Extended Abstracts on Human Factors in

Computing Systems, pages 68–73. ACM.

Calvo, R. A. and Peters, D. (2012). Positive Compu-

ting: Technology for a Wiser World. interactions,

19(4):28–31.

Calvo, R. A. and Peters, D. (2014). Positive Computing:

Technology for wellbeing and human potential. MIT

Press.

Calvo, R. A. and Peters, D. (2015). Introduction to Posi-

tive Computing: Technology That Fosters Wellbeing.

In Proceedings of the 33rd Annual ACM Conference

Extended Abstracts on Human Factors in Computing

Systems, CHI EA ’15, pages 2499–2500, New York,

NY, USA. ACM.

Calvo, R. A. and Peters, D. (2016). Designing Technology

to Foster Psychological Wellbeing. In Proceedings of

the 2016 CHI Conference Extended Abstracts on Hu-

man Factors in Computing Systems, CHI EA ’16, pa-

ges 988–991, New York, NY, USA. ACM.

Calvo, R. a., Peters, D., Johnson, D., and Rogers, Y. (2014).

Autonomy in technology design. Proceedings of the

extended abstracts of the 32nd annual ACM confe-

rence on Human factors in computing systems - CHI

EA ’14, pages 37–40.

Chollet, M., Morency, L.-p., Shapiro, A., Scherer, S., and

Angeles, L. (2015a). Exploring Feedback Strategies

to Improve Public Speaking: An Interactive Virtual

Audience Framework. UbiComp ’15: Proceedings of

the 2015 ACM International Joint Conference on Per-

vasive and Ubiquitous Computing, pages 1143–1154.

Chollet, M., Stefanov, K., Prendinger, H., and Scherer, S.

(2015b). Public Speaking Training with a Multimo-

dal Interactive Virtual Audience Framework - Demon-

stration. ICMI 2015 - Proceedings of the 2015 ACM

International Conference on Multimodal Interaction,

pages 367–368.

Dermody, F. and Sutherland, A. (2016). Multimodal system

for public speaking with real time feedback: a positive

computing perspective. In Proceedings of the 18th

ACM International Conference on Multimodal Inte-

raction, pages 408–409. ACM.

Dowrick, P. W. (1999). A review of self modeling and rela-

ted interventions. Applied and Preventive Psychology,

8(1):23–39.

Dowrick, P. W. and Biggs, S. J. (1983). Using video: Psy-

chological and social applications. John Wiley &

Sons Inc.

Dwyer, K. K. and Davidson, M. M. (2012). Is Public Spea-

king Really More Feared Than Death? Communica-

tion Research Reports, 29(2):99–107.

Garau, M. (2006). Selective ﬁdelity: Investigating priori-

ties for the creation of expressive avatars. In Avatars

at Work and Play: Collaboration and Interaction in

Shared Virtual Environments, pages 17–38. Springer.

Harris, S. R., Kemmerling, R. L., and North, M. M. (2002).

Brief virtual reality therapy for public speaking anx-

iety. Cyberpsychology & behavior : the impact of the

Internet, multimedia and virtual reality on behavior

and society, 5(6):543–550.

McCroskey, J. C., Booth Butterﬁeld, S., and Payne, S. K.

(1989). The impact of communication apprehension

on college student retention and success. Communi-

cation Quarterly, 37(2):100–107.

Morgan, N. (2015). Why Gesture Is Important - And What

You’re Not Doing About It.

Pertaub, D.-P., Slater, M., and Barker, C. (2002). An expe-

riment on public speaking anxiety in response to three

different types of virtual audience. Presence: Teleo-

perators and virtual environments, 11(1):68–78.

Schneider, J., Börner, D., Van Rosmalen, P., and Specht,

M. (2015). Presentation Trainer, your Public Spea-

king Multimodal Coach. In Proceedings of the 2015

ACM on International Conference on Multimodal In-

teraction, pages 539–546. acm.

Suh, K.-S., Kim, H., and Suh, E. K. (2011). What if your

avatar looks like you? Dual-congruity perspectives for

avatar use. MIs Quarterly, 35(3):711–729.

Toastmasters International (2008). Competent Communica-

tion A Practical Guide to Becoming a Better Speaker.

Toastmasters International (2011). Gestures: Your Body

Speaks.

A Multimodal Positive Computing System for Public Speaking - Evaluating User Responses to Avatar and Video Speaker Representations
