Speech Emotion Recognition: Methods and Cases Study
Leila Kerkeni
1,2
, Youssef Serrestou
1
, Mohamed Mbarki
3
, Kosai Raoof
1
and Mohamed Ali Mahjoub
2
1
LAUM Acoustics Laboratory of the University of Maine, Le Mans University, France
2
LATIS Laboratory of Advanced Technologies and Intelligent Systems, University of Sousse, Tunisia
3
Higher Institute of Applied Sciences and Technology of Sousse, Univerisity of Sousse, Tunisia
Keywords:
Speech Emotion Recognition, Feature Extraction, Recurrent Neural Networks, SVM, Multivariate Linear
Regression, MFCC, Modulation Spectral Features.
Abstract:
In this paper we compare different approaches for emotions recognition task and we propose an efficient solu-
tion based on combination of these approaches. Recurrent neural network (RNN) classifier is used to classify
seven emotions found in the Berlin and Spanish databases. Its performances are compared to Multivariate
linear regression (MLR) and Support vector machine (SVM) classifiers. The explored features included: mel-
frequency cepstrum coefficients (MFCC) and modulation spectral features (MSFs). Finally results for different
combinations of the features and on different databases are compared and explained. The overall experimental
results reveal that the feature combination of MFCC and MS has the highest accuracy rate on both Spanish
emotional database using RNN classifier 90,05% and Berlin emotional database using MLR 82,41%.
1 INTRODUCTION
Emotion recognition in spoken dialogues has been
gaining increasing interest all through current years.
Speech Emotion Recognition (SER) is a hot research
topic in the field of Human Computer Interaction
(HCI). It has a potentially wide applications, such
as the interface with robots, banking, call centers,
car board systems, computer games etc. For class-
room orchestration or E-learning, information about
the emotional state of students can provide focus on
enhancement of teaching quality. For example teacher
can use SER to decide what subjects can be taught and
must be able to develop strategies for managing emo-
tions within the learning environment. That is why
learner’s emotional state should be considered in the
classroom. In general, the SER is a computational
task consisting of two major parts: feature extraction
and emotion machine classification. The questions
that arise here: What is the optimal feature set? What
combination of acoustic features for a most robust au-
tomatic recognition of a speaker’s emotion? Which
method is most appropriate for classification? Thus
came the idea to compare a RNN method with the ba-
sic method MLR and the most widely used method
SVM. And also all previously published works gen-
erally use the berlin database. To our knowledge the
spanish emotional database has never been used be-
fore. For this reason we have chosen to compare
them. In fact, the emotional feature extraction is a
main issue in the SER system. Many researchers
(Surabhi and Saurabh, 2016) have proposed impor-
tant speech features which contain emotion informa-
tion, such as energy, pitch, formant frequency, Lin-
ear Prediction Cepstrum Coefficients (LPCC), Mel-
Frequency Cepstrum Coefficients (MFCC) and mod-
ulation spectral features (MSFs) (Wua et al., 2011).
The last step of speech emotion recognition is clas-
sification. It involves classifying the raw data in the
form of utterance or frame of the utterance into par-
ticular class of emotion on the basis of features ex-
tracted from the data. In recent years in speech emo-
tion recognition, researchers proposed many classifi-
cation algorithms, such as Gaussian Mixture Model
(GMM)(Martin and Robert, 2009), Hidden Markov
Model (HMM) (B. Ingale and Chaudhari, 2012), Sup-
port Vector Machine (SVM)(A. et al., 2013),(G.S.
et al., 2016),(Pan et al., 2012), (Peipei et al., 2011),
Neural Networks (NN) (Sathit, 2015) and Recurrent
Neural Networks (RNN) (Alex and Navdeep, 2014),
(Lim et al., 2017), (Chen and Jin, 2015). Some other
types of classifiers are also proposed by some re-
searchers such as a modified brain emotional learning
model (BEL) (Sara et al., 2017) in which the Adap-
Kerkeni, L., Serrestou, Y., Mbarki, M., Raoof, K. and Mahjoub, M.
Speech Emotion Recognition: Methods and Cases Study.
DOI: 10.5220/0006611601750182
In Proceedings of the 10th International Conference on Agents and Artificial Intelligence (ICAART 2018) - Volume 2, pages 175-182
ISBN: 978-989-758-275-2
Copyright © 2018 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
175

tative Neuro-Fuzzy Inference System (ANFIS) and
Multilayer Perceptron (MLP) are merged for speech
emotion recognition. Another proposed strategy is a
multiple kernel Gaussian process (GP) classification
(Chen and Jin, 2015), in which two similars notions
in the learning algorithm are presented by combin-
ing the linear kernel and radial basis function (RBF)
kernel. The Voiced Segment Selection (VSS) algo-
rithm also proposed in (Yu et al., 2016) deals with the
voiced signal segment as the texture image processing
feature which is different from the traditional method.
It uses the Log-Gabor filters to extract the voiced and
unvoiced features from spectrogram to make the clas-
sification. Speech emotion recognition is essentially
a sequence classification problem, where the input
is a variable-length sequence and the output is one
single label. That is why we have chosen recurrent
neural networks in our work. In this experimental
work, we have used Multivariate Linear Resgression
(MLR), Support Vector Machine (SVM) and Recur-
rent Neural Networks (RNN) classifiers to identify
the emotional state of spoken utterances. In order
to demonstrate the high effectivennes of the MFCC
and MS features extraction for emotion classification
in speech, we provide results on two open emotional
databases (Berlin-DB and Spanish-DB).
The remainder of the paper is organized as fol-
lows: Section 2 describes the databases used in the
experiments. The speech features as presented in sec-
tion 3. The several classification methods used in our
work are introduced in section 4. Experiments and re-
sults are performed in section 5, and conclusion fol-
lows in section 6.
2 EMOTIONAL SPEECH DATA
The performance and robustness of the recognition
systems will be easily affected if it is not well-trained
with suitable database. Therefore, it is essential to
have sufficient and suitable phrases in the database
to train the emotion recognition system and subse-
quently evaluate its performance. In this section, we
detail the two emotional speech databases used in our
experiments: Berlin Database and Spanish Database.
2.1 Berlin Emotional Speech Database
The Berlin database (Burkhardt et al., 2005) is widely
used in emotional speech recognition. It contains 535
utterances spoken by 10 actors (5 female, 5 male) in
7 simulated emotions (anger, boredom, disgust, fear,
joy, sadness and neutral). This Dataset was chosen for
the following reasons: i) the quality of its recording
is very good and ii) it is public (Ber, ) and popular
Dataset of emotion recognition that is recommended
in the literature (Sara et al., 2017).
2.2 Spanish Emotional Database
The INTER1SP Spanish emotional database contains
utterances from two profesional actors (one female
and one male speackers).The spanish corpus that we
have the right to access (free for academic and re-
search use) (Spa, ), was recorded twice in the 6 ba-
sic emotions plus neutral (anger, sadness, joy, fear,
disgust, surprise, Neutral/normal). Four additional
neutral variations (soft, loud, slow and fast) were
recorded once. This is preferred to other created
database because it is available for researchers use
and it contains more data (4528 utterances in total).
This paper has focused on only 7 main emotions from
the Spanish Dataset in order to achieve a higher and
more accurate rate of recognition and to make the
comparison with the Berlin database detailed above.
3 FEATURE EXTRACTION
The speech signal contains a large number of param-
eters that reflect the emotional characteristics. One
of the sticking points in emotion recognition is what
features should be used. In recent research, many
common features are extracted, such as energy, pitch,
formant, and some spectrum features such as Linear
Prediction Coefficients (LPC), Mel-Frequency Cep-
strum Coefficients (MFCC) and Modulation spectral
features. In this work, we have selected Modulation
spectral features and MFCC, to exract the emotional
features.
3.1 MFCC Features
Mel-Frequency Cepstrum coefficient is the most used
representation of spectral property of voice signals.
These are the best for speech recognition as it takes
human perception sensitivity with respect to frequen-
cies into consideration. For each frame, the Fourier
transform and the energy spectrum were estimated
and mapped into the mel-frequency scale. The Dis-
crete Cosine Transform (DCT) of the mel log ener-
gies were estimated and the first 12 DCT coefficients
provided the MFCC values used in the classification
process. Usually, the process of calculating MFCC is
shown in Figure 1.
In our research, we extract the first 12-order of
the MFCC coefficients where the speech signals are
sampled at 16 KHz. For each order coefficients, we
ICAART 2018 - 10th International Conference on Agents and Artificial Intelligence
176

Figure 1: Schema of MFCC extraction (Srinivasan et al., 2014).
compute the mean, standard deviation, Kurtosis and
Skewness, and this is for the other all the frames
of an utterance. Each MFCC feature vector is 60-
dimensional.
3.2 Modulation Spectral Features
Modulation spectral features (MSFs) are extracted
from an auditory-inspired long-term spectro-temporal
representation. These features are obtained by em-
ulating the Spectro-temporal (ST) processing per-
formed in the human auditory system and considers
regular acoustic frequency jointly with modulation

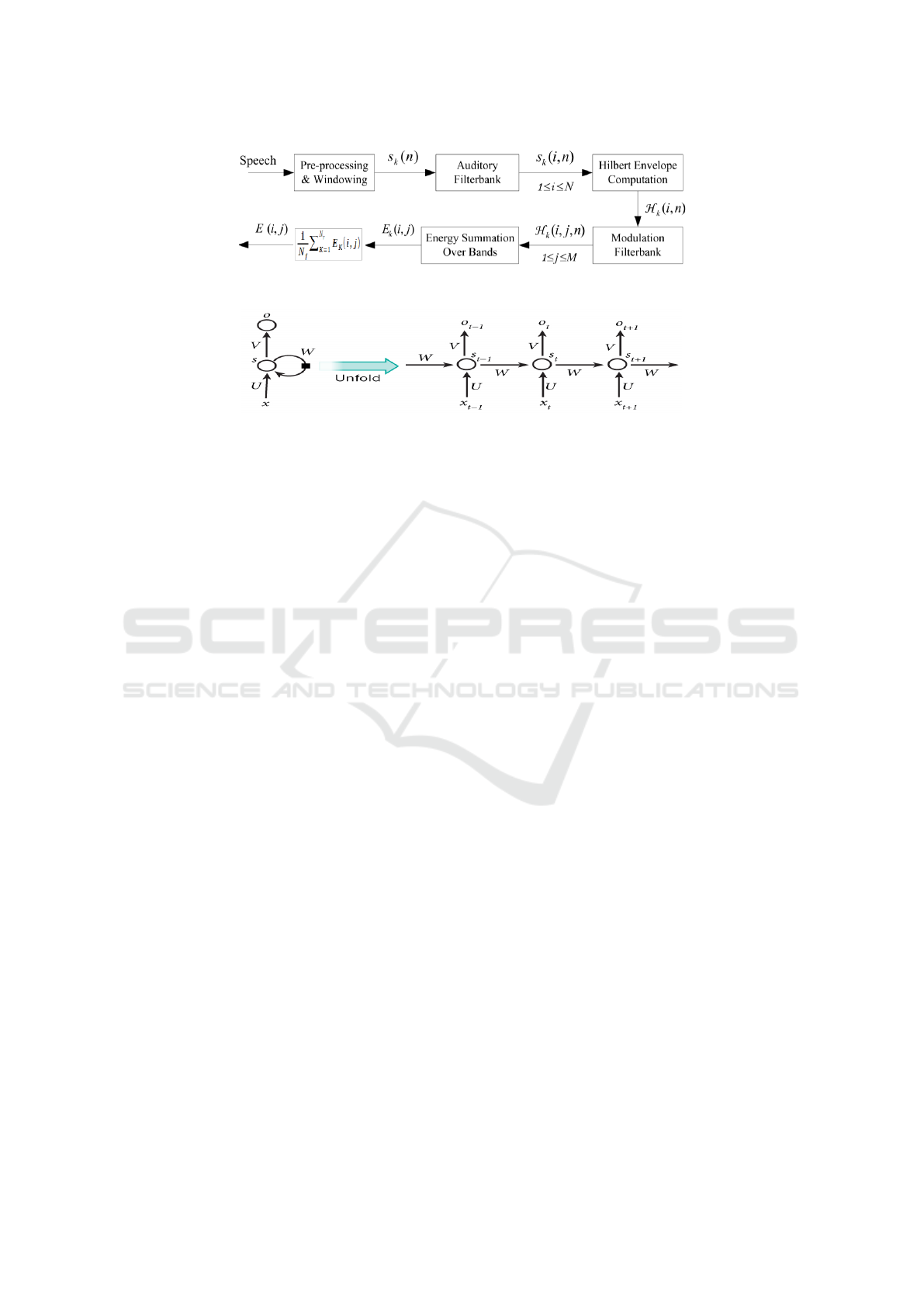

frequency. The steps for computing the ST repre-
sentation are illustrated in figure 2.In order to obtain
the ST representation, the speech signal is first de-
composed by an auditory filterbank. The Hilbert en-
velopes of the critical-band outputs are computed to
form the modulation signals. A modulation filterbank
is further applied to the Hilbert envelopes to perform
frequency analysis. The spectral contents of the mod-
ulation signals are referred to as modulation spectra,
and the proposed features are thereby named mod-
ulation spectral features (MSFs) (Wua et al., 2011).
Lastly, the ST representation is formed by measuring
the energy of the decomposed envelope signals, as a
function of regular acoustic frequency and modula-
tion frequency. The mean of energy, taken over all
frames in every spectral band provides a feature. In
total, 95 MSFs are calculated in this work from the
ST representation.
4 CLASSIFICATION
4.1 Multivariate Linear Regression
Classification
Multivariate Linear Regression (MLR) is a simple
and efficient computation of machine learning algo-
rithms, and it can be used for both regression and
classification problems. We have slightly modified
the LRC agorithm described as follow 1 (Naseem
et al., 2010). We calculated (in step 3) the absolute
value of the difference between original and predicted
response vectors (| y − y
i
|), instead of the euclidean
distance between them (|| y − y
i
||):
Algorithm 1 : Linear Regression Classification
(LRC)
Inputs: Class models X
i
∈ R
q×p
i
, i = 1, 2, ..., N and a
test speech vector y ∈ R
q×1
Output: Class of y
1.
ˆ
β
i
∈ R
p
i
×1
is evaluated against each class
model,
ˆ
β
i
= (X
T
i
X
i
)
(−1)
X
T
i
y,
i = 1, 2, ..., N
2. ˆy
i
is computed for each
ˆ
β
i
, ˆy
i
= X
i
ˆ
β
i
, i =
1, 2, ..., N;
3. Distance calculation between original and pre-
dicted reponse variables
d
i
(y) =| y − y
i
|, i = 1, 2, ..., N;
4. Decision is made in favor of the class with the
minimum distance d
i
(y)
4.2 Support Vector Machine
Support Vector Machines (SVM) is an optimal margin
classifiers in machine learning. It is also used exten-
sively in many studies that related to audio emotion
recognition which can be found in (A. et al., 2013),
(Peipei et al., 2011) and (Pan et al., 2012). It can have
a very good classification performance compared to
other classifiers especially for limited training data
(G.S. et al., 2016). SVM theoretical background can
be found in (Gunn, 1998). A MATLAB toolbox im-
plementing SVM is freely available in (Too, ).
4.3 Recurrent Neural Networks
Recurrent Neural Networks (RNN) are suitable for
learning time series data. While RNN models are
effective at learning temporal correlations, they suf-
fer from the vanishing gradient problem which in-
creases with the length of the training sequences. To
resolve this problem, LSTM (Long Short Term Mem-
ory) RNNs were proposed by Hochreiter et al (Sepp
and Jurgen, 1997) it uses memory cells to store infor-
mation so that it can exploit long range dependencies
in the data (Chen and Jin, 2015).
Figure 3 shows a basic concept of RNN imple-
mentation. Unlike traditional neural network that uses
different parameters at each layer, the RNN shares the
Speech Emotion Recognition: Methods and Cases Study
177

Figure 2: Process for computing the ST representation (Wua et al., 2011).
Figure 3: A basic concept of RNN and unfolding in time of the computation involved in its forward computation (Lim et al.,
2017).
same parameters (U,V and W in figure 3) across all
steps. The hidden state formulas and variables are as
follows:
s
t
= f (Ux
t
+W s
t−1
) (1)
with:
• x
t
, s
t
and o
t
are respectively the input, the hidden
state and the output at time step t;
• U, V, W are parameters matrices.
5 EXPERIMENTAL RESULTS
In this section, we describe the experiment environ-
ment and report the recognition accuracy of using
MLR, SVM and RNN classifiers on two emotional
speech database. We used Berlin database and span-
ish database for network training and validation. To
evaluate the classification error 10-cross validation
test were used. We used 70% of data for training
and 30 % for testing. The neural network structure
used is a simple LSTM. It consists of two consecu-
tive LSTM layers with hyperbolic tangent activations

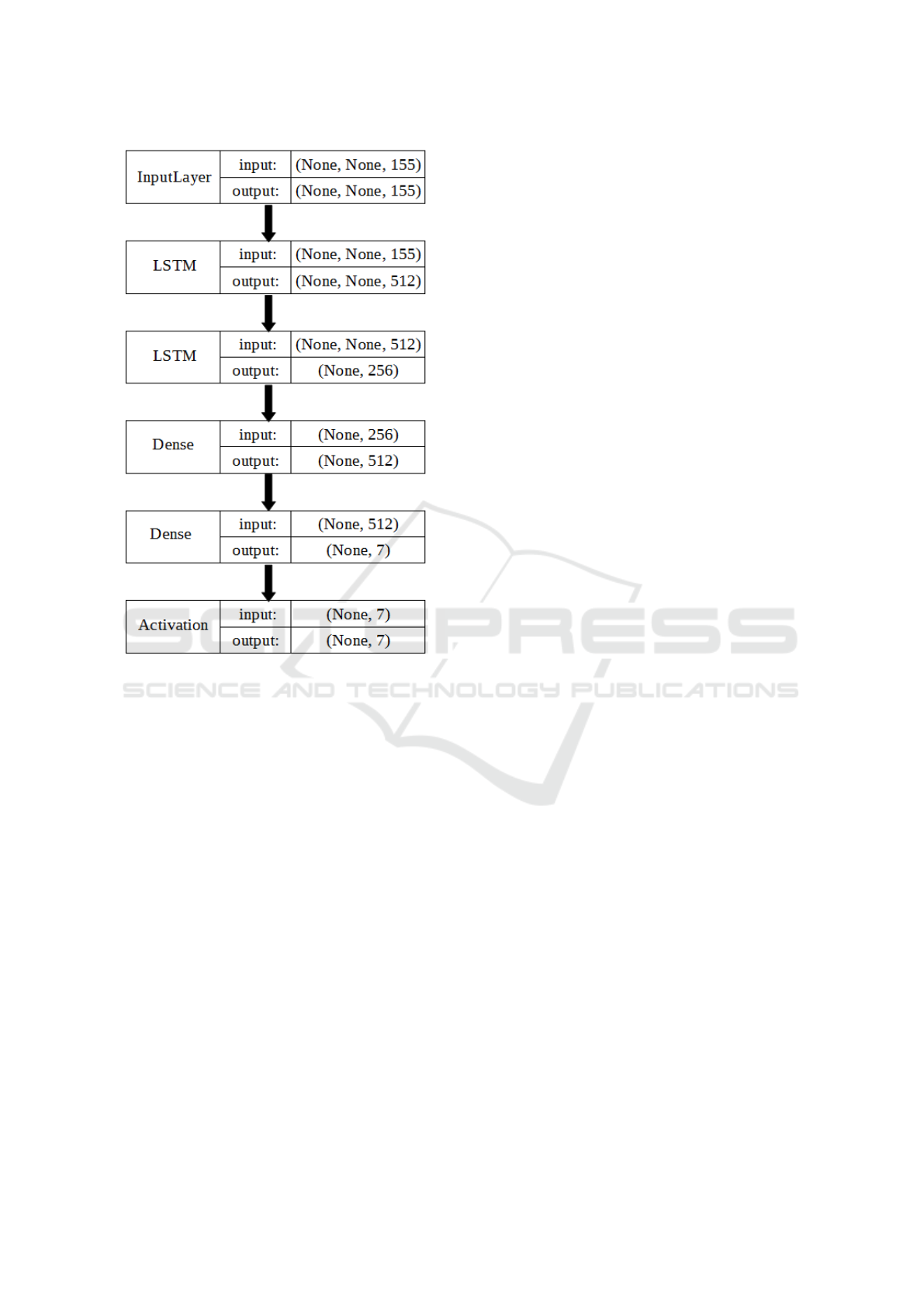

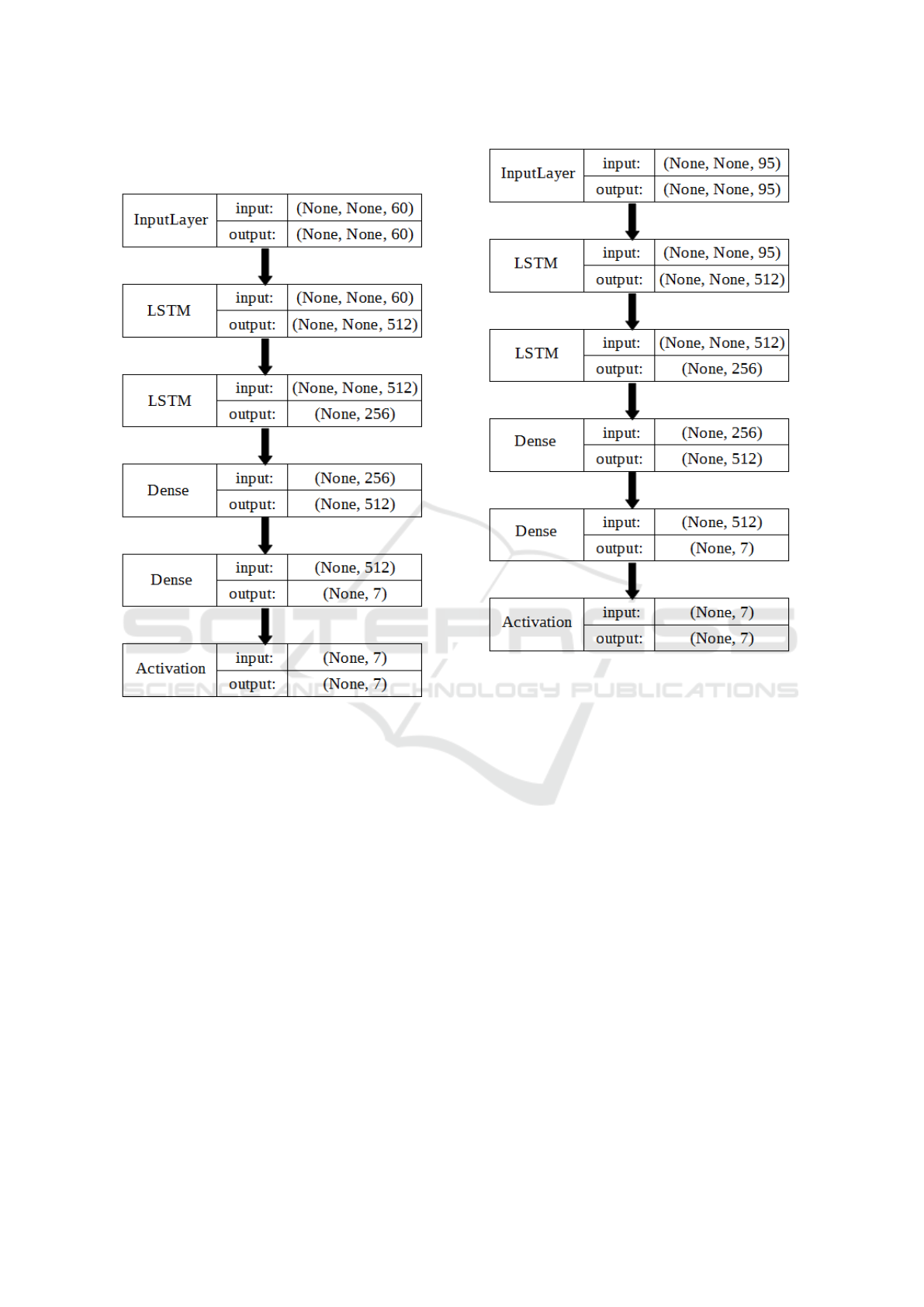

followed by two classification dense layers. More de-
tailed diagrams are shown in figure 4, 5 and 6 and
can be found in appendix A. Table 1, 2 and 3 show
the recognition rate for each combination of various
features and classifiers based on Berlin and spanish
databases.
As shown in table 1, MLR classifier performed
better results with feature combination of MFCC and
MS for both databases. And under the conditions of
limited training data (Berlin database), it can have
a very good classification performance compared to
other classifiers. A high dimension can maximize the
rate of MLR.
As regarding the SVM method, we found the same
results as these presented in (Wua et al., 2011). The
MS features achieve the best accuracy using SVM
classifier. To improve the performance of SVM, we
need to change the model for each types of features.
To the spanish database, the feature combination of
MFCC and MS using RNN has the best recognition
rate 90.05%.
For Berlin database, combination both types of
features has the worst recognition rate. That because
the RNN model having too many parameters (155 co-
efficients in total) and a poor training data. This is
the phenomena of overfitting. The confusion matrix
for recognition of emotions using MFCC and MS fea-
tures with RNN based on spanish database is show in
Table 4. The rate column lists per class recognition
rates, and precision for a class is the number of sam-
ples correctly classified divided by the total number
of samples classified to the class. It can be seen that
Sadness was the emotion that was least difficult to rec-
ognize from speech as opposed to Neutral which was
the most difficult and it forms the most notable con-
fusion pair with sadness.
6 CONCLUSION AND FUTURE
WORK
A lot of uncertainties are still present for the best al-
gorithm to classify emotions. Different combinations
of emotional features give different emotion detection
rate. The researchers are still debating for what fea-
tures influence the recognition of emotion in speech.
In this article, the best result of recognition rate was
90.05 %, achieved by combining the MFCC and MS
ICAART 2018 - 10th International Conference on Agents and Artificial Intelligence
178

Table 1: Recognition results using MLR classifier based on Berlin and Spanish databases.
database Features
A E F L N T W Rate (%)
MS
avg 41,79 29,86 42,92 75,40 54,84 85,64 78,10 60,70
σ 10,97 9,86 9,07 10,85 6,63 13,37 8,40 2,50
Berlin MFCC
avg 54,48 61,77 46,56 52,05 64,61 80,54 92,67 67,10
σ 19,22 16,82 9,07 10,69 8,47 14,72 7,17 3,96
MFCC+MS
avg 83,63 67,18 56,05 79,43 75,20 87,59 78,92 75,90
σ 9,40 26,43 15,63 14,65 7,55 11,39 7,50 3,63
A D F J N S T Rate (%)
MS
avg 61,61 53,08 72,42 54,20 90,97 61,59 68,16 70,60
σ 3,70 4,03 4,29 4,67 2,14 3,90 4,62 1,37
Spanish MFCC
avg 70,33 52,59 79,18 48,16 96,47 78,00 73,70 76,08
σ 5,22 6,27 2,45 4,51 0,78 4,24 3,53 1,44
MFCC+MS
avg 77,46 76,31 83,39 66,56 97,14 80,96 84,99 82,41
σ 3,26 2,93 2,47 3,68 1,19 4,81 4,95 4,14
Spanish (a:anger, d:disgust, f:fear, j:joy, n:neutral, s:surprise, t: sadness) Berlin (a:fear, e:disgust, f:happiness, l:boredom, n:neutral, t:sadness, w:anger).
Table 2: Recognition results using SVM classifier based on Berlin and Spanish databases.
database Features
A E F L N T W Rate (%)
MS
avg 60,35 57,54 49,75 66,54 62,93 80,02 67,01 63,30
σ 12,55 22,72 18,14 13,90 12,70 9,36 8,40 4,99
Berlin MFCC
avg 62,76 51,37 44,72 39,25 49,40 66,26 72,20 56,60
σ 16,78 9,03 10,15 14,58 15,12 15,59 7,97 4,88
MFCC+MS
avg 55,04 49,82 44,61 71,60 55,68 70,11 65,42 59,50
σ 12,81 22,16 14,56 15,58 16,30 12,57 10,01 5,76
A D F J N S T Rate (%)
MS
avg 71,99 68,72 79,54 65,59 86,93 69,76 79,76 77,63
σ 6,45 4,21 3,15 5,86 3,50 3,60 3,78 1,67
Spanish MFCC
avg 81,54 80,67 80,18 68,92 68,69 67,12 86,65 70,69
σ 5,56 4,92 8,61 18,57 22,18 29,23 4,07 12,66
MFCC+MS
avg 76,41 85,39 69,76 76,03 53,31 64,40 84,59 68,11
σ 6,65 3,80 3,10 2,50 23,70 2,25 3,27 11,55
Spanish (a:anger, d:disgust, f:fear, j:joy, n:neutral, s:surprise, t: sadness) Berlin (a:fear, e:disgust, f:happiness, l:boredom, n:neutral, t:sadness, w:anger).
Table 3: Recognition results using RNN classifier based on Berlin and Spanish databases.
Dataset Feature Average (avg) Standard deviation (σ)
MS 66.32 5.93
Berlin MFCC 69.55 3.91
MFCC+MS 58.51 3.14
MS 82.30 2.88
Spanish MFCC 86.56 2.80
MFCC+MS 90.05 1.64
Table 4: Confusion matrix for using MFCC and MS features based on spanish database.
Emotion Anger Disgust Fear Joy Neutral Surprise Sadness Rate (%)
Anger 131 14 3 23 8 2 0 72,38
Disgust 3 197 1 6 6 6 2 89,95
Fear 3 15 115 6 12 0 0 76,16
Joy 8 4 1 411 0 11 0 89,14
Neutral 9 14 9 4 144 1 1 79,12
surprise 1 4 0 18 0 133 0 85,26
Sadness 8 1 18 11 17 0 93 62,84
Precision (%) 80,37 79,12 78,23 85,80 77,00 86,92 96,87
Speech Emotion Recognition: Methods and Cases Study
179

features and for the RNN model in the Spanish emo-
tional database. Moreover, higher accuracy can be ob-
tained using the combination of more features. Apart
from this, seeking for robust feature representation
is also considered as part of the ongoing research,
as well as efficient classification techniques for au-
tomatic speech emotion recognition.
Methods based on the Fourier transform such as
MFCC and MS are the most used in speech emotion
recognition. However, their popularity and effective-
ness have a downside. It has led to a very specific
and limited view of frequency in the context of signal
processing. Simply put, frequencies, in the context of
Fourier methods, are just a collection of the individ-
ual frequencies of periodic signals that a given signal
is composed of. To use methods that it provides an
alternative interpretation of frequency and an alterna-
tive view of non-linear and non-stationary phenomena
is our future work. More work is needed to improve
the system so that it can be better used in real-time
speech emotion recognition.
REFERENCES
Berlin database of emotional speech.
http://emodb.bilderbar.info/start.html.
Berlin database of emotional speech.
http://www.elra.info/en/catalogues/catalogue-
language-resources/.
Svm and kernel methods matlab toolbox. http://asi.insa-
rouen.fr/enseignants/ arakoto/toolbox/.
A., M., S., S. R., and S., T. S. (2013). SVM Scheme for
Speech Emotion Recognition Using MFCC Feature.
International Journal of Computer Applications, 69.
Alex, G. and Navdeep, J. (2014). Towards end-to-End
Speech Recognition with Recurrent Neural Networks.
International Conference on Machine Learning, 32.
B. Ingale, A. and Chaudhari, D. (2012). Speech Emotion
Recognition Using Hidden Markov Model and Sup-
port Vector Machine. International Journal of Ad-
vanced Engineering Research and Studies.
Burkhardt, F., Paeschke, A., Rolfes, M., Sendlmeier, W.,
and Weiss, B. (2005). A Database of German Emo-
tional Speech. INTERSPEECH.
Chen, S. and Jin, Q. (2015). Multi-modal Dimensional
Emotion Recognition using Recurrent Neural Net-
works. Brisbane, Australia.
G.S., D. S., P., C., and B., V. (2016). SVM Based Speech
Emotion Recognition Compared with GMM-UBM
and NN. IJESC, 6.
Gunn, S. R. (1998). Support Vector Machines for Classifi-
cation and Regression. PhD thesis.
Lim, W., Jang, D., and Lee, T. (2017). Speech Emotion
Recognition using Convolutional and Recurrent Neu-
ral Networks. Asia-Pacific.
Martin, V. and Robert, V. (2009). Recognition of Emotions
in German Speech Using Gaussian Mixture Models.
LNAI 5398, pages 256–263.
Naseem, I., Togneri, R., Member, S., IEEE, and Ben-
namoun., M. (2010). Linear Regression for Face
Recognition. IEEE Transactions on Pattern Analysis
and Machine Intelligence, 32.
Pan, Y., Shen, P., and Shen, L. (2012). Speech Emotion
Recognition Using Support Vector Machine. Interna-
tional Journal of Smart Home, 6.
Peipei, S., zhou, C., and Xiong, C. (2011). Automatic
speech Emotion Recognition Using Support Vector
Machine.
Sara, M., Saeed, S., and Rabiee, A. (2017). Speech emo-
tion Recognition Based on a Modified Brain Emo-
tional Learning Model. Elsevier, pages 32–38.
Sathit, P. (2015). Improvement Of Speech Emotion
Recognition with Neural Network Classifier by Using
Speech Spectrogram.
Sepp, H. and Jurgen, S. (1997). Long Short-term Memory.
Neural Computation.
Surabhi, V. and Saurabh, M. (2016). Speech Emotion
Recognition: A review. IRJET, 03.
V. Srinivasan, V. Ramalingam, and P. Arulmozhi (2014).
Artificial Neural Network Based Pathological Voice
Classification Using Mfcc Features.
Wua, S., b, T. H. F., and Chan, W.-Y. (2011). Automatic
speech emotion recognition using modulation spectral
features. Speech Communication 53: 768-785.
Yu, G., Eric, P., Hai-Xiang, L., and van den, H. J. (2016).
Speech emotion Recognition Using Voiced Segment
Selection Algorithm.
ICAART 2018 - 10th International Conference on Agents and Artificial Intelligence
180

APPENDIX: LSTM NETWORK
Figure 4: LSTM network architecture using MFCC fea-
tures.
Figure 5: LSTM network architecture using MS features.
Speech Emotion Recognition: Methods and Cases Study
181

Figure 6: LSTM network architecture using combination of
MFCC and MS features.
ICAART 2018 - 10th International Conference on Agents and Artificial Intelligence
182
