Retrieving 3D Objects with Articulated Limbs by Depth Image Input
Jun-Yang Lin
1
, May-Fang She
1
, Ming-Han Tsai
1
, I-Chen Lin
1
, Yo-Chung Lau
2
and Hsu-Hang Liu
2
1
Department of Computer Science, National Chiao Tung University, Hsinchu City, Taiwan
2
Telecommunication Laboratories, Chunghwa Telecom Co., Ltd, Taoyuan City, Taiwan
Keywords:
3D Object Retrieval, Depth Image Analysis, Shape Matching.
Abstract:
Existing 3D model retrieval approaches usually implicitly assume that the target models are rigid-body. When
they are applied to retrieving articulated models, the retrieved results are substantially influenced by the model
postures. This paper presents a novel approach to retrieve 3D models from a database based on one or few
input depth images. While related methods compared the inputs with whole shapes of 3D model projections
at certain viewpoints, the proposed method extracts the limbs and torso regions from projections and analyzes
the features of local regions. The use of both global and local features can alleviate the disturbance of model
postures in model retrieval. Therefore, the system can retrieve models of an identical category but in different
postures. Our experiments demonstrate that this approach can efficiently retrieve relevant models within a
second, and it provides higher retrieval accuracy than those of compared methods for rigid 3D models or
models with articulated limbs.
1 INTRODUCTION
With the popularity of 3D modeling tools, more and
more 3D models are designed and uploaded by cre-
ators and vendors. Therefore, various kinds of meth-
ods were proposed to improve the efficiency of 3D
model retrieval from a large dataset. Searching by
keywords is the most common way to search desired
information, but it can be difficult for a user to fig-
ure out appropriate keywords describing the variety of
model shapes. Therefore, most successful 3D model
retrieval systems adopted content-based search and
required users to input sketches or images as queries.
Funkhouser et al. (Funkhouser et al., 2003) presented
a shape-based query engine, supporting queries based
on keywords, 2D sketches, 3D sketches, and 3D mod-
els. The LightField descriptor proposed by Chen et
al. (Chen et al., 2003) projects each 3D model onto
silhouette images from vertices of an enveloping do-
decahedron. It then evaluates the similarities between
query images and silhouettes of database models.
Nevertheless, most existing methods assume that
the 3D models are rigid or the viewpoint of input im-
ages are axis-aligned, e.g. the frontal or side views.
In the case of querying by views, they compared two
projected shapes based on shape features extracted
from the whole projected silhouette or depth images.
If a user takes a 3D model with articulated limbs as
the input, the retrieved results can be substantially
influenced by the limb postures of models or view
points. Accordingly, we propose evaluating not only
the global projected shapes but also local features. As
shown in Figure 1, if we only considered the global
shapes, it led to the result 1(a). However, if we fur-
ther compared the local information extracted from
torso and limb regions, more relevant models can be
retrieved as shown in 1(b).
Based on the aforementioned concept, we mea-
sured different combinations of global and local fea-
tures and developed a prototype system. Given one or
multiple depth images as query inputs, the proposed
system can efficiently retrieve relevant models from
a dataset extended from publicly used databases. Our
experiments also demonstrate that it can retrieve more
accurate results than results by comparative methods,
for not only 3D models with limbs but also rigid mod-
els.
2 RELATED WORK
To intuitively assign input queries, several research
works adopted view-based matching methods to re-
trieve models from sketch or image inputs. View-
based retrieval systems usually assume that 3D shapes
can be represented by several 2D projections from dif-
Lin, J-Y., She, M-F., Tsai, M-H., Lin, I-C., Lau, Y-C. and Liu, H-H.
Retrieving 3D Objects with Articulated Limbs by Depth Image Input.
DOI: 10.5220/0006609601010111
In Proceedings of the 13th International Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2018) - Volume 1: GRAPP, pages
101-111
ISBN: 978-989-758-287-5
Copyright © 2018 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
101

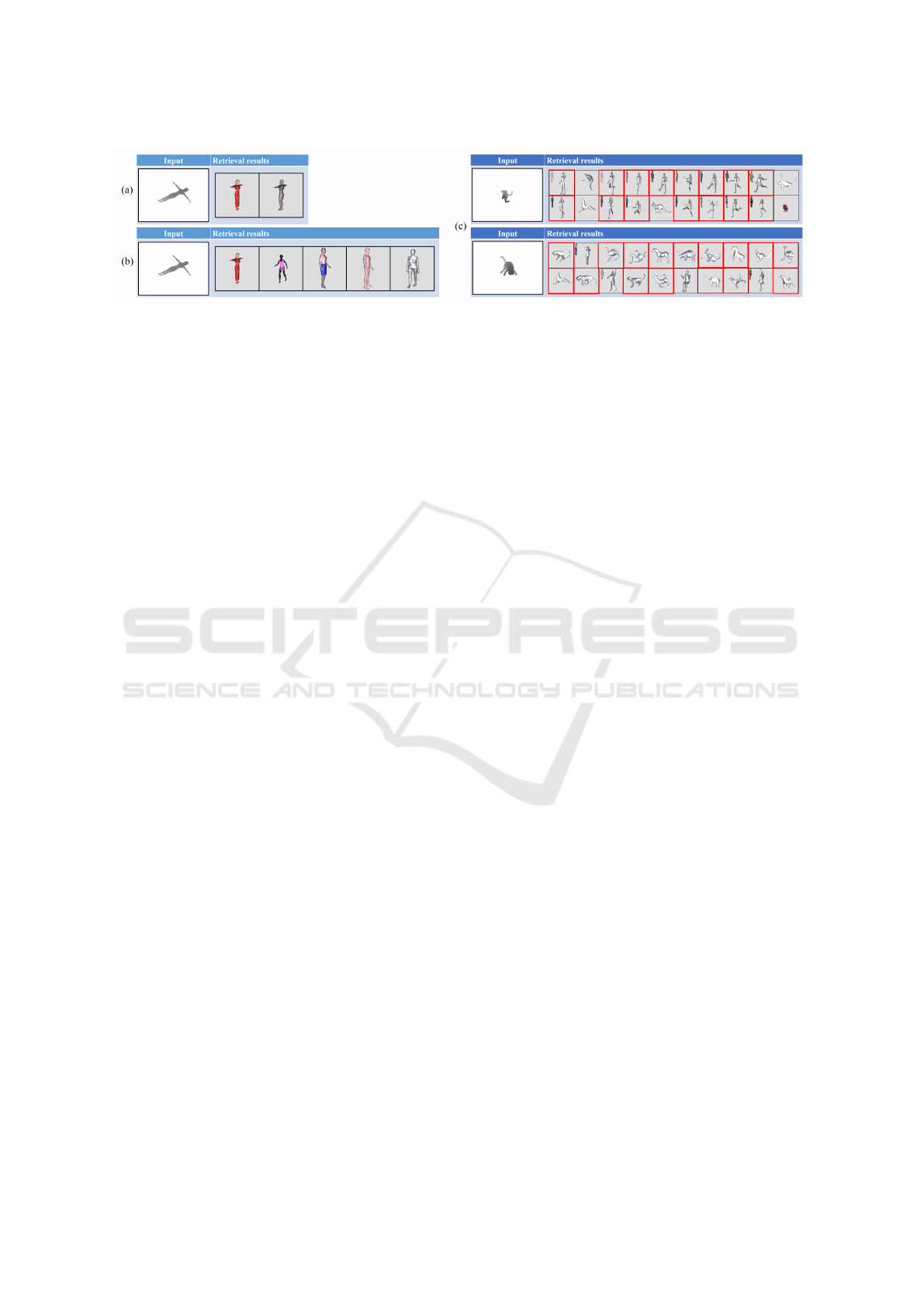

Figure 1: (a) Retrieval results from the global shape only. (b) Retrieval results of our proposed method. (c) Top 20 retrieval
results of our method for articulated models and non-rigid quadruped animal models in random view.
ferent views. Chen et al. (Chen et al., 2003) thought
that if two 3D models are similar, their projected
views from various angles are similar as well. They
compared the Zernike moment (Canterakis, 1999) and
the Fourier descriptor between two projected silhou-
ettes. Daras and Axenopoulos (Daras and Axenopou-
los, 2010) extended the view-based concept and mea-
sured multiple shape features and their combinations.
However, the models in the database and from input
queries need to be aligned in a standard viewpoint
set. Wu et al. (Wu et al., 2016) used the view-based
matching for object pose tracking. In our work, we
allow users to record depth images of an input in an
arbitrary viewpoint.
Existing view-based systems usually analyze the
global shapes of projections. It implicitly assumes
that the models in the same category have simi-
lar poses, but in reality there are plenty of models
with joints and their limb postures are changeable.
Skeleton-based measures are capable of dealing with
the deformation and articulation of shape data. Bai
and Latecki (Bai and Latecki, 2008) computed skele-
ton similarity by comparing geodesic paths between
skeleton endpoints, and did not consider the topolog-
ical structure of the skeleton graphs or trees. Shen et
al. (Shen et al., 2013) extended the previous work (Bai
and Latecki, 2008) to do shape clustering according to
the similarity of each shape. They proposed the dis-
tance measurement between shapes and clusters ac-
cording to the correspondence of skeleton endpoints
and junction points.
To extract skeleton from 2D contours, Igarashi
et al. (Igarashi et al., 1999) presented an extraction
method in the famous Teddy system . The method
first performs Delaunay triangulation to generate tri-
angles covering the shape. Then, it approximates
the medial axis and extracts the skeleton of the con-
tour according to the connectivity between triangles.
However, skeleton extraction is usually sensitive to
the boundary noise. In order to prune the spurious
skeleton branches, Shen et al. (Shen et al., 2011)
evaluated the contribution of contour segment to the
whole shape, and presented a novel method for skele-
ton refinement. In the case of 3D skeleton extraction,
Hasler et al. (Hasler and Thorm, 2010) inspected ex-
amples of different subjects at the same time, and then
improved the robustness of shape skeleton estimation.
Wang and Lee (Wang and Lee, 2008) applied iterative
least squares optimization to shrink models and pre-
serves their geometries and topologies.
Several works decompose a 3D model into parts
or skeletons for similarity measures or other applica-
tions. Mohamed and Hamza (Mohamed and Hamza,
2012) matched two 3D shapes by comparing their rel-
ative shortest paths between the skeleton endpoints.
Kim et al. (Kim et al., 2013) partitioned a collec-
tion of models into clusters and generated consis-
tent segmentations and correspondences for all the
models with similar parts. Instead of analyzing ge-
ometric structures of shapes, Kim et al. (Kim et al.,
2014) and Xie et al. (Xie et al., 2014) analyzed 3D
shapes based on the interactions between 3D mod-
els and human postures. These methods can be ex-
tended for 3D shape retrieval and correspondence es-
timation. Kleiman et al. (Kleiman et al., 2015) pre-
sented a novel approach to quantify shape similar-
ity based re-arrangements, additions, and removals
of parts. L
´
opez-Sastre et al. (L
´
opez-Sastre et al.,
2013) employs a 3D spatial pyramid representation
for 3D shape categorization and classification. Sipi-
ran et al. (Sipiran et al., 2013) represents a 3D shape
by its global descriptions and partition descriptions.
However, these methods were designed for 3D shape
matching, and they cannot be directly applicable to
sparse depth image inputs, since the 3D parts or limbs
can partially be occluded during projection.
3 OVERVIEW
Our goal is to efficiently search 3D models with one
or few input images, especially for 3D objects with ar-
ticulated limbs. In order to acquire more information
and details of the object surfaces, we selected depth
GRAPP 2018 - International Conference on Computer Graphics Theory and Applications
102

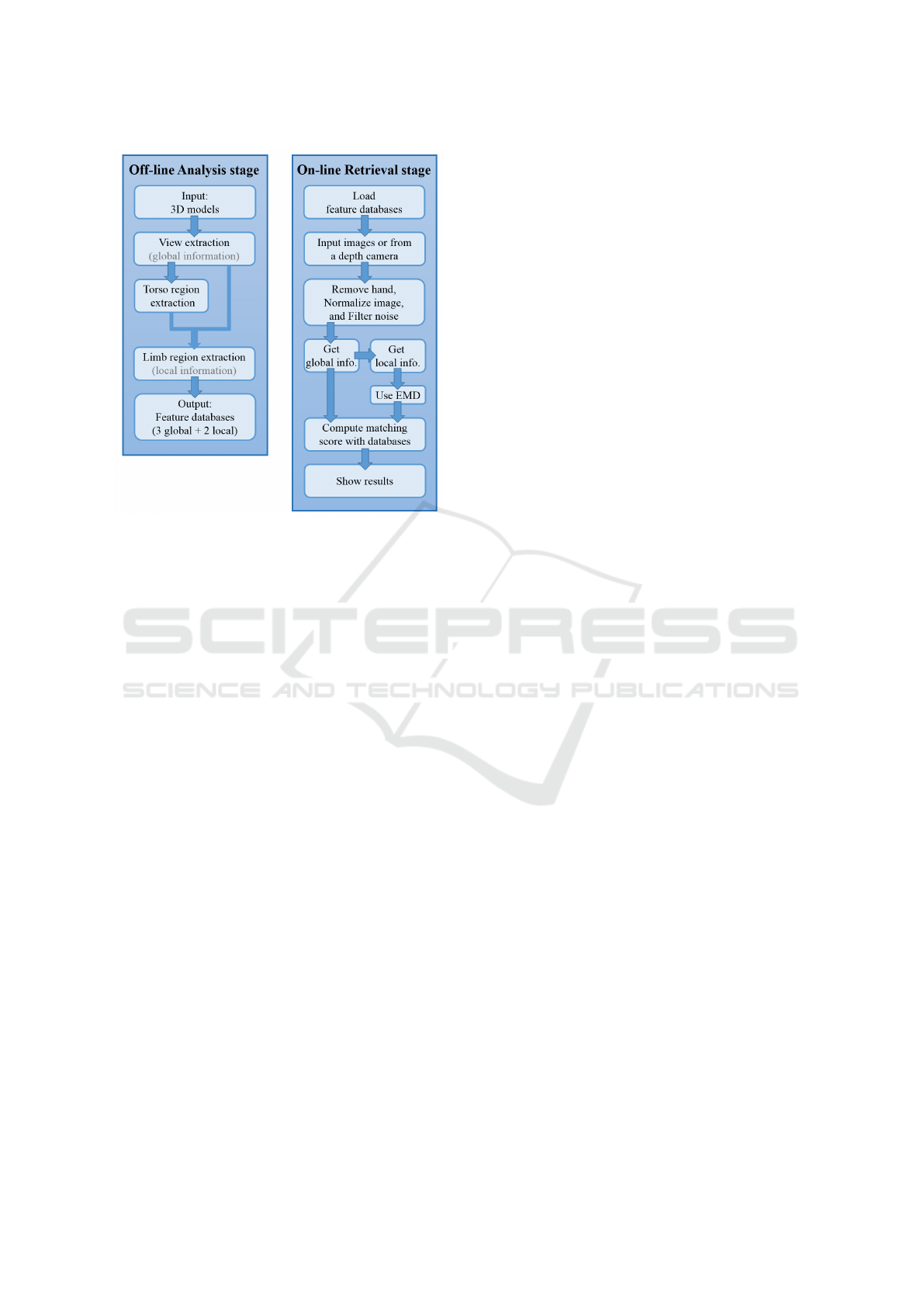

Figure 2: The flow chart of the proposed system.
images as our inputs rather than silhouette binary im-
ages in related methods. We used Xtion PRO (ASUS
Inc., ) as our live depth image capture device, and it
can be replaced by other low-cost depth cameras off
the shelf, such as Kinect (Microsoft Corp., ).
The flow chart of our proposed method is shown in
Figure 2. For more efficient online retrieval, we sepa-
rated our system into two stages: offline analysis and
online retrieval. In the offline analysis stage, for each
model in the database, we generated a set of 2D pro-
jected depth images. Then, we extracted features with
rotation-invariant and perspective-insensitive proper-
ties for these projected images. These feature coef-
ficients were regarded as the global information. We
then further decomposed each projected depth images
into the main torso (body) and limb regions. These
parts (torso and limb regions) can provide local infor-
mation, respectively. Finally, we can get three global
and two local features to build our feature database.
In the online retrieval part, our system first loads
the descriptor databases, and then a user can input
one or multiple depth images captured from a real
3D object. The proposed system then evaluates the
minimum matching distance between the input and
each model in database according to global and local
features. The retrieval results are sorted according to
their scores. A complete online retrieval process can
be finished within a second for the database contain-
ing about 18,000 images.
4 OFFLINE ANALYSIS
This section describes how we extract different shape
descriptors to represent the complex 3D models and
the properties of these shape features are introduced

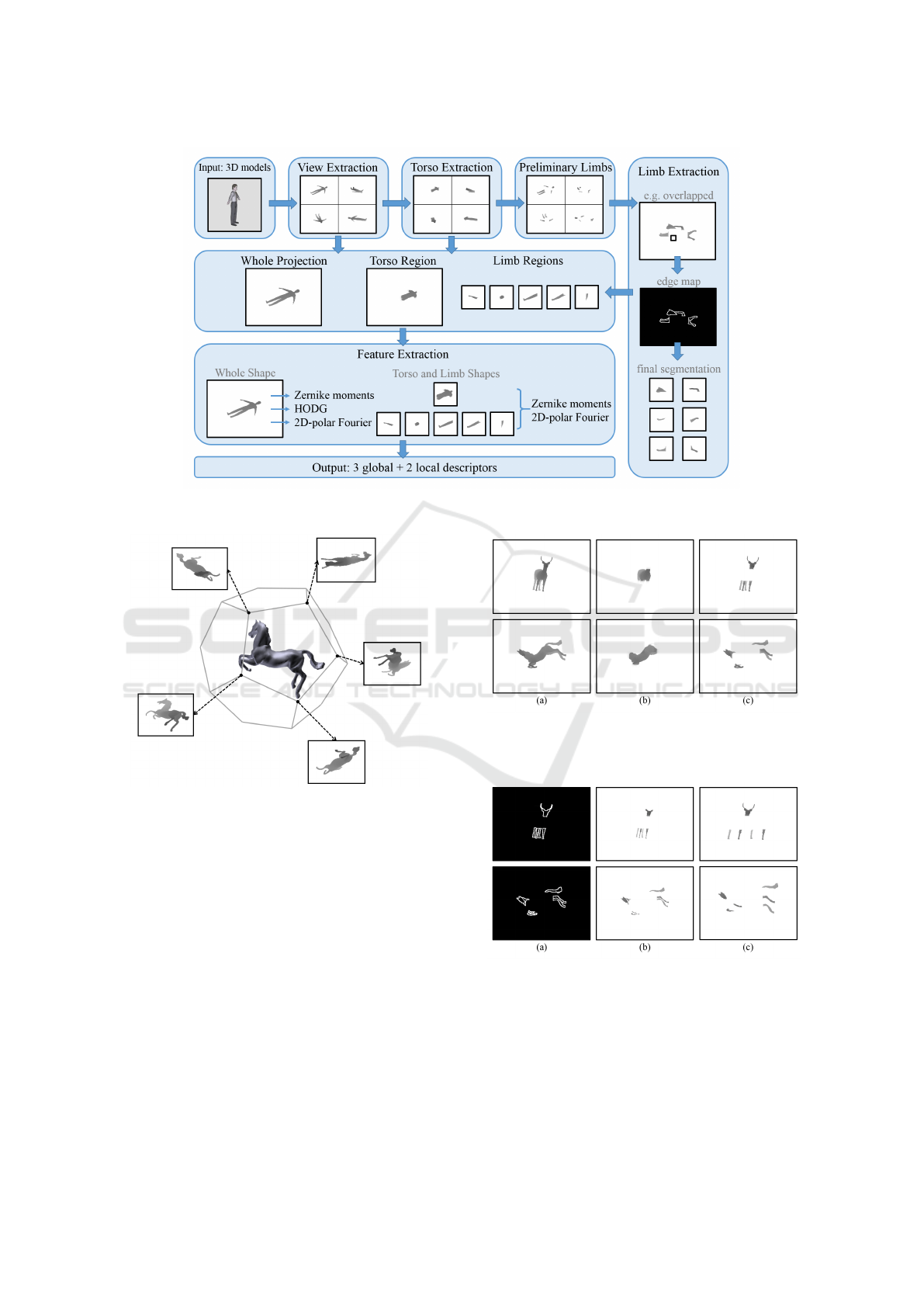

as well. Figure 3 shows the flowchart of our offline
analysis.
4.1 Extraction of Projected Views and
Regions
The pioneer view-based matching method by Chen
et al. (Chen et al., 2003) extracted features from the
whole projected silhouette images. By contrast, we
make use of projected depth images to acquire more
details from the model surfaces, and segment parts
from the whole shape for local information analysis.
Figure 4 shows an example of a 3D horse model and
five of its projected depth images.
For a model with limbs, there are usually obvious
limb regions in global projected images. Therefore,
we first find the body part from the projected image.
Our initial thought is to apply the mathematical mor-
phology operations (erosion and dilation) to the whole
projected image, and leave the torso region. Then, we
can obtain the preliminary limb regions by subtract-
ing the torso region form the global region. However,
we found that the limbs may be still connected with
the torso or other limbs by such a method.
As shown in Figure 5(c), because the projected
limb regions may be overlapped. We have to further
analyze the preliminary limb region for more accurate
region separation. The depths within each limb region
are similar, abrupt depth differences (gaps) usually
occur in the boundary between different limb regions.
Therefore, we use Canny edge detection to the pre-
liminary limb images, and get the edge map as shown
in Figure 6(a). Then, we remove the edge points from
the preliminarily separated image and the result limb
regions are not connected to each other as shown in
Figure 6(b). Since the limbs and torso are most sep-
arated, we adjust a flood fill algorithm to gather each
limb region as shown in Figure 6(c). The flood-fill
method selects a few points as seeds and propagates
labels from a point to its neighbors when their prop-
erties are similar. We would like to emphasize that
since there is noise and the projected depth maps vary
from models, the segmented regions may not always
be perfect. This issue can be mended by using an
error-tolerable distance during online matching.
Retrieving 3D Objects with Articulated Limbs by Depth Image Input
103
Figure 3: Overview of offline analysis.
Figure 4: An example of a horse model and its projected
depth images at vertices of a dodecahedron.
4.2 Extraction of Features
After getting the whole projected views of 3D models
and segmenting them into the torso and limb regions,
we then extract features from these depth regions. In
our trial, we found that three different features are dis-
tinct for matching the global depth images. The three
features are Zernike moments, Histogram of Depth
Gradient (HODG), and 2D-polar Fourier Transform.
The Zernike moments and 2D-polar Fourier Trans-
form descriptor approximate image shape structure by
polynomials and transformed bases. They are also
recommended in Chen et al. (Chen et al., 2003)
and Daras and Axenopoulos (Daras and Axenopou-
los, 2010). We further apply the HODG to distinguish
Figure 5: Extracting the preliminary limb regions. (a) Input
depth images. (b) The torso region by mathematical opera-
tions. (c) The preliminary limb regions by subtraction.
Figure 6: (a) The edge map of the preliminary limb regions.
(b) The results of subtracting the edge points from the pre-
liminarily separated image. (c) The final results of limb re-
gions.
the contours and surface of models which have dis-
tinct gradient vectors.
For the part regions (torso and limb region), we
found that Zernike moments and 2D-polar Fourier
GRAPP 2018 - International Conference on Computer Graphics Theory and Applications
104
features are still capable of approximating the shapes
of local regions. However, the areas of limbs are rel-
atively small and it makes the HODG occasionally
sensitive to noise or segmented region boundaries.
Therefore, two features are applied to local regions.
In short, three global features and two local features
are applied to analyze depth images in the database.
We briefly introduce and discuss about their proper-
ties in the following paragraphs and the experiment
section.
Zernike moments are a class of orthogonal mo-
ments. They have the properties of rotation invariance
and efficient construction. Moreover, they can effec-
tively resist image noise. Due to the above properties,
Zernike moments are ideal features for shape repre-
sentation in shape classification problems. Please re-
fer to (Canterakis, 1999) and (Chen et al., 2003) for
details.
2D-polar Fourier Transform is a variant of the
Discrete Fourier Transform (DFT). This approach
first transforms an input image into a 2D-polar im-
age by mapping the (θ, r) onto the (x, y) coordinate.
We can then apply popularly used Fast Fourier Trans-
form (FFT) to the 2D-polar image. It is also applied
in (Daras and Axenopoulos, 2010).
Histogram of depth gradients (HODG) is vari-
ant of histogram of image gradients (HOG) com-
monly used for object detection. It counts the occur-
rences of gradient orientation in a depth image. The
principal thought for HODG is that the shape and sur-
face of an object in a certain view can be approxi-
mately described by the distribution of the depth gra-
dients. To evaluate the HODG, we first use Sobel op-
erator in a depth image to get the depth gradient of
each pixel, and evaluate the gradient orientation and
magnitude.
We divide the orientation space into 36 bins, and
accumulate the gradients for each bin. The descriptor
is the concatenation of these bins. To keep this de-
scriptor rotation-invariant, we align the bin with the
maximum value as the primary one, and rotate the fol-
lowing bins according to the order. When we want to
match two histograms, we can compare the primary
bin first, and then compute the following bins sequen-
tially. The HODG is suitable to describe the various
changes of surface appearance and contours.
4.3 Descriptor Database
In order to keep the images scale and translation in-
variant, when we generate the depth images which
are projected from the dodecahedron vertices, we
translate the depth images to the center of an im-
age and normalize their sizes. Moreover, the afore-

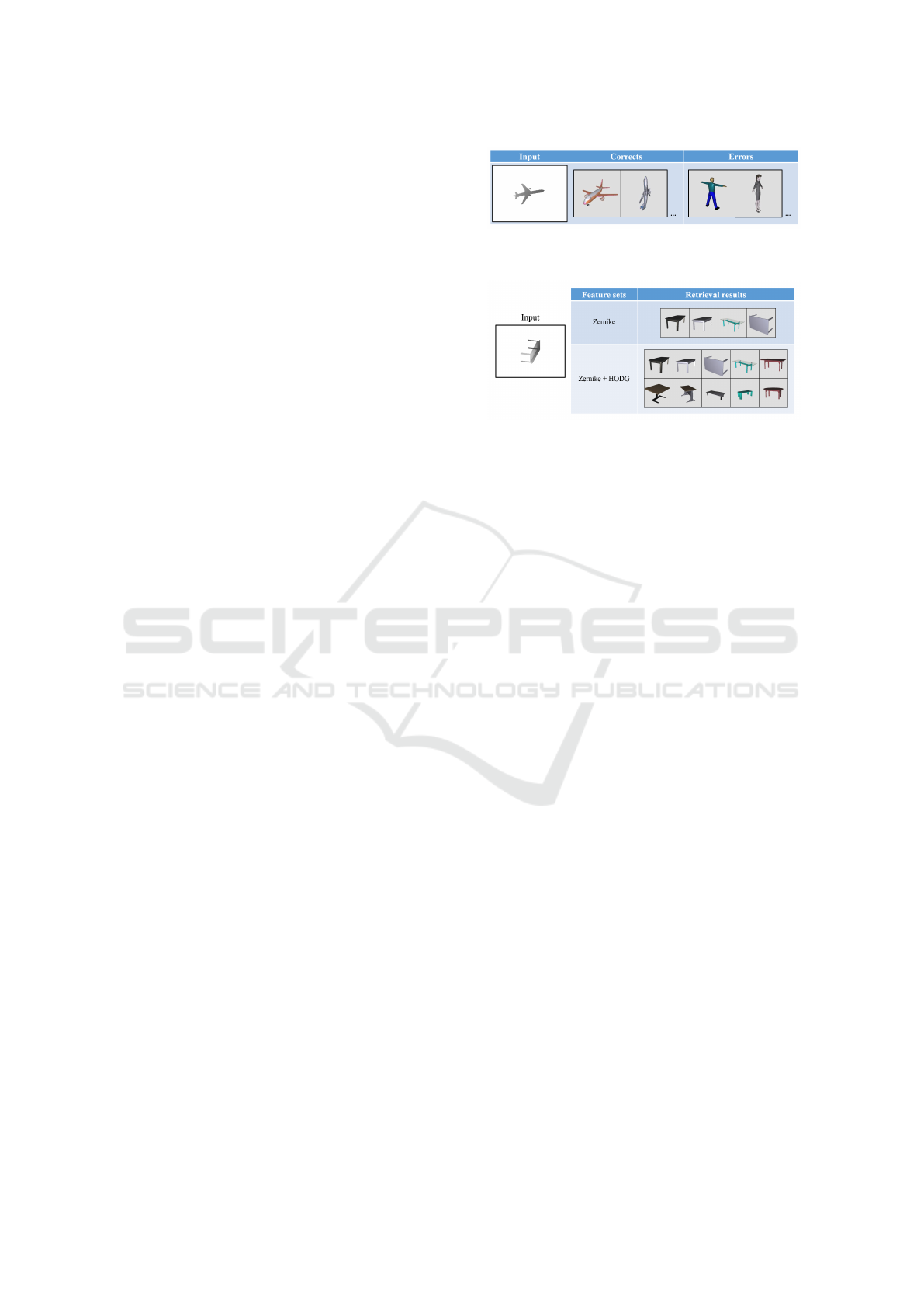

Figure 7: The left is the input image. The middle and the
right are the searching results of Zernike moments.
Figure 8: Different retrieval results by using Zernike mo-
ments with and without HODG.
mentioned descriptors are all rotation-invariant. We
then use these features to produce the compact fea-
ture databases.
Zernike moments are useful in discriminating the
whole appearance of images in these three descrip-
tors. However, as shown in Figure 7, while only
using Zernike moments, sometimes we may retrieve
some unexpected results when the poses of articulated
models, such as human beings or animals, are simi-
lar to that of a plane. In order to reduce the failure
results, we apply the 2D-polar Fourier Transform. It
can retain more detailed contour shapes. By constrast,
HODG is suitable for analyzing the surface orienta-
tion and sharp contour changes as shown in Figure 8.
In summary, our global feature set is composed of
Zernike moments, Histogram of Depth Gradient, and
2D-polar Fourier Transform; our local feature set con-
sists of Zernike moments and 2D-polar Fourier Trans-
form for torso and limb regions. The recommended
combination of these features is analyzed in the ex-
periment section.
5 ONLINE MODEL RETRIEVAL
This section introduces our interactive 3D model re-
trieval system. Figure 9 shows the flow chart about
our online retrieval system.
5.1 Acquiring Input Depth Images
After the system initialization, a user can input one or
multiple depth image files or live capture inputs from
a depth camera. Figure 10 shows different ways to
get the query inputs. Before capturing the live depth
Retrieving 3D Objects with Articulated Limbs by Depth Image Input
105

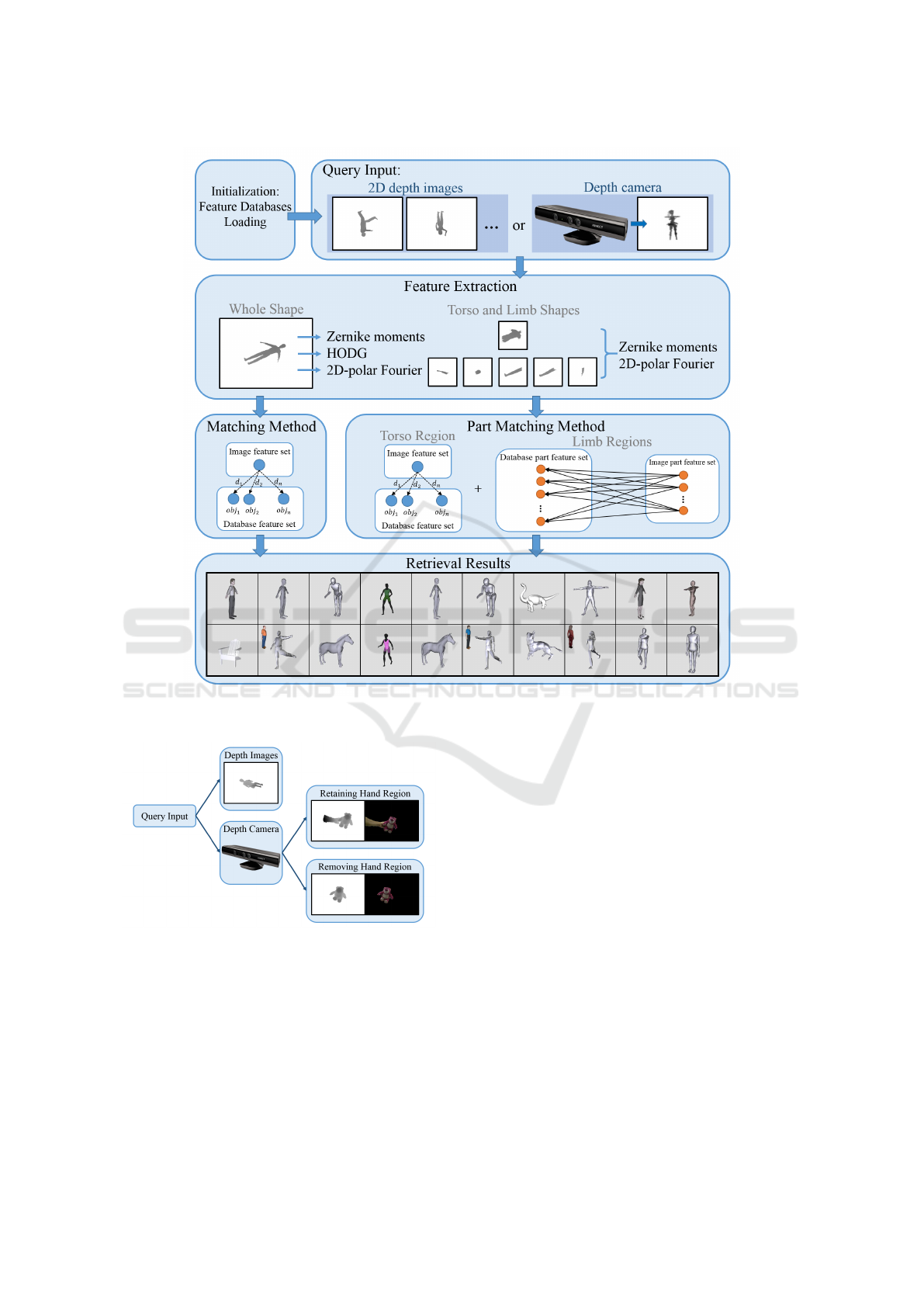

Figure 9: Overview of online model retrieval.
Figure 10: Different ways to acquire input depth images.
images, we need to take an initial frame as the back-
ground region. Pixels with large depth differences be-
tween the initial and current frames are regarded as
the foreground. This step can be improved by ad-
vanced segmentation methods, e.g. (Rother et al.,
2004), (Lin et al., 2015). For the live captured depth
images, a user can hold an object in front of the cam-
era in hand. According to the recorded color his-
togram, our system can detect and remove users hand
region and leave the grabbed object for model query.
Since there is always noise disturbing a live captured
image, we apply connected component labelling to
gather pixels and omit the scattered groups without
sufficient pixel numbers.
5.2 Matching Distances
After acquiring the refined depth images, similar to
4.1, our system automatically segments the torso and
limb regions from the whole shape, and extracts the
global and local feature descriptors. Then, it com-
putes the distances of global and local features among
the input and model projections in the database.
Figure 11 shows the overview of our matching
method. We can see that there are twenty views for
each 3D model and five (three for global information
and two for local information) feature sets for each
view. Then, we describe the distance terms for each
descriptor.
The distances for Zernike moments, 2D-polar
GRAPP 2018 - International Conference on Computer Graphics Theory and Applications
106

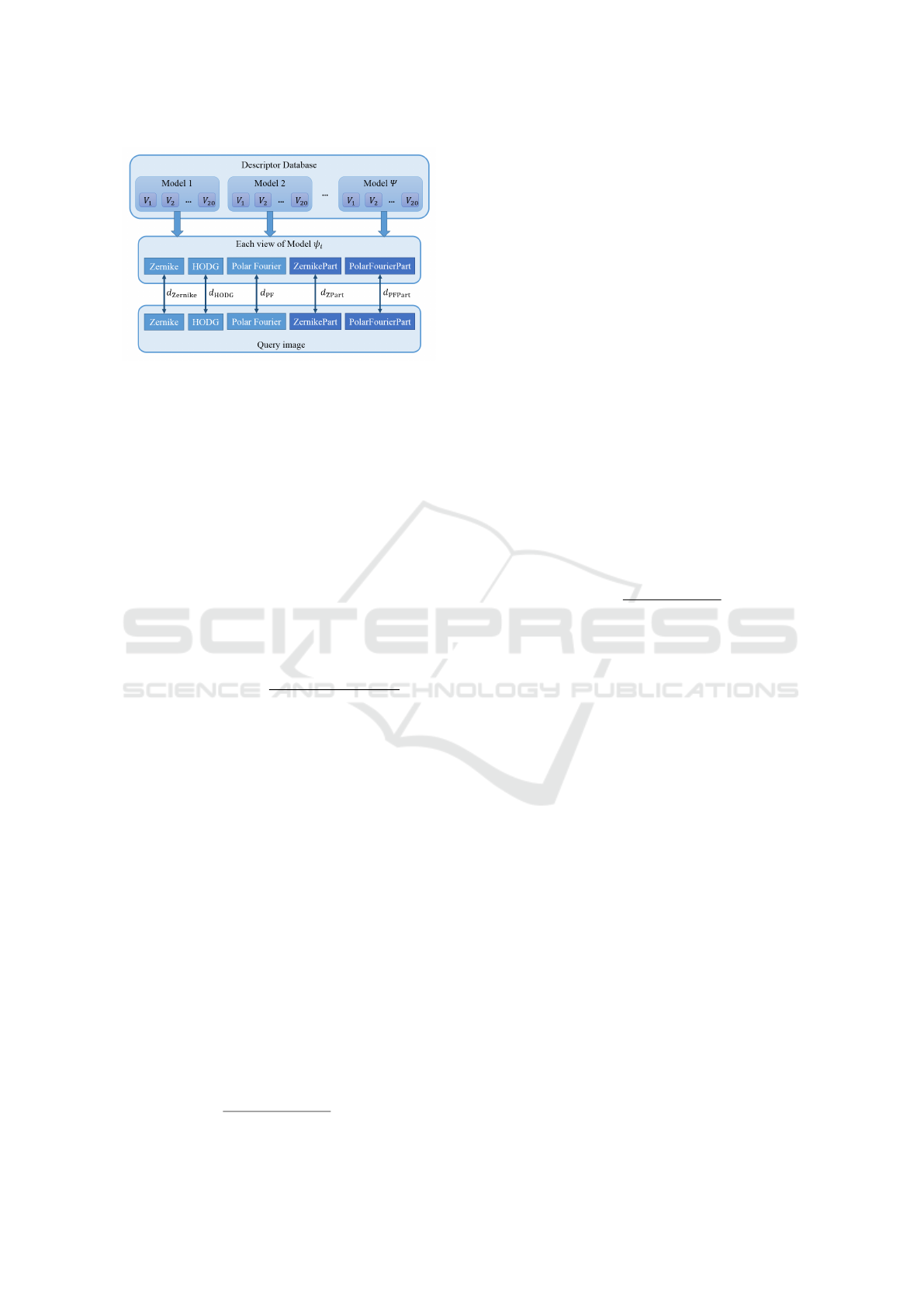

Figure 11: Overview of the matching method. Ψ is the set
of all 3D models in our database. ψ
i
is one of the 3D mod-
els.
Fourier are denoted by d
Zernike
and d
PolarFourier
respec-
tively. These two distances can be formulated by
equation 1.
d
set
in
,set
ob j
=
N
i=1
f
in
i
f
ob j
i
, (1)
where f
in
i
is the i
th
feature coefficient of a query im-
age, f
ob j
i
is the i
th
coefficient of one of the objects
in our 3D model database, and N is 35 for Zernike
moments and 78 for 2D-polar Fourier descriptors.
The distance for Histogram of Depth Gradient is
denoted by d
HODG
, and it is formulated as follows:
d
HODG:set
in
,set
ob j
=
1
N
i=1
f
in
i
f
ob j
i
+ ε
, (2)
where f
in
i
is the i
th
feature coefficient of a query im-
age, f
ob j
i
is the i
th
coefficient of one of the objects
in our 3D model database, and we set ε to 0.001, N
to 36. The denominator of equation 2 is the sum of
intersection operations for histogram bin values.
On the other hand, the local feature sets
(ZernikePart and PolarFourierPart) comprise features
for torso and limb regions. For example, if a whole
projected depth image can be divided into one torso
and three limb regions, there are four parts in this
shape. Since a torso and limbs have different prop-
erties, these two kinds of regions are handled and
matched separately. The distances for torso and limb
regions are denoted by d
Torso
and d
Limb
, and the dis-
tance between two feature sets are formulated as fol-
lows:
d
Torso:set
in
,set
ob j
=
N
i=1
f
in
i
f
ob j
i
,
d
Limb:set
in
,set
ob j
= EMD
f
in
, f
ob j
,
d
Part
=
d
Torso
+ n × d
Limb
n + 1
,
(3)
where f
in
i
is the i
th
feature coefficient of query image,
f
ob j
i
is the i
th
coefficient of one of the objects in our
3D model database, and N is 35 for ZernikePart and
78 for PolarFourierPart. The computing way between
Zernike moments and ZernikePart for torso region is
the same because there is only a torso region in each
shape, and so do 2D-polar Fourier Transform and Po-
larFourierPart for the torso region. f
in
is a sequence
of limb features of query image, and f
ob j
is a se-
quence of limb features of an object in our 3D model
database. The EMD function is the earth movers dis-
tance proposed by Rubner et al. (Rubner et al., 2000).
n is the number of limb regions in a projected image,
and d
Part
is weighted average of d
Torso
and d
Limb
.
The earth movers distance (EMD) is a method
to evaluate dissimilarity (distance) between two
multi-dimensional distributions, and here we use
ZernikePart and PolarFourierPart. The EMD esti-
mates the minimum moving distance between two
feature sets, and the EMD is formulated as follow:
m
i=1
n
j=1
a
i j
= min
m
i=1
wP
i
,
n
j=1
wQ
j
!
,
EMD(P, Q) =
m
i=1
n
j=1
d
i j
a
i j
m
i=1
n
j=1
a
i j
,
(4)
where P is the first feature set with m limb regions, Q
is the second feature set with n limb regions, a
i j
is the
optimal work amount between P and Q, and d
i j
is the
ground distance between P and Q.
Finally, the distance between two views (input and
a projected view of a database model) becomes:
d
view:set
1
,set
2
= w
Zernike
d
Zernike
+ w
HODG
d
HODG
+ w
PF
d
PF
+ w
ZPart
d
ZPart
+ w
PFPart
d
PFPart
,
(5)
where w
Zernike
, w
HODG
, w
PF
, w
ZPart
, and w
PFPart
are
the normalized weights for corresponding distances.
These distances have the same weights by default. If
a user turns off one of the distances, the corresponding
weight term is set to zero.
5.3 Model Query
Since our system does not constrain the viewing angle
of the query input, we do not have information about
the viewpoints or other spatial relationship among the
input images. Therefore, the distance between an in-
put depth image and a database model is set as the dis-
tances between the inputs and the most similar view
of that model. The equation is as follows:
ob j = argmin
o
N
in
i=1
min
j
d
view:in, j
, (6)
Retrieving 3D Objects with Articulated Limbs by Depth Image Input
107

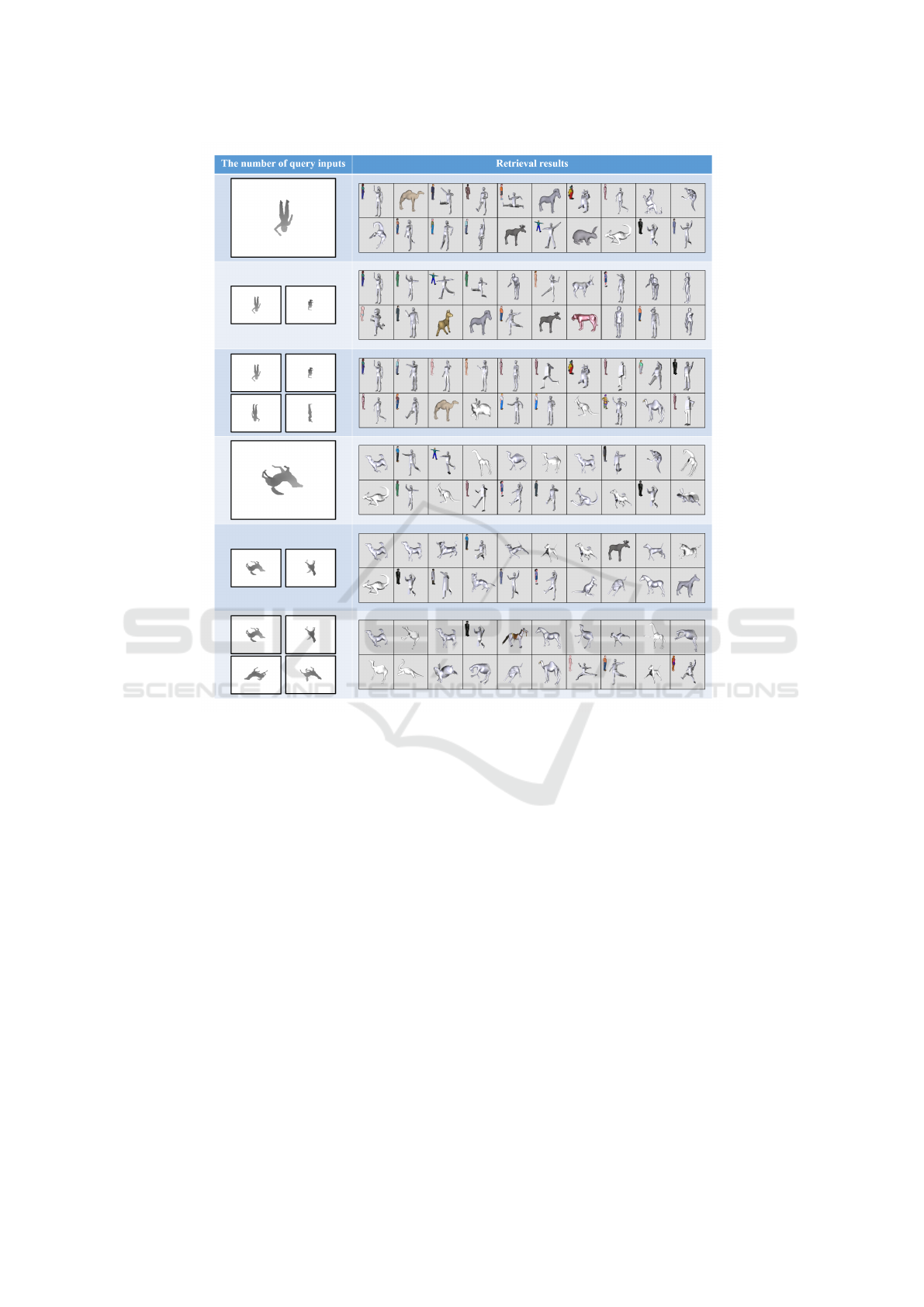

Figure 12: Left: Examples of query by different numbers of input images. Right: The corresponding retrieval results.
where o represents the index of an object model in
database; i is the index of an input image; j is the
index of a view belonging to o; N
in
is the number of
input images.
Our system allows users inputting one or more
query images. Figure 12 shows different results with
one, two, and four query inputs, and we can find that
the results are more accurate with more input views.
6 EXPERIMENT
6.1 Retrieval System
Our prototype system is developed in C/C++ lan-
guage, with OpenCV, OpenGL, and OpenNI libraries.
The experimental database derived from two famous
3D model datasets. The NTU dataset is published by
Chen et al. (Chen et al., 2003), and SHREC15 (Lian
and Zhang, 2015) dataset contains a variety of non-
rigid 3D models. Since one of our comparison meth-
ods, shape clustering proposed by Shen et al. (Shen
et al., 2013), is only suitable for retrieving the sil-
houette images with extractable skeletons, we chose
573 models from NTU database which have complete
and noiseless meshes. Since there are few postured
models in NTU dataset, we therefore chose 42 hu-
man models and required users to edit their postures
with Maya (Autodesk Inc., ). Each human model has
5 different postures. Several examples are shown in
Figure 13. Also, we take 97 non-rigid quadruped ani-
mal models from SHREC15 (Lian and Zhang, 2015).
There are 880 models in total. In Table 1, we list
the time spending in the offline and online stages. It
shows that our method is efficient in online retrieval.
Please refer to the supplementary video to see the
demo for online retrieval.
GRAPP 2018 - International Conference on Computer Graphics Theory and Applications
108
Figure 13: Left: The original human models from NTU
database (Chen et al., 2003). Right: The corresponding
models in random postures.
Table 1: The spending time in the offline and online stages.
Process Time (seconds)
Extract projected views 309.685
Extract local info. and features 1746.443
Load feature databases 4.366
Retrieve per image 0.539
6.2 Performance Evaluation
We compared three different methods. The method
proposed by Shen et al. (Shen et al., 2013) is denoted
by “SC”. SC computes the similarity between two
skeleton paths of silhouette images. It finds the corre-
spondence of endpoints and junction points, and cal-
culates path distances as the similarity measurement
of shapes. SC can advantageously retrieve shapes
with the presence of joint movement, stretching, and
contour deformation, so we took this method as one
of our comparisons for retrieving models with artic-
ulated limbs. The feature set proposed by Chen et
al. (Chen et al., 2003) is denoted by “LFD”. LFD
feature set is combination of Zernike moments and
Fourier Transform, and it is known for its capability
for searching 3D models with sparse inputs. Our pro-
posed method is denoted by “Our Method”. However,
since the two related methods do not consider the
depth information, during our experiments we also
turned off the HODG term to demonstrate the capa-
bility without using depth information. Our method
without HODG is denoted by “Our Method (without
HODG)”.
Before the precision-recall analysis, we demon-
strate the results of articulated and rigid model re-
trieval. Since the articulated models may have diverse
motions of torso parts or limbs, we want to retrieve
models which have diverse motions compared to the
input. Figure 14 shows the retrieved results. Since
our method includes not only global but also local
information, the proposed method can get human or
quadruped animal models in different postures.
Figure 14: The results of retrieving articulated models and
rigid objects.
In order to evaluate these methods, we use three
popularly used measures: precision-recall diagram,
the area under precision-recall curve, and F-measure.
To calculate the Precision-Recall, we separated the
dataset into 32 categories, and used the leave-one-out
method to evaluate the retrieval accuracy.
As shown in Table 2 and Table 3, we tried various
combinations of features, and find the most effective
one to be our feature sets. In the following, we ab-
breviate Zernike moments as “Z”, 2D-polar fourier as
“PF”, ZernikePart as “ZPart”, and PolarFourierPart as
“PFPart”. With HODG, the best combination is ZPart
+ HODG + PF. Without HODG, the best one is ZPart
+ PFPart.
Figure 15 shows the precision-recall curves of
all models. Our method with parts gets the highest
scores at any view situation. Even without HODG,
our method still outperforms SC and LFD. Table 4
shows the corresponding precision-recall area and F-
measure. We also show the precision-recall curves of
four views and twenty views.
Retrieving 3D Objects with Articulated Limbs by Depth Image Input
109

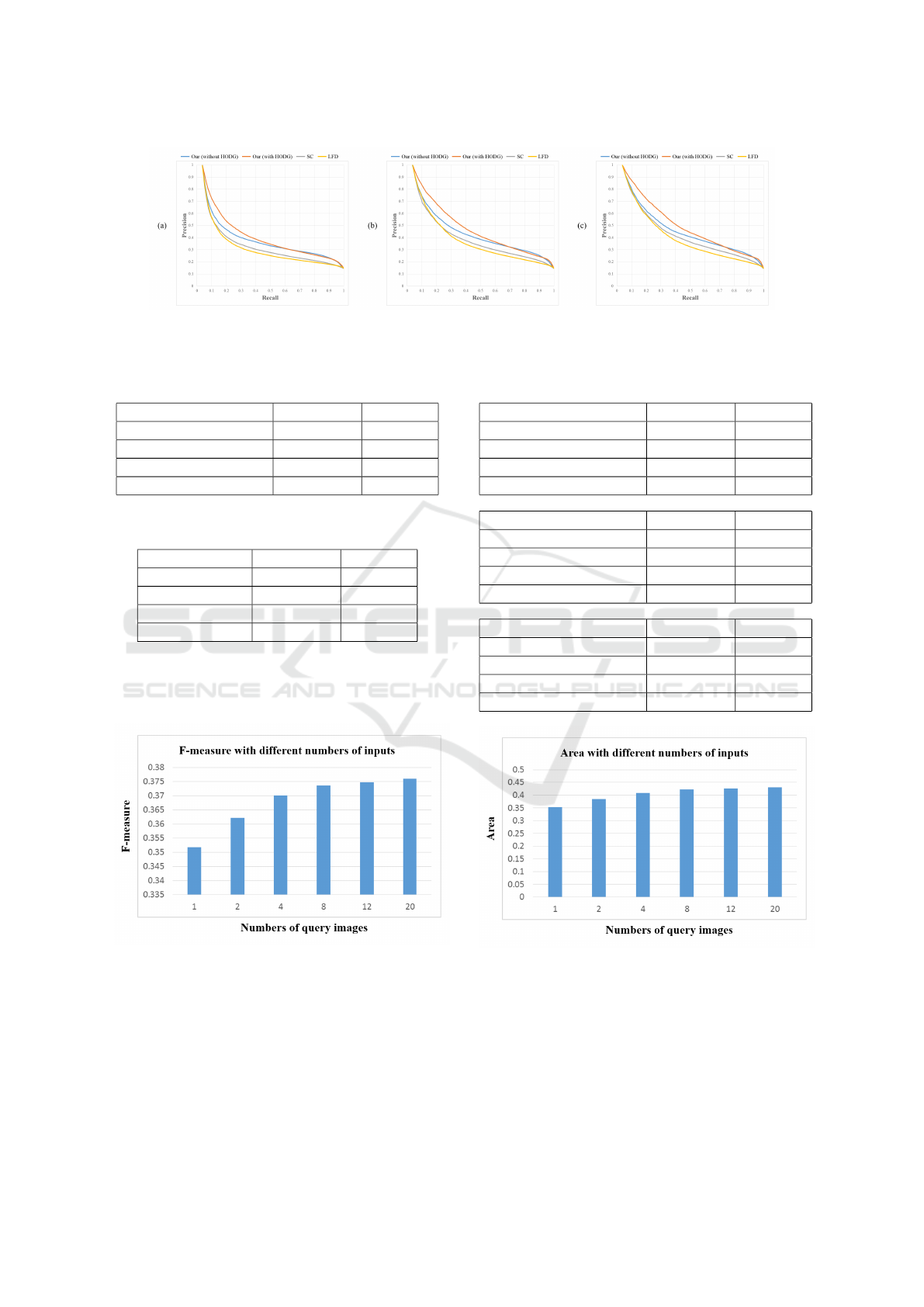

Figure 15: The precision-recall curves of both rigid and articulated categories (32 categories). (a) random 1 view (b) random
4 views (c) all 20 views
Table 2: The precision-recall area and F-measure of top-4
feature sets with HODG.
Feature sets F-measure Area
Z+HODG+PF 0.337945 0.362754
ZPart+HODG+PF 0.353717 0.380994
Z+HODG+PFPart 0.339882 0.365623
ZPart+HODG+PFPart 0.351692 0.376325
Table 3: The precision-recall area and F-measure of top-4
feature sets without HODG.
Feature sets F-measure Area
Z+PF 0.320841 0.312618
ZPart+PF 0.352201 0.354703
Z+PFPart 0.325695 0.321335
ZPart+PFPart 0.354193 0.357654
In Figure 16 and 17, we give different numbers
of inputs, and find that the performance improvement
converges with 8 or more inputs.
Figure 16: The F-measure scores in different numbers of
inputs.
7 CONCLUSION AND FUTURE
WORK
This paper proposes a novel method to retrieve rigid
and articulated 3D models. When most existing meth-
Table 4: The precision-recall area and F-measure of both
rigid and articulated categories (32 categories).
Random 1 view F-measure Area
Our (without HODG) 0.351801 0.352638
Our (with HODG) 0.352834 0.37696
SC (Shen et al., 2013) 0.317446 0.301876
LFD (Chen et al., 2003) 0.304962 0.286351
Random 4 views F-measure Area
Our (without HODG) 0.370055 0.40825
Our (with HODG) 0.372430 0.441786
SC (Shen et al., 2013) 0.343624 0.363110
LFD (Chen et al., 2003) 0.328067 0.34843
All 20 views F-measure Area
Our (without HODG) 0.375983 0.429935
Our (with HODG) 0.379451 0.467065
SC (Shen et al., 2013) 0.355618 0.395940
LFD (Chen et al., 2003) 0.335435 0.372276
Figure 17: The area scores in different numbers of inputs.
ods retrieved features from the whole projected views
or based on skeleton topologies, we propose using
global shapes and additional local information from
segmented torso and limb regions for 3D model re-
trieval. This method does not require a well-aligned
model posture or viewpoint. Each query can be fin-
ished within a second by our current system with-
out carefully code optimization. In our experiment,
GRAPP 2018 - International Conference on Computer Graphics Theory and Applications
110
we evaluated different combinations of feature sets
and different numbers of input views. These reports
can be helpful for further view-based retrieval system.
The comparison also demonstrated that the proposed
method can get more accurate results than two known
methods.
Currently, our retrieval method is designed for
articulated objects in which the limbs are rigid.
One possible extension is to incorporate deformation
methods, e.g. (Chen et al., 2013), for retrieving ob-
jects with surface deformation. Recently, the deep
learning techniques succeed in various vision prob-
lems. Our current method is relatively low-cost in
computation, and another possible future work is to
incorporate the features extracted from learning meth-
ods, e.g.(Su et al., 2015).
REFERENCES
ASUS Inc. Xtion pro. www.asus.com/3D-Sensor/.
Autodesk Inc. Maya. www.autodesk.com/products/
maya/.
Bai, X. and Latecki, L. J. (2008). Path similarity skeleton
graph matching. IEEE Transactions on Pattern Anal-
ysis and Machine Intelligence, 30(7):1282–1292.
Canterakis, N. (1999). 3D Zernike moments and Zernike
affine invariants for 3D image analysis and recogni-
tion. In 11th Scandinavian Conf. on Image Analysis,
In 11th Sc:85–93.
Chen, C.-H., Tsai, M.-H., Lin, I.-C., and Lu, P.-H. (2013).
Skeleton-driven surface deformation through lattices
for real-time character animation. The Visual Com-
puter, 29(4):241–251.
Chen, D.-Y., Tian, X.-P., Shen, Y.-T., and Ouhyoung, M.
(2003). On Visual Similarity Based 3D Model Re-
trieval. Eurographics, 22(3):223–232.
Daras, P. and Axenopoulos, A. (2010). A 3D Shape Re-
trieval Framework Supporting Multimodal Queries.
International Journal of Computer Vision, 89(2-
3):229–247.
Funkhouser, T., Min, P., Kazhdan, M., Chen, J., Halder-
man, A., Dobkin, D., and Jacobs, D. (2003). A search
engine for 3d models. ACM Trans. Graph., 22(1):83–
105.
Hasler, N. and Thorm, T. (2010). Learning Skeletons for
Shape and Pose. Proceedings of the 2010 ACM SIG-
GRAPH symposium on Interactive 3D Graphics and
Games - I3D ’10, 1(212):23–30.
Igarashi, T., Matsuoka, S., and Tanaka, H. (1999). Teddy:
A sketching interface for 3d freeform design. In Pro-
ceedings of SIGGRAPH, pages 409–416.
Kim, V. G., Chaudhuri, S., Guibas, L., and Funkhouser, T.
(2014). Shape2pose: Human-centric shape analysis.
ACM Trans. Graph., 33(4):120:1–120:12.
Kim, V. G., Li, W., Mitra, N. J., Chaudhuri, S., DiVerdi,
S., and Funkhouser, T. (2013). Learning part-based
templates from large collections of 3d shapes. ACM
Trans. Graph., 32(4):70:1–70:12.
Kleiman, Y., van Kaick, O., Sorkine-Hornung, O., and
Cohen-Or, D. (2015). Shed: Shape edit distance for
fine-grained shape similarity. ACM Trans. Graph.,
34(6):235:1–235:11.
Lian, Z. and Zhang, J. (2015). Shrec15 non-rigid
3d shape retrieval. www.icst.pku.edu.cn/zlian/
shrec15-non-rigid/data.html.
Lin, I.-C., Lan, Y.-C., and Cheng, P.-W. (2015). SI-
Cut: Structural inconsistency analysis for image fore-
ground extraction. IEEE Transactions on Visualiza-
tion and Computer Graphics, 21(7):860–872.
L
´
opez-Sastre, R., Garc
´
ıa-Fuertes, A., Redondo-Cabrera, C.,
Acevedo-Rodr
´
ıguez, F., and Maldonado-Basc
´
on, S.
(2013). Evaluating 3d spatial pyramids for classifying
3d shapes. Computers & Graphics, 37(5):473–483.
Microsoft Corp. Kinect. www.xbox.com/Kinect.
Mohamed, W. and Hamza, A. B. (2012). Reeb graph path
dissimilarity for 3d object matching and retrieval. The
Visual Computer, 28(3):305–318.
Rother, C., Kolmogorov, V., and Blake, A. (2004). Grabcut:
interactive foreground extraction using iterated graph
cuts. ACM Transactions on Graphics, 23(3):309–314.
Rubner, Y., Tomasi, C., and Guibas, L. J. (2000). Earth
mover’s distance as a metric for image retrieval. Inter-
national Journal of Computer Vision, 40(2):99–121.
Shen, W., Bai, X., Hu, R., Wang, H., and Jan Latecki, L.
(2011). Skeleton growing and pruning with bending
potential ratio. Pattern Recognition, 44(2):196–209.
Shen, W., Wang, Y., Bai, X., Wang, H., and Jan Latecki, L.
(2013). Shape clustering: Common structure discov-
ery. Pattern Recognition, 46(2):539–550.
Sipiran, I., Bustos, B., and Schreck, T. (2013). Data-aware
3D partitioning for generic shape retrieval. Computers
& Graphics, 37(5):460–472.
Su, H., Maji, S., Kalogerakis, E., and Learned-Miller, E. G.
(2015). Multi-view convolutional neural networks for
3d shape recognition. In Proc. IEEE International
Confererence on Computer Vision, pages 945–953.
Wang, Y.-S. and Lee, T.-Y. (2008). Curve-skeleton extrac-
tion using iterative least squares optimization. IEEE
transactions on visualization and computer graphics,
14(4):926–36.
Wu, L.-C., Lin, I.-C., and Tsai, M.-H. (2016). Augmented
reality instruction for object assembly based on mark-
erless tracking. Proceedings of the 20th ACM SIG-
GRAPH Symposium on Interactive 3D Graphics and
Games - I3D ’16, pages 95–102.
Xie, Z., Xiong, Y., and Xu, K. (2014). Ab3d: Action-based
3d descriptor for shape analysis. Visual Computer,
30(6-8).
Retrieving 3D Objects with Articulated Limbs by Depth Image Input
111
