Towards a Test Specification Language for Information Systems:
Focus on Data Entity and State Machine Tests
Alberto Rodrigues da Silva
1
, Ana C. R. Paiva
2,3
and Valter Emanuel R. da Silva
2
1
INESC-ID, Instituto Superior Técnico, Universidade de Lisboa, Lisboa, Portugal
2
Faculty of Engineering of the University of Porto, Porto, Portugal
3
INESC TEC, Porto, Portugal
Keywords: Test Specification Language (TSL), Test Specification, Model-based Testing (MBT), Test Case Generation.
Abstract. This paper introduces the TSL language (short name for “Test Specification Language”) that intends to
improve the test specification of information systems in a systematic, rigorous and consistent way. TSL
specifications are produced from close requirement specifications expressed in the RSL language
(Requirements Specification Language). Both RSL and TSL support human-readable executable
specifications closer to natural language than models usually used in model-based testing approaches. TSL
includes several constructs logically arranged into views according to multiple testing engineering strategies,
commonly found in the information systems domain, such as: data entity tests and state machine tests, all of
them produced from equivalent requirement specification in RSL. A case study is also presented to illustrate
the proposed approach.
1 INTRODUCTION
Testing is one of the most important activities to
ensure the quality of a software system in the scope
of software development projects. As reported by Ibe,
about 30 to 60 percent of the total effort within a
project is spent on testing (Ibe, 2013). It is also
estimated that up to 50 percent of the total
development costs are related to testing (Fagan,
2001). This indicates, not only its importance, but
also the higher impact it has in the overall system
development process cycle.
Model-based testing (MBT) is one technique that
addresses this problem (Stahl and Volter, 2005; Silva,
2015; Morgado, 2017). A potential infinite set of test
cases can be generated from a model of a given
“system under test” (SUT) (or just “system” for
brevity). System models or system specifications vary
in nature: they can be more or less abstract and
represented textually (Paiva, 1997) and/or graphically
(Monteiro, 2013); they can describe the
functionalities or goals (Rodrigo, 2017) of the system
under test. A problem is that often these models do
not exist, which demand they have to be developed
from scratch, or there is only a textual description of
its requirements with a very informal way, which
does not allow to derivate automatically test cases
from it. However, the existence of system
requirements specification (SRS), defined with
controlled natural languages, may enable the
derivation of test cases directly from such rigorous
models or specifications.
Usually system tests and acceptance tests (like
requirement specifications) are manually written in
some natural language. However, the resultant test
cases are ineffective since they are hard to write and
costly to maintain. Leveraging domain specific
languages (DSLs) for functional testing can provide
several benefits. For example, Robin Buuren
recognizes in his work “Domain-Specific Language
Testing Framework” three major quality aspects
concerning the adoption of DSLs for test
specification, namely (Buuren, 2015): (i)
Effectiveness because it reduces the time of test
development, since tests can be generated from a
model; (ii) Usability because it is easier to produce
such test specification, considering the support
provided by the work environment; and (iii)
Correctness because it makes system tests clearer by
giving testers programmatic and strictly defined rules,
leading to fewer errors.
This research presents and discusses the TSL
(Test Specification Language) that adopts a model-
Silva, A., Paiva, A. and Silva, V.
Towards a Test Specification Language for Information Systems: Focus on Data Entity and State Machine Tests.
DOI: 10.5220/0006608002130224
In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 213-224
ISBN: 978-989-758-283-7
Copyright © 2018 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
213
based testing approach for rigorous and human-
readable specification of test cases. TSL is strongly
inspired on the grammar, nomenclature and writing
style as defined by the RSL, which is a rigorous
requirements specification language (Silva, 2017;
Silva, 2017a). By applying black-box functional
testing design techniques, TSL includes and supports
two different test strategies, namely, (i) domain
analysis testing (the test strategy uses techniques such
as equivalence partitioning and boundary value
analysis for the definition of structural data values);
(ii) state machine testing (the test strategy traverses
the State Machine expressed in RSL according to
different coverage criteria, e.g., cover all states).
To better support the explanation and discussion
of the TSL language we introduce a fictitious
information system (the “BillingSystem”) that is
partially described as a variety of informal
requirements such as the following text. This
description is to some extent deliberately incomplete,
vague and inconsistent, as it is common in real-world
situations.
Informal Requirements of a Billing System
BillingSystem is a system that allows users to manage
customers, products and invoices. A user of the
system is someone that has a user account and is
assigned to one or more user roles, such as user,
user-operator, user-manager and user-administrator
[…].
User-operator is responsible for managing
customers and invoices. System shall allow user-
operator to create/update information related to
customers and invoices […].
The creation of invoices is a shared task
performed by the user-operator and the user-
manager. System shall allow user-operator to create
new invoices (with respective invoice details). Before
sending an invoice to a customer, the invoice shall be
formally approved by the user-manager. Only after
such approval, the user-operator shall issue and send
that invoice electronically by e-mail and by regular
post. In addition, for each invoice, the user-operator
needs to keep track if it is paid or not […].
User-manager shall be responsible for approving
invoices before they are issued and sent to their
customers. User-manager shall allow monitoring the
process of creating, approving and payments
invoices. User-manager shall approve or reject
invoices […].
This paper is organized in 5 sections. Section 2
introduces and overviews the RSL language, by
introducing its bi-dimensional multi-view
architecture, based on abstraction levels and
concerns. Section 3 gives a very short introduction to
the concepts around Cucumber and Gherkin. Section
4 presents and discusses the TSL constructs and
views, namely tests based on data entities and state
machines. Finally, Section 5 presents the conclusion
and identifies issues for future work.
2 RSL OVERVIEW
RSLingo is a long-term research initiative in the RE
(Requirements Engineering) area that recognizes that
natural language, although being the most common
and preferred form of representation used within
requirements documents, it is prone to produce such
ambiguous and inconsistent documents that are hard
to automatically validate or transform. Originally
RSLingo proposed an approach to use simplified
natural language processing techniques as well as
human-driven techniques for capturing relevant
information from ad-hoc natural language
requirements specifications and then applying
lightweight parsing techniques to extract domain
knowledge encoded within them (Ferreira and Silva,
2012). This was achieved through the use of two
original languages: the RSL-PL (Pattern Language)
(Ferreira and Silva, 2013), designed for encoding RE-
specific linguistic patterns, and RSL-IL (Intermediate
Language), a domain specific language designed to
address RE concerns (Ferreira and Silva, 2013a).
Through the use of these two languages and the
mapping between them, the initial knowledge written
in natural language can be extracted, parsed and
converted to a more structured format, reducing its
original ambiguity and creating a more rigorous SRS
document (Silva, 2015a).
More recently, Silva et al. designed a broader and
more consistent language, called “RSLingo's RSL”
(or just “RSL” for the sake of brevity), based on the
design of former languages (Videira and Silva, 2005;
Videira et al, 2006; Silva et al, 2007; Ferreira and
Silva, 2013; Ferreira and Silva, 2013a; Ribeiro and
Silva, 2014; Ribeiro and Silva, 2014/a; Silva et al,
2015; Savic et al, 2015). According to its authors RSL
is a control natural language to help the production of
SRSs in a systematic, rigorous and consistent way
(Silva, 2017; Silva, 2017a). RSL is a process- and
tool-independent language, i.e., it can be used and
adapted by different users and organizations with
different processes/ methodologies and supported by
multiple types of software tools.
MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development
214
RSL provides several constructs that are logically
arranged into views according to two viewpoints: the
abstraction level (Levels) and the specific RE
concerns (Concerns) they address. As summarized in
Table 1, these views are organized according to two
abstraction levels: business and system levels; and to
five concerns: context, active structure, behaviour,
passive structure and requirements.
At the business level, RSL supports the
specification of the following business-related
concerns: (1) the people and organizations that can
influence or will be affected by the system; (2)
business processes, events, and flows that might help
to describe the business behaviour; (3) the common
terms used in that business domain; and (4) the
general business goals of stakeholders regarding the
value that the business as well the system will bring.
Considering these concerns, RSL business level
comprise respectively the following views:
Stakeholders (active structure concern),
BusinessProcesses (behaviour concern), Glossary
(passive structure concern), and BusinessGoals
(requirements concern). In addition, the references to
the systems used by the business, as well as their
relationships can also be defined at this level (context
concern).
On the other hand, at the system level, RSL
supports the specification of multiple RE specific
concerns, namely by the adoption of the following:
(1) constructs that allow to describe the actors that
interact with the system; (2) constructs that allow to
describe the behaviour of some system’s data entities,
namely based on state machines; (3) constructs that
allow to describe the structure of the system, namely
Table 1: Classification of RSL views: abstraction levels versus RE specific concerns (Silva, 2017).
Specification 1: RSL (partial) specification example.
Concerns
Context Active Structure Behavior
Passive Structure
Requirements
Levels (Subjects) (Verbs, Actions) (Objects)
Business
package-
business
Business
SystemRelation
BusinessElemen
t Relation
Stakeholder
BusinessProcess
(BusinessEvent,
BusinessFlows)
GlossaryTerm BusinessGoal
System
package-
system
System
Requirement
Relation
Actor
StateMachine
(State, Transition,
Action)
DataEntity
DataEntityView
SystemGoal
QR
Constraint
FR
UseCase
UserStory
Package
Towards a Test Specification Language for Information Systems: Focus on Data Entity and State Machine Tests
215
based on data entities and data entity views; and (4)
constructs that allow to specify the requirements of
the system according different styles. Considering
these concerns, the system level respectively
comprises the following views: Actors (active
structure concern); StateMachines (behaviour
concern); DataEntities and DataEntityViews (passive
structure concern); and multiple types of
Requirements such as SystemGoals,
QualityRequirements (QRs), Constraints,
FunctionalRequirements (FRs), UseCases, and
UserStories (requirements concern). In addition, all
these elements and views should be defined in the
context of a defined System (context concern).
Specification 1 shows a simple text snippet of the
RSL requirements specification for the BillingSystem
example.
3 GHERKIN/CUCUMBER
OVERVIEW
Behavior-driven Development (BDD) is a software
development methodology in which an application is
specified and designed describing how its beha-vior
should appear to an external observer (Solis and
Wang, 2011). In BDD, people like business analysts
or product owners first write acceptance tests that
describe the system behavior from the user's point of
view. Then these acceptance tests shall be reviewed
and approved by product owners before developers
start write their software code.
Cucumber
1
is a test tool that executes automated
acceptance tests written in a behaviour-driven style
(BDD). Cucumber enables automation of functional
validation in an easily readable and understandable
format (as plain English) for business analysts,
developers, testers, and others.
Gherkin
2
is a popular language used by Cucumber
to define test cases. Its main objective is to enable to
specify tests in a way that clients can understand
them. Gherkin tests are organized into features. Each
feature is made up of a collection of scenarios defined
by a sequence of steps and following a Given-When-
Then (GWT) rule. A simple example is illustrated
below, more information can be obtained, for
example, in
1
.

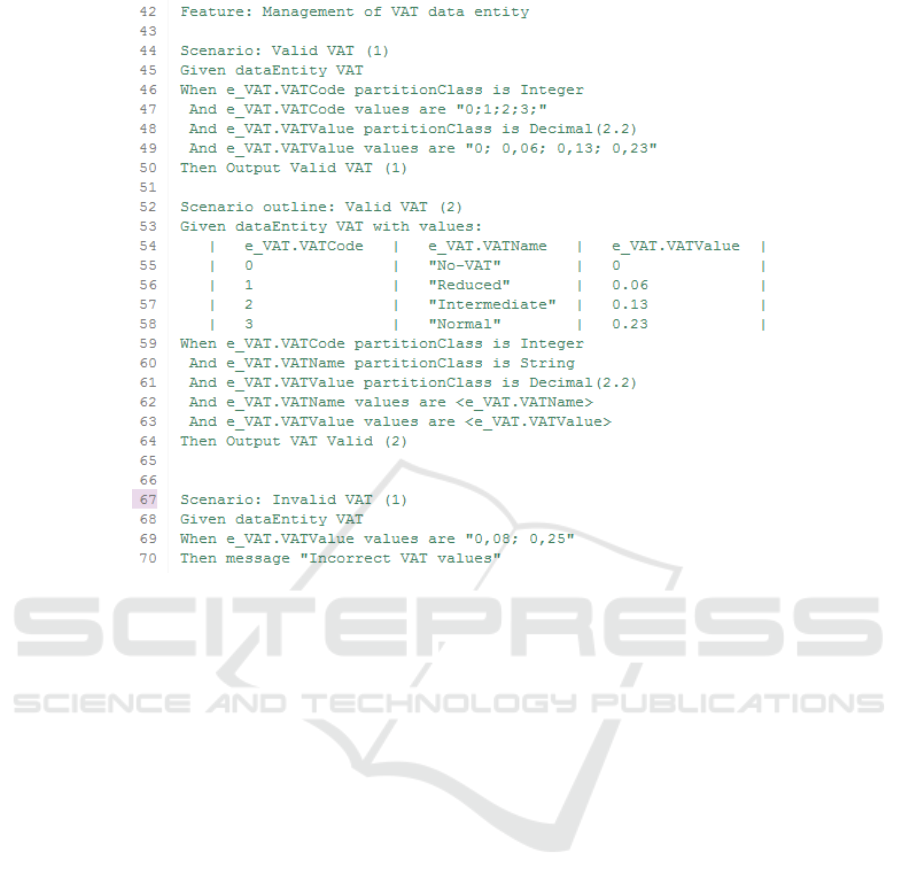

Simple test case example in Gherkin:
Feature: Login Action
Scenario: Successful Login with
1
https://cucumber.io/
Valid Credentials
Given User is on Home Page
When User Navigate to LogIn Page
And User enters UserName
And Password
Then Message displayed Login Successfully
4 TSL APPROACH AND
LANGUAGE
The aim of this research is to develop an approach to
support the specification and generation (whenever
relevant) of software tests defined in TSL, directly
from requirements specifications originally defined
in RSL. It is intended to achieve the following goals:
(i) extend the RSLingo approach with the support for
testing activities; (ii) define a set of strategies that
would allow generating test cases from the RSL
constructs; and (iii) automate the test case generation
process.
Figure 1 suggests the proposed approach. First,
RSL requirements specifications are the input for the
RSL-to-TSL transformation that generates TSL
specifications. Second, based on predefined
strategies, these TSL specs can be expanded and
generated into other TSL specs (e.g., for increasing
the system testing domain with more test cases).
Third, the TSL specs are the input for the TSL-to-
Gherkin transformation that generates Gherkin
specifications, and ultimately these specs can be used
for documentation purposes or even for testing
execution.
As illustrated in Figure 2, a TSL specification is a
combination of two different types of elements. First,
the TestSupportSpecs package includes
TestSupportSpec elements such as DataEntities or
StateMac hines. These elements are a simplified
version of the equivalent elements supported by the
RSL language (e.g., the TSL DataEntity element is a
simplified version of the RSL DataEntity). These
TSL TestSupportSpec elements can be authored
manually but usually shall be generated from the RSL
specs.
Second, the TestSuite package includes TestCase
elements such as DataEntityTestCase or
StateMachineTestCase. Each TestCase shall be
defined as Valid or Invalid and shall have a
dependency to a respective TestSupportSpec, e.g., a
StateMachineTestCase shall have a dependency to
the respective StateMachine. These TestCase
2
https://cucumber.io/docs/reference#gherkin
MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development
216
elements can be generated by the RSL-to-TSL and
TSL-to-TSL transformations, but usually shall be
authored and refined by the software testers.
TSL allows specifying various black-box test cases in
a syntactic manner similar to that expressed by RSL.
In addition, TSL allows to systematize the test
developing process with both Xtext-based and Excel
RSL formats. Xtext based format is handled with the
integration of the Eclipse IDE (Bettini, 2016). This
environment provides an editor for test construction,
covering most important features concerning IDE,
granting TSL a semi-automated way to formally
specify test cases. This Eclipse-based tool provides
great assist for composing tests, namely comprehends
a syntax-aware editor with features like immediate
feedback, incremental syntax checking, suggested
corrections, and auto-completion. On the other hand,
the RSL/TSL Excel template is extended with the
creation of three Excel sheets, arranged in a tabular
way, for each of the provided test types. This grants a
broader usage, since testers with no IT background
can specify tests using a general tool as MS-Excel. On
the other hand, it loses part of the rigor and formality
inherent to the Xtext format.
As suggested above in Figure 2, TSL supports the
specification of different test generation techniques
from RSL specifications, namely DataEntity,
StateMachine and UseCase test cases.
DataEntityTestCases can be defined by applying
equivalence class partitioning and boundary value
analysis (Bhat and Quadri, 2015) over RSL
DataEntities. On the other hand,
StateMachineTestCases can be defined by applying
different algorithms to traverse the state machine
defined in RSL, so that it shall be possible to build
different test cases that correspond to different paths
through the state machine. Furthermore,
UseCaseTestCase can be defined by exploring
multiple sequences of steps defined in RSL use cases,
and also by associating data values to the involved
data entities. Due to space constraints we do not show
in this paper the part of the TSL language related to
Figure 1: TSL based approach.
Figure 2: Metamodel of the TSL general architecture (partial view).
RSL
spec
TSL
spec
TSL-to-TSL
RSL-to-TSL
Gherkin
spec
TSL-to-Gherkin
TestCase
DataEntityTestCase
UseCaseTestCase
Sta teMachineTestCase
DataEntity Sta teMachineUseCase
TestSui te
TestSupportSpec
TestSupportSpecs
import
Towards a Test Specification Language for Information Systems: Focus on Data Entity and State Machine Tests
217
Specification 2: Example of a TSL (partial) specification defined in a TestSupportSpecs package.
MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development
218
UseCaseTestCases (that shall be discussed in a future
work).
4.1 Test Support Specs

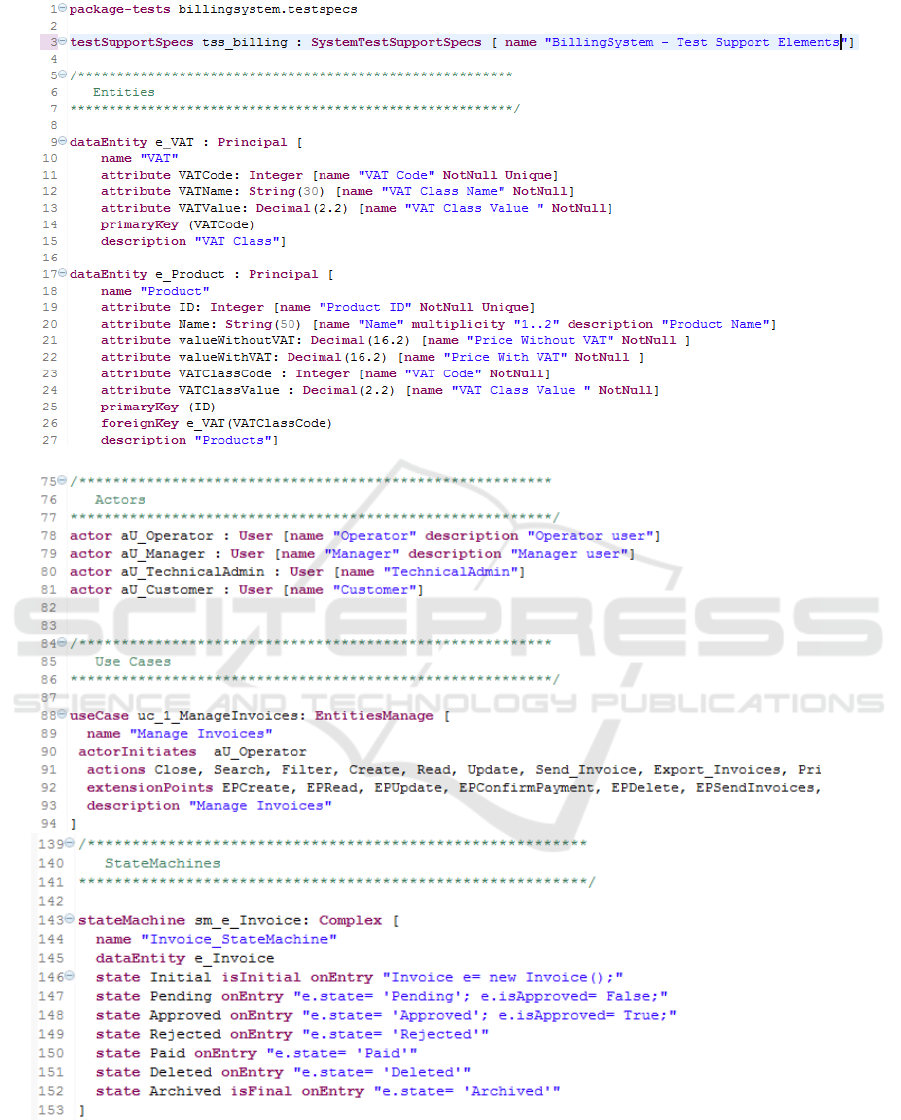

As referred above, a TestSupportSpecs package
defines the supported elements that shall be then used
by the test cases. Specification 2 shows a TSL partial
specification of a TestSupportSpecs package for the
BillingSystem example. In particular it shows the
specification of the following elements: e_VAT and
e_Product data entities, actors, the
uc_1_ManageInvoices use case, and the
sm_e_Invoice state machine.
4.2 Data Entity Test Cases
Domain analysis testing is based on classic test design
techniques known as “equivalence class partitioning”
and “boundary value analysis” (Bhat and Quadri,
2015). Since most of the times it is unfeasible to test
all possible values of the possible domain classes or
data entities (in the RSL/TSL terminology), the
equivalence class partitioning technique partitions the
domain into equivalent classes (assuming that the
behaviour of the system is the same for every value
of a class) and then tests one value for each class. For
boundary value analysis, the input values are the ones
located at the boundaries of the equivalence classes
because it is expected that the probability of finding
failures is higher.
As shown in Specification 2, a DataEntity keeps
information about a specific data entity and its
attributes; for each attribute it keeps information
about its type, size, among others. Based on this
information, it is possible to define equivalence
classes and test input data. For example, consider an
entity with an attribute A of type real and with one
decimal place. According to equivalence class
partitioning we should test valid and invalid input
values. So, for this particular case, the tester could
define a valid input, e.g., 15.2, and an invalid input,
e.g., 14.35. Of course, the tester can opt to define an
invalid input value according to the type of the
attribute. In this case a possible invalid value would
be, for example, a string, e.g., “invValue”.
The benefit of the TSL is that it builds a view with
all the entities and attributes for which the tester
should define test input data. In case of sequential
attribute values (such has numbers), it is also possible
to apply boundary value analysis to define test input
data. For instance, if we have an attribute B that
ranges from 5 to 7, the tester can define test input data
on the boundaries, e.g., 5 and 7 for valid, and 4 and 8
for invalid values.
As illustrated in Figure 3, a DataEntityTestCase
refers to just one DataEntity and defines a
combination of values that are associated to its
respective attributes. These values can be defined
individually at an attribute basis (using the
TestAttribute object) or as a table of values associated
to multiple attributes (using the Values object). Each
DataEntityTestCase shall be defined as Valid or
Invalid type depending on the validity of such values.
In the Billing System context, an invoice is a
commercial document related to a sale transaction
between a seller to a buyer (customer). For each
invoice the system shall indicate the products,
quantities, agreed prices for products or services the
seller had provided the buyer. Each product has a
price with and without the respective VAT. The VAT
(value-added tax) VAT is a type of general
consumption tax that is collected incrementally,
based on the surplus value, added to the price on the
work or the product at each stage of production.
Specification 3 shows a TSL specification of some of
these entities, namely the e_VAT and e_Product data
entities.
Based on this data entities specification it is
possible to define and also to generate some data
entity test cases. Specification 4 shows some of these
tests defined for the e_VAT data entity. First, detVAT1
is defined as a valid test case and defines two
testAttributes, which both define a partition class
check, valid values, and for the e_VAT.VATCode
attribute a uniqueness constraint. Second, detVAT2 is
defined as a valid test case but shows a set of relevant
attributes with valid values in a table format; this
representation is usually the most practical and
convenient approach to define such values. In
addition, detVAT2 also defines three testAttributes.
Third, detVAT3 is defined as an invalid test case and
involves the definition of two testAttributes, both
with problems referred by their respective messages
(i.e., "Incorrect VAT values" and "Incorrect
VATValue PartitionClass").
Specification 5 shows the equivalent data entity
test case in the Gherkin language.
Towards a Test Specification Language for Information Systems: Focus on Data Entity and State Machine Tests
219
Figure 3: Metamodel of the TSL DataEntityTestCase definition (partial view).
Specification 3: Example of a TSL (partial) specification of data entities.
Specification 4: Example of a TSL (partial) specification of data entity tests.
MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development
220
Specification 5: Example of a Gherkin (partial) specification of data entity tests.
4.3 State Machine Test Cases
A state machine is a model that describes the dynamic
behaviour of a system over a given data entity (or
object) throughout its life-cycle. A state machine
allows to represent the behaviour of a data entity as a
set of event-driven actions from a state to another
when triggered by a given use case action. In addition,
from the state machine defined in RSL, it is possible
to apply different algorithms that traverse the state
machine according to different test coverage criteria,
such as, all states or all transitions.
As illustrated in Figure 4, a
StateMachineTestCase specifies the State Machine to
which is applied and an ordered sequence of states to
traverse (i.e., a StateSequence). Finally, this
StateMachine TestCase shall be defined as Valid or
Invalid type depending if that sequence of states are
semantically valid or not.
The Specification 6 shows some examples of
StateMachineTestCase associated to the e_Invoice’s
state machine (as previously defined above, shown in
Specification 2). The first (i.e., tsm1_SM_E_Invoice)
is an invalid test case because it defines an invalid
sequence of states (i.e., Initial, Pending, Paid); The
second (i.e., tsm2_SM_E_Invoice) is a valid test case
because it defines a valid sequence of states related
with a reject situation (i.e., Initial, Pending, Rejected,
Deleted, Archive); the third (i.e.,
tsm3_SM_E_Invoice) is also a valid test case because
it defines a valid sequence of states related with an
approved and paid situation.
Specification 7 shows the equivalent state
machine test case in the Gherkin language.
5 CONCLUSION
This paper describes the Test Specification Language
(TSL), a model-based test approach to specify test
cases, through the perspective of system tests, from a
RSL software model. Functional test cases are
mapped from the various RSL package-system views,
containing several constructs that describe the system
behaviour, such as Actor view, DataEntity view,
UseCase view and StateMachine view. This lead to
the creation of three main test constructs by applying
of black-box test design techniques. More
specifically: data entity tests, state machine tests and
use case tests.
The study case “Billing System”, a fictitious
invoice management application, allowed to illus-
Towards a Test Specification Language for Information Systems: Focus on Data Entity and State Machine Tests
221
Figure 4: Metamodel of the TSL StateMachineTestCase definition (partial view).
Specification 6: Example of a TSL (partial) specification of state machine tests.
Specification 7: Example of a Gherkin (partial) specification of state machine tests.
trate how the several test case constructs can be
represented in a concrete and practical scenario.
Demonstrating that, as executable requirements
specifications, functional tests can be easy to "read,
write, execute, debug, validate, and maintain" (King,
2014).
As future work it shall be important to extend the
language to support, in addition, both use case and
TestCase
StateMachineTestCase
«enumerati...
TestCaseType
Valid
Invalid
StateSequence
TestSupportSpec
StateMachine
State
1
stateSequence
1..*
{ordered}
type
+stateMachine
1
*
MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development
222
user story test cases. It shall also be relevant to
automate processes for TSL test case generation and
we consider the following transformations: generate
TSL test cases from equivalent RSL requirements
specifications; and directly from existant systems and
databases, namely adopting model-driven reverse
engineering techniques like we researched recently
(Reis and Silva, 2017). Futhermore, it shall be
important the automatic execution of tests namely
with their integration with external test frameworks.
At this point in time, the developed TSL State
Machine Support Tool generates test cases based on
a Switch-0 coverage, it would also be interesting to
implement algorithms based on other coverage
criteria (e.g., Switch-1 or Switch-2). Aside from that,
one could explore the possibility of more automated
processes, for instance: the generation of domain
analysis test data by combinatorial generation of
values for each attribute (e.g., constrains on possible
attribute values) and extraction of test scenarios based
on the varies flows expressed by Use Cases.
The generated tests specified in TSL can be
executed manually by a tester to exercise the SUT and
discover possible errors in the system. It would be
interesting for further research to explore the
integration of TSL files, of real developed systems,
with test frameworks to provide automatic execution
of those tests. For example, exploration of tools such
Cucumber
3
or Specflow
4
which enables the automatic
execution of tests in a plain-text language called
Gherkin. Cucumber is a popular tool employed in
various languages including Java, JavaScript, and
Python. Meanwhile, Specflow is an open source
solution for .NET projects. This way it would be
possible to provide an oracle for the tests, determining
whether they passed or failed.
ACKNOWLEDGEMENTS
This work was partially supported by national funds
under FCT projects UID/CEC/50021/2013.
REFERENCES
Bettini, L., 2016. Implementing Domain-Specific
Languages with Xtext and Xtend. Packt Publishing Ltd.
Buuren, Robin A. ten. Domain-Specific Language Testing
Framework. (October), 2015.
Fagan, Michael E., 2001. Advances in software inspections.
In Pioneers and Their Contributions to Software
3
https://cucumber.io/
Engineering: sd&m Conference on Software Pioneers,
Springer.
Ferreira, D., Silva, A. R., 2012. RSLingo: An information
extraction approach toward formal requirements
specifications, Proceedings of MoDRE’2012, IEEE CS.
Ferreira, D., Silva, A. R., 2013. RSL-PL: A Linguistic
Pattern Language for Documenting Software
Requirements, in Proceedings of RePa’13, IEEE CS.
Ferreira, D., Silva, A. R., 2013a. RSL-IL: An Interlingua
for Formally Documenting Requirements, in Proc. of
the of Third IEEE International Workshop on Model
Driven Requirements Engineering, IEEE CS.
Ibe, Marcel, 2013. Decomposition of test cases in model-
based testing, in CEUR Workshop Proceedings.
King, Tariq, 2014. Functional Testing with Domain-
Specific Languages.
Kovitz, B. 1998. Practical Software Requirements: Manual
of Content and Style. Manning.
Monteiro, T., Paiva, A.C.R., 2013. Pattern Based GUI
Testing Modeling Environment, Sixth International
Conference on Software Testing, Verification and
Validation (ICST) Workshops Proceedings.
Morgado, I., Paiva, A.C.R., 2017. Mobile GUI testing,
Software Quality Journal, pp.1-18.
Paiva, A.C.R. (1997). Automated Specification-based
Testing of Graphical User Interfaces, Ph.D. thesis,
Faculty of Engineering, Porto University, Porto,
Portugal.
Reis, A., Silva, A. R., 2017. XIS-Reverse: A Model-Driven
Reverse Engineering Approach for Legacy Information
Systems, Proceedings of MODELSWARD’2017,
SCITEPRESS.
Ribeiro, A., Silva, A. R., 2014. XIS-Mobile: A DSL for
Mobile Applications, Proceedings of the 29th Annual
ACM Symposium on Applied Computing (SAC).
Ribeiro, A., Silva, A. R., 2014a. Evaluation of XIS-Mobile,
a Domain Specific Language for Mobile Application
Development, Journal of Software Engineering and
Applications, 7(11), pp. 906-919.
Rodrigo M. L. M. Moreira, Ana C. R. Paiva, Miguel
Nabuco, and Atif Memon, 2017. Pattern-based GUI
testing: bridging the gap between design and quality
assurance. Software Testing, Verification and
Reliability Journal, 27(3):e1629n/a.
Savic, D., et al, 2015. SilabMDD: A Use Case Model
Driven Approach, ICIST 2015 5th International
Conference on Information Society and Technology.
Silva, A. R., 2015. Model-Driven Engineering: A Survey
Supported by a Unified Conceptual Model, Computer
Languages, Systems & Structures 43 (C), 139155.
Silva, A. R., 2015a. SpecQua: Towards a Framework for
Requirements Specifications with Increased Quality, in
Lecture Notes in Business Information Processing
(LNBIP), LNBIP 227, Springer.
Silva, A. R., et al, 2015. A Pattern Language for Use Cases
Specification, in Proceedings of EuroPLOP’2015,
ACM.
4
http://specflow.org/
Towards a Test Specification Language for Information Systems: Focus on Data Entity and State Machine Tests
223
Silva, A. R., Saraiva, J., Ferreira, D., Silva, R., Videira, C.
2007. Integration of RE and MDE Paradigms: The
ProjectIT Approach and Tools, IET Software, IET.
Silva, A. R., Saraiva, J., Silva, R., Martins, C., 2007. XIS
UML Profile for eXtreme Modeling Interactive
Systems, in Proceedings of MOMPES'2007, IEEE
Computer Society.
Silva, A. R., Verelst, J., Mannaert, H., Ferreira, D.,
Huysmans, P., 2014. Towards a System Requirements
Specification Template that Minimizes Combinatorial
Effects, Proceedings of QUATIC’2014 Conference,
IEEE CS.
Silva, A. R., 2017. Linguistic Patterns and Linguistic Styles
for Requirements Specification (I): An Application
Case with the Rigorous RSL/Business-Level Language,
in Proceedings of EuroPLOP’2017, ACM.
Silva, A. R., 2017a. A Rigorous Requirement Specification
Language for Information Systems: Focus on RSL’s
Use Cases, Data Entities and State Machines, INESC-
ID Technical Report.
Solis, C., & Wang, X., 2011. A study of the characteristics
of behaviour driven development. In Software
Engineering and Advanced Applications (SEAA), 37th
EUROMICRO Conference on (pp. 383-387). IEEE.
Stahl, T., Volter, M., 2005. Model-Driven Software
Development, Wiley.
Verelst, J., Silva, A.R., Mannaert, H., Ferreira, D.,
Huysmans, 2013. Identifying Combinatorial Effects in
Requirements Engineering. In Proceedings of Third
Enterprise Engineering Working Conference (EEWC
2013), Advances in Enterprise Engineering, LNBIP,
Springer.
Videira, C., Silva, A. R., 2005. Patterns and metamodel for
a natural-language-based requirements specification
language. CAiSE Short Paper Proceedings.
Videira, C., Ferreira, D., Silva, A. R., 2006. A linguistic
patterns approach for requirements specification.
Proceedings 32nd Euromicro Conference on
Software Engineering and Advanced Applications
(Euromicro'2006), IEEE Computer Society.
Bhat, A., Quadri, S. M. K., 2015. Equivalence class
partitioning and boundary value analysis - A review.
2nd International Conference on Computing for
Sustainable Global Development (INDIACom).
MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development
224
