Hierarchical Model for Zero-shot Activity Recognition using Wearable

Sensors

Mohammad Al-Naser

1,2, ∗

, Hiroki Ohashi

3,∗

, Sheraz Ahmed

, Katsuyuki Nakamura

Takayuki Akiyama

, Takuto Sato

, Phong Nguyen

and Andreas Dengel

1,2

German Research Center for Artiﬁcial Intelligence (DFKI), Germany

University of Kaiserslautern, Germany

Hitachi Europe GmbH, Germany

Hitachi Ltd., Japan

Keywords:

Zero-shot Learning, Activity Recognition, And Hierarchical Model.

Abstract:

We present a hierarchical framework for zero-shot human-activity recognition that recognizes unseen activities

by the combinations of preliminarily learned basic actions and involved objects. The presented framework

consists of gaze-guided object recognition module, myo-armband based action recognition module, and the

activity recognition module, which combines results from both action and object module to detect complex

activities. Both object and action recognition modules are based on deep neural network. Unlike conventional

models, the proposed framework does not need retraining for recognition of an unseen activity, if the activity

can be represented by a combination of the predeﬁned basic actions and objects. This framework brings

competitive advantage to industry in terms of the service-deployment cost. The experimental results showed

that the proposed model could recognize three types of activities with precision of 77% and recall rate of 82%,

which is comparable to a baseline method based on supervised learning.

1 INTRODUCTION

Human activity recognition is important technology

for many applications such as video surveillance sys-

tems, patient monitoring systems, and work support

systems. A large body of works have investigated this

technology especially in computer vision ﬁeld (Ag-

garwal, 1999; Turaga et al., 2008; Lavee et al., 2009;

Aggarwal and Ryoo, 2011).

The target of this study is workers’ activities in

factories. The conventional systems are designed to

recognize particular set of activities by using super-

vised learning methods. Such systems, however, are

not suitable for practical deployment because of the

diversity of the activities in a practical ﬁeld. It is usual

in industrial situation that different factories have dif-

ferent demand for the target activities. In addition, the

way an activity is performed may be different from

factory to factory even though the name of the activity

is identical. In these cases, the conventional systems

need costly customization since they require retraining

∗

Both authors contributed equally to this work

of the whole model for a new activity.

The goal of this research is to design a framework

for zero-shot human activity recognition that over-

comes this drawback and realize an easy-to-deploy

system. The key idea is to recognize complex activi-

ties based on the combinations of simpler components,

like the actions and objects involved in the activities.

Two wearable sensors, namely eye-tracking glass

(ETG) and armband sensor, are utilized to recognize

the basic objects and basic actions, respectively (Fig-

ure 1). Although many conventional systems use ﬁxed

cameras as sensors, wearable sensors are more appro-

priate especially in complex industrial environment

because ﬁxed cameras often suffer from the occlusion

problem.

This framework enables to recognize a new activity

without time-consuming retraining process if a new

activity can be represented by a combination of pre-

deﬁned basic actions and objects. Figure 1 shows the

overview of the proposed model. (Here, “action” is

deﬁned as a simple motion of body parts such as “raise

arm” and “bend down”, while “activity” is deﬁned as

478

Al-Naser, M., Ohashi, H., Ahmed, S., Nakamura, K., Akiyama, T., Sato, T., Nguyen, P. and Dengel, A.

Hierarchical Model for Zero-shot Activity Recognition using Wearable Sensors.

DOI: 10.5220/0006595204780485

In Proceedings of the 10th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2018) - Volume 2, pages 478-485

ISBN: 978-989-758-275-2

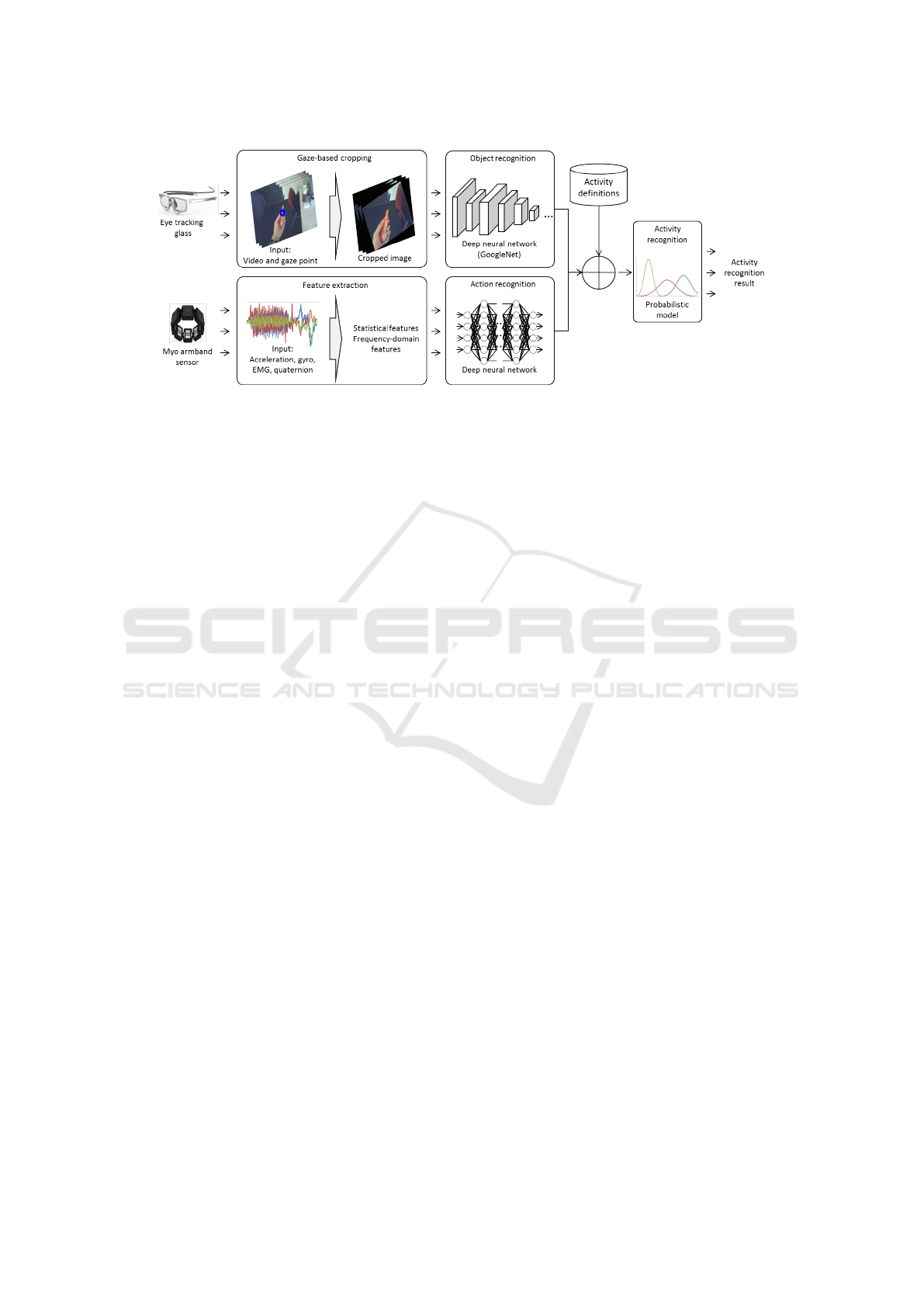

Figure 1: System overview. Object recognition module takes gaze-guided egocentric video and output the probabilities of basic

objects. Action recognition module takes multi-modal armband signals and output the probabilities of basic actions. Activity

recognition module process these probabilities to output the activity label.

a complex behavior such as “check manual” and “look

for parts”.)

This study introduces a deep neural network

(DNN) based action recognition method based on

armband sensor and a gaze-guided object recognition

method using ETG. The experimental result showed

the accuracy of these two basic recognition methods

are reasonably high. Moreover, the activity recognition

method based on these two basic modules achieved

about 80% both in precision and recall rate, which is

comparable to the baseline method based on super-

vised learning.

2 RELATED WORK AND

CONTRIBUTION OF THIS

STUDY

2.1 Related Work

Signiﬁcant amount of studies has worked on the activ-

ity recognition problem. One of the most common and

well-studied methods is the one based on video data

obtained from a ﬁxed camera (Wang et al., 2011; Wang

and Schmid, 2013; Tran et al., 2015; Donahue et al.,

2015). Especially a hierarchical model that uses two-

stream DNN have achieved the state-of-the-art accu-

racy in various publicly available datasets (Simonyan

and Zisserman, 2014; Wang et al., 2016; Peng and

Schmid, 2016). The two-stream networks extract ap-

pearance based features (spatial features) and motion

based features (temporal features) separately.

For example, Peng et al. (Peng and Schmid, 2016)

introduced a method that extracts region of interest

(ROI) by using a two-stream network that consists

of RGB based faster R-CNN to extract appearance

features and optical ﬂow based faster R-CNN to ex-

tract motion features. Next to these region proposal

networks, they added a multi-region generation layer

to extract more detailed information. Their method

achieved the best accuracy of 95.8% on the UCF sports

dataset. However, the video data obtained from a ﬁxed

camera easily suffer from an occlusion problem espe-

cially in a practical environment such as in a factory.

To overcome this occlusion problem, the meth-

ods based on ego-centric video data have been stud-

ied. Ego-centric video data (or ﬁrst-person-view video

data) are obtained using a wearable camera devices

such as Google glass. Recent surveys can be found in

(Nguyen et al., 2016; Betancourt et al., 2015). Pioneer-

ing works (Ma et al., 2016; Li et al., 2015) showed

the combination of motion and object cues computed

from ego-centric video to infer the human activities.

Ma et al. ’s method (Ma et al., 2016) is also based

on two-stream network. One network was designed to

detect objects by using hand location as a cue of ROI,

and the other network recognize actions. Then the

two networks are ﬁne-tuned jointly to recognize ob-

jects, actions, and activities. This model outperformed

state-of-the-are methods in average 6.6%.

Another way to overcome the occlusion problem

of ﬁxed-camera is to utilize data from other modalities.

Spriggs et al. (Spriggs et al., 2009) used an egocentric

camera, inertial measurement units (IMU) to classify

kitchen activities. Maekawa et al. (Maekawa et al.,

2010) used a wrist-mounted camera and sensors to de-

tect activities in daily living (ADL). Fathi et al. (Fathi

et al., 2012) and Li et al. (Li et al., 2015) use gaze

information with egocentric video to recognize activi-

ties. It becomes easier to recognize certain activities

by enriching the data source using multiple modalities,

especially the data from different body parts such as

head and arms.

Hierarchical Model for Zero-shot Activity Recognition using Wearable Sensors

479

Although the studies mentioned above have shown

the very good performance in recognizing human activ-

ities, there is one more barrier for the practical deploy-

ment. It is the diversity of the activities and difﬁculty

of collecting training data of those activities. It is usual

in industrial situation that different factories have dif-

ferent demand for the target activities. In addition, the

way an activity is performed may be different from

factory to factory even though the name of the activ-

ity is identical. Those previous studies are designed

to recognize activities that have been preliminarily

learned. In other words, they require training-data col-

lection and retraining of the model for recognizing a

new activity.

Zero-shot learning (Palatucci et al., 2009; Socher

et al., 2013) has a potential to address this challenge.

Some works such as Lie et al.(Liu et al., 2011) and

Cheng et al.(Cheng et al., 2013) have applied the con-

cept of zero-shot learning to recognize a new activity

on the basis of preliminarily learned attributes.

2.2 Contribution of This Study

As reviewed in section 2.1, there have been many re-

searches on human activity recognition. This study

takes the ﬁndings of all of those previous researches

and tries to extend the previous researches toward prac-

tical deployment in the real world.

To do so, we decided to utilize ego-centric data

to avoid the occlusion problem of ﬁxed-cameras and

zero-shot learning based approach to deal with the ac-

tivities that are not preliminarily learned. Our activity

recognition model is a hierarchical model. It recog-

nizes the activity by a combination of objects involved

in the activity and basic actions that compose the activ-

ity. It is known that the objects play an important role

for activity recognition since it conveys contextual in-

formation (Jain et al., 2015; Yao et al., 2011; Ma et al.,

2016). Although the basic components, namely, the

object recognition module and the action recognition

module need to be preliminarily trained, activities can

be recognized without any training if the activity is

represented as a combination of the predeﬁned objects

and actions.

We use SMI eye-tracking glass (ETG) and Myo

armband sensor for our system. ETG is very useful

to recognize an object that a target person is handling.

The armband sensor measures IMU and electric myo-

genic data (EMG) and useful for recognizing an arm’s

movement, which is especially important for in an

industrial situation,

To the best of our knowledge, this is the ﬁrst study

working on zero-shot activity recognition based on

ego-centric video data and data from an armband. We

will give a detailed description of the architecture to re-

alize this concept as well as the quantitative evaluation

results.

3 THE PROPOSED APPROACH

FOR ACTIVITY RECOGNITION

The overview of the proposed model is shown in Fig-

ure 1. The model consists of three main components

a) gaze-guided object detection module (Section 3.1),

which is based on deep neural networks and is capable

of recognizing objects, b) action recognition module

(Section 3.2), which is also based on deep learning and

uses Myo armband for detection of actions data, and c)

activity recognition (Section 3.3), which can recognize

complex activities, based on basic actions and objects

detected by object and action detection modules.

3.1 Gaze-guided Object Recognition

The object recognition in the real world, especially in

an industrial environment, is a challenging problem

because of the complexity of the background. There

are two ways of acquiring visual data by wearable

sensors: attach a camera on head or on body, typically

on chest. Since people sometimes look at something in

the direction to which the body is not facing, on-head

cameras capture more information on the wearer’s

view, or so-called 1st person view. In addition to the

1st person view video, eye-tracking glasses can capture

which point the wearer is gazing at within the view

(“gaze point"). This information is very useful because

the gaze point is usually the point of interest for the

user, and the system can easily focus of detecting the

objects around the point of interest. In addition, SMI

Eye-Tracking glass ETG 2 has 0.5 error degree and

weighs 47 grams, which is the lightest on-head type

vision sensors.

Since the gaze point usually indicates the point

of interest of the wearer of the ETG, we assume that

only the region around the gaze point is important and

the other region in the image is not important. By

cropping an image around the gaze point, a sub image

that contains only a target object in reasonably large

size can be obtained. Figure 2 shows an example of

the cropped images.

The gaze-based cropping is applied not only in real-

time recognition, but also in creating a training data

set. Training data set is very important for building a

good machine learning method. Especially for DNN

models, which usually contain vast amount of param-

eters, acquiring enough amounts of data and diverse

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

480

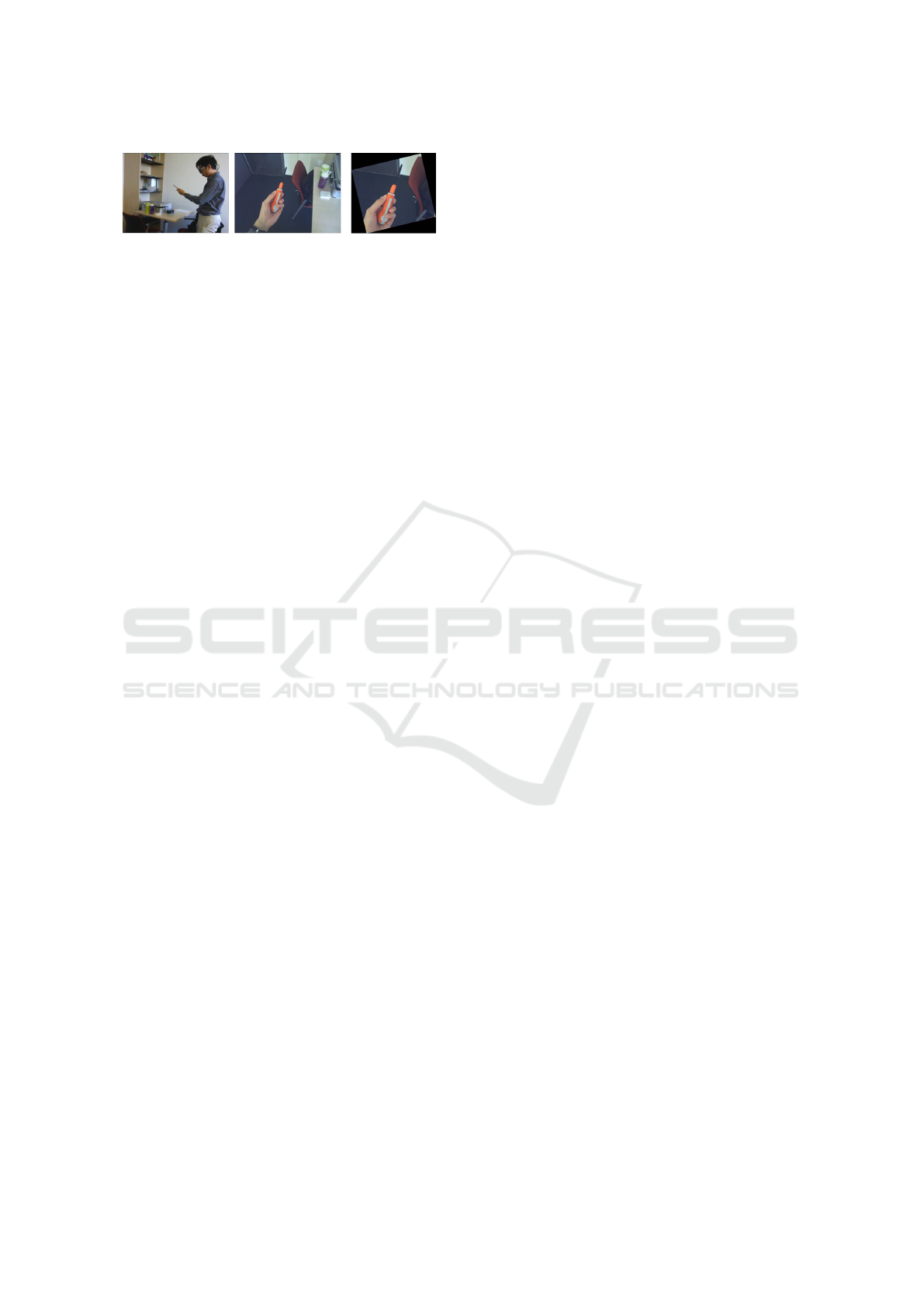

Figure 2: An example of cropped images. Left: The image

from ﬁxed camera. Center: The original image of the ETG.

Right: The cropped image.

enough data is crucial to avoid the over-ﬁtting prob-

lem. When cropping images around the gaze point, we

randomly change the size of the cropping as well as

the degree of rotation of the cropping area. By using

this scheme, we can obtain (

60 ∗ f ps ∗ Ns ∗ Nr

) data

in 1 minute, where

f ps

denotes the frame rate of the

ETG video data,

denotes the number of different

cropping sizes, and

denotes the number of different

degrees of the rotation.

To deal with the case where no object is included

in the cropped image, we deﬁned “reject class” in ad-

dition to the target object categories. The reject class

preferably includes all the possible objects and back-

ground scene other than the target objects. By training

the model with this reject class, the model signiﬁcantly

becomes robust against the false positives.

We use GoogLeNet (Szegedy et al., 2015) as the

initial model of the object recognition and ﬁne-tune it

with the collected training data using above-mentioned

cropping method. GoogLeNet has 27 layers including

Inception, CNN, and pooling layers. We ﬁne-tuned

the last two layers using our own training data.

3.2 Action Recognition

For industrial application, it is desireble to let the work-

ers attach as less sensors as possible so as not to disturb

them. We therefore decided to attach a sensor only

on an arm, which is supposed to be one of the most

important parts in many cases. We decided to use Myo

armband because it is light weight (93 grams), has long

battery life (more than 8 hours), and has good sensors

(IMU sensors and electro-myogenic (EMG) sensors)

that can be used for recognizing different types of arm

actions.

DNN is used also for action recognition because of

its overwhelming performance on most of the recog-

nition tasks. As input, all the sensor data that can

be collected with Myo armband, namely, quaternion,

acceleration, gyro, and EMG data are utilized. The

sensor data can be augmented if the number of train-

ing is not enough (Ohashi et al., 2017). Quaternion

data are useful for representing the angle of an arm.

Acceleration and gyro data are good for understanding

the movement of the arm. EMG data well indicate the

force of muscle contraction.

Features are ﬁrstly extracted from the raw sensor

data by using a sliding window in order to deal with

the time-sequential information of the actions. Statisti-

cal features such as maximum, minimum, mean and

standard deviation as well as the features in frequency

domain, namely, amplitude spectrum obtained by ap-

plying fast Fourier transform (FFT), are utilized in this

research. The statistical features are good indicators

for the intensity of the actions as well as how it changes

within the sliding window, and the frequency-domain

features are good for understanding the periodicity of

the actions.

The “reject class” is deﬁned in the action recogni-

tion model as well to deal with the case when no target

action is performed.

3.3 Activity Recognition

One of the most common ways in hierarchical activity

recognition model is to take the outputs of the action

recognition module and the object recognition module

as input, and build some classiﬁer that automatically

learns the mapping from the them to the target activity

categories. However, reasonably big amount of train-

ing data is required in order to train a model that does

this mapping well. In addition, if a new activity is

added to the target activities, additional training data

for the new activity needs to be collected.

In order to avoid this time-consuming data collec-

tion procedure, this study proposes a zero-shot recog-

nition scheme. We deﬁne activities using name of

objects, name of actions, and the conjunction words,

which deﬁnes the relationship between the objects and

actions. “And”, and “Then” are used as the concrete

conjunction words. If an activity deﬁned as <“B1”,

“And”, “B2”>, its period is deﬁned as the period when

both B1 and B2 are observed. Here, B1 and B2 de-

note either object name or action name. Figure 3 (a)

shows the image of the period that “And” represents.

As shown in the ﬁgure, the time between

ts2

and

te1

are recognized as the period when the target activity

occurred. Similarly, if an activity is deﬁned as <“B1”,

“Then”, “B2”>, its period is deﬁned as the period when

B2 is observed after B1 is observed. As shown in Fig-

ure 3 (b), the time between

ts2

and

te2

are recognized

as the period when the target activity occurred. For

example, the activity “Tightening a screw” can be de-

ﬁned as <”Screw driver”, “And”, “Twisting”>, and

"Opening a lid of a bottle" can be deﬁned as <"Bottle",

"Then", "Twisting"> As explained in these examples,

one basic class (in this case, "Twisting") can be used

to represent multiple activities.

A probabilistic framework is employed for the ac-

tivity recognition model to enhance and stabilize the

Hierarchical Model for Zero-shot Activity Recognition using Wearable Sensors

481

(a) "And"

(b) "Then"

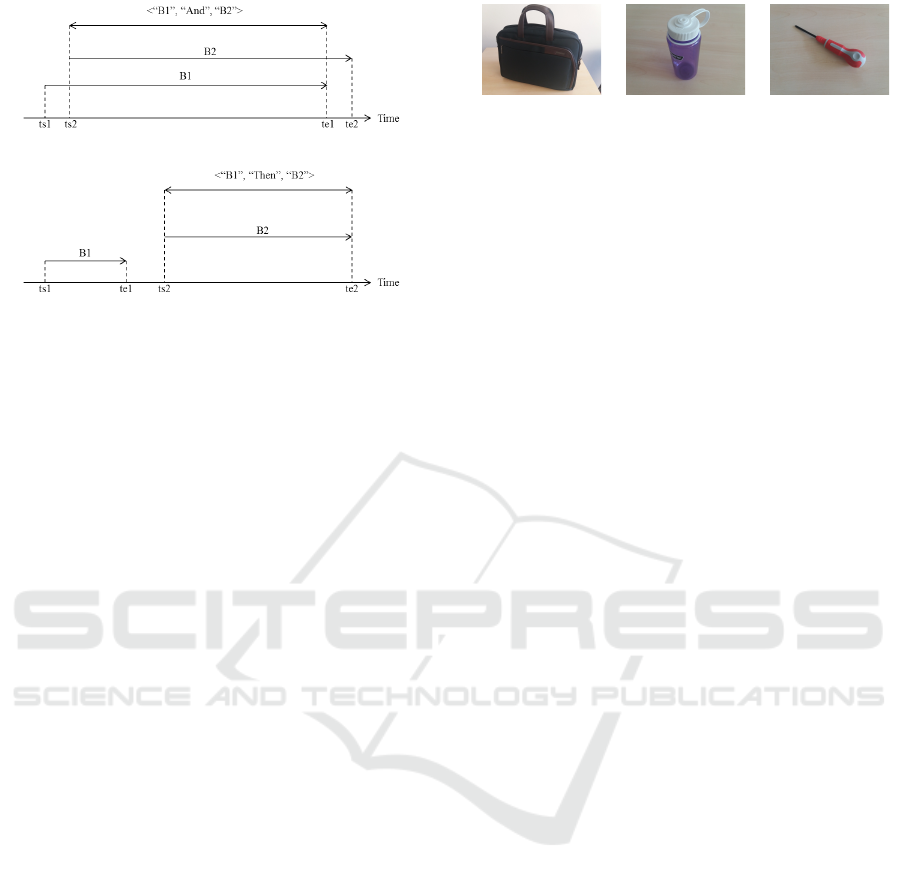

Figure 3: Periods that the conjunction word “And” and

“Then” represent.

performance. First, the activity recognition module re-

ceives the array of probabilities from basis recognition

module, each of which represent the likelihood of each

target object or action. Then the probability of the ac-

tivity can be calculated as the conditional probabilities

as follows.

p(activity | s; de f (activity))

= p(activity | ob ject, action; de f (activity))

p(ob ject | s)p(action | s)

(1)

, where

de f (activity)

denotes the deﬁnition of the

activity and

denotes the sensor data. This framework

provides more robust and stable activity recognition

results even if the basis recognition results are not very

accurate.

4 EVALUATION

4.1 Experimental Data

The experimental data were collected in a laboratory.

Table 1 shows the details of the data for evaluating the

activity recognition method. The target activities are

deﬁned to be “Putting a bag on a table”, “Opening a lid

of a bottle”, and “Tightening a screw”. The deﬁnition

of the activities is shown in Table 2. The data collec-

tion procedure was as follows. (1) Start recording data.

(2) A subject performs one activity 3 to 5 times in a

row with short interval between each performance. (3)

Stop recording data. (4) Restart recording data. (5)

The subject performs the 2nd activity 3 to 5 times in

a row. (6) Stop recording data. (7) Iterate the same

procedure for the last activity. (8) Iterate the same

procedure for the other subjects.

Table 3 summarizes the data collected for evaluat-

ing the object recognition method. The basic objects

(a) Bag (b) Bottle (c) Screw driver

Figure 4: Target objects.

involved in these activities are “a bag”, “a bottle” and

“a screw driver” (see Figure 4). In addition, “Reject

class” is added to the target object classes in order to

deal with the case of “no target object”. An ETG was

used to collect the training data. In order to acquire

good amount of diverse data, a subject kept looking

at an object from different angles and from different

distances. Then a sub-image around the gaze point

was cropped as explained in the section 3.1. Training

data and test data were separately collected.

Table 4 summarizes the data collected for evaluat-

ing the action recognition method. The basic actions to

compose the above-mentioned activities are “holding”

and “twisting”.

In addition, “Reject class” is included in order to

deal with the case of “no target action”. Training

data and test data were separately collected. Only one

subject participated in the both of data collection for

action recognition and activity recognition.

4.2 Results

Table 5 shows the confusion matrix of the object recog-

nition result. As shown in the ﬁgure, "bag" was often

misclassiﬁed as "reject", and as a result, the recall rate

of the "bag" class and the precision of the "reject" class

was low. On the other hand, both precision and recall

rate were high for "bottle" and "screw driver" class.

Table 6 shows the confusion matrix of the action

recognition result. As shown in the ﬁgure, both preci-

sion and recall rate were high for all of the classes.

In order to compare the proposed zero-shot activity

recognition model, a baseline method that utilizes nor-

mal supervised learning method (sometimes it’s called

"many-shots" learning as opposed to zero-shot learn-

ing) was implemented. The baseline method takes the

output from the basis recognition modules, namely,

the array of probabilities as an input and trained to

output the corresponding activity. SVM was selected

for the model. DNN was not selected simply because

of the amount of available training data.

Table 7 shows the evaluation result of the activity

recognition method. Intersection over union (IOU)

based on ground truth and estimated results are calcu-

lated for the evaluation. Each estimation result was

regarded as correct if the IOU is more than a threshold.

Figure 5 shows the precision and recall rate of the

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

482

Table 1: Evaluation data for activity recognition method.

Number of subject 12

Number of target classes 4

Target classes

Putting a bag on a table, Opening a lid of a bottle, Tightening a screw, Others(reject

class)

Number of data Total: 131

Putting a bag on a table: 39, Opening a lid of a bottle: 50, Tightening a screw: 42

Table 2: Deﬁnition of the activities.

Putting a bag on a table

<“Bag”, “Then”,

“Holding”>

Opening a lid of a bottle

<“Bottle”, “Then”,

“Twisting”>

Tightening a screw

<“Screw driver”,

“And”, “Twisting”>

(a) Proposed (zero-shot)

(b) Baseline (many-shots)

Figure 5: Precision and recall rate for different IOU thresh-

olds.

proposed method and the baseline method for different

IOU thresholds. Figure 6 shows an example of the

output from the proposed method.

5 DISCUSSION

In this section we will discuss the evaluation results,

limitation, and also the future work.

The current model can perform a real time activity

recognition of untrained activities using a combina-

tion of basic components. The impotence of real time

recognition comes from the environment where the

system can be deployed. In factories and maintenance

sites, the real time recognition can prevent the wrong

activities.

Table 7 shows that the model has a achieved a

very good accuracy for unlearned activities, with 77%

precision and 82% recall rate.

The "Putting bag" activity has lower recall rate

comparing to the other activities. This is because of

the low recall rate of the "bag" class in the object recog-

nition module. Since the bag used in the experiment

doesn’t have much texture and also its size was signiﬁ-

cantly different from the other objects (Figure 4), the

cropped images of the bag sometimes looked like just

a black square. Another reason for this lower recall

rate is the action recognition module. Even though

the recall rate of the "Holding" action was very high

as shown in table 6, sometimes the "Holding" action

was not correctly recognized. The most dominant fea-

ture for recognizing "Holding" action is EMG data,

which is more likely to be affected by subjects. As

mentioned in section 4.1, only one subject’s data out

of 12 subjects was included in the dataset to train the

action recognition module. To develop a more robust

and subjects-independent action recognition method is

one of our future work.

On the other hand, precision of the "Opening lid"

activity and "Tightening screw" activity was relatively

low. Figure 6 shows the recognition result of "Tighten-

ing screw" activity. It shows that none of the 5 "Tight-

ening screw" activity was missed (recall is 100%). On

the other hand, the ﬁrst attempt was recognized as two

activities of "tightening a screw" because the probabil-

ity dropped down bellow the threshold in the middle

of the activity. It sometimes happens because the sub-

jects stopped performing the activity for some reason,

for example, dropping the screwdriver, which was ob-

served during the experiment. This is reﬂected on the

number of recognized activities, which reduces the

precision. One future work is to consider a threshold

of the time between the consecutive activities to merge

them and reduce this type of false alarm.

Comparing the results of the proposed method with

that of the baseline method (Figure 5), we can see the

precision performance is close to each other, even

though the activities is untrained in our model, while

it is trained in the baseline model. On the other hand,

the recall rate of the baseline method was better (93%).

Hierarchical Model for Zero-shot Activity Recognition using Wearable Sensors

483

Table 3: Evaluation data for object recognition method.

Number of target classes 4

Target classes Bag, Bottle, Screw driver, Others(reject class)

Number of training data Total: 16,000

Bag: 4,000, Bottle: 4,000, Screw driver: 4,000, Others(reject class): 4,000

Number of test data Total: 3956

Bag: 1007, Bottle: 953, Screw driver: 984, Others(reject class): 1012

Figure 6: An example of the recognition result. ("tightening a screw" activity).

Table 4: Evaluation data for action recognition method.

Number of subject 3

Number of target classes 3

Target classes

Holding, Twisting,

Others(reject class)

Number of training data Total: 10814

Holding: 3583,

Twisting: 3429,

Others(reject class):

3802

Number of test data Total: 5853

Holding: 2029,

Twisting: 2025,

Others(reject class):

1799

This is due to the characteristic of the models. If an

activity is deﬁned using the conjunction word "Then",

the proposed model can recognize the activity only

when the ﬁrst target is recognized. The baseline model

recognizes the activity by combining all the probabil-

ities. It could sometimes recover even when the ﬁrst

target is not recognized if the second target is recog-

nized with high probabilities. The proposed frame-

work sometimes works ﬁne to reduce false alarm, but

sometimes leads to lower recall rate like this example.

Table 5: Confusion matrix of the object recognition method.

Bag Bottle Screw driver Reject Total Recall

Bag 443 91 15 458 1007 0.44

Bottle 0 945 1 7 953 0.99

Screw driver 0 10 949 25 984 0.96

Reject 17 16 19 960 1012 0.95

Total 460 1062 984 1450 3956 -

Precision 0.96 0.89 0.96 0.66 - 0.83

Table 6: Confusion matrix of the action recognition method.

Holding Twisting Reject Total Recall

Holding 2019 6 4 2029 0.99

Twisting 112 1872 41 2025 0.92

Reject 48 58 1693 1799 0.94

Total 2179 1936 1738 5853 -

Precision 0.93 0.97 0.94 - 0.95

Table 7: Evaluation result of the activity recognition method.

Threshold for IOU: 0.2.

Activity Precision Recall

Putting bag 0.96 ( 27 / 28 ) 0.69 ( 27 / 39 )

Opening lid 0.72 ( 44 / 61 ) 0.88 (44 / 50 )

Tightening screw 0.73 ( 43 / 59 ) 0.88 ( 37 / 42 )

Total 0.77 (114 / 148) 0.82 (108 / 131)

ICAART 2018 - 10th International Conference on Agents and Artiﬁcial Intelligence

484

6 CONCLUSIONS

A hierarchical human activity recognition model that

recognizes human activities by the combinations of the

basic actions and involved objects has been proposed

in order to realize an easy-to-deploy activity recogni-

tion system. Unlike conventional activity recognition

models, the proposed model does not need retraining

for recognizing a new activity if the activity is repre-

sented by a combination of predeﬁned basic actions

and basic objects. Two wearable sensors, namely Myo

armband sensor and ETG, have been utilized for the

action recognition and object recognition, respectively.

The experimental results have shown that the accuracy

of both basic modules are reasonably high, and the

proposed model could recognize 3 types of activities

with precision of 77% and recall rate of 82%. The

future works include expansion of target activities as

well as enhancing the basic modules.

REFERENCES

Aggarwal, J. (1999). Human Motion Analysis: A Review.

CVIU, 73(3):428–440.

Aggarwal, J. K. and Ryoo, M. S. (2011). Human activity

analysis: A review. ACM Computing Surveys, 43(3):1–

43.

Betancourt, A., Morerio, P., Regazzoni, C. S., and Rauter-

berg, M. (2015). The evolution of ﬁrst person vision

methods: A survey. IEEE Trans. Circuits and Systems

for Video Technology, 25(5):744–760.

Cheng, H.-T., Sun, F.-T., Griss, M., Davis, P., Li, J., and You,

D. (2013). Nuactiv: Recognizing unseen new activities

using semantic attribute-based learning. In Proc. Inter-

national Conference on Mobile Systems, Applications,

and Services, pages 361–374. ACM.

Donahue, J., Hendricks, L. A., Guadarrama, S., Rohrbach,

M., Venugopalan, S., Saenko, K., and Darrell, T.

(2015). Long-term recurrent convolutional networks

for visual recognition and description. In CVPR.

Fathi, A., Li, Y., and Rehg, J. M. (2012). Learning to recog-

nize daily actions using gaze. In ECCV.

Jain, M., van Gemert, J. C., and Snoek, C. G. (2015). What

do 15,000 object categories tell us about classifying

and localizing actions? In CVPR, pages 46–55.

Lavee, G., Rivlin, E., and Rudzsky, M. (2009). Understand-

ing video events: a survey of methods for automatic

interpretation of semantic occurrences in video. IEEE

Trans. Systems, Man and Cybernetics Part C: Applica-

tions and Reviews, 39(5):489–504.

Li, Y., Ye, Z., and Rehg, J. M. (2015). Delving into egocen-

tric actions. In CVPR, pages 287–295.

Liu, J., Kuipers, B., and Savarese, S. (2011). Recognizing

human actions by attributes. In CVPR, pages 3337–

3344. IEEE.

Ma, M., Fan, H., and Kitani, K. M. (2016). Going deeper

into ﬁrst-person activity recognition. In CVPR, pages

1894–1903.

Maekawa, T., Yanagisawa, Y., Kishino, Y., Ishiguro, K.,

Kamei, K., Sakurai, Y., and Okadome, T. (2010).

Object-based activity recognition with heterogeneous

sensors on wrist. In Proc. International Conference on

Pervasive Computing, pages 246–264. Springer.

Nguyen, T.-H.-C., Nebel, J.-C., Florez-Revuelta, F., et al.

(2016). Recognition of activities of daily living with

egocentric vision: A review. Sensors, 16(1):72.

Ohashi, H., A. Naser, M., Ahmed, S., Akiyama, T., Sato,

T., Nguyen, P., Nakamura, K., and Dengel, A. (2017).

Augmenting Wearable Sensor Data with Physical Con-

straint for DNN-Based Human-Action Recognition. In

Time Series Workshop @ ICML.

Palatucci, M., Pomerleau, D., Hinton, G. E., and Mitchell,

T. M. (2009). Zero-shot learning with semantic output

codes. In NIPS, pages 1410–1418.

Peng, X. and Schmid, C. (2016). Multi-region two-stream

r-cnn for action detection. In ECCV, pages 744–759.

Simonyan, K. and Zisserman, A. (2014). Two-stream convo-

lutional networks for action recognition in videos. In

NIPS, pages 568–576.

Socher, R., Ganjoo, M., Manning, C. D., and Ng, A. (2013).

Zero-shot learning through cross-modal transfer. In

NIPS, pages 935–943.

Spriggs, E. H., De La Torre, F., and Hebert, M. (2009).

Temporal segmentation and activity classiﬁcation from

ﬁrst-person sensing. In CVPR Workshops, pages 17–24.

IEEE.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S.,

Anguelov, D., Erhan, D., Vanhoucke, V., and Rabi-

novich, A. (2015). Going deeper with convolutions. In

CVPR, pages 1–9.

Tran, D., Bourdev, L., Fergus, R., Torresani, L., and Paluri,

M. (2015). Learning spatiotemporal features with 3D

convolutional networks. In ICCV.

Turaga, P., Chellappa, R., Subrahmanian, V. S., and Udrea,

O. (2008). Machine recognition of human activities:

A survey. IEEE Trans. Circuits and Systems for Video

Technology, 18(11):1473–1488.

Wang, H., Kl, A., Schmid, C., and Liu, C.-l. (2011). Action

recognition by dense trajectories. In CVPR, pages

3169–3176.

Wang, H. and Schmid, C. (2013). Action recognition with

improved trajectories. In ICCV, pages 3551–3558.

Wang, L., Xiong, Y., Wang, Z., Qiao, Y., Lin, D., Tang, X.,

and Van Gool, L. (2016). Temporal segment networks:

towards good practices for deep action recognition. In

ECCV, pages 20–36.

Yao, B., Jiang, X., Khosla, A., Lin, A. L., Guibas, L., and Fei-

Fei, L. (2011). Human action recognition by learning

bases of action attributes and parts. In ICCV, pages

1331–1338.

Hierarchical Model for Zero-shot Activity Recognition using Wearable Sensors

485
