Towards Interactive Mining of Understandable

State Machine Models from Embedded Software

Wasim Said

1,2

, Jochen Quante

and Rainer Koschke

Robert Bosch GmbH, Corporate Research, Renningen, Germany

University of Bremen, Germany

Keywords:

Model-driven Engineering, Program Comprehension, Software Analysis, Reverse Engineering, Model

Mining.

Abstract:

State machines are an established formalism for specifying the behavior of a software component. Unfortu-

nately, such design models often do not exist at all, especially for legacy code, or they are lost or not kept up to

date during software evolution – although they would be very helpful for program comprehension. Therefore,

it is desirable to extract state machine models from code and also from legacy models. The few existing ap-

proaches for that – when applied to real-world systems written in C – deliver models that are too complex for

being comprehensible to humans. This is mainly because C functions are typically much longer than object

oriented methods, for which these approaches were originally intended.

In this paper, we propose and investigate different measures to reduce the complexity of such mined models

to an understandable degree. Since the code alone does not contain all required information for abstraction,

user interaction is essential. Also, different users will be interested in different aspects of the code. There-

fore, we introduce several possibilities for inﬂuencing the state machine extraction process, such as providing

additional constraints for reducing the state space. We show the effectiveness of these interactions in several

case studies. The combination of these interactions gives the user a rich set of possibilities for exploring the

functionality of the software.

1 INTRODUCTION

Model mining is the extraction of behavioral and/or

structural models from existing software systems. For

example, a lot of tools exist for extracting UML class

diagrams from Java code. These tools extract explicit

structural information from the code and bring them

into a different (graphical) form. The resulting mod-

els are quite helpful for getting an overview and un-

derstanding at a higher (design) level. We are inter-

ested in extracting more implicit information that is

not explicitly visible in the code. An example for that

is the extraction of a state machine model from C code

when no explicit state machine pattern can be found

in the code.

Having such higher-level models can help de-

velopers in several ways. Firstly, it helps in pro-

gram comprehension: Developers often try to man-

ually reconstruct such models during maintenance

tasks (Roehm et al., 2012). This is a quite time-

consuming activity: Program comprehension makes

up for 40%-50% of total software life cycle ef-

fort (Fjeldstad and Hamlen, 1984). Secondly, model

mining can also be a great support for migration

towards model-based software development. Since

companies that want to switch to model-based devel-

opment usually do not start from scratch, but already

have a large code base, extraction of models from

legacy code would be quite helpful. For example,

model-based development tools such as ASCET

Matlab Simulink

have been introduced at almost all

automotive companies. Their block diagram models

provide an adequate basis for implementation of con-

trol systems and thus help to save cost and time (Broy

et al., 2013). However, only new functions are usu-

ally implemented based on these models. The exist-

ing code base already realizes a huge amount of func-

tionality and cannot be easily replaced by correspond-

ing models. Model mining can support this transfor-

mation and even make it economically worthwhile.

Thirdly, even when developing exclusively based on

models, developers do not always use the best-suited

https://www.etas.com/en/products/ascet_software_pro

ducts.php

https://www.mathworks.com/products/simulink.html

Said, W., Quante, J. and Koschke, R.

Towards Interactive Mining of Understandable State Machine Models from Embedded Software.

DOI: 10.5220/0006593501170128

In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 117-128

ISBN: 978-989-758-283-7

117

models for a given aspect. For example, control logic

is sometimes modelled as a block diagram – which

makes the aspect “control logic” very hard to under-

stand. The extraction of the behavior of a function

with respect to control logic in form of a state ma-

chine is then very desirable and helpful for experts –

for both legacy code and models.

state != 0 [sig != 0]

state == 0

[sig == 0] [sig != 0]

[sig == 0]

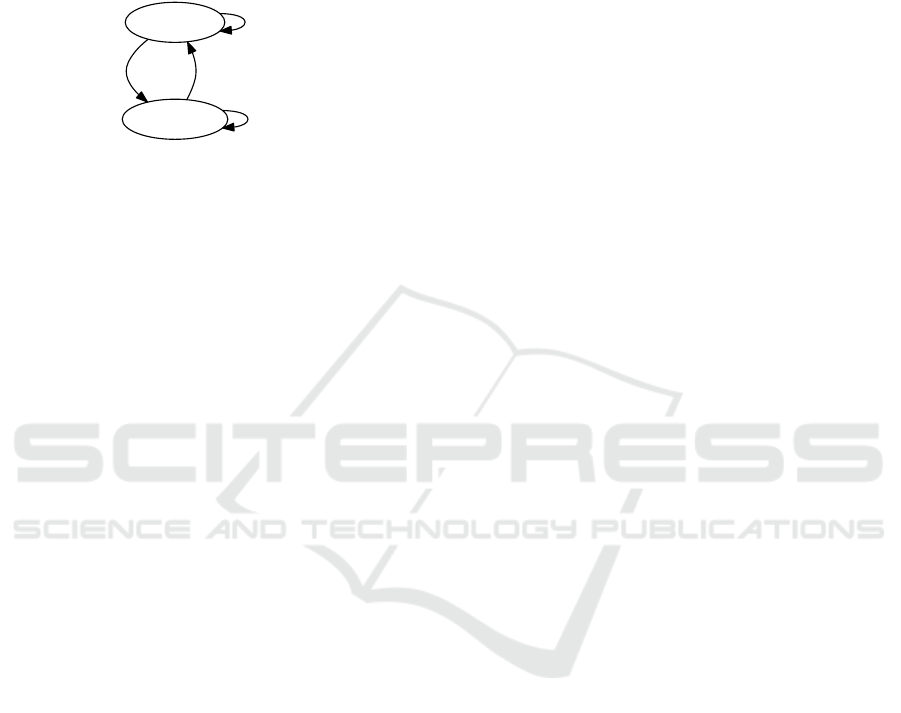

Figure 1: Extracted state machine for example function.

As a simple example for state machine extraction,

consider the following C code:

int biEdge(int sig) {

static int state = 0;

if ((sig && !state) || (!sig && state)) {

state = sig;

return 1;

}

return 0;

}

The static variable state is the only variable that

holds state, and it is used in the conditions state and

!state. Consequently, a state machine representa-

tion of this code would distinguish between these two

states. Figure 1 shows the resulting state machine. Al-

though simple in this example, this kind of model ex-

traction can be very laborious. This is the case when

more state variables and conditions are involved, or

when they are interleaved with other code that is not

relevant for state in a larger function. Therefore, au-

tomation of this process is highly desired. However,

fully-automatic model extraction from real world sys-

tems results in information on the wrong level: The

automatically mined models are typically too detailed

and low-level, because code alone does not contain

all the necessary information. For example, there is

no information about which details are important and

which are not. Also, a tool is not capable of intro-

ducing abstractions that a human would immediately

come up with. Consequently, effective model min-

ing requires a combination of automation and interac-

tion. The automated part must be able to utilize expert

knowledge and feedback, so that it is capable of ex-

tracting highly useful models with low manual effort.

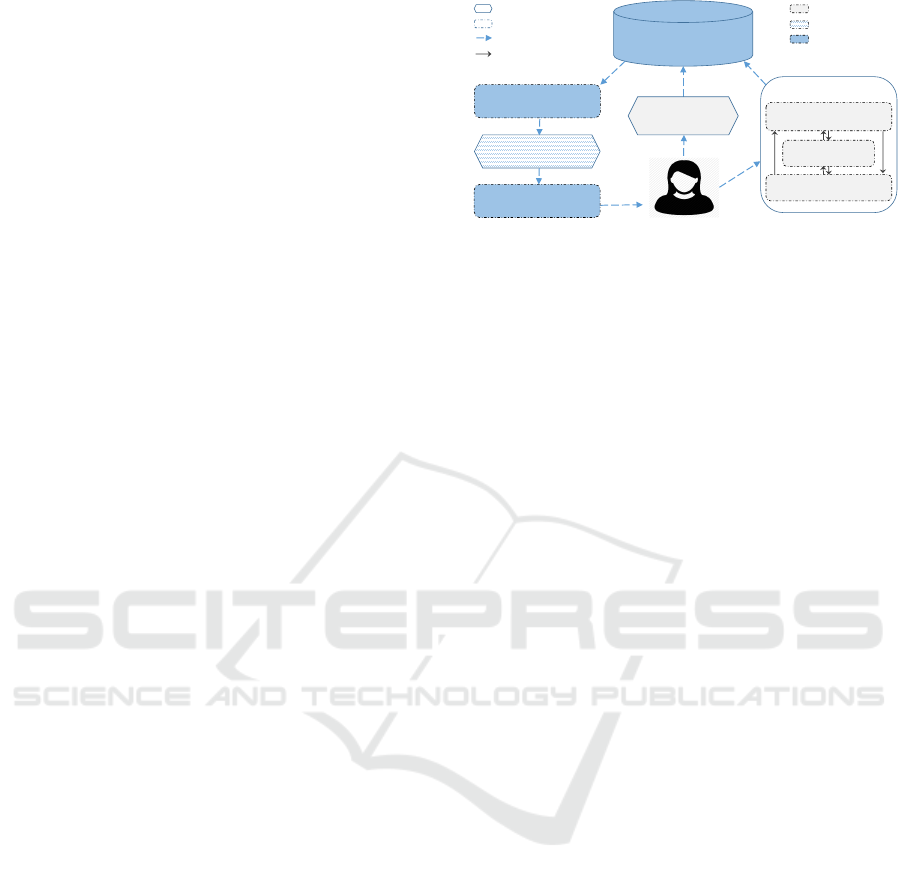

Our approach for an interactive state machine ex-

traction process is as follows: The developer has some

function which he wants to understand with respect

to sequencing logic. He then starts the model min-

ing process on this function and gets an initial result,

which usually is far too complex to be understand-

able. Now he has several options to reduce the com-

plexity of this state machine. For example, he can se-

lect a subset of state variables for the state machine

model or join certain states. Alternatively, he can

provide additional constraints – for example, set vari-

ables to certain values, or limit their ranges. The min-

ing tool then returns a different state machine model

– one that considers this additional information. This

interactive process can go through multiple iterations

with changed user input. In any case, the resulting

model will be more abstract and potentially closer to

the domain and thus less complex. When interactively

working with the model extraction process this way,

the developer can extract understandable state ma-

chines for different scenarios which in combination

can provide a complete picture of the relevant func-

tionality.

Our contributions in this paper are the following:

• An adaption of an existing (Kung et al., 1994; Sen

and Mall, 2016) state machine mining approach

for procedural code.

• Several automatic techniques for simpliﬁcation of

the extracted models.

• A set of interactive state machine mining exten-

sions for reducing the state space of extracted

models.

• Demonstration of the effectiveness of these mea-

sures for making the resulting models understand-

able.

• First feedback from experts about usefulness of

the resulting models.

The rest of the paper is organized as follows. The

required background about static analysis techniques

and the approaches of Kung and Sen are introduced

in Section 2. Our adaptations and optimizations of

Kung/Sen’s approach are presented in Section 3. Sec-

tion 4 explains our different techniques for interactive

exploration of state machines. The case studies are

presented in Section 5. In Section 6, we discuss the

approach and results. An overview of related work is

presented in Section 7, and Section 8 concludes.

2 BACKGROUND

In this section, we present an overview of analysis

techniques that are used in our approach.

2.1 Symbolic Execution

One widely used and effective static analysis tech-

nique is symbolic execution. The idea behind it is the

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

118

execution of a program with symbolic values instead

of concrete values. Traditional symbolic execution

performs path enumeration for test case generation

with full path coverage (King, 1976). When symbolic

execution comes to a branching point, all branches are

explored in a depth-ﬁrst search manner. The valid

conditions at each branching point are collected and

stored with the corresponding path. The technique

backtracks when it comes to a point where the path

condition is not satisﬁable, i. e., when the path be-

comes infeasible. For every possible path through

the program, this technique delivers the path condi-

tion (PC) and the output variable values as symbolic

expressions over the input variables. All possible dis-

tinct behavior of the function is therefore described

with just a single control condition – the path condi-

tion. As stateful behavior means different behavior

depending on state, this information provides a good

basis for deriving state machines: States are contained

in path conditions, and each path corresponds to a cer-

tain transition.

2.2 Kung/Sen Approach to State

Machine Mining

Kung et al. (Kung et al., 1994) describe how sym-

bolic execution can be used to derive a state machine

representation from a given C++ class. Sen and Mall

(Sen and Mall, 2016) add some improvements and

work on Java classes. To explain the approach, let

us ﬁrst deﬁne some terms that were introduced by

Kung. An atomic condition is either a boolean sym-

bolic variable such as a or a relational operator over

two symbolic expressions such as (a + b < 5). Con-

necting atomic conditions by conjunction, disjunction

or negation creates a compound condition, such as

((a + b > 5) ∧ d). A conditional literal is an atomic

condition or the negation of an atomic condition.

The approach works in three steps: First, sym-

bolic execution is performed. It generates the path

conditions, pairs of updated member variables during

the execution of each path and the returned symbolic

expression (if any). In a second step, states are gen-

erated from that, and in the third step, transitions are

determined.

Extraction of States

Kung’s state generation approach examines all path

conditions and considers only conditional literals that

contain exactly one member variable. For each such

conditional literal, it partitions the variable’s domain

into intervals. The cross product of the intervals of all

member variables then generates the states and their

invariants.

For example, imagine that x is an integer vari-

able and occurs in the conditional literals (x > 0) and

(x = 3). The relevant intervals of x, according to Kung

et al., are (−∞, 0], (0, 3), [3, 3] and (3, ∞). This ap-

proach works only on conditions that contain exactly

one member variable. For conditions with more than

one variable such as (a < b) and (a+b+c > 5), com-

puting the intervals is not possible. These conditions

are ignored by Kung’s approach.

Sen and Mall address this limitation and extract

states from path conditions in a different way. They

directly compute the partitions from the original con-

ditions. Then, they use a solver to ﬁnd out which

of them are satisﬁable; those become the state can-

didates. For the above example, the extracted par-

titions for Sen’s approach are: ((x > 0) ∧ (x = 3)),

((x > 0) ∧ (x 6= 3)), ((x ≤ 0) ∧ (x 6= 3)) and ((x ≤

0) ∧ (x = 3)) (the latter is not satisﬁable). It is obvi-

ously also possible to create such partitions for condi-

tional literals with more than one variable.

Sen and Mall distinguish between different types

of conditional literals, depending on the kind of dif-

ferent variables involved (in an object-oriented pro-

gram):

• Member dependent literal (MDL): a conditional

literal in which only member variables of the class

appear.

• Parameter dependent literal (PDL): a conditional

literal in which only parameters of a class method

appear.

• Mixed literal (MXL): a conditional literal which is

neither MDL nor PDL.

Although we do not have member variables in C code

and ASCET models, we stick to these deﬁnitions. For

us, members correspond to state candidates (see Sec-

tion 3). Because only MXLs and MDLs are practi-

cally relevant for state machine extraction, we also

use the term pure literal for MDLs. Only MDLs are

considered in Sen’s approach, and only MDLs with a

single variable are considered by Kung. We leave the

choice of including MXLs in the states to the user,

which is discussed later in this paper.

The described state space generation process may

generate a lot of states that can never be reached.

By providing (or extracting from initialization) a set

of potential start states, all states that are not reach-

able from them can be eliminated, and all unreach-

able transitions can be removed as well. Kung et al.

already considered this in the construction of their

state space, but it may as well be performed as a post-

processing step, as we have done in our approach.

Towards Interactive Mining of Understandable State Machine Models from Embedded Software

119

Extraction of Transitions

For transition generation, it is then examined for each

path from which state it can possibly start (pre state

pre

). This is again done by using a constraint solver.

It checks for which state candidates Inv

pre

∧PC is sat-

isﬁable, Inv

is the state invariant of state S. The post

state S

post

is determined in different ways. Kung et

al. use the condition Inv

pre

∧PC |= Inv

post

(E), which

means that the target state condition Inv

post

on the re-

sulting symbolic values of the path (E) must be satis-

ﬁed in all cases. Sen just requires that PC ∧ Inv

pre

satisﬁable, and that PC ∧ Inv

post

(E) is satisﬁable in-

dependently. In our approach, we do not check these

two conditions independently, but we combine them

so that PC ∧ Inv

pre

∧ Inv

post

(E) must be fulﬁlled.

2.3 Concolic Testing

Concolic testing is a more recent technique for path

enumeration (Godefroid et al., 2005). The main dif-

ference to symbolic execution is that it does not ex-

plore paths by forking at the branching nodes, but ex-

plores paths sequentially. It executes each path with

concrete values and in parallel collects the symbolic

path condition. The input for the next execution is

inferred from the path conditions of the previous test

cases. This is done using an SMT solver. By negat-

ing the disjunction of all path conditions that were so

far encountered, it generates new values for the input

variables that lead to execution of another path that

has not been covered yet.

For instance, for a branching condition (x > y), the

concrete values could be x = 3 and y = 1 which satis-

ﬁes the constraint and causes the execution of the true

branch. To execute the false branch, concolic testing

tries to generate values that do not satisfy the con-

straint. This can be done by negating the constraint

(x > y) and using a constraint solver to generate val-

ues that satisfy (x ≤ y).

Concolic testing has some advantages over sym-

bolic execution. The key limitation of symbolic ex-

ecution is constraint solving. Some constraints, such

as non linear ones, cannot be handled by solvers. In

concolic testing, complex constraints can be solved

with concrete values in certain cases. See (Hoffmann

et al., 2016) for a detailed discussion of differences

between symbolic execution and concolic testing.

3 ADAPTATIONS

In the following, we present three adaptations of Sen

and Kung’s approaches for our setting. Firstly, our

systems are written in C or ASCET, so we need a dif-

ferent way to identify state variables. Secondly, we

use concolic testing instead of symbolic execution.

Thirdly, we discuss how to deal with mixed literals.

3.1 Adaptation for C Code

The approaches by Kung and Sen both work on

object-oriented software. All member variables that

inﬂuence any conditions are potential state candidates

there. In our case, we have to deal with C code or

ASCET models, where there are no natural member

variables. Therefore, we have to come up with addi-

tional heuristics to determine the relevant state can-

didate variables: The variable must keep its value

over multiple invocations, which means it has to be

global or static, and the previously written value has

to be used. Also, it has to inﬂuence a control decision

through control or data dependencies. Otherwise, it

does not hold state.

3.2 Use of Concolic Testing

Kung and Sen depend on symbolic execution to per-

form path enumeration and generate test cases. We

use concolic testing instead. Despite the advan-

tages as discussed in Section 2.3, concolic testing

also better supports our interactive extensions, such

as adding user constraints or reducing state variable

range. These interactions are implemented by feed-

ing additional constraints into the state machine min-

ing process. Concolic testing solves constraints incre-

mentally with every newly encountered path. It deals

with additional constraints from a user the same way,

which is quite efﬁcient. Consequently, concolic test-

ing is the more adequate choice for this use case.

3.3 Mixed Literals

Reduction to the relevant state variables may be

achieved by investigating the conditions on these state

variable candidates: if all conditional literals in which

a state variable occurs are MXLs, the state would

always be changed according to the input variable’s

value. For example, consider the following function:

int changed(int x) {

static int old = 0;

if (x != old) {

old = x;

return 1;

}

return 0;

}

The resulting states would be x = old and x 6= old.

However, the state after a call to this function always

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

120

is x = old, since x is assigned to old. Therefore, it

does not make much sense to consider x = old and

x 6= old as states in this case. Sen et al. always ignore

such mixed variables.

In other cases, these MXLs may carry important

information for the user – they may be helpful for pro-

gram understanding. As an example for that, the state

machine model in Figure 2 was extracted from the

test function MON (cf. Section 5) and contains states

with the variables LmpOn and TmMAX. LmpOn is a state

variable, but it occurs in mixed literals with the input

variable TmMAX. The state machine model was reduced

to state variable Timer, which appears only in MDLs,

along with LmpOn, which occurs only in MXLs. The

information about how states can change according

to the input variable shows an interesting fact: Once

LmpOn has become lower or equal to TmMAX, it can

never raise to a value higher than the value of TmMAX

again.

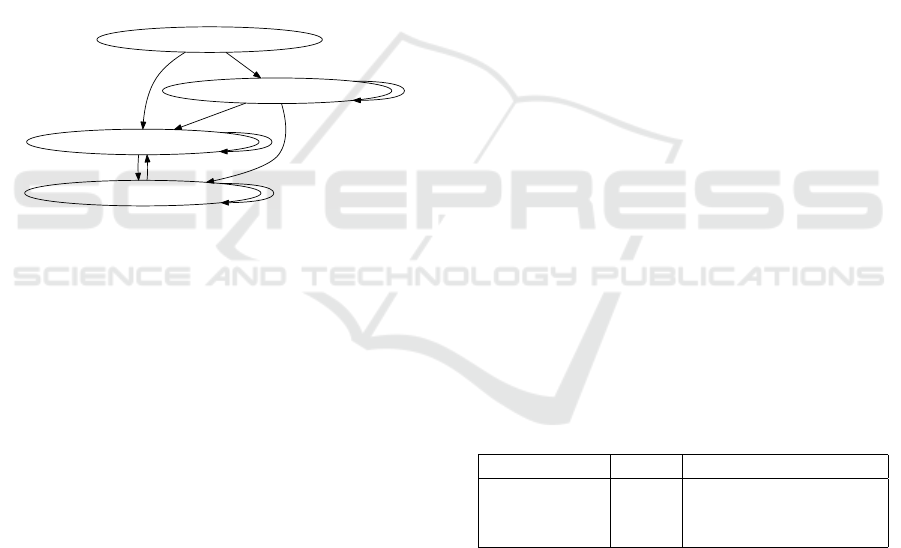

((Timer != 0) && (LmpOn <= TmMAX))

((Timer == 0) && (LmpOn <= TmMAX))

((Timer != 0) && (LmpOn > TmMAX))

((Timer == 0) && (LmpOn > TmMAX))

Figure 2: Example for the potential importance of mixed

literals (function MON).

In Section 5.1, we will demonstrate that ignoring

mixed variables can effectively make state machine

models more understandable. However, because they

can carry important information in some cases such

as the above example, we do not ignore them in our

approach. Instead, we let the expert decide which

input variables remain and which do not. This is

done by presenting a list of all relevant input vari-

ables along with their relevant conditions and letting

the user choose.

4 INTERACTIVE EXPLORATION

One big problem of the approaches of Kung or Sen is

the state space explosion. Their approaches quickly

generate hundreds of states and transitions that a) are

impossible to understand and b) require a long time to

extract. Our goal is to extract state machines that help

in program understanding. To reduce the state ma-

chines’ complexity to a degree that makes them un-

derstandable for humans, we have to come up with

additional measures. In this section, we introduce a

number of interactive approaches to complexity re-

duction. In the evaluation section, we will then in-

vestigate their effectiveness. An overview of the ex-

traction process and the possible user interactions is

depicted in Figure 3. The different interactions are

presented in detail in the next sections.

4.1 State Variable Subset

The ﬁrst possibility to reduce the state space is to

manually restrict the relevant state variables to a sub-

set. This should lead to simpliﬁed state machines

that can be understood more easily. A comprehen-

sive group of such simpliﬁed state machines may still

provide a full picture of a function’s behavior: It does

not make sense to describe the entire functionality of

a larger function in a single diagram, but it is usually

more useful to focus on certain aspects at once – and

abstract away the rest.

In this step, the user is presented the full list of

identiﬁed state variables along with their relevant val-

ues or value ranges. She can then select those vari-

ables that are potentially interesting. Table 1 shows

an example how this information is presented. This

interaction corresponds to selecting or deselecting an

entire row in this table.

It may be difﬁcult for the expert to decide which

variables to include and which to ignore just based

on the variables’ names. Therefore, we use program

slicing (Weiser, 1981) to calculate the state variables’

effect size, i. e., how much code (the number of PDG

nodes) is dependent on this state variable. The vari-

ables are sorted by descending effect size, starting

with the most inﬂuential one. This can be used by the

expert as an indication of relevance of each variable.

Table 1: Information about the ﬁrst three state variables,

their effect size and relevant values/ranges for function

SPD.

State variable Effect Values/Partitions

Ctr 0.60 =0 | =1 | =2 | =3 | other

SPD_mode 0.30 =4 | 6=4

Sync 0.27 true | false

4.2 Joining States / Reducing State

Variable Alternatives

Reducing state variable alternatives is another op-

tion to reduce the state space. For example, there

may be conditions “speed in (0, 50)” and “speed in

[50, ∞)”, but the user only wants to distinguish be-

tween (speed = 0) and (speed > 0). The two ranges

that satisfy the condition (speed > 0) are then uni-

ﬁed, leading to a reduced state space as well. As

described in the previous section, the list of relevant

Towards Interactive Mining of Understandable State Machine Models from Embedded Software

121

value or range alternatives for each state variable is

presented to the user. The user can decide to either

ignore or merge certain alternatives for state machine

model extraction based on this information. This cor-

responds to merging different alternatives in column

Values/Partitions in Table 1. The user can also do that

by adding the corresponding constraints, as shown in

the next section.

4.3 Constraints

With a reduced number of paths, the extracted state

machines also become less complex. For example, if

certain variables are set to a ﬁxed value, this may re-

duce the number of paths and thus also the number

of possible states and transitions, and it may reduce

the complexity of state invariants and transition con-

ditions. Another possibility is to generate paths under

more general constraints, such as x = y + 1. Which

constraints make sense largely depends on the system

under consideration.

For instance, the expert may be interested in in-

vestigating the scenario in which the software is in a

certain mode (e. g., “driving”) and the speed is lower

than 20 km/h. Here, mode and speed are state vari-

ables. The expert can also deﬁne constraints on non-

state variables, which will also reduce the number of

states and transitions.

For now, we leave it to the expert to decide which

values to restrict or which additional conditions to

consider during the extraction of the state machine.

For example, the expert may want to investigate a sce-

nario where all possible error conditions are excluded.

The decision-relevant conditions on state variables

that are automatically extracted may be helpful to ﬁnd

out relevant constraints. Automated identiﬁcation of

meaningful constraints is a topic for future research.

This interaction is supported by the list of vari-

ables that appear in the program. The user can se-

lect variables and their values or ranges of values in

the same way. Additionally, the user can write her

own constraints in the form of expressions on these

variables (plus literals). The constraints can also con-

tain any combination of conjunction, disjunction and

negation. This gives a very high ﬂexibility to the

user’s choice of constraints that she would like to im-

pose on the extraction process and allows her to in-

vestigate arbitrary scenarios.

4.4 Interactive Process

Figure 3 shows the interactive state machine extrac-

tion process. The analysis knowledge base contains

information about all variables, states and transitions

Interaction

Select state variables

of interest

Analysis knowledge base

(all information)

Select/Join states

Add/modify constraints

Manual

Semi-Automatic

Automatic

C code file /

ASCET model

Artifact

Activity

Process sequence

Combination option

Expert

State machine

model

Extraction of relevant

states and transitions

Visualization

Figure 3: Interactive state machine extraction process.

which are automatically extracted from the code. It

also contains the information that is added by the user,

such as constraints or state subsets. The approach

can leverage all this information for extraction, and

the user can iteratively perform any interactions from

above. This will result in a reduced state machine

model according to the user’s needs. With each user

interaction, the extracted model is automatically up-

dated. The process iterates until the user gets the

model that she needs for the task at hand. The dif-

ferent interaction possibilities can be used not only

for general simpliﬁcation of state machine models,

but also for speciﬁc purposes like investigating what-

if scenarios, e. g., by setting some variables to cer-

tain values. These interactions support the extraction

of different projections of the detailed state machine

model. However, they also support reduction of the

original model to a meaningful and comprehensive

model for migration towards model based develop-

ment.

5 CASE STUDY

In order to verify the effectiveness of our approach,

we implemented it in a prototype and used that for

performing several case studies. The implementation

is based on our software analysis framework (Quante,

2016), which includes frontends for C and ASCET,

control/data ﬂow analysis, concolic testing and an in-

terface to the Z3 SMT solver. On top of that, we

implemented Kung/Sen’s approach for state machine

mining with the adaptations as described in Section 3.

Furthermore, we added all interactive extensions that

are presented in Section 4 of this paper.

The studies were conducted using four C code and

ﬁve ASCET (A) real world functions from two differ-

ent automotive software systems. Table 2 summarizes

their characteristics. Lg is language, LOC denotes

lines of code (ASCET: ESDL code), MCC is Mc-

Cabe’s cyclomatic complexity, NPATH is Nejmeh’s

static approximation of the number of paths (Ne-

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

122

jmeh, 1988), and #var is the total number of variables.

These functions were nominated for state machine

model extraction by developers because they found

them to be hard to understand with respect to control

logic.

Table 2: Characteristics of subject functions.

Lg. LOC MCC NPATH #var.

SPD C 807 52 34,560 25

MON C 75 18 41,472 12

AVG C 91 20 262,145 16

VDA C 410 54 863,115 39

PRK A 104 30 284,756 33

RSK A 169 27 147,480 56

VPR A 110 17 10,368 17

SSD A 58 16 2,816 13

PPR A 49 16 86 10

The C functions are part of an engine control soft-

ware. The SPD function is responsible for switching

between different possible input signals when certain

conditions apply. It partly contains an explicit state

machine with a state variable and switch-case con-

struct, but it contains additional distributed logic that

makes it very complicated. The MON function con-

tains a timer and checks whether input signals change

in a certain way within a speciﬁed time. The AVG

function calculates several kinds of average signal

values according to a clock signal. VDA is a func-

tion that only becomes active after a certain sequence

of events has occurred. The ASCET models are taken

from another automotive control unit.

The approach as described above – excluding in-

teractive measures, but including our other optimiza-

tions and both pure and mixed literals – results in state

machines as shown in Table 3. Obviously, the models

contain a large number of states and transitions and

thus require a long time for understanding (Miranda

et al., 2005). This means the majority of these models

is too complex for human comprehension.

Table 3: Characteristics of resulting state machines.

#state var. #states #transitions

SPD 6 720 1,652

MON 3 16 64

AVG 6 64 184

VDA 10 6,144 19,127

PRK 4 36 112

RSK 5 48 170

VPR 3 1,157 5,904

SSD 2 32 160

PPR 3 8 16

In the following, we investigate and demonstrate

the effect of different user interactions separately.

However, the use of any combination of these sce-

narios is fully supported and desired. We ﬁrst con-

centrate on the structure and complexity of the result-

ing state machines regarding the number of states and

transitions. Therefore, we do not show transition con-

ditions in the ﬁgures.

5.1 Mixed Literals

In order to demonstrate the effect of ignoring mixed

literals (MXLs) for state generation, we compare the

number of extracted states and transitions from all

state variables of the program, ﬁrst including MXLs

and MDLs, and then only considering MDLs.

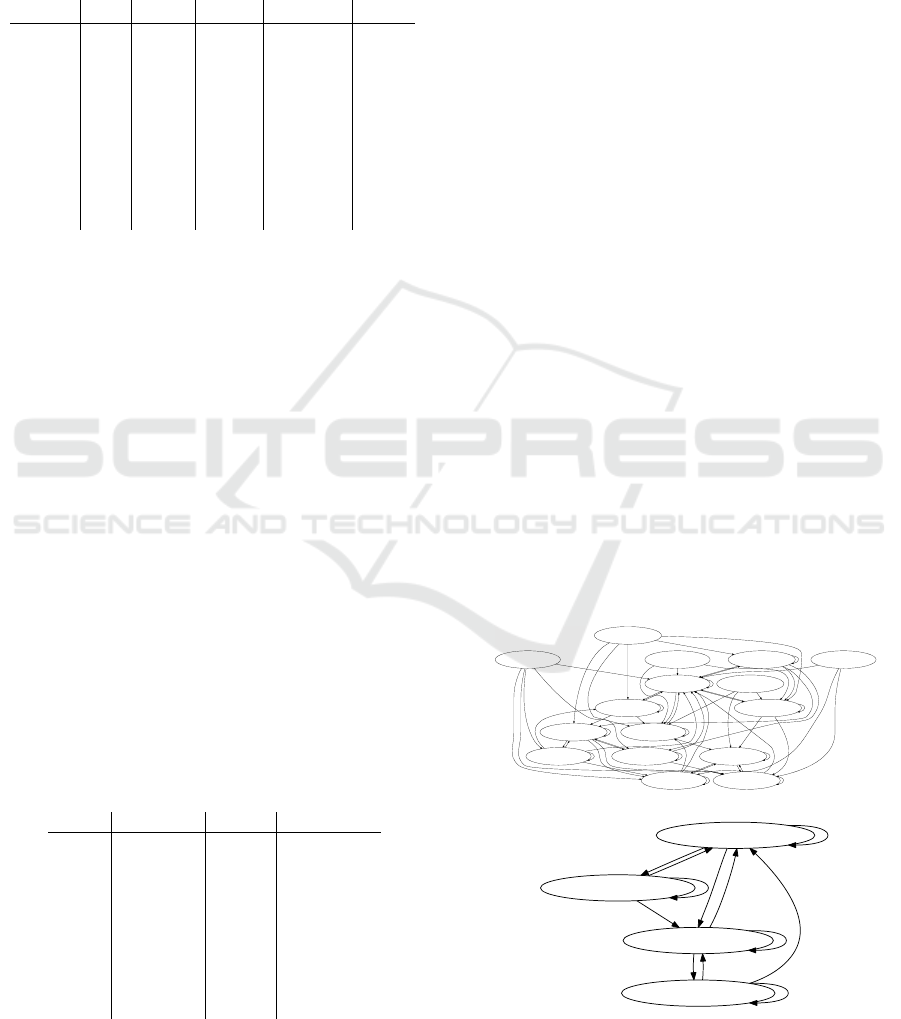

Figure 4 depicts the extracted state machine model

from function MON. There are three state variables

in the code used to generate the state machine model

with and without mixed literals. The model has

16 states and 64 transitions when both pure (MDL)

and mixed literals (MXLs) are used. The structure

of the graph alone is obviously too complex to be

understandable. Using only pure literals reduces the

number of states to four and the number of transitions

to 12. This is because the conditional literals on the

ﬁrst state variable all depend on input variables, i. e.,

they are all MXLs. One of the two conditions on

the second variable contains input variables. There-

fore, removing these mixed literals results in a state

machine model with only two state variables. The

number of transitions is consequently reduced, be-

cause all transitions from and to the removed states

are also deleted. The resulting state machine is obvi-

ously much less complex, but it still gives a good pic-

ture of which sequences of operation are supported

((((Timer != 0) &&

((currentTime - Timer) <= TmMAX)) &&

Clock) &&

(LmpOn > TmMAX))

((((Timer == 0) &&

((currentTime - Timer) <= TmMAX)) &&

Clock) &&

(LmpOn > TmMAX))

((((Timer == 0) &&

((currentTime - Timer) > TmMAX)) &&

Clock) &&

(LmpOn > TmMAX))

((((Timer == 0) &&

((currentTime - Timer) <= TmMAX)) &&

!Clock) &&

(LmpOn > TmMAX))

((((Timer == 0) &&

((currentTime - Timer) > TmMAX)) &&

!Clock) &&

(LmpOn > TmMAX))

((((Timer != 0) &&

((currentTime - Timer) <= TmMAX)) &&

Clock) &&

(LmpOn <= TmMAX))

((((Timer != 0) &&

((currentTime - Timer) > TmMAX)) &&

Clock) &&

(LmpOn > TmMAX))

((((Timer == 0) &&

((currentTime - Timer) <= TmMAX)) &&

Clock) &&

(LmpOn <= TmMAX))

((((Timer != 0) &&

((currentTime - Timer) <= TmMAX)) &&

!Clock) &&

(LmpOn > TmMAX))

((((Timer != 0) &&

((currentTime - Timer) <= TmMAX)) &&

!Clock) &&

(LmpOn <= TmMAX))

((((Timer == 0) &&

((currentTime - Timer) <= TmMAX)) &&

!Clock) &&

(LmpOn <= TmMAX))

((((Timer != 0) &&

((currentTime - Timer) > TmMAX)) &&

!Clock) &&

(LmpOn > TmMAX))

((((Timer == 0) &&

((currentTime - Timer) > TmMAX)) &&

Clock) &&

(LmpOn <= TmMAX))

((((Timer == 0) &&

((currentTime - Timer) > TmMAX)) &&

!Clock) &&

(LmpOn <= TmMAX))

((((Timer != 0) &&

((currentTime - Timer) > TmMAX)) &&

Clock) &&

(LmpOn <= TmMAX))

((((Timer != 0) &&

((currentTime - Timer) > TmMAX)) &&

!Clock) &&

(LmpOn <= TmMAX))

(a) MDLs and MXLs

((Timer == 0) && !Clock)

((Timer != 0) && !Clock)

((Timer != 0) && Clock)

((Timer == 0) && Clock)

(b) only MDLs

Figure 4: The effect of using only pure literal conditions in

contrast to using pure and mixed ones (function MON).

Towards Interactive Mining of Understandable State Machine Models from Embedded Software

123

by the software, and which are not. For example,

the state ((Timer == 0) && Clock) can only be

reached through ((Timer != 0) && Clock).

The effect of using or not using mixed literals on

the other functions is summarized in Table 4. The

results are presented as a percentage of the original

number of states and transitions (with pure and mixed

conditions and without any user constraint). The ﬁrst

column shows the number of states (#S) and transi-

tions (#T) with both pure and mixed conditional liter-

als, and the second column shows the same informa-

tion for only pure conditions (as the remaining share

of states and transitions). Function VPR does not have

any pure conditions: All the conditional literals de-

pend on parameters. This emphasizes again that these

conditions cannot always be ignored (cf. Section 3.3).

On the other hand, function PRK has only pure con-

ditions.

Table 4: Model reduction: The effect of using only pure

conditions and user constraints on the number of states and

transitions.

Pure +

Mixed

only

Pure

UserCon

Pure + Mixed

UserCon

only Pure

#S #T %S %T #C %T %T

SPD 720 1652 1 % 2 % 12 1 % 0,5 %

MON 16 64 25 % 18 % 6 81 % 15 %

AVG 64 184 25 % 34 % 4 69 % 17 %

VDA 6144 19127 2 % 2 % 4 45 % 1 %

PRK 36 112 100 % 100 % 5 49 % 49 %

RSK 48 170 4 % 1 % 3 56 % 0,5 %

VPR 1157 5904 0 % 0 % 5 35 % 0 %

SSD 32 160 12 % 10 % 4 63 % 6 %

PPR 8 16 25 % 25 % 2 75 % 18 %

5.2 User Constraints

As mentioned in Section 4.3, the search space (i. e.,

number of paths) can be reduced by generating paths

under additional constraints. The user can add such

constraints. Because she may have no idea about the

analyzed system, we ﬁrst show her a list of not only

state variables, but all variables that have any effect

on any branch condition. This list includes the con-

ditional literals for each state variable. The user can

select the variables and either set certain variables to

ﬁxed values or enter constraints on them. We then

additionally feed these constraints into the state ma-

chine extraction process – simply by using them as

additional constraints in concolic testing.

Figure 5 illustrates the state machine model of

SPD. In this scenario, we consider only pure condi-

tions. SPD has six state variables, which end up in

10 different states and 35 transitions between them. In

addition, SPD includes 19 non-state variables. In this

experiment, we have randomly selected 12 of these

non-state variables and set them to speciﬁc values or

range of values. The resulting model has the same

((Ctr == 3) && Sync)

((Ctr == 0) && Sync)

((Ctr == 1) && Sync)

((Ctr == 2) && Sync)

((Ctr != 3) && (Ctr != 2) && (Ctr != 0) && (Ctr != 1) && Sync)

((Ctr == 3) && !Sync)

((Ctr == 1) && !Sync)

((Ctr == 0) && !Sync)

((Ctr == 2) && !Sync)

((Ctr != 3) && (Ctr != 2) && (Ctr != 0) && (Ctr != 1) && !Sync)

(a) No additional constraints.

((Ctr == 1) && Sync)

((Ctr == 2) && Sync)

((Ctr == 3) && Sync)

((Ctr == 0) && Sync)

((Ctr != 3) && (Ctr != 2) && (Ctr != 0) && (Ctr != 1) && Sync)

(b) With extra user constraints.

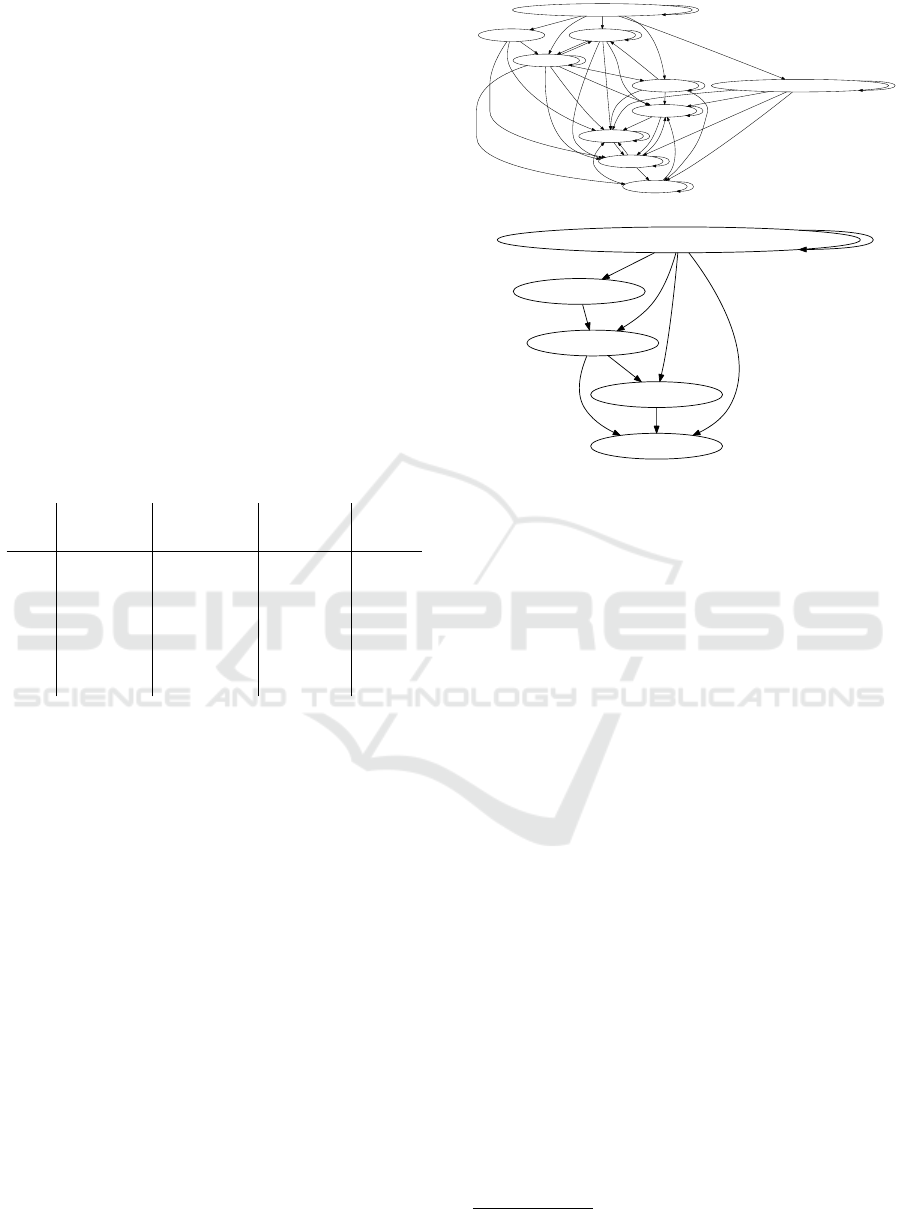

Figure 5: The effect of additional user constraints (SPD).

number of states (10), while the number of transi-

tions has been reduced to nine

. The reason is that

the search space becomes much smaller than the one

without extra conditions from the user.

Table 4 shows how user constraints reduce the

model from the other eight test cases. The third col-

umn gives information about the used number of user

constraints (#C) and the share of remaining transitions

(%T) with pure and mixed conditions. The last col-

umn shows the same information – with the same user

constraints – but with only pure conditions. The used

user constraints were only applied on non state vari-

ables in this experiment. Therefore we show only the

effect on the number of transitions (%T). Constraints

on state variables are discussed in the next section.

5.3 State Variable Subset

Instead of generating a state machine model with all

state variables in a program, the user can also select a

subset of state variables that she is interested in. This

obviously leads to a state machine model with a lower

number of states. For this interaction, the user can

choose any combination of state variables, which re-

sults in a wide variety of alternatives. Therefore, we

show only one example from the large number of ex-

periments that we have done.

Take the AVG function as an example. It con-

tains six state variables. All these variables (with only

In the ﬁgure, we show only ﬁve states, because the

other ﬁve states are not connected by any transitions.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

124

(((!ppa

ppb)

start_neg)

start_pos )

(((!ppa

!ppb)

start_neg)

start_pos )

(((!ppa

ppb)

!start_neg)

!start_pos )

(((!ppa

!ppb)

!start_neg)

!start_pos )

(((ppa

ppb)

start_neg)

start_pos )

(((ppa

ppb)

!start_neg)

!start_pos )

(((ppa

!ppb)

start_neg)

start_pos )

(((ppa

!ppb)

!start_neg)

!start_pos )

(((!ppa

ppb)

!start_neg)

start_pos )

(((ppa

ppb)

!start_neg)

start_pos )

(((!ppa

!ppb)

!start_neg)

start_pos )

(((ppa

!ppb)

!start_neg)

start_pos )

(((!ppa

ppb)

start_neg)

!start_pos )

(((ppa

ppb)

start_neg)

!start_pos )

(((!ppa

!ppb)

start_neg)

!start_pos )

(((ppa

!ppb)

start_neg)

!start_pos )

(a) All state variables.

(!ppa && !ppb)

(ppa && !ppb) (!ppa && ppb)

(ppa && ppb)

(b) Only two state variables.

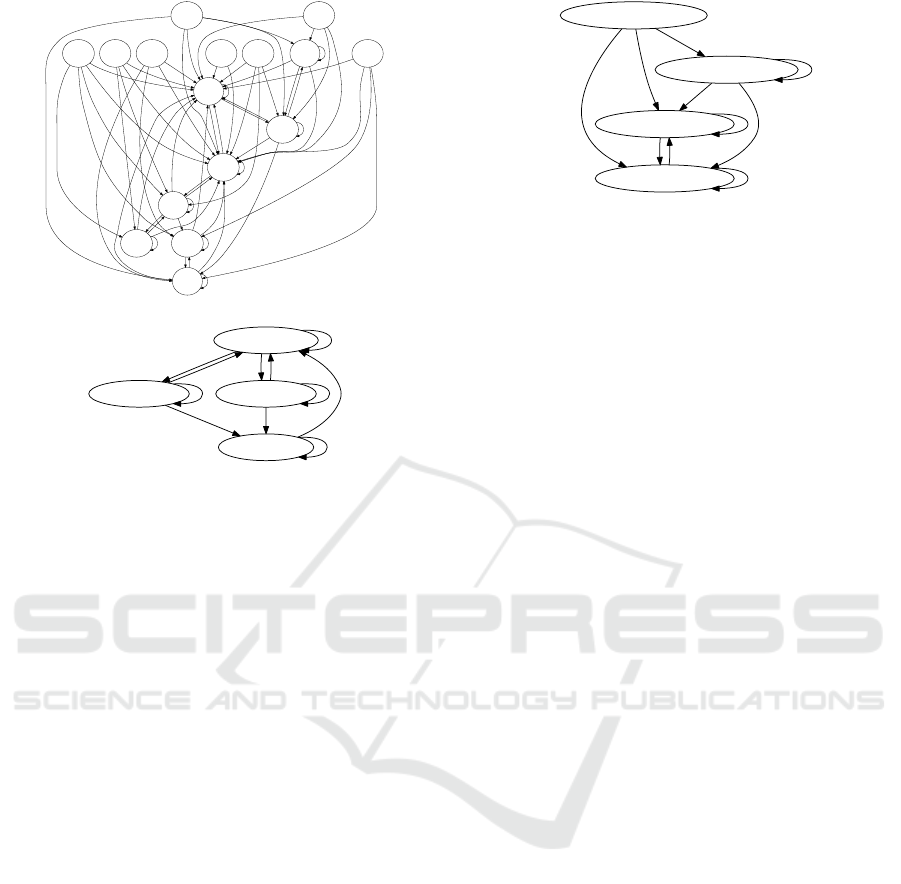

Figure 6: The effect of reducing the set of state variables

(AVG).

pure conditions) generate a model with 16 states and

64 transitions. We applied the effect size heuristic to

get a hint which state variables would be most inter-

esting. Of the six state variables, the 2nd and 3rd one

(according to the effect size) turned out to be the most

interesting ones. This was done by interactive explo-

ration of different subsets, starting with the ones with

the highest rating. Selecting only these two variables

reduces the number of states to 4 and transitions to 11.

The models with all and with only these two variables

are shown in Figure 6. The result is a signiﬁcant com-

plexity reduction and models that concentrate on cer-

tain aspects of the overall state.

5.4 Reduced State Variable Range

For the examples so far, state variables consider all

possible values in the program. However, our ap-

proach allows the expert to restrict values or ranges

of values for state variables.

Please recall Figure 5(a) in Section 5.2. That

model represents all possible states of Ctr and Sync

variables. The relevant values for variable Ctr are

{0, 1, 2,3}. When the user is interested in only two

values like {0, 1}, she can select these values and gets

the corresponding state machine model, which is de-

picted in Figure 7. Obviously, the state machine be-

comes much simpler. The resulting state machine is a

compact model of a quite speciﬁc aspect of the func-

tion. Similar to the previous section, we could only

((Ctr == 0) && Sync)

((Ctr == 1) && Sync)

( (Ctr == 0) && !Sync)

((Ctr == 1) && !Sync)

Figure 7: The effect of reducing state variables’ range

(SPD).

show one example due to the high number of interac-

tive options.

All interaction possibilities can be used indepen-

dently or in combination with other interactions. This

depends on the user’s goal and her previous knowl-

edge of the system (not necessarily software). For

example, when the user knows the states of interest,

she can select the right state variables and their values

at once. When the system is new to her, she can use

the different interactions in an explorative way to gain

knowledge about the software.

5.5 Experts Feedback

The main goal of our work is to extract understand-

able and useful state machine models from code. How

helpful the extracted models are can only be deter-

mined by humans who work with the code. For this

reason, we conducted interviews with three develop-

ers, whose knowledge about the behavior of our sub-

ject functions ranges from expert (function respon-

sible) to people with no idea about the subject sys-

tem. We presented different extracted state machine

models with randomly selected states and constraints

to each developer. Then we asked the developers

whether these models were helpful or interesting to

them, and what they can read out of them.

The feedback from the expert was quite interest-

ing. He thought that some transitions in the extracted

models would not exist in the code. However, when

he reviewed the code, it turned out that the transi-

tions do exist. Therefore, we can say that these mod-

els can also help in validation, veriﬁcation and de-

bugging. One other interesting reaction was that he

immediately came up with ideas which states would

be interesting and which constraints he would like to

try. Feeding the relevant information and constraints

to the process does not seem to be a problem to him.

The developer who had at least an idea about the

functionality of the subject system stated that the ex-

tracted models give him valuable insights into the

function, which would be a lot of work to get from

code: “The model at this level of detail is already very

Towards Interactive Mining of Understandable State Machine Models from Embedded Software

125

helpful, since I can validate the possible states and

transitions with my expectations. The proposed ap-

proach of interactive scenarios and projections should

help to make the complexity more manageable.”

Finally, the developer without any knowledge was

asked to draw some conclusions about the models.

It was interesting that he was able to understand the

models and determine the main ideas quickly. He de-

termined which states exist, what they mean and how

they can be reached. When we compared these con-

clusions with the available information from the func-

tion authors, they were correct. For example, he was

able to come to the fact in Figure 2, that LmpOn can

never raise to a value higher than the value of TmMAX

once it becomes lower or equal to TmMAX.

In summary, the feedback shows that the extracted

models can be helpful to developers with different

levels of system knowledge. This is true even for the

expert who has worked with the function for a longer

time. These early results are quite promising and en-

courage further research and reﬁnement of our inter-

active approach.

6 DISCUSSION

The case studies in the previous section showed that

each individual interaction with the state machine ex-

traction process has the potential to lead to less com-

plex but still useful state machines. The combina-

tion of these techniques offers even more possibili-

ties: The user can control focus and complexity of the

extracted models according to the question at hand.

Given these results, the applicability of such a process

on complex real-world systems seems to be feasible

and effective.

The ﬁrst feedback from experts is also quite

promising: They seem to have good ideas about

which scenarios they want to investigate, and also

which constraints make most sense. So both techni-

cally and from user perspective, our interactive ap-

proach appears feasible. However, we are aware that

our case study is only a ﬁrst step towards proving the

effectiveness of our interactive approach.

We concentrated on states and transition structure

so far and ignored transition conditions. However, the

state/transition structure alone was already considered

quite useful by our developers. Transition conditions

quickly become quite complex and unreadable. Mak-

ing transition conditions comprehensible for users is

part of our future work.

Since this state machine mining approach inten-

sively uses an SMT solver – for path enumeration,

for determining feasible states, and for ﬁnding out pre

and post states for each path –, the computational cost

is very high. For an interactive approach, short re-

sponse times are required. The interactive approach

also addresses this issue and strongly affects the re-

quired time for the model mining process: By pro-

viding additional input, limiting ranges or giving ad-

ditional constraints, the number of paths and states

is largely reduced. The number of solver calls is in

O(P ∗ S

) with P number of paths and S number of

states. Therefore, specially reducing the number of

states also drastically reduces the required compu-

tation time. For example, extracting the state ma-

chine model with all state variables from the function

AVG takes 16 seconds. When extracting this model

with only three variables, it takes only 2.5 seconds.

We have actually observed a decrease of computation

time when using interactions in all cases.

Our approach can meet the needs of different users

with different backgrounds about the system. For ex-

ample, domain experts or users with good knowledge

of the system can directly select the states or con-

straints of interest. Users with no idea about the sys-

tem get a ranking of all state variables according to

their effect size. We do not yet provide such informa-

tion about the relevant constraints that affect speciﬁc

states in the code, but such information could also

be quite useful for this usage scenario in the future.

In our study, we have randomly selected some con-

straints and set them to certain values, and the result

was very good. When the user had some ideas about

which constraints have the highest effect on states, the

result would be even better. Therefore, mining of rel-

evant constraints that affect speciﬁc states could be

helpful.

Our case studies and ﬁrst interviews with experts

suggest that this approach can not only be helpful for

program comprehension and migration towards mod-

els, but also for validation, veriﬁcation and debugging

tasks. These different usage scenarios make the ap-

proach very attractive. We will continue our work to-

wards further improvement, specially with respect to

the challenges mentioned above.

7 RELATED WORK

Most of the work on extraction of state machines

deals with API protocols, i. e., the allowed sequences

of API calls. The seminal work on this topic was done

using dynamic analysis by Ammons et al. (Ammons

et al., 2002). Similar protocol extraction based on

static analysis was ﬁrst introduced by Eisenbarth et

al. (Eisenbarth et al., 2005). Little work is done to

extract state machines that describe the behavior of

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

126

an application. We focus on these approaches in this

section.

Bandera (Corbett et al., 2000) automatically ex-

tracts state machines from the source code of Java

programs for model checking. The generated mod-

els are in the input language of one of the used ver-

iﬁcation tools. The resulting models with thousands

of states are not a problem for this use case – but for

human comprehension, they are. In the publication of

Prywes et al. (Prywes and Rehmet, 1996), the user se-

lects the desired software components like functions

or operations in the process of generating state ma-

chines. However, the extracted state machine mod-

els from both of these works are on a very low level,

which makes them unusable for human understanding

or model based development. Prywes also concluded

that the extraction process must be human-guided.

Xie et al. (Xie et al., 2006) extract state machines

from object-oriented code based on tests. They re-

duce their size by using additional information, such

as test coverage information, observer functions, and

state slicing. The latter corresponds to our approach

of ignoring certain state variables. However, dynamic

information, which must be representative to be us-

able in this approach, is usually unavailable for real-

time systems.

Some approaches can only be used for speciﬁc

cases like in the work of Abadi et al. (Abadi and Feld-

man, 2012). They extract state charts from speciﬁc

patterns generated from code generators, so it can-

not be applied for hand-written software. Somé et

al. (Somé and Lethbridge, 2002) assume that the state

is represented by only one variable, which restricts

the implementation of this approach to systems with

obvious state machines.

Walkinshaw et al. (Walkinshaw et al., 2008) as-

sume that all states were identiﬁed manually in terms

of logical conditions on program variables. Then, the

approach uses symbolic execution to extract transi-

tions between these states. It identiﬁes the paths in the

source code that correspond to the extracted transi-

tions. This approach also assumes that all transitions

are mapped to functions. Our approach does not have

these assumptions. In another paper (Walkinshaw and

Hall, 2016), Walkinshaw uses genetic programming

to infer computations for state machines. However,

this approach is in a very early and experimental stage

and not applicable to real-world software.

Wang et al. (Wang et al., 2012) extract high level

state machines of GUI-driven software for cell phones

and PDAs, where screens are modeled as states and

the calls of UI components as transitions. This ap-

proach is quite speciﬁc to the used GUI framework

and does not serve our purpose of extracting high

level state machines from real world software inten-

sive systems.

An approach to extract state charts from code was

proposed by Jiresal et al. (Jiresal et al., 2011). They

use static data ﬂow analysis and heuristics based ab-

stractions to create state charts. The approach was

evaluated on a code snippet from automotive indus-

try. However, the heuristics only include some spe-

ciﬁc patterns that speciﬁcally suit the automotive case

study. Therefore, they cannot be used for systems

from other domains. Furthermore, the heuristics must

be chosen very carefully and by domain experts. Jire-

sal et al. also mentioned that better heuristics require

user interaction, but they did not implement that.

Symbolic execution is used by Kung et al. (Kung

et al., 1994) and Sen and Mall (Sen and Mall, 2016).

The techniques in these approaches were presented

in Section 2, since our interactive approach builds

upon this work. Our experiments with these ap-

proaches showed that they fail to extract understand-

able models from typical embedded software: Even

small functions can result in hundreds of states and

transitions. Our focus in this paper is to improve

these approaches towards extracting understandable

state machines from real-world software systems.

8 CONCLUSION AND FUTURE

WORK

In this paper, we have introduced several options for

supporting state machine extraction from code by user

interaction. Our case study showed that each of these

techniques can help to reduce the complexity of the

resulting state machines. It is then up to the user to

decide which combination of techniques and parame-

ters is most useful for gaining an understanding of the

underlying system.

We are aware that our case study is just a ﬁrst

step towards comprehensive evaluation of our inter-

active approach. A controlled experiment about the

effectiveness of this approach with a larger number

of experts is our essential future work. In this experi-

ment, one group of developers will be asked to use our

approach and a control group will use other state-of-

the-art tools to perform a set of program understand-

ing tasks. Comparing the results from these groups

will give a well-grounded evaluation of the approach.

In addition, we plan to evaluate each scenario sepa-

rately to see the beneﬁt of every technique. We want

to ﬁnd out which scenario is most helpful given differ-

ent situations. We also want to assess the developers’

effort for applying the various selection and ﬁltering

features. The ﬁrst results are very promising.

Towards Interactive Mining of Understandable State Machine Models from Embedded Software

127

Another issue that has to be addressed in the fu-

ture is the complexity of transition conditions. We

have concentrated on states and transition structure so

far. However, transition conditions are also important

for understanding. The conditions that result from the

extraction process are usually extremely complex and

not understandable for humans. Also, reducing the

number of states obviously makes state machine mod-

els more understandable. However, the information

that was previously contained in the state invariants

will not get lost, but it will move into the transitions,

which may make those more complex. We are cur-

rently investigating approaches for reducing this com-

plexity. For example, not all information in these con-

ditions is relevant. This could lead to another interac-

tive extension.

Other opportunities for future research include ad-

ditional interactions, automated identiﬁcation of ef-

fective constraints, and runtime optimization for the

SMT solver. We also want to apply similar interac-

tions to extraction of other kinds of models that can

support developers in reengineering tasks.

In summary, adding interaction to state machine

mining appears to be a promising approach towards

practically usable support for program comprehen-

sion and migration towards model-based develop-

ment.

REFERENCES

Abadi, M. and Feldman, Y. A. (2012). Automatic recovery

of statecharts from procedural code. In Int’l Conf. on

Automated Software Engineering, pages 238–241.

Ammons, G., Bodík, R., and Larus, J. R. (2002). Mining

speciﬁcations. In Proc. 29th Symp. on Principles of

Programming Languages, pages 4–16.

Broy, M., Kirstan, S., Krcmar, H., Schätz, B., and Zimmer-

mann, J. (2013). What is the beneﬁt of a model-based

design of embedded software systems in the car indus-

try? Software Design and Development: Concepts,

Methodologies, Tools, Applications, pages 310–334.

Corbett, J. C., Dwyer, M. B., Hatcliff, J., Laubach, S.,

Pasareanu, C. S., Robby, and Zheng, H. (2000). Ban-

dera: extracting ﬁnite-state models from Java source

code. In Proc. of 22nd ICSE, pages 439–448.

Eisenbarth, T., Koschke, R., and Vogel, G. (2005). Static

object trace extraction for programs with pointers.

Journal of Systems and Software, 77(3):263–284.

Fjeldstad, R. K. and Hamlen, W. T. (1984). Application pro-

gram maintenance study: Report to our respondents.

In Proc. GUIDE 48.

Godefroid, P., Klarlund, N., and Sen, K. (2005). DART:

directed automated random testing. In Proc. of PLDI,

pages 213–223.

Hoffmann, A., Quante, J., and Woehrle, M. (2016). Ex-

perience report: White box test case generation for

automotive embedded software. In Proc. of 9th Int’l

Conf. on Software Testing, Veriﬁcation and Validation

Workshops, TAIC-PART Workshop, pages 269–274.

Jiresal, R., Makkapati, H., and Naik, R. (2011). Statechart

extraction from code – an approach using static pro-

gram analysis and heuristics based abstractions. In

Proc. of 2nd India Workshop on Reverse Engineering.

King, J. C. (1976). Symbolic execution and program test-

ing. Journal of the ACM, 19(7):385–394.

Kung, D. C., Suchak, N., Gao, J. Z., Hsia, P., Toyoshima,

Y., and Chen, C. (1994). On object state testing. In

Proc. of 18th Int’l Computer Software and Applica-

tions Conference (COMPSAC), pages 222–227.

Miranda, D., Genero, M., and Piattini, M. (2005). Empirical

validation of metrics for UML statechart diagrams. In

Camp, O., Filipe, J. B. L., Hammoudi, S., and Piattini,

M., editors, Enterprise Information Systems V, pages

101–108. Springer Netherlands.

Nejmeh, B. A. (1988). NPATH: A measure of execution

path complexity and its applications. Communications

of the ACM, 31(2):188–200.

Prywes, N. and Rehmet, P. (1996). Recovery of software

design, state-machines and speciﬁcations from source

code. In Proc. of 2nd Int’l Conf. on Engineering of

Complex Computer Systems, pages 279–288.

Quante, J. (2016). A program interpreter for arbitrary ab-

stractions. 16th Int’l Working Conference on Source

Code Analysis and Manipulation, pages 91–96.

Roehm, T., Tiarks, R., Koschke, R., and Maalej, W. (2012).

How do professional developers comprehend soft-

ware? In Proc. of 34th ICSE, pages 255–265.

Sen, T. and Mall, R. (2016). Extracting ﬁnite state repre-

sentation of Java programs. Software & Systems Mod-

eling, 15(2):497–511.

Somé, S. S. and Lethbridge, T. (2002). Enhancing program

comprehension with recovered state models. In 10th

Int’l Workshop on Program Comprehension (IWPC),

pages 85–93.

Walkinshaw, N., Bogdanov, K., Ali, S., and Holcombe, M.

(2008). Automated discovery of state transitions and

their functions in source code. Softw. Test. Verif. Re-

liab., 18(2):99–121.

Walkinshaw, N. and Hall, M. (2016). Inferring computa-

tional state machine models from program executions.

In Proc. of Int’l Conf. on Software Maintenance and

Evolution (ICSME), pages 122–132.

Wang, S., Dwarakanathan, S., Sokolsky, O., and Lee, I.

(2012). High-level model extraction via symbolic exe-

cution. Technical report, Univ. Pennsylvania, Dept. of

Computer and Information Science. MS-CIS-12-04.

Weiser, M. (1981). Program slicing. In Proc. of 5th Int’l

Conf. on Software Engineering, pages 439–449.

Xie, T., Martin, E., and Yuan, H. (2006). Automatic ex-

traction of abstract-object-state machines from unit-

test executions. In Proc. 28th ICSE, pages 835–838.

MODELSWARD 2018 - 6th International Conference on Model-Driven Engineering and Software Development

128
