Interactive LSTM-Based Design Support in a Sketching Tool for the

Architectural Domain

Floor Plan Generation and Auto Completion based on Recurrent Neural Networks

Johannes Bayer, Syed Saqib Bukhari and Andreas Dengel

German Research Center for Artiﬁcial Intelligence, Trippstadter Str. 122, Kaiserslautern, Germany

Keywords:

Archistant, Archistant WebUI, LSTM, Early Design Phases, Architectural Support.

Abstract:

While computerized tools for late design phases are well-established in the architectural domain, early design

phases still lack widespread, automated solutions. During these phases, the actual concept of a building is

developed in a creative process which is conducted manually nowadays. In this paper, we present a novel

strategy that tackles the problem in a semi-automated way, where long short-term memories (LSTMs) are

making suggestions for each design step based on the user’s existing concept. A design step could be for

example the creation of connections between rooms given a list of rooms or the creation of room layouts given

a graph of connected rooms. This results in a tightly interleaved interaction between the user and the LSTMs.

We propose two approaches for creating LSTMs with this behavior. In the ﬁrst approach, one LSTM is trained

for each design step. In the other approach, suggestions for all design steps are made by a single LSTM.

We evaluate these approaches against each other by testing their performance on a set of ﬂoor plans. Finally,

we present the integration of the best performing approach in an existing sketching software, resulting in an

auto-completion for ﬂoor plans, similar to text auto-completion in modern ofﬁce software.

1 INTRODUCTION

Similar to other engineering disciplines, architecture

makes use of different iterative strategies for the gen-

eration of ﬂoor plans during early design phases in

construction projects. One established approach in

this area is the so-called room schedule (also referred

to as architectural program), i.e. a high level descrip-

tion of the building (often given by the building con-

tractor or customer). A room schedule can be either

a list of rooms only (denoted by their room function

like living, working, sleeping, etc.) or a graph of

rooms (i.e. a set of rooms along with restrictions how

rooms should be connected or at least placed adjacent

to each other). Some room schedules already include

restrictions regarding the sizes and shapes of individ-

ual rooms.

Given a room schedule, the architects task is to

develop an actual ﬂoor plan. This is nowadays usu-

ally done in a manual and iterative manner. E.g.

semi-transparent sketching paper is being written on

with pencils. When putting on a new sheet of semi-

transparent paper on top of the old one, the old sketch

serves as a template for the next, reﬁning design in-

teraction. While a fair amount of this task is highly

creative, many actions remain rather repetitive and

monotone for the architect.

In this paper, we describe a semi-automated ap-

proach for drafting architectural sketches. In section

2, we outline the existing technologies and concepts

on which our approach is based on. In section 3,

we outline the presentation of ﬂoor plans for recur-

rent neural networks. In section 4 we describe our

approach, i.e. how our models are trained and how

ﬂoor plan drafts are extended and completed using

our trained models. We also point out some of the

problems we encountered during the design of our

system and how the trade-offs we made attempt to

solve them. After that, in section 5 we outline how

we integrated our approach an existing sketching soft-

ware. We evaluate our approach in section 6, where

we present the results of an automatically conducted

performance evaluation on a set of ﬂoor plans and

provide examples of real-value outputs of our trained

models and illustrate the use of the integrated system.

We conclude our work in section 7 where we also give

an outlook on our future work.

Bayer, J., Bukhari, S. and Dengel, A.

Interactive LSTM-Based Design Support in a Sketching Tool for the Architectural Domain - Floor Plan Generation and Auto Completion based on Recurrent Neural Networks.

DOI: 10.5220/0006589101150123

In Proceedings of the 7th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2018), pages 115-123

ISBN: 978-989-758-276-9

115

2 RELATED WORK

2.1 The Long-Short Term Memory

Long-Short Term Memories (Hochreiter and Schmid-

huber, 1997), (Gers et al., 2000) are a class of recur-

rent artiﬁcial neural networks. During each time step,

they are supplied with an input vector of arbitrary (but

ﬁxed) length, while they emit an output vector of a

size equivalent to their amount of cells. Stacked with

an MLP, they may also return a vector of also arbitrary

(but ﬁxed) size. As vector sequence processing units,

LSTMs are capable of large variety of different tasks

like prediction of future events as well as memoriz-

ing and transforming information. The components

of their input vectors have to be normalized a certain

the interval (often [0, 1]). Likewise, their output val-

ues are limited to a certain interval (often [0, 1]). The

experiments described have been conducted using the

OCRopus LSTM implementation (Breuel, 2008).

2.2 The Architectural Design Support

Tool Archistant

Archistant (Sabri et al., 2017) is an experimental

system for supporting architects during early design

phases in the search of ﬂoor plans similar to an en-

tered sketch. It consists of a web front-end, the

Archistant WebUI, and a modular back-end, in which

ﬂoor plans are processed between the individual mod-

ules via the AGraphML format.

2.2.1 Archistant WebUI

The Archistant WebUI (see Figure 1, also formerly

known as Metis WebUI (Bayer et al., 2015)) provides

functionality for sketching ﬂoor plans in an iterative

way. The workﬂow of the Archistant WebUI employs

the room schedule working method as it exists in ar-

chitecture. Every aspect of a room may be speciﬁed as

abstract or speciﬁc as intended by the user and the de-

gree of abstractness may be altered by the user during

his work. This continuous reﬁnement allows for a top-

down work process, in which a high-level building

description is transformed into a speciﬁc ﬂoor plan.

The Archistant WebUI comes as a web application

and runs inside a JavaScript-supporting browser.

2.2.2 AGraphML

AGraphML (Langenhan, 2017) is Archistant’s ex-

change format for ﬂoor plan concepts. AGraphML

is a speciﬁcation of GraphML (Brandes et al., 2013),

hence the ﬂoor plans are described in a graph-based

Table 1: Edge Types in AGraphML.

Type Description

Wall

Rooms share a uninterrupted wall

only

Door

Rooms connected by door

Entrance

Rooms connected via a reinforced

door

Passage

Rooms connected by a simple dis-

continuity in a wall

manner: each room is represented by a node in the

graph. Hence, attributes of a room are implemented

as node attributes. Likewise, graph edges model the

connections between rooms (see Table 1).

3 ENCODING FLOOR PLANS

FOR RECURRENT NEURAL

NETWORK PROCESSING

This sections outlines the representation of ﬂoor plans

used for processing by (recurrent) neural networks. In

the current status of our work, we restrict ourselves

to a limited set of attributes, that are incorporated in

our LSTM models and graph representations: Room

functions, connections between rooms, room layouts

(i.e. a polygon which is representing a rooms sur-

rounding walls), and information whether or not nat-

ural light is available in a room or not.

A ﬂoor plan has to be described by a sequence

of vectors, that are being processed one after another

by an LSTM. There are several requirements to the

ﬂoor plan representation in our scenario: Both se-

quence length and vector size should be as small as

possible in order to minimize learning and productive

execution time. The vectors should be easy to inter-

pret, and the actual information should be separated

by data-less so-called control vectors (their purpose

will be explained later). Most important, the infor-

mation ﬂow in the vector sequence should mimic the

actual workﬂow an architect may have when design-

ing a ﬂoor plan. Consequently, abstract information

should precede speciﬁc information, i.e. declaration

of all rooms along with their room functions should

be before the declaration of the actual room layouts.

3.1 Blocks

A complete ﬂoor plan description in our chosen rep-

resentation consists of 3 different blocks:

1. Room Function Declarations.

2. Room Connections.

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

116

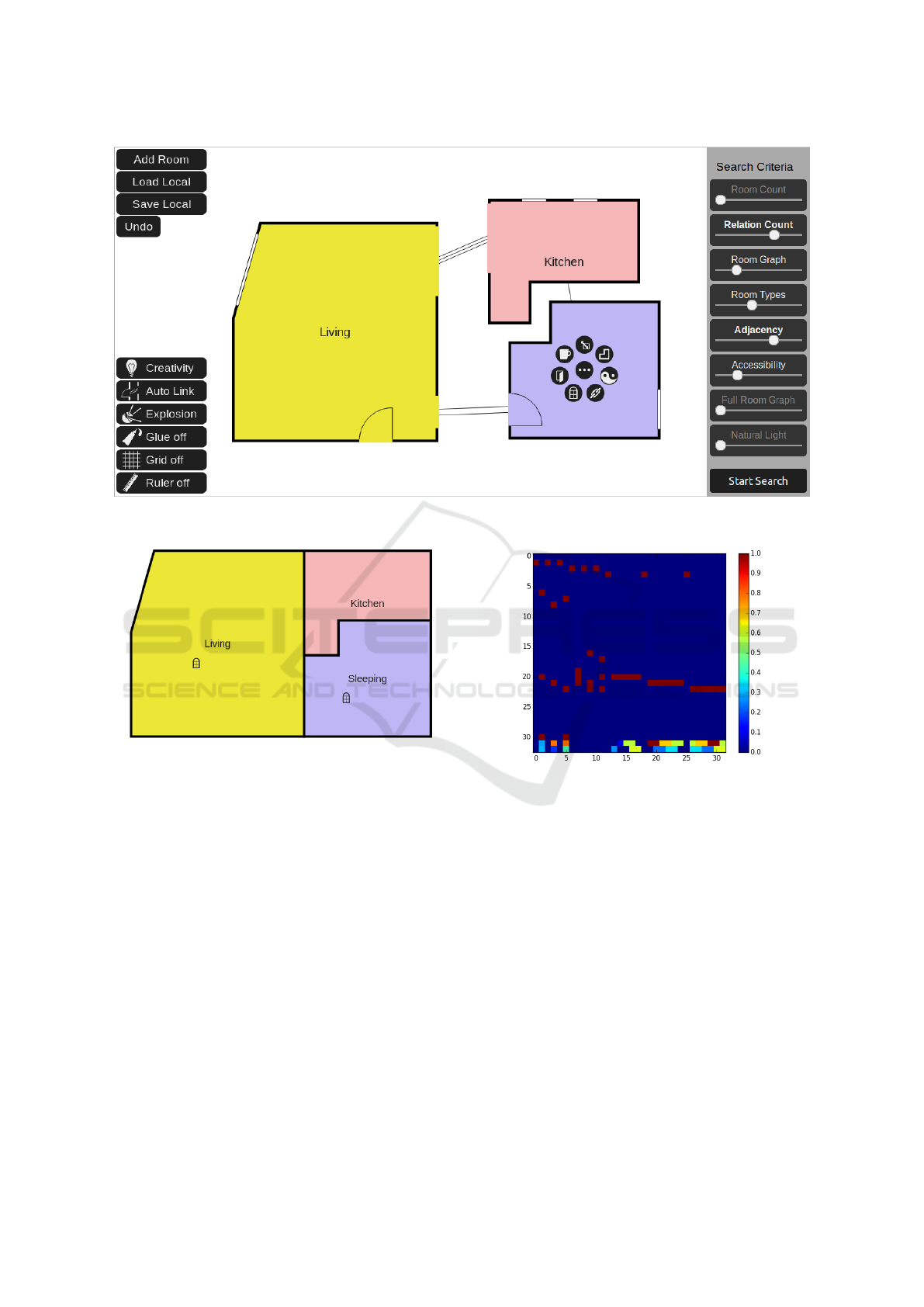

Figure 1: Screenshot of the Archistant WebUI.

Figure 2: Rendered Image of a Sample Floor. Window

Symbols indicate access to natural light. The detail level

shown in this image equals the information represented in

the feature vectors.

3. Room Geometry Layouts.

Each block consists of a number of tags of the

same kind, where each tag provides a piece of infor-

mation. Each tag is represented by a number of vec-

tors. An example for a rendered ﬂoor plan along with

its representation as a sequence of vectors can be seen

in Figure 2 and Figure 3 respectively.

3.2 The Feature Vector

A feature vector in the context of this paper can be

considered as structured into several channels as fol-

lows (see Figure 4 for the relation between channels

and actual feature vector components):

• The blank channel indicates that no information

Figure 3: Feature Vector Sequence of the Same Sample

Floor Encoding. Every feature vector occupies one col-

umn. The encoding consists of three blocks. The ﬁrst block

ranges from column 0 to 5 and deﬁnes the rooms with IDs

(row 20-29), the room function, the room’s center position

(row 31 and 32), and whether or not a room has access to

natural light (row 30). In Block 2 (column 6-12) connec-

tions between the rooms are deﬁned. In block 3 (column

13-31) the polygons of the room surrounding walls are de-

scribed.

are present (used to indicate start and ending of

ﬂoor plans or to signal the LSTM to become ac-

tive)

• The control channel indicates that a new tag be-

gins and what type the new tag is

• The room type channel (room types are called

room functions in architecture)

• The connection type channel

Interactive LSTM-Based Design Support in a Sketching Tool for the Architectural Domain - Floor Plan Generation and Auto Completion

based on Recurrent Neural Networks

117

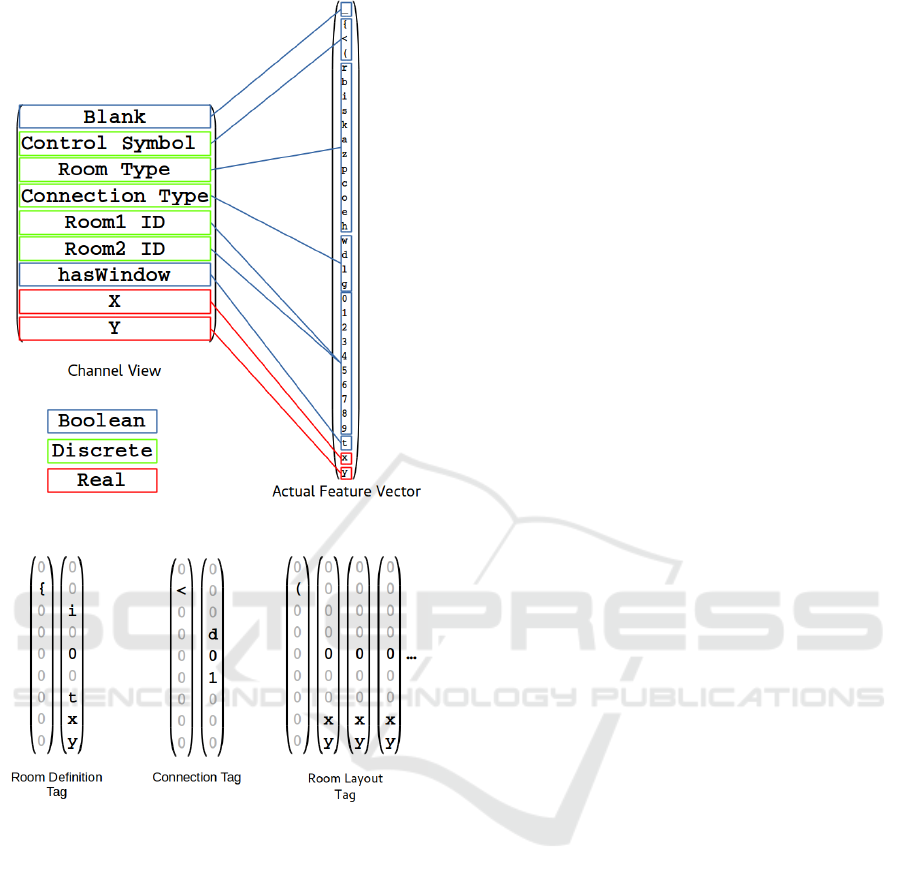

Figure 4: Structure of the Feature Vector.

Figure 5: The different Tag Types in Feature Vectors Rep-

resentation (channel view). Left: Deﬁnition of a Living (i)

Room with ID (1) with a Window (t) with a center at po-

sition (x,y). Middle: Deﬁnition of a door connection (d)

between rooms 0 and 1. Right: Deﬁnition of the polygon

layout of room 0.

• The room ID channel is used to declare or refer-

ence an individual room

• A second ID channel is used for connection dec-

laration

• has Window property

• X Ordinate of a Point

• Y Ordinate of a Point

The components, which encodes a point’s position

are real values between 0 and 1, all other components

are boolean (0 for false, 1 for true). 1-Hot Encod-

ing has originally been considered, but is inefﬁcient

(the ﬁnal, tight encoding we have chosen is around 88

percent smaller than our experimental 1-Hot encod-

ing). So in order to minimize the sequence length,

each feature vector may contain several information.

As an disadvantage, the ﬁnally chosen, tight encoding

only allows for a ﬁxed upper limit of rooms that has

to be determined before training (we decided to allow

for 10 rooms).

3.3 Tags

Tags are the atomic units a ﬂoor plan is consists of. At

the same time, they can be considered actions carried

out by an entity (like the user) to build up a ﬂoor plan.

Every tag is represented by a set of successive feature

vectors. All tags start with a so-called control vector

solely indicating the tags type. Figure 5 illustrates

how the different tag types are made up from feature

vectors. Currently, there are three different types of

tags:

3.3.1 Room Deﬁnition Tags

These tags deﬁne the very room by assigning it an ID

as well as a room type, a ﬂag indicating whether or not

the room has a window, and the position of its center.

This tag always occupies 2 feature vectors.

3.3.2 Connection Tags

Connection Tags declare the connection between

rooms. They consist of the references between the

two connection partners and the connection type. The

connection types equals the ones from AGraphML.

This tag always occupies 2 feature vectors.

3.3.3 Room Layout Tags

These tags deﬁne a polygon surrounding walls around

a room. This tag occupies p+1 feature vectors, where

p is the number of corners in the polygon.

3.4 Room and Connection Order

The order of rooms and connections underlies a trade-

off: a sorted order of rooms and connections only al-

lows for one representation of the same ﬂoor plan. By

allowing for random order, the actual user behavior

is better approximated and there are multiple repre-

sentations of the same ﬂoor plan (many samples can

be created from one ﬂoor plan). However, when con-

sidering connections to be given in a random fash-

ion, an LSTM, that should predict them given a set

of room deﬁnitions, is hard to train. Since a random

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

118

order of room deﬁnitions and connections adds an un-

predictable noise to the LSTM, we decided the order

or rooms and connections as follows:

3.4.1 Room Order

The order in which the rooms are given is determined

by the center position of the room within the ﬂoor

plan. A room which center has a smaller X ordinate

appears before before a room with a greater X center

ordinate. In case of the centers of two rooms share

the same X ordinate, the room with the smaller Y or-

dinate precedes the other room. The order of rooms is

the same for block 1 and block 3.

3.4.2 Connection Order

The order of connections is determined by the order of

the rooms. At this point, the connection graph is con-

sidered to be directed and that the source room IDs

are always smaller than target room IDs. If two con-

nections have different source room IDs, the one with

the lower source room ID will come before the one

with the higher source room ID. If two connections

have the same source room ID, the connection with

the lower target room ID will precede the connection

with higher target room ID.

4 PROPOSED MECHANISM OF

AUTOCOMPLETION OF

FLOOR PLANS USING LSTM

In this section, we present our proposed algorithm for

expanding and completing of ﬂoor plans. Here, we

outline the modus operandi, with which we hand ex-

isting parts of ﬂoor plans the (LSTM) model and re-

trieve new parts.

4.1 LSTM Input and Output Sequences

The structure of the model’s input vector is identi-

cal to the structure of its output vector and are both

referred to as sequences of feature vectors here. In

this paper, we examine two different approaches: The

block generation sequencers and the vector prediction

sequencers.

4.1.1 Block Generation Sequencers

Block generation sequencers follow a simple pattern:

The ﬁrst n blocks are given to the model’s input. Si-

multaneously, the model’s output is simply a series

of blank vectors (the blank component is 1, while

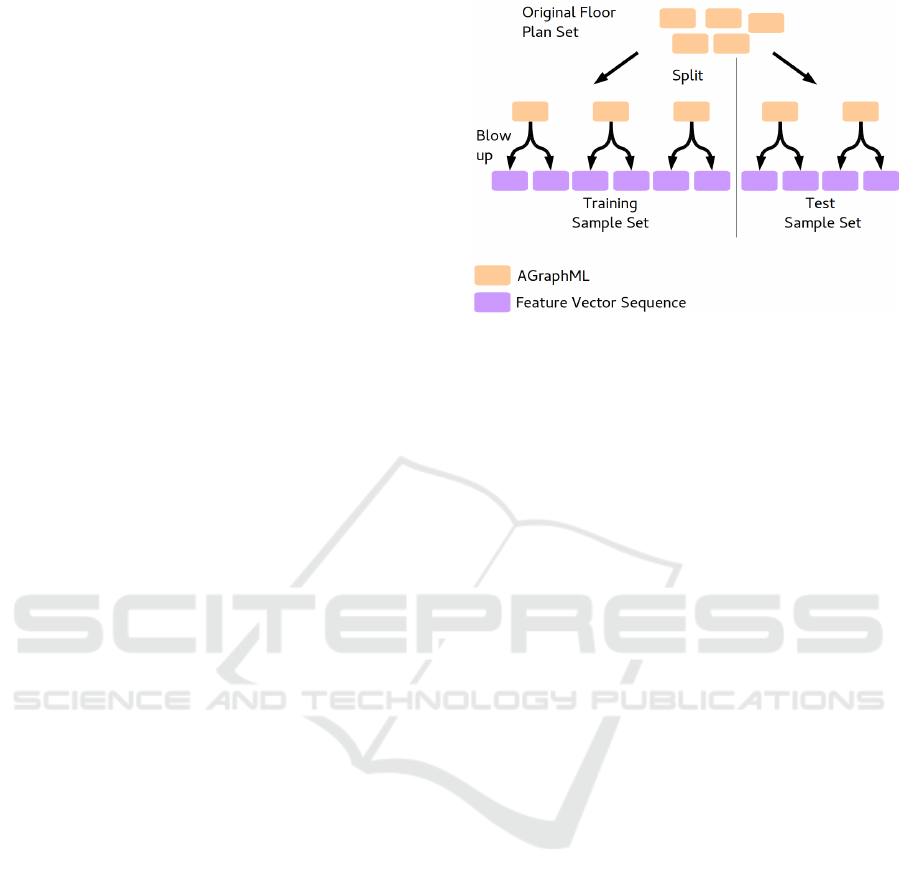

Figure 6: Sample Preparation.

all other components are 0). Afterwards, a sequence

of blank vectors is used as input while the n + 1th

block is emitted by the model (eventually ﬁnished by

a blank vector). As a result, there has to be one model

per block in order to allow for the support of the user

during the entire work ﬂow. Additionally, a model for

supporting the ﬁrst design step cannot be created.

4.1.2 Vector Prediction Sequencers

Vector prediction sequencers aim to predict the n-th

vector of a sequence given the ﬁrst n − 1 sequence

vectors. Vector prediction sequencers are trained by

using the vector sequence of a ﬂoor plan as the input

of the model and the same sequence (shifted by one

position to the past) as output. The existing gaps at

the begin of the input sequence (and at the end of the

output sequence) are ﬁlled with blank vectors.

4.2 Preparation of Database

In order to make use of the limited set of ﬂoor plans

available in AGraphML, some preprocessing is ap-

plied to generate a training sample set as well as a

test set (see Figure 6). We omitted a validation set

since the amount of ﬂoor plans he had available was

very limited and we knew from previous experiments

with a similar DB that overﬁtting is not a serious is-

sue in our situation. First of all, the sample set is split

into two disjoint subsets. Each ﬂoor plan is now con-

verted into b different samples (we refer to this pro-

cess as blow-up and to b as blow-up factor). A sam-

ple is derived from a ﬂoor plan by rotating all point of

the ﬂoor plan (centers, corner points) by an random

vector and then create the feature vector sequence as

described so far. During this step, the center and cor-

ner points of the ﬂoor plan are also normalized to the

[0, 1]

space. We want to point out, that because of the

Interactive LSTM-Based Design Support in a Sketching Tool for the Architectural Domain - Floor Plan Generation and Auto Completion

based on Recurrent Neural Networks

119

applied rotation, also the order of rooms and connec-

tions is different within the samples generated from

one ﬂoor plan.

4.3 Extension of Floor Plans

The two different approaches need different strategies

to generate new ﬂoor plan aspects, as outlined below:

4.3.1 Block Generation Sequencers

In this approach, a new block is generated by feeding

a concatenation of previous blocks with a sequence of

blank vectors into the model and reading the predicted

block from the model’s output. The blank vector se-

quence length must be bigger that the expected length

of the predicted block. This is can be done by deter-

mining the upper limit of predicted block length in the

training database.

4.3.2 Vector Prediction Sequencers

Following a metaphor by Alex Graves, in which se-

quence predictors used for sequence generation are

compared to a person dreaming (by iteratively treating

their own output as if they are real (Graves, 2013)),

this structures works like a dreaming person who gets

inspiration from outside and who combines the in-

formation from outside with its ﬂow of dreaming.

Because of that, we refer to this technique as the

shallowDream structure (see Figure 7).

Basically, this structure operates in two different

phases. During the ﬁrst phase, the existing ﬂoor plan

(in this context also referred to as concept) is fed into

the LSTM. During this phase of concept injection, all

outputs of the LSTM are ignored. After the concept

has been injected completely, the LSTM takes over

both the generation of the structures output that also

serves as its own input. This phase is also referred to

as generation phase.

Using the shallowDream structure, we are able to

implement multiple different functions by simply al-

tering the concept type and the stop symbol. E.g. in

order to predict room connections, the a concatena-

tion of block 1 and the control vector of a block 2 tag

(connection tag) is used as concept and the control

vector of a room layout tag is used as stop symbol.

The control vector at the end of a concept is used to

instruct the LSTM to generate the favored tag type

(and hence to start the new block).

Even after intensive training, the output produced

by the LSTM only approximates the intended feature

vectors. Consequently, these feature vectors have to

be regenerated during the generation phase. For that

purpose, three different strategies are proposed.

No Regeneration In this primitive approach, the

current feature vector is reinserted without any modi-

ﬁcations into the models input.

Vector-Based Regeneration This strategy solely

utilizes knowledge about the feature vector’s struc-

ture. Generally, all boolean components are recov-

ered by mapping them to 1.0 or 0.0 based on which

the component is closer to and the real-valued com-

ponents remain unaltered.

Sequence-Based Regeneration In this approach, a

state machine is keeping track of the current block

and tag the sequence is in (thereby utilizing knowl-

edge about the sequence structure). Based on that in-

formation a vector is regenerated by calculating the

most likely, possible vector.

5 INTEGRATION OF THE

PROPOSED MECHANISM INTO

ARCHISTANT

In this work, we restrict ourselves on the two follow-

ing functions:

• Room Connection Generation. Given a set of

rooms (each room is described by a center posi-

tion coordinate and room function) connections

are generated between them, turning a set of

rooms into a room graph.

• Room Layout Generation. Given a room Graph,

layouts for each room a layout (i.e. a polygon de-

scribing its surrounding walls) is generated.

For the sake of simplicity, we added a single but-

ton to the WebUI only, which we labeled ”Creativity”.

Based on the current state of the user’s work, the dif-

ferent functions are selected automatically.

6 EXPERIMENTS

We trained LSTMs based on our two sequencing ap-

proaches. In all cases, we used a training database

with 200 entries, a test database of 40 entries, a

blowup factor of 30, 500 LSTM cells and a learning

rate of 0.01.

6.1 Quantitative Analysis

In order to compare the performances of our differ-

ent approaches, we calculated the room connection

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

120

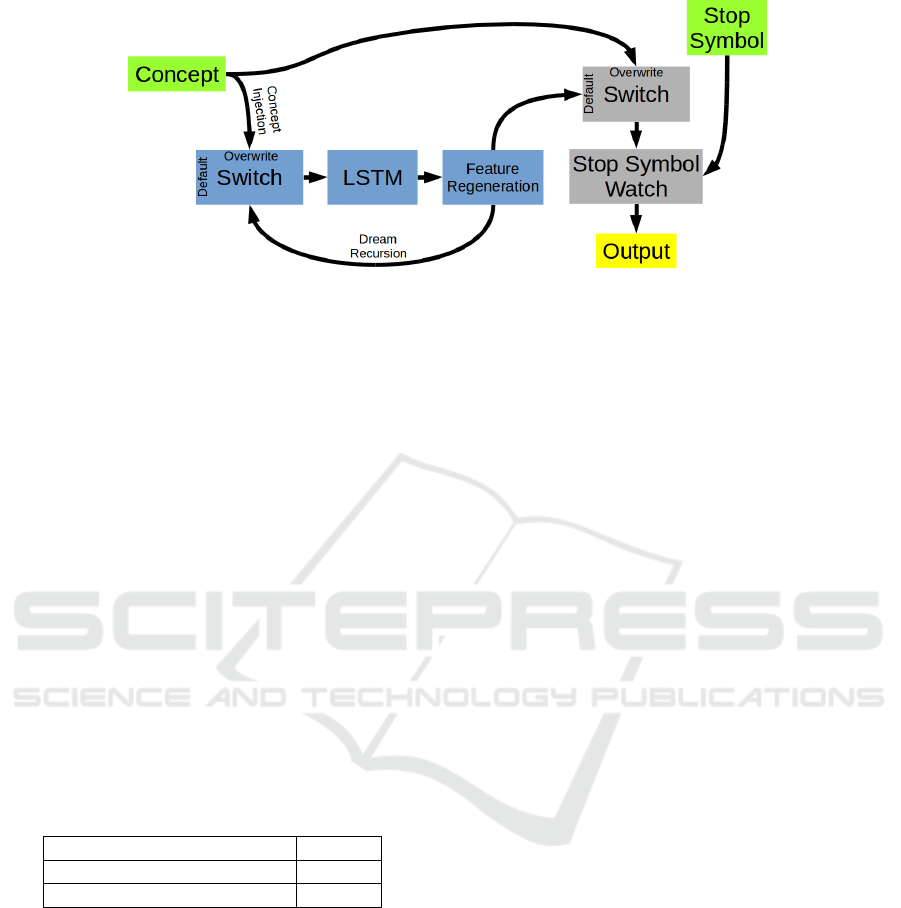

Figure 7: The ShallowDream structure. The inputs are marked green. Components of the LSTM recursion are marked blue.

generation on the room deﬁnitions of the test set of

ﬂoor plans and compared it with these ﬂoor plans ac-

tual connections. As a metric, we divided the amount

of wrong connections by the amount of actual con-

nections (we consider a connection to be completely

wrong (error 1.0), if the predicted connection does not

actually exist in the ground truth or partly wrong (er-

ror 0.5) if the connection type in ground truth is dif-

ferent). The ﬁnal evaluation value is the arithmetic

average over all ﬂoor plans in the test set. The re-

sults are shown in Table 2. We want to emphasize

that ﬂoor plan generation is a creative task and that

the is not necessarily one solution to a given problem,

i.e. the used error calculation metrics do only hint the

actual performance of the approaches (an error of 0%

appears unrealistic to accomplish given that also the

ﬂoor plans in the database are only one way to solve

the problem).

Table 2: Performance comparison of the individual ap-

proaches for the connection generation task on the test set.

Approach Error

Block Generation Sequencer 65.78%

Vector Prediction Sequencer 66.08%

6.2 Qualitative Analysis

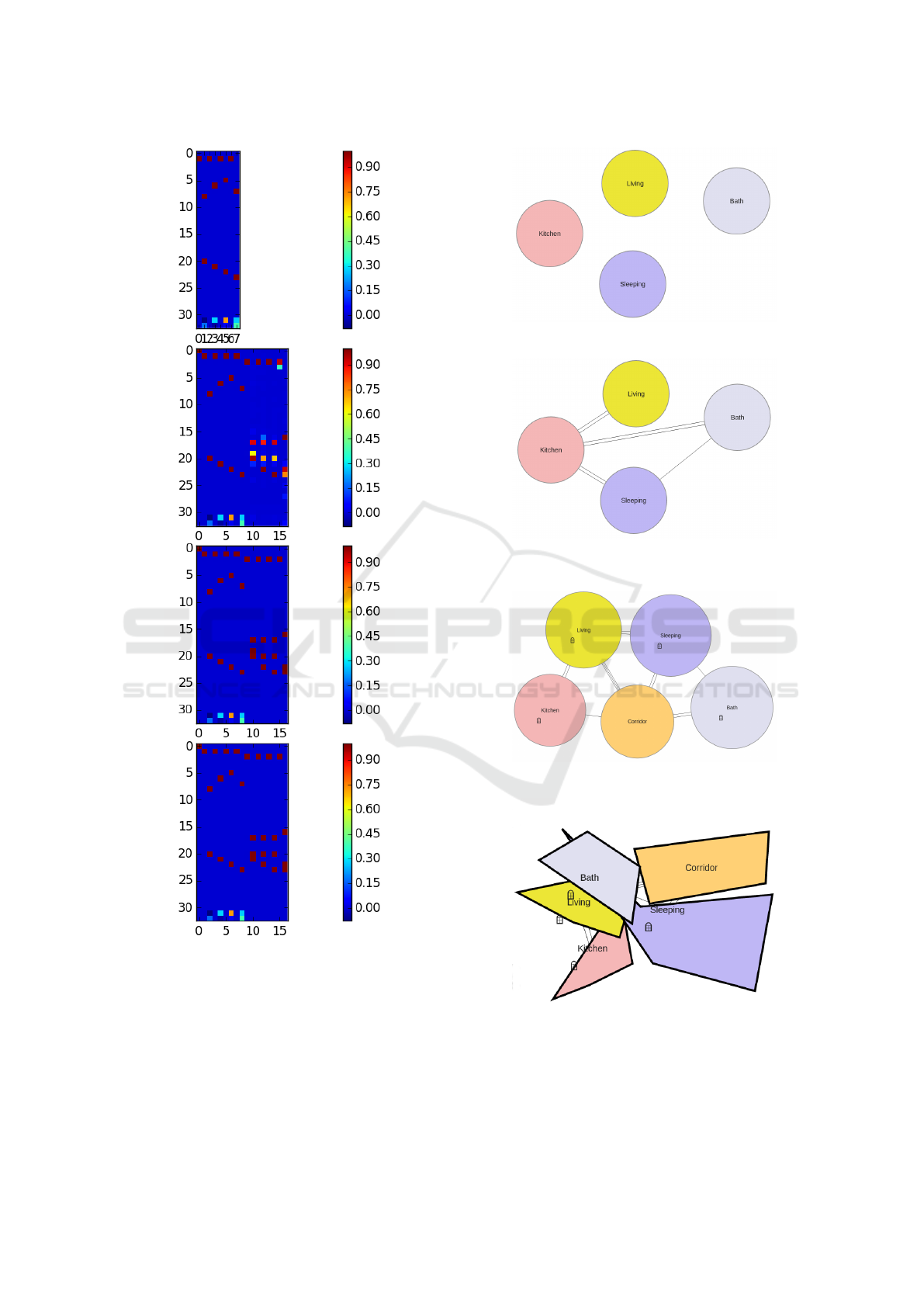

The performance of the shallowDream structure is

shown exemplary in two scenarios. For the room con-

nection generation, four rooms are given (ﬁg. 9) as

a concept. As illustrated in Figure 8, the regenera-

tion strategy inﬂuences the output. Figure 10 depicts

a rendered version of the output produced by the se-

quence based regeneration.

In order to illustrate the performance of the room

layout generation, a different starting situation is used

(see ﬁg. 11), the result is depicted in ﬁg. 12.

7 FUTURE WORK

We have shown the general viability of our approach

(the output of the trained models resembles the in-

tended syntax in a quality sufﬁcient for our inferenc-

ing algorithm to produce results). Nevertheless, a lot

of ﬂoor plan aspects are not yet covered in the existing

models. The actual position of doors and windows are

needs to be included into the models as well as sup-

port for multi-storey buildings. Apart from that, the

performance of the existing models is still limited. At

the moment, there is only one phase of concept in-

jection followed by a generation phase. By allowing

for multiple alternating phases of generation and con-

cept injection, even more functions could be realized.

Apart from that, better metrics have to be found to

assess a models performance.

In order to both allow for better comparison to

similar approaches and to improve the performance of

our system, the presented approach can be applied to

a standard database (de las Heras et al., 2015) and ex-

isting algorithms (Delalandre et al., 2007) can be used

to increase the sample size of the sample database.

Apart from that, our approach can be used as a

general template for machine learning of user behav-

ior, given that the data structure manipulated by the

user can be described as a graph. Consequently, a

more general implementation of a graph-based ma-

chine learning framework can be build from our ap-

proach.

ACKNOWLEDGMENT

This work was partly funded by Deutsche

Forschungs-Gemeinschaft.

Interactive LSTM-Based Design Support in a Sketching Tool for the Architectural Domain - Floor Plan Generation and Auto Completion

based on Recurrent Neural Networks

121

Figure 8: The regeneration technique in shallowDream in-

ﬂuences the generated feature vector sequences. From Top

to Bottom: 1. The concept. 2. No Regeneration. 3.Vector-

Based Regeneration 4. Sequence-Based Regeneration

REFERENCES

Bayer, J., Bukhari, S. S., Langenhan, C., Liwicki, M.,

Althoff, K.-D., Petzold, F., and Dengel, A. (2015).

Migrating the classical pen-and-paper based concep-

Figure 9: Input given to the shallowDream structure.

Figure 10: Output obtained from the shallowDream struc-

ture.

Figure 11: Input given to the shallowDream structure.

Figure 12: Output obtained from the shallowDream struc-

ture.

tual sketching of architecture plans towards computer

tools-prototype design and evaluation. In Interna-

tional Workshop on Graphics Recognition, pages 47–

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

122

59. Springer.

Brandes, U., Eiglsperger, M., Lerner, J., and Pich, C.

(2013). Graph markup language (graphml). Hand-

book of graph drawing and visualization, 20007:517–

541.

Breuel, T. M. (2008). The ocropus open source ocr system.

In Electronic Imaging 2008, pages 68150F–68150F.

International Society for Optics and Photonics.

de las Heras, L.-P., Terrades, O. R., Robles, S., and S

anchez,

G. (2015). Cvc-fp and sgt: a new database for

structural ﬂoor plan analysis and its groundtruthing

tool. International Journal on Document Analysis and

Recognition (IJDAR), 18(1):15–30.

Delalandre, M., Pridmore, T., Valveny, E., Locteau, H., and

Trupin, E. (2007). Building synthetic graphical doc-

uments for performance evaluation. In International

Workshop on Graphics Recognition, pages 288–298.

Springer.

Gers, F. A., Schmidhuber, J., and Cummins, F. (2000).

Learning to forget: Continual prediction with lstm.

Neural computation, 12(10):2451–2471.

Graves, A. (2013). Generating sequences with recurrent

neural networks. arXiv preprint arXiv:1308.0850.

Hochreiter, S. and Schmidhuber, J. (1997). Long short-term

memory. Neural computation, 9(8):1735–1780.

Langenhan, C. (2017). Datenmanagement in der Architek-

tur. Dissertation, Technische Universitt Mnchen,

Mchen.

Sabri, Q. U., Bayer, J., Ayzenshtadt, V., Bukhari, S. S., Al-

thoff, K.-D., and Dengel, A. (2017). Semantic pattern-

based retrieval of architectural ﬂoor plans with case-

based and graph-based searching techniques and their

evaluation and visualization.

Interactive LSTM-Based Design Support in a Sketching Tool for the Architectural Domain - Floor Plan Generation and Auto Completion

based on Recurrent Neural Networks

123
