A Wearable Silent Speech Interface based on Magnetic Sensors with

Motion-Artefact Removal

Lam A. Cheah

, James M. Gilbert

, Jose A. Gonzalez

, Phil D. Green

, Stephen R. Ell

Roger K. Moore

and Ed Holdsworth

School of Engineering, The University of Hull, Kingston upon Hull, U.K.

Department of Computer Science, The University of Sheffield, Sheffield, U.K.

Hull and East Yorkshire Hospitals Trust, Castle Hill Hospital, Cottingham, U.K.

Practical Control Ltd, Sheffield, U.K

Keywords: Silent Speech, Permanent Magnet Articulography, Assistive Technology, Motion Artefact Removal,

Magnetic Sensors.

Abstract: For a silent speech interface (SSI) to be truly practical, it has to be able to tolerate motion artefacts generated

by the user while engaging in normal activities of everyday living. This paper presents a wearable speech

restoration system based on magnetic sensors with an integrated background cancellation technique to

eliminate the effect of motion-induced interference. The background cancellation technique is assessed when

the user makes no intentional movement, when they performs a set of defined head movements and when they

make more natural, conversational head movements. The performance is measured for the TIDigits corpus in

terms of whole word recognition rate using a Hidden Markov Model and through Mel Cepstral Distortion for

a Direct Synthesis of speech using Deep Neural Networks. The results indicate the robustness of the sensing

system with background cancellation against the undesirable motion-induced artefacts.

1 INTRODUCTION

Speech is perhaps the most convenient and natural

way of communication between humans. People

whose larynx has been surgically removed following

throat cancer, trauma or destructive throat infection

find themselves struggling with vocal communication

after losing their voice. This often has a severe impact

on people’s lives, which can lead to social isolation,

feelings loss of identity and depression (Fagan et al.,

2008; Danker et al., 2010). Unfortunately, existing

post-laryngectomy voice restoration methods (i.e.

oesophageal speech, the electrolarynx and speech

valves) are often limited by their usability and

abnormal voice quality (e.g. robotic and masculine

voice), which may be unsatisfactory especially for

female patients (Fagan et al., 2008). Typing-based

alternative and augmentative communication (AAC)

devices can also be employed, but are limited by slow

manual text input.

To overcome the limitation of existing methods,

assistive technologies (ATs) such as silent speech

interfaces (SSIs) have emerged and shown promising

potentials in recent years. A SSI is a system that

enables speech communication in the absence of

audible speech by exploiting other non-audible

signals associated with speech production (Denby et

al., 2010). Because of their unique feature, SSIs can

also be deployed in other scenarios such as spoken

communication aid in noisy environments or where

privacy/confidentiality is desirable. To date, there are

several types of SSIs using different modalities, such

as the electrical activity produced by the articulator

muscles (Brumberg et al., 2010; Herff et al., 2015),

the brain’s electrical activity (Schultz and Wand,

2010; Wand et al., 2014), or the movement of speech

articulators (Toda et al., 2008; Gilbert et al., 2010;

Hueber et al., 2010). Despite the attractive attributes

of SSIs, many are still deemed as impractical and

ineffective outside laboratory environment. Factors,

such as a high degree of intrusiveness, discomfort,

unattractive appearance, unintelligible speech quality

and artefacts/noise interference, affect their real-

world implementation (Denby et al., 2010).

Cheah, L., Gilbert, J., Gonzalez, J., Green, P., Ell, S., Moore, R. and Holdsworth, E.

A Wearable Silent Speech Interface based on Magnetic Sensors with Motion-Artefact Removal.

DOI: 10.5220/0006573200560062

In Proceedings of the 11th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2018) - Volume 1: BIODEVICES, pages 56-62

ISBN: 978-989-758-277-6

The present work builds upon the permanent

magnet articulography (PMA), which is a sensing

technique for articulator motion capture (Fagan et al.,

2008; Gilbert et al., 2010; Hofe et al., 2013; Cheah et

al., 2015). In previous work, progresses were reported

in terms of the hardware, user-centric design (Cheah

et al., 2015) and speech processing (Gonzalez et al.,

2016). However, measurements from wearable

devices (including PMA) are known to be susceptive

to motion-induced interference (Such, 2007).

Comparing to measurements acquired within

laboratory settings, which are generally conducted

when subjects are in steady positions, measuring

outside the laboratory faces the problem of motion

artefacts arising from unrestricted head movements

(i.e. corruption by varying earth’s magnetic field) by

the subjects. For a PMA based device to be practical

and effective in the field, integration of motion

artefact cancellation into current prototype is

therefore critical.

The remainder of this paper is structured as

follows. Section 2 describes the PMA prototype and

the proposed background cancellation technique.

Section 3 discusses about the performance of the

PMA system, followed by the experimental results in

Section 4. The final section concludes this paper and

provides an outlook for future work.

2 MATERIAL AND METHOD

2.1 System Design

PMA is a technique for capturing the movement of

the speech articulators by sensing changes in the

magnetic field generated by a set of permanent

magnets attached to the speech articulators (i.e. lips

and tongue) by a set of magnetic sensors arranged

around the mouth. The acquired data may then be

used to determine the speech which the user wishes

to produce, either by performing automatic speech

recognition (ASR) on the PMA data (i.e. recognize-

then-synthesis) (Hofe et al., 2013; Cheah et al., 2015),

or by directly synthesizing audible speech from the

articulatory data (i.e. direct synthesis) (Gonzalez et

al., 2016). Contrary to other methods for articulator

motion capture, PMA does not attempt to identify the

Cartesian position or orientation of the magnets, but

rather a composite of the magnetic fields from

magnets that are associated with a particular

articulatory gesture. The current PMA system

consists of six cylindrical Neodymium Iron Boron

(NdFeB) magnets: four on the lips (Ø1mm×5mm),

one on the tongue tip (Ø2mm×4mm) and one on the

tongue blade (Ø5mm×1mm), as illustrated in figure

1(a). These magnets are temporarily attached using

Histoacryl surgical tissue adhesive (Braun,

Melsungen, Germany) during experimental trials, but

will be surgically implanted for long term usage. The

remainder of the PMA system is composed of four tri-

axial anisotropic magnetoresistive (AMR) sensors

mounted on a bespoke wearable headset, a control

unit, a rechargeable battery and a wireless link to a

processing unit (e.g. computer/PC), as shown in

figure 1(b).

The PMA has distinct advantages over other SSIs,

such as being unobtrusive with no wires coming out

of the mouth or electrodes attached to the skin, which

may cause unwanted attention in public. Moreover,

the PMA system is also relatively lightweight and

highly portable. In addition, the current prototype has

extensively improved over its predecessors

particularly in terms of appearance, comfort and

ergonomic factors for the users, but without

compromising on the speech performances (Cheah et

al., 2015).

2.2 Cancellation of Motion-induced

Interferences

As illustrated in Fig, the first three sensors located

closer to the mouth (Sensor1-3) are used to monitor

the articulators. The data acquired by any of these

sensors (S

) is made up of the desired signal from one

or more of the magnetic markers (A), and other

‘background’ signals (B

), the most significant of

which is generally the result of the earth’s magnetic

field. Hence:

(1)

Movement of the user’s head results in significant

interference to the field detected by the sensors and it

has been found that the desired signal derived from

the articulator movements are up to 10 times smaller

than the changes resulting from typical head

movements. This result in a poor signal-to-noise

(SNR), which degrades the performance of the speech

restoration algorithms, thus eliminating the head

motion-induced interference is necessary.

A Wearable Silent Speech Interface based on Magnetic Sensors with Motion-Artefact Removal

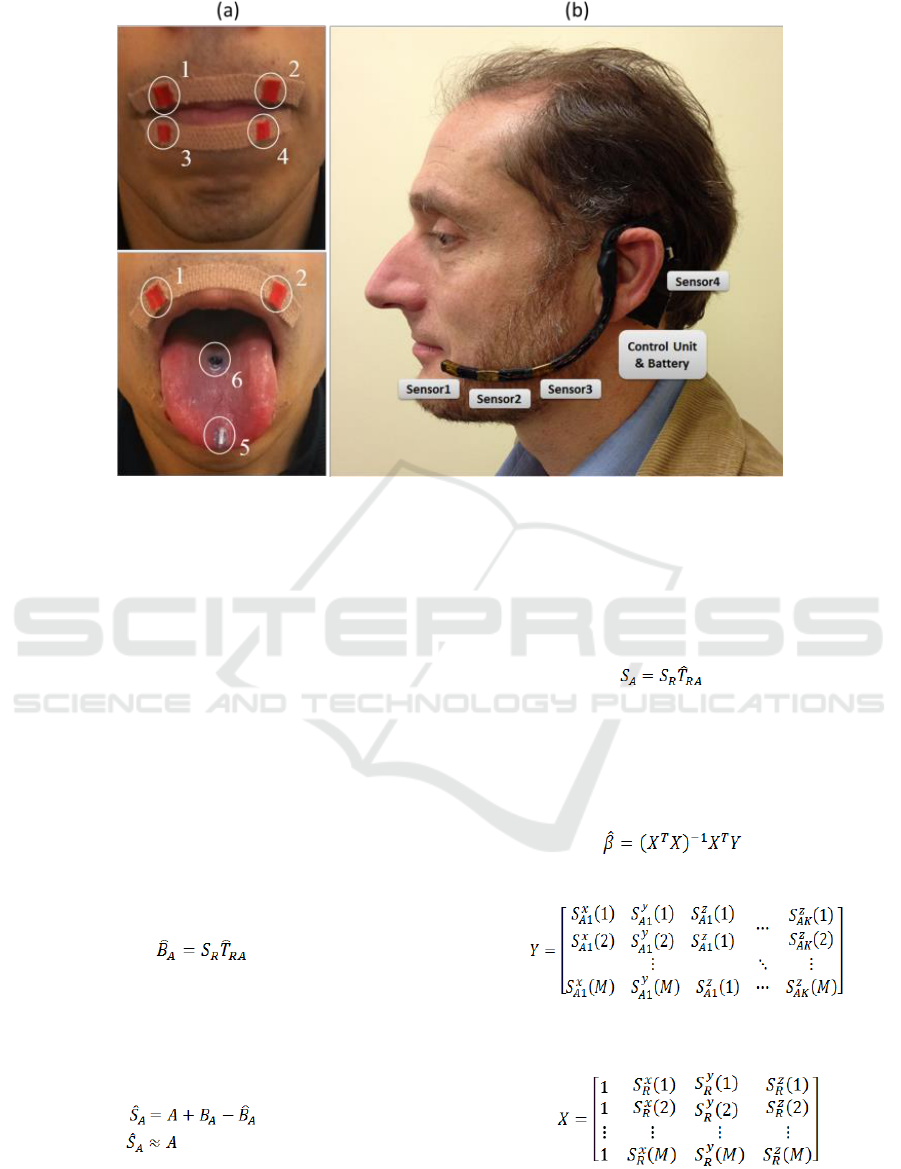

Figure 1: (a) Arrangement of magnetic markers placed on the tongue and lips. (b) Wearable PMA headset with 4 tri-axial

magnetic sensors, control unit and battery.

Although head movements typically result in

lower frequency signals than articulatory movement,

there is significant overlap in their respective

frequency spectral, thus making conventional

filtering ineffective.

The method proposed here is to reduce the effect

of these background signals by utilizing a reference

sensor (S

) located farther from the mouth (Sensor4)

as shown in figure 1(b). This is placed at a distance

far from the magnetic markers but rigidly attached to

the PMA headset so that it moves with the articulator

sensors (S

) and so measures the ambient magnetic

field. Hence, the aim is to estimate B

and cancel out

the effect of the background field on the articulator

sensor signal in (1). The estimate of B

may be

calculated as:

(2)

where T

is a transformation between reference

sensor and the articulator sensors. The estimate from

(2) is then used to remove the background field from

an articulator sensor and leave only the desired

articulatory signal:

(3)

The required transformation T

could be calculated

from the relative orientation of reference and

articulator sensors but this is difficult to measure and

will change if the headset becomes distorted. Instead,

it can be estimated by taking a series of measurement

of S

and S

while rotating the PMA headset in the

absence of any articulator movement i.e. A  0, where

(1) substitute into (3):

(4)

From (4), T

is estimated via the least square method

to determine the best cancellation coefficients.

Assuming a model Y  Xβ  ε and a set of M

measurements of Y and X, then using the least squares

method, the best estimate β of is

(5)

where

is a set of M samples of the K articulator sensor

outputs (each with x, y and z components) and

is a set of M samples of the x, y and z components of

the magnetic field at the reference sensor, β

is a 4×K

BIODEVICES 2018 - 11th International Conference on Biomedical Electronics and Devices

matrix of cancellation coefficients and ε is the

estimation error which we seek to minimize.

(6)

The first row in (6) is a constant offset cancellation

term followed by 3 cancellation coefficients

corresponding to the estimated transformation matrix

. Hence, in addition to removing the effect of the

background field, any offset on the articulator sensor

output is also removed.

3 PERFORMANCE

EVALUATION

3.1 Experimental Setup

The data used for this evaluation were collected from

a male native English speaker who is proficient in the

usage of the PMA device. Magnets were temporarily

attached to the subject’s lips using medical adhesive

strips and the tongue using medical adhesive

(Histoacryl®, Braun, Melsungen, Germany), as

illustrated in figure 1(a). and the PMA headset is

shown in figure 1(b). University research ethics

committee approval was obtained for this procedure.

It may be noted that the removal of the tongue

magnets causes temporary, mild discomfort but that

the intention is that magnets, with a biocompatible

protective coating, would be permanently implanted

into the articulators of long-term users.

For optimal sound quality, the recording was

conducted in an acoustically isolated room using a

shock-mounted AKG C1000S condenser microphone

via a dedicated stereo Lexicon Lambda USB-sound

card. The audio and PMA signals were recorded

simultaneously at sampling frequencies of 16 kHz

and 100 Hz. A bespoke Matlab-based GUI was

created to provide visual prompt of randomized

utterances to the subject at an interval of 5 seconds

during the recording session.

3.2 Vocabulary and Data Recording

To evaluate the performance of the proposed

background cancellation method, sentences from the

TIDigits database (Leonard, 1984), which consists of

sequences of up to seven connected English digits,

were recorded. The vocabulary is made up of eleven

individual digits, i.e. from ‘one’ to ‘nine’, plus ‘zero’

and ‘oh’ (both representing digit 0). Each dataset

consists of 77 digits sequences, and a total six datasets

were recorded, giving 462 utterances containing 1518

individual digits.

For model training, 3 datasets (231 utterances)

with no intentional head movements were employed,

while the testing was carried out with 1 dataset (77

utterances) for each of three conditions: i) no

intentional movement, ii) fixed angle movements

where the subject was asked to rotate his head to look

at a sequence of markers and speak as prompted.

These markers were arranged to give 30° rotation left

and right and 22° tilt upwards and downwards, iii)

conversational movements where subject was asked

to read the prompt and speak while simultaneously

moving their head in gestures which might be made

during conversation e.g. shaking from side to side,

nodding up and down, and tilting side to side.

3.3 Evaluation

Speech recognition and direct synthesis (i.e. generation

of audible speech from PMA data) experiments were

used to evaluate the performance of our system. For

speech recognition, whole-word hidden Markov

models (HMMs) were trained on PMA data as

described (Cheah et al., 2015). The word accuracy

results (i.e. percentage of words correctly recognized

after discounting the insertion errors) achieved by our

PMA system are reported here as an objective measure

of the system performance for speech recognition. For

direct synthesis, a deep neural network (DNN) with 3

hidden layers and 128 sigmoid units per layer was

trained on simultaneous recordings of PMA and speech

data to predict the acoustic signals from the articulator

movement. As described in (Gonzalez et al., 2017), the

DNN was trained on feature vectors extracted from the

raw PMA and speech signals. The speech signals were

parameterized as 27 dimensional-feature vectors

computed every 5ms from analysis windows spanning

25ms of data: 25 Mel-frequency cepstral coefficients

(MFCCs), fundamental frequency (F

) in log-scale and

binary voicing decision. The PMA signals were

parameterized as segmental features by applying the

principal component analysis (PCA) technique for

dimensionality reduction over symmetric windows

spanning 105ms of articulator movement data.

Performance on direct synthesis was evaluated by

comparing the speech features extracted from the

original signals with those predicted by the DNN from

PMA data using the following objective measures:

Mel-Cepstral distortion (MCD) (Kubichek et al.,

1993) in dBs for the MFCCs, root mean square error

(RMSE) for F

and voicing error rate.

A Wearable Silent Speech Interface based on Magnetic Sensors with Motion-Artefact Removal

4 RESULTS AND DISCUSSION

4.1 Performance of the Background

Cancellation Scheme

The performance of the background cancellation

scheme is illustrated in figure 2 for a single articulator

sensor output. In this trial, a participant made a series

of head movements (tilting the head from side to side)

and the uttered a digit sequences (i.e. ‘8428136’)

without head movement followed by simultaneous

utterance with same sequence of head movement. It

can be seen in the raw data as shown in figure 2, that

the effect of the head movement is approximately 5

times larger than the signals resulting from speech.

After background cancellation, the effect of head

movement has been almost entirely removed (during

the ‘Movement’ phase in figure 2).

Figure 2: Articulator sensor signal (Sensor3, y-axis) with

and without cancellation.

The effect of the background cancellation can be

quantified by comparing the rms of magnetic flux

density variations resulting from articulation and

head movement, before and after cancellation. In

addition, the variation in measured flux density in the

absence of both head movement and articulation

(‘Silence’ as illustrated in figure 2) is also calculated

as this represents the ‘noise floor’ below which

signals would be undetectable. The rms values of

these quantities for a dataset of 100s speech and 80s

of movements are given, along with relevant ratios in

table 1.

From table 1 we see that the mean rms during

articulation before cancellation is 2-3 times smaller

than the signal resulting from head movement. In

other words, the signal is buried in the background.

After cancellation, the articulation signal amplitude

remains largely unchanged but the amplitude of the

signal resulting from movement has reduced by a

factor of approximately 15-20, thus the desired

articulation signal is now 6 times larger than the

background. On the other hand, the process of

background cancellation has not significantly

affected the level of noise during silence and so the

articulation signal remains at least 10 times larger

than the noise floor.

Table 1: Articulation, background and noise level before

and after cancellation.

Before

Cancellation

After

Cancellation

Articulation (mG)

20.96

20.69

Movement

(mG)

Fixed Angle

38.57

2.8

Conversational

59.13

3.37

Silence

1.79

1.46

Articulation

Movement

Fixed Angle

0.54

6.85

Conversational

0.35

6.14

Articulation

Silence

11.39

13.97

4.2 Performance of PMA System in

Speech Recognition

Figure 3 shows the word accuracy results on the

speech recognition experiment with and without

background cancellation applied to the PMA data.

Without background cancellation, the recognition

performance in the presence of movement

deteriorates significantly (down to about 2%).

Figure 3: Word recognition rates with and without

background cancellation.

The use of background cancellation deteriorates

slightly the results in the absence of movement but

causes a large improvement in recognition in the

presence of movement. It should also be noted that

asking the participant to move and speak at the same

time causes some difficulties since, for instance, the

subject tend to hesitate and stumble over words more

because they are not continually looking at the

BIODEVICES 2018 - 11th International Conference on Biomedical Electronics and Devices

Table 2: Articulation, background and noise level before and after cancellation.

Movement

Cancellation

MCD (dB)

RMSE(Hz)

Voicing error rate

(%)

No movement

5.02

22.82

15.90

Yes

3.91

19.48

15.73

Fixed Angle movement

5.53

27.80

26.40

Yes

4.55

19.71

16.36

Conversational movement

6.41

26.73

28.37

Yes

4.49

17.01

16.18

prompt. Hence, some deterioration in recognition

may be due to changes in articulation rather than a

failure of the background cancellation scheme.

4.3 Performance of PMA System in

Direct Synthesis

Table 2 shows the results obtained on the direct

synthesis experiment. For each type of speech feature

(i.e. MFCC, F

, and voicing decision) the error made

by the DNN when predicting the feature from PMA

data is shown. As in the speech recognition

experiment, significant improvements are obtained

for all types of features when background

cancellation is applied. Again, the most detrimental

movement when no compensation is applied is the

conversational movement. However, when

cancellation is applied, the performance results

obtained for both types of movements is similar. In

any case, from informal listening, intelligible speech

is obtained for all movements types when background

cancellation is applied on the PMA data.

5 DISCUSSION

The background cancellation results presented in this

paper are derived for a single male subject who is

proficient in use of the PMA system. The

performance of the Direct Synthesis approach for a

small number of different speakers without

intentional head movement, but with background

cancellation active, is described in (Gilbert et al.,

2017). In that paper, three male subjects and one

female subject are considered and significant

variations in performance are noted between them.

Subjects who speak more slowly achieve better

performance while the female subject achieves

inferior performance. It is noted that the smaller size

of the female subject’s head means that the sensors

are further from the articulators, and it is suggested

that this may explain the inferior performance. The

effect of gender and age on background cancellation

performance have not been assessed since this would

require a large number of recordings which are time

consuming and uncomfortable.

The approach to background cancellation

proposed here is based on the assumption that the

magnetic field experienced by the articulator sensors

is the same as that experienced by the reference

sensor. While this is expected to be true of the earth’s

magnetic field, it may not be the case for localised

sources of magnetic fields or close to objects which

distort the earth’s field. Further testing will be

required to assess whether the performance of the

background cancellation method is maintained in

other environments, although it may be noted that no

measures were taken to control the background field

in the trails reported here. Similarly, although the

method proposed should be capable of cancelling the

effects of alternating magnetic fields, this has not

been verified experimentally.

Developing a speech rehabilitation system which

is acceptable to patients who have undergone a

laryngectomy involves a number of challenges. The

ability of the PMA system to remove motion artefacts

is one important element of this but work is also

needed to improve the speech reconstruction

achieved, to assess usability and potentially improve

the comfort of the sensor frame and to prove the

safety and viability of long-term implantation of

magnets into the articulators. Work is underway to

address all of these challenges and the results will be

reported elsewhere.

6 CONCLUSIONS

Significant improvements on the silent speech

restoration were achieved when using the proposed

background cancellation scheme for removal of

motion artefact induced by subject’s head movement.

This is an important step in our objective of

developing a speech rehabilitation system for

A Wearable Silent Speech Interface based on Magnetic Sensors with Motion-Artefact Removal

everyday use by subjects who have undergone a

laryngectomy. Encouraged by the results obtained so

far, work is underway to further evaluate the

background cancellation scheme and to develop other

aspects of the system so that a speech rehabilitation

system can be offered to individuals who have

undergone a laryngectomy which they find preferable

to existing methods.

ACKNOWLEDGEMENTS

The report is an independent research funded by the

National Institute for Health Research (NIHR)’s

Invention for Innovation Programme (Grant Referen-

ce Number II-LB-0814-20007). The views stated are

those of the authors and not necessarily those of the

NHS, the NIHR or the Department of Health.

REFERENCES

Brumberg, J. S., Nieto-Castanon, A., Kennedy, P. R., and

Guenther, F. H. (2010). Brain-computer interfaces for

speech communication. Speech Communication,

52(4):367-379.

Cheah, L. A., Bai, J., Gonzalez, J. A., Ell, S. R., Gilbert, J.

M., Moore, R. K., and Green, P. D. (2015). A user-

centric design of permanent magnetic articulography

based assistive speech technology. In Proc.

BIOSIGNALS, pages 109-116, Lisbon, Portugal.

Denby, B., Schultz, T., Honda, K., Hueber, T., Gilbert, J.

M., and Brumberg, J. S. (2010). Silent speech

interfaces. Speech Communication, 52(4):270-287.

Danker, H., Wollbrück, D., Singer, S., Fuchs. M., Brähler,

B., and Meyer, A. (2010). Social withdrawal after

laryngectomy. Eur Arch Otorhinolaryngol, 267(4):593-

600.

Fagan, M. J., Ell, S. R., Gilbert, J. M., Sarrazin, E., and

Chapman, P. M. (2008). Development of a (silent)

speech recognition system for patients following

laryngectomy. Medical Engineering & Physics,

30(4):419-425.

Gilbert, J. M., Rybchenko, S. I., Hofe, R., Ell, S. R., Fagan,

M. J., Moore, R. K. and Green, P. D. (2010). Isolated

word recognition of silent speech using magnetic

implants and sensors. Medical Engineering & Physics,

32(10):1189-1197.

Gilbert J. M., Gonzalez J.A., Cheah L.A., Ell, S.R., Green

P., Moore R.K. and Holdsworth E., Restoring speech

following total removal of the larynx by a learned

transformation from sensor data to acoustics, The

Journal of the Acoustical Society of America 141,

EL307 (2017);

Gonzalez, J. A., Cheah, L. A., Gilbert, J. M., Bai, J., Ell, S.

R., Green, P. D., and Moore, R. K. (2016). A silent

speech system based on permanent magnet

articulography and direct synthesis. Computer Speech

& Language, 39:67-87

Gonzalez, J. A., Cheah, L. A., Green, P. D., Gilbert, J. M.,

Ell, S. R., Moore, R. K., and Holdsworth, E. (2017).

Evaluation of a silent speech interface based on

magnetic sensing and deep learning for a phonetically

rich vocabulary. In Proc. Interspeech, pages 3986-

3990, Stockholm, Sweden.

Herff, C., Heger, D., de Pesters, A., Telaar, D., Brunner, P.,

Schalk, G., and Schultz, T. (2015). Brain-to-text:

decoding spoken phrases from phone representations in

the brain. Frontiers in Neuroscience, 9(217).

Hofe, R., Ell, S. R., Fagan, M. J., Gilbert, J. M., Green, P.

D., Moore, R. K., and Rybchenko, S. I. (2013). Small-

vocabulary speech recognition using silent speech

interface based on magnetic sensing. Speech

Communication, 55(1):22-32.

Hueber, T., Benaroya, E.-L., Chollet, G., Denby, B.,

Dreyfus, G., and Stone, M. (2010). Development of a

silent speech interface driven by ultrasound and optical

images of the tongue and lips. Speech Communication,

52(4):288-300.

Kubichek, R. (1993). Mel-cepstral distance measure for

objective speech quality assessment. In Proc. IEEE

Pacific Rim Conference on Communications,

Computers and Signal Processing, pages 125–128,

Victoria, Canada.

Leonard, R. G. (1984). A database for speaker-independent

digit recognition. In Proc. ICASSP, pages 328-331, San

Diego, USA.

Such, O. (2007). Motion tolerance in wearable sensors– the

challenge of motion artifact. In Proc. IEEE EMBC,

pages 1542-1545, Lyon, France.

Schultz, T., and Wand, M. (2010). Modeling coarticulation

in EMG-based continuous speech recognition. Speech

Communication, 52(4):341-353.

Toda, T., Black, A. W., and Tokuda, K. (2008). Statistical

mapping between articulatory movements and acoustic

spectrum using a Gaussian mixture model. Speech

Communication, 50(3): 215-227.

Wand, M., Janke, M., and Schultz, T. (2014). Tackling

speaking mode varieties in EMG-based speech

ecognition. IEEE Transactions on Biomedical

Engineering, 61(10):2515-2526.

BIODEVICES 2018 - 11th International Conference on Biomedical Electronics and Devices
