The Rapid Extraction of Suspicious Traffic from Passive DNS

Wenbo Wang

, Tianning Zang

and Yuqing Lan

School of Computer Science and Engineering, Beihang University, China

National Internet Emergency Center, China

Keywords: DNS, Amplification Attack, Random Subdomain Attack, Domain Generation Algorithm, Malicious Domain

Name.

Abstract: The network traffic is filled with numerous malicious requests, most of which is generated by amplified at-

tacks, random subdomain name attacks and botnets. Through using DNS traffic for malicious behavior anal-

ysis, we often need to test each domain alone. Besides, the amount of data is very large and simple filtering

cannot quickly reduce the need to detect the number of domain names. As a result, it takes a lot of time to

calculate on the premise of limited resources. Therefore, this paper introduces a extraction scheme for DNS

traffic. We designed a simple and efficient method for extracting three kinds of attack traffic with the largest

proportion of traffic. Besides, the method of statistics and classification was used to deal with all the traffic.

We implemented a prototype system and evaluated it on real-world DNS traffic. In the meanwhile, as the

recall rate reached almost 100%, the number of secondary domain names to be detected was reduced to 8%

of the original quantity, and the DNS record to be detected was reduced to 1% of the original number.

1 INTRODUCTION

As a logical address to define a device in the network

location, IP address is provided by the IP protocol

digital unified address identification, With the grad-

ual increase in network equipment, memory difficul-

ties of IP address emerged. In 1983, Paul Mockapetris

proposed the architecture of DNS and proposed to im-

prove it into a distributed and dynamic database do-

main name system, which refers to the prototype of

the domain name system used today. As a tool, do-

main name brings us convenience, which simultane-

ously leads to corresponding security issues.

For these malicious behavior, there are blacklists

and the corresponding reputation systems such as

DGArchive (Plohmann et al., 2016), Notos (Antona-

kakis et al., 2010), DSBL (Serdar Argic, 2009). There

are some detection systems like Pleiades (Antona-ka-

kis et al, 2012), EXPOSURE (Bilge et al, 2011),

FluxBuster (Perdisci et al, 2012). Besides, there are

some systems using depth learning model to solve the

problem like LSTM (Woodbridge and Anderson,

2016), word2vec (Goldberg and Levy, 2014). When

dealing with passive DNS data from Shangxi and

Guangdong Telecom, the amount of data is too large

to easily complete processing of all data. If only the

white list is used to filter data, it leads to ignoring at-

tacks by benign domains or attacks against benign do-

mains. We hope to build an efficient model for mali-

cious traffic extraction by simplifying or referring to

these detection methods.

In this paper, we propose a malicious traffic loca-

tion model. Using some statistical characteristics and

pre-trained model, we can quickly locate suspicious

malicious traffic. This model is deployed in the local

server or recursive network edge node, and monitor

DNS request and response of the network, which can

analyze the data at regular intervals, and quickly lo-

cate the traffic containing malicious domain names

for further analysis and detection. According to the

report (Orthbandt, 2015), in the malicious traffic sta-

tistics, random subdomain names accounted for 80%,

amplification attacks accounted for 15% and C&C

traffic occupied 5%. Besides, our model will also ad-

dress these areas. Our model to locate malicious traf-

fic from massive data has a high recall rate. At the

same time, it can greatly reduce the detection of ma-

licious domain time spending. Because many inter-

ferences are removed, the effect of detection is greatly

improved. The experiments are carried out at differ-

ent time in Shanxi and Guangdong provinces, proving

that the model has good adaptability.

190

Wang, W., Zang, T. and Lan, Y.

The Rapid Extraction of Suspicious Trafﬁc from Passive DNS.

DOI: 10.5220/0006543401900198

In Proceedings of the 4th International Conference on Information Systems Security and Privacy (ICISSP 2018), pages 190-198

ISBN: 978-989-758-282-0

This paper makes the following contributions:

▪ we propose a lightweight model for malicious

traffic extraction, which can effectively locate

malicious traffic in large-scale ISP (Internet

Service Provider) networks and rapidly reduce

the magnitude of further traffic detection;

▪ we provide the prototype implementation of the

model, and experiment in the network environ-

ment of different periods in the two provinces.

The result has excellent recall rate, reduced

traffic scale, and has high applicability;

The remainder of the paper is organized as fol-

lows. Section 2 introduces some background on DNS

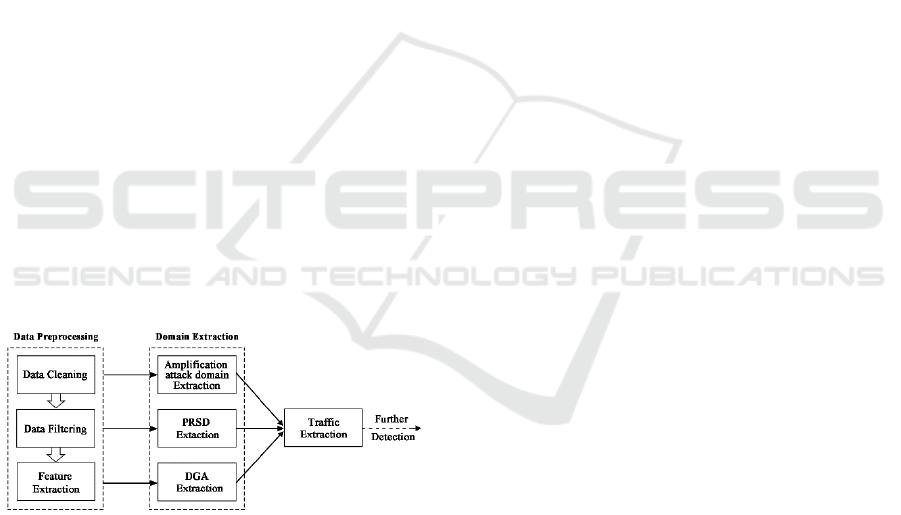

and related works. We provide an overview of our

system in Section 3. Each part process is described in

Section 4. The experimental results are presented in

Section 5 and we discuss the limitations of our sys-

tems in Section 6. Section 7is the conclusion of the

paper in.

2 BACKGROUND AND RELATED

WORK

2.1 DNS Amplification Attack

DNS amplification attack uses the DNS server as a

springboard to amplify traffic. In the case of a normal

DNS query, the source IP address sends a DNS query

to the DNS server, and the source IP address is re-

turned. In addition, the attacker will attack the target

IP address forged as the source IP address and the

query results will return to the forged IP address. Usu-

ally, a DNS query packet size is about 60 bytes. If you

initiate a DNS query with a request type of ANY, it

indicates a request for all DNS resource records (in-

cluding A record, MX record, CNAME record, PTR

record, etc.). Then, the returned packets typically

reach hundreds of bytes to thousands of bytes. Aka-

mai researchers found a DNS amplification attack us-

ing TXT records in 2014 (Kovacs, 2014). An attacker

uses a tool named DNS Flooder to obtain a TXT rec-

ord by querying guessinfosys.com with an attack

peak of 4.3Gbps.

Tama et al used the method of anomaly detection

to model the network data stream according to the

header attribute, and adopted the naive Bayesian al-

gorithm to score each incoming data stream to evalu-

ate the rationality of the message (Tama and Rhee,

2015). Karnwal et al transformed the one-dimen-

sional timing into multidimensional AR model pa-

rameters through dimension transformation, and used

the support vector machine algorithm to study and

classify the data stream (Karnwal et al., 2013). Wang

et al have considered the use of anomaly detection

methods, who also use hidden Markov model to de-

scribe the change of data header in data stream (Wang

et al., 2015).

2.2 Random Subdomain Attack

Domains generated by random subdomain attack

(also known as Random subdomain DDoS or the

Random QNAME attack or the Nonsense Name at-

tack) (Liu, 2015) having the same SLD (second-level

domain name) or third-level domain name have nu-

merous different random subdomain names, and these

SLD is usually legal. This attack is a DDoS attack

against the domain name server, or even against the

root domain name server (VeriSign, 2015).

An attacker uses infected network devices to con-

struct DNS queries for a random subdomain based on

a legal SLD. These queries first arrive at the recursive

DNS server. Since the server does not have the corre-

sponding cache, these queries are propagated to the

top-level domain name server and the domain author-

itative server. These processes consume query re-

sources rather than bandwidth, yet will obviously

slow down or even prevent the domain name of the

normal query and cause over-loading of the server

(Rizzo et al., 2016).

There is no sophisticated and mature real-time de-

tection method for random subdomain attacks yet.

For example, the solution given by secure64 is to in-

crease memory, increase recursive complexity, and

automatically block IP with too many failed requests

(Andrew, 2015).

2.3 Botnet based on DGA

DGA (Domain generation algorithms) uses algo-

rithms to pseudo-randomly generate domain names.

These domain names are used to establish the connec-

tion between the infected host and the C&C servers

(command and control servers). The traditional botnet

uses a fixed IP or domain name to establish a connec-

tion with the C&C servers, which is poorly concealed

and easily found.Afterwards, there are P2P-based

botnets such as Nugache (Stover et al., 2007), Storm

(Wikipedia, 2010), Waledac (Williams, 2010), Zeus

(abuse.ch, 2011), etc. with good robustness and sta-

bility but also high difficulty of implementation and

maintenance costs. At present, most of the active bot-

nets use DGA, relying on the concentration of C&C

server. Compared with the first two, it is simpler

while considering the advantages of stability and con-

cealment.

The Rapid Extraction of Suspicious Trafﬁc from Passive DNS

191

The detection of DGA algorithm mainly includes

black list, machine learning method and reverse engi-

neering. L.Bilge (Bilge et al, 2011) extracted a total

of 15 features from the DNS data based on time, DNS

response, TTL (Time to Live), domain name charac-

ters. The J48 decision tree is used to train the classi-

fier and make up for the inability to detect a malicious

domain name that has been used only once by an IP

address with the perfect feature selection. Besides,

they also set up the EXPOSURE system to conduct

extensive detection of malicious domain names. B.

Rahbarinia proposed a behaviour based system

named Segugio (Rahbarinia, 2016). Segugio effi-

ciently discovers the newly added malware-control

domain name by tracking DNS requests that are in-

fected by host malware in a large ISP network. Notos

(Antonakakis et al., 2010) and EXPOSURE establish

domain-IP mapping relationship model (using the

characteristics of the domain name string, the domain

name carries malicious content and other infor-

mation) without using the local DNS server down-

stream host request behaviours. Compared to these

two, Segugio monitors DNS user requests for DNS

requests, focusing on the precise "malware-only" do-

main name. J. Woodbridge (Woodbridge and Ander-

son, 2016) and other researchers use LSTM to predict

DGA-generated domain names that can be run in real

time and do not require artificially created features.

D. Plohmann, F. Fkie and others have conducted a lot

of detailed work on the DGA (Plohmann et al., 2016).

They conducted a comprehensive study of 43 DGA

malware families and variants, presented a taxonomy

for DGA, and used this to classify and compare the

studied DGA.

In general, the above-mentioned detection meth-

ods use the Alexa top domain name as a whitelist for

initial filtering, but the number of filtered domain

names is quite limited.

2.4 Related Work

The biggest difference between our work and the de-

tection model for traffic refers to that we do not focus

on false positives. We want to get the highest possible

recall rate, extraction rate and extraction efficiency.

Regarding the work of amplification attacks, the

most significant point is that we only need to use pas-

sive DNS rather than complete package. At first, we

attempted using logistic regression, hoping to achieve

binary classification with a small number of attrib-

utes. We try to modify the manual annotation to im-

prove the recall rate, but even if this is done, the dif-

ference between the number of positive cases and the

number of negative cases is still very large. As a re-

sult, we cannot get stable corresponding to the corre-

sponding weight of the various features. We consider

using more practical statistical methods and observa-

tion experience in the classification. Besides, we are

concerned about the proportion of TXT queries and

ANY queries. To save the additional text information

of the domain name TXT records are used and the

content is written in a certain format, like the SPF for-

mat. Additionally, this format is used to register a do-

main name for outgoing mail all the IP address. When

an attacker uses an TXT record to amplify an attack,

it uses the pre-registered domain name and sets the txt

record content of the domain name as long as possible

to increase the magnification. Any query will query

all the records of the domain name, so the attacker

chooses to use ANY query. Therefore, they can easily

get a lot of magnification. The only concern about the

proportion of TXT query and ANY query is to mini-

mize the extraction time, in the process of doing tra-

versal can record each domain name TXT query,

ANY query number, and the number of all inquiries.

The extraction of random sub domain attack traf-

fic has similarities with above method. We mainly fo-

cus on the number of sub domain names and domain

name query success rate. In the process of extracting,

the reverse domain name parsing record (suffix is

‘.in-addr.arpa’) and some misconfigured domain

names (suffix is usually '.localhost' or '.local') are

cleaned first, which will generate a large number of

subdomains and unresolvable records.

For the extraction of DGA domain, effect of only

using the blacklist filtering is poor. Simple use of sta-

tistical data for fitting leads to very low extraction

rates due to the diversity and complexity of the DGA

species. It takes too much time to build complex mod-

els and detection methods, so we choose to use black

and white list training model as well as select only the

domain name character.

3 SYSTEM DESCRIPTION

Our system aims to extract DNS traffic from amplifi-

cation attacks, random subdomain attacks and DGA.

Given a continuous flow of time, or even only one

hour of traffic data, we can initially determine the ma-

licious part. Intuitively, we can divide a batch of DNS

data into two parts, some of which only contain legit-

imate access, and the other part contains all the mali-

cious traffic. Our data source is passive DNS data in-

cluding the recursive domain name server response

history information. We collected recursive DNS

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

192

server data from Shanxi and Guangdong, with an av-

erage of 80 million data per hour in Shanxi and an

average of one hundred and seventy million data per

hour in Guangdong. During the process of extracting

DGA domain name traffic, we collected a blacklist

with a whitelist, where the blacklist came from the

360 netlab while the whitelist used alexa top 1 mil-

lion.

3.1 System Overview

In this section, we conduct a high-level overview of

our system. According to Figure 1, we divide the sys-

tem into two parts, respectively, the Passive DNS pre-

processing module and the traffic extraction module.

Besides, we will describe each module function and

discuss how to achieve the goal together as well as

maximize the recall rate and efficiency.

The process of pre-processing mainly achieves

three goals. One is to remove the DNS records con-

taining the wrong domain name, that is, to clean data.

For example, there are some illegal characters like ‘!’

and ‘_’ appeared in domain names. The second is to

eliminate unrelated traffic, which will not appear in

malicious traffic \, such as traffic of reverse DNS. On

the other, we will try to remove domain names that do

not appear in malicious traffic during a certain type of

traffic extraction process. For example, the domain

name in the whitelist can be removed during the ex-

traction of DGA traffic. The third is to calculate the

eigenvalues for the traffic extraction module, such as

the proportion of ANY queries for each domain name.

Figure 1: System Overview.

3.2 Statistical Features

This section will define key statistical features and in-

troduce the calculation method. We calculate nine

features for each domain name, namely, bigram, tri-

gram, fourgram, entropy, length, Qar (query ANY

record ratio), Qtr (query TXT record ratio), sdc (sub-

domain count), and nxdr (non-exist subdomain ratio).

3.2.1 Definitions and Notation

A domain name is consisted of two or more groups of

ASCII or language characters, each of which is sepa-

rated by ‘.’. The rightmost part is called a TLD (top-

level domain name). SLD (Second-level domain) re-

fers to the domain name under the top-level domain

name, which is registered by the domain name regis-

trant. Third-level domain name under the SLD, can

be called sub-domain name.

3.2.2 N-gram Features

SLDs are taken out of the domain name in the white-

list. Each of the SLDs is added with '^' at the begin-

ning and ended with the '$'. For example, there is a

domain, ‘www.buaa.edu.cn’ with SLD of ‘buaa’ and

becomes ‘^buaa&’. These SLDs are used as training

corpus to measure the N-gram frequency distribution,

where n = 2, 3, 4. Besides, given a domain name, we

can use their SLD respectively to obtain the corre-

sponding Bigram, Trigram and Fourgram features.

3.2.3 Entropy Features

Considering a domain name, we extract the SLD and

calculate its entropy according to equation 1, where

p(c) is the probability of occurrence of each character

in the SLD. Entropy can show the randomness of a

domain name.









 











 



 (1)

3.2.4 Ratio-related Features

Some ratio-related features can be calculated through

the DNS record. These features are expressed by pro-

portion rather than absolute number, such as the pro-

portion of ANY type queries to the total number of

queries.

3.3 Data Preprocessing

The preprocessing module performs three layers of

raw data collected, respectively, data cleaning, data

filtering and feature extraction.

3.3.1 Data Cleaning

First, all the data is to be cleaned. A valid domain

name contains only 26 alphanumeric characters (in-

cluding uppercase and lowercase), numbers, dashes,

and points used to split each segment. It is easy to

clean up these data by building regular expressions.

Another part is domain names without TLD. There

The Rapid Extraction of Suspicious Trafﬁc from Passive DNS

193

are many reasons for this situation, such as configu-

ration and human reasons.

3.3.2 Data Filtering

Secondly, the data filtering operation is carried out.

The first part is to filter the reverse domain name. In-

verse address resolution refers to the mapping from

IP address to domain name, which is mainly applied

by mail servers to prevent spam. The return packet is

small and is not suitable for use as a zoom attack.

Therefore, there is no behavior in the malicious traffic

that uses the reverse parsing record to attack. The sec-

ond part is to filter the domain name generated by the

configuration errors, which is quite common. Among

them, "local" and "localhost" as the suffix domain

name appears most. The third part is to filter IDNs

(Internationalized Domain Names). IDNs are a gen-

eral term for non-English-speaking countries to pro-

mote their own language domain name systems with

punycode encoding.

3.3.3 Feature Extraction

Another major function of the module is to convert

DNS records into corresponding feature vectors. DNS

records is divided by each hour to form a DNS re-

source records sequence, S = {rr

, rr

, ..., rr

}, where

each resource record contains the domain name,

source IP, request type, return type, rcode, timestamp,

and so on. Each of the SLDs under the TLD is an in-

dependent branch, which is managed by a different

domain name registrant. Therefore, our statistical fea-

tures are for the SLD. We count the number of queries

group by each SLD within a period as qc: the number

of queries which type is ANY as qac and the number

of queries which type is TXT as qtc. We set any query

ratio qar = qac / qc, txt record query ratio qtr = qtc /

qc. According to rcode to determine whether the do-

main name can be successfully resolved, we calculate

the proportion of non-existent domain name nxdr. We

count the number of sub-domain names for each SLD

in the time interval, named sdc. In this paper, we

choose the interval as one hour, which will be dis-

cussed in Section 4.2. Then, we calculate the entropy,

bigram, trigram, fourgram, length, and label whether

it is in alexatop 100 million white list based on these

SLD.

Eventually, we get each record for SLD, qar, qtr,

nxdr, sdc, entropy, bigram, trigram, fourgram, length,

and inwhite.

3.4 The Extraction of Domain Names

This module is to take advantage of the SLD and its

features, and extract the domain name which involves

malicious behaviours. The extraction process aims at

three types of attacks, namely, amplification attacks,

random subdomain attacks, and DGA domains.

3.4.1 Domains of Amplification Attack

This part is mainly to find the part of the domain that

acts as a springboard in the amplification attack. The

attacker uses these domains by using their TXT rec-

ords or ANY queries to return all the resource records

of the domain name. We use the qar and qtr obtained

in section 3.3. By formula 2, we set a parameter β.

When qar+qtr<=β, the result is 0. When qar+qtr>β,

the sum of qar and qtr was positively correlated with

. At the same time, we set threshold α, in which

>α, and identified as the suspected amplification at-

tack of traffic. Here the value of α is 0.1 and the value

of β is 0.05. The threshold value will be carefully dis-

cussed in the next chapter.





    







 (2)

3.4.2 Domains of Random Subdomain Attack

This part aims to locate the domain name used by ran-

dom subdomain attacks. The attackers generate nu-

merous sub domains randomly under the SLD, and

these domain names do not exist. Therefore, we mul-

tiply sdc with nxdr to represent the possibility of ma-

licious use, and this value range is large. We use for-

mula 3 to change the result to between 0 and 1. Here,

we choose θ as 0.3.











 











 

3.4.3 Algorithmically-Generated Domains

ADGs (YADAV et al., 2010) means the domain name

generated by the DGA algorithm. The domain name

generated by DGA is second-level domain, so this

part of the extration is concerned with the SLD in the

traffic. Our model is trained with black and white

lists, and data sources are presented in section 4.1. We

extracted the SLD of each domain name in the list,

and calculated their length, entropy and n-gram re-

spectively, where n=2,3,4. We chose Random Forests

as classifiers. When each tree is trained, a data set of

the same size as N can be trained (bootstrap sampling)

(3)

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

194

from a full training sample (sample number N). Ran-

dom Forests are trained at a faster rate, which can bal-

ance errors.

We get the domain name from the previous mod-

ule. For each SLD, we first remove it if it is in the

white list, and then classify the remaining domains

into categories in turn to obtain the suspected ADGs.

3.5 The Extraction of Domain Names

Further detection often requires complete DNS re-

source record. Therefore, after obtaining the domain

name through Section 3.4, the module will restore this

set of secondary domain names to the corresponding

traffic, that is, the original DNS resource record. The

operation is very simple. This batch of secondary do-

main name after cleaning is listed. Then, the records

are retained which have the same SLDs.

4 EVALUATION

In this section, we report the results of the evaluation

of the entire system. First, we introduce the data we

use, and then discuss the parameters in section 4.2.

Finally, the results of traffic extraction are demon-

strated.

4.1 Datasets

Our data comes from CNCERT / CC including

Shanxi Telecom China Passive DNS data and Guang-

dong Telecom Passive DNS data. The data from

Shanxi Province is collected on October 15, 2015,

which contains 23 hours. According to figure 3(a), the

total amount of DNS records close to 2 billion. The

number of domain names that are not duplicated per

hour is between 100 thousand and 200 thousand. We

labelled 101 DDOS related malicious domain names

and 322 DGA related domain names. The data from

Guangdong province is collected on April 14, 2017,

which contains 9 o'clock to 16 o'clock a total of 9

hours of data. As shown in Figure 3(b), the total num-

ber of DNS records is more than 1.1 billion, and the

number of distinct secondary domain names per hour

is about 600,000. We labeled 163 DDOS related ma-

licious domain names and 265 DGA related domain

names.

In the extraction of DGA traffic, we use the alex-

atop100 million domain name list as a whitelist. Be-

sides, we downloaded the DGA blacklist from the 360

netlab as a blacklist containing 1037304 second level

domain names. Figure 4 presents the relationship be-

tween the length and the entropy of the secondary do-

main name from the blacklist and whitelist. When

consistent in length, the domain of DGA is often as-

sociated with a greater entropy value.

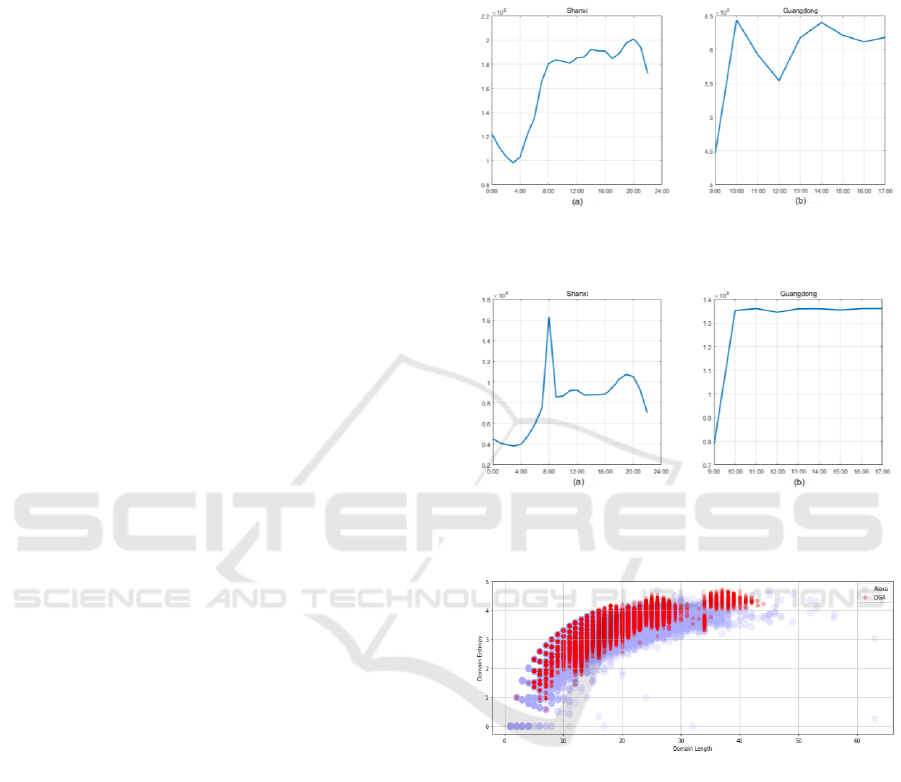

Figure 2: Number of distinct SLDs in Shanxi and Guang-

dong.

Figure 3: Number of DNS records in Shanxi and Guang-

dong.

Figure 4: The entropy changes with the length of the do-

main name.

4.2 Parameter Analysis

We first discuss the parameters appearing in the 3.4.1

section, where three parameters are involved, namely,

the time interval and the threshold value α to judge

whether the domain name is suspicious, and the pa-

rameter β in formula 2. The values of time interval are

10 minutes, 30 minutes, 60 minutes and 120 minutes,

and the values of alpha are 0, 0.05, 0.1, 0.2, 0.3, 0.5

and 0.6. Besides, the values of beta are 0.07, 0.1, 0.15

and 0.2. Figure 5 shows that the Z axis represents the

recall rate. When the time interval is 10 minutes, the

recall rate is always above 0.98. Additionally, the

maximum recall rate was 0.94 when the time interval

The Rapid Extraction of Suspicious Trafﬁc from Passive DNS

195

was 120. The two cases cannot be satisfied with the

values of α and β. Table 1 shows the relationship be-

tween the value of the different parameters and the

number of suspicious domains. Obviously, the time

interval selected as 30 minutes or 60 minutes can

achieve the effect of little difference. But the number

of executions of the former is twice that of the latter,

so we set the time interval to 60 minutes. To obtain as

few domain names as possible, we set α to 0.1 and β

to 0.05.

Another parameter that needs to be discussed is θ

in Equation 3 in Section 3.4.2. The smaller the value

of θ, the smoother the curve of this function. As

shown in Figure 6, the relation between the value of

θand the number of domains extracted is described.

When θwas 0.1, the recall rate was 50%. When θis

greater than 0.2, the recall rate is 100%.

Figure 5: The effect of different α, β, and time intervals on

the recall rate.

Figure 6: The relation between θ and the number of domain

names in domain names extraction of PRSD.

We discuss our choice of features in the pro-

cessing of the DGA domain name. On the one hand,

we cannot select too many features to ensure that the

training time and classification time of the model can-

not be too long. On the other, we cannot choose too

few characteristics, otherwise it is difficult to achieve

satisfactory recall rate. Finally, we select the SLD’s

length, entropy, and bigram, trigram, fourgram, these

five characteristics. In addition, we use random for-

ests as classifiers. As shown in Figure 7, we observe

the result through confusion matrices, with a recall

rate of more than 96%. Besides, we carried out ten-

fold cross validation, recall rates are above 85%, the

highest can reach more than 98%.

Figure 7: The effect of different α, β, and time intervals on

the recall rate.

Table 1: When the recall rate is 100%, the relationship be-

tween α, β and the number of suspected domain names.

30 mins

60 mins

0.07

0.05

784

764

0.07

0.1

779

758

0.07

0.2

768

749

0.07

0.3

762

738

0.1

751

731

0.1

0.05

750

730

4.3 The Effect of the Model

In Section 4.2, we use the data from Shanxi Province

to experiment with the relevant parameters, and the

results shown in Figure 8. In addition, we have also

experimented with the data in Guangdong using the

same parameters, which can be found in Figure 9. Be-

sides, Figure 8 (a) shows the trend of the number of

domain names involved in subdomain attacks and

amplification attacks. The peak value is about twice

that of the valley value. From Figure 8 (b), the change

trend is not the same as the change of the number of

domain names. The peak value is about 7 times that

of the valley, which is more likely to reflect an attack

of amplification attacks and random subdomain at-

tacks. Figure 8 (c) shows the trend of the number of

DGA domain extraction. Since we only judge by the

character of the domain name, the extracted domain

100

150

200

0 0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8 0,9 1 1,1

Domain Count

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

196

name contains numerous legitimate domain names.

Therefore, the number of DNS records does not really

reflect the size of the actual attack traffic. Moreover,

the recall rate of our DGA domain is 92% here.

In using the results of the experiment on the data

in Guangdong, the recall rate of the amplified attack

and the random subdomain attack was also 100%, but

the recall rate to the DGA was close to 90%. Regard-

ing how to further raise the recall rate, we have put

forward some ideas and discussed in Chapter 5.

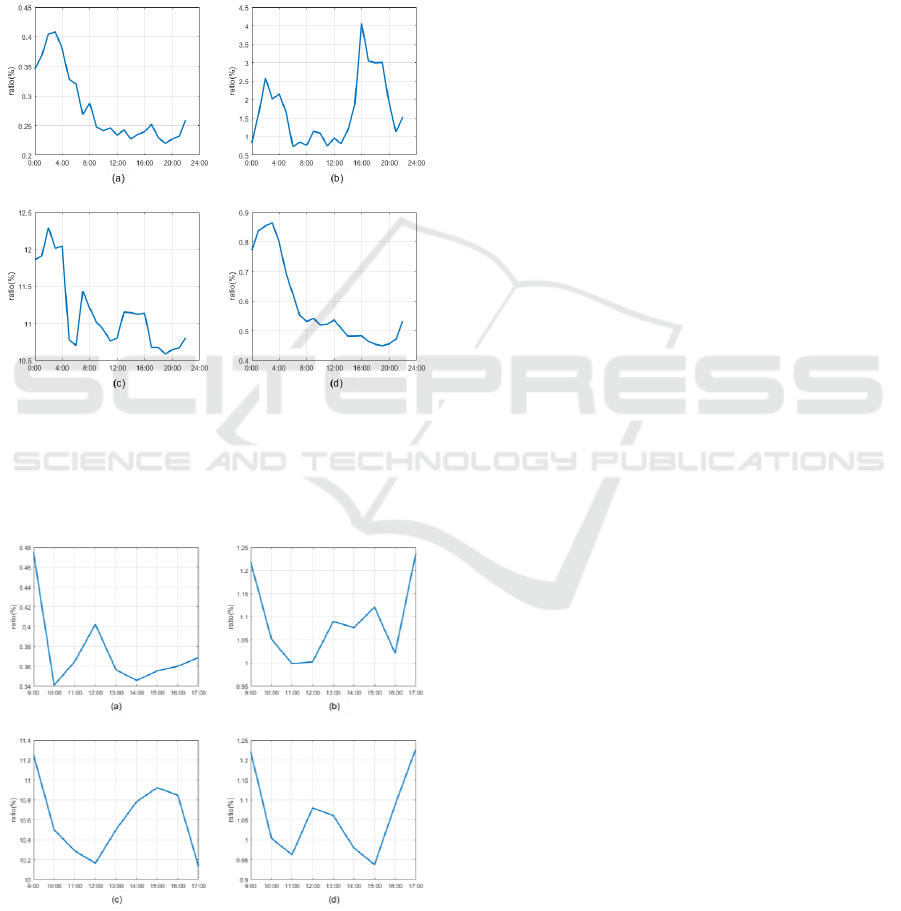

Figure 8: The results of experiments using 23 hours of data

from Shanxi Province. (a) (b) are the ratio of number of

SLDs and DNS records extracted from PRSD and zoom at-

tacks in an interval. (c) (d) are the ratio of number of SLDs

and DNS records extracted from DGA in an interval.

Figure 9: The results of experiments using 23 hours of data

from Guangdong Province.

5 LIMITATION AND

DISCUSSION

In this paper, we build a malicious traffic extraction

system. It can quickly extract the DNS resource rec-

ords of zoom attacks, random subdomain attacks and

DGAs from passive DNS data, rather than just

through blacklist or more simple way to filter. Be-

sides, it can greatly reduce the amount of DNS data

that is further detected.

In addition, our system also has some limitations.

For example, due to the lack of continuous long-term

data sources, and the lack of sufficient historical data

support, we believe that the construction of data ware-

house by using some statistical characteristics of the

historical data, to determine whether the domain

name can be clearer. For example, the survival time

of DGA domains is usually well below 30 days, and

we can build corresponding features to record the

number of times over the past few days. Through us-

ing this feature, we can significantly identify domain

names. The same reason also caused us being unable

to explore the timeliness of the model, which also

cannot determine how long the parameters are valid.

However, we provide methods for exploring parame-

ters in this paper.

For the extraction of DGA traffic, the recall rate

has not reached 100%. Besides, we also have some

ideas on how to improve recall rates. Besides adding

feature mentioned in the previous paragraph, the

DGA is also divided into several categories. We need

to distinguish whether the DGA is generated using the

dictionary or hash, or according to the time pseudo-

randomly generated. Meanwhile, we also need to con-

sider the balance time and recall rate, and the closer it

is to a complete detection model, the more time it

takes, which is what we need to focus on.

In the extraction of DDOS traffic, our method can

only select the secondary domain names of the web-

site. When it is related to some of the higher traffic

flow of the site, we cannot distinguish between the

legitimate traffic and malicious traffic on the same

website when we change the domain name into the

actual traffic, which may reduce the efficiency of do-

main name extraction.

6 CONCLUSIONS

In this paper, we propose a malicious traffic extrac-

tion model system. The system refers to the relevant

detection system, selects features, and preliminarily

filters the domain names and traffic related to some

The Rapid Extraction of Suspicious Trafﬁc from Passive DNS

197

attacks. Compared with the simple pre-processing

process, the system can select the malicious traffic to

a smaller range, while ensuring the recall rate. How-

ever, it is also very fast to achieve their goals, which

is to narrow the range for further detection. Our eval-

uation uses real data from passive DNS data of pro-

vincial telecommunication at different times. Ampli-

fication attacks and random sub-domain name attacks

involved in the domain name recall rate reached

100%, DGA domain name recall rate of 90% or more.

REFERENCES

Antonakakis, M., Perdisci, R., Dagon, D., Lee, W., and

Feamster, N. (2010). Building a dynamic reputation

system for dns. InUsenix Security Symposium, Wash-

ington, Dc, Usa, August 11-13, 2010, Proceed-

ings,pages 273–290.

Antonakakis, M., Perdisci, R., Nadji, Y., Vasiloglou, N.,

Abu-Nimeh, S., Lee, W., and Dagon, D. (2012). From

throw-away traffic to bots: Detecting the rise of dga-

based malware. In Presented as part of the 21

USENIX

Security Symposium (USENIX Security 12), pages 491–

506, Bellevue, WA. USENIX.

Bilge, L., Kirda, E., Kruegel, C., and Balduzzi, M. (2011).

Exposure: Finding malicious domains using passive

dns analysis. InNetwork and Distributed System Secu-

rity Symposium, NDSS 2011, San Diego, California,

Usa, February - February.

Plohmann, D., Yakdan, K., Klatt, M., Bader, J., and Ger-

hards-Padilla, E. (2016). A comprehensive measure-

ment study of domain generating malware. In 25th

USENIX Security Symposium (USENIX Security 16),

pages 263–278, Austin, TX. USENIX Association.

Serdar Argic, Shane Atkinson, R. C. Dsbl. http://www.

dsbl.org/. A blocklist specialized in listing open relays

and open proxies.

Perdisci R, Corona I, Giacinto G. Early detection of mali-

cious flux networks via large-scale passive DNS traffic

analysis. IEEE Transactions on Dependable and Se-

cure Computing, 2012, 9(5): 714–726.

Woodbridge J, Anderson H S, Ahuja A, et al.(2016). Pre-

dicting Domain Generation Algorithms with Long

Short-Term Memory Networks[J]..

Goldberg, Y., & Levy, O. (2014). Word2vec explained: de-

riving mikolov et al.'s negative-sampling word-embed-

ding method. Eprint Arxiv.

Thomas Orthbandt. (2015). Nominum. https://nomi-

num.com/press_item/sharp-rise-in-dns-based-ddos-

last-year-signals-larger-more-frequent-attacks-in-

2015/. DNS-based DDoS rise signals more attacks in

2015.

Tama, B. A., & Rhee, K. H. (2015). Data mining techniques

in DoS/DDoS attack detection: A literature review. In-

ternational Information Institute (Tokyo). Information,

18(8), 3739.

Karnwal, T., Sivakumar, T., & Aghila, G. (2013). A comber

approach to protect cloud computing against xml ddos

and http ddos attack, 182, 1-5.

Wang, B., Zheng, Y., Lou, W., & Hou, Y. T. (2015). Ddos

attack protection in the era of cloud computing and soft-

ware-defined networking. Computer Networks, 81(C),

308-319.

Eduard Kovacs. (2014). Large DNS Text Records Used to

Amplify DDoS Attacks: Akamai. http://www.securi-

tyweek.com/large-dns-text-records-used-amplify-

ddos-attacks-akamai.

C. Liu. A new kind of ddos threat: The â ˘ AIJnonsense

nameâ ˘ IA˙ attack. Network World, 2015. [Online;

posted 27-January-2015]

VeriSign, Verisign distributed denial of service trends re-

port q4 2015. https://www.verisign.com/assets/report-

ddos-trends-Q42015.pdf, 2015.

Rizzo, G., Van Erp, M., Plu, J., & Troncy, R. (2016). Mak-

ing sense of microposts (#Microposts2016) named en-

tity recognition and linking (NEEL) challenge. CEUR

Workshop Proceedings, 1691, 50–59. https://doi.org/

10.1145/1235.

Andrew. (2015). https://secure64.com/defenses-pseudo-

random-subdomain-attacks-prsd/. More Defenses

Against Pseudo Random Subdomain attacks (PRSD).

S. Stover, D. Dittrich, J. Hernandez, and S. Diet- rich. Anal-

ysis of the storm and nugache trojans: P2P is here. In

USENIX ;login:, vol. 32, no. 6, December 2007.

Wikipedia. The storm botnet. http://en. wikipe-

dia.org/wiki/Storm_botnet, 2010.

J.Williams. What we know (and learned) from the waledac

takedown. http://tinyurl.com/ 7apnn9b, 2010.

abuse.ch. ZeuS Gets More Sophisticated Using P2P Tech-

niques. http://www.abuse.ch/ ?p=3499, 2011.

Rahbarinia, B. (2016). Segugio:Efficient and Accurate Be-

havior-Based Tracking of Malware-Control Domains

in Large ISP Networks, 19(2). https://doi.org/

10.1145/2960409.

Yadav, S., Reddy, A. K. K., Reddy, A. N., and Ranjan, S.

Detecting Algorithmically Generated Malicious Do-

main Names. In Proceedings of the 10th ACM

SIGCOMM Conference on Internet Measurement

(2010), IMC ’10.

ICISSP 2018 - 4th International Conference on Information Systems Security and Privacy

198
