The Privacy Management Platform

An Enabler for Device Interoperability and Information Security in mHealth

Applications

Christoph Stach, Frank Steimle and Bernhard Mitschang

Institute for Parallel and Distributed Systems, University of Stuttgart,

Universit

atsstraße 38, D-70569 Stuttgart, Germany

Keywords:

mHealth, Device Interoperability, Information Security, COPD, Privacy Management Platform.

Abstract:

Chronic diseases are on the rise. Afﬂicted patients require persistent therapy and periodic screenings. This

causes high treatment costs and overburdened physicians. Innovative approaches that enable patients to perform

treatment methods on their own are badly needed. Telemedical approaches with the aid of modern Smartphones

connected to medical devices (the so-called mHealth) can be the answer. However, mHealth apps face two key

challenges, namely device interoperability and information security. In this paper, we describe how the

rivacy

anagement

latform (PMP) and its extendable Resources can contribute to these challenges. Therefore, we

analyze a real-world mHealth app and derive generic functional units, each realizing a certain task recurring

frequently within mHealth apps, e. g., metering, data storage, or data transmission. For each functional unit we

provide a PMP Resource, enabling both, device interoperability and information security. Finally, we revise the

analyzed mHealth app using the Resources in order to evaluate our approach.

1 INTRODUCTION

Due to long stand-by times and multiple built-in sen-

sors, the Smartphone became our ubiquitous compa-

nion. New use cases are constantly emerging. Especi-

ally in the health sector, the use of Smartphones can be

highly beneﬁcial to save treatment costs and help pa-

tients who cannot visit their physicians regularly (Silva

et al., 2015). The usability of Smartphone apps

in the

health sector—the so-called mHealth apps—is limit-

less. There is an app for almost any situation (Siewio-

rek, 2012).

While there are some mHealth apps for medical

reference (that is, apps providing information about

diseases) as well as hospital workﬂow management

apps (i. e., apps supporting physicians in their every-

day duties), mHealth apps are mainly from the health

management domain (Milo

sevi

c et al., 2011). The

latter includes cardio ﬁtness, medication adherence,

and chronic disease management. To this end, these

apps support two essential features: self-observation

and feedback (Mattila et al., 2010). That is, the patient

performs health measurements instructed by the app,

transmits the measured values to the app and the app

In the following, we use the generic term app for any

kind of mobile application.

performs analyses on these values. Based on the re-

sults, the app gives the user medical recommendations.

Since mHealth apps involve the patient actively

into the treatment and monitoring process, s/he gets

more aware of his or her condition. So, mHealth apps

change the physician patient relationship especially for

patients with a chronic disease. These patients have

to visit their physician periodically in order to check

certain health values. However, such a metering can

be performed by the patients autonomously, if they

receive a proper guidance tailored to their know-how.

That is, with the help of an mHealth app they are able

to do the monitoring in a telemedical manner. This

take the load off both, patients as well as physicians.

Patients beneﬁt from the freedom to do the metering

at any arbitrary place and time while physicians are

able to concentrate on emergencies. This is not just a

huge saving potential but also improves the quality of

healthcare at the same time (Schweitzer and Synowiec,

2012).

To capture health data, mHealth apps make use

of various sensors. In addition to the already broad

spectrum of sensors built into modern Smartphones

that can be used for healthcare (e. g., a heart rate sensor,

a camera, or a microphone), even medical devices for

home-use can be connected to a Smartphone. The

Stach, C., Steimle, F. and Mitschang, B.

The Privacy Management Platform - An Enabler for Device Interoperability and Information Security in mHealth Applications.

DOI: 10.5220/0006537300270038

In Proceedings of the 11th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2018) - Volume 5: HEALTHINF, pages 27-38

ISBN: 978-989-758-281-3

Analytics

Data

Storage

Online mHealth Service

Metering Device (e.g.,

Vitalograph copd-6 bt)

Connection to Smart

Device (e.g., Bluetooth)

mHealth Applications

for Smart Devices

(e.g., ChronicOnline)

Connection to Back-

End (e.g., REST calls)

mHealth Back-End

(e.g., ECHO Platform)

mHealth Application

for Physicians (e.g.,

Diagnosis Tools)

Sensor

Layer

Smartphone

Layer

Back

-End

Layer

Presentation

Layer

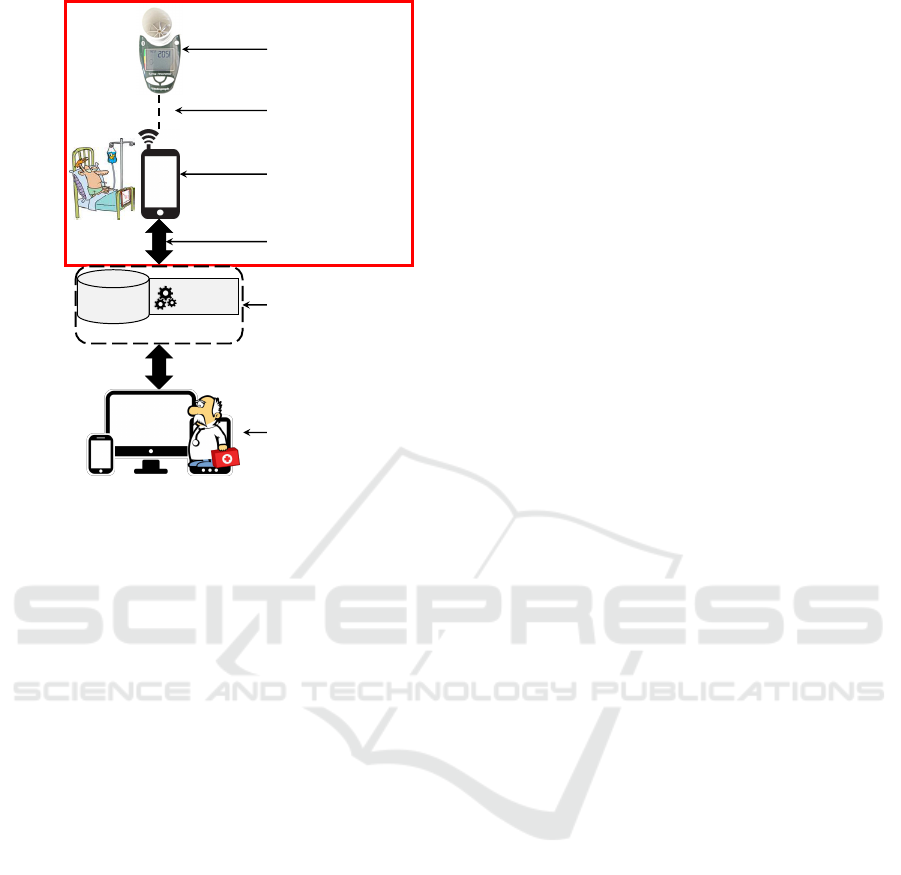

Figure 1: Overview of an mHealth System (Red-Rimmed

Components are in the Focus of this Paper).

Vitalograph copd-6 bt is an example for such medical

device.

Yet, the data interchange between medical devices

and Smartphones often fails because of non-uniform

communication protocols. The

device interoperabi-

lity

of Smartphones and medical devices is a key chal-

lenge for the success of mHealth apps (Chan et al.,

2012). Also the assurance of

information security

is vital for mHealth, as patients have to trust their

apps (Bai et al., 2014). Thus, we address these two

challenges in our work. Therefore, we come up with a

concept for an enabler for device interoperability and

information security in mHealth apps. To achieve this

objective, we proceed as follows:

(I)

We analyze a re-

al-world mHealth app regarding the collected data and

used devices.

(II)

We deduce a generic data model for

mHealth apps. Due to this data model, our approach

is applicable for any kind of mHealth app.

(III)

identify ﬁve recurring tasks within mHealth apps for

which device interoperability and information security

are key requirements, namely login, metering, localiza-

tion, data storage and analytics, and data transmission.

For each of these tasks, we introduce an extension

for the

rivacy

anagement

latform (PMP) (Stach

and Mitschang, 2013), to ensure interoperability and

information security.

(IV )

We use these extensions to

revise the analyzed mHealth app in terms of sensor

support and the patients’ privacy. With this revised

app, we assess the practical effect of our approach.

The remainder of this paper is as follows: Section 2

introduces a real-world application scenario from the

mHealth domain, namely ChronicOnline, an mHealth

app for COPD patients. Then, Section 3 takes a look at

related work concerning connection techniques used

by medical device as well as information security me-

chanisms in mHealth apps. Based on these ﬁndings,

we introduce a generic interchange data model for

mHealth apps and induct brieﬂy in the PMP, the foun-

dation platform for our solution approach in Section 4.

Then, Section 5 details on the key components of our

approach and demonstrates their applicability, using

the example of a COPD app. In Section 6 we assess

how our approach contributes to solve information se-

curity and interoperability problems for mHealth apps.

Section 7 concludes this work and gives an outlook on

some future work.

2 APPLICATION SCENARIO

Typically, mHealth systems consist of three layers (Ku-

mar et al., 2013). The Sensor Layer manages the

access to any sensor required by mHealth apps, i. e., it

collects the sensors’ raw data and provides it to subse-

quent layers. In the Smartphone Layer, this data is col-

lected, assessed, and processed. The processing step

transforms the raw data to information. An optional

analysis phase can derive events from the information,

e. g., to detect a seizure automatically. The data can

also be stored on the Smartphone, e. g., to monitor the

progress of the disease. Additionally, the data is for-

warded to on-line servers managed by the Back-End

Layer. While the Smartphone Layer holds health data

of a single patient, in the Back-End Layer the data

of multiple patients is assembled (e. g., to derive new

insights into the course of a disease or to prepare the

data for subsequent in-depth analyses). Via this layer

physicians are able to perform analyses and receive

diagnosis support for each of their patients. For this

purpose, there is sometimes an additional Presentation

Layer. This fourth layer preprocesses the health data

stored in the back-end and presents the relevant data

in a user-friendly manner. So, physicians are able to

interpret the results.

Figure 1 shows the interaction of these four layers.

A metering device can be connected to a Smartphone

via Bluetooth. A patient can install an mHealth app

on his or her Smartphone and use the medical data

recorded by the external metering device. This data

can be enriched by data from the Smartphone’s built-

in sensors (e. g., location data). The app sends the

gathered data to an mHealth back-end for thorough

analyses and to store the data at a central repository.

HEALTHINF 2018 - 11th International Conference on Health Informatics

Physicians can access the repository via their diagnosis

tools to ﬁnd an adequate method of treatment.

Concerning the two key issues addressed in this

paper, namely device interoperability and information

security, several components have to be taken into con-

sideration. Any data interchange between two layers is

a problem, since there are heterogeneous interchange

formats and multiple connection standard. This con-

cerns especially the data interchange between Smartp-

hones and medical devices, since these devices com-

monly deﬁne proprietary communication protocols.

Yet, the harmonization of the medical data formats

used by mHealth apps and back-ends has to be con-

sidered as well. While there are several approaches

towards a server-sided uniﬁed data model for health

data (e. g., in the HealthVault (Bhandari, 2012)), there

are no such approaches for apps.

Information security has to be considered at any

layer. However, as users cannot inﬂuence the security

mechanisms implemented in sensors, data protection

has to be assured mainly on the Smartphone Layer.

While there are approaches to protect sensitive data

on the Back-End Layer (e. g., (Jafari et al., 2011)), an

adequate solution for the Smartphone Layer is missing.

The Presentation Layer does not create any sensitive

data.

So, we focus on the Sensor Layer and the Smartp-

hone Layer in our work regarding both, device in-

teroperability and information security, as there are

adequate solutions for the other layers solving the-

ses issues. However, the usability and security of an

mHealth system is impaired by its weakest component.

That is, the existing usability and security solutions

for the Back-End Layer and the Presentation Layer are

worthless with respect to the whole system, as long

as there are no appropriate approaches for the Sensor

Layer and the Smartphone Layer as well.

In the following, we introduce a real-world mHe-

alth app for COPD patients.

Chronic Obstructive Pulmonary Disease.

COPD is

an obstructive lung disease. Patients suffer from a poor

airﬂow which worsens over time. According to the

WHO, approximately

of all deaths in

2012

resul-

ted directly from COPD. Even though COPD is not

curable, a fast and persistent therapy can slow the pro-

gression of the disease signiﬁcantly down. Telemedi-

cine is very appropriate as the required measurements

can be carried out with medical metering devices for

home use (de Toledo et al., 2006).

The ChronicOnline App.

mHealth apps are good for

regularly recording various parameters but they are

insufﬁcient for a comprehensive COPD screening. For

this reason, the University of Stuttgart, the University

of Crete, and OpenIT launched the ECHO project in

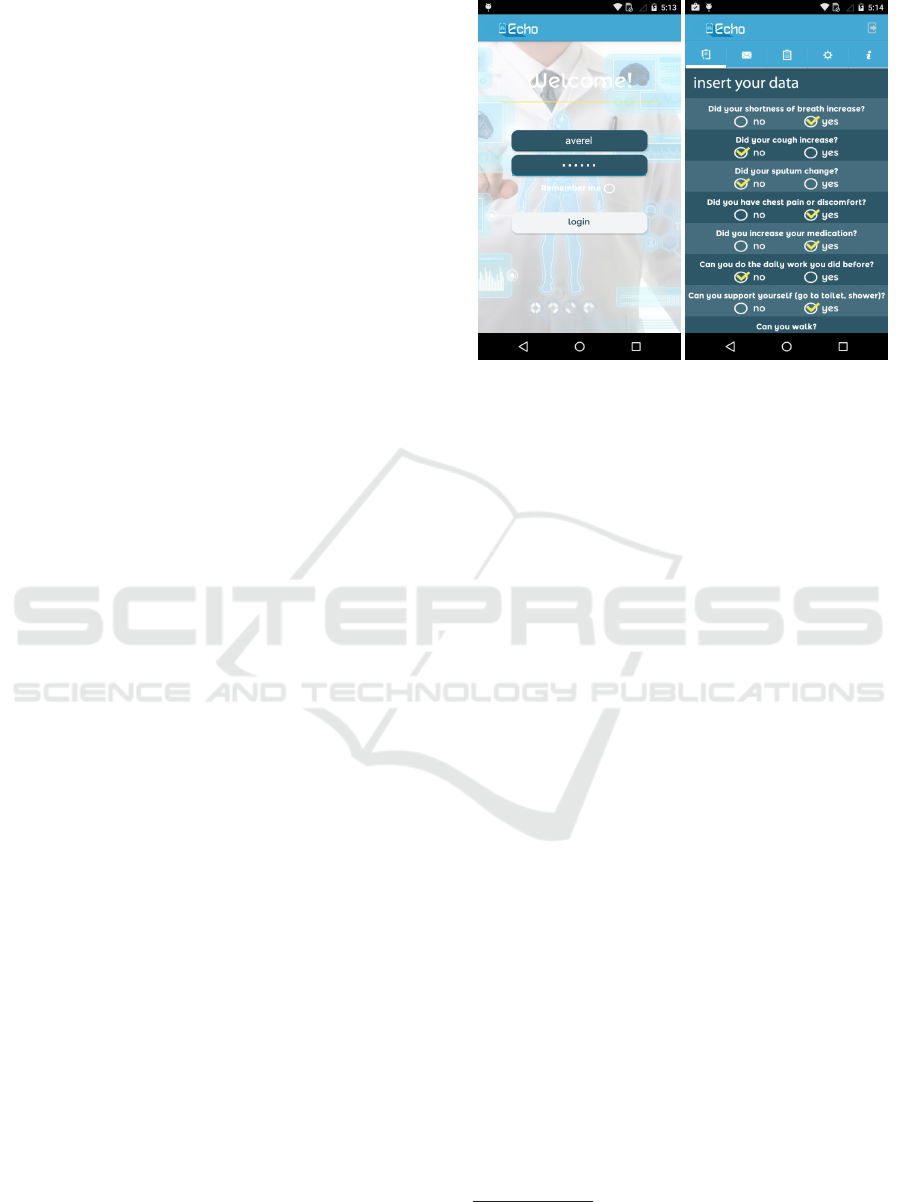

(a) Login Screen (b) Questionnaire

Figure 2: The ChronicOnline App’s Key Functionality.

2013

. Within the scope of this project several mHe-

alth apps collect various health data and gather the

data in a Cloud infrastructure. Online services are

available for physicians enabling various data analy-

tic functions and giving them an holistic overview of

their patients’ condition. In addition to it, the patients

and the physicians remain in contact with each other

whereby the physicians can give their patients advices

by sending them messages via their mHealth app. The

ChronicOnline app (Bitsaki et al., 2016) is a mobile

front-end for the ECHO project. Its key functions (user

management and a COPD questionnaire) are shown in

Figure 2.

Initially, the user has to log in his or her account

(see Figure 2a). The app differentiates two user groups,

patients who have only access to their personal account

and physicians who monitor several patients. The login

process is realized by REST calls

to the ECHO back-

end.

After authorization is complete, the patient has

access to several tabs. The most signiﬁcant tab is the

questionnaire tab (see Figure 2b). Here the user has

to answer ﬁve questions about his or her condition.

Each question can be answered with ‘yes’ or ‘no’.

Depending on the given answers up to six subquesti-

ons appear to reﬁne the medical ﬁnding. Afterwards,

the results are transferred to the back-end as a JSON

object. More details on the data format are given in

Section 4.1.

The back-end performs analyses and preprocesses

the data for physicians. The physicians can contact

their patients via the Amazon Simple Notiﬁcation Ser-

see http://chroniconline.eu

see (Fielding, 2000)

The Privacy Management Platform - An Enabler for Device Interoperability and Information Security in mHealth Applications

vice (SNS)

. These messages are meant for vital issues

(e. g., “Go to the Hospital!”). The discussion of the

medical ﬁndings in case of a aggravation still has to

take place in a personal meeting with the physician.

As for both, physicians and patients, the progres-

sion of the health condition is an important informa-

tion, the app can retrieve history data from the back-

end (e. g., to display former questionnaire answers).

For detailed analyses and history charts, especially for

the physicians, the input and output capabilities of a

mobile device are less applicable, which is why cur-

rently such profound reports are stripped off the app

completely.

This app is a representative sample for the innu-

merable COPD apps available in various app stores.

We could use any of them without a loss of argument.

Please note that the back-end is out of this paper’s

scope. More information about the back-end can be

found in (Steimle et al., 2017). However, we give a

brief outlook on a information security mechanism for

the processing of sensitive data in such a back-end in

Section 7.

Applied Metering Devices.

The Vitalograph copd-6

is used to screen the pulmonary function. So, pa-

tients with respiratory conditions can perform the me-

tering by themselves. It records various lung function

parameters including the Peak Expiratory Flow (PEF)

and the Forced Expiratory Volume (FEV) among ot-

hers. PEF and FEV are key readings for the diagnosis

of COPD. The measurement results are transmitted via

Bluetooth LE. As today’s Smartphones support this

battery-saving connection standard, the Vitalograph

copd-6 bt provides a sound hardware foundation for

telemedical mHealth apps.

For data interchange the proprietary Terminal I/O

protocol

is used which operates on top of Bluetooth

LE GATT

. The basic idea behind this protocol is that

a client (e. g., a Smartphone) has to request credits

from the server (i. e., the Vitalograph copd-6 bt). For

each message the client has to pay credits. So, the

client is able to make a speciﬁc number of requests

without having to wait for a response from the server.

The application of such proprietary protocols impedes

the development of mHealth apps since only a limited

number of devices supports the respective protocol.

As a common communication standard is not in sight,

app developers are in great need of other approaches

that enhance device interoperability.

see https://aws.amazon.com/sns

see https://vitalograph.com/product/162427

see (Stollmann Entwicklungs- und Vertriebs-GmbH,

2014)

see (Bluetooth SIG, Inc., 2017)

3 RELATED WORK

In the context of device interoperability in mHealth

apps, a lot of work is done concerning the back-end

systems. For this purpose, these systems introduced

harmonized data models for health data and provide

generic interfaces so that any kind of mHealth app

can use them to collect and share heath data. One

of the biggest systems is the HealthVault (Bhandari,

2012). It supports various health-related data types ran-

ging from ﬁtness data to entire personal health records.

The HealthVault acts as a middleman between the

data producers—i. e., the mHealth apps—and the data

consumers—i. e., analysis systems. Concerning app-

sided device interoperability and information security,

such a system provides no help. Google Fit (Mishra,

2015) is another back-end for storing and processing

health data. Google’s system deals with ﬁtness data

(e. g., the heart rate), only. Google Fit provides in-

terfaces for app developers which enhance the device

interoperability and facilitate the reading of sensors

in third-party devices—at least for devices that are

supported by Google Wear

. As especially medical de-

vices are not supported by Google Wear, (O’Donoghue

and Herbert, 2012) discuss, how Smartphones can be

connected with these devices. However, their solution

aims for physical connections and not for harmonized

communication standards.

(Kouris and Koutsouris, 2014) recommend to use

IoT techniques to solve this problem. In their proposal

all sensors are connected to the Internet and send their

data to a Cloud-based database which is also accessi-

ble for mHealth apps. Even though there are secure

transfer protocols for health data (e. g., (Mare et al.,

2014)), a permanent and unrestricted transmission of

such sensitive data to an unknown server is ineligi-

ble for most users. For that reason, (Gardner et al.,

2009) introduce an approach with which the patient

stays in total control over his or her data; the mHealth

app has full access to the health data while external

services (e. g., apps for physicians) only get access as

long as the patient grants it. In (Murad et al., 2013)

an mHealth app is introduced which relies on a full

encryption of the health data when the data is stored

or transmitted. Yet, both approaches assume that only

external entities constitute a threat for the security of

health data. However, as studies prove, two out of

three apps handle their data either carelessly or even

maliciously (Enck et al., 2010).

Thus, none of these approaches solves the device

interoperability and information security issues of

mHealth apps. Despite the beneﬁt of mHealth apps

especially the device incompatibility and the mis-

see https://www.android.com/wear

HEALTHINF 2018 - 11th International Conference on Health Informatics

Da il yR epor t {

p a t i e n t I d ( i n t ) : P a t i e n t ID ,

r e c o r d I d ( i n t ) : Re cor d ID ,

d a t e ( s t r i n g ) : Dat e o f R e p ort ,

q1 ( bo o l e a n ) : Answer t o Q u e s t i o n 1 ,

. . .

}

Listing 1: The ChronicOnline Data Model (excerpt).

trust in app developers repel patients from using such

apps (Murnane et al., 2015). For this reason, we intro-

duce a general approach dealing with both issues in

the following sections.

4 INTEROPERABILITY AND

SECURITY REFLECTIONS

In order to come up with a design methodology for

interoperable and secure mHealth apps, a secure data

management, data input techniques, and deﬁned data

access conditions are required. Our solution to this is

built upon the PMP. When looking at the ChronicOn-

line app, it does not take advantage of the full potential

of the ECHO back-end and the prevailing hardware.

With its analytic functions and notiﬁcation services,

the back-end is able to process more complex data

such as location data or respiratory data in addition to

the replies to the disease-speciﬁc questionnaire. By

the integration of medical devices, the ChronicOnline

app becomes a full-ﬂedged telemedicine solution.

Therefore we extend the ChronicOnline app by ad-

ding location services

. Studies show that the location

can have a relevant inﬂuence on the progression of a di-

sease (Kn

oll and Moar, 2011). Moreover, we provide

support for various third-party Bluetooth respiratory

monitors. The measurement results are added to the

electronic health record (see Section 4.1 for its data

model) and transferred to the ECHO back-end. There,

the data can be automatically pre-analyzed which not

only unburdens the physicians in charge, but also re-

sults in a faster feedback for the patients. As a conse-

quence this enhanced app has to deal with increasing

interoperability and security issues.

Amulet, a tiny Smart Device operating as an infor-

mation hub, tries to solve both problems (Hester et al.,

2016). It conﬁrms the user’s identity and identiﬁes

any available devices in the surrounding belonging to

him or her. Then, Amulet ascertains that only trusted

third-party devices can be used for the metering and

ensures a secure connection to these devices. Moreo-

Keep in mind, that location based services in general

constitute a severe threat to a user’s privacy (Marcelino and

Silva, 2018).

Da i l y R e p o r t {

. . .

q5 ( bo o l e a n ) : Answer t o Q u e s t i o n 5 ,

l a t ( i n t ) : L a t i t u d e ,

l o n ( i n t ) : L o n gi t u d e ,

p e f ( i n t ) : Peak E x p i r a t o r y Flow ,

f e v ( i n t ) : F o r c e d E x p i r a t o r y Volume ,

. . .

}

Listing 2: The Extended Data Model (excerpt).

ver, Amulet provides mechanisms to protect the health

data against external attackers. In order to transfer the

data to (trusted) servers for further processing, Amu-

let is able to connect to a Smartphone and use it for

transmission. Unfortunately, this approach has a se-

vere drawback: The user has to possess another device

in addition to his or her Smartphone and the actual

medical device. This causes further costs and it is un-

practical since the user has to carry the Amulet all the

time. The PMP (see Section 4.2) is a middleware for

application platforms which provides similar features.

4.1 The Internal Data Model

The ChronicOnline app sends up to eleven boolean

values, representing the answers to the questionnaire,

to the ECHO back-end. For this reason, its data model

for the data exchange is quite plain (see Listing 1). In

addition to the questionnaire answers, a daily report

entails an ID for the patient and for the report itself as

well as the submission date. Please note that authoriza-

tion data to conﬁrm the identity of the submitter is not

part of this data model. The authorization is managed

via the authorization header of the HTTP protocol.

We add latitude and longitude to this basic schema

to support location data as well as entries for the most

relevant COPD readings, including the Peak Expira-

tory Flow and the Forced Expiratory Volume among

others (see Listing 2).

Since the JSON format is well-suited for the data

exchange between the app and the back-end, but not

for the data processing within the app, we apply wrap-

per classes for the conversion of such JSON ﬁles to

Java objects and vice versa.

4.2 Overview of the PMP

We use the PMP in order to realize interoperability and

security features as needed by mHealth apps. We give

a brief overview of the PMP at ﬁrst and describe in de-

tail the new components, which are developed in this

work in the next section. The PMP is an intermediate

layer between apps and the operating system. It pre-

The Privacy Management Platform - An Enabler for Device Interoperability and Information Security in mHealth Applications

USER

APP

PMP

RESOURCE

REPOSITORY

Install

Determine

Required

Resources

Download

Add Resource

Available Privacy Settings

Initial Policy Rule

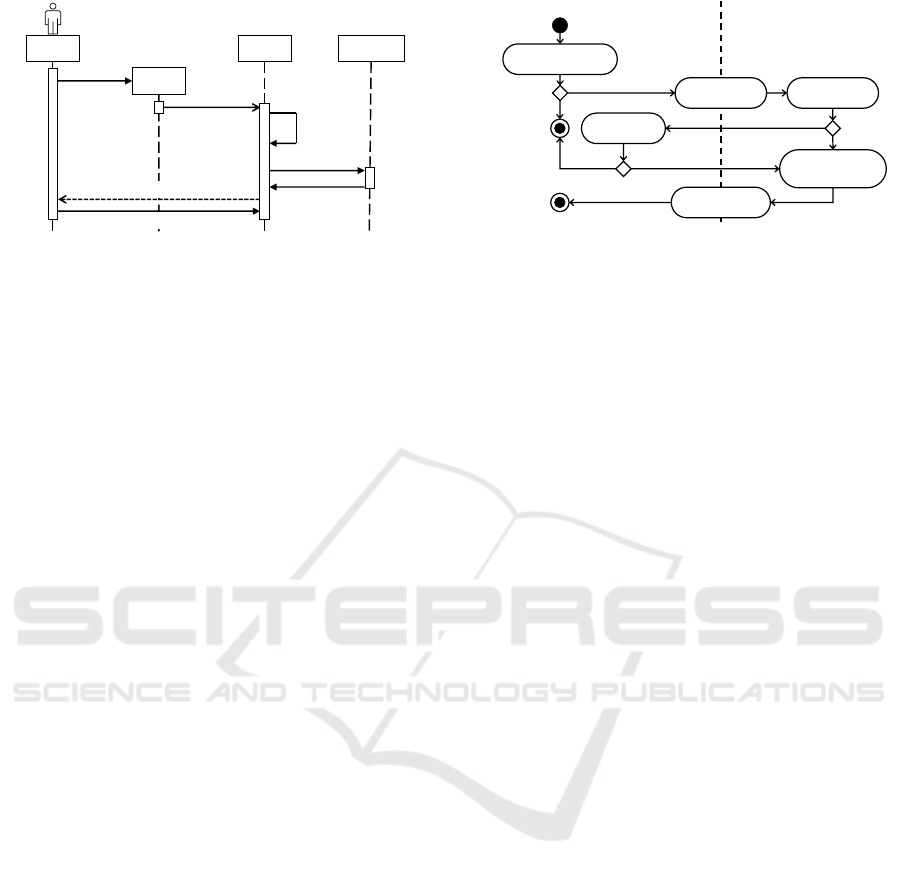

Figure 3: The Registration of an App at the PMP.

vents any (potentially malicious) app from accessing

sensitive data.

When an app needs access to such data, it has to ask

the PMP for permission. The PMP operates several

data provisioning services, the so-called Resources.

Each Resource is responsible for a certain type of

data but it is not committed to a certain technology;

e. g., the Location Resource is able to provide location

data from a GPS provider or from a network provider.

Thereby it can adapt its functionality to the available

hardware. In addition to it, the user can deﬁne how

accurate the data should be in order to obfuscate his

or her private data. Further Resources can be hooked

into the PMP at runtime need-based.

A Resource deﬁnes Privacy Settings which restrict

the usage of the corresponding Resource. By default,

there is a Privacy Setting for granting or permitting

the usage of a Resource. Furthermore, a Privacy Set-

ting can be more speciﬁc depending on the type of

Resource. For instance, the Location Resource can

reduce the location’s accuracy.

At installation time an app has to register at the

PMP. The PMP identiﬁes which Resources are requi-

red and installs missing Resources if necessary. The

user then postulates an initial policy rule for this app

deﬁning, which data should be given to the app and

how accurate this data should be. This registration

process is shown in Figure 3.

Since the user is able to deny that an app gets

access to a certain Resource, the app model of the

PMP encapsulates logically coherent parts of the app

in so-called Service Features. So, the withdrawal of

access rights simply deactivates the affected Service

Features but the app itself can still be executed. More-

over, the user can modify access rights of individual

Service Features at runtime. The permission allocation

is shown in Figure 4.

The PMP is primary a ﬁne-grained permission sy-

stem with additional privacy features (e. g., data obfus-

cation). However, in the context of interoperability

and uncertainty of available hardware, the PMP serves

a dual purpose. Each Resource is abstracted from a

Intent to Use

Service Feature

[else]

[Service Feature

Enabled]

Request

Required Data

Lookup

Calculate

Requested Data

(via Resources)

Adjust Policy

Rules

Execute Service

Feature

[Access

Permitted]

[Access Granted]

[Access

Granted]

[Access Permitted]

PMPUSER

Service

Feature

not Available

Service

Feature

is Available

Figure 4: The PMP’s Permission Allocation Process.

certain technology and can have several implemen-

tations. As a consequence, the app developer only

has to request a certain type of data (e. g., respiratory

data) and the dedicated Resource ensures that it gets

this data from the available hardware (e. g., a Vitalo-

graph copd-6 bt). If no hardware providing this kind

of data is available—which is similar to a user-deﬁned

prohibition to use the hardware via the PMP—then

the app gets informed and adapts to this condition by

deactivating affected Service Features.

The PMP is able to degrade an app’s functionality

when it cannot access all of its requested data. Services

Features can be deactivate instead of feeding an app

with random data—in the context of mHealth apps, the

usage of random medical values is inappropriate. For

this reason, the PMP’s data obfuscation for health data

is severely restricted. For further details on the PMP,

please refer to the literature (Stach and Mitschang,

2013, Stach, 2013, Stach and Mitschang, 2014, Stach,

2015).

5 DESIGN OF MHEALTH PMP

RESOURCES

In the following we introduce ﬁve PMP Resources

which are developed for mHealth apps, namely a se-

cure

authentication

Resource, a

metering

Resource,

localization

Resource, a

data storage

Resource, and

connection

Resource. In addition, a Resource for he-

alth data

encryption

is introduced. Finally, we revise

the ChronicOnline app with the help of these Resour-

ces.

5.1 The Dialog Box Resource

In the ChronicOnline app a user has to enter creden-

tial information which is sent to an ECHO server for

veriﬁcation. While the back-end is operated by a trus-

ted organization (e. g., a hospital), any developer can

implement apps for ECHO. Thus the front-end is po-

HEALTHINF 2018 - 11th International Conference on Health Informatics

tentially insecure—yet the user has to reveal his or her

In order to solve this problem, we introduce an

isolated Dialog Box Resource. An app can invoke the

dialog box and specify the displayed text as well as

where the entered information should be forwarded to.

The server’s response is sent back to the invoking app.

In this way, the dialog box is completely generic and

can be used in any context where the user has to enter

private data. The dialog box is executed as a part of

the PMP and is completely isolated from the invoking

app. No information is passed to the app except for

the back-end’s reply. The user cannot only grant or

permit the usage of the dialog box, but also specify

which back-ends are legit recipients.

5.2 The Metering Resource

One of the biggest problems for mHealth apps is the

integration of third-party medical devices as there is

currently no uniform standard for intercommunication

with such devices. This is why most of the currently

available apps support some hand-picked medical de-

vice only.

That is why we introduce a Metering Resource with

a simple, yet generic interface. Since most modern

medical devices exchange their data with Smartphones

via a Bluetooth connection, we focus our work on this

kind of connection. As there is no common Bluetooth

transmission protocol, the Metering Resource has to

be able to support several protocols. Currently, the

Terminal I/O protocol is supported. However, further

protocols (e. g., Android Wear) or other connection

standards can be supported in the future due to the mo-

dular expandability of PMP Resources. The Metering

Resource deﬁnes no ﬁxed schema for health data, but

processes this data as a JSON object with an attribute

for every measured value.

As the Metering Resource autonomously connects

to any available device, an app developer simply has to

request the health record from the Resource. However,

concerning information security, the app should not be

able to read the health record. Thus, the PMP encrypts

the JSON object containing the health data. As a con-

sequence, authorized Resources can process the health

data while (potentially malicious) apps cannot access

the data. Nevertheless, sometimes an app needs access

to certain values of the health data, e. g., in order to

display the data. For this purpose, the Unsealer Re-

source (see Section 5.6) can be used in order to decrypt

certain excerpts of the record.

The user is able to restrict which devices are al-

lowed to provide health data for a certain app. For

instance, s/he can permit an app to use the Metering

Resource, but only a certain kind of data from a speci-

ﬁc device is sent back by the Resource.

5.3 The Location Resource

Since the location of a reading can be relevant, we in-

troduce a special Location Resource for mHealth apps.

Normally, in Android an app has to subscribe for lo-

cation updates and the system sends any update to the

app. This causes a high battery drain. However, such a

behavior is not necessary in the context of a mHealth

app which requires location data only once after the

metering is executed. As a consequence the Location

Resource supports two modes of operation: An app

can request periodical location updates or only a single

location. The Resource arranges the (un)subscription

automatically. Android supports several location pro-

viders, e. g., a Wi-Fi-based or a GPS. Our Location

Resource requests the most accurate provider which is

currently available.

In order to respect the user’s privacy, the Loca-

tion Resource provides a Privacy Setting to reduce the

accuracy of the location data. The user sets a maxi-

mum accuracy in meters. If the provided location data

is more accurate, the Resource adds a random factor

depending on the user settings to the latitude and lon-

gitude in order to reduce the accuracy. The user is also

able to use completely randomized or mocked location

data.

5.4 The Secure Database Resource

Since Android stores its data in a clear-text reada-

ble form, attackers may harvest all stored data. The

ﬁle system encryption is no solution for this threat,

since the data is decrypted as soon as the system is

fully booted. So, sensitive data such as health data

requires additional security features. The

ecure

ata

ontainer (SDC) is a Secure Database Resource for

the PMP (Stach and Mitschang, 2016). It encrypts

the stored data with AES-

256

encryption and only the

PMP has the key. The SDC has a ﬁne-grained access

control to share the stored data with selected apps. Per-

formance measurements show that the thereby caused

overhead is within reasonable limits.

We tailor the SDC slightly to our requirements:

The database’s internal data model is comparable to a

key-value store. The Secure Database Resource opera-

tes with JSON objects and adopts the therein deﬁned

keys and values directly. As several stored JSON ob-

jects can use a common key, an internal id is applied

to each object. The database’s primary key consists

of the internal id and the key from the JSON object.

The Database Resource’s interface is minimalistic, yet

The Privacy Management Platform - An Enabler for Device Interoperability and Information Security in mHealth Applications

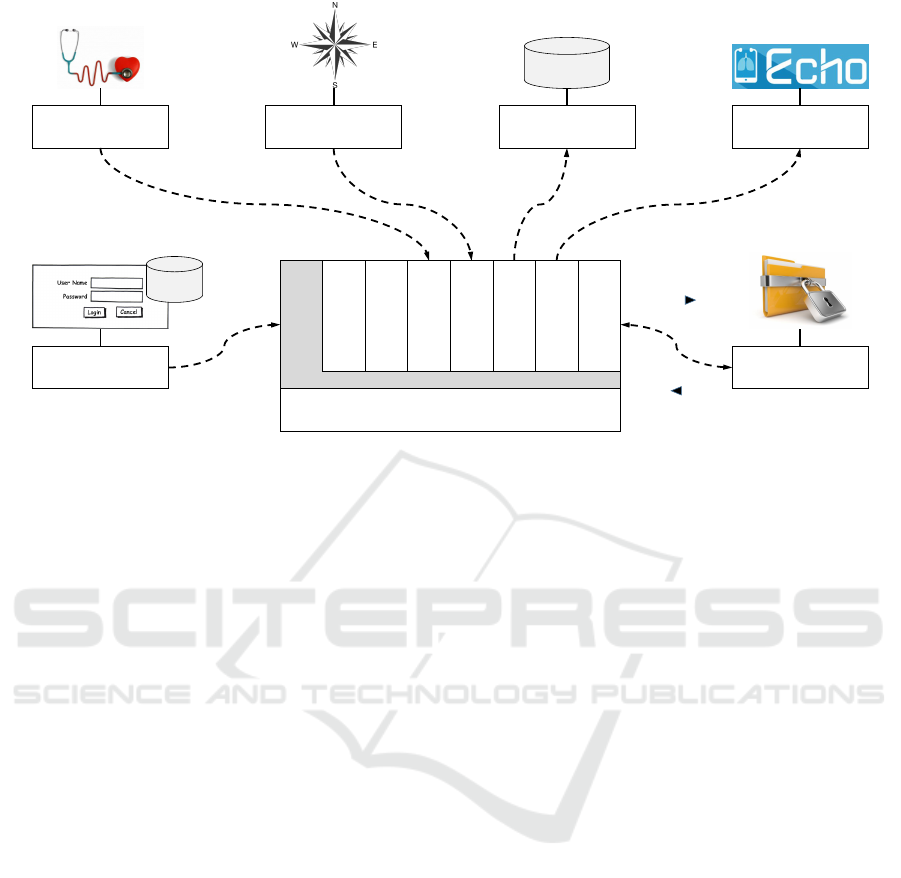

Revised ChronicOnline App

Respiratory SF

Location SF

Storage SF

Transfer SF

Display Data SF

Questionnaire SF

Message SF

Dialog Box Resource

Metering Resource

Location Resource Database Resource Connector Resource

Unsealer Resource

Internal

Storage

Account

Sealed Health RecordSealed Health RecordLocation Data

Access Token

Unsealed Excerpt

Sealed Health Record

Sealed

Health Record

Figure 5: Relations Between the Service Features of the COPD App and the PMP Resources.

demand-actuated. A JSON object can be stored, obtai-

ned, and deleted via its key.

5.5 The Connector Resource

Nowadays, most apps do not only operate locally on

a single Smartphone, but include various external ser-

vices. This is why almost every app requests the per-

mission to establish a network connection. The user is

not even informed about this request. However, an app

having this permission is able to upload sensitive data

to any server. To use external services in a secured

way, we introduce the Connector Resource. Within

the Connector Resource various trusted external ser-

vices are speciﬁed. An app is able to either upload

data to or retrieve data from one of these services (e. g.,

the ECHO back-end or Amazon’s SNS). Additional

domain-speciﬁc information protection policies can be

applied within the Connector Resource (such as the

Mobile access to Health Documents proﬁle (Moehrke,

2017b) or the Audit Trail and Node Authentication

proﬁle (Moehrke, 2017a)), if they are supported by the

back-end.

Concerning interoperability, the Connector Re-

source handles any interface changes of the external

services for the apps. That is, adjustments have to be

made only at the Resource and not for every app. Addi-

tionally, the app’s network access is heavily restricted.

It is only able to use the Resource’s interface and the

user can block any external services s/he has no trust

in.

5.6 The Unsealer Resource

As mentioned above, health data gets encrypted by the

PMP before it is passed to an app. So, apps cannot

access this sensitive data directly. As health data is

only processed in Resources, this encryption means no

limitation for the user (cf. (Weerasinghe et al., 2009)).

If an app still needs access to health data (e. g., to

display it), we introduce the Unsealer Resource which

decrypts selected values. The user is able to deﬁne

which excerpt of the data should be revealed. To that

end, the Resource provides a domain-speciﬁc selection

(e. g., general information, lung-related content only,

etc.) in order to facilitate the conﬁguration.

5.7 Revised ChronicOnline App

Based on these Resources, we revise the Chronic-

Online app by including sensor data (e. g., respiratory

meters or location sensors) while regarding device in-

teroperability and information security.

After the user has answered the questionnaire, the

revised app expects respiratory data from a connected

device via the Metering Resource. The user only has

to push the “Lung Monitor” button and the connection

and data transfer is arranged automatically by the PMP.

When the measured data is available, the results of

the questionnaire are applied to the DailyReport (see

Listing 2) and the location data is inquired. Then, the

complete DailyReport object is stored internally (e. g.,

if the data cannot be transmitted immediately) and is

transferred subsequently to the ECHO back-end (see

Figure 6a). Please note, that for this capture any data

HEALTHINF 2018 - 11th International Conference on Health Informatics

Device ID:

0000167630

PEF:

333

FEV075:

3.83

FEV1:

4.47

FEV10:

591

F1/F10:

76 %

FEF2575:

3.97

Date:

-08-

Time:

13:49:23

Lat

48.75

Lon:

9.11

Reset Message Box

History Transfer Data

Lung Monitor Location

Unseal Questionaire

(a) Unsealed Data Screen

Device ID:

0000167630

PEF:

N/A

FEV075:

N/A

FEV1:

N/A

FEV10:

N/A

F1/F10:

N/A

FEF2575:

N/A

Date:

-08-

Time:

13:49:23

Lat

48.75

Lon:

9.11

Reset Message Box

History Transfer Data

Lung Monitor Location

Unseal Questionaire

(b) Sealed Data Screen

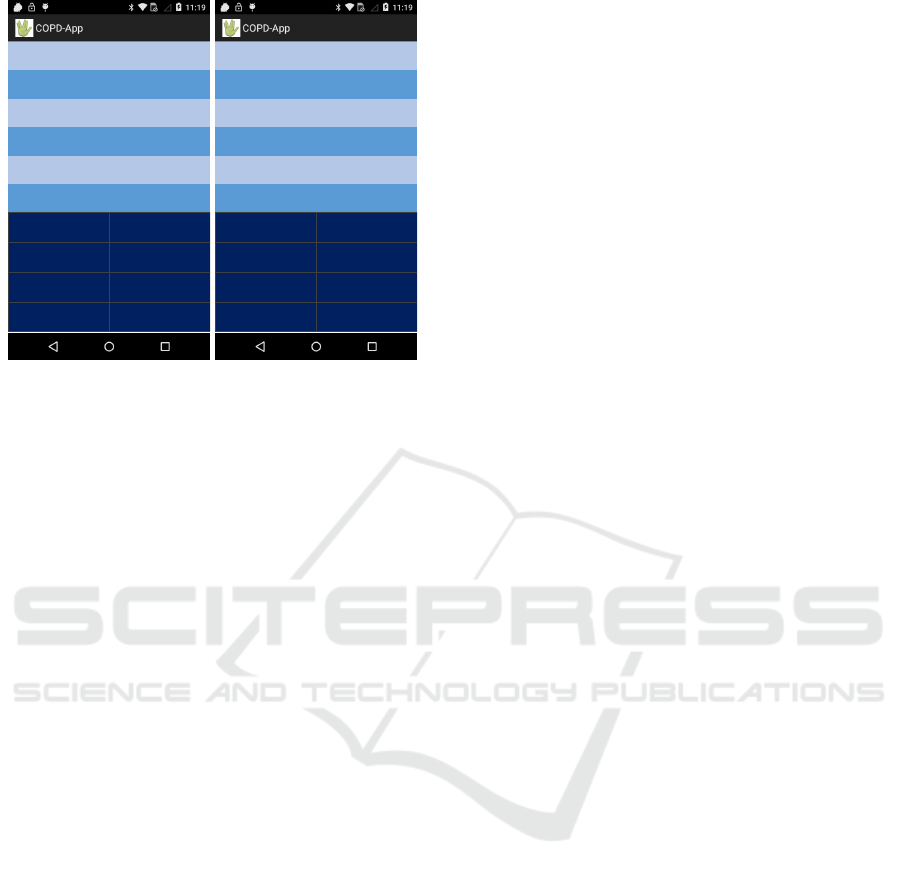

Figure 6: The ChronicOnline Privacy-Driven App.

is unsealed for demonstration purpose. The user is

informed in each step about the collected data. So,

s/he is in total control over the data. The effect of a

deactivated Unsealer Resource is shown in Figure 6b.

Without the Unsealer Resource only data which are

not related to any health issues are known to the app.

In order to react properly to the restriction of a

Resource, an app needs to deﬁne Service Features.

Figure 5 shows the

Service Features of the revised

ChronicOnline App (denoted as SF) and which Re-

sources are required for each of them. Not every Ser-

vice Feature necessarily requires data from a Resource

(e. g., the Questionnaire SF). The Service Features

have a modular design and can be plugged in and out

at runtime (e. g., when the corresponding Resource is

deactivated). In the app’s program ﬂow these features

are skipped. However, since the authentication of the

user is mandatory, the Login SF and therewith the Di-

alog Box Resource cannot be deactivated or else any

other Service Feature is also deactivated.

6 ASSESSMENT

Concerning information security, the literature speaks

key protective goals, namely auditability, au-

thenticity, availability, conﬁdentiality, integrity, non-

repudiation, and privacy (Dhillon and Backhouse,

2000, Cherdantseva and Hilton, 2013). The original

ChronicOnline app only fulﬁlls the authenticity goal

and the conﬁdentiality goal directly due to its login

mechanism and the auditability goal, the integrity goal,

and the non-repudiation server-sided due to the se-

curity mechanism of the ECHO back-end. However,

as soon as real health data is processed by the app,

the user cannot rely on the prevailing mechanisms.

Our revised app supports all

protective goals due to

the used Resources. The auditability as well as the

non-repudiation is guaranteed, since the PMP logs any

Resource access of an app. The authenticity is given

via the login mechanism and since the login data is

not shared with the app, it cannot commit an identity

theft. The availability is given, as all data is stored on

the device using mature database technologies. The

conﬁdentiality is ensured, since any app functionality

is only usable after the login process is completed.

The integrity is guaranteed since any relevant data

is encrypted and therefore cannot be manipulated by

third-parties. Privacy is retained, as the user decides,

which data can be used by an app and s/he can specify

for any non-health data how accurate or even rando-

mized it should be provided. As an app cannot access

any data without using the PMP, data access is strictly

constrained by the Resources’ interfaces. Thus, from

an information security’s point of view the revised app

satisﬁes all requirements.

Concerning device interoperability, the modular ex-

pandability of the Resources turns out to be beneﬁcial.

For instance, support for additional devices can be ad-

ded to the Metering Resource need-based at runtime.

An app developer only has to code against a Resource’s

interface, no matter which hardware is actually avai-

lable. Therefore, complex and labor-intensive coding

is required only once (for the Resource) and it can be

reused many times (in the apps). Additionally, due to

their generic design the Resources are usable in many

different application scenarios even for non-mHealth

apps. Thus, from an interoperability’s point of view

the PMP Resources satisfy all requirements regarding

compatibility and reusability. Table 1 lists the key

contributions of the introduced Resources.

7 CONCLUSION AND OUTLOOK

The rising numbers of patients suffering from chro-

nic diseases are responsible for increasing treatment

costs as well as overburdened physicians. The usage

of a combination of Smartphones with medical devi-

ces, commonly referred to as mHealth, can provide

a remedy for this situation. Apps realizing the data

interchange between the Smartphone and the medical

device can be used autonomously by the patients for

telemedical screening of their condition. Unfortuna-

tely, these mHealth apps face two key challenges, na-

mely information security and device interoperability.

Each mHealth app has to reinvent the wheel concer-

ning these two issues. So, the development effort for

mHealth apps is unnecessary high and the quality of

The Privacy Management Platform - An Enabler for Device Interoperability and Information Security in mHealth Applications

Table 1: Feature Summary of the Resources Concerning Device Interoperability and Information Security Issues.

PMP Resource Device Interoperability Information Security

Dialog Box Resource

•

displayed dialog text can be tailored

to the app

•

entered data is not revealed to the app

•

evaluation mechanism can be substitu-

ted

Metering Resource

• support of different medical devices • data is transmitted encrypted

•

support of different transmission stan-

dards

• restriction of usable device types

Location Resource

• support of different location sensors • restriction of location accuracy

•

support of different modes of opera-

tion

• use of randomized location data

Database Resource • generic data model • full database encryption

Connector Resource

• support of different external services •

no dircet access to the network for the

app

• restriction of usable services

Unsealer Resource

•

all authorized Resources get unencryp-

ted data

•

apps have only limited access to health

data

information security and device interoperability featu-

res differs strongly from app to app. As mHealth apps

deal with sensitive data, a consistently high service

quality is badly required.

For this reason, we pursue four key objectives with

our work:

(I)

We analyze the ChronicOnline app re-

garding the collected data and used devices.

(II)

deduce a generic data model for mHealth apps from

this app.

(III)

We identify ﬁve recurring tasks within

mHealth apps for which device interoperability and

information security are key requirements. For each

of these tasks, we introduce a PMP Resource. Each

Resource is designed regarding device interoperability

and information security issues.

(IV )

We use these

extensions to revise the ChronicOnline app. With this

revised app, we assess the practical effect of our appro-

ach. Although our approach is based on Android, the

underlying concept can be applied to any application

platform.

As the evaluation results in Section 6 show, our ap-

proach meets the requirements of mHealth apps. Yet,

this is just a ﬁrst protective measure. Modern Smartp-

hone applications commonly serve as data sources for

comprehensive stream processing systems realizing

the actual computation. These systems have access

to a wide range of sources. With the help of such

comprehensive stream processing systems, a lot of

knowledge about the patients can be derived. Even if a

user restricts access to a certain type of data on his or

her device, a stream processing system could be able

to retrieve this data from another source. Therefore

the privacy rules of each application also have to be

applied to afﬁliated services which process the appli-

cation’s data. Future work has to investigate, how the

PMP settings concerning information security can be

applied to a privacy mechanism for stream processing

systems such as the PATRON research project

(Stach

et al., 2017).

ACKNOWLEDGEMENTS

This paper is part of the PATRON research project

which is commissioned by the Baden-Wrttemberg Stif-

tung gGmbH. The authors would like to thank the

BW-Stiftung for the funding of this research.

see http://patronresearch.de

HEALTHINF 2018 - 11th International Conference on Health Informatics

REFERENCES

Bai, Y., Dai, L., and Li, J. (2014). Issues and Challenges in

Securing eHealth Systems. International Journal of

E-Health and Medical Communications, 5(1):1–19.

Bhandari, V. (2012). Enabling Programmable Self with

HealthVault. O’Reilly Media, Inc., Beijing, Cambridge,

Farnham, K

oln, Sebastopol, Tokyo.

Bitsaki, M., Koutras, C., Koutras, G., Leymann, F., Steimle,

F., Wagner, S., and Wieland, M. (2016). ChronicOn-

line: Implementing a mHealth solution for monitoring

and early alerting in chronic obstructive pulmonary

disease. Health Informatics Journal, 23(3):197–207.

Bluetooth SIG, Inc. (2017). GATT Speciﬁcations.

https://www.bluetooth.com/speciﬁcations/gatt.

Chan, M., Est

eVe, D., Fourniols, J.-Y., Escriba, C., and

Campo, E. (2012). Smart Wearable Systems: Current

Status and Future Challenges. Artiﬁcial Intelligence in

Medicine, 56(3):137–156.

Cherdantseva, Y. and Hilton, J. (2013). A Reference Model

of Information Assurance & Security. In Proceedings

of the 2013 International Conference on Availability,

Reliability and Security, ARES ’13, pages 546–555.

de Toledo, P., Jimenez, S., del Pozo, F., Roca, J., Alonso, A.,

and Hernandez, C. (2006). Telemedicine Experience

for Chronic Care in COPD. IEEE Transactions on

Information Technology in Biomedicine, 10(3):567–

573.

Dhillon, G. and Backhouse, J. (2000). Technical Opinion:

Information System Security Management in the New

Millennium. Communications of the ACM, 43(7):125–

128.

Enck, W., Gilbert, P., Chun, B.-G., Cox, L. P., Jung, J.,

McDaniel, P., and Sheth, A. N. (2010). TaintDroid:

An Information-Flow Tracking System for Realtime

Privacy Monitoring on Smartphones. In Proceedings

of the 9

USENIX Conference on Operating Systems

Design and Implementation, OSDI ’10, pages 393–

407.

Fielding, R. T. (2000). Architectural Styles and the Design

of Network-based Software Architectures. PhD thesis,

University of California, Irvine.

Gardner, R. W., Garera, S., Pagano, M. W., Green, M., and

Rubin, A. D. (2009). Securing Medical Records on

Smart Phones. In Proceedings of the First ACM Works-

hop on Security and Privacy in Medical and Home-

care Systems, SPIMACS ’09, pages 31–40.

Hester, J., Peters, T., Yun, T., Peterson, R., Skinner, J., Golla,

B., Storer, K., Hearndon, S., Freeman, K., Lord, S.,

Halter, R., Kotz, D., and Sorber, J. (2016). Amulet:

An Energy-Efﬁcient, Multi-Application Wearable Plat-

form. In Proceedings of the 14

ACM Conference on

Embedded Network Sensor Systems, SenSys ’16, pages

216–229.

Jafari, M., Safavi-Naini, R., and Sheppard, N. P. (2011). A

Rights Management Approach to Protection of Privacy

in a Cloud of Electronic Health Records. In Procee-

dings of the 11

Annual ACM Workshop on Digital

Rights Management, DRM ’11, pages 23–30.

oll, M. and Moar, M. (2011). On the Importance of Locati-

ons in Therapeutic Serious Games: Review on current

health games and how they make use of the urban

landscape. In Proceedings of the 2011 5

Internatio-

nal Conference on Pervasive Computing Technologies

for Healthcare and Workshops, PervasiveHealth ’11,

pages 538–545.

Kouris, I. and Koutsouris, D. (2014). Identifying Risky

Environments for COPD Patients Using Smartphones

and Internet of Things Objects. International Journal

of Computational Intelligence Studies, 3(1):1–17.

Kumar, S., Nilsen, W., Pavel, M., and Srivastava, M. (2013).

Mobile Health: Revolutionizing Healthcare Through

Transdisciplinary Research. Computer, 46(1):28–35.

Marcelino, L. and Silva, C. (2018). Location Privacy Con-

cerns in Mobile Applications, pages 241–249. Springer,

Cham.

Mare, S., Sorber, J., Shin, M., Cornelius, C., and Kotz, D.

(2014). Hide-n-Sense: Preserving Privacy Efﬁciently

in Wireless mHealth. Mobile Networks and Applicati-

ons, 19(3):331–344.

Mattila, E., Korhonen, I., Salminen, J. H., Ahtinen, A., Ko-

skinen, E., S

arel

a, A., P

arkk

a, J., and Lappalainen, R.

(2010). Empowering Citizens for Well-being and Chro-

nic Disease Management with Wellness Diary. IEEE

Transactions on Information Technology in Biomedi-

cine, 14(2):456–463.

Milo

sevi

c, M., Shrove, M. T., and Jovanov, E. (2011). Ap-

plications of Smartphones for Ubiquitous Health Mo-

nitoring and Wellbeing Management. Journal of Infor-

mation Technology and Applications, 1(1):7–15.

Mishra, S. M. (2015). Wearable Android: Android Wear and

Google FIT App Development. Wiley Online Library,

Hoboken, New Jersey.

Moehrke, J. (2017a). Audit Trail and Node Au-

thentication. Technical report, IHE International.

https://wiki.ihe.net.

Moehrke, J. (2017b). Mobile access to Health Docu-

ments (MHD). Technical report, IHE International.

https://wiki.ihe.net.

Murad, A., Schooley, B., and Abed, Y. (2013). A Secure

mHealth Application for EMS: Design and Implemen-

tation. In Proceedings of the 4

Conference on Wire-

less Health, WH ’13, pages 15:1–15:2.

Murnane, E. L., Huffaker, D., and Kossinets, G. (2015). Mo-

bile Health Apps: Adoption, Adherence, and Abandon-

ment. In Adjunct Proceedings of the 2015 ACM Inter-

national Joint Conference on Pervasive and Ubiquitous

Computing and Proceedings of the 2015 ACM Interna-

tional Symposium on Wearable Computers, UbiCom-

p/ISWC ’15 Adjunct, pages 261–264.

O’Donoghue, J. and Herbert, J. (2012). Data Management

Within mHealth Environments: Patient Sensors, Mo-

bile Devices, and Databases. Journal of Data and

Information Quality, 4(1):5:1–5:20.

Schweitzer, J. and Synowiec, C. (2012). The Economics of

eHealth and mHealth. Journal of Health Communica-

tion, 17(Supplement 1):73–81.

Siewiorek, D. (2012). Generation Smartphone. IEEE

Spectrum, 49(9):54–58.

The Privacy Management Platform - An Enabler for Device Interoperability and Information Security in mHealth Applications

Silva, B. M., Rodrigues, J. J., de la Torre D

ıez, I., L

opez-

Coronado, M., and Saleem, K. (2015). Mobile-health:

A Review of Current State in 2015. Journal of Biome-

dical Informatics, 56(C):265–272.

Stach, C. (2013). How to Assure Privacy on Android Phones

and Devices? In Proceedings of the 2013 IEEE 14

In-

ternational Conference on Mobile Data Management,

MDM ’13, pages 350–352.

Stach, C. (2015). How to Deal with Third Party Apps in a Pri-

vacy System — The PMP Gatekeeper. In Proceedings

of the 2015 IEEE 16

International Conference on

Mobile Data Management, MDM ’15, pages 167–172.

Stach, C., D

urr, F., Mindermann, K., Palanisamy, S. M., Ta-

riq, M. A., Mitschang, B., and Wagner, S. (2017). PA-

TRON — Datenschutz in Datenstromverarbeitungssys-

temen. In Informatik 2017: Digitale Kulturen, Ta-

gungsband der 47. Jahrestagung der Gesellschaft f

Informatik e.V. (GI), 25.9-29.9.2017, Chemnitz, volume

275 of LNI, pages 1085–1096. (in German).

Stach, C. and Mitschang, B. (2013). Privacy Management

for Mobile Platforms – A Review of Concepts and

Approaches. In Proceedings of the 2013 IEEE 14

In-

ternational Conference on Mobile Data Management,

MDM ’13, pages 305–313.

Stach, C. and Mitschang, B. (2014). Design and Implemen-

tation of the Privacy Management Platform. In Procee-

dings of the 2014 IEEE 15

International Conference

on Mobile Data Management, MDM ’14, pages 69–72.

Stach, C. and Mitschang, B. (2016). The Secure Data Con-

tainer: An Approach to Harmonize Data Sharing with

Information Security. In Proceedings of the 2016 IEEE

International Conference on Mobile Data Mana-

gement, MDM ’16, pages 292–297.

Steimle, F., Wieland, M., Mitschang, B., Wagner, S., and

Leymann, F. (2017). Extended provisioning, security

and analysis techniques for the ECHO health data ma-

nagement system. Computing, 99(2):183–201.

Stollmann Entwicklungs- und Vertriebs-GmbH (2014). Ter-

minal I/O Proﬁle: Client implementation guide. Techni-

cal report, Telit.

Weerasinghe, D., Rajarajan, M., and Rakocevic, V. (2009).

Device Data Protection in Mobile Healthcare Applica-

tions, pages 82–89. Springer, Berlin, Heidelberg.

HEALTHINF 2018 - 11th International Conference on Health Informatics
