Fast and Reliable Update Protocols in WSNs During

Software Development, Testing and Deployment

Tobias Schwindl, Klaus Volbert and Sebastian Bock

Technical University of Applied Sciences Regensburg, Germany

Keywords:

WSN, Software Update, Low-Power Devices.

Abstract:

A lot of research has been done in the area of Wireless Sensor Networks during the past years. Today, Wireless

Sensor Networks are in ﬁeld in many different ways and applications (e.g. energy management services, heat

and water billing, smoke detectors). Nevertheless, research and development is continued in this area. After

the network is deployed, software updates are performed very rarely, but during development and testing one

typical, high frequented task is to deploy a new ﬁrmware to thousands of nodes. In this paper, we consider such

a software update for a special, but well-known and frequently used sensor network platform. There exist some

interesting research papers about updating sensor nodes, but we have a special focus on the technical update

process. In this context, we show the reasons why these existing update processes do not cover our challenges.

Our goal is to allow a developer to update thousands of nodes reliably and very fast during development and

testing. For this purpose, it is not so important to perform the best update with regard to energy consumption.

We do not need a multi hop protocol, because all devices are in range, e.g., in a laboratory. In our work, we

present a model of the update process and give very fast protocols to solve it. The results of our extensive

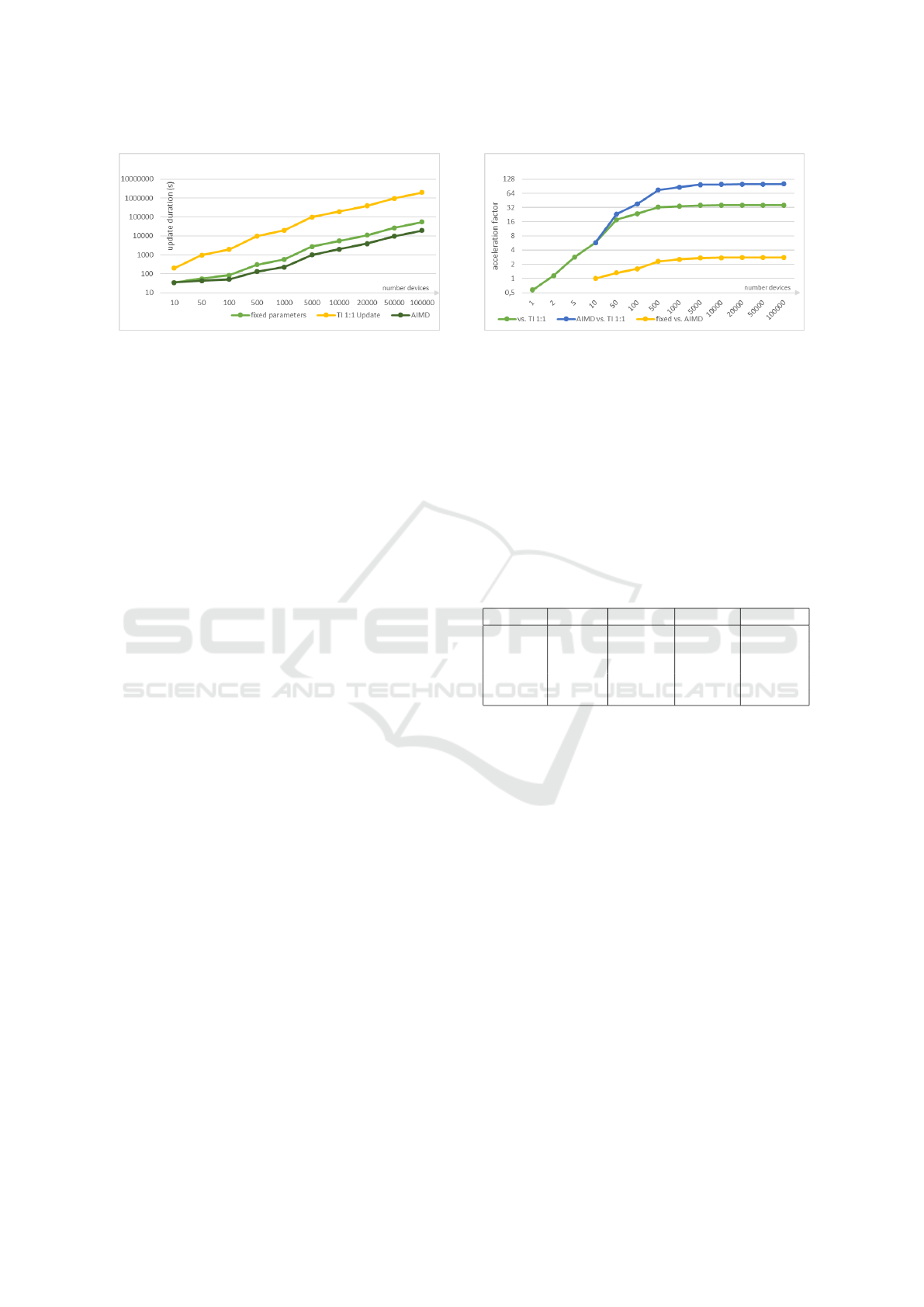

simulations show that the developed protocols do a fast, scalable and reliable update.

1 INTRODUCTION

Wireless Sensor Networks are used in various envi-

ronments. Some basics of such wireless networks are

described in (Akyildiz et al., 2002), (Chong and Ku-

mar, 2003), (Schindelhauer et al., 2007), (Lukovszki

et al., 2006) and (Meyer auf der Heide et al., 2004).

Special restrictions regarding power and time man-

agement in these systems are shown in (Sivrikaya and

Yener, 2004) and (Sinha and Chandrakasan, 2001)

Many example applications and its areas are shown

in (Altmann et al., 2016; Kenner et al., 2016; Kenner

and Volbert, 2016; Schlegl et al., 2014). Since most of

these sensor networks are energy constrained one of

the main goal of every application in such an environ-

ment is to secure that the lifetime of every node is as

long as possible and simultaneously reach a satisfac-

tory performance level. In speciﬁc cases, e.g., after

production of devices, inital ﬁrmware must be pro-

grammed to the nodes. This requires that every device

gets the ﬁrmware and could be realized with a wire-

less update mechanism. A company which produces a

lot of radio hardware, e.g., smart devices like wireless

smoke detectors or heat cost allocators does not want

to programm and/or update all devices one by one, but

instead with one wireless update run. In this laborato-

rylike scenario, the update process must ensure that

the ﬁrmware is transmitted completely and without

errors. All nodes should receive the ﬁrmware and this

should happen automatically, meaning no user is re-

quired to update the nodes. As many wireless sensor

nodes are battery driven one goal of most update pro-

cesses is to reduce power consumption and simulta-

neously minimize the update time. Most update pro-

tocols use different approaches to ensure these points.

As we show in the chapter 2 most update mechanisms

do resolve more issues than needed, hence this results

in additional effort to realize this update protocols on

a real hardware. This is one reason for us to introduce

a new update protocol optimized for a speciﬁc use

case. This use case is the programming of software

on all used sensor nodes during the development pro-

cess for a sensor network. At one point in the devel-

opment process this means that sensor nodes need an

update, to test new code or to extend the current code

base to more devices. This includes the possibility

that the ﬁrmware update is needed for a small amount

of nodes, but at another point in the development pro-

cess this can mean that a very large amount of nodes,

i.e. thousands or tenthousands of nodes have to get an

Schwindl, T., Volbert, K. and Bock, S.

Fast and Reliable Update Protocols in WSNs During Software Development, Testing and Deployment.

DOI: 10.5220/0006534400190030

In Proceedings of the 7th International Conference on Sensor Networks (SENSORNETS 2018), pages 19-30

ISBN: 978-989-758-284-4

update. Such sensor nodes, if no wireless update pro-

tocol is useable, are programmed with a simple hard-

ware tool like the Gang-Programmer (TI, 2017) that

can update a small number of nodes simultaneously.

Such a device is used, e.g., in Germany to programm

nodes which are ready for production use. Since we

had known the different scenarios for the update pro-

cess itself, the scalability of such a design for the com-

plete process was one important requirement. The

next goal of our update model was the minimization

of the program time of each and every node. Every

time a new software is added to the nodes in the sen-

sor network there is a delay until new software can

be tested, i.e. the programming time of the nodes.

Furthermore, in a deployed wireless sensor network

the amount of updates should be minimized since the

update as such uses a lot of power and therefore bat-

tery lifetime is strongly reduced. This implies that

power consumption of an update process is one of the

most important things in a deployed network, but in

our scenario not the main goal. The protocol we de-

signed tries to minimize the power consumption as

much as possible, but there are possibly more sophis-

ticated approaches to reach this goal (done in other

protocols). The ﬂawless and complete transmission

of the new code are naturally important factors since

the update protocol would otherwise not be reliable.

As a result either manual intervention or many update

runs would be needed to secure that all devices re-

ceive the new application. This said, such an update

mechanism would not be very useful.

2 BACKGROUND & RELATED

WORK

The problem of programming nodes in wireless sen-

sor networks is discussed in many articles. A sur-

vey is given by (Brown and Sreenan, 2013) and in

(Wagn et al., 2006), a smaller overview of some up-

date mechanism is also shown in (Sternecker, 2012).

There are various solutions for several hardware plat-

forms and speciﬁc use cases. While some of these

protocols are designed for a speciﬁc hardware to run

on, or only allow partial updates efﬁciently, e.g, by in-

cremental/compressed or differential updates shown

in (Stolikj et al., 2012) and (Rickenbach and Watten-

hofer, 2008), try others to be a more generic solution

for the process of software updates in WSNs. Many of

these protocols, e.g., Deluge (Hui and Culler, 2004),

MOAP (Stathopoulos et al., 2003) or Trickle (Levis

et al., 2004) use the idea of a four step process (Brown

and Sreenan, 2013) to ensure the needed functional-

ity. This process is shown in Figure 1 and consists

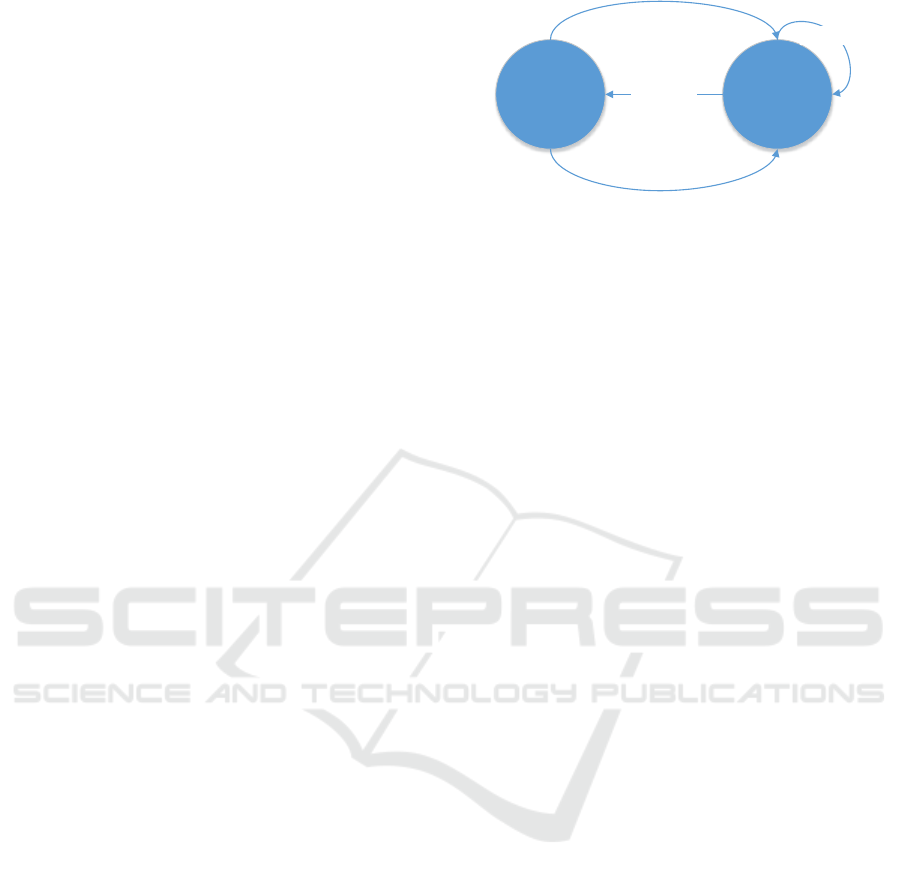

Node A

Source

Node B

Target

1. Advertisment

3. Request

2. Selection

4. Download

Figure 1: Dissemination idea for update protocols.

of four steps.

The ﬁrst step (advertising) ensures that all nodes

know the current software version. If there is more

than one source that could provide the needed soft-

ware, a target must choose the best source, e.g., by

checking the quality of the radio channel to the differ-

ent possible sources (selection). These two steps in-

clude the idea of multiple sources and therefore mul-

tiple senders. At the same time these protocols often

use the idea of multihop. This approach allows reach-

ing nodes not only within the transmission area of one

device, but to reach every node in a wide sensor net-

work. Such multihop protocols can distribute code to

nodes which are not in direct reach of the source, but

receive new software from in between nodes. This

idea may be the optimal solution for some problems

with appropriate hard- and software but does not ful-

ﬁll our needs for the complete application program-

ming of a large amount of wireless sensor nodes while

developing software. All these programmable devices

are within a small area, therefore reachable for one

sender within this area. If the concept of multiple

senders would be used, this could lead to interference

with other sources in this network. Consequently, a

mechanism would be needed to ensure that this kind

of interference, i.e. colliding messages, does not oc-

cur. Our update model does not include the idea of

multiple senders, hence this allows us an easy mech-

anism to broadcast messages, because there is only

one sender and therefore this message can not collide

with other messages. There are simply no other mes-

sages at the same time in our complete system. The

third step (request) initiates communication between

source and target. The ﬁnal step is the actual down-

load of the requested data to update the target node.

After all these steps are completed, the new software

is executable on every node that received the update.

Such sophisticated update models solve crucial prob-

lems to their special use case(s). But the additional

steps of advertising and necessary following selec-

tion would need more time and energy in our sce-

nario. Since we have a very dense network these steps

do only include their disadvantages, nonetheless they

would work with such networks. Though the advan-

SENSORNETS 2018 - 7th International Conference on Sensor Networks

tages of such an approach would be lost and there-

fore these kinds of methods do add unnecessary over-

head. Analysis of existing software update mecha-

nisms is the reason for our different approach to the

problem of updating sensor nodes. All these proto-

cols are not satisfactorily for our challenges, admit-

ting they do cover their speciﬁc problems very well.

The next chapter does introduce our protocol ideas to

reach a fast and reliable update while developing new

software for sensor networks.

3 OUR APPROACH

In this chapter we describe basic ideas of the update

protocol and give reasons for their use. The process

is designed to update any amount of nodes in reason-

able time. The update itself does only support full

updates, i.e. there is no possibility to update a part

of the ﬁrmware while keeping other parts of the soft-

ware. The complete ﬂash memory is reprogrammed

with the new code. Since we designed and imple-

mented the update process for a speciﬁc hardware

from Texas Instruments (TI) we used existing soft-

ware and ideas where possible, but nonetheless these

ideas can be easily used for other systems as well.

The already available TI 1:1 update process was the

basis for our further development. In the existing up-

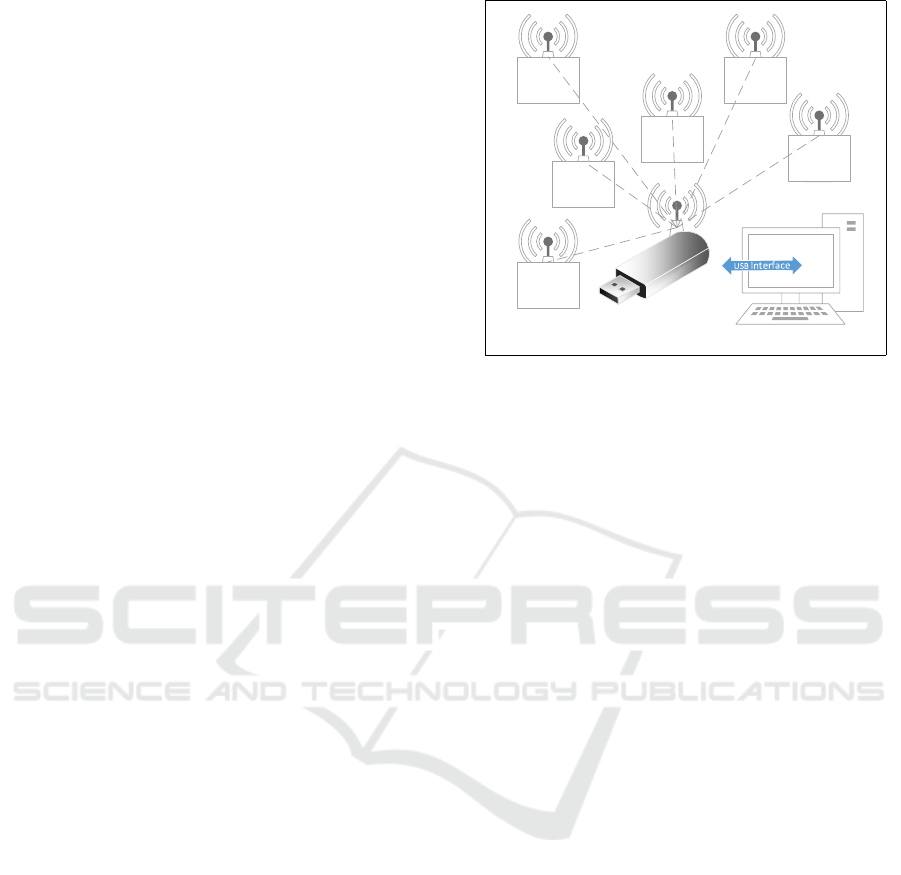

date mechanism a code distributor, described in the

next chapter, communicates over USB with a pc ap-

plication to collect the source code and send this new

code to the update device, the sensor node. The TI

update process needs speciﬁc software on the sensor

node, which will be updated, to work. Because of

that, the update process is only one-time executeable.

If the new loaded software does not support the spe-

ciﬁc sequence to launch and execute the update pro-

cess, the complete process is not useable any longer,

but must be manually ﬂashed again. This kind of lim-

itations were another reason for the development of a

more practical update mechanism. The TI software,

after the wireless update is started and initialization

process is complete, does use a simple stop and wait

method, meaning that after every single data packet

an acknowledgement from the device is expected. If

validation is positive the next data packet is ready for

transmission. Otherwise, the current data packet will

be sent again. This idea was extended and adapted

to get it working with more than one device. The

new approach does work similar, although currently

not every packet is validated, but after a speciﬁc num-

ber of data packets the update device transmits an ac-

knowledgement packet to advert the current position

in the complete update process. This is also known

as a go-back-N protocol. While the source code dis-

tributor receives good acknowledgement packets, i.e.

no error occurred, it continues with the next valid data

packet. A bad packet indicates an error and this data

packet will be sent again as long as all update devices

do not correctly receive it. The bad data packet is now

the new position in the update and from there on all

packets are transmitted. However, an error is not rec-

ognized immediatley, but only with the next acknowl-

edgement. Since the process is designed to work with

any amount of sensor nodes it must be ensured that

all nodes know when to send their acknowledgement

packet, otherwise some transmissions will fail due to

interference with other possible transmissions. This

is secured by the used time division multiple access

(TDMA) mechanism. Every node has a speciﬁc, ﬁxed

time interval when to send the acknowledgement. The

ﬁrst easy idea and implementation uses the TDMA

mechanism after a ﬁxed amount of data packets in-

dependent whether the radio channel is of good or

bad quality. A bad transmission channel could re-

sult then in slow error recognition. On the contrary

when the radio channel is quite good the acknowl-

edgement phase is kind a waste of time since an er-

ror is not very likely. An update protocol, which uses

the information about the radio channel and its qual-

ity could save both time and energy since it decides

ﬂexible when an ack phase is needed more often. The

adaption to the quality of the current radio channel

is used in different environments. In some TCP/IP

implementations there is a mechanism called AIMD

(Additive Increase Multiplicative Decrease). When

the error rate is low the ack phase is used very rarely,

but is increased by a multiplicative factor after an er-

ror occurred, originally shown in (Jacobson, 1988).

A detailed analysis of the algorithms is presented in,

e.g., (Edmonds, 2012) and (Karp et al., 2000). A sim-

ilar, simpliﬁed mechanism is used by our second de-

signed update protocol. The idea was to get a bet-

ter adaption to the actual needed acknowledgement

rate given by the physical quality of the radio chan-

nel. Mechanisms, messages and its sequences to ini-

tialize the update process are presented and analyzed

in 5.1. The complete update protocol, not only the ac-

knowledgement phase of the process, is a time based,

shared protocol, meaning all sensor nodes share the

same system time. Data packets with new code come

every ﬁxed time step and all nodes can synchronize

with the system time with every data packet which

is received. This ensures that every update device, if

correctly synchronized with the code distributor (mas-

ter clock), can switch to receive mode very shortly

before the packet is transmitted by the update distrib-

utor. This saves a lot of energy since update nodes

Fast and Reliable Update Protocols in WSNs During Software Development, Testing and Deployment

are only in RX mode when it is absolutely manda-

tory. Due to the natural clock drift every update node

must synchronize itself with the master clock, which

in this case is the clock from the source code distrib-

utor. This secures that RX windows remain narrow.

This basic idea is valid for a lot of update scenarios.

These ideas show that practical relevance of the up-

date mechanism is of real interest here, as the theoret-

ical background of our update model is not extremely

difﬁcult. In the next chapter we describe our speciﬁc

hardware and software model on which we actually

implemented and tested these update designs and pro-

tocols.

4 SOFTWARE & HARDWARE

ARCHITECTURE

The software architecture and its distribution is based

on the hardware devices used. Because the update

protocol has several tasks, we operate with different

devices, which are suited for their special function.

The participants, which are involved in our update

model are the sensor node (CC430), the distributor

of the update code (access point) and the user inter-

face represented as a desktop application. The CC430

is a programmable watch delivered within the eZ430

Chronos development kit. This device (CC430F6137)

is the sensor node in our environment and includes

an integrated sub-1GHz wireless radio module based

on the CC1101. It stores a bootloader (max. 2KB)

which handles the complete update process on watch

side. Therefore, the code size of the complete update

protocol software must be less than 2KB, including

device drivers for the ﬂash, ports and radio modules.

This limitation allows only a small implementation as

a more complex protocol could lead easily to a code

size greater than the available bootloader ROM size.

The eZ430 comes with 32KB of internal ﬂash mem-

ory and 4KB of RAM (TI, 2013b). The microcon-

troller supports different internal sensors and offers

different power modes to save energy. While not in

active mode (AM), but waiting for external/internal

events, e.g., expired timers or incoming radio packets,

it can switch to different low power modes (LPM0 –

LPM4). In our scenario the most update time is spent

in LPM3. The lowest power mode LPM4 disables all

clocks, which are needed to provide a stable time base

and hence, this mode cannot be used by our protocol.

The access point is a MSP430f5509 with a CC1101

radio core (TI, 2015) which is used for communica-

tion with the watch. The access point does contain a

USB interface for further communication with other

USB devices. This device is responsible for dissemi-

Software for Code Distribut ion

AccessPoint witch CC1101

Device1

Device2

Device3

Device N

Device4

Device5

Figure 2: Overview of update model.

nation of update messages, e.g., the new code, mean-

ing it regulates the complete sequence of the update.

The third involved party is the user interface. This ap-

plication handles the ﬁrmware ﬁle and partition into

small update packages so the access point does not

need to perform further actions with the packages, but

only broadcasts them to the watches. Communication

between access point and GUI is handled via the USB

interface. The complete structure of our update model

is shown in Figure 2.

All watches are distributed in a small area within

radio reach of the access point. But other than that,

no additional requirements must be met. The update

is started by the application and after that no user in-

tervention is needed. The access point does now com-

municate with all watches in radio reach to update

these nodes. In the design of the complete update pro-

tocol, communication between different sensor nodes,

i.e. the CC430 devices, is not planned. From the

update devices perspective it is a 1:1 communication

with the access point. On the contrary the access point

distributes code to all devices, hence this is a 1:n com-

munication. The speciﬁc timings of messages and its

sequences are presented in the next chapter.

5 ANALYSIS

In this chapter we analyze the update protocol and

its different states. We show how we calculated the

power consumption as well as the computation of the

execution time of the update process.

5.1 Protocol Overview

All possible and used messages in the system are

SENSORNETS 2018 - 7th International Conference on Sensor Networks

0xAA 0xD391 0x03 0xAA 0xFF 0xFF CRC

Payload

RFU

Message

Length

Address

Preamble

4 Bytes

0xD391

SyncWord

4 Bytes

0x03 0xAA

nextPacket

MSB

nextPacket

LSB

CRC

Payload

ACK

0xAA

Preamble

4 Bytes

0xD391

SyncWord

4 Bytes

0x05 0xAB

ID MSB ID LSB

CRC

Payload

RFU_ACK

Message

Length

Watch

Address

waitTime

MSB

waitTime

LSB

Preamble

SyncWord

Payload

CRC

Hardware

Software

0xAA

Preamble

4 Bytes

0xD391

SyncWord

4 Bytes

0x06 AB

TDMA size

totalPKT

LSB

CRC

Payload

Init Message

Message

Length

Watch

Address

0xAA

Preamble

4 Bytes

0xD391

SyncWord

4 Btyes

currPayloa d

0xAB 0xAA

currentPKT

MSB

CRC

Payload

Data Packet

Message

Length

Watch

Address

totalPKT

MSB

maxID LSB maxID MSB

currentPKT

LSB

OP Code

Data

(100Byte)

0xAA

Preamble

4 Bytes

SyncWord

4 Bytes

Figure 3: Protocol messages in the updatesystem.

shown in Figure 3. As seen in the protocol messages,

the hardware settings of the radio communication in-

clude 4 byte preamble and 4 byte sync word. The

preamble is an alternating sequence of ones and ze-

ros, i.e. 0xAA is transmitted. The sync word contains

application speciﬁc data and is used for byte synchro-

nization. Additionally, it allows a differentiation be-

tween systems with the same hardware as the radio

writes only data to the internal buffer if the correct

synchronization word is received (TI, 2013a). In our

application it is used with the value of 0xD391, which

is used twice to get a 4 byte sync word. The 16 bit

checksum calculation is enabled, therefore it is not

necessary to check for errors in software as corrupted

packets are removed automatically. The data packets

data ﬁeld is ﬂexible, meaning during the update run

the access point could decide to increase or decrease

the payload length. This mechanism is currently not

used, but could be used in future versions. All other

messages have ﬁxed length and can not change its size

during protocol execution.

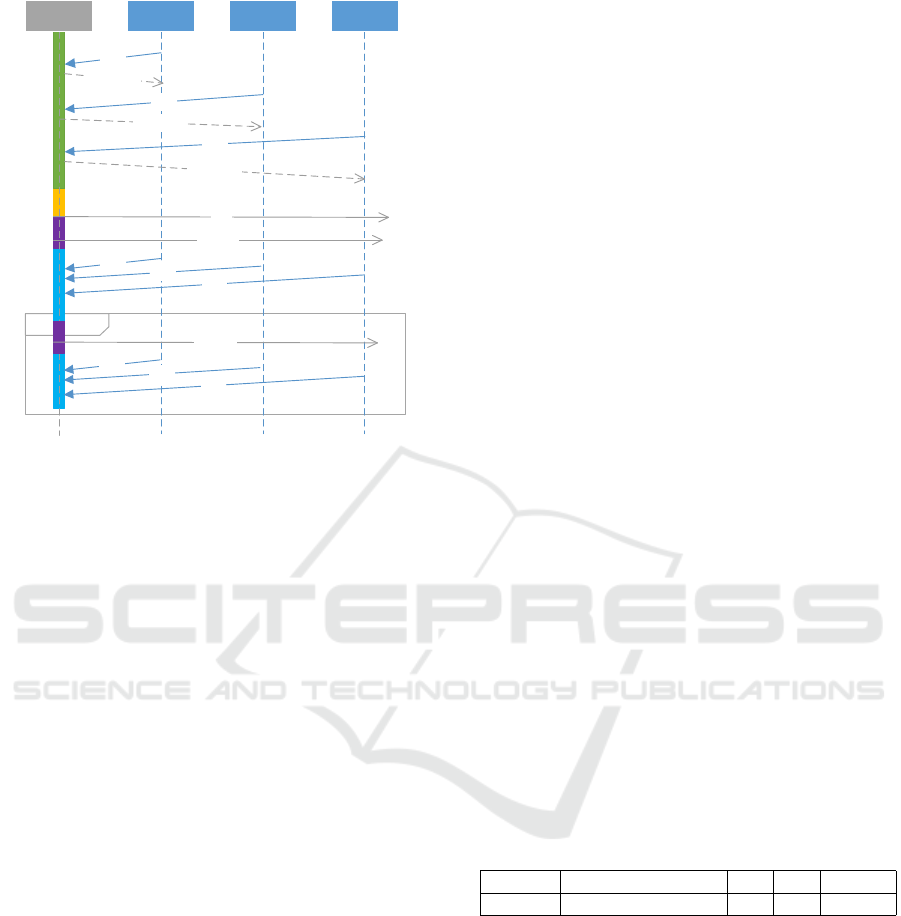

The exact sequence of the complete update pro-

cess is shown in Figure 4. To start the ﬁrmware update

mechanism all watches must execute its bootloader

software. This can be done via reset of the device

either manually or by triggering a software reset, if

supported by the current ﬁrmware. Then the boot-

loader is executed where it is possible to start the up-

date (automatically if in a speciﬁc time interval no

user input was performed) or execute the application.

After the device has started the bootloader, the update

devices now transmit every speciﬁc time interval, e.g.,

3 seconds, the RFU (ReadyForUpdate) message. If

the access point receives such a message (this mes-

sage comes from a watch which has not an update

ID and therefore was not recognized yet) it answers

with the RFU ACK message and sets update ID for

this watch and update run. The frequency of the RFU

message determines how often the watch can send its

beacon during discovery phase of the update, e.g., if

an error occurred or some other watch is sending si-

multaneously and another RFU message is needed.

To prevent most of the colliding messages in the dis-

covery phase a hardware mechanism is used. The dis-

covery phase is the only state where collision between

different messages is possible. In all other states there

is only one message at a time in the complete sys-

tem. To save energy after this short communication

the watch does now go into LPM3. After a speciﬁc,

by the user conﬁgurable amount of time the discov-

ery phase is ﬁnished and the update goes into next

state, i.e. init state. At this point all watches that need

an update should be recognized by the access point.

This is ensured by setting an appropriate time value

for the watches to be in the discovery update state.

All watches wake up at the same time, very shortly

before the ﬁrst actual packet is sent and now listen to

the ﬁrst update package, i.e. init packet. This is pos-

sible due to time information the devices have from

the previous communication with the access point,

which is included in the RFU ACK message. The init

packet does contain some information about update

size, number of update devices and some information

about the acknowledgement phase and its length. If

during this process a watch does not get an answer for

the RFU message or does not get the init message cor-

rectly this device does not participate in the follow-

ing update process, rather resets itself. After this init

mechanism for every node is successfully completed,

the actual update starts. In this case an adjustable, but

during the update process ﬁxed, number of data pack-

ages is transmitted before the ﬁrst acknowledgement

phase is started. All packets come in speciﬁc time ar-

eas, so all watches can go into RX mode very shortly

before the actual packet transmission starts.

This ensures that a very small amount of power is

needed, since RX time is not longer than absolutely

needed given by physical parameters plus calibration

time. The time between data packets is 100ms and

5 packets are sent in a row before starting with the

acknowledgement phase. That said, the data packet

Fast and Reliable Update Protocols in WSNs During Software Development, Testing and Deployment

loop

AP Device1 Device2 DeviceN

RFU

RFU ACK

RFU

RFU ACK

RFU

RFU ACK

Init

4x PKT

ACK

Discovery

Init

Data

TDMA

Data

5x PKT

ACK

TDMA

Figure 4: Protocol schedule during the update.

round is 500ms long. After the data packets are

received, meaning 500ms packet round with 5 sent

packets is over, the update devices, whether they re-

ceived packets successfully or not, trigger the next

and last state, the TDMA phase. If an error oc-

curred at the beginning of the data phase all follow-

ing packets are lost as well. This is due to the de-

sign of the protocol, an update device is only able to

save the current state in the complete update, but not

single packets which are needed to complete the up-

date. This behaviour could be changed in future ver-

sions to improve the update. The complete TDMA

window is divided into small time windows for each

and every node. The length of this phase is depen-

dent on the number of sensor nodes, which partici-

pate in the update run. Every update node has the

chance to send an acknowledgement packet which in-

cludes the packet number that is expected next, there-

fore, this information contains the last successfully re-

ceived packet number. After this TDMA mechanism

the access point has all needed data to decide which

packet should be transmitted next, i.e. the smallest

packet number that was received by the access point.

If an ack from a node is lost, for whatever reason,

there is no error handling. Next time the ack phase

starts there is another chance for this node to send its

ack successfully. After every TDMA, the data phase

is started again. This process is repeated until no more

acks with a packet number below the highest possible

packet number is received, therefore all nodes have

the complete new code. Every node that has received

all needed packets successfully, resets itself automati-

cally and starts the new application if there was user

input, otherwise the bootloader waits for another up-

date run, meaning the device start with sending the

RFU message. This process can be aborted by spe-

cial input to easily start the application. The ac-

knowledgement phase is the most complex phase of

the complete update protocol. The more devices are

participating in one update run, the longer this phase

must be. The ack phase is always determined by a

speciﬁc integer factor of this 100ms, dependent on

how many devices need an update. This factor does

increase by 1 every 10 nodes. The decision to set

these speciﬁc timing intervals were made after eval-

uating the USB communication between the access

point and the pc application.

5.2 Calculations – Power Consumption

Since power consumption of an update protocol is an

important requirement in the design of such a process

the exact energy consumption of all messages are pre-

sented in this chapter. Power consumption of the up-

date process is split into four states of the watch: the

active mode and LPM3 of the watch and its CPU, the

receiving (RX) and the transmitting (TX) mode of the

radio module. Table 1 shows different power levels

of these states in mA. To ensure low power consump-

tion, the completion time as well as radio transmis-

sions should be minimized and update time should be

spent in LPM3 whenever possible. The latter can be

reached by an exact time based protocol as we have

designed. The timings of each update state is known

to every single device, hence the active time of any de-

vice is minimized to the actually needed active time.

The rest of the update time is waiting for an event to

get triggered or to let other devices ﬁnish their trans-

missions.

Table 1: Power consumption @12MHz (TI, 2013b).

Voltage IDLE+CPU active TX RX LPM3

3.0V 1.7 + 2.75 33 16 0.0022

Power Consumption in Ah, length of the messages in

bytes and the timings (RX and TX) in ms of our mes-

sages are shown in Table 2 (from watches perspec-

tive, the access point power consumption is kind of

neglectable since its not battery driven, but always on

a secure power connection). The bytes added and re-

moved automatically by hardware, i.e. the preamble,

sync word and the checksum are already included,

meaning the actual useable data is always 10 bytes

less. This overhead is mandatory for all messages

transmitted by the radio module. The shown power

consumption is in 10

−9

Ah.

Timings and consequently power consumptions for

these messages are valid for a 250’000 bits per sec-

SENSORNETS 2018 - 7th International Conference on Sensor Networks

Table 2: Power consumption of different messages.

Type Length TX Time RX Time Power

RFU 14 0.45 0.00 4.10

RFU ACK 16 0.00 0.51 2.27

InitPacket 17 0.00 0.54 2.41

DataPacket 116 0.00 3.20 14.22

ACK 14 0.45 0.00 4.10

ond transmission rate. Since the radio module needs

calibration every time a communication is initialized

a value of 721µs with a power consumption of 9.5mA

must be added to every receive or transmit operation

(TI, 2013b). This results in additional 1.9 · 10

−9

per radio event. Now we know all needed values to

compute the complete power consumption of the CPU

plus radio module during one update run. Following

formula shows the power consumption for the radio

module for all transmissions:

radio power

active

= a· RFU + a· RFU ACK +

InitPacket + b· DataPacket + c· ACK +

(2a + 1 + b + c)· 1.9 · 10

−9

where a is the number of RFU messages the watch

sends, b the number of data packets were received by

the watch and c the number of acks the device is send-

ing during the update run. Since exact radio idle time

is hard to determine we calculate the radio as always

idle, knowing this is not correct but sound. This for-

mula represents the radio power consumption for the

idle state and must be added to the complete power

consumption:

radio power

idle

= 1.7mA · updateTime

The CPU is at least 90% of the update time in LPM3.

The only CPU activity while updating the ﬁrmware,

is before transmission and after or during receiving

(when the FIFO hardware buffer is full) of a radio

packet, since these events are interrupt-driven and

wake up the CPU from all low power modes. Ad-

ditional CPU active time is needed before the update

starts and after a data packet was received, because

this data must be written to internal ﬂash memory. So

we can calculate the worst case active CPU time and

its power consumption with 10% of the update time,

knowing the exact CPU active time is dependent on

how many packets were received/transmitted. How-

ever the 10% calculated time is surely higher than

in the actual implementation. Every 100ms the radio

waits for a data packet, which needs time for receiv-

ing (copy values, sync mechanism) and when success-

fully received the time for writing it to the ﬂash mem-

ory. After some evaluation of these operations we can

safely assume these operations do not need 10ms and

this would be the time value to reach the 10% active

CPU time. To get a wrong but safe bound we add, as

the exact CPU active time is also hard to determine,

for the complete run

CPU power

LPM

= 0.90 · updateTime · 2.2 µA

and for the active state of the CPU

CPU power

active

= 0.10 · updateTime · 2.75 mA.

During an update run the complete main ﬂash mem-

ory of the device is erased and reprogrammed. These

memory operations also need time and energy. Tim-

ings and power consumptions of all ﬂash operations

are shown in (TI, 2013b). We calculate the power

consumption during erase with the given typical value

of 2mA and during programing with 3mA. While full

erasing does need maximal 32ms, the complete pro-

graming time of the CC430 ﬂash memory takes about

800ms of active write operation. All ﬂash instruc-

tions summorized result in 6.9 · 10

−7

Ah, which must

be added to the power consumption of one update run.

The sum of radio

active

, radio

idle

, CPU

LPM

, CPU

active

and write and erase operations on the ﬂash memory

give now the complete power consumption needed by

one sensor device during one ﬁrmware update. The

best case (one device, minimum amount of packets

are sent) of an update with a size of 27KB, a data

packet payload length of 100Bytes and a TDMA win-

dow after every 5 data packets, can now be calcu-

lated. The minimum amount of packets needed are

1 RFU message and its 1 ACK, the 1 init package

which is followed by 270 data packets and in between

of the data packets there are 54 acknowledgement

packets needed. This results in 327 radio transitions.

The minimum update time is 27s, i.e. the 270 pack-

ets with one packet in 100ms, plus discovery phase

length which is calculated with 7s – this is the value

we used for our later shown experiments. This results

in 6.01 · 10

−6

Ah for the active radio, 1.27 · 10

−8

for the idle radio, 1.87 · 10

−8

Ah for the LPM of the

CPU and 2.60 · 10

−6

Ah for the active CPU time. As

a result a total amount of 9.33 · 10

−6

Ah is used by

one update run, if exactly one device is involved. If

more devices are used power consumption increases,

but only because the time in LPM3 goes up. With

1000 devices the additional power consumption for

LMP3 is about 2.94 · 10

−7

Ah. This is much less than

1/10 of the complete update process of one device,

therefore does not signiﬁcantly decrease the number

of possible update runs for these devices. The num-

ber of radio transmissions and the CPU active times

do not increase, but stay the same.

The eZ430 chronos watch contains a standard

CR2032 lithium battery with a nominal capacity of

220 mAh (CR2, ). This results in about 23’500

possible best case update runs before the battery is

empty. This should be sufﬁcient for most develop-

ment processes. Although these results show only

Fast and Reliable Update Protocols in WSNs During Software Development, Testing and Deployment

the best case with 1 involved device and hence er-

rors would decrease the number of possible updates

accordingly. An error rate of 1% would increase the

needed amount of packets at least to 273, more likely

an even higher number of packets is needed due to

the design of the error detection, but also increases

the CPU active time and the LPM time. The maxi-

mum amount of packets (worst case) for a packet er-

ror rate of 1% is 285, every error occurred directly

after the ack phase and therefore all other packets in

this data round are lost too. This results in additional

3 more acks and 15 more packets, i.e. a total amount

of 2.26 · 10

−7

Ah must be added to the power con-

sumption.

5.3 Calculations – Time

The main goal during development of the update pro-

tocols was to achieve a fast and reliable process and

hence time evaluation of the update process is impor-

tant. The time, that an update run needs can be calcu-

lated as follows:

completionTime = Time

discoveryPhase

+ Time

dataPackets

+ Time

TDMA/ACK phase

The user currently sets time of the discovery phase.

In this time slot each node has to complete its RFU

communication and hence the more devices are up-

dated the longer this time should be. Time needed for

transmitting all the data packets is dependent on the

update size. The useable ﬂash memory of the device

is 32KB, which results currently, since the data pay-

load of one packet is 100 bytes, in maximal 32 sec-

onds. The TDMA/ACK phase of the update is calcu-

lated differently and dependent on number of sensor

nodes which need an update. The ﬁrst 10 devices can

use the normal time between 2 data packets to send

their acknowledgements, but after that every 10 de-

vices get an additional 100ms time slot to send the

ack packet. Thus, the TDMA time can be computed

as follows:

Time

TDMA/ACK

= (#devices - 1) / 10 · 100ms · #acks

This time increases with growing number of update

devices and becomes the most important factor that

determines how long an update run needs to ﬁnish.

With, e.g., 1000 devices and an update size of 27KB

time spent in the TDMA phase is about 535 seconds,

while the actual sending of the packets is 27 seconds.

Thus, in later improvements of the update protocol

the time spent in the TDMA windows should be re-

duced to get faster update results. The time to ﬁnish

the update depends huge on the error rate. The more

errors, the more packets have to be sent. But with

growing number of sensor devices the TDMA phase

has the most impact on the ﬁnishing time. If we use

again a small error rate of 1% different update times

could be observed. The best case with regard of com-

pletion time are errors that are recognized immedi-

ately. With 3 additional sent packets, 273 in total, the

TDMA/ACK phase length would be the same – still

under the best case assumption. Since the last round

is incomplete and if all 3 packets are received without

errors the last TDMA phase is not started, leading to

no additional time cost for the update process. The

worst case on the other hand is entirely different. If

an error occurs directly after the ACK phase, the com-

plete packet round is useless and therefore, all packets

are lost. As a result only 3 errors would cost another

3 additional TDMA rounds. While only one device is

involved, only the additional 15 packets sent are rele-

vant for the execution time of the update. With the ex-

ample of 1000 Devices, 3 more TDMA phases would

mean: 99 · 100ms · 3 = 29,7s more time to ﬁnish the

update for all devices. Thus, the exact time/place of

the errors has a huge impact on the completion time

of the update. Furthermore, with more devices an er-

ror becomes more and more impactful regarding the

completion time.

6 EXPERIMENTS

This section contains experiments we made with our

available hardware. Not all introduced update proto-

cols contain an evaluation of their methods on a real

hardware environment, therefore we speciﬁcally want

to show our experiments we made. For all tests of

the update process we considered all available nodes

which need an update are in very short distance to the

access point, i.e. max distance was 1m in our test

environment. The most important metric to measure

quality of an update process in our scenario, i. e. the

development of new software for sensor networks, is

the completion time. Another top priority goal is re-

liability. All devices must be updated completely and

without errors. The energy consumption in this case

has a lower priority, but nonetheless is always impor-

tant in wireless sensor networks. Otherwise the bat-

tery must be replaced often and therefore most bene-

ﬁts of an update process, e.g., fast and simple testing

of new code would be lost.

Calculated best case results for updates are shown in

Figure 5. The x-achsis (bottom) shows the number of

devices used whereas on the y-achsis (left side) the

time to update this number of devices is shown. The

diagram is valid for an update size of 27KB.

The ﬁxed parameters update process has an ac-

knowledgement rate of 5. This means that every 5

SENSORNETS 2018 - 7th International Conference on Sensor Networks

Figure 5: Update duration with different number of devices.

data packets there is a time window where all watches

can send its ack packet. Since the number of ack

phases can be reduced, if the radio channel is good

and an error is not very likely we used a different ap-

proach for the ack phase. The AIMD and AIAD vari-

ant introduce easy mechanisms to react ﬂexible to the

current radio channel and adapt the ack rate. AIMD

starts at the same ack rate and from there on the algo-

rithm decides whether to increase or decrease the ack

rate. Discovery phase was set to 7 seconds during all

experiments. This was sufﬁcient for our number of

available sensor nodes, but must be adjusted accord-

ingly if more nodes are updated simultaneously. The

acceleration factor between different update modes

(TI 1:1, ﬁxed, AIMD) is shown in Figure 6. Since the

TI update does only allow a 1:1 update, the 1:n update

process is obviously faster. The factor does increase

with growing number of sensor nodes but is kind of

limited. This is due to the acknowledgement phase

of the update protocol. As shown before in 5.3 the

ack phase becomes the bottleneck of the update pro-

cess since every ack round needs signiﬁcantly more

time than sending the 5 data packets in a row. If the

AIMD and/or AIAD implementation is used and the

quality of the radio channel is good, the ACK phase

does not trigger as often as before, thus saves a lot

of time. These diagrams always show the best case,

which means that no error occurs during the complete

update time, hence are at this time only theoretical

values. The experimental results, which will be pre-

sented in the next section will indicate how likely it is

to reach these values.

6.1 Results – Static Acknowledgement

Rate

Table 3 shows some actual results from experiments

we made. These ﬁrst results were executed for all

nodes within a small area and equipped with the ﬁxed

parameters software. Onehundred of each test runs,

i.e. in total 500 update runs were executed with dif-

ferent amount of sensor nodes. The table shows the

Figure 6: Acceleration between the different update modes.

number of devices we used for one update run (up

to 25), the time the experimental worst case run

was longer than the best case calculation and the

average and worst case PER (packet error rate). The

complete column, i.e. the rate of successful updates

gives an overview of how many of these ﬁrmware

updates were done completly with no errors, meaning

a runnable new software is stored in ﬂash memory.

PER is the packet error rate which indicates the chan-

nelquality between access point and watches during

the software update. These experimental results show,

Table 3: Measurements – static variant.

#devices WC-BC complete avg.PER max.PER

5 0.6s 99.2% 0.12% 1.09%

10 2.5s 99.8% 0.45% 3.75%

15 3.0s 99.1% 0.66% 4.69%

20 4.2s 99.8% 1.23% 7.76%

25 7.7s 99.6% 2.92% 9.72%

that completion rate does not correlate with number

of nodes which are updated. Through all test runs the

completion rate was approximately the same with no

spike in either one direction. In other words the mech-

anism does not become unreliable with more sensor

nodes and hence, is able to scale with the problem

size. The simple update protocol has a dependabil-

ity over 99%. In the current implementation an er-

ror can occur in the last data round, the acknowledge-

ment gets lost and therefore the update device can not

ﬁnish the run. A more sophisticated, explicit error

handling like a two-way communication between the

update device and the access point during or at the

end of the update process could increase the percent-

age further. When both devices expect a validation

packet the error is recognized for sure, therefore an

explicit handling for this case could be created. Since

in all experiments nodes where in a very dense forma-

tion, i.e. the average distance between the different

nodes was about 1cm, the PER does correlate with

the number of nodes. This leads to the assumption

that there is possible interference between the indi-

vidual sensor nodes, which leads to corrupted pack-

Fast and Reliable Update Protocols in WSNs During Software Development, Testing and Deployment

ets. The power consumption does increase over time

since more CPU and radio activity is needed. The cal-

culation results shown in 5 for more devices will most

likely not be reached since average PER is not near 0,

but does vary between 0% and 3% during different

update runs. The time to complete the update on all

watches goes up with the PER. As long as the number

of devices is 10 or lower the TDMA has no inﬂuence

on how long the update needs, as shown in the previ-

ous section in 5.3. Time increases only due to packets

which are sent again. In all other cases time increases

not only by sending data packets again, but also with

the additional time spent in the TDMA window. Such

a behaviour was noticed in our experiments between

20 and 25 update nodes. In both speciﬁc worst cases

the PER was high, but the actual completion time and

its difference to the best case was signiﬁcantly higher

with 25 devices compared to 20 devices. The explana-

tion for this is the acknowledgement phase. For every

error that results in an additional ack window the up-

date time increases by 200ms with 25 devices instead

of 100ms with 20 devices. This also means, that for a

huge amount of nodes an error is much more impact-

ful than for a small amount of devices.

Another characteristic behaviour of the update proto-

col is based on the statically ﬁxed acknowledgement

state (in this speciﬁc case after every 5 data packets).

A packet error can increase the amount of packets

needed to be sent signiﬁcantly and therefore the com-

pletion time for the update. This happens if an error

occurred directly after the acknowledgement phase

and is only detected in the next phase. For this easy

protocol it is not possible to detect this error otherwise

than during the acknowledgement phase.

6.2 Results – AIMD & AIAD

The more sophisticated approach to get acknowledge-

ment packets is to react to the current quality of the ra-

dio channel. Techniques used by our protocol to adapt

are the AIMD and AIAD mechanisms. The initializa-

tion process and the message types are the same as

before. Only difference to the previous mechanism is

the rate at which the watches transmit their acknowl-

edgement information. The acknowledgement rate

starts again at 5, which means after 5 data packets the

ﬁrst TDMA is initialized. After this ﬁrst ack phase the

access point adjusts the time for the next ack round.

All other messages, timings and states are valid again.

The results of these 150 (75 for each variant) update

test runs with 25 sensor devices are shown in Table 4.

The best case time calculation for both the AIMD

and AIAD mechanism is 38 seconds. This means that

every single packet is transmitted without an error.

Table 4: Measurements – AIMD/AIAD variant.

avg.PER avg.T min.T avg.#dataPackets

AIMD 1.49 43.6 38.4 287.75

AIAD 1.32 41.9 38.1 295.57

This includes both data packets and ack packets. A

non received positive ack, meaning an ack that would

conﬁrm that no error occurred is handled as an error.

This minimal time can be reached by the update pro-

cess as shown in Table 4, but the experimental evalu-

ated average case is clearly higher. The average case

still shows that the quality of the radio channel is suf-

ﬁcient to reach better completion times than the nor-

mal static mechanism. The best case of the ﬁrst ap-

proach lies with 45 seconds higher than the average

case of both the AIMD and AIAD protocols. How-

ever, with experiments evaluated we can show that the

quality of the radio channel can go low enough that

the update execution time is longer than with the static

mechanism. The worst case execution time of the

AIMD protocol is 55.9 seconds and with the AIAD

57.9 seconds. The worst case of the static method

is with 52.2 seconds lower than both the AIMD and

AIAD protocols. If a short, random error occurred

than acks are not needed often, but if an error occurred

and is detected rather late or the error is due to some

radio interference and stays in the system a more of-

ten TDMA phase would be needed. These algorithms

have a delay to react to both error cases and because

of that it can slow down the complete update process.

The comparison between AIMD and AIAD is simi-

lar. Since the multiplicative decrease mechanism can

react faster to errors which remain in the system, the

worst case execution time with a high PER is shorter

than the additive decrease mechanism. But if one ran-

dom error occurred, the AIMD protocol needs a long

time to recover before it is at the same ack rate as be-

fore the error, meaning it loses time compared to an

additive decrease mechanism. The AIAD can react

to such random errors much better. As shown in the

results, most of the time the quality of the radio chan-

nel is good enough to use the AIAD algorithm to get

faster updates than AIMD. But as seen in Table 4 the

AIAD needs in average more packets until the update

is complete. However, as explained in section 5.3 the

TDMA/ACK phase is the update state where most of

the time is spent. The number of data packets is not

the crucial part of the completion time. Since both

the ﬂexible ack mechanisms are faster than the previ-

ous one and the AIAD is faster than the AIMD, we

learned that in general and over a lot of update runs

the AIAD method gives the best results in terms of

completion time and as previous explained this is the

most important metric for the presented update sce-

nario. The power consumption between the different

SENSORNETS 2018 - 7th International Conference on Sensor Networks

protocols can be compared based on the average re-

sults shown in Table 4. The interesting part about

the results is that the AIAD needs more radio trans-

mission overall. Since more packets are sent dur-

ing an average AIAD update run, the devices must

be more often in RX mode. This results in higher

power consumption for each sensor node. The LPM

and radio-idle power consumption is lower than with

AIMD as a result of the lower execution time of the

update. The formula shown in 5.2 is now not exact

enough to calculate the difference between the indi-

vidual update mechanisms regarding the active CPU

time. The active time with AIAD is still higher than

in the AIMD process (in 5.2 this would be differently

computed). The more packets are received the more

the CPU is active. To calculate the exact differences

between each update protocol a more speciﬁc CPU

active formula would be needed. Since the power

consumption was not the most important goal in the

development, the power consumption is not signiﬁ-

cantly higher than in the static variant and the number

of update runs should be sufﬁcient for the software

development, such exact computations were not done.

7 CONCLUSION & FURTHER

WORK

In this paper, we present a fast, reliable but still sim-

ple update mechanism plus ﬁrst improvements and

their evaluation. Such an update protocol shows an

easy way to update a large amount of sensor nodes

simultaneously while keeping its effort manageable.

This approach could be used with a variety of differ-

ent hardware. During the development of software for

the sensor network, the co-development of a wireless

updater should be top priority since the beneﬁt from

such an update process is huge. The easy possibility

to update all currently needed nodes at the same time

signiﬁcantly decreases the amount of time needed to

reprogram all sensor nodes and therefore, it is easy to

test new code very fast. An exactly shared time based

protocol is much less complex than update mecha-

nisms that come with multiple senders and/or multi-

hop concepts. Calculations of this protocol shows that

the update can be executed multiple times, the power

consumptions is not problematic. The execution time

is much smaller than in a 1:1 update/ﬂash scenario

and its scalability means it is useable with any amount

of nodes, whether a small or a large number is used.

Some improvements to the update protocol could be

done by analyzing the radio channel so the ack phase

frequency is reduced. Another possibility to improve

the update is not only to make the ACK phase ﬂexi-

ble, but also the size, i.e. the payload, of the packets.

With a good radio channel and a 1.5 times as large

packet size, the TDMA frequence would be reduced

by this factor. This would result in higher throughput

which leads to an even smaller execution time for the

update. It would be interesting to compare some ex-

isting update protocols with our developed solution.

Especially those mechanisms, which did not provide

a real implementation. We plan to implement these

already developed update ideas on our hardware plat-

form to get experiment results from these implemen-

tations.

ACKNOWLEDGEMENTS

This work was supported by the research cluster

for Robotics, Algorithms, Communication and Smart

Grid (RAKS) of the OTH Regensburg. Further infor-

mation under www.raks-oth.de

This work was also supported by the Regensburg

Center of Energy and Resources (RCER) and the

Technology- and Science Network Oberpfalz (TWO).

Further information under www.rcer.de

REFERENCES

DataSheet Lithium Manganese Dioxide Battery CR2032.

accessed 15.03.2017.

Akyildiz, I., Su, W., Sankarasubramaniam, Y., and Cayirci,

E. (2002). A survey on sensor networks. IEEE Com-

munications Magazine.

Altmann, M., Schlegl, P., and Volbert, K. (2016). A low-

power wireless system for energy consumption analy-

sis at mains sockets. EURASIP - Embedded Systems.

Brown, S. and Sreenan, C. J. (2013). Software updating

in wireless sensor networks: A asurvey and lacunae.

Journal of Sensor and Actuator Networks, ISSN 2224-

2708. www.mdpi.com/journal/jsan/.

Chong, C.-Y. and Kumar, S. (2003). Sensor networks: evo-

lution, opportunities, and challenges. Proceedings of

the IEEE.

Edmonds, J. (2012). On the competitiveness of aimd-tcp

within a general network. Theoretical Computer Sci-

ence.

Hui, J. W. and Culler, D. (2004). The Dynamic Behavior of

a Data Dissemination Protocol for Network Program-

ming at scale.

Jacobson, V. (1988). Congestion avoidance and control.

SIGCOMM Comput. Commun. Rev., 18(4):314–329.

Karp, R., Koutsoupias, E., Papadimitriou, C., and Shenker,

S. (2000). Optimization problems in congestion con-

trol. Proceedings of FOCS00, IEEE Computer Soci-

ety.

Fast and Reliable Update Protocols in WSNs During Software Development, Testing and Deployment

Kenner, S., Thaler, R., Kucera, M., Volbert, K., and Waas,

T. (2016). Comparison of Smart Grid architectures for

monitoring and analyzing power grid data via Modbus

and REST. EURASIP - Embedded Systems.

Kenner, S. and Volbert, K. (2016). A low-power, tricky

and very easy to use sensor network gateway archi-

tecture with application example. 10th International

Conference on Sensor Technologies and Applications

(SENSORCOMM’16).

Levis, P., Patel, N., Culler, D., and Shenker, S. (2004).

Trickle: A Self-Regulating Algorithm for Code Prop-

agation and Maintenance in Wireless Sensor Net-

works.

Lukovszki, T., Schindelhauer, C., and Volbert, K. (2006).

Resource Efﬁcient Maintenance of Wireless Network

Topologies. Journal of Universal Computer Science

(J.UCS’06). 12(9):1292–1311.

Meyer auf der Heide, F., Schindelhauer, C., Volbert, K., and

unewald, M. (2004). Congestion, dilation, and en-

ergy in radio networks. Theory of Computing Systems

(TOCS’04).

Rickenbach, P. and Wattenhofer, R. (2008). Decoding Code

on a Sensor Node. 4th International Conference on

Distributed Computing in Sensor Systems (DCOSS).

Schindelhauer, C., Volbert, K., and Ziegler, M. (2007). Ge-

ometric Spanners with Applications in Wireless Net-

works. Computational Geometry: Theory and Appli-

cations (CGTA’07). 36(3):197–214.

Schlegl, P., Robatzek, M., Kucera, M., Volbert, K., and

Waas, T. (2014). Performance Analysis of Mobile

Radio for Automatic Control in Smart Grids. Sec-

ond International Conference on Advances in Com-

puting, Communication and Information Technology

(CCIT’14).

Sinha, A. and Chandrakasan, A. (2001). Dynamic power

management in wireless sensor networks. IEEE De-

sign & Test of Computers.

Sivrikaya, F. and Yener, B. (2004). Time synchronization in

sensor networks: a survey. IEEE Network.

Stathopoulos, T., Heidemann, J., and Estrin, D. (2003). A

Remote Code Update Mechanism for Wireless Sensor

Networks. Center for Embedded Networked Sensing.

Sternecker, C. (2012). Reprogrammierungstechniken fuer

drahtlose Sensornetzwerke. Seminar Sensorknoten -

Betrieb, Netze und Anwendungen.

Stolikj, M., Cuijpers, P. J. L., and Lukkien, J. J. (2012).

Efﬁcient reprogramming of wireless sensor networks

using incremental updates and data compression. De-

partment of Mathematics and Computer Science Sys-

tem Architeture and Networking Group.

TI (2013a). CC430 Family - User’s Guide. accessed

15.03.2017.

TI (2013b). MSP430 SoC With RF Core. accessed

15.03.2017.

TI (2015). MSP430F5510, MSP430F550x Mixed-Signal

Microcontrollers. accessed 15.03.2017.

TI (2017). MSP Gang Programmer (MSP-GANG). ac-

cessed 20.06.2017.

Wagn, Q., Zhu, Y., and Cheng, L. (2006). Reprogram-

ming Wireless Sensor Networks: Challenges and Ap-

proaches. IEEE Network.

SENSORNETS 2018 - 7th International Conference on Sensor Networks
