Model-driven Engineering for the Conﬁguration and Deployment of Data

Processing Applications

Hui Song, Nicolas Ferry, Jakob Høgenes and Arnor Solberg

SINTEF, Oslo, Norway

Keywords:

Big Data, Model-driven Engineering.

Abstract:

This position paper reports our current endeavour towards a model-driven engineering framework to support

the dynamic conﬁguration and deployment of complex data processing applications. In particular, our appro-

ach includes a domain-speciﬁc modelling language that abstracts the data processing tasks and at the same

time exposes the control of how these tasks are deployed on speciﬁc platforms and resources. A modelling

framework of model transformation and models@runtime engines realises the semi-automatic conﬁguration

and deployment of the applications based on the abstract models.

1 INTRODUCTION

Data processing applications are playing an important

role in industry, partly as a result of the big data mo-

vement. These applications typically combine hete-

rogeneous, distributed and dedicated software soluti-

ons. In order to reduce operation costs, they are of-

ten deployed over cloud infrastructures that provide

on demand access to a virtually inﬁnite set of com-

puting, storage and network resources. However, in

practice the development and operation of data pro-

cessing applications typically face two challenges: (i)

the complexity and time required to learn as well as

to design and integrate the many existing general pur-

pose frameworks and (ii) the complexity of operation,

maintenance and evolution of the applications.

As a result of the ﬁrst challenge, a large proportion

of the data engineers’ effort is dedicated to conﬁgura-

tion and deployment activities. It is complex to pro-

perly conﬁgure and connect the many general purpose

frameworks (e.g., Hadoop, Storm, Spark, Kafka, etc.)

and to deploy them on the adequate infrastructure

(e.g., OpenStack VM, Amazon DynamoDB). Part of

this challenge can be addressed by providing a pro-

per abstraction hiding some platforms speciﬁcities as

well as by facilitating the reuse and sharing of part

of the system. Some cloud providers offered graphi-

cal data processing environments, such as Amazon

Big Data

and Microsoft Azure Machine Learning

aws.amazon.com/training/course-descriptions/bigdata/

azure.microsoft.com/services/machine-learning/

Thanks to such environment, engineers can quickly

prototype their ideas into a runnable application. Ho-

wever, these solutions prevent developers from under-

standing and controlling how the applications are de-

ployed and run on cloud infrastructures, and also im-

plies vendor lock-in.

Moreover, as these systems must inevitably

evolve, it is challenging to maintain and evolve them

whilst minimizing down-time. In order to shorten

delivery time and to foster continuous evolution, we

should reconcile development and operation activi-

ties (H

uttermann, 2012). The DevOps movement ad-

vocates to not only automate conﬁguration and de-

ployment of the application, but also the capability

to monitor and control the application, in order to im-

prove the both the efﬁciency and ﬂexibility.

In this paper we introduce a framework to fos-

ter the continuous design, deployment, operation and

evolution of data processing applications. Our solu-

tion, called DAMF (Data Modelling Framework), is

composed of (i) a domain speciﬁc modelling language

to specify both the data ﬂow and the deployment of

the data processing tasks and (ii) a toolset with mo-

del transformations and models@runtime engines for

the automatic deployment and adaptation of such data

processing applications.

The remainder is organised as follows. Section 2

introduces a motivating example. Section 3 introdu-

ces DAMF and Section 4 discusses our future plans.

Finally, Section 5 discusses related approaches and

Section 6 concludes the paper.

Song H., Ferry N., HÃÿgenes J. and Solberg A.

Model-driven Engineering for the Conﬁguration and Deployment of Data Processing Applications.

DOI: 10.5220/0006266505230528

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 523-528

ISBN: 978-989-758-210-3

523

2 MOTIVATING EXAMPLE

We use a experimental application called WHEPET

(WHEre PEople TWeet)

to illustrate the typical acti-

vities to create, run and evolve an application exploi-

ting streams of real-time data. The objective of WHE-

PET is to show where people have recently posted

tweets.

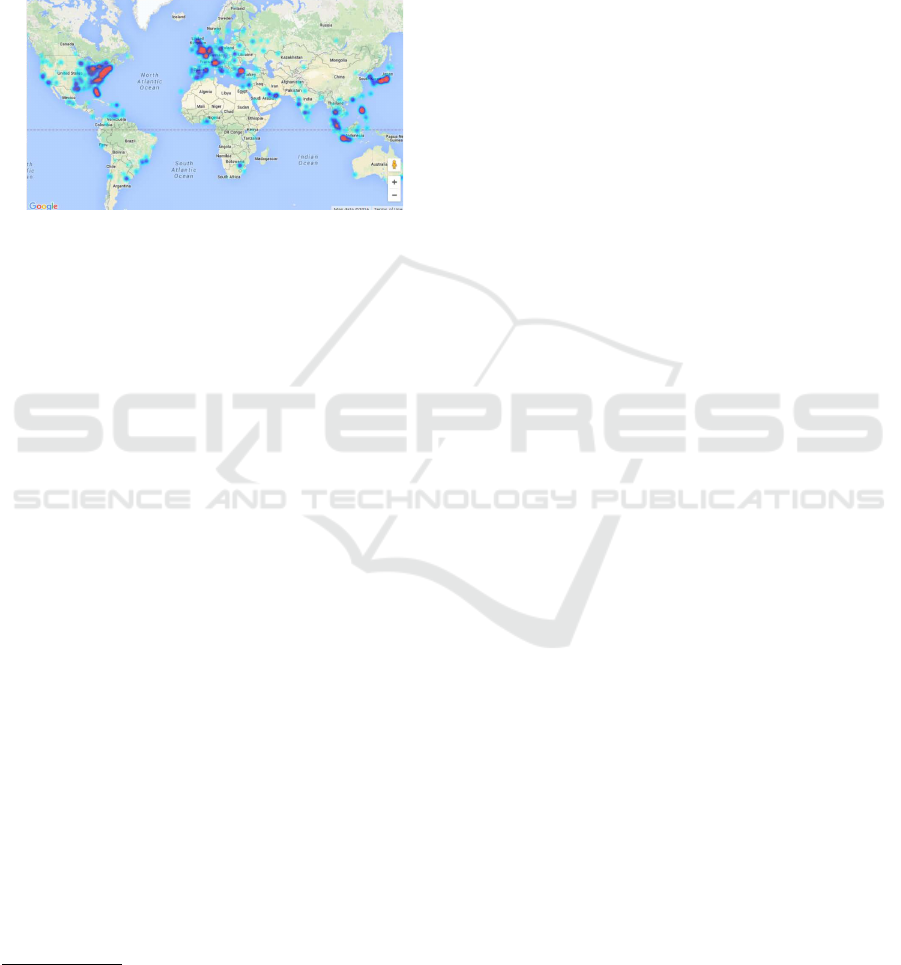

Figure 1: Screenshot of WHEPET heatmap.

The data processing comprises the tasks of obtai-

ning the real-time tweets from the Twitter Public Stre-

aming API

, ﬁltering tweets with coordinates, ex-

tracting these coordinates, and rendering them on the

heatmap as depicted in Figure 1. Since how to ana-

lyse the data is not part of the challenges we address,

the algorithms are deliberately simple.

The data retrieval tasks involve heavy data load

(i.e., about 500 tweets per second during our experi-

ment), and we selected the Storm platform

to pro-

cess them for scalability purpose. Following Storm’s

concepts, we wrap the tweets listening, ﬁltering and

extraction tasks as a Spout and two Bolts, respecti-

vely, and deﬁne a Topology to connect them. The

Storm topology is deployed on a Storm cluster, which

consists of four types of nodes, i.e., Supervisor, UI,

Nimbus and Zoopkeeper. The heatmap is realised in

HTML using Google Map Widgets. A Kafka

mes-

sage queue with a WebSocket wrapper plays as a me-

diator between Storm and the browsers.

We deployed all the required platforms, i.e.,

Storm, Kafka and Kafka-websocket, on a virtual ma-

chine from Amazon EC2. When initally running this

deployment, we noticed a big sudden drop in the rate

of real-time tweets. To solve this, we exploited the

Storm’s built-in scaling support, to add a new Storm

Supervisor node on a new virtual machine. At a la-

ter stage, we evolved the application to provide accu-

rate statistics about the number of geo-tagged tweets

posted from different countries. We developed a con-

https://github.com/songhui/whepet

https://dev.twitter.com/streaming/public

http://storm.apache.org

https://kafka.apache.org

verter from coordinates to country names. The con-

verter reads input from Kafka, and writes the output

back via a different topic. A counter program consu-

mes the output and updates a Redis database. For the

scenario we wanted to deploy and integrate this new

feature at runtime (i.e., without stopping the running

application).

The scenario illustrates the following require-

ments for DAMF:

Abstraction (R

): DAMF should provide an ab-

stract way to describe data ﬂows and their deploy-

ments in a platform and cloud provider-independent

and -speciﬁc way, i.e., support the conﬁguration of

data processing ﬂows, the implementation on speciﬁc

platforms, and the deployment on provider resources

respectively.

White- and Black-Box Control on Platform

and Infrastructure (R

): As for the example above,

for some features it is possible to quickly obtain a run-

ning application, without knowing any details of the

supporting platforms. However, for some features, we

need the capability to conﬁgure the platforms them-

selves, e.g., exploiting the Storm scaling out feature.

Modularity and Reusability (R

): It should pro-

vide a modular, loosely-coupled speciﬁcation of the

data ﬂow and its deployment so that the modules can

be seamlessly substituted and reused. Elements or

tasks should be reusable across scenarios, for exam-

ple, deploying a Storm application.

Automation (R

): We expect the automatic de-

ployment of data processing applications. Indeed,

experimental scenario requires tedious manual work.

For example, we need to check the IP address and port

of KafkaWS after deployment, and use them to reset

the WebSocket server.

Reconcile Design- and Run-Time Activities

): DAMF should support the continuous develop-

ment and operation and frequent switching between

design, implementation, and deployment activities.

3 THE APPROACH

DAMF leverages model-driven engineering techni-

ques to support developers and operators in develo-

ping and operating data processing applications.

3.1 Approach Overview

Figure 2 illustrates the overview of our approach. The

core of the approach is the DAML modelling lan-

guage. The language encompasses three views (ad-

dressing R

): (i) the platform-independent design of

data ﬂows, (ii) the platform-speciﬁc deployment of

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

524

Design-(me*tools*

Run-(me*tools*

Running&System&

reﬂec0on& deployment&

Pla2orm*independent*data*ﬂow*model*

Pla2orm*speciﬁc*and*provider*independent*deployment*model*

Pla2orm*and*provider*speciﬁc*deployment*model*

Developers&

Operators&

Semi-automa0c&

transforma0on&

Synchroniza0on&

Interact&with&

break&a&data&analysis&idea&into&

tasks&and&ﬂows&

Allocate&data&ﬂow&opera0ons&

&on&speciﬁc&cloud&plaCorms&

Allocate&plaCorms&and&

applica0ons&on&cloud&

resources&

zookeeper Nimbus node.js

EC2 VM (mem:4GB, CPU: 95%...)

redis

omit other components...

Twitter

Filter

Extract

coordinates

Get

tweets

Queue

Web

Socket

HeatMap

Country

Queue Counter

(Redis)

Storm

Kafka

gettweets

ﬁlter

extract-geo

zookeeper

Nimbus supervisor

kafka

kafka-ws

country

node.js

storm

twitter

-api

storm-topology

heatmap

VM (omit incoming hosting relations)

count

redis

...

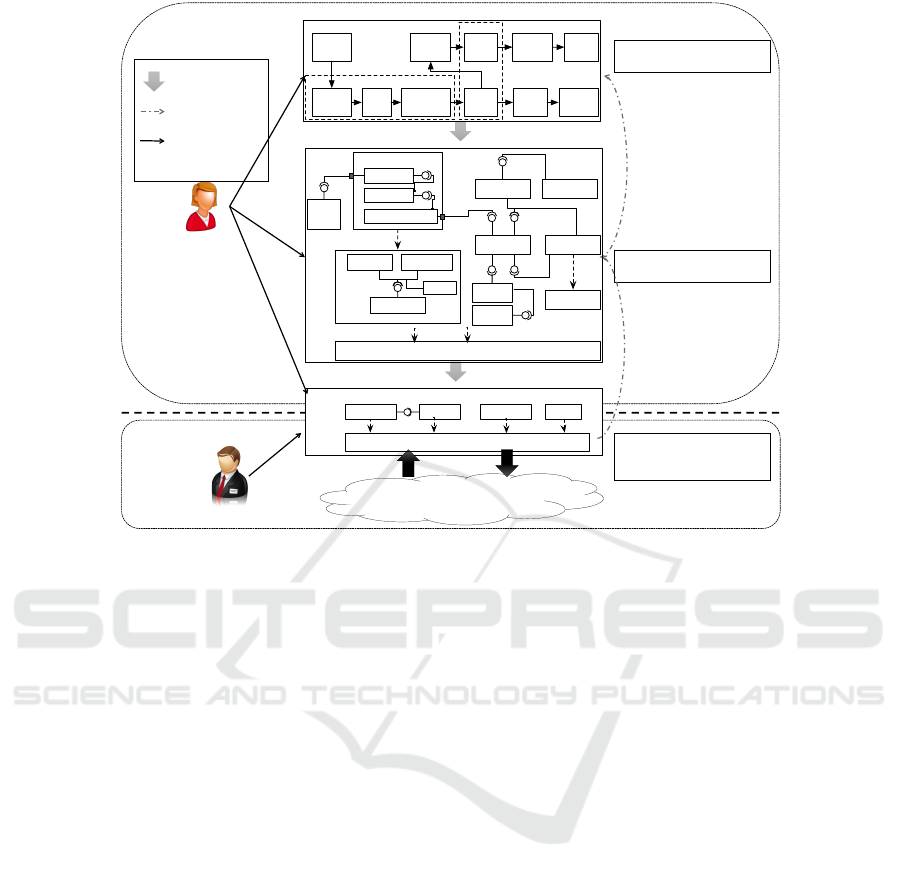

Figure 2: Approach Overview.

the application, and (iii) the platform-speciﬁc and

cloud provider-speciﬁc deployment, which also inclu-

des runtime information (e.g., public and private ad-

dresses, status) once the system is deployed.

Developers start the overall design of a data pro-

cessing application from the platform-independent

model, focusing on splitting the data processing task

into sub-tasks. After that, they select the plat-

forms to implement the sub-tasks, and lead the semi-

automatic transformation from the data ﬂow model

into a platform-speciﬁc deployment model. The de-

ployment model comprises deployable components

and how they are hosted by the abstract resources.

The component-based approach which better isolate

concerns (addressing R

) and ease reuse (addressing

). Developers can further adjust the generated de-

ployment model (addressing R

). If the adjustment

impacts the original overall design, the changes will

be synchronized to the data ﬂow. Once the deploy-

ment model properly deﬁned, developers choose the

provider of the resources, and then launch the automa-

tic deployment of the system on the selected resources

(addressing R

At runtime, the platform-speciﬁc model will be

enriched with runtime informations and automatically

synchronized with the running system (addressing

). Thus, the model represents the running system

and any change in the system (e.g., the Storm master

crashes) is automatically reﬂected in the model. Simi-

larly, any change on the model will trigger incremen-

tal deployment and cause the corresponding changes

on the system.

3.2 Platform-independent Modelling

We support the platform-independent view of DAML

by providing a data ﬂow modelling language named

DAFLOW. DAFLOW helps data engineers break a

data analysis idea into tasks that are connected by

ﬂows. In addition, it also allows data engineers to

annotate the tasks and ﬂows with high level design

decisions (e.g., what platform will be used to imple-

ment a task).

As a platform-independent language used for

early design, we keep DAFLOW simple and generic.

The meta-model consists of only 3 essential data ﬂow

concepts, i.e., source, task, and flow. We also in-

troduce two auxiliary concepts, i.e., group to encap-

sulate tasks, and annotation to add additional in-

formation to data ﬂow elements. These concepts are

platform independent. The annotation mechanism en-

sures the ﬂexibility of DAFLOW. Data engineers can

annotate, in an open style, any model elements with

the relevant information such as the platform to use,

the initial scale, etc. These annotations can be human-

readable, or machine readable to determine how the

platform-independent models are automatically trans-

lated into platform-speciﬁc ones.

Model-driven Engineering for the Conﬁguration and Deployment of Data Processing Applications

525

data flow WhePeT {

source TwitterStream

task TwitterListener, Filter, ExtractCoord,

HeatMap

flow TwitterStream => TwitterListener

flow TwitterListener => FilterGeoTagged

flow FilterGeoTagged => ExtractCoord

flow ExtractCoord => HeatMap

group Storm : (platform="Storm")(initsize="1")

{TwitterListener FilterGeoTagged ExtractCoord}

}

Figure 3: Initial DAFLOW model of WHEPET.

Figure 3 is an excerpt of the DAFLOW model

that captures the initial design of WHEPET (See

Section 2). In this round, we, playing the role of

data engineers, ﬁrst deﬁne the sources and tasks for

analysing twitter data, and the flows between them,

using the model elements marked with corresponding

keywords. The textual model corresponds to an ear-

lier version of the graphical data ﬂow diagram shown

in the top square of Figure 2. After deﬁning the data

ﬂow, we record our early technical decisions by anno-

tations, e.g., the group of three processes that handle

tweets will be hosted by the Storm platform.

High-level reﬁnement and evolutions on the data

ﬂow level are also performed on the DAFLOW mo-

del, such as replacing the mismatched ﬂow with two

tasks related to the message queue and the WebSocket

wrapper, and adding new tasks to convert coordinates

to countries and count the appearance of each coun-

try. After these iterations, the ﬁnal data ﬂow evolves

into the one as illustrated in the top of Figure 2. We

omit the concrete textual model.

3.3 Platform-speciﬁc Modelling

The data ﬂow model will be transformed into a de-

ployment model as shown in the middle part of Fig 2.

Data engineers can tune the deployment model con-

cerning platform-speciﬁc parameters and conﬁgurati-

ons, and the infrastructures to host the platform.

Figure 2 illustrates the main concepts of DADE-

PLOY model. The core concept is component. A com-

ponent can be a running service operated by a third

party (such as the Twitter Streaming API, or an AWS-

EC2 virtual machine), or a software artefact hosted

by a service (such as a Kafka message broker). Such

hosting relationship is represented by dashed arrows.

A component may also exposes provided or required

ports. A pair of matched ports can be connected by a

dependency relationship, which means that the com-

ponent with the required port “knows” how to access

the component with the provided port, and therefore

the former can invoke the latter to pull or push data.

Finally, a composite component contains other com-

ponents. The model depicted in Figure 2 includes one

composite component representing a Storm topology,

which consumes data from the Twitter Stream API,

and is hosted by a Storm platform. The platform it-

self is in turn composed by 4 different Storm nodes. It

is worth noting that in this case the hosting relations-

hip is between two composite components, which me-

ans that the developers do not need to care about how

the components within a storm topology is distributed

into the different storm nodes - this is automatically

handled by the storm platform. The last component

inside the Storm topology will publish the extracted

coordinates to Kafka. In the same time, the WebSoc-

ket wrapper subscribes to the same topic and sends

the wrapped coordinates via WebSocket messages to

the heatmap.

DADEPLOY provides a formal concrete syntax

in a textual format. Figure 4 shows a sample mo-

del which deﬁnes two of the components depicted in

Figure 2, the heatmap and the WebSocket wrapper.

The example involves a key concept in DADEPLOY,

i.e., prototype, borrowed from the JavaScript object-

oriented language, which also facilitates reusability

) and abstraction (R

). A component can be de-

rived from another component as its prototype. The

new component inherits all the features (i.e., attribu-

tes and ports) from its prototype, as well as the values

already bound to these features. Inside the deﬁnition

of the new component, we add new features or over-

ride values of features deﬁned by the prototype. For

example, in Line 1 of Figure 4, we ﬁrst deﬁned a com-

ponent to implement a HTTP server that can host one

simple HTML ﬁle. The component is inherited from

dockercomp, a predeﬁned component for any Doc-

ker images. Inside the one-page-httpd, we set the

actual image (the ofﬁcial python image) and the com-

mand associated to this image to download an HTML

ﬁle and start a built-in python http server to host it.

Finally, the configuration part deﬁnes the com-

ponent assembly of the application. It contains a

heatmap component inherited from one-page-http,

with a speciﬁc port 80 and a concrete page, and anot-

her component for the WebSocket wrapper. The two

components are connected by a link between the re-

quired and provided ports from the two components,

respectively. The components will be connected au-

tomatically during deployment: According to the link

in Line 19, the tool will check where ws is deployed,

in order to set the address and port values inside the

required port heatmap.wsport. These values will be

assigned to an environment variable ws inside the doc-

ker container (Line 14), for the http page to access the

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

526

1 component one-page-httpd prototype dockercomp{

2 image: "python:2"

3 command: "wget $this.resource;

4 python -m SimpleHTTPServer 80"

5 portmaps: {$this.httpport:80}

6 httpport: None

7 resource: None

8 }

9 configuration WhePeT{

10 component heatmap prototype one-page-httpd{

11 httpport:80

12 resource: "https://github.com/songhui/\

13 bigml-attempt/blob/master/vsempl/index.html"

14 environment: "ws=$this.wsport.ip: \

15 $this.wsport.port"

16 required port wsport

17 }

18 component ws prototype kafka-ws

19 component vm prototype ec2-big

20 link heatmap.wsport -> ws.wsport

21 host ws on vm

22 }

Figure 4: Excerpt of the DADEPLOY textual syntax.

WebSocket server.

The DADEPLOY model is machine-readable, and

can be automatically deployed by DAML engine into

a running application. The engine utilizes the me-

chanisms pre-deﬁned along with a number of prede-

ﬁned root components, such as dockercomp, execu-

table JAR ﬁle, EC2 virtual machine, etc. For each

of these root components, the engine has built-in lo-

gics to automatically deploy it on the host component.

Considering the heatmap component as an example,

the engine will use the docker deployment logic deﬁ-

ned with the root component dockercomp and com-

pose the following docker commands, to be executed

via ssh on the virtual machine.

docker run -d -p 80:80 python2 \\

-e "ws=172.0.2.15:7080" \\

bash -c "wget https://.../index.html && \\

python -m SimpleHTTPServer 80"

Once the conﬁguration model is completed, we

specify the resources providers, e.g., using the VM

from EC2. The runtime engine will automatically de-

ploy the components based on the generated scripts,

and return a runtime model as shown in the last part

of Figure 2. The runtime model maintains the same

structure as the deployment model if the deployment

succeeds (we omit most of the components in Figure 2

for the sake of simplicity), but its resource compo-

nents carry the provider information and the runtime

status of the resources, such as the actually memory

allocated to the VM, the dynamic IP address, the cur-

rent CPU load, etc.

3.4 Support for Model-driven DevOps

The DAML modelling language is the basis for the

model-driven DevOps of data processing applicati-

ons. Depending on the focus, developers and opera-

tors can work on any of the three views. Their chan-

ges on the model will be quickly implemented as evo-

lutions of the running system, thanks to the transfor-

mations and the models@runtime engines.

The model-based DevOps of data processing ap-

plications is composed of a set of agile iterations

of developing and evolving the application, each of

which ends with visible effects on the running appli-

cation. Take our WHEPET scenario as an example,

our ﬁrst iteration starts from a very simple DAFLOW

model with data retrieving and text-based represen-

ting tasks, as shown in Figure 3. The second iteration

is to scale out the location extraction component on

the DADEPLOY model. The third iteration is to intro-

duce new tasks into the DAFLOW model for country

converting. Each iteration leads quickly to changes of

the deployment of WHEPET.

The DevOps iterations are powered by the DAMF

engines which implements the transformation bet-

ween model views, and the causal-connection bet-

ween the model and the system, as shown in Figure 2.

The ﬂow-deployment transformation (the grey ar-

row on the top of Figure 2) takes as input the DAF-

LOW model with annotations of platforms and reu-

sed component types in DADEPLOY, and generates

the DADEPLOY conﬁgurations to implement the data

ﬂow. It is a bidirectional model-to-model transforma-

tion, with traceability support to reﬂect subsequent

changes on the deployment model into the original

data ﬂow. The deployment-provider transformation

(the arrow in the middle of Figure 2 keeps the compo-

nent conﬁguration, but generates the provider-speciﬁc

setting of the resources.

The models@runtime engine maintains the bi-

directional causal connection between the provider-

speciﬁc deployment model and the system running on

the provider’s resources. In one direction, the mo-

dels@runtime engine deploys the conﬁguration chan-

ges on the DADEPLOY model into system changes.

The automatic incremental deployment is based on

the OS-level provider-independent deployment tools,

such as DockerCompose, as well as the provider-

speciﬁc deployment APIs. The engine supports adap-

tive planning algorithms to design and optimize the

order to invoke these built-in capabilities. In the other

direction, the engine uses the provider’s monitoring

APIs to collect the system changes at runtime and re-

ﬂects them into the model.

Model-driven Engineering for the Conﬁguration and Deployment of Data Processing Applications

527

4 FUTURE WORK

On the basis of the DAML model, we will construct

the complete DAMF framework to enable the semi-

automatic DevOps supports of data processing sy-

stem. The research around DAMF are mainly along

three directions, i.e., the modelling language, the en-

gines and the applications.

For the language, we will provide both textual and

graphical model editors, together with auxiliary tools

such as model validation and auto-completion. We

will further elaborate on both our prototyping appro-

ach and the type-object pattern (Atkinson and K

uhne,

2002) to improve the reuse.

We will keep improving the model-to-model

transformations and the models@runtime engines, in

order to: (i) improve the synchronization between the

models at the different levels of abstraction and (ii)

support the mainstream data processing platforms and

the cloud resource providers. We will also work on

the model-to-text transformation to support the third-

party deployment engines such as chef (www.chef.io).

Finally, we will extend DAMF with support for

the continuous delivery of trustworthy data proces-

sing applications. The model will be used to reveal

and visualize the provenance and how the data are ac-

tually ﬂowing through the different tasks and resour-

ces.

5 RELATED WORK

This work is an extension to the approaches on model-

driven DevOps in cloud. CloudML (Ferry et al.,

2015) provides domains-speciﬁc languages and and

engines to support the vendor-independent modeling

and automatic deployment of cloud applications. Ar-

tist (Menychtas et al., 2014) provides model-based

support for the migration of legacy software into

cloud. Our approach follows the same direction but

are speciﬁc to data-processing applications, with spe-

cial views on data processing and also focuses on the

control of data processing at different levels.

The DICE project (Casale et al., 2015) also le-

verage model-driven engineering to manage data pro-

cessing applications, and aims at providing a new

UML proﬁle for developers to understand and ana-

lyse the applications. Different from our approach,

DICE focuses on the non-functional perspectives of

the applications, such as reliability and performance,

whereas we focus on the rapid construction of data

processing from a functional point of view.

The approach is based on a set of advanced model-

driven engineering research topics, i.e., domain-

speciﬁc language engineering (Kelly and Tolvanen,

2008), bidirectional model transformation (Czarnecki

et al., 2009) and models@runtime (Blair et al., 2009).

6 CONCLUSION

In this position paper we present a model-driven ap-

proach to the development and operation of data pro-

cessing applications. Using the sample case,we reveal

the possibility and potential beneﬁts of designing and

managing data processing applications from a high

abstract level using modelling languages, and auto-

mating the DevOps processes though transformation

and models@runtime mechanisms.

ACKNOWLEDGEMENTS

This research has received funding from the Eu-

ropean Community’s H2020 Programs under grant

agreement number FoF-2015.680478 (MC-Suite),

and the Norwegian Research Council under grant

agreement 257153 (Open Transport Data)

REFERENCES

Atkinson, C. and K

uhne, T. (2002). Rearchitecting the

UML infrastructure. ACM Transactions on Modeling

and Computer Simulation, 12(4):290–321.

Blair, G., Bencomo, N., and France, R. B. (2009). Models@

run. time. Computer, 42(10):22–27.

Casale, G., Ardagna, D., Artac, M., et al. (2015). Dice:

quality-driven development of data-intensive cloud

applications. In 7th MiSE workshop, pages 78–83.

Czarnecki, K., Foster, J. N., and Hu, Z. (2009). Bidirectio-

nal transformations: A cross-discipline perspective. In

Theory and Practice of Model Transformations, pages

260–283.

Ferry, N., Chauvel, F., Song, H., and Solberg, A. (2015).

Continuous deployment of multi-cloud systems. In

QUDOS workshop, pages 27–28. ACM.

uttermann, M. (2012). DevOps for developers. Apress.

Kelly, S. and Tolvanen, J.-P. (2008). Domain-speciﬁc mo-

deling: enabling full code generation. John Wiley &

Sons.

Menychtas, A., Konstanteli, K., Alonso, J., Orue-

Echevarria, L., Gorronogoitia, et al. (2014). Software

modernization and cloudiﬁcation using the artist mi-

gration methodology and framework. Scalable Com-

puting: Practice and Experience, 15(2):131–152.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

528
