Security And Privacy Issues in Healthcare Monitoring Systems:

A Case Study

Daniel Tolboe Handler, Lotte Hauge, Angelo Spognardi and Nicola Dragoni

DTU Compute, Technical University of Denmark, Richard Petersens Plads, 2800, Kongens Lyngby, Denmark

Keywords:

Security, Privacy, Pervasive Healthcare.

Abstract:

Security and privacy issues are rarely taken into account in automated systems for monitoring elderly people

in their home, exposing inhabitants to a number of threats they are usually not aware of. As a case study

to expose the major vulnerabilities these systems are exposed to, this paper reviews a generic example of

automated healthcare monitoring system. The security and privacy issues identiﬁed in this case study can be

easily generalised and regarded as alarm bells for all the pervasive healthcare professionals.

1 INTRODUCTION

Health monitoring systems are getting more and more

common (Pantelopoulos and Bourbakis, 2010). In

particular, elderly patients require systematic and

continuous monitoring in order to promptly detect

anomalous changes in their health. With the devel-

opment of new technologies such as mobile comput-

ing and wireless sensor network (WSN), many solu-

tions speciﬁcally aimed at elder persons have been

proposed. Generally, several wireless communica-

tion devices are employed and combined with med-

ical sensors, to monitor senior citizens from various

points of view (Tsukiyama, 2015; Kotz et al., 2009;

Dasios et al., 2015). Surprisingly, many of the pro-

posed systems are not taking into account what secu-

rity threats the installation provides and which privacy

measures are needed. The security risks associated

with such systems, indeed, can represent a high con-

cern, because of the sensitive information these ser-

vices can deal with.

In this paper we want to raise the awareness about

the lack of concerns many solution providers show

regarding such risks. To do so, we will look at the

main weakness of one of these systems, namely a

general monitoring system for elderly (Dasios et al.,

2015) . This system has been chosen because it is

generic enough to provide a good representation

of the health monitoring systems available, which

are mostly surveillance, only wearable, or mostly

environmental sensors. Common for most systems is

that none of them have taken security into account,

except for adopting encryption for the network

protocols. In this paper we want to show which

security measures should be investigated in all kind

of monitoring systems, by making a risk analysis

and threat model for the mentioned system. We

also investigate which privacy measures should be

stated before implementing the systems. One major

contribution will be stating which impact can have

the trafﬁc analysis on a health care system, when

burglars are planning a break-in. The case study aims

at identifying a number of main guidelines to follow

in order to propose e-health monitoring systems that

should guarantee a reasonable level of security.

Outline of the Paper. We describe the case study in

Section 2 and then we focus on what impact the health

monitoring system can have (Section 3). In Section 4

we present different attacks, as well as vulnerabilities

the used network protocols raise. Then we analyse

which privacy measures should be taken into account

in Section 5. Section 6 concludes the paper.

2 ENVIRONMENTAL SENSOR

NETWORK

The system we are going to asses is the environ-

mental sensor network described in (Dasios et al.,

2015) (sketched in Fig. 1). This monitoring system

aims to give an overall health estimation of the el-

derly at a low cost, without using cameras and mi-

crophones, which according to the paper are ”com-

monly perceived as privacy violators”. They also seek

Handler D., Hauge L., Spognardi A. and Dragoni N.

Security And Privacy Issues in Healthcare Monitoring Systems: A Case Study.

DOI: 10.5220/0006224603830388

In Proceedings of the 10th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2017), pages 383-388

ISBN: 978-989-758-213-4

383

Figure 1: Architecture of the considered environmental sen-

sor network (picture taken from (Dasios et al., 2015)).

a minimal amount of wearable devices. These goals

are obtained by a WSN of nine nodes. Four room

nodes measure movement, light, temperature, elec-

tricity consumption, water ﬂow, and pressure, in order

to give an overall assessment of what the senior citi-

zen is doing. Sensors on the chairs detects the pres-

ence of a person seating on a chair. A wearable sensor

serves as fall detector and as a panic button to call for

help. An actuator enables remote control of certain

electrical installations such as climate control. Lastly,

a coordinator node works as a sink for the WSN, han-

dling data from the network to a web interface and

vice versa. The WSN uses ZigBee (see Section 4) to

communicate to the sink, that, in turn, uses a wired

internet connection sending all the data to a MySQL

database and deploying the data on a Web site.

3 THREAT MODEL

The threat model is essentially composed by assets,

threats, attackers, attacks and vulnerabilities of the

system. The ﬁnal aim is to enable an informed

decision-making about application security risk.

Assets. The reason for installing monitoring health

care systems, is to be able to take care of the elderly.

The system reviewed in this paper strives to detect life

threatening events and preserving good health, which

must be the main assets for the elder. Installing such

systems should give the elder a secure feeling of liv-

ing on their own, while not using an extensive amount

of communal resources in salary for health care per-

sonnel. Other assets for the elder which are not taken

into account in the considered health monitoring sys-

tem are dignity, possessions of the elder and revealing

of activities and location. The environmental sensor

network presents a possibility of remotely changing

the climate, which they state as an asset for the el-

der, but with modern technology, this should not be a

problem to handle by the elder. In Fig. 2 we list all

the considered assets with respect to what we think

would be their value for the elder, where we adopted

a scale from 1 to 5: very low value (1), low value (2),

medium value (3), high value (4), very high value (5).

Figure 2: Considered assets, with priorities related to their

value for the elder and attackers, with existence likelihood

and technical knowledge to exploit a system.

Threats. When looking at the system, the major

threats of the assets are false positives, false nega-

tives, or exposure of data. In particular, the exposure

of personal health data, location of the elder, and

activities. False positives and false negatives are

related to the considered assets. A false positive

is when the monitoring system misunderstands the

status of the elder (for example, raising a false alarm).

Conversely, a false negative is when the system fails

to detect situations in which the assets are threatened.

Attackers. We have deﬁned three main types of at-

tackers (inheritors, criminals and burglars) as summa-

rized in Fig. 2, where also their existence likelihood

(from 1: very low, to 5: very high) and related techni-

cal knowledge to exploit a system (from 1: very low,

to 5: very high) are reported.

Inheritor. The most important assets deﬁned, such

as life, good health and feeling secure are very dear to

the elder, but not something that a lot of others have

interest in taking. The only identiﬁed attacker for

these assets is the inheritor, who would beneﬁt from

an early exit for the elder. The inheritor is deﬁned to

have less technical (that is, user level) knowledge of

the system and very small probability of existing.

Criminals. Dignity and indoor climate could be

used as blackmailing material and cons for criminals

in order to get to the elders possessions. According

to Danish police statistic over criminal charges

there

are about 125 con thefts in inhabitants every year,

https://www.politi.dk/NR/rdonlyres/87ADE11F-C8EE

-4249-A64B-7D4B7FDFC7EE/0/ Centralenoegletal2014.

pdf

HEALTHINF 2017 - 10th International Conference on Health Informatics

384

and these are mostly committed against elder people.

Since it is limited how much value the elder posses,

the major criminals are probably not going after the

elders homes. Due to this we asses the likelihood of

this as small, and the technical knowledge a bit higher

than the inheritor, since the criminals have a network

where they can distribute malicious tools.

Burglars. Possessions are also of great value to

burglars. Burglars are becoming more organized,

and according to a Danish assurance company they

often know what is valuable, and are quick to ﬁnd

and take these items. Knowledge of where values are

kept could be fatal in a burglary, which often takes

short time. According to Danish police statistic over

criminal charges thefts happens more than 20 times as

much as robberies, which indicates that burglars tries

to avoid people when breaking in. Danish assurance

companies also advice their costumers to make their

home look inhabited when away, which includes not

stating their vacation on Facebook (Alka Ensurance,

2013). This indicates that knowledge of location and

activities can have a large impact for burglars when

choosing a place to break in. We asses the likelihood

of a burglar as high when the burglars are deﬁned to

having little technical knowledge (see Fig. 2).

Attacks. We have identiﬁed ﬁve types of attack,

which are considered in this paper. These are cho-

sen because they show how serious and diverse can

be the attacks available for this types of systems.

Man in the Middle. Man-in-the-Middle (MITM)

is an attack type where the attacker relay and possi-

bly modify or permutate the communication between

two parties (Erickson, 2008). If the attacker is capa-

ble of intercepting or modifying the communication

into or out of the house, he will be capable of pre-

venting critical system updates, and prevent critical

information of going of the house. Additionally is a

man in the middle capable of sending fake messages,

stating that the elderly has fallen, hence summon the

health care company to assist the elderly without rea-

son. If the health care system uses cameras to monitor

the elderly, these pictures can be intercepted, and used

either for blackmailing the elderly or for locating pos-

session of value in the home of the elderly.

Denial of Service. If the health care systems are

targeted by a successful denial of service attack, it

will have severe consequences. All three health mon-

itoring systems rely on sending information out of the

house, if the user has fallen or anomalies is detected.

If a denial of service attack prevents this, the whole

system is compromised. The environmental sensor

network relies on communication between the sensors

and the sink. If this is prevented the system will be-

come useless, hence the denial of service would be

discovered, since the normal behavior sends steady

ﬂow of information, not only when a problem arrives.

Compromise of the system in such way can lead to

death or injury of the elderly, or a decrease in feeling

secure.

Trafﬁc Analysis. If the communication ﬂow in

the system is analyzed, it might be possible to know

whether the elderly is home, is asleep or similar. This

information can be useful to a burglar, who doesn’t

want to be disturbed when breaking in.

Malware. Malicious software can be used to mod-

ify the system, such that it doesn’t fulﬁll the intended

purpose. This can be used to make denial of service

or man-in-the-middle attacks. Additionally malware

can be used for simple trafﬁc analysis as well.

Social Engineering. Attacking the human directly

instead of the system has plenty of functions. It can

be used to get access to the barebone computer or the

sink to install malware, or it can be used to locate

the sensors of the network. Elderly people are more

vulnerable to social engineering than younger people

(Lahtiranta and Kimppa, 2006), hence it is a obvious

attack vector for the criminals.

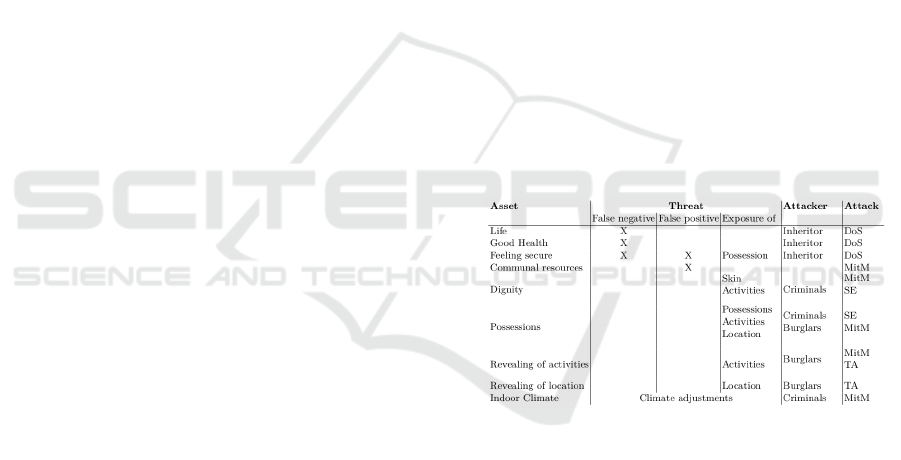

Fig. 3 resumes the relations between threats at-

tacks and attackers we have above detailed.

Figure 3: Threat model for a health monitoring system,

linking assets to the different threats, attacks and attackers.

Vulnerabilities. The attackers can exploit several

vulnerabilities in order to realize the above attacks on

the assets, that can be related to the different protocols

or to the human being, as the social engineering-based

attacks. The considered vulnerabilities are discussed

in great detail in the following Section 4.

4 SECURITY AND PROTOCOLS

This Section addresses some security issues and

vulnerabilities that occur when implementing the sys-

tem. The network protocol used in the environmental

sensor network is ZigBee. This Section reviews how

MITM attacks, Denial of Service (DOS) attacks,

Security And Privacy Issues in Healthcare Monitoring Systems: A Case Study

385

and trafﬁc analysis can occur. Then, we generically

describe how malware attacks and social engineering

can occur. We use the acquired information to

provide a risk assessment of the system.

ZigBee. ZigBee is widely used in pervasive com-

puting due to its low bandwidth, low cost, and low

power consumption (Stelte and Rodosek, 2013).

Our vulnerability analysis is based on KillerBee

, in

particular on its zbtumbler tool, which detects active

ZigBee networks, records and display information

about the found devices. This makes it easy to detect

whether or not ZigBee is in use.

MITM Attacks. zbreplay lounges a replay attack,

which is countered in (Stelte and Rodosek, 2013).

Another MITM attack is explained in (Choi et al.,

2013) and exploits a vulnerability in the key distri-

bution. In ZigBee the key is occasionally updated

over the air in standard mode, which makes this at-

tack quite realistic. The counter measures proposed

involve using public key encryption instead of sym-

metric encryption. A greater modiﬁcation is needed,

and public key encryption.

DOS Attacks. zbassocﬂood uses a vulnerability in

ZigBee’s association method for new nodes joining

the network. This ﬂoods the coordinator node, creat-

ing denial of service from the coordinator note, which

is the sink of the sensor network. A counter measure

for this problem has been proposed in (Stelte and Ro-

dosek, 2013), by ﬁltering the incoming trafﬁc.

Trafﬁc Analysis. zbsniff is a tool that sniffs and

analyses the network trafﬁc, thus making network-

analysis easy to do. This is very difﬁcult to prevent,

due to how easy ZigBee is to detect.

Malware. Unintended, malicious software is a prob-

lem in all the communication technologies described

above. If an attacker is able to inject malware into

the system, the attacker will be able to compromise

the whole system. Injection of the malware can be

done by physically plugging in the malware (e.g. by

a USB-stick) or using social engineering to get into

the house of the system. Alternatively is it possible to

access a wireless router, and through this get access

to a computer to inject the malware on. A ﬁrewall

and a strong security on the wireless network would

be a countermeasure to this.

Social Engineering. The last attack vector we ad-

dress is social engineering, covering actions where the

human is the target of the attack, rather than the sys-

tem (Bellovin, 2015). Examples of social engineer-

https://github.com/riverloopsec/killerbee

ing attacks are phishing, elicitation and simple phone

calls, where the attacker pretends to be someone else

(e.g. the IT department) (Hadnagy, 2011). According

to Danmarks Statistik

the average age of the victims

of trick theft (which can be assimilated to social en-

gineering) is 75 years. It is important to keep social

engineering in mind when implementing the health

care systems, where users primarily are elders. It is

impossible to make a comprehensive list of actions to

prevent social engineering, however some recommen-

dations can be given:

• Make sure the user of the system (the elderly peo-

ple) gets information about: system updates, visits

from technicians, who in call, if in doubt.

• As far as possible use technicians the user knows,

or send a known employee from the health care

organization together with the technician.

• If possible conﬁgure the system, such that the el-

der doesn’t have to know passwords, etc., such

that a social engineer cannot trick the password

from the elder.

Attackers. Based on the analyses in Sections 3 and

4 we will now deﬁne which attackers who are able to

carry out which attacks:

Inheritors. The computationally skills of the in-

heritors is limited according to our description in sec-

tion Section 3. Since the assets the inheritors are tar-

geting are the health and life of the elderly, denial of

service attack is their only obvious attack vector. Mal-

ware to perform these attacks are considered to hard

computationally for the inheritors to do, hence inheri-

tors rely on jamming equipment or similar to perform

the attack.

Criminals. Social engineering is the ﬁrst and most

obvious option of the criminals. Since their target

is to blackmail the elderly, a lot of information is

needed. This information can be gathered by man-

in-the-middle attacks or trafﬁc analysis. Malware is

an option for these attacks.

Burglars. The location of the elderly is the main

concern of the burglar. Trafﬁc analysis is a good tool

for locating the elderly. Man-in-the-middle attacks

can be used to intercept pictures of the home of the

elderly to locate possessions of value, such that the

burglar knows where to look. Malware is one way to

conduct a trafﬁc analysis or a man in the middle at-

tack, however it is difﬁcult for the burglar to to able to

plant the malware in the system.

http://www.dst.dk/da/presse/Pressemeddelelser/2002

HEALTHINF 2017 - 10th International Conference on Health Informatics

386

4.1 Risk Assessment

As a ﬁnal evaluation of the above analysis, having de-

ﬁned the risks and threats of the systems in Section 3

and the vulnerabilities of the system in the above sec-

tions, we can propose an overview of the ﬁve differ-

ent attack vectors in the system of the considered case

study. We start considering easiness and availability

of performing the attack, proposing a score for each

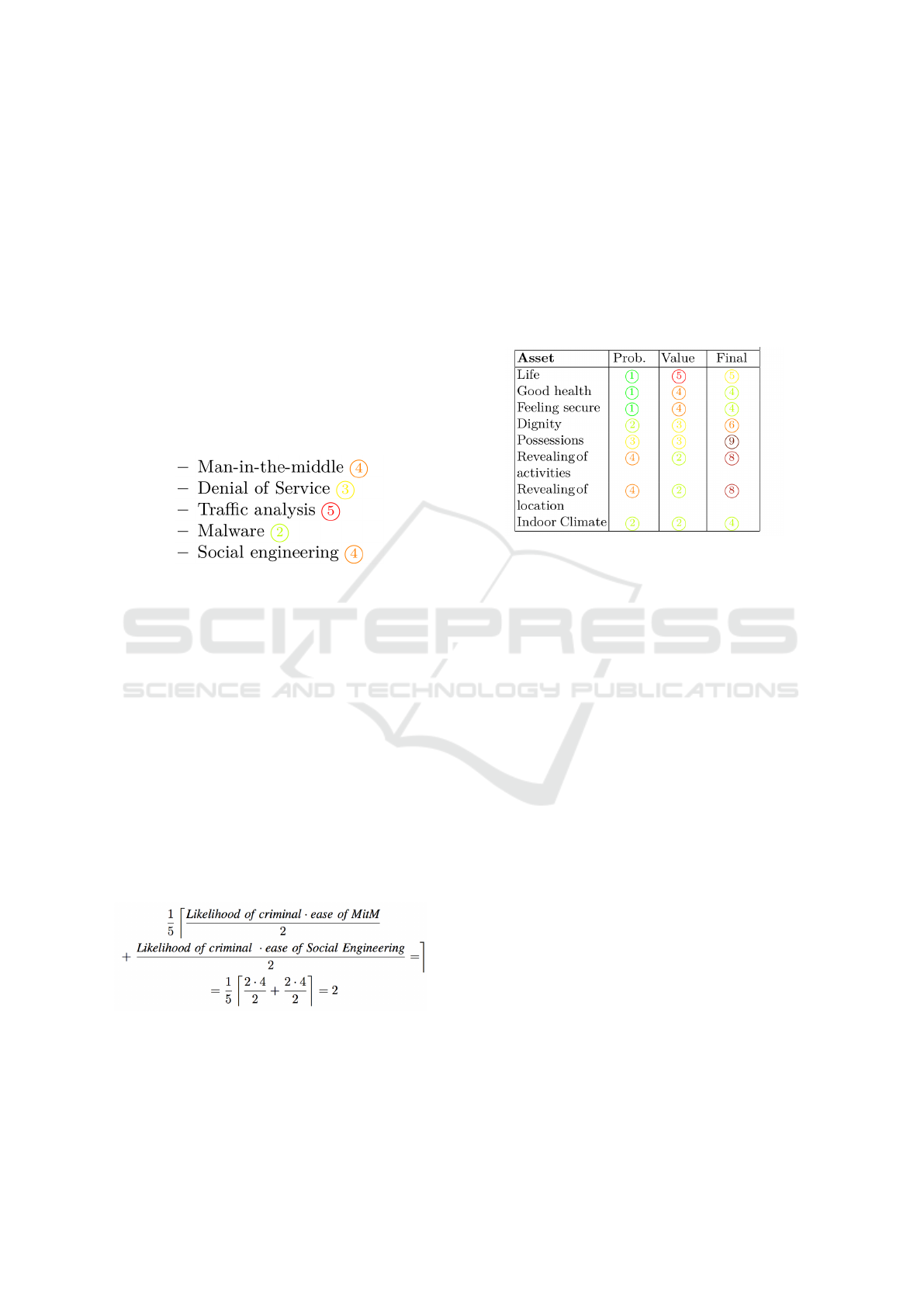

attack vector. The ﬁnal outcome is shown in Fig. 4,

where, again, we used a scale from 1 to 5, where 1

means very low risk and 5 means very high risk. It is

quite clear that the proposed system is most vulnera-

ble to trafﬁc analysis, as well as the social engineer-

ing, even if this is a more general problem, not only

related to the speciﬁc system.

Figure 4: Easiness and availability of the different attacks,

given the vulnerabilities of the system.

The challenges of trafﬁc analysis are that it is very

hard to prevent. The use of wireless protocols is al-

ways detectable. Even if the data in the communica-

tion is encrypted, it is still possible to detect the pres-

ence of the data ﬂow.

The full overview of how critical each security

issue is, with respect to the assets, can be found in

Fig. 5. The scores are calculated as follows.

Probability Score. The probability score is a mea-

sure of probability of compromising the asset. The

value is calculated as the average of the prod-

uct of the each attackers value (found in Fig. 2)

and the linked attack vectors scores (found in

Fig. 4) divided by 5 and rounded up. As an ex-

ample the probability of compromising dignity is:

Value Score. The values are deﬁned as the assets

value and are scored similar to the score applied to

each asset in Fig. 2.

Final Score. The ﬁnal score reveals the overall risk for

compromise of this asset the score is calculated as the

probability score multiplied by the value score. This

reveals a new assessment scale from 1 to 25. Since

we do not get above 9 in our assessment we have only

colored the scale from 1 to 9, introducing dark green

as better than green, dark red as worse than red, and

brown as worst in order to easily distinguish between

the risks. This is justiﬁable since everything above 10

could cause serious health problems because of the

sensitive subject of health care is, taking care of the

already weakened citizens.

Figure 5: Final results of the risk analysis, stating the dif-

ferent risks for the different considered assets.

Fig. 5 reveals that the must critical asset for the

elderly is possession, followed by revealing of activi-

ties, and revealing of location. The assets most com-

promised are targeted by burglars doing trafﬁc analy-

sis. It is not impossible to imagine a scenario where

a one of the health care systems is widely used, and

a burglar will walk around a neighborhood, and use

trafﬁc analysis to ﬁnd out where the systems are used.

If the burglar knows in which houses the systems are

used, he will be able to determine if the elderly is

home, or not, and can then conduct a break-in, with-

out being disturbed.

5 PRIVACY AND EQUIPMENT

This Section deals with the privacy issues occurring

when monitoring the elderly (the user from now

on). We use the Common Framework by Markle

Foundation (Markle Foundation, 2008) as a base

for the analysis, since it has been recommended for

health systems in an extensive analysis for privacy

frameworks (Kotz et al., 2009).

Openness and Transparency. It is important that the

user of system knows exactly what data that is col-

lected about her and how this data is used. Further-

more it is important to state who has access to this

data and where and how the data is stored.

Security And Privacy Issues in Healthcare Monitoring Systems: A Case Study

387

Purpose Speciﬁcation. It is important that the

collected data is used only for its purpose. If the data

is intended to be used for new purposes it should be

accepted by the user beforehand. If the user is unable

to make that decision, it should be clear who can

vouch for the decision (children or other next-of-kin).

Collection Limitation and Data Minimisation. The

stored data should be limited to a minimum. Exam-

ple: there is no need for storing fall detection data,

as long as the user hasn’t fallen. It is important to

inform the user of the amount of stored data and how

long time the data is stored.

Use Limitation. The collection of health data is very

personal information for the user, and it is important

that the integrity of the data is ensured, and that the

data in no situation is made available to other than

authorized users of the system.

Individual Participation and Control. Users should

be able to access their own stored data, and should be

able to control who else have access to these data.

Data Quality and Integrity. Only relevant data

should be stored and should be up-to-date. Old and

irrelevant data should be removed as soon as possible.

Security Safeguards and Controls. All means for

protecting the data should be taken, when collection,

analyzing, transmitting and storing the data.

Accountability and Oversight. The company or peo-

ple in charge of the health care system must be held

accountable for any breach of the security or privacy

issues of the system. The system uses many differ-

ent sensors, and it is important for each type of sensor

to tell the user exactly what is stored. The system is

used for detecting and analysing the environment the

user lives in, hence a certain amount of data will have

to be collected and stored for the system to be sufﬁ-

cient. If compromised this system will reveal a great

amount of personal data about the user, and it is im-

portant that the user is aware of this, and that security

measures are launched and maintained.

6 CONCLUSION

In this paper we have considered a reference health

monitoring system for elderly people as a case study

to state the security and privacy risks one should be

aware of before implementing such kind of systems.

In particular, we have identiﬁed attack vectors and

groups of attackers, who could compromise the health

monitoring system. Moreover, we have raised some

privacy issues to address when people are monitored

in their own home. Due to the fact that personal data

is transmitted and stored on external servers, it should

be stated who can access the data and who can be held

accountable if data is lost or leaked.

Our major contribution has been the identiﬁcation

of the burglar threat, which could be very prominent

if one healthcare system is used in large scale, be-

cause trafﬁc analysis is not something a communica-

tion protocol can secure, the defence needs to be im-

plemented as a part of what is communicated, which

is easy to oversee by the developer.

The aim of the paper is to raise the levels of aware-

ness and understanding of the cyber risks related to

home monitoring systems. The hope is that the issues

identiﬁed in this case study will be regarded as alarm

bells for all the pervasive healthcare sector.

REFERENCES

Alka Ensurance (2013). Her er man mest udsat for indbrud!

(retrieved on http://www.alka.dk/).

Bellovin, S. M. (2015). Thinking Security - Stopping Next

Year’s Hackers. Addison-Wesley.

Choi, K., Kim, M., and Chae, K. (2013). Secure and

Lightweight Key Distribution with ZigBee Pro for

Ubiquitous Sensor Networks. IJDSN, 9(7).

Dasios, A., Gavalas, D., Pantziou, G., and Konstantopou-

los, C. (2015). Wireless sensor network deployment

for remote elderly care monitoring. In Proc. of PE-

TRA’15. ACM.

Erickson, J. (2008). Hacking: The Art of Exploitation. No

Starch Press.

Hadnagy, C. (2011). Social Engineering: The Art of Human

Hacking. Wiley Publishing, Inc.

Kotz, D., Avancha, S., and Baxi, A. (2009). A privacy

framework for mobile health and home-care systems.

In Proc. of SPIMACS’09. ACM.

Lahtiranta, J. and Kimppa, K. (2006). Elderly people and

emerging threats of the internet and new media. In

Proc. of I3E 2006. Springer.

Markle Foundation (2008). Common framework for net-

worked personal health information: Overview and

Principles. Connecting for Health.

Pantelopoulos, A. and Bourbakis, N. G. (2010). A survey on

wearable sensor-based systems for health monitoring

and prognosis. IEEE Transactions on Systems, Man,

and Cybernetics, Part C, 40(1):1–12.

Stelte, B. and Rodosek, G. (2013). Thwarting attacks on

zigbee - removal of the killerbee stinger. In Proc. of

CNSM’13.

Tsukiyama, T. (2015). In-home health monitoring system

for solitary elderly. In Proc. of EUSPN’15/ICTH’15.

Procedia Computer Science, Elsevier.

HEALTHINF 2017 - 10th International Conference on Health Informatics

388
