Use of Architecture Description to Maintain Consistency in Agile

Processes

Aurélien Chichignoud

, Florian Noyrit

, Laurent Maillet-Contoz

and François Terrier

Software and System Engineering Department, CEA, DILS, Point Courrier n°174, Gif-sur-Yvette, France

STMicroelectronics, 12 rue Jules Horowitz, Grenoble, France

Keywords: Change Management, Agility, Traceability, Impact Analysis, Model-driven Engineering, Consistency,

Architecture Description.

Abstract: The development of highly complex products requires the maintenance of a huge set of inter-dependent

documents, in various formats, developed concurrently according to agile methods. Unfortunately, no tool or

methodology is available today to systematically maintain consistency between all these documents.

Therefore, according to observations made in STMicroelectronics, when a document changes, stakeholders

must manually propagate the changes to the impacted set of dependent documents. For various reasons, they

may not well propagate the change, or even may not propagate it at all. Related documents thereby diverge

more and more over time. This is a source of bugs that are difficult to identify and fix; potentially jeopardizing

product reliability and quality. This paper proposes a methodology to help stakeholders to systematically

maintain consistency between documents, based on the Architecture Description concept introduced by

ISO42010. First, a model is defined to describe completely correspondences between Architecture

Description Elements of documents. This model is designed to be independent of documents formats, selected

system development lifecycle and the working methods of the industry. Second, these correspondences are

analyzed in case of document modification in order to help stakeholders maintaining corpus consistency. A

tool has been prototyped to evaluate the approach.

1 INTRODUCTION

“Every system has an architecture” (“IEEE

Recommended Practice for Architectural Description

of Software-Intensive Systems,” 2000) and

describing it is the point of the development process.

However, in the context of complex system

engineering, the development is made from various

developers and each of them contributes his/her

expertise on his/her specific activities. Also,

throughout the development process, those various

developers produce documents (as source code,

graphics, database schema, text document, data

sheets, diagrammatic representations, specification or

design models, screenshot) describing the system.

Those documents encode information in various

formalisms with various degrees of formality, from

structured data with formal semantics to completely

unstructured-data. It is the entire set of these

documents that describes the system.

The documents contributing to the architecture

description are not independent from each other

(Mäder et al., 2007). Indeed, the production of new

documents during the development is likely to result

from the refinement or composition of existing ones,

extracting or referencing information from existing

document. In this context, modification of one of

these documents may impact all the system

description, forcing developers to allocate time to

propagate the change. Indeed, editing a document

may introduce inconsistency in the architecture

description (Skaf-Molli et al., 2006).

To address the problem of consistency in complex

architecture description, today’s industrial practice

relies on two (usually complementary) techniques: a

systematic development process and collaborative

development tools (Nentwich, 2005). However,

current development processes hamper agility and

thereby reactivity to change in customers’ needs

which is critical to our industry sector, namely

electronics and semiconductors manufacturing,

where the market moves rapidly (Leachman et al.

(Leachman and Ding, 2007)). Unfortunately, agile

development practices don’t scale well because their

Chichignoud A., Noyrit F., Maillet-Contoz L. and Terrier F.

Use of Architecture Description to Maintain Consistency in Agile Processes.

DOI: 10.5220/0006207804590466

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 459-466

ISBN: 978-989-758-210-3

459

iterative and parallelized natures imply an

overloading team synchronization that is neither

sustainable nor efficient in our industrial context.

Regarding the tooling, despite the wide range of

collaborative software that exists to share easily

information, there is no general, formal and standard

way to automate the notification and the propagation

of changes in architecture descriptions that use

heterogeneous documents formats.

In this paper we report on the scalability issues of

agile practices in industrial context and we propose a

methodology that addresses this problem by

providing formal means to capture and maintain links

between documents. This methodology is the result

of the collaboration between the CEA LIST and

STMicroelectronics.

The remainder of this paper is as follows: after a

presentation of the key issues for maintaining

consistency in industry in section 2, a presentation of

the related work is given in section 3. In section 4 we

present the proposed approach based on the

ISO42010 standard, and the extension made to adapt

this standard. Then we evaluate the approach in

section 5. Finally we give a conclusion in section 6.

2 KEY ISSUES FOR

MAINTAINING CONSISTENCY

Nowadays, the systems on chip developed by

STMicroelectronics are composed from several

processors, a hundred Intellectual Property block (a

reusable unit of logic or chip layout design), several

tens of million lines of software code and may involve

a hundred of stakeholders. Time to market has

become a stringent constraint to secure the level of

market share for a certain product (Leachman and

Ding, 2007).

By the observation of the working practices in

STMicroelectronics, we identified three key issues

that may become blocking points in the next few

years, if no changes in the design flows and tools are

undertaken:

 Concurrent development is required to

decrease the time to market, but it is the

source of reconciliation issues.

 Various formalisms are required to address

the different development activities, but

imply a heterogeneity that hampers the

consistency maintenance.

 Agility and iterative process are required to

cope with the complexity of the system to

develop and to adapt to specification

changes, but will require appropriate change

propagation to maintain consistency.

2.1 Change Propagation in Distributed

Teams and Document

Heterogeneity

Distribution of the work to parallelize the

development is a rational practice in industry sectors

where time to market is crucial. However, this

distribution will create conflicts and thereby

reconciliation problems when some data are

replicated among teams. Indeed, each replica will

diverge. Unfortunately, reconciling implies that the

changes can be propagated. However, today available

means to reconcile conflicting changes don’t handle

cases where the data to reconcile has been

transformed in a different formalism.

This situation leaves the consistency maintenance

to “human-based synchronization”. However, human

shows, by nature, a non-deterministic and unreliable

character that will, even with willingness and care, do

mistakes in propagating changes in the architecture

description. Ultimately, a lot of propagations are done

using informal means: phone calls, emails, meetings

or discussion over coffee. If propagation is not done

instantly, inconsistency may not impact instantly the

work of each team. If the conflict resolution is done

late, the efforts to find the source of misalignment and

to reconcile the conflict is a huge loss of time and

sometimes it is not even addressable.

In addition, in large development teams, each

engineer has a limited view on the global workflow.

This limited vision of the workflow causes

impossibility for the engineer who modifies a

document to evaluate the extent of its impact on other

documents that describe the system, and so, it is quite

impossible for him/her to inform all the impacted

stakeholders.

The heterogeneity of document formats adds a

difficulty for propagating change (Bézivin et al.,

2014). Not all documents have tractable formalization

and translations between formats are not always

computer doable because they intrinsically rely on the

human intellect. Also, this heterogeneity and

intractable formats often hamper or even prevent the

definition of fine-grain traceability links.

2.2 Iterative and Agile Development

Processes

Requirements are likely to evolve often and quickly.

In our industry sector where reactivity is a key

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

460

success factor, we cannot ignore changes in clients’

needs and it is improbable that all requirements were

perfectly captured at the very beginning. Thus,

adopting agile development practices (Beck et al.,

2001) is required in order to be more reactive. Agile

methods allow to adopt an iterative, incremental and

adaptive development between customer and

developer, and to react faster to a change in the

specifications. For those reasons, in real industrial

context, only iterative and agile development

processes can help in coping with the complexity of

the system to design and to be reactive to

specification changes.

Unfortunately regular agile methods that basically

address the consistency maintenance thanks to

frequent team meetings to synchronize, don’t scale to

large distributed industrial teams because such

synchronization meetings are often physically

impossible (Turk et al., 2014).

The lack of systematic communication between

distributed teams and of formal traceability links

between documents paves the way to inconsistency.

Moreover, in our particular context of system on chip

development, this inconsistency and reconciliation

issue may become a blocking point. Indeed, when a

chip is physically produced, it is nearly impossible to

modify it. So before the effective production, we need

to be sure that all documents (as specification,

simulation, and chip models) are aligned, and that no

inconsistency or ambiguity can be source of error for

the chip production.

3 RELATED WORK

Despite these problems, industries must still go

ahead. To overcome some of the aforementioned

problems, collaborative tools are used. In this part we

will discuss some of the tools used today to work

collaboratively and limit inconsistencies.

3.1 Collaborative Development Tools

Version Control System (as Subversion, CVS, Git or

Mercurial) is widely adopted to store a set of files and

the chronology of modifications made. These tools

effectively manage different versions of source file

for distributed teams. However, these tools are not

really suited to handle other file format than text files.

Furthermore, these tools do not allow to propagate

changes. The repository does not know the

architecture of the system being designed and

therefore are unable to know the impact of a change.

Other kinds of tools may be used to maintain

consistency in the corpus of documents, such as the

requirement management tools (as DOORS (Avanthi

and Sreenivasan, 2010), REQTIFY (Systèmes, 2013),

IRqA). These tools allow engineers to describe

requirements in natural language and to record

dependency as links between requirements and

documents (or part of document) that covers the

requirement. However, these tools do not allow the

definition of all dependencies between documents.

Indeed, if two documents share information that is not

defined in requirements, these tools cannot trace it.

Moreover, the fine granularity of document resource

used by these tools prevents dealing with all the

document formats.

3.2 Inconsistency Checking

Several inconsistency management tool has been

developed (Egyed, 2011) (Blanc et al., 2008), which

allow to check inconsistencies incrementally, by

tracing and analyzing the change applied to a model.

Unfortunately, these methods are working just for

models. In industrial flows, we need to deal with a lot

of different documents. Some of these documents are

models, but large amounts are unstructured

documents. For instance, it can be a text document to

present requirements. These unstructured documents

are not treated by these methods. Moreover, these

methods of inconsistency checking are rule-based and

these rules must be written by human. To be very

efficient all inconsistency cases must be considered,

requiring a great deal of time to define the consistency

rules. As tests or documentation, the creation of

inconsistency rules is often neglected by developers,

who do not take the time to define clearly the rules.

Due to this negligence, the consistency is neither

really applied, nor really efficient.

4 PROPOSED APPROACH

No tool allow to effectively manage the issues

previously defined (concurrent development, agility,

heterogeneity of formats). Managing all formats at a

fine grain is impossible and architecture description

ignorance makes impossible the systematic

propagation of changes. Our proposal is to make

repository architecture aware with a two-fold

contribution:

 Provide means to capture and maintain

correspondences between architecture description

elements in a way that is compatible with iterative

and agile development practices.

 Exploit the captured correspondences to maintain

Use of Architecture Description to Maintain Consistency in Agile Processes

461

systematically the consistency.

However, the capture of links between documents

cannot be done by adding a step in the workflow with

a dissociated tool. This approach would require too

much time and personal investment from the

stakeholders who may see this as a time loss. The set

of links may be rarely updated, as documentation and

tests for instance. Dejours (Dejours et al., 1994) states

that when new working methods are installed,

workers have a change resistance, compelling to fight

for the old working methods. To avoid this change

resistance, the creation of links must be inserted in the

usual working methods: the creation of links is done

when a stakeholder commits his/her work to the

repository.

Furthermore, these links must be usable by

everyone, formal and independent of the document

format. To meet these criteria, we rely on the

ISO42010 standard (“ISO/IEC/IEEE Systems and

software engineering – Architecture description,”

2011), the Architecture Description standard.

In this section, we present the main parts of the

ISO42010 standard that are of interest for and that are

used by our approach, then we present the developed

extensions in order to specialize the standard to the

context.

4.1 ISO/IEC/IEEE 42010 –

Architecture Description Standard

The standard ISO/IEC/IEEE 42010:2011, System and

software engineering – Architecture description

defines clearly the key concepts necessary to the

system architecture description. Moreover, the

concepts of a view highlight the reality of industry:

each stakeholder has a view on the developed system.

This view is expressed in a language that allows the

stakeholder to express his/her idea.

In addition, this standard acknowledges the

consistency problem identified in industry. Indeed, it

states that having an architecture description totally

consistent is sometimes infeasible or unreachable for

reasons of time, effort or insufficient information, but

encourages registering all known inconsistencies and

proposes the concept of correspondence.

4.2 Extension

The ISO/IEC/IEEE 42010 standard defines a general

Architecture Description meta-model. We extended

this meta-model to specialize it to our use field. More

specifically, we use and extend the Architecture View,

Architecture Model, Correspondence and

Stakeholder concepts defined in the standard. The

extensions are separated in three packages:

document, correspondence, and traceability

information.

4.2.1 Document Package

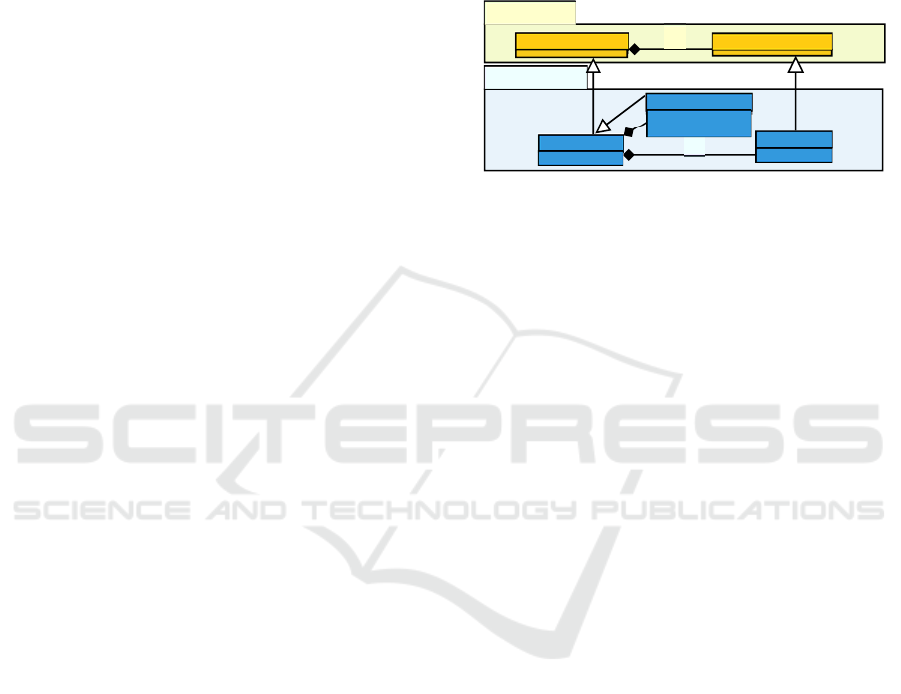

The document meta-model package (Figure 1)

frames the document creation and use.

Figure 1: Document package.

We extended the definition of Architecture View by

creating Artefact View, which is composed of exactly

one or more Artefact and as much Artefact Version as

version of the document. The Artefact represents any

document, regardless of the format, content (text,

picture, binary data…) or structure. Artefact Version

represents a specific version of document. It contains

two attributes: a string “repo” corresponding to the

URL of the repository where is stored the version of

the artefact and a string “transaction” to identify the

transaction in the repository that created this version

of the document. Each time a document is modified a

corresponding Artefact Version is created and added

to the Artefact View. Artefact is the tip of the iceberg

and represents a generic document, while Artefact

Version is specific to a version of document.

4.2.2 Correspondence Package

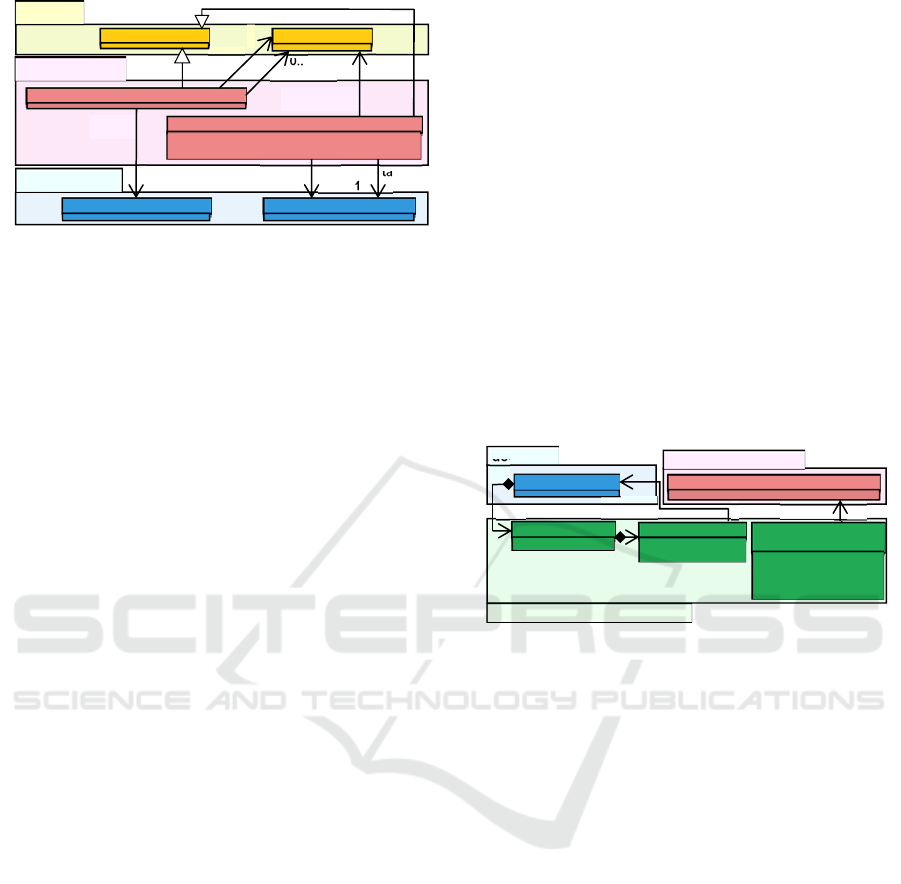

The correspondence meta-model package

(Figure 2) frames the creation and use of

correspondences. We defined two kinds of

correspondence:

 Ownership Correspondence

 Transformation Correspondence.

The Ownership Correspondence links the

stakeholders involved in the creation and

development of a document to this document

(represented by an Artefact). We chose to follow the

approach stated in (Girba et al., 2005). The owner of

a document is the originator of this document, but the

evolution is not necessary done by the owner, these

stakeholders involved in the development of the

document are registered as contributors in such a way

that the owner has always the priority to modify and

realign the document.

iso42010

document

1..*

Architecture View

Artefact View

version: long

Architecture Model

Artefact

version: long

ArtefactVersion

transaction: String

repo: String

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

462

The Transformation Correspondence represents

any transformations that are done for passing from a

document to another. Generally, each new document

created is made from the refinement or composition

of pre-existing documents by extracting or

referencing information. Therefore, the tasks done to

create new documents can be seen as a transformation

from a source (i.e. the pre-existing document), to a

target (i.e. the newly created document).

The Transformation Correspondence links one or

more sources to one or more targets and identifies a

stakeholder who made the transformation.

Furthermore, the Transformation Correspondence

can store various information used to describe the

transformation. For instance, the level of automation

of a transformation that identifies if the

transformation is done by a human or generated from

a program (as using ATL or QVT), or a timestamp

that we use to calculate the average time spent to align

a document. If a document doesn’t share information

with other documents (or if there is no other

document), the meta-information of the document are

registered, and will be used later on the development

for creating a Transformation Correspondence as a

source of transformation.

The creation of correspondence must be inserted

in the usual working methods in order to avoid the

change resistance. Usually, when a document is

created or modified, a stakeholder commits this

newly document in a repository. The proposed

approach hooks this commit and extracts meta-

information about the documents involved. These

meta-information are used to create the related

artefacts. These artefacts are added to the architecture

description. The stakeholder is then requested to

identify which documents (sources of the

transformation) have been used to create or modify

the new documents (targets of the transformation).

A Transformation Correspondence works as a

publish-subscribe pattern (Birman and Joseph, 1987;

Cleland-Huang et al., 2003). When a stakeholder

defines a correspondence, he/she needs to declare

which documents are used to create the new

document, by defining the source and the target of the

correspondence. When a document is changed, it

becomes a publisher and sends a message to any

known stakeholder who owns a document linked with

the changed document. The stakeholder is then

informed that a document used to create his/her

document has been modified and the stakeholder is

required to check if the modification impacts his/her

document. Moreover, if the level of automation has

been fulfilled by the stakeholder, we can propose to

launch the program generating the targets of the

transformation. The ultimate goal is to automate the

change propagation as much as possible.

4.2.3 Traceability Information Package

The traceability information package (Figure 3)

frames the monitoring of traceability information.

Figure 3: Traceability information package.

Artefact contains State, which represents the

current state of a generic document. This State may

be of four kinds: Not Impacted, Updated, Not

Updated and Degraded. A State is always linked to a

Modified Artefact, which means that a state of an

Artefact Version is dependent of another specific

Artefact Version.

The Not Impacted state means that a document is

currently consistent to the other document that are

linked to it through Transformation Correspondence.

The modification of the other document doesn’t

impact the current document.

The Updated state means that a document is

currently updated compared to the other document

that are linked to it through Transformation

Correspondence.

The Not Updated state is a transitional state which

means that a document linked to the current document

has been modified. In this case, the Not Updated state

identify through a Modified Artefact which document

has been modified with which Transformation

Correspondence. The Modified Artefact registers also

the author of the change and a timestamp.

The Degraded state means that a Transformation

Correspondence has been intentionally broken by a

document

iso4201

correspondenc

stakeholder

owne

0..

contributo

targetsources

1..*1..*

TransformationCorrespondence

automation: String

timestamp: long

ArtefactVersionArtefact

OwnershipCorrespondence

artefac

Correspondence Stakeholde

Figure 2: Correspondence package.

document

traceability information

state

correspondence

1..*

dueTo

TransformationCorrespondence

State

status: StatusKind

ModifiedArtefact

author: String

date: long

rtefactVersion

relatedTo

<<enumeration>>

StatusKind

Not Impacted

Not updated

Updated

Degraded

Use of Architecture Description to Maintain Consistency in Agile Processes

463

stakeholder. The two (or more) Artefact Version

initially involved in the Transformation

Correspondence are not linked anymore. Whatever

the actual rationale, in this case the consistency of the

architecture description is intentionally degraded, but

this information is logged to say why and when the

architecture description has become inconsistent. In

the industry this flexibility to make trade-offs

between consistency and delivery while tracing the

decision is crucial.

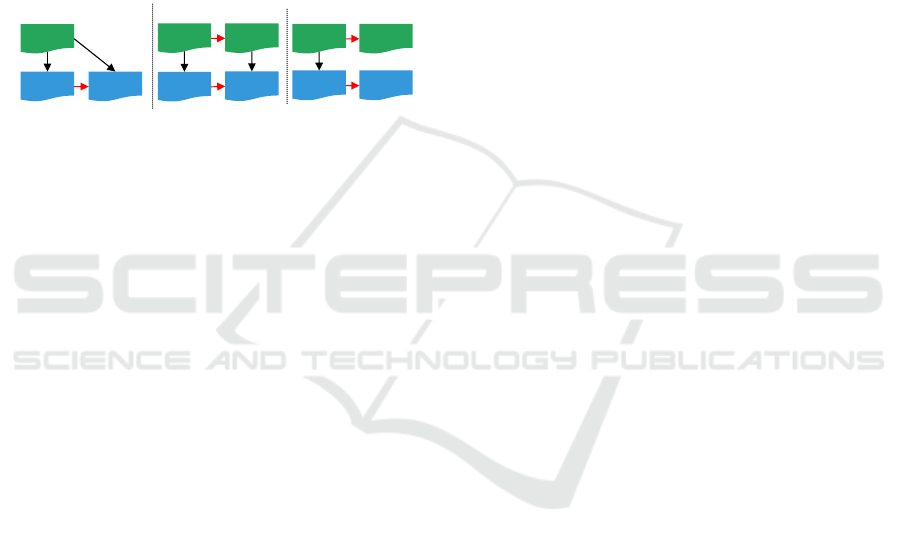

Figure 4 shows the working of the different States

on Transformation Correspondence and Artefact.

FileA.pdf and FileB.txt are linked by a

correspondence (vertical arrow).

Figure 4: Change propagation options: 1/ not impacted, 2/

updates document, 3/ degradation of the process.

Case 1: The first case shows the reaction to a

modification that does not impact the second

document. FileB.txt is modified and switch from the

version 1.0 to the version 1.1 (horizontal arrow). The

owner of FileA.pdf is informed of the change and can

be checked if FileA needs to be modified. FileA is not

impacted by FileB change; so both are still consistent,

and a correspondence is automatically created

between FileA version 1.0 and FileB version 1.1. The

correspondence between FileA version 1.0 and FileB

version 1.0 is also kept; both are always consistent.

Case 2: The second case shows the update of a

document for maintaining the consistency. FileB.txt

switches from version 1.0 to version 1.1. The owner

of FileA.pdf is informed of the change and sees that

the document needs to be modified to avoid

inconsistency with FileB. Accordingly, FileA is

updated to the version 1.1. A correspondence is

created between FileB version 1.1 and FileA version

1.1. Contrary to the case one, there is no

correspondence between version 1.0 and version 1.1.

Case 3: The third case shows the degradation of

the process. FileB.txt switches from version 1.0 to

version 1.1. FileA.pdf owner is informed of the

change and decides to degrade the process. In this

case, all new versions of the two documents are

independent. If FileA changes, FileB owner is not

informed of the change. These two documents are not

linked anymore. The correspondence between FileA

version 1.0 and FileB version 1.0 is kept; these two

documents stay consistent.

The Architecture Description is so updated and

maintained during all the system lifecycle according

to the action done by stakeholder in response to

document changes.

5 EVALUATION

The proposed approach has been implemented in a

tool named APPE (for Aided Propagation & Process

Emergence). In order to evaluate the approach, we

conducted an empirical evaluation, following the

guidelines expressed in (Kitchenham, 2004). This

evaluation is based on a realistic STMicroelectronics

use case, which represents the development of an

Intellectual Property block (or IP block), involving

five teams (architects, software engineers, low level

hardware designers, high level hardware designers

and technical writers), and so five different views on

the system.

The first aim of this empirical evaluation is to

investigate if stakeholders detect and correct more

inconsistencies using APPE tool than using standard

propagation methods. Our intuition is that developers

identify more inconsistencies by using APPE tool

than standard propagation methods because they

obtain more information about the change and the

potentially impacted document.

The second aim is to investigate whether

stakeholders spend less time to correct

inconsistencies using APPE tool than using standard

propagation method. APPE uses previously created

correspondence to send notification to stakeholders.

These notifications contain a list of potentially

impacted documents. Thus, our expectation is that the

help provided to stakeholders with the notifications

help them to detect faster which documents are really

impacted by a change.

5.1 Experiment Design

18 subjects were selected for the experiment. Subjects

have been selected to have computer engineering

background and various level of knowledge in the

System on Chip development. Finally subjects

haven’t been trained to use APPE. All subjects were

exposed to two tests: with and without APPE. Each

treatment involved a number of inconsistencies added

in a set of documents. For the first test, subjects had

access to information and notifications provided by

APPE during change detection. For the second test,

the subjects had access only to the commit comment

describing which part of the document was changed.

For each test, the subjects were responsible of a set of

fileA.pd

version 1.0

fileB.txt

version 1.0

fileB.txt

version 1.1

fileA.pd

version 1.0

fileA.pd

version 1.1

fileB.txt

version 1.0

fileB.txt

version 1.1

fileA.pd

version 1.0

fileA.pd

version 1.1

fileB.txt

version 1.0

fileB.txt

version 1.1

Case 3:

Case 2:

Case 1:

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

464

twelve documents related to each other in various

formats. Every two minutes, we modified a

document, thus adding inconsistencies in the corpus

of documents. The subjects were asked to make

change in impacted document to keep all documents

consistent. For both tests we made nine document

changes, involving a total of 63 inconsistencies to

correct. The subjects were also encouraged to commit

their modification as soon as they felt that the

propagation is finished, within two minutes.

5.2 Variable and Quantification

These two tests are intended to measure the

contribution of APPE firstly at the inconsistency

detection and correction, and secondly at the time to

fully propagate a change. Thus, we extracted two

variables for each of two tests:

 Detection/Correction: This variable measures

the percentage of inconsistency detected and

corrected by the subjects.

 Effort: This variable is the average time in

second spent to correct one inconsistency.

5.3 Experimental Results

In this part, we describe the results of the evaluation

for the two variables, on a descriptive analysis

(Table 1) and on a statistical analysis (Table 2).

Table 1: Descriptive statistics for measures.

Variable Test Mn St Dev diff

Correction

w/ APPE 0.8 0.13

5.5%

w/o APPE 0.76 0.11

Effort

w/ APPE 18 1.02

3.7%

w/o APPE 18.7 0.92

w/: With Mn: Mean

w/o: Without St Dev: standard deviation

Table 2: Statistical tests for measures.

Shapiro

Wilk

Student

Variable Test W

obs

t p-value

Correction

w/ APPE 0.955

3.72 0.00171

w/o APPE 0.957

Effort

w/ APPE 0.95

3.73 0.00166

w/o APPE 0.958

With 17 degree of freedom, a significance level of α=0.05,

crit

=0.897

5.3.1 Detection and Correction Rate with

and without APPE

The first research question investigates if

stakeholders using APPE tool detect and correct more

inconsistencies than using standard propagation

methods. Since the Shapiro-Wilk normality test

indicates that the data are normally distributed

obs

crit

), the paired Student t-test is applied. The

collected t-statistic is 3.72 with a p-value 0.00171.

This small p-value (<0.05) indicates that the first null

hypothesis (Detection/Correction rate with APPE =

Detection/Correction rate without APPE) can be

rejected. Therefore, according to the descriptive

statistics and the statistical tests, there is strong

evidence that stakeholders detect and correct more

inconsistencies (by about 5.5 percent) by using APPE

than standard propagation methods.

5.3.2 Effort Rate with and without APPE

The second research question investigates whether

stakeholders invest less time to detect and correct

inconsistencies by using APPE tool than using

standard propagation method. Since the Shapiro-Wilk

normality test indicates that the data are normally

distributed (W

obs

crit

), the paired Student t-test is

applied. The collected t-statistic is 3.73 with the p-

value 0.00166. This small p-value (<0.05) indicates

that the second null hypothesis (Effort rate with

APPE = Effort rate without APPE) can be rejected.

Therefore, according to the descriptive statistics and

the statistical tests, there is strong evidence that

stakeholders detect and correct inconsistencies

quicker (by about 3.77 percent) by using APPE tools

than standard propagation methods.

6 CONCLUSIONS

In this paper, we have presented a methodology for

maintaining consistency between documents in the

context of Agile development processes. It is based

on a precise definition of correspondence between

documents. The definition of correspondence does

not address the content of documents; it stays at an

upper level, and used meta-information about the

document (as name, location, owner, contributors

…). This general description allows dealing with

every formats of documents.

To know which stakeholders need to be informed,

we propose a formal approach for describing the links

between the documents. This approach extends the

Use of Architecture Description to Maintain Consistency in Agile Processes

465

ISO42010 standard to allow stakeholders to create

correspondences.

This paper also reports an investigation about the

impact of the proposed approach on the inconsistency

detection rate and the effort to correct inconsistency.

We observed that stakeholders detect and correct

more inconsistencies by using the approach than

using the usual propagation methods (6.7% more

inconsistencies). Moreover, we observed that

stakeholders correct inconsistencies faster by using

the approach than the usual propagation methods. The

average time spent to correct inconsistency is 3.7%

lower. This evaluation neither include the time spent

at the end of a project to realigned inconsistent

documents, nor iterations between team needed for

this task. Even if the difference between the average

times spent with and without our approach is low, we

believe that correct more inconsistencies during the

development of a system using our approach can

indirectly reduce the time spent for realign

documents. For instance, when integrating

subcomponents into a component, the memory space

occupied by each subcomponent is identified in a

section of the specification called the "address map".

The integration follows this address map. However,

the architect may modify this address map and forgets

to inform the downstream developers. Without this

information developers try to access incorrect

memory spaces. Debugging these inconsistencies can

cause several weeks of delay to find and understand

the origin of the error. The use of APPE would

prevent this inconsistency upstream, the indirect

benefit being the time not spent by the debugging.

The next steps are to generalize the prototype

developed and to evaluate the scalability on a

STMicroelectronics project in production.

REFERENCES

Avanthi, R., Sreenivasan, P., 2010. Managing requirements

across analysis and design phases using IBM rational

system architect & IBM rational DOORS. Technical

report, IBM.

Beck, K., Beedle, M., Van Bennekum, A., Cockburn, A.,

Cunningham, W., Fowler, M., Grenning, J., Highsmith,

J., Hunt, A., Jeffries, R., others, 2001. Manifesto for

agile software development.

Bézivin, J., Paige, R.F., smann, U.A., Rumpe, B., Schmidt,

D., 2014. Manifesto - Model Engineering for Complex

Systems. CoRR abs/1409.6591.

Birman, K., Joseph, T., 1987. Exploiting virtual synchrony

in distributed systems. ACM.

Blanc, X., Mounier, I., Mougenot, A., Mens, T., 2008.

Detecting model inconsistency through operation-

based model construction, in: Software Engineering,

2008. ICSE’08. ACM/IEEE 30th International

Conference on. IEEE, pp. 511–520.

Cleland-Huang, J., Chang, C.K., Christensen, M., 2003.

Event-based traceability for managing evolutionary

change. Softw. Eng. IEEE Trans. On 29, 796–810.

Dejours, C., Dessors, D., Molinier, P., 1994. Comprendre

la résistance au changement. Doc. Médecin Trav. 58,

112–117.

Egyed, A., 2011. Automatically detecting and tracking

inconsistencies in software design models. Softw. Eng.

IEEE Trans. On 37, 188–204.

Girba, T., Kuhn, A., Seeberger, M., Ducasse, S., 2005. How

developers drive software evolution, in: Principles of

Software Evolution, Eighth International Workshop on.

IEEE, pp. 113–122.

IEEE Recommended Practice for Architectural Description

of Software-Intensive Systems, 2000. . IEEE Std 1471-

2000 i-23. doi:10.1109/IEEESTD.2000.91944.

ISO/IEC/IEEE Systems and software engineering –

Architecture description, 2011.

doi:10.1109/IEEESTD.2011.6129467.

Kitchenham, B., 2004. Procedures for performing

systematic reviews. Keele UK Keele Univ. 33, 1–26.

Leachman, R.C., Ding, S., 2007. Integration of speed

economics into decision-making for manufacturing

management. Int. J. Prod. Econ. 107, 39–55.

Mäder, P., Philippow, I., Riebisch, M., 2007. Customizing

traceability links for the unified process, in:

International Conference on the Quality of Software

Architectures. Springer, pp. 53–71.

Nentwich, C., 2005. Managing the consistency of

distributed documents. University of London.

Skaf-Molli, H., Naja-Jazzar, H., Molli, P., 2006.

Inconsistency of xml documents during cooperative

editing.

Systèmes, D., 2013. Reqtify—Dassault Systèmes.

www.reqtify.com/.

Turk, D., France, R., Rumpe, B., 2014. Limitations of agile

software processes. ArXiv Prepr. ArXiv14096600.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

466
