On the Evolution of Modeling Ecosystems:

An Evaluation of Co-Evolution Approaches

Juergen Etzlstorfer, Elisabeth Kapsammer and Wieland Schwinger

Johannes Kepler University, Linz, Austria

Keywords:

Model-Driven Engineering, Evolution, Co-Evolution, Modeling Ecosystems.

Abstract:

In Model-Driven Engineering, several artifacts together form a so-called modeling ecosystem, comprising

metamodels deﬁning prevailing concepts of a domain and depending artifacts using these concepts. However,

evolutionary pressure causes the need for changes in the metamodel, necessitating all artifacts in the modeling

ecosystem to migrate to again conform to the evolved version of the metamodel, i.e., they have to co-evolve

accordingly. Several approaches for the co-evolution of artifacts have been proposed, however, they differ

substantially from each other and, thus, an in-depth investigation of these approaches is needed to allow for a

systematic comparison. Therefore, the contribution of this paper is a dedicated evaluation framework for co-

evolution approaches focusing on aspects relevant in the context of modeling ecosystems, and its application

to a representative set of recent approaches. Based on this evaluation lessons learned as well as future research

lines are presented.

1 INTRODUCTION

In Model-Driven Engineering (MDE) (B

ezivin,

2005), the usage of models is promoted to perform

different phases of the software development life-

cycle on a higher-level of abstraction. Thereby, meta-

models are the central artifacts deﬁning domain con-

cepts, their relationships as well as constraints among

each other, constituting the basis other modeling arti-

facts rely on. The most prominent artifacts depending

on the metamodel are models instantiating concepts

from the metamodel, and transformations using the

concepts described in the metamodel to generate or

manipulate models (Brambilla et al., 2012; Sendall

and Kozaczynski, 2003). Besides these prominent

representatives, other depending artifacts like tools

and concrete syntaxes might also be present. The

metamodel together with its depending artifacts forms

a so-called modeling ecosystem (Di Ruscio et al.,

2012), in which different artifacts have different kinds

of relationships and dependencies to the metamodel

and among each others. For example, a model is in-

stantiating concepts deﬁned in the metamodel, while

transformations refer to the concepts in their trans-

formation deﬁnitions. In this context, it is of utmost

importance that all artifacts are in a valid state, i.e.,

they have to satisfy the given relationships, both with

respect to the metamodel, as well as to each other, in

order to preserve the operability of the whole model-

ing ecosystem.

As a matter of course, ecosystems are not static.

Due to evolution, e.g., caused by changing require-

ments, metamodels might change, necessitating all

depending artifacts in the ecosystem to be migrated

to be again valid with respect to the evolved version

of the metamodel, i.e., they have to co-evolve. Since

the distinct kinds of artifacts existing in an ecosystem

may hold different kinds of relationships, each kind

of artifact has to be treated speciﬁcally. Thus, migra-

tion is not limited to one kind of artifact, only, but in

fact has to be performed for all kinds of depending

artifacts, entailing the risk of introducing divergence

between the various migrations leading to inconsis-

tencies (Kusel et al., 2015). Discovering and elimi-

nating already introduced inconsistencies is a tedious

task, since they might spread across all artifacts in the

ecosystem.

Although several approaches for the co-evolution

of modeling artifacts exist, e.g., (Rose et al., 2010b;

Herrmannsdoerfer et al., 2009) for models, and (Lev-

endovszky et al., 2010; M

endez et al., 2010) for trans-

formations, they differ substantially from each other

regarding their capabilities with respect to modeling

ecosystems, since in a more ecosystem-wide perspec-

tive the artifacts in the ecosystem are multiple. Fur-

thermore, there are several aspects in co-evolution

Etzlstorfer J., Kapsammer E. and Schwinger W.

On the Evolution of Modeling Ecosystems: An Evaluation of Co-Evolution Approaches.

DOI: 10.5220/0006167900900099

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 90-99

ISBN: 978-989-758-210-3

that are essential in the context of an ecosystem-wide

perspective, in contrast to an isolated view on one

kind of artifact, only. Thus, an in-depth investigation

of existing co-evolution approaches is needed to allow

for a systematic comparison.

Therefore, in this paper our contribution is three-

fold: We (i) elaborate the relationships between arti-

facts in modeling ecosystems, which further build the

basis for (ii) an evaluation framework for the compari-

son of co-evolution approaches with special respect to

modeling ecosystems. Furthermore, we (iii) apply the

evaluation framework to state-of-the-art co-evolution

approaches and draw lessons learned from the eval-

uation which outline current drawbacks and possible

future research lines. With respect to evolving and de-

pending artifacts, this paper focuses on metamodels

as evolving artifacts and models and transformations

as depending artifact, respectively. This is conform

with related research and existing approaches. Nev-

ertheless, the ﬁndings presented in this paper as well

as the general parts of the evaluation framework are

applicable to arbitrary other modeling artifacts, too.

The paper is organized as follows: The next sec-

tion explores modeling ecosystems and the relation-

ships between artifacts in these ecosystems, while in

Section 3 the evaluation framework is presented and

applied on current approaches. In Section 4 we dis-

cuss lessons learned, while Section 5 presents related

work. Finally, Section 6 concludes the paper.

2 EVOLVING MODELING

ECOSYSTEM

In practicing MDE, a model does not come alone, but

in fact it is interwoven in a diversity of different arti-

facts that may depend on each other, thereby building

a modeling ecosystem (Di Ruscio et al., 2012). More

precisely and with respect to evolution of modeling

ecosystems, we differentiate the artifacts in metamod-

els and their depending artifacts, being again spe-

cialized into different kinds of artifacts, like mod-

els, transformations, and tools, as shown in Figure 1.

Thus, the metamodel can be seen as a central artifact,

deﬁning the prevailing concepts of a domain, which

are utilized in other artifacts, that therefore depend

on the metamodel. This general dependency may be

reﬁned for each kind of artifact living in the model-

ing ecosystem. For example, in case of models that

conform to their respective metamodels this confor-

mance relationship is a reﬁnement of the more gen-

eral depends on relationship. Regarding transforma-

tions, they conform to their transformation metamodel

deﬁning the syntactic constraints of transformation

deﬁnitions, but additionally, have dependencies on

the source domain and target domain employed in

the transformation deﬁnition. Furthermore, other de-

pending artifacts like concrete syntax speciﬁcations

and tools assisting the modeler in diverse tasks, might

live in the ecosystem having their speciﬁc dependen-

cies on the metamodel.

However, artifacts in the modeling ecosystem are

not static entities but in fact are subject to evolu-

tion, e.g., due to changing requirements. Each artifact

might undergo changes (denoted as curved yellow

arrows in Figure 1) which might impact depending

artifacts (denoted as angled yellow arrows). Please

note that the color-intensity indicates the concrete-

ness of the impact, i.e., a more transparent arrow in-

dicates a more abstract impact. As one might see,

an evolution of the ModelMM impacts all conforming

models as well as all transformations that are either

source- or target-domain-conform to it. In addition,

all other artifacts depending on the ModelMM might

be impacted as well. Analogously, changes on the

TrafoMM impact the conformance of all transforma-

tions depending on this metamodel. In this context,

we do not explicitly differ between graph transfor-

mations, bi-directional transformations, or plain text-

based transformations, since the conceptual work pre-

sented in this paper is applicable to both of them. In

general, the kind of dependency determines the im-

pact of a metamodel change on the depending artifact,

thus, the impacts are speciﬁc for each kind of depen-

dent artifact.

In order to be operable, the modeling ecosystem

has to be in a consistent state, i.e., all artifacts have to

hold valid relationships to the metamodel and across

each other. However, due to their dependencies the

artifacts may inﬂuence each other, e.g., in case of evo-

lution when changes are applied on one artifact in the

ecosystem and might render the ecosystem inconsis-

tent, necessitating a corresponding migration of the

affected artifacts. The inter-dependencies between

the artifacts demand for an ecosystem-wide perspec-

tive and, thus, an ecosystem-wide migration across all

artifacts to re-establish the consistency and preserve

the operability of the modeling ecosystem is needed.

In the following, the relationships in a modeling

ecosystem are discussed in more detail, to highlight

the impacts of evolution.

2.1 Relationships in a Modeling

Ecosystem

In order to understand the inter-dependencies between

the different kinds of artifacts, in the following, the

relationships in a modeling ecosystem are identiﬁed

On the Evolution of Modeling Ecosystems: An Evaluation of Co-Evolution Approaches

Artifact

Metamodel

Depending

Artifact

ModelMM

TrafoMM

Model

Transformation

targetDomainConformsTo

sourceDomainConformsTo

conformsTo

operatesOnSource

operatesOnTarget

dependsOn

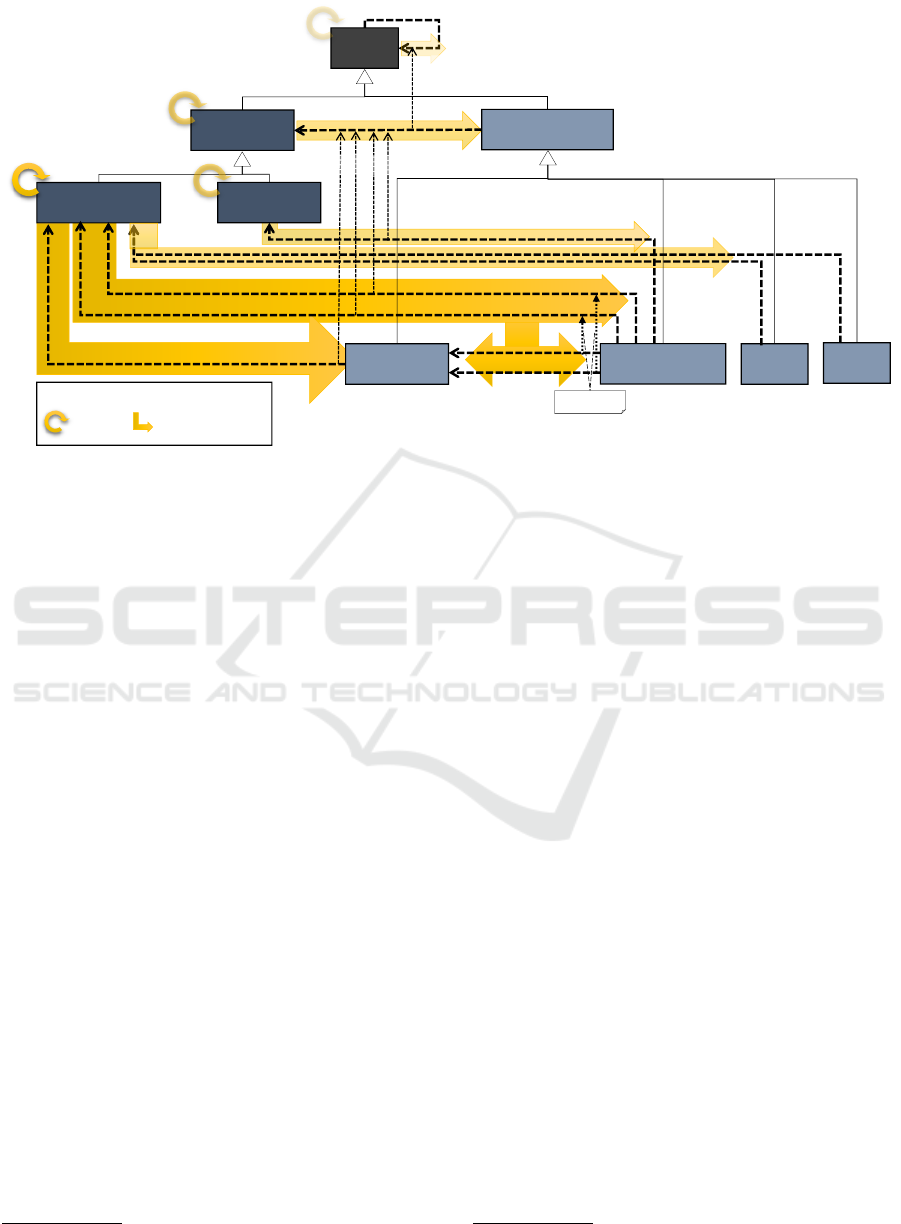

Evolution Impact of Evolution

Tool

…

evolving artifact

depending artifact

<<refines>>

dependsOn

<<refines>>

Legend

must refer to

same MM

Figure 1: Relationships in a Modeling Ecosystem.

and discussed, based on studied literature (e.g., (Rose

et al., 2010a; Di Ruscio et al., 2011; B

ezivin, 2005;

endez et al., 2010)) as well as our own experiences

and ﬁndings. Therefore, the most generic relationship

is presented ﬁrst, while reﬁnements for models and

transformations are subsequently discussed.

• dependsOn: All artifacts in the modeling ecosys-

tem depend on a metamodel in general, whereas

the kind of dependency has to be specialized for

each kind of artifact, since the dependsOn rela-

tionship does not impose any constraints on the

validity of this relationship between the meta-

model and other modeling artifacts. This kind

of relationship might not have a formalized rep-

resentation, but can relate arbitrary artifacts to

the metamodel in general, as for example GMF

models

(Di Ruscio et al., 2011). Consequently,

the dependsOn relationship is the most generic

dependency relationship between artifacts in the

ecosystem and is reﬁned by other dependency re-

lationships.

• conformsTo: The most prominent reﬁnement of

the dependsOn relationship in a modeling ecosys-

tem holds between a model and its according

metamodel. More strictly, a model conforms

to a metamodel if only concepts that are de-

ﬁned in the metamodel are used, according to

the rules and constraints speciﬁed in the meta-

model (Sch

onb

ock et al., 2014), e.g., multiplic-

ity constraints. Furthermore, metamodels them-

https://eclipse.org/modeling/gmp/

selves have to conform to their meta-metamodels,

e.g., MOF (Object Management Group, 2011) or

its open-source implementation Ecore as basis of

the Eclipse Modeling Framework

. Moreover and

as already highlighted in (B

ezivin, 2005), model

transformations themselves can be seen as mod-

els that conform to their respective transformation

metamodels, e.g., the ATL metamodel (Jouault

et al., 2008). Thus, an evolution of the metamodel

has impact on the conformsTo relationship of all

depending artifacts, which in response have to co-

evolve to re-establish a broken conformsTo rela-

tionship.

• sourceDomainConformsTo and targetDomain-

ConformsTo: Besides models, transformations

play a vital role in MDE, since they are com-

parable in role and importance to compilers in

high-level programming languages (Kappel et al.,

2012). Model transformations take input models

conforming to a source metamodel and generate

output models conforming to a target metamodel

(cf. Figure 2). The transformation itself has two

different kinds of relationships to the source and

target metamodels, respectively. First, the source-

DomainConformsTo relationship states that in the

source domain of the transformation deﬁnition

only concepts from the source metamodel are per-

mitted. In contrast, the targetDomainConformsTo

relationships only holds, if in the target domain

of the transformation deﬁnition concepts from the

target metamodel are used, only. In this context,

https://eclipse.org/modeling/emf/

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

Input

Model

Transformation

Output

Model

Source

Metamodel

Target

Metamodel

conformsTo

sourceDomain

ConformsTo

targetDomain

ConformsTo

operatesOn

Source

Transformation

Engine

executes

Transformation

Metamodel

conformsTo

operatesOn

Target

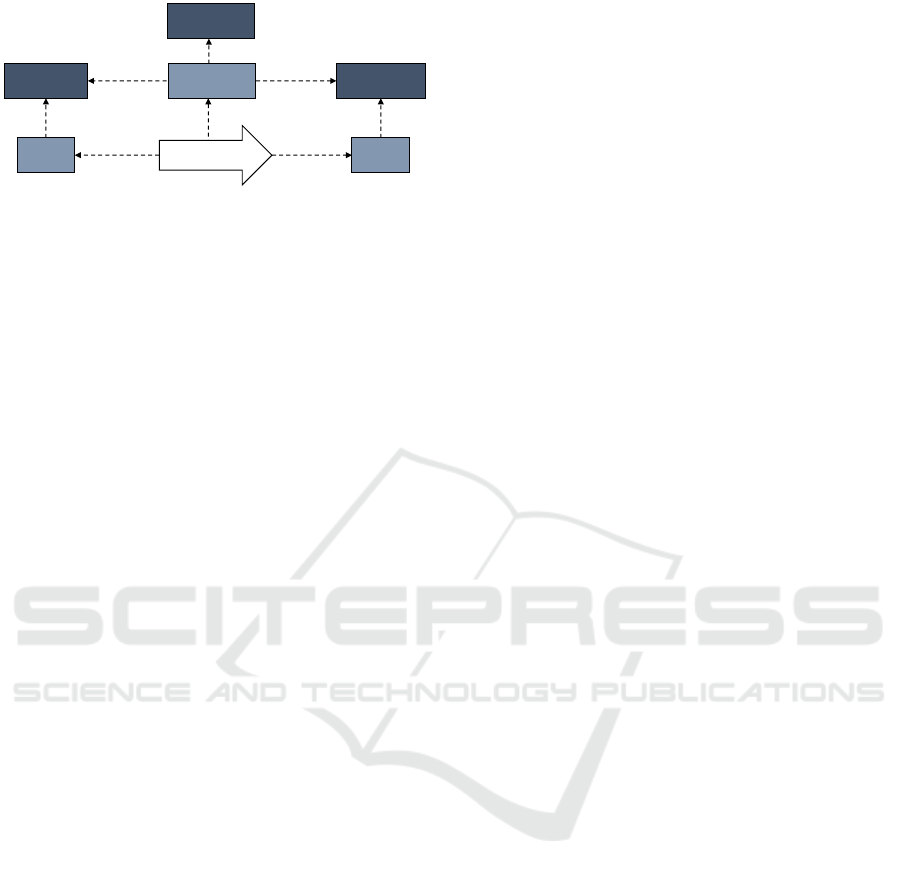

Figure 2: Conceptual View on Model Transformations

based on (Czarnecki and Helsen, 2006).

the domain conformances can be seen as speciﬁ-

cations the input/output has to conform to.

Although in (M

endez et al., 2010) the term do-

mainConformsTo for the relation between the

source metamodel and the source domain of the

transformation has been introduced (and analo-

gously the term coDomainConformsTo for the tar-

get representatives), we prefer the terms proposed

in this paper – sourceDomainConformsTo and tar-

getDomainConformsTo – being more intuitive and

precise, since they clearly explicate the respective

source or target roles of the involved metamodels.

Regarding an evolution of a metamodel involved

in a transformation speciﬁcation, i.e., the source

or target domain, its impact is determined by both

the role of the metamodel, i.e., the source or tar-

get metamodel, and the models it operates on,

since impacts might not only reveal at speciﬁca-

tion time, but also at run-time.

• operatesOn: When having model transformation

as part of the modeling ecosystem, they might be

executed on models, thus, they operate on them.

An important aspect for this relation is that it only

holds if the metamodel of the source model is the

same metamodel as for the sourceDomainCon-

formsTo relationship of the transformation, i.e.,

the transformation operates on a model which is

conform to the source domain of the transforma-

tion. An evolution of a metamodel affects the op-

eratesOn relationship, since the models as well as

the transformations depending on the metamodel

are affected, having a transitive effect on the oper-

atesOn relationship. Thus, by co-evolving the de-

pending artifacts, the operatesOn relationship is

re-established as a result thereof. However, it is of

utmost importance that the co-evolution of mod-

els and transformations is performed consistently,

i.e., following the same strategy, to successfully

re-establish this relationship.

In summary, one might see that modeling ecosys-

tems not only comprise different kinds of artifacts, but

also different kinds of relationships between the arti-

facts and the metamodel as well as between the arti-

facts themselves, which are affected by an evolution

of the metamodel. Consequently, an ecosystem-wide

perspective on evolution and co-evolution is neces-

sary to maintain the operability of a modeling ecosys-

tem. Therefore, in the next section, different aspects

crucial to evolving ecosystems are discussed.

3 ASPECTS OF CO-EVOLUTION

After having discussed the prevailing relationships

in a modeling ecosystem and the impacts of evolu-

tion on them, in this section aspects of co-evolution

with respect to modeling ecosystems are discussed

and proposed as criteria for a corresponding evalua-

tion framework (cf. Section 3.1), which serves for

a subsequent evaluation of existing co-evolution ap-

proaches (cf. Section 3.2).

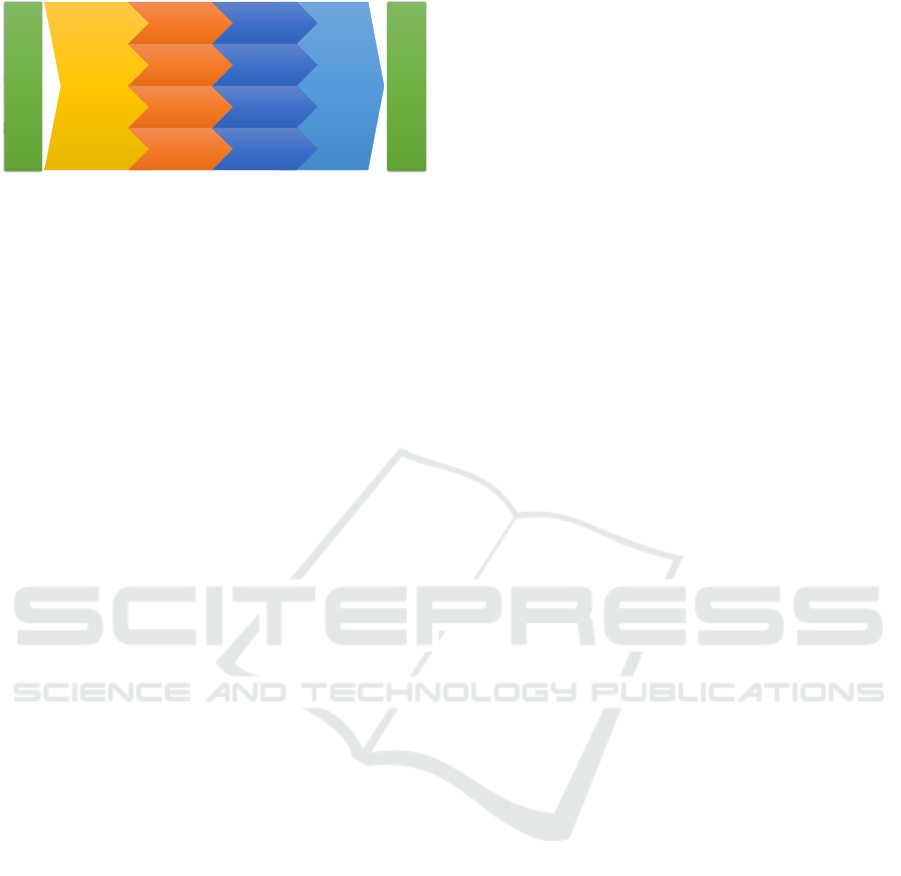

As shown in Figure 3, the process of co-evolution

in the context of modeling ecosystems spans over four

phases. Starting with a consistent modeling ecosys-

tem in its original version V0, the executed phases

are as follows: (i) change detection, i.e., the identiﬁ-

cation of all applied changes on the metamodel, (ii)

impact analysis, i.e., the determination of impacts of

the applied changes on the diverse kinds of artifacts,

(iii) change propagation, i.e., the actual propagation

of changes to ultimately migrate the artifacts, and ﬁ-

nally (iv) an optional validation of the migrated arti-

facts. The result of this co-evolution process is a con-

sistent ecosystem in its migrated version V1. While

the ﬁrst phase operates on the changed metamodel,

only, the subsequent phases have to be performed on

each kind of artifact (cf. KA

- KA

in Figure 3).

Please note that in order to allow for a comprehen-

sive co-evolution of the diverse artifacts, the change

propagation phase has to be in accordance across all

different kinds of artifacts, but is performed on each

artifact individually. The last but optional phase of

validation has to be performed across all depending

artifacts in the ecosystem to ensure both, the confor-

mance of the artifacts to the metamodel and the re-

establishment of inter-dependencies between the arti-

facts, i.e., inter-artifact consistency.

3.1 Evaluation Framework

In the following, aspects of co-evolution in modeling

ecosystems are discussed, which will further serve as

criteria of an evaluation framework for investigating

existing co-evolution approaches (cf. Section 3.2 for

the evaluation). The aspects have been assembled top-

down by deriving criteria from the modeling ecosys-

On the Evolution of Modeling Ecosystems: An Evaluation of Co-Evolution Approaches

Change

Detection

Impact

Analysis

Impact

Analysis

Impact

Analysis

KA…

Consistent Modeling

Ecosystem

Validation

-KA

Change

Propagation

Change

Propagation

Change

Propagation

KA…

Impact

Analysis

Change

Propagation

Consistent Modeling

Ecosystem

Figure 3: Co-Evolution Process of a Modeling Ecosystem.

tem co-evolution process (cf. Figure 3) as well as

in bottom-up manner by considering related criteria

discussed in literature (e.g., (Paige et al., 2016; Her-

rmannsdoerfer and Wachsmuth, 2014)). The evalua-

tion framework can be easily extended for other mod-

eling artifacts by adding corresponding criteria, while

in the following it is elaborated in detail for models

and transformations.

3.1.1 General Criteria

The ﬁrst set of criteria is used to determine general

characteristics of co-evolution approaches.

• Evolving Artifact: Changes affecting the ecosys-

tem can be applied on a metamodel (cf. Fig-

ure 1), which might act as the ModelMM, or the

TrafoMM. Regarding the ModelMM, it might fur-

ther act as source or target metamodel of a trans-

formation. Finally, also the evolution of other ar-

tifacts may be dealt with.

• Depending Artifact: As discussed in Section 2.1

the kind of dependency is speciﬁc for each kind

of artifact. Depending artifacts mainly comprise

models and transformations but can also include

other artifacts, which are affected by changes to

the evolving artifact.

• Monitoring of Artifacts in the Ecosystem: The

observation of artifacts in the ecosystem might be

advantageous to automatically detect changes in

the ecosystem. Thus, this criterion determines if

an approach monitors any artifact in the ecosys-

tem to alert the user in case of changes.

• Transactions: Transaction support ensures that

artifacts are either completely migrated to their

new version or set back to their initial state.

Transactions may span over different ranges and

phases. Regarding the range, a transaction may

span over one artifact, all instances of one kind of

artifact, or all instances of all kinds of artifacts.

Considering the phases, they may include change

application, change detection, impact analysis,

and change propagation.

• Version Management: Approaches may support

versioning of artifacts, e.g., to determine which

artifacts are conforming to which versions of the

metamodel(s).

3.1.2 Change Detection

The second set of criteria is related to the change de-

tection phase of the co-evolution process (cf. Fig-

ure 3) and is employed to determine how and which

changes can be detected.

• Kind of Detection: Changes may be detected

state-based, i.e., matching the original version

and the evolved one in order to derive the ap-

plied changes, operation-based, i.e., recording the

actually applied changes, manual, i.e., deﬁning

changes by hand, or they may be detected by a

hybrid form of these kinds.

• Granularity of Change: Changes may be de-

tected as atomic units, i.e., single changes that are

not interconnected, or as composite units, i.e., se-

mantically connected sequences of changes.

• Target of Change: The target of the change may

either be the syntax, i.e., a syntactical change on

the evolving artifact, or semantics, i.e., a change

in the meaning of a metamodel element, e.g., in-

terpreting the unit of the values of an attribute

in centimeter instead of millimeter, which won’t

have an effect on the syntax, but in fact the values

in the instances have to be adapted, e.g., in this

case multiplied or divided by 10.

3.1.3 Impact Analysis

Since changes might have impacts on depending ar-

tifacts and their relationships to the evolved artifact,

this set of criteria is used to determine if and at which

detail impacts are identiﬁed.

• Explicated Analysis: Impacts of changes may

be explicitly analyzed on the depending artifacts,

revealing potential affects on the artifacts. In

this context, the impacts may be detected on the

conforms-to, source-domain-conforms-to, target-

domain-conforms-to or other relationships in the

ecosystem.

• Level: The impact analysis can be either per-

formed on type level, i.e., an analysis of poten-

tial impacts on models or transformations of meta-

model changes, or on instance level, i.e., reveal-

ing the impacts on the actual instances that are af-

fected in the ecosystem.

• Result Usable for Intervention: Results of the

impact analysis should ideally be usable for user

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

intervention, e.g., a score determining a high ex-

tent of impacts may indicate to undo the changes

and re-evaluate the applied changes or ﬁnd a more

suitable set of changes.

• Granularity: Impacts on the artifacts may be de-

tected on different level of granularity. In case of

models, granularity spans from ﬁne-grained, i.e.,

feature level, over class level to package level, i.e.,

the more coarse-grained level. In case of transfor-

mations, impacts can be detected analogously on

the level of bindings, rules, and modules. Fur-

thermore, impacts may be detected on OCL level

if the transformation language employs OCL for

querying model elements.

• Run-time Effects Detection: Effects on exe-

cutable artifacts, e.g., transformations, may only

be detectable at run-time. For example, when

changing a feature from mandatory to optional,

transformation deﬁnitions that assume the exis-

tence of this feature might break at run-time, if

a value for this feature is not set, similarly to null-

pointer exceptions in programming languages.

3.1.4 Change Propagation

The fourth set of criteria is used to determine how the

identiﬁed changes from the change detection phase

(cf. Figure 3) are actually propagated to the de-

pending artifacts, and if consistence of the modeling

ecosystem might be ensured.

• Strategies: For the actual propagation of

changes, approaches may offer built-in predeﬁned

strategies, that may vary in number and might be

customizable in the sense that they might be, e.g.,

adapted, parametrized or overwritten to migrate

the artifact in a customized way. Additionally,

a user-deﬁnable propagation may be possible by

providing new migration strategies.

• Automation: Propagation can be either done

semi-automatic, i.e., with user intervention, or au-

tomatic, i.e., without user intervention.

• Consistence: Approaches may ensure intra-

artifact consistency, i.e., a speciﬁc change is

propagated consistently regardless of its usage as

atomic or part of an composite change, and inter-

artifact consistency, i.e., a change is propagated

with the same intention across all artifacts in the

ecosystem.

3.1.5 Validation

Related to the ﬁnal and optional phase of validation,

this set of criteria is employed to determine to which

extent the performed change propagation is validated

to ensure a consistent ecosystem.

• Type of Validation: In the optional phase of val-

idation, the performed propagation may be vali-

dated syntactically, e.g., for models the confor-

mance may be validated with EMF, while for

transformations the syntactical correctness may

be validated with an according compiler. Addi-

tionally, the semantical correctness may be vali-

dated, e.g., with regression testing (Fowler et al.,

1999).

• Range of Validation: The validation may range

over one instance of an artifact, all instances of

one kind of artifact or all instances of all kinds of

artifact.

After having presented the criteria of the eval-

uation framework, in the next section current co-

evolution approaches will be evaluated.

3.2 Evaluation

In this section, approaches for the co-evolution of ar-

tifacts in a modeling ecosystem are evaluated, apply-

ing the evaluation framework discussed above. The

selection of approaches supporting co-evolution com-

prises approaches that support the co-evolution of any

artifact in the modeling ecosystem, or provide a lan-

guage or framework for deﬁning and performing the

co-evolution of any artifact. Eleven approaches that

meet this criteria have been identiﬁed in the literature

by surveying the proceedings of conferences, work-

shops as well as journals dealing with model-driven

engineering topics, and, thus, participate in the evalu-

ation. Literature that presents the actual application of

an already proposed approach has not been included

in this selection, since it would lead to duplicate re-

sults. The results of the evaluation are presented in

the following and summarized in Table 1.

Six approaches of the selected eleven approaches

target model co-evolution (Herrmannsdoerfer et al.,

2009; Rose et al., 2010b; Gruschko et al., 2007; Cic-

chetti et al., 2008; Garc

es et al., 2009; Wachsmuth,

2007), three perform transformation co-evolution

(Garc

es et al., 2013; Garc

ıa et al., 2013; Kruse, 2011),

and two approaches consider a more ecosystem-wide

perspective by supporting models and transforma-

tions (Di Ruscio et al., 2012; Kusel et al., 2015),

whereas one of these approach serves as a framework

for co-evolution of a more wide-range set of mod-

eling artifacts, e.g., GMF models (Di Ruscio et al.,

2012). Three of the ﬁve transformation co-evolution

approaches support the evolution for both the source

and target metamodels (Garc

es et al., 2013; Garc

ıa

On the Evolution of Modeling Ecosystems: An Evaluation of Co-Evolution Approaches

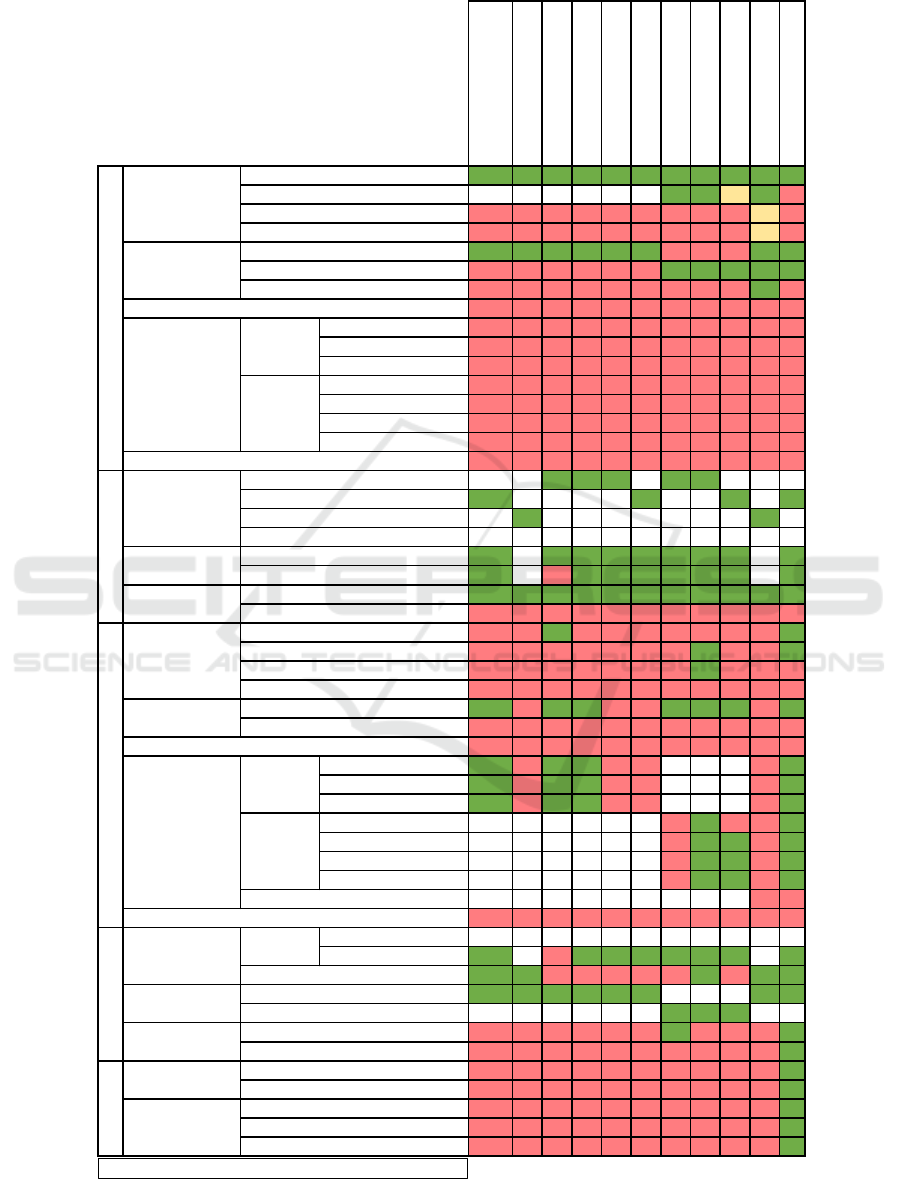

Table 1: Evaluation of Co-Evolution Approaches.

Herrmannsdoerfer et

al., 2009

Rose et al., 2010a

Gruschko, 2007

Cicchetti et al., 2008

Garcés et al., 2009

Wachsmuth, 2007

Garcés et., 2013

García et al., 2013

Kruse, 2011

Di Ruscio et al., 2012

Kusel et al., 2015

SYMBOLS

COPE

Flock

          



n.a. n.a. n.a. n.a. n.a. n.a.

 

 



        



        



          

          

          

          

One Artifact

          

One kind of Artifact

          

All kinds of Artifacts

          

Change Application

          

Change Detection

          

Impact Analysis

          

Change Propagation

          

- -

  

 

- - -



- - - -



- -



- - - - - - -



- - - - - - - - - - -



n.a.

      

n.a.



n.a.

      

n.a.



          

          

          

          

          

          

          

          

Feature-level

     

n.a. n.a. n.a.

 

Class-level

     

n.a. n.a. n.a.

 

Package-level

     

n.a. n.a. n.a.

 

OCL-level

n.a. n.a. n.a. n.a. n.a. n.a.

    

Bindings-level

n.a. n.a. n.a. n.a. n.a. n.a.

    

Rule-level

n.a. n.a. n.a. n.a. n.a. n.a.

    

Module-level

n.a. n.a. n.a. n.a. n.a. n.a.

    

n.a. n.a. n.a. n.a. n.a. n.a. n.a. n.a. n.a.

 

          

Number

1 0 1 1 1 1 1 1 1 0 1

Customizable



n.a.

      

n.a.



          

     

- - -

 

- - - - - -

  

- -

          

          

Type of

Validation

Transformation Metamodel

Other

Models

Other

Type-level

Semantics

ConformsTo

SourceDomainConformsTo

Evolving Artifact

Depending

Artifact

Kind of detection

Transformations

Source Metamodel

Target Metamodel

General Criteria

Change Detection

Other

Granularity of

change

Monitoring of Artifacts in the Ecosystem

State-based

Operation-based

Manual

Hybrid

Atomic

Composite

Version management

Transactions

Impact Analysis

Propagation

Validation

Range

Phases

Syntax

TargetDomainConformsTo

Range of

Validation

Models

Trans-

formations

Target of change

Explicated

analysis

Level

Granularity

Instance-level

One kind of Artifact

All kinds of Artifacts

Results Usable for Intervention

Semi-automatic

Syntactic

Semantic

One Artifact

Other

User-definable

Strategies

Predefined

Consistence

Intra-artifact

Inter-artifact

Run-time Effects Detection

Automatic

Automation

Legend:  yes  no ~ partially n.a. not applicable

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

et al., 2013; Di Ruscio et al., 2012), while one ap-

proach supports them only in case of copy transfor-

mations, a speciﬁc form of a model transformation

(Kruse, 2011). Evolution of the transformation meta-

model or other modeling artifacts is not considered

in the surveyed approaches, with a sole exception of

(Di Ruscio et al., 2012) by providing a framework in-

stead of a concrete approach. The monitoring of arti-

facts is not supported by any of the approaches, just

as transactions and version management.

Regarding change detection, ﬁve approaches de-

tect changes in a state-based manner (Gruschko et al.,

2007; Cicchetti et al., 2008; Garc

es et al., 2009;

Garc

es et al., 2013; Garc

ıa et al., 2013), four ap-

proaches employ operation-based change detection

(Herrmannsdoerfer et al., 2009; Wachsmuth, 2007;

Kruse, 2011; Kusel et al., 2015), and two rely on

manual change speciﬁcations (Rose et al., 2010b;

Di Ruscio et al., 2012). Almost all approaches sup-

port both atomic and composite changes, a single ap-

proach only does not support composite changes (Gr-

uschko et al., 2007), while another approach con-

siders composite changes as the pure composition of

atomic changes, instead of its own set, thus allowing

for new, self-deﬁned composites (Kusel et al., 2015).

All of the examined approaches consider syntax as the

target of changes, while no approach is capable of tar-

geting semantic changes.

Considering impact analysis, two approaches

provide an explicated analysis of changes on the

conforms-to relationship between models and meta-

models (Gruschko et al., 2007; Kusel et al., 2015),

two approaches the source-domain-conforms-to rela-

tionship (Garc

ıa et al., 2013; Kusel et al., 2015), and

a sole approach for the target-domain-conforms-to re-

lationship (Garc

ıa et al., 2013). Impact analysis is

performed on type level by seven approaches (Her-

rmannsdoerfer et al., 2009; Gruschko et al., 2007; Ci-

cchetti et al., 2009; Garc

es et al., 2013; Garc

ıa et al.,

2013; Kruse, 2011; Kusel et al., 2015), while impact

analysis on instance level is supported by none of the

examined approaches. Furthermore, results can not

be used for intervention in any of the examined ap-

proaches. Approaches that support impact analysis on

models provide analysis on feature, class and pack-

age level (Herrmannsdoerfer et al., 2009; Gruschko

et al., 2007; Cicchetti et al., 2008; Kusel et al., 2015),

while in case of transactions, the level of bindings,

rules, and modules is supported by three approaches

(Garc

ıa et al., 2013; Kruse, 2011; Kusel et al., 2015),

whereas two approach additionally detect impacts on

OCL level (Garc

ıa et al., 2013; Kusel et al., 2015).

None of the examined approaches is capable of detect

run-time effects before the actual execution of arti-

facts, e.g., running a transformation.

Regarding the actual propagation of changes, all

but two approaches (Rose et al., 2010b; Di Ruscio

et al., 2012) support a predeﬁned migration strategy,

which is customizable in all but one approach (Gr-

uschko et al., 2007). Eight approaches allow for

an automatic migration process (Herrmannsdoerfer

et al., 2009; Rose et al., 2010b; Gruschko et al.,

2007; Cicchetti et al., 2008; Garc

es et al., 2009;

Wachsmuth, 2007; Di Ruscio et al., 2012; Kusel et al.,

2015), while three approaches targeting transforma-

tion co-evolution are semi-automatic (Garc

es et al.,

2013; Garc

ıa et al., 2013; Kruse, 2011), meaning

that the user is needed in the co-evolution process.

Intra-artifact consistence is ensured in two approaches

(Garc

es et al., 2013; Kusel et al., 2015), while a

sole approach also provides inter-artifact consistency

(Kusel et al., 2015).

A single approach supports the validation of mi-

grated artifacts, both syntactically and semantically

(Kusel et al., 2015). In this context, the approach is

able to validate all instances of all supported kinds

of artifacts, i.e., models and transformations (Kusel

et al., 2015).

In the next section, lessons learned from the eval-

uation of approaches are presented.

4 LESSONS LEARNED

After having evaluated existing co-evolution ap-

proaches with the presented evaluation framework, in

the following paragraphs, lessons learned drawn from

the evaluation are discussed.

Need for Ecosystem-wide Perspective. As one

might see from the evaluation in Section 3.2, most

current co-evolution approaches tackle either mod-

els or transformation as dependent artifacts, but miss

an ecosystem-wide perspective spanning over several

modeling artifacts. Consequently, a systematic and

efﬁcient co-evolution is hindered due to the fact that

diverse tools or approaches have to be employed to

co-evolve a complete modeling ecosystem. This may

lead to an inter-artifact inconsistency, i.e., different

kinds of artifacts are co-evolved differently, thus, the

operability of the modeling ecosystem is broken.

Incorporation of Semantical Changes Needed. As

discussed earlier, changes in a modeling ecosystem

might be of semantical nature, thus, not affecting

the syntax of a metamodel. As an example, a mod-

eler might intrinsically assign the unit centimeter to a

“height” attribute of a Person. Thus, a change of cen-

timeter to millimeter affects all depending artifacts,

since the actual values in the models or potential cal-

On the Evolution of Modeling Ecosystems: An Evaluation of Co-Evolution Approaches

culations in transformations have to be adapted. How-

ever, a change of a unit can not be explicitly expressed

in current co-evolution approaches, thus, hindering an

automated co-evolution of depending artifacts. Con-

sequently, means to express semantical changes are

needed.

Transactional Execution Beneﬁcial for Consis-

tency. Since transactions are currently not supported

in any of the surveyed approaches, errors that oc-

cur during co-evolution have to be identiﬁed and

corrected manually. In order to mitigate this bur-

den, transactions spanning over all phases of the co-

evolution process including the actual propagation of

changes enable consistency of the ecosystem, since

either all artifacts are co-evolved or the whole ecosys-

tem is set back to its initial state.

Enabling Run-time Effects Detection by Employ-

ing Code Analysis Techniques. Changes on the

metamodels might impact the ecosystem not only at

design-time but also at run-time, e.g., when a trans-

formation queries the value of an element which is no

longer set. However, by employing static code analy-

sis techniques (Louridas, 2006) to detect errors, e.g.,

potential null-pointer references, before executing the

transformation, run-time effects can be detected and

corrected in an earlier stage, i.e., before execution.

Consequently, a more sophisticated impact analysis

that reveals potential run-time effects helps the evo-

lution designer in deciding if one or more changes

should be applied on the metamodel.

5 RELATED WORK

In this section, we will discuss related work focus-

ing on comparison and evaluation of co-evolution ap-

proaches in MDE.

In a recent survey, the authors compare several

approaches for the co-evolution of models and their

metamodels (Herrmannsdoerfer and Wachsmuth,

2014) on the basis of a comprehensive criteria cata-

log. In contrast to our contribution, the authors con-

sider models as depending artifacts, only. Another

recent work discusses state-of-the-art techniques and

approaches for co-evolution in MDE, and outlines fu-

ture research challenges (Paige et al., 2016). How-

ever, in contrast to the contribution of this paper,

there is no concrete focus on modeling ecosystems

or a comparison of concrete co-evolution approaches.

A comparison between co-evolution of models and

transformations in response to metamodel evolution

has been presented in (Rose et al., 2010b). The au-

thors discuss the differences between the migration of

models and transformation and highlight the need for

a more uniform, i.e., consistent, co-evolution of both

artifacts. However, concrete approaches are not com-

pared in contrast to our contribution. In (Meyers and

Vangheluwe, 2011) the authors propose a framework

for the evolution of metamodels and co-evolution of

various kinds of depending artifacts, such as models

and transformations. Thus, they propose a taxonomy

for metamodel evolution, which might be applied to

existing approaches. However, an evaluation of co-

evolution approaches has not been part of their work.

In summary, one might see that the work pre-

sented in this paper is unique with respect to a

modeling ecosystem-wide perspective regarding co-

evolution and the consideration of diverse depending

artifacts, in particular models and transformations.

6 CONCLUSION & FUTURE

WORK

In this paper, we presented a comparison of co-

evolution approaches in MDE, with a speciﬁc focus

on modeling ecosystems and metamodels as evolving

artifacts and models and transformations as depend-

ing artifacts. Therefore, criteria for evaluating co-

evolution approaches have been proposed, and eleven

approaches have been evaluated by applying the eval-

uation framework, which was built upon the identiﬁed

criteria. Finally, lessons learned drawn from the eval-

uation have been presented.

Summing up, although several co-evolution ap-

proaches in MDE exist, there is still space for im-

provements, including (i) the dedicated co-evolution

support of more than one depending artifact, (ii) the

detection and incorporation of semantic changes on

the metamodel, (iii) the implementation of transaction

mechanisms to cope with unforeseen errors in the co-

evolution process, and (iv) strengthening impact anal-

ysis by employing static code analysis techniques.

REFERENCES

ezivin, J. (2005). On the Uniﬁcation Power of Models.

SoSym, 4(2):171–188.

Brambilla, M., Cabot, J., and Wimmer, M. (2012). Model-

Driven Software Engineering in Practice. Morgan &

Claypool Publishers.

Cicchetti, A., Di Ruscio, D., Eramo, R., and Pierantonio,

A. (2008). Automating Co-evolution in Model-Driven

Engineering. In EDOC ’08, pages 222 –231.

Cicchetti, A., Di Ruscio, D., and Pierantonio, A. (2009).

Managing Dependent Changes in Coupled Evolu-

tion. In ICMT, volume 5563 of LNCS, pages 35–51.

Springer.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

Czarnecki, K. and Helsen, S. (2006). Feature-Based Survey

of Model Transformation Approaches. IBM Systems

Journal, 45(3):621–645.

Di Ruscio, D., Iovino, L., and Pierantonio, A. (2011). What

is Needed for Managing Co-Evolution in MDE? In

Proc. of the Int. Workshop on Model Comparison in

Practice, pages 30–38. ACM.

Di Ruscio, D., Iovino, L., and Pierantonio, A. (2012).

Evolutionary Togetherness: How to Manage Coupled

Evolution in Metamodeling Ecosystems. In ICGT,

pages 20–37. Springer.

Fowler, M., Beck, K., Brant, J., Opdyke, W., and Roberts,

D. (1999). Refactoring: improving the design of exist-

ing code. Addison-Wesley.

Garc

es, K., Jouault, F., Cointe, P., and B

ezivin, J. (2009).

Managing Model Adaptation by precise Detection of

Metamodel Changes. In Model Driven Architecture-

Foundations and Applications, pages 34–49. Springer.

Garc

es, K., Vara, J. M., Jouault, F., and Marcos, E. (2013).

Adapting transformations to metamodel changes via

external transformation composition. SoSym, pages

1–18.

Garc

ıa, J., Diaz, O., and Azanza, M. (2013). Model

Transformation Co-evolution: A Semi-automatic Ap-

proach. In SLE, pages 144–163. Springer.

Gruschko, B., Kolovos, D., and Paige, R. (2007). Towards

Synchronizing Models with Evolving Metamodels. In

Proc. of the Int. Workshop on Model-Driven Software

Evolution.

Herrmannsdoerfer, M., Benz, S., and Juergens, E. (2009).

COPE - Automating Coupled Evolution of Metamod-

els and Models. In ECOOP, pages 52–76. Springer.

Herrmannsdoerfer, M. and Wachsmuth, G. (2014). Coupled

Evolution of Software Metamodels and Models. In

Evolving Software Systems, pages 33–63. Springer.

Jouault, F., Allilaire, F., B

ezivin, J., and Kurtev, I. (2008).

ATL: A model transformation tool. Science of Com-

puter Programming, 72(12):31–39.

Kappel, G., Langer, P., Retschitzegger, W., Schwinger, W.,

and Wimmer, M. (2012). Model Transformation By-

Example: A Survey of the First Wave. In Concep-

tual Modelling and Its Theoretical Foundations, vol-

ume 7260 of LNCS, pages 197–215. Springer.

Kruse, S. (2011). On the Use of Operators for the Co-

Evolution of Metamodels and Transformations. In Int.

Workshop on Models and Evolution @ MODELS.

Kusel, A., Etzlstorfer, J., Kapsammer, E., Retschitzegger,

W., Schwinger, W., and Sch

onb

ock, J. (2015). Con-

sistent Co-Evolution of Models and Transformations.

In Proc. of MODELS, pages 116–125.

Levendovszky, T., Balasubramanian, D., Narayanan, A.,

and Karsai, G. (2010). A Novel Approach to Semi-

automated Evolution of DSML Model Transforma-

tion. In SLE, volume 5969 of LNCS, pages 23–41.

Springer.

Louridas, P. (2006). Static code analysis. IEEE Software,

23(4):58–61.

endez, D., Etien, A., Muller, A., and Casallas, R. (2010).

Towards Transformation Migration After Metamodel

Evolution. In Proc. of Int. Workshop on Models and

Evolution @ MODELS.

Meyers, B. and Vangheluwe, H. (2011). A framework for

evolution of modelling languages. Science of Com-

puter Programming, 76(12):1223–1246.

Object Management Group (2011). Meta Ob-

ject Facility (MOF) 2 Core Speciﬁcation.

www.omg.org/spec/MOF/2.4.1.

Paige, R., Matragkas, N., and Rose, L. (2016). Evolving

models in Model-Driven Engineering: State-of-the-art

and future challenges. Journal of Systems and Soft-

ware, 111:272 – 280.

Rose, L., Etien, A., M

endez, D., Kolovos, D., Paige, R., and

Polack, F. (2010a). Comparing Model-Metamodel

and Transformation-Metamodel Co-evolution. In

Proc. of Models and Evolution Workshop.

Rose, L., Kolovos, D., Paige, R., and Polack, F. (2010b).

Model Migration with Epsilon Flock. Proc. of ICMT,

pages 184–198.

Sch

onb

ock, J., Kusel, A., Etzlstorfer, J., Kapsammer, E.,

Schwinger, W., Wimmer, M., and Wischenbart, M.

(2014). CARE – A Constraint-Based Approach for

Re-Establishing Conformance-Relationships. In Proc.

of APCCM.

Sendall, S. and Kozaczynski, W. (2003). Model Transfor-

mation: The Heart and Soul of Model-Driven Soft-

ware Development. Software, IEEE, 20(5):42–45.

Wachsmuth, G. (2007). Metamodel Adaptation and Model

Co-adaptation. In Proc. of European Conf. on Object-

Oriented Programming, volume 4609 of LNCS, pages

600–624. Springer.

On the Evolution of Modeling Ecosystems: An Evaluation of Co-Evolution Approaches
