Prevent Collaboration Conflicts with Fine Grained Pessimistic

Locking

Martin Eyl

, Clemens Reichmann

and Klaus D. Müller-Glaser

Vector Informatik GmbH, Ingersheimer Straße 24, 70499 Stuttgart, Germany

Karlsruhe Institute of Technology (KIT), 76128 Karlsruhe, Germany

Keywords: Fine Grained Software Configuration Management System, Abstract Syntax Tree, Pessimistic Locking.

Abstract: There are two main strategies to support the collaboration of software team members working concurrently

on the same source code: pessimistic locking and optimistic locking. Optimistic locking is used far more

often because a pessimistic lock on the smallest unit stored in the Software Configuration Management

(SCM), which is a usually a file, often causes conflict situations, where a developer wants to change the

already locked code. Optimistic locking can cause direct and indirect merge conflicts which are costly to

resolve and affect productivity. The novelty of our approach is to define a meta-model for the source code

(Abstract Syntax Tree) and use pessimistic locking on model artefacts and therefore allow parallel editing of

the same class or even method but still preventing direct and indirect merge conflicts. Thereby the developer

keeps an isolated workspace and the developer decides when to commit the finished source code. This paper

introduces a concept for this solution and a prototype based on Eclipse.

1 INTRODUCTION

In many software development projects the

increasing number of requested features and their

complexity makes it necessary to have an increasing

number of software developers working in parallel

on the same source code (Perry, 2001; Estublier,

2005). Therefore a solution is needed for parallel

editing of source code. Different Software

Configuration Management Systems (SCM) address

the problem of conflicting source code changes and

provide appropriate solutions which comes with

benefits and weaknesses (Conradi, 1998; Grinter,

1995).

1.1 Pessimistic and Optimistic Locking

There are two main approaches: pessimistic and

optimistic locking (Sarma, 2003; Levin, 2013). In

the optimistic approach parallel changes of the same

source code lines are allowed. Any conflicts must be

solved before the source code can be committed into

SCM repository. In some cases these conflicts are

trivial to resolve. However in other cases it is very

complicated and error-prone to merge the source

code (Sarma, 2007; Dewan, 2008).

In the pessimistic approach the software

developer needs a lock for the source code before it

can be modified. The lock is exclusive which means

that other developers cannot retrieve the lock for the

source code until it is released. No concurrent

changes of the same source code are possible. The

smallest unit stored in an SCM repository is

typically a file (Broschy, 2009). Pessimistic locking

on a file is too restrictive and causes too often

conflict situations, where a developer wants to

change a file that is already locked.

1.2 Direct and Indirect Conflicts

There are two different classes of conflicts: direct

conflicts and indirect conflicts (Brun, 2011). A

direct conflict is caused by changing the same line of

source code by two developers in their local

workspaces at the same time. The SCM repository

can detect such conflicts during the commit of

source code.

An indirect conflict originates from changing the

source code in a file which affects concurrent

changes of a second developer in the same or

another source code file. If indirect conflicts are not

detected and resolved then they can cause syntax

errors in the source code stored in the SCM

312

Eyl M., Reichmann C. and MÃijller-Glaser K.

Prevent Collaboration Conﬂicts with Fine Grained Pessimistic Locking.

DOI: 10.5220/0006119703120319

In Proceedings of the 5th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2017), pages 312-319

ISBN: 978-989-758-210-3

repository. Also new defects can arise which only

exists in the combination of both source code

changes. Continuous Integration (CI) is used to

detect the syntax errors. The new defects can only be

found via tests for example via automated tests

during CI (Eyl, 2016). A typically example of an

indirect conflict is the following: one developer

renames a method in one class and the other

developer adds a new invocation of this method in a

second class with the original name. If both

developers commit the source code at the same time

into the SCM repository then there is no direct

conflict but there is a syntax error in the second class

calling a method which does not exists with this

name anymore.

1.3 Motivation and Objectives

As already mentioned, direct conflicts can be very

difficult and costly to solve (Estublier, 2005). If

there are several lines of source code involved for

example in an algorithm then in some cases it is not

possible to solve the conflict without the help of the

developers who did the conflicting changes (Grinter,

1995). Sometimes it is easier to undo your own

changes and to redo the changes in the updated

source code. These merge conflicts are very

annoying because it prevents the developer for

committing the source code although his/her work is

already finished. Indirect conflicts which cause

syntax errors in the SCM repository can block other

team members (which CI cannot prevent). If the

developers update their source code with the source

code from the SCM repository containing a syntax

error, the developers have to fix the syntax error

before they can continue to work. Also a CI run with

automated tests cannot be executed if there are

syntax errors in the code.

By using pessimistic locking it is never

necessary to merge source code and therefore the

developer can commit the source code anytime. If

the developer wants to change already locked source

code it is necessary to communicate with the

colleague to coordinate the work. Pessimistic

locking can also be used to prevent indirect conflicts

which cause syntax errors in the SCM repository.

However pessimistic locking of a complete file is

difficult because only one developer can change the

code in the file. Pessimistic locking is practical when

a fine grained pessimistic locking is supported which

allows parallel editing of a class or even a method.

We implemented a prototype with the following

objectives:

 Defining a meta-model for the source code

(Abstract Syntax Tree).

 Pessimistic locking on one or more model

artefacts.

 Allow parallel editing of classes and methods by

using only a small number of fine grained locks.

 No syntax errors in the SCM repository.

 Minimal automatic locking during editing of the

source code in the editor.

 Keep isolation from other developers and the

developer decides when to commit the source

code.

Using optimistic locking a direct merge conflict can

only be resolved after an update of the affected file.

Pessimistic locking forces sequential changes of the

source code. Therefore an update is necessary when

the developer acquires a lock for an AST artefact.

The developer is forced to update earlier than with

optimistic locking. However the developer can

freely decide when to commit the finished source

code.

The prototype has been implemented for Java

and is an extension of Eclipse Integrated

Development Environment (IDE) (Eclipse, 2016).

The fine grained pessimistic locking is part of a

larger research project which is called Morpheus.

2 ABSTRACT SYNTAX TREE

(AST)

The AST provides us with the means to find

dependencies in the code which we need to set the

correct locks to prevent indirect conflicts. Also the

AST is fine grained enough for the fine grained

pessimistic locks. An AST is composed of AST

nodes and relations between the nodes. There are

two types of relationships: composition and

association.

AST nodes are for example Package

Declaration, Type Declaration, Method Declaration,

Method Invocation, If Statement and so forth. In this

paper all AST nodes are written in italic. The AST

nodes build up a hierarchically tree via the

composition for example the Method Declaration is

contained in the Type Declaration. We call the Type

Declaration “composite node” and the Method

Declaration “component node”.

The association is a usage relation and comes

often with a declaration and a use of the declared

artefact. We call the declaration “supplier node” and

the other side of the relation “client node”. The

client depends on the supplier. The invocation of a

Prevent Collaboration Conﬂicts with Fine Grained Pessimistic Locking

313

method is such an association between a Method

Invocation and a Method Declaration. Another

example is the inheritance of a class from another

class which is an association between two Type

Declarations.

When the developer wants to change source

code, the corresponding AST nodes have to be

locked to prevent parallel modifications. To prevent

indirect conflicts depended artefacts also have to be

considered. Therefor we have to define some rules

(see Section 4).

2.1 The AST as Meta-Model

AST nodes have to be locked and it is difficult to

keep track of the locks when the AST node does not

have a unique object identifier (OID) especially the

AST nodes without a name for example a “for loop”

or an “if statement”. For this reason we used the

Meta Data Framework (MDF) of PREEvision

(Vector, 2016; Zhang 2011). PREEvision is a model

based, 3-tier application used mainly in the

automobile industry. MDF is based on the OMG’s

Meta Object Facility (MOF) Standard (OMG, 2016).

MDF allows us to define a meta-model for the AST

and to generate the Java source code for the model.

PREEvision also provides functionality for storing

the model into a data backbone (PREEvision server).

We use PREEvision with the AST meta-model as a

model based Software Configuration Management

(SCM) repository.

The AST model can be edited by using a

structured editor, for example the projectional editor

of JetBrains Meta Programming System (MPS)

(JetBrains, 2016). Alternatively an existing Java text

editor has to be extended so that the editor is aware

of the AST artefacts. We chose the second solution

and added the required functionality to the Java text

editor of the Eclipse Integrated Development

Environment (IDE). We call this text editor Java

AST Editor. The editor makes sure that changing

and refactoring of the source code (for example

rename or move) does not delete and recreate AST

nodes but only changes the existing AST nodes. For

example if the developer changes the name of a

method then the Method Declaration is not deleted

and recreated. Instead the name of the Method

Declaration is modified.

2.2 Meta-Model and Syntax Errors

In the source code text the link between Method

Declaration and Method Invocation is realized via

full qualified name: package name, class name and

the method name. By changing the name in the

method declaration but not in the method call the

link is broken because the names no longer match

and we have caused a syntax error. In the meta-

model the link between Method Declaration and

Method Invocation is represented as an association

with the cardinality “1”: the Method Invocation has

to have exactly one Method Declaration.

So, the meta-model makes sure that the syntax

error “Method Invocation without Method

Declaration” is not possible. Just by using a meta-

model some syntax errors can no longer occur.

However the meta-model does not prevent all syntax

errors. For example if the number of parameters or

the type of the parameters is not correct in the

method invocation then it is still possible to build up

a valid AST which can be stored in the server. The

Java compiler detects such syntax errors in the

source code and it is not reasonable to add all this

functionality to the meta-model. To make sure that

no syntax errors can occur in the SCM repository we

have to ensure two things: Firstly, the developer

should not be able to commit source code with

syntax errors into the SCM repository. If Eclipse

indicates any syntax errors in the current source

code then the commit will be rejected. Secondly,

syntax errors because of indirect conflicts have to be

prevented with pessimistic locking.

3 FINE GRAINED AST LOCKS

An exclusive lock is a marker for an AST node

which determines who can currently modify the

AST node. A lock can be acquired by sending a

request to the server where a list of all locks is

stored. For each lock the server stores the object

identifier (OID) of the AST node, the user who owns

the lock and the date when the lock has been

acquired. The locks are automatically released after

the commit of the AST into the server.

Our objective is to allow as much parallel editing

as possible. In order to achieve this, we need an

additional lock type. For example if the developer

wants to add new source code which contains a new

method call then a new AST node (Method

Invocation) is created and an association to the

according Method Declaration. To ensure that

another developer is not modifying the method

signature or deleting the method at the same time the

developer needs an exclusive lock for the Method

Declaration. This exclusive lock would prevent

other developers to add also a new method call to

this method because only one developer can own an

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

314

exclusive lock for an AST node. However this

parallel editing would never cause a direct or

indirect conflict. The problem can be solved with a

shared lock. Several developers can own a shared

lock for the same AST node. No exclusive lock can

be acquired for an AST node with a shared lock. The

shared lock ensures that other developers do not

change the method signature but still allow several

developers to call this method at the same time.

4 LOCK RULES

In this section we want to clarify which Abstract

Syntax Tree (AST) nodes have to be locked with

which lock type (shared or exclusive) when

changing the source code to prevent any merge

conflicts. Therefore we will define several rules.

We have to consider the following types of

conflicts: direct conflict, indirect conflict and name

conflict.

4.1 Direct Conflict

After modifying the local AST by changing the

source code in the local workspace the AST has to

be merged during commit with the current AST

from the server which likely has also been changed

by other users. A direct merge conflict occurs when

the merge cannot be executed without deciding

which of the both changes (the local or the change

from the server) shall be used. A change is an

attribute change, the deletion or creation of a relation

or the deletion of an AST node. The creation of an

AST node is not relevant because no one else can

change this new node.

For example, two developers change the attribute

“name” of a Method Declaration at the same time

then a merge is not possible because the merger

cannot decide which attribute value is the correct

one.

Rule 1:

Attribute change: The AST node which owns the

attribute needs an exclusive lock.

If the developer deletes an AST node then the

complete tree with all components are deleted too

(e.g. deleting a Method Declaration deletes also the

content of the method). Deleting and changing an

AST node at the same time cause again a conflict.

Rule 2:

Deletion of an AST node: The AST node and all

component AST nodes below need an exclusive lock.

Next, we want to examine the creation of an AST

node for example a Java class. A class is created

below a package. To make sure that the package will

not be deleted by another developer we need a lock

for the package. An exclusive lock would prevent

other developers to create a new class in parallel

which would be not a problem. Therefore we

introduce the concept of a shared lock and the

package only has to be shared locked.

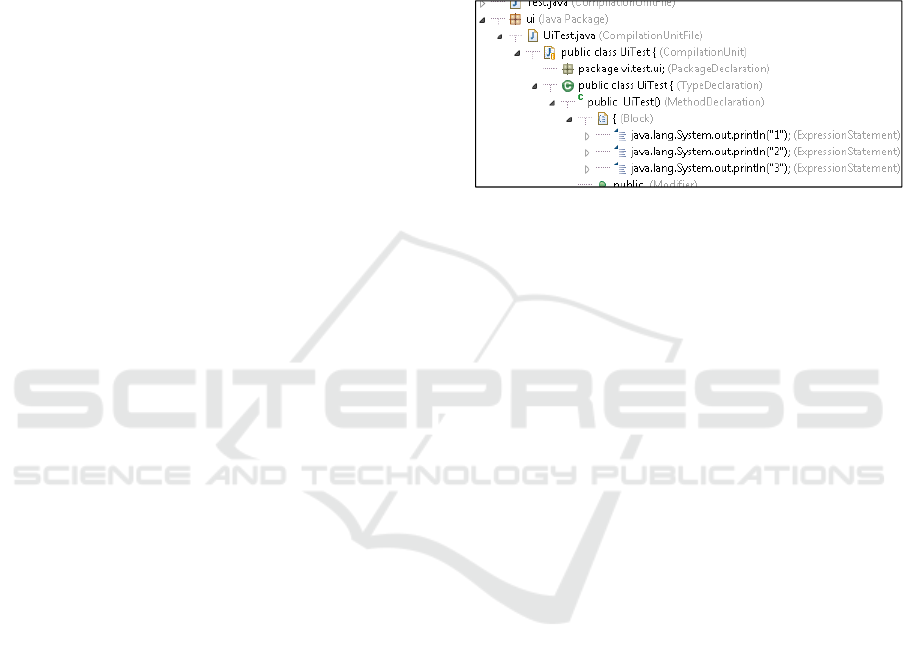

Figure 1: Example of an Abstract Syntax Tree.

In the AST example (see Figure 1) there are

three Expression Statements below a Block. The

curly braces indicate a Block in Java which can

contain one more statements. The order of these

statements is relevant. In this example the output on

the console should be “1”, “2” and “3”. If a

developer adds a new Expression Statement to print

“4” after “3” and uses only a shared lock on the

Block, another developer could add at the same time

an Expression Statement to print “finished” after

“3”. In this case we have a merge conflict because

the merger cannot decide whether “4” comes after

“3” or “finished”. If the order is relevant of the AST

nodes we need an exclusive lock. The order of the

classes in the package is not relevant. Also a

changed order of the methods in a class cannot

provoke a syntax error and will not change the

behaviour of the software.

Of course someone might argue that the

developer wants to see the methods in a certain order

in the class. However in which order can be different

from one use case to another. Nowadays the source

code is presented in a very rigid view which is

dictated by the source code text. The source code

could be presented in different views for example all

methods of different classes which are relevant for a

certain aspect of the software (Chu-Carroll, 2000).

The AST node Method Declaration could get some

additional attributes (e.g. categories) which define

the order of the methods for different use cases.

Rule 3:

Creation or deletion of a composite relationship

with the cardinality 0..n: If the order of the

Prevent Collaboration Conﬂicts with Fine Grained Pessimistic Locking

315

component nodes is relevant, the composite node

needs an exclusive lock otherwise a shared lock.

Order relevant relations are for example statements

in a method or parameters in a method declaration.

Next, we want to derive a class from a base class.

Therefore a Type Reference is created below the

Type Declaration (the Java class). Of course the

class can be derived from only one base class. If one

developer derives the class from the base class B1

and another developer in parallel from B2 then we

have a merge conflict. The merger cannot decide

which base class is the correct one. In this use case

we need an exclusive lock for the class.

Rule 4:

Creation or deletion of a composite relationship

with the cardinality 0..1: The composite node needs

an exclusive lock.

For the interfaces the third rule is applicable and

because the order of the interfaces is not relevant

only a shared lock is needed for the class when

adding or removing an interface.

Next, we want to change the content of a

method. We have already established that the

statements in the method are order relevant. For

inserting new statements, deleting statements or

changing the order of the statements we need an

exclusive lock for the composite node Block (see

Figure 2).

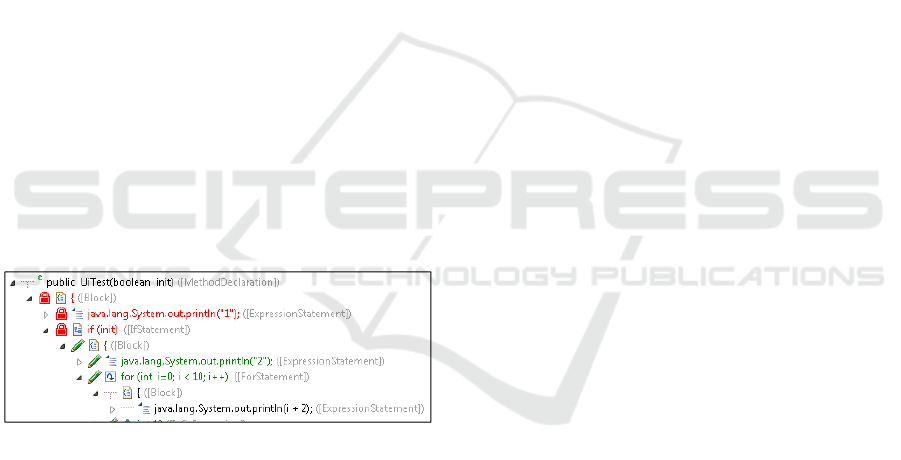

Figure 2: AST nodes of a Method Declaration.

Changing an existing statement could be done

without an exclusive lock of the Block. However to

simplify the logic we also acquire an exclusive lock

for the Block because when the developer changes

code the probability is high that new statements are

created or existing statements are deleted. If the

Block is exclusive locked then we can lock all

statements below the Block because nobody else can

change a statement below the Block. If there is a

statement with a new Block (for example a For

Statement or an If Statement) then it is not necessary

to lock this Block too. With a new Block a new

ordered list of statements starts and therefore locks

of other developers are possible. In Figure 2 we can

see that one developer has locked the statements

below the Method Declaration (in red colour) and

another developer the statements below the If

Statement (in green colour). The Block below the

For Statement can be locked by some else.

Rule 5:

Inserting, deleting or changing statements inside a

Block: Starting with the composite node Block of the

statement all component nodes and the Block node

itself need an exclusive lock until the next Block

nodes.

4.2 Indirect Conflicts

An indirect conflict occurs when after the merge of

the ASTs a syntax error has been created. This is the

case when the supplier node in an association is

changed and the client node has not been adapted. If

the association already exists and the developer

changes the supplier node then the same developer

has to correct all client nodes before a commit of the

AST is possible because a commit of an AST with

syntax errors is not possible. For the adaption the

developer needs exclusive locks for the client nodes.

There is no additional rule necessary. However in

the case of the creation of a new association we have

to make sure that the supplier node will not be

changed or deleted. This can be achieved via a

shared lock. For example when several developers

want to call the same method every developer

receives a shared lock for the method. With the

shared lock there is no modification of the method

possible.

Rule 6:

Creation of a new association: the supplier node

needs a shared lock.

The following special use cases have to be

considered:

4.2.1 Method Override

With the annotation “@Override” in front of a

Method Declaration it is well defined that the

Method Declaration overrides another Method

Declaration from a base class or interface. If the

Method Declaration in the base class or interface

changes (e.g. the parameters) the Method

Declaration from the derived class has to be

adapted. Therefore we need an additional association

in the meta-model to express this relationship. With

this additional association and rule 6 we can prevent

indirect merge conflicts.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

316

4.2.2 Default Constructor

In a Java class without any constructor Java provides

a default constructor with no parameters which can

be used to instance the class. However the AST node

Class Instance Creation needs always a constructor

for the association “constructor invocation”.

Therefore during the creation of a new class the

according AST nodes are automatically created for

the default constructor which then can be used in the

association. Indirect merge conflicts are prevented

with the already defined locking rules.

4.2.3 Return Statement

If the return type of a Method Declaration is

changed then all Return Statements have to be

adapted, too. For example if the return type is

changed from void to integer then all return

statement have to be changed from “return” to

“return <integer>”. There is a kind of association

between the two AST nodes. This association has

not been added in the meta-model but we need an

additional rule.

Rule 7:

Addition of a new Return Statement: the composite

Method Declaration needs a shared lock.

4.3 Name Conflicts

There is an additional potential conflict which we

have not yet considered. In Java a package, a class

or a method provides a namespace. Inside the

namespace names have to be unique for example it

is not possible to have two methods with the same

name in the same class. Because we use only a

shared lock for the Type Declaration it is possible

that two developers create two Method Declarations

with the same name. The following two solutions are

possible: Firstly, we use an exclusive lock for the

Type Declaration. Then only one developer can

create a new method inside a class. Then of course

parallel editing would be much more restricted.

Secondly, we introduce a new feature which allows

us to reserve or lock a name inside a namespace.

These locks could be stored along with the standard

locks in the server.

Name conflicts occur less often because the

probability that two developers choose exactly the

same name in the same name space at the same time

is not that high. Also the conflict can be resolved

very easily by just renaming the artefact. Therefore

we allow this kind of merge conflicts and we did not

implement one of the suggested solutions. However

we have to ensure that the conflicts are detected and

no syntax errors are stored in the server. Therefore

the Compilation Unit has to be exclusive locked

immediately before the commit which will cause an

update of the Compilation Unit content and reveal

any name conflicts.

5 INTEGRATION INTO THE

EDITOR

The developer should not bother about locking the

Abstract Syntax Tree (AST) nodes according to the

lock rules. Therefore we need a good integration of

the locking functionality into the Java AST editor.

The Java AST editor knows which AST nodes

are located at a certain position in the editor. When

the developer starts editing the source code text the

Java AST editor determines all AST nodes to be

locked by using the lock rules and requests the locks

from the server. This is done immediately with the

first key stroke because the developer might not

retrieve the locks because in the meantime someone

else has already locked the AST nodes. In this case

the developer should not be able to continue

changing the source code text.

In the editor the areas of text which cannot be

changed because of foreign locks are displayed with

a grey background. In these lines no key strokes are

accepted from the editor. The developer can also

open a popup window on top of these lines which

shows the following information about the lock: lock

type, owner of the lock and since when the AST

node is locked (see Figure 3).

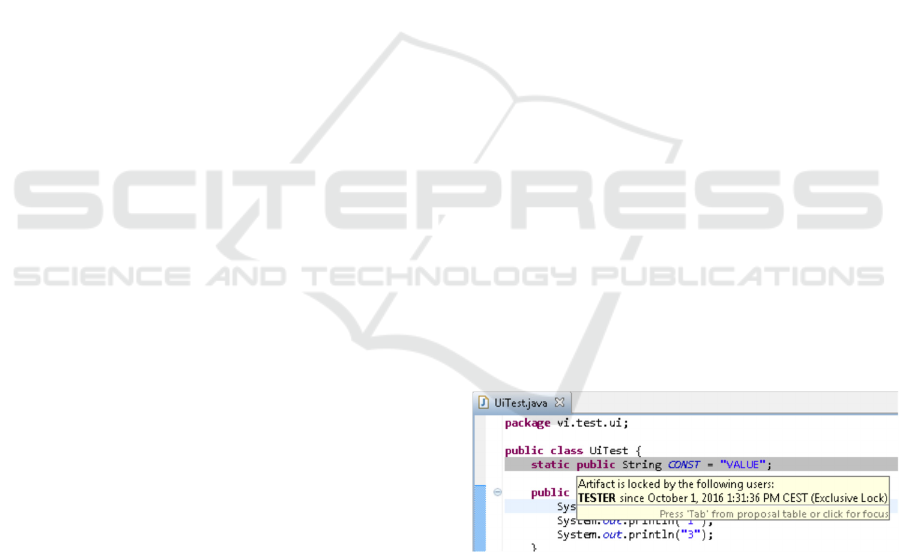

Figure 3: Java AST Editor with lock information.

6 RELATED WORK

The different concept to solve or to improve the

handling of collaboration conflicts can be classified

into intrusive and non-intrusive strategies (Levin,

2015). Intrusive strategies automatically update the

private copy of source code in the local workspace

with the source code of other developers. Non-

Prevent Collaboration Conﬂicts with Fine Grained Pessimistic Locking

317

intrusive strategies only inform the developer about

the current changes other developers to indicate a

potential merge conflict (awareness enhancers) or

supports the developer during merging.

6.1 Non-intrusive Strategies

One approach is to analyze changes from different

branches within a sequence of changes and to

support the integrators work by not just using the

text but also the AST (Gómez, 2014).

Other concepts belonging to this strategy

propagate information about current changes in the

local workspace between team members. There are a

number of tools available: Syde (Hattori, 2010),

CollabVS (Dewan, 2008), Palantír (Sarma, 2003)

and others. Several tools only consider direct merge

conflicts.

Palantír is a workspace awareness tool which

provides developers insight into other workspaces

and was original developed to detect direct merge

conflicts. Palantír has then been extended to detect

also indirect merge conflicts (Sarma, 2007).

Therefore a six-step process has been introduced:

collecting, distributing, analysing, informing,

filtering, visualizing. In the analysing step the

changes in the local workspace and in the remote

workspaces are brought together to find any

potential indirect conflicts. This is done by

examining the dependencies of the remotely

changed artefact, both forwards and backwards and

then Palantír verifies if any local changed artefacts

are involved.

These concepts collect relevant information and

then present the information to the software

developer. The developer can use or ignore this

information. In contrast our approach proactively

prevents any conflict before it actually occurs and it

is not up to the user to react on the conflict. The

underlying assumption is that the developer would

rather wait to change the source code than to

undergo the effort of a manual merge.

6.2 Intrusive Strategies

Concepts belonging to this strategy propagate the

source code between team members and

automatically synchronize the source code of the

developer with the changes of other developers.

There are a small number of projects which

implement this strategy for example CloudStudio

(Nordio, 2011), Collabode (Goldman, 2011) and CSI

(Levin, 2013). This project implements the

Synchronized Software Development (SSD)

approach.

The CSI solution is an Eclipse plugin. It differs

from the other two by supporting a pessimistic

locking concept. When a developer is editing a

semantic element (e.g. a method) other developers

cannot change the same sematic element. While

blocked, of course other elements can be changed.

This blocking functionality also considers indirect

merge conflicts. So, it is not possible that one

developer changes a declaration (e.g. of a method)

and another developer changes in parallel the source

code which depends on the declaration (e.g. the

method call). The smallest unit which can be locked

is a method and not an Abstract Syntax Tree (AST)

node. Therefore it is not possible that two developers

work on the same method. When the source code is

in a state where no compilation errors are present

then the code is propagated automatically to all team

members. The developers work on the same unified

code version. Several but not all possible scenarios

are supported: creating, deleting, renaming or

changing a method or a member field.

In contrast our approach is not an intrusive

strategy because the software developer decides

when his or her changes are published by

committing the source code. It is possible to finish a

complete feature or parts of a feature before

releasing the source code to other developers. Also

CSI does not support any shared lock concepts

which allows more parallel changes.

7 CONCLUSION & FUTURE

WORK

By working with a model (Abstract Syntax Tree -

AST) instead of source code text it is possible to

introduce a fine grained pessimistic locking concept

on artefact level. Direct and indirect merge conflicts

which causes syntax errors are completely

eliminated. The developer can commit his or her

changed source code at any time without any

merging effort. Also syntax errors in the repository

are no longer possible. A continuous integration (CI)

run will never be blocked because of syntax errors in

the repository. The fine grained pessimistic locking

allows parallel changes in the same class or method

by different software developers. The integration of

the locking functionality into the Java AST editor

enables the developer to automatically lock all

necessary AST artefacts without paying attention to

the details.

MODELSWARD 2017 - 5th International Conference on Model-Driven Engineering and Software Development

318

Our future work includes the usage of Morpheus

with the fine grained pessimistic locking concept in

a large software development project with several

million lines of code. The performance and memory

issues which arise from processing millions of AST

artefacts have to be analysed and solved.

REFERENCES

Perry, D. E., Siy, H. P., & Votta, L. G., 2001. Parallel

changes in large-scale software development: an

observational case study. ACM Transactions on

Software Engineering and Methodology (TOSEM),

10(3), 308-337.

Estublier, J., & Garcia, S., 2005. Process model and

awareness in SCM. In Proceedings of the 12th

international workshop on Software configuration

management (pp. 59-74). ACM.

Conradi, R., & Westfechtel, B., 1998. Version models for

software configuration management. ACM Computing

Surveys (CSUR), 30(2), 232-282.

Grinter, R. E., 1995. Using a configuration management

tool to coordinate software development. In

Proceedings of conference on Organizational

computing systems (pp. 168-177). ACM.

Sarma, A., Noroozi, Z., & Van Der Hoek, A., 2003.

Palantír: raising awareness among configuration

management workspaces. In Software Engineering,

2003. Proceedings. 25th International Conference on

(pp. 444-454). IEEE.

Levin, S., 2013. Synchronized software development

(Doctoral dissertation, Tel-Aviv University).

Sarma, A., Bortis, G., & Van Der Hoek, A., 2007.

Towards supporting awareness of indirect conflicts

across software configuration management

workspaces. In Proceedings of the twenty-second

IEEE/ACM international conference on Automated

software engineering (pp. 94-103). ACM.

Dewan, P., 2008. Dimensions of tools for detecting

software conflicts. In Proceedings of the 2008

international workshop on Recommendation systems

for software engineering (pp. 21-25). ACM.

Levin, S., & Yehudai, A. (2015). Alleviating Merge

Conflicts with Fine-grained Visual Awareness. arXiv

preprint arXiv:1508.01872.

Broschy, P., 2009. Improving conflict resolution in model

versioning systems. In Software Engineering-

Companion Volume, 2009. ICSE-Companion 2009.

31st International Conference on (pp. 355-358). IEEE.

Brun, Y., Holmes, R., Ernst, M. D., & Notkin, D., 2011.

Proactive detection of collaboration conflicts. In

Proceedings of the 19th ACM SIGSOFT symposium

and the 13th European conference on Foundations of

software engineering (pp. 168-178). ACM.

Eyl, M., Reichmann, C., & Müller-Glaser, K., 2016. Fast

Feedback from Automated Tests Executed with the

Product Build. In International Conference on

Software Quality (pp. 199-210). Springer International

Publishing.

Eclipse, 2016. „Eclipse Neon“. Eclipse.org. Retrieved

2016-07-30 from http://eclipse.org.

OMG, 2016. „OMG's MetaObject Facility (MOF) Home

Page“. Omg.org. Retrieved 2016-07-30 from

http://www.omg.org/mof/.

JetBrains, 2016: „MPS overview“. JetBrains. Retrieved

2016-07-30 from https://www.jetbrains.com/mps

Hattori, L., & Lanza, M., 2010. Syde: a tool for

collaborative software development. In Proceedings of

the 32nd ACM/IEEE International Conference on

Software Engineering-Volume 2 (pp. 235-238). ACM.

Nordio, M., Estler, H., Furia, C. A., & Meyer, B., 2011.

Collaborative software development on the web. arXiv

preprint arXiv:1105.0768.

Goldman, M., Little, G., & Miller, R. C., 2011. Collabode:

collaborative coding in the browser. In Proceedings of

the 4th international workshop on Cooperative and

human aspects of software engineering (pp. 65-68).

ACM.

Chu-Carroll, M., & Sprenkle, S., 2000. Software

configuration management as a mechanism for

multidimensional separation of concerns.

Vector, 2016: „PREEvision – Development Tool for

model-based E/E Engineering“. Vector.com. Retrieved

2016-07-30 from

https://vector.com/vi_preevision_en.html.

Zhang, R., & Krishnan, A., 2011. Using delta model for

collaborative work of industrial large-scaled E/E

architecture models. In Model Driven Engineering

Languages and Systems (pp. 714-728). Springer Berlin

Heidelberg.

Gómez, V. U., Ducasse, S., & Kellens, A., 2014.

Supporting streams of changes during branch

integration. In Science of Computer Programming (pp.

84-106), 96.

Prevent Collaboration Conﬂicts with Fine Grained Pessimistic Locking

319
