Comparing Repair-Task-Allocation Strategies in MAS

Hisashi Hayashi

System Engineering Laboratory, Corporate Research & Development Center, Toshiba Corporation,

1 Komukai-Toshiba-cho, Saiwai-ku, Kawasaki, 212-8582, Japan

Keywords: Multi-Agent Systems, Coordination Mechanism, Distributed Task Allocation, Emergency Repair.

Abstract: Many distributed systems can be regarded as multi-agent systems (MASs) where some agents are connected

to a network but located in different places. We consider severe situations where many causes of future agent

failures in MASs are found simultaneously and consecutively owing to large-scale disasters. If a cause of

future agent failure is not removed within a limited time, there is a high possibility that one of the agents will

stop working. In order to find effective strategies that reduce the number of actual agent failures, we compare

some repair-task-allocation strategies for MASs where sensing agents find causes of future agent failures and

manager agents communicate with one another to allocate repair tasks to action-execution agents.

1 INTRODUCTION

In many multi-agent systems (MASs), even if an

agent stops working, most of the other agents

continue to work and cover the task of the disabled

agent unless some important agents break down.

Normally, relatively few causes of future agent

failures are found simultaneously and it is not

difficult to remove them before some agents actually

fail. However, in the event of large-scale disasters,

many causes of future agent failures are found

simultaneously and consecutively, in which case, the

whole MAS will stop functioning if they are not fixed

efficiently using limited resources. Therefore, it is

important to effectively allocate the resources

necessary to repair them.

In this paper, we consider some scenarios where

disaster events repeatedly occur, which create causes

of future agent failures simultaneously and

consecutively. In such scenarios, we compare some

repair-task-allocation algorithms for MASs to find a

way of reducing the number of damaged agents so

that the MAS continues to function as a whole.

Although some fundamental repair-task-allocation

algorithms are compared in (Beaumont and Chaib-

draa 2007), the maximum number of causes of future

agent failures in their test scenarios is 10. On the other

hand, in our disaster scenarios, we consider much

more severe situations where the maximum number

is of the order of hundreds. As discussed in Section 6,

this difference leads to completely different

conclusions. Although cooperation between agents

was ineffective for reducing the number of failures in

the test scenarios of (Beaumont and Chaib-draa 2007),

we predict that cooperation is vital for allocation of

limited resources within a limited time when many

causes of future agent failures are created

simultaneously and consecutively owing to large-

scale disasters.

As discussed in (Choi, Brunet, and How 2009;

Macarthur et al. 2011; Rahimzadeh, Khanli, and

Mahan 2015), task-distribution algorithms are

roughly divided into two kinds of algorithms:

centralized algorithms and distributed algorithms. In

centralized algorithms, a single manager agent

collects information from its child agents and

allocates tasks to them. On the other hand, in

distributed algorithms, multiple manager agents

communicate with one another to allocate the tasks to

their child agents. Many existing task-allocation

algorithms are centralized algorithms. However,

distributed task-allocation algorithms are attracting

attention because they are expected to be fault-

tolerant: the breakdown of one manager agent does

not mean the total failure of the MAS. One of our

aims is to compare these two kinds of algorithms in

the repair-task-allocation scenarios. Because

execution of a repair action sometimes fails, it is

natural to replan and reallocate the repair task. We

also evaluate centralized and distributed repair-task-

allocation algorithms that include replanning

capabilities.

Hayashi H.

Comparing Repair-Task-Allocation Strategies in MAS.

DOI: 10.5220/0006094800170027

In Proceedings of the 9th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2017), pages 17-27

ISBN: 978-989-758-219-6

There is more related work on task allocation. In

(Rahimzadeh, Khanli, and Mahan 2015), the

probabilities of future agent failures are considered

when allocating tasks to agents. However, the

algorithm does not consider repairing. In (Guessoum

et al. 2010), some backup agents are created in case

of emergency. However, as pointed out in

(Rahimzadeh, Khanli, and Mahan 2015), the cost of

backup agents is high when additional hardware is

needed and it takes time to copy the agents

dynamically. The algorithm does not consider

repairing either. In (Okimoto et al. 2015), considering

future agents’ failure, robust agent teams are created.

The idea is to prepare more agents than needed. Again,

the cost is high and repairing is not considered.

Coallition formation of first responders in disaster

relief is also researched in (Ramchurn et al. 2010).

Applications of multi-agent task allocation range

from disaster relief (Chapman et al. 2009; dos Santos

and Bazzan 2011; Nair et al. 2002; Pujol-Gonzalez

2015; Ramchurn et al. 2010; Ramchurn et al. 2016;

Suárez, Quintero, de la Rosa, 2007), computer games

(Dawe 2013; Straatman et al. 2013), and coordination

of robots (Mi et al. 2014; Vallejo et al. 2009) to

command and control for combat ships (Beaumont

and Chaib-draa 2004; Beaumont and Chaib-draa

2007; Brown and Lane 2000; Brown et al. 2001;

Young 2005). Our repair-task-allocation is closely

related to the task allocation problems of combat

ships and disaster relief where tasks with hard

deadlines such as threat removal and civilian rescue

are allocated to teams.

This paper is organized as follows. In Section 2,

we define the MAS architecture for repair-task

allocations. In Section 3, we define five algorithms

for task repairing. In Section 4, we explain the

detailed settings for simulation. In Section 5, we show

the simulation results. In Section 6, we discuss the

simulation results, comparing them with the

simulation results reported in (Beaumont and Chaib-

draa 2007). Section 7 is devoted to the conclusion.

2 MAS ARCHITECTURE FOR

REPAIR-TASK ALLOCATIONS

We consider a MAS for repair-task allocations that is

composed of multiple unit MASs including sensing

agents, action-execution agents, and a manager agent:

sensing agents detect causes of future agent failures,

action-execution agents fix causes of future agent

failures using limited resources, and manager agents

communicate with one another to allocate repair tasks

to action-execution agents. In this section, we define

unit MASs and the agents that belong to unit MASs.

We define the functions of unit MASs as agents

because each function is often deployed on different

hardware and becomes out of order independently.

As shown in Figure 1, a unit MAS is a MAS

comprising 0 or more sensing agents, 0 or more

action-execution agents, and 1 manager agent.

When a sensing agent senses a cause of a future agent

failure, it reports the information to the manager agent

in the same unit MAS. When receiving the

information of a cause of a future agent failure, the

manager agent allocates the repair task to an action-

execution agent that belongs to the same unit MAS or

allocates the repair task to the manager agent of

another unit MAS if there are multiple unit MASs and

their manager agents are connected by the network.

When allocated a repair task, the action-execution

agent will execute a repair action consuming one

resource. Execution of a repair action will succeed or

fail according to the predefined probability. Unless a

cause of a future agent failure is removed by a repair

action, one of the agents will stop functioning

according to the predefined probability.

When a unit MAS has sensing agents and action-

execution agents, the unit MAS can sense and remove

causes of future agent failures without the help of the

other unit MASs as shown in Figure 1. In this case,

each unit MAS is independent and it is unnecessary

to connect each unit MAS through the network.

Because of its simplicity, the repair-task-allocation

algorithm for independent unit MASs will be

compared with other algorithms as a baseline

algorithm.

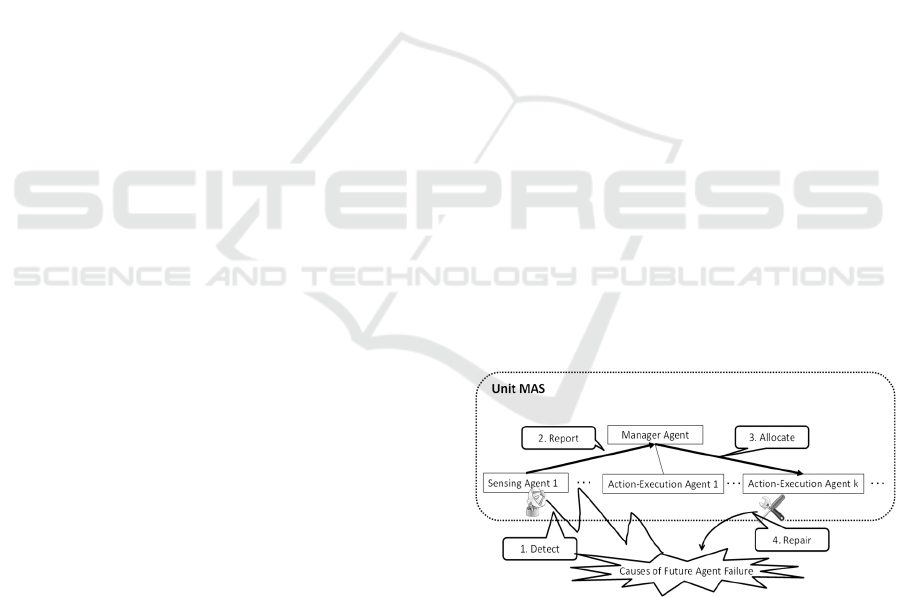

Figure 1: A unit MAS.

As shown in Figure 2, when the manager agents

of unit MASs are connected by the network, sensing

and repairing can be done in different unit MASs. We

expect that repair-task allocations will be more

effective when the manager agents are connected.

When the MAS has a centralized architecture, as

shown in Figure 3, only one manager agent (top

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

manager agent) works as a leader and allocates all

the repair tasks to unit MASs. On the other hand,

when the MAS has a distributed architecture as

shown in Figure 2, different manager agents become

leaders of task allocation for different repair tasks.

We expect that the distributed MAS algorithm is

more robust than the centralized algorithm because in

the distributed architecture, even if a leader becomes

out of order, another manager agent becomes a leader.

We will compare the repair-task-allocation

algorithms that use these MAS architectures.

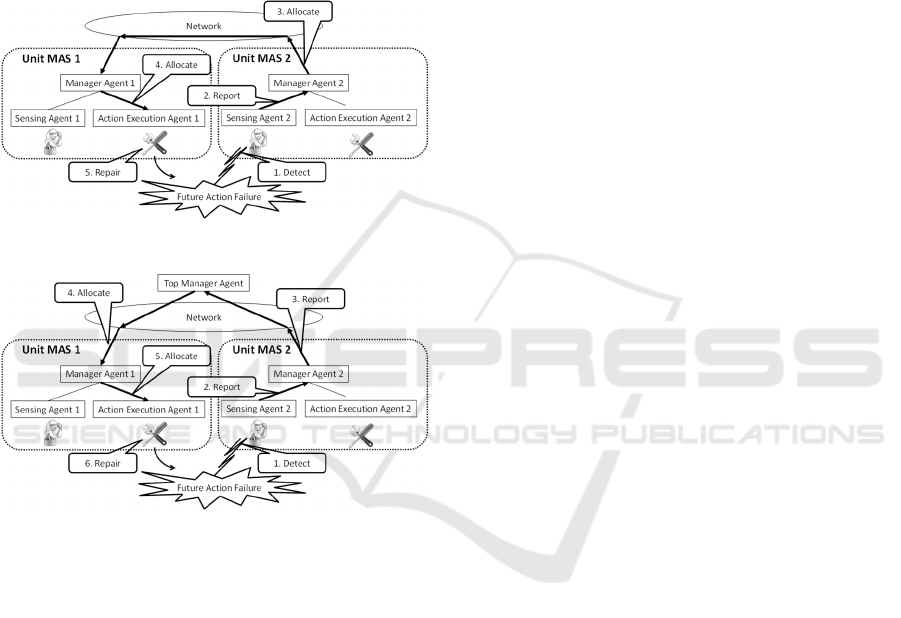

Figure 2: Distributed architecture.

Figure 3: Centralized architecture.

3 ALGORITHMS

In this section, we introduce five algorithms for

repair-task allocations: the independent unit MAS

algorithm (baseline algorithm), the centralized

algorithm, the distributed algorithm, the centralized

algorithm with replanning, and the distributed

algorithm with replanning. In order to make these

algorithms for repair-task-allocations, we use well-

known techniques.

In the independent unit MAS algorithm, the

manager agent of each unit MAS decides which

repair action to execute without exchanging

information with other unit MASs. In the centralized

algorithm, only one manager agent (top manager

agent) works as a leader and allocates repair tasks to

unit MASs. In the distributed algorithm, when a

sensing agent detects a cause of a future agent failure,

the manager agent in the same unit MAS works as a

leader and selects a unit MAS for the repair-task.

Note that different manager agents become leaders

for different repair tasks in the distributed algorithm.

In the centralized algorithm with replanning, only the

top manager agent reallocates unsuccessful repair

tasks to unit MASs. On the other hand, in the

distributed algorithm with replanning, when an

action-execution agent fails to execute a repair action,

the manager agent in the same unit MAS works as a

leader and reallocates the unsuccessful repair task to

a unit MAS.

We expect that the centralized algorithm and the

distributed algorithm can allocate repair tasks more

effectively than the independent unit MAS algorithm

because unit MASs communicate with one another.

We also expect that the distributed algorithm is more

robust than the centralized algorithm that is weak

with respect to the failure of the top manager agent.

We also evaluate the centralized algorithm with

replanning and the distributed algorithm with

replanning because it is natural and effective to

reallocate the repair task when the repair task is not

completed successfully.

3.1 Independent Unit MAS Algorithm

In the independent unit MAS algorithm, the manager

agents of different unit MASs do not communicate

with one another. Therefore, as in Figure 1, when a

sensing agent senses a cause of a future agent failure,

the action-execution agent in the same unit MAS tries

to repair it without the help of the other unit MASs.

Although this algorithm does not require network

connections among unit MASs, multiple action-

execution agents in different unit MASs might try to

execute repair actions for the same cause of a future

agent failure, which leads to unnecessary

consumption of resources.

Algorithm 1 (Independent Unit MAS Algorithm)

The sensing agents, the manager agent and the

action-execution agents in each unit MAS work as

follows if they are alive:

 Algorithm of Sensing Agents

1. When a sensing agent detects a new cause of a

future agent failure, it reports the information to

the manager agent in the same unit MAS if the

manager agent is alive.

 Algorithm of Manager Agents

1. When the manager agent M receives the

information of a new cause of a future agent

failure C from a sensing agent in the same unit

Comparing Repair-Task-Allocation Strategies in MAS

MAS, the manager agent M selects and reserves

an action-execution agent E for the repair task

R of C, if E exists, such that E is alive, the

number of resources of E is more than 0 and E

is not reserved for another cause of a future

agent failure.

2. When it becomes possible for the reserved

action-execution agent E to start executing the

repair action A for the reserved repair task R, if

E is alive, the manager agent M in the same unit

MAS orders E to execute A and erases the

reservation information.

 Algorithm of Action-Execution Agents

1. When receiving an execution order of the repair

action A, the action-execution agent E executes

A, decrements 1 resource whether the result of

A is a success or a failure, and reports the result

to its manager agent.

3.2 Centralized Algorithm

A centralized algorithm is often used for task

allocations in general. In the centralized algorithm, as

shown in Figure 3, only one manager agent (top

manager agent) allocates repair tasks to the manager

agents of unit MASs based on the contract net

protocol (Smith 1980), which is a kind of auction.

Although there are many criteria to select a unit MAS,

we select the unit MAS that can start repairing first.

Because of the network connection, we expect that

the centralized algorithm is more effective than the

independent unit MAS algorithm.

Algorithm 2 (Centralized Algorithm) The sensing

agents, the manager agent and the action-execution

agents in each unit MAS work as follows if they are

alive:

 Algorithm of Sensing Agents

Same as the algorithm of sensing agents in

Algorithm 1.

 Algorithm of Manager Agents

1. When the manager agent M receives the

information of a new cause of a future agent

failure C from a sensing agent in the same unit

MAS, the manager agent M forwards the

information of C to the top manager agent T if T

is alive. Otherwise, it works in the same way as

the first step of the algorithm of manager agents

in Algorithm 1.

2. When the manager agent M receives an

allocation of a repair task R from the top

manager agent, M selects and reserves an

action-execution agent E for R in the same way

as the first step of the algorithm of manager

agents in Algorithm 1.

3. Same as the second step of the algorithm of

manager agents in Algorithm 1.

 Algorithm of the Top Manager Agent

1. When the top manager agent T receives the

information of a new cause of a future agent

failure C from a manager agent, T asks each

alive manager agent M whether the unit MAS U

of M can be in charge of the repair task R of C

and how quickly an action-execution agent of U

can start the repair action of R. Then, T

allocates R to the manager agent of the unit

MAS U2 such that an action-execution agent of

U2 can start the repair action of R the quickest.

 Algorithm of Action-Execution Agents

Same as the algorithm of action-execution

agents in Algorithm 1.

3.3 Distributed Algorithm

In the distributed algorithm, as shown in Figure 2,

when a sensing agent detects a cause of a future agent

failure, the manager agent in the same unit MAS

works as a leader like the top manager agent of the

centralized algorithm, selects a unit MAS based on

the contract net protocol (Smith 1980), and allocates

the repair-task to the manager agent of the selected

unit MAS. However, unlike the centralized algorithm,

different manager agents become leaders for different

repair tasks. Therefore, the distributed algorithm is

expected to be more robust for agent failures than the

centralized algorithm.

Algorithm 3 (Distributed Algorithm) The sensing

agents, the manager agent and the action-execution

agents in each unit MAS work as follows if they are

alive:

 Algorithm of Sensing Agents

Same as the algorithm of sensing agents in

Algorithm 1.

 Algorithm of Manager Agents

1. When the manager agent M receives the

information of a new cause of a future agent

failure C from a sensing agent in the same unit

MAS, M asks each alive manager agent, selects

a unit MAS U and allocates the repair task of C

to the manager agent of the unit MAS U in the

same way as the first step of the algorithm of the

top manager agent in Algorithm 2.

2. When the manager agent M receives an

allocation of a repair task R from the manager

agent of another unit MAS, M selects and

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

reserves an action-execution agent E for R in the

same way as the first step of the algorithm of

manager agents in Algorithm 1.

3. Same as the second step of the algorithm of

manager agents in Algorithm 1.

 Algorithm of Action-Execution Agents

Same as the algorithm of action-execution agents

in Algorithm 1.

3.4 Centralized Algorithm with

Replanning

In the centralized algorithm with replanning, when

execution of a repair action results in failure, the top

manager agent reselects a unit MAS and reallocates

the repair task to the manager agent of the selected

unit MAS. Because the success rate of repair actions

is not 100%, it is expected that replanning will

decrease the number of agent failures.

Algorithm 4 (Centralized Algorithm with

Replanning) The sensing agents, the manager agent

and the action-execution agents in each unit MAS

work as follows if they are alive:

 Algorithm of Sensing Agents

Same as the algorithm of sensing agents in

Algorithm 1.

 Algorithm of Manager Agents

1. Same as the first step of the algorithm of

manager agents in Algorithm 2.

2. Same as the second step of the algorithm of

manager agents in Algorithm 2.

3. Same as the third step of the algorithm of

manager agents in Algorithm 2.

4. When the manager agent M receives the result of

repair-action execution for the repair task R

from an action-execution agent in the same unit

MAS, if the result is a failure, M reports the

result of R as a failure to the top manager agent.

 Algorithm of the Top Manager Agent

1. Same way as the first step of the algorithm of the

top manager agent in Algorithm 2.

2. When the top manager agent T receives the result

of a failure for the repair task R from a manager

agent, T asks each alive manager agent, selects

a unit MAS U, and reallocates R to one of the

manager agents in the same way as the first step

of the algorithm of the top manager agent in

Algorithm 2.

 Algorithm of Action-Execution Agents

Same as the algorithm of action-execution

agents in Algorithm 1.

3.5 Distributed Algorithm with

Replanning

In the distributed algorithm with replanning, when an

action-execution agent fails to execute a repair action,

the manager agent in the same unit MAS reselects a

unit MAS and reallocates the task to the manager

agent of the selected unit MAS. It is expected that

replanning will decrease the number of agent failures.

Algorithm 5 (Distributed Algorithm with

Replanning) The sensing agents, the manager agent

and the action-execution agents in each unit MAS

work as follows if they are alive:

 Algorithm of Sensing Agents

Same as the algorithm of sensing agents in

Algorithm 1.

 Algorithm of Manager Agents

1. Same as the first step of the algorithm of

manager agents in Algorithm 3.

2. Same as the second step of the algorithm of

manager agents in Algorithm 3.

3. Same as the third step of the algorithm of

manager agents in Algorithm 3.

4. When the manager agent M receives the

result of repair-action execution for the

repair task R from an action-execution

agent in the same unit MAS, if the result is a

failure, this manager agent M reallocates R

to one of the manager agents in the same

way as the first step of the algorithm of

manager agents in Algorithm 3.

 Algorithm of Action-Execution Agents

Same as the algorithm of action-execution

agents in Algorithm 1.

4 SIMULATION SETTINGS

In this section, we explain the details of simulation

settings used to compare and evaluate the algorithms

defined in the previous section. We set typical values

of unit MASs, considering our target application that

is closely related to the application of (Beaumont and

Chaib-draa 2007). In 4.1, we show the number of

agents and resources in unit MASs. In 4.2, we show

the performances of sensing and repairing of each

unit MAS. In 4.3, we show the consecutive

occurrence patterns of disaster events that create

multiple causes of future agent failures

simultaneously. As stressed in the introductory

section, we predict that cooperation among agents

becomes very effective in these severe occurrence

Comparing Repair-Task-Allocation Strategies in MAS

patterns of disaster events, which is completely

different from the result of (Beaumont and Chaib-

draa 2007) where the numbers of causes of future

agent failures in their test scenarios are small.

4.1 Numbers of Agents and Resources

in Unit MASs

As shown in Table 1, we use 7 kinds of unit MASs:

UMAS 0, …, UMAS 6, which are typical unit MASs

of our target application. The numbers of UMAS 0,

…, UMAS 6 are 1, 1, 2, 2, 4, 8, 8. The total number

of these unit MASs is 26 (=1+1+2+2+4+8+8). Each

UMAS has exactly one manager agent and the total

number of manager agents is 26. Each UMAS has

exactly one sensing agent except UMAS 0 and the

total number of sensing agents is 25.

Table 1: The number of unit MASs, agents, and resources.

Unit MAS Type

# of Deployed Unit MASs

# of Manager Agents

# of Sensing Agents

# of Action-Execution

Agents

# of Initial Resources of

Each Action-Execution

Agent

UMAS 0 1 1 0 0 -

UMAS 1 1 1 1 0 -

UMAS 2 2 1 1 0 -

UMAS 3 2 1 1 4 18

UMAS 4 4 1 1 2 12

UMAS 5 8 1 1 1 24

UMAS 6 8 1 1 1 3

Because high-performance unit MASs are costly

in general, considering the balance, we use a smaller

number of high-performance unit MASs and a larger

number of low-performance unit MASs. We introdu-

ce the performance of each unit MAS in the next

subsection. Although we conducted simulations for

different numbers of these unit MASs, we observed

similar simulation results and we do not show them

in this paper. Note that the aim of this paper is to find

when each algorithm is more effective than others.

Simulation under different combinations of unit

MASs was not helpful for this purpose.

The numbers of action-execution agents in

UMAS 0, …, UMAS 6 are 0, 0, 0, 4, 2, 1, 1. The total

number of action-execution agents is 32

(=2*4+4*2+8*1+8*1). An action-execution agent

cannot execute more than one repair action in parallel

but multiple action-execution agents can execute

repair actions at the same time. The numbers of initial

resources that each action-execution agent in UMAS

3, …, UMAS 6 has are 18, 12, 24, 3. The total number

of initial resources is 456

(=2*4*18+4*2*12+8*1*24+8*1*3).

UMAS 1 and UMAS 2 do not have action-

execution agents, which means that the causes of

agent failures found by the sensing agent of UMAS 1

or UMAS 2 need to be repaired by the action

execution agents of UMAS 3, …, UMAS 6. UMAS 0

does not have sensing agents or action-execution

agents. It has only one manager agent that works as

the top manager agent when using the centralized

algorithm or the centralized algorithm with

replanning.

4.2 Performance of Sensing and

Repairing

Table 2 shows performances of unit MASs in terms

of sensing and repairing. We set the typical

performances of each unit MAS considering a

specific application. Sensing agents in UMAS 1, …,

UMAS 6 can start detecting causes of agent failure

respectively from 360, 180, 72, 43.2, 18, 18 seconds

before the expected time of agent’s breakdown. The

sooner the sensing agent detects a cause of a future

agent failure, the higher the performance is, which

means that performance of the sensing agent in

UMAS 1 is the best. The probability of detecting

causes of future agent failures is 90%.

Action-execution agents in UMAS 3, …, UMAS

6 can start repairing from 36, 18, 10.8, 10.8 seconds

before the expected time of an agent failure. The

sooner the action-execution agent can start repairing,

the higher the performance is, which means that

performance of the action-execution agent in UMAS

3 is the best. The success probability of repairing is

80%. When an action-execution agent starts repairing

x seconds before the expected time of agent’s

breakdown, the time of repairing will be x/2.5

seconds. We assume a situation where a cause of

agent failure approaches the target agent at constant

speed and the action-execution agent sends the

resource for a repair to the cause of future agent

failure at constant speed.

Table 2: The performance of sensing and repairing.

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

Unit MAS Type

Performance

of Sensing

Performance of

Repairing

Time (secs) to Start Detecting

a Cause before an Agent Failure

Prob. of Detecting Causes of

Future Agent Failures (%)

Time (secs) to Start Repairing

before an Agent Failure

Time for Repairing (secs)

when Starting the Repair

x secs before an Agent Failure

Success Prob. of Repairs (%)

UMAS 1 360 90 - - -

UMAS 2 180 90 - - -

UMAS 3 72 90 36 x/2.5 80

UMAS 4 43.2 90 18 x/2.5 80

UMAS 5 18 90 10.8 x/2.5 80

UMAS 6 18 90 10.8 x/2.5 80

4.3 Occurrence Patterns of Disasters

Table 3 summarizes the occurrence patterns of

disaster events and causes of future agent failures. In

our simulation scenarios, when a disaster event

occurs, a cause of a future agent failure is created

every second. The total number of causes of future

agent failures created by a disaster event is 30.

Disaster events repeatedly happen 10 times, and the

interval between disaster events is 1 hour. Note that

the number of action-execution agents is 32, which is

also the maximum number of the repair actions that

can be executed in parallel. This number is closer to

the number of causes of future agent failures created

by a disaster event. Therefore, the repairing capability

of the MAS is close to the limitation.

As summarized in Table 4, we use two different

selection rules of agents: the random selection rule of

agents and the concentrated selection rule of agents.

When the random selection rule of agents is applied,

if a cause of a future agent failure is not removed by

a repair action, one of the agents is randomly selected.

The selected agent becomes out of order with the

probability of 90% in 1800 seconds. When the

concentrated selection rule of agents is applied, the

top manager agent (the manager agent of UMAS 0) is

selected with the probability of 10% and one of the

other agents is randomly selected if the top agent is

not selected. We expect that the concentrated

selection rule affects the centralized algorithm.

Table 3: Simulation settings.

# of Disaster Events

# of Causes of Future Agent

Failures per Disaster Event

Interval between Disaster Events

(hours)

Interval between Occurrences of

Causes of Future Agent Failures

in a Disaster Event (secs)

Time from an Occurrence of a

Cause to the Agent Failure (secs)

Prob. of Agent Failures when the

Causes Are Not Removed (%)

10 30 1 1 1800 90

Table 4: Selection rules of agents.

Random Selection

Rule of Agents

Concentrated Selection Rule

of Agents

One agent is

randomly selected.

The top manager agent is

selected with the prob. of 10%

and one agent is randomly

selected otherwise.

5 SIMULATION RESULTS

This section shows the simulation results. We

conducted simulations 1000 times using different

random seeds for each algorithm and for each

selection rule of agents. We show the results in terms

of the number of agent failures and successful repairs.

This section is composed of two subsections. In 5.1,

we show the simulation results when using the

random selection rule of agents. In 5.2, we show the

simulation results when using the concentrated

selection rule of agents.

5.1 When using the Random Selection

Rule of Agents

This subsection shows the simulation results when

using the random selection rule of agents. Figure 4

shows the average number of agent failures and

Figure 5 shows the average number of successful

repairs. Reducing agent failures is the top priority but

it depends on successful repairs.

The centralized algorithm and the distributed

algorithm are much better than the independent unit

MAS algorithm because each cause of future agent

failure is allocated to a unit MAS in the centralized

algorithm and the distributed algorithm, which is not

the case with the independent unit MAS algorithm.

These two algorithms become much better when

Comparing Repair-Task-Allocation Strategies in MAS

combined with a replanning capability because

replanning covers unsuccessful repair actions.

The distributed algorithm with/without

replanning is better than the centralized algorithm

with/without replanning. However, the difference is

slight. We expect that the difference would become

bigger after the top manager agent becomes out of

order. Therefore, in the next subsection, we focus on

use of the concentrated selection rule of agents to

increase the possibility of a failure of the top manager

agent.

Figure 4: Average number of agent failures when using the

random selection rule of agents.

Figure 5: Average number of successful repairs when using

the random selection rule of agents.

Figure 6 shows the probabilities of each algorithm

getting the best results in terms of the numbers of

agent failures. The sum of the probabilities is more

than 100 % because multiple algorithms can get the

best result in a trial. Unlike Figure 4, Figure 6 clearly

indicates that the distributed algorithm with

replanning is the best choice and the centralized

algorithm with replanning is the second best choice.

Figure 6: Probability of getting the best result in terms of

the number of agent failures when using the random

selection rule of agents.

5.2 When using the Concentrated

Selection Rule of Agents

This subsection shows the simulation result when

using the concentrated selection rule of agents. Figure

7 shows the average number of agent failures and

Figure 8 shows the average number of successful

repairs.

Now, the differences between the centralized

algorithm with/without replanning and the distributed

algorithm with/without replanning are clear. The

distributed algorithm without replanning becomes

better than the centralized algorithm without

replanning from the second disaster event. The

distributed algorithm with replanning becomes better

than the centralized algorithm with replanning from

the fifth disaster event. This is because the centralized

algorithms work in the same way as the independent

unit MAS algorithm after the failure of the top

manager agent.

Figure 7: Average number of agent failures when using the

concentrated selection rule of agents.

100

12345678910

#ofAgentFailures

#ofDisasterEvents

Independent

UnitMAS

Distiributed

Centralized

Distiributedwith

replanning

Centralizedwith

replanning

100

150

200

250

12345678910

#ofSuccessfulRepairs

#ofDisasterEvents

Independent

UnitMAS

Distiributed

Centralized

Distiributedwith

replanning

Centralizedwith

replanning

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

Prob.ofGettingtheBestResults

(#ofAgentFailures)

100

12345678910

#o

AgentFaii

ures

#ofDisasterEvents

Independent

UnitMAS

Distiributed

Centralized

Distiributedwith

replanning

Centralizedwith

replanning

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

Figure 9 shows the probabilities of getting the best

results in terms of the numbers of agent failures.

Figure 9 clearly indicates that the distributed

algorithm with replanning is the best choice.

Figure 8: Average number of successful repairs when using

the concentrated selection rule of agents.

Figure 9: Probability of getting the best result in terms of

the number of agent failures when using the concentrated

selection rule of agents.

6 DISCUSSION

As mentioned in the introduction, some repair-task-

allocation algorithms are compared in (Beaumont and

Chaib-draa 2007), including a no-coordination

algorithm (≒ independent unit MAS algorithm), a

zone defence coordination algorithm, a contract net

algorithm, a simple centralized coordination

algorithm, and another central coordination algorithm

of (Brown and Lane 2001). In their simulation results,

the no-coordination algorithm gives the best result in

terms of the number of hits (≒successful repairs).

Note that the independent unit MAS algorithm (≒no-

coordination algorithm) always produces the worst

results in our simulation results.

This is mainly because the total number of threats

(≒causes of future agent failures) is small (1 to 10)

in the scenario of (Beaumont and Chaib-draa 2007).

This is also because each ship (≒unit MAS) tries to

remove all the threats using many resources in the no-

coordination algorithm whereas each threat is

assigned to only one ship in the other algorithms and

replanning is not an option even when it fails to

remove the threat.

On the other hand, in our simulation scenario, 10

disaster events repeatedly happen, each disaster event

creates 30 causes of future action failures, and the

total number of causes of future agent failures is 300.

In this case, the unit MASs cannot remove all the

causes of future agent failures without coordination.

Also, in the independent unit MAS algorithm that

uses many resources, unit MASs soon run out of

resources at early stages and cannot continue

repairing afterwards. Therefore, in our much severer

disaster scenario, the independent unit MAS

algorithm is the worst choice and coordination among

unit MASs is vital. This is completely different from

the simulation result of (Beaumont and Chaib-draa

2007) where they never run out of resources.

In addition, we found that replanning is very

effective in this severe situation. Furthermore, we

confirmed that in our simulation scenario, the

distiributed algorithm is better than the centralized

algorithm and especially so when the concentrated

selection rule is applied.

Because different scenarios might lead to

different conclusions, it is important to conduct

simulations considering our target applications in

more detail. It is also important to evaluate more

algorithms considering other situations such as

network delay. We need to tackle these challenges as

the next step.

7 CONCLUSIONS

In this paper, we evaluated and compared five

algorithms for repair-task allocations in MASs that

consist of multiple unit MASs by means of multi-

agent simulation: the independent unit MAS

algorithm, the centralized algorithm, the distributed

algorithm, the centralized algorithm with replanning,

and the distributed algorithm with replanning. We

used severe simulation scenarios where causes of

future agent failures are created simultaneously and

consecutively. We conducted simulation 1000 times

for each case and algorithm and confirmed the

100

150

200

250

12345678910

#ofSuccessfulRepairs

#ofDisasterEvents

Independent

UnitMAS

Distiributed

Centralized

Distiributedwith

replanning

Centralizedwith

replanning

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

Prob.ofGettingtheBestResults

(#ofAgentFailures)

Comparing Repair-Task-Allocation Strategies in MAS

following in terms of the average number of agent

failures and successful repairs:

 The centralized algorithm and the distributed

algorithm are always better than the

independent unit MAS algorithm in our

simulation scenarios, which means that

cooperation between unit MASs is very

effective. This conclusion is completely

different from the simulation results reported

in (Beaumont and Chaib-draa 2007). This is

because much more severe disasters are

considered in our simulation scenarios

where causes of future agent failures are

created simultaneously and consecutively.

 The centralized algorithm and the distributed

algorithm become even better when

combined with replanning, which means that

replanning is very effective in our simulation

scenarios where repair actions sometimes

fail.

 The distributed algorithm with/without

replanning is better than the centralized

algorithm with/without replanning when the

random selection rule is applied although the

difference is slight. However, the distributed

algorithm with/without replanning becomes

much better than the centralized algorithm

with/without replanning when the

concentrated selection rule is applied. This

means that the distributed algorithm is

effective for unbalanced occurrences of

future agent failures and the centralized

algorithm is not robust when the top

manager agent is vulnerable.

 In summary, the distributed algorithm

with replanning is always the best and the

independent unit MAS algorithm is always

the worst in our severe simulation scenarios

where hundreds of causes of future agent

failures are created.

We also evaluated the algorithms from the view

point of “the probabilities of getting the best results

in terms of the numbers of agent failures” and

confirmed the following:

 The distributed algorithm with replanning is

clearly the best choice in any case in our

simulation scenarios.

 The centralized algorithm with replanning is

clearly the second best choice when the

random selection rule of agents is applied.

In future work, we intend to consider the

following two directions:

 We intend to evaluate the algorithms in more

detail in our target application. For this

purpose, we need to combine the MAS

controller of our algorithms and the domain-

specific simulator of our target application.

 We intend to evaluate more algorithms

considering other situations. For example,

sometimes the network speed between

manager agents of different unit MASs

might slow or the network might be cut off.

In another example, the human manager of

the unit MAS might correct the allocation of

repair actions that the manager agent

recommends.

REFERENCES

Beaumont, P. and Chaib-draa, B. “Multi-platform

Coordination in Command and Control." In

Proceedings of the International Command and

Control Research and Technology Symposium, 2004.

Beaumont, P. and Chaib-draa, B. “Multiagent Coordination

Techniques for Complex Environments: the Case of a

Fleet of Combat Ships.” IEEE Transaction on Systems,

Man and Cybernetics-Part C, 37(3), pp. 373-385, 2007.

Brown, C., and Lane, D. “Anti-Air Warfare Co-ordination

- An Algorithmic Approach.” In Proceedings of the

International Command and Control Research and

Technology Symposium, 2000.

Brown, C., Fagan, P., Hepplewhite, A., Irving, B., Lane, D.,

and Squire, E. “Real-time Decision Support for the

Anti-air Warfare Commander.” In Proceedings of the

International Command and Control Research and

Technology Symposium, 2001.

Chapman, A., Micillo, R. A., Kota, R. and Jennings, N. R.

"Decentralised Dynamic Task Allocation: A Practical

Game-theoretic Approach." In Proceedings of the

International Conference on Autonomous Agents and

Multiagent Systems, pp. 915–922, 2009.

Choi, H.-L., Brunet, L., and How, J. P. “Consensus-Based

Decentralized Auctions for Robust Task Allocation.”

IEEE Transactions on Robotics 25(4), pp. 912-926,

2009.

Dawe, M. "Beyond the Kung-Fu Circle: A Flexible System

for Managing NPC Attacks.” In Game AI Pro:

Collected Wisdom of Game AI Professionals, Chapter

28, pp.369-375, 2013.

dos Santos, F. and Bazzan, A. L. C. “Towards Efficient

Multiagent Task Allocation in the RoboCup Rescue: a

Biologically-Inspired Approach.” Autonomous Agents

and Multi-Agent Systems, 22 (3), pp. 465-486, 2011.

Guessoum, Z, Briot, J. P., Faci, N., and Marin, O.

“Toward Reliable Multi-Agent Systems: an Adaptive

Replication Mechanism.” Multiagent and Grid Systems,

6(1), pp. 1-24, 2010.

Macarthur, K. S., Stranders, R., Ramchurn, S. D. and

Jennings, N. R. “A Distributed Anytime Algorithm for

Dynamic Task Allocation in Multi-Agent Systems.” In

ICAART 2017 - 9th International Conference on Agents and Artiﬁcial Intelligence

Proceedings of the AAAI Conference on Artificial

Intelligence, pp. 701-706, 2011.

Mi, Z., Yang, Y., Ma, H., and Wang, D. “Connectivity

Preserving Task Allocation in Mobile Robotic Sensor

Network.” In Proceedings of the IEEE International

Conference on Communications, pp. 136-141, 2014.

Nair, R., Ito, T., Tambe, M., and Marsella, S. “Task

Allocation in the Rescue Simulation Domain: a Short

Note.” In RobuCup2001, LNAI 2377, Springer, pp.

751-754, 2002.

Okimoto, T., Schwind, N., Clement, M., Riberio, T., Inoue,

K., and Marquis, P. “How to Form a Task-Oriented

Robust Team.” In Proceedings of the International

Conference on Autonomous Agents and Multiagent

Systems, pp. 395-403, 2015.

Pujol-Gonzalez, M., Cerquides, J., Farinelli, A., Meseguer,

P., and Rodriguez-Aguilar, J. A. “Efficient Inter-Team

Task Allocation in RoboCup Rescue.” In Proceedings

of the International Conference on Autonomous Agents

and Multiagent Systems, pp. 413-421, 2015.

Rahimzadeh, F., Khanli, L. M., and Mahan, F. “High

Reliable and Efficient Task Allocation in Networked

Multi-Agent Systems.” Autonomous Agent and Multi-

agent Systems, 29(6), pp.1023-1040, 2015.

Ramchurn, S. D., Farinelli, A., Macarthur, K. S., and

Jennings, N. R. “Decentralized Coordination in

RoboCup rescue.” The Computer Journal, 53(9):1447–

1461, 2010.

Ramchurn, S. D., Wu, F., Jiang, W., Fischer, J. E., and

Reece, S., Roberts, S., Rodden, T., Greenhalgh, C., and

Jennings, N. R. "Human–agent Collaboration for

Disaster Response." Autonomous Agents and Multi-

Agent Systems, 30 (1). pp. 82-111, 2016.

Smith, R. G. “The Contract Net Protocol: High-level

Communication and control in a Distributed Problem

Solver.” IEEE Transactions on Computers, C-29(12),

pp. 1104-1113, 1980.

Straatman, R., Verweij, T., Champandard, A., Morcus, R.,

and Kleve, H. “Hierarchical AI for Multiplayer Bots in

Killzone 3.” Game AI Pro: Collected Wisdom of Game

AI Professionals, Chapter 29, pp.377-390, 2013.

Suárez, S., Quintero, C., and de la Rosa, J. L. “Improving

Tasks Allocation and Coordination in a Rescue

Scenario.” In Proceedings of the European Control

Conference, pp. 1498-1503, 2007.

Vallejo, D., Remagnino, P., Monekosso, D. N., Jiménez, L.,

and González, C. “A Multi-Agent Architecture for

Multi-robot Surveillance.” In Proceedings of the IEEE

International Symposium on Parallel and Distributed

Processing with Applications, pp. 11-18, 2009.

Young, B. W. “Future integrated Fire Control.” In

Proceedings of the International Command and

Control Research and Technology Symposium, 2005.

Comparing Repair-Task-Allocation Strategies in MAS
