Model-Driven Product Line Engineering for Mapping Parallel

Algorithms to Parallel Computing Platforms

Ethem Arkin

and Bedir Tekinerdogan

Aselsan A.Ş., Ankara, Turkey

Wageningen University, Information Technology, Wageningen, The Netherlands

Keywords: Model Driven Software Development, Product Line Engineering, Parallel Computing, Tool Support.

Abstract: Mapping parallel algorithms to parallel computing platforms requires several activities such as the analysis

of the parallel algorithm, the definition of the logical configuration of the platform, the mapping of the

algorithm to the logical configuration platform and the implementation of the source code. Applying this

process from scratch for each parallel algorithm is usually time consuming and cumbersome. Moreover, for

large platforms this overall process becomes intractable for the human engineer. To support systematic reuse

we propose to adopt a model-driven product line engineering approach for mapping parallel algorithms to

parallel computing platforms. Using model-driven transformation patterns we support the generation of

logical configurations of the computing platform and the generation of the parallel source code that runs on

the parallel computing platform nodes. The overall approach is illustrated for mapping an example parallel

algorithm to parallel computing platforms.

1 INTRODUCTION

Although Moore’s law (Moore, 1998) is still in effect,

currently it is recognized that increasing the

processing power of a single processor has reached

the physical limitations (Frank, 2002). Hence, to

increase the performance the current trend is towards

applying parallel computing on multiple nodes. Here,

unlike serial computing in which instructions are

executed serially, multiple processing elements are

used to execute the program instructions

simultaneously. To benefit from the parallel

computing power usually parallel algorithms are

defined that can be executed simultaneously on

multiple nodes. As such, increasing the number of

processing nodes will increase the performance of the

parallel programs (Gustafson, 1988). An important

challenge in this context is the mapping of parallel

algorithms on a computing platform that consists of

multiple parallel processing nodes. The mapping

process requires several activities such as the analysis

of the parallel algorithm, the definition of the logical

configuration of the platform, the mapping of the

algorithm to the logical configuration platform and

the implementation of the source code.

Usually the mapping process is done from scratch

for each parallel algorithm and the given parallel

computing platform. Hereby, practically no reuse is

applied. However, the current parallel algorithms, the

computing platform and the overall mapping process

seem to have lots of commonality. Exploiting this

commonality will support systematic reuse and

likewise decrease the time to map the parallel

algorithm to the parallel computing platform and

increase the overall quality.

Further, the overall process is usually applied not

only from scratch but also largely manual whereby

practically no automation is applied. This is not a

huge problem in case we are dealing with a limited

number of processing nodes. However, the current

trend shows the dramatic increase of the number of

processing nodes for parallel computing platforms

with now about hundreds of thousands of nodes

providing petascale to exascale level processing

power. As a consequence the manual mapping of the

parallel algorithm to computing platforms has

become intractable for the human parallel computing

engineer.

To support the mapping of the parallel algorithm

to parallel computing platforms, we adopt a

systematic product line engineering approach. The

approach aims to reduce the development time by

reusing the features of the algorithms and platforms,

and the code templates. Using model-driven

Arkin, E. and Tekinerdogan, B.

Model-Driven Product Line Engineering for Mapping Parallel Algorithms to Parallel Computing Platforms.

DOI: 10.5220/0005783303470354

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 347-354

ISBN: 978-989-758-168-7

347

transformation patterns we support the automatic

generation of logical configurations of the computing

platform and the generation of the parallel source

code that runs on the parallel computing platform

nodes. The overall approach is illustrated for mapping

an example parallel algorithm to parallel computing

platforms

The remainder of the paper is organized as

follows. In section 2, we describe the problem

statement with a running example. Section 3 presents

the overall approach. Section 4 presents the toolset

that implements the model-driven automation

process. Section 5 presents the related work and

finally section 6 presents the conclusions.

2 PROBLEM STATEMENT

To illustrate the problem statement in more detail we

will shortly discuss the mapping of the parallel matrix

transpose algorithm to a parallel computing platform.

The pseudo code of the algorithm is shown in Figure

1. We aim to map the algorithm to a parallel

computing platform that consists of pxq processing

nodes.

1. Procedure Matrix-Transpose(A, p, q):

2. For j = 0 to p-1

3. Do

4. For i = 0 to q-1

5. Do

6. Copy all blocks of A[p+i, q-j] //gather

7. Swap A[p+i, q-j] A[p-i, q+j] // exchange

8. Restore all blocks of A[p-i, q+j]

9. Done

10. Done

Figure 1: Matrix Transpose Algorithm.

The matrix transpose algorithm swaps the column and

row values with each other. The algorithm consists in

essence of three parallel sections that are executed

iteratively for all nodes. In the first section (line 6),

the data blocks that will be swapped are copied to

dominating nodes (Tsai and McKinley, 1994). A

dominating node is a node that coordinates the

interaction with a group of nodes. In the second

section (line 7), these copied data blocks are swapped

between nodes. Finally in the third section (line 8),

the data blocks are restored to destination nodes. In

essence the three sections can be characterized as

gather, exchange and scatter operations, respectively

(İmre et al., 2011).

Given the physical parallel computing platform

consisting of pxq nodes, we need to define the

mapping of the different sections to these nodes. In

this context, the logical configuration is a view of the

physical configuration that defines the logical

communication structure among the physical nodes.

Typically, for the same physical configuration we can

have many different logical configurations (Arkin et

al., 2013). Hereby, some nodes are selected as

dominating nodes that collect data, exchange data

with each other and distribute the data to the other

nodes. For example for the physical configuration

consisting of 3x3 nodes (p=3, q=3) three different

example logical configurations are provided in

Figure

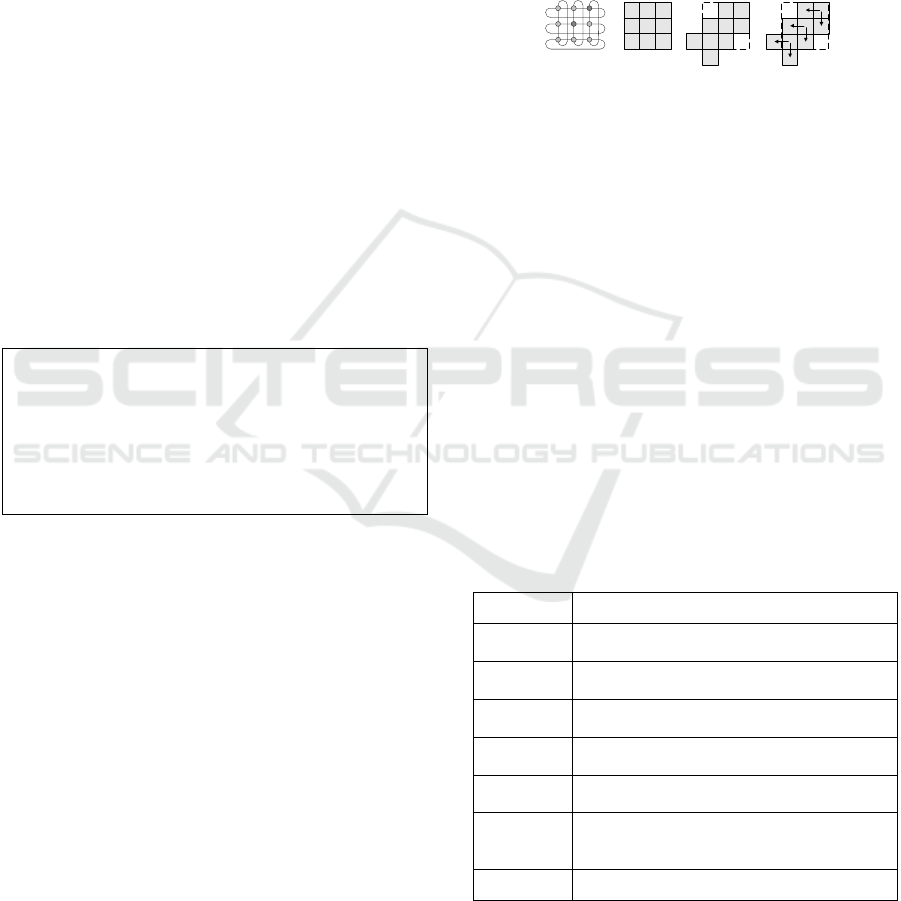

Figure 2: Physical configuration of a topology (left figure)

with example logical configurations (right three figures).

In general, many different logical configurations can

be defined for the same physical configuration.

Hereby, each logical configuration will perform

differently with respect to different quality concerns

such as speedup and efficiency. Once the logical

configuration is defined the corresponding code that

needs to be deployed on the nodes must be

implemented.

It appears that the above process for mapping a

parallel algorithm to parallel computing platform is

similar for other parallel algorithms. The process

includes the same steps, that is, first the parallel

algorithm needs to be analyzed, the logical

configuration needs to be selected and the parallel

code needs to be written and mapped on the

corresponding nodes. Currently this process is done

from scratch and reuse is primarily implicit or ad hoc.

Table 1: Operation Descriptions for Parallel Algorithms.

Operation Description

Gather

Each dominating node gets data from its

dominated nodes in a pattern.

Scatter

Each dominating node sends data to its

dominated nodes in a pattern.

Collect

A dominating node gets data from other

dominating nodes.

Distribute

A dominating node sends data to other

dominating nodes.

Exchange

All dominating nodes exchange data with each

other dominating nodes.

Broadcast

A dominating node sends data to all other

nodes. In general, the broadcast operation

consists of distribute and scatter operations.

Serial Serial code block that runs on a single node.

An analysis of the parallel algorithms in the

literature shows that these use abstract well-known

operations (İmre et al., 2011).

Table 1 shows, for

example, six operations that form part of different

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

348

parallel algorithms.

Table 2 shows an example set of parallel

algorithms with the implemented operations of Table

1. For example, the parallel algorithm Matrix

Transpose can be defined as a combination of Gather,

Exchange and Scatter operations. The Matrix

Multiply algorithm consists of the operation

Distribute, Serial, Collect and Serial. Similar to these

algorithms other parallel algorithms can be in essence

defined as consisting of these predefined operations.

Table 2: Operations for Parallel Algorithms.

Algorithm Operations

Matrix

Transpose

Gather; Exchange; Scatter

Matrix Multiply

Distribute; Serial (multiply);Collect;

Serial (sum)

Array Increment Distribute; Collect; Serial (increment)

Complete

Exchange

Scatter; Exchange; Gather

Map Reduce Scatter; Serial (custom); Gather

Besides of lack of reuse, the mapping process is

currently largely manual. Due to the small size of the

computing platform the required code can be

implemented manually. For larger platform sizes the

required code will be largely similar. However, one

can easily imagine that manual implementation of the

code for larger configurations such as for petascale

and exascale computing platforms becomes more

time consuming, tedious and error prone. For this

automated support of the overall mapping process is

required.

3 APPROACH

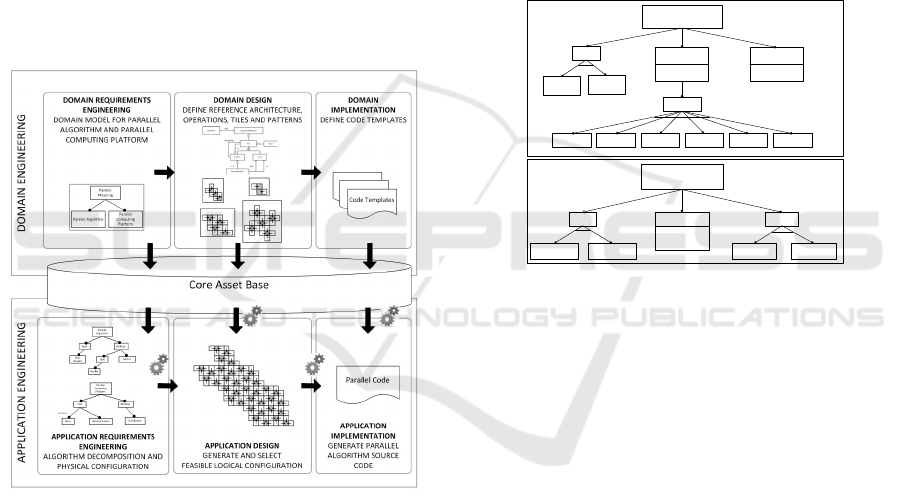

In this section we provide a model-driven approach

for supporting systematic reuse of the mapping of

parallel algorithms to parallel computing platforms.

For this, we apply a software product line engineering

(SPLE) approach targeted to the development of

parallel algorithms and deployment code. The key

motivation for adopting a product line engineering

process is to develop products more efficiently, get

them to the market faster to stay competitive and

produce with higher quality. In alignment with these

goals different software product line engineering

approaches have been proposed. These approaches

seem to share the same concepts of domain

engineering, in which a reusable platform and product

line architecture is developed, and application

engineering, in which the results of the domain

engineering process are used to develop the product

members (Clements and Northrop, 2002).

The mapping process of parallel algorithms to

parallel computing platforms has been defined by

several authors. Usually the following four steps are

defined in the overall process (Foster, 1995):

 Partitioning: Partitioning is related to the

decomposition of the parallel algorithm to the

multiple sections. Hereby, a section can be either

serial or parallel. Further, partitioning is also

related to the decomposition of the parallel

computing platform, i.e. the physical

configuration.

 Communication: After partitioning,

communication is defined between the nodes.

Nodes can communicate with neighbours using a

certain geometric or functional pattern. In

essence, the communication patterns define the

logical configuration of the system.

 Agglomeration: Different logical configurations

can be selected and each configuration alternative

will perform differently with respect to the

speedup and efficiency metrics.

 Mapping: In the final step the parallel algorithm

needs to be implemented according to the selected

feasible logical configuration.

Based on the SPLE process and the general steps for

mapping parallel algorithms to parallel computing

platforms we present the approach for model-driven

product line engineering as shown in Figure 3.

Similar to the traditional SPLE process the presented

process also includes two separate life cycle

processes including domain engineering and

application engineering. The domain engineering

process includes domain requirements engineering,

domain design and domain implementation. In the

domain requirements engineering activity the domain

model for the addressed parallel algorithms and

computing platforms are defined using feature

models. In the domain design the reference

architecture for the logical configuration together

with the parallel communication patterns (tiles) are

developed. In the domain implementation the code

fragments for the communication patterns of the

logical configurations are implemented. The results

of the domain engineering activity are stored in the

asset base and later reused during the application

engineering process. In the application requirements

engineering process a particular parallel algorithm

and parallel computing platform is provided as an

input. By reusing the domain model of the domain

requirements engineering the algorithm

decomposition and physical configuration are

defined. In the application design the logical

configuration is generated based on the reference

architecture and the corresponding predefined

Model-Driven Product Line Engineering for Mapping Parallel Algorithms to Parallel Computing Platforms

349

patterns and tiles that define the common

communication structures. Further, a feasible logical

configuration alternative is selected. Finally, in the

application implementation activity the parallel

source code is again generated by reusing the

predefined code templates and the selected logical

configuration.

In the overall process the transformation between

the application activities are automated using model-

driven development techniques. The automation is

shown using the corresponding automation symbol

(gears). The generation of the logical configuration is

realized using model-to-model transformations,

while the generation of the final parallel code is

realized using model-to-text transformations (Arkin

and Tekinerdogan, 2015). In the following

subsections, we will elaborate on each activity and

discuss the approach in more detail using a running

example.

Figure 3: Approach for model-driven software product line

approach for mapping parallel algorithms to parallel

computing platforms.

3.1 Domain Engineering

In this section we describe the domain engineering in

detail, which describes the development of the

reusable core assets for the mapping of parallel

algorithms to parallel computing platforms.

3.1.1 Domain Requirements Engineering

The domain requirements engineering process aims

to define the common and variant parts of both

parallel algorithms and parallel computing platforms.

The corresponding feature model represented using

cardinality based feature modeling (Czarnecki and

Helsen, 2005) is shown in Figure 4. Parallel

Algorithm consists of feature Type that can be either

Data Parallel or Task Parallel, or both. In data

parallelism, the same calculation is performed on

different sets of data. In task parallelism different

calculations can be performed on either the same or

different sets of data (Navarro et al., 2014). A parallel

algorithm consists of zero or more Parallel Sections

and zero or more Serial Sections. Each parallel

section can be considered as an Operation which is

either Gather, Scatter, Collect, Distribute or

Exchange. These operations have been derived from

an analysis to parallel programming language

abstractions such as defined in MPI.

Figure 4: Domain Model for Parallel Algorithm Mapping.

Parallel Computing Platform has a Type, Core

size, and Memory. The type defines whether the

platform is homogenous or heterogeneous. In

homogeneous platforms each core is identical,

whereas in heterogeneous platforms the cores can

change with respect to processing power. Further,

Memory can be either distributed or shared. In

distributed memory model each core has its own

memory, whereas in shared memory model each core

uses the same memory. The Core Size gives the

number of cores in the parallel computing platform

which the algorithm will be mapped to.

3.1.2 Domain Design

The domain requirements define the characteristics of

the parallel algorithm and the parallel computing

platform. Based on the domain model the feasible

logical configuration needs to be defined. As stated

before, the logical configuration is a view on the

physical configuration based on the selected

operation. The logical configuration defines both the

structure of the nodes imposed by the operation as

well as the communication pattern among the nodes.

Parallel Algorithm

Type

Data

Parallel

Parallel Computing

Platform

Type

Heteregenous

Memory

Distributed

ParallelSection

name: String

Operation

Distribute

CoreSize

colSize: Integer

rowSize: Integer

Task

Parallel

[0..*]

SerialSection

name: St ring

[0..*]

Gather Scatter Collect Exchange Broadcast

Homog ene ous Shared

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

350

The metamodel for the reference architecture of the

logical configuration is shown in Figure 5. In essence

each logical configuration defined in the application

engineering process will conform to this metamodel.

Each logical configuration consists of a set of tiles.

Tiles as such can be considered as the basic building

blocks of the logical configuration. A tile is used for

addressing group of processing elements that form a

neighbourhood region on which processes and

communication links are mapped. The smallest part

of a tile is a core. The dynamic behaviour of the tile

is the communication between the inner cores of the

tile and the communication with other tiles. Hence,

after defining the primitive tiles, we need to define the

dynamic behaviour among the cores as the

communication pattern. A communication pattern

includes communication paths that consist of a source

node, a target node and a route between the source

and target nodes.

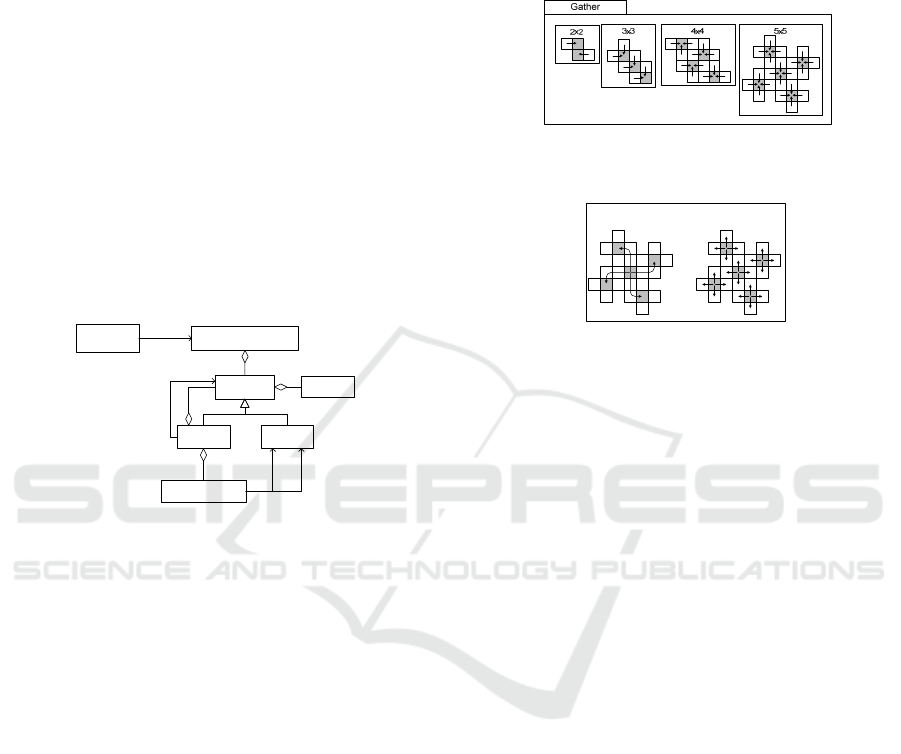

Figure 5: Metamodel for the reference architecture.

The logical configuration is defined by the

semantics of the operation. Each parallel operation

will typically require different logical configurations.

The structure of the logical configuration is further

defined by the total number of physical cores. Figure

6 shows the logical configurations for selected set of

operations and size of nodes. For example, for the

operation Gather we have shown 4 different

examples of logical configurations (2x2, 3x3, 4x4,

and 5x5). Other logical configurations could be

defined as well.

Each operation will in the end run on the tiles of

the logical configuration. To compose the logical

configuration using the primitive tiles, the tiles must

be scaled to larger dimensions. When the tiles are

scaled to a larger size, the operations, in other words

the communication patterns assigned to operations,

must also be scaled to larger logical configuration.

Hereby, the scaling strategy of the operation affects

the order of communication patterns when scaling the

operations. Scaling strategy is the order of

communication pattern generation for operation as

bottom up or top down.

Each of these primitive communication patterns

can be also used to define more complex

communication patterns by composing multiple

different operations. For example, the Broadcast

operation as shown in Figure 7 is a composition of the

operation Distribute and Scatter.

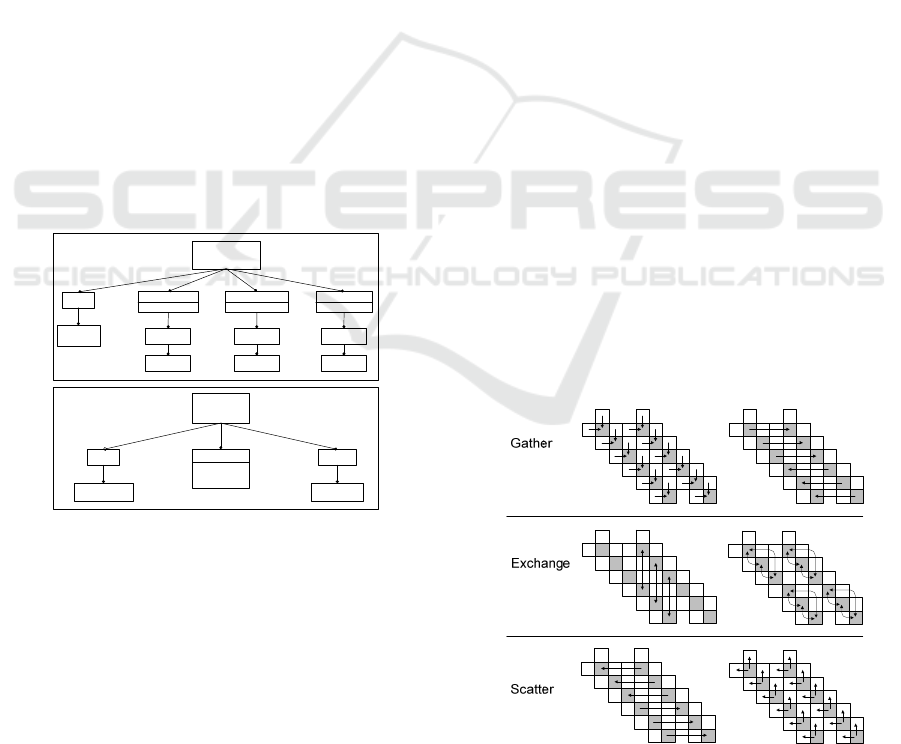

Figure 6: Predefined primitive Communication Patterns per

Tile for Operation.

Figure 7: Example composite communication pattern,

Broadcast, consisting of sequence of Distribute and Scatter

operations.

The logical configurations of all primitive

operations together with the important composite

operations are stored in the asset base for supporting

the application engineering process later on. In

addition to the logical configuration also the

generators for defining application logical

configurations are stored in the asset base. This is

necessary for generating large scale logical

configurations that cannot be defined manually. The

generator is defined as a model-to-model

transformation (Bézivin, 2005) in which the source

model is the application feature model and the output

is the generated logical configuration. The

transformation code is written in the Epsilon

Transformation Language (ETL) (Epsilon, 2015).

3.1.3 Domain Implementation

The previous steps have focused on providing

reusable primitive operations and the definition of

transformation definition that can be used to generate

logical configurations. In the domain implementation

we provide a reusable code template that implements

the common code and provides means to generate the

variant code. The generated code is provided for a

particular computing platform. In practice there are

several computing platforms to implement the

mapping such as, MPI, OpenMP, MPL, and CILK

(Talia, 2001). For different purposes different

platforms might need to be selected. For example, if

LogicalConfiguration

Tile

Core

Pattern

Communication

from to

Data

1..n

dominating

Operation

defines

Distribute Scatter

Model-Driven Product Line Engineering for Mapping Parallel Algorithms to Parallel Computing Platforms

351

the parallel computing platform is built using

distributed memory architecture then the MPI

implementation platform needs to be chosen. In case

shared memory architecture is used then OpenMP

will be typically preferred. Other considerations for

choosing the implementation platform can be driven

by performance of these platforms. As such, in the

domain implementation we provide multiple code

templates that can be used for various different

platforms.

3.2 Application Engineering

In this section we describe the application

engineering in detail, which describes the

development of the mapping of parallel algorithms to

parallel computing platforms by reusing the core

assets.

3.2.1 Application Requirements Engineering

In the application requirements engineering process,

the algorithm feature model including common and

variant parts is defined based on the domain feature

model. The design and implementation for the

mapping of the parallel algorithm to parallel

computing platform is done based on the selected

features.

Figure 8: Matrix Transpose algorithm feature model.

Figure 8 depicts the feature model for the earlier

given matrix transpose algorithm. At the top of the

figure, the features of the matrix transpose algorithm

are defined. An analysis of the algorithm reveals that

the type of the algorithm is data parallel. Further the

algorithm consists of three parallel sections as

described in the problem statement. Based on the

analysis of the algorithm, the parallel section

CopyBlocks implements the Gather operation, Swap

implements Exchange, and RestoreBlocks

implements Scatter.

The lower part of the figure defines the features

of the parallel computing platform. Here, based on the

analysis of the platform the computing platform type

is selected to be homogeneous. Further the platform

is constructed by 6x6 cores and uses distributed

memory.

3.2.2 Application Design

In the application design process, the logical

configuration is generated using a predefined

LogicalConfigurationGenerator. The input that is

needed for the transformation, the application feature

model, is defined in the application requirements

engineering. The matrix transpose algorithm

consisted of the operations Gather, Exchange and

Scatter.

Figure 9 shows the logical configurations for

these operations after executing

LogicalConfigurationGenerator. Because the core

size of the parallel computing platform is 6x6, based

on prime factorization the tiles 2x2 and 3x3 are used

to construct the logical configuration.

3.2.3 Application Implementation

The application implementation process aims to

implement the final parallel source code. The source

code is generated automatically from the logical

configurations using the required parallel

programming language code templates by executing

the model-to-text transformation. After the

generation the resulting code is deployed on the

parallel computing platform. This process can be

done manually or in case of large platforms various

tools can be used to automate the deployment as well.

This is however beyond the scope of this paper.

Figure 9: Logical Configurations for Matrix Transpose

Algorithm steps.

Matrix Transpose

Algorithm

Type

Data

Parallel

ParallelSection

CopyBlocks

Operation

Parallel

Computing

Platform

Type

Homogeneous

Memory

Distributed

Gather

ParallelSection

Swap

Operation

Exchange

ParallelSection

RestoreBlocks

Operation

Scatter

CoreSize

colSize: 6

rowSize: 6

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

352

4 RELATED WORK

In this paper we have applied a model-driven

software product line engineering approach for

mapping parallel algorithms to parallel computing

platforms. Since the approach as such integrates the

paradigms of software product line engineering,

model-driven development and parallel computing,

we consider the related work on model driven

development for parallel computing, model driven

software product lines and product line approaches

for parallel computing.

In the domain of model-driven software

development for parallel computing, Palyart et al.,

(2011) propose an approach for using model-driven

engineering in high performance computing. They

focus on automated support for the design of a high

performance computing application based on abstract

platform independent model. The approach includes

the steps for successive model transformations that

enrich progressively the model with platform

information. The approach is supported by a tool

called Archi-MDE. Gamatié et al., (2011) represent

the Graphical Array Specification for Parallel and

Distributed Computing (GASPARD) framework for

massively parallel embedded systems to support the

optimization of the usage of hardware resources.

GASPARD uses MARTE (Object Management

Group, 2009) standard profile for modeling

embedded systems at a high abstraction level.

MARTE models are then refined and used to

automatically generate code. Taillard et.al (2008)

propose a graphical framework for integrating new

metamodels to the GASPARD framework. They used

model-driven development techniques to generate

OpenMP, Fortran or C code. Travinin et al., (2005)

introduce pMapper tool which generates mappings

for numerical arrays. It supports user to generate an

optimal mapping solution by using heuristics. The

heuristics are supplied by an expert parallel

computing engineer and minimize the mapping

search space. The tool generates the source code and

run on parallel system. In our earlier study (Arkin et

al., 2013), we proposed a model driven development

approach for mapping parallel algorithms to parallel

computing platforms based on tiles and

communication patterns to support selecting from

feasible mapping alternatives.

For scientific computation algorithms, the SPLE

process is used for library-centric application design.

The Generative Matrix Computation Library

(Czarnecki and Eisenecker, 1999) is a framework

based on expression templates, idioms and template

meta-programming facilities. The Template

Numerical Toolkit (Pozo, 1997) is a collection of

interfaces and reference implementations of

numerical objects such as multidimensional arrays

and sparse matrices, which are commonly used in

numerical applications.

Software product line engineering for parallel

programming, has been carried out for grid

computing. Silva de Olivera and Rosa (2010) applied

the product line architecture for grid computing

middleware systems. The authors adopted to evaluate

family architecture evaluation method for grid

systems.

In our earlier study (Arkin et al., 2013), we have

proposed an approach for automating the generation

of parallel algorithm that are deployed on parallel

computing platforms. Hereby, we did not consider the

systematic software reuse based on software product

line engineering. Also we focused on the design of

feasible deployment alternatives based on metrics.

The current approach considers the problem from a

product line scope perspective and integrates both

product line engineering and model-driven

engineering approaches to support the reuse as well

as the automation of the generation of logical

configurations and parallel algorithm source code.

In our another study (Tekinerdogan and Arkin,

2013) we have proposed an architecture framework

for modeling various views that are related to the

mapping of parallel algorithms to parallel computing

platforms. An architectural framework organizes and

structures the proposed architectural viewpoints. We

have proposed five coherent set of viewpoints for

supporting the mapping of parallel algorithms to

parallel computing platforms.

5 CONCLUSIONS

In this paper we have provided a model-driven

product line engineering approach for mapping

parallel algorithms to parallel computing platforms.

With the approach we have aimed to solve the tedious

and error prone mapping process. By adopting a

software product line engineering process the

mapping does not need to be developed from scratch

but can be largely based on reusing predefined assets.

Further, by providing model-driven development

approaches we have supported the automation of the

generation of the logical configuration and the

parallel source code. The approach as such integrates

the paradigms of software product line engineering,

model-driven development and parallel computing, to

solve an important and practical problem. To the best

of our knowledge the approach is novel in this sense.

Model-Driven Product Line Engineering for Mapping Parallel Algorithms to Parallel Computing Platforms

353

The approach has also been implemented using the

corresponding toolset. In the toolset we have

implement several parallel algorithms, the required

primitive operations, the generators for the logical

configurations, and the code generators for different

platforms. So far we have focused on mapping

parallel algorithms to homogenous platforms,

therefore in our future work we will also consider the

heterogeneous platform.

REFERENCES

Arkin, E., Tekinerdogan, B., and Imre, K. 2013. Model-

Driven Approach for Supporting the Mapping of

Parallel Algorithms to Parallel Computing Platforms.

Proc. of the ACM/IEEE 16th Int. Conf. on Model

Driven Engineering Languages and Systems.

Arkin, E., Tekinerdogan, B. 2015. Parallel Application

Development using Architecture View Driven Model

Transformations", Springer CCIS, Vol. 580, 1865-

0929.

Bézivin, J. 2005. On the Unification Power of Models.

Software and System Modeling (SoSym) 4(2):171-188.

Clements, P., and Northrop, L. 2002. Software Product

Lines: Practices and Patterns. Boston, MA:Addison-

Wesley.

Czarnecki, K., and Eisenecker,U. W. 1999. Components

and Generative Programming.in ESEC/FSE-7: Proc.

7th ESEC. London, UK: Springer, 1999, pp. 2-19.

Czarnecki, K., Helsen, S., and Eisenecker, U.W. 2005.

Formalizing cardinality-based feature models and their

specialization. Software Process: Improvement and

Practice, 10(1):7–29.

Czarnecki, K.,Antkiewicz, M., Kim, C., Lau, S., and

Pietroszek. K., 2005. Model-driven software product

lines. In Companion to the 20th annual ACM

SIGPLAN Conf. on Object-oriented programming,

systems, languages, and applications (OOPSLA '05).

Epsilon, http://www.eclipse.org/epsilon.

Frank, M. P., 2002. The physical limits of computing.

Computing in Science &Engineering, vol.4, no.3,

pp.16,26.

Foster, I. 1995. Designing and Building Parallel Programs:

Concepts and Tools for Parallel Software Engineering.

Addison-Wesley Longman Publishing Co., Inc.,

Boston, MA, USA.

Gamatié, A., Le Beux, S., Piel, É., Ben Atitallah, R., Etien,

A., Marquet, P., Dekeyser, J.-L. 2011. A Model-Driven

Design Framework for Massively Parallel Embedded

Systems. ACM Transactions on Embedded Computing

Systems, 10(4), 1–36.

Gustafson, J. L., 1988. Reevaluating Amdahl's law,

Communications of the ACM, v 31, n 5, p 532-533.

İmre, K. M., Baransel, C., and Artuner, H. 2011. Efficient

and Scalable Routing Algorithms for Collective

Communication Operations on 2D All–Port Torus

Networks. Int. Journal of Parallel Programming,

Springer Netherlands, ISSN: 0885-7458, pp. 746-782,

Volume: 39, Issue: 6.

Moore, G. E., 1998. Cramming More Components Onto

Integrated Circuits. Proceedings of the IEEE , vol.86,

no.1, pp.82,85.

MPI: A Message-Passing Interface Standart, version 1.1,

http://www.mpi-forum.org/docs/mpi-11-html/mpi-

report.html.

Navarro, C. A., Hitschfeld-Kahler, N., and Mateu, L. 2014.

A Survey on Parallel Computing and its Applications in

Data-Parallel Problems Using GPU Architectures,

Commun. Comput. Phys, Vol. 15, No. 2, pp. 285-329.

Object Management Group. 2009. A UML proﬁle for

MARTE. http://www.omgmarte.org.

Palyart, M., Lugato, D., Ober, I., and Bruel, J. 2011.

MDE4HPC: an approach for using model-driven

engineering in high-performance computing. In

Proceedings of the 15th international conference on

Integrating System and Software Modeling (SDL'11),

Iulian Ober and Ileana Ober (Eds.). Springer-Verlag,

Berlin, Heidelberg, 247-261.

Pozo, R. 1997. Template Numerical Toolkit for Linear

Algebra: High Performance Programming with C++

and the Standard Template Library. Intl. J. of High

Performance Computing Applications, vol. 11, no. 3,

pp. 251-263.

Silva de Oliveira, D. J., and Rosa, N. 2010. Evaluating

Product Line Architecture for Grid Computing

Middleware Systems: Ubá Experience. Advanced

Information Networking and Applications Workshops

(WAINA), 2010 IEEE 24th International Conference

on , vol., no., pp.257,262, 20-23.

Talia, D. 2001. Models and Trends in Parallel

Programming. Parallel Algorithms and Applications

16, no. 2: 145-180.

Taillard, J., Guyomarc'h, F. and Dekeyser, J. 2008. A

Graphical Framework for High Performance

Computing Using An MDE Approach. In Proc. of the

16th Euromicro Conf on Parallel, Distributed and

Network-Based Processing (PDP '08),. Washington,

DC, USA, 165-173.

Tekinerdogan, B., Arkin, E. Architecture Framework for

Mapping Parallel Algorithms to Parallel Computing

Platforms, Proc. of the 2nd Int. Workshop on Model-

Driven Engineering for High Performance and CLoud

computing, MODELS Conf., Miami (2013).

Travinin, N., Hoffmann, H., Bond, R., Chan, H., Kepner, J.,

and Wong, E. 2005. pMapper: Automatic Mapping of

Parallel Matlab Programs. Users Group Conference,

2005 , vol., no., pp.254,261.

Tsai, Y. J., and McKinley, P. K. 1994. An extended

dominating node approach to collective communication

in all-port wormhole-routed 2D meshes, Proceedings of

the Scalable High-Performance Computing

Conference, pp.199-206.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

354
