UML Associations

Reducing the Gap in Test Coverage between Model and Code

Anders Eriksson

1,2

and Birgitta Lindstr

School of Informatics, University of Sk

ovde, Sk

ovde, Sweden

Saab Aeronautics, Link

oping, Sweden

Keywords:

Model Coverage, Code Coverage, UML Association, fUML, ALF, MDA, xtUML.

Abstract:

This paper addresses the overall problem of estimating the quality of a test suite when testing is performed at a

platform-independent level, using executable UML models. The problem is that the test suite is often required

to fulﬁll structural code coverage criteria. In the avionics domain it is usually required that the tests achieve

100% coverage according to logic-based coverage criteria. Such criteria are less effective when applied to

executable UML models than when they are applied to code because the action code found in such models

contains conditions in navigation and loops that are not explicit and therefore not captured by logic-based

coverage criteria. We present two new coverage criteria for executable UML models, and we use an industrial

application from the avionics domain to show that these two criteria should be combined with a logic-based

criterion when testing the executable UML model. As long as the coverage is less than 100% at the model

level, there is no point in running the tests at the code level since all functionality of the model is not yet tested,

and this is necessary to achieve 100% coverage at the code level.

1 INTRODUCTION

As software systems become more complex and in-

terconnected, the act of software design and devel-

opment becomes a great challenge. Model-based de-

velopment where the software is designed in a mod-

eling language at a platform-independent level and

then transformed to an executable implementation is

a powerful methodology to help engineers to better

understand and develop such complex systems.

With the introduction of executable modeling lan-

guages such as xtUML (Mellor and Balcer, 2002) and

fUML (OMG, 2013) it has become possible to per-

form testing at a platform-independent model level.

The testing criteria that the software sometimes are re-

quired to fulﬁll might however be much less effective

when applied to models than they are when applied

to code. Typical examples are the logic-based criteria

that are used in the avionics and automotive domain

(Eriksson et al., 2012). As a consequence, a developer

might overestimate the given coverage for a test suite

that is executed on the model and functionality might

therefore, remain untested.

The fact that test criteria can be less effective

when applied to models than they are if they are ap-

plied to code, calls for new criteria that ﬁll in the gap

and cover the functionality that traditional logic-based

criteria miss when applied to executable platform-

independent models. This paper presents two such

criteria, which focus on association navigation and it-

erations in executable UML models.

The paper is organized as follows, Section 2 gives

the necessary background to logic-based coverage cri-

teria and UML associations. Section 3 deﬁnes the test

criteria we propose for executable UML models and

discusses their correlation to logic-based criteria, Sec-

tion 4 describes the industrial case study and its re-

sults. Finally, Section 5 presents conclusions and dis-

cusses related work, threats to validity and our sug-

gestions for future work.

2 BACKGROUND

This section presents the necessary background and

introduces the concepts that we use in this paper. Sec-

tion 2.1 describes logic-based testing criteria and how

these are typically used in a model-driven develop-

ment environment. Section 2.2 describes UML with a

special focus on the associations that are navigated in

executable UML models.

Eriksson, A. and Lindström, B.

UML Associations - Reducing the Gap in Test Coverage between Model and Code.

DOI: 10.5220/0005745205890599

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 589-599

ISBN: 978-989-758-168-7

589

2.1 Software Testing and Logic-based

Criteria

There are many test coverage criteria deﬁned for soft-

ware (Ammann and Offutt, 2008; Zhu et al., 1997). A

test coverage criterion deﬁnes a set of requirements

that a test suite must fulﬁll, i.e., the test requirements.

For example, to achieve 100% statement coverage,

each statement must be executed by at least one of

the tests in the test suite. In this case, statement cov-

erage is the test criterion and each statement has its

speciﬁc test requirement, to execute it.

Logic-based test criteria focus on covering pred-

icate and clauses that are found in software artifacts

such as models or source code Decision coverage re-

quires that each predicate is evaluated to both true and

false at least once by the test suite. Multiple Condi-

tion Decision Coverage (MCDC) has the additional

requirement that each clause in each predicate evalu-

ates to both true and false while the clause is active

(Chilenski, 2001). A clause is active if changing the

truth assignment of the clause changes the truth as-

signment of the predicate. For example, to achieve

MCDC coverage for the predicate (A & B), clause A

should be evaluated to true and false while B eval-

uates to true since clause A is active when B is true.

Similarly, B should be evaluated to both true and false

while A is true. Some test requirements for MCDC

are redundant and for the given example (A & B),

MCDC gives three test requirements while decision

coverage only gives two.

Logic-based coverage criteria exercise speciﬁc

evaluations of predicates and clauses but such crite-

ria are not very well suited to test loops. Both MCDC

and decision coverage requires that a loop condition

is evaluated to both true and false. If the loop con-

dition contains boolean operators, MCDC will re-

quire more than two different truth assignments as

discussed above. This is however, a poor guarantee

for proper testing of a loop since this evaluation can

be done by a single test that iterates through the loop

a couple of times with different truth assignments to

the individual clauses before ﬁnally exiting the loop.

From a testing perspective, it is reasonable to have at

least one test that enters the loop and another test that

does not. In addition to this, it is sometimes required

that a loop is executed exactly once and more than

once. Covering loops is addressed by different graph-

based coverage criteria such as edge-pair, round-trip

and prime-path coverage (Chow, 1978; Binder, 2000;

White and Wiszniewski, 1991; Ammann and Offutt,

2008).

Coverage criteria can be used to generate tests,

which is usually what is assumed by researchers.

However, in industry the criteria are often used as a

metric to evaluate the quality of a given test suite de-

rived from software requirements. Our work is con-

ducted in an industrial setting where development is

model driven, following the principles of a model-

driven architecture (MDA) (Mellor et al., 2004). The

design model is automatically transformed by a model

compiler to code (e.g., C++) and any further modiﬁ-

cations to the software has to be done at the model

level. Manual modiﬁcation of the source code is not

allowed. Test cases are created based on software re-

quirements and the coverage criterion is merely used

as a metric to estimate whether the test suite fully

exercise the structure of the software. In case there

are structural elements in the software that the test

suite does not cover, then there is some functionality

that is still not tested. In our model-driven develop-

ment context, this can mean one of three things: (i)

there is a functional requirement for which there is

no test case, (ii) there is a functional requirement that

has not yet been speciﬁed, or (iii) there is extra (un-

intended) functionality in the software, which has to

be removed. It is often hard to determine which of

these three possible situations that is the actual case.

Logic-based coverage criteria are often used like this

in the aeronautic domain, i.e., as a metric to assess

the quality of test suites derived from the software re-

quirements, DO-178C (RTCA, 2011a).

With the use of executable models in model-based

development, developers have an excellent opportu-

nity to test and analyze the software in an early stage

of development, long before the model is transformed

to code. However, unless the model is transformed to

code and tested at that level, the developer has little

knowledge of what the achieved code coverage is and

hence, whether the test suite is good enough. The rea-

son is that the structure of a design model and the re-

sulting code might be quite different. Kirner (Kirner,

2009) identiﬁes some serious transformation issues

concerning abstraction and parametrization that could

affect the predicates and clauses. The consequence

is that the effect of applying a logic-based coverage

criterion to the design model is likely to be less ef-

fective than when the same criterion is applied to the

code since the code might contain a different set of

predicates and clauses to be covered than the model.

Moreover, if there are predicates and clauses in the

code, which are not covered by the tests, then there is

functionality that has not been tested when executing

the tests at the platform-independent design level.

Having to transform the model to code in order to

estimate the quality of a test suite is problematic for

several reasons. One of the reasons is that the trans-

formation to code might be time consuming but the

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

590

main reason is that the developer should ideally be al-

lowed to perform analysis at the same level he or she

develops the software and the test suite, since iterating

between abstraction levels can be hard. We address

the overall problem of measuring the quality of a test

suite, which is required to fulﬁll a logic-based code

coverage criterion, without having to ﬁrst transform

the model to code.

2.2 UML and Associations

There are empirical evidence available showing that

class diagram, of all the diagram types provided by

UML, is the most widely used in practice by the in-

dustry which uses UML (Hutchinson et al., 2011). A

class diagram is a static diagram that captures and ab-

stracts the structure within a problem domain, and

consists of several classes connected with relation-

ships. In UML, there are different types of relation-

ships such as associations, generalizations and de-

pendencies. In this study we focus on the associa-

tion, which is one of the most powerful constructions

in UML and is often misunderstood (Selic, 2012).

Moreover, it is the association relationship that has

shown to be a source to the differences between the

sets of predicates and clauses in model and code

(Eriksson et al., 2012).

To capture the dynamic behavior within a prob-

lem domain, state machine diagrams and activity di-

agrams are widely used (Hutchinson et al., 2011). In

contrast to the structural model, which speciﬁes con-

straints for allowable conﬁguration of instances, the

behavioral model speciﬁes how the state of instances

changes over time. A state-machine can be used for

specifying the overall life-cycle of an active class,

where each state is associated with an activity which

coordinates the execution of actions. An instance of a

class is called an object, and an instance of an associ-

ation is called a link.

Many model-based testing techniques do not deal

with actions in behavioral models (Planas et al.,

2009). These actions represent the primitives used

in behavior models, which in addition can be used

for building high-level constructs in an action lan-

guage (OMG, 2011; Mellor and Balcer, 2002). The

main effect of including actions in behavior models is

that instances, e.g., objects and links, are created and

destroyed during run-time, which makes the overall

system state change continuously over time. Previ-

ous experimental studies (Eriksson et al., 2012; Eriks-

son et al., 2013) have highlighted that there are im-

plicit predicates in association navigation, sequences

of ReadLink actions expressed in an action language

and that these implicit predicates are not guaranteed

to be covered by any logic-based coverage criteria.

The implicit predicates are derived from the con-

strained rules speciﬁed on the class diagram. This

result shows that current logic-based coverage cri-

teria are insufﬁcient for testing the behavior of the

platform-independent and executable models. The re-

sult can also be interpreted as there is little beneﬁt

in measuring coverage at the code level before all the

implicit predicates as well as all the explicit predicates

are covered in the behavioral model at a platform-

independent level, since less than 100% coverage of

these at the model level means that there will be less

than 100% coverage at the code level.

The characterization of an association in UML is

qualiﬁed by several elements:

• Identity: This makes the association uniquely

identiﬁable within the class diagram.

• Multiplicity: This deﬁnes the number of objects

of the participating classes at some point in time.

Such that one object at one end connects with

“one” or “many” object(s) at the other end. De-

noted as [1..1] and [1..*] at each end of the asso-

ciation in the class diagram.

• Conditionality: This deﬁnes if the participation is

conditional, i.e., at some point in time there might

not be any participating objects. Such that one

object at one end connects with “zero or one” or

“zero or many” object(s) at the other end. De-

noted as [0..1] and [0..*] at each end of the asso-

ciation in the class diagram. We refer to this as

different conﬁgurations.

• Role: This describes how the objects logically

participates in the association, and there is a role

description for each end of the association.

ShoppingCart

+cartID : arbitrary_id

Order

+orderID : arbitrary_id

Customer

+email : InternetemailAddress

places

is placed by

1..*

0..1

is a purchase

of selections

1..1

0..1

selections are

purchased in

Role

Multiplicity (one)

and Conditional

Identity

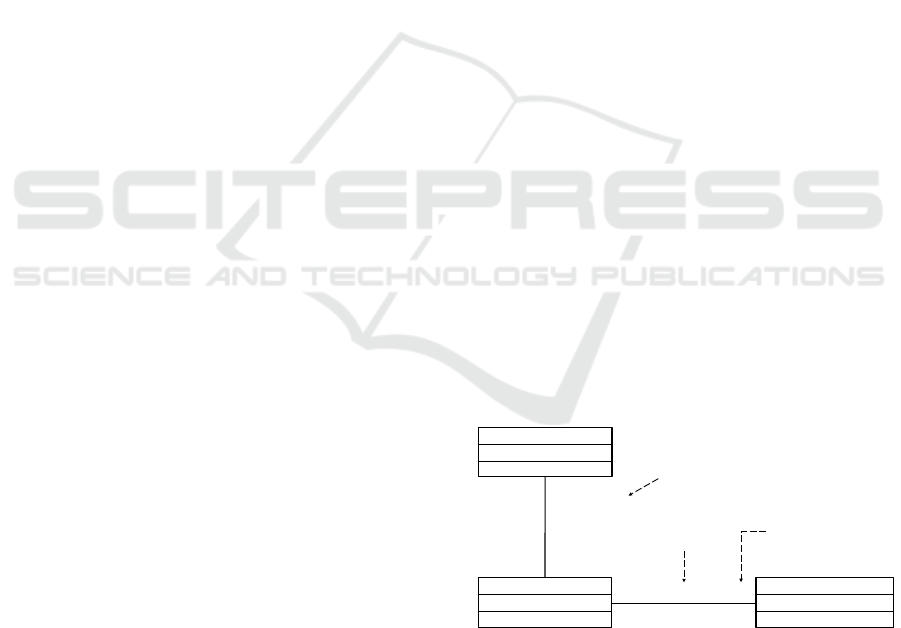

Figure 1: Part of the Online Bookstore Domain class dia-

gram,(Mellor and Balcer, 2002).

In the UML standard (OMG, 2011), all the el-

ements for an UML association is completely de-

scribed. In our work, associations are restricted to

binary associations, and generalizations which are

noted as disjoint and complete as described in (Mel-

lor and Balcer, 2002). In Figure 1, is an excerpt of

UML Associations - Reducing the Gap in Test Coverage between Model and Code

591

a class diagram given by Mellor and Balcer (Mellor

and Balcer, 2002) shown with the qualiﬁed elements

for an association pointed by the dashed arrows in the

ﬁgure.

3 TEST CRITERIA

This Section presents two coverage criteria that are

meant to be used in combination with a logic-based

coverage criteria as a metric for test coverage when

testing executable UML models. The two new crite-

ria together cover the implicit predicates that logic-

based criteria miss. Section 3.1 deﬁnes a criterion

that targets navigation and discusses its relation to

logic-based criteria. Section 3.2 deﬁnes a criterion

that targets iterations and discusses the relation be-

tween our two proposed criteria.

3.1 All Navigation Criterion

A navigation step is a directed navigation of an

association identiﬁed by its identity. A navigation

step starts at one end of an association with the

navigation direction towards the other end speciﬁed

by its role description. This follows the look-across

semantics of how to read relationships, to which

UML adheres (Chen, 1976). A navigation step s is

conditional if the association navigated is conditional

in the direction of the navigation, and we say that the

predicate Empty(s) evaluates to true iff the collection

of participating objects at the end of s is empty.

An association path is a contiguous sequence of

one or more navigation steps, which speciﬁes the

path from a start class to a destination class.

A selection query is an expression, which when

evaluated read the links for an association path in

order to identify the current set of objects that are

related to an object or set of objects at some point in

time.

Let Q be the set of selection queries. For each se-

lection query q ∈ Q, let A

be the association path tra-

versed in response to q and let C

be the set of condi-

tional navigation steps in A

. Finally let c

∈ C

be the

conditional navigation step in A

. A conditional

navigation step c

determines q iff the set of objects

returned upon evaluation of q differs for Empty(c

)

and ¬Empty(c

Deﬁnition 1 All Navigation (ANAV): For each query

q ∈ Q and each conditional navigation step c

∈ C

choose all navigation steps c

∈ C

, where j 6= i so

that c

determines q. For each such conﬁguration,

ANAV has two test requirements, Empty(c

) and

¬Empty(c

3.1.1 Relation to Logic-based Criteria

This section focuses on the correlation between

our proposed criterion ANAV and the logic-based

criteria. We show a set of motivating examples,

which illustrate the need to combine logic-based

criteria with ANAV and discuss the overlap between

them. The overlap is not straight-forward since

the test requirements come from different sources.

Logic-based test criteria gather the test requirements

from predicate and clauses found in conditional state-

ments, e.g., in if-statements, while ANAV gather the

test requirements from selection queries. Still, when

it comes to the tested conﬁgurations, we can see that

there is an overlap in what the criteria guarantee. A

select query, including conditional navigation step(s)

in an action language such as OAL

or ALF (OMG,

2013) is typically followed by an if-statement, which

checks that the resulting object or set of objects is

not empty before further processing. Consider the

following action code in OAL:

1 select one Customer related by

Order->Customer[R3];

2 if (not

empty Customer)

3 <Statements>

4 end if;

:Order

:Customer

:R3

places

is placed by

:Order

(a)¬Empty(R3)

Empty(R3)

(b)

Figure 2: Valid conﬁgurations of instances in some point in

time.

There are two possible conﬁgurations for this

piece of action code. ¬Empty(R3) and Empty(R3)

as shown in Figures 2a and 2b. ANAV gives two test

requirements based on the instruction on line 1, while

a logic-based criteria gives two test requirements

based on the predicate on line 2. The predicate on

line 2 has a single clause and hence, will only give

two test requirements (true and false) independent

on which logic-based criteria we apply. The above

action code is an example where the overlap between

the two criteria ANAV and Predicate is 100%. Inde-

pendent of whether we apply ANAV on line 1 or a

http://www.xtuml.org

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

592

logic-based criterion on line 2, both conﬁgurations in

Figures 2a and 2b will be covered. The same goes for

all conﬁgurations where there is only one conditional

navigation step. Let us consider action code for a

conﬁguration with more than one conditional step:

1 select one Customer related by

Cart->Order[R2]->Customer[R3];

2 if (not empty Customer)

3 <Statements>

4 end if;

:ShoppingCart

:Order :Customer

:R2

is placed by

is a purchase

of selections

selections are

purchased in

places

(a) ¬Empty(R2)∧¬Empty(R3)

:ShoppingCart

:Order

:R2

is a purchase

of selections

selections are

purchased in

(b) ¬Empty(R2)∧Empty(R3)

:ShoppingCart

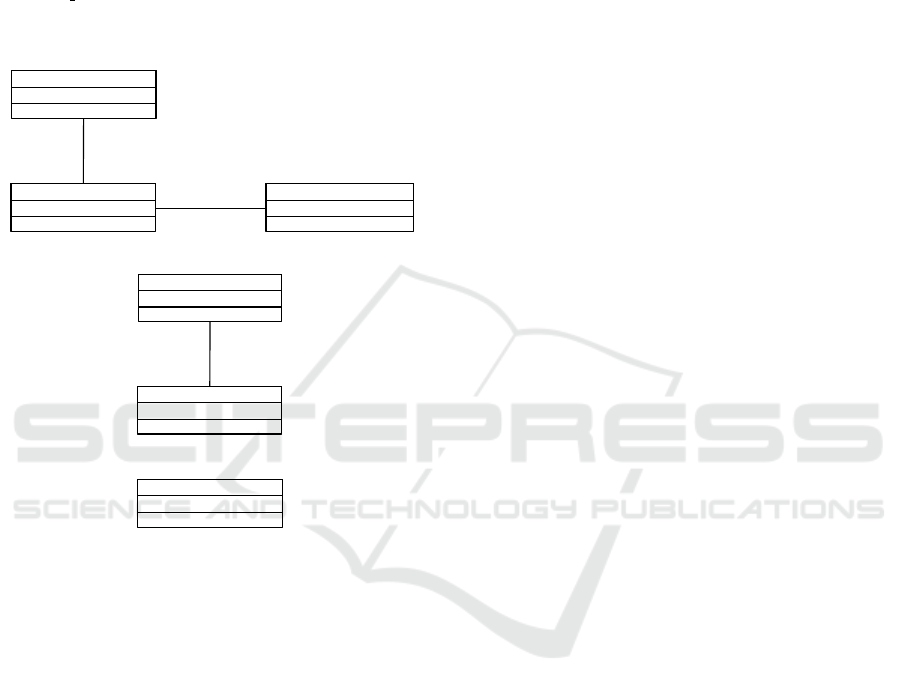

Figure 3: Valid conﬁgurations of instances in some point in

time.

A logic-based test criterion will still give two test

requirements for this code. However, these two test

requirements will in this case, not be sufﬁcient to

cover all conﬁgurations. There are three possible con-

ﬁgurations for this code as shown in Figures 3(a), 3(b)

and 3(c). The logic-based criteria give a guarantee to

cover conﬁguration 3(c) and one of the others but not

all three. In contrast, ANAV will give four test re-

quirements (of which one is redundant) and guaran-

tees coverage of all three conﬁgurations. Hence, this

is an example that illustrates that logic-based test cri-

teria do not subsume ANAV.

Let us ﬁnally rule out the possibility that ANAV

subsumes any of the logic-based criteria. This is sim-

ply not possible due to the fact that ANAV focuses on

the navigation via the association paths only and there

can be other constructs in the action code that con-

tain predicates. In our two illustrating examples, the

if-statements both check that the object set returned

by the queries are not empty. There can of course

be other conditional statements in an action code. In

such cases, a logic-based criterion will give a set of

test requirements while ANAV will not.

The above examples show that ANAV and logic-

based criteria should be combined in order to get suf-

ﬁcient coverage of the potential conﬁgurations when

testing the platform-independent behavioral model.

3.2 Iteration Criterion

Loops should be executed at least by a test that en-

ters the loop and by a test that does not enter the loop,

in order to be properly tested. Neither the proposed

ANAV nor the logic-based coverage criteria guarantee

sufﬁcient coverage for all loops that can be found in

executable models. A single test can fulﬁll the logic-

based criteria for a predicate in a loop condition by

iterating through the loop fulﬁlling one test require-

ment for each iteration. Hence, logic-based coverage

criteria do not guarantee that there will be a test that

reaches the loop and does not enter it. Moreover, there

are loops in the action code where the loop condition

is implicit, i.e., there is no predicate to be covered by

logic-based criteria. Such loops iterates over a set of

objects that are returned by a query but the stopping

criterion is not explicitly stated as a predicate.

Hence, a logic-based coverage criterion would

not give any test requirement at all for such loop.

Such implicit conditions will become explicit as

predicates when the model is transformed to source

code. Consider the following action code in OAL:

1 select many Orders related by Carts->Order[R2];

2 for each Order in Orders

3 <Statements>

4 end for;

The above set-iteration statement has no explicit

stopping criteria for the loop. Hence, a logic-based

criterion would not guarantee that this loop is covered

by any test.

Deﬁnition 2 All Iteration (ITER): For each object

set-iteration statement, ITER has two test require-

ments: The test suite must contain at least one test

that executes the loop zero times and one test that ex-

ecutes the loop at least one time.

3.2.1 Relation to ANAV

When it comes to loops in action code, there is an

overlap in terms of what coverage ANAV and ITER

guarantee. Consider this action code again:

UML Associations - Reducing the Gap in Test Coverage between Model and Code

593

1 select many Orders related by Carts->Order[R2];

2 for each Order in Orders

3 <Statements>

4 end for;

The navigation step traversing R2 is conditional

[0..1] and therefore, ANAV applies to line 1 and

ITER applies to line 2 but ANAV will ensure that

there is one test returning an empty set of objects and

another test returning a set that contains at least one

object for this query. In the ﬁrst case, the test will not

enter the loop and in the second case the loop will

be executed at least once. Hence, although ANAV

focuses on covering navigation and ITER focuses on

covering the implicit loop conditions, we do have an

overlap in terms of loop coverage. Let us consider

another example.

1 select many Carts related by

Orders->ShoppingCart[R2];

2 for each Cart in Carts

3 <Statements>

4 end for;

In this case, the navigation step traversing R2 is

unconditional in the direction of navigation [1..1] and

therefore, the set of conditional navigation steps C

would be empty. Hence, ANAV would not generate

any test requirement for the query on line 1 and it

is therefore, only ITER that gives any guarantee for

loop coverage. For this example, ITER will only

give one test requirement, to execute the loop at least

once. The second test requirement (to execute the

loop zero times) will be discarded as infeasible since

there will be at least one element in the set of objects

returned by the query. Let us consider a last example.

1 select many Carts from instances of ShoppingCart;

2 for each Cart in Carts

3 <Statements>

4 end for;

ANAV is not applicable in this case, because there

is no navigation. The selection is done directly from

the extent of objects for the class ShoppingCart. As in

the previous example, it is only ITER that gives any

guarantee for loop coverage. ITER will give two test

requirements, one to not enter the loop at line 2 (en-

suring there is a test returning an empty set of objects)

and another to enter the loop (ensuring there is a test

returning a set that contains at least one object for this

selection).

4 EVALUATION

The work presented in this paper is conducted in an

industrial context where we have used six applica-

tions from the avionics domain. Several of these are

from an updated version of the Gripen ﬁghter

. Ta-

ble 1 shows a summary of the six applications, which

all are modeled in xtUML. The number of classes

speciﬁed in the class diagrams for each application is

represented by column Classes in Table 1. Columns

States and Operations show the number of places in

the applications where their behavior is speciﬁed in

the object action language (OAL

). The six applica-

tions have been used in a previous study to investi-

gate the transformation impact on the number of test

requirements for logic-based criteria.

Table 1: Summary of experimental subjects.

Action Source

Applications Classes States Operations

A1 61 117 193

A2 66 117 216

A3 12 15 46

A4 18 15 34

A5 36 81 140

A6 444 2 633

Total 637 347 1262

We know from a previous study (Eriksson et al.,

2013) that the number of test requirements for deci-

sion (or predicate) coverage of our applications in-

creases by 69% as an average when the xtUML model

is transformed to C++ code. The increase shows that

these applications contain a large number of implicit

predicates that become explicit during transforma-

tion. However, we have also shown that if the implicit

predicates residing in the conditional links in navi-

gation of associations, and in the for-each loops are

covered by test requirements at the model level, the

increase in number of test requirements after trans-

formation to code drops to zero for four of the six

applications and less than 0.5% as an average.

The purpose with the new model coverage crite-

ria all-navigation (ANAV) and all-iteration (ITER) is

to cover the implicit predicates in UML behavioral

models that becomes explicit as the model is trans-

formed to code. The new criteria target these implicit

predicates at the model level. ANAV ensures that all

conditional links in an association path are evaluated

to both not empty and if possible empty (not includ-

ing any infeasible navigation steps) in the direction of

navigation. This will guarantee that we have tested

http://saab.com/air/gripen-ﬁghter-system/gripen/gripen/

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

594

at least two possible conﬁgurations of instances sat-

isfying each conditional link in the association path

during run-time. ITER ensures that for-each loops are

executed both zero times and and least once and will

guarantee that we have tested the two possible evalu-

ations of all implicit conditions that reside in for-each

loops.

Hence, our proposed criteria cover most of the im-

plicit predicates in our six applications and by com-

bining them with the logic-based criterion decision

(or predicate) coverage, which covers the explicit

predicates, we will as an average capture 99.5% of the

test requirements for code-level decision coverage of

our six applications at the model level. Hence, func-

tional testing by simulation can be performed at the

same level of abstraction as the design is conducted

while the quality of the test suite can be estimated

without the need of ﬁrst transforming the model to

code.

Moreover, if 100% coverage of a logic-based cri-

terion must be achieved at code-level there is no point

in actually executing tests at the code level until the

functional testing at model level has achieved 100%

model coverage with respect to the logic-based crite-

rion as well as both ANAV and ITER. The reason is

that as long as there are implicit predicates that re-

mains to be covered in the model, there will also be

explicit predicates in the code that the tests will not

cover.

Table 2: Test requirements for application A3.

Number of Test Requirements

Model level Code level

Action Source ANAV Predicate ITER Predicate

if() 146 146

elif() 14 14

while() 6 6

set-iteration() 44 44

select-1-step() 86

select-2-step() 32 32

select-3-step() 24 24

select-where() 48 48

select-others() 10

Total number 142 214 44 324

Our previous studies have focused on the trans-

formation impact on the number of test requirements

with respect to logic-based coverage criteria. In order

to evaluate the effect of using our proposed criteria

ANAV and ITER in combination with a logic-based

criteria, we take a closer look at one of the applica-

tions, A3. Table 2 shows the details of the set of test

requirements for application A3. We can see the dis-

tribution of test requirement for ANAV, Predicate and

ITER respectively in column Model level. Column

Code level shows the distribution of test requirements

for Predicate at code level. Each row in Table 2 corre-

sponds to a type of action source in the model. For ex-

ample, we can see that 44 of the test requirements that

need to be covered at code level in order to get Pred-

icate coverage come from implicit predicates in set-

iteration statements in the action code. We can also

see in the same row that these 44 test requirements

are only captured by ITER at the model level. The

action sources named select-x() represents different

kind of navigation statements; select-1-step, select-2-

step and select-3-step represents selection queries in-

cluding one, two or three conditional navigation steps.

The select-where represent predicates which is evalu-

ated to further limit the number of objects returned by

a selection query. Finally, the select-others represent

selection queries that are unconditional, and includes

navigation steps starting with set of objects, which en-

able generation of for-loop statements including exit

criterion as a predicate in the C++ code.

It is clear from Table 2 that all types of sources

(i.e., all rows) contributes to the test requirements for

Predicate coverage of the C++ code, except for the

select-1-step where the explicit predicate is only gen-

erated if further navigation steps are followed after a

conditional navigation step. However, in this case is

the modeler responsible for explicitly check the se-

lection result before further usage. Hence, these test

requirements should be tested at the model level.

It is also clear that all three criteria ANAV, Pred-

icate and ITER have to be applied to capture all the

test requirements at the model level. Finally, we can

see that the total number of test requirements that we

get for the model is higher than for the code. The

reason for this is that there is sometimes an overlap

between the three model criteria as we have described

in Section 3.

In order to study the difference in model and code

coverage, we ran a test suite for application A3 and

measured the coverage at both model and code level

when the ANAV and ITER criteria were applied. The

tools used in this experiment are the BridgePoint

for the UML modeling environment and the model-

compiler, and for measuring structural code coverage

the tool Cantata++

was used.

To our knowledge, there is no available tool, in-

cluding BridgePoint, that enables measuring of model

coverage during simulation of behavioral UML mod-

els using actions. Therefore we designed and imple-

mented a plugin to the model compiler to be used in

our test framework. The plugin enables measuring the

model coverage during simulation. Both ANAV and

ITER are included as metrics. Moreover, logic-based

and model-based coverage criteria according to DO-

http://www.qa-systems.com/cantata.html

UML Associations - Reducing the Gap in Test Coverage between Model and Code

595

C++

Code

Model

Compiler

Instrumentation

(Cantata++)

Code Level Instrumentation

Trace

Data

C++

Compiler

C++

Code

xtUML

Models

Application

xtUML

Models

M’

Instrumentation

(Model Compiler)

Model

Compiler

Model Level Instrumentation

Test

Cases

Coverage Collection

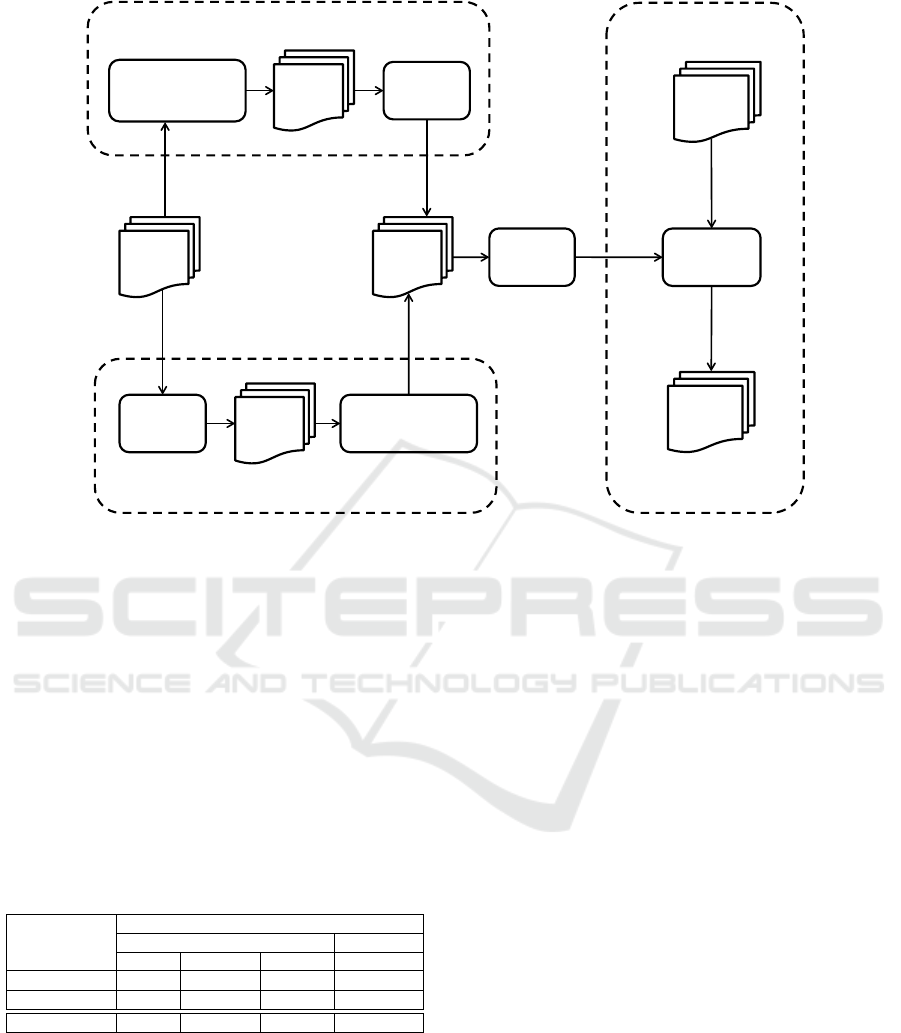

Figure 4: The setup for measuring test coverage.

178C (RTCA, 2011a) and DO-331 (RTCA, 2011b)

are also included. The design of the framework is

based on our previous work (Eriksson et al., 2013)

and work by Kelly et al. (Hayhurst and Veerhusen,

2001). The idea is to transform a design model M

to an instrumented model M’ before generating C++

code automatically via the model-compiler, as shown

in Figure 4. Note, the simulation of the model behav-

ior is performed through a compiled version instead

of using the model interpreter built into BridgePoint,

this is only for practical reasons and will not inﬂuence

the outcome.

Table 3: Test coverage at model level and code level for

application A3.

Number of Covered Test Requirements

Model level Code level

ANAV Predicate Iteration Predicate

Total 142 214 44 324

Executed 96 144 28 237

Coverage (%) 68 67 64 73

Table 3 shows a snapshot of the coverage achieved

by the current version of the test suite for application

A3. The application is under development and the test

suite is therefore, not yet complete. Hence, the cover-

age is less than 100% for both code and model. The

coverage at the model level (67% as a total) is slightly

less than the coverage level for the code (73%). This

has to do with the overlap between the criteria for

model coverage that we have seen and discussed in

Section 3. Since two overlapping test requirements

are covered by exactly the same test cases, the differ-

ence in coverage between model and code is reduced

as new test cases are executed and the coverage is in-

creased. Hence, the closer we get to the goal of 100%

coverage, the higher is our conﬁdence that the cover-

age measured for the model corresponds to the cover-

age we will get for the code.

Adding the criterion all-navigation to the model

level becomes even more important in problem do-

mains where conditional associations are used for ex-

pressing complex application logic, which constraints

the behavior during run-time. An increase in the

number of test requirements derived from the all-

navigation and all-iteration, can also be interpreted

as a measure of the degree of application logic com-

plexity. As an example, the part of the in-house

model-compiler that transforms the OAL constructs,

and which we have used in our studies is modeled in

xtUML and transformed into C++. The traditional

abstract syntax tree that represents a programming

language is here represented in xtUML as a meta-

model, and the model-compiler behavior is speciﬁed

in OAL code. Table 1 shows a summary of the model-

compiler, application A6. A signiﬁcant amount of

structural constructs, and statements in the object ac-

tion language is conditional or optionally, and these

rules are formalized as conditional associations be-

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

596

tween classes in the meta-model for OAL. Which

in this case with large likelihood is that the model-

compiler have a higher application logic complex-

ity than the application A3, Table 1, and therefore

needs more conﬁgurations, combination of instances,

to cover the speciﬁed functionality.

5 CONCLUSIONS AND

DISCUSSION

We address the overall problem of estimating the

quality of a test suite that is required to fulﬁll code

coverage according to logic-based coverage criteria,

in a model-driven development environment where

both design and test activities are performed using

models of the software. We have presented two new

coverage criteria for executable UML models ANAV

and ITER, and shown that these two should be com-

bined with the logic-based criterion when testing the

executable model. As long as the coverage is less than

100% at the model level, there is no point in running

the tests at the code level since all functionality of

the model is not yet tested, and this is necessary to

achieve 100% coverage at the code level.

5.1 Threats to Validity

When it comes to validity threats of case studies, it

can usually be argued that the study might be too

small and the software not representative. However,

the coverage criteria that we suggest applies to exe-

cutable UML models and the models we use cover

all types of elements (e.g., associations and multiplic-

ity) and structural constructions (e.g., loops and if-

statements) that are allowed in the language for exe-

cutable UML, i.e., xtUML and fUML. Moreover, the

models are real applications developed by different

teams in the aeronautics domain, which shows that

the constructs that our criteria target, is used by dif-

ferent developers. Finally, one of our applications is

an example of a very complex piece of software. A6

is a model compiler that takes an xtUML model as

input and generates the C++ code. The model ele-

ments and constructs that our proposed criteria target

are even more frequent in A6 than in any of the other

models.

A potential threat to validity might be the fact that

the same model compiler is used for all applications.

A model compiler is free to translate the model as

long as the semantics and functionality of the soft-

ware is maintained. Hence, another compiler can give

a slightly different translation to code than the one we

used. However, our models conforms to and cover

the language of executable UML models and the ele-

ments and structures that ANAV and ITER target are

present in such models. Independent of model com-

piler, the implicit predicates that we ﬁnd in these el-

ements and structures will be translated to explicit

predicates. The number of predicates and their loca-

tions in the code might however, differ between com-

pilers.

5.2 Related Work

There are several papers on how to implement UML

associations in programming languages (Akehurst

et al., 2007; Goldberg and Wiener, 2011; Diskin et al.,

2008), and also authors that argue that relations as a

semantic constructs should be an already built-in con-

struct in object-oriented languages (Rumbaugh, 1987;

Nelson et al., 2008). The semantics of associations is

also investigated thoroughly in (Milicev, 2007). All

this work emphasize the needs and importance of a

correct implementation and interpretation of relation-

ships, which is a strong argument for the need of our

new all-navigation criterion.

The new criterion all-navigation can be seen as a

further development of the association-end multiplic-

ity (AEM) criterion and the generalization (GN) cri-

terion deﬁned by (Andrews et al., 2003). When test-

ing a model, the AEM criterion will ensure that the

model is instantiated so that both boundary and non-

boundary occurrences of association links between

runtime-objects are created. While the GN criterion

will require the model to be tested with instantia-

tions of each type of the specialization. The differ-

ence between the criteria by (Andrews et al., 2003)

and the criterion all-navigation is where in the model

the model elements are covered. The criteria AEM

and GN is fulﬁlled globally among all statements in

the behavioral speciﬁcation, while the all-navigation

criterion have to be fulﬁlled locally within the same

association navigation statement resulting in an thor-

oughly testing of that particular statement.

The idea that loops should be covered thoroughly

is not new, it was recognized already back in the

70’s (Howden, 1978) and several graph-based criteria

such as edge-pair, round-trip and prime-path cover-

age have been deﬁned to ensure that loops are thor-

oughly covered by tests (Chow, 1978; Binder, 2000;

White and Wiszniewski, 1991; Ammann and Offutt,

2008). Our proposed criterion all-iteration is needed

together with all-navigation and the logic-based cri-

teria to fully support model coverage of executable

UML models regardless of the implementation of ac-

tions used for association navigation or iterations over

set.

UML Associations - Reducing the Gap in Test Coverage between Model and Code

597

5.3 Future Work

The plan is to extend our method to include trace-

ability functionality of model constructs to code con-

structs needed for coverage analysis. The traceabil-

ity functionality should be platform independent and

make it possible to compare test requirements derived

from the model level and the code level. An evalu-

ation of the usability of the complete method should

also be conducted.

In the long-term, the aim is to support model cov-

erage analysis according to DO-331 (RTCA, 2011b),

and take credit for parts of the veriﬁcation activities

already at model level by simulation instead of at the

code level.

ACKNOWLEDGEMENTS

This research was partially supported by Research

Grant 2013-01215 from the VINNOVA (Swedish

Governmental Agency for Innovation Systems).

We thank Martin Nilsson at Saab Aeronautics

for his collaboration with the implementation of the

xtUML model coverage tool used in this research.

REFERENCES

Akehurst, D., Howells, G., and McDonald-Maier, K.

(2007). Implementing associations: Uml 2.0 to java

5. Software & Systems Modeling, 6(1):3–35.

Ammann, P. and Offutt, J. (2008). Introduction to soft-

ware testing. New York: Cambridge University Press,

ISBN 978-0-521-88038-1.

Andrews, A., France, R., Ghosh, S., and Craig, G. (2003).

Test adequacy criteria for UML design models. Soft-

ware Testing, Veriﬁcation and Reliability, 13(2):95–

127.

Binder, R. (2000). Testing object-oriented systems: models,

patterns, and tools. Addison-Wesley Professional.

Chen, P. P.-S. (1976). The entity-relationship modelto-

ward a uniﬁed view of data. ACM Transactions on

Database Systems (TODS), 1(1):9–36.

Chilenski, J. J. (2001). An investigation of three forms

of the modiﬁed condition decision coverage (MCDC)

criterion. Technical report, Ofﬁce of Aviation Re-

search.

Chow, T. S. (1978). Testing software design modeled by

ﬁnite-state machines. IEEE Trans. Software Eng.,

4(3):178–187.

Diskin, Z., Easterbrook, S. M., and Dingel, J. (2008). Engi-

neering Associations: From Models to Code and Back

through Semantics. In TOOLS (46), pages 336–355.

Springer.

Eriksson, A., Lindstr

om, B., Andler, S. F., and Offutt, J.

(2012). Model Transformation Impact on Test Arti-

facts: An Empirical Study. In Proceedings of the 9th

workshop on Model-Driven Engineering, Veriﬁcation

and Validation.

Eriksson, A., Lindstr

om, B., and Offutt, J. (2013). Transfor-

mation rules for platform independent testing: An em-

pirical study. In Software Testing, Veriﬁcation and Val-

idation (ICST), 2013 IEEE Sixth International Confer-

ence on, pages 202–211.

Goldberg, M. and Wiener, G. (2011). Generating Code for

Associations Supporting Operations on Multiple In-

stances. In Evaluation of Novel Approaches to Soft-

ware Engineering, pages 163–177. Springer.

Hayhurst, K. J. and Veerhusen, D. S. (2001). A practical

approach to modiﬁed condition/decision coverage. In

Digital Avionics Systems, 2001. DASC. 20th Confer-

ence, volume 1, pages 1B2–1. IEEE.

Howden, W. E. (1978). An evaluation of the effectiveness of

symbolic testing. Software: Practice and Experience,

8(4):381–397.

Hutchinson, J., Whittle, J., Rounceﬁeld, M., and Kristof-

fersen, S. (2011). Empirical assessment of mde in

industry. In Proceedings of the 33rd International

Conference on Software Engineering, pages 471–480.

ACM.

Kirner, R. (2009). Towards preserving model coverage and

structural code coverage. EURASIP Journal on Em-

bedded Systems, 2009:6:1–6:16.

Mellor, S. J. and Balcer, M. J. (2002). Executable UML:

A Foundation for Model Driven Architecture. Boston:

Addison Wesley, ISBN 0-201-74804-5.

Mellor, S. J., Scott, K., Uhl, A., and Weise, D. (2004).

MDA Distilled: Priciples of Model-Driven Architec-

ture. Boston: Addison Wesley, ISBN 0-201-78891-8.

Milicev, D. (2007). On the semantics of associations and

association ends in uml. Software Engineering, IEEE

Transactions on, 33(4):238–251.

Nelson, S., Noble, J., and Pearce, D. J. (2008). Implement-

ing ﬁrst-class relationships in Java. Proceedings of

RAOOL, 8.

OMG (2011). Uniﬁed Modeling Language

(UML), Superstructure, version 2.4.1. http://

www.omg.org/spec/UML/2.4.1.

OMG (2013). Action Lanaguage for Foundational UML

(ALF), version 1.0.1. retrived September 14, 2011.

OMG (2013). Foundational Subset of Executable UML

(FUML), version 1.1.

Planas, E., Cabot, J., and Gmez, C. (2009). Verifying

Action Semantics Speciﬁcations in UML Behavioral

Models. In Advanced Information Systems Engineer-

ing, volume 5565 of LNCS, pages 125–140. Springer

Berlin / Heidelberg.

RTCA (2011a). RTCA Inc. DO-178C: Software Consider-

ations in Airborne Systems and Equipment Certiﬁca-

tion.

RTCA (2011b). RTCA Inc. DO-331: Model-Based Devel-

opment and Veriﬁcation Supplement to DO-178C and

DO-278A.

Rumbaugh, J. (1987). Relations as semantic constructs in

an object-oriented language. In ACM Sigplan Notices,

volume 22, pages 466–481. ACM.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

598

Selic, B. (2012). The Less Well Known UML. In Formal

Methods for Model-Driven Engineering, pages 1–20.

Springer.

White, L. J. and Wiszniewski, B. (1991). Path testing of

computer programs with loops using a tool for sim-

ple loop patterns. Softw. Pract. Exper., 21(10):1075–

1102.

Zhu, H., Hall, P. A., and May, J. H. (1997). Software unit

test coverage and adequacy. Acm computing surveys

(csur), 29(4):366–427.

UML Associations - Reducing the Gap in Test Coverage between Model and Code

599
