An Efficient Method for Co-residency Detection on Amazon EC2

Kang Chen, Qingni Shen, Cong Li, Yang Luo, Yahui Yang and Zhonghai Wu

School of Software and Microelectronics & MoE Key Lab of Network and Software Assurance, Peking University,

Beijing, China

Keywords: Co-residency Detection, Cloud Security, Multi-tenancy.

Abstract: Cloud computing, an emerging computing and service paradigm, where the computing and storage

capabilities are outsourced on demand, offers the advanced capabilities of sharing and multi-tenancy. But

security has been a major barrier for its adoption to enterprise, as being placed with other tenants on the

same physical machine (i.e. co-residency or co-location) poses a particular risk. Former research has shown

how side channels in shared hardware may enable attackers to exfiltrate sensitive data across virtual

machines (VMs). In view of such risks, tenants need to be able to verify physical isolation of their VMs.

This paper presents Sift, an efficient and reliable approach for co-residency detection. Through a pre-

filtration procedure, the time for co-residency detection could be significantly reduced. We describe the

cloud scenarios envisaged for use of Sift and the accompanying threat model. A preliminary validation of

Sift has been carried out in a local lab Xen virtualization experimental platform. Then, using the Amazon’s

Elastic Compute Cloud (EC2) as the test platform, we evaluate its practicability in production cloud

environment. It appears that Sift can confirm co-residency with a target VM instance in less than 5 seconds

with an extremely low false rate.

1 INTRODUCTION

Cloud computing has become an essential

technology. Commercial third-party clouds allow

businesses to avoid over provisioning their own

resources and to pay for the precise amount of

computing that they require. By placing many

virtual hosts on a single physical machine, cloud

service providers (CSPs) are able to profitably

leverage economies of scale and statistical

multiplexing of computing resources. Such as

Amazon’s Elastic Compute Cloud (EC2) service, it

offers a set of virtualized hardware configurations

for tenants.

However, this practice of multi-tenancy also

introduces the risk of sharing a physical server with

an arbitrary and potentially malicious VM, which

enables various security attacks in the public cloud.

There exist attacks that break the logical isolation

provided by virtualization to breach confidentiality

(Hund et al., 2013); (Ristenpart et al., 2009); (Wu,

2012); (Xu, 2011); (Yarom and Falkner, 2013);

(Zhang et al., 2014); (Zhang et al., 2012) or degrade

the performance (Varadarajan et al., 2015); (Zhou,

2011) of the victim. Most notable are the side-

channel attacks that steal private keys across the

virtual-machine isolation boundary by cleverly

monitoring shared resource usage (Yarom and

Falkner, 2013); (Zhang et al., 2014); (Zhang et al.,

2012). Although, defenses against such

vulnerabilities and researches on VM allocation and

scheduling policies to mitigate multi-tenancy risks

(Bijon et al., 2015); (Han et al., 2014) are already

being proposed in the academic literature (Godfrey

and Zulkernine, 2014); (Godfrey and Zulkernine,

2013); (Raj et al., 2009), multi-tenancy risk still

cannot be ignored.

Venkatanathan Varadarajan et al., (2015) have

investigated the problem of placement

vulnerabilities and quantitatively evaluated three

popular public clouds, including Amazon EC2,

Google Compute Engine and Microsoft Azure, for

their susceptibility to co-location attacks. The most

important pre-condition for this kind of research is a

reliable co-residency detection approach. In recent

years, feasible detection approaches have been

proposed (Bates et al., 2012) (Ristenpart et al., 2009)

(Zhang et al., 2011), but some of them are not

effective at all since the adoption of stronger

isolation technologies such as Virtual Private Clouds

Chen, K., Shen, Q., Li, C., Luo, Y., Yang, Y. and Wu, Z.

Sift - An Efﬁcient Method for Co-residency Detection on Amazon EC2.

DOI: 10.5220/0005742004230431

In Proceedings of the 2nd International Conference on Information Systems Security and Privacy (ICISSP 2016), pages 423-431

ISBN: 978-989-758-167-0

423

(VPCs).

In this paper, we propose Sift, an efficient and

reliable approach for co-residency detection. We

find a new way to reliably detect co-residency, and

the pre-filtration procedure we have raised can

improve the efficiency. Since most VMs could be

excluded through a pre-filtration procedure and

filtration on VMs consumes very little time.

This paper makes the following contributions:

 We put Forward a New Way for Co-residency

Detection. Unlike existing detection schemes,

our co-residency detection scheme is based on

the physical sharing resources.

 The Efficiency can be Significantly Improved

through a Pre-filtration Procedure. Through

the analysis of those VMs already co-reside on

identical physical machine, we have raised an

improved co-residency detection scheme.

 Demonstration on Amazon EC2. We use

multiple customer accounts to launch VM

instances under different strategies to simulate

the actual deployment of VMs. Then we use Sift

to detect co-residency on those VMs. These tests

confirm its efficiency and practicality on

commodity clouds.

2 RELATED WORK

Tomas Ristenpart et al., (2009) first exposed the co-

residency detection of VMs in 2009. Since then, the

co-residency detection problems of VMs have

become a new research hotspot and the researchers

proposed a lot of co-residency detection methods

based on different techniques.

Tomas Ristenpart et al., (2009) indicated that, on

the EC2 platform, we can judge the co-residency of

VMs through simple network-topology-based co-

residency checks. This co-residency detection

approach is the simplest way to implement, but its

accuracy cannot be guaranteed. As it is based on

network information, it can be influenced by firewall

policies, network traffic flow and so on, so it has a

critical limitation. Actually, this simple network-

topology-based co-residency check is not usable

anymore since the adoption of VPC.

Adam Bates et al., (2012) proposed the co-

residency watermark technique based on the

network packet delay problem of co-resident VMs.

This technique constructed a side channel skilfully

based on the network packet delay caused by

multiplexing of the physical network card. An

adversary can use this side channel to detect co-

residency with target server. This technique also has

its own limitation. If the service provider restricted

the upper limit of bandwidth, this co-residency

detection method would fail. If service providers

provide each VM with a dedicated network export,

this co-residency detection method will also fail.

Yinqian Zhang et al., (Zhang et al., 2011) used

L2 memory cache to construct a co-residency

detection tool HomeAlone. Different from the

previous two methods, the key idea in HomeAlone is

to invert the usual application of side channels.

Rather than exploiting a side channel as a vector of

attack, HomeAlone uses a side-channel (in the L2

memory cache) as a novel, defensive detection tool.

By analysing cache usage during periods in which

“friendly” VMs coordinate to avoid portions of the

cache, a tenant using HomeAlone can detect the

activity of a co-resident “foe” VM. HomeAlone has

two difficulties. One is how to accurately distinguish

Cache behaviour between normal tenant's friendly

VM and co-resident VM. Another is how to ensure

that the performance of friendly VM will not reduce

greatly.

3 SYSTEM DESIGN

3.1 Practical Application Scenarios

3.1.1 Attack Scenario

We assume system administrators are not interfering

with the activities of their customers, and will not

intervene with customer behaviour unless it is a

threat to Service Level Agreements (SLAs) or to the

general health of their business. We also assume that

our target VM (victim) is trusting of the cloud

infrastructure.

As we need to implement communication

between target VM and the VMs launched by the

adversary, a receiving end has to be established on

the target VM. It is mentioned above that co-

residency attacks in public clouds involve two steps:

a launch strategy and co-residency detection. The

focus of this study is to identify if there exists any

VMs co-reside with target VM. Here we will explain

a reasonable threat model for establishing the

receiving end.

In fact, this pre-condition is able to achieve

through existing attack technique, e.g., Bundled

Software technology. As the operations you are

trying have no harm on the system security, it will

not be detected by security software. Establishing a

receiving end on target VM has nothing to do with

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

424

any complex or sensitive privileged operation and

the entire process from establishing a receiving end

to achieving co-residence consumes little time,

which ensures a high imperceptibility.

We assume that the adversary is in the disguise

of a legal software package source. If the user of

target VM accesses this source to update or install

any software, a receiving end will be established,

benefiting from the bundled software technology.

Then, the essential information needed for pre-

filtration will be forwarded to the adversary through

the normal communication process between target

VM and adversary. Once receiving this information,

the adversary follows the first step of co-residency

attack to launch a large number of VM instances.

Then, following the process of Sift, the adversary

can find the expected VM in a very short time.

3.1.2 Benign Scenario

We have mentioned in the Introduction section that

Venkatanathan Varadarajan et al., (2015) have

investigated the problem of placement

vulnerabilities and quantitatively evaluated three

popular public clouds for their susceptibility to co-

location attacks. A key technique for understanding

placement vulnerabilities is to detect whether VMs

are co-resident on the same physical machine. Thus,

a reliable co-residency detection approach is the

most important pre-condition for this kind of

research. Apparently, Sift is quite a suitable choice

for research demand.

3.2 System Overview

We have analysed those VMs already co-reside with

each other from a local lab environment to

production cloud environments. The reason we

perform an analysis of those VMs is to find the

internal relation among them and set the filtration

criteria. Then we can conduct a pre-filtration on VM

instances we launched before. However, VMs

meeting the filtration criteria might not be co-

resident with each other, which could lead to false

negative. So we still need a reliable approach for co-

location test to further detect co-residence after pre-

filtration procedure.

In this paper, we present a new way to test by

using physical sharing resources. A covert channel

for communication can be constructed based on the

physical sharing resources. The pre-condition for

VMs to use this covert channel for communication is

that they must have co-resident relationship. That is

to say, as long as the communication succeeds, these

two VMs are co-resident. This ensures the accuracy

and reliability of co-location test.

Sift consists of three components, Collecter,

Communicator and a Pre-filter. A filtration criteria

could be set through the analysis of VMs’ property.

The Collecter on each VM is responsible for

collecting essential information and sending the

information to the Pre-filter outside the cloud. The

Communicator on target VM is to establish a

receiving end based on physical sharing resources.

The Pre-filter is like the brain of Sift. After receiving

the information sent by Collecters, Pre-filter will

carry out a filtration on the VMs besides target VM.

Then it will make the decision and inform qualified

VM to establish a sending end. According to the

result of incoming communication process, the

sending end will report to the brain whether co-

residency is achieved.

Figure 1: System architecture.

4 IMPLEMENTATION ON

AMAZON EC2

4.1 Analysis of VM Instances

We have implemented Sift on Amazon EC2. In our

experiment, the domain id is taken as the filtration

criteria. Amazon EC2 is based on Xen virtualization

technology. In the Xen virtualization technology,

each Domain (VM) has a unique identifier called the

domain id (domid). Differing from the UUID of

each VM, the value of UUID does not change during

the lifecycle of a VM, but domid does. When a VM

reboots, the domid of a VM will change. Through

analysing the source code of Xen (version 4.4.1), we

have found that the Domain Us managed by same

Domain 0 have adjacent domid.

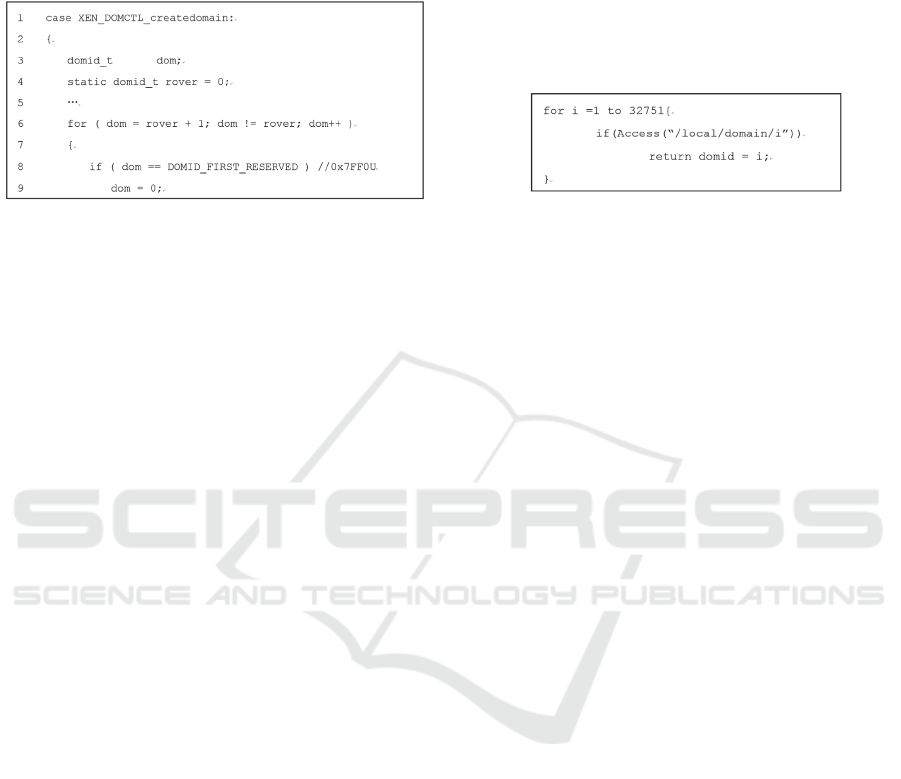

The code is located in xen/common/domctl.c. As

showed in Figure 2, the rover is a static variable. We

can see that it reserves the last assigned domid.

Then, this value will increase by 1 and be assigned

Sift - An Efﬁcient Method for Co-residency Detection on Amazon EC2

425

to the next domain, which means when a VM boot,

it will be assigned a new domid by increasing 1.

When domid reaches the first reserved value, it will

be reset to 1.

Figure 2: Assignment of domid in Xen 4.4.1.

EC2 uses a customized version of Xen. We are

not able to obtain its source code. But Amazon EC2

has provided dedicated service to users, so that we

can rent a physical machine. We deployed several

VMs on this physical machine and tried to get the

domid of these VMs. It was found that the domid of

VMs on EC2 presented the same regularity. If

Amazon EC2 changes the assignment scheme of

domid, for example, using a randomized assignment

scheme. Here is a doubt whether this change has an

effect on our approach. We will talk about it in the

Discussion section. We assume that EC2 would not

change the domid assignment scheme, and our work

is under this pre-condition.

4.2 Collecter

In general case, domid is not visible to EC2 users.

Our Collecter can acquire domid through the

utilization of XenStore. XenStore is an inter-domain

sharing storage system which is managed and

maintained by Domain 0. It stores configuration of

all VMs (include Domain 0), e.g., the domain’s

name, domid and UUID. There are three paths in

XenStore:

 /vm directory stores the configuration of domain.

 /local/domain directory stores information of

running domain. Each subdirectory represents a

running VM like Linux proc file system, e.g.,

/local/domain/0 represents Domain 0.

 /tool directory stores information of all tools.

As a privileged domain, Domain 0 can read and

write all data stored in XenStore. However, as the

Domain U, EC2 users only have access to its own

data. The first reserved domid is 32752(0x7FF0U)

as showed in Figure 2, which implies that the domid

of Domain U ranges from 1 to 32751.

Collecter tries to access /local/domain/<domid>

on a VM. As the directory can only be accessed by

the domain which has the corresponding domid

(e.g., /local/domain/1000 can only be accessed by

Domain 1000). The core pseudo code of Collecter to

get domid is shown in Figure 3. Access represents

access operation to the directory. We can determine

VM’s domid according to its return value. If access

succeeds, then the current i is VM’s domid.

Figure 3: Assignment of domid in Xen 4.4.1.

4.3 Pre-filter

Through the analysis of VM instances, we have

found that the Domain Us managed by same

Domain 0 have adjacent domid. As the capacity of

physical machine has a limit, we can assume that a

physical machine can run x VMs. Therefore, we can

infer from these facts that difference between two

co-resident VMs’ domid is less than x (greater than

zero as well). Pre-filter should carry out the filtration

procedure according to the following algorithm.

Assume that we have a sample set X={x

, x

...

}, and we need to find all possible co-resident

VMs in this set. Each element represents the VMs’

domid. In accordance with the principle of the

nearest neighbour clustering, the algorithm is as

follows:

 Step 1. Select a distance threshold x (i.e. capacity

of physical machine), and take a sample as the

clustering center of first cluster Z

(e.g., x

 Step 2. Calculate the distance to x

(i.e. D

) of all

the rest sample, if D

< x, then x

∈Z

. Choose

another unclassified sample (i.e. not belong to

any cluster) as the clustering center of the second

cluster Z

(e.g., x

 Step 3. Repeat until all VMs have been

classified. Notice that every clustering center can

only belong to one cluster and the other sample

can appear in several clusters (i.e. overlap

between partitions is allowed for the accuracy

and efficiency).

 Step 4. Check every cluster, if a cluster has only

one element, it will be excluded. The remaining

clusters are possible to be co-resident.

Although when a VM boot, it will be assigned a new

domid by increasing 1, when it shutdown, this used

domid will not be recycled. So there may be two co-

resident VMs with domid differs a lot. For example,

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

426

assume there are two VMs running on the same host,

with VM

assigned domid=1 and VM

assigned

domid=2. Then VM

reboot, it will be assigned

domid=3. Reboot again, domid=4, 5, 6…. This

special case might be missed when we have set up a

threshold value, which will lead to false negative.

Therefore, we have arranged two experiments. Two

groups of VMs are launched in different time. The

time interval for first experiment is 12 hours, and the

time interval for second experiment is 24 hours.

During the time interval, the other VMs on the

physical host might reboot which will consume the

domid. We set these two experiments to simulate

that special case, and test the rate of false negative

for Sift.

4.4 Communicator

After the Pre-filtration, the Pre-filter will inform the

qualified VMs to establish a communication process

using physical sharing resources. We have utilized

the physical sharing resources of Xen VM monitor,

such as event channel, grant table.

Event channel is an asynchronous notification

mechanism provided by Xen VM monitor for VMs

to exchange information. We can try to establish

event channel between two VMs. These two VMs

can be determined as co-resident if the event channel

can be established successfully. Further, we can

construct a covert channel based on event channel

for co-location test, such as the CCECS been

proposed in our previous work (Shen et al., 2013). If

two VMs can use CCECS to establish a

communication process, the co-residency is

achieved.

In addition to covert channel based on event

channel, any other covert channels satisfy the

following conditions could be applied to co-

residency detection.

 It is built on the physical sharing resources of

VM monitor.

 It can be carried out on commodity cloud, such

as Amazon EC2 to ensure the practicability

 It should be stable enough and have the ability of

anti-interference to ensure the reliability

4.5 Experiment Strategies

We use two Amazon EC2 accounts (account A and

B) to launch VM instances under different strategies

that simulate the actual deployment of VMs. The

VMs we launch have the same configuration.

We have designed two sets of experiments. The

first set consists of three experiments corresponding

to three specific availability zones (us-west-2a, us-

west-2b, us-west-2c). We use account A and account

B to launch 20 VMs at the same time, since EC2 has

a limitation that each account can only launch 20

VMs. The reason why we launch VMs at same time

is to maximize the likelihood of co-residency, so we

can demonstrate Sift better. These three experiments

are denoted as experiment 1-a, 1-b, 1-c.

Corresponding to the three zones.

It has been mentioned in section 4.3 that a

special case might lead to a false negative.

Therefore, in the second set of experiments, we have

arranged two experiments. Two groups of VMs are

launched in different time. The time interval for first

experiment (denoted as experiment 2-1) is 12 hours,

and the time interval for second experiment (denoted

as experiment 2-2) is 24 hours. We set these two

experiments to simulate that special case, and test

the rate of false negative for Sift.

We have noticed that each account can only

launch 20 VM instances on Amazon EC2.

Meanwhile, Amazon EC2 has provided a dedicated

service to users. So we can infer that Amazon just

needs to guarantee that each physical machine could

hold 20 VMs of any type. Thus, we set the value of x

to 20. We will discuss how to choose a proper value

for x in Discussion. The results of experiments will

be given in Evaluation section.

5 EVALUATION

5.1 Experimental Data of First Set

The domid of VM instances in experiment 1-a listed

in Table 1 is in an ascending order for the

convenience of analysing.

Table 1: Domid of VM instances in Experiment 1-a.

No. domid No. domid No. domid No. domid

A1 437 A11 1039 B1 223 B11 1295

A2 494 A12 1056 B2 314 B12 1317

A3 514 A13 1174 B3 530 B13 1320

A4 635 A14 1176 B4 531 B14 1320

A5 640 A15 1439 B5 548 B15 1517

A6 773 A16 1581 B6 1001 B16 1548

A7 818 A17 1941 B7 1133 B17 1558

A8 952 A18 1942 B8 1196 B18 1569

A9 1000 A19 2117 B9 1240 B19 1615

A10 1308 A20 4948 B10 1262 B20 9009

It is mentioned in section 4.1 that each Domain

U managed by same Domain 0 has a unique domid.

So it can be sure that VMs have same domid are

definitely not co-resident. Besides, VMs launched

Sift - An Efﬁcient Method for Co-residency Detection on Amazon EC2

427

by same account are not co-resident (Ristenpart et

al., 2009), which has been proved in our experiment.

We should take these into consideration during pre-

filtration procedure.

For example, we can take A3 as the first

clustering center. As the VMs launched by same

account are not co-resident, we can just search in

account B for expected VMs. Here exist B3 and B4

meet the rule. Next, we should pick another

clustering center from the remaining 37 unclassified

VMs and search for those expected VMs. Then

repeat these steps until all VMs have been classified.

Remember that overlap between partitions is

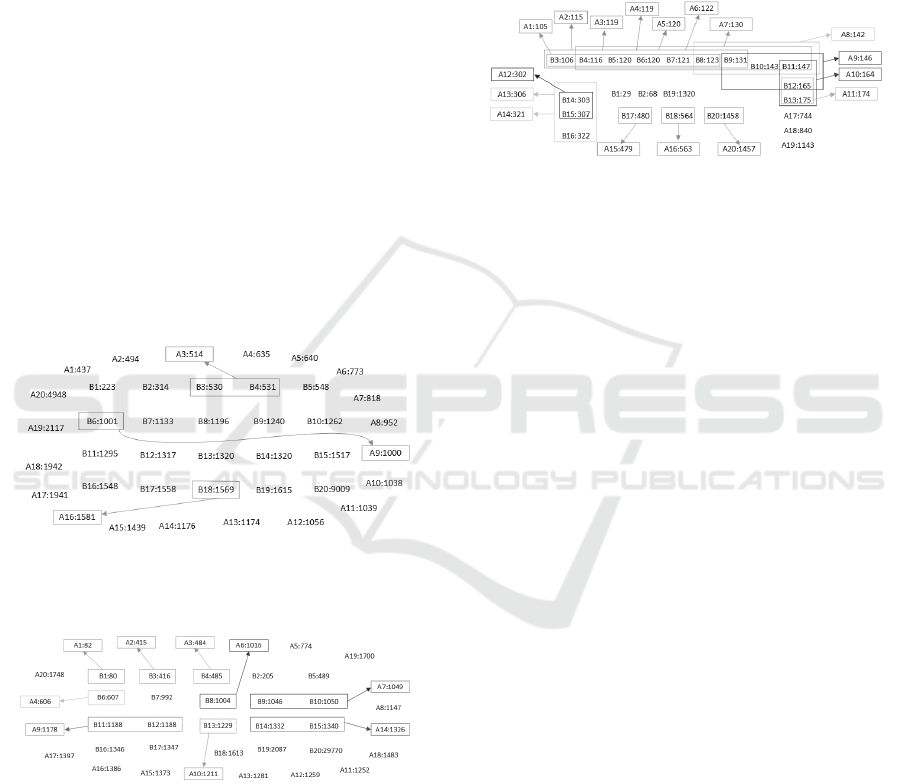

allowed. Figure 4 illustrates the process of pre-

filtration in experiment 1-a.

As VMs launched by same account are not co-

resident, we can just do co-location test using covert

channel (namely CCECS) between clustering center

and other elements. That is to do co-location test

between A2 and B3, A2 and B4, A9 and B6, A16

and B18. If the test is successful, then the receiving

VM and sending VM can be judged as co-resident.

But unfortunately, no VMs are proved to be co-

resident in experiment 1-a.

Figure 4: The result of pre-filtration is: A3{B3,

B4}(means that A3, B3, B4 belong to same cluster with

A3 being the clustering centre), A9{B6}, A16{B18}.

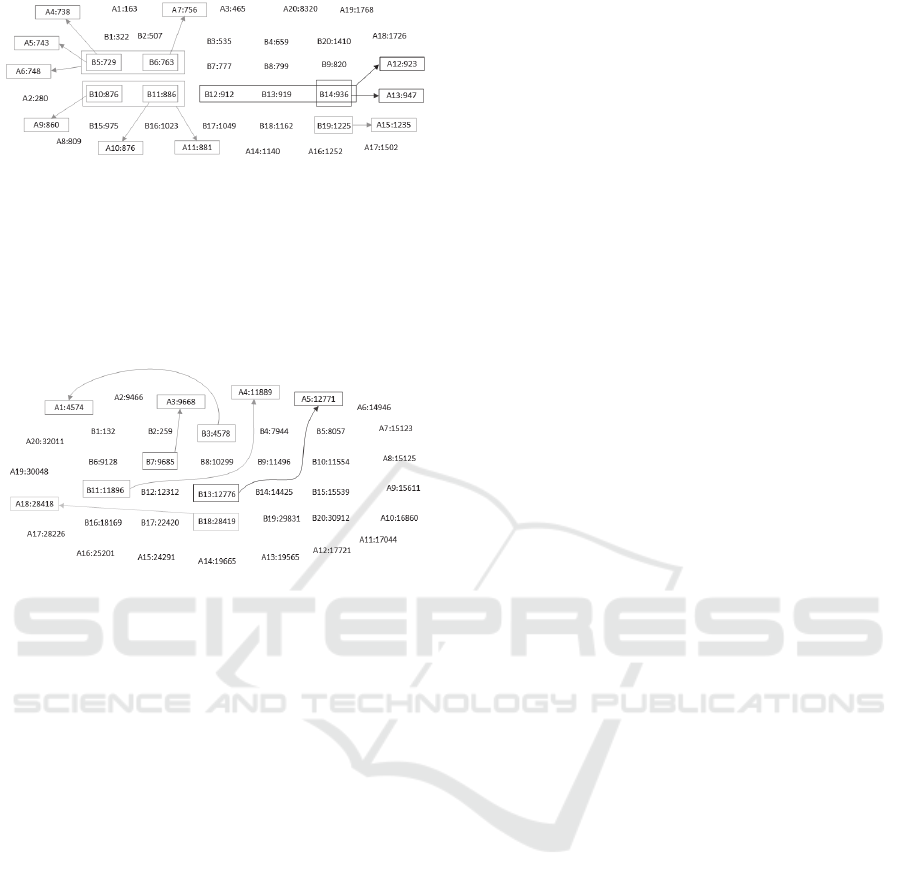

Figure 5: The result of pre-filtration is: A1{B1}, A2{B3},

A3{B4}, A4{B6}, A6{B8}, A7{B9, B10}, A9{B11,

B12}, A10{B13}, A14{B14, B15}.

Without listing the domid of VMs in Table

again, we directly illustrate the other two

experiments through graphs. Figure 5 illustrates the

process of pre-filtration in experiment 1-b. There

were 12 co-location tests need to be carried out in

total. After that, we got 4 pairs of VMs that were co-

resident. They were A2-B3, A3-B4, A4-B6, A7-

B10.

Figure 6 illustrates the process of pre-filtration in

experiment 1-c. There were 73 co-location tests need

to be done in total. After that, we got 17 pairs of

VMs that were co-resident. They were A1-B3, A2-

B4, A3-B5, A4-B6, A5-B7, A6-B8, A7-B9, A8-B10,

A9-B11, A10-B12, A11-B13, A12-B14, A13-B15,

A14-B16, A15-B17, A16-B18, A20-B20.

Figure 6: The result of pre-filtration is: A1{B3, B4, B5,

B6, B7, B8}, A2{B3, B4, B5, B6, B7, B8, B9}, A3{B3,

B4, B5, B6, B7, B8, B9}, A4{B3, B4, B5, B6, B7, B8,

B9}, A5{B3, B4, B5, B6, B7, B8, B9}, A6{B3, B4, B5,

B6, B7, B8, B9}, A7{B4, B5, B6, B7, B8, B9, B10, B11},

A8{B8, B9, B10, B11}, A9{B9, B10, B11, B12},

A10{B11, B12, B13}, A11{B12, B13}, A12{B14, B15},

A13{B14, B15, B16}, A14{B14, B15, B16}, A15{B17},

A16{B18}, A20{B20}.

In order to prevent the false negative, we have

carried out exhaustive co-location tests for all

possible VM combination in all three experiments,

in other words, 400 co-location tests for each

experiment. It turns out that no false negative has

been produced. In terms of efficiency, the number of

co-location test has been greatly reduced with the

help of pre-filtration. The efficiency is improved

indeed.

5.2 Experimental Data of Second Set

The time interval for experiment 2-1 is 12 hours. We

first use account A to launch 20 VM instances, and

use account B to launch 20 VM instances after 12

hours. The time interval for experiment 2-2 is 24

hours. During the time interval, there might happen

a lot of reboot operations, which will consume the

domid. We set these two experiments to simulate

that special case, and test the rate of false negative

for Sift.

Figure 7 illustrates the process of pre-filtration in

experiment 2-1. There were 5 co-location tests need

to be done in total. After that, we got 5 pairs of VMs

that were co-resident. They were A1-B3, A3-B7,

A4-B11, A5-B13, A18-B18.

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

428

Figure 7: The result of pre-filtration is: A1(B3), A3(B7),

A4(B11), A5(B13), A18(B18).

Figure 8 illustrates the process of pre-filtration in

experiment 2-2. There were 14 co-location tests

need to be carried out in total. But unfortunately,

there were no VMs proved to be co-resident in

experiment 2-2 as well.

Figure 8: The result of pre-filtration is: A4(B5), A5(B5),

A6(B5, B6), A7(B6), A9(B10), A10(B11), A11(B10,

B11), A12(B12, B13, B14), A13(B14), A15(B19).

We can learn from the experimental data, the

biggest difference of domid between co-resident

VMs is 13, these two VMs are A3 and B7 in

experiment 2-1. The reason why we arrange this set

of experiment is to simulate the special case we

discussed in previous section. We have carried out

exhaustive co-location tests for all possible VM

combination in both two experiments. But this

exceptional case has not occurred as we expect, and

no false negative has been produced. We speculate

that this special case is a small probability event. It

might happen, but its impact on Sift is negligible.

5.3 Performance Analysis

We can find that the number of co-location tests in

five experiments have been greatly reduced from

400 to 4, 12, 73, 5, 14 respectively. While the

filtration on VMs consumes very little time, close to

the time needed for a co-location test.

Suppose there are M accounts, each account can

launch N VMs. Considering the fact that VMs

launched by same account are not co-resident, we

have C(M,2)•N

possible VM combinations for co-

location test. So the time complexity is O(M

•N

e.g., we use two accounts and each account can

launch 20 VMs, as a result, we have 400 possible

VM combinations for co-location test. In contrast, if

we implement a pre-filtration procedure before co-

location test, we can improve the time complexity.

Considering the extreme case that each cluster has

2(x-1) elements, we need to do M•N(x-1) co-location

tests at most. As x can be considered as a constant,

so the time complexity is O(M•N). It can be seen by

comparing the time complexity that the adoption of

a pre-filtration procedure can significantly reduce

the time of co-residency detection.

6 DISCUSSION

The value of x depends on the following factors: the

performance of physical machine, instance’s type,

and the number of VMs that a physical machine

should hold defined by CSP. In general case, the

capacity of physical machine for different types of

instance is diverse, for example, the capacity for

medium type VM on Amazon EC2 is 8 (Ristenpart

et al., 2009). Furthermore, the value of x we set

could directly affects the efficiency and accuracy of

co-residency detection. When the selected value of x

is greater, the accuracy is higher, but the efficiency

would be lower. When the selected value of x is

smaller, the accuracy would be relatively reduced,

and it may appear some omissions. You could adjust

the value of x according to the result of the

experiment to find the most accurate value of x.

The reason why we choose domid as the

filtration criteria during pre-filtration procedure on

Amazon EC2 is that a VM will be assigned a new

domid by increasing 1 when it boot. So co-resident

VMs have adjacent domid. If Amazon EC2 changes

the assignment scheme of domid, for example, using

a randomized assignment scheme. It is a problem

what impact there will be. Actually, the output

number sequence is fixed when the seed of pseudo

random number generator is certain. So it is possible

for us to define a mapping from this random number

sequence to a linear growth sequence.

We have mentioned that the domid will not be

recycled when a domain reboot, which could lead to

a special case that two VMs co-reside on same host

with domid differs a lot. We have to admit that this

special case does exist, so we have arranged

experiment 2-1 and 2-2 to simulate this special case.

However this special case has not occurred as we

expect, and no false negative has been produced. We

speculate that this special case is a small probability

event. It might happen, but its impact on Sift is

Sift - An Efﬁcient Method for Co-residency Detection on Amazon EC2

429

negligible.

7 CONCLUSIONS

In this paper, we proposed Sift, an efficient and

reliable approach for co-residency detection. A

detailed introduction of this detection scheme was

presented, and the threat model for Sift was

explained as well. Through an extensive series of

tests, we have implemented Sift on Amazon EC2.

Through the analysis of experimental data and the

computation of complexity, we have proved its

practicality and efficiency. Finally, we made a

discussion about how to select a proper value for x

and several problems of Sift.

Our future work will focus on improving Sift.

We will solve the leftover problems first and then

implement it on other cloud platforms to assure

whether Sift is still feasible.

ACKNOWLEDGEMENTS

This work is supported by the National High

Technology Research and Development Program

(“863” Program) of China under Grant No.

2015AA016009, the National Natural Science

Foundation of China under Grant No. 61232005, and

the Science and Technology Program of Shen Zhen,

China under Grant No. JSGG20140516162852628.

REFERENCES

Bijon, K., Krishnan, R., & Sandhu, R. (2015, June).

Mitigating Multi-Tenancy Risks in IaaS Cloud

Through Constraints-Driven Virtual Resource

Scheduling. In Proceedings of the 20th ACM

Symposium on Access Control Models and

Technologies (pp. 63-74). ACM.

Bates, A., Mood, B., Pletcher, J., Pruse, H., Valafar, M., &

Butler, K. (2012, October). Detecting co-residency

with active traffic analysis techniques. In Proceedings

of the 2012 ACM Workshop on Cloud computing

security workshop (pp. 1-12). ACM.

Godfrey, M., & Zulkernine, M. (2014). Preventing Cache-

Based Side-Channel Attacks in a Cloud Environment.

Cloud Computing, IEEE Transactions on, 2(4), 395-

408.

Godfrey, M., & Zulkernine, M. (2013, June). A server-

side solution to cache-based side-channel attacks in

the cloud. In Cloud Computing (CLOUD), 2013 IEEE

Sixth International Conference on (pp. 163-170).

IEEE.

Han, Y., Chan, J., Alpcan, T., & Leckie, C. (2014, June).

Virtual machine allocation policies against co-resident

attacks in cloud computing. In Communications

(ICC), 2014 IEEE International Conference on (pp.

786-792). IEEE.

Hund, R., Willems, C., & Holz, T. (2013, May). Practical

timing side channel attacks against kernel space

ASLR. In Security and Privacy (SP), 2013 IEEE

Symposium on (pp. 191-205). IEEE.

Ristenpart, T., Tromer, E., Shacham, H., & Savage, S.

(2009, November). Hey, you, get off of my cloud:

exploring information leakage in third-party compute

clouds. In Proceedings of the 16th ACM conference

on Computer and communications security (pp. 199-

212). ACM.

Raj, H., Nathuji, R., Singh, A., & England, P. (2009,

November). Resource management for isolation

enhanced cloud services. In Proceedings of the 2009

ACM workshop on Cloud computing security (pp. 77-

84). ACM.

Shen, Q., Wan, M., Zhang, Z., Zhang, Z., Qing, S., & Wu,

Z. (2013). A covert channel using event channel state

on xen hypervisor. In Information and

Communications Security (pp. 125-134). Springer

International Publishing.

Varadarajan, V., Zhang, Y., Ristenpart, T., & Swift, M.

(2015, August). A placement vulnerability study in

multi-tenant public clouds. In 24th USENIX Security

Symposium (USENIX Security 15)(Washington, DC

(pp. 913-928).

Varadarajan, V., Kooburat, T., Farley, B., Ristenpart, T.,

& Swift, M. M. (2012, October). Resource-freeing

attacks: improve your cloud performance (at your

neighbor's expense). In Proceedings of the 2012 ACM

conference on Computer and communications security

(pp. 281-292). ACM.

Wu, Z., Xu, Z., & Wang, H. (2012, August). Whispers in

the Hyper-space: High-speed Covert Channel Attacks

in the Cloud. In USENIX Security symposium (pp.

159-173).

Xu, Y., Bailey, M., Jahanian, F., Joshi, K., Hiltunen, M.,

& Schlichting, R. (2011, October). An exploration of

L2 cache covert channels in virtualized environments.

In Proceedings of the 3rd ACM workshop on Cloud

computing security workshop (pp. 29-40). ACM.

Yarom, Y., & Falkner, K. E. (2013). Flush+ Reload: a

High Resolution, Low Noise, L3 Cache Side-Channel

Attack. IACR Cryptology ePrint Archive, 2013, 448.

Zhang, Y., Juels, A., Oprea, A., & Reiter, M. K. (2011,

May). Homealone: Co-residency detection in the cloud

via side-channel analysis. In Security and Privacy

(SP), 2011 IEEE Symposium on (pp. 313-328). IEEE.

Zhang, Y., Juels, A., Reiter, M. K., & Ristenpart, T.

(2012, October). Cross-VM side channels and their

use to extract private keys. In Proceedings of the 2012

ACM conference on Computer and communications

security (pp. 305-316). ACM.

Zhang, Y., Juels, A., Reiter, M. K., & Ristenpart, T.

(2014, November). Cross-tenant side-channel attacks

in paas clouds. In Proceedings of the 2014 ACM

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

430

SIGSAC Conference on Computer and

Communications Security (pp. 990-1003). ACM.

Zhou, F., Goel, M., Desnoyers, P., & Sundaram, R.

(2011). Scheduler vulnerabilities and attacks in cloud

computing. arXiv preprint arXiv:1103.0759.

Sift - An Efﬁcient Method for Co-residency Detection on Amazon EC2

431
