A Categorization of GSN-based Safety Cases and Patterns

Yaping Luo, Zhuoao Li and Mark van den Brand

Mathematics and Computer Science, Eindhoven University of Technology,

P.O. Box 513, 5600 MB, Eindhoven, The Netherlands

Keywords:

Goal Structural Notation, Safety Case, Safety Case Categorization, Safety Case Pattern, Safety Argument,

Conﬁdence Argument.

Abstract:

Recently modeling techniques are introduced to support safety assessment. Goal Structural Notation is one of

these modeling techniques, which can be used to facilitate the development of safety argumentation and create

reusable safety argumentation models. Consequently, GSN-based safety cases are widely used to demonstrate

the safety of systems in safety-critical domains. Due to the amount of manual work, constructing a safety case

is usually time-consuming. Moreover, the re-usability of GSN-based safety cases is limited. To address this,

safety case patterns are introduced to support safety case reuse. As more and more GSN-based safety cases and

patterns are designed with different goals in different contexts, it becomes hard to identify a reusable safety case

or pattern. In this paper, we carried out a study on the categorization of existing GSN-based safety cases and

patterns. As a result, a number of high cited publications are selected and studied. Finally a categorization of

GSN-based safety cases is proposed. A clear categorization of GSN-based safety cases can be used to identify

similar safety cases or patterns and facilitate safety case reuse.

1 INTRODUCTION

A safety case is a well-structured argument for justi-

fying that a system is safe. In (Bishop and Bloom-

ﬁeld, 1998), a safety case is deﬁned as: “A docu-

mented body of evidence that provides a convincing

and valid argument that a system is adequately safe for

a given application in a given environment”. In some

international safety standards, explicit safety cases

are required for safety-critical systems. For example,

ISO 26262 (ISO26262, 2011), for the automotive do-

main, stimulates the use of safety cases to demonstrate

the product safety (Safety Case Repository, 2013). Be-

sides, MOD Def Stan 00-55 (MOD, 1997) for safety-

critical software in defense equipment requires produc-

ing safety cases with explicit safety requirements.

Typically, safety cases are represented in free text,

but in this way, the structure of the safety cases might

be unclear, which allows for inconsistencies and con-

fusion (Luo et al., 2015a) (Luo et al., 2015b). To

address this, modeling techniques are introduced to

facilitate safety case construction and to increase the

understandability and conﬁdence in the claimed safety

assurance (Safety Case Repository, 2013). For exam-

ple, techniques originally from model-driven devel-

opment are used for modeling safety standards, and

representing concepts in safety cases, such as ontolo-

gies, and SBVR models. Goal Structural Notation

(GSN) is introduced as a graphical modeling approach

for safety case construction (Kelly and Weaver, 2004).

The details of GSN are described in Section 2. With

the increase of safety-critical software or systems, such

as cars, more and more GSN-based safety cases are

developed. The re-usability of GSN-based safety cases

becomes another challenge. People want to reuse

safety case whenever it is possible. Informal reuse

of safety case elements occurs, like ‘Copy and Paste’

of the textual safety case documents between projects.

A number of problems with informal reuse are listed

in (Kelly and McDermid, 1998). For example, it may

cause inappropriate reuse, lack of traceability, or lack

of consistency. To prevent these problems, safety case

patterns are introduced as an approach to reuse of com-

mon structures of safety cases.

As a number of GSN-based safety cases and pat-

terns has been developed, when constructing a safety

case, engineers can reuse or build their safety case

upon existing ones. In order to accomplish this, a

large number of safety cases or patterns from different

sources need to be collected, then the similar ones for

reuse have to be identiﬁed. This process can be very

time-consuming. Therefore, categorizing those safety

cases or patterns into smaller groups is promising.

In this paper we propose a categorization of GSN-

Luo, Y., Li, Z. and Brand, M.

A Categorization of GSN-based Safety Cases and Patterns.

DOI: 10.5220/0005734305090516

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 509-516

ISBN: 978-989-758-168-7

509

based safety cases and patterns, for this we selected

and studied a number of high cited publications

. The

publications are divided into two groups: one group

for categorizing, and one group for the validation of

the categorization. As safety case patterns can be

used as templates for creating safety cases, patterns

represent general characteristics of safety cases. Thus,

we collected existing safety case patterns from a group

of papers for validation.

The aim of our research is to form a categoriza-

tion based on existing studies, and validate the catego-

rization by applying it to the widely-used safety case

patterns. If existing safety cases or patterns are cate-

gorized into groups according to their original goals,

then engineers facing a particular safety requirement

to fulﬁll, they will be able to look into a small speciﬁc

collection of safety cases or patterns for the reusable

ones. In this way, the efﬁciency of the reuse process

can be improved. The structure of this study is as

follows. Section 2 introduces the background infor-

mation about GSN (Goal Structuring Notation) and

safety case pattern. Section 3 provides an overview

of a categorization of safety cases and deﬁnitions of

each type argument. Section 4 discusses the validation

results by categorizing existing safety case patterns.

Finally, a conclusion of this research and the expected

future work are mentioned.

2 BACKGROUND

2.1 GSN and Extension

Goal Structuring Notation (GSN) is a graphical nota-

tion which is widely recommended for modeling safety

cases (Kelly and Weaver, 2004). It provides a clear and

well-structured argument in terms of basic graphical

elements, such as goals, solutions and strategies. The

primary elements of the standard GSN are introduced

in Figure 1.

When a GSN-based safety case is successful, peo-

ple tend to deﬁne a template of the safety case for

reusing, e.g. safety case patterns (Kelly and McDer-

mid, 1997). As safety case pattern requires more ﬂex-

ibility and complexity on the structure, the standard

GSN has been extended with several elements and

entities (Figure 2). The detailed information of the ele-

ments can be found in the GSN Community Standards

Version 1 (GSN Community Standard, 2011). Only

the sixth element (Assurance Claim Point, ACP) is

not described in the GSN Community Standards. This

In the bibliography the number of citations per paper

based on Google Scholar is explicitly given.

Goal Strategy

Evidence

Context

Assumption or

Justification

A/J

Undeveloped Goal

Supports

In context of

Figure 1: Primary elements of the Goal Structuring Notation.

Optionality

Multiplicity

Assurance Claim

Point

Uninstantiated

Entity

Undeveloped and

Uninstantiated Entity

At least one of the

options

Figure 2: Extension of GSN to support safety case pattern.

arrow is introduced in (Hawkins et al., 2011), which

means a conﬁdence argument should be indicated for

this connection.

2.2 Safety Case Pattern

As mentioned before, the safety case pattern approach

supports the reuse of safety cases by identifying and

recording reusable arguments. The format of a safety

case pattern includes two parts: description of the

design and the structure represented in GSN. The de-

scription of a safety case pattern is often written in

the form of a table described in (Kelly and McDer-

mid, 1997). In this table, a pattern developer provides

all related information about the pattern, such as the

intent, motivation, applicability and implementation.

This information helps the reviewers to understand and

reuse the pattern.

Safety case patterns facilitate modeling of safety

cases. The developer only needs to consider the vari-

ables in each element of the pattern and concentrate

on collecting corresponding evidences and contexts.

Using safety case patterns to identify and record the

reusable arguments will improve the re-usability of

safety cases and save a lot of time and resources.

3 SAFETY CASE

CATEGORIZATION

Research and development on safety cases has taken

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

510

Safety Case

Safety

Argument

[2][6][10]

Confidence

Argument

[2][6][10]

Product Safety

Argument

[3][

8][

11]

Process Safety

Argument

[

3][8][

11]

Assurance Argument

for Inference

[6][10]

Assurance Argument

for Context

[2][10]

Assurance Argument

for Solution

[2][10]

Compliance Safety

Argument

[15][17]

Figure 3: A categorization of safety cases.

more than two decades, but there is still no speciﬁc

categorization of safety cases. A number of publi-

cations (Hawkins et al., 2011) (Birch et al., 2013)

(OPENCOSS, 2013) (Habli and Kelly, 2006) indicate

a simple classiﬁcation of safety cases. Therefore, we

carry out a study based on those publications to obtain

an explicit categorization of safety cases. In the follow-

ing section, a GSN-based safety case categorization

are discussed.

3.1 Safety Case Categorization

Overview

An overview of our proposed safety case categoriza-

tion is shown in Figure 3. At the ﬁrst level, safety

cases are categorized in two types: Safety Argument

and Conﬁdence Argument. This separation is derived

from (Hawkins et al., 2011). Safety argument is the

argument that purely explains how the evidence sup-

ports the claims of the acceptable safety of a system.

Conﬁdence argument is separated from safety argu-

ment, because it serves to explain the conﬁdence of

a safety argument. (Ayoub et al., 2012) and (Denney

et al., 2011) propose approaches for systematically

constructing conﬁdence arguments and evaluating the

uncertainties of safety arguments. For most of the ex-

isting safety cases, the conﬁdence argument is always

included in the safety argument. When the distinction

between safety and conﬁdence arguments is made, a

safety case developer will have a clear direction on

the safety case construction steps. For safety case re-

viewers or assessors, the distinction will help them

to understand a safety case better and identify these

weakly supported aspects (Hawkins et al., 2011).

3.2 Safety Argument

In a safety argument, the goal is to argue that system

itself or the development of the system is acceptably

safe. For example, a risk-based safety argument may

contain the identiﬁcation and mitigation of hazards

associated with the system. Every assertion and evi-

dence in this safety argument will have a direct role to

the claims about the hazards. This kind of argument

is usually deterministic. Depending on the content of

claims, the safety argument can be further categorized

in three types: product safety argument (Birch et al.,

2013) (Habli and Kelly, 2006) (ISO26262, 2011), pro-

cess safety argument (Birch et al., 2013) (Habli and

Kelly, 2006) (ISO26262, 2011), and compliance safety

argument (Kelly, 1999) (OPENCOSS, 2013).

3.2.1 Product Safety Argument

If the top-claim in a safety argument focuses on safety

characteristics of a speciﬁc product, this argument is

classiﬁed as a product safety argument (or product-

based safety argument). When a claim in this argu-

ment is not trivial to be asserted, it will be split into

sub-claims. Finally, product-based evidence will be

provided for the bottom-level safety claims. An ex-

ample of this type of safety argument can be an ar-

gument constructed to demonstrate the satisfaction of

A Categorization of GSN-based Safety Cases and Patterns

511

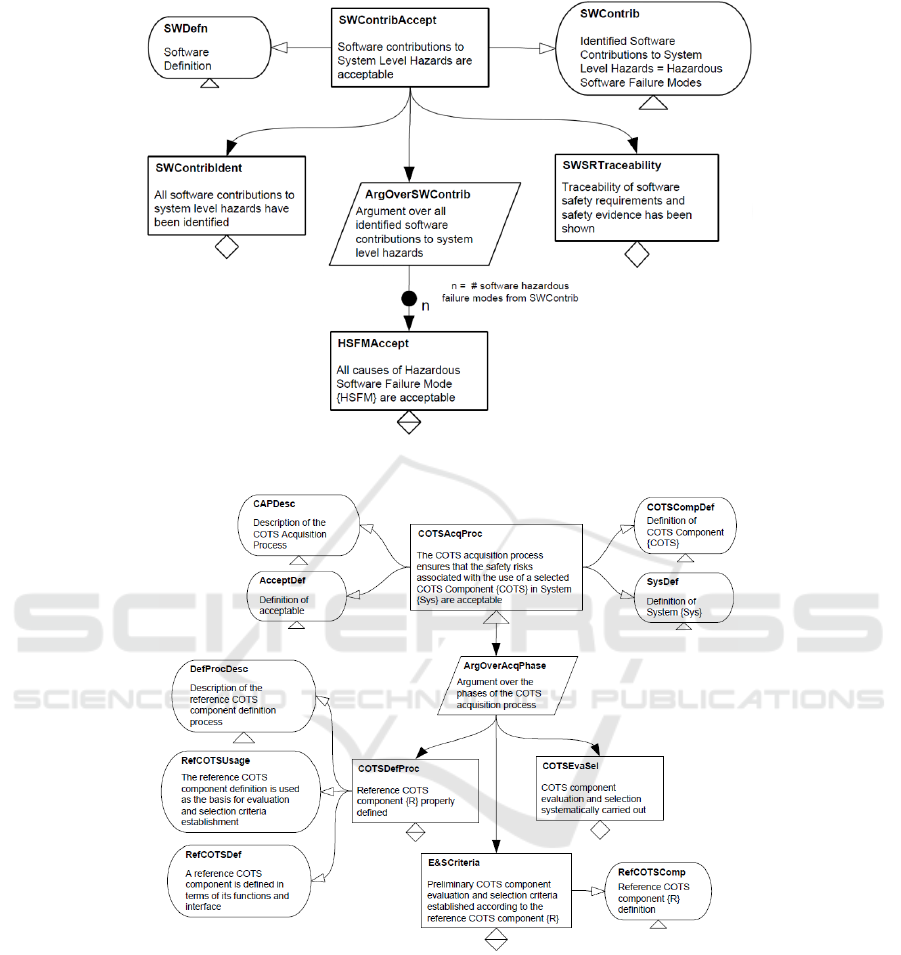

Figure 4: An example of product safety argument pattern (Weaver, 2004, Page 208).

Figure 5: An example of process safety argument pattern (Ye, 2005, Figure 40).

the safety requirements in the hazard analysis phase.

This argument will mainly rely on the generated work

products, which can be used as supporting evidence.

Therefore, this argument is a typical product safety

argument. Normally, the product safety argument is

the crucial part of a completed safety case. Other types

of safety arguments are built around it.

A pattern of this type of safety argument can be

found in (Weaver, 2004) and is shown in Figure 4. This

pattern can be used to argue that the software contri-

butions to system level hazards are acceptable. The

instantiation of this pattern will be a safety argument

on a speciﬁc product, for example a safety argument

on Hazardous Software Failure Modes.

3.2.2 Process Safety Argument

When the top-claim in a safety argument focuses on the

quality of the development process, then this argument

can be classiﬁed as a process safety argument. For ex-

ample, if an argument states that tools or methods used

in the development process satisfy the corresponding

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

512

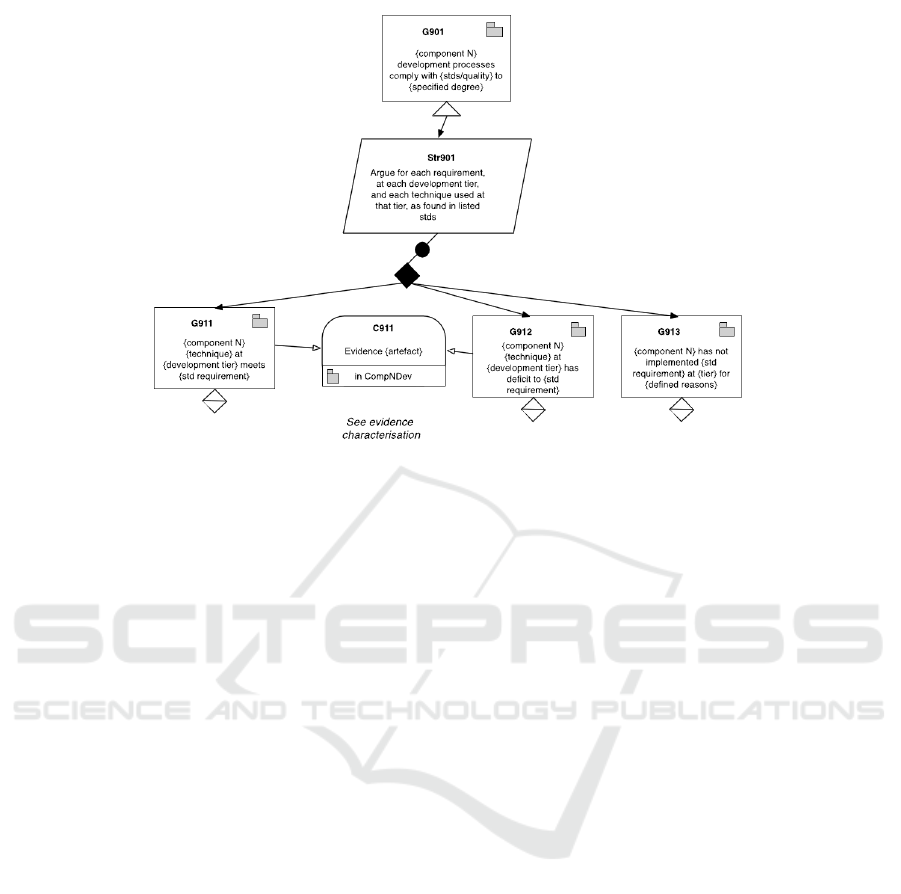

Figure 6: An example of compliance safety argument pattern (OPENCOSS, 2013, Figure 32).

safety requirements, it will be referred to as a process

safety argument. A process safety argument focuses on

the implicit development process assumptions under-

lying the product-based argument. Thus, this type of

argument is strongly connected with a product safety

argument.

An example of process safety argument pattern is

shown in Figure 5 (Ye, 2005). The pattern is used to ar-

gue the safety of a Commercial-Off-The-Shelf (COTS)

component use from a risk management perspective.

It shows how the safety risks associated with the use

of a COTS component are identiﬁed and addressed

throughout the COTS acquisition process. The strategy

of this argument is to decompose the acceptability of

the COTS acquisition process to three essential phases:

deﬁning a reference COTS component, establishing

the evaluation and selection criteria, and conducting

the COTS component evaluation and selection.

3.2.3 Compliance Safety Argument

When the top-claim in a safety argument points ex-

plicitly to a speciﬁc safety standard or regulation, this

argument can be classiﬁed as a compliance safety argu-

ment. The goal of this type argument is to demonstrate

that the development process of a system or the sys-

tem itself is in compliance with the target standards

or regulations. For example, for a top-claim “the haz-

ard analysis process of system X complies with ISO

26262”, a safety argument will need to be provided to

argue the compliance with ISO 26262 standard. Then

necessary evidence will be required to support such

argument. This type of argument contains the com-

pliance statements underlying the product-based and

process-based argument.

A pattern for constructing a compliance safety ar-

gument is shown in Figure 6. This pattern is designed

for arguing how well the development process of one

component complies with a given standard.

3.3 Conﬁdence Argument

A conﬁdence argument is used to explicitly address un-

certainties in inference rules and help explain why

there is sufﬁcient conﬁdence in a safety argument.

In other words, a conﬁdence argument documents the

justiﬁcation for conﬁdence in a safety argument. In

the past, conﬁdence argument is implicitly included

in the safety argument. The distinction between con-

ﬁdence and safety argument is proposed in (Hawkins

et al., 2011). The goal of that research is to manage

the conﬁdence part explicitly. In this way, the clarity

of a safety case can be improved, which facilitates

safety case construction and review process. When

building a safety argument, a number of assertions will

be made. These assertions represent the principles of

the safety argument. For different types of assertions,

a conﬁdence argument can be further categorized in

three types: assurance argument for inference, context

and solution. Some examples of different types of

conﬁdence argument can be found in (Hawkins et al.,

2011).

3.3.1 Assurance Argument for Inference

In a safety argument, if a top-level claim is too exten-

sive to be argued, the claim will be split into several

sub-claims through inference. The reason or method

A Categorization of GSN-based Safety Cases and Patterns

513

Table 1: Categorization of the safety case patterns in each paper.

Publications

Product Process

Compli-

ance

Asserted

Inference

Asserted

Context

Asserted

Solution

Mixed

(Kelly, 1999)

4 1 3 - - - 3

(Weaver, 2004)

12 - - - - - -

(Ye, 2005)

9 11 - - - 1 -

(Alexander et al., 2007)

9 - - - - - -

(Hawkins and Kelly, 2008)

1 4 - - - - -

(Robert and Ibrahim, 2010)

4 1 - - - - -

(Conmy and Bate, 2014)

- - - - - 1 -

(OPENCOSS, 2013)

3 4 2 - - - -

for this inference is documented in a strategy element.

Then to gain assurance in the strategy, a conﬁdence

argument is needed to demonstrate why the asserted

inference should be trusted. We call this type of conﬁ-

dence argument "Assurance Argument for Inference".

An assurance argument for inference is placed between

the parent claim and its strategy or sub-claims.

3.3.2 Assurance Argument for Context

Usually, contextual information contains the informa-

tion that is referred to in the claim or strategy. For

example, when a strategy states “argument over all

system hazards”, then a context pointing to the corre-

sponding hazard list will be added. When a context is

introduced into a safety argument, the appropriateness

and trustworthiness of that context should be taken into

account. Thus a conﬁdence argument for the context

is necessary. We call this type of conﬁdence argument

“Assurance Argument for Context”. An assurance ar-

gument for context can be given between the context

and its corresponding strategy or claim to represent

the reliability of its source.

3.3.3 Assurance Argument for Solution

Assurance Argument for Solution is a kind of conﬁ-

dence argument for showing the conﬁdence on evi-

dence. When evidence is provided as a solution to an

argument, it need to be assured that the evidence is

sufﬁcient to support the claim. Therefore, an assurance

argument for solution can be added for this purpose.

The assurance argument is given between solution and

its corresponding claim.

4 VALIDATION

Since the use of safety case patterns as a method

of documenting and reusing safety case structures

was pioneered by Kelly in 1999, the development

on safety case patterns has made great progress. Up

to now, a large number of safety case patterns have

been developed for different domains, for instance soft-

ware (Weaver, 2004), automotive (Robert and Ibrahim,

2010) and COTS Components (Ye, 2005). Safety cases

can be built based on these safety case patterns. There-

fore, by categorizing safety case patterns, the safety

cases derived from these patterns can also be catego-

rized. As safety case patterns have the common charac-

teristics of safety cases, we choose to apply our catego-

rization on a number of safety case patterns instead of

a random set of safety cases. We selected 8 existing pa-

per which includes speciﬁc safety case patterns (Kelly,

1999) (Weaver, 2004) (Ye, 2005) (Alexander et al.,

2007) (Hawkins and Kelly, 2008) (Robert and Ibrahim,

2010) (Hawkins et al., 2011) (OPENCOSS, 2013). In

total, 73 safety case patterns have been collected from

those papers. Those safety case patterns have been

categorized according to their safety goals. Table 1

shows the results of this categorization. Note that,

some safety case patterns have more than one type of

safety argument, then they are labeled as ‘Mixed’.

In (Kelly, 1999), eleven patterns are described for

both domain speciﬁc and domain independent goals.

These patterns are categorized into four product safety

arguments, one process safety argument, three compli-

ance safety arguments, and three mixed types. The de-

signed patterns in (Weaver, 2004) and (Alexander et al.,

2007) are domain speciﬁc and product-based, they are

classiﬁed into patterns for product safety arguments.

Besides, The patterns in (Ye, 2005) are classiﬁed into

nine for product safety arguments, one for process

safety arguments, and one for assurance arguments for

solution. Those patterns are speciﬁcally developed to

support the safety of a system which includes COTS

component. The patterns in (Hawkins and Kelly, 2008)

and (Robert and Ibrahim, 2010) are introduced as a

part of a safety case pattern catalog. In (Hawkins and

Kelly, 2008), a software safety case pattern catalog

is described for constructing arguments on software

safety. In (Robert and Ibrahim, 2010), an automotive

safety case pattern catalog is designed according to

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

514

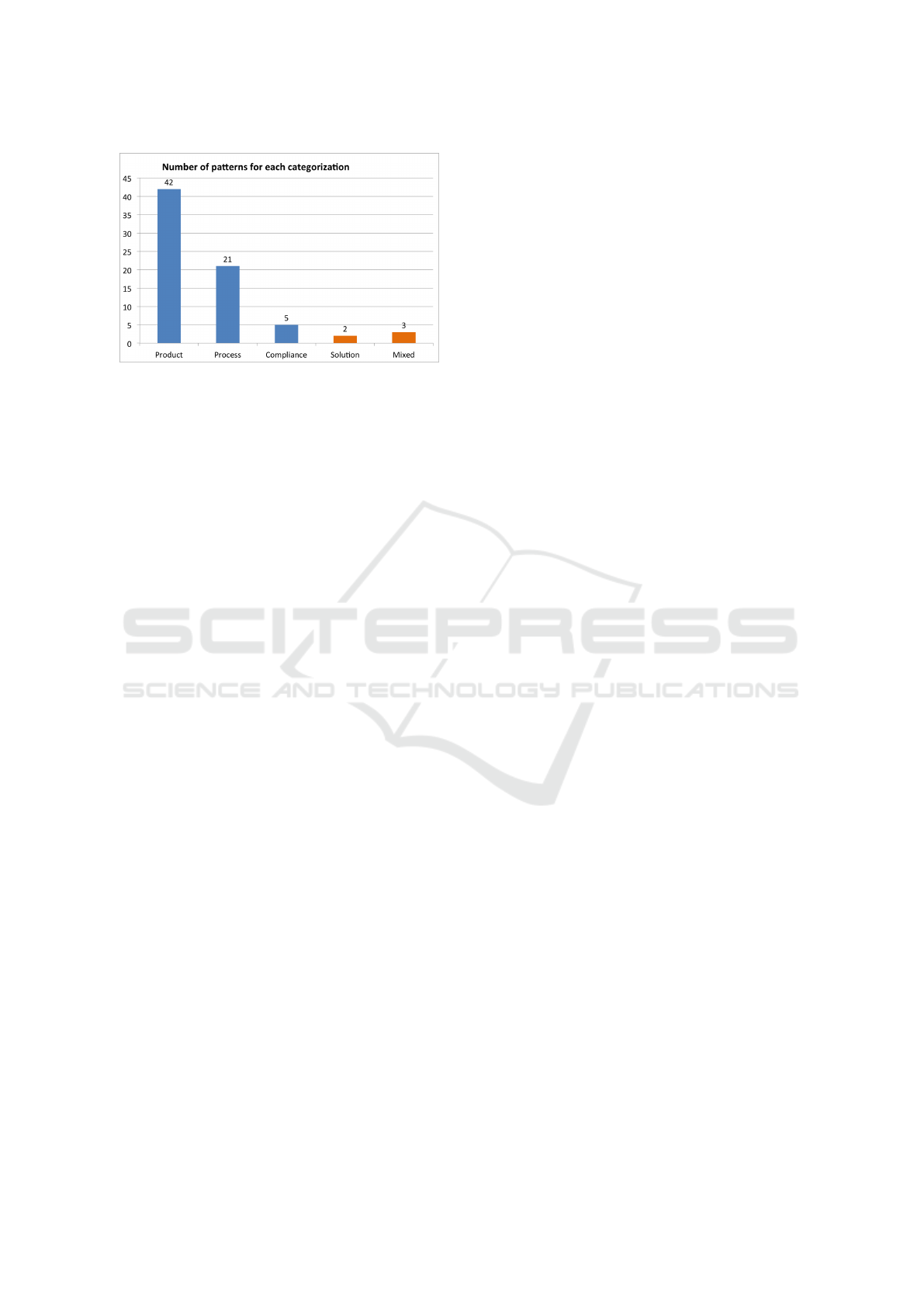

Figure 7: Statistical results of Categorization: for asserted in-

ference and asserted context, there is no conﬁdence argument

patterns found in those papers.

the ISO 26262 standard. These catalogs are built upon

existing work or good practices in the safety domain.

In total, ﬁve patterns for product safety arguments and

ﬁve patterns for process safety arguments are found

in these two catalogs. A conﬁdence argument pattern

for describing evidence, and its provenance and qual-

ity is provided in (Conmy and Bate, 2014), therefore

it is categorized as an assurance argument for solu-

tion. Furthermore, strategies for modular arguments

has been discussed in (OPENCOSS, 2013). The safety

argument is modularized to separate concerns for dif-

ferent purposes. The goal of this is to support safety

case reuse between different safety domains. For each

module, template arguments (argument patterns) has

been provided. From those template arguments, three

patterns for product safety arguments, four patterns for

process safety arguments, and two patterns for compli-

ance safety arguments are found.

Figure 7 shows how the collected safety case pat-

terns distributed over all the types. We can see that

product and process safety arguments form the major-

ity. There are several reasons for this result. Firstly,

safety standards themselves are product-oriented or

process-oriented, therefore, a part of compliance argu-

ment has already been covered by product or process

safety argument. Secondly, conﬁdence safety argu-

ment is a new topic proposed in recent years. The de-

velopment of conﬁdence safety argument is not mature

as safety argument. Only two conﬁdence arguments

on asserted solution are found in those papers. The

reason for this could be: for the collected patterns,

the motivations for inference and context have already

been documented in the relevant GSN elements, In

other words, the conﬁdence arguments on asserted in-

ference and context are implicitly covered by safety

argument. Moreover, the appearance of these two

types of conﬁdence arguments is low, therefore, the

safety patterns for them are seldom created. Finally,

as most of safety arguments are classiﬁed as product

or process safety arguments, there is a possibility that

more classiﬁcations can be introduced for these two

types safety argument. Then the depth of the catego-

rization can be increased, and more speciﬁc types of

safety argument can be identiﬁed.

5 CONCLUSIONS

In this paper, we presented a safety case categorization

according to several high cited publications. For each

of the classiﬁcation, we discussed its deﬁnition and

common characteristics that should be considered by

safety case writers and readers. Then we collected a

number of safety case patterns from another group of

papers to validate our categorization.

The results (Figure 7) show that most existing

safety cases focus on safety argument, especially prod-

uct and process argument. It is possible to classify

those two classiﬁcations further for speciﬁc domains.

As conﬁdence safety argument is a new research topic,

there are still a lot of room for development.

Threats to Validity.

There are some threats to valid-

ity related to this study. Firstly, the number of selected

publications is restricted. Thus we chose papers ac-

cording to the number of citations. Secondly, most of

selected high cited papers are from University of York.

They have a lot experience in this domain and they

published a large number of papers with high effect

on the GSN-based safety case research and practical

community. Finally, low cited papers without concrete

GSN-based safety cases or patterns are excluded from

our study. Because they do not provide new insight.

Future Work.

As future work, we plan to improve

the current categorization by increasing its depth and

accuracy. Besides, we would like to use categorization

in some industrial case studies to facilitate modeling

safety cases, and support safety case modularity and

reuse.

REFERENCES

Alexander, R., Kelly, T., Kurd, Z., and McDermid, J. (2007).

Safety Cases for Advanced Control Software: Safety

Case Patterns. Technical report, DTIC Document.

Cited by 16.

Ayoub, A., Kim, B., Lee, I., and Sokolsky, O. (2012). A Sys-

tematic Approach to Justifying Sufﬁcient Conﬁdence

in Software Safety Arguments. In Computer Safety, Re-

liability, and Security, pages 305–316. Springer. Cited

by 7.

A Categorization of GSN-based Safety Cases and Patterns

515

Birch, J., Rivett, R., Habli, I., Bradshaw, B., Botham, J.,

Higham, D., Jesty, P., Monkhouse, H., and Palin, R.

(2013). Safety Cases and Their Role in ISO 26262

Functional Safety Assessment. Computer Safety, Relia-

bility, and Security Lecture Notes in Computer Science

Volume 8153, pp 154-165. Cited by 11.

Bishop, P. and Bloomﬁeld, R. (1998). A Methdology for

Safety Case Development. Industrial Perspectives of

Safety-critical Systems, P194-203. Cited by 201.

Conmy, P. and Bate, I. (2014). Assuring Safety for Compo-

nent Based Software Engineering. In 2014 IEEE 15th

International Symposium on High-Assurance Systems

Engineering (HASE), pages 121–128. Cited by 3.

Denney, E., Pai, G., and Habli, I. (2011). Towards Measure-

ment of Conﬁdence in Safety Cases. In 2011 Inter-

national Symposium on Empirical Software Engineer-

ing and Measurement (ESEM), pages 380–383. IEEE.

Cited by 26.

GSN Community Standard (2011). GSN Commu-

nity Standard: Version 1; November 2011,

http://www.goalstructuringnotation.info/documents/GS

N_Standard.pdf/.

Habli, I. and Kelly, T. (2006). Process and Product Certiﬁ-

cation Arguments: Getting the Balance Right. ACM

SIGBED Review, 3(4):1–8. Cited by 32.

Hawkins, R. and Kelly, T. (2008). A Software Safety Ar-

gument Pattern Catalogue. Department of Computer

Science, The University of York. Cited by 13.

Hawkins, R., Kelly, T., Knight, J., and Graydon, P. (2011).

A New Approach to Creating Clear Safety Arguments.

Advances in Systems Safety, pp 3-23. Cited by 63.

ISO26262 (2011). ISO: ISO 26262 Road Vehicles – Func-

tional Safety. ISO Standard.

Kelly, T. (1999). Arguing Safety: A Systematic Approach

to Managing Safety Cases. PhD thesis, University of

York. Cited by 295.

Kelly, T. and McDermid, J. (1997). Safety Case Construction

and Reuse using Patterns. In SafeComp 97, pages 55–

69. Springer. Cited by 107.

Kelly, T. and McDermid, J. (1998). Safety Case Patterns -

Reusing Successful Arguments. In IEEE Colloquium

on Understanding Patterns and Their Application to

Systems Engineering (Digest No. 1998/308) , pages 3/1–

3/9. cited by 41.

Kelly, T. and Weaver, R. (2004). The Goal Structuring

Notation - A Safety Argument Notation. Proc. of De-

pendable Systems and Networks 2004 Workshop on

Assurance Cases. Cited by 257.

Luo, Y., van den Brand, M. G. J., Engelen, L., and Klabbers,

M. (2015a). A Modeling Approach to Support Safety

Assurance in the Automotive Domain. In Progress in

Systems Engineering, volume 1089, pages 339–345.

Springer International Publishing.

Luo, Y., van den Brand, M. G. J., and Kiburse, A. (2015b).

Safety Case Development with SBVR-based Con-

trolled Language. In Proceedings of Third Interna-

tional Conference on Model-Driven Engineering and

Software Development.

MOD (1997). Defence Standard 00-55 Part 1.

http://www.software-supportability.org/Docs/00-

55_Part_1.pdf.

OPENCOSS (2013). OPENCOSS: Deliverable D5.3 - Com-

positional certiﬁcation conceptual framework (report).

http://www.opencoss-project.eu/node/7.

Robert, P. and Ibrahim, H. (2010). Assurance of Automotive

Safety–A Safety Case Approach. Springer. Cited by

16.

Safety Case Repository (2013). Safety Case Repository.

http://dependability.cs.virginia.edu/info/Safety_Cases:

Repository.

Weaver, R. (2004). The Safety of Software - Constructing

and Assuring Arguments. PhD thesis, Department of

Computer Science, University of York. Cited by 102.

Ye, F. (2005). Justifying the Use of COTS Components within

Safety Critical Applications. PhD thesis, Department

of Computer Science, University of York. Cited by 21.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

516
