Detecting Colluding Attackers in Distributed Grid Systems

Jan Kantert

, Melanie Kauder

, Sarah Edenhofer

, Sven Tomforde

and Christian M

uller-Schloer

Institute of Systems Engineering, Leibniz University Hanover, Appelstr. 4, 30167 Hanover, Germany

Organic Computing Group, University of Augsburg, Eichleitnerstr. 30, 86159 Augsburg, Germany

Keywords:

Colluding Attacks, Multi-Agent-Systems, Technical Trust, Normative Systems, Grid Computing Systems.

Abstract:

Distributed grid systems offer possible beneﬁts in terms of fast computation of tasks. This is accompanied

by potential drawbacks due to their openness, the heterogeneity of participants, and the unpredictability of

agent behaviour, since agents have to be considered as black-boxes. The utilisation of technical trust within

adaptive collaboration strategies has been shown to counter negative effects caused by these characteristics. A

major challenge in this context is the presence of colluding attackers that try to exploit or damage the system

in a coordinated fashion. Therefore, this paper presents a novel approach to detect and isolate such colluding

attackers. The concept is based on observations of interaction patterns and derives a classiﬁcation of agent

communities. Within the evaluation, we demonstrate the beneﬁt of the approach and highlight the highly

reliable classiﬁcation.

1 INTRODUCTION

Technical systems increasingly face cooperation and

interaction partners for which no valid estimation of

behaviour is available, cf. (Tomforde et al., 2014).

One particular instance of this problem class are dis-

tributed grid computing systems. In such a system,

agents can join and leave at any time, decide about

their resource sharing autonomously, and behave self-

ishly. Thereby, the goal of participation is to paral-

lelise computational load - while offering resources

during idle times. Consequently, the basic idea is a

kind of tit-for-tat strategy.

In order to allow for a stable system, malicious or

uncooperative agents have to be isolated. This is typ-

ically achieved by introducing technical trust – more

precisely, a modelling of expected behaviour in terms

of reliability and trustworthiness based on observed

behaviour in interactions (Kantert et al., 2014). This

has been shown to result in robust behaviour for cer-

tain stereo-type agent behaviour (Klejnowski, 2014).

A major issues that has been neglected so far is the

presence of colluding attackers. This refers to groups

of malicious agents that try to exploit or damage the

system by coordinated behaviour.

This paper introduces a novel concept to detect

colluding attackers by analysing the interaction and

trust patterns within the underlying community of

participating agents. Therefore, we discuss the con-

cept of a system-wide observation and control loop

that follows the adaptive control pattern from the Or-

ganic Computing domain (Tomforde et al., 2011). Af-

terwards, we demonstrate how the perceived informa-

tion can be utilised to detect and isolate such groups

of malicious agents efﬁciently.

The remainder of this paper is organised as fol-

lows: Section 2 describes the Trusted Computing

Grid as application scenario. This includes the

agents’ goals and classes, as well as details about

trust and normative control aspects. Afterwards, we

specify the particular challenge addressed in this pa-

per, which is then substantiated by the developed ap-

proach as presented in Section 3. Section 4 evaluates

the concepts and demonstrates the success. Section 5

compares the presented work with the state-of-the-art.

Finally, Section 6 summarises the paper and gives an

outlook to future work.

2 APPLICATION SCENARIO

As a possible application scenario, we investigate

open grid computing systems which can host numer-

ous distributable workloads, e.g., distributed render-

ing of ﬁlms. The system is considered open since

there is no central controlling entity and all commu-

nication is performed peer-to-peer. Worker nodes be-

long to different administrative domains. Thus, good

198

Kantert, J., Kauder, M., Edenhofer, S., Tomforde, S. and Müller-Schloer, C.

Detecting Colluding Attackers in Distributed Grid Systems.

DOI: 10.5220/0005708301980206

In Proceedings of the 8th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2016) - Volume 1, pages 198-206

ISBN: 978-989-758-172-4

behaviour cannot be assumed. Nodes participate vol-

untarily to submit work into the system and, thereby,

increase the speedup of their jobs. However, they also

have to compute work units for other submitters.

2.1 Agent Goal

To analyse such systems, we model nodes as agents

and run a multi-agent system in simulation. Ev-

ery agent works for a user and periodically receives

a job, which contains multiple parallelisable work

units. It aims to accomplish all work units as fast

as possible by requesting other agents to work for it.

Since we consider an open system, agents behave au-

tonomously, and can join or leave at any time.

The system performance is measured by the

speedup σ. In Equation (1), t

self

is the time an agent

would require computing a job containing multiple

work units without any cooperation. t

distributed

repre-

sents the time to compute all work units of one job

with cooperation of other workers including all com-

munication times. As a consequence, the speedup can

only be determined after the results of the last work

unit have been returned.

self

distributed

(1)

If no cooperation partners can be found, agents need

to compute their own work units and achieve a

speedup value of at most one (i.e., no speedup at all).

Especially when a worker fails to ﬁnish a job or de-

cides to cancel it, the speedup value will suffer and

be less than one. Communication overhead also de-

creases the speedup. However, we assume that jobs

require signiﬁcantly more computing time than com-

munication time and this overhead to be negligible. In

general, agents behave selﬁshly and only cooperate if

they can expect an advantage. They have to decide

which agent they assign tasks to and for which agents

they perform jobs themselves. We do not control the

agent implementation, so they might behave uncoop-

eratively or even maliciously.

2.2 Worker and Submitter Component

Each agent consists of a worker and a submitter com-

ponent. The submitter component is responsible for

distributing work units. When an agent receives a

job containing multiple work units, it creates a list of

trusted workers. It then requests workers from this

list to cooperate and compute work units, until either

no more work units or no more workers are left. If

all workers were asked, but unprocessed work units

remain, the agent computes them on its own. The

worker component decides whether an agent wants to

work for a certain submitter. When the agent receives

an offer, it computes its rewards for accepting or re-

jecting the job. There are different strategies based

on reputation, workload, and environment. If the re-

ward of accepting the job prevails, the agent accepts

the job. It may cancel the job later on, but typically

it computes the job and returns the results to the sub-

mitter (Klejnowski, 2014).

2.3 Open Systems and Benevolence

In contrast to classical grid computing systems, we do

not assume the benevolence of the agents (Wang and

Vassileva, 2004). In such an open system, we cannot

control the implementation of agents and, therefore,

the system is vulnerable to different kinds of attacks.

For instance, a Freerider (see section 2.5) could sim-

ply refuse to work for other agents and gain an advan-

tage at the expense of cooperative agents. Another

attacker might just pretend to work and return wrong

results. Also, combinations of both or alternating be-

haviour are possible. Furthermore, attacker can col-

lude to exploit the system.

2.4 Trust and Norms

To overcome such problems of an open system where

no particular behaviour can be assumed, we introduce

a trust metric. Agents receive ratings for all their ac-

tions from their particular interaction partners. This

allows others to estimate the future behaviour of a cer-

tain agent based on its previous actions. To perform

this reasoning, a series of ratings for a certain agent

can be accumulated to a single reputation value using

the trust metric.

Autonomous agents need to become aware of the

expected behaviour in the system. Therefore, we in-

ﬂuence the desired actions by norms. These norms are

valid for an Action in a certain Context and, thereby,

guide the agents. To enforce the behaviour, they im-

pose a Sanction if violated or offer an Incentive if ful-

ﬁlled.

In this scenario, good trust ratings are used as an

Incentive and, to the contrary, bad trust ratings impose

a Sanction. Based on the norms, agents receive a good

rating if they work for other agents and a bad rating

if they reject or cancel work requests. As a result,

the society isolates malevolent agents and maintains a

good system utility in most cases. Generally, agents

with higher reputation values have a higher chance to

get their work units computed. We call this system a

Trusted Desktop Grid (Klejnowski, 2014).

Since agents are considered as black boxes, they

cannot be controlled directly from the outside. Each

Detecting Colluding Attackers in Distributed Grid Systems

199

agent is autonomous and selﬁsh. However, we want

to inﬂuence the system to optimise itself regarding

performance and robustness. Therefore, we introduce

norms to change the incentives and sanctions for all

agents.

2.5 Agent Types

We consider the following agent types in our system:

• Adaptive Agents - These agents behave coopera-

tively. They perform tasks for other agents who

earned good reputation in the system. The reputa-

tion value generally depends on the estimated cur-

rent system load and how much the input queue of

the agent is ﬁlled up.

• Freeriders - Such agents do not work for other

agents and reject all work requests. However, they

ask other agents to accomplish tasks for them.

This increases the overall system load and de-

creases the utility for well-behaving agents.

• Egoists - These agents only pretend to work for

other agents. They accept all work requests but

return faked results to other agents, blocking other

agents as they have to validate the results. On the

other hand, if results are not validated, this may

lead to wrong results. However, Egoists lower the

utility of the system.

• Cunning Agents - These agents behave well in the

beginning, but may change their behaviour later.

Periodically, randomly, or under certain condi-

tions, they behave like Freeriders or Egoists. Such

behaviour is hard to detect and may lower the

overall system utility.

• Altruistic Agents - Such agents will accept every

job. In general, this behaviour is not malicious

and increases the system performance. However,

it hinders isolation of bad-behaving agents and

impacts the system goals.

2.6 Challenge

Unfortunately, in an open distributed system attack-

ers can collude to gain advantages. In the Trusted

Desktop Grid (TDG) colluding attackers can pretend

to work for each other which results in good reputa-

tion. Other agents will happily work for those attack-

ers. Still, the attackers do not have to work for other

agents if they can generate enough fake ratings inside

their group.

In this paper, we focus on Freeriders which col-

lude as a group. They pretend to work for each others

all the time (at a normal work rate) and give out good

ratings for fake work to each other. Other stereotypes

could execute the same pattern but Freeriding is the

best exploitation strategy when an agent has a high

reputation.

3 APPROACH

Norm Manager

Agent A

Agent B

Agent C

Norm set

Agent E

Agent D

Observationmodel

Change norms

Distribute

norms

Collect data

on agents

Observer Controller

Situation

Description

Detect

situation

SuOC

Figure 1: System Overview of the Norm Manager consist-

ing of an Observer and a Controller which control the Sys-

tem under Observation and Control (SuOC) using norms.

To identify colluding attackers, we introduce a higher

level Norm Manager (NM) which consists of an ob-

server and a controller component. It monitors work

relations of all agents and collects reputation metrics.

Based on this information, it creates a work graph

with agents as nodes and edges between agents which

have cooperated in the monitored period. The inten-

sity of the cooperation between two agents determines

the weight of the edge connecting them. Addition-

ally, the controller creates a trust graph with agents

as nodes and trust relations as edges. Trust relations

between agents can be obtained from the reputation

system (Kantert et al., 2013).

Since we cannot see the internals or implementa-

tion of agents, we need to observe them from the out-

side. We could monitor interactions between agents,

but this may lead to a bottleneck in larger systems.

However, it is easy to monitor the actions indirectly:

We can observe the reputation system and use the rat-

ings which agents give their partners after every inter-

action. When we collect those ratings, we can build a

trust-graph. Multiple ratings will be merged using an

arithmetic mean.

Afterwards, we calculate some common graph

metrics for every node. Using statistics, the global

system state gets rated. Based on this metrics, we

form clusters and detect groups of similar agents. By

ICAART 2016 - 8th International Conference on Agents and Artiﬁcial Intelligence

200

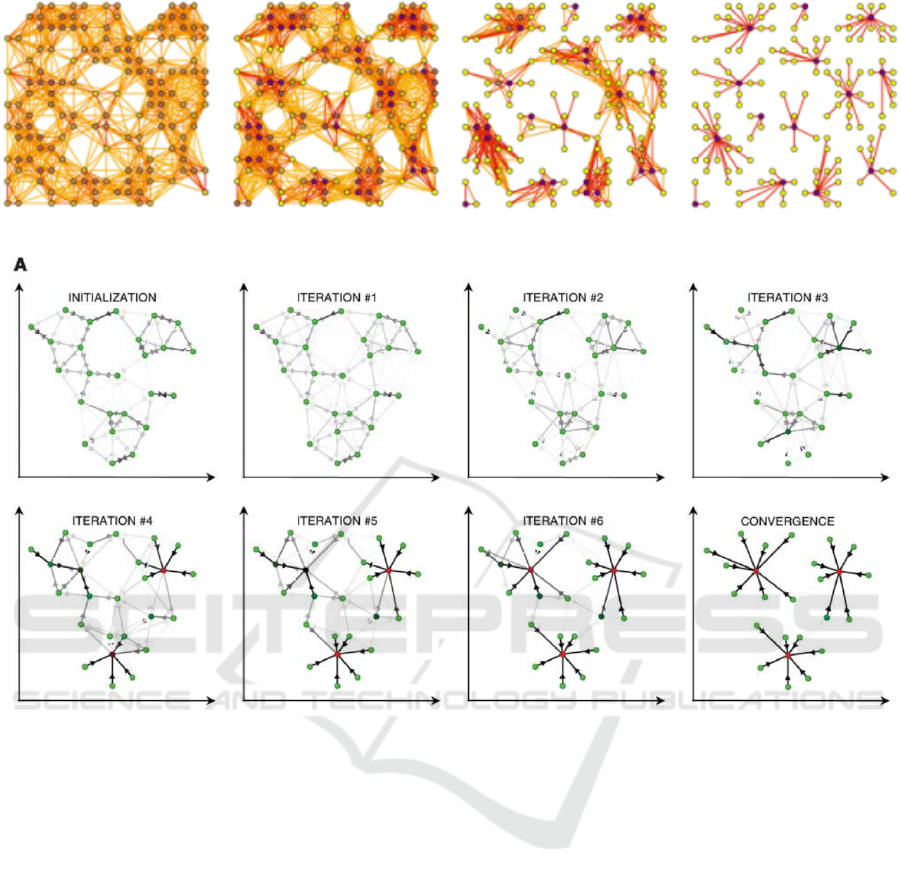

Figure 2: MCL running for four iterations (von Dogen, 2000).

Figure 3: Six iterations of Afﬁnity Propagation Clustering (Frey and Dueck, 2007).

further classifying these groups, we achieve an even

better understanding about potentially occurring at-

tacks. In the end, the observer is able to tell when

the system is under attack, categorise the type of the

attacks, and rank how severe the attack is. There will

also be an estimation about the accuracy of this infor-

mation.

3.1 Requirements on Clustering

Algorithms

To ﬁnd colluding groups of agents, we need a graph

clustering algorithm which fulﬁls the following re-

quirements:

1. Dynamic Cluster Count - Typically, we do not

know the total number of different agent groups

in advance. Therefore, we require an algorithm

which can ﬁnd a dynamically changing number

of groups.

2. Weighted Cyclic Non-Symmetrical Graph - The

algorithms has to work directly on a weighted

graph where distances are not symmetrical

d(x, y) 6= d(y, x), cycles may exists and, espe-

cially, the triangle inequality d(x, z) ≤ d(x, y) +

d(y, z) does not hold (Khamsi and Kirk, 2011).

3. Semi-deterministic/Order-invariant - The cluster-

ing is performed periodically while the underly-

ing graph slightly changes. However, the resulting

clusters should not change fundamentally. Some

algorithms alternate between two different results

when the input changes only marginally. This of-

ten happened with our previous approach. There-

fore, we require a similar output when the input

changes only slightly (Jardine and Sibson, 1971).

4. Non-connected Components - The graph is not

necessarily always connected. Some agents or

even groups may be permanently disconnected

from the other groups. The algorithm has to be

able to cope with this requirement.

Starting with (Schaeffer, 2007) and based on this

analysis, we choose Markov Cluster Algorithm

(MCL) (Van Dongen, 2001) as a suitable algorithm

Detecting Colluding Attackers in Distributed Grid Systems

201

for graph clustering which uses ﬂow simulation.

MCL is deterministic, can handle edge weights and

can ﬁnd a dynamic amount of groups. Additionally,

we choose Afﬁnity Propagation Clustering (AP) clus-

ters which is based on message passing and can ﬁnd

variable numbers of clusters. Therefore, both meet

our requirements and can be used with directed or

undirected edges.

3.2 Markov Clustering

Markov Clustering Algorithm (MCL) (Van Dongen,

2001) is based on simulation of stochastic ﬂow in net-

works. It runs iteratively on a matrix M which con-

tains all connections between nodes and performs two

steps:

In the expansion step the matrix gets coincided by

a normal matrix multiplication. This spreads out the

ﬂow and makes the matrix more homogeneous:

M = M · M = M

Afterwards, the matrix is inﬂated which simulates the

contraction of ﬂow. Mathematically is uses Hadamard

power followed by a diagonal scaling:

i j

) =

i j

∑

r, j

(M)

i j

∑

k=1

k j

MCL has a runtime complexity ofv O(Nk

) with

nodes N and edges k which is sufﬁcient for our appli-

cation. An exemplary run of MCL is shown in ﬁg. 2.

3.3 Afﬁnity Propagation Clustering

Another algorithm is Afﬁnity Propagation Clustering

(AP) which works (like MCL) in two steps. It ini-

tialises two matrices responsibility R and availability

A which store probabilities and are initialised with 0.

s(i, j) describes is the edge weight in our graph. In

each step, AP updates responsibility and availability

(see ﬁg. 4).

First, the responsibility matrix R is updated:

r(i, k) ← s(i, k) − max

s.t.k

6=k

{a(i,k

) + s(i, k

)}

Afterwards, the availability matrix A is updated:

a(i,k) ← min

0,r(k, k) +

∑

s.t.i

/∈{i,k}

max{0,r(i

,k)}

a(k, k) ←

∑

s.t.i

6=k

max{0,r(i

,k)}

The complexity of AP is O(n

) with n being the num-

ber of nodes which is sufﬁcient for our application.

An example with six iterations is shown in ﬁg. 3.

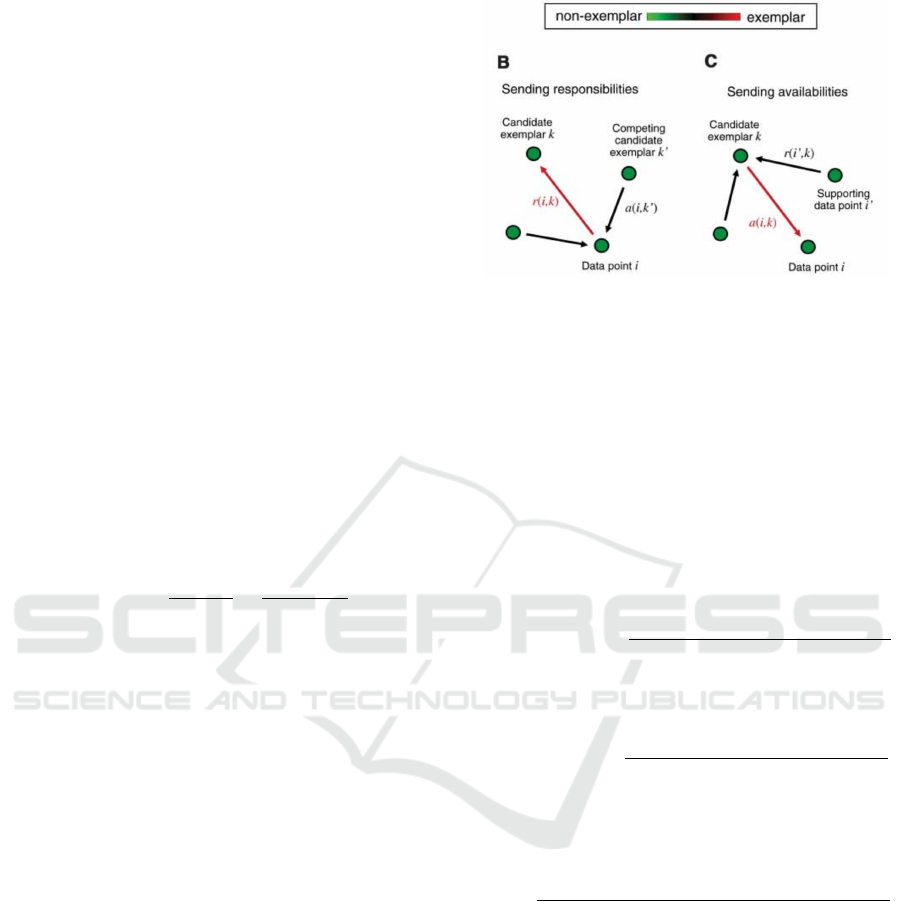

Figure 4: Illustration of Afﬁnity Propagation Clustering

steps (Frey and Dueck, 2007).

3.4 Rating of Results

To rate the results of the clustering, we use metrics

which are similar to Precision and Recall used in in-

formation retrieval systems. Additionally, we want to

condense them to only one value. In an ideal cluster-

ing, every group (attackers, cooperating agents, etc)

has its own cluster which contains only agents of that

group.

First, we measure the share in a cluster i for group

t in ClusterShare

t,i

ClusterShare

t,i

|{a : a ∈ Cluster

∧ a ∈ Group

|Cluster

Similarly, we calculate the share of the group t for

cluster i in GroupShare

t,i

GroupShare

t,i

|{a : a ∈ Group

∧ a ∈ Cluster

|Group

To create a total measure, we weight the score of each

cluster based on the amount of clusters a group is in

using w

t,i

|Group

| − |{a : a ∈ Cluster

∧ a ∈ Group

|Group

Based on that, we create the TotalShare

of ever

group t:

TotalShare

∑

i=1

ClusterShare

t,i

· GroupShare

t,i

·w

i,t

4 RELATED WORK

Our application scenario is a Trusted Desktop Grid

system. These systems are used to share resources

between multiple administrative authorities. The

ShareGrid Project in Northern Italy is an exam-

ple for a peer-to-peer-based system (Anglano et al.,

ICAART 2016 - 8th International Conference on Agents and Artiﬁcial Intelligence

202

2008). A second approach is the Organic Grid, which

is peer-to-peer-based with decentralised schedul-

ing (Chakravarti et al., 2004). Compared to our sys-

tem, these approaches assume that there are no ma-

licious parties involved and each node behaves well.

Another implementation with a central tracker is the

Berkeley Open Infrastructure for Network Computing

project (BOINC) (Anderson and Fedak, 2006).

All those systems solve a distributed resource al-

location problem. Since work units can be com-

puted faster when agents cooperate, such systems re-

ward and, thus, maximise cooperation. Additionally,

a high fairness value ensures equal resource distribu-

tion (cf. (Jain et al., 1996; Demers et al., 1989; Ben-

nett and Zhang, 1996)).

We model our grid nodes as agents. Agents fol-

low a local goal which differs from the global system

goal (Rosenschein and Zlotkin, 1994). We consider

agents as black boxes which means that we cannot

observe their internal state. Thus, their actions and

behaviour cannot be predicted (Hewitt, 1991). Our

Trusted Desktop Grid supports Bag-of-Tasks applica-

tions (Anglano et al., 2006).

4.1 Normative Multi-Agent Systems

This work is part of wider research in the area of

norms in multi-agent systems. However, we fo-

cus more on improving system performance by us-

ing norms than researching the characteristics of

norms (Singh, 1999). Our scenario is similar to

management of common pool resources. Accord-

ing to game theory, this leads to a “tragedy of the

commons” (Hardin, 1968). However, Ostrom (Os-

trom, 1990) observed cases where this did not hap-

pen. She presented eight design principles for suc-

cessful self-management of decentralised institutions.

Pitt et al. (Pitt et al., 2011) adapted these to Norma-

tive Multi-Agent Systems (NMAS). NMAS are used

in multiple ﬁelds: e.g. (Governatori and Rotolo, 2008)

focuses on so-called policy-based intentions in the do-

main of business process design. Agents plan consec-

utive actions based on obligations, intentions, beliefs,

and desires. Based on DL, social agents reason about

norms and intentions.

In (Artikis and Pitt, 2009), the authors present a

generic approach to form organisations using norms.

They assign a role to agents in a normative system.

This system deﬁnes a goal, a process to reach the goal,

required skills, and policies constraining the process.

Agents directly or indirectly commit to certain actions

using a predeﬁned protocol. Agents may join or form

an organisation with additional rules.

The normchange deﬁnition describes attributes,

which are required for Normative Multi-Agent Sys-

tems (Boella et al., 2009). Ten guidelines for imple-

mentation of norms to NMAS are given. We follow

those rules in our system. According to (Savarimuthu

and Craneﬁeld, 2011), Normative Multi-Agent Sys-

tems can be divided into ﬁve categories: Norm cre-

ation, norm identiﬁcation, norm spreading, norm en-

forcement, and network topology. We use a leader-

ship mechanism for norm creation and norm spread-

ing. For norm identiﬁcation, we use data mining and

machine learning. For norm enforcement, we use

sanctioning and reputation. Our network topology is

static.

5 EVALUATION

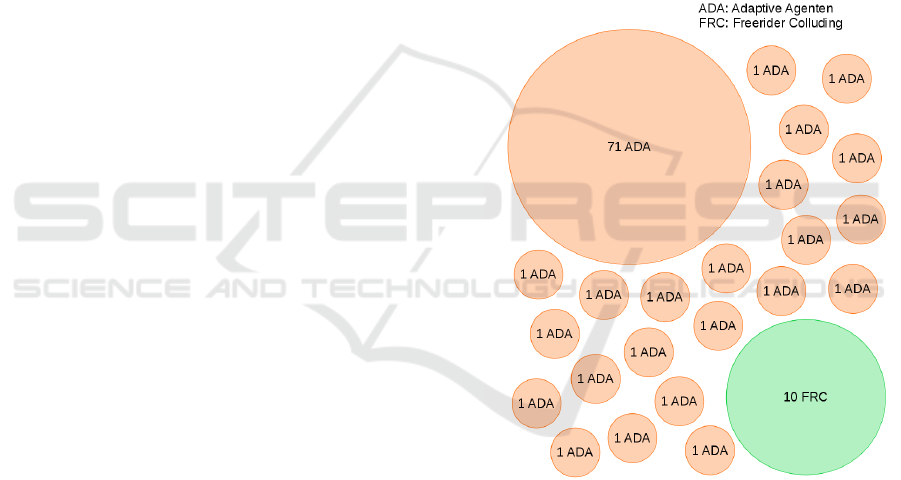

Figure 5: Visualisation of clustering for MCL with 90

Adaptive Agents (ADA) and 10 Freerider Colluding (FRC).

Our approach was evaluated using our agent-based

Trusted Desktop Grid simulation. All experiments

were repeated ﬁfty times using another random seed.

The system consists of 100 agents with 10 col-

luding Freeriders (FRC) as attacker and 90 well-

behaving adaptive agents (ADA). The simulation runs

for 160.000 ticks.

We rate our results according to the average

TotalShare

(see section 3.4) for every 50.000 ticks

as shown in table 1. Additionally, we present two

exemplary experiments for MCL and AP in ﬁgs. 5

and 6. We evaluated MCL in three variants: (i) using

the undirected trust graph; (ii) using the work graph;

Detecting Colluding Attackers in Distributed Grid Systems

203

Table 1: Results for adaptive Agents (ADA) and colluding Freerider (FRC) with MCL and AP.

AP MCL UD

Tick ADA FRC ADA FRC

5000 0,376±0,046 0,463±0,037 0,534±0,023 0,840±0,060

55000 0,760±0,106 0,562±0,163 0,672±0,061 0,936±0,038

105000 0,836±0,114 0,499±0,201 0,839±0,128 0,938±0,038

155000 0,842±0,109 0,475±0,176 0,847±0,136 0,938±0,038

MCL WORK MCL

Tick ADA FRC ADA FRC

5000 0,736±0,001 0,034±0,034 0,627±0,062 0,283±0,119

55000 0,857±0,071 0,233±0,014 0,745±0,155 0,267±0,122

105000 0,801±0,107 0,261±0,075 0,740±0,150 0,240±0,150

155000 0,797±0,102 0,240±0,095 0,662±0,072 0,295±0,096

and (iii) using the directed trust graph. AP was is only

shown for the undirected trust graph because it cannot

work on directed graphs.

As shown in ﬁg. 5, MCL (undirected) performs

very well to ﬁnd the group of colluding Freeriders.

Additionally, it ﬁnds a large cluster with adaptive

agents but some additional small clusters with adap-

tive agents exist. It converges quickly and already

shows good results after 5.000 ticks (see table 1; MCL

UD) and gradually improves until the end of the ex-

periment. Therefore, it perfectly ﬁts our usecase.

Afﬁnity Propagation Clustering (AP) performs

similar when clustering adaptive agents. However, it

fails to ﬁnd a good cluster for colluding Freeriders as

shown in ﬁg. 6. Results for ADA improve over time

but FRC stay at a low level (see table 1; AP).

Both MCL on the work graph and MCL directed

perform good to ﬁnd adaptive agents (see table 1;

MCL Work and MCL). However, they archive very

bad results for colluding Freeriders.

6 CONCLUSION

This paper described the problem of colluding attack-

ers that try to exploit or damage distributed grid sys-

tems. We explained that utilising technical trust as

basis for cooperation decisions mitigates the nega-

tive effects of malicious elements but does not allow

for countering coordinated groups of malicious ele-

ments. Therefore, we introduced a system-wide de-

tection technique that is able to identify and isolate

such groups of agents. To demonstrate the potential

beneﬁt and the success of the developed technique,

we analysed simulations of a trusted desktop comput-

ing grid. Therein, we considered different groups of

stereo-type agent behaviour and highlighted the suc-

cessful identiﬁcation of even coordinated attacks.

Figure 6: Visualisation of clustering for AP with 90 Adap-

tive Agents (ADA) and 10 Freerider Colluding (FRC).

Using the Markov Clustering Algorithm on the

undirected trust graph performs well to solve the chal-

lenge of detecting colluding attackers in the Trusted

Desktop Grid. Afﬁnity Propagation Clustering did

not ﬁt for our needs. In future work, the group infor-

mation will be used to isolate agents by introducing

norms into the system.

Current and future work is concerned with a gen-

eralisation of the concept by shifting the focus to-

wards other application scenarios. We further develop

a generalised threat model to verify that all expected

meaningful attack types can be handled by the devel-

ICAART 2016 - 8th International Conference on Agents and Artiﬁcial Intelligence

204

oped mechanisms. Finally, the approach is combined

with distributed accusation strategies that further im-

prove the efﬁciency of the isolation effects.

ACKNOWLEDGEMENTS

This research is funded by the research unit “OC-

Trust” (FOR 1085) of the German Research Founda-

tion (DFG).

REFERENCES

Anderson, D. P. and Fedak, G. (2006). The Computa-

tional and Storage Potential of Volunteer Computing.

In Proc. of CCGRID 2006, pages 73–80, Singapore.

IEEE.

Anglano, C., Brevik, J., Canonico, M., Nurmi, D., and Wol-

ski, R. (2006). Fault-aware Scheduling for Bag-of-

Tasks Applications on Desktop Grids. In Proc. of

GRID 2006, pages 56–63, Singapore. IEEE.

Anglano, C., Canonico, M., Guazzone, M., Botta, M., Ra-

bellino, S., Arena, S., and Girardi, G. (2008). Peer-to-

Peer Desktop Grids in the Real World: The ShareGrid

Project. Proc. of CCGrid 2008, 0:609–614.

Artikis, A. and Pitt, J. (2009). Specifying Open Agent

Systems: A Survey. In Artikis, A., Picard, G., and

Vercouter, L., editors, Engineering Societies in the

Agents World IX, volume 5485 of LNCS, pages 29–

45. Springer, Saint-Etienne, FR.

Bennett, J. C. and Zhang, H. (1996). WF2Q: Worst-case

Fair Weighted Fair Queueing. In INFOCOM ’96. Fif-

teenth Annual Joint Conference of the IEEE Computer

Societies. Networking the Next Generation. Proceed-

ings IEEE, volume 1, pages 120–128, San Francisco,

CA, USA. IEEE.

Boella, G., Pigozzi, G., and van der Torre, L. (2009). Nor-

mative Systems in Computer Science - Ten Guidelines

for Normative Multiagent Systems. In Boella, G.,

Noriega, P., Pigozzi, G., and Verhagen, H., editors,

Normative Multi-Agent Systems, number 09121 in

Dagstuhl Seminar Proceedings, pages 1–21, Dagstuhl,

Germany. Schloss Dagstuhl - Leibniz-Zentrum fuer

Informatik, Germany.

Chakravarti, A. J., Baumgartner, G., and Lauria, M. (2004).

Application-Speciﬁc Scheduling for the Organic Grid.

In Proc. of GRID 2004 Workshops, pages 146–155,

Washington, DC, USA. IEEE.

Demers, A., Keshav, S., and Shenker, S. (1989). Analy-

sis and Simulation of a Fair Queueing Algorithm. In

Symposium Proceedings on Communications Archi-

tectures & Protocols, SIGCOMM ’89, pages 1–12,

New York, NY, USA. ACM.

Frey, B. and Dueck, D. (2007). Clustering by passing mes-

sages between data points. Science, 315:972–976.

Governatori, G. and Rotolo, A. (2008). BIO Logical

Agents: Norms, Beliefs, Intentions in Defeasible

Logic. Autonomous Agents and Multi-Agent Systems,

17(1):36–69.

Hardin, G. (1968). The Tragedy of the Commons. Science,

162(3859):1243–1248.

Hewitt, C. (1991). Open Information Systems Semantics

for Distributed Artiﬁcial Intelligence. Artiﬁcial intel-

ligence, 47(1):79–106.

Jain, R., Babic, G., Nagendra, B., and Lam, C.-C. (1996).

Fairness, Call Establishment Latency and Other Per-

formance Metrics. ATM-Forum, 96(1173):1–6.

Jardine, N. and Sibson, R. (1971). Mathematical taxonomy.

John Wiley & Sons, Chichester, UK.

Kantert, J., Bernard, Y., Klejnowski, L., and M

uller-

Schloer, C. (2013). Interactive Graph View of Ex-

plicit Trusted Communities in an Open Trusted Desk-

top Grid System. In Proc. of SASO Workshops, pages

13–14.

Kantert, J., B

odelt, S., Edenhofer, S., Tomforde, S., H

ahner,

J., and M

uller-Schloer, C. (2014). Interactive Sim-

ulation of an Open Trusted Desktop Grid System

with Visualisation in 3D. In Self-Adaptive and Self-

Organizing Systems (SASO), 2014 IEEE Eighth Inter-

national Conference on, pages 191–192, London, UK.

IEEE.

Khamsi, M. A. and Kirk, W. A. (2011). An introduction to

metric spaces and ﬁxed point theory, volume 53. John

Wiley & Sons, Chichester, UK.

Klejnowski, L. (2014). Trusted Community: A Novel Mul-

tiagent Organisation for Open Distributed Systems.

PhD thesis, Leibniz Universit

at Hannover.

Ostrom, E. (1990). Governing the Commons: The Evolu-

tion of Institutions for Collective Action. Cambridge

university press, Cambridge, US.

Pitt, J., Schaumeier, J., and Artikis, A. (2011). The Ax-

iomatisation of Socio-Economic Principles for Self-

Organising Systems. In Self-Adaptive and Self-

Organizing Systems (SASO), 2011 Fifth IEEE Interna-

tional Conference on, pages 138–147, Michigan, US.

IEEE.

Rosenschein, J. S. and Zlotkin, G. (1994). Rules of En-

counter: Designing Conventions for Automated Ne-

gotiation Among Computers. MIT Press, Cambridge.

Savarimuthu, B. T. R. and Craneﬁeld, S. (2011). Norm Cre-

ation, Spreading and Emergence: A Survey of Simula-

tion Models of Norms in Multi-Agent Systems. Mul-

tiagent and Grid Systems, 7(1):21–54.

Schaeffer, S. E. (2007). Graph clustering. Computer Sci-

ence Review, 1(1):27–64.

Singh, M. P. (1999). An Ontology for Commitments in

Multiagent Systems. Artiﬁcial Intelligence and Law,

7(1):97–113.

Tomforde, S., H

ahner, J., Seebach, H., Reif, W., Sick, B.,

Wacker, A., and Scholtes, I. (2014). Engineering and

Mastering Interwoven Systems. In ARCS 2014 - 27th

International Conference on Architecture of Comput-

ing Systems, Workshop Proceedings, February 25-28,

2014, Luebeck, Germany, University of Luebeck, In-

stitute of Computer Engineering, pages 1–8.

Tomforde, S., Prothmann, H., Branke, J., H

ahner, J., Mnif,

M., M

uller-Schloer, C., Richter, U., and Schmeck, H.

(2011). Observation and Control of Organic Systems.

Detecting Colluding Attackers in Distributed Grid Systems

205

In Organic Computing - A Paradigm Shift for Complex

Systems, pages 325 – 338. Birkh

auser Verlag.

Van Dongen, S. M. (2001). Graph clustering by ﬂow simu-

lation. PhD thesis, Utrecht University.

von Dogen, S. M. (2000). An introduction to mcl. Ac-

cessed: March 30, 2015.

Wang, Y. and Vassileva, J. (2004). Trust-Based Community

Formation in Peer-to-Peer File Sharing Networks. In

Proc. on Web Intelligence, pages 341–348, Beijing,

China. IEEE.

ICAART 2016 - 8th International Conference on Agents and Artiﬁcial Intelligence

206
