Comparative Study of Query Performance in a Remote Health

Framework using Cassandra and Hadoop

Himadri Sekhar Ray

, Kausik Naguri

, Poly Sil Sen

and Nandini Mukherjee

Department of Computer Science and Engineering, Jadavpur University, Kolkata, India

Department of Information Technology, Techno India, Salt Lake, Kolkata, India

Keywords: Electronic Health Record, Big Data, Sensors, Hadoop, Cassandra.

Abstract: With the recent advancements in distributed processing, sensor networks, cloud computing and similar

technologies, big data has gained importance and a number of big data applications can now be envisaged

which could not be conceptualised earlier. However, gradually as technologists focus on storing, processing

and management of big data, a number of big data solutions have come up. The objective of this paper is to

study two such solutions, namely Hadoop and Cassandra, in order to find their suitability for healthcare

applications. The paper considers a data model for a remote health framework and demonstrates mappings

of the data model using Hadoop and Cassandra. The data model follows popular national and international

standards for Electronic Health Records. It is shown in the paper that in order to obtain an efficient mapping

of a given data model onto a big data solution, like Cassandra, sample queries must be considered. In this

paper, health data is stored in Hadoop using xml files considering the same set of queries. Next, the

performances of these queries in Hadoop are observed and later, performances of executing these queries on

the same experimental setup using Hadoop and Cassandra are compared. YCSB guidelines are followed to

design the experiments. The study provides an insight for the applicability of big data solutions in healthcare

domain.

1 INTRODUCTION

It is not always possible for a patient to get a doctor

at the time and place of requirement. Moreover it is

not always possible for a doctor to be physically

present with all patients at the time and place of

requirement. This situation particularly may occur in

case of remote villages, hilly areas and in other

places. The reason is that the ratio of patients to

doctors is very poor in such areas. A remote health

framework is proposed in (Mukherjee, 2014). The

framework helps to monitor health parameters of a

patient from a distance. Doctors can provide remote

guidance to these patients. Sensors are used for

continuous monitoring of patients' health on advice

of doctors. This sensor data is to be stored.

Health data is huge in volume. If we include

sensor observation data as part of health data, it

becomes more voluminous.

Health data may consist of text (as in history of a

patient), images (as in X-Ray or USG), audio (as in

heart beat), video (as in ECG) or many other

formats. Thus, different data structures may be

needed to store different parts of health data and

therefore, health data usually have variety.

Health data contains sensor observation data that

is generated and sent very fast. It has to be processed

fast as well. Thus velocity is another characteristics

of sensor data.

Furthermore, sensor observation data may also

have uncertainty and loss of accuracy is another

feature of such type of data due to various obstacles

and environmental situations. Thus, it is not

trustworthy always. Hence, veracity is another

property. Having all the above features of big data, it

can be suggested that usual database schemas are not

effective for health data and this data be stored in

some big data solutions.

However, in the present scenario, choice can be

made among a large number of big data solutions. It

is suggested that big data be stored in a NOSQL

database, like Cassandra or MongoDB. On the other

hand, Hadoop provides a Map-Reduce framework

that enables distributed processing of large data sets

across clusters of commodity servers. A big data

solution must be judged on the basis of its

operational ease, cost effectiveness and performance

330

Ray, H., Naguri, K., Sen, P. and Mukherjee, N.

Comparative Study of Query Performance in a Remote Health Framework using Cassandra and Hadoop.

DOI: 10.5220/0005706803300337

In Proceedings of the 9th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2016) - Volume 5: HEALTHINF, pages 330-337

ISBN: 978-989-758-170-0

scalability.

The purpose of this paper is to study

implementation of a data model in Cassandra and in

Hadoop. The data model cannot be directly

implemented in big data solutions. It is preferable

that a set of queries are considered for deciding

efficient storage of data in big data solutions. Thus,

we present mappings from the proposed data model

to data models suitable for Cassandra and Hadoop.

Once this mapping is done, a comparative study is

made for running queries in Hadoop and Cassandra.

The remaining part of the paper is organised as

follows. Section 2 discusses some big data solutions.

Section 3 describes a data model for our remote

healthcare framework. Section 4 and 5 discuss the

mappings of the data model in Cassandra and in

Hadoop-linked xml files respectively. Section 6

presents the experimental setup and the results.

Finally, Section 7 concludes with a direction of

future work.

2 BIG DATA SOLUTIONS

In this section, two big data solutions, namely

Cassandra and Hadoop, are described as they have

been used in this research work.

Cassandra NoSQL Database: Cassandra uses

column family to store distributed NOSQL data. It

provides high read throughput. Search latency is low

in it because of replication of data across multiple

nodes with a replication factor. Column family is

similar to tables of RDBMS. Column families have

schema but that can be dynamic and every record

may not contain all fields of data.

Row key of Cassandra can be formed using

multiple keys. The first portion of such composite

key is the partition key.

Hadoop Map-Reduce Framework: Hadoop is

an open source framework to provide scalability,

reliability to distributed computing jobs. Hadoop

follows a master-slave architecture with a master or

name node and many slave or data nodes in a

cluster. Name node manages namespace of a file

system and controls access of files by clients. Files

are divided into blocks and these blocks are mapped

to different data nodes by the name node. Name

node maintains meta data. Data nodes create,

replicate and delete blocks and also read and write

data following instructions of name node. Data

nodes have access to one or more local disks. Scale

in and scale out are done by adding and removing

data nodes. There is a secondary name node that

does housekeeping work for the name node.

In Hadoop Map-Reduce framework, the Map

function divides a task into subtasks that can be

executed in parallel. Reduce function combines the

output of the map phase into an output form that is

the output of the complete task.

Job tracker runs on the name node that accepts

jobs from clients, schedules them on data nodes and

gets status report of the jobs running. It gets

information of number of slots available in map and

reduce slots. One job tracker runs on a name node.

Task tracker runs on data or worker node. It accepts

task from job tracker and reports job status to it.

Communication among job tracker and task tracker

uses RPC for communication.

If one of the parallel jobs fails due to storage or

processing failure then it can be completed on some

other node as Hadoop manages component failure

by replicating data on different nodes.

Map-Reduce framework can execute on a file

system which is considered as unstructured, though

it can also work on structured databases. Map-

Reduce ensures locality of data through processing

data on local nodes. In this work, health data is

stored in xml files for use in Hadoop framework.

3 A DATA MODEL FOR

HEALTHCARE DOMAIN

In this section, a data model (Sil Sen, 2014) for

healthcare delivery is presented. The data model is

developed on the basis of guidelines provided by

Indian Standard for Electronic Health Records

approved by Ministry of Health and Family Welfare,

Government of India (2013) and also other popular

international standards of Electronic Health records

and Electronic Medical Records. The member

variables in each of the classes are added following

the above mentioned standards. In contrast to many

other health data models published in the literature,

our data model (Sil Sen, 2014) is hierarchical. This

data model can be improved further to address

complexities of Electronic Health Record. The class

diagram is shown in Figure 1.

A brief description of the important classes is

provided in this section. However, the data members

are not shown, because of space limitation. A patient

may have one or more complaints. A complaint is

treated by one or many treatment_episodes. A

treatment_episode is handled by a doctor. A doctor

may be engaged in one or more treatment_episodes.

A treatment_episode contains one or more visits. In

a visit, doctor may prescribe one or more

investigations. Investigation can be of two types –

Comparative Study of Query Performance in a Remote Health Framework using Cassandra and Hadoop

331

continuous_monitoring and discrete_monitoring.

Discrete_monitoring can be either

one_time_investigation (such as X-Ray) or

periodic_investigation (such as blood pressure

monitoring). Continuous_monitoring is done using

body sensor networks (not shown in the diagram).

Diagnosis may be concluded in a Visit.

Treatment_plan is prescribed in a Visit.

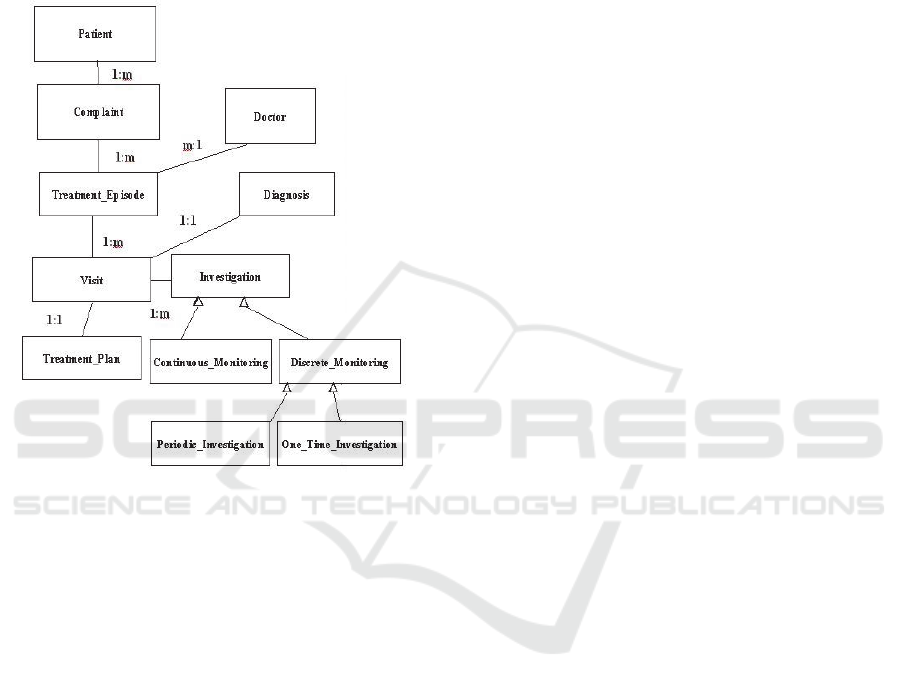

Figure 1: Proposed data model for Remote Health

framework.

4 STORING HEALTH RECORD

IN CASSANDRA

There is no formal method to migrate a data model

from one form to another form suitable for a big data

datastore. It has been felt that every big data solution

has its own advantages and disadvantages and

signature characteristics. Implementation of a data

model in a big data solution requires trial and error

depending on few factors. These factors are:

 Nature of the application and its requirements

involving type of data;

 The queries that the system will execute;

 Performance requirement of these queries;

 Amount of data involved;

 Features of the target big data solution;

 Statistics related to the queries like the

frequency of running a query.

In the remote health framework presented in

(Mukherjee, 2014), the following characteristics of

health data have been observed:

 data is stored in various formats, like text,

image, audio, video and sensor observed data;

 some part of health data changes frequently,

while some other part hardly changes, e.g.

demographic information. Thus every part of

health data is not read/ written with same

frequency;

 huge volume of sensor data are generated at

high velocity and with uncertainty and are

stored as part of health data.

To implement the data model, initially all fields are

kept together in denormalized form. Later,

depending on different queries from the designed set

of queries, the initial column family is broken into

more than one column families. A data field may be

replicated several times in different column families

to improve query performance. It is to be noted that,

in contrast with RDBMS which tries to avoid

redundancy of data, in many big data solutions data

redundancy is preferred to improve availability and

performance. The entire procedure is repeated until

the query performance reaches the desired level

Patel (2012) discussed some best practices of

Cassandra. These are discussed below.

 Data is to be kept in denormalized form to

improve the query performance. Cassandra has

data compression facility embedded within it to

manage redundancy of data.

 Join operation incurs overhead and therefore is

avoided in Cassandra. The seek time also

increases after joining.

 Read heavy data is to be kept separately from

write heavy data. The query performance

improves if a proper row key is chosen.

 Finally, if all the fields related to a query is kept

in one partition, then Cassandra performs well.

However, this leads to redundancy in data.

Dynamic column family, super column family and

indexes are avoided as they are inappropriate here.

Index ensures order on one field. In real life

situation, all the required search order cannot be

based on one index. Performance using indexes has

shown poor performance (Naguri, 2015). Therefore

indexes are avoided in this implementation.

Some sample queries are considered as follows:

specialization wise doctor search, patient wise

information (demographic, food habit etc.) search,

patient wise complaint search, complaint wise

treatment search, treatment wise investigation

search.

Initially, in order to facilitate the patient-related

HEALTHINF 2016 - 9th International Conference on Health Informatics

332

information search and doctor-related information

search, two column families are designed, these are

Patient and Doctor. It may be noted that these

queries mostly search data that are less frequently

updated. For rest of the queries, the

Treament_Episode and the Visit column families

along with one separate column family for sensor

data are created. . Relevant medical information

related to a specific complaint is kept in

treatment_Episode and Visit files. Visit file also

contains all generally observed medical parameters

like pulse rate etc.

Initially sensor data has been stored in Visit

column family. But this degrades the query

performance and as size of file increases time out

happens. Therefore, the above decision was made.

5 STORING HEALTH RECORD

IN HADOOP

The data model discussed in the previous section is

converted to a structural form for analysis of data

through Hadoop. The classes are stored in xml as it

has a standard interoperable format. The data are

fetched from the database using CQL/SQL and

connected to a java program to build large xml file

to run analysis. The important attributes of patient

column family are shown in Table 1.

Table 1: Patient File.

Patient

patient_id,

patient_name,

patient_dob,

alternate_patient_ids,

patient_gender,

patient_occupation,

patient_address_type,

patient_address,

patient_email_id,

patient_phone_ll,

patient_mob,

Emergencycontactperson _name,

Emergencycontactperson _relation,

Emergencycontactperson_address,

pt_foodhabbit,

XML File Description for Patients:

<?xml version="1.0" encoding="UTF-

8"?>

<pt_id> Patient Unique ID </pt_id>

<pt_name> Patient's name

</pt_name>

<pt_dob> Patient's date of birth

</pt_dob>

: : : : :

For the remaining files, their respective fields are

given in Tables 2, 3, 4 and 5. It must be noted that

the files do not exactly correspond to the classes

shown in Figure 1. Based on the discussion in

Section 4, data fields are repeated in different files,

so that a file is able to produce answers to all the

queries considered initially.

The large volume of health records is stored in

Hadoop file system using these tables. Map-Reduce

programs are written for retrieval and analysis of

data that are run on Hadoop file system.

Table 2: Doctor File.

Doctor

doctor_id

doctor_name

doctor_type

doctor_specialization

doctor_organization

doctor_address_type

doctor_address

doctor_email_id

doctor_mob

Table 3: Treatment_Episode File.

Treatment_Episode

treatment _episode_id,

atient_id,

patient_name,

atient_address,

atient_gender,

atient_food_habbit,

atient_allergy,

blood_group,

doctor_id,

doctor_name,

doctor_specialization,

start_date,

is_active,

complaint,

diagnosis,

clinical_status

Comparative Study of Query Performance in a Remote Health Framework using Cassandra and Hadoop

333

Table 4: Visit File.

Visit

visit_id,

patient_id,

patient_name,

patient_address,

patient_food_habbit,

allergy,

blood_group,

treatment_episode_id,

treatment_start_date,

initial_complaint,

visit_time,

reason,

systolic_bp,

diastolic_bp,

pulse_rate,

temp,

respiration_rate,

height_cms,

weight_kgs,

investigations,

investigation_reports,

medication,

diagnosis,

therapies

surgeries,

current_status

Table 5: Sensed_data File.

sensor_data

atient_id,

treatment_episode_id,

visit_id,

parameter,

data

....

6 EXPERIMENTAL RESULTS

(A) Experimental Setup – This paper presents two

sets of experiments – (i) using Map-Reduce

programs in Hadoop with varied amount of data on

different number of Hadoop nodes, (ii) varying the

amount of data, while keeping the number of

Hadoop nodes fixed (16 here) and comparing the

results with Cassandra implementation in the same

environment.

All experiments are performed on a 16 node

cluster. Each node has the configuration of 2.93

GHz Intel Core2 Duo Processor with 3GB RAM and

1 TB storage space.

From the initial set of queries (considered for

designing the databases), a subset of queries is

chosen with the support of YCSB guidelines

(research.yahoo.com/files/ycsb.pdf). Eight simple

queries and one statistical queries are processed by

customized Hadoop Map-Reduce code.

The queries are given below.

1. Find all doctor's names and their details with

specialization string 'cardiologist'.

2. Find all information of patients like

demographic info, religion, food habit etc, for a

patient.

3. Find all ECG reports of a patient.

4. Find history of 'Diabetes' of a patient.

5. Find sensor data of a patient for one hour.

6. Patient treatment case history for a patient.

7. Find all the doctor's names who are attached

with an organization.

8. Find all the complaint details of a Patient.

9. Retrieving sensor data for a particular patient

observed during one hour time.

The statistical query is

1. Find the number of babies with age is between 0

and 5 and suffering from malnutrition.

Each time number of data records in respective files

is varied from 50 to 800,000 of records and number

of Hadoop nodes is varied from 1 to 16. Every

experiment is performed three times for each query

and the average of the three results is taken.

The same queries are executed in Cassandra on 16

nodes. Data volume is varied as in the previous case.

(B) Results - (i) Experiments running on different

number of Hadoop nodes:

Based on the above

experimental setup, a study is made on the data

retrieval time with varied amount of data stored in

Hadoop. All the nine queries and the statistical query

are run. Due to space limitation, only the results of

query 1 (Figure 2), query 9 (Figure 4) and the

statistical query (Figure 3) are presented in this

paper.

DISCUSSION

It is observed that while executing the queries is

Hadoop, higher number of slaves does not signify

better performance. Optimal performance is

obtained when a particular load is given to a

particular number of slaves. For example, the

performance of the implementation with 8 nodes is

poor, even worse than one or two slaves.

It is also observed that performance on 16 slaves

improves and become better in comparison with

others when number of records is high (above

HEALTHINF 2016 - 9th International Conference on Health Informatics

334

500,000). Thus, with low volume of data, Hadoop

Map-Reduce code on different number of slaves has

almost no effect.

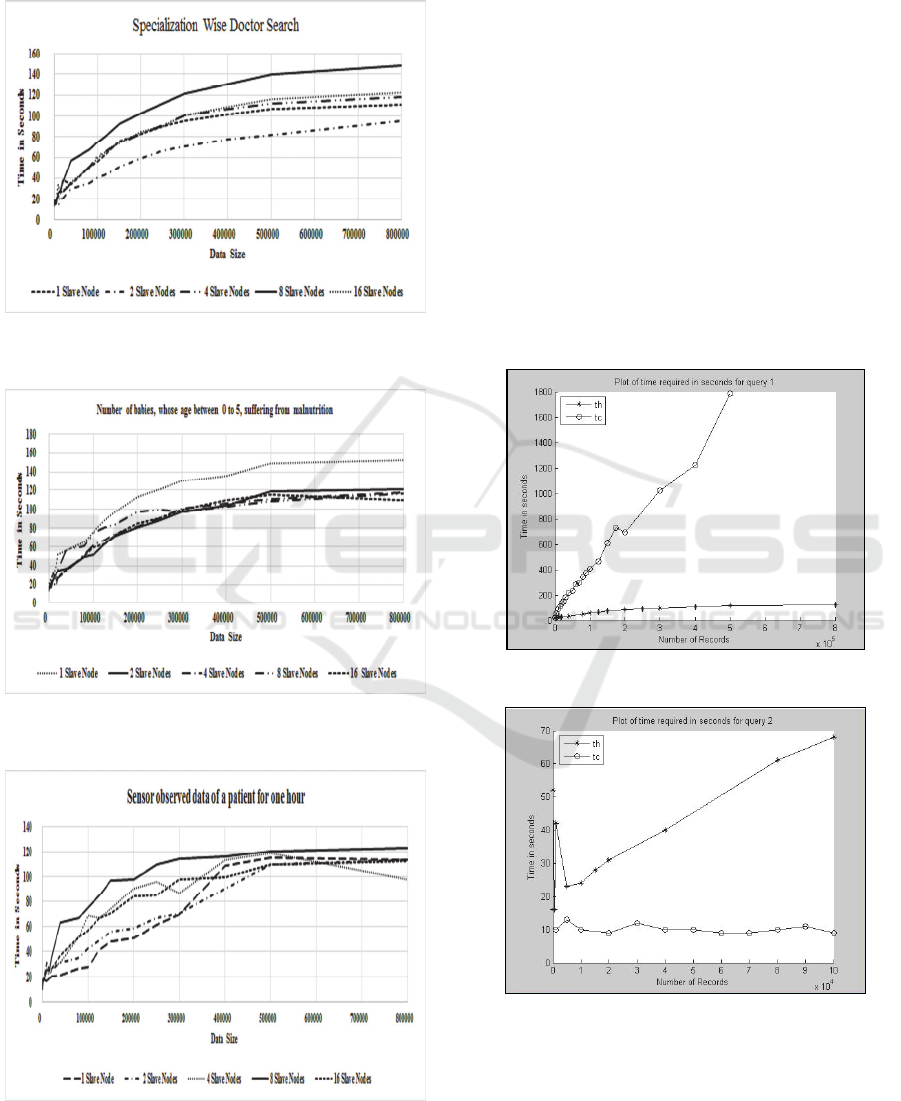

Figure 2: Query performance of specialization-wise doctor

search in Hadoop.

Figure 3: Query performance of number of babies between

age 0 and 5 suffering from malnutrition.

Figure 4: Query performance of Sensor observation data

of a patient during an hour.

The above observations can be explained from

the study presented in (Guo, 2012) (Bezerra, 2013).

It has clearly been shown that Hadoop scheduling is

non-optimal. The scheduling algorithm in Hadoop

for the Map tasks considers data locality, but

overlooks other factors such as system load and

fairness.

(ii) Comparative study between Hadoop and

Cassandra: Same set of queries as given in Section

6 are executed on the data stored in Cassandra with

varying number of records in respective column

families corresponding to each query. Number of

nodes in the set up is taken as 16.

Figures 5, 6, 7 and 8 depict the results of the

comparison for queries 1, 2, 3 and 4 respectively.

Data retrieval time required by Hadoop is shown as

th and time required by Cassandra is shown as tc.

Number of records shown is in 100,000.

Figure 5: Execution of query1 in Cassandra and Hadoop.

Figure 6: Execution of query2 in Cassandra and Hadoop.

Figure 5 depicts the retrieval time for doctors’

names and their details with specialization string

'cardiologist'. It is clear that Hadoop performs much

better as number of records increases.

Performance of query 2 is shown in Figure 6.

Comparative Study of Query Performance in a Remote Health Framework using Cassandra and Hadoop

335

Here Patient_id is used as the row key, the time of

retrieving patient information decreases with

increase in number of records in Cassandra. For this

query, Cassandra performs better than Hadoop.

Performance of query 3 is shown in Figure 7.

Time of accessing ECG data of a patient increases

slowly with increase in number of records. Hadoop

performs much better than Cassandra.

Performance of query 4 is shown in Figure 8.

Time to retrieve records of a diabetic patient

increases with number of records.

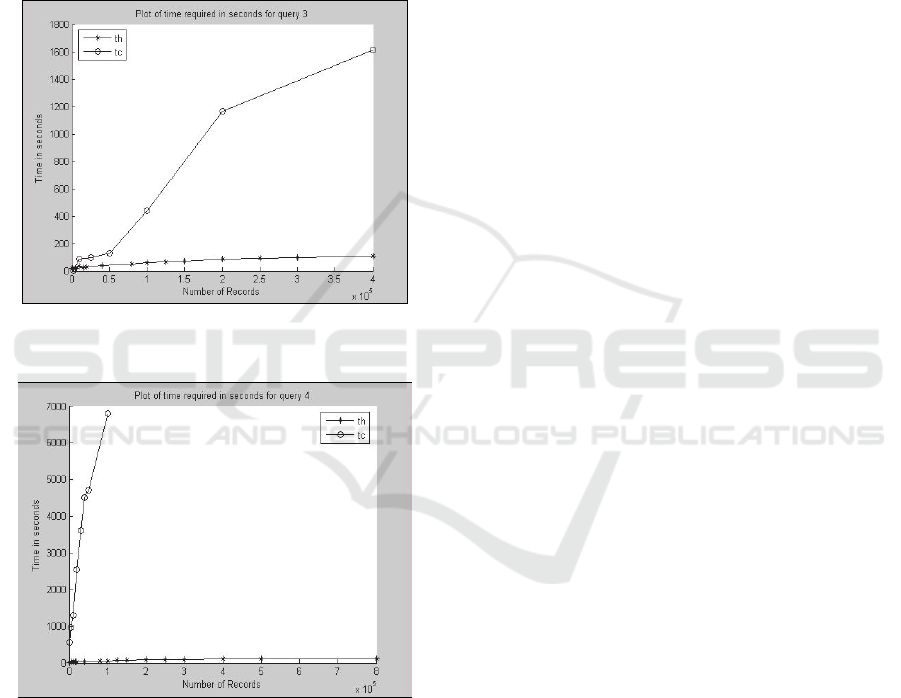

Figure 7: Performance of query 3 in Cassandra and

Hadoop.

Figure 8: Performance of query 4 in Cassandra and

Hadoop.

DISCUSSION

The above results show that Hadoop performs better

in case of all queries leaving one. The performance

of Cassandra improves significantly with increase in

number of records for patient wise information

search (Figure 6). Cassandra, when compared with

Hadoop in this case, performs well in spite of the

fact that Hadoop is well known for large volume of

data processing. In case of query 2, the Patient_id is

used as the row key (similar to primary key in

RDBMS), and the query is made on the basis of the

primary key. Therefore, data retrieval becomes fast.

In other cases, queries do not involve the row key

and therefore query performance is poor.

Cassandra particularly performs poorly in case of

query 4. The data mapping strategy can be

responsible for this. There are two conflicting goals

in Cassandra data mapping – (i) data must be spread

evenly around the cluster, and (ii) the number of

partitions read must be minimized. On the basis on

these two goals, a trade-off is to be made while

implementing in Cassandra for a set of queries.

Requirements for one query may be conflicting with

another leading to performance degradation.

The study further demonstrates that Hadoop has

the capacity to work with voluminous data set as

expected.

7 RELATED WORK

With the recent advancements in sensor networks

and cloud computing, scientists have focussed on

application of big data concepts in healthcare

domain. However, much of the contemporary

research works actually consider big data analytics

utilizing large volumes of medical data and

combining multimodal data from disparate sources

(Belle, 2015). Only few aim at studying various big

data tools in order to develop an insight about

suitability of these tools for healthcare data storage,

processing and management. A comparative study of

NOSQL databases is provided in (Manoj, 2014).

However, the authors only provide a theoretical

study of architecture and internal working of

Cassandra, MongoDB and HBase and carry out an

evaluation of Cassandra for performance and

concurrency in comparison with relational databases

within only a limited scope. Lourenço et al

(Lourenço, 2015) provides a detailed study on

various big data solutions including Cassandra,

HBase etc. However, the study is based on literature

review and no performance evaluation is presented.

The architecture for a distributed sensor data

collection, storage, and analysis system developed

using Hadoop in a cloud environment is presented in

(Aydin, 2015). Performance of this implementation

is also observed. However, this work does not

address the specific issues in healthcare domain.

Performance of Hadoop is also studied in (Guo,

2012) and (Bezerra, 2013) for generic applications.

Our work is different from the above mentioned

research works, because we consider the specific

HEALTHINF 2016 - 9th International Conference on Health Informatics

336

issues related to healthcare applications and carry

out experimental study regarding the performance of

two big data solutions with particular consideration

of healthcare applications.

8 CONCLUSIONS

This paper has studied the performance of two big

data solutions in healthcare domain. We have

considered a healthcare data model proposed on the

basis of national and international EHR standards

and demonstrate its mapping onto two big data

solutions, namely Cassandra and Hadoop. The

performance of a representative set of queries has

been studied using Hadoop. Further, we have also

carried out a comparative study of query

performance in Cassandra and in Hadoop systems.

It is observed that the mapping strategy is an

important issue in improving performance of any big

data solution. However, this should be based on

some queries which are considered to be frequent in

the application domain. It is also observed that

Hadoop performs better with large data sets in

comparison with Cassandra. The observations from

the experimental study clearly establish the fact that

Hadoop is more focussed on data processing and

therefore, scheduling strategy is important in case of

Hadoop. On the other hand, because data storage

and distribution is the main goal in Cassandra,

implementation is Cassandra should consider the

data mapping strategy as the primary issue.

In future, our goal is to develop algorithms for

transformation of data models to big data solutions.

In order to combine the strengths of Hadoop (in

terms of data processing) and Cassandra (in terms of

storage), it is planned to extend the work to use

Hadoop integrated with Cassandra. Other big data

solutions, like Mongodb and Hbase may also be

considered and their performances can be compared.

It is interesting to investigate the impact of other file

formats used to store data on the performance of

Hadoop Map-Reduce framework.

REFERENCES

Aydin. G., Hallac I.R., and Karakus B. (2015)

Architecture and Implementation of a Scalable Sensor

Data Storage and Analysis System Using Cloud

Computing and Big Data Technologies. Journal of

Sensors, Volume 2015, Article ID 834217, Hindwai

Publishing Corporation.

Belle A., Thiagarajan R., Soroushmehr S.M.R., Navidi F.,

Beard D.A., and Najarian K. (2015) Big Data

Analytics in Healthcare, BioMed research

international. Volume 2015, Article ID 370194,

Hindwai Publishing Corporation.

Bezerra A., Hernández P., Espinosa A., and Carlos J.

(2013) Job scheduling for optimizing data locality in

Hadoop clusters. Proceedings of the 20th European

MPI Users' Group Meeting (EuroMPI'13). ACM, New

York, NY, USA, pp 271-276.

Guo Z., Fox G., and Zhou M. (2012) Investigation of data

locality and fairness in MapReduce, In Proceedings of

third international workshop on MapReduce and its

Applications Date, pp. 25-32. ACM.

Lourenço J.R., Cabral B., Carreiro P., Vieira M., and

Bernardino J. (2015) Choosing the right NoSQL

database for the job: a quality attribute evaluation.

Journal of Big Data, 2 (1), pp 1-26.

Manoj V. (2014) Comparative study of NoSQL

Document, Column Store Databases And Evaluation

Of Cassandra. International Journal of Database

Management Systems, 6 (4), pp11-26.

Ministry of Health and family Welfare, Government of

India (2013) Approved “Electronic Health Record

Standards for India”, August 2013.

Mukherjee, N., Bhunia, S. S., and Sil Sen, P. (2014) A

Sensor-Cloud Framework for Provisioning Remote

Health-Care Services. Proceedings of the Computing

& Networking for Internet of Things (ComNet-IoT)

workshop co-located with 15th International

Conference on Distributed Computing and

Networking.

Naguri, K., Sil Sen P., Mukherjee, N. (2015) Design of a

Health-Data Model and a Query-driven

Implementation in Cassandra, Proceedings of the 3rd

International Workshop on Service Science for e-

Health (SSH), co-located with IEEE HealthCom.

Patel J. (2012) (Online)

www.ebaytechblog.com/2012/07/16/cassandra-data-

modeling-best-practices-part-1/ & -part-2/

Sil Sen, P., Mukherjee, N. (2014) Standards of EHR and

their scope of implementation in a sensor-cloud

environment, Proceedings of the international

Conference on Medical Imaging, m-health and

Emerging Communication System (MedCom), IEEE,

pp241-246.

Comparative Study of Query Performance in a Remote Health Framework using Cassandra and Hadoop

337
