Formal MOF Metamodeling and Tool Support

Liliana Favre

1,2

and Daniel Duarte

Universidad Nacional del Centro de la Provincia de Buenos Aires, Tandil, Argentina

Comisión de Investigaciones Científicas de la Provincia de Buenos Aires, Argentina

Keywords: Model Driven Development, MDA, Metamodeling, MOF, Formal Specification, ANTLR, Test Driven

Development (TDD).

Abstract: Model Driven Development (MDD) has emerged as a new road to software development industrialization.

The most well-known realization of MDD is the Model Driven Architecture (MDA). The essence of MDA is

the metamodel MOF (Meta Object Facility) allowing interoperability of different kind of artifacts from

multiple technologies. It is important to formalize and reason about MOF metamodels properly. In this paper,

we propose a rigorous framework for reasoning about “correctness” of metamodels. Our main contribution is

the integration of MOF metalanguage with formal specification languages based on the algebraic formalism.

We define NEREUS, a formal metamodeling language, and processes for reasoning about MOF-like

metamodels such as ECORE metamodels. The paper describes a set of tools developed to make formal

metamodeling feasible in practice.

1 INTRODUCTION

In the last decade, Model Driven Development

(MDD) has emerged as a new road to the software

development industrialization (Brambilla et al.,

2012). MDD refers to a range of development

approaches based on the use of models as first class

entities. The most well-known is the Object

Management Group standard Model Driven

Architecture (MDA), i.e., MDA is a realization of

MDD (OMG, 2015) (MDA, 2014). Among the

benefits provided by MDA, it can be remarked the

improvement of interoperability, productivity, code

and processes quality and, software evolution costs.

The key idea behind MDA is to separate the

specification of the system functionality from its

implementation on specific platforms, increasing the

degree of automation and achieving interoperability

with multiple platforms. Any artifact in MDA is a

model and any MDA process is carried out as a

sequence of model transformations. Model and model

transformations need to be expressed in some

notation and the MDA standard to express them is the

MOF (Meta Object Facility) metamodel. It can be

considered the essence of MDA allowing different

kinds of artifacts from multiple technologies to be

used together in an interoperable way (MOF, 2015)

(MOF, 2006). MOF provides two metamodel: EMOF

(Essential MOF) and CMOF (Complete MOF). The

former favors simplicity of implementation over

expressiveness, while the latter is more expressive,

but more complex. Based on MOF transformations,

the MDA unifies every step of software development.

The Eclipse Modeling Framework (EMF) has

become the reference platform for developing MDD

tools. Particularly, its meta-metamodel ECORE is an

implementation of MOF (Steinberg et al., 2008).

It is important to formalize and reason about MOF

metamodels and we propose to exploit the strong

background achieved by the community of formal

methods. In previous work, we presented NEREUS,

a formal language for metamodeling that combines

the most successful features of algebraic languages

explored in different contexts (Favre, 2009). It can be

viewed as a concrete syntax for MOF extended with

additional properties expressed by axioms. Besides,

NEREUS is an intermediate notation that can be

integrated with property-oriented formal approaches.

Particularly, we integrate NEREUS with the

Common Algebraic Specification Language (CASL)

as target algebraic language (Bidoit and Mosses,

2004).

Our current contribution can be viewed as an

evolution of the previous results. We describe

practical and theoretical advances. From the

theoretical point of view, we describe the current

syntax of NEREUS and its semantics that was given

by translating it to CASL. On the practical point of

Favre, L. and Duarte, D.

Formal MOF Metamodeling and Tool Support.

DOI: 10.5220/0005689200990110

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 99-110

ISBN: 978-989-758-168-7

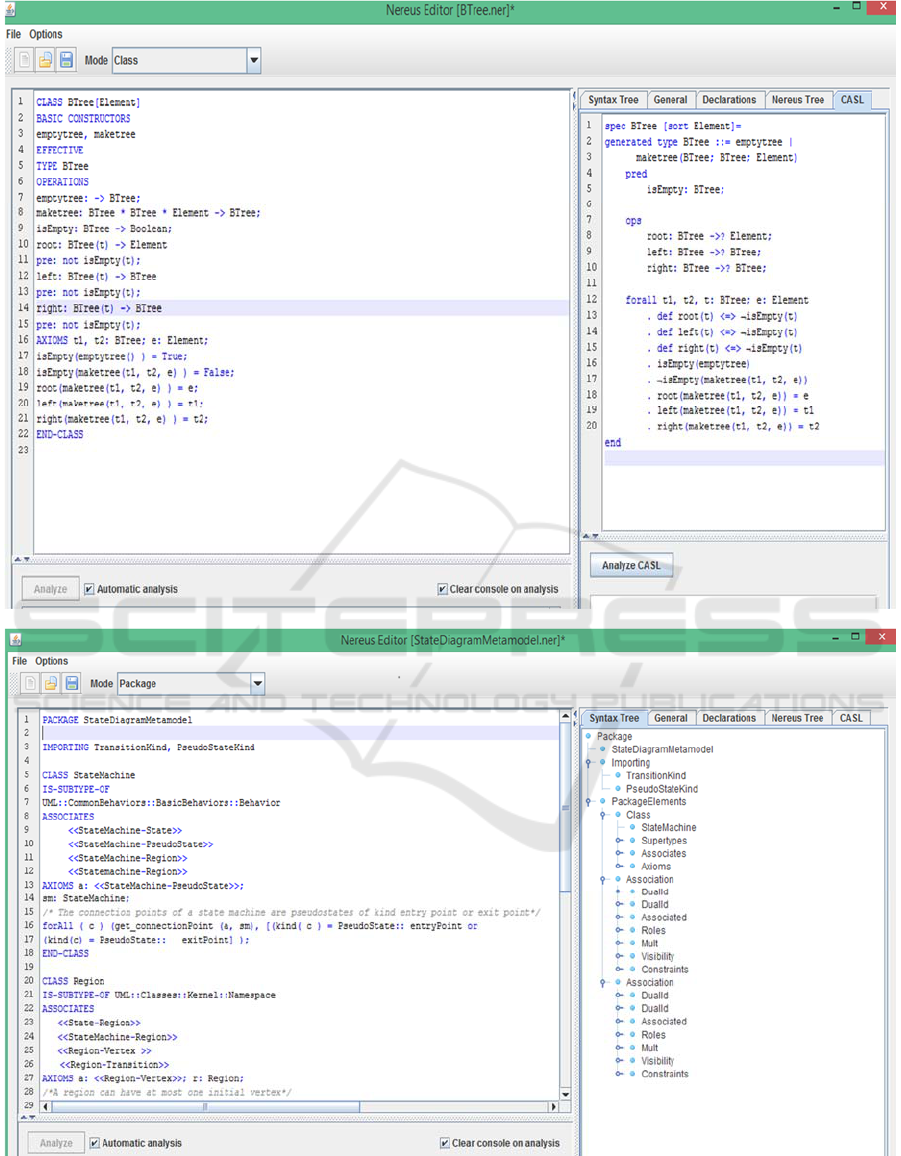

view, the current version of an analyzer of NEREUS

and a translator from NEREUS to CASL will be

described.

The rest of the paper has the following structure.

Section 2 introduces related work and Section 3

presents motivation remarking our contribution.

Section 4 introduces the features of the NEREUS

language. Section 5 describes tools developed to

assist in formal metamodeling processes. Finally, in

Section 6 we present conclusions.

2 RELATED WORK

We describe related work to formalization of MOF-

like metamodels.

The state of the art and emerging research

challenges for metamodeling are described in

(Sprinkle et al., 2010). Authors review approaches,

abstractions, and tools for metamodeling, evaluate

them with respect to their expressive power,

investigate what role(s) metamodels may play at run-

time and how semantics can be assigned to

metamodels and the domain-specific modeling

languages they could define. They also highlight

emerging challenges regarding the management of

complexity, consistency, and evolution of

metamodels, and how the semantics of metamodels

will impact on each of them.

The MetaModeling Language (MML) is a subset

of UML that was proposed as a core language to

define UML (Clark et al., 2001). It has a formal

semantic based on a small language called MML

calculus. It is an imperative object-oriented calculus,

which captures the essential operational features of

MML and is inspired in the calculus proposed by

(Cardelli and Abadi, 1991).

Varró and Pataricza (2003) presented a visual and

formally precise metamodeling (VPM) framework

that is capable of uniformly handling arbitrary models

from engineering and mathematical domains. They

propose a multilevel metamodeling technique with

precise static and dynamic semantics (based on a

refinement calculus and graph transformation) where

the structure and operational semantics of

mathematical models can be defined in a UML

notation.

A graph grammar to generate instances of

metamodels, one of the limitations of metamodel

implementations, for instance in Eclipse Modeling

Framework is described in (Erigh et al., 2006). An

instance generating graph grammars for creating

instances of a metamodel was introduced in (Karsten

et al., 2006).

The correspondence semantic between UML class

diagrams and Alloy is described in (Anastasakis et al.,

2007). Alloy is a modeling language based on first

order relational logic. Its analyzer is equipped with a

SAT-based engine that can be used to generate valid

system configurations or counterexamples to a

property.

Boronat and Messeguer (2010) describe an

algebraic, reflexive and executable framework for

metamodeling in MDD. The framework provides a

formal semantic of the notions of metamodel, model

and conformance relation between a model and a

metamodel. The semantic is integrated to EMF as a

plugin called MOMENT (MOdelmanageMENT).

The underlying formalism of MOMENT is MAUDE.

Bridges between technological spaces MAUDE and

EMF that provide interoperability were defined.

The problem of identifying, predicting and

evaluating the significance of the metamodel change

impact over the existing artifacts is described in

(Iovino, Pieroantonio and Malavolta, 2012). The

approach is based on the concept of megamodel. In

this context a megamodel is considered a model of

which at least some elements represent and /or refer

to models and metamodels. This approach allows

developers both, to establish relationships between

the metamodel and its related artifacts, and to

automatically identify those elements within the

various artifacts affected by the metamodel changes.

Barbier et al., (2013) describe how to construct

metamodels based on the constructive logic, along

with inherent proofs. The key contribution is a

generative approach to construct new metaclasses

from existing ones. Authors propose to define the

entire MOF in this way and implement it in Coq Proof

Assistant (https://coq.inria.fr/). They do not target

automatic transformation from Coq to MOF-like

metamodels.

An approach to the metamodel formalization

based on algebraic data types and constraint logic

programming (CLP) is described in (Jackson et al.,

2011). Proofs and test-case generation are encoded as

CLP satisfiability problems to automatically be

solved. Authors describe the framework Formula to

solve proofs to verify properties of the metamodels

that are viewed as instances of CLP. The Eclipse

plugin CD2FORMULA that implements in a way

aligned with MDA the translation of UML class

diagrams to FORMULA is described in (Perez and

Porres, 2014). The proposed framework can be used

to reason, validate and verify UML software designs

by checking correctness properties and generating

model instances by using a model exploration tool

based on Formula.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

100

3 MOTIVATION

MOF metamodels are specified by using restricted

UML class diagrams and annotations OCL. On the

one hand, UML has the advantage of visualizing

language constructs. On the other hand, OCL has a

denotational semantics that has been implemented in

tools allowing dynamic validation of snapshots.

It is important to formalize and reason about MOF

metamodels properly. Instantiating a metamodel

produces models, which in turn are instantiated.

Having errors in a metamodel leads to having errors

in its model instances. Besides, a model can be well-

formed but still be incorrect. A combination of MOF

metamodeling and formal specification can help

metadesigners to address these issues.

A formal specification technique must at least

provide syntax, some semantics and an inference

system. The syntax defines the structure of the text of

a formal specification including properties that are

expressed as axioms (formulas of some logic). The

semantics describes the models linked to a given

specification; in the formal specification context, a

model is a mathematical object that defines behavior

of the realizations of the specification. The inference

system allows defining deductions that can be made

from a formal specification. These deductions allow

new formulas to be derived and checked. So, the

inference system can help to automate testing,

prototyping or verification.

Current metamodeling tools enable code

generation and detect invalid constraints however,

they do not find instances of the metalanguage

(models). This is a limitation for certain applications

related with MDA. For instance, to have enough valid

instances available is a requisite to test model

transformations.

Our main contribution is related to the integration

of specifications expressed in MOF metalanguage

with formal specification languages, based on the

algebraic formalism. We define the NEREUS

language, in particular. It is a formal notation closed

to MOF metamodels that allows metadesigners who

must manipulate metamodels to understand their

formal specification. The semantic of MOF

metamodels (that is specified in OCL) can be

enriched and refined by integrating it with NEREUS.

This integration facilitates proofs and test of models

and model transformations via the formal

specification of metamodels.

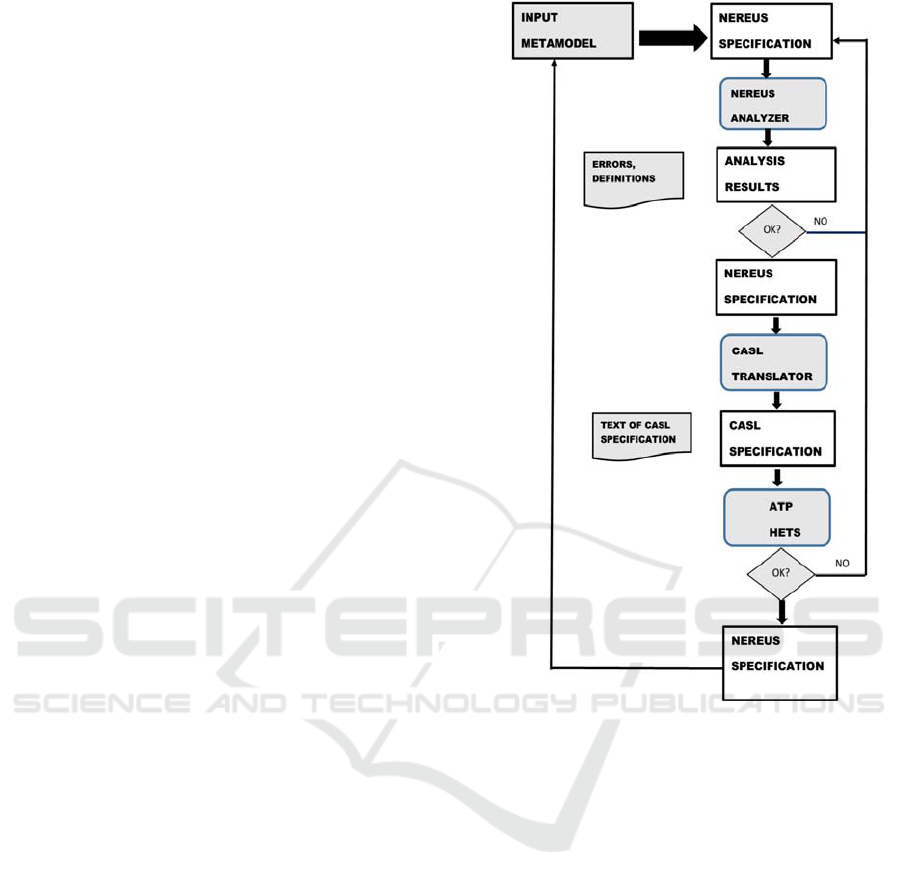

Figure 1: Our contribution: Typical flow with formal tools.

Figure 1 summarizes our approach. First, a

specification of a MOF metamodel is transformed

into a NEREUS specification. A system of

transformation rules to automatically transform MOF

into NEREUS was previously described (Favre,

2009). Next, the formal specification is analyzed by

using the analyzer of NEREUS and is modified

according to the results of the translation process with

the goal of obtaining a syntactically correct

specification. Subsequently, the NEREUS

specification is translated to a CASL specification by

using a NEREUS-to-CASL Translator. NEREUS

could be linked through CASL with Automatic

Theorem Provers (ATP) provided by the

Heterogeneous Tool SET (HETS) (Hets, 2015)

(Mossakowski et al., 2014). ATPs allow performing

a consistency analysis of the metamodel and

achieving an analyzed specification. The initial MOF

specification can be improved by reinjecting the

changes introduced in the latter NEREUS

specification.

Formal MOF Metamodeling and Tool Support

101

In this paper, the emphasis is given to the

NEREUS formalization of MOF metamodels and the

tool support for it.

4 FORMALIZING

METAMODELS

The MOF modeling concepts are “classes, which

model MOF meta-objects; associations, which model

binary relations between meta-objects; Data Types,

which model other data; and Packages, which

modularize the models” (MOF, 2006 pp. 2-6). OCL

can be used to attach consistency rules to metamodel

components.

The MOF model is self-describing, that is to say

it is formally defined using its own metamodeling

constructs. This provides a uniform semantic

treatment between artifacts that represent models and

metamodels in MDA.

In this section we provide a general background

of the NEREUS language that allows specifying

MOF and ECORE metamodels. NEREUS provides

modeling concepts that are supported by MOF and

the UML Infrastructure, including classes,

associations and packages and, mechanisms for

structuring them. First, we describe the syntax of

classes, associations and packages. Next, we present

examples of NEREUS specifications (section 4.2).

Finally, in 4.3 we analyze why to use NEREUS.

4.1 NEREUS Syntax

4.1.1 Defining Classes

Classes may declare types, attributes, operations and

axioms which are formulas of first-order logic. They

are structured by different kinds of relations:

importing, inheritance, subtyping and associations.

Next, we show the syntax of a class in NEREUS:

CLASS className [<parameterList>]

IMPORTS <importsList>

IS-SUBTYPE-OF <subtypeList>

INHERITS <inheritsList>

ASSOCIATES <associatesList>>

BASIC CONSTRUCTOR(S) <constructorList>

DEFERRED

TYPE(S) <sortList>

ATTRIBUTE(S) <attributeList>

OPERATION(S) <operationList>

EFFECTIVE

TYPE(S) <sortList>

ATTRIBUTE(S) <attributeList>

OPERATION(S) <operationList>

AXIOMS <varList>

END-CLASS

NEREUS distinguishes variable parts in a

specification by means of explicit parameterization.

The elements of <parameterList> are pairs C1:C2

where C1 is the formal generic parameter constrained

by an existing class C2 (only subclasses of C2 will be

actual parameters). In particular, the binding C1:ANY

expresses a parameterization without restrictions and

can be denoted by C1. The IMPORTS clause

expresses client relations. The specification of the

new class is based on the imported specifications

declared in <importList> and their public operations

may be used in the new specification.

NEREUS distinguishes inheritance from

subtyping. Subtyping is like inheritance of behavior,

while inheritance relies on the module viewpoint of

classes. Inheritance is expressed in the INHERITS

clause; the specification of the class is built from the

union of the specifications of the classes appearing in

the <inheritsList>. Subtypings are declared in the IS-

SUBTYPE-OF clause. A notion closely related with

subtyping is polymorphism. NEREUS allows us to

define local instances of a class by the following

syntax ClassName [rename <bindingList>] where

the elements of <bindingList> can be pairs of

identifiers nameTo as nameFrom separated by

comma.

The BASIC CONSTRUCTORS clause lists the

operations that are basic constructors of the interest

type. NEREUS distinguishes deferred and effective

parts. The DEFERRED clause declares new types,

attributes or operations that are incompletely defined.

The EFFECTIVE clause declares types, attributes and

operations completely defined.

The ATTRIBUTES clause introduces, like MOF,

an attribute with the following properties: name, type,

multiplicity specification and “isDerived” flag.

OPERATIONS clause introduces the operation

signatures, the list of their arguments and result types.

An attribute or parameter may be optional-value,

single value, or multi-valued depending on its

multiplicity specification. The multiplicity syntax is

aligned with the MOF syntax.

Operations can be declared as total or partial.

Partial functions must specify its domain by means of

the PRE clause that indicates what conditions the

function´s arguments must satisfy to belong to the

function’s domain. NEREUS allows us to specify

operation signatures in an incomplete way. NEREUS

supports higher-order operations (a function f is

higher-order if functional sorts appear in a parameter

sort or the result sort of f). In the context of OCL

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

102

Collection formalization, second-order operations are

required but NEREUS support higher-order.

In NEREUS it is possible to specify any of the

three levels of visibility for operations (public,

protected and private) and incomplete functionalities

denoted by underscore in the operation signature.

4.1.2 Defining Associations

NEREUS provides a component Association, a

taxonomy of constructor types, that classifies binary

associations according to kind (aggregation,

composition, ordinary association), degree (unary,

binary), navigability (unidirectional, bidirectional)

and, connectivity (one-to-one, one-to-many, many-

to-many) (Favre, 2009).

The component Association provides Relation

Schemes that can be used in the definition of concrete

associations by instantiating classes, roles, visibility,

and multiplicity. Associations can be restricted by

using static constraints in first order logic. New

associations can be defined by the ASSOCIATION

construction. The IS clause expresses the instantiation

of <typeConstructorName> with classes, roles,

visibility, and multiplicity. The CONSTRAINED-BY

clause allows the specification of static constraints in

first order logic. Next, we show the association

syntax:

ASSOCIATION <relationName>

IS <typeConstructorName>

[…:class1;…:class2;…:role1;…:role2;…:mult1;…:mult2;

…:visibility1;…:visibility2]

CONSTRAINED-BY <constraintList>

END-ASSOCIATION

Associations are defined in a class by means of the

ASSOCIATES clause:

CLASS className…

ASSOCIATES <<associationName>>

4.1.3 Defining Packages

The package is the mechanism provided by NEREUS

for grouping related model elements together in order

to manage complexity and facilitate reuse. Like MOF,

NEREUS provides mechanisms for metamodel

composition and reuse. The IMPORTING clause lists

the imported packages; the GENERALIZATION

clause lists the inherited packages; NESTING clause

lists the nested packages and CLUSTERING clause

list the clustering ones. Classes, associations and

packages can be <elements> of a package. The

package has the following NEREUS syntax:

PACKAGE packageName

IMPORTING <importsList>

GENERALIZATION <inheritsList>

NESTING <nestingList>

CLUSTERING <clusteringList>

END-PACKAGE

4.1.4 Examples

Following, we show by examples the syntax of

NEREUS. First, we show partially a Collection

specification.

CLASS Collection [Elem]

BASIC CONSTRUCTORS create, add

DEFERRED

TYPE Collection

OPERATIONS

create :-> Collection;

add : Collection * Elem -> Collection;

count : Collection * Elem ->Integer;

collect : Collection * (Elem ->Elem1: ANY)-> Collection;

EFFECTIVE

OPERATIONS

isEmpty : Collection ->Boolean;

size: Collection ->Integer;

includes : Collection * Elem ->Boolean;

excludes : Collection * Elem ->Boolean;

includesAll : Collection * Collection ->Boolean;

excludesAll : Collection * Collection ->Boolean;

forAll : Collection * (Elem ->Boolean) -> Boolean;

exists : Collection * (Elem ->Boolean) ->Boolean;

select : Collection * (Elem ->Boolean) ->Collection;

reject : Collection * (Elem ->Boolean) ->Collection;

iterate : Collection *

((Elem * Acc: ANY )->Acc: ANY ) *

(->Acc:ANY ) ->Acc: ANY ;

AXIOMS c, c1: Collection; e,e1: Elem;

f: Elem ->Boolean;

g: Elem * Acc -> Acc;

base: -> Acc;

isEmpty(c) = (size(c) = 0);

iterate (create(), g, base()) = base();

iterate (add (c, e), g, base()) =

g(e, iterate(c, g, base()));

size(create()) = 0;

size(add(c, e)) = 1 + size(c);

includes(create(), e) = False;

includes(add(c, e), e1) =

if e = e1 then True else includes(c, e1) endif ;

forall(create(), f) = True;

forall(add(c, e), f) = f(e) and forAll(c, f);

exists (create(), f) = False;

exists (add (c, e), f) = f(e) or exists(c, f);

select(create(), f) = create();

select (add (c, e), f) = if f(e) then add(select(c, f), e) else

select(c, f) endif ;

…

END-CLASS

Formal MOF Metamodeling and Tool Support

103

Next, we show the formalization of a simplified

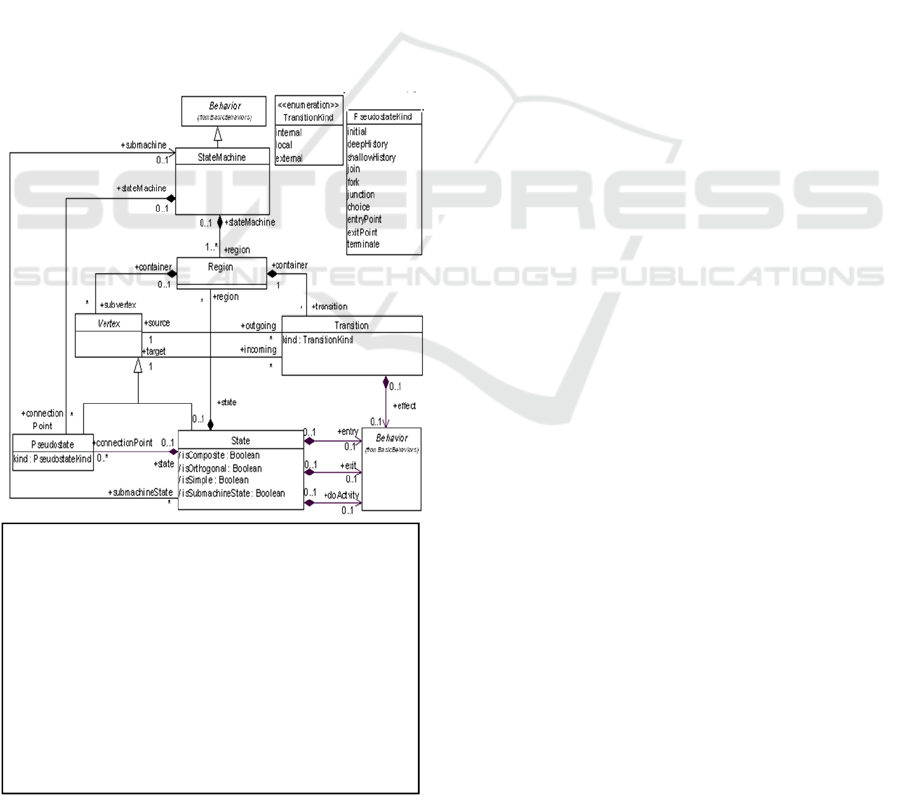

package: StateMachineMetamodel. Figure 2 depicts a

simplified diagram. A behavior StateMachine

comprises one or more Regions, each Region

containing a graph (possibly hierarchical) comprising

a set of Vertex interconnected by arcs representing

Transitions. StateMachine execution is triggered by

appropriate Event occurrences. OCL can be used to

constraint components of the metamodel.

PACKAGE StateDiagramMetamodel

IMPORTING TransitionKind, PseudoStateKind

CLASS StateMachine

IS-SUBTYPE-OF

UML::CommonBehaviors::BasicBehaviors::

Behavior

ASSOCIATES

<<StateMachine-State>>

<<StateMachine-PseudoState>>

<<StateMachine-Region>>

AXIOMS a: <<StateMachine-PseudoState>>;

sm: StateMachine;

Figure 2: The StateMachine Metamodel.

/* The connection points of a state machine are

pseudostates of kind entry point or exit point*/

forAll ( c ) (get_connectionPoint (a, sm), [(kind( c ) =

PseudoState:: entryPoint or (kind(c) = PseudoState::

exitPoint] );

END-CLASS

CLASS Region

IS-SUBTYPE-OF UML::Classes::Kernel::Namespace

ASSOCIATES

<<State-Region>>

<<StateMachine-Region>>

<<Region-Vertex >>…

AXIOMS a: <<Region-Vertex>>; r: Region;

/*A region can have at most one initial vertex*/

size (select (p) (select (v) (get_subvertex (a, r),

[oclIsKinfOf (v, PseudoState)])

[kind(p) = PseudoState::initial()] ) ) <= 1;

END-CLASS

CLASS PseudoState

IMPORTS PseudoStateKind

IS-SUBTYPE-OF Vertex,

UML::Classes::Kernel::NameElement

ASSOCIATES

<<Vertex-Transition_1>>

<<Vertex-Transition_2>>

<<StateMachine-PseudoState>> ...

EFFECTIVE

OPERATION

kind: PseudoState -> PseudoStateKind;

AXIOMS ps: PseudoState; a: Vertex-Transition-1

/*An initial vertex can have at most one ongoing

transition*/

kind (ps) = Pseudostate::initial implies

size (get_outgoing (a,ps)) <=1;

END-CLASS

ASSOCIATION stateMachine-PseudoState

IS Composition_2 [StateMachine: class1; PseudoState:

class2; stateMachine: role1; conectionPoint: role2; 0..1:

mult1; *: mult2; +: visibility1;+: visibility2]

CONSTRAINED-BY StateMachine: subsets namespace,

PseudoState: subsets ownedMember

END-ASSOCIATION

ASSOCIATION Vertex-Transition-1

IS Bidirectional [Vertex: class1; transition: class2; source:

role1; outgoing: role2; 1: mult1; *: mult2; +: visibility1; +:

visibility2]

END-ASSOCIATION

ASSOCIATION Region-Vertex

IS Composition_2 [Region: class1; Vertex: class2;

container: role1; subvertex: role2; 0..1: mult1; *: mult2; +:

visibility1; +: visibility2]

END-ASSOCIATION

...

END-PACKAGE

Context Statemachine

conectionPoint->

forAll (c | c.kind = Pseudostate::entryPoint or

c.kind = Pseudostate::exitPoint)

Context PseudoState

(self.kind = Pseudostate::initial) implies

(self.outgoing->size <= 1)

Context Region

self.subvertex-> select (v| v.oclIsKindOf

(Pseudostate))- >

select (p: Pseudostate|p.kind = Pseudostate::initial)->

size () <= 1

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

104

4.2 NEREUS Semantic

The semantics of NEREUS was constructively given

by translation to CASL. CASL is an algebraic

language based on a critical selection of known

constructs such as subsorts, partial functions, first-

order logic, and structured and architectural

specifications.

We select CASL due to it is at the center of a

family of specification languages, is supported by

tools and facilitates interoperability of prototyping

and verification tools. CASL is linked to ATP through

HETS. It is worth considering that HETS is a parsing,

static analysis and proof management tool combining

various such tools for individual specification

languages, thus providing a tool for heterogeneous

multi-logic specification. HETS is based on a graph

of logics and languages (formalized as so-called

institutions), their tools, and their translations. This

provides a clean semantics of heterogeneous

specification, as well as a corresponding proof

calculus. However, CASL syntax is far from the way

of specifying of metadesigners.

We define a way to automatically translate each

NEREUS construct into CASL, including classes,

different kinds of relations and packages (Favre,

2009).

Next, we describe the most interesting problem in

the translation, how to translate associations due to

algebraic languages do not follow the MOF

structuring mechanisms. The graph structure of a

class diagram involves cycles such as those created

by bidirectional associations. However, the algebraic

specifications are structured hierarchically and cyclic

import structures between two specifications are

avoided. An association in UML can be viewed as a

local part of an object and this interpretation cannot

be mapped to classical algebraic specifications which

do not admit cyclic import relations. 1

We propose an algebraic specification that

considers associations belonging to the environment

in which an actual instance of the class is embedded.

Let Assoc be a bidirectional association between two

classes called Asource and Bsource the following

steps can be distinguished in the translation process:

Step1: Regroup the operations of classes Asource

and Bsource distinguishing operations local to

Asource, local to Bsource and, local to Asource and

Bsource and Assoc.

Step 2: Construct the specifications A and B from

Asource and Bsource where A and B include local

operations to Asource and Bsource respectively.

Step 3: Construct specifications Collection[A] and

Collection [B] by instantiating reusable schemes.

Step 4: Construct a specification Assoc (with A

and B) by instantiating reusable schemes in the

component Association.

Step 5: Construct the specification A&B

extending Assoc with A, B and the operations local to

A, B and Assoc.

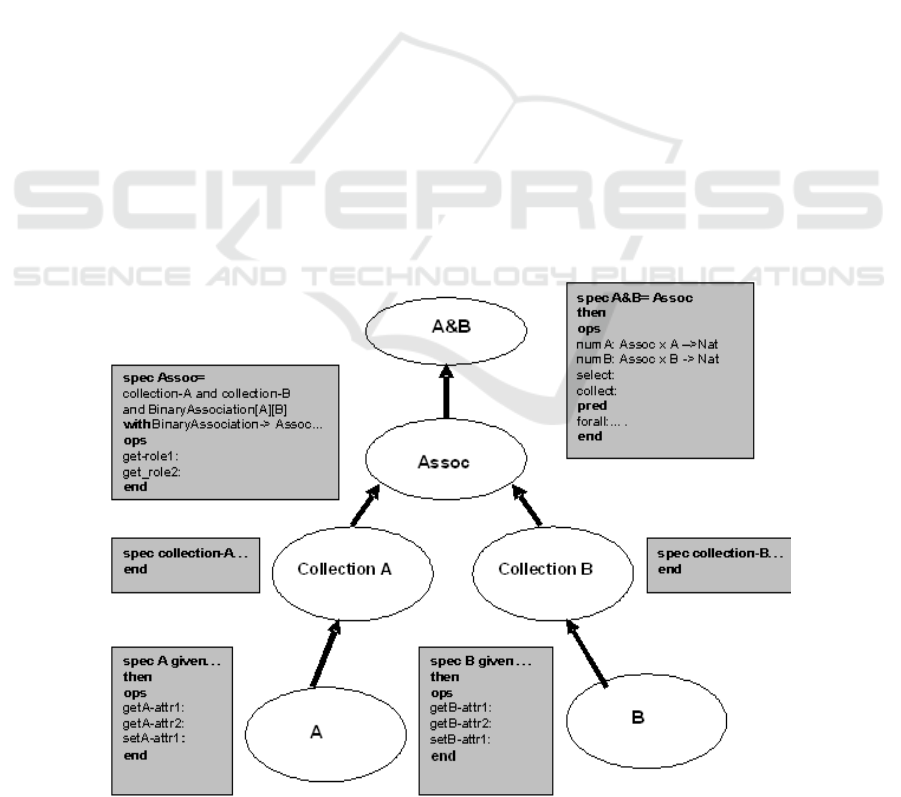

Figure 3: From NEREUS to CASL: Translating Associations.

Formal MOF Metamodeling and Tool Support

105

Another interesting problem is how to translate higher

order operations into first-order in CASL. The classes

that include higher order operations are translated

inside parameterized first-order specifications. The

main difference between higher order specifications

and parameterized ones is that, in the first approach,

several function-calls can be done with the same

specification and parameterized specifications

require the construction of several instantiations.

Next, we show the translation of the Collection

specification shown in 4.1.4 to CASL. Take into

account that there are as much functions f1, f2, f3, and

f4 as functions select, reject, forAll and exists. There

are as much functions base and g as functions iterate

too.

spec Operation [ sort X] =

and Z

and ... Z

then

preds

: X; | 1 ≤ j ≤ m

: X ; | 1 ≤ j ≤ n

: X; | 1 ≤ j ≤ k

: X | 1 ≤ j ≤ l

ops

base

: -> Z

; | 1 ≤ j ≤ r

: Z

x X -> Z

| 1 ≤ j ≤ r

end

spec Collection [sort elem]

given NATURAL-ARITHMETIC=

Operation [elem]

then

generated type

Collection ::= create | add (Collection ; elem)

preds

isEmpty : Collection;

includes: Collection * elem;

includesAll: Collection * Collection;

forAll

: Collection; |1 ≤ i ≤ k

exists

: Collection |1 ≤ i ≤ l

ops

size: Collection -> Nat;

iterate

: Collection -> Z

; | 1≤ i ≤ r

select

: Collection -> Collection; |1≤i ≤ m

reject

: Collection -> Collection; |1≤i ≤ n

…

forall c, c1: Collection; e,e1: elem

 isEmpty (create)

 includes (add (c, e), e1) < = >

(e = e1) \/ includes(c,e1))

 includesAll (c, add (c1, e)) =

includes(c, e) /\ includesAll (c, c1)

 forAll

(add(c,e)) < = >

(e) /\ forAll

( c ) |1 ≤ i ≤ k

 exists

(add(c,e) < = >

(e ) \/ exists

( c) |1 ≤ i ≤ l

 select

(create) = create

 f1

(e) = > select

(add (c, e)) =

add ( select

(c), e) ; | 1 ≤ j ≤ m

 ¬ f1

(e) = >

select

(add (c, e)) = select

…

4.3 Why to Use NEREUS?

Such as MOF is a DSL (Domain Specific Language)

to define semi-formal metamodels, NEREUS can be

viewed as a DSL for defining formal metamodels.

Advantage of our approach is linked to pragmatic

aspects. NEREUS is a formal notation closed to core

concepts of MOF metamodels that allows

metadesigners who must manipulate metamodels to

understand their formal specification.

NEREUS is a metamodeling formal language

with strong abstraction from details of the classical

mathematical notation of algebraic languages. In

comparison to CASL (or other formal languages) it

may use metamodel constructs, be easier to use and

may automate significant issues of the metamodel

specification (e.g. association specification) making

the process of developing a formal specification

simpler and more understandable relative to “lower

level” formal languages. The mathematics of

NEREUS specification is easily learned and used

supporting other way of expressing metamodels

giving metadesigners a better understanding early on

them.

A metadesigner can reflect exactly the MOF

constructs in NEREUS delegating the translation of

them to a translator that automatize the process. For

instance NEREUS-to-CASL translator translates

automatically NEREUS associations into CASL

starting from the bases described in section 4.2.

Another important issue is that NEREUS, like

MOF, provides mechanisms to structure large

specifications in order to be legible and

understandable. NEREUS provides a set of features

which allow the modularization of specifications.

However, a minimum knowledge about algebraic

specifications or about the semantics of NEREUS

expressions is a requisite for metadesigners.

5 TOOLS FOR NEREUS

Our approach provides an appropriate set of tools to

make formal metamodeling feasible in practice. In

this section we describe them:

 A parser for NEREUS which includes lexical,

syntactic and semantic analysis. It was developed

in ANTLR 4 for Java. ANTLR (Another Tool for

Language Recognition) is a powerful parser

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

106

generator for reading, processing, executing, or

translating structured text or binary files. It is

widely used to build languages, tools, and

frameworks. From an additional grammar,

ANTLR generates a parser that can build and walk

parse trees (Parr, 2013).

 A translator of NEREUS specifications into

CASL specifications, developed in Java, that uses

tree walkers generated automatically by ANTLR

4. It can be used to visit their nodes to execute

application-specific code. It is worth considering

that ANTLR 4 allows writing grammars specially

designed for searching and processing syntax

trees “on the fly”, separating the parsing, search

and process of structures. The translator from

NEREUS to CASL is based on the constructive

semantic described previously in 4.2.

 An application that provides the ability to write

specifications NEREUS, integrating the analyzer

and translator. The application is an IDE-style

where the metadesigner is not only able to enter

NEREUS text but see the result of its syntactic

and semantic analysis. Another important output

is the CASL text.

With regard to the generation of Java code for

analyzers, it is sufficient to use ANTLR, however we

decide to integrate it with the ANTLRWorks

application that makes use of ANTLR and provides a

comfortable and appropriate interface for writing and

debugging grammars through an intuitive and easy

graphical interface.

Both the Java language and the tool ANTLR are

open source, providing the ability to use them without

major technological or economic constraints,

allowing access to details of their implementations.

The fact that ANTLR was implemented in Java

provides easy integration with the application

developed to achieve the final product that provides

reusable applications across multiple desktop

platforms, which are usually used by members of the

development or design teams.

The development process for generating the

lexical analyzer, parser and semantic analyzer was

TDD (Test Driven Development). It is a software

development process that relies on the repetition of

small steps: first the developer writes an (initially

failing) automated test case that defines a desired

improvement or new function, then produces the

minimum amount of code to pass that test, and finally

refactors the new code to acceptable standards.

Another aspect to note is that while the automatic

testing was based on the JUnit tool for Java, a proper

testing engine was implemented. In this engine, each

test is an example of NEREUS text and a set of

directives that indicate what are the results expected

from the analyzer.

Figure 4 shows two screenshot. The first one

shows the translation from NEREUS to CASL of a

simple class; the second one is a screenshot of the

main application screen depicting the main panels.

In the main part of the screen (Figure 4), we can

see the edition panel of NEREUS specifications. It

has the common characteristics of code editors, i.e.,

syntax highlighting, line numbers and highlighting of

the current line among others.

Immediately below, the panel of errors can be

seen. It indicates errors showing their type (lexical

errors, syntactic, semantic errors, or general errors),

its location in the text (line number and column) and

the corresponding messages. Additionally it is

possible to position the cursor on errors, making

double-click on them. This panel has also a checkbox

"Automatic Analysis" which, if marked, enables re-

analyze the text of each new edition of NEREUS

showing the updated results.

At the top of the application there is a menu bar

and a toolbar with buttons, both with general

functionality of NEREUS files (new file, existing

open, save). In particular, it included the option for

the classpath edition of the NEREUS specification,

which is located in the Options menu. Similar to the

way in which Java performs the search of classes, the

analyzer will seek NEREUS specifications (Classes,

packages, association, relation scheme) that are

referenced within the directories in the classpath.

On the right, there is a panel of multiple functions

with different tabs. They provide information about

the test result: general information (General), the

syntax tree (Syntax Tree ), the tree of items

(NEREUS Tree), detail of the statements found

during the edition of a class (declarations that are only

available for classes and relation schemes) and CASL

text generated from the specification NEREUS

(CASL).

6 CONCLUSIONS

We have provided a metamodeling framework based

on MOF and the algebraic formalism that focus on

automatic proofs and tests. The central components

of our approach are the definition of the algebraic

language NEREUS and the development of tools for

formal metamodeling: the NEREUS analyzer and the

NEREUS-to-CASL translator.

With respect to NEREUS, our approach focuses

on interoperability of formal languages. Considering

that there exist many formal algebraic languages,

Formal MOF Metamodeling and Tool Support

107

Figure 4: The NEREUS Analyzer.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

108

NEREUS allows any number of source languages

such as different Domain Specific Language (DSLs)

and target languages (different formal language)

could be connected. Such as MOF is a DSL to define

semi-formal metamodels, NEREUS can be viewed as

a DSL for defining formal metamodels. Another

advantage of our approach is linked to pragmatic

aspects. NEREUS is a formal notation closed to MOF

metamodels.

With respect to the NEREUS-to-CASL translator,

due to the NEREUS semantics was given for

translation to CASL, we develop a translator that

could be integrated with HETS and different ATP.

Other work shows the integration of NEREUS

with MOF (Favre, 2009). MOF metamodels can be

transformed into NEREUS specifications to be

validate and verify and changes reinjected into MOF

metamodels. A system of transformation rules to

automatically transform MOF into NEREUS, was

previously described in (Favre, 2009). Our approach

allows translating MOF into NEREUS integrating

OCL with NEREUS and facilitating the translation

process from MOF.

Rather than requiring developers to manipulate

formal specifications, the idea is to provide rigorous

foundations for MOF-like metamodels in order to

develop tools that, on the one hand, take advantage of

the power of formal languages and, on the other hand,

allow developers directly manipulating MDA

models.

How to perform testing and verification on a large

scale is still a challenge. We also consider interesting

another challenge: to analyze issues related to

evolution models driven by metamodel evolution in

an incremental verification way.

REFERENCES

Anastasakis, K., Bordbar, B., Georg, G., Ray, I., 2007.

UML2Alloy: A Challenging Model Transformation, In

Proceedings Model Driven Engineering Languages

and Systems (Models 2007), Lecture Notes in Computer

Science 4735, Heidelberg: Springer-Verlag, pp. 436-450.

Barbier, P., Casteran, E., Cariou, E., le Goaer, O., 2013.

Adaptative software based on correct-by construction

metamodels, Chapter 13. In Progressions and

Innovations in Model Driven Software Engineering,

Hershey, PA: IGI Global, pp. 308-325.

Bidoit, M., Mosses, P., 2004. CASL User Manual

Introduction to Using the Common Algebraic

Specification Language. Lecture Notes in Computer

Science 2900, Heidelberg: Springer-Verlag.

Boronat, A., Meseguer, J., 2010. An algebraic semantics for

MOF. Formal Aspect of Computing 22, pp. 269-296.

Brambilla, M., Cabot, J., Wimmer, M., 2012. Model-Driven

Software Engineering in Practice. USA: Morgan &

Claypool.

Cardelli, L., Abadi, M., 1996. A Theory of Objects.

Heidelberg: Springer-Verlag.

Clark, T., Evans,A., Kent, S. 2001. The Metamodeling

Language Calculus: Foundation Semantic for UML, In

Proceedings of FASE 2001, pp.17-31.

Duarte, D., 2015. Development of Formal Metamodeling

Tools. System Engineer Thesis (L. Favre Supervisor).

Universidad Nacional del Centro de la Provincia de

Buenos Aires, Tandil, Argentina.

EMF, 2015. Eclipse Modeling Framework, www.eclipse.org

Erigh, H., Erigh, K., Prange,U., Taentzer, G., 2006.

Fundamentals of Algebraic Graph Transformation.

Monographs in Theoretical Computer Science. EATCS

Series. Springer-Verlag.

Karsten, E., Jochen, M., Kuster, G., Taentzer, J., 2006.

Generating Instance Models from MetaModels. In

Winkelmann FMOODS 2006, Lecture Notes in

Computer Science 4037, Heidelberg: Springer-Verlag,

pp. 156-170.

Favre, L., 2009. A Formal Foundation for Metamodeling,

In Ada-Europe 2009: Lecture Notes in Computer

Science 5570, Heidelberg: Springer-Verlag, pp. 177-191.

Hets, 2015. Heterogeneous Tool Set. www.informatik.uni

bremen.de/agbkb/forschung/formal_methods/CoFI/hets/

Iovino, L., Pieroantonio, A., Malavolta, I., 2012. On the

impact significance of metamodel evolution in MDE,

Journal of Object Technology 11 (3), pp.1-33.

Jackson,E.K., Levendovszky, T., Balasubramanian, D.,

2011. Reasoning about Metamodeling with Formal

Specifications and Automatic Proofs, In Proceedings

Model Driven Engineering Languages and Systems

Models 2011, Lecture Notes in Computer Science 6981,

Heidelberg: Springer-Verlag, pp. 653-667.

Jouault, F., Bézivin, J., 2006. KM3: a DSL for Metamodel

Specification, Formal Methods for Open Object-Based

Distributed Systems, Heidelberg: Springer-Verlag, pp.

171-185.

MDA, 2014. Object Management Group Model Driven

Architecture (MDA) MDA Guide rev. 2.0, OMG

Document ormsc/2014-06-01

MOF, 2015. OMG Meta Object Facility Core Specification,

version 2.5, Document formal/2015-06-05 http://www.

omg.org/spec/MOF/2.5

MOF, 2006. OMG Meta Object Facility (MOF) Core

Specification, version 1.0.

Mossakowski, T., Maeder, C., Codescu, M., 2014. Hets User

Guide, version 0.99, http://www.informatik.uni-

bremen.de/agbkb/forschung/formal_methods/CoFI/hets/

OCL, 2014. Omg Object Constraint Language (OCL),

version 2.4,” formal/2014-02-03, www.omg.org/ocl/ 2.4

Parr, T., 2013. The Definitive ANTLR 4 Reference (1st ed.),

Pragmatic Bookshelf.

OMG, 2015. Object Mangement Group, www.omg.org

Pérez, B., Porres, I., 2014. An Overall Framework for

Reasoning about UML/OCL Models Based on

Constraint Logic Programming and MDA.

Formal MOF Metamodeling and Tool Support

109

International Journal on Advances in Software, vol 7

no 1 & 2, http://www.iariajournals.org/software/

Steinberg, D., Budinsky, F., Paternostro , M., and Merks,

E., 2008. EMF: Eclipse Modeling Framework, 2 ed.

Addison-Wesley, Boston, MA

Sprinkle, J., Rumpe, B., Vangheluwe, H., Karsai, G. 2010.

Metamodelling: State of the Art and Research

Challenges. H. Giese et al. (Eds.), Lecture Notes in

Computer Science 6100, Heidelberg, Springer-Verlag,

pp. 57-76.

Varro, V., Pataricza, A., 2003. VPM: A visual, precise and

multilevelmetamodeling framework for describing

mathematical domains and UML. Journal of Software

and System Modeling, 2 (3), pp. 187-210.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

110
