Comparing ConDec to CMMN

Towards a Common Language for Flexible Processes

Renata M. de Carvalho, Hafedh Mili, Javier Gonzalez-Huerta, Anis Boubaker

and Abderrahmane Leshob

LATECE Laboratory, Universit

e du Qu

ebec

a Montr

eal, Montr

eal, Canada

Keywords:

Business Process, Flexible Process, Case Management, Declarative Process, CMMN, ConDec.

Abstract:

Flexible processes emerged to provide ﬂexibility to business process execution. A ﬂexible process is not

static and can have several different executions, that is inﬂuenced by the current situation. In this context, the

decision-making is placed in the hands of any knowledge worker during the execution, who decides which

tasks and in which order they will be executed. Two approaches for ﬂexible processes are discussed in this

paper: case management and declarative processes. In particular we use the CMMN standard and the ConDec

language for the two approaches, respectively. We compare them based on scope, model representation, formal

semantics, and limitations. Our goal is to present commonalities and differences between the languages in

order to identify potential extensions to make them more complete to attain more ﬂexible process examples.

1 INTRODUCTION

Several approaches have emerged to provide more

ﬂexibility to business process execution (Nurcan,

2008). They argue that the number of unforeseen situ-

ations (exceptions) in a workﬂow model may not rep-

resent the alignment between process and real envi-

ronment. Imperative models are either too simple,

thus unable to handle the variety of situations that

may occur; or too complex, trying to model every pos-

sible situation but being hard to maintain.

In order to cope with imperative processes short-

comings, authors have suggested different approaches

to model business processes that we will call collec-

tively ﬂexible processes. In a ﬂexible process, the

stakeholders have more freedom to decide which se-

quence of tasks to perform in order to accomplish a

given goal. In the paper, we discuss two different

ways of supporting ﬂexible processes.

Case Management (CM) falls in the ﬁrst category

by providing capabilities to customize processes at

runtime (Motahari-Nezhad and Swenson, 2013). It

adheres to the principle of planning-by-doing, con-

sidering the work context, and the ability to accom-

modate changes in the environment(Motahari-Nezhad

and Swenson, 2013). This allows the stakeholders to

respond to changes or unforeseen requirements that

were not considered during designing the business

processes (Kurz, 2013).

The declarative process falls in the second cate-

gory providing ﬂexibility by deﬁning what must be

executed without describing how the execution must

take place (Pesic and van der Aalst, 2006). The model

comprises only the deﬁnition of tasks and constraints

that must be respected during the whole execution,

abstracting away from any control ﬂow and explicit

sequencing considerations. Hence, any sequence of

tasks can be executed as long as no constraint is vio-

lated. It is important to emphasize that in case man-

agement the constraints are also deﬁned declaratively.

In this paper, we provide a detailed comparison

of these two approaches for modeling business pro-

cesses. In particular, we use the CMMN (Case Man-

agement Model and Notation) standard (for case man-

agement) and the ConDec language (for declarative

processes) to evaluate a variety of similarities and dif-

ferences throughout the paper. Moreover, we sum-

marize the general background of each concept of

ﬂexibility and their originating purpose, we compare

the two languages with respect to several dimensions

(scope, model representation, and formal semantics),

and we present some limitations to both languages.

This paper is structured as follows: Section 2 dis-

cusses more about ﬂexibility in business processes;

an overview of the CMMN standard is presented in

Section 3; Section 4 presents the background of the

ConDec language; the discussion and comparison be-

tween CMMN and ConDec is presented in Section 5;

Carvalho, R., Mili, H., Gonzalez-Huerta, J., Boubaker, A. and Leshob, A.

Comparing ConDec to CMMN - Towards a Common Language for Flexible Processes.

DOI: 10.5220/0005688002330240

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 233-240

ISBN: 978-989-758-168-7

233

Section 6 presents some related work; and ﬁnal re-

marks and our conclusion in Section 7.

2 FLEXIBLE BUSINESS

PROCESSES

In the ﬂexible business process area, the word ﬂex-

ible means the business process is not static, it can

change or get adjusted during its execution according

to different situations. The goal is to be able to de-

ﬁne ﬂexible processes in such a way that allows users

to handle unexpected situations safely and with ade-

quate information during the process execution.

This quality, termed ﬂexibility, reﬂects its ability

to deal with changes, by varying or adapting certain

parts of the business process that are affected by the

changes, whilst retaining the essential format of those

parts that are not impacted by the variations. Indeed,

as has been noted, ﬂexibility is as much about what

should stay the same in a process as what should be

allowed to change (Mulyar et al., 2007).

The idea of a ﬂexible business process model is

to give more ﬂexibility to the process execution. The

lack of ﬂexibility in workﬂow systems has been al-

ready discussed by van der Aalst (van der Aalst et al.,

2005). He pointed the following problems related to

the fundamental concepts of the workﬂow approach:

• The transformation of non-atomic tasks (for real

users) into atomic ones (for workﬂow system) in

order to distribute work, even if the same work is

actually being done at a more ﬁne-grained level.

• The distribution and authorization problem,

which coincides in contemporary workﬂow man-

agement systems. In real problems, work-items

assigned to a worker does not coincide with work-

items he may be authorized to do.

• Since workﬂow systems are focused on control

ﬂow, the context (data associated to the process

and not just to tasks) does not receive enough im-

portance and, sometimes, there is no support for

deﬁning it, resulting in errors and inefﬁciencies.

• The workﬂow approach is rigid and inﬂexible be-

cause it focuses on what should be done instead

of what can be done.

In general, the knowledge user working on a pro-

cess instance and executing a ﬂexible process has the

option to decide between several tasks that are en-

abled. However, with such a number of options, the

user needs to have an in-depth knowledge about the

process he is working on.

3 AN OVERVIEW OF CMMN

Case Management makes no distinction between de-

sign time and runtime. As explained in (Baresi and

Ghezzi, 2010), it does not put all the process de-

sign responsibilities in the hands of a business ana-

lyst, who models and tests the process before it is exe-

cuted. For a case management model, any knowledge

worker is allowed to design and execute a process in-

stance, called a case in case management.

Even if a business analyst provides templates for

the process, a case can be customized during runtime

by a case manager to ﬁt his needs. The case man-

ager is any knowledge worker that actually uses the

process deﬁnition to execute a process instance. For

example, for a health care process a doctor or a nurse

can be case managers; for a police investigation, the

case manager can be a detective.

Like any other ﬂexible process, it is not possible

to predict a case. The decision-making is placed in

the hands of a case manager, who can directly modify

the process. He can handle the case in any way that

is necessary, as long as it respects the constraints im-

posed. This allows the case manager to optimize the

process to the current case, improving the solution to

a speciﬁc situation.

Case management grew based on two main con-

cepts: i) context management, which addresses the

need in many companies to maintain a great amount

of documents and ﬁles; and ii) the management of

cases. The Object Management Group (OMG) and

the case management community worked to provide

an industry wide standard called Case Management

Model and Notation (CMMN) ((OMG), 2014).

For a CMMN model, there exist two phases. Dur-

ing the design phase, the business analyst deﬁnes pre-

deﬁned segments in the case model, and can also de-

ﬁne discretionary items, which enable the case man-

ager to customize the case during runtime. In the sec-

ond phase, the case manager executes the process fol-

lowing the pre-deﬁned plan. He can also modify the

process design, instantiating the discretionary items

by picking concrete ones depending on his needs.

4 AN OVERVIEW OF ConDec

ConDec is a declarative language for describing busi-

ness processes (Pesic and van der Aalst, 2006). Its

authors argue that, although adaptive workﬂow sys-

tems allow changes in an imperative process deﬁni-

tion during runtime, such systems remain imperative.

Although case management or other adaptive work-

ﬂow systems offer the possibility to open, skip, exe-

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

234

cute and re-execute tasks, they still restrict the process

execution (Pesic and van der Aalst, 2006).

The idea of declarative models is to change the

nature of describing a process. The other model-

ing languages use an inside-to-outside approach, fo-

cusing on specifying ﬁrst the main procedure, and

then the possible deviations for the process (see Fig-

ure 1(a)). ConDec uses an outside-to-inside approach,

focusing on specifying only the restrictions of the pro-

cess (Pesic and van der Aalst, 2006) (see Figure 1(b)).

In ConDec, the business analyst is guided to deﬁne

what should be executed without specifying how. He

is driven to deﬁne tasks presented in the process, and

the relations between them. Each relation represents a

constraint, which can be viewed as a policy or a busi-

ness rule but does not describe an execution order.

MAIN

PROCEDURE

(a) Inside-to-outside.

MAIN

PROCEDURE

(b) Outside-to-inside.

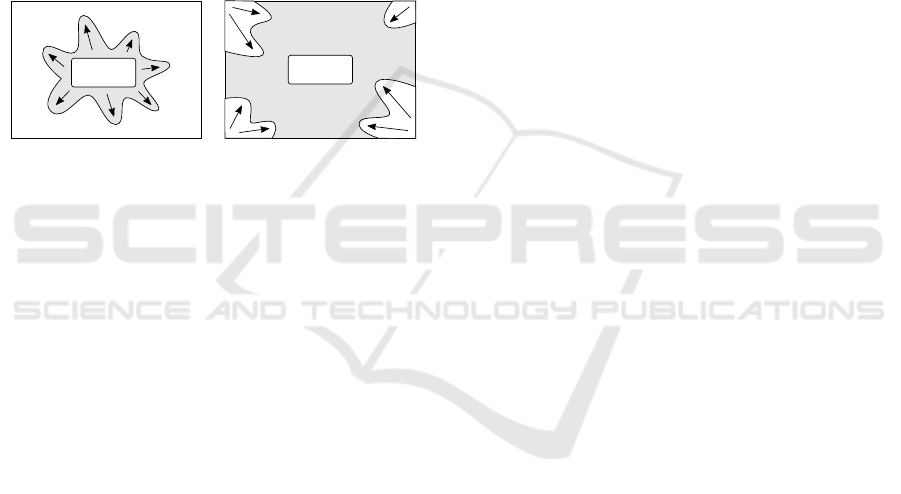

Figure 1: Difference between approaches. Arrows represent

what is deﬁned in design time and in gray, what is reachable

at runtime (Based on (Pesic and van der Aalst, 2006)).

It is during the execution that a user decides which

task, among the eligible ones, will be executed and

how. During the execution, any task that does not vi-

olate a constraint can be chosen to be executed. This

is considered an optimistic approach where, in prin-

ciple, anything is possible unless it is explicitly for-

bidden. This leaves a lot of freedom for users, who

can make decisions and work in various ways with the

same ConDec model (Pesic and van der Aalst, 2006).

Modeling a process in ConDec, the business an-

alyst can range from very relaxed models to very re-

strictive models. The most relaxed model contains

only tasks deﬁned without any constraint. Hence, the

user has total ﬂexibility to (re-)execute tasks follow-

ing his own preference. A restricted model can be

viewed as a model with constraints deﬁned in such a

way that it behaves like an imperative process.

5 COMPARING CONDEC TO

CMMN

CMMN and ConDec are languages for modeling dif-

ferent categories of ﬂexible business processes. Both

of them describe tasks and constraints that must be

respected during the execution. Here, we compare

these two modeling languages concerning different

aspects in order to highlight concepts presented in one

language, both, or none of them. We compare the

languages based on: i) scope, ii) model representa-

tion, iii) formal semantics, and iv) limitations. Other

work (Gluch et al., 2001) argued about and used the

same set of parameters to compare languages.

5.1 Scope

Both modeling language approaches were deﬁned to

focus on different aspects of a business process.

Case Management was created to model ﬂexible

and knowledge intensive business processes (van der

Aalst et al., 2005), which means that it was created

for coordination of work that is not routine and pre-

dictable, and requires human judgment (Motahari-

Nezhad and Swenson, 2013). In case management

group the discussion is around the case manager.

They argue that one of the problems in modeling a

business process is that a business analyst does not

always have necessary knowledge. It is necessary to

provide a way for the case manager to customize a

case for his speciﬁc needs at runtime.

CMMN is a standard for dealing with cases. At

design time, business analysts are engaged in model-

ing. They are concerned with the speciﬁcation of: i)

tasks that are always part of some segment; ii) con-

straints to guide the possible actions to be taken; iii)

some decisions to inﬂuence future actions based on

new facts or events; and, where appropriate, iv) deﬁn-

ing potential upcoming items to be planned in run-

time. At runtime, the case manager executes the case.

He must perform tasks as planned, following con-

straints already deﬁned. But the case may evolve by

planning new tasks when possible.

The main particularity for the CMMN is the def-

inition of potential upcoming items, which are called

discretionary items. When a business analyst deﬁnes

a discretionary task during the design time phase, he

allows the case manager to add and plan, in this place,

a speciﬁc task driving the execution. The CMMN

standard also provides a PlanningTable to deﬁne the

scopes where the case manager may operate.

Declarative approach was created to support dy-

namic processes in an important issue in rapidly

changing organizations, whose agility is at a competi-

tive level and subjected to frequent changes (Pesic and

van der Aalst, 2006). In declarative group, the discus-

sion focuses on restricting only the necessary, making

the user (the worker who will execute the process) re-

sponsible for choosing the order of tasks at runtime.

ConDec is a language for deﬁning declarative pro-

cesses. At design time, the business analyst deter-

Comparing ConDec to CMMN - Towards a Common Language for Flexible Processes

235

mines all possible tasks and the constraints to restrict

things that shall not happen in the context. At run-

time, the user is informed only about the enabled tasks

at that moment and chooses, among these tasks, the

next one to be executed.

The main particularity for ConDec is that the

constraints represent dependencies/relations between

tasks. Most of these relations do not have an imme-

diate nature. For example, a co-existence relation in-

dicates that if a certain task is ever executed, another

task must also be executed eventually, and vice-versa.

However, it does not say when the other (related) task

must be executed.

5.2 Model Representation

In this section we compare the expressiveness of the

two modeling languages through some important as-

pects. We will use an incremental example through-

out this section to illustrate the differences between

CMMN and ConDec. Using this example we are also

able to illustrate different representations of similar

concepts in the languages. The example, from the

health care area, consists of a very simple represen-

tation of the process of an emergency department of

a hospital. It summarizes the constraints that affect to

the process that follows the arrival of a patient.

5.2.1 The Basics

The ﬁrst concern in this process states that every pa-

tient that arrives at the emergency department should

be assigned a triage acuity level. Hospital services,

tests, procedures and interventions are also part of an

emergency. In our example, we are only considering

two kinds of tests: blood tests and x-ray tests. Neither

test puts patients at risk, and thus, both can also be

prescribed by nurses. Thereby, whenever a patient ar-

rives at emergency, a nurse will assign a triage level.

After that, the patient can be seen by a physician.

Medical tests can be prescribed to be done before or

after the physician examination.

For any business process modeling language, a

task is the smallest unit of work. Tasks can be ex-

ecuted manually or automatically. Figure 2 shows

a CMMN representation of the described emergency

example, which presents four tasks: Triage, Physician

Care, Blood Test, and X-Ray.

In this process, all the tasks are manual (illustrated

with the person icon). In CMMN, a manual task can

be blocking or not. A blocking manual task only al-

lows the case to continue after the completion of its

execution. A non-blocking manual task allows the

case to continue at the beginning of its execution.

Triage

Physician

Care

Blood

Test

X-Ray

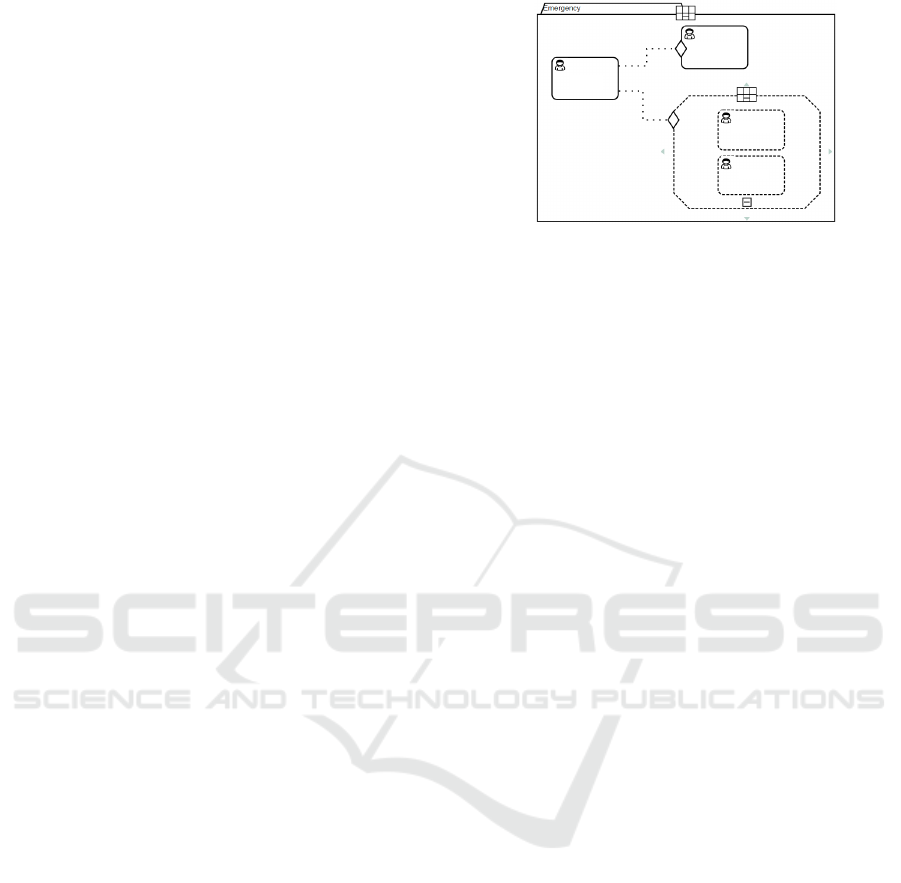

Figure 2: Emergency example deﬁned in CMMN.

CMMN provides a way of grouping tasks through

the Stage concept. Stages can be used to determine

context inside the case. Figure 2 contains a Stage

(the rectangular shape with angled corners) for repre-

senting the tests context available in the hospital. The

Stage groups the two tasks related to the tests context.

The hollow diamond shapes in the borders of

Physician Care task and the Stage are Entry Crite-

rion Sentries. They are used in CMMN to deﬁne con-

ditions to execute a task by deﬁning an expression,

which has two parts. The IfPart is used to deﬁne ex-

pressions based on variables, and the OnPart to relate

the condition to events. The expression can be deﬁned

by one or both parts. When connected to a task (e.g.

see dotted line between Triage and Physician Care),

the sentry adds the task completion event to the sen-

try’s OnPart. In our example, neither Physician Care

nor the tests stage could be executed before Triage has

been completed. One example of usage of the IfPart

is for expressing that the patient should be seen by a

physician only if the patient is assigned to triage level

one (the highest priority for the triage systems). In

this example, we would use both IfPart and OnPart.

Note that the example using the IfPart would not al-

low the patient to be visited by a physician if it was

assigned to another triage level.

The Stage, X-Ray, and Blood Test have dashed

shapes to indicate that they are discretionary items.

Every time a discretionary item is related to a con-

text, the Planning Table icon appears in the context.

The Planning Table allows the deﬁnition of Applica-

bility Rules. They are used to determine whether an

item is applicable, e.g. to determine for which roles a

task is applicable. Hence, the discretionary items will

be available to the case, when applicable, and may be

executed depending on the case manager discretion.

The same process is deﬁned using the ConDec

language in Figure 3, which has the same tasks as in

CMMN. The ﬁrst thing to notice in Figure 3 is that

ConDec does not provide a way for grouping tasks.

And thus, Blood test and X-Ray cannot be grouped in

a “tests context”. Another thing is that ConDec does

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

236

Triage

Physician Care

Blood Test

X-Ray

init

Figure 3: Emergency example deﬁned in ConDec.

not have an equivalent to discretionary tasks.

To express the fact that Triage must be executed

before any other task, we used the init constraint pro-

vided by ConDec, which means that the Triage task

must be the ﬁrst one to be executed. We could also

have used the precedence constraint, which relates

two tasks indicating that one must be executed be-

fore the other one. We could have expressed the same

behavior by specifying three precedence constraints:

from the Triage task to each of the other tasks.

Whenever a task is executed in CMMN, it cannot

be re-executed. The same is true for the tasks inside

the Stage: once a task is performed followed by a task

from outside the Stage, it is not possible to go back to

Stage and execute another task. Hence, the patient

cannot pass through an x-ray, be seen by a physician,

and then be required to do some blood test. To allow

a behavior (as the re-execution of tasks) in CMMN, it

must be speciﬁed. In ConDec, any of the tasks can be

re-executed because there is no explicitly constraint

prohibiting this behavior. Any execution trace con-

taining the Triage task as the ﬁrst one is valid. To

prohibit a behavior in ConDec, it must be speciﬁed.

5.2.2 Prohibition, Counting and Immediate

Behavior

The purpose of a triage system is to prioritize patients

and identify those that cannot wait to be seen by a

physician. Patients assigned to the highest priority

level must be seen by the physician immediately. And

every patient, regardless of their acuity level, must be

seen by a physician before being discharged. One of

the interventions that a physician can perform is the

prescription of drugs. Some drugs can interfere with

blood tests, changing results. For the sake of simplic-

ity, we will not make a distinction between drugs. We

will assume that any drug can alter any blood test, and

hence, will forbid blood tests on patients who have

taken drugs. Another limitation regarding the tests:

x-ray tests can only be performed twice on the same

patient, due to the radiations exposure.

Figure 4 depicts the representation of the emer-

gency example with the additional constraints in

CMMN. This model has a new task called Take Pre-

scribed Drugs. This task is associated with an Entry

Criterion Sentry, stating that the patient can take pre-

scribed drugs only after being seen by a physician.

Triage

Physician

Care

Take

Prescribed

Drugs

Blood

Test

X-Ray

Taken Drugs

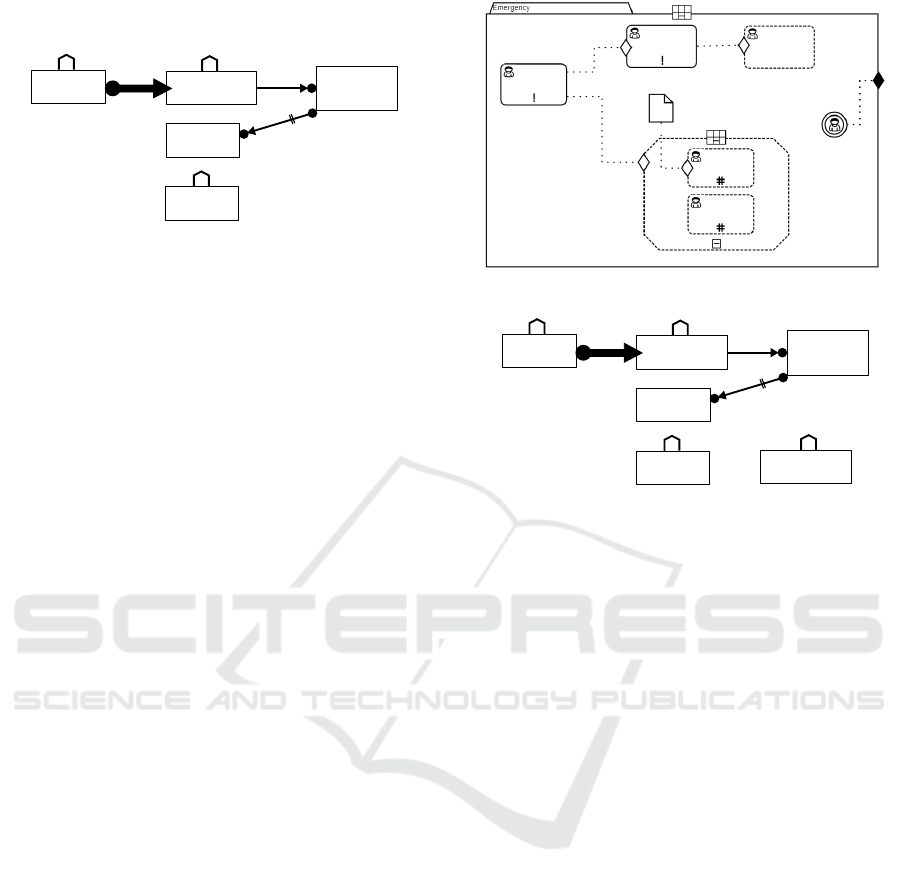

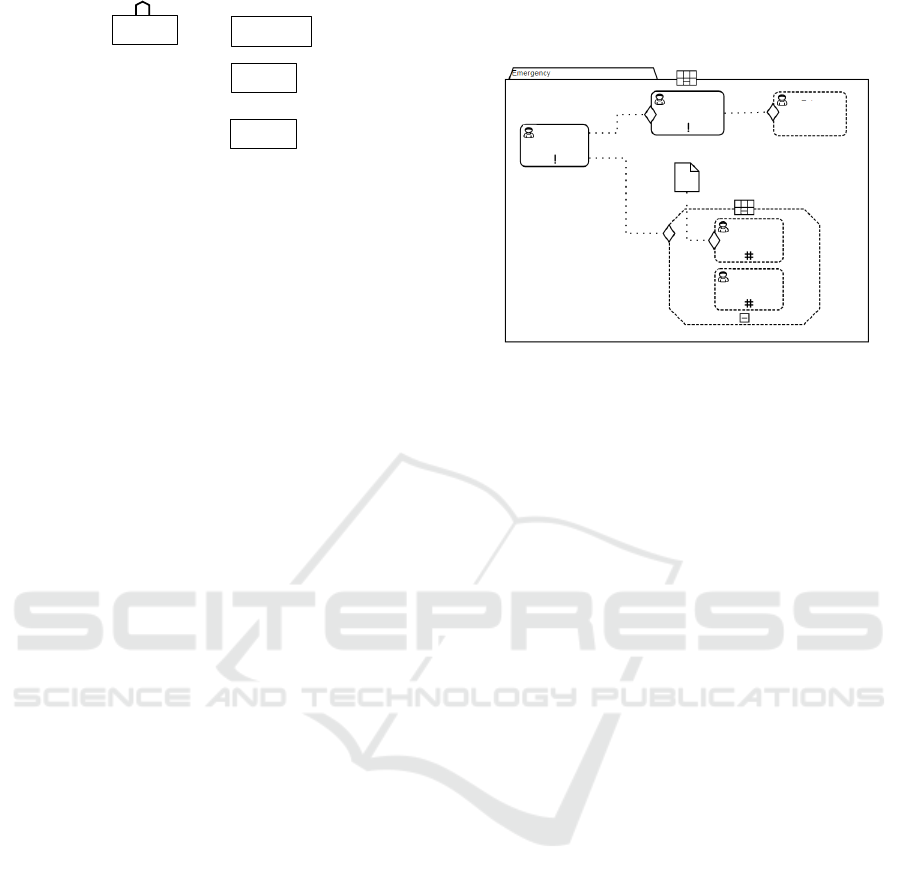

Figure 4: Emergency example deﬁned in CMMN.

In CMMN, and case management, one of the con-

cepts that guides a case is its context, represented in

a CaseFile. In Figure 4, the CaseFile has the infor-

mation about drugs taken. In this example, drugs can

be taken after a Physician Care, if prescribed, or they

can have been taken before the patient arrives at the

emergency (if informed by the patient). Thus, Blood

Test will only be available if there is no information

about drugs taken in the CaseFile.

CMMN uses decorators to indicate particular be-

havior patterns. Each decorator speciﬁes a differ-

ent pattern and can be applied to a different set of

items. The criterion sentries are examples of deco-

rators. Moreover, in Figure 4 we use two other dec-

orators: Required, denoted by !; and Repetition, de-

noted by #. The Required decorators in Triage and

Physician Care tasks indicate that these are manda-

tory tasks and the process cannot ﬁnish without ex-

ecuting them. The Repetition ones in Blood Test and

X-Ray tasks imply that these tasks can be re-executed.

We could also add a Repetition decorator to the Stage

to indicate that the tests context can also be visited

more than once, e.g., allowing tests to be performed

before and after a physician care.

Rules will be used to express other concerns.

For expressing that patients with the highest priority

triage level must immediately be seen by a physician

we will use an Applicability Rule. This rule certiﬁes

that the Stage will only be applicable for patients with

different triage level after the Physician Care. The

limited amount of x-rays will be expressed by using

a Repetition Rule to restrict the use of the repetition

decorator in the X-Ray task.

The ConDec model with the same concerns is

shown in Figure 5. The new task, Take Prescribed

Drugs, can only be executed after a physician care.

This relation is deﬁned by a precedence constraint in-

dicating that the execution of Physician Care must

Comparing ConDec to CMMN - Towards a Common Language for Flexible Processes

237

precede the execution of Take Prescribed Drugs.

Triage

Physician Care

Blood Test

X-Ray

Take

Prescribed

Drugs

precedence

not

succession

init

1..*

0..2

chain

response

Figure 5: Emergency example deﬁned in ConDec.

Four other constraints are new in the ConDec

model. The not succession constraint indicates that

after taking prescribed drugs, it is not possible to re-

quire blood tests for the patient. We could use a global

variable, known by the whole process, to have a rep-

resentation as the one used in the CMMN’s case ﬁle.

The existence template allows the business analyst to

deﬁne a minimum amount of executions for a task.

In Figure 5 the existence constraint is deﬁned to the

Physician Care task, which must be executed at least

once. The third constraint limits the maximum num-

ber of times an x-ray can be performed by using an

absence constraint. For this example, it was possi-

ble to express that the x-ray test can be prescribed at

most twice. The fourth constraint, the chain response

constraint, is related to the patients assigned to the

highest acuity level during the triage. All chain tem-

plates in ConDec have an immediate behavior. Thus,

if the patient is associated to the highest acuity level

(limited by an expression not visible), the Physician

Care must be executed immediately after the Triage,

disabling all the other possibilities.

5.2.3 Events

Each hospital has its own policy and arrangements

for discharging patients. Generally, whenever the pa-

tient is assessed and is considered medically ﬁt, or

his treatment is no more urgent, he/she can receive

a discharge authorization. The discharge of a patient

characterizes the end of the patient’s process execu-

tion inside the hospital. In addition to the discharge

authorization, the patient can also receive a care plan

to be followed outside the hospital.

The CMMN model presented in Figure 6 repre-

sents the Discharge Authorization as an event (repre-

sented by a double circle). An event is any action or

occurrence detected at any time that can be handled

by the model. In CMMN, an event may trigger the

enabling, activation, and termination of another item.

An Exit Criterion Sentry is similar to the Entry

Criterion Sentry and can be expressed by an IfPart

(for variables), an OnPart (for events), or both. The

Take

Prescribed

Drugs

Triage

Physician

Care

Blood

Test

X-Ray

Discharge

Authoriza�on

Taken Drugs

Figure 6: Emergency example deﬁned in CMMN.

Triage

Physician Care

Blood Test

X-Ray

Take

Prescribed

Drugs

Discharge

Authoriza�on

precedence

not

succession

init

1..*

0..2

last

chain

response

Figure 7: Emergency example deﬁned in ConDec.

Exit Criterion Sentry is represented by a solid dia-

mond shape. When the conditions of an Exit Crite-

rion Sentry are true, the related item will be termi-

nated (exited). In our example, an Exit Criterion Sen-

try is used directly to the Case Plan Model. We used

an UserEventListener, which is raised by a user, for

terminating the case execution.

ConDec does not allow the speciﬁcation of events.

The business analyst may deﬁne Discharge Autho-

rization as a task, as in Figure 7.

The last constraint is similar to the init one, deﬁn-

ing the position of task during the execution. In this

case, the related task (Discharge Authorization) must

be the last one executed.

5.3 Formal Semantics

All modeling languages must have a well-deﬁned un-

derlying semantics, which helps to understand the de-

ﬁned process and its execution.

The CMMN standard is a recent OMG standard.

In 2010 OMG published a request for proposals for

a Case Management Process Model standard (Marin

et al., 2013), and since then CMMN has been devel-

oped. Its ﬁrst version was launched in 2014 and does

not include a formal semantics. Also, there is no pub-

lished work proposing a formalism for CMMN yet.

Regarding the ConDec language, it uses Linear

Temporal Logic (LTL) as its formalism for the inter-

nal representation of business processes. Each tem-

plate is mapped to an LTL formula, so that a Con-

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

238

Dec model can be interpreted in terms of LTL in a

ﬁnite trace (Maggi et al., 2012). Due to this formal-

ization, a runtime veriﬁcation can be done focusing

on violations from the interference of multiple con-

straints. Process enactment requires the construction

of a B

uchi automaton that contains all possible states

of the process, which provides diagnosis about busi-

ness constraints during the execution of the model.

This strategy is not very efﬁcient, since it grows

exponentially in size for realistic models. To solve

this, REFlex (De Carvalho et al., 2013), another tech-

nique for modeling declarative business processes on

top of ConDec, proposed a graph-based mechanism

that does not share the same inefﬁciency. The graph

represents only the current state of execution, which

is updated at runtime. Through the graph, REFlex

can infer future states and avoid inconsistent states.

REFlex also made a different formalization for the

ConDec templates using the Alloy language (Jackson,

2006), which ensures that the graph used is a precise

representation of the model and also ensures that busi-

ness processes will be correctly executed.

5.4 Limitations

We have already discussed some of the limitations of

the two modeling languages in the previous sections.

Here we discuss other limitations that are common to

both CMMN and ConDec.

Other imperative modeling languages such as

EPC and BPMN support to express resource alloca-

tion on a high-level model. On the executable level,

languages like BPEL are able to express resources. A

resource may be a human being or a machine, a ser-

vice, a material. Having resources modeled in a pro-

cess allows the deﬁnition and analysis of competition

concepts, based on resources limited availability or

consumption. Neither CMMN nor ConDec provides

intrinsic deﬁnition of resource, driving the business

analyst to make a simpliﬁed model of the reality with-

out the resources deﬁnition, or to use other artifacts

(e.g., addressing the resources competition manually)

to deal with the involved resources.

Temporal constraints is another aspect that got the

attention of other researchers, for example, to extend

BPMN with such characteristics (Gagne and Trudel,

2009). The temporal notion presented in CMMN is

only when using a TimerEventListener, to catch pre-

deﬁned elapses of time that trigger other actions. In

ConDec, the notion of time is more scarce. There is

only the notion of the immediate templates. For all

other templates, the dependency must occur, but at

any time in the future. Other temporal notions can

be used in expressions for both languages but they

should be interpreted by the execution engine.

6 RELATED WORK

In this section we present other works that also com-

pared business process modeling languages. All of

them compare imperative languages and/or languages

that are not speciﬁc for business processes.

Milton and Johnson (Milton and Johnson, 2012)

made a comparison between service blueprint and

BPMN. They analyzed which service blueprint con-

cepts are supported, partially supported or cannot be

expressed in BPMN. After the analysis they found out

that BPMN can be used to diagram service process,

but in a different perspective compared with service

blueprint. They are also conﬁdent that BPMN exten-

sions can help improving the understandability of crit-

ical touch points driving service satisfaction.

Recker (Recker, 2010) compared two different

languages that are speciﬁc for modeling imperative

business processes: BPMN and EPC. His compari-

son focused on the grammars of each language, show-

ing differences in continued usage behavior of the two

styles of grammar. He also conducted a study to de-

termine signiﬁcant factors that impact in language us-

age, suggesting that the ease of use perceptions have

a strong impact to user satisfaction and willingness to

continue to use a process modeling grammar.

Another work made by Marin, Lotriet, and Van

Der Poll (Marin et al., 2014) makes the compari-

son between business process languages. For this

work, CMMN is also part of the study. The authors

did the exploratory research to understand CMMN’s

complexity. For this research, they compared CMMN

with BPMN, EPC, and UML AD in terms of the quan-

tity of objects, relationships and properties for mod-

eling the same problem. They used the cumulative

complexity to determine the difference between the

languages, showing that CMMN is favorable in com-

parison to BPMN, which makes it much promise.

7 DISCUSSION

This paper presented two different modeling lan-

guages for ﬂexible processes: CMMN and ConDec.

Even though we know that both languages have differ-

ent purposes, and so they are based on different con-

cepts, both have the main goal of providing ﬂexibility

to business process speciﬁcation and execution.

CMMN is an OMG standard for case manage-

ment. The concern is that cases have their particulari-

ties and cannot be anticipated at design time. Further-

Comparing ConDec to CMMN - Towards a Common Language for Flexible Processes

239

more, the case manager should be able to customize

it depending on his needs at runtime. CMMN pro-

vides the representation of discretionary items, which

may become concrete at runtime. Hence, CMMN is

a planing-by-doing language, also considered as an

inside-to-outside approach because the business ana-

lyst must represent mostly the possibilities of execu-

tion, even with some ﬂexibilities.

In ConDec, the principle is that the execution is

guided by constraints, and the stakeholder executing

the process can choose the order of tasks at runtime.

Any order is possible to be chosen since it does not

violate any constraint. It is considered an outside-to-

inside approach, since the business analyst must be

worried about the constraints (the restrictions to the

model) and not about the possible execution paths.

We compared these two languages based on other

aspects. ConDec was developed in 2006 (Pesic and

van der Aalst, 2006), already having formal seman-

tics deﬁned in LTL. Each ConDec template can be

mapped to an LTL formula, and the resulting one is

used for the enactment of process at runtime. There

are other related works improving its execution se-

mantics, e.g. (De Carvalho et al., 2013). CMMN is

more recent, with its ﬁrst version released in 2014.

Because of that, few works can be ﬁnd related to

CMMN and it has no formal semantics yet.

In addition to present commonalities and differ-

ences between languages, we pointed that the deﬁni-

tion of resources is not intrinsically addressed by both

languages and the deﬁnition of time is really limited

in both of them. All this comparison makes us be-

lieve that both languages can be extended in order to

be more complete in the context that it would be pos-

sible to attain more ﬂexible process examples.

ACKNOWLEDGEMENTS

This study is supported by NSERC (Natural Sciences

and Engineering Research Council of Canada).

REFERENCES

Baresi, L. and Ghezzi, C. (2010). The disappearing bound-

ary between development-time and run-time. In Pro-

ceedings of the FSE/SDP Workshop on Future of Soft-

ware Engineering Research, FoSER ’10, pages 17–22,

New York, NY, USA. ACM.

De Carvalho, R., Silva, N., Lima, R., and Cornelio, M.

(2013). Reﬂex: An efﬁcient graph-based rule engine

to execute declarative processes. In Systems, Man, and

Cybernetics (SMC), 2013 IEEE International Confer-

ence on, pages 1379–1384.

Gagne, D. and Trudel, A. (2009). Time-bpmn. In Com-

merce and Enterprise Computing, 2009. CEC ’09.

IEEE Conference on, pages 361–367.

Gluch, D., Comella-Dorda, S., Hudak, J., Lewis, G.,

Walker, J., and Weinstock, C. (2001). Model-based

veriﬁcation: Scope, formalism, and perspective guide-

lines. Technical Report CMU/SEI-2001-TN-024,

Software Engineering Institute, Carnegie Mellon Uni-

versity, Pittsburgh, PA.

Jackson, D. (2006). Software Abstractions: Logic, Lan-

guage, and Analysis. The MIT Press.

Kurz, M. (2013). Taming diversity: A distributed acm-

based approach for cross-enterprise knowledge work.

In Web Intelligence (WI) and Intelligent Agent Tech-

nologies (IAT), 2013 IEEE/WIC/ACM International

Joint Conferences on, volume 3, pages 87–91.

Maggi, F. M., Westergaard, M., Montali, M., and van der

Aalst, W. (2012). Runtime veriﬁcation of ltl-based

declarative process models. In Runtime Veriﬁca-

tion, volume 7186 of LNCS, pages 131–146. Springer

Berlin Heidelberg.

Marin, M., Hull, R., and Vaculn, R. (2013). Data centric

bpm and the emerging case management standard: A

short survey. In Business Process Management Work-

shops, volume 132 of LNBIP, pages 24–30. Springer

Berlin Heidelberg.

Marin, M. A., Lotriet, H., and Van Der Poll, J. A. (2014).

Measuring method complexity of the case manage-

ment modeling and notation (cmmn). In Proceedings

of the Southern African Institute for Computer Scien-

tist and Information Technologists Annual Conference

2014, pages 209:209–209:216, NY, USA.

Milton, S. K. and Johnson, L. W. (2012). Service blueprint-

ing and bpmn: a comparison. Managing Service Qual-

ity: An International Journal, 22(6):606–621.

Motahari-Nezhad, H. and Swenson, K. (2013). Adaptive

case management: Overview and research challenges.

In Business Informatics (CBI), 2013 IEEE 15th Con-

ference on, pages 264–269.

Mulyar, N. A., Schonenberg, M. H., Mans, and van der

Aalst (2007). Towards a taxonomy of process ﬂexi-

bility. BPM Center Report BPM-07-11.

Nurcan, S. (2008). A survey on the ﬂexibility requirements

related to business processes and modeling artifacts.

In HICSS ’08: Proceedings of the 41st Annual Hawaii

International Conference on System Sciences, page

378, Washington, DC, USA. IEEE Computer Society.

(OMG), O. M. G. (2014). Case management model and

notation (cmmn) version 1.0.

Pesic, M. and van der Aalst, W. (2006). A declarative ap-

proach for ﬂexible business processes management.

In Business Process Management Workshops, volume

4103 of LNCS, pages 169–180. Springer Berlin Hei-

delberg.

Recker, J. (2010). Explaining usage of process modeling

grammars: Comparing three theoretical models in the

study of two grammars. Information & Management,

47(56):316 – 324.

van der Aalst, W. M., Weske, M., and Grnbauer, D. (2005).

Case handling: a new paradigm for business process

support. Data & Knowledge Engineering, 53(2):129

– 162.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

240
