An Observe-and-Detect Methodology for the Security and Functional

Testing of Smart Card Applications

Germain Jolly, Sylvain Vernois and Christophe Rosenberger

Universite de Caen Basse Normandie, ENSICAEN, UMR 6072 GREYC, Caen, France

Keywords:

Security, Analysis, Smart Card application, Observation, Detection, Evaluation, WSCT Framework.

Abstract:

Smart cards are tamper resistant devices but vulnerabilities are sometimes discovered. We address in this pa-

per the security and the functional testing of embedded applications in smart cards. We propose an original

methodology for the evaluation of applications and we show its beneﬁt by comparing it to a classical certiﬁ-

cation process. The proposed method is based on the observation of the APDU (Application Protocol Data

unit) communication with the smart card. Some speciﬁc properties are veriﬁed as a complementary method

in the evaluation process and allows the on-the-ﬂy detection of an anomaly and the reasons that triggered this

anomaly during the test. Here are presented two uses of this method: a simple use to illustrate the use of prop-

erties to verify an implementation of an application and a more complex illustration by applying the fuzzing

method to show what we can obtain with the proposed approach, i.e. an analysis of an anomaly.

1 INTRODUCTION

While smart cards have invaded our daily lives, the

question of the quality of the card application arises.

EMVCo reports that 1.62 billion payment cards and

23.8 million terminals in circulation globally are

based on EMV technology (EMVCo, 2013). The de-

velopment of an application on a smart card is not an

easy task (Rankl, 2007). Not clear enough speciﬁca-

tions or having a too large number of important vari-

ables make the development of smart card implemen-

tation difﬁcult. Testing aims at discovering anomalies

in actual behavior of a system compared to what is

expected. Moreover, it is not possible to test an ap-

plication in a smart card over the full range of input

variables. The full testing would cost too much in

time and signiﬁcant resources.

For functional and security testing, it is necessary

to validate each step and each element of a smart card.

It is unrealistic to use a secure and certiﬁed compo-

nent with a poorly implemented program. The pro-

gram must also be validated and certiﬁed. The def-

inition of the criteria for evaluating security allowed

product certiﬁcation (Wallace et al., 1996). Recog-

nition of these criteria allows mutual recognition be-

tween different structures and different countries. A

certiﬁed product is tested not only by certiﬁcation lab-

oratories but also by the manufacturer during its de-

velopment. The certiﬁcation allows recognizing the

level of security of a product by an external labo-

ratory. EMVCo is providing the EMVCo Security

Evaluation Process to its members (Alliance, 2011).

It ensures a robust security foundation for smart card

and related products. The Card Type Approval pro-

cess allows testing compliance with the EMV spec-

iﬁcations. Another document called Card Type Ap-

proval process provides an increased level of conﬁ-

dence. To summarize, EMVCo provides documents

to test, evaluate and approve a smart card but also

a list of Approved Security Evaluation Laboratories

(EMVCo, 2012). For validation purposes, meaning-

ful I/O sequences are generated.

While in the industrial ﬁeld, evaluation is espe-

cially enabled by testing tools, academic research has

proposed many different methods. There are several

kinds of veriﬁcation and validation (V&V) methods:

control (technical notice, reviews), analysis (mathe-

matical veriﬁcation) or test (focus on input/output).

Most of the academic research works consider white-

box systems (known source code and secrets).

• Static analysis is an analysis method ((Distefano

and Parkinson J, 2008), (Philippaerts et al., 2014)

or (Ahrendt et al., 2005)) allowing to ensure that

deﬁned coding practices are being followed.

• The model checking is a method consisting of ver-

ifying if a model of an abstraction or a system

follows the speciﬁcations ((Sabatier and Lartigue,

282

Jolly, G., Vernois, S. and Rosenberger, C.

An Observe-and-Detect Methodology for the Security and Functional Testing of Smart Card Applications.

DOI: 10.5220/0005682202820289

In Proceedings of the 2nd International Conference on Information Systems Security and Privacy (ICISSP 2016), pages 282-289

ISBN: 978-989-758-167-0

1999)). The model checking is used to check all

possible paths of the state machine deﬁning an ap-

plication on smart cards.

• The test method allows to discover errors at all

levels of systems ((Philipps et al., 2003), (van

Weelden et al., 2005)). We can also discern

the structural test from the functional test. This

method is the most used method in the industrial

ﬁeld. The main problem of the test is to build data

input that will provide the higher test coverage.

• Fuzzing is a automatic generation of a large num-

ber of test cases ((Lancia, 2011), (Bekrar et al.,

2012) or (Alimi et al., 2014). ). The test is used to

verify one speciﬁc path in the state machine of the

application. This approach allows an automatic

generation of test cases. The problem is that this

method costs smart cards (as they are not sched-

uled to accept so many transactions). The main

drawback of this approach is also the difﬁculty to

fully understand the scenario that permits to gen-

erate an attack.

The presented method here allows both veriﬁca-

tion of the complete application on a smart card, or

at least provides an accurate documentation of a de-

tected anomaly. The method detects an anomaly rel-

ative to the expected behavior and provides accurate

documentation of the reasons that triggered this error.

The proposed method detects vulnerabilities through

the observation of the APDU communications. It im-

proves the documentation comparing to the results of

known evaluation methods as the test method used to

verify, validate and evaluate a smart card. We would

like to mix the efﬁciency of the whitebox methods

with the simplicity of the blackbox ones.

In the second section, we provide some necessary

background on smart cards and their certiﬁcations.

The methodology is deﬁned in the third section. Sec-

tion 4 deals with the results obtained by creating a

proof of concept using the WSCT framework for the

payment application and the second use of the method

mixed with a fuzzing method.

2 BACKGROUND

We focus on the smart card application. For the pay-

ment, EMVCo provides EMV (Europay MasterCard

Visa) speciﬁcations and the CPA (Common Payment

Application) speciﬁcation (Watanabe et al., 2006).

Moreover, proprietary speciﬁcation is added to de-

velop a smart card application.

In this work, the MasterCard M/CHIP speciﬁ-

cation, an EMV-compliant speciﬁcation for Master-

CLA INS P1 P2 LC UDC LE

SW1 SW2UDR

Command APDU :

Response APDU :

Figure 1: Communication between the terminal and the

smart card.

card smart cards, is studied. The application con-

tained on the chip can take several states (selected

performed, GPO performed, ...). The evolution of the

state of the application is allowed by sending com-

mands APDU (select, get data, GPO, ...) and receiv-

ing responses APDU (9000, 6283, ...). A machine

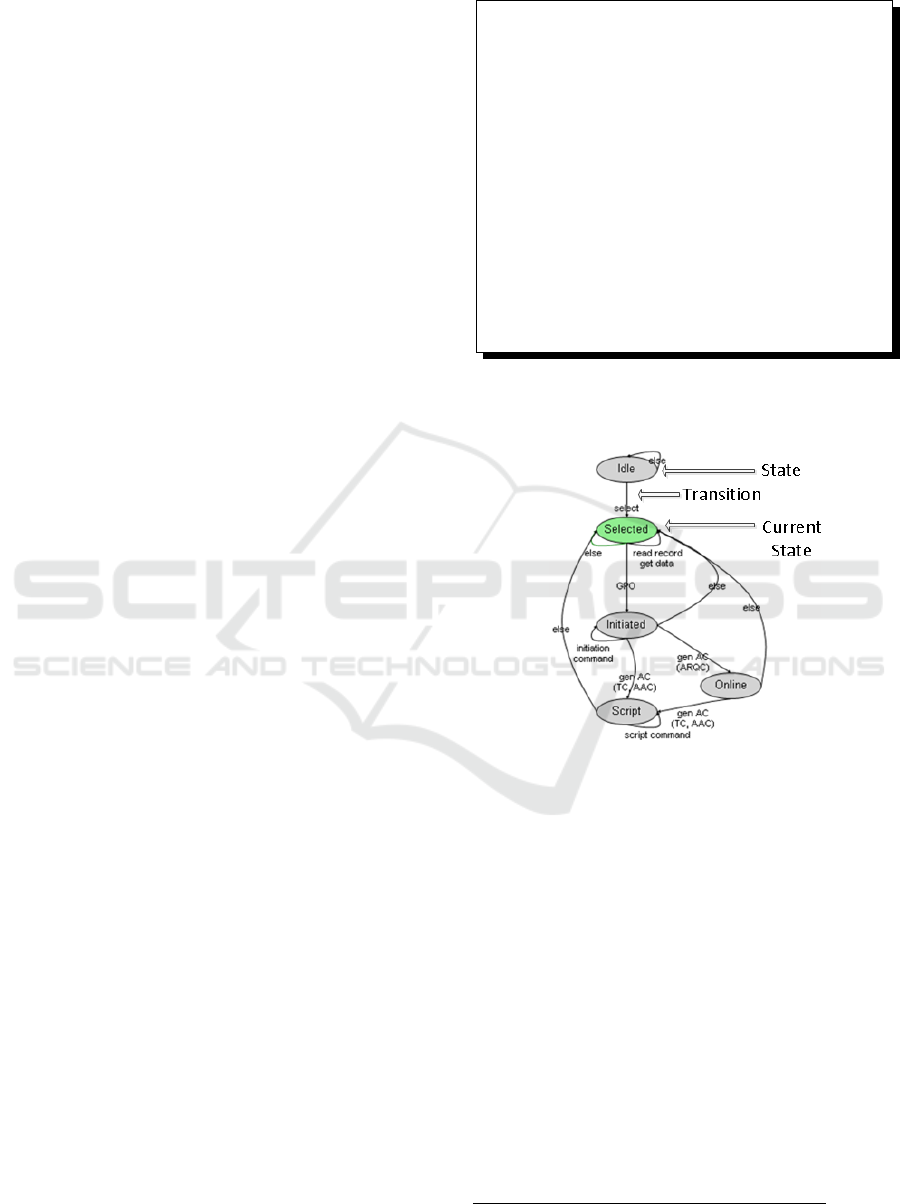

state is given by Mastercard to illustrate the M/CHIP

application in its proprietary speciﬁcation.

The payment application can pass from a state to

another only by receiving and responding to a series

of command/response pairs, this is the concept of ap-

plication state. We cannot only consider the accep-

tance of a command and its response without consid-

ering its current state.

A terminal communicates with the smart card by

sending commands and receiving responses. In the

ﬁgure 1, we can see the structure of APDU com-

mands and APDU responses according to ISO/IEC

7816. CLA indicates the type of a command, INS

a speciﬁc command, P1 and P2 are parameters for a

command, LC indicates the length of the UDC which

is optional data and LE indicates the length of the ex-

pected data. Expected data, only contained in the re-

sponse if LE is in the command, are the UDR. Finally,

SW1 and SW2 are mandatory in the response and are

the command processing status.

During the life of a product, we have to ask some

questions (Radatz et al., 1990) :

• Veriﬁcation: Are we building the product right ?

• Validation: Are we building the right product ?

• Evaluation: How can we interpret the veriﬁca-

tion and validation ?

• Certiﬁcation: Are the evaluation results ap-

proved by a speciﬁc ﬁrm?

To evaluate and validate the product, several tests

are made during the different steps of the life of the

smart card (Rankl and Efﬁng, 2010). All aspects of

the card (application, chip and personalization data)

must be validated to ensure a secure product. Once

designed and validated, the card is certiﬁed. The cer-

tiﬁcation allows recognizing the level of security of a

product by an external laboratory.

According to ISO 8402 (for Standardization,

1994), quality is deﬁned as the totality of features

and characteristics of a product or service that bear on

its ability to satisfy the stated or implied needs. The

An Observe-and-Detect Methodology for the Security and Functional Testing of Smart Card Applications

283

two most important attributes of quality are robust-

ness and freedom from defects and errors. Concern-

ing this ﬁeld, the test is mostly used for the evaluation

of a smart card and the evaluation of a software is

called software evaluation. The purpose of testing is

always to ﬁnd defects and errors, and the entire testing

process must be oriented towards this purpose. Tests

can never be complete, since it is never possible to

fully work through all possible permutations. We ob-

tain a desired level of quality. As tests can never fully

cover everything, it is difﬁcult to deﬁne a completion

criterion for test development. The rule of thumb is

that the same amount of effort should be spent on

test development as on product development (i.e. try

to achieve full requirements coverage with the tests).

The minimum level of instruction coverage should be

in the 95% range, and the branch coverage should be

in the 80% range (Rankl and Efﬁng, 2010).

3 PROPOSED EVALUATION

METHODOLOGY

3.1 Objectives

From a certiﬁed card, we get a collection of proper-

ties, local and required behaviors (ﬁrst, this collection

is created manually but we are working on this topic

to automatize the generation). These properties are

used by the Observer to determine if a card applica-

tion is correct. In order to reach this goal, a modiﬁed

smart card, containing a modiﬁed smart card applica-

tion of the certiﬁed one, is used with a terminal. In

our case, it is a terminal doing a nominal EMV trans-

action. The Observer therefore takes as input the com-

munication between the tested card and terminal and

the collection of properties to check. Note that the

veriﬁcation of the state machine is possible. During

the communication, the Observer recovers transmit-

ted data and detects an anomaly on the ﬂy. Finally, a

report is created.

3.2 Property Language

To detect abnormal behaviors and give some docu-

mentation about the reasons that triggered those be-

haviors, we deﬁne the properties that correspond to

required and local behaviors of an application. The

section deﬁnes the property language.

3.2.1 Basis

Unlike formal methods such as model checking or

proof of theorem approaches, we are checking prop-

erties while observing the transmitted communica-

tion during the transaction. In fact, in studies like

(Posegga and Vogt, 1998) (Sabatier and Lartigue,

1999) (Lanet and Requet, 2000) (Jacobs et al., 2004)

or (Haneberg et al., 2007), the veriﬁcation needs a for-

mal model or the access to the source code. With our

language, we can deﬁne the required behavior (local

and global) using only the transmitted data.

3.2.2 Deﬁnitions

The language allows us to deﬁne both a state machine,

allowing to follow the actual behavior of the appli-

cation and also to deﬁne the properties as deﬁned in

(Jolly et al., 2014).We can follow the global behavior

of the smart card but also detect local changes in the

application behavior.

To deﬁne this behavior, we have two types of el-

ements. First, we have the element representing the

APDU communication. The APDU data is deﬁned

by :

• Instruction: represents the CLA and INS bytes

of a command APDU

• Parameters: represents the P1and P2 bytes of a

command APDU

• Status: represents the SW1 and SW2 bytes of a

response APDU

The second type is the logical relation between

two or more elements. The logical relation between

APDU are deﬁned by:

• And: elements are all true

• Or: one element is true

• Nor: elements are all false

In addition to the previous elements, deﬁning a

machine state, i.e. a global behavior of a smart card

application, requires these tags :

• Cardstate: the name of the state of the applica-

tion used to follow the actual behavior of the ap-

plication.

– name: name of the cardstate

– default: the initial state of the machine state

• Transition: allows modifying the actual state of

the smart card application

– name: name of the transition

– from: previous cardstate

– to: next cardstate

• From / To: to construct the transitions between

cardstates

– nom: name of the begining cardstate

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

284

For the deﬁnition of property, we need the follow-

ing elements to deﬁne properties :

• Property: required and local behavior of the

smart card

– name: name of the property

– explanation: description of the property

• Step: indicates the order of elements

For each of these elements, we can work on trans-

mitted data (i.e. UDC or UDR data). We added tags

to recover the plain transmitted data. If we recover

TLV data, we should be able to work with only one or

several speciﬁc values.

• Cdata: allows to recover the plain udc data

• Rdata: allows to recover the plain udr data

• Tag: allows to verify the value of a particular TLV

data, contained in a response APDU

– name: name of the tag (example : 0x9F27)

– value: value of the TLV data (example : 0x40)

• Mask: allows to apply a mask on the values

• Call: allows to call a function to manage the

data for a particular property (example : check-

ing of the validity of a speciﬁc data). This last

element permits to improve the veriﬁcation by

adding some functionnality to the properties and

particularly on the studied data that can be en-

crypted and can be added to every step of a prop-

erty.

3.3 Development Tools

Many tools exist to help verifying and validating

smart cards. Here are several independant or aca-

demic tools able to work with smart cards:

• SmartCard Framework, an independant tool to

easily develop a smart card application (Rouit,

2011)

• Open SCDP, a collection of tools for the develop-

ment, test and deployment of smart card (Card-

Contact, 2012)

• Javaemvreader, a tool to communicate with, and

read data from an EMV smart card (Sasc, 2014)

• PCSC sharp, an independant tool in order to work

with smart cards (Mueller, 2012)

• CardPeek, an independant tool to read the con-

tents of smart cards (Pannetrat, 2010)

• OPAL, a library for developing tools for Smart

Card research and education (Bkakria et al., 2011)

• WSCT, a framework able to easily explore and

work with smart cards (Vernois and Alimi, 2010)

Funct.* Doc. Maint.

SmartCard Framework ? ?? ?

OpenSCDP ?? ? ? ? ??

Javaemvreader ? ? ? ? ?

PCSC Sharp ? ? ?

OPAL ? ? ? ? ? ?

CardPeek ? ? ? ? ? ?

WSCT ? ? ? ? ? ? ?

* Functionalities contain observation, extension and replay

mechanisms. The more there are stars like ?, the more the

tool is interesting for this feature for the Functionnalities,

Documentation and Maintenance criteria.

3.4 Discussion

WSCT (Vernois and Alimi, 2010) is a framework de-

veloped by Sylvain Vernois et al. at Greyc for several

years. It is written in C# and allows to work with

smart cards, e.g. for exploration and ﬁnding fault on

smart cards. The two main purposes of this tool are to

provide :

• an object-oriented API to access a smart card

reader.

• an evolutive GUI (with creation of plugins) to

manipulate different types of smart cards.

Using this framework, we have easily created

two plugins. Indeed, WSCT framework has an easy

extension mechanism. We choose to create seperate

plugins to emphasize that the Observer platform

is not linked to the terminal. The Observer can

be used on every kind of terminal (nominal or test

transaction).

We used this tool to develop the proposed prop-

erty language in order to observe communication,

thanks to the possibilities of the framework, and de-

tect anomalies, thank our language.

4 ILLUSTRATION

Here, we are showing two studies done with this ob-

servation tool. The ﬁrst deals with EMV transaction,

i.e. we are verifying an existing implementation of

the EMV transaction. The second is about the use of

the properties to analyze Fuzzing’results on a PME

implementation, an e-wallet application. We are fo-

cusing on the smart card application using a correct

and non-malicious smart card reader. For each study,

the reference to see the divergence with the correct

An Observe-and-Detect Methodology for the Security and Functional Testing of Smart Card Applications

285

behavior is the collection of properties (a set of asser-

tions based on the transmitted data between the cer-

tiﬁed smart card and the terminal) that can be partial

or complete. In our study, we use speciﬁc, local and

required behaviors in order to check a speciﬁc part of

the application.

4.1 Observation of the EMV

Transaction

4.1.1 View of the Platform

Two plugins are needed for our method: one to com-

municate with the smart card and one to observe the

communication and do the properties veriﬁcation. We

add an automat to follow the behavior of this smart

card. We decided to add the machine state of the EMV

application based on (Aarts et al., 2013). The inputs

of the Observer are communication APDU and the se-

lected properties to verify.

4.1.2 The Used Protocol

The protocol we used is based on three main points:

• the smart card application and its documentation.

Using the documentation, we manually model the

local behaviour. Also, it should be mentioned

sooner that the properties are encoded with XML.

We used our own EMV smart card application cer-

tiﬁed by a laboratory.

• the application to do the transaction because this

method uses APDU communication between a

terminal application and the smart card applica-

tion. We used the WSCT framework to create

an EMV explorer able to do the EMV transaction

with the smart card application. (It can be simpli-

ﬁed by the use of an extern terminal observed by

the WSCT functionalities).

• the Observer, an application able to recover

APDU communication and detect a bad behav-

ior of the smart card application. It simply com-

pares the transmitted APDU communication with

the theorical behaviors deﬁned in the xml ﬁle.

4.1.3 Observation of Smart Card Application

To deﬁne the machine state, we need two elements:

”cardstate” and ”transition”. The listing 1 shows a

partial machine state of the payment application. We

call ”selected” the state when the application is se-

lect (and so select performed) and ”initiated” when

the GPO command (initiation part of the transaction)

is performed.

Listing 1: Partial machine state of the payment application.

< c a r d s t a t e name=” S e l e c t e d ” />

< c a r d s t a t e name=” I n i t i a t e d ” />

< t r a n s i t i o n t e x t = ”GPO”>

<and>

< s t a t u s = ” 0 x9000 ” />

< / a nd>

< / t r a n s i t i o n>

< t r a n s i t i o n t e x t = ” e l s e ”>

<f rom name=” i n i t i a t e d ” d i r = ” R i g h t ” /

< / t r a n s i t i o n>

< / machi n e>

Figure 2 presents an illustration of the machine

state observation of the payment application, which

is implemented in the Observer plugin.

Figure 2: Observation of the machine state evolution.

4.1.4 Example of Property Detection

To illustrate our study, we take the example from

(Jolly et al., 2014). The property P3 represents the

behavior between the ”selected” and ”initiated” states

using only one command. The property P3 is deﬁned

on three clock cycles, i.e. three pairs APDU com-

mand/response. If one wants to check the value of

a TLV data, one could have added a TAG veriﬁca-

tion as previously deﬁned. Here, we checked only

the success or the failure of the GPO (Get Processing

Options) command between two particular states of

the application. The xml ﬁle in the listing 2 is the P3

property usable by the Observer.

Good behavior with three GPO commands:

: ((SW1(1) = 90) and (SW 2(1) = 00) and (SW1(3) 6= 90) and

(SW 2(3) 6= 00) and (SW1(5) = 90) and (SW2(5) = 00)) or

(INS(0) = A8) and (INS(2) = A8) and (INS(4) = A8)

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

286

Listing 2: P3 property.

< s t e p>

< s t a t u s = ” 0 x9000 ” />

< / s t e p>

< s t e p>

<n or>

< s t a t u s = ” 9000 ” />

< / n or>

< / s t e p>

< s t e p>

< s t a t u s = ” 0 x9000 ” />

< / s t e p>

To understand the scope of the detection proper-

ties method,here is a comparison of three possible be-

haviors of the application:

• a) The ﬁrst case is the result of a successful and

ordered test from the selection of the application

to the use of Generate AC command. The tester

knows the expected behavior of the application

comparing to his test. The application responds

appropriately to the known conﬁguration of the

test. The property is not violated.

• b) The second case presents an unusual refusal

Generate AC command but also detection of the

violation of the property P3, which explains the

reason for the anomaly detected by the test. The

property violation detection gives an improved

documentation about the result of the test.

• c) The third case is correct behavior relative to the

test result. But the property has been violated. In

fact, the application contains an error but it’s not

critical comparing to the behavior of the applica-

tion with the computed test.

4.2 Fuzzing Analysis of a PME

Implementation

The same observation method can be used during a

fuzzing session to complete the analysis of an im-

plementation. The PME application is an electronic

purse. It’s a much more simple application than the

EMV one.

4.2.1 Basis of the Study

A reference implementation, an own implementation

and a set of scripts (one script is a possible transac-

tion) are inputs of the evaluation system. (Items such

an XML ﬁle representing the application and an XML

ﬁle containing properties are generated from the ref-

erence implementation or associated documentation).

The system sends the scripts to both applications and

detects a difference between the implementation, i.e.

an anomaly is detected. To analyze the reasons for

this error, the system uses the violated properties ob-

served by the tool.

The terminal sends the N transaction scripts to the

two smart cards. if it detects a difference between our

implementation and the reference one, an anomaly

is detected. The Analysis tool is composed of three

main modules:

• A) The Observation Module recovers APDU

communication (we used a representation of the

evolution of the application state as in ﬁgure 3 but

it’s informative information).

• B) The Detection Module detects a difference be-

tween two implementations of an application (the

reference implementation and the tested one).

• C) The Analysis Module can give more informa-

tion about a detected anomaly.

4.2.2 Experimental Results

To study the addition of the method on an evaluation

method such as fuzzing, we have used electronic wal-

let application called PME application. In order to

compute our tests, we used :

• 4 implementations: one is the reference imple-

mentation and the others contains errors (defec-

tive veriﬁcation of balance during a debit opera-

tion, defective check of pin code and unmanaged

blocking of the card when using false pin code)

• 2 scripts of transaction: these scripts allow to

compute several different transactions in order to

detect the presence of an anomaly (by checking

the difference between the responses of the ref-

erence implementation and the responses of the

tested implementation)

• 5 properties: we use a limited number of proper-

ties because we are showing the feasibility of the

method on our own smart cards. Each property is

a local and required behavior of the smart card ap-

plication (given by the reference implementation

which must be validated).

We may also use the documentation of an appli-

cation to create these elements. Having a reference

application is simpler for our study.

4.3 Explanation of an Example

This example explains an anomaly detection: the de-

An Observe-and-Detect Methodology for the Security and Functional Testing of Smart Card Applications

287

fective blocking of the card if the user is testing too

many pin code. Without blocking the application,

the so-called brute force attack would be possible.

The script therefore sends over n times a wrong pin

code (n is the maximum number of false pin code de-

ﬁned by the application documentation). When the

pin code is accepted by the tested smart card but not

by the reference smart card, an anomaly is detected.

We just need to look the observer to see the violated

property to understand the reason of the anomaly. We

have, in this example, three properties in the listing 3.

• The ﬁrst checks that the blocking displayed by the

error code is effective, i.e. it is not just a superﬁ-

cial blockage.

• The second ensures that the application sends an

error message, equal to 9170, once the counter is

zero, i.e. the smart card has processed the infor-

mation correctly.

• The latest involves a control method. We observe

two failed uses of the verify command. In this

case, the difference between the two error codes

is 1, i.e. the counter is decremented correctly.

Listing 3: Example of explanation by properties.

< s t e p>

< i n s t r u c t i o n i n s t r u c t i o n =” 0 x9020 ”

< s t a t u s s t a t u s = ” 0 x9170 ” />

< / s t e p>

< s t e p>

< i n s t r u c t i o n i n s t r u c t i o n =” 0 x9020 ”

< r e q u i r e>

< s t a t u s s t a t u s = ” 0 x9170 ” />

< / r e q u i r e>

< / s t e p>

< s t e p>

< i n s t r u c t i o n i n s t r u c t i o n =” 0 x9020 ”

< s t a t u s s t a t u s = ” 0 x9111 ” />

< / s t e p>

< s t e p>

< i n s t r u c t i o n i n s t r u c t i o n =” 0 x9020 ”

< s t a t u s s t a t u s = ” 0 x9170 ” />

<n or>

< c d a t a c d a t a = ” 01020304 ” />

< / n or>

< / s t e p>

< s t e p>

<n or>

< s t a t u s = ” 0 x9000 ” />

<n or>

< / s t e p>

< s t e p>

<n or>

< s t a t u s = ” 0 x9000 ” />

< s t a t u s = ” 0 x9170 ” />

<n or>

< r e q u i r e>

< c a l l method=” c o n t r o l ” />

< / r e q u i r e>

< / s t e p>

4.4 Advantages and Improvements

The use of properties allows verifying an implementa-

tion as an efﬁciant and stand alone evaluation method.

The efﬁciency of this method is due to the efﬁciency

of the description of the application, i.e. a full collec-

tion of properties must be deﬁned. We need also have

a full documentation of the application or a certiﬁed

implementation of the application. The method can

be used with another evaluation method as fuzzing in

order to give more documentation about an error de-

tecter by the fuzzing report.

5 CONCLUSIONS

This paper has deﬁned a language property related

to the veriﬁcation approach exposed in this paper.

The two main principles of this method are: the

communication observation and the property viola-

tion detection. Using this language, we have deﬁned

the machine state corresponding to our studied smart

card application to observe the global behavior. And

more interesting, we have deﬁned properties to detect

anomalies and the reasons that triggered those anoma-

lies. We have created the observe-to-detect tool us-

ing the WSCT framework. Finally, the violation de-

tection allows us to give more documentations about

a detected error or an undetected anomaly by a test

plan. We have been able to validate our method with

the creation of our own smart card application and our

own intern terminal. Moreover, the use of this method

mixed with a known evaluation method as the fuzzing

shows complementary information about an anomaly.

It is easier to explain fuzzing results, i.e. ﬁnd the rea-

sons of a detected error on a smart card application as

the PME application.

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

288

The perspectives of this work is to automatize the

creation of properties for a speciﬁc application as an

EMV payment application. Indeed, creating proper-

ties manually allows us to validate our method with

suitable properties. With an automatic generation, we

will be able to have a complete and user conﬁgurable

collection.

REFERENCES

Aarts, F., De Ruiter, J., and Poll, E. (2013). Formal models

of bank cards for free. In Software Testing, Veriﬁcation

and Validation Workshops (ICSTW), 2013 IEEE Sixth

International Conference on, pages 461–468. IEEE.

Ahrendt, W., Baar, T., Beckert, B., Bubel, R., Giese, M.,

ahnle, R., Menzel, W., Mostowski, W., Roth, A.,

Schlager, S., et al. (2005). The key tool. Software

& Systems Modeling, 4(1):32–54.

Alimi, V., Vernois, S., and Rosenberger, C. (2014). Analysis

of embedded applications by evolutionary fuzzing. In

High Performance Computing & Simulation (HPCS),

2014 International Conference on, pages 551–557.

IEEE.

Alliance, S. C. (2011). Card payment roadmap in the united

states: How will emv impact the future payments in-

frastructure? White Paper. February.

Bekrar, S., Bekrar, C., Groz, R., and Mounier, L. (2012).

A taint based approach for smart fuzzing. In Soft-

ware Testing, Veriﬁcation and Validation (ICST), 2012

IEEE Fifth International Conference on, pages 818–

825. IEEE.

Bkakria, A., Bouffard, G., Iguchi-Cartigny, J., and Lanet, J.-

L. (2011). Opal: an open-source global platform java

library which includes the remote application manage-

ment over http. In e-Smart 2011.

CardContact (2012). http://www.openscdp.org/.

Distefano, D. and Parkinson J, M. J. (2008). jstar: Towards

practical veriﬁcation for java. In ACM Sigplan No-

tices, volume 43, pages 213–226. ACM.

EMVCo (2012). https://www.emvco.com/approvals.aspx.

EMVCo (2013).

for Standardization, I. O. (1994). ISO 8402: 1994: Quality

Management and Quality Assurance-Vocabulary. In-

ternational Organization for Standardization.

Haneberg, D., Grandy, H., Reif, W., and Schellhorn, G.

(2007). Verifying smart card applications: an asm ap-

proach. In Integrated Formal Methods, pages 313–

332. Springer.

Jacobs, B., March

e, C., and Rauch, N. (2004). Formal ver-

iﬁcation of a commercial smart card applet with mul-

tiple tools. In Algebraic Methodology And Software

Technology, pages 241–257. Springer.

Jolly, G., Vernois, S., and Lambert, J.-L. (2014). Im-

proving test conformance of smart cards versus emv-

speciﬁcation by using on the ﬂy temporal property

veriﬁcation. In Recent Trends in Computer Networks

and Distributed Systems Security, pages 192–201.

Springer.

Lancia, J. (2011). Un framework de fuzzing pour cartes

puce: application aux protocoles emv. In Symposium

sur la S

ecurit

e des Technologies de lInformation et des

Communications (SSTIC), page 82.

Lanet, J.-L. and Requet, A. (2000). Formal proof of smart

card applets correctness. In Smart Card Research and

Applications, pages 85–97. Springer.

Mueller, D. (2012). https://code.google.com/p/pcsc-sharp/.

Pannetrat, A. (2010). https://code.google.com/p/cardpeek/.

Philippaerts, P., M

uhlberg, J. T., Penninckx, W., Smans, J.,

Jacobs, B., and Piessens, F. (2014). Software veriﬁca-

tion with verifast: Industrial case studies. Science of

Computer Programming, 82:77–97.

Philipps, J., Pretschner, A., Slotosch, O., Aiglstorfer, E.,

Kriebel, S., and Scholl, K. (2003). Model-based test

case generation for smart cards. Electronic Notes in

Theoretical Computer Science, 80:170–184.

Posegga, J. and Vogt, H. (1998). Byte code veriﬁcation for

java smart cards based on model checking. In Com-

puter SecurityESORICS 98, pages 175–190. Springer.

Radatz, J., Geraci, A., and Katki, F. (1990). Ieee standard

glossary of software engineering terminology. IEEE

Std, 610121990:121990.

Rankl, W. (2007). Smart Card Applications: Design Mod-

els for Using and Programming Smart Cards. Wiley

Online Library.

Rankl, W. and Efﬁng, W. (2010). Smart card handbook.

John Wiley & Sons.

Rouit, O. (2011). http://www.codeproject.com/articles/170

13/smart-card-framework-for-net.

Sabatier, D. and Lartigue, P. (1999). The use of the b for-

mal method for the design and the validation of the

transaction mechanism for smart card applications. In

FM99Formal Methods, pages 348–368. Springer.

Sasc (2014). https://github.com/sasc999/javaemvreader.

van Weelden, A., Oostdijk, M., Frantzen, L., Koopman, P.,

and Tretmans, J. (2005). On-the-ﬂy formal testing of

a smart card applet. In Security and Privacy in the Age

of Ubiquitous Computing, pages 565–576. Springer.

Vernois, S. and Alimi, V. (2010). Winscard tools: a software

for the development and security analysis of transac-

tions with smartcards. Norsk informasjonssikkerhet-

skonferanse (NISK).

Wallace, D. R., Ippolito, L. M., and Cuthill, B. B. (1996).

Reference information for the software veriﬁcation

and validation process, volume 500. DIANE Publish-

ing.

Watanabe, T., Howell, P., and Pugh, S. (2006). Easing emv:

Emvco’s new common payment application. Card

Technology Today, 18(2):12–13.

An Observe-and-Detect Methodology for the Security and Functional Testing of Smart Card Applications

289
